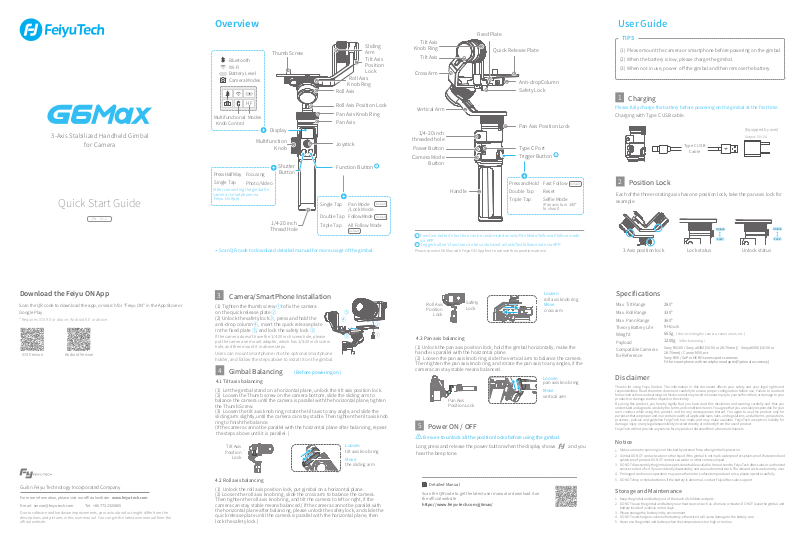

Feiyu Tech G6 Max Quick Start Guide

3-Axis Stabilized Handheld Gimbal

for Camera

Quick Start Guide

EN V 1.1

Overview

Thumb Screw

Bluetooth
Wi-Fi
Battery Level
Camera Modes

HF

Multifunctional

Modes

Knob Control

Display

Multifunction

Knob

Shutter

Press Half Way
Single Tap

(After connecting the gimbal to
camera / smartphone via
Feiyu On App)

Focusing

Photo/Video

Button

Single Tap

Double Tap

1/4-20 inch

Thread Hole

Scan QR code to download detailed manual for more usage of the gimbal.

*

Triple Tap

Roll Axis

Knob Ring

Roll Axis

Roll Axis Position Lock

Pan Axis Knob Ring
Pan Axis

Joystick

Function Button

Pan Mode
/Lock Mode

Follow Mode

All Follow Mode

Default

Sliding
Arm

Tilt Axis
Position
Lock

1

Default

Default

Fixed Plate

Tilt Axis

Knob Ring

Quick Release Plate

Tilt Axis

Cross Arm

Anti-dropColumn
Safety Lock

Vertical Arm

Pan Axis Position Lock

1/4-20 inch

threaded hole

Power Button

Camera Mode

Type C Port
Trigger Button

2

Button

Fast FollowPress and Hold

Handle

1

Function button's function can be customized as lock/Pan Mode/follow/all follow mode
via APP.

2

Trigger button's function can be customized as lock/fast follow mode via APP.

Please connect G6 Max with Feiyu ON App first to achieve the operations above.

Double Tap Reset
Triple Tap

Selfie Mode

(Pan axis turn 180°
to shoot）

Default

User Guide

TIPS

(1) Please mount the camera or smartphone before powering on the gimbal.

(2) When the battery is low, please charge the gimbal.

(3) When not in use, power off the gimbal and then remove the battery.

1

Charging

Please fully charge the battery before powering on the gimbal at the first time.

Charging with Type C USB cable.

(Equipped by user)

Output: 5V / 2A

Type C USB

Cable

2

Position Lock

Each of the three rotating axis has one position lock, take the pan axis lock for
example.

Unlock

Lock

3 Axis position lock Lock status Unlock status

Unlock

Lock

Download the Feiyu ON App

Scan the QR code to download the app, or search for "Feiyu ON" in the App Store or
Google Play.

* Requires iOS 9.0 or above, Android 6.0 or above.

iOS Version Android Version

Guilin Feiyu Technology Incorporated Company

For more information, please visit our official website

E-mail: [e-mail] Tel: [phone]

Due to software and hardware improvements, your actual product might differ from the
descriptions and pictures in this user manual. You can get the latest user manual from the
official website.

www.feiyu-tech.com

3

Camera/SmartPhone Installation

(1) Tighten the thumb screw to fix the camera
on the quick release plate .
(2) Unlock the safety lock , press and hold the
anti-drop column , insert the quick release plate
in the fixed plate , and lock the safety lock .

If the camera doesn't have the 1/4-20 inch screw hole, please
put the camera on mount adapter, which has 1/4-20 inch screw
hole, and then mount it in above steps.

Users can mount smartphone into the optional smartphone
holder, and follow the steps above to install it on the gimbal.

4

Gimbal Balancing

④

⑤

①

②

③

③

⑤

④

③

②

①

( Before powering on )

4.1 Tilt axis balancing

(1) Let the gimbal stand on a horizontal plane, unlock the tilt axis position lock.
(2) Loosen the Thumb screw on the camera bottom, slide the sliding arm to
balance the camera until the camera is parallel with the horizontal plane, tighten
the Thumb Screw.
(3) Loosen the tilt axis knob ring, rotate the tilt axis to any angle, and slide the
sliding arm slightly,until the camera can stay stable. Then tighten the tilt axis knob
ring to finish the balance.
(If the camera cannot be parallel with the horizontal plane after balancing, repeat
the steps above until it is parallel. )

Tilt Axis

Position

Lock

Loosen

tilt axis knob ring

Move

the sliding arm

4.2 Roll axis balancing

(1) Unlock the roll axis position lock, put gimbal on a horizontal plane.
(2) Loosen the roll axis knob ring, slide the cross arm to balance the camera.
Then tighten the roll axis knob ring, and tilt the camera to left or right, if the
camera can stay stable means balanced.( If the camera cannot be parallel with
the horizontal plane after balancing, please unlock the safety lock, and slide the
quick release plate until the camera is parallel with the horizontal plane, then
lock the safety lock.)

Loosen

Roll Axis
Position

Lock

Safety
Lock

roll axis knob ring

Move

cross arm

4.3 Pan axis balancing

(1) Unlock the pan axis position lock, hold the gimbal horizontally, make the
handle is parallel with the horizontal plane.
(2) Loosen the pan axis knob ring, slide the vertical arm to balance the camera.
Then tighten the pan axis knob ring, and rotate the pan axis to any angles, if the
camera can stay stable means balanced.

Loosen

pan axis knob ring

Move

Pan Axis
Position Lock

5

Power ON / OFF

vertical arm

Be sure to unlock all the position locks before using the gimbal.

Long press and release the power button when the display shows and you
hear the beep tone.

Detailed Manual

Scan the QR code to get the latest user manual or download it on
the official website

https://www.feiyu-tech.com/g6max/

Specifications

Max. Tilt Range

Max. Roll Range

Max. Pann Range
Theory Battery Life

Weight

Payload
Compatible Cameras

for Reference

280°
330°

360°
9 Hours

665g ( Not including the camera, camera lens, etc. )
1200g （After balancing ）

Sony RX100 / Sony a6300 (16-50 or 28-70mm) / Sony a6500 (16-50 or
28-70mm) / Canon M50, ect.
Sony RX0 / GoPro HERO series sports cameras
Fit for smartphone with smartphone adapter(Optional accessory)

Disclaimer

Thanks for using Feiyu Gimbal. The information in this document affects your safety and your legal rights and
responsibilities. Read the entire document carefully to ensure proper configuration before use, Failure to read and
follow instructions and warnings in this document may result in serious injury to yourself or others, or damage to your
products or damage to other objects in the vicinity.

By using this product, you hereby signify that you have read this disclaimer and warning carefully and that you
understand and agree to abide by the terms and conditions herein. You agree that you are solely responsible for your
own conduct while using this product, and for any consequences thereof. You agree to use this product only for
purposes that are proper and in accordance with all applicable laws, rules, and regulations, and all terms, precautions,
practices, policies and guideline FeiyuTech has made and may make available. FeiyuTech accepts no liability for
damage, injury or any legal responsibility incurred directly or indirectly from the use of product.

FeiyuTech will not provide any service for any product obtained from abnormal channels.

Notice

Make sure motor spinning is not blocked by external force when gimbal is power on.

1.
Gimbal DO NOT contact water or other liquid if the gimbal is not mark waterproof or splash-proof. Waterproof and

2.
splash-proof product DO NOT contact sea water or other corrosive liquid.

DO NOT disassembly the gimbal except is detachable available. It need send to FeiyuTech after-sales or authorized

3.
service center to fix it if you accidently disassembly and cause abnormal work. The relevant costs are borne by user.

Prolonged continuous operation may cause the motor surface temperature to rise, please operate carefully.

4.

5. DO NOT drop or strike batteries. If the battery is abnormal, contact Feiyu After-sales support.

Storage and Maintenance

Keep the gimbal and battery out of the reach of children and pets.

1.
DO NOT leave the gimbal and battery near heat sources such as a furnace or heater. DO NOT leave the gimbal and

2.
battery inside of a vehicle on hot days.

Please storage the battery in dry environment.

3.
DO NOT overcharge or overuse the battery, otherwise it will cause damage to the battery core.

4.

5. Never use the gimbal and battery when the temperature is too high or too low.

三轴相机手持稳定 器

快 速 入 门

CN V 1.1

概览

手拧螺丝

蓝牙连接指示
Wi-Fi连接指示

电量指示
相机拍摄模式

HF

控制状态

半按
单击对焦拍照/录像

(稳定器通过Feiyu ON
App 连接相机或手机后)

更多功能的使用请扫码下载参阅详细版说明书

*

*

工作模式多功能旋钮

显示屏

多功能旋钮

拍摄键

1/4-20英寸

螺丝孔位

横滚轴旋钮环

横滚轴

横滚轴定位锁
航向轴旋钮环
航向轴

四向摇杆

1

功能键

航向跟随

单击

/锁定模式

双击 俯仰航向

跟随模式

三连击 三轴跟随模式

滑臂

俯仰轴
定位锁

默认

默认

默认

俯仰轴旋钮环

固定板

俯仰轴

快装板

横臂

防脱柱
安全锁

竖臂

航向轴定位锁

1/4-20英寸

螺丝孔位

电源键

相机模式键

手柄

Type C 端口

2

扳机键

快速跟随按住

默认

双击
三连击复位自拍

1

可通过App修改该按键的操作功能，可修改为锁定、航向跟随、航向俯仰跟随、三轴跟随模式
等模式。

2

可通过App修改该按键的操作功能，可修改为锁定、快速跟随等模式。

以上操作需G6 Max 已成功连接Feiyu ON App。

(水平旋转180°)

入门

温馨提示

（1）请先安装好相机或手机后，再开机！
（2）若电量过低，建议您马上充电！
（3）当您不使用时，请关闭电源。

1

充电

采用Type C USB数据线充电，如下图所示：

2

定位锁

稳定器三个轴分别设置有定位锁，以航向轴为例。

定位锁示意

首次使用前，请务必给稳定器充满电

Type C USB

数据线

锁定状态

解锁

锁定

（自备）

输出: 5V / 2A

解锁

锁定

解锁状态

下载安装 Feiyu ON App

扫描二维码或在应用商店搜索“Feiyu ON”下载

* 系统要求：iOS 9.0或更高版本，Android 6.0 或更高版本
* Android版本请使用浏览器扫描二维码下载

iOS 版本 Android 版本

桂林飞宇科技股份有限公司

登录飞宇科技官方网站，获取产品全部信息

邮箱： [e-mail] 电话：400-990-6118 / 0773 2320865

本产品因后续软硬件更新有可能发生说明书介绍与实际产品功能不相符，
可前往官方网站获取最新说明书

www.feiyu-tech.cn

3

安装相机/手机

(1) 通过手拧螺丝 将相机固定于快装板上 。
(2) 解锁安全锁 ，按住防脱柱 ，将安装好的

相机滑入固定板 上，锁紧安全锁 。

如相机无内置1/4-20英寸螺丝孔位，需置入
对应的转接组件，再按以上方式安装。

可选用手机夹具，将手机置入夹具中，再按
以上方式安装。

4

平衡调节

①

③

⑤

( 请在开机前调整 )

④

②

⑤

③

⑤

④

④

③

②

①

4.1 俯仰轴平衡调节

(1) 将稳定器立于水平面，解锁俯仰轴定位锁。
(2) 拧松相机底部手拧螺丝，移动调节相机的位置，直至相机与水平地面平行，拧
紧手拧螺丝。
(3) 拧松俯仰轴旋钮环，在俯仰轴角度任意给相机一个角度，微调滑臂位置，直至
给出的角度保持静止不晃动，拧紧俯仰轴旋钮环，即调节完成。
（如调节完成后，相机还未完全与水平地面平行，可重复以上步骤调整，使其平行）

俯仰轴定位锁

拧松

俯仰轴旋钮环

滑臂

移动

4.2 横滚轴平衡调节

(1) 解锁横滚轴定位锁，将稳定器立于水平面。
(2) 拧松横滚轴旋钮环，推拉横臂调整相机位置至平衡。拧紧横滚轴旋钮环，将相机
向左或者向右倾斜，若相机能稳定停留即调节完成。
（如调节完成后，相机还未完全与水平地面平行，可扳开安全锁，移动快装板位置，
直至相机与水平地面平行，锁紧安全锁 )

拧松

横滚轴旋钮环

横臂

移动

横滚轴定位锁

安全锁

4.3 航向轴平衡调节

(1) 解锁航向轴定位锁，手持稳定器手柄，使手柄与水平地面保持平行。
(2) 拧松航向轴旋钮环，推拉竖臂调整相机位置至平衡。拧紧航向轴旋钮环，将航
向轴转动到任意角度，若能稳定停留即调节完成。

拧松

航向轴旋钮环

竖臂移动

航向轴定位锁

5

开机 / 关机

开机前，请将所有定位锁解锁

长按电源键，显示屏显示 且听到提示音后松开。

参数

俯仰角动作角度 280°

横滚角动作角度

航向角动作角度 360°
理论续航时间 9小时
净重 665g ( 不包括相机、相机镜头等配件 ）
负载重量 1200g （ 重心平衡状态下 ）
适配参考机型 Sony RX100 / Sony a6300 (16-50 或 28-70mm) / Sony a6500 (16-50 或

详细说明书

扫码或访问飞宇科技官网获取最新版本

https://www.feiyu-tech.cn/g6max/

330°

28-70mm) / Canon M50 等相机
Sony RX0 / GoPro HERO 系列等运动相机

免责声明

感谢您使用飞宇稳定器。本文所提及的内容关系到您的安全、合法权益及责任，请务必认真阅读，以及按照指导正确
设置和使用本产品。不按照本文的说明和警告来操作，可能会给您和周围人带来伤害，损坏本产品或周围产品。

禁止任何用户的任何非法用途。用户将为购买和使用产品的一切行为负责。对于本产品，本公司不承担终端客户对
本产品所有调试和使用当中的风险和责任（包括直接间接或者第三方的损失）。

我公司对于任何从非正常渠道获得或不明用途的产品，将不予任何服务。

注意

1.

确保稳定器开启过程及开启后，电机转动不受外力阻挡。

2.

未标注防水或防泼水的稳定器，请勿将其接触到水或其他液体。防水或防泼水产品请勿将其接触海水或腐蚀性液体。

3.

请勿拆卸稳定器整机（除说明可拆卸配件外），如不慎拆开导致工作异常，请寄回重新调试。由此产生的费用全部
由客户承担。
长时间持续工作可能导致电机表面温度升高，请谨慎操作。

4.

5.

严禁摔落或碰撞，摔落或碰撞稳定器有可能使其损坏，导致工作异常。如出现摔落或碰撞导致工作异常，请及时联
系飞宇售后。

存储和保养

请将本产品及电池存放在儿童及宠物接触不到的地方。

1.
禁止将本产品及电池放在靠近热源 ( 火炉或加热器等 ) 的地方以及将置于热天的汽车内。

2.
请在干燥的环境中存储。

3.
切勿过充、过放电池，否则将对电芯造成损害。

4.

5. 切勿在温度太高或太低的环境下使用本产品及电池。
