Feiyu Tech G5 Service Manual

3-Axis Stabilized Handheld Gimbal
Compatible with GoPro HERO5 / HERO4 / HERO3+ /
HERO3 / Yi Cam 4K / AEE etc.
Guilin Feiyu Technology Incorporated Company
V 2.0ENUser Manual
1. Product Overview
* The showing sports camera is only for reference
[1]
[13]
[14]
[15]
[2]
[9]
[7]
[8]
[11]
[12]
[3]
[4]
[5]
[6]
[17]
[16]
[10]
[1] Cross arm [2] Rolling axis [3] Status indicator [4] Joystick [5] Function button [6] Self-timer button [7] Titling axis [8] Vertical arm [9] Panning axis [10] Handle [11] Counter weight [12] Weight ring
[13] Thumb screw [14] Retainer plate [15] Retainer bar [16] USB interface [17] Trigger button
Package List
HERO 5 camera
charging cable X1
Mini camera
charging cable X1
USB cable X1
Water Splash Proof
*Never submerge the gimbal in water
Thumb screw X2
App Control
Battery
(Type:22650) X1
Compatible with
Accessories
Portable bag X1
2. User Guide
Attention: Please complete the following instructions before powering on the gimbal.
1 2
Install the battery
Remove the handle and insert one 22650 battery into it.
Install the Camera
Take the Gopro HERO 5 camera for example
Install the camera on retainer plate,then fix the camera with retainer bar and screw.
option 1
1-normal position 2-reverse position
option 2
2-倒装
3
weight ring
counter weight
Camera balance adjustment
In order to achieve in a better performance of the gimbal, please try to balance the camera before powering on G5.
Balance adjustment reference : GoPro HERO 5 ⸺ counter weight & weight ring GoPro HERO 4 ⸺ counter weight
4
Power on / off
Attention: Make sure the camera is secure before
powering on the Gimbal.
Power On:
Press and hold the function button until the green light comes on and you hear the tone.
Power Off:
Press and hold the function button until the red light changes from quick flashing to constant and you hear the tone.
Best Balance
In case of low battery the indicator light will flash red three times every
!
5 seconds. Please charge gimbal or replace the battery.
3. Modes / Functions
Mode / Function Operation Instructions
Function Button
One tap
Two taps
Function Explanation
Panning follow / Locking Mode Single tap to switch between panning follow and locking mode
All follow
Under all follow, single tap to switch to locking mode
Three taps Rotate horizontal 180° Make the lens rotate 180 °
Four taps
Five taps
Trigger Button
Long press Locking Mode
Two taps Panning Reset
Autorotation Mode
Initialization
Quadruple taps to enter autototation mode
Five taps to automatically enter initialization
Function Explanation
In the panning follow or all follow, press and hold the button to enter the locking mode, release it to return previous mode
Restore the initial follow state of the panning follow
Explanation of LED indicator status
The current mode of the gimbal can be identified by the indicator status.
Indicator
status Mode / Status
Blue light flashes once
Blue light flashes twice
Blue light constant on
Blue light keeps flashing
Red light flashes three times
Red light keeps flashing
Panning follow
All follow
Locking mode / Initialize the gimbal
Initialization failure / Malfunction
Low battery
Entering power off
Status
indicator
Function Button

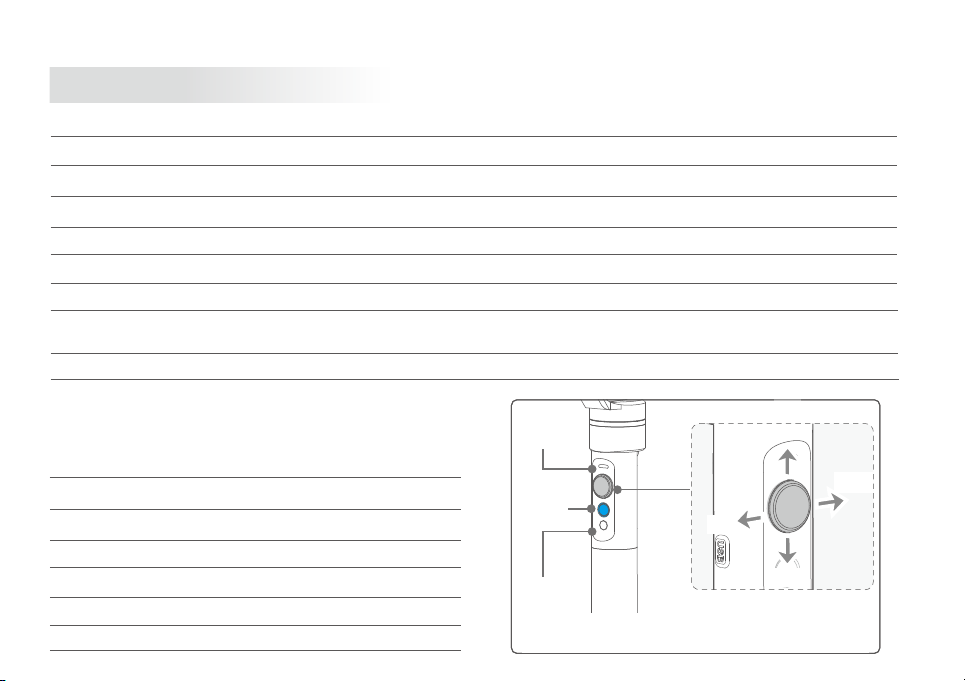

Explanation of joystick control
Up
Right
Left
Self-timer button
Long press the self-timer button, the lens will rotate 180 °, release to restore.
Down

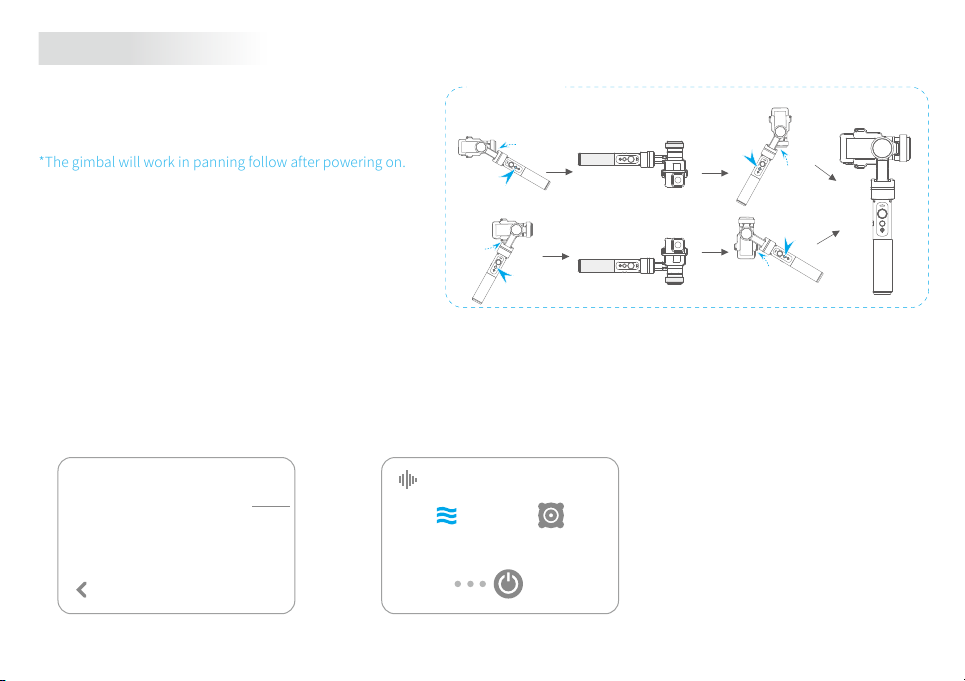

Working Modes
*The gimbal will work in panning follow after powering on.
Panning follow
All direction are fixed, and the camera lens moves according to the hand movement directionof the user.
All follow
The rolling direction is fixed, and the camera lens moves according to the hand movement direction of the user.
Locking Mode
The orientation of the camera is fixed.
Vertical Shooting Mode
≤30°
Single tap
30°≥
Single tap
Vertical Shooting
Single tap
Vertical Shooting
30°≥
Reset
Return to panning follow, all to return to default.
Audio effect optimization
When installing GoPro HERO5 on G5, the following configuration of HERO5 will help you to get better audio effect:
[RAW AUDIO TRACK] HIGH
RAW AUDIO TRACK
Applies full audio processing including wind and/or stereo and automatic gain.
MID
HIGH
[MANUAL AUDIO CONTROL] Wind Only
MANUAL AUDIO CONTROL
Wind Only
Stereo Only
Reset
≤30°
Single tap
Autorotation Mode

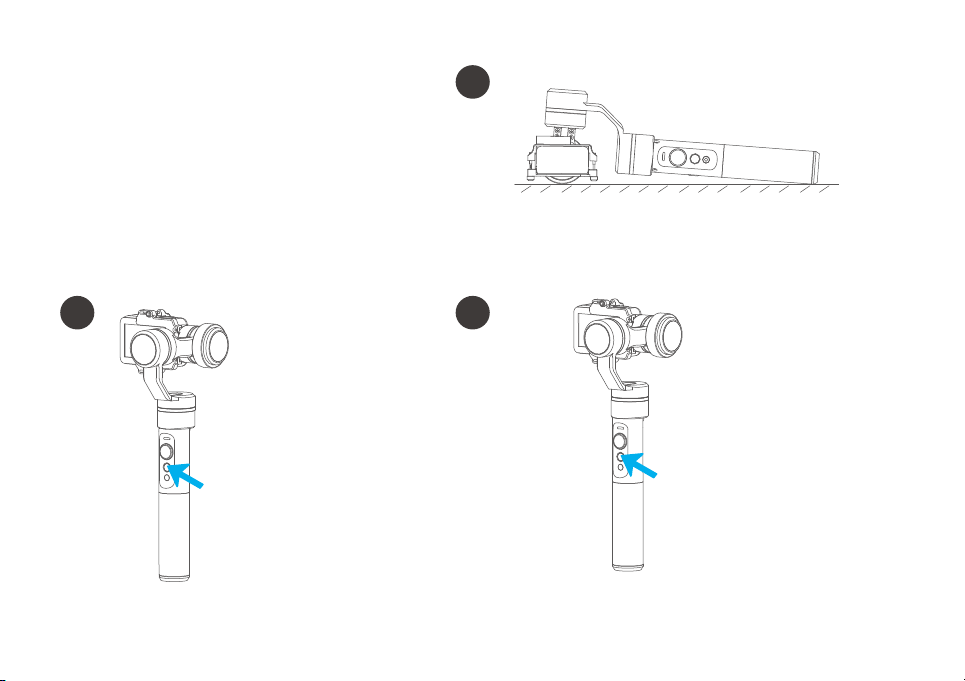

1.Four taps on function button, gimbal will access the autorotation mode .
2. Set the gimbal rotetion start position: Pull the tilting axis or panning axis to the start position by hand,clicking the function button to record.
3. Set the gimbal rotetion end position:Pull the gimbal (which can be rotated more than one turn) to the rotation path you want to set, and then click the function button to record the end position .
4.The gimbal will go to the start position and start the automatic rotation. Using the gimbal autorotation function with a camera, timelapse photography functioning can be used to achieve special movement timelapse photograpy.use the Feiyu ON App for control the speed setting .
Note: Both the panning and tilting directions can be rotated.
Exit operations:
1.Click the function button to exit the autorotation mode during automatic rotation and reset the gimbal.
2.Enter the autorotation mode or autorotation setting, four times click the function button to exit the autorotation mode and reset the gimbal.
Annexed parameter table:
gimbal speed setting reference table
Tilting
Panning
1.Four taps on function button, gimbal will access the autorotation mode setting.
Tilting
Panning
2. Turn the panning axis or tilting axis to the start position and hold for half a second.Click on function button to record
7
the start position .
3 .Turn the panning axis or tilting axis to the end position and hold for half a second.Click on the function button to record the end position .
4.Gimbal will recover to start position automatically. Tilting axis and panning axis turn to end position at constant speed.The gimbal is automatically reset after the end.
Manual Lock
Pull to the required angle and hold for half a second to lock in that position.(The tilting axis and panning axis in the locking mode can be manual locking .The tilting axis can be manually locked in the panning follow.) Take the tilting axis as an example :
1
Hold the camera and change its angle in tilting axis direction.
2
Keep this position for half second, the current angle will be locked manually.
4. Download and connect App
1
Download " Feiyu ON " and install it.
(1) iOS version: (2) Android version:
App Store
2
Connecting App
Feiyu ON
Feiyu ON
GuiLin FeiYu Technology Incorporated Company
Download
Google play
Feiyu ON
Feiyu ON
GuiLin FeiYu Technology Incorporated Company
* Use the browser to scan two-dimensional code can be downloaded the App directly
Download
Start the App on your smartphone,follow the instructions to connect the smartphone with gimbal via bluetooth.
?
G5
G5
Connect Connect
G5
FY_G5 _XX
Choose a gimbal
FY_XXX_XX
FY_XXX_XX
FY_XXX_XX
?
×
360°
5. Charging
1
Gimbal charging
* Please make sure the battery was fully charged before you power on the gimbal first time.
Option 1: charging with micro USB cable.
Micro USB cable
equipped by user
Input:5V/1A
Option 2: remove the battery and charge the battery with charger(equipped by user).
2
Charging for Camera
Camera power-
supply port
HERO 4相机
HERO 4 mini Port
mini端口
HERO 4相机
HERO 5 Type C Port
mini端口
By connecting the camera(equipped with Mini-USB charging port) and G5, the camera can be charged while G5 is power on.
Mini Port
camera
charging cable
Connect the Hero 5 with the gimbal via Type-C cable, the Hero 5 can be charged when gimbal is power on.
Type C Port
charging cable
Mini
Type C
camera
Micro Port
Micro Port
10
6. Firmware Upgrade

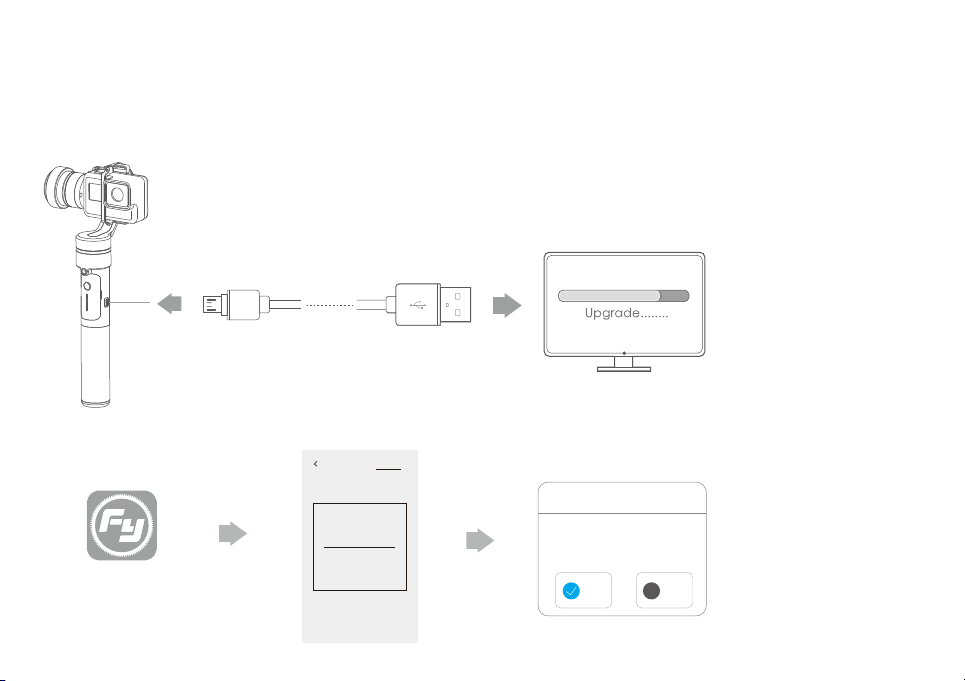

Option 1: connect the gimbal with PC via micro USB cable to upgrade the firmware.
(1)
Please visit the official website www.feiyu-tech.com to download the relevant programs for upgrading, including USB driver, firmware upgrade software and product firmware. Install the relevant software, decompress the firmware files and upgrade according to the firmeare upgrade insteructions.
Micro USB cable
PC
Option 2: connect the gimbal with smartphone via bluetooth, and then upgrade the firmware.
(2)
Settings Updata
Firmware upgrade
The current used version 1.7.2,
Feiyu ON
new firmware is available, do you want to upgrade?
Download
Later
and install it.
new firmware is available, do you want to upgrade?
Yes
×
No
11
7. Gimbal initialization
You can initialize your gimbal when:
(1) camera is not level. (2) if not used for a long period of time. (3) in case of extreme temperature variations.
Adjusting steps:
1
Five tap function button, the motors stop working after the voice "drop" , the blue light is always on.
2
Place the gimbal still on a desktop. The gimbal will automatically initialize when it detects being static. The blue light cycles three flashes and then initialization ends,otherwise the initialization fails.
3
After the initialization is successful, click the function button to wake up.
Note: If the initialization is not successful for a long time, long press the function button to turn off the gimbal,restart it and then initialize.
12
8. Parameters
13
Titling Angle
Rolling Angle
Panning Angle
Adaption
Weight
Unit: mm
42
11.3
16.5~29
360°
245°
360°
Titling Increments
Panning Increments
Usage Time
GoPro HERO5 / HERO4 / HERO3+ / HERO3 / Yi cam 4K / AEE
271g (Not including battery, camera or counter weight )
7985
44.7
4.9
min 2°/s max 75°/s
min 3°/s max 150°/s
8 Hours
and other cameras with the same size
246
143
D I S C L A I M E R
Prohibit any user for any illegal purpose. Users will be responsible for all behaviors of purchase and use products.
The Company assumes no liability for any risks related to or resulting from the debug and use of this product (including the direct, indirect or third-party losses).
For any unknown sources of using, we will not be at any services.
The updating and changes of product firmware and program may cause changes in function descriptions in this user manual, please read the instructions carefully before upgrading the firmware and use the corresponding user manual.
You can get the latest user manual from the official website: www.feiyu-tech.com
Feiyu Tech reserves the right to amend this manual and the terms and conditions of use the gimbal at any time.
Please correctly assemble the gimbal in accordance with the diagram
Attention
Please install the phone before powering on the gimbal
When the gimbal is not in use or placed on the table, please ensure it is powered off
14
Guilin Feiyu Technology Incorporated Company
Due to software and hardware improvements, your actual product might differ from the descriptions
and pictures in this user manual. You can get the latest user manual from the official website.
For more information, please visit our official website
