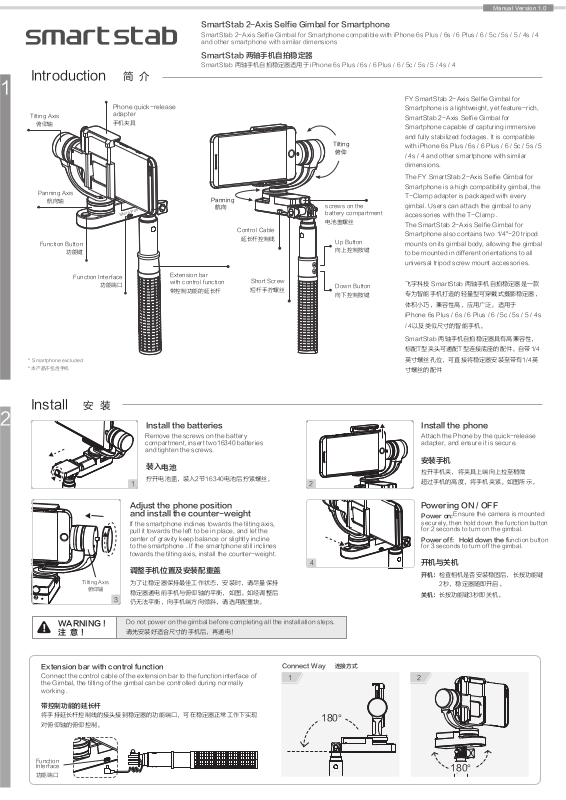

Feiyu Tech SmartStab Service Manual

Introduction

Tilting Axis

俯仰轴

Panning Axis

航向轴

Function Button

功能键

Function Interface

* Smartphone excluded * 本产品不包含手机

简介

Phone quick-release adapter

手机夹具

Micro Port

功能端口

SmartStab 2-Axis Selfie Gimbal for Smartphone

SmartStab 2-Axis Selfie Gimbal for Smartphone compatible with iPhone 6s Plus / 6s / 6 Plus / 6 / 5c / 5s / 5 / 4s / 4 and other smartphone with similar dimensions

SmartStab 两轴手机自拍稳定器

SmartStab 两轴手机自拍稳定器适用于 iPhone 6s Plus / 6s / 6 Plus / 6 / 5c / 5s / 5 / 4s / 4

Panning

航向

Extension bar with control function

带控制功能的延长杆

Control Cable

延长杆控制线

Short Screw 短杆手拧螺丝

Tilting

俯仰

screws on the battery compartment

电池盖螺丝

Up Button 向上控制按键

Down Button 向下控制按键

Manual Version 1.0

FY SmartStab 2-Axis Selfie Gimbal for Smartphone is a lightweight, yet feature-rich, SmartStab 2-Axis Selfie Gimbal for Smartphone capable of capturing immersive and fully stabilized footages. It is compatible with iPhone 6s Plus / 6s / 6 Plus / 6 / 5c / 5s / 5 / 4s / 4 and other smartphone with similar dimensions.

The FY SmartStab 2-Axis Selfie Gimbal for Smartphone is a high compatibility gimbal, the T-Clamp adapter is packaged with every gimbal. Users can attach the gimbal to any accessories with the T-Clamp . The SmartStab 2-Axis Selfie Gimbal for Smartphone also contains two 1/4"-20 tripod mounts on its gimbal body, allowing the gimbal to be mounted in different orientations to all universal tripod screw mount accessories.

飞宇科技 SmartStab 两轴手机自拍稳定器是一款

专为智能手机打造的轻量型可穿戴式摄影稳定器，

体积小巧，兼容性高，应用广泛。适用于

iPhone 6s Plus / 6s / 6 Plus / 6 / 5c / 5s / 5 / 4s

/ 4以及类似尺寸的智能手机。

SmartStab 两轴手机自拍稳定器具有高兼容性，

标配T型夹头可通配T型连接底座的配件。自带1/4

英寸螺丝孔位，可直接将稳定器安装至带有1/4英

寸螺丝的配件

Install

安装

Install the batteries

Remove the screws on the battery compartment, insert two16340 batteries and tighten the screws.

装入电池

拧开电池盖，装入2节16340电池后拧紧螺丝。

Adjust the phone position and install the counter-weight

If the smartphone inclines towards the tilting axis, pull it towards the left to be in place, and let the center of gravity keep balance or slightly incline to the smartphone . If the smartphone still inclines towards the tilting axis, install the counter-weight.

调整手机位置及安装配重盖

Tilting Axis

俯仰轴

WARNING !

注意 !

Extension bar with control function

Connect the control cable of the extension bar to the function interface of the Gimbal, the tilting of the gimbal can be controlled during normally working .

带控制功能的延长杆

将手持延长杆控制线的接头接到稳定器的功能端口，可在稳定器正常工作下实现对俯仰轴的俯仰控制。

为了让稳定器保持最佳工作状态，安装时，请尽量保持稳定器通电前手机与俯仰轴的平衡，如图。如经调整后

仍无法平衡，向手机端方向倾斜，请选用配重块。

Do not power on the gimbal before completing all the installation steps. 请先安装好适合尺寸的手机后，再通电！

Connect Way

连接方式

180°

Install the phone

Attach the Phone by the quick-release adapter, and ensure it is secure.

安装手机

拉开手机夹，将夹具上端向上拉至稍微超过手机的高度，将手机夹紧。如图所示。

Powering ON / OFF

Power on:

securely, then hold down the function button for 2 seconds to turn on the gimbal.

Power off: Hold down the function button for 3 seconds to turn off the gimbal.

Ensure the camera is mounted

开机与关机

开机：检查相机是否安装稳固后，长按功能键

2秒，稳定器随即开启。

长按功能键3秒即关机。

关机：

Function Interface

功能端口

180°

16340

Operation

Manual Pulling Locking

After the gimbal has been powered on for eight seconds, the Tilting angle can be adjusted manually in the Lock Mode.

Adjust the Tilting angle to the desired position and wait for 0.5 second until the gimbal registers the new angle.

Extension bar Button

Connect the USB cable to the gimbal, the tilting of the gimbal can be controlled by the up and down button.

俯仰轴扳动锁定

稳定器启动8秒后即可使用扳动锁定功能，扳动俯仰轴到指定角度停留0.5秒即可锁定在当前角度。

延长杆按键

连接稳定器后，可通过上下按键控制稳定器俯仰轴。

操作

Tilting Axis

俯仰轴

Up and Down

Button

上下按键

Initialize The Gimbal

Smartstab needs to be initialized whenever the following situations are observed after power on

The phone is not leveled with the horizontal surface.

当稳定器出现如下情况时需要初始化

在启动后手机与水平线有小角度偏差。

Accessories

Input: DC 5V Output: DC 4.2V

输入: DC 5V 输出: DC 4.2V

Motionless Flat Surface

静止平面

配件

Rechargeable Battery

Type: 16340

可充电池充电器

型号：16340

USB CableCharger

USB数据线

稳定器初始化

Short Screw

短杆手拧螺丝

Extension bar

with control function

带控制功能的延长杆

Initialization Instructions

1. Ensure gimbal is fully assembled and camera is installed properly.

2. Place the gimbal on a flat surface and keep it stationary.

3. Power on the Gimbal.

4. Wait for the gimbal to finish its initialization before resuming the use of the gimbal.

操作步骤

1. 稳定器组装完毕，正确安装相机

2. 稳定器按照正确的姿态放置在静止平面，如左图

3. 打开稳定器电源开关，等待稳定器正常启动

4. 待稳定器启动后，拾起稳定器即可正常工作

Weight：52 g 重量：52 g

Heavy Counter-Weight

重配重盖

Weight：6 g 重量：6 g

Light Counter-Weight

轻配重盖

Charging

Connect the Mini-USB port of the USB cable with the charger, and the USB port with 5V USB power adapter.

USB数据线的Mini-USB端连接充电器端口，另一USB端连接5V的USB接口电源适配器。

充电

USB Cable

USB数据线

5V USB

Power Adapter

（Not Included）

5V的USB接口

电源适配器

（自备）

Parameters

产品参数

Vertical Tilting Angle 320°

Horizontal Panning Angle

Panning Increments

Overload Current Protection 800 mA

Working Voltage 6.0 V ~ 9.0 V

Weight

FY SmartStab 2-Axis selfie gimbal for smartphone is a feature-rich camera stabilizer, yet lightweight and portable. It is prohibited for any user to use the gimbal for any illegal purposes.

Guilin Feiyu Electronic Technology Co.,Ltd and our associates assume no liability for any accident, injury, death, loss, or other claim related to or resulting from the use of this product.

In no event shall Guilin Feiyu Electronic Technology Co.,Ltd and our associates be liable for incidental or consequential damages relating to or resulting from the use of this product or any of its parts.

Damage resulting from use, accident, or normal wear and tear is not covered by our warranty.

Guilin Feiyu Electronic Technology Co.,Ltd reserves the right to amend this manual and the terms and conditions of this product at any time. .

飞宇 Smartstab 双轴手机自拍稳定器是一款优秀的轻量型手机摄影稳定器，体积小巧，兼容性高，应用广泛。

禁止任何用户的任何非法用途。用户将为购买和使用产品的一切行为负责。对于本产品，本公司不承担终端客户对本产品所有调试和使用当中的风险和责任（包括直接、间接或者第三方的损失）。

我公司对于任何从非正常渠道获得或不明用途的产品，将不予任何服务。

由于产品固件程序的升级和更改，有可能造成本说明书中描述的功能有变动，升级固件前请仔细阅读升级说明，请配合使用对应的说明书最新说明书可在官方网站：www.feiyu-tech.com 获取。本公司保留一切解释权力。

320°

3°/ s ~ 150°/ s

366g (Without batteries & smartphone)

D I S C L A I M E R

警告和免责申明

俯仰角动作角度 320°

航向角动作角度 320°

航向随动速率最小 3°/ s 最大 150°/ s

电机过载保护电流 800 mA

工作电压最小 6.0 V 最大 9.0 V

重量 366g（不含电池和手机）

ATTE NTIO N

▲ Please assemble the gimbal in accordance to the diagram provided

▲ Please charge the battery with the provided battery charger.

▲ Please install the camera securely before powering on the gimbal.

注意事项

▲ 请按照安装示意图正确组装稳定器

▲ 可充电电池请使用标准充电器充电

▲ 稳定器组装完成后请务必安装上相机再上电启动稳定器
