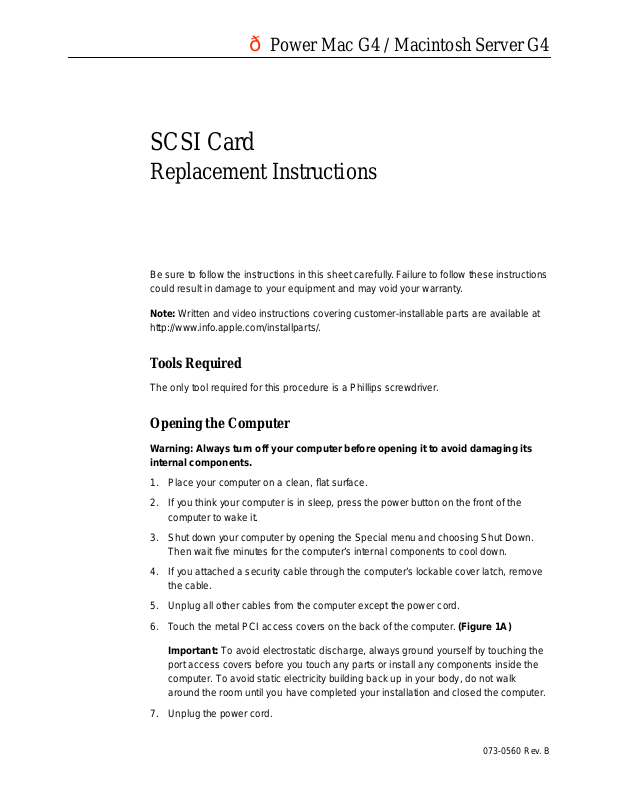

Power Mac G4 / Macintosh Server G4

SCSI Card

Replacement Instructions

Be sure to follow the instructions in this sheet carefully. Failure to follow these instructions could result in damage to your equipment and may void your warranty.

Note:

Written and video instructions covering customer-installable parts are available at

http://www.info.apple.com/installparts/.

Tools Required

The only tool required for this procedure is a Phillips screwdriver.

Opening the Computer

Warning: Always turn off your computer before opening it to avoid damaging its internal components.

1. Place your computer on a clean, ﬂat surface.

2. If you think your computer is in sleep, press the power button on the front of the computer to wake it.

3. Shut down your computer by opening the Special menu and choosing Shut Down. Then wait ﬁve minutes for the computer’s internal components to cool down.

4. If you attached a security cable through the computer’s lockable cover latch, remove the cable.

5. Unplug all other cables from the computer except the power cord.

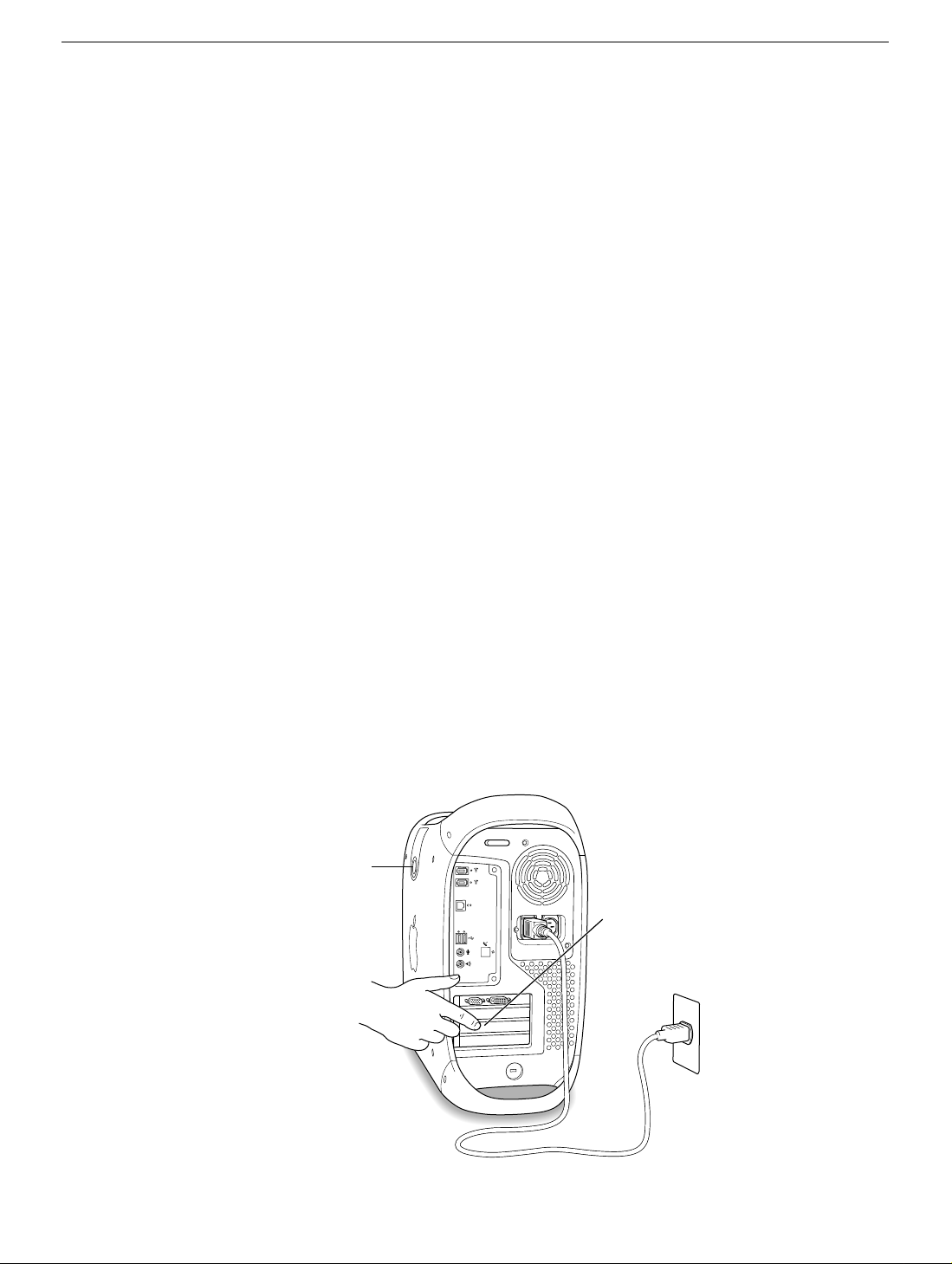

6. Touch the metal PCI access covers on the back of the computer.

Important:

port access covers before you touch any parts or install any components inside the computer. To avoid static electricity building back up in your body, do not walk around the room until you have completed your installation and closed the computer.

To avoid electrostatic discharge, always ground yourself by touching the

(Figure 1A)

7. Unplug the power cord.

073-0560 Rev. B

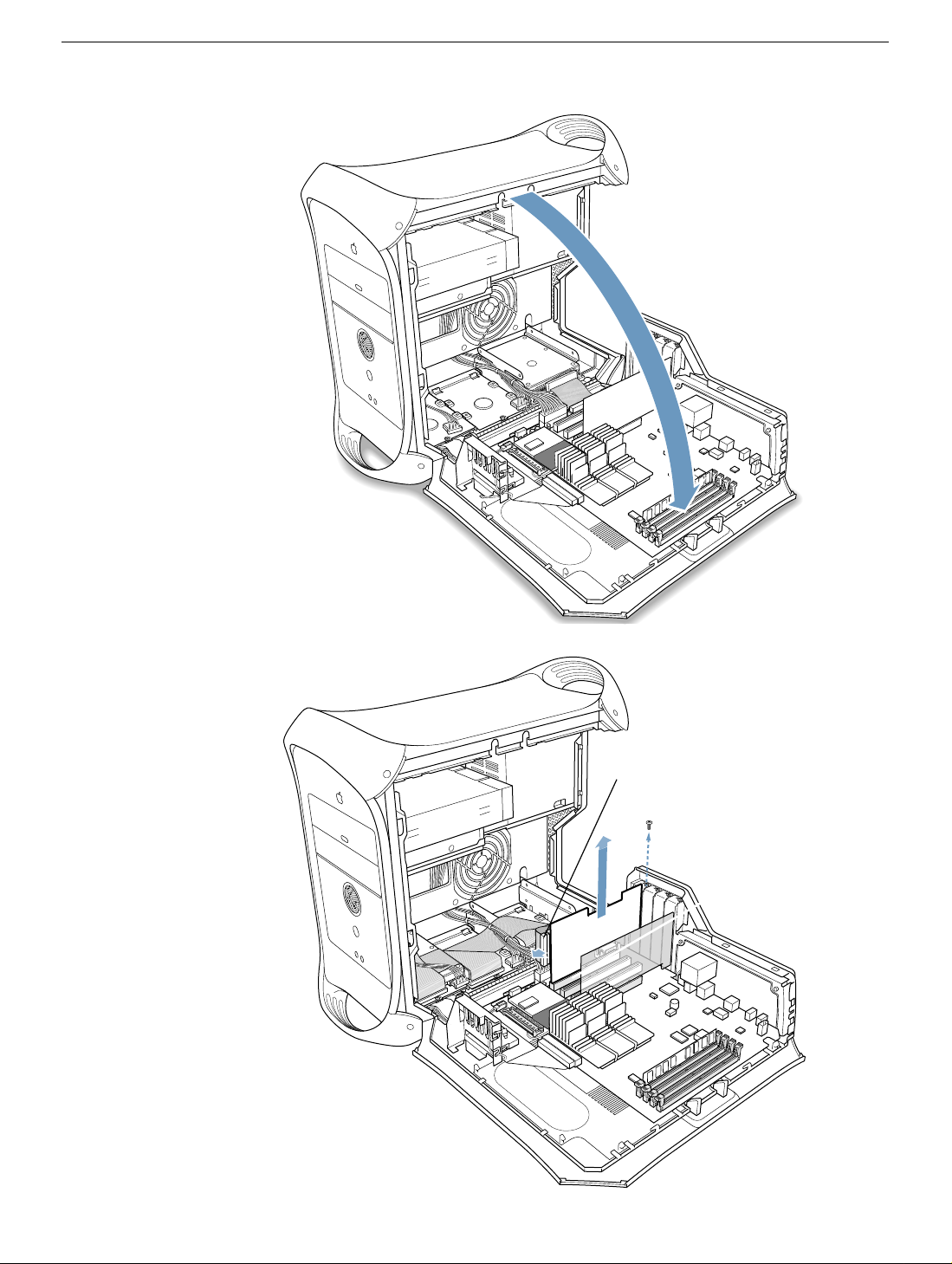

8. Lift the latch on the right side access panel.

9. Gently lower the access panel until it lies ﬂat. To avoid scratching the case, lower the panel onto a soft, clean cloth.

Warning: If you see any lights glowing on the main logic board, the computer has not been shut down. Close the side access panel and shut down the computer before proceeding.

(Figure 2)

(Figure 1B)

Removing the Installed Card

1. Disconnect the SCSI ribbon cable from the SCSI card.

2 Using a Phillips screwdriver, remove the card’s mounting screw.

3. Gently pull up the card and remove it from the PCI slot.

(Figure 3A)

(Figure 3B)

Installing the Replacement Card

1 Taking care not to touch the gold connector or any of the components on the card,

remove the replacement SCSI card from its static-proof bag and hold it by its corners.

2. Align the card’s connector with the expansion slot and press down until the connector is inserted all the way into the slot.

• Install the card in the same slot used for the original card.

• Don’t rock the card; instead press it straight into the slot.

• Don’t force the card. If you meet a lot of resistance, pull the card out. Check for

damage or obstructions, and then reinsert the card.

• Pull the card gently to see if it is properly connected. If it stays in place, and if its

gold connectors are barely visible, it is connected.

3. Replace the card’s mounting screw and tighten it to secure the card.

4. Reconnect the SCSI ribbon cable to the card.

Closing the Computer

1. Raise the side access panel, lift the latch, and press the panel against the case until it snaps securely into place.

2. Reconnect all cables and restart your computer.

Warning: Never turn on your computer unless all of its internal and external parts are in place and it is closed. Operating the computer when it is open or missing parts can damage your computer or cause injury.
