Sony STR-DE825, STR-DE925 User Manual

Download
Page 1

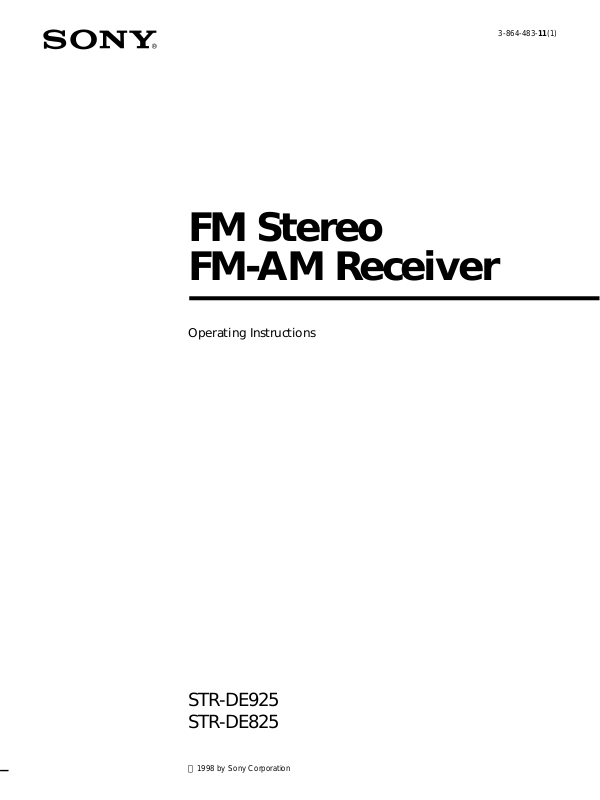

FM Ster eo FM-AM Receiver
3-864-483-11(1)
Operating Instructions
STR-DE925 STR-DE825
1998 by Sony Corporation
Page 2
WARNING
Precautions
This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving
antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet on
a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced
radio/TV technician for help.
CAUTION
You are cautioned that any changes or modification not expressly approved in this manual could void your authority to operate this equipment.
Note to CATV system installer:
This reminder is provided to call CATV system installer’s attention to Article 820­40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
Owner’s Record
The model and serial numbers are located on the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.
Model No. STR-DE925/DE825 Serial No.
For the customers in Canada CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
On safety
Should any solid object or liquid fall into the cabinet, unplug the receiver and have it checked by qualified personnel before operating it any further.
On power sources
• Before operating the receiver, check that the operating voltage is identical with your local power supply. The operating voltage is indicated on the nameplate at the rear of the receiver.
• The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.
• If you are not going to use the receiver for a long time, be sure to disconnect the receiver from the wall outlet. To disconnect the AC power cord, grasp the plug itself; never pull the cord.
• One blade of the plug is wider than the other for the purpose of safety and will fit into the wall outlet only one way. If you are unable to insert the plug fully into the outlet, contact your dealer.
• AC power cord must be changed only at the qualified service shop.
On placement
• Place the receiver in a location with adequate ventilation to prevent heat buildup and prolong the life of the receiver.
• Do not place the receiver near heat sources, or in a place subject to direct sunlight, excessive dust or mechanical shock.
• Do not place anything on top of the cabinet that might block the ventilation holes and cause malfunctions.
On operation
Before connecting other components, be sure to turn off and unplug the receiver.
On cleaning
Clean the cabinet, panel and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.
If you have any question or problem concerning your receiver, please consult your nearest Sony dealer.
2
Page 3

About This Manual

The instructions in this manual are for models STR-DE925 and STR-DE825. Check your model number by looking at the upper right corner of the front panel. In this manual, the STR-DE925 is used for illustration purposes unless stated otherwise. Any difference in operation is clearly indicated in the text, for example, “STR-DE925 only.”
Type of differences
Model DE925 DE825
Feature
DTS compatible r 5 audio/video inputs r 4 audio/video inputs r
Conventions
• The instructions in this manual describe the controls on the receiver. You can also use the controls on the supplied remote if they have the same or similar names as those on the receiver. For details on the use of your remote, refer to the separate operating instructions supplied with the remote.
• The following icon is used in this manual: z Indicates hints and tips for making the task easier.

TABLE OF CONTENTS

Hooking Up the Components 4
Unpacking 4 Antenna Hookups 5 Audio Component Hookups 6 Video Component Hookups 8 Digital Component Hookups 10 Other Hookups 12
Hooking Up and Setting Up the Speaker System 14
Speaker System Hookup 15 Multi-Channel Surround Setup 16 Before You Use Your Receiver 21
Location of Parts and Basic Amplifier Operations 24
Front Panel Parts Description 24
This receiver incorporates the Dolby system and the DTS** Digital Surround System (only the STR-DE925 is DTS compatible).
Manufactured under license from Dolby Laboratories Licensing
*
Corporation. DOLBY, the double-D symbol a, “PRO LOGIC,” and Dolby Digital (AC-3) are trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from DTS, Inc. “DTS”, “digital
**
surround”, and “coherent acoustics” are trademarks of DTS, Inc. All rights reserved.
Demonstration Mode
The demonstration will activate the first time you turn on the power. When the demonstration starts, the following message appears in the display twice:
“Now Demonstration Mode!! If you finish demonstration, please press POWER KEY while this message appears in the display. Thank you!!”
To cancel the demonstration
Press 1/u to turn the receiver off during the previous message. The next time you turn the receiver on, the demonstration will not appear.
To view the demonstration
Hold down SET UP and press 1/u to turn on the power.
Note
Running the demonstration will clear the receiver’s memory. For details on what will be cleared, see “Clearing the receiver's memory” on page 21.
* Pro Logic Surround
Enjoying Surround Sound 28
Selecting a Sound Field 29 Understanding the Multi-Channel Surround
Displays 33
Customizing Sound Fields 35
Receiving Broadcasts 40
Direct Tuning 41 Automatic Tuning 42 Preset Tuning 42
Other Operations 44
Indexing Preset Stations and Program Sources 45 Recording 45 Using the Sleep Timer 46 Adjustments Using the SET UP Button 47
Additional Information 48
Troubleshooting 48 Specifications 50 Glossary 52 Tables of Settings Using the CURSOR MODE and
SET UP buttons 53
Index 55
3
Page 4
Hooking Up

Unpacking

the Components
This chapter describes how to connect various audio and video components to the receiver. Be sure to read the sections for the components you have before you actually connect them to the receiver.
Check that you received the following items with the remote:
• FM wire antenna (1)
• AM loop antenna (1)
• Remote commander RM-LJ301 (remote) (1)
• LR6 (size-AA) alkaline batteries (3)
• Audio/video/control S connecting cord (1)
• Control S connecting cord (1)
Inserting batteries into the remote
Insert three size-AA (LR6) alkaline batteries with the + and – properly oriented in the battery compartment. When using the remote, point it at the remote sensor g on the receiver. For details, refer to the operating instructions supplied with your remote.
z
When to replace batteries
Under normal conditions, the batteries should last for about 3 months. When the remote no longer operates the receiver, replace all batteries with new ones.
Notes
• Do not leave the remote in an extremely hot or humid place.
• Do not use a new battery with an old one.
• This remote is designed for use with alkaline batteries only. Do not use a combination of different battery types.
• Do not expose the remote sensor to direct sunlight or lighting apparatuses. Doing so may cause a malfunction.
• If you don’t use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.
Before you get started
• Turn off the power to all components before making
any connections.
• Do not connect the AC power cords until all of the
connections are completed.
• Be sure to make connections firmly to avoid hum and
noise.
• When connecting an audio/video cord, be sure to
match the color-coded pins to the appropriate jacks on the components: yellow (video) to yellow; white (left, audio) to white; and red (right, audio) to red.
4
Page 5

Antenna Hookups

OPTICAL
OPTICAL
OPTICAL
OPTICAL
COAXIAL
DIGITAL
DVD / LD IN
TV / DBS IN
MD/DAT IN
MD/DAT OUT
DVD / LD IN
AM loop antenna (supplied)
ANTENNA
TV/
DBS
DVD/
CTRL S
STATUS IN
AM
VIDEO
VIDEO
IN
IN
y
COAXIAL
AUDIO
AUDIO
IN
IN
IN
PHONOINCD
SIGNAL
GND
y
FM
75Ω
LD
FM wire antenna (supplied)
VIDEO 1
VIDEO 2
CTRL S
CTRL S
OUT
OUT
S-LINK
VIDEO
VIDEO
IN
OUT
AUDIO
AUDIO
IN
OUT
RECOUT
INRECOUT
MD/DAT
VIDEO
OUT
AUDIO
OUT
TAPE
VIDEO
AUDIO
IN
IN
IN
MONITOR
MONITOR
CTRL S
IN
VIDEO
OUT
L
R
L
R
S-LINK
CTRL A1
WOOFER
AUDIO
OUT
A
+
R
B
REAR CENTER
+
RL
–
FRONT
SPEAKERS
Hooking Up the Components
+
WIRELESS
IMPEDANCE
REAR
SELECTOR
SPEAKER
–
A
+–
–
L
B
FRONT
4 Ω 8 Ω
Terminals for connecting the antennas
Connect the To the
AM loop antenna AM terminals FM wire antenna FM 75Ω COAXIAL terminal
Notes on antenna hookups
• To prevent noise pickup, keep the AM loop antenna away from the receiver and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as horizontal as possible.
z
If you have poor FM reception
Use a 75-ohm coaxial cable (not supplied) to connect the receiver to an outdoor FM antenna as shown below.
Outdoor FM antenna Receiver
ANTENNA
AM
y
COAXIAL
FM
Ground wire
75Ω
(not supplied)
Important
If you connect the receiver to an outdoor antenna, ground it against lightning. To prevent a gas explosion, do not connect the ground wire to a gas pipe.
Note
Do not use the SIGNAL GND y terminal for grounding the receiver.
To ground
5
Page 6
Audio Component Hookups
Hooking Up the Components
STR-DE925
Turntable
ANTENNA
TV/
COAXIAL
SIGNAL
GND
y
AM
y
FM
75Ω
CTRL S
STATUS IN
VIDEO
AUDIO
PHONOINCD
OPTICAL
OPTICAL
OPTICAL
OPTICAL
COAXIAL
DIGITAL
DVD / LD IN
TV / DBS IN
MD/DAT IN
MD/DAT OUT
DVD / LD IN
DBS
DVD/
VIDEO
IN
AUDIO
IN
IN
MD/DAT deck
INPUT OUTPUT
LINE
LINE
IN OUT
ç
VIDEO 2
LD
CTRL S
CTRL S
OUT
OUT
VIDEO
VIDEO
OUT
IN
AUDIO
AUDIO
OUT
IN
MD/DAT
IN
IN
INRECOUT
L
R
ç
VIDEO 1
S-LINK
VIDEO
OUT
AUDIO
OUT
RECOUT
VIDEO
IN
AUDIO
IN
IN
TAPE
ç
MONITOR
MONITOR
CTRL S
IN
VIDEO
OUT
L
R
L
R
S-LINK
CTRL A1
Required cords
Audio cords (not supplied)
When connecting a cord, be sure to match the color-coded pins to the appropriate jacks on the components.
White (L) White (L)
Red (R) Red (R)
REAR CENTER
+–
+
WIRELESS
REAR
SPEAKER
–
A
L
B
IMPEDANCE
SELECTOR
FRONT
4 Ω 8 Ω
WOOFER
AUDIO
OUT
A
+
R
B
+
RL
–
FRONT
SPEAKERS
–
IN OUT
ç
OUTPUT
LINE
L
R
CD player
Jacks for connecting audio components
Connect a To the
Turntable PHONO jacks CD player CD jacks Tape deck TAPE jacks MD deck or DAT deck MD/DAT jacks
Note on audio component hookups
If your turntable has a ground wire, connect it to the SIGNAL GND y terminal on the receiver.
INPUT OUTPUT
LINE
LINE
Tape deck
L
R
6
Page 7
Audio Component Hookups
STR-DE825
Turntable
DVD / LD IN
TV / DBS IN
TAPE/MD IN
TAPE/MD OUT
DVD / LD IN
ANTENNA
COAXIAL
DIGITAL
OPTICAL
OPTICAL
OPTICAL
OPTICAL
COAXIAL
SIGNAL
GND
y
AM
y
FM
75Ω
TV/
DBS
DVD/
CTRL S
STATUS IN
VIDEO
IN
AUDIO
IN
IN
PHONOINCD
TAPE/MD deck
INPUT OUTPUT
LINE
IN OUT
ç
VIDEO 2
LD
CTRL S
OUT
VIDEO
VIDEO
OUT
IN
AUDIO
AUDIO
OUT
IN
TAPE/MD
LINE
CTRL S
OUT
VIDEO
AUDIO
IN
IN
INRECOUT
L
R
ç
VIDEO 1
S-LINK
VIDEO
OUT
AUDIO
OUT
L
R
VIDEO
AUDIO
IN
IN
MONITOR
MONITOR
CTRL S
IN
VIDEO
OUT
L
R
S-LINK
CTRL A1
Required cords
Audio cords (not supplied)
When connecting a cord, be sure to match the color-coded pins to the appropriate jacks on the components.
White (L) White (L)
Red (R) Red (R)
REAR CENTER
WOOFER
AUDIO
OUT
RL
WIRELESS
REAR
SPEAKER
IMPEDANCE
SELECTOR
FRONT
4 Ω 8 Ω
+
–
RL
FRONT
R
–
+
AA
BB
–
RL
+
SPEAKERS
+
–
L
+
–
+
–
Hooking Up the Components
OUTPUT
LINE
L
R
CD player
Jacks for connecting audio components
Connect a To the
Turntable PHONO jacks CD player CD jacks Tape deck or MD deck TAPE/MD jacks
Note on audio component hookups
If your turntable has a ground wire, connect it to the SIGNAL GND y terminal on the receiver.
7
Page 8

Video Component Hookups

Hooking Up the Components
TV or DBS tuner
OUTPUT
AUDIO OUT VIDEO
RL
DVD or LD player
OUTPUT
AUDIO OUT VIDEO
RL
ANTENNA
TV/
COAXIAL
SIGNAL
GND
y
AM
y
FM
75Ω
CTRL S
STATUS IN
VIDEO
IN
AUDIO
IN
IN
PHONOINCD
OPTICAL
OPTICAL
OPTICAL
OPTICAL
COAXIAL
DIGITAL
DVD / LD IN
TV / DBS IN
MD/DAT IN
MD/DAT OUT
DVD / LD IN
Required cords
Audio/video cords (not supplied)
When connecting a cord, be sure to match the color-coded pins to the appropriate jacks on the components.
INPUT OUTPUT
VIDEO
VIDEO
OUT
IN
AUDIO
AUDIO
OUT
IN
VCR
L
R
Yellow (video) Yellow (video) White (L/audio) White (L/audio) Red (R/audio) Red (R/audio)
Video cord for connecting a TV monitor
OUT
OUT
You can use the video cord of the supplied audio/video/control
IN OUT
ç
S cord (see pages 11 and 12 for details).
Yellow Yellow
ç
MONITOR
VIDEO
OUT
OUT
TAPE
VIDEO
AUDIO
IN
IN
IN
MONITOR
CTRL S
IN
VIDEO
OUT
L
R
L
R
S-LINK
CTRL A1
WOOFER
AUDIO
OUT
A
+
R
B
REAR CENTER
+
RL
–
FRONT
SPEAKERS
+
WIRELESS
IMPEDANCE
REAR
SELECTOR
SPEAKER
–
A
+–
–
L
B
FRONT
4 Ω 8 Ω
VIDEO 1
VIDEO 2
DBS
DVD/
LD
CTRL S
CTRL S
OUT
OUT
S-LINK
VIDEO
VIDEO
VIDEO
AUDIO
IN
IN
OUT
AUDIO
OUT
MD/DAT
AUDIO
IN
AUDIO
IN
RECOUT
INRECOUT
ç
To the front panel
IN OUT
INPUT OUTPUT
VIDEO
Camcorder
AUDIO
or video game (STR-DE925 only)
Jacks for connecting video components
Connect a To the
TV or DBS tuner TV/DBS jacks VCR VIDEO 1 jacks Additional VCR VIDEO 2 jacks DVD or LD player LD/DVD jacks TV monitor MONITOR VIDEO OUT jack Camcorder or video game VIDEO 3 INPUT jacks on the
front panel (STR-DE925 only)
ç
VIDEO
OUT
IN
AUDIO
OUT
IN
L
R
VCR
TV monitor
INPUT
VIDEO
IN
Note on video component hookups
You can connect your TV’s audio output jacks to the TV/ DBS AUDIO IN jacks on the receiver and apply sound effects to the audio from the TV. In this case, do not connect the TV’s video output jack to the TV/DBS VIDEO IN jack on the receiver. If you are connecting a separate TV tuner (or DBS tuner), connect both the audio and video output jacks to the receiver as shown above.
8
Page 9

Digital Component Hookups

Connect the digital output jacks of your DVD player and DBS tuner (etc.) to the receiver’s digital input jacks to bring the multi channel surround sound of a movie theater into your home. To enjoy full effect of multi channel surround sound, five speakers (two front speakers, two rear speakers, and a center speaker) and a subwoofer are required. You can also connect an LD player with an RF OUT jack via an RF demodulator, like the Sony MOD-RF1 (not supplied).
DVD player (etc.)
OUTPUT
DIGITAL
OPTICAL
DIGITAL
DVD / LD IN
OPTICAL
TV / DBS IN
OPTICAL
MD/DAT IN
OPTICAL
MD/DAT OUT
OPTICAL
DVD / LD IN
COAXIAL
OUTPUT
DIGITAL
COAXIAL
ANTENNA
COAXIAL
SIGNAL
FM 75Ω
GND
y
AM
y
STATUS IN
OUTPUT
TV/
DBS
DVD/
CTRL S
VIDEO
VIDEO
IN
AUDIO
AUDIO
IN
IN
PHONOINCD
VIDEO
OUT
AUDIO
OUT
L
R
VIDEO 2
LD
CTRL S
OUT
VIDEO
OUT
IN
AUDIO
OUT
IN
MD/DAT
TV or DBS tuner
VIDEO 1
CTRL S
OUT
S-LINK
VIDEO
VIDEO
OUT
IN
AUDIO
AUDIO
OUT
IN
RECOUT
INRECOUT
TAPE
VIDEO
AUDIO
IN
IN
IN
OUTPUT
DIGITAL
OPTICAL
MONITOR
MONITOR
CTRL S
IN
VIDEO
OUT
L
R
L
R
S-LINK
CTRL A1
OUTPUT
VIDEO
OUT
AUDIO
OUT
L
R
WOOFER
AUDIO
OUT
A
+
R
B
Required cords
Optical digital cords (not supplied)
Black Black
Coaxial digital cord (not supplied)
Black Black
Audio/video cords (not supplied)
When connecting a cord, be sure to match the color-coded pins to the appropriate jacks on the components.
Yellow (video) Yellow (video) White (L/audio) White (L/audio) Red (R/audio) Red (R/audio)
REAR CENTER
+–
+
WIRELESS
REAR
SPEAKER
–
A
L
B
IMPEDANCE
SELECTOR
FRONT
4 Ω 8 Ω
+
RL
–
FRONT
SPEAKERS
–
Hooking Up the Components
Example of LD player connected via an RF demodulator
Please note that you cannot connect an LD player’s AC-3 RF OUT jack directly to this unit’s digital input jacks. You must first convert the RF signal to either an optical or coaxial digital signal. Connect the LD player to the RF demodulator, then connect the RF demodulator’s optical or coaxial digital output to this unit’s OPTICAL or COAXIAL DVD/LD IN jack. Refer to the instruction manual supplied with your RF Demodulator for details on AC-3 RF hookups.
DVD/LD
CURSOR MODE
SET UP
SPEAKERS
A
B
OFF
+
B
A
PHONES
VIDEO IN
DISPLAY
PRESET
TUNING
– TUNING
+
–
+
MEMORY
FM/AMFM MODE
SLEEP
SURROUND
EQUALIZER
INDEX
DIRECT TUNING
SHIFT
g
162738495
VIDEO 1
0
TAPE MD/DAT CD TUNER
MULTI CHANNEL DECODING
FUNCTION
VIDEO 2 VIDEO 3 DVD/LD
MASTER VOLUME
5
•
•
•
46
•
•
•
3
•
5.1/DVD
•
INPUT
•
2
EQ
•
•
BASS BOOST
•
1
•
•
•
SOUND FIELD
0
ON/OFF
MUTING
SOUND FIELD
TV/DBS
GENRE MODE INPUT
BASS
PHONO
MODE
BOOST
EQ
ON/OFF
VIDEO 3 INPUT
VIDEO OUT
AC-3 RF OUT
RF demodulatorLD player
DIGITAL
DIGITAL
DVD/LD IN
DVD/LD IN
(COAXIAL)
(COAXIAL)
(OPTICAL)
or (OPTICAL)
Note
When making connections as shown above, be sure to set INPUT MODE (3 on page 25) manually. This unit may not operate correctly if INPUT MODE is set to “AUTO.”
•
•
•
•
•
•
7
•
•
•
8
•
•
•
9
•
•
•
•
BALANCE
10
LR
RLVIDEO AUDIO
9
Page 10
Digital Component Hookups
Hooking Up the Components
Connect the digital output jacks of your MD or DAT deck to the receiver’s digital input jack and connect the digital input jacks of your MD or DAT deck to the receiver’s digital output jack. These connections allow you to make digital recordings of a CDs played back through your DVD (or LD player) and DBS broadcasts.
MD or DAT deck
DIGITAL
OPTICAL
OUT
IN
OUT IN IN OUT
ç
ç
ANTENNA
TV/
COAXIAL
75Ω
SIGNAL
GND
y
AM
y
FM
CTRL S
STATUS IN
VIDEO
AUDIO
PHONOINCD
OPTICAL
OPTICAL
OPTICAL
OPTICAL
COAXIAL
DIGITAL
DVD / LD IN
TV / DBS IN
MD/DAT IN
MD/DAT OUT
DVD / LD IN
Required cords
Optical digital cords (not supplied)
Black Black
Audio cords (not supplied)
When connecting a cord, be sure to match the color-coded pins to the appropriate jacks on the components.
White (L) White (L)
INPUT OUTPUT
LINE
LINE
L
R
Red (R) Red (R)
ç
ç
MONITOR
VIDEO
OUT
AUDIO
OUT
TAPE
VIDEO
AUDIO
IN
IN
IN
MONITOR
CTRL S
IN
VIDEO
OUT
L
R
L
R
S-LINK
CTRL A1
WOOFER
AUDIO
OUT
A
+
R
B
REAR CENTER
+
RL
–
FRONT
SPEAKERS
+
WIRELESS
IMPEDANCE
REAR
SELECTOR
SPEAKER
–
A
+–
–
L
B
FRONT
4 Ω 8 Ω
VIDEO 1
VIDEO 2
DBS
DVD/
LD
CTRL S
CTRL S
OUT
OUT
S-LINK
VIDEO
VIDEO
VIDEO
IN
IN
AUDIO
IN
IN
IN
OUT
AUDIO
OUT
MD/DAT
AUDIO
IN
IN
RECOUT
INRECOUT
Notes
• Please note that you cannot make a digital recording of a digital multi channel surround signal.
• To make a digital recording from your CD player, connect the CD player’s digital output directly to the digital input on your MD or DAT deck. Refer to the instructions supplied with your CD player and MD or DAT deck for details.
• This unit is compatible with 32 kHz, 44.1 kHz, and 48 kHz sampling frequencies. It is not compatible with 96 kHz sampling frequencies.
• It is not possible to record analog signals to TAPE and VIDEO with only digital connections. Be sure to make both digital and analog connections to your digital components.
10
Page 11

Other Hookups

OPTICAL
OPTICAL
OPTICAL
OPTICAL
COAXIAL
DIGITAL
DVD / LD IN
TV / DBS IN
MD/DAT IN
MD/DAT OUT
DVD / LD IN
ANTENNA
COAXIAL
SIGNAL
GND
Required cords
Audio/video/control S connecting cord (1)
Yellow (video) A
White (L/audio) B
Red (R/audio) C
Black (control S) D
Control S connecting cord (1)
Black E Black E
CTRL S (STATUS) IN/OUT AC OUTLET
VIDEO 1
CTRL S
VIDEO
AUDIO
VIDEO 2
DBS
DVD/
LD
CTRL S
CTRL S
OUT
OUT
S-LINK
VIDEO
VIDEO
VIDEO
VIDEO
VIDEO
OUT
IN
IN
AUDIO
AUDIO
IN
OUT
IN
IN
MD/DAT
AUDIO
OUT
IN
AUDIO
AUDIO
OUT
IN
RECOUT
INRECOUT
TAPE
AM
y
FM
75Ω
y
TV/
STATUS IN
PHONOINCD
IN
IN
IN
MONITOR
MONITOR
CTRL S
IN
VIDEO
OUT
L
R
L
R
S-LINK CTRL A1
S-LINK
CTRL A1
WOOFER
AUDIO
OUT
A
R
B
+
–
+
REAR CENTER
RL
–
FRONT
SPEAKERS
+–
+
WIRELESS
REAR
SPEAKER
–
A
L
B
AC power cord
IMPEDANCE
SELECTOR
FRONT
4 Ω 8 Ω
Hooking Up the Components
Yellow (video) A White (L/audio) B Red (R/audio) C Black (control S) D
*
The configuration, shape, and number of AC outlets on the rear panel
*
varies according to the model and country to which the receiver is shipped.
b
To a wall outlet
11
Page 12
Other Hookups
Hooking Up the Components
S-LINK CONTROL S hookup
If you have a S-LINK CONTROL S-compatible Sony TV, DBS tuner, monitor, or VCR, use an audio/video/control S connecting cord (supplied) or a control S connecting cord (supplied) to connect the CTRL S (STATUS) IN (for TV, DBS tuner, or monitor) or OUT (for VCR, etc.) jack on the receiver to the appropriate S-LINK jack on the respective component. Refer to the operating instructions supplied with your TV, DBS tuner, monitor, VCR, etc., for details.
The following illustration is an example of S-LINK CONTROL S hookups between the receiver, a TV, and a VCR. When your TV is connected to the receiver as shown below, the TV input mode will change to video input whenever you turn on the receiver. When you connect the VCR to the receiver as shown below, input mode of the receiver changes to video 1 (or 2) whenever you turn on the VCR.
TV
AUDIO
Receiver
VCR 1
VCR 2
OUT
L
R
C
B
TV/
CTRL S
STATUS IN
VIDEO
AUDIO
S-LINK
IN OUT
D
**
VIDEO 2
DBS
CTRL S
OUT
VIDEO
OUT
IN
AUDIO
OUT
IN
S-LINK
OUT
VIDEO
IN
E
A
**
MONITOR
VIDEO
OUT
AUDIO
OUT
VIDEO
AUDIO
IN
IN
MONITOR
CTRL S
IN
VIDEO
OUT
L
R
CTRL S
OUT
VIDEO
AUDIO
VIDEO 1
S-LINK
IN
IN
*
OUTPUT
VIDEO
OUT
S-LINK
OUT
AUDIO
OUT
*
OUTPUT
VIDEO
OUT
AUDIO
OUT
S-LINK CONTROL A1 hookup
• If you have a S-LINK CONTROL A1-compatible Sony CD player, tape deck, or MD deck
Use a CONTROL A1 cord (not supplied) to connect the S-LINK CTRL A1 jack on the CD player, tape deck, or MD deck to the S-LINK CTRL A1 jack on the receiver. Refer to the separate manual “CONTROL-A1 Control System” and the operating instructions supplied with your CD player, tape deck, or MD deck for details.
Note
If you make CONTROL A1 connections from the receiver to an MD deck that is also connected to a computer, do not operate the receiver while using the “Sony MD Editor” software. This may cause a malfunction.
• If you have a Sony CD changer with a COMMAND MODE selector
If your CD changer’s COMMAND MODE selector can be set to CD 1, CD 2, or CD 3, be sure to set the command mode to “CD 1” and connect the changer to the CD jacks on the receiver. If, however, you have a Sony CD changer with VIDEO OUT jacks, set the command mode to “CD 2” and connect the changer to the VIDEO 2 jacks on the receiver.
Connecting the AC power cord
Before connecting the AC power cord of this receiver to a wall outlet:
• Connect the speaker system to the receiver (see page
15).
• Turn the MASTER VOLUME control to the leftmost position (0).
Connect the AC power cord(s) of your audio/video components to a wall outlet.
If you connect other audio/video components to the AC OUTLET(s) on the receiver, the receiver will supply power to the connected component(s), allowing you to turn the whole system on or off when you turn the receiver on/off.
Caution
Make sure that the total power consumption of the component(s) connected to the receiver’s AC OUTLET(s) does not exceed the wattage stated on the rear panel. Do not connect high-wattage electrical home appliances such as electric irons, fans, or TVs to this outlet.
* Audio/video/control S connecting cord (Pull the video cord away
from the supplied audio/video/control S cable for connection A.)
** Control S connecting cord
12
Page 13
Hooking Up the Components
13
Page 14
BALANCE
SOUND FIELD ON/OFF
SET UP
EQ
ON/OFF
INPUT MODE
VIDEO 1
DIRECT TUNING
BASS
BOOST
SOUND FIELD
GENRE MODE
VIDEO 2 VIDEO 3 DVD/LD
MUTING
VIDEO 3 INPUT
BALANCE
LR
5
0
1
3
9
7
46
2
8
10
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
PHONES
SPEAKERS
SET UP
SURROUND
EQUALIZER
CURSOR MODE
MEMORY
PRESET
– TUNING +
A
OFF
A
+B
B
g
MASTER VOLUME
RLVIDEO AUDIO
DISPLAY
FM/AMFM MODE
–
TUNING
+
SLEEP
INDEX
SOUND FIELD
BASS BOOST
EQ
SOUND FIELD
ON/OFF
FUNCTION
MULTI CHANNEL DECODING
TAPE MD/DAT CD TUNER
TV/DBS
PHONO
SHIFT
162738495
0

Hooking Up and Setting Up the Speaker System

This chapter describes how to hook up your speaker system to the receiver, how to position each speaker, and how to set up your speakers to enjoy multi channel surround sound.
Cursor buttons

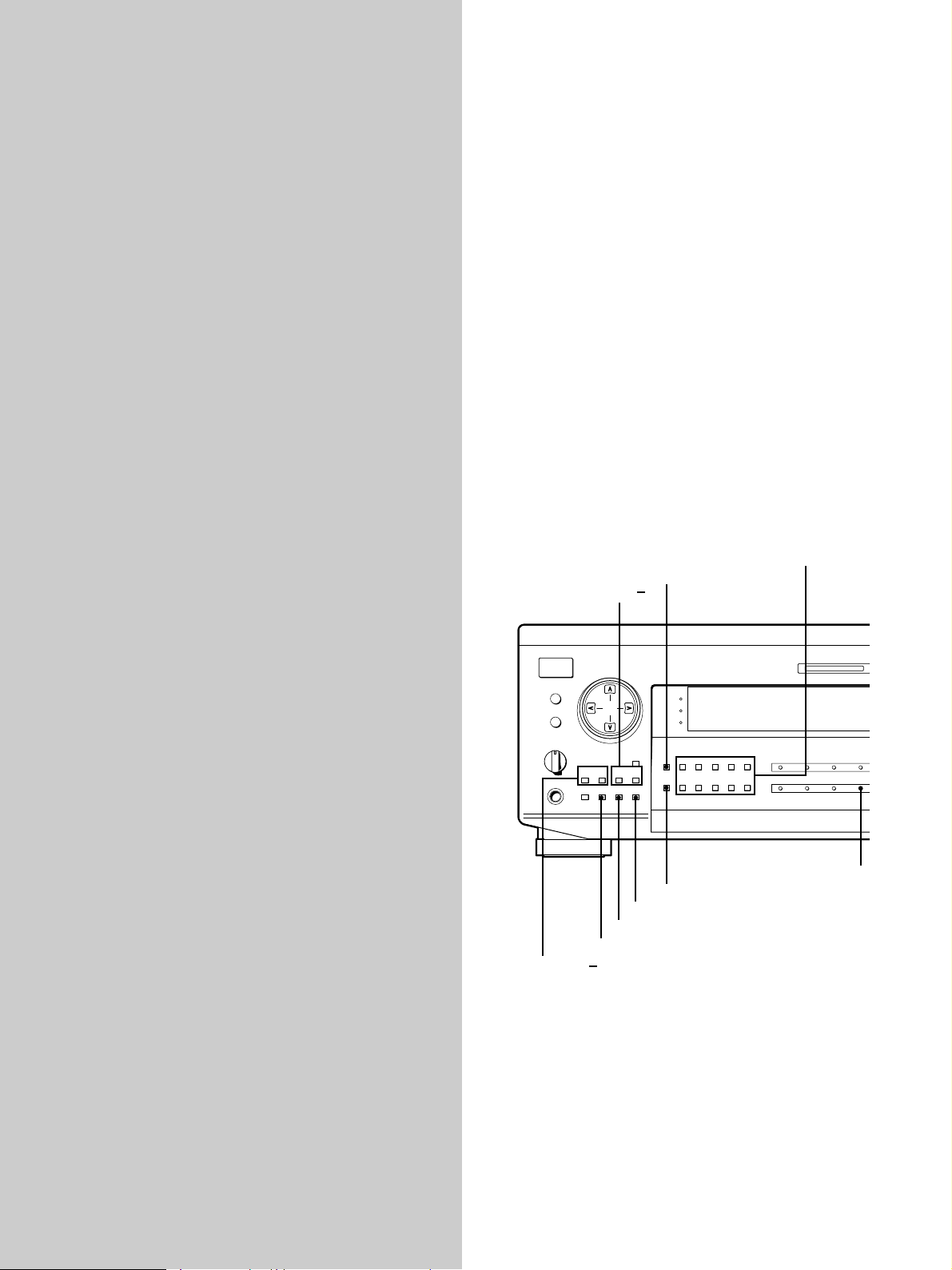

Brief descriptions of buttons and control used to set up the speaker system
SET UP button: Press repeatedly to display “SPEAKER SETUP” when specifying speaker types or “SPEAKER DISTANCE” when specifying speaker distances.
SOUND FIELD ON/OFF button: Turns the sound field mode on or off.
Cursor buttons (
/ / / ): Use to select the
parameters and settings after pressing the SET UP button.
BALANCE control: Use to adjust the front speaker balance while outputting a test tone.
14
Page 15

Speaker System Hookup

Required cords
Speaker cords (not supplied)
One for each front, rear, and center speaker
(+) (+)
(–) (–)
Rear speaker (R) Rear speaker (L)
]
}
}
]
Center speaker
}
]
Hooking Up and Setting Up the Speaker System
Monaural audio cord (not supplied)
One for an active woofer
Black Black
OPTICAL
OPTICAL
OPTICAL
OPTICAL
COAXIAL
DIGITAL
DVD / LD IN
TV / DBS IN
MD/DAT IN
MD/DAT OUT
DVD / LD IN
ANTENNA
COAXIAL
SIGNAL
AM
y
FM
75Ω
GND
y
TV/
DBS
DVD/
CTRL S
STATUS IN
VIDEO
IN
AUDIO
IN
IN
PHONOINCD
VIDEO
AUDIO
LD
IN
IN
VIDEO 2
CTRL S
OUT
VIDEO
OUT
AUDIO
OUT
MD/DAT
INPUT
AUDIO
IN
CTRL S
OUT
VIDEO
IN
AUDIO
IN
INRECOUT
VIDEO 1
S-LINK
VIDEO
OUT
AUDIO
OUT
RECOUT
TAPE
VIDEO
AUDIO
IN
IN
IN
MONITOR
MONITOR
CTRL S
IN
VIDEO
OUT
L
R
L
R
}
S-LINK
CTRL A1
WOOFER
AUDIO
OUT
A
+
R
B
]
REAR CENTER
+
RL
–
FRONT
SPEAKERS
FRONT SPEAKERS B
WIRELESS REAR SPEAKER
+–
–
+
WIRELESS
REAR
SPEAKER
–
A
L
B
IMPEDANCE SELECTOR
IMPEDANCE SELECTOR
FRONT
4 Ω 8 Ω
}
]
Active woofer Front speaker (R)
Terminals for connecting the speakers
Connect the To the
Front speakers (8 or 4* ohm) SPEAKERS FRONT A terminals Additional pair of front
speakers (8 or 4* ohm) Rear speakers (8 ohm) SPEAKERS REAR terminals Center speaker (8 ohm) SPEAKERS CENTER terminals Active woofer WOOFER AUDIO OUT jack** Wireless rear speaker
transmitter
* See “Speaker impedance” on the next page. ** You can connect an active woofer to either of the two jacks. The
remaining jack can be used to connect a second active woofer.
SPEAKERS FRONT B terminals
WIRELESS REAR SPEAKER jack
Front speaker (L)
Notes on speaker system hookup
• Twist the stripped ends of the speaker cords about 2/3 inch (15 mm). Be sure to match the speaker cord to the appropriate terminal on the components: + to + and – to –. If the cords are reversed, the sound will be distorted and will lack bass.
• If you use front speakers with low maximum input rating, adjust the volume carefully to avoid excessive output on the speakers.
• The WIRELESS REAR SPEAKER jack is for use with Sony wireless rear speaker systems only, do not connect any other speaker systems or components to this jack.
15
Page 16
Speaker System Hookup

Multi-Channel Surround Setup

Speaker impedance
To enjoy multi channel surround, connect front, center, and rear speakers with a nominal impedance of 8 ohms or higher, and set the speaker IMPEDANCE SELECTOR to
Hooking Up and Setting Up the Speaker System
“8Ω.” Check the instruction manual supplied with your speakers if you’re not sure of their impedance. (This information is usually printed on a label on the back of the speaker.)
You may connect a pair of speakers with a nominal impedance between 4 and 8 ohms to the FRONT SPEAKERS terminals, if you set the IMPEDANCE SELECTOR to “4Ω” but you will not be able to enjoy multi-channel surround sound.
Note
Be sure to connect front speakers with a nominal impedance of 8 ohms or higher if you want to select both sets (A+B) of front speakers (see page 25).
For the best possible surround sound all speakers should be the same distance from the listening position (A). (However, this unit lets you to place the center speaker up to 5 feet (1.5 meters) closer (B) and the rear speakers up to 15 feet (4.5 meters) closer (C) to the listening position. The front speakers can be placed from 3 to 40 feet (1.0 to
12.0 meters) from the listening position (A).)
B
A A
45°
CC
90°
20°
Notes
• Do not place the center or rear speakers farther away from the listening position than the front speakers.
• When mounting the rear speakers on side walls perpendicular to the listening position they should be placed 21/2 to 31/2 in. (60 - 90 cm) above the listening position.
Front speaker
Rear speaker
21/2 to 31/2 in.
(60 - 90 cm)
16
Page 17
Depending on the shape of your room (etc.), you may wish to place the rear speakers behind you instead of on the side walls. One advantage of this placement is that you can use a pair of large floor standing speakers matching your front speakers.
B
A A
45°
CC
90°
20°
Note
If you place the rear speakers behind you, be sure to check the speaker location setting in the SPEAKER SETUP menu when using sound fields from the VIRTUAL 3D genre (see pages 18 and 30~31 for details).
Specifying the speaker types
p Front speaker size (FRONT)
Initial setting : LARGE
• If you connect large speakers that will effectively reproduce bass frequencies, select “LARGE”. Normally, select “LARGE”.
• If the sound is distorted, or you feel a lack of surround effects when using multi-channel surround sound, select “SMALL” to activate the Dolby Digital (AC-3) bass redirection circuitry and output the front channel bass frequencies from the sub woofer.
• When the front speaker is set to “SMALL”, the center and rear speakers are also automatically set to “SMALL” (unless previously set to “NO”).
p Center speaker size (CENTER)
Initial setting : LARGE
• If you a connect large speaker that will effectively reproduce bass frequencies, select “LARGE”. Normally, select “LARGE”. However, if the front speakers are set to “SMALL”, you cannot set the center speaker to “LARGE”.
• If the sound is distorted, or you feel a lack of surround effects when using multi-channel surround sound, select “SMALL” to activate the Dolby Digital (AC-3) bass redirection circuitry and output the center channel bass frequencies from the front speakers (if set to “LARGE”) or sub woofer. *
• If you do not connect the center speaker, select “NO”. The sound of the center channel will be output from the front speakers.*
2
1
Hooking Up and Setting Up the Speaker System
1 Press 1/u to turn on the receiver. 2 Press SET UP to display “SPEAKER SETUP”. 3 Press the cursor buttons ( or ) to select the
parameter you want to adjust.
4 Press the cursor buttons ( or ) to select setting
you desire. The setting is entered automatically.
5 Repeat steps 3 and 4 until you have set all of the
parameters that follow.
p Rear speaker size (REAR)
Initial setting : LARGE
• If you connect large speakers that will effectively reproduce bass frequencies, select “LARGE”. Normally, select “LARGE”. However, if the front speakers are set to “SMALL”, you cannot set the rear speakers to “LARGE”.
• If the sound is distorted, or you feel a lack of surround effects when using multi-channel surround sound, select “SMALL” to activate the Dolby Digital (AC-3) bass redirection circuitry and output the rear channel bass frequencies from the sub woofer or other “LARGE” speakers.
• If you do not connect rear speakers, select “NO”.*
z
*1~*3 correspond to the following Dolby Pro Logic modes
*1 NORMAL *2 PHANTOM *3 3 STEREO
3
17
Page 18

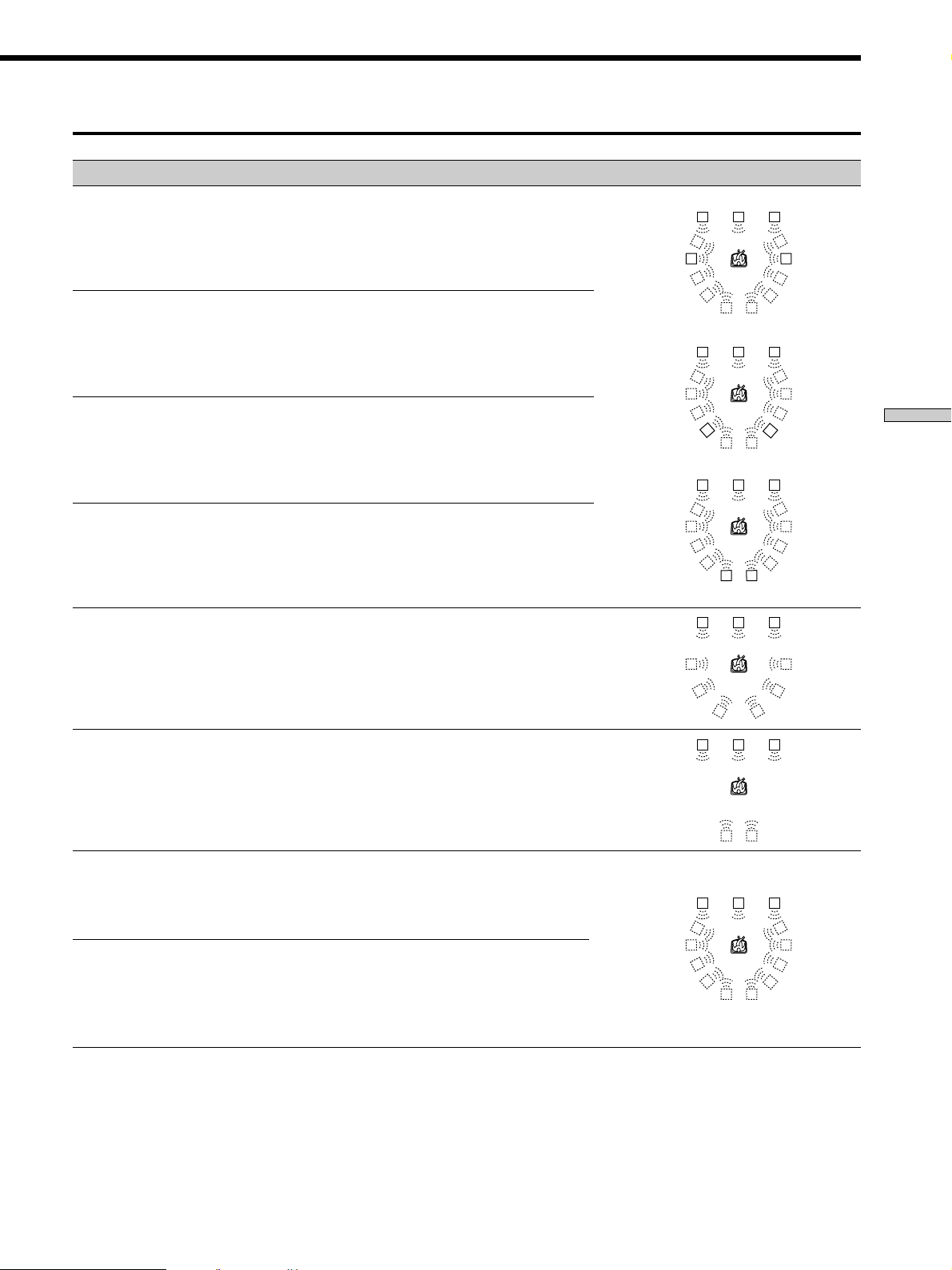

Multi-Channel Surround Setup
z
About speaker sizes (LARGE and SMALL)
Internally, the LARGE and SMALL settings for each speaker determine whether or not the internal sound processor will cut the bass signal from that channel. When the bass is cut from a channel the bass redirection circuitry sends the corresponding bass frequencies to the sub woofer or other “LARGE” speaker.
Hooking Up and Setting Up the Speaker System
However, since bass sounds have a certain amount of directionality it best not to cut them, if possible. Therefore, even when using small speakers, you can set them to “LARGE” if you want to output the bass frequencies from that speaker. On the other hand, if you are using a large speaker, but prefer not to have bass frequencies output from that speaker, set it to “SMALL”. If the overall sound level is lower than you prefer set all speakers to “LARGE”. If there is not enough bass you can use the equalizer to boost the bass levels. To adjust the equalizer, see page 36.

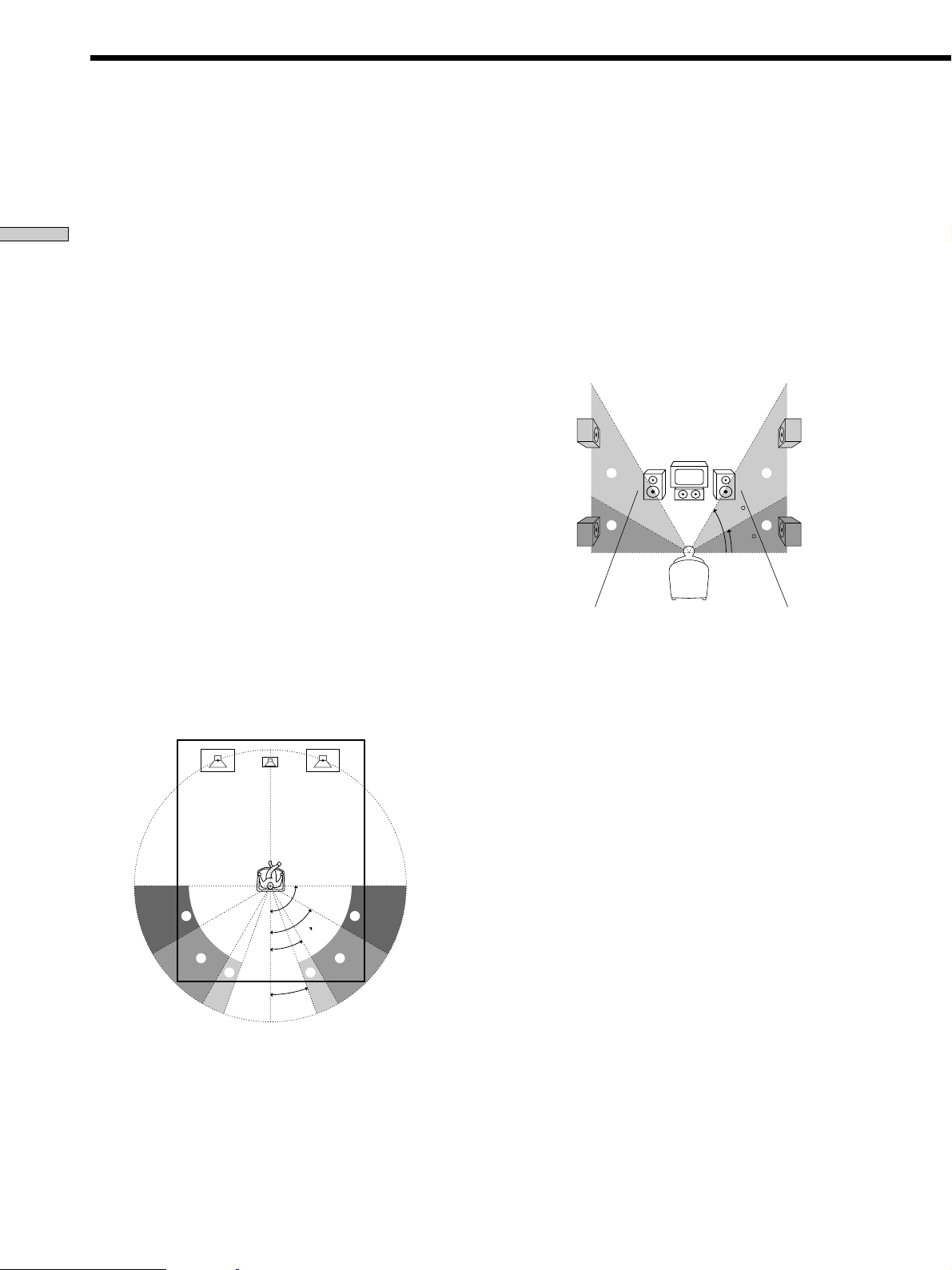

p Rear speaker position (REAR)*
Initial setting : BEHIND This parameter lets you specify the location of your rear speakers for proper implementation of the Digital Cinema Sound surround modes in the VIRTUAL 3D genre. Refer to the illustration below.
• Select “SIDE” if the location of your rear speakers corresponds to section A.
• Select “MIDDLE” if the location of your rear speakers corresponds to section B.
• Select “BEHIND” if the location of your rear speakers corresponds to section C.
This setting only effects the surround modes in the VIRTUAL 3D genre.
90°
A
B
30°
C C
20°
60°
A
B
p Rear speaker height (REAR)*
Initial setting : LOW This parameter lets you specify the height of your rear speakers for proper implementation of the Digital Cinema Sound surround modes in the VIRTUAL 3D genre. Refer to the illustration below.
• Select “LOW” if the location of your rear speakers corresponds to section A.
• Select “HIGH” if the location of your rear speakers corresponds to section B.
This setting only effects the surround modes in the VIRTUAL 3D genre.
B
B
60
A
A
30
* These parameters are not available when “Rear speaker
size (REAR)“ is set to “NO”.
z
About the rear speaker position (SIDE, MIDDLE, and BEHIND)
This setting is designed specifically for implementation of the Digital Cinema Sound modes in the VIRTUAL 3D genre. With the Digital Cinema Sound modes, speaker position is not as critical as other modes. All of the modes in the VIRTUAL 3D genre were designed under the premise that the rear speaker would be located behind the listening position, but presentation remains fairly consistent even with the rear speakers positioned at a rather wide angle. However, if the speakers are pointing toward the listener from the immediate left and right of the listening position, the VIRTUAL 3D modes will not be effective unless the rear speaker position parameter is set to “SIDE”. Nevertheless, each listening environment has many variables, like wall reflections, and you may obtain better results using “BEHIND” or “MIDDLE” if your speakers are located high above the listening position, even if they are to the immediate left and right. Therefore, although it may result in a setting contrary to the “Rear speaker position” explanation, we recommend that you playback multi channel surround encoded software and listen to the effect each setting has on your listening environment. Choose the setting that provides a good sense of spaciousness and that best succeeds in forming a cohesive space between the surround sound from the rear speakers and the sound of the front speakers. If you are not sure which sounds best, select “BEHIND” and then use the speaker distance parameter and speaker level adjustments to obtain proper balance.
18
Page 19
p Sub woofer selection (WOOFER)
Initial setting : YES
• If you connect a sub woofer, select “YES”.
• If you do not connect a sub woofer, select “NO”. This activates the Dolby Digital (AC-3) bass redirection circuitry and outputs the LFE signals from other speakers.
• In order to take full advantage of the Dolby Digital (AC-
3) bass redirection circuitry, we recommend setting the sub woofer’s cut off frequency as high as possible.
Specifying the speaker distances
p Rear speaker distance (REAR)
Initial setting : 11 feet Set the distance from your listening position to the rear (left or right) speaker.
• Rear speaker distance can be set in 1 foot (0.1 meter) steps from a distance equal to the front speaker distance (A on page 16) to a distance 15 feet (4.5 meters) closer to your listening position (C on page 16).
• Do not place the rear speakers farther away from your listening position than the front speakers.
• If both speakers are not placed an equal distance from your listening position, set the distance to the closest speaker.
Hooking Up and Setting Up the Speaker System
1 Press SET UP to display “SPEAKER DISTANCE”. 2 Press the cursor buttons ( or ) to select the
parameter you want to adjust.
3 Press the cursor buttons ( or ) to select setting
you desire. The setting is entered automatically.
4 Repeat steps 2 and 3 until you have set all of the
parameters described below.
5 Press SET UP to exit the set up mode.
p Front speaker distance (FRONT)
Initial setting : 16 feet Set the distance from your listening position to the front (left or right) speaker (A on page 16).
• Front speaker distance can be set in 1 foot (0.1 meter) steps from 3 to 40 feet (1.0 to 12.0 meters).
• If both speakers are not placed an equal distance from your listening position, set the distance to the closest speaker.
p Center speaker distance (CENTER)
Initial setting : 16 feet Set the distance from your listening position to the center speaker.
• Center speaker distance can be set in 1 foot (0.1 meter) steps from a distance equal to the front speaker distance (A on page 16) to a distance 5 feet (1.5 meters) closer to your listening position (B on page 16).
• Do not place the center speaker farther away from your listening position than the front speakers.
z
About speaker distances
This unit allows you to input the speaker position in terms of distance. However, it is not possible to set the center speaker farther away than the front speakers. Also, the center speaker can not be set more that 5 feet (1.5 meters) closer than the front speakers. Likewise, the rear speakers can not be set farther away than from the listening position than the front speakers. And they can be no more than 15 feet (4.5 meters) closer. This is because incorrect speaker placement is not conducive to the enjoyment of surround sound. Please note that, setting the speaker distance closer than the actual location of the speakers will cause a delay in the output of the sound from that speaker. In other words, the speaker will sound like it is farther away. For example, setting the center speaker distance 3~6 feet (1~2 m) closer than the actual speaker position will create a fairly realistic sensation of being “inside” the screen. If you cannot obtain a satisfactory surround effect because the rear speakers are too close, setting the rear speaker distance closer (shorter) than the actual distance will create a larger soundstage. Adjusting these parameter while listening to the sound often results in much better surround sound. Give it a try!
p Distance unit (DISTANCE)
Initial setting : FEET Lets you select either feet or meters as the unit of measure for setting distances. 1 foot corresponds to a 1 ms difference.
19
Page 20
Multi-Channel Surround Setup
Adjusting the speaker volume
Use the remote while seated in your listening position to adjust the volume of each speaker.
Note
Hooking Up and Setting Up the Speaker System
This unit incorporates a new test tone with a frequency centered at 800 Hz for easier speaker volume adjustment.
1 Press 1/u to turn on the receiver.
2 Press TEST TONE on the supplied remote.
You will hear the test tone from each speaker in sequence.
3 Adjust the volume level so that the volume of the
test tone from each speaker sounds the same when you are in your main listening position.
• To adjust the balance of the front right and front left speakers, use the BALANCE control on the front of the receiver.
• To adjust the balance of the rear right and rear left speakers, use REAR BALANCE (see page 36) parameter in the SURROUND parameters (see page
35). (The rear balance can also be adjusted from the remote.)
• To adjust the volume level of the center speaker, press the LEVEL CENTER +/– buttons on the remote.
• To adjust the volume level of the rear speakers, press the LEVEL REAR +/– buttons on the remote.
Notes
• The rear balance, center level, and rear level are shown in the display during adjustment.
• Although these adjustments can also be made via the front panel using the CURSOR MODE menu SURROUND parameters (when the test tone is output, the CURSOR MODE switches to the SURROUND parameters automatically), we recommend you follow the procedure described above and adjust the speaker levels from your listening position using the remote control.
z
When setting the volume levels for each speaker
Let’s assume that you have matched the sound levels of all the speakers using the test tone. Although this lays the foundation for high quality surround sound, it may be necessary to make further adjustments while listening to playback of actual software. This is because most software contains center and rear channels recorded at slightly lower levels than the two front channels. When you actually playback software recorded in multi channel surround you will notice that increasing the center and rear speaker levels produces a better blend between the front and center speakers and greater cohesion between the front and rear speakers. Increasing the level of the center speaker about 1 dB, and the rear speakers about 1~2 dB is likely to produce better results. In other words, in order to create a more cohesive soundstage with balanced dialog we recommend that you make some adjustments while playing your software. Changes of only 1 dB can make a huge difference in the character of the soundstage.
4 Press TEST TONE on the remote again to turn off
the test tone.
z
You can adjust the volume level of all speakers at the same
time
Rotate MASTER VOLUME on the main unit or press MASTER VOLUME +/– on the remote.
20
Page 21

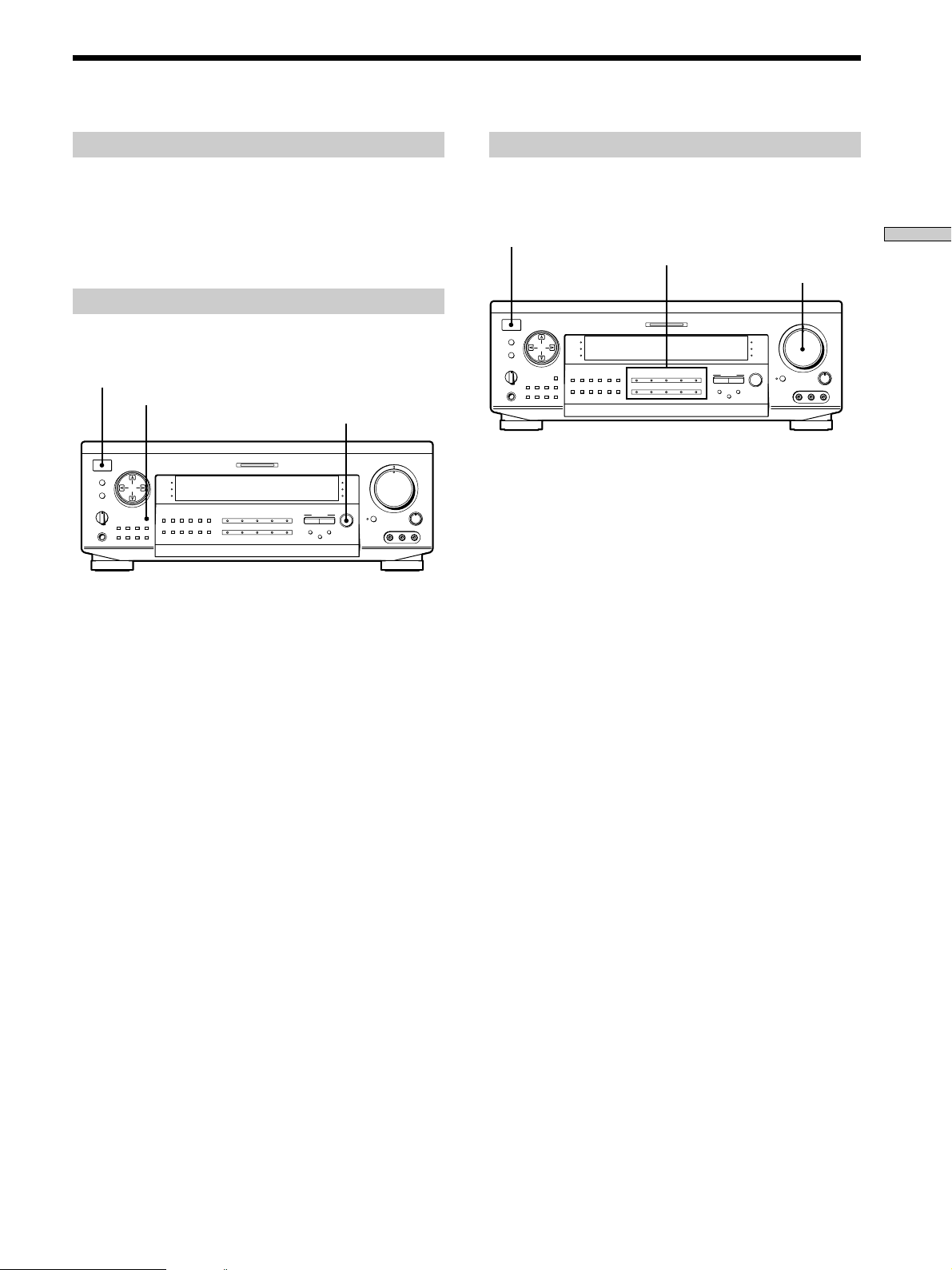

Before You Use Your Receiver

Before turning on the receiver
Make sure that you have:
• Turned MASTER VOLUME to the leftmost position (0).
• Selected the appropriate front speakers (see “8 SPEAKERS selector” on page 25).
• Set BALANCE to the center position.
Clearing the receiver’s memory
Before you use your receiver for the first time or when you want to clear the receiver’s memory, do the following.
1/u
CURSOR MODE
SPEAKERS
OFF
+
B
A
SET UP
PHONES
A
B
TUNING
–
SLEEP
DISPLAY
SURROUND
EQUALIZER
DISPLAY
PRESET
– TUNING
+
+
MEMORY
FM/AMFM MODE
INDEX
DIRECT
162738495
TUNING
SHIFT
MULTI CHANNEL DECODING
g
FUNCTION
VIDEO 2 VIDEO 3 DVD/LD
VIDEO 1
0
TAPE MD/DAT CD TUNER
SOUND FIELD
ON/OFF
SOUND FIELD
TV/DBS
GENRE MODE
INPUT
BASS
PHONO
MODE
BOOST
EQ
ON/OFF
SOUND FIELD
ON/OFF
SOUND FIELD
EQ BASS
BOOST
MASTER VOLUME
46
•
•
•
3
•
•
•
2
•
•
•
1
•
•
•
0
MUTING
VIDEO 3 INPUT
5
•
•
•
•
•
•
•
•
•
7
•
•
•
8
•
•
•
9
•
•
•
•
BALANCE
10
LR
RLVIDEO AUDIO

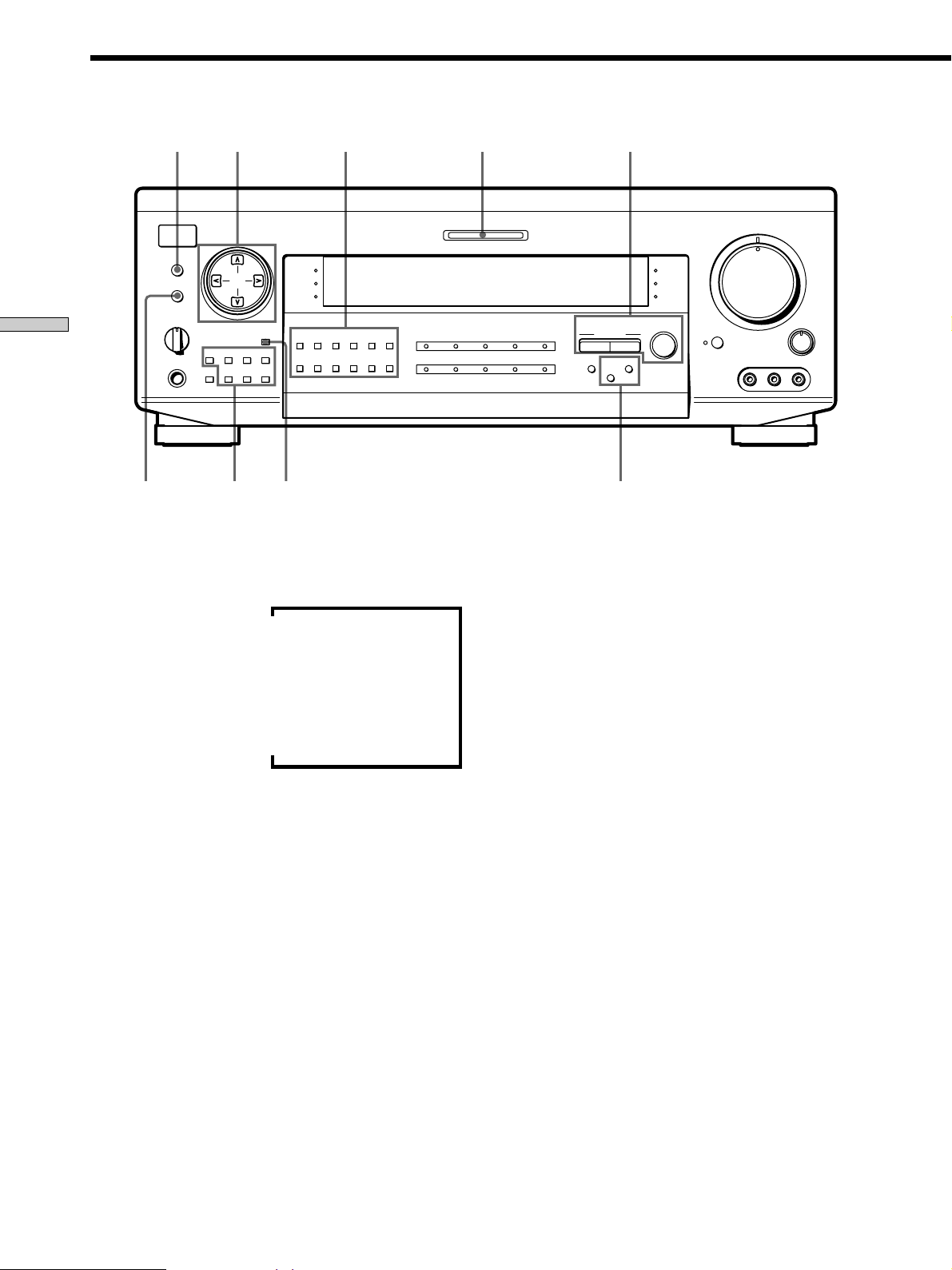

1 Turn off the receiver. 2 While pressing down DISPLAY and SOUND FIELD
ON/OFF, press 1/u to turn on the receiver.
“ALL CLEAR” appears in the display and the items including the following are reset or cleared:
• All preset stations are reset or cleared.
• All sound field parameters are reset to their factory settings.
• All index names (of preset stations and program sources) are cleared.
• All adjustments made with the SET UP button are reset to their factory settings.
• The sound field memorized for each program source and preset stations are cleared.
Checking the connections
After connecting all of your components to the receiver, do the following to verify that the connections were made correctly.
1/u
CURSOR MODE
+B
A
SPEAKERS
OFF
FUNCTION buttons

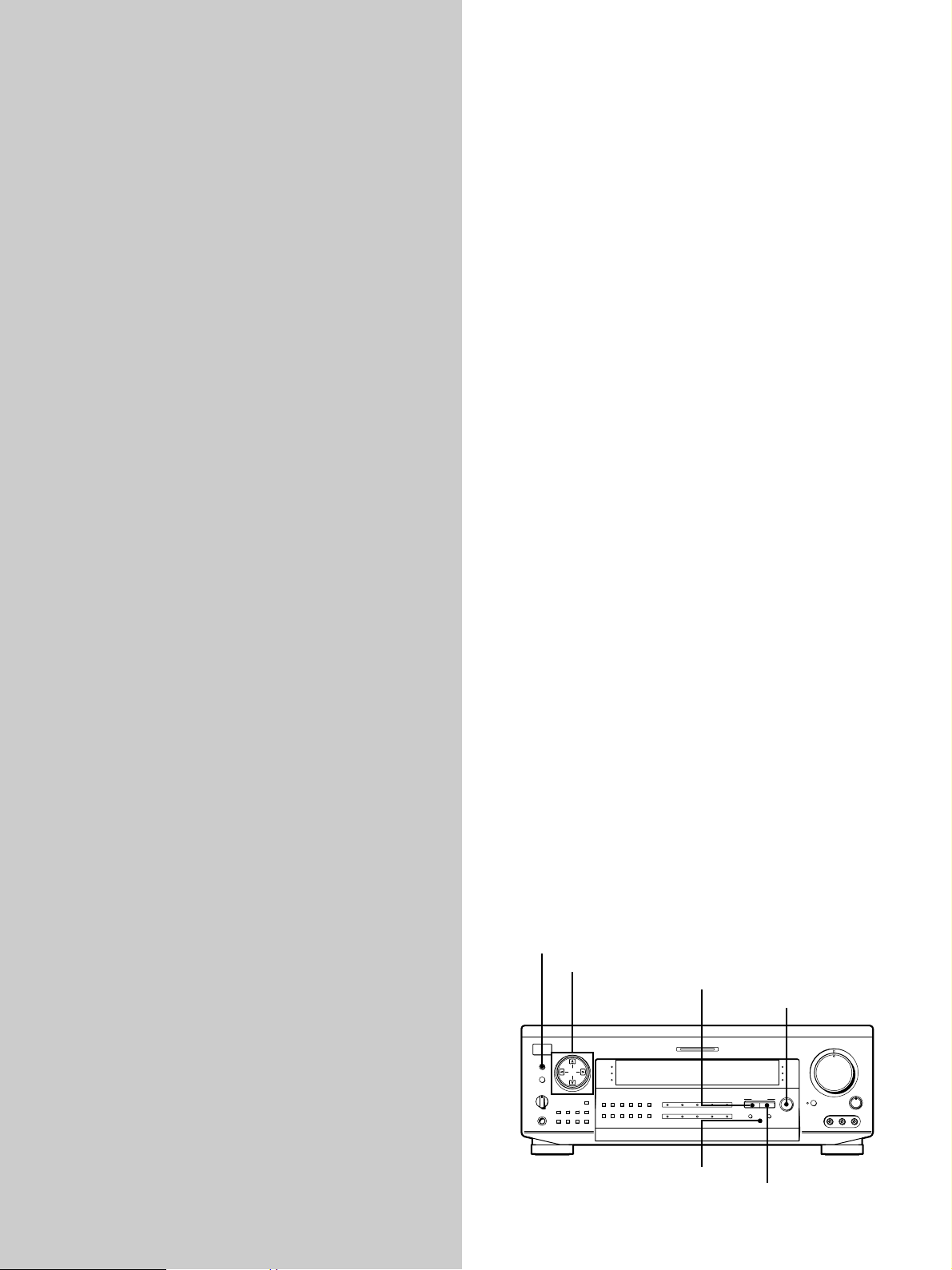

MULTI CHANNEL DECODING
SURROUND
SET UP
A
B
PHONES
EQUALIZER
INDEX
g
DIRECT
DISPLAY
162738495
TUNING
PRESET
TUNING
– TUNING +
–
+
SHIFT
MEMORY
FM/AMFM MODE
SLEEP
VIDEO 1
0
TAPE MD/DAT CD TUNER
FUNCTION
VIDEO 2 VIDEO 3 DVD/LD
TV/DBS
PHONO
MASTER VOLUME
SOUND FIELD
EQ BASS
BOOST
SOUND FIELD
ON/OFF
SOUND FIELD
GENRE MODE
INPUT
BASS
MODE
BOOST
EQ
ON/OFF
VIDEO 3 INPUT
MASTER VOLUME
5
•
•
•
46
•
•
•
3
•
•
•
2
•
•
•
1
•
•
•
0
MUTING
•
•
•
•
•
•
7
•
•
•
8
•
•
•
9
•
•
•
•
BALANCE
10
LR
RLVIDEO AUDIO
1 Press 1/u to turn on the receiver. 2 Press a FUNCTION button to select a component
(program source) that you connected (e.g., CD player or tape deck).
3 Turn on the component and start playing it. 4 Rotate MASTER VOLUME to turn up the volume.
If you do not obtain normal sound output after performing this procedure, look for the reason in the following checklist and take the appropriate measures to correct the problem.
There is no sound no matter which component is selected.
/ Check that both the receiver and all components
are turned on.
/ Check that the MASTER VOLUME control is not
set at 0.
/ Check that the SPEAKERS selector is not set to
OFF or to a position for front speakers that are not connected to the receiver (see “8 SPEAKERS selector” on page 25).
/ Check that all speaker cords are connected
correctly.
/ Press the MUTING button to turn off the indicator
to the left of the button.
Hooking Up and Setting Up the Speaker System
21
Page 22
Before You Use Your Receiver
There’s no sound from a specific component.
/ Check that the component is connected correctly to
the audio input jacks for that component.
/ Check that the cord(s) used for the connection is
(are) fully inserted into the jacks on both the
Hooking Up and Setting Up the Speaker System
receiver and the component.
No sound is heard from one of the front speakers.
/ Check that the BALANCE control is set at center
position (see “6 BALANCE control” on page 25).
/ Connect a pair of headphones to the PHONES jack
and set the SPEAKERS selector to OFF to verify that sound is output from the headphones (see “8 SPEAKERS selector” and “PHONES jack” on page
25). If only one channel is output from the headphones, the component may not be connected to the receiver correctly. Check that all the cords are fully inserted into the jacks on both the receiver and the component. If both channels are output from the headphones, the front speaker may not be connected to the receiver correctly. Check the connection of the front speaker which is not outputting any sound.
If you encounter a problem that is not included above, see “Troubleshooting” on page 48.
22
Page 23
Hooking Up and Setting Up the Speaker System
23
Page 24

Location of Parts and Basic Operations

This chapter provides information about the locations and functions of the buttons and controls on the front panel. It also explains basic operations.

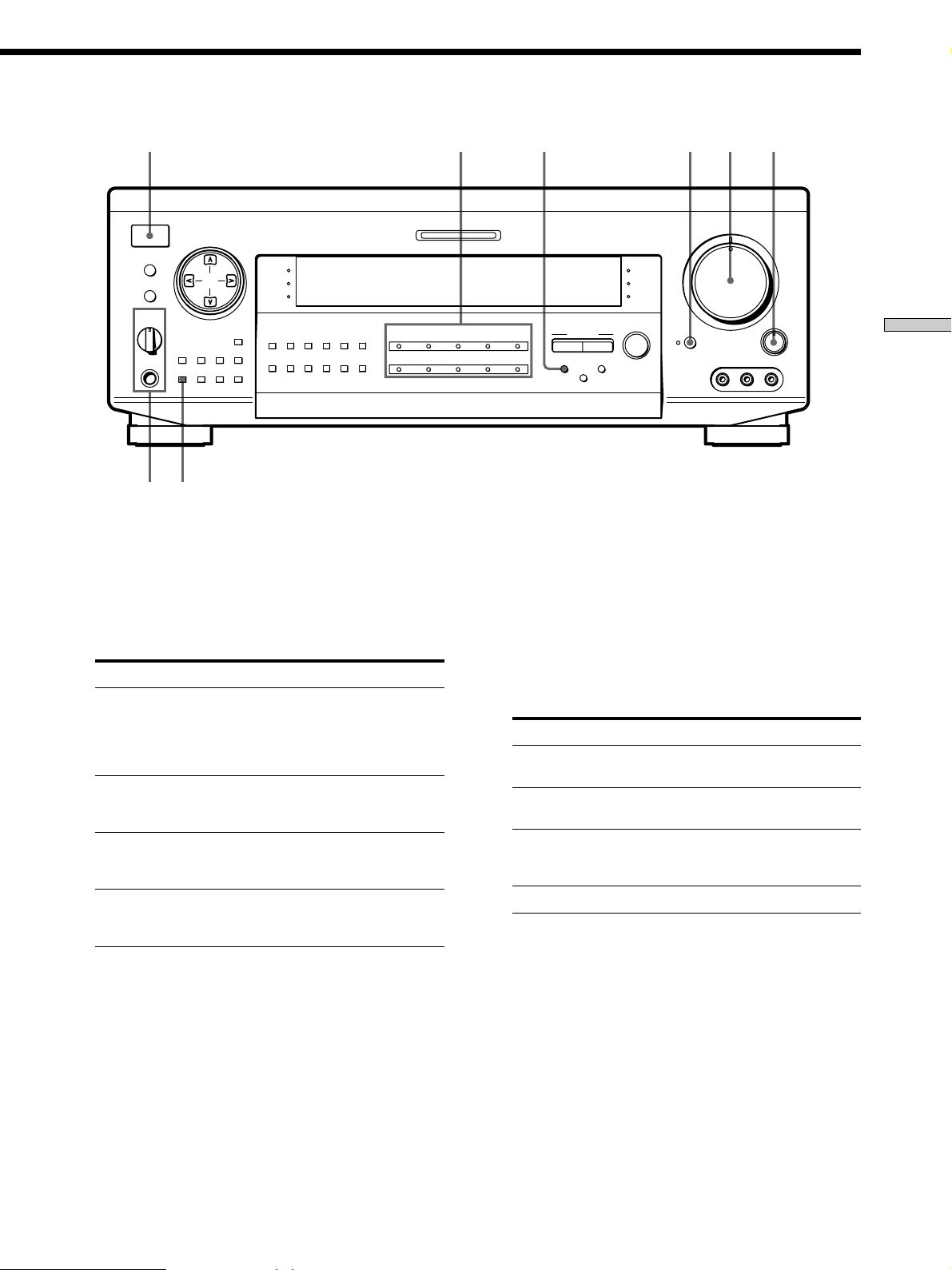

Front Panel Parts Description

1 1/u switch
Press to turn the receiver on and off.
• Before you turn on the receiver, make sure that you have turned the MASTER VOLUME control to the leftmost position to avoid damaging you speakers.
2 FUNCTION buttons
Press one of the buttons to select the component you want to use.
To select Press
VCR VIDEO 1 or VIDEO 2 Camcorder or video game VIDEO 3 (STR-DE925 only) TV or DBS tuner TV/DBS DVD or LD player DVD/LD Tape or MD deck TAPE/MD (STR-DE825)
Tape deck TAPE (STR-DE925) MD or DAT deck MD/DAT (STR-DE925 only) CD player CD Built in tuner TUNER Turntable PHONO
24
After selecting the component, turn on the component you selected and play the program source.
• After selecting VCR, camcorder, video game, DVD player, or LD player, turn on the TV and set the TV’s video input to match the component you selected.
• When using digital inputs, there may be up to 6 seconds of silence when switching functions or inserting new discs.
Page 25
1
2 3564
CURSOR MODE
SET UP
SPEAKERS
A
OFF
+B
A
PHONES
B
TUNING
–
+
SLEEP
PRESET
– TUNING +
FM/AMFM MODE
DISPLAY
MEMORY
SURROUND
EQUALIZER
INDEX
DIRECT
162738495
TUNING
SHIFT
g
0
78
3 INPUT MODE button
Press to select the input mode for your digital components (DVD/LD, TV/DBS, and MD/DAT (STR­DE925) or TAPE/MD (STR-DE825)). Each press switches the input mode of the currently selected component.
Select To
AUTO Give priority to digital signals
ANALOG Specify the analog audio signals
DIGITAL (OPTICAL) Specify the digital audio signals
DIGITAL (COAXIAL) Specify the digital audio signals
4 MASTER VOLUME control
After turning on the component you selected, rotate to adjust the volume.
5 MUTING button
Press to mute the sound. The indicator to the left of the button lights up when the sound is muted.
when there are both digital and analog connections. If there are no digital signals, analog is selected
input to the AUDIO IN (L and R) jacks
input to the DIGITAL OPTICAL input jacks
input to the DIGITAL COAXIAL input jacks (DVD/LD only)
MULTI CHANNEL DECODING
FUNCTION
VIDEO 2 VIDEO 3 DVD/LD
VIDEO 1
TAPE MD/DAT CD TUNER PHONO
6 BALANCE control
7 SLEEP button
8 SPEAKERS selector
MASTER VOLUME
5
•
•
•
•
•
•
TV/DBS
SOUND FIELD
GENRE MODE
INPUT MODE
EQ
ON/OFF
BASS
BOOST
SOUND FIELD
EQ BASS
BOOST
SOUND FIELD
ON/OFF
46
•
•
•
3
•
•
•
2
•
•
•
1
•
•
•
0
MUTING
VIDEO 3 INPUT
•
•
•
•
•
•
10
LR
RLVIDEO AUDIO
7
•
•
•
8
•
•
•
9
•
BALANCE
Rotate to adjust the balance of the front speakers.
Press to select the time after which the receiver turns off automatically (see page 46).
Set according to the front speakers you want to drive.
Set to To select
A The speakers connected to the FRONT
B The speakers connected to the FRONT
A+B* The speakers connected to both the FRONT
OFF No front speaker output
Do not set to A+B when a sound field is turned on.
*
SPEAKERS A terminals
SPEAKERS B terminals
SPEAKERS A and B terminals (parallel connection)
PHONES jack
Connects headphones.
• To use the headphones, set the SPEAKERS selector to OFF to output sound to the headphones.
• When the sound field is ON, setting the SPEAKERS selector to OFF will automatically present a two channel downmix from the headphones.
Location of Parts and Basic Amplifier Operations
25
Page 26
Front Panel Parts Description
!§!∞ !¡
CURSOR MODE
SET UP
SPEAKERS
A
B
OFF
+B
!¶
A
TUNING
–
PHONES
+
SLEEP
!¢ 9
Location of Parts and Basic Amplifier Operations
9 DISPLAY button
Press repeatedly to change the information on the display window as follows:
Index name of the component or the preset station*
FUNCTION button indication or frequency**
Sound field applied to the program source
* Index name appears only when you have assigned one to the
component or preset station (see page 45). Index name does not appear when only blank spaces have been entered, or it is the same as the function button.
** Frequency appears only when the tuner is selected.
PRESET
– TUNING
FM/AMFM MODE
DISPLAY
MEMORY
SURROUND
EQUALIZER
INDEX
g
DIRECT
162738495
TUNING
+
SHIFT
v
v
v
MULTI CHANNEL DECODING
VIDEO 1
0
TAPE MD/DAT CD TUNER PHONO
FUNCTION
VIDEO 2 VIDEO 3 DVD/LD
0!£
MASTER VOLUME
5
•
•
•
•
•
•
TV/DBS
SOUND FIELD
GENRE MODE
INPUT MODE
EQ
ON/OFF
BASS
BOOST
SOUND FIELD
EQ BASS
BOOST
SOUND FIELD
ON/OFF
46
•
•
•
3
•
•
•
2
•
•
•
1
•
•
•
0
MUTING
VIDEO 3 INPUT
•
•
•
•
•
10
LR
RLVIDEO AUDIO
7
•
•
•
8
•
•
•
9
•
•
BALANCE
!™
!¡ MULTI CHANNEL DECODING indicator
This indicator lights when the sound field is on and the unit is decoding signals recorded in a multi channel format.
!™ BASS BOOST button
Press to increase the bass of the front speakers. The BASS BOOST indicator lights up when the function is turned on.
EQ ON/OFF button
Press to turn the equalizer on or off. The EQ indicator lights when the equalizer is turned on. When you adjust the equalizer using the CURSOR MODE menu EQUALIZER parameters (page 36) the settings are stored automatically and can be reproduced whenever you turn on the equalizer.
!º Use the following buttons to enjoy surround sound.
For details, see “Enjoying Surround Sound” starting from page 28.
GENRE button
Press to select the sound field group you want.
MODE button
Press to select a sound field from the group you selected.
SOUND FIELD ON/OFF button
Press to turn the sound field on or off.
26
z When you want to enjoy high quality sound
Do the following to bypass the sound field, tone effect, and the bass booster circuits.
1 Press BASS BOOST to turn off the BASS BOOST indicator. 2 Press EQ ON/OFF to turn off the EQ indicator. 3 Press SOUND FIELD ON/OFF to turn off the SOUND
FIELD indicator. The result will be a sound that is highly faithful to the program source.
Page 27
!£ The following buttons operate the built-in tuner. For
details, see “Receiving Broadcasts” starting from page
40.
DIRECT TUNING button
Enables Direct Tuning (see page 41).
SHIFT button
Selects a memory page for preset stations.
Numeric buttons (1 to 0)
Inputs the numeric value.
!¢ The following buttons operate the built-in tuner. For
details, see “Receiving Broadcasts” starting from page
40.
TUNING +/– buttons
Scans all the available radio stations.
PRESET TUNING +/– buttons
Scans all preset stations.
FM MODE button
If “STEREO” flashes in the display and the FM stereo reception is poor, press this button. You will not have the stereo effect but the sound is improved.
FM/AM button
Selects the FM or AM band.
MEMORY button
Press to memorize a preset station.
!∞ CURSOR MODE button
Press this button repeatedly to select any of the following three cursor modes. The indicator for the selected cursor mode lights up to the left of the display window. The indicator turns off when you press the SET UP button.
When cursor mode is You can
SURROUND Change the various surround
parameter (effect level, wall type, etc.), adjust the volume and balance of the rear speakers, and adjust the volume of the center speaker and subwoofer (page 35)
EQUALIZER Adjust the equalization (bass/
mid/treble) of the front, center and rear speakers (page 36). Press the EQ ON/OFF button to activate the equalizer .
INDEX Enter an index name for preset
stations and program sources (page 45)
!§ Cursor buttons ( / / / )
After pressing the CURSOR MODE or SET UP button, use these buttons to make specific settings (see pages 17, 19, 35, 36, and 47).
!¶ SET UP button
Press this button repeatedly to select any of the following three indications. The selected indication appears in the display and you will be able to make various settings using the cursor buttons.
When you display You can
Speaker setup Specify the front, center, rear
speaker sizes, the rear speaker position, and whether or not you are using a subwoofer (page 17)
Speaker Distance Specify the front, center, and rear
speaker distances and the unit of measurement (page 19)
Other Setup Set the display to one of four
brightness levels (page 47)
Location of Parts and Basic Amplifier Operations
27
Page 28

Enjoying Surround Sound

You can take advantage of surround sound simply by selecting one of the receiver’s pre-programmed sound modes. They bring the exciting and powerful sound of movie theaters and concert halls into your home. You can also customize the sound modes to obtain the sound you desire by changing the various surround parameters. The sound modes are divided by type into four basic groups called “genres”. The following is a basic explanation of each genre. For information about the sound modes available in each genre, see pages 30~32.
This chapter describes how to set up the receiver to enjoy surround sound. You can enjoy multi channel surround when playing back software encoded with Dolby Digital or DTS (STR-DE925 only).
CINEMA
The sound modes in this genre are designed for use when playing back movie software (DVD, LD, etc.) encoded with multi channel surround sound or Dolby Pro Logic. In addition to decoding the surround sound, this genre also includes sound modes that provide the reflections and reverberation typically found in movie theaters. The sound modes in this genre have little effect on two­channel stereo sources (CD, MD, etc.).
VIRTUAL 3D
This genre contains compelling applications of the Sony Digital Cinema Sound digital signal processing technology. These sound modes shift the sound away from the actual speaker locations to simulate the presence of several “virtual” speakers. Like the CINEMA genre, this genre is most effective when playing back movie software encoded with multi channel surround sound.
MUSIC (etc.)
The sound modes in this genre are designed for use with standard audio sources (like CD) and TV broadcasts. These modes add reverberation to the source signal to create powerful soundfields that make you feel as if you were in a concert hall or stadium (etc.). Use the sound modes in this genre with two-channel sources and stereo broadcasts of sports programs or musical concerts.
A.F.D.
This genre contains the “Auto Format Decoding” sound mode which presents the sound exactly as it was encoded, without adding any reverberation (etc.).
28
To fully enjoy surround sound, you must register the number and location of you speakers. See “Multi-Channel Surround setup” starting on page 16 to set the speaker parameters before enjoying surround sound.

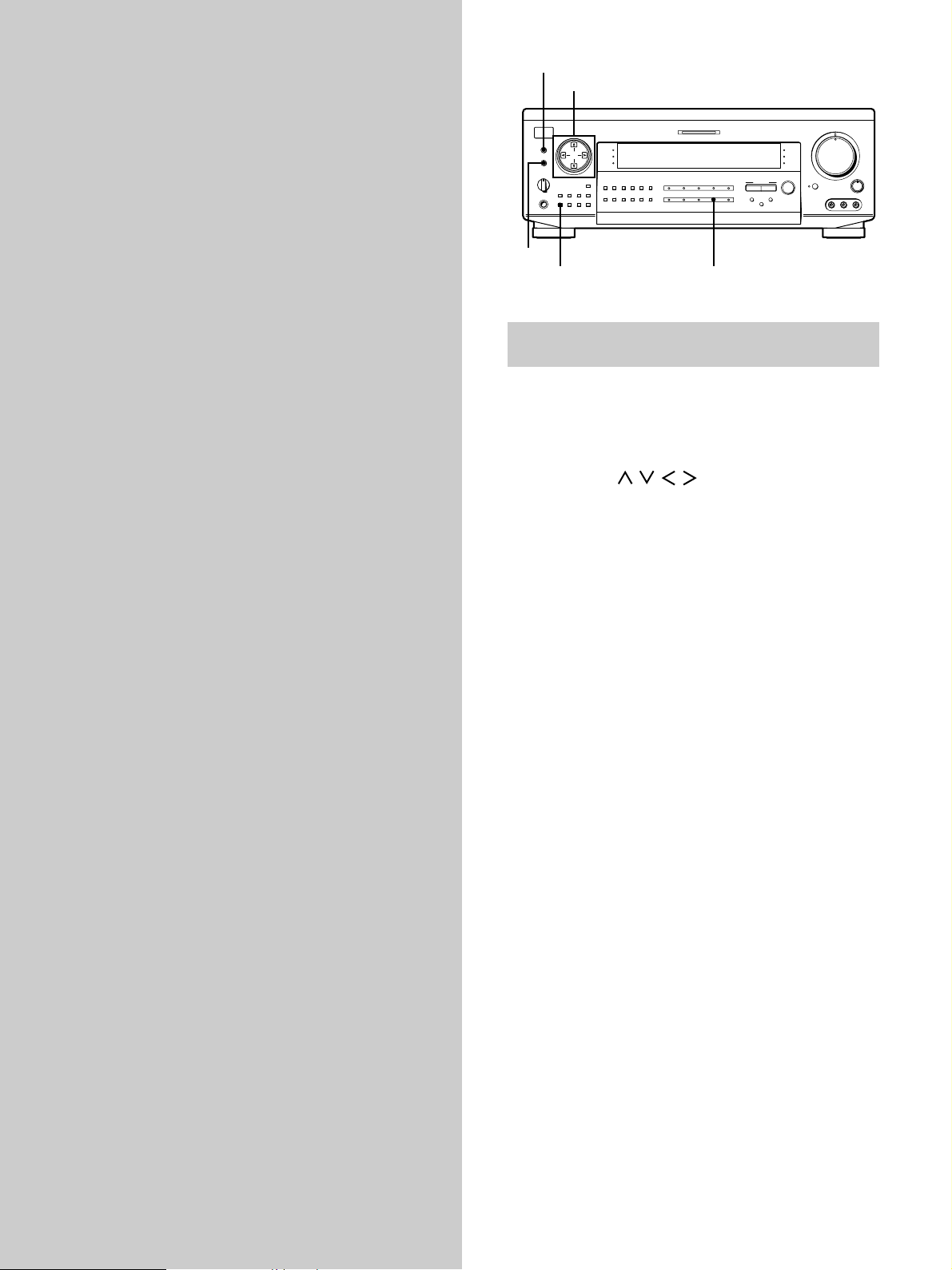

CURSOR MODE
Cursor buttons
GENRE
SOUND FIELD ON/OFF
SOUND FIELD
ON/OFF
SOUND FIELD
EQ BASS
BOOST
MASTER VOLUME
•
46
•
•
•
3
•
•
•
2
•
•
•
1
•
•
•
0
MUTING
VIDEO 3 INPUT
5
•
•
•
•
•
•
•
•
7
•
•
•
8
•
•
•
9
•
•
•
•
BALANCE
10
LR
RLVIDEO AUDIO
CURSOR MODE
SET UP
SPEAKERS
OFF
+
B
A
PHONES
MULTI CHANNEL DECODING
SURROUND
EQUALIZER
INDEX
A
B
TUNING
–
+
SLEEP
g
DIRECT
DISPLAY
162738495
TUNING
PRESET
+
– TUNING
SHIFT
MEMORY
FM/AMFM MODE
VIDEO 1
0
TAPE MD/DAT CD TUNER
FUNCTION
VIDEO 2 VIDEO 3 DVD/LD
SOUND FIELD
TV/DBS
GENRE MODE
INPUT
BASS
PHONO
MODE
BOOST
EQ
ON/OFF
EQ ON/OFF
MODE
Page 29
Brief descriptions of buttons used to enjoy surround sound

Selecting a Sound Field

CURSOR MODE button: Press repeatedly to light up the SURROUND or EQUALIZER indicators to customize a sound field.
Cursor buttons (
CURSOR MODE button or SET UP button, use these buttons to make the actual setting.
GENRE button: Press to select the desired sound field group (genre).
SOUND FIELD ON/OFF button: Turns the sound field on or off.
MODE button: Press to select the specific sound field from the selected genre.
EQ ON/OFF button: Turns the equalizer on or off.
/ / / ): After pressing the
You can enjoy surround sound simply by selecting one of the pre-programmed sound fields according to the program you want to listen to.
1 Press SOUND FIELD ON/OFF to turn on the sound
field.
The current sound field is indicated in the display.
2 Press GENRE repeatedly to select the sound field
group (genre), then press MODE repeatedly to select the sound field you want.
See the table starting on page 30 for information on each sound field.
z
The receiver memorizes the last sound field selected for each
program source (Sound Field Link)
Whenever you select a program source, the sound field that was last applied is automatically applied again. For example, if you listen to CD with STADIUM as the sound field, change to a different program source, then return to CD, STADIUM will be applied again. With the tuner, sound fields are memorized separately for AM, FM, and all preset stations.
z
You can identify Dolby Surround-encoded software by
looking at the packaging
Use discs with the logo. In order to enjoy Dolby Digital (AC-3) playback you must use discs bearing this logo.
Enjoying Surround Sound
Note
When using sound fields, do not select both speakers (A+B) with the SPEAKERS selector.
29
Page 30

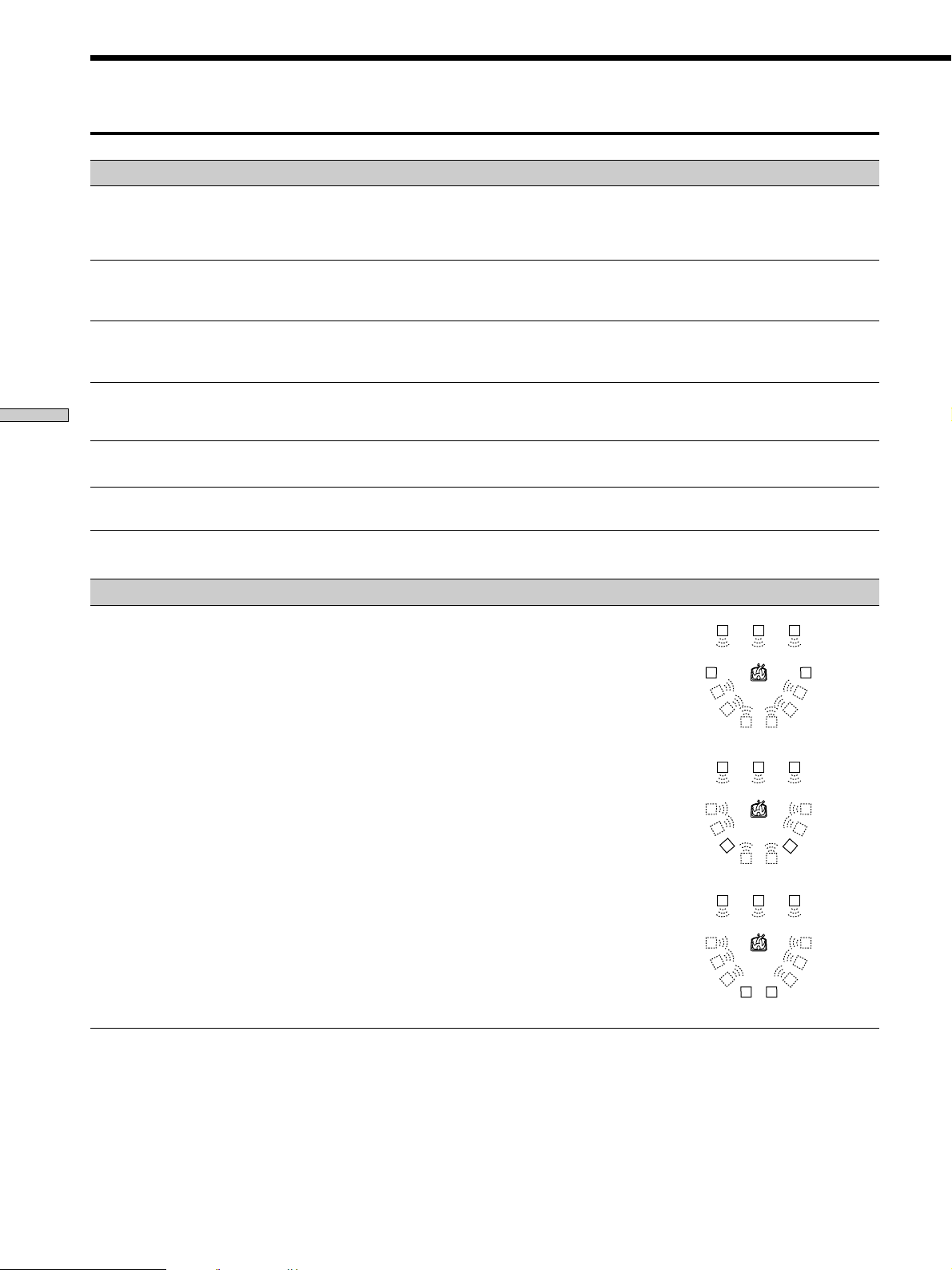

Selecting a Sound Field
Sound field Effect Notes
GENRE : CINEMA
NORMAL SURROUND
Software with multi channel surround audio signals is played according to the way it was recorded. Software with 2 channel audio signals, is decoded with Dolby Pro Logic to create surround effects.
CINEMA STUDIO A
CINEMA STUDIO B
CINEMA STUDIO C
Enjoying Surround Sound
NIGHT THEATER
MONO MOVIE
STEREO MOVIE
GENRE : VIRTUAL 3D
VIRTUAL MULTI REAR
Reproduces the sound characteristics of the Sony Pictures Entertainment “Cary Grant Theater” cinema production studio.
Reproduces the sound characteristics of the Sony Pictures Entertainment “Kim Novak Theater” cinema production studio.
Reproduces the sound characteristics of the Sony Pictures Entertainment scoring stage.
Allows you to retain a theater like environment while listening at low volume levels, such as late at night.
Creates a theater like environment from movies with monaural soundtracks.
Creates a theater like environment from movies recorded with stereo soundtracks
Uses 3D sound imaging to create 3 sets of virtual rear speakers from 1 set of actual rear speakers.
This is a standard mode, great for watching most any type of movie.
This mode is ideal for watching science­fiction or action movies with lots of sound effects.
This mode is ideal for watching musicals or classic films where music is featured in the soundtrack.
LCR
SIDE*
RSLS
LS
RS
RSLS
30
MIDDLE*
BEHIND*
LCR
RSLS
LS
LCR
LS
RS
RSLS
RSLS
RS
RSLS
* See
page 18
Page 31
Sound field Effect Notes
GENRE : VIRTUAL 3D (continued)
VIRTUAL MULTI DIMENSION
Uses 3D sound imaging to create an array of virtual rear speakers positioned higher than the listener from a single pair of actual rear speakers. This mode creates 5 sets of virtual speakers surrounding the listener at approximately a 30° angle of elevation.
SIDE*
LCR
RSLS
VIRTUAL THEATER A
VIRTUAL THEATER B
VIRTUAL THEATER C
VIRTUAL ENHANCED A
VIRTUAL ENHANCED B
Adds the 3D sound imaging of VIRTUAL MULTI DIMENSION to CINEMA STUDIO A. Reproduces the sound characteristics of the “Cary Grant Theater” and creates 5 sets of virtual speakers surrounding the listener (at approximately a 30° angle of elevation) from a single pair of actual rear speakers.
Adds the 3D sound imaging of VIRTUAL MULTI DIMENSION to CINEMA STUDIO B. Reproduces the sound characteristics of the “Kim Novak Theater” and creates 5 sets of virtual speakers surrounding the listener (at approximately a 30° angle of elevation) from a single pair of actual rear speakers.
Adds the 3D sound imaging of VIRTUAL MULTI DIMENSION to CINEMA STUDIO C. Reproduces the sound characteristics of the scoring stage and creates 5 sets of virtual speakers surrounding the listener (at approximately a 30° angle of elevation) from a single pair of actual rear speakers.
Uses 3D sound imaging to create 3 sets of virtual rear speakers from the sound of the front speakers without using actual rear speakers.
Uses 3D sound imaging to create 1 set of virtual rear speakers from the sound of the front speakers without using actual rear speakers.
MIDDLE*
BEHIND*
LS
LCR
LS
LCR
LS
LCR
LCR
RS
RSLS
RSLS
RS
RSLS
RSLS
RS
RSLS
* See
RSLS
RSLS
Enjoying Surround Sound
page 18
VIRTUAL SEMI-MULTI DIMENSION
VIRTUAL SEMI-THEATER A
Uses 3D sound imaging to create virtual rear speakers from the sound of the front speakers without using actual rear speakers. This mode creates 5 sets of virtual speakers surrounding the listener at a 30° angle of elevation.
Adds the 3D sound imaging of VIRTUAL SEMI-MULTI DIMENSION to CINEMA STUDIO A. Reproduces the sound characteristics of the “Cary Grant Theater” and creates 5 sets of virtual speakers surrounding the listener at a 30° angle of elevation from the sound of the front speakers without using actual rear speakers.
LS
LCR
LS
RS
RSLS
RSLS
RS
RSLS
31
Page 32

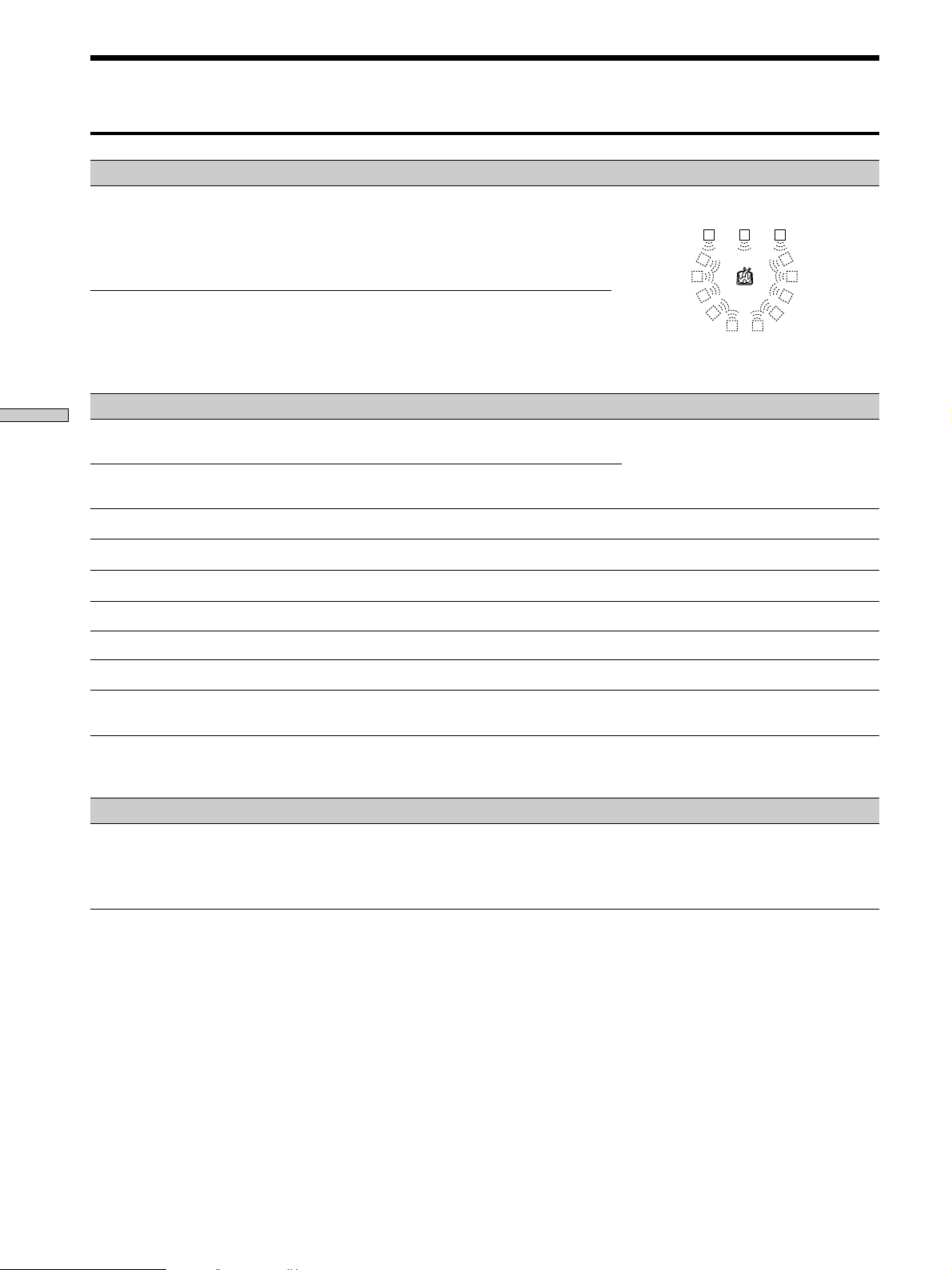

Selecting a Sound Field
Sound field Effect Notes
GENRE : VIRTUAL 3D (continued)
VIRTUAL SEMI-THEATER B
Adds the 3D sound imaging of VIRTUAL SEMI-MULTI DIMENSION to CINEMA STUDIO B. Reproduces the sound characteristics of the “Kim Novak Theater” and creates 5 sets of virtual speakers surrounding the listener at a 30° angle of elevation from the sound of the front speakers without using actual rear speakers.
LCR
RSLS
VIRTUAL SEMI-THEATER C
GENRE : MUSIC, ETC.
Enjoying Surround Sound
SMALL HALL
LARGE HALL
OPERA HOUSE
JAZZ CLUB
DISCO/CLUB
CHURCH
LIVE HOUSE
ARENA
STADIUM
GAME
Adds the 3D sound imaging of VIRTUAL SEMI-MULTI DIMENSION to CINEMA STUDIO C. Reproduces the sound characteristics of the scoring stage and creates 5 sets of virtual speakers surrounding the listener at a 30° angle of elevation from the sound of the front speakers without using actual rear speakers.
Reproduces the acoustics of a small rectangular concert hall.
Reproduces the acoustics of a large rectangular concert hall.
Reproduces the acoustics of an opera house.
Reproduces the acoustics of a jazz club.
Reproduces the acoustics of a discotheque/dance club.
Reproduces the acoustics of a stone church.
Reproduces the acoustics of a 300-seat live house.
Reproduces the acoustics of a 1000-seat concert hall.
Reproduces the feeling of a large open-air stadium.
Obtains maximum audio impact from video game software.
LS
RS
RSLS
Ideal for soft acoustic sounds.
Ideal for musicals and opera.
Great for rock or pop music.
Great for sporting events or electric (amplified) music.
Be sure to set the game machine to stereo mode when using game software with stereo sound capabilities.
GENRE : A.F.D.
AUTO FORMAT DECODING You can use this mode as a reference. Set
Note
The effects provided by VIRTUAL THEATER A, B, and C sound fields may cause increased noise in the playback signal.
Automatically detects the type of audio signal being input (Dolby Digital, DTS, Dolby Pro Logic, or standard 2-channel stereo) and performs the proper decoding if necessary. This mode presents the sound as it was recorded/encoded, without adding any effects.
the equalizer to OFF while using this mode to hear the source sound exactly as it was recorded.
32
Page 33

Understanding the Multi-Channel Surround Displays

123 456 7
OPTICAL COAXIAL
AC-3RFMPEGDTSDUAL
DIGITAL
a
PRO LOGIC
!¡
1 OPTICAL
Lights up when the source signal is a digital signal being input through the OPTICAL terminal.
2 COAXIAL
Lights up when the source signal is a digital signal being input through the COAXIAL terminal.
3 a DIGITAL
This indicator lights when the sound field is on and the unit is decoding signals recorded in the Dolby Digital (AC-3) format.
4 Playback channel indicators
The letters light to indicate the channels being played back. L: Front Left R: Front Right C: Center (monaural) LS: Left Surround RS: Right Surround S: Surround (monaural or the rear components obtained by Pro Logic processing) The boxes around the letters light to indicate the speakers used to playback the channels. See the next page for details regarding the playback channel indicators.
5 L.F.E
The letters “L.F.E” light up when the disc being played contains the LFE (Low Frequency Effect) channel. When the sound of the LFE channel signal is actually being reproduced, the bars underneath the letters lights up to indicate the level. Since the LFE signal is not recorded in all parts of the input signal the bar indication will fluctuate (and may turn off) during playback.
L.F.E.LLSCSR
RS
S.WOOFER STEREO RDS
D.RANGE EQ MONO TA NEWS INFO
890
6 S.WOOFER
Lights when sub woofer selection is set to “YES” and this unit detects that the disc being played does not contain the LFE channel signal. While this indicator is lit, this unit creates a sub woofer signal based on the low frequency components of the front channels.
7 Tuner indicators
These indicators light when using the receiver to tune in radio stations, etc. See pages 40~43 for tuner operations.
8 D. RANGE
Lights when dynamic range compression is active. See page 35 and 36 to adjust the dynamic range compression.
9 PRO LOGIC
Lights when this unit applies Pro Logic processing to two channel signals in order to output the center and surround channel signals.
0 DTS (STR-DE925 only)
Lights up when DTS signals are input.
Notes
• When playing a DTS format disc, be sure that you have made digital connections and that INPUT MODE is NOT set to ANALOG (see 3 on page 25).
• You may hear some noise when starting playback from a DTS format LD or CD. This, however, is not a malfunction.
!¡ AC-3
Lights when Dolby Digital (AC-3) signals are input.
MEMORY
Enjoying Surround Sound
33
Page 34

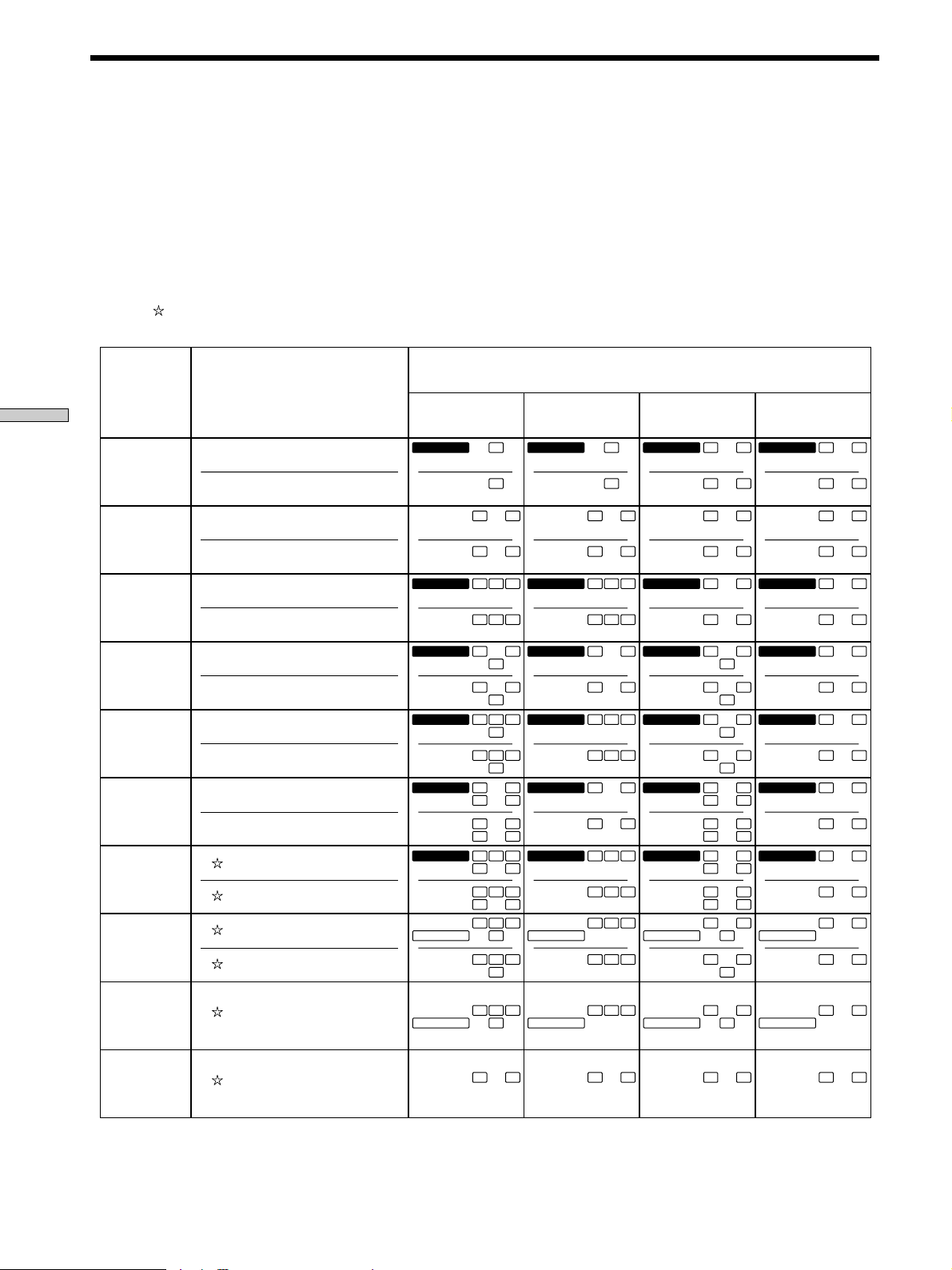

Understanding the Multi-Channel Sound Displays
Playback channel display
The display shows which channels are being played back and which speakers are being used. The letters (L, C, R, etc.) light to show the channels being played back. The boxes around the letters light to show which speakers are being used. The display varies depending on the number of speakers connected. See the “Speaker Setup and Playback Channel Display” column in the table below. This unit also displays the number of channels in the input signal. See the “Input Channel Display” column in the table below.
Although the table below shows almost all of the configurations available from multi channel surround signals, the ones marked “
” are the most common.
(Front/Rear)
Enjoying Surround Sound
Recording
Format
1/0
2/0*
3/0
2/1
3/1
2/2
3/2
2/0**
Input Channel Display
DOLBY DIGITAL [1/0]
DTS [1/0]
DOLBY DIGITAL [2/0]
DTS [2/0]
DOLBY DIGITAL [3/0]
DTS [3/0]
DOLBY DIGITAL [2/1]
DTS [2/1]
DOLBY DIGITAL [3/1]
DTS [3/1]
DOLBY DIGITAL [2/2]
DTS [2/2]
DOLBY DIGITAL [3/2]
DTS [3/2]
DOLBY DIGITAL [2/0]
DTS [2/0]
All speakers
present
DIGITALaC
DTS
DTS
DIGITALaL C R
DTS
DIGITALaLSR
DTS
DIGITALaL CSR
DTS
DIGITALaLLSR
DTS
DIGITALaLLSC R
DTS
PRO LOGIC
DTS
Speaker Setup and Playback Channel Display
Rear speakers
absent
DIGITALaC
C
DTS
L R L R L R L R
R
L
C R
L
L
S
CSR
L
L
LS
C R
L
LS
L CSR
CSR
L
R
RS
R
RS
RS
RS
DTS
DTS
DTS
DTS
DTS
DTS
PRO LOGIC
DTS
L
DIGITALaL C R
L
DIGITALaL
L
DIGITALaL CSR
L
DIGITALaLLSR
L
LS
DIGITALaLLSC R
L
LS
L CSR
L
C
C R
S
S
CSR
C R
CSR
R
R
R
RS
R
RS
RS
RS
Center speaker
absent
DIGITALaC
DTS
DTS
DTS
DTS
DTS
DTS
DTS
PRO LOGIC
DTS
L
DIGITALaL CR
L
DIGITALaLSR
L
DIGITALaL CSR
L
DIGITALaLLSR
L
LS
DIGITALaLLSCR
L
LS
L CSR
L
speakers absent
C
DTS
R
DTS
CR
DTS
R
S
DTS
CSR
DTS
RS
R
RS
DTS
RS
CR
RS
DTS
PRO LOGIC
CSR
DTS
Rear/center
DIGITALaC
C
L
DIGITALaL CR
CR
L
DIGITALaL
DIGITALaL CSR
DIGITALaLLSR
DIGITALaLLSCR
S
L
S
CSR
L
L
LS
CR
L
LS
L CSR
CSR
L
R
R
R
RS
R
RS
RS
RS
DOLBY PROLOGIC
STEREO PCM**(kHz)
PRO LOGIC
L CSR
L R L R L R L R
PRO LOGIC
L CSR
* Without Pro Logic **When Pro Logic is ON or a sound mode from the CINEMA or VIRTUAL 3D genre is selected.
34
PRO LOGIC
L CSR
PRO LOGIC
L CSR
Page 35

Customizing Sound Fields

By adjusting the surround parameters and the equalization of the front and center speakers, you can customize the sound fields to suit your particular listening situation.
Once you customize a sound field, the changes are stored in memory indefinitely (unless the receiver is unplugged for about one week). You can change a customized sound field any time by making new adjustments to the parameters.
See the table on page 38 for the parameters available in each sound field.
To get the most from multi channel surround sound
Position your speakers and do the procedures described in “Multi-Channel Surround Setup” starting on page 16 before you customize a sound field.
Adjusting the surround parameters
The SURROUND menu contains parameters that let you customize various aspects of the current sound field. The settings available in this menu are stored individually for each sound field.
1 Start playing a program source encoded with multi
channel surround sound.
2 Press CURSOR MODE repeatedly until the
SURROUND indicator lights up.
3 Press the cursor buttons ( or ) to select the
parameter you want to adjust.
4 Press the cursor buttons ( or ) to select setting
you desire. The setting is entered automatically.
EFFECT LEVEL
Initial setting : (depends on sound mode) This parameter lets you adjust the “presence” of the current digital cinema sound surround effect.
WALL TYPE
Initial setting : midpoint When sound is reflected off soft material, such as a curtain, the high frequency elements are reduced. A hard wall is highly reflective and does not significantly effect the frequency response of the reflected sound. This parameter lets you control the level of the high frequencies to alter the sonic character of your listening environment by simulating a softer (S) or harder (H) wall. The midpoint designates a neutral wall (made of wood).
REVERBERATION
Initial setting : midpoint Before sound reaches our ears, it is reflected (reverberated) many times between he left and right walls, ceiling, and floor. In a large room, sound takes more time to bounce from one surface to another than in a smaller room. This parameter lets you control the spacing of the early reflections to simulate a sonically larger (L) or smaller (S) room.
• The reverberation can be adjusted ±8 from S (small, –8) to L (large, +8) in 17 steps.
• The midpoint (0) designates a standard room with no adjustment.
LFE (Low Frequency Effect) MIX LEVEL
Initial setting : 0 dB This parameter lets you attenuate the level of the LFE (Low Frequency Effect) channel output from the sub woofer without effecting the level of the bass frequencies sent to the sub woofer from the front, center or rear channels via the Dolby Digital (AC-3) bass redirection circuitry.
• The level can be adjusted in 1 dB steps from –20.0 dB to 0 dB (line level). 0 dB outputs the full LFE signal at the mix level determined by the recording engineer.
• Selecting MUTING mutes the sound of the LFE channel from the sub woofer. However, the low frequency sounds of the front, center, or rear speakers are output from the sub woofer according to the settings made for each speaker in the speaker setup (page 17).
Enjoying Surround Sound
35
Page 36
Customizing Sound Fields
DYNAMIC RANGE COMPRESSOR
Initial setting : OFF Lets you compress the dynamic range of the sound track. This may be useful when you want to watch movies at low volumes late at night.
• OFF reproduces the sound track with no compression.
• STD reproduces the sound track with the dynamic range intended by the recording engineer.
• 0.1 ~ 0.9 allow you to compress the dynamic range in small steps to achieve the sound you desire.
• MAX provides a dramatic compression of the dynamic range.
Note
Dynamic range compression is not possible with DTS sources.
Enjoying Surround Sound
z
This parameter allows you to compress the dynamic range of the soundtrack based on the dynamic range information included in the Dolby Digital signal. “STD” is standard compression, but because many sources have only light compression, you may not notice much difference when using 0.1~0.9. Therefore, we recommend using the “MAX” setting. This greatly compresses the dynamic range and allows you to view movies late at night at low volumes. Unlike analog limiters, the levels are predetermined and provide a very natural compression.
REAR BALANCE
Initial setting : center Lets you adjust the balance between the rear left and right speakers.
• The balance can be adjusted ±8 dB in 1 dB steps.
• This settings can also be adjusted directly using the supplied remote. See “Adjusting the speaker volume” (page 20).
About the Dynamic Range Compressor
CENTER LEVEL
Initial setting : 0 dB Lets you adjust the level of the center speaker.
• The level can be adjusted in 1 dB steps from –10 dB to +10 dB.
SUB WOOFER LEVEL
Initial setting : 0 dB Lets you adjust the level of the sub woofer.
• The level can be adjusted in 1 dB steps from –10 dB to +10 dB.
Adjusting the equalizer
The EQUALIZER menu lets you adjust the equalization (low, mid, and high frequencies) of the front and center speakers. The equalizer settings are stored individually for each sound field.
1 Start playing a program source encoded with multi
channel surround sound.
2 Press CURSOR MODE repeatedly until the
EQUALIZER indicator lights up.
3 Press the cursor buttons ( or ) to select the
parameter you want to adjust.
4 Press the cursor buttons ( or ) to select setting
you desire. The setting is entered automatically.
z
You can turn off the equalization without erasing it
The equalizer settings are stored separately for each sound field. Press the EQ ON/OFF button to turn the EQ indicator off.
REAR LEVEL
Initial setting : 0 dB Lets you adjust level of the rear (left and right) speakers.
• The level can be adjusted in 1 dB steps from –10 dB to +10 dB.
• This settings can also be adjusted directly using the supplied remote. See “Adjusting the speaker volume” (page 20).
36
Page 37

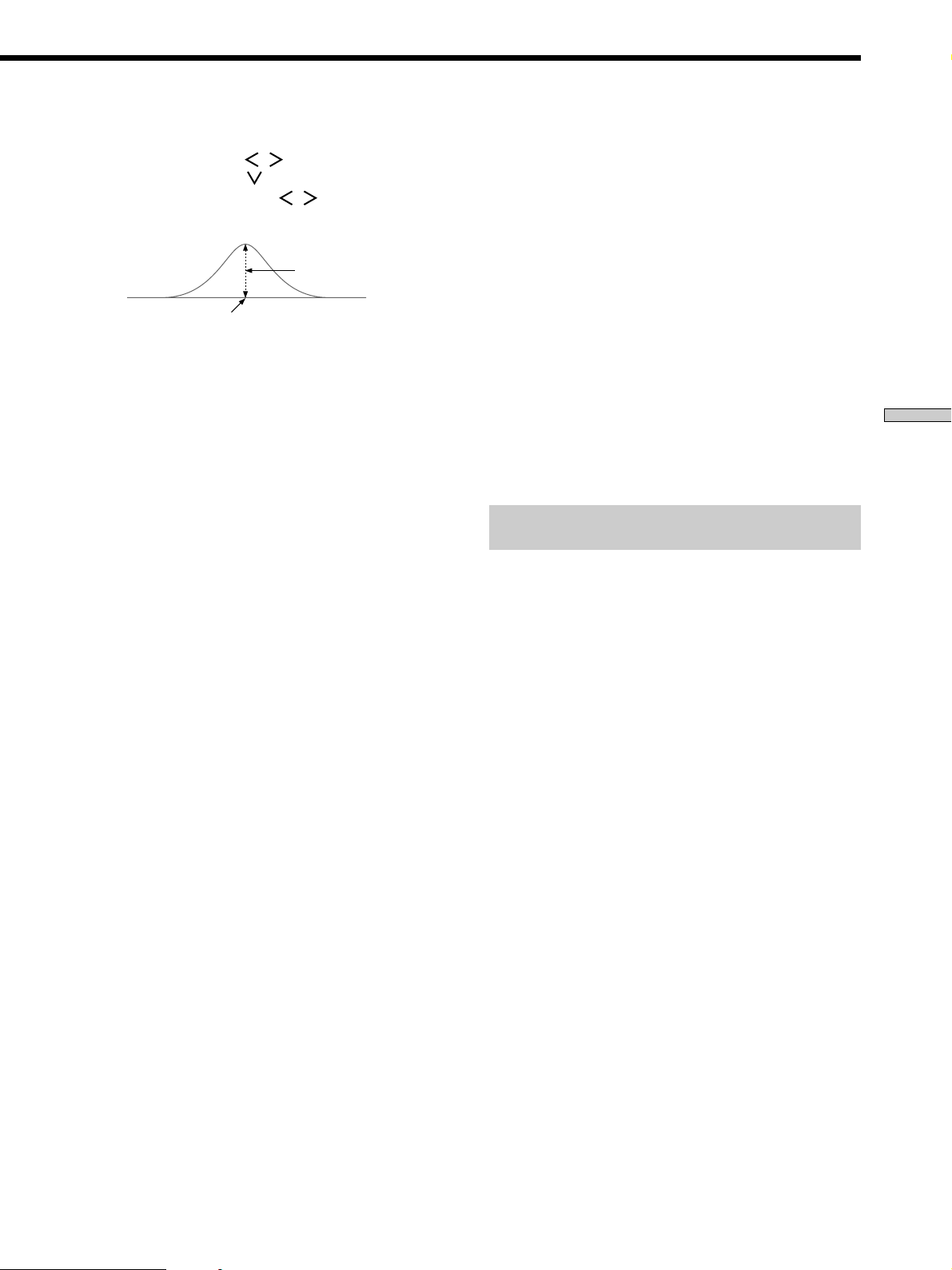

Front speaker bass adjustment (Level/Frequency)
1 Use the cursor buttons ( 2 Press the cursor button (
(Hz) and 3 use cursor buttons ( frequency (Hz). Repeat until you achieve the sound you desire.
Frequency (Hz)
• The level can be adjusted ±10 dB in 1 dB steps.
• The frequency can be adjusted from 100 Hz to 1.0 kHz in 21 steps.
Front speaker midrange adjustment (Level/ Frequency)
Adjust as described in “Front speaker bass adjustment”.
• The level can be adjusted ±10 dB in 1 dB steps.
• The frequency can be adjusted from 500 Hz to 5.0 kHz in 21 steps.
Front speaker treble adjustment (Level/ Frequency)
Adjust as described in “Front speaker bass adjustment”.
• The level can be adjusted ±10 dB in 1 dB steps.
• The frequency can be adjusted from 1.0 kHz to 10 kHz in 21 steps.
/ ) to adjust the level (dB),
) to display the frequency
/ ) to adjust the
Level (dB)
Rear speaker bass adjustment (Level/Frequency)
Adjust as described in “Front speaker bass adjustment”.
• The level can be adjusted ±10 dB in 1 dB steps.
• The frequency can be adjusted from 100 Hz to 1.0 kHz in 21 steps.
Rear speaker midrange adjustment (Level/ Frequency)
Adjust as described in “Front speaker bass adjustment”.
• The level can be adjusted ±10 dB in 1 dB steps.
• The frequency can be adjusted from 500 Hz to 5.0 kHz in 21 steps.
Rear speaker treble adjustment (Level/Frequency)
Adjust as described in “Front speaker bass adjustment”.
• The level can be adjusted ±10 dB in 1 dB steps.
• The frequency can be adjusted from 1.0 kHz to 10 kHz in 21 steps.
Resetting customized sound fields to the factory settings
1 If the power is on, press 1/u to turn off the power. 2 Hold down SOUND FIELD ON/OFF and press 1/u.
“SURR CLEAR!” appears in the display and all sound fields are reset at once.
Enjoying Surround Sound
Center speaker bass adjustment (Level/ Frequency)
Adjust as described in “Front speaker bass adjustment”.
• The level can be adjusted ±10 dB in 1 dB steps.
• The frequency can be adjusted from 100 Hz to 1.0 kHz in 21 steps.
Center speaker midrange adjustment (Level/ Frequency)
Adjust as described in “Front speaker bass adjustment”.
• The level can be adjusted ±10 dB in 1 dB steps.
• The frequency can be adjusted from 500 Hz to 5.0 kHz in 21 steps.
Center speaker treble adjustment (Level/ Frequency)
Adjust as described in “Front speaker bass adjustment”.
• The level can be adjusted ±10 dB in 1 dB steps.
• The frequency can be adjusted from 1.0 kHz to 10 kHz in 21 steps.
37
Page 38
Customizing Sound Fields
Adjustable parameters for each sound field
Sound EFFECT WALL REVERB LFE D.RANGE REAR REAR CENTER WOOFER field GENRE MODE LEVEL TYPE TIME MIX COMP BAL. LEVEL LEVEL LEVEL EQ
Off — — rr r On CINEMA NORMAL SURROUND rr rrr rr
Enjoying Surround Sound
CINEMA STUDIO A rrrrrrrr CINEMA STUDIO B rrrrrrrr CINEMA STUDIO C rrrrrrrr NIGHT THEATER rr rr r rr r rr MONO MOVIE rr rr r rr r rr STEREO MOVIE rr rr r rr r rr
VIRTUAL 3D V. MULTI REAR rrrrrrrr
V. MULTI DIMENSION rrrrrrrr V. THEATER A rrrrrrrr V. THEATER B rrrrrrrr V. THEATER C rrrrrrrr V. ENHANCED A rrr rrr V. ENHANCED B rrr rrr V. SEMI-MULTI DIM. rrr rrr V. SEMI-THEATER A rrr rrr V. SEMI-THEATER B rrr rrr V. SEMI-THEATER C rrr rrr
MUSIC(ETC) SMALL HALL rr rr r rr r rr
LARGE HALL rr rr r rr r rr OPERA HOUSE rr rr r rr r rr JAZZ CLUB rr rr r rr r rr DISCO/CLUB rr rr r rr r rr CHURCH rrrr r rr r rr LIVE HOUSE rrrr r rr r rr ARENA rr rr r rr r rr STADIUM rr rr r rr r rr GAME rrrr r rr r rr
OTHERS AUTO F. DECODING rr rrr rr
38
Page 39

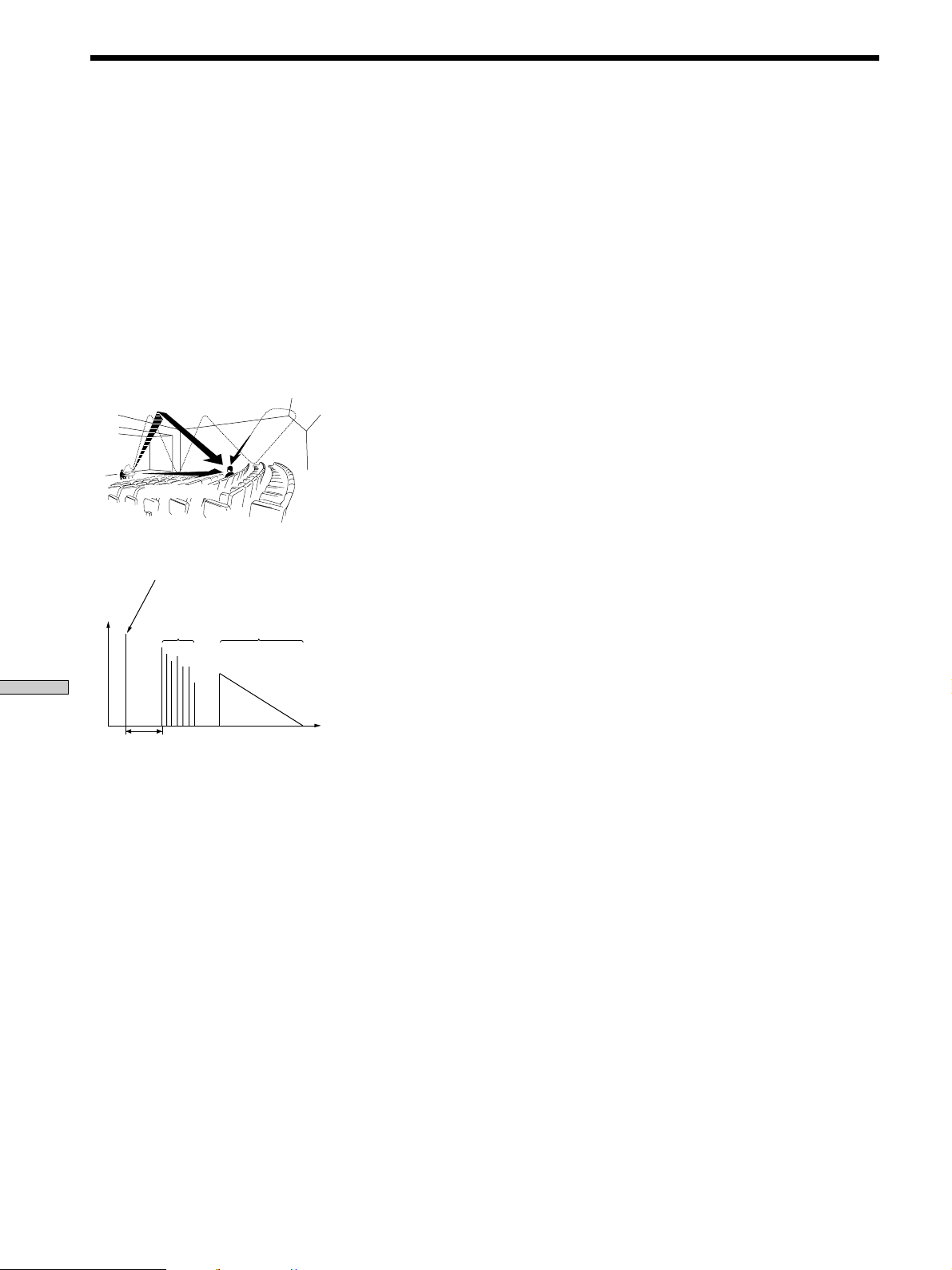

Enjoying Surround Sound
39
Page 40

Receiving Broadcasts

This chapter describes how to receive FM or AM broadcasts and how to preset selected stations.
You can tune in stations on this receiver in the following ways:
Direct Tuning
You can enter a frequency of the station you want directly by using the numeric buttons (see page 41).
Automatic Tuning
If you don’t know the frequency of the station you want, you can let the receiver scan all available stations in your area (see page 42).
Preset Tuning
After you have tuned in stations using Direct Tuning or Automatic Tuning, you can preset them to the receiver (see page 42). Then you can tune in any of the stations directly by entering its 2-character code (see page 43). Up to 30 FM or AM stations can be preset. The receiver will also scan all the stations that you have preset (see page
43).
Before you begin, make sure you have:
• Connected an FM and AM antenna to the receiver (see page 5).
• Selected the appropriate speaker system (see page 25).
PRESET TUNING +/
CURSOR MODE
SET UP
SPEAKERS
A
B
OFF
+
B
A
PRESET
TUNING
– TUNING +
–
SLEEP
+
FM/AMFM MODE
PHONES
FM/AM
FM MODE
+
TUNING
/
DIRECT TUNING
SURROUND
EQUALIZER
INDEX
g
DIRECT
DISPLAY
MEMORY
162738495
TUNING
SHIFT
SHIFT
MEMORY
Numeric buttons
MULTI CHANNEL DECODING
VIDEO 1
0
FUNCTION
VIDEO 2 VIDEO 3 DVD/LD
TAPE MD/DAT CD TUNER
TUNER
40
Page 41
Brief descriptions of buttons used to receive broadcasts

Direct Tuning

PRESET TUNING +/–: Press to scan all preset radio stations.
DIRECT TUNING: Press this button to enter a frequency directly using the numeric buttons.
Numeric buttons: Press to enter a numeric value when inputting the frequency directly, presetting radio stations, or tuning to preset stations.
TUNING +/–: Press to scan all available radio stations.
FM MODE: If “STEREO” flashes in the display and the
FM stereo reception is poor, press this button to improve the sound. You will not be able to enjoy stereo effect but the sound will be less distorted.
Note
If “STEREO” does not appear at all even when the FM broadcast is received normally, press this button to turn on the “STEREO” indication.
FM/AM: Press to select the FM or AM band.
MEMORY: Uses for memorizing preset stations.
SHIFT: Press to select a memory page (A, B, or C) for
presetting radio stations or tuning to preset stations.
TUNER: Selects the tuner.
For details on the buttons used in this section, see “Brief descriptions of buttons used to receive broadcasts” on this page.
1 Press TUNER to light the button up.
The last received station is tuned in.
2 Press FM/AM to select the FM or AM band. 3 Press DIRECT TUNING. 4 Press the numeric buttons to enter the frequency.
Example 1: FM 102.50 MHz
bbbb
Example 2: AM 1350 kHz
(You don’t have to enter the last “0.”)
bb
If you cannot tune in a station and the entered numbers flash
Make sure you’ve entered the right frequency. If not, repeat Steps 3 and 4. If the entered numbers still flash, the frequency is not used in your area.
05201
531
5 If you’ve tuned in an AM station, adjust the
direction of the AM loop antenna for optimum reception.
Receiving Broadcasts
6 Repeat Steps 2 to 5 to receive another station.
z
If you try to enter a frequency that is too precise for the
tuning scale
The entered value is automatically rounded up or down.
Tuning scale for direct tuning is:
FM: 50 kHz AM: 10 kHz (to change to 9 kHz, see page 51.)
41
Page 42

Automatic Tuning

Preset Tuning

Receiving Broadcasts
For details on the buttons used in this section, see “Brief descriptions of buttons used to receive broadcasts” on page 41.
1 Press TUNER to light the button up.
The last received station is tuned in.
2 Press FM/AM to select the FM or AM band. 3 Press TUNING + or TUNING –.
Press the + button to scan from low to high; press the – button to scan from high to low.
When the receiver reaches either end of the band
Scanning is repeated in the same direction.
The receiver stops scanning whenever a station is received.
4 To continue scanning, press TUNING + or TUNING –
again.
For details on the buttons used in this section, see “Brief descriptions of buttons used to receive broadcasts” on page 41.
Before tuning to preset stations, be sure to preset them by performing steps on “Presetting radio stations” below.
Presetting radio stations
1 Press TUNER to light the button up.
The last received station is tuned in.
2 Tune in the station that you want to preset using
Direct Tuning (page 41)‚ or Automatic Tuning (this page).
3 Press MEMORY.
“MEMORY” appears in the display for a few seconds. Do Steps 4 and 5 before “MEMORY” goes out.
4 Press SHIFT to select a memory page (A, B or C).
Each time you press SHIFT, the letter “A,” “B” or “C” appears in the display.
5 Select a preset number by pressing it (0 to 9).
If “MEMORY” goes out before you press the preset number, start again from Step 3.
6 Repeat Steps 2 to 5 to preset another station.
To change a preset number to another station
Do Steps 1 to 5 to preset the new station to the number.
Note
If the AC power cord is disconnected for about one week, all the preset stations will be cleared from the receiver’s memory, and you will have to preset the stations again.
42
Page 43
Tuning to preset stations
You can tune the preset stations either of the following two ways.
Scanning the preset stations
1 Press TUNER to light the button up.
The last received station is tuned in.
2 Press PRESET TUNING + or PRESET TUNING –
repeatedly to select the preset station you want.
Each time you press the button, the receiver tunes in one preset station at a time, in the corresponding order and direction as follows:
nA1˜A2˜...˜A0˜B1˜B2˜...˜B0N
nC0˜...C2˜C1N
Using the preset codes
1 Press TUNER to light the button up.
The last received station is tuned in.
2 Press SHIFT to select a memory page (A, B or C),
then press the preset number of the station you want using the numeric buttons on the front panel or the supplied remote.
Receiving Broadcasts
43
Page 44
SET UP
TUNER
CURSOR MODE
SLEEP
EQ
ON/OFF
INPUT MODE
VIDEO 1
DIRECT TUNING
BASS
BOOST
SOUND FIELD
GENRE MODE
VIDEO 2 VIDEO 3 DVD/LD
MUTING
VIDEO 3 INPUT
BALANCE
LR
5
0
1
3
9
7
46
2
8
10
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
PHONES
SPEAKERS
SET UP
SURROUND
EQUALIZER
CURSOR MODE
MEMORY
PRESET
– TUNING
+
A
OFF
A
+
B
B
g
MASTER VOLUME
RLVIDEO AUDIO
DISPLAY
FM/AMFM MODE
–
TUNING
+
SLEEP
INDEX
SOUND FIELD
BASS BOOST
EQ
SOUND FIELD
ON/OFF
FUNCTION
MULTI CHANNEL DECODING
TAPE MD/DAT CD TUNER
TV/DBS
PHONO
SHIFT
162738495
0

Other Operations

Cursor buttons
Brief descriptions of buttons that appear in this chapter
CURSOR MODE button: Press repeatedly to light up the INDEX indicator to index preset stations or program sources.
Cursor buttons (
/ / / ): After pressing the SET
UP button or CURSOR MODE button, use these buttons to make the actual setting.
SET UP button: Press repeatedly to display “OTHER.”
SLEEP button: Press to set the sleep timer.
TUNER button: Press to select the tuner.
44
Page 45

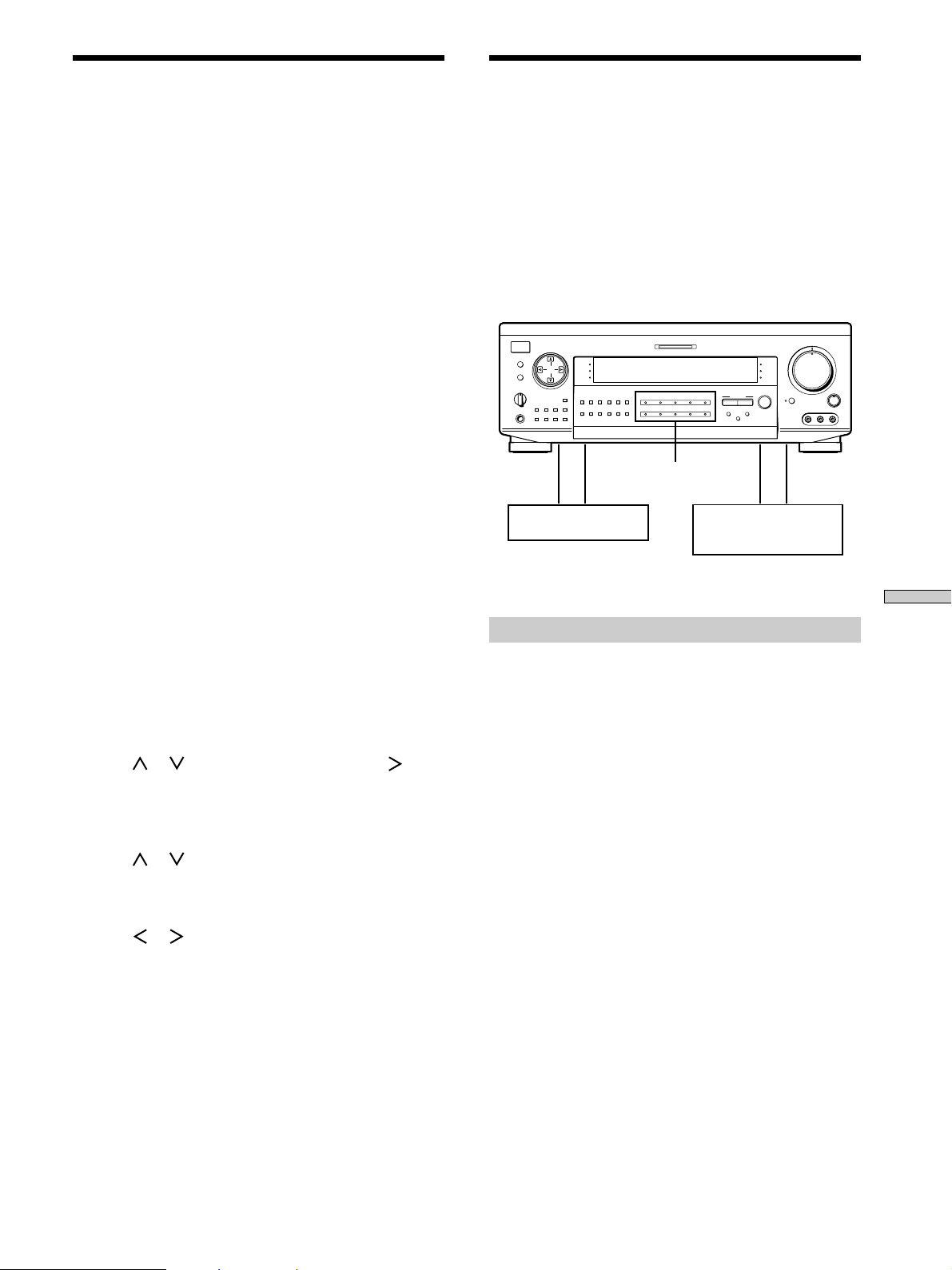

Indexing Preset Stations and Program Sources

You can enter a name of up to 8 characters for preset stations (station index) and program sources. These index names (for example, “VHS”) appear in the receiver’s display when a station or program source is selected. Note that no more than one name can be entered for each preset station or program source. This function is useful for distinguishing components of the same kind. For example, two VCRs can be specified as “VHS” and “8MM,” respectively. It is also handy for identifying components connected to jacks meant for another type of component, for example, a second CD player connected to the MD/DAT jacks.
1 To index a preset station
Press TUNER.
The last station you received is tuned in.
To index a program source
Select the program source (component) to be named, then go to Step 3.
2 Tune in the preset station you want to create an
index name for.
If you are not familiar with how to tune in preset stations, see “Tuning to preset stations” on page 43.
3 Press CURSOR MODE repeatedly until the INDEX
indicator lights up.

Recording

Your receiver makes it easy to record to and from the components connected to it. You don’t have to connect the playback and recording components directly to each other: once you select a program source on the receiver, you can record and edit as you normally would using the controls on each component.
Before you begin, make sure you’ve connected all components properly.
SOUND FIELD
ON/OFF
SOUND FIELD
EQ BASS
BOOST
ç
MASTER VOLUME
46
•
•
•
3
•
•
•
2
•
•
•
1
•
•
•
0
MUTING
VIDEO 3 INPUT
c
5
•
•
•
•
•
•
•
•
•
7
•
•
•
8
•
•
•
9
•
•
•
•
BALANCE
10
LR
RLVIDEO AUDIO
MULTI CHANNEL DECODING
CURSOR MODE
OFF
+
B
A
SPEAKERS
PHONES
SET UP
A
B
SURROUND
EQUALIZER
INDEX
g
DIRECT
DISPLAY
162738495
TUNING
PRESET
TUNING
– TUNING
+
–
+
SHIFT
MEMORY
FM/AMFM MODE
SLEEP
VIDEO 1
0
TAPE MD/DAT CD TUNER
FUNCTION
VIDEO 2 VIDEO 3 DVD/LD
SOUND FIELD
TV/DBS
GENRE MODE
INPUT
BASS
PHONO
MODE
BOOST
EQ
ON/OFF
FUNCTION buttons
c
ç
Playback component
(program source)
Recording component (tape deck, MD deck, VCR)
ç: Audio signal flow c: Video signal flow
Recording on an audio tape or MiniDisc
You can record on a cassette tape or MiniDisc using the receiver. See the instruction manual of your cassette deck or MD deck if you need help.
Other Operations
4 Create an index name by using the cursor buttons
as follows:
Press move the cursor to the next position. The index name is stored automatically.
To insert a space
Press display (the space character is between “11” and “A”).
If you’ve made a mistake
Press changed flashes, then select the right character.
To assign index names to other stations
Repeat Steps 2 to 4.
or to select a character, then press to
or until a blank space appears in the
or repeatedly until the character to be
1 Select the component to be recorded. 2 Prepare the component for playing.
For example, insert a CD into the CD player.
3 Insert a blank tape or MD into the recording deck
and adjust the recording level, if necessary.
4 Start recording on the recording deck, then start
playback on the playback component.
Notes
• You cannot record a digital audio signal using a component connected to the analog TAPE REC OUT or MD/DAT REC OUT jacks (STR-DE925) or the analog TAPE/MD REC OUT jacks (STR-DE825). To record a digital audio signal, connect a digital component to the DIGITAL MD/DAT OUT jacks (STR­DE925) or the DIGITAL TAPE/MD OUT jacks (STR-DE825).
• Sound adjustments do not affect the signal output from the TAPE REC OUT or MD/DAT REC OUT jacks (STR-DE925) or the TAPE/MD REC OUT jacks (STR-DE825).
45
Page 46
Recording

Using the Sleep Timer

Recording on a video tape
You can record from a VCR, a TV, or an LD player using the receiver. You can also add audio from a variety of audio sources when editing a video tape. See your VCR or LD player’s instruction manual if you need help.
1 Select the program source to be recorded. 2 Prepare the component for playing.
For example, insert the laser disc you want to record into the LD player.
3 Insert a blank video tape into the VCR (VIDEO 1 or
VIDEO 2) for recording.
4 Start recording on the recording VCR, then start
playing the video tape or laser disc you want to record.
z
You can record the sound from any audio source onto a
video tape while copying from a video tape or laser disc
Locate the point where you want to start recording from another audio source, select the program source, then start playback. The audio from that source will be recorded onto the audio track of
Other Operations
the video tape instead of the audio from the original medium.
You can set the receiver to turn off automatically at a specified time.
Press SLEEP while the power is on.
Each time you press SLEEP, the time changes as shown below.
n 2:00:00 n 1:30:00n 1:00:00 n 0:30:00 n OFF
The display dims after you have specified the time.
z
You can freely specify the time
Press SLEEP first, then specify the time you want using the cursor buttons ( or ). The sleep time changes in 1 minute intervals. You can specify up to 5 hours.
z
You can check the time remaining before the receiver turns
off
Press SLEEP. The remaining time appears in the display.
To resume audio recording from the original medium, select the video source again.
Notes
• You cannot record a digital audio signal using a component connected to the analog TAPE REC OUT or MD/DAT REC OUT jacks (STR-DE925) or the analog TAPE/MD REC OUT jacks (STR-DE825). To record a digital audio signal, connect a digital component to the DIGITAL MD/DAT OUT jacks (STR­DE925) or the DIGITAL TAPE/MD OUT jacks (STR-DE825).
• You cannot, however record multi channel surround digital signals from a DVD, etc.
46
Page 47

Adjustments Using the SET UP Button

The SET UP button allows you to make following adjustments.
Adjusting the brightness of the display
1 Press SET UP repeatedly until “OTHER SETUP”
appears in the display.
2 Press the cursor buttons ( or ) to select
“DIMMER.”
3 Press the cursor buttons ( or ) to select the
brightness level.
You can select any of four brightness levels.
Other Operations
47
Page 48
Additional

Troubleshooting

Information
If you experience any of the following difficulties while using the receiver, use this troubleshooting guide to help you remedy the problem. Also, see “Checking the connections” on page 21 to verify that the connections are correct. Should any problem persist, consult your nearest Sony dealer.
There’s no sound or only a very low-level sound is heard.
/ Check that the speakers and components are
connected securely.
/ Make sure that you’ve selected the correct
component on the receiver.
/ Make sure that you’ve set the SPEAKERS selector
correctly (see page 25).
/ Press MUTING on the remote if “MUTING”
appears in the display.
/ The protective device on the receiver has been
activated because of a short circuit. Turn off the receiver, eliminate the short-circuit problem and turn on the power again.
The left and right sounds are unbalanced or reversed.
/ Check that the speakers and components are
connected correctly and securely.
/ Adjust the BALANCE control.
Severe hum or noise is heard.
/ Check that the speakers and components are
connected securely.
/ Check that the connecting cords are away from a
transformer or motor, and at least 10 feet (3 meters) away from a TV set or fluorescent light.
/ Move your TV away from the audio components. / Make sure you’ve grounded SIGNAL GND y
terminal.
/ The plugs and jacks are dirty. Wipe them with a
cloth slightly moistened with alcohol.
No sound is heard from the center speaker.
/ Make sure the sound field function is on (press
SOUND FIELD ON/OFF).
/ Select a sound field from the CINEMA or
VIRTUAL 3D genre (except MONO MOVIE and STEREO MOVIE) (see page 30).
/ Adjust the speaker volume (see page 20). / Make sure the center speaker size parameter is set
to either SMALL or LARGE (see page 17).
48
Page 49
No sound or only a very low-level sound is heard from the rear speakers.
/ Make sure the sound field function is on (press
SOUND FIELD ON/OFF).
/ Select a sound field from the CINEMA or
VIRTUAL 3D genres (except MONO MOVIE and STEREO MOVIE) (see page 30).
/ Adjust the speaker volume (see page 20). / Make sure the rear speaker size parameter is set to
either SMALL or LARGE (see page 17).
Recording cannot be done.
/ Check that the components are connected correctly. / Select the source component with a FUNCTION
button.
/ When recording from a digital component, make
sure the input mode is set to ANALOG (see page
25) before recording with a component connected to the analog MD/DAT or TAPE terminals (STR­DE925) or the analog TAPE/MD terminals (STR­DE825).
/ When recording from a digital component, make
sure the input mode is set to DIGITAL (see page
25) before recording with the component connected to the DIGITAL MD/DAT OUT terminals (STR-DE925) or the DIGITAL TAPE/MD OUT terminals (STR-DE825).
The surround effect cannot be obtained.
/ Make sure the sound field function is on (press
SOUND FIELD ON/OFF).
/ Make sure that the SPEAKERS selector is set to A
or B (not A+B) if you connected two sets of front speakers.
No picture or an unclear picture appears on the TV screen or monitor.
/ Select the appropriate function on the receiver. / Set your TV to the appropriate input mode. / Move your TV away from the audio components.
The remote does not function.
/ Point the remote at the remote sensor g on the
receiver.
/ Remove any obstacles in the path between the
remote and the receiver.
/ Replace both batteries in the remote with new
ones, if they are weak.
/ Make sure you select the correct function on the
remote.
/ If the remote is set to operate the TV only, use the
remote to select a source or component other than TV before operating the receiver or other component.
Radio stations cannot be tuned in.
/ Check that the antennas are connected securely.
Adjust the antennas and connect an external antenna if necessary.
/ The signal strength of the stations is too weak
(when tuning in with automatic tuning). Use direct tuning.
/ Make sure you set the tuning interval correctly
(when tuning in AM stations with direct tuning) (see pages 41 and 51).
/ No stations have been preset or the preset stations
have been cleared (when tuning by scanning preset stations). Preset the stations (see page 42).
/ Press DISPLAY so that the frequency appears in
the display.
Reference sections for clearing the receiver’s memory
To clear See
All memorized settings page 21 Customized sound fields page 37
Additional Information
49
Page 50

Specifications

AUDIO POWER SPECIFICA TIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION: With 8 ohm loads, both channels driven, from 20 ­20,000 Hz; rated 110 watts (STR-DE925) and 100 watts (STR-DE825) per channel minimum RMS power, with no more than 0.09% total harmonic distortion from 250 milliwatts to rated output (USA model only).
Amplifier section
POWER OUTPUT
Stereo mode (8 ohms 20 Hz - 20 kHz,
STR-DE925:
STR-DE825:
Additional Information
Surround mode
(8 ohms at 1 kHz, THD
STR-DE925:
STR-DE825:
a) Depending on the sound field settings and
the source, there may be no sound output.
THD 0.09%)
110 W + 110 W
100 W + 100 W
0.8%)
Front: 110 W/ch
a)
Center Rear
Front: 100 W/ch Center Rear
: 110W
a)
: 110 W/ch
a)
: 100W
a)
: 100 W/ch
Harmonic distortion at rated output
Less than 0.09% (with
sound field, tone, and bass booster bypassed)
Frequency response
PHONO: RIAA
equalization curve ±0.5 dB
CD, TAPE, MD/DAT,
TAPE/MD, DVD/ LD, TV/DBS, VIDEO 1, 2, and VIDEO 3 (STR­DE925 only): 10 Hz - 50 kHz +0.5/ –2 dB (with sound field, tone, and bass booster bypassed)
Inputs (Analog)
PHONO:
Sensitivity: 2.5 mV Impedance: 50
kilohms
b)
S/N
: 75 dB (A, 2.5
c)
mV
)
CD, DVD/LD, TAPE,
MD/DAT, T APE/ MD, TV/DBS, VIDEO 1, 2, and VIDEO 3 (STR­DE925 only):
Sensitivity: 150 mV Impedance: 50
kilohms
b)
S/N
: 82 dB (A, 150
c)
mV
)
b) 78’ IHF c) Weighted network, input level
Inputs (Digital)
DVD/LD (coaxial):
Sensitivity: – Impedance: 75 ohms S/N: 100 dB (A, 20 kHz LPF)
DVD/LD, TV/DBS,
MD/DAT (Optical): Sensitivity: – Impedance: – S/N: 100 dB (A, 20 kHz LPF)
Outputs TAPE, MD/DAT
TAPE/MD, (REC OUT); VIDEO 1, 2 (AUDIO OUT): Voltage: 150 mV, Impedance: 10 kilohms
WOOFER:
Voltage: 2 V Impedance: 1 kilohms
PHONES:
Accepts low- and high-impedance headphones
BASS BOOST +6 dB at 70 Hz
Sampling Frequency
48 kHz
EQ BASS:
100 Hz~1.0kHz (21 steps)
MID:
500 Hz~5.0kHz (21 steps)
TREBLE:
1.0 kHz~10kHz (21 steps)
Gain levels:
±10 dB, 1 dB step
Dynamic power output
STR-DE925: 165 W + 165 W, 8 ohms
230 W + 230 W, 4 ohms
STR-DE825: 155 W + 155 W, 8 ohms
220 W + 220 W, 4 ohms
50
Page 51
FM tuner section
Tuning range 87.5 - 108.0 MHz
Antenna terminals
75 ohms, unbalanced
Sensitivity Mono: 18.3 dBf, 4.5 µV
Stereo: 38.3 dBf, 45 µV
Usable sensitivity
11.2 dBf, 2 µV (IHF)
S/N Mono: 76 dB
Stereo: 70 dB
Harmonic distortion at 1 kHz
Mono: 0.3% Stereo: 0.5%
Separation 45 dB at 1 kHz
Frequency response
30 Hz - 15 kHz +0.5/–2
dB
Selectivity 60 dB at 400 kHz
AM tuner section
Tuning range With 10-kHz tuning
scale: 530 - 1710 kHz
d)
With 9-kHz tuning
scale: 531 - 1710 kHz
d)
Antenna Loop antenna
Usable sensitivity
50 dB/m (at 1,000 kHz
or 999 kHz)
S/N 54 dB (at 50 mV/m)
Harmonic distortion
0.5 % (50 mV/m, 400 kHz)
Selectivity At 9 kHz: 35 dB
At 10 kHz: 40 dB
d) You can change the AM tuning scale to 9
kHz. After tuning in any AM station, turn off the receiver. Hold down the TUNING + button and press the 1/u button. All preset stations will be erased when you change the tuning scale. To reset the scale to 10 kHz, repeat the procedure.
Video section
Inputs 1 Vp-p 75 ohms
General
System Tuner section:
PLL quartz-locked digital synthesizer system
Preamplifier section:
Low-noise NF type equalizer
Power amplifier
section: Pure-complementary SEPP
Power requirements
120 V AC, 60 Hz
Power consumption
STR-DE925
USA: 290 W Canada: 480 VA
STR-DE825
USA: 280 W Canada: 470 VA
AC outlets 2 switched, total 100 W
Dimensions STR-DE925
430 × 370 × 157.5 mm (17 × 14
STR-DE825
430 × 355 × 157.5 mm (17 × 14 × 6
including projecting
parts and controls
5
/8 × 61/4 in.)
1
/4 in.)
Additional Information
Outputs 1 Vp-p 75 ohms
Mass (Approx.)
10.5 kg (23 lb 3 oz)
Supplied accessories See page 4.
Design and specifications are subject to change without notice.
51
Page 52

Glossary

Surround sound
Sound that consists of three elements: direct sound, early reflected sound (early reflections) and reverberative sound (reverberation). The acoustics of the surrounding space affect the way these three sound elements are heard. Surround sound combines these sound elements in such a way that you actually can sense the size of the venue, as well as its type.
• Types of sound
Early reflections
Direct sound
• Transition of sound from rear speakers
Direct sound
Level
Early
reflections
Additional Information
Early reflection time
Reverberation
Reverberation
Time
Dolby Digital (AC-3)
This sound format for movie theaters is more advanced than Dolby Pro Logic Surround. In this format, the rear speakers output stereo sound with an expanded frequency range and a subwoofer channel for deep bass is independently provided. This format is also called “5.1” because the subwoofer channel is counted as 0.1 channel (since it functions only when a deep bass effect is needed). All six channels in this format are recorded separately to realize superior channel separation. Furthermore, since all the signals are processed digitally, less signal degradation occurs. The name “AC-3” comes from the fact that it is the third audio coding method to be developed by the Dolby Laboratories Licensing Corporation.
Digital Cinema Sound
This is the generic name of the surround sound produced by digital signal processing technology developed by Sony. Unlike previous surround sound fields mainly directed at the reproduction of music, Digital Cinema Sound is designed specifically for the enjoyment of movies.
Dolby Pro Logic Surround
As one method of decoding Dolby Surround, Dolby Pro Logic Surround produces four channels from two­channel sound. Compared with the former Dolby Surround system, Dolby Pro Logic Surround reproduces left-to-right panning more naturally and localizes sounds more precisely. To take full advantage of Dolby Pro Logic Surround, you should have one pair of rear speakers and a center speaker. The rear speakers output monaural sound.
52
Page 53

Tables of Settings Using the CURSOR MODE and SET UP buttons

You can make various settings using the CURSOR MODE, SET UP, and cursor buttons. The tables below show each of the settings that these buttons can make.
Press CURSOR MODE repeatedly to light up
SURROUND indicator
EQUALIZER indicator
Press or to select Then or to select See page
EFFECT LEVEL depends on sound mode (in 21 steps) WALL TYPE between –8 to +8 (in 1 increment steps) REVERBERATION TIME –8 to +8 (in 1 increment steps) LFE MIX LEVEL MUTING, or –20 dB to 0 dB (in 1 dB steps) DYNAMIC RANGE COMP Off, 0.1 to 0.9 (in 0.1 dB steps), STD, or MAX REAR BALANCE between –8 to +8 (in 1 increment steps) REAR LEVEL between –10 dB to +10 dB (in 1 dB steps) CENTER LEVEL between –10 dB to +10 dB (in 1 dB steps) SUB WOOFER LEVEL between –10 dB to +10 dB (in 1 dB steps)
FRONT BASS GAIN between –10 dB to +10 dB (in 1 dB steps) 36 FRONT BASS FREQUENCY between 100 Hz and 1.0 kHz (in 21 steps) FRONT MID GAIN between –10 dB to +10 dB (in 1 dB steps) FRONT MID FREQUENCY between 500 Hz and 5.0 kHz (in 21 steps) FRONT TREBLE GAIN between –10 dB to +10 dB (in 1 dB steps) FRONT TREBLE FREQUENCY between 1.0 kHz and 10 kHz (in 21 steps) CENTER BASS GAIN between –10 dB to +10 dB (in 1 dB steps) CENTER BASS FREQUENCY between 100 Hz and 1.0 kHz (in 21 steps) CENTER MID GAIN between –10 dB to +10 dB (in 1 dB steps) CENTER MID FREQUENCY between 500 Hz and 5.0 kHz (in 21 steps)
35
Additional Information
INDEX indicator
CENTER TREBLE GAIN between –10 dB to +10 dB (in 1 dB steps) CENTER TREBLE
FREQUENCY REAR BASS GAIN between –10 dB to +10 dB (in 1 dB steps) REAR BASS FREQUENCY between 100 Hz and 1.0 kHz (in 21 steps) REAR MID GAIN between –10 dB to +10 dB (in 1 dB steps) REAR MID FREQUENCY between 500 Hz and 5.0 kHz (in 21 steps) REAR TREBLE GAIN between –10 dB to +10 dB (in 1 dB steps) REAR TREBLE FREQUENCY between 1.0 kHz and 10 kHz (in 21 steps)
a character the cursor position 45
between 1.0 kHz and 10 kHz (in 21 steps)
53
Page 54
Tables of Settings Using the CURSOR MODE and SET UP buttons
Press SET UP repeatedly to display
SPEAKER SETUP
SPEAKER DISTANCE
OTHER
Press or to select Then or to select See page
FRONT SPEAKER LARGE or SMALL CENTER SPEAKER LARGE, SMALL, or NO REAR SPEAKER LARGE, SMALL, or NO REAR SPEAKER POSITION SIDE, MIDDLE, or BEHIND REAR SPEAKER HEIGHT LOW or HIGH SUB WOOFER YES or NO FRONT SPEAKER between 3 feet (1.0 meters) and 40 feet (12.0
meters) (in 1 foot (0.1 meter) steps)
CENTER SPEAKER between FRONT and 5 feet (1.5 meters) (in 1 foot
(0.1 meter) steps)
REAR SPEAKER between FRONT and 15 feet (4.5 meters) (in 1
foot (0.1 meter) steps) DISTANCE UNIT FEET or METER DIMMER among four levels of brightness 47
17
19
Additional Information
54
Page 55

Index

A
AC-3. See Dolby Digital (AC-3) Adjusting
brightness of the display 47 equalizer 36 speaker volumes 20 surround parameters 35
Automatic tuning 42
B
Basic amplifier operations
24~27
Battery 4
C
Changing
display 26
effect level 35 Checking the connections 21 Clearing receiver’s memory 21 Connecting. See Hookups Customizing sound fields 35
D
Digital Cinema Sound 52 Direct tuning 41 Dolby Digital (AC-3) 52 Dolby Pro Logic Surround 52 Dubbing. See Recording
E, F, G
Editing. See Recording Effect level 35 EQ 36
H
Hookups
AC power cord 12
antennas 5
audio components 6, 7
digital components 9, 10
S-LINK CONTROL A1 12
S-LINK CONTROL S 12
speaker system 15
video components 8
I, J, K
Indexing
preset stations 45 program sources 45
L, M, N, O
Labeling. See Indexing
P, Q
Parameter 38, 53, 54 Preset stations
how to preset 42 how to tune 43
R
Receiving broadcasts
automatically 42 directly 41 preset stations 43
Recording
on an audio tape or MD 45 on a video tape 46
S
Scanning
preset stations. See Preset
tuning radio stations. See Automatic tuning
Selecting
component 24 front speaker system 25
sound field 29 Sleep timer 46 Sound field
adjustable parameters 38
customizing 35
pre-programmed 29~32
resetting 37
selecting 29
Speakers
adjusting speaker volume 20 connection 15 front speakers (A/B) 25 impedance 16
placement 16 Station index. See Indexing Supplied accessories 4 Surround sound 16~20, 28~39
T
Test tone 20 Tuning
automatically 42
directly 41
preset stations 43
U, V, W, X, Y, Z
Unpacking 4
Additional Information
55
Page 56
Sony Corporation Printed in Malaysia
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
