Power Tool Safety Rules
! WARNING Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS
Work Area
Keep your work area clean and well lit.
Cluttered benches and dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
Keep by-standers, children, and visitors away while operating a power tool.
Distractions can cause you to lose control.
Electrical Safety
Double Insulated tools are equipped with a polarized plug (one blade is wider than the other.) This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a polarized outlet. Do not change the plug in any way. Double Insulation
eliminates the need for the three wire grounded power cord and grounded power supply system. Before plugging in the tool, be certain the outlet voltage supplied is within the voltage marked on the nameplate. Do not use “AC only” rated tools with a DC power supply.
Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is grounded. If operating the power tool in damp locations is unavoidable, a Ground Fault Circuit Interrupter must be used to supply the power to your tool. Electrician’s rubber gloves and footwear will further enhance your personal safety.
Don't expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
When operating a power tool outside, use an outdoor extension cord marked "W-A" or "W." These cords are rated for outdoor use and reduce the risk of electric shock. Refer to “Recommended sizes of Extension Cords” in the Accessory section of this manual.
Personal Safety
Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.
Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. Keep handles dry, clean and free from oil and grease.
Avoid accidental starting. Be sure switch is “OFF” before plugging in. Carrying tools with your finger on the switch or plugging in tools that have the switch “ON” invites accidents.
Remove adjusting keys or wrenches before turning the tool “ON”. A wrench or a key that is left attached to a rotating part of the tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the tool in unexpected situations.
Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions.
Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet. Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately. Damaged cords increase the risk of electric shock.
Tool Use and Care
Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.
-2-
Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed.
Do not use tool if switch does not turn it “ON” or “OFF”. Any tool that cannot be controlled with the switch is dangerous and must be repaired.
Disconnect the plug from the power source before making any adjustments, changing accessories, or storing the tool.
Such preventive safety measures reduce the risk of starting the tool accidentally.
Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users.
Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools, with sharp cutting edges are less likely to bind and are easier to control. Any alteration or modification is a misuse and may result in a dangerous condition.
Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tools operation. If damaged, have the tool
serviced before using. Many accidents are caused by poorly maintained tools. Develop a periodic maintenance schedule for your tool.
Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one tool, may become hazardous when used on another tool.
Service
Tool service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury. For example: internal wires may be misplaced or pinched, safety guard return springs may be improperly mounted.
When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual.
Use of unauthorized parts or failure to follow Maintenance Instructions may create a risk of electric shock or injury. Certain cleaning agents such as gasoline, carbon tetrachloride, ammonia, etc. may damage plastic parts.
Safety Rules for Jigsaws
Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator. Do not drill, fasten or break into existing walls or other blind areas where electrical wiring may exist. If this situation is unavoidable, disconnect all fuses or circuit breakers feeding this worksite.
Never leave the trigger locked "ON". Before plugging the tool in, check that the trigger lock is "OFF". Accidental start-ups could cause injury.
Be aware of the location and setting of the switch "Lock-ON" button. If the switch is locked "ON" during the use, be ready for emergency situations to switch it "OFF", by
first pulling the trigger then immediately releasing it without pressing the "Lock-ON" button.
Keep hands away from cutting area. Do not reach under the material being cut.
The proximity of the blade to your hand is hidden from your sight.
Keep hands from between the gear housing and saw blade holder. The reciprocating blade holder can pinch your fingers.
Do not use dull or damaged blades. Bent blade can break easily or cause kickback.
Before starting to cut, turn tool "ON" and allow the blade to come to full speed.
Tool can chatter or vibrate if blade speed is too slow at beginning of cut and possibly kickback.
-3-
Always wear safety goggles or eye protection when using this tool. Use a dust mask or respirator for applications which generate dust.
Secure material before cutting. Never hold it in your hand or across legs. Small or thin material may flex or vibrate with the blade, causing loss of control.
Make certain all adjusting screws and the blade holder are tight before making a cut. Loose adjusting screws and holders can cause the tool or blade to slip and loss of control may result.
When removing the blade from the tool avoid contact with skin and use proper protective gloves when grasping the blade or accessory. Accessories may be hot after prolonged use.
! WARNING Some dust created by power sanding, sawing,
grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
•Lead from lead-based paints,
•Crystalline silica from bricks and cement and other masonry products, and
•Arsenic and chromium from chemicallytreated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
-4-
Symbols
IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.
Symbol |
Name |
Designation/Explanation |
|||||
|
|
|
|
|
|
|
|
|
|
V |
Volts |
Voltage (potential) |
|||
|
|
A |
Amperes |
Current |
|||
|
|
|
|
|
|
|
|
|
|
Hz |
Hertz |
Frequency (cycles per second) |
|||
|
|
|
|
|
|
|
|
|
|
W |
Watt |
Power |
|||
|
|
kg |
Kilograms |
Weight |
|||
|
|
|
|
|
|
|
|
|
min |
Minutes |
Time |
||||
|
|
s |
Seconds |
Time |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Diameter |
Size of drill bits, grinding wheels, etc. |
|
|
|
|
|
|
|
|
|
|
n0 |
No load speed |
Rotational speed, at no load |
|||
.../min |
Revolutions or reciprocation per minute |
Revolutions, strokes, surface speed, |
|||||
|
|
|
|
|
|
|
orbits etc. per minute |
0 |
|
|
|
Off position |
Zero speed, zero torque... |
||
|
|
|
|
|
|
|
|
1, 2, 3, ... |
Selector settings |
Speed, torque or position settings. |
|||||
I, II, III, |
|
Higher number means greater speed |
|||||
|
|
|
|
|
|
|
|
0 |
|
|
|
|
Infinitely variable selector with off |
Speed is increasing from 0 setting |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Arrow |
Action in the direction of arrow |
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
Alternating current |
Type or a characteristic of current |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Direct current |
Type or a characteristic of current |
|
|
|
|
|
|
||
|
|
|
|
|
|
Alternating or direct current |
Type or a characteristic of current |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Class II construction |
Designates Double Insulated |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
Construction tools. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Earthing terminal |
Grounding terminal |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Warning symbol |
Alerts user to warning messages |
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
Ni-Cad RBRC seal |
Designates Ni-Cad battery recycling |
|
|
|
|
|
|
|
program |
|
|
|
|
|
|
|
|
This symbol designates that this tool is listed by Underwriters Laboratories.
This symbol designates that this tool is listed by the Canadian Standards Association.
This symbol designates that this tool is listed to Canadian Standards by Underwriters Laboratories.
This symbol designates that this tool is listed by Underwriters Laboratories, and listed to Canadian Standards by Underwriters Laboratories.
This symbol designates that
this tool complies to NOM Mexican Standards.
-5-
Functional Description and Specifications
! WARNING Disconnect the plug from the power source before making any assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
Jigsaws

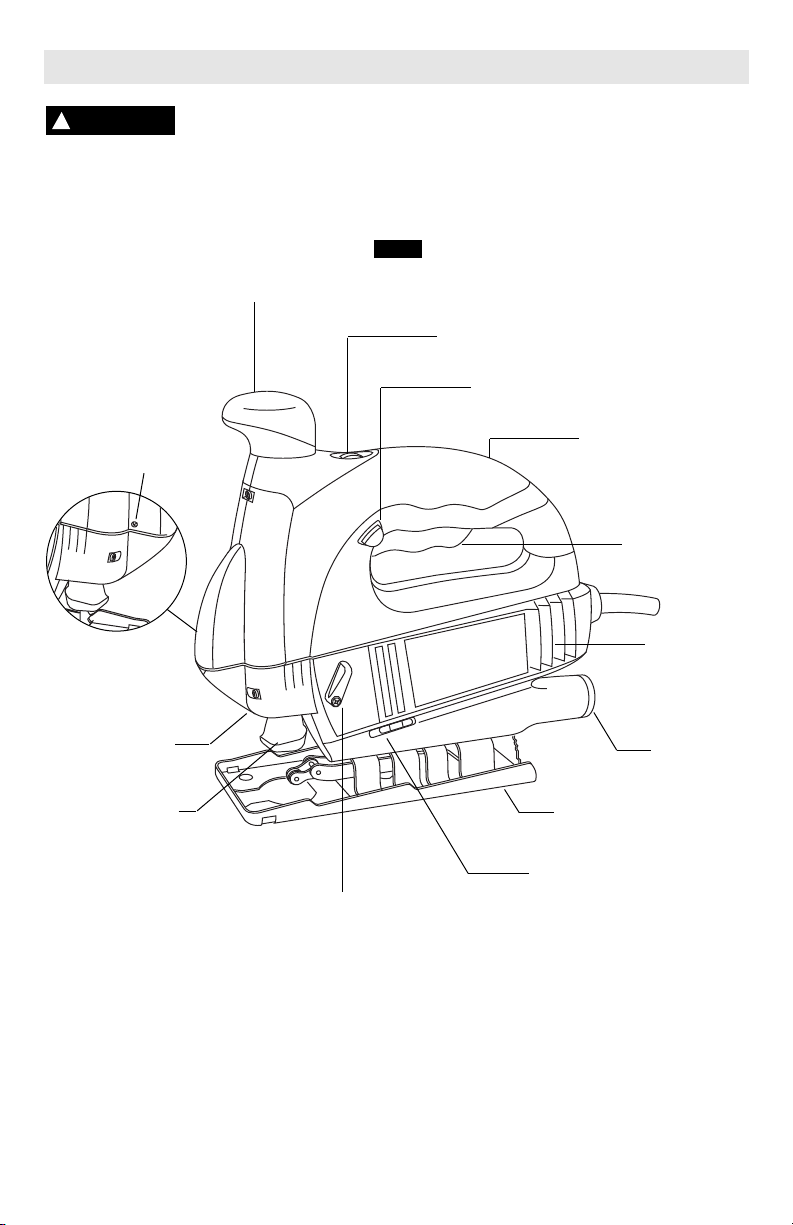

FIG.1
SCROLLING KNOB
|
LASER LIGHT/SITE-LIGHT™ |
|
CONTROL WHEEL |
|
“LOCK-ON” |
|
BUTTON |
LASER LIGHT |
RUBBERIZED |
ADJUSTMENT |
GRIP |
SCREW |
|
VARIABLE SPEED
CONTROLLED
TRIGGER SWITCH
|
|
|
|
|
VENTILATION |
|
|
|
|
|
|
OPENINGS |
|
SITE-LIGHT™ |
|
|
|
DUST PORT |
||
|
|
|
/BLADE |
|||
|
|
|
|
|
STORAGE |
|
|
|
|
|
|
COMPARTMENT |
|
TOOL-LESS |
|
|
|
|
|
|
BLADE CHANGE |
|
|
FOOT |
|
|
|
COVER |
|
|
|
|
|
|
|
|
|
|
DUST |
|
|
|
|
|
|
BLOWER |
|
|
|
|
|
|
SWITCH |
|
|
|
ORBIT/SCROLLING |
|
|
|
|
|
|
CONTROL LEVER |
|
|
|
|
|
Model |
Blade |
Blade |
Stroke |
MAXIMUM CAPACITIES |
|
|
|
|
|
||||
No. |
Thickness |
Action |
Length |
Wood |
Aluminum |
Steel |
4680 |
Minimum .7mm - Maximum 1.7mm |
Orbital/Scroll |
13/16" |
3-1/8" |
1/2" |
1/4" |
NOTE: For tool specifications refer to the nameplate on your tool.
-6-
Assembly
Attaching the Blade
To prevent personal injury, ! WARNING always disconnect plug from
power source before assembling parts, making adjustments, or changing blades.
1. Insert the saw blade (teeth in cutting direction) until it latches in the plunger (Fig. 2).
When inserting the saw blade, the back of the blade must rest in the groove of the guide roller (Fig. 3).
2. To remove blade, lift tool-less blade change cover up with index finger and thumb and remove blade.
For use with both T or U shank jigsaw blades.
FIG. 2 |
FIG. 3 |
TOOL-LESS |
BLADE |
|
|
BLADE CHANGE |
|
COVER |
|
|
ROLLER GUIDE |
Operating Instructions
VARIABLE SPEED CONTROLLED
TRIGGER SWITCH
Your tool is equipped with a variable speed trigger switch. The tool can be turned "ON" or "OFF" by squeezing or releasing the trigger. The speed can be adjusted from the minimum to maximum nameplate SPM by the pressure you apply to the trigger. Apply more pressure to increase the speed and release pressure to decrease speed (Fig. 1).
"LOCK-ON" BUTTON
The "Lock-ON" button, located in the handle of your tool allows for continuous operation at maximum SPM without holding the trigger (Fig. 1).
TO LOCK TRIGGER "ON": squeeze trigger, depress button and release trigger.
TO UNLOCK THE TRIGGER: squeeze trigger and release it without depressing the "LockON" button.
! WARNING If the “Lock-ON” button is continuously being depressed,
the trigger can not be released.
PLUNGER SPEED
The stroke rate may be adjusted as described earlier under “Variable Speed Controlled Trigger Switch”. The best results for a particular application is determined by experience, though as a general rule, slower
speeds are for denser materials and faster speeds are for soft materials.
LASER LIGHT/SITE-LIGHT™
CONTROL WHEEL
! LASER RADIATION. AVOID DANGER DIRECT EYE EXPOSURE.
DO NOT stare into the laser light source. Never aim light at another person or object other than the workpiece. Laser light can damage your eyes.
! WARNING DO NOT use tinted glasses to enhance the laser light.
Tinted glasses will reduce overall vision for the application and interfere with the normal operation of the tool.
! WARNING Never aim the beam at a workpiece with a reflective
surface. Bright shiny reflective sheet steel or similar reflective surfaces are not recommended for laser use. Reflective surfaces could direct the beam back toward the operator.
The 4 position control wheel allows you to control the function of the lights. Below, lists the function of each setting (Fig. 1).
Setting 1: Turns OFF all lights.
Setting 2: Turns ON only the Laser light.
Setting 3: Turns ON both the Laser light and the Site-Light.
Setting 4: Turns ON only the Site-Light.
-7-
The laser light guide is a class IIIA laser with a maximum output power of 5.0m Watts and conforms to 21 CFR 1040.10 and 1040.11.
TO ADJUST THE LASER LINE GUIDE
Use a flat head screwdriver to turn the adjustment screw located on the side of the laser module (Fig. 4). Turn on the laser light guide by rotating the control wheel to setting number 2. Rotate the adjustment screw until the laser line is in the center of the blade. There is no need to turn the tool “ON” while adjusting the light beam.
The Laser line guide has a limited amount of travel. Do not continue to turn the adjustment screw after the line stops moving or if it becomes significantly harder to turn the screw. Overturning the adjustment screw may cause the adjustment system to break or cause the adjustment screw to fall out of the tool.
USING THE LASER LINE GUIDE
Only turn on the laser light on when the tool is on the workpiece.
1. First mark the line of cut on your workpiece (good side down.)
2.Insert plug into the power source.
3.Place the front edge of the saw foot on the workpiece, turn the 4 position contol wheel to setting 2 for laser light only or setting 3 for laser light and site-light and align beam with the line of cut .
4.Hold the tool firmly, squeeze the trigger and allow the tool to reach desired speed.
5.Press down (to keep the saw foot flat against the work surface) as you slowly push the saw forward, keeping the beam in line with the line of cut .
6.After completion of the cut, release the trigger and turn off the laser light.
FIG. 4
LASER LIGHT
ADJUSTMENT
SCREW
BLADE STORAGE COMPARTMENT
Your Jigsaw is equipped with a blade storage compartment in the dust port of your saw (Fig. 5) . To remove, pull compartment out of dust port in direction of arrow.
Always make sure the blade storage compartment is securely in the dust port to prevent blades from falling out.
FIG. 5
DUST
PORT
BLADE
STORAGE
COMPARTMENT
DUST EXTRACTION |
FIG. 6 |
|
Your jigsaw is equipped with a dust port for |
||
|
||
dust and chip extraction. |
|
To use this feature, remove blade storage |
DUST PORT |
|
compartment and move dust blower switch to |
||
the “OFF” position “O” (Fig. 6). |
|
|
Attach vacuum hose (optional accessory) to |
DUST |
|
the dust port, and connect opposite end of the |
||
BLOWER |
||
hose to a shop vacuum cleaner. |
||
SWITCH |
-8-
SITE-LIGHT™ |
FIG. 7 |
Your tool is also equipped with a light that turns on automatically when the control wheel is rotated to setting number 3 and 4, for better visibility when cutting (Fig. 7).
ORBITAL ACTION MODELS
Orbital Action models, have a lever (Fig. 8) that will regulate the orbital action from "Smooth" position for normal up and down motion to maximum orbital action for faster cutting in softer materials.
FIG. 8
ORBIT
CONTROL
LEVER
To increase orbital action, turn the lever to a higher setting. To decrease orbital action turn lever to a lower setting. When minimal splintering is desired we recommend using "Smooth" position.
SMOOTH |
LOW / MED |
FAST |
MILD STEEL / SOFT METALS |
METAL PLASTIC |
SOFT WOODS |
ALL MATERIALS |
HARD WOODS |
PLYWOOD |
ATTENTION: In order to achieve orbital action, the blade must be facing STRAIGHT FORWARD and the back of the blade must
rest in the groove of the guide roller, and the foot must be all the way in the forward position. To adjust foot, lift foot adjustment lever and flip lever completely over, then push foot forward as far as possible and lower foot adjustment lever to maintain adjustment (Fig. 9).
Orbital cut control is not observable when jigsaw is free running. Jigsaw must be cutting for orbital action to occur. The speed of cut is much more apparent in thicker materials such as 2 by lumber.
FIG. 9
FOOT
BLADE
ROLLER
GUIDE
FOOT
ADJUSTMENT
LEVER
SCROLL MODELS
Scrolling saws permit 360˚ rotation of the saw blade without turning the saw, so intricate designs may be cut with minimum effort. To permit rotation of plunger turn lever, (Fig. 10) to scrolling. The plunger of your scrolling saw can also be locked in (4) positions, 90˚ apart.
ATTENTION: When scroll cutting the blade must be moved away from the guide rollers. (Always move foot completely back). To adjust foot, lift foot adjustment lever and flip lever completely over, then push foot backwards as far as possible to engage locking tab, then lower the foot adjustment lever to maintain adjustment (Fig. 11).
-9-
Note: It may be necessary to turn scrolling knob slightly back and forth to be sure the plunger is locked in the desired position.
FIG. 10
HANDLE
SCROLLING
KNOB
LEVER
When manually scroll cutting, operate saw by
holding the handle with one hand and rotating |
FIG. 11 |
|
|
||
the scrolling knob manually with your free |
BLADE |
|
hand. |
|
|
! CAUTION |
Excessive side pressure to |
FOOT |
the blade could result in |
|
|
broken blades and/or damage to the material |
ROLLER |
|
being cut. |
|
|
|
GUIDE |
|
|
|
Note: When scroll cutting intricate designs, we recommend using a scroll cutting blade. However, a standard blade can be used.
Cutting Tips
Face the good side of the material down and secure it in a bench vise or clamp it down. Draw cutting lines or designs on the side of the material facing up towards you. Then place the front edge of the saw foot on the work and line up the blade with the line to be cut. Hold the jigsaw firmly, turn it on, and press down (to keep the saw foot flat against the work) as you slowly push the saw in the direction of the cut.
Build up cutting rate gradually, cutting close to the line (unless you want to leave stock for finish sanding). As you cut you may have to adjust or relocate the vise or clamps to keep the work stable. Do not force the saw or the blade teeth may rub and wear without cutting and the blade may break. Let the saw do most of the work. When following curves, cut slowly so the blade can cut through cross grain. This will give you an accurate cut and will prevent the blade from wandering.
CUTTING WITH A STRAIGHTEDGE
Always use a rough cut blade when possible. Clamp a straightedge on the work parallel to the line of cut and flush with the side of the saw foot. (Either first mark the line of cut and then position the straightedge parallel and at the same distance as between the blade and
the side edge of the foot or first mark the side edge of the foot and then clamp the straightedge on the mark and parallel to the cut line Fig. 12).
On models with the scroll feature, it is advised to lock scroller knob.
As you cut, keep the saw foot edge flush against the straightedge and flat on the workpiece (Fig. 12).
FIG. 12 |
FOOT |
|
AGAINST |
|
STRAIGHT- |
|
EDGE |
LINE
OF
CUT
CLAMPS
-10-
PLUNGE CUTTING
Plunge cutting is useful and time-saving in making rough openings in softer materials. It is not necessary to drill a hole for an inside or pocket cut. Draw lines for the opening, hold the saw firmly, tilt it forward so that the toe of the saw foot rests on the work, but with the blade well clear of the work. Start the motor, and then very gradually lower the blade. When it touches, continue pressing down on the toe of the saw foot slowly pivoting the saw like a hinge until the blade cuts through and the foot rests flat on the work. Then saw ahead on the line of cut line. We do not recommend plunge cutting with a scroll blade (Fig. 13).
To make sharp corners, cut up to the corner, then back up slightly before rounding the
corner. After the opening is complete, go back to each corner and cut it from the opposite direction to square it off. Do not try to plunge cut into hard materials such as steel.
FIG. 13
TOE OF FOOT
BEVEL OR ANGLE CUTTING
! WARNING To prevent damage to the tool when bevel or angle
cutting, the scroll mechanism must be locked in place with the cutting edge of the blade facing the front of the tool.
Disconnect the cord from the power source. The foot can be adjusted to cut any angle from 0˚ to 45,˚ and is equipped with quick reference detent stops at 0˚, 15˚, 30˚, and 45˚.
TO ADJUST: Lift foot adjustment lever in the bottom of foot as shown, move foot slightly backward to disengage the locking tab (Fig. 14).
Position foot to desired angle, then push forward to engage locking tab and lower adjustment lever to maintain adjustment. After adjusting foot make a sample cut to check the angle, (Fig. 14).
Note: If the foot becomes loose you can use a screwdriver to tighten screw located on the foot adjustment lever, then re-adjust the foot adjustment lever.
FIG. 14 |
|
FOOT |
|
|
ADJUSTMENT |
|
SCREW |
LEVER |
|
|
|
FOOT |
|
|
LOCKING
TAB
METAL CUTTING
When cutting metal clamp material down. Be extra certain that you move the saw along slowly. Use lower speeds. Do not twist, bend, or force the blade. If the saw jumps or bounces, use a blade with finer teeth. If the blade seems clogged when cutting soft metal, use a blade with coarser teeth.
For easier cutting, lubricate the blade with a stick of cutting wax, if available, or cutting oil when cutting steel. Thin metal should be
sandwiched between two pieces of wood or tightly clamped on a single piece of wood (wood on top of the metal). Draw the cut lines or design on the top piece of wood.
When cutting aluminum extrusion or angle iron, clamp the work in a bench vise and saw close to the vise jaws.
When sawing tubing and the diameter is larger than the blade is deep, cut through the wall of the tubing and then insert the blade into the cut rotating the tube as you saw.
-11-
RIP FENCE AND CIRCLE CUTTING GUIDE
This accessory is available at an extra cost. It is used for fast and accurate straight and circle cutting (Fig. 15).
ATTACHING RIP FENCE
1.Insert bar of rip fence through the slots provided in foot, from either side of foot with the edge guide facing down (Fig. 15).
2.Thread the clamp screw from under the foot through the threaded hole in the clamp on left side of foot, and securely tighten clamp screw with a screwdriver, to clamp the rip fence bar in place.
FIG. 15
CLAMP
CLAMP |
SLOT |
|
|
SCREW |
BAR |
EDGE GUIDE DOWN
FIG. 16
STRAIGHT CUTTING
Once the rip fence is attached, measure from the edge of work to the line of cut, and set edge guide of rip fence to the same distance and then securely tighten clamp screw (Fig. 16).
CLAMP
SCREW
LINE OF CUT
DESIRED WIDTH
CIRCLE CUTTING
1.Before attaching the rip fence, draw a circle and drive a finishing nail in the center of circle.
2.Drill or plunge cut near the circles edge, turn saw off and disconnect the plug from power source (Fig. 17).
3.Attach rip fence to saw with the edge guide facing UP. In order for the rip fence to cut a circle, the nail must be in alignment with the blade, as shown in (Fig. 18).
4.Measure the distance from the selected hole to the blade to be equal to the circle radius.
FIG. 17
WEDGE
EDGE
GUIDE UP
FINISHING
NAIL
-12-
5. Insert plug into power source, hold the saw firmly, squeeze trigger and slowly push the saw forward. To make a hole, cut from inside the circle; To make wheels or discs, cut from the outside.
Cutting Tip: Cut slowly so the blade will stay straight in the cut. Place small wedges in the cut as shown in Fig. 17, to keep the inner circle from spreading when near the end of the cut.
FIG. 18
BLADE MUST BE IN
ALIGNMENT WITH NAIL
NAIL
-13-
Maintenance
Service
! WARNING Preventive maintenance performed by unauthorized personnel may result in misplacing
of internal wires and components which could cause serious hazard. We recommend that all tool service, including service of laser, be performed by a Skil Factory Service Center or Authorized Skil Service Station.
TOOL LUBRICATION
Your Skil tool has been properly lubricated and is ready to use. It is recommended that tools with gears be regreased with a special gear lubricant at every brush change.
CARBON BRUSHES
The brushes and commutator in your tool have been engineered for many hours of dependable service. To maintain peak efficiency of the motor, we recommend every two to six months the brushes be examined. Only genuine Skil replacement brushes specially designed for your tool should be used.
BEARINGS
After about 300-400 hours of operation, or at every second brush change, the bearings
should be replaced at Skil Factory Service Center or Authorized Skil Service Station. Bearings which become noisy (due to heavy load or very abrasive material cutting) should be replaced at once to avoid overheating or motor failure.
Cleaning
! WARNING To avoid accidents always disconnect the tool from
the power supply before cleaning or performing any maintenance. The tool may be cleaned most effectively with compressed dry air. Always wear safety goggles when cleaning tools with compressed air.
Ventilation openings and switch levers must be kept clean and free of foreign matter. Do not attempt to clean by inserting pointed objects through openings.
! CAUTION Certain cleaning agents and solvents damage
plastic parts. Some of these are: gasoline, carbon tetrachloride, chlorinated cleaning solvents, ammonia and household detergents that contain ammonia.
Accessories
! WARNING If an extension cord is necessary, a cord with
adequate size conductors that is capable of carrying the current necessary for your tool must be used. This will prevent excessive voltage drop, loss of power or overheating. Grounded tools must use 3- wire extension cords that have 3-prong plugs and receptacles.
NOTE: The smaller the gauge number, the heavier the cord.
RECOMMENDED SIZES OF EXTENSION CORDS 120 VOLT ALTERNATING CURRENT TOOLS
Tool’s |
Cord Size in A.W.G. |
Wire Sizes in mm2 |
|||||||
|
|
|
|
|
|
|
|
||
Ampere |
|
|
|
|
|
|
|
|
|
Cord Length in Feet |
Cord Length in Meters |
||||||||
Rating |
|||||||||
25 |
50 |
100 |
150 |
15 |
30 |
60 |
120 |
||
|
|||||||||
3-6 |
|
|
|
|
|
|
|
|
|
18 |
16 |
16 |
14 |
0.75 |
0.75 |
1.5 |
2.5 |
||
6-8 |
18 |
16 |
14 |
12 |
0.75 |
1.0 |
2.5 |
4.0 |
|
8-10 |
18 |
16 |
14 |
12 |
0.75 |
1.0 |
2.5 |
4.0 |
|
10-12 |
16 |
16 |
14 |
12 |
1.0 |
2.5 |
4.0 |
— |
|
12-16 |
14 |
12 |
— |
— |
— |
— |
— |
— |
|
|
|
|
|
|
|
|
|
|
-14-
