Sharp PN-HM851, PN-HM651, PN-HB651, PN-HB751, PN-HM751 User Manual

PN-HM851 PN-HM751 PN-HM651 PN-HB851 PN-HB751 PN-HB651

LCD MONITOR

MONITEUR LCD

MONITOR LCD

SETUP MANUAL MANUEL D’INSTALLATION

MANUAL DE INSTALACIÓN

ENGLISH

FRANÇAIS

ESPAÑOL

ENGLISH .......	E1
FRANÇAIS.....	F1
ESPAÑOL .....	S1

IMPORTANT:

To aid reporting in case of loss or theft, please record the Model No.: product’s model and serial numbers in the space provided.

The numbers are located in the rear of the product.

Serial No.:

U.S.A. ONLY

Supplier’s Declaration of Conformity

SHARP LCD MONITOR, PN-HB651/PN-HM651/PN-HB751/PN-HM751/PN-HB851/PN-HM851

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Responsible Party:

SHARP ELECTRONICS CORPORATION 100 Paragon Drive, Montvale, NJ 07645 TEL: 1-800-BE-SHARP www.sharpusa.com

U.S.A. ONLY

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC CAUTION

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

U.S.A. ONLY

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment

has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles).

U.S.A. AND CANADA ONLY

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).

Operation is subject to the following two conditions:

(1)This device may not cause interference.

(2)This device must accept any interference, including interference that may cause undesired operation of the device.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

This radio transmitter [IC: 6317A-RTL8822BE] has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated.

Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.

Antenna type: Dipole

Gain: 3.14dBi(2.4GHz)/5dBi(5GHz)

CANADA ONLY

L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :

1)L’appareil ne doit pas produire de brouillage;

2)L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans évaluation de l’exposition maximale autorisée. Cependant, cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps (à l’exception des extrémités : mains, poignets, pieds et chevilles).

Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte

que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante.

Le présent émetteur radio [IC: 6317A-RTL8822BE] a été approuvé par Innovation, Sciences et Développement économique Canada pour fonctionner avec les types d’antenne énumérés ci dessous et ayant un gain admissible maximal. Les types d’antenne non inclus dans cette liste, et dont le gain est supérieur au gain maximal indiqué pour tout type figurant sur la liste, sont strictement interdits pour l’exploitation de l’émetteur.

Antenne type: Dipôle

Gain: 3.14dBi(2.4GHz)/5dBi(5GHz)

CANADA SEULEMENT

CAN ICES-3 (A) / NMB-3 (A)

Contents

[ENGLISH]

IMPORTANT INFORMATION............................................	1
DEAR SHARP CUSTOMER..............................................	1
SAFETY PRECAUTIONS..................................................	2
SAFETY INSTRUCTION....................................................	3
MOUNTING PRECAUTIONS.............................................	4
Supplied Components.....................................................	5
Preparing the Remote Control Unit................................	5

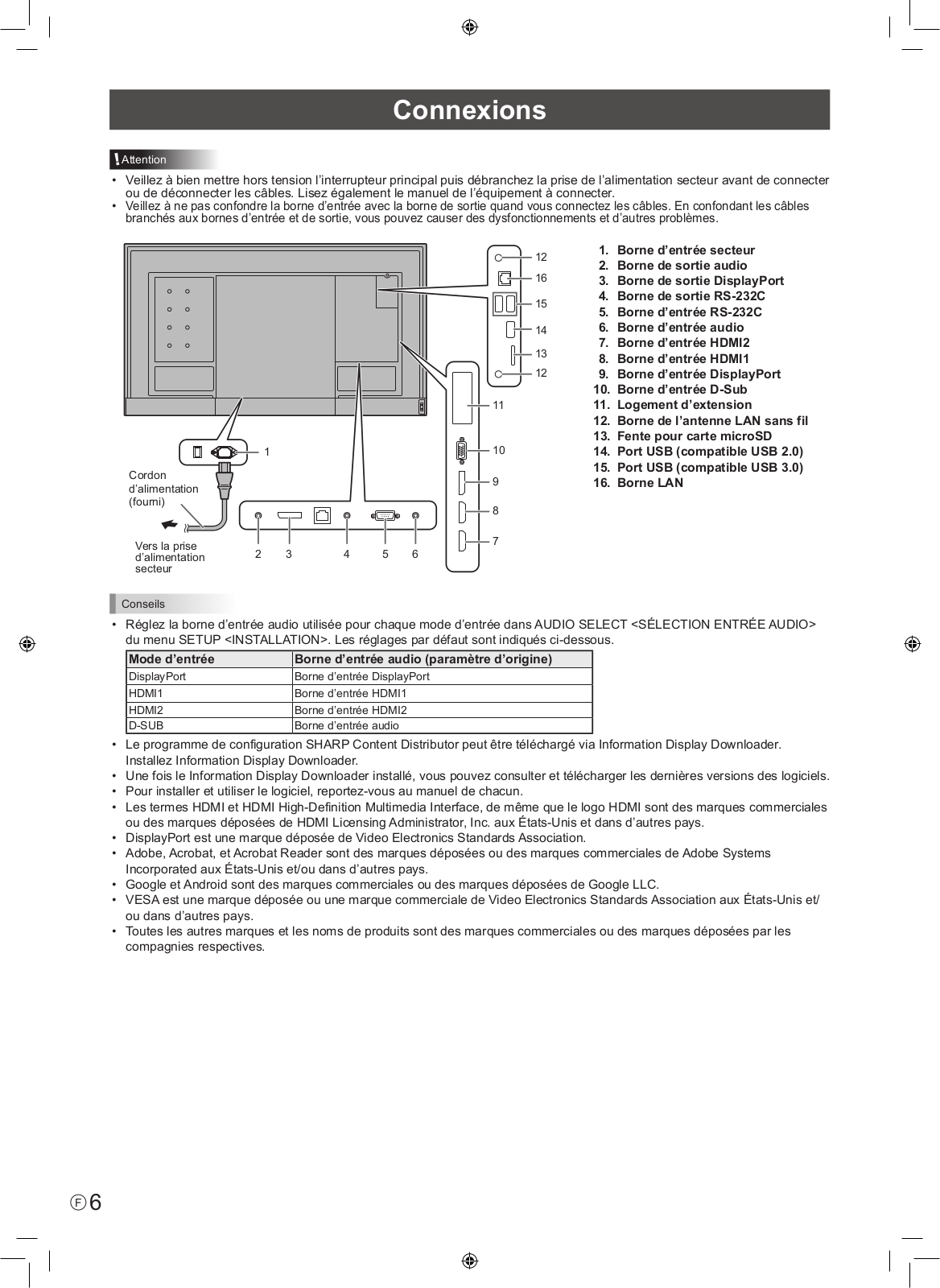

Connections......................................................................	6
Turning Power On/Off......................................................	7
Mounting Precautions
(For SHARP dealers and service engineers).................	9

Read the manuals in the provided CD-ROM. (Adobe Acrobat Reader is required to view the manuals.)

ENGLISH

IMPORTANT INFORMATION

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC

SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within a triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING:

FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

U.S.A. ONLY

To maintain compliance with EMC regulations, use shielded cables to connect to the following terminals: HDMI input terminal, D-sub input terminal, RS-232C input/output terminals, and DisplayPort input/output terminals.

DEAR SHARP CUSTOMER

Thank you for your purchase of a SHARP LCD product. To ensure safety and many years of trouble-free operation of your product, please read the Safety Precautions carefully before using this product.

1 E

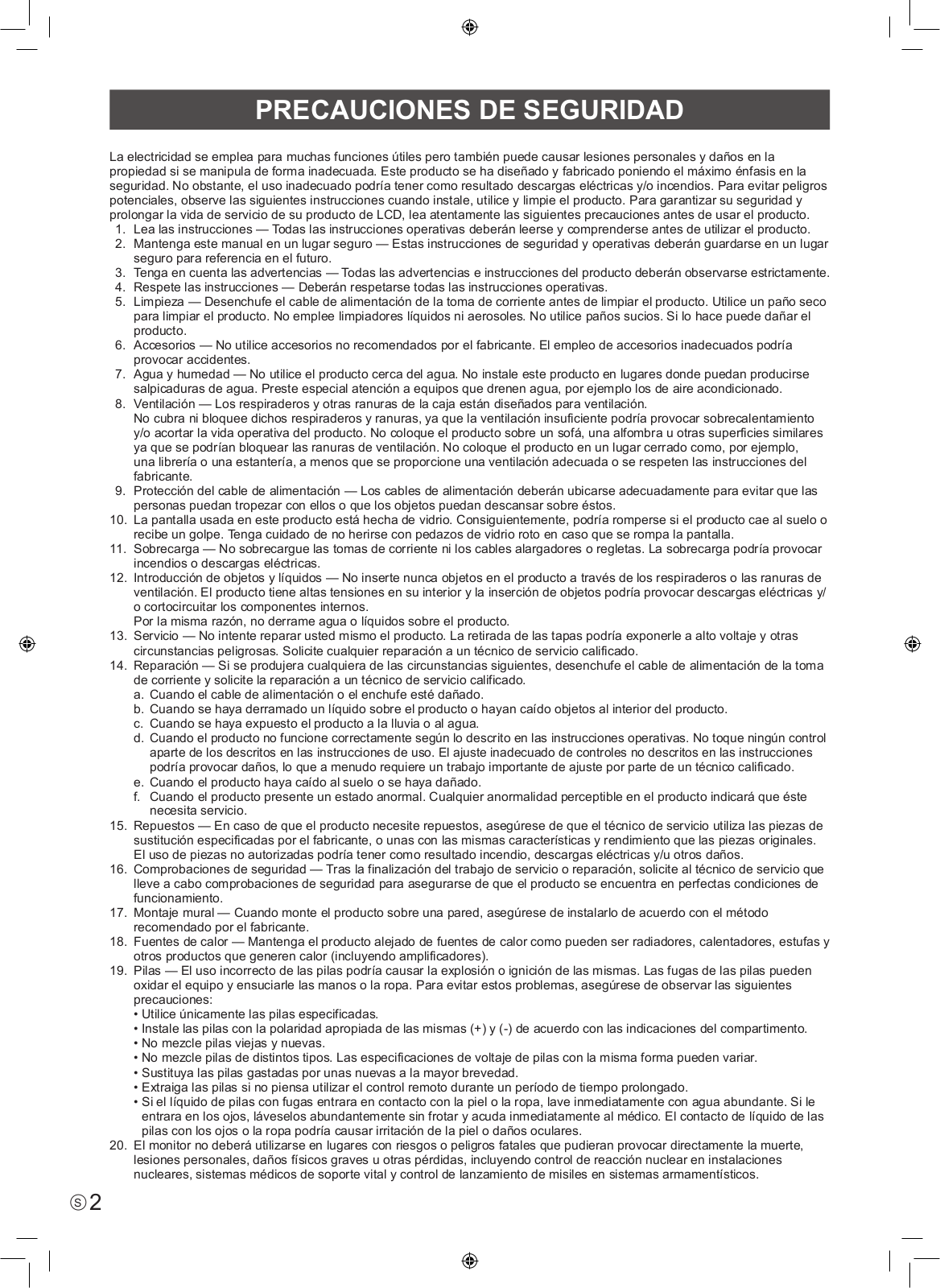

SAFETY PRECAUTIONS

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your LCD product, please read the following precautions carefully before using the product.

1.Read instructions — All operating instructions must be read and understood before the product is operated.

2.Keep this manual in a safe place — These safety and operating instructions must be kept in a safe place for future reference.

3.Observe warnings — All warnings on the product and in the instructions must be observed closely.

4.Follow instructions — All operating instructions must be followed.

5.Cleaning — Unplug the power cord from the power outlet before cleaning the product. Use a dry cloth to clean the product. Do not use liquid cleaners or aerosol cleaners. Do not use dirty cloths. Doing so may damage the product.

6.Attachments — Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result in accidents.

7.Water and moisture — Do not use the product near water. Do not install the product in a place where water may splash onto it. Be careful of equipment which drains water such as an air-conditioner.

8.Ventilation — The vents and other openings in the cabinet are designed for ventilation.

Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a sofa, rug or other similar surface, since they can block ventilation openings. Do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed.

9.Power cord protection — The power cords must be routed properly to prevent people from stepping on them or objects from resting on them.

10. The screen used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the screen breaks.

11. Overloading — Do not overload power outlets or extension cords. Overloading can cause fire or electric shock.

12. Entering of objects and liquids — Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts.

For the same reason, do not spill water or liquid on the product.

13. Servicing — Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing.

14. Repair — If any of the following conditions occurs, unplug the power cord from the power outlet, and request a qualified service person to perform repairs.

a.When the power cord or plug is damaged.

b.When a liquid was spilled on the product or when objects have fallen into the product.

c.When the product has been exposed to rain or water.

d.When the product does not operate properly as described in the operating instructions.

Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician.

e.When the product has been dropped or damaged.

f.When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product needs servicing.

15.Replacement parts — In case the product needs replacement parts, make sure that the service person uses replacement

parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.

16. Safety checks — Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.

17. Wall mounting — When mounting the product on a wall, be sure to install the product according to the method recommended by the manufacturer.

18. Heat sources — Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).

19. Batteries — Incorrect use of batteries may cause the batteries to burst or ignite. A leaky battery may corrode the equipment, dirty your hands or spoil your clothing. In order to avoid these problems, make sure to observe the precautions below:

•Use the specified batteries only.

•Install the batteries with due attention to the plus (+) and minus (-) sides of the batteries according to the instructions in the compartment.

•Do not mix old and new batteries.

•Do not mix batteries of different types. Voltage specifications of batteries of the same shape may vary.

•Replace an exhausted battery with a new one promptly.

•If you will not use the remote control for a long time, remove the batteries.

•If leaked battery fluid gets on your skin or clothing, rinse immediately and thoroughly. If it gets into your eye, bathe your eye well rather than rubbing and seek medical treatment immediately. Leaked battery fluid that gets into your eye or your clothing may cause a skin irritation or damage your eye.

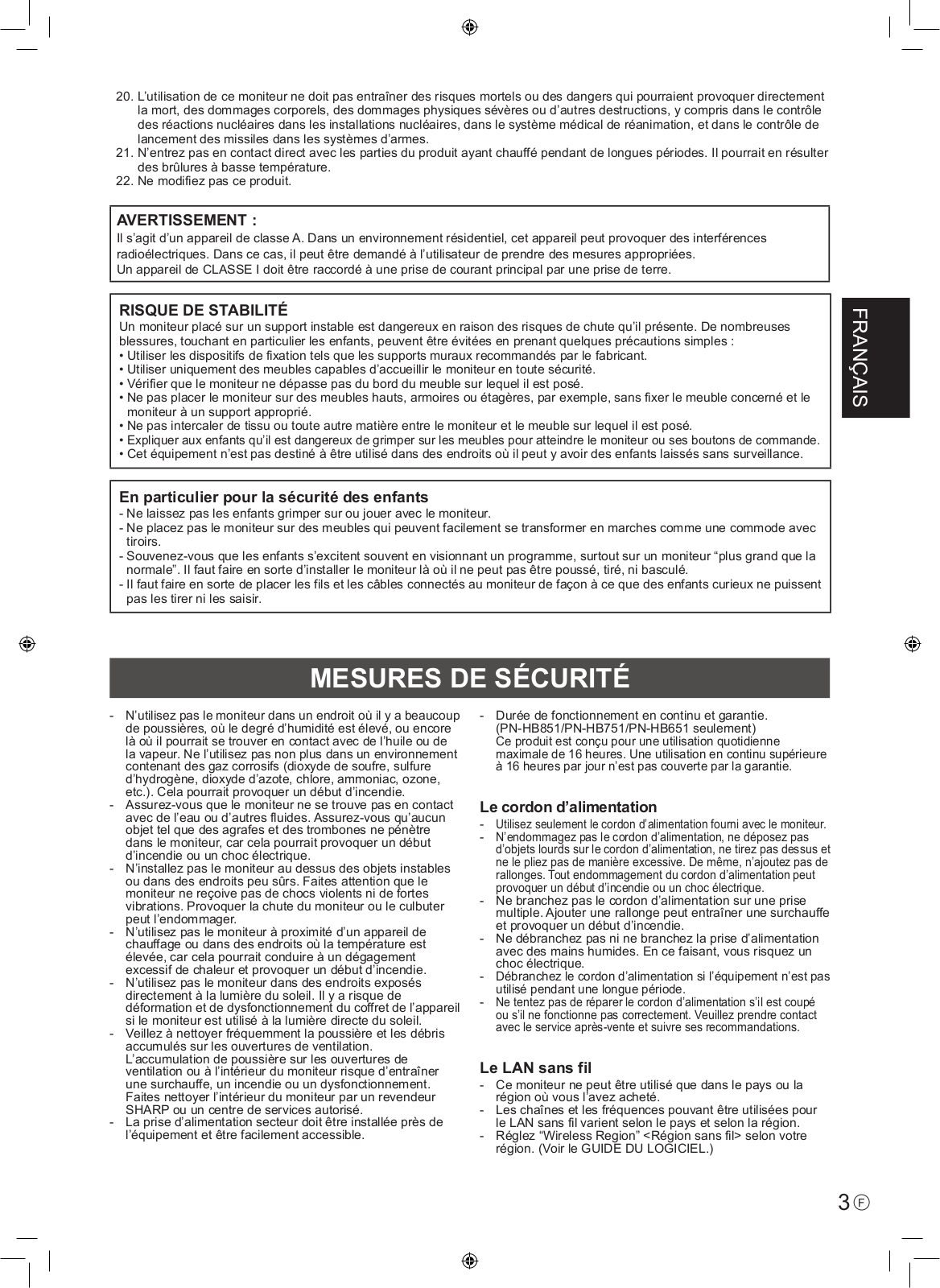

20. Usage of the monitor must not be accompanied by fatal risks or dangers that, could lead directly to death, personal injury, severe physical damage or other loss, including nuclear reaction control in nuclear facility, medical life support system, and

missile launch control in a weapon system.

E 2

21. Do not stay in contact with the parts of the product that become hot for long periods of time. Doing so may result in low-temperature burns.

22. Do not modify this product.

WARNING:

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

An apparatus with CLASS I construction shall be connected to a MAIN socket outlet with a protective earthing connection.

STABILITY HAZARD

If a monitor is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

•Using fixing devices like wall mount brackets recommended by the manufacturer.

•Only using furniture that can safely support the monitor.

•Ensuring the monitor is not overhanging the edge of the supporting furniture.

•Not placing the monitor on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the monitor to a suitable support.

•Not standing the monitors on cloth or other materials placed between the monitor and supporting furniture.

•Educating children about the dangers of climbing on furniture to reach the monitor or its controls.

•This equipment is not suitable for use in locations where children are likely to be present unsupervised.

Especially for child safety

-Don’t allow children to climb on or play with the monitor.

-Don’t place the monitor on furniture that can easily be used as steps, such as a chest of drawers.

-Remember that children can become excited while watching a program, especially on a “larger than life” monitor. Care should be taken to place or install the monitor where it cannot be pushed, pulled over, or knocked down.

-Care should be taken to route all cords and cables connected to the monitor so that they cannot be pulled or grabbed by curious children.

ENGLISH

SAFETY INSTRUCTION

-Do not use the monitor where there is a lot of dust, where humidity is high, or where the monitor may come into contact with oil or steam. Do not use in an environment where

there are corrosive gases (sulfur dioxide, hydrogen sulfide, nitrogen dioxide, chlorine, ammonia, ozone, etc.). As this could lead to fire.

-Ensure that the monitor does not come into contact with water or other fluids. Ensure that no objects such as paper clips or pins enter the monitor as this could lead to fire or electric shock.

-Do not place the monitor on top of unstable objects or in unsafe places. Do not allow the monitor to receive strong shocks or to strongly vibrate. Causing the monitor to fall or topple over may damage it.

-Do not use the monitor near heating equipment or in places where there is likelihood of high temperature, as this may lead to generation of excessive heat and outbreak of fire.

-Do not use the monitor in places where it may be exposed to direct sunlight. Risk of cabinet deformation and failure if the monitor is used in direct sunlight.

-Please be sure to constantly remove dust and garbage that has attached to the ventilation opening. If dust collects in the ventilation opening or the inside of the monitor, it may lead to excessive heat, outbreak of fire, or malfunction.

Please request a cleaning of the inside of the monitor from an authorized SHARP servicing dealer or service center.

-The power outlet shall be installed near the equipment and shall be easily accessible.

-Continuous operating time and warranty. (PN-HB851/ PN-HB751/PN-HB651 only)

This product is designed for a maximum daily use of 16 hours. Continual use in excess of 16 hours per day is not covered by the warranty.

The Power Cord

-Use only the power cord supplied with the monitor.

-Do not damage the power cord nor place heavy objects on it, stretch it or over bend it. Also, do not add extension cords. Damage to the cord may result in fire or electric shock.

-Do not use the power cord with a power tap.

Adding an extension cord may lead to fire as a result of overheating.

-Do not remove or insert the power plug with wet hands. Doing so could result in electric shock.

-Unplug the power cord if it is not used for a long time.

-Do not attempt to repair the power cord if it is broken or malfunctioning. Refer the servicing to the service representative.

Wireless LAN

-This monitor cannot be used in other than the country or region where you purchased it.

-The channels and frequencies that can be used for wireless LAN vary by country and region.

-Set “Wireless Region” appropriately for your region. (See SOFTWARE GUIDE.)

3 E

MOUNTING PRECAUTIONS

•This product is for use indoors.

•A mounting bracket compliant with VESA specifications is required.

•Since the monitor is heavy, consult your dealer before installing, removing or moving the monitor.

•Mounting the monitor on the wall requires special expertise and the work must be performed by an authorized SHARP dealer. You should never attempt to perform any of this work yourself. Our company will bear no responsibility

for accidents or injuries caused by improper mounting or mishandling.

•Use the monitor with the surface perpendicular to a level surface. If necessary, the monitor may be tilted up to 20 degrees upward or downward.

•This monitor should be used at an ambient temperature between 32°F (0°C) and 104°F (40°C). Provide enough space around the monitor to prevent heat from accumulating inside.

For the monitor in landscape orientation

	7-7/8 [200]
2	2
[50]	[50]
	2 [50]

Unit: inch [mm] 1-7/16 [35]

For the monitor in portrait orientation

	7-7/8 [200]
2	2
[50]	[50]
	Power LED
	2 [50]

Unit: inch [mm] 1-7/16 [35]

•If it is difficult to provide sufficient space for any reason such as the installation of the monitor inside a housing or of several units side-by-side, or if the ambient temperature may be outside of the range of 32°F (0°C) to 104°F (40°C), install a fan or take other measures to keep the ambient temperature within the required range.

•When installing two or more monitor units side-by-side, provide space of at least 3/16 inch (5 mm) around them to prevent stress on the adjacent unit or structure due to thermal expansion.

•Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP. In such cases, please check the temperature condition specified by the optional equipments.

•Do not block any ventilation openings. If the temperature inside the monitor rises, this could lead to a malfunction.

•Do not place the monitor on a device which generates heat.

•Adhere to the following when installing the monitor in its portrait orientation. Failing to adhere to the following may cause malfunctions.

-Install‌ the monitor such that the power LED is located on the bottom side.

-Set the PORTRAIT/LANDSCAPE INSTALL in the MONITOR menu to PORTRAIT. (See OPERATION MANUAL.)

-Be‌ sure to clamp the power cord (supplied) onto the cable clamp attachment using the supplied cable clamp. When clamping the power cord, take care not to stress the terminal of the power cord. Do not bend the power cord

excessively.

Cable clamp	Cable clamp
attachment

Power cord (Supplied)

Mounting the monitor laying flat on a surface

•When using this monitor laying flat on a surface (when the monitor is tilted more than 20 degrees upward from the perpendicular in relation to a level surface), consult an authorized SHARP dealer because there are some specific mounting conditions.

Adhere to the following. Failing to adhere to the following may cause malfunctions.

-This‌ monitor can be tilted up to 90 degrees upward.

-Set HORIZONTAL INSTALLATION in the MONITOR menu to FACE UP. (See OPERATION MANUAL.)

-Use‌ this monitor at the ambient temperature between 32°F (0°C) and 86°F (30°C). Provide 7-7/8 inch

(200 mm) or more space between the monitor and the floor or other mounting surfaces and surrounding objects to prevent heat from accumulating inside.

If it is difficult to provide sufficient space or if the ambient temperature may be outside of the range of 32°F (0°C) to 86°F (30°C), install a fan or take other measures to keep the ambient temperature within the required range.

	7-7/8 [200]
7-7/8	7-7/8
[200]	[200]
	7-7/8 [200]

Unit: inch [mm]

7-7/8 [200]

-Do‌ not press hard on the screen or otherwise subject it to impacts.

E 4

Supplied Components

If any component should be missing, please contact your dealer.

Liquid Crystal Display Monitor: 1

Remote control unit: 1

Cable clamp: 2

Cable clamp (affixing type): 3

Power cord: 1

R03 battery (“AAA” size): 2

CD-ROM (Utility Disk for Windows): 1

Setup Manual (this manual): 1

Specification sheet

RS-232C conversion cable (3.5mm mini stereo jack): 1

Logo sticker: 1

USB flash drive / SD card cover: 1

USB flash drive / SD card cover fixing screw: 1

Wireless LAN antenna: 2

*SHARP Corporation holds authorship rights to the Utility Disk program. Do not reproduce it without permission.

*For environmental protection!

Do not dispose of batteries in household waste. Follow the disposal instructions for your area.

ENGLISH

Preparing the Remote Control Unit

1. Place your finger on the part marked with the ▲, and then pull the cover off.

2.See the instructions in the compartment and put in the supplied batteries (R03 (“AAA” size) x 2) with their plus (+) and minus (-) sides oriented correctly.

3.Close the cover.

5 E

Connections

Caution

•Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/disconnecting cables. Also, read the manual of the equipment to be connected.

•Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables connected to the input and output terminals may cause malfunctions and the other problems.

12 16

15 14

13

12

						11
			1			10
	Power cord					9
	(Supplied)
						8
	For power outlet					7
		2	3	4	5	6

TIPS

1.AC input terminal

2.Audio output terminal

3.DisplayPort output terminal

4.RS-232C output terminal

5.RS-232C input terminal

6.Audio input terminal

7.HDMI2 input terminal

8.HDMI1 input terminal

9.DisplayPort input terminal 10. D-sub input terminal

11. Expansion slot

12. Wireless LAN antenna terminal

13. microSD card slot

14. USB port (USB 2.0 compliant)

15. USB port (USB 3.0 compliant)

16. LAN terminal

•Set the audio input terminal used for each input mode in AUDIO SELECT on the SETUP menu. The factory settings are shown below.

Input mode	Audio input terminal (Factory setting)
DisplayPort	DisplayPort input terminal
HDMI1	HDMI1 input terminal
HDMI2	HDMI2 input terminal
D-SUB	Audio input terminal

•SHARP Content Distributor setup program can be downloaded using Information Display Downloader.

Install Information Display Downloader.

•When the Information Display Downloader is installed, you can check and download the most recent versions of the software programs.

•To install and use the software, see the manual for each.

•The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

•DisplayPort is a registered trademark of Video Electronics Standards Association.

•Adobe, Acrobat, and Acrobat Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the

United States and/or other countries.

•Google and Android are trademarks or registered trademarks of Google LLC.

•VESA is either registered trademark or trademark of Video Electronics Standards Association in the United States and/or other countries.

•All other brand and product names are trademarks or registered trademarks of their respective holders.

E 6

Turning Power On/Off

Caution

•Turn on the monitor first before turning on the computer or playback device.

•When switching the main power switch or the POWER button off and back on, always wait for at least 5 seconds. A short interval may result in a malfunction.

Turning on the main power

Turning power on/off

Press the POWER button to turn the power ON/OFF. You can also turn the power ON/OFF by pressing the

MONITOR ON button/MONITOR OFF button on the remote control unit.

Main power switch

Caution

•The main power must be turned on/off with the main power switch. Do not connect/disconnect the power cord or turn the breaker on/off while the main power switch is on.

•For a complete electrical disconnection, pull out the main plug.

	Power LED POWER button
Status	Status of the monitor
Green lit	Power on
Orange lit	Power off (Standby mode)
Green flashing	Input signal waiting mode

nHow to pull out the power LED/remote control sensor

Pull out

Store

Lever

Power LED / Remote control sensor

ENGLISH

7 E
