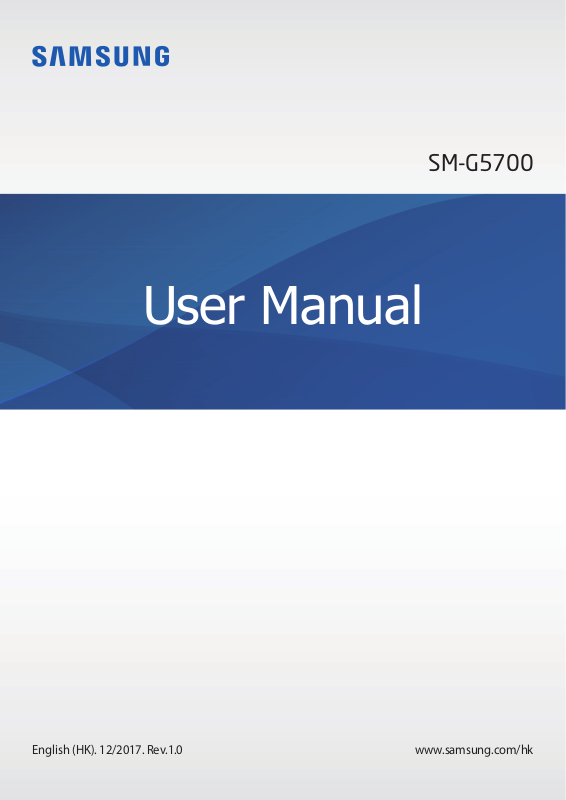

SM-G5700

User Manual

English (HK). 12/2017. Rev.1.0

www.samsung.com/hk

Table of Contents

Basics		Applications
4	Read me first	45	Installing or uninstalling apps
5	Device overheating situations and	47	Phone
	solutions	50	Contacts
8	Package contents
		55	Messages
9	Device layout
		57	Internet
11	Battery
		59	Email
14	SIM or USIM card (nano-SIM card)
		60	Camera
18	Memory card (microSD card)
		70	Gallery
20	Turning the device on and off
		75	Multi window
21	Understanding the screen
		78	Samsung Notes
30	Notification panel
		79	Calendar
32	Entering text
		80	S Health
34	Screen capture
		83	Voice Recorder
35	Opening apps
		84	My Files
36	Samsung account
		84	Clock
37	Transferring data from your previous
		86	Calculator
	device
		86	Radio
40	Device and data management
		88	Google apps
43	Sharing features

44	Emergency mode

Table of Contents

Settings

90 Introduction

90 Connections

98Sounds and vibration

99Notifications

99Display

100Wallpapers and themes

101Advanced features

103Device maintenance

105Apps

105Lock screen and security

109Cloud and accounts

111Google

111Accessibility

112General management

113Software update

113User manual

113About phone

Appendix

114 Troubleshooting

Basics

Read me first

Please read this manual before using the device to ensure safe and proper use.

•Descriptions are based on the device’s default settings.

•Some content may differ from your device depending on the region, service provider, model specifications, or device’s software.

•Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in.

•Samsung is not liable for performance issues caused by apps supplied by providers other than Samsung.

•Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly.

•Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media.

•You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature.

•Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers.

•Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty.

•Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission (FCC). If your device is approved by the FCC, you can view the FCC ID of the device. To view the FCC ID, launch the Settings app and tap About phone →Battery information.

Basics

Instructional icons

Warning: situations that could cause injury to yourself or others

Caution: situations that could cause damage to your device or other equipment

Notice: notes, usage tips, or additional information

Device overheating situations and solutions

When the device heats up while charging the battery

While charging, the device and the charger may become hot. During wireless charging or fast charging, the device may feel hotter to the touch. This does not affect the device’s lifespan or performance and is in the device’s normal range of operation. If the battery becomes too hot, the charger may stop charging.

Do the following when the device heats up:

•Disconnect the charger from the device and close any running apps. Wait for the device to cool down and then begin charging the device again.

•If the lower part of the device overheats, it could be because the connected USB cable is damaged. Replace the damaged USB cable with a new Samsung-approved one.

•When using a wireless charger, do not place foreign materials, such as metal objects, magnets, and magnetic stripe cards, between the device and the wireless charger.

The wireless charging or fast charging feature is only available on supported models.

Basics

When the device heats up during use

When you use features or apps that require more power or use them for extended periods, your device may temporarily heat up due to increased battery consumption. Close any running apps and do not use the device for a while.

The following are examples of situations in which the device may overheat. Depending on the functions and apps you use, these examples may not apply to your model.

•During the initial setup after purchase or when restoring data

•When downloading large files

•When using apps that require more power or using apps for extended periods

––When playing high-quality games for extended periods

––When recording videos for extended periods

––When streaming videos while using the maximum brightness setting

––When connecting to a TV

•While multitasking (or, when running many apps in the background)

––When using Multi window

––When updating or installing apps while recording videos

––When downloading large files during a video call

––When recording videos while using a navigation app

•When using large amount of data for syncing with the cloud, email, or other accounts

•When using a navigation app in a car while the device is placed in direct sunlight

•When using the mobile hotspot and tethering feature

•When using the device in areas with weak signals or no reception

•When charging the battery with a damaged USB cable

•When the device’s multipurpose jack is damaged or exposed to foreign materials, such as liquid, dust, metal powder, and pencil lead

•When you are roaming

Basics

Do the following when the device heats up:

•Keep the device updated with the latest software.

•Conflicts between running apps may cause the device to heat up. Restart the device.

•Deactivate the Wi-Fi, GPS, and Bluetooth features when not using them.

•Close apps that increase battery consumption or that run in the background when not in use.

•Delete unnecessary files or unused apps.

•Decrease the screen brightness.

•If the device overheats or feels hot for a prolonged period, do not use it for a while. If the device continues to overheat, contact a Samsung Service Centre.

Device limitations when the device overheats

When the device heats up, the features and performance may be limited or the device may turn off to cool down. The feature is only available on supported models.

•If the device becomes hotter than usual, a device overheating message will appear. To lower the device’s temperature, the screen brightness and the performance speed will be limited and battery charging will stop. Running apps will be closed and you will only be able to make emergency calls until the device cools down.

•If the device overheats or feels hot for a prolonged period, a power off message will appear. Turn off the device, and wait until it cools down.

Basics

Precautions for operating environment

Your device may heat up due to the environment in the following conditions. Use caution to avoid shortening the battery’s lifespan, damaging the device, or causing a fire.

•Do not store your device in very cold or very hot temperatures.

•Do not expose your device to direct sunlight for extended periods.

•Do not use or store your device for extended periods in very hot areas, such as inside a car in the summertime.

•Do not place the device in any areas that may overheat, such as on an electric heating mat.

•Do not store your device near or in heaters, microwaves, hot cooking equipment, or high pressure containers.

•Never use a damaged charger or battery.

Package contents

Check the product box for the following items:

•Device

•Quick start guide

•The items supplied with the device and any available accessories may vary depending on the region or service provider.

•The supplied items are designed only for this device and may not be compatible with other devices.

•Appearances and specifications are subject to change without prior notice.

•You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase.

•Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty.

•Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website.

Basics

Device layout

Front camera	Proximity sensor
	LED indicator
Speaker	Speaker
	Speaker
	Power key
Touchscreen

Home key (Fingerprint recognition sensor)

Recents key

Back key

Microphone

Earphone jack

Multipurpose jack

GPS antenna	Flash
GPS antenna
Rear camera

Volume key

SIM card tray

SIM card / Memory card tray

Main antenna

Basics

•Connectivity problems and battery drain may occur in the following situations:

––If you attach metallic stickers on the antenna area of the device

––If you attach a device cover made with metallic material to the device

––If you cover the device’s antenna area with your hands or other objects while using certain features, such as calls or the mobile data connection

•Using a Samsung-approved screen protector is recommended. Unapproved screen protectors may cause the sensors to malfunction.

•Do not cover the proximity sensor area with screen accessories, such as a screen protector or stickers. Doing so may cause the sensor to malfunction.

•Do not allow water to contact the touchscreen. The touchscreen may malfunction in humid conditions or when exposed to water.

Keys

Key	Function
Power	•	Press and hold to turn the device on or off.
Power	•	Press to turn on or lock the screen.
	•	Press to turn on or lock the screen.
Recents	•	Tap to open the list of recent apps.

	•	Press to turn on the screen while the screen is locked.
Home	•	Press to return to the Home screen.
	•	Press and hold to launch Google.
	•	Tap to return to the previous screen.
Back	•	Tap and hold to access additional options for the current
		screen.

Volume	•	Press to adjust the device volume.

Basics

Battery

Charging the battery

Charge the battery before using it for the first time or when it has been unused for extended periods.

Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or cables can cause the battery to explode or damage the device.

Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty.

To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging.

1 Connect the USB cable to the USB power adaptor, and plug the USB cable into the device’s multipurpose jack.

Plug the USB power adaptor into an electric socket.

After fully charging, disconnect the device from the charger. First unplug the charger from the device, and then unplug it from the electric socket.

Basics

Viewing the estimated charging time

While charging, launch the Settings app and tap Device maintenance →Battery.

The actual charging time may vary depending on the status of your device and the charging conditions. The estimated charging time may not be displayed when you charge the device in very cold or very hot conditions.

Reducing the battery consumption

Your device provides various options that help you conserve battery power.

•Optimise the device using the device maintenance feature.

•When you are not using the device, turn off the screen by pressing the Power key.

•Activate power saving mode.

•Close unnecessary apps.

•Deactivate the Bluetooth feature when not in use.

•Deactivate the Wi-Fi feature when not in use.

•Deactivate auto-syncing of apps that need to be synced, such as emails.

•Decrease the backlight time.

•Decrease the screen brightness.

Battery charging tips and precautions

•When the battery power is low, the battery icon appears empty.

•If the battery is completely discharged, the device cannot be turned on immediately when the charger is connected. Allow a depleted battery to charge for a few minutes before turning on the device.

•If you use multiple apps at once, network apps, or apps that need a connection to another device, the battery will drain quickly. To avoid losing power during a data transfer, always use these apps after fully charging the battery.

•Using a power source other than the charger, such as a computer, may result in a slower charging speed due to a lower electric current.

•The device can be used while it is charging, but it may take longer to fully charge the battery.

•If the device receives an unstable power supply while charging, the touchscreen may not function. If this happens, unplug the charger from the device.

Basics

•While charging, the device and the charger may heat up. This is normal and should not affect the device’s lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.

•If you charge the device while the multipurpose jack is wet, the device may be damaged. Thoroughly dry the multipurpose jack before charging the device.

•If the device is not charging properly, take the device and the charger to a Samsung Service Centre.

Power saving mode

Activate power saving mode to extend the battery’s usage time.

1	Launch the Settings app and tap Device maintenance →Battery →MID.
2	Tap CUSTOMISE to change the power saving settings before entering power saving
	mode.
3	Tap APPLY.

Maximum power saving mode

In maximum power saving mode, the device decreases battery consumption by applying the dark theme and limiting the apps and features available. Network connections, except for the mobile network, will be deactivated.

Launch the Settings app and tap Device maintenance →Battery →MAX.

Tap CUSTOMISE to change the power saving settings before entering maximum power saving mode.

3 Tap APPLY.

After entering maximum power saving mode, on the Home screen, tap and select an app to use. To remove apps, tap →Edit and select an app with .

To deactivate maximum power saving mode, tap →Turn off Maximum power saving mode.

The estimated battery usage time may vary depending on your device settings and operating conditions.

Basics

SIM or USIM card (nano-SIM card)

Installing the SIM or USIM card

Insert the SIM or USIM card provided by the mobile telephone service provider.

You can insert two SIM or USIM cards so you can have two phone numbers or service providers for a single device. In some areas, data transfer speeds may be slower if two SIM cards are inserted in the device than when one SIM card is inserted.

	•	Use only a nano-SIM card.
	•	Use caution not to lose or let others use the SIM or USIM card. Samsung is not


		responsible for any damages or inconveniences caused by lost or stolen cards.

Some LTE services may not be available depending on the service provider. For more information about service availability, contact your service provider.

►SIM card tray 1:

Basics

►SIM card tray 2:

1 Insert the ejection pin into the hole on the tray to loosen the tray.

Ensure that the ejection pin is perpendicular to the hole. Otherwise, the device may be damaged.

Pull out the tray gently from the tray slot.

Place the SIM or USIM card on the tray with the gold-coloured contacts facing downwards.

Place the primary SIM or USIM card on the tray 1 and the secondary SIM or USIM card on the tray 2.

4 Gently press the SIM or USIM card into the SIM card tray to secure it.

If the card is not fixed firmly into the tray, the SIM card may leave or fall out of the tray.

Basics

5 Insert the tray back into the tray slot.

	•	If you insert the tray into your device while the tray is wet, your device may be
	•	damaged. Always make sure the tray is dry.


		Fully insert the tray into the tray slot to prevent liquid from entering your device.

Removing the SIM or USIM card

Insert the ejection pin into the hole on the tray to loosen the SIM card tray.

Pull out the tray gently from the tray slot.

Remove the SIM or USIM card.

►SIM card tray 1:

►SIM card tray 2:

4 Insert the tray back into the tray slot.

Basics

Using dual SIM or USIM cards

If you insert two SIM or USIM cards, you can have two phone numbers or service providers for a single device.

Activating SIM or USIM cards

Launch the Settings app and tap Connections →SIM card manager. Select a SIM or USIM card and tap the switch to activate it.

Customising SIM or USIM cards

Launch the Settings app and tap Connections →SIM card manager and select a SIM or USIM card to access the following options:

•Icon: Change the icon of the SIM or USIM card.

•Name: Change the display name of the SIM or USIM card.

•Network mode: Select a network type to use with the SIM or USIM card.

Setting preferred SIM or USIM cards

When two cards are activated, you can assign voice calls, messaging, and data services to specific cards.

Launch the Settings app and tap Connections →SIM card manager and set the feature preferences for your cards in PREFERRED SIM CARD.

Basics

Memory card (microSD card)

Installing a memory card

Your device’s memory card capacity may vary from other models and some memory cards may not be compatible with your device depending on the memory card manufacturer and type. To view your device’s maximum memory card capacity, refer to the Samsung website.

• Some memory cards may not be fully compatible with the device. Using an incompatible card may damage the device or the memory card, or corrupt the data stored in it.

•Use caution to insert the memory card right-side up.

•The device supports the FAT and the exFAT file systems for memory cards. When inserting a card formatted in a different file system, the device will ask to reformat the card or will not recognise the card. If the device does not recognise your memory card, format it on your computer.

•Frequent writing and erasing of data shortens the lifespan of memory cards.

•When inserting a memory card into the device, the memory card’s file directory appears in the My Files →SD card folder.

Basics

1 Insert the ejection pin into the hole on the tray to loosen the tray.

Ensure that the ejection pin is perpendicular to the hole. Otherwise, the device may be damaged.

2 Pull out the tray gently from the tray slot.

When you remove the tray from the device, the mobile data connection will be disabled.

Place a memory card on the tray with the gold-coloured contacts facing downwards.

Gently press the memory card into the tray to secure it.

If the card is not fixed firmly into the tray, the memory card may leave or fall out of the tray.

5 Insert the tray back into the tray slot.

	•	If you insert the tray into your device while the tray is wet, your device may be
	•	damaged. Always make sure the tray is dry.


		Fully insert the tray into the tray slot to prevent liquid from entering your device.

Removing the memory card

Before removing the memory card, first unmount it for safe removal.

Launch the Settings app and tap Device maintenance →Storage →→Storage settings →SD card →UNMOUNT.

Insert the ejection pin into the hole on the tray to loosen the tray.

Pull out the tray gently from the tray slot.

Remove the memory card.

Insert the tray back into the tray slot.

Do not remove the memory card while the device is transferring or accessing information. Doing so can cause data to be lost or corrupted or damage to the memory card or device. Samsung is not responsible for losses that result from the misuse of damaged memory cards, including the loss of data.

Basics

Formatting the memory card

A memory card formatted on a computer may not be compatible with the device. Format the memory card on the device.

Launch the Settings app and tap Device maintenance →Storage →→Storage settings →SD card →Format.

Before formatting the memory card, remember to make backup copies of all important data stored in the memory card. The manufacturer’s warranty does not cover loss of data resulting from user actions.

Turning the device on and off

Press and hold the Power key for a few seconds to turn on the device.

When you turn on your device for the first time or after performing a data reset, follow the onscreen instructions to set up your device.

To turn off the device, press and hold the Power key, and then tap Power off.

Follow all posted warnings and directions from authorised personnel in areas where the use of wireless devices is restricted, such as aeroplanes and hospitals.

Restarting the device

If your device is frozen and unresponsive, press and hold the Power key and the Volume Down key simultaneously for more than 7 seconds to restart it.

Volume Down key	Power key

Basics

Understanding the screen

Controlling the touchscreen

• Do not allow the touchscreen to come into contact with other electrical devices. Electrostatic discharges can cause the touchscreen to malfunction.

•Do not allow the touchscreen to contact water. The touchscreen may malfunction in humid conditions or when exposed to water.

•To avoid damaging the touchscreen, do not tap it with anything sharp or apply excessive pressure to it with your fingertips.

•Leaving the touchscreen idle for extended periods may result in afterimages (screen burn-in) or ghosting. Turn off the touchscreen when you do not use the device.

•The device may not recognise touch inputs close to the edges of the screen, which are outside of the touch input area.

•It is recommended to use fingers when you use the touchscreen.

Tapping

Tap the screen.

Basics

Tapping and holding

Tap and hold the screen for approximately 2 seconds.

Dragging

Tap and hold an item and drag it to the target position.

Double-tapping

Double-tap the screen.

Basics

Swiping

Swipe upwards, downwards, to the left, or to the right.

Spreading and pinching

Spread two fingers apart or pinch on the screen.

Basics

Home screen and Apps screen

The Home screen is the starting point for accessing all of the device’s features. It displays widgets, shortcuts to apps, and more.

The Apps screen displays icons for all apps, including newly installed apps.

A widget
An app	A folder
News screen indicator. View the	Screen indicators
latest articles in various
categories.
Favourite apps

Basics

Switching between Home and Apps screens

On the Home screen, swipe upwards or downwards to open the Apps screen. To return to the Home screen, swipe upwards or downwards on the Apps screen. Alternatively, press the Home key or the Back key.

Home screen

Apps screen

If you add the Apps button on the Home screen, you can open the Apps screen by tapping the button. On the Home screen, tap and hold an empty area and tap Home screen settings →Apps button →Show Apps button →APPLY. The Apps button will be added at the bottom of the Home screen.

Apps button

Moving items

Tap and hold an item, and then drag it to a new location. To move the item to another panel, drag it to the side of the screen.

To add a shortcut to an app on the Home screen, tap and hold an item on the Apps screen, and then drag it to the top or bottom of the screen. A shortcut to the app will be added on the Home screen.

You can also move frequently used apps to the shortcuts area at the bottom of the Home screen.

Basics

Creating folders

Create folders and gather similar applications to quickly access and launch apps.

1	On the Home screen or the Apps screen, tap and hold an app, and then drag it over
	another app.
2	Drop the app when a folder frame appears around the apps.
	A new folder containing the selected apps will be created. Tap Enter folder name and
	enter a folder name.

•Adding more apps

Tap ADD APPS on the folder. Tick the apps to add and tap ADD. You can also add an app by dragging it to the folder.

•Moving apps from a folder

Tap and hold an app to drag it to a new location.

•Deleting a folder

Tap and hold a folder, and then tap Delete folder. Only the folder will be deleted. The folder’s apps will be relocated to the Apps screen.

Basics

Editing the Home screen

On the Home screen, tap and hold an empty area, or pinch your fingers together to access the editing options. You can set the wallpaper, add widgets, and more. You can also add, delete, or rearrange Home screen panels.

•Adding pages: Swipe to the left, and then tap .

•Moving pages: Tap and hold a panel preview, and then drag it to a new location.

•Deleting pages: Tap on the page.

•Wallpapers and themes: Change the device’s wallpaper, theme, or icons.

•Widgets: Widgets are small apps that launch specific app functions to provide information and convenient access on your Home screen. Tap and hold a widget, and then drag it to the Home screen. The widget will be added on the Home screen.

•Home screen settings: Change the size of the grid to display more or fewer items on the Home screen and more.

Displaying all apps on the Home screen

Without using a separate Apps screen, you can set the device to display all apps on the Home screen. On the Home screen, tap and hold an empty area, and then tap Home screen settings →Home screen layout →Home screen only →APPLY.

You can now access all your apps by swiping to the left on the Home screen.

Basics

Indicator icons

Indicator icons appear on the status bar at the top of the screen. The icons listed in the table below are most common.

The status bar may not appear at the top of the screen in some apps. To display the status bar, drag down from the top of the screen.

Icon	Meaning
	No signal

/	Signal strength

/	Roaming (outside of normal service area)

/	Preferred SIM or USIM card for calls

	GPRS network connected

	EDGE network connected

	UMTS network connected

	HSDPA network connected

	HSPA+ network connected

	LTE network connected (LTE-enabled models)

	Wi-Fi connected

	Bluetooth feature activated

	Location services being used

	Call in progress

	Missed call

	New text or multimedia message

	Alarm activated

	Mute mode activated

	Vibration mode activated

	Flight mode activated

	Error occurred or caution required

	Battery charging

	Battery power level

Basics

Lock screen

Pressing the Power key turns off the screen and locks it. Also, the screen turns off and automatically locks if the device is not used for a specified period.

To unlock the screen, press the Power key or the Home key and swipe in any direction.

Changing the screen lock method

To change the screen lock method, launch the Settings app, tap Lock screen and security → Screen lock type, and then select a method.

When you set a pattern, PIN, password, or fingerprint the screen lock method, you can protect your personal information by preventing others from accessing your device. After setting the screen lock method, the device will require an unlock code whenever unlocking it.

•Swipe: Swipe in any direction on the screen to unlock it.

•Pattern: Draw a pattern with four or more dots to unlock the screen.

•PIN: Enter a PIN with at least four numbers to unlock the screen.

•Password: Enter a password with at least four characters, numbers, or symbols to unlock the screen.

•None: Do not set a screen lock method.

•Fingerprints: Register your fingerprints to unlock the screen. Refer to Fingerprint recognition for more information.

You can set your device to perform a factory data reset if you enter the unlock code incorrectly several times in a row and reach the attempt limit. Launch the Settings app, tap Lock screen and security →Secure lock settings, and then tap the Auto factory reset switch to activate it.

Basics

Notification panel

When you receive new notifications, such as messages or missed calls, indicator icons appear on the status bar. To see more information about the icons, open the notification panel and view the details.

To open the notification panel, drag the status bar downwards. To close the notification panel, swipe upwards on the screen.

You can open the notification panel, even on the locked screen.

You can use the following functions on the notification panel.

Quick setting buttons

Tap a notification and perform various actions.

Block notifications from apps.

Launch Settings.

SIM and USIM card feature preferences. Tap to access the SIM card manager.

Clear all notifications.

+ 90 hidden pages
