LCD Television Users Guide
1080p HDTV
LT-32J300 LT-32JM30 LT-42J300
32" class (31.5" Diagonal) 32" class (31.5" Diagonal) 42" class (42" Diagonal)
As an “ENERGY STAR®” partner, JVC has determined that this product or product model meets the “ENERGY STAR®” guidelines for energy efficiency.
Please read the important notice for energy efficiency on page 7.
Important Note:
In the spaces below, enter the model and serial number of your television (located at the rear of the television cabinet). Staple your sales receipt or invoice to the inside cover of this guide. Keep this user’s guide in a convenient place for future reference. Keep the carton and original packaging for future use.
Serial Number:
Model Number:
LCT2520-001A-A 0109TSH-II-IM
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock. Do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.
The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS
APPARATUS TO RAIN OR MOISTURE.
CAUTION: TO INSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES REGARDING THE USE OF THIS UNIT.
1. Operate only from the power source specified on the unit.
2.Avoid damaging the AC plug and power cord.
3.Avoid improper installation and never position the unit where good ventilation is unattainable.
4.Do not allow objects or liquid into the cabinet openings.
5.In the event of trouble, unplug the unit and call a service technician. Do not attempt to repair it yourself or remove the rear cover.
Changes or modifications not approved by JVC could void the warranty.
*When you don’t use this TV set for a long period of time, be sure to disconnect both the power plug from the AC outlet and antenna for your safety.
*To prevent electric shock do not use this polarized plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure.
IMPORTANT RECYCLING INFORMATION
This product has a fluorescent lamp that contains mercury. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information,
please contact your local authorities or for USA, the Electronic Industries Alliance: http://www.eiae.org
Do not attempt to service the product yourself
Caution
To prevent electrical shock, do not open the cabinet.
There are no user serviceable parts inside.
Please refer to qualified service personnel for repairs.
2
1)Read these instructions.
2)Keep these instructions.
3)Heed all warnings.
4)Follow all instructions.
5)Do not use this apparatus near water.
6)Clean only with dry cloth.
7)Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8)Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9)Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10)Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11)Only use attachments/accessories specified by the manufacturer.
12)Use only with a cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13)Unplug this apparatus during lightning storms or when unused for long periods of time.
14)Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15)Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
16)Place the television on a stable, flat surface. Failure to do so can result in the television falling, causing injury.
17)Do not allow young children to play around or on the television. Do not hang from the TV. Failure to do so can result in the television falling, causing injury.
18)Do not allow young children to play with the plastic bag that came with the television when you unpacked it. Failure to do so can result in suffocation, causing injury.
19)Avoid improper installation and never position the unit where good ventilation is impossible. When installing this TV, distance recommendations must be maintained between the set and the wall, as well as inside a tightly enclosed area or piece of furniture. Keep to the minimum distance guidelines shown for safe operation.
|
|
|
200 mm |
|
|
|
200 mm |
|
|
|
7 7/8 in |
|
|
|
7 7/8 in |
|
|
|
|
||||
150 mm |
|
|
150 mm |
50 mm |
|||
5 7/8 in |
|
|
5 7/8 in |
2 in |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3
Important Safety Instructions
20)Cautions for installation
—Do not tilt the TV towards the left or right, or towards the back.
—Install the TV in a corner on the floor so as to keep cords out of the way.
—The TV will generate a slight amount of heat during operation. Ensure that
sufficient space is available around the TV to allow satisfactory cooling.
— Have two people remove the TV from the box with the screen facing away from you. It's possible your clothing, (such as a belt buckle or button) may scratch the front of the TV. Do the same when moving the TV to another location.
21)When attaching to a wall, use the optional JVC wall mounting unit.
For LT-32J300 / LT-32JM30: JVC-XUF-2637 LCD FLAT WALL MOUNT For LT-42J300: JVC-XUF-2637 LCD FLAT WALL MOUNT
Caution
—Consult qualified installers.
—See the included manual on mounting procedures.
—JVC is not responsible for damages or injuries due to improper mounting.
—Use with other wall mounting unit is capable of resulting in instability or causing possible injury.
22)Make enough room for inserting and removing the power plug. Place the TV as close to the outlet as possible. The main power supply for this TV is controlled by inserting or removing the power plug.
23)Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
24)When this TV is connected to the wall outlet, it is always on standby even when all the LED lamps are not lit. To shut down the TV, unplug the TV from the wall outlet.
FCC Notice:
Caution: Changes or modifications not expressly approved by party responsible for compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and receiver.
–Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
–Consult the dealer or an experienced radio/TV technician for help.
4
Warnings . . . . . . . . . . . . . . . . . . 2
Important Safety Instructions . . . 3
Getting Started
Key Features . . . . . . . . . . . . . . . 6
Logos & Licenses . . . . . . . . . 7
Package Contents . . . . . . . . . 8
Basics
TV Basic Controls . . . . . . . . . . . 13
Remote Control . . . . . . . . . . . . . 18
Initial Setup . . . . . . . . . . . . . . . 22
Advanced
Customizing your TV . . . . . . . 24 Picture . . . . . . . . . . . . . . . . . 26
Video Status . . . . . . . . . . . . . . . . 26
Color Temp . . . . . . . . . . . . . . . . 27
Color Management . . . . . . . . . . . . . 27 Dynamic Gamma . . . . . . . . . . . . . . 27 Smart Picture . . . . . . . . . . . . . . . . 27 Digital VNR . . . . . . . . . . . . . . . . . 27
MPEG NR . . . . . . . . . . . . . . . . . 27
Natural Cinema . . . . . . . . . . . . . . . . . 27 Video Reset . . . . . . . . . . . . . . . . . 27
TVPG . . . . . . . . . . . . . . . . . 37 Guide . . . . . . . . . . . . . . . . 37
PC . . . . . . . . . . . . . . . . . 38
Auto Adjustment . . . . . . . . . . . . . 38 Phase Adjustment . . . . . . . . . . . . 38
PC H-Position . . . . . . . . . . . . . . . . 38
PC V-Position . . . . . . . . . . . . . . . . 38
Reset . . . . . . . . . . . . . . . . . . 38
Sound . . . . . . . . . . . . . . . . . 39
MTS . . . . . . . . . . . . . . . . 39 Digital Audio (ML) . . . . . . . . . . . . 39 Surround . . . . . . . . . . . . . . . . 39
Sound Status . . . . . . . . . . . . . . . . 39
Audio Reset . . . . . . . . . . . . . . . . 39
Power . . . . . . . . . . . . . . . . . 40
Power Indicator . . . . . . . . . . . . 40
Setting . . . . . . . . . . . . . . . . . 41
Plug-In Menu . . . . . . . . . . . . . . . . 41
Time Zone . . . . . . . . . . . . 41
D.S.T. . . . . . . . . . . . . . . . . 41 Language . . . . . . . . . . . . . . . . 41 Noise Mute . . . . . . . . . . . . 41 Front Panel Lock . . . . . . . . . . . . 41
Transparency . . . . . . . . . . . . 41
Auto Shut Off . . . . . . . . . . . . . . . . 41 Control with HDMI . . . . . . . . . . . . . 42 System Info . . . . . . . . . . . . . . . . 42 Auto Demo . . . . . . . . . . . . 42
Optical Out . . . . . . . . . . . . 43
Display . . . . . . . . . . . . . . . . |
28 |
|
|
|
|
Etc. |
|
|
|||
Video Input Label . . . . . . . . . . . . . . |
28 |
|
|
||
Photo Viewer . . . . . . . . . . . . . . . . |
28 |
|
|
|
|
Connecting Your Devices |
44 |
||||
Aspect . . . . . . . . . . . . . . . . . . . . |
30 |
||||
TV . . . . . . . . . . . . . . . . . |
31 |
Troubleshooting . . . . . . . . . . . . |
50 |
||
Specifications . . . . . . . . . . . . |
52 |
||||
Closed Caption . . . . . . . . . . . . . . . . |
31 |
Warranty . . . . . . . . . . . . |
53 |
||
C.C. Type . . . . . . . . . . . . . . . . . . . |
31 |
||||
C.C. Setting . . . . . . . . . . . . . . . . . . . |
31 |
Notes . . . . . . . . . . . . . . . . |
55 |
||
Tuner Mode . . . . . . . . . . . . . . . . |
32 |
|
|
|
|
Auto Scan . . . . . . . . . . . . . . . . |
32 |
|
|
|
|
Add Channel . . . . . . . . . . . . . . . . |
32 |
|
|
|
|
Edit Channel . . . . . . . . . . . . . . . . |
33 |
|
|
|
|
V-Chip . . . . . . . . . . . . . . . . 33 |
|
|
|
||
Password . . . . . . . . . . . . . . . . |
34 |
|
|
|
|
MPAA . . . . . . . . . . . . . . . . 35 |
|
|
|
||
Can. Eng. . . . . . . . . . . . . . . . . |
36 |
|
|
|
|
Can. Fre. . . . . . . . . . . . . . . . . |
36 |
|
|
|
5
Your JVC TV is equipped with many features. Here is some key features highlighted in detail.
1 Stunning picture quality via 1920x1080 Full HD panel.
Dynamic Gamma and Color Management give further
fine tuned picture reproduction. Smart Picture adjusts the best possible picture quality automatically scene by scene based on the incoming signal from any source!
2JVC exclusive oblique cone speakers provide excellent TV sound quality. OmniSurround sound provides you 4 different settings based on the program you are watching.
The equalizer will fine tune your listening preferences.
3Full connectivity with 3 HDMI, 2 Component, 1 S-video and others. The variety of connections are explained in pages 44 to 49.
x 3 |
x 2 |
x 1 |
4Aspect mode will show every pixel you are getting in High Definition. The Full Native mode will show 100% of 1080p. Full – with slight overscan. Panorama, Cinema will fill the screen with various aspect settings.
Full or Widescreen Mode
6
As an “ENERGY STAR®” partner, JVC has determined that this product or product model meets the “ENERGY STAR®” guidelines for energy efficiency.
This JVC Television is factory set to “Home” mode, which is optimized for normal home viewing.
This setting reduces power consumption to help the environment and to comply with ENERGY STAR® qualification.
Enabling certain features and functionality in this TV (e.g., Video Status) may increase its energy consumption, possibly beyond the limits required for ENERGY STAR® qualification.
Manufactured under license from Dolby Laboratories. "Dolby", and the double-D symbol are trademarks of Dolby Laboratories.
HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
started Getting
Notice:
•The open source software is embedded in this product. For more information, please go to: http://software.jvc.com/opensource/lnx/DP/08_AtscQam_T/download.html
7
Television x 1 |
Remote Control x 1 |
AAA Batteries x 2 |
|
|
|
+ |
+ |
|
|
– Alkaline AAA |
– Alkaline AAA |
Use two “AAA” batteries (included).
Place the "–" end in the unit first, making sure the "+" and "–" markings are correct. Place the "–" end in the unit first.
If this symbol is shown, it is only valid in the European Union
8
Your TV has a glossy frame and stand which have protection sheets attached to them. Peel them off before use, but only after the TV has been properly placed. Take care with handling the glossy frame and stand because these surfaces are delicate.
Normally, light dusting with a soft, non-scratching duster will keep your TV clean.
If you wish to wipe down the television, first unplug it. Then wipe gently with a soft cloth, slightly moistened with water. You can add a few drops of mild liquid detergent to the water to help remove spots of oily dirt.
•DO NOT allow liquid to enter the TV through the ventilation slots.
•DO NOT use strong or abrasive cleaners on the TV.
•DO NOT spray liquids or cleaners directly on the TV’s surface.
•DO NOT rub or scrub the TV harshly. Wipe the set gently with a soft cloth.
Frame
Stand
started Getting
The screen is treated with an electrostatic-proof coating. When it gets dirty, wipe it gently with a soft cloth. If the screen is very dirty, wipe it down with a cloth dipped in a diluted kitchen cleaner and thoroughly wrung-out. Then wipe immediately after with a clean, dry cloth.
•DO NOT apply alcohol, organic solvents (like acetone), acidic or alkaline cleansers to the screen. These will remove the coating layer and cause discolorations.
•DO NOT push or hit the screen. This could cause scratches on the screen surface and image distortions.
9
Package Contents
Displaying fixed images for extended periods of time can leave a subtle but temporary burn-in image on your screen. To avoid this, mix your viewing pattern.
Examples include, but are not limited to the following:
• |
Stock-market report bars |
For example... |
|
|
TV on |
TV off |
|||
• |
Shopping channel logos and pricing |
|||
|
|
|||
|
displays |
|
|
|
• |
Video game patterns or scoreboards |
|
|
|
• |
Bright station logos |
|
|
|
• |
Internet web sites or other computer-style |
|
|
|
|
images |
|
|
|
• |
DVD discs, video tapes, laser discs |
|
|
|
• |
Broadcast, cable, satellite channels or |
XYZ |
XYZ |
|
|
digital television tuners/converters |
|||
|
|
|
10
To prevent the TV from falling, thread the belt through the hole on the back of the stand and secure it to the TV rack.
Hole
Belt and screw (not included)
started Getting
A cable holder which keeps your connection cables tidy is attached to the back of the stand.
The LT-32J300 / LT-32JM30 TV stand is not attached to the TV when you purchased it. Please follow the steps below on how to connect the stand to the TV.
1) Insert the TV stand onto the TV. |
2) Tighten the 5 screws to the back of the TV. |
11
Package Contents
1)Place the TV face down on a soft cloth on a table.
2)Remove the screws from the back of the TV.
3) Pull out the stand from the TV.
Notes:
•To re-install the stand, reverse the procedure from 3) to 1).
•If you find it difficult to remove the screws from inset screw wells, use a magnetized screwdriver.
12
1
2
1 2
Remote Control Sensor
Power Lamp
Basics
2
5
INPUT
MENU
CHANNEL
OK
VOLUME
BACK
POWER
PHOTO VIEWER
|
|
|
1 |
|
1 |
||
|
|
|
|
|
|
|
2 |
|
|
||
|
|
|
|
|
3 |
|
|
|
|
3 |
|
|
|
|
|
|
|
|
|
|
4 |
|
|
|
|
4 |
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
6 |
|
|
|
|
6 |
|
|
|
|
Input
Change the input
MENU
Used to access the TV’s onscreen menus.
+CHANNEL–
Move sequentially through the channels.
+VOLUME–
Raises or lowers the volume.
POWER
Turn the TV on or off.
Photo Viewer Connector
13
TV Basic Controls
9 |
8 |
|
2 |
||
|
||
|
3 |
|
5 |
4 |
|
|
||
7 |
|
|
|
|
1 |
|
6 |
INPUT 1 |
INPUT 2 |
INPUT 3 |
|
75 Ω |
||||
|
|
|
||
(VHF/UHF) |
|
|
|
1 HDMI™ Connector
* This is used when you are using HDMI analog audio
14
Before you connect your television to another device, please refer to the proper diagrams for your specific TV and remote. These will help assist you in understanding how to connect your television to another device, as well as use the remote to set up your television. Some of the connection terminals are color coded for easy connection with the proper cables.
To find the best possible connection that your device can use, see pages 16 - 17. For more detailed information about connecting external devices, see pages 44 - 49.
1 |
|
HDMI |
|
|
|
(INPUT 1, 2, or 3) |
DVD Player |
STB (Digital Cable, |
|
|
|
|||
2 |
|
HDMI ANALOG AUDIO |
|
satellite) Tuner Box |
|
|
|
||
3 |
4 |
Composite / Component |
|
|
(INPUT 4 or 5) |
|
|
||
5 |
|
S-Video |
Video Camera |
Game Console |
PC (with HDMI)
Basics
6
7
8
9

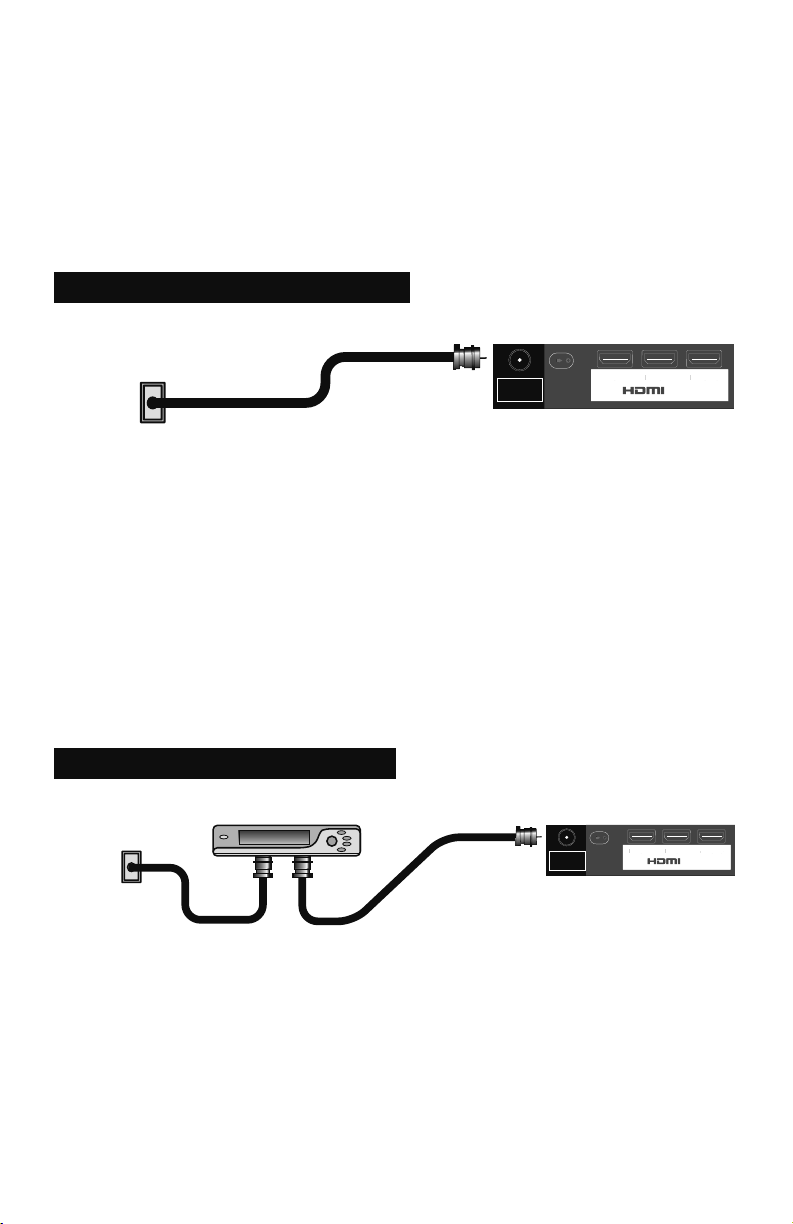

Antenna / Cable
DIGITAL AUDIO
OPTICAL OUT
AUDIO OUT
Audio System
D-SUB
PC
15
TV Basic Controls
Video
Best
Good
Audio
Best
Good
Video Connection |
Connection Cable |
TV Connection |
|
HDMI |
HDMI Cable |
INPUT 1, 2 or 3 |
|
|
DVI – HDMI Cable, |
Input 1 + |
|
DVI + Audio |
Audio Cable |
HDMI ANALOG AUDIO |
|
Component |
Component |
|
|
Video + Audio |
Video + Audio |
INPUT 4 or 5 |
|
|
S-Video Cable, |
INPUT 4 + |
|
S-Video + Audio |
Audio Cable |
AUDIO Input |
|
Composite |
Composite |
|
|
Video + Audio |
Video + Audio |
INPUT 4 or 5 |
|
Audio Connection |
Connection Cable |
TV Connection |
|
|
OPTICAL AUDIO |
DIGITAL AUDIO |
|
OPTICAL INPUT |
Cable |
OPTICAL OUT |
|
AUDIO INPUT |
Audio Cable |
AUDIO OUT |
|
(L / R) |
(L / R) |
||
|
16
Compatible Signal |
Notes |
|
Input |
HDMI™ (v.1.3, HDMI™ CEC Support) |
|
• HDMI (Digital) |
Please usa a High Speed HDMI™ Cable. |
|
SD: 480i, 480p |
||
HD : 720p, 1080i, 1080p/24Hz, |
High Speed HDMI™ Cable are tested to |
|
1080p/30Hz, 1080p/60Hz |
carry an HD signal up to 1080p and higher. |
|
Audio L/R |
See pages 48, 49. |
|
Input |
|
|
• DVI (Digital) |
|
|
SD: 480i, 480p |
See page 47, 49. |
|
HD : 720p, 1080i, 1080p/24Hz, |
||
|
||
1080p/30Hz, 1080p/60Hz |
|
|
• Audio L/R (Analog) |
|
|
|
|
|
Input |
|
|
• Component (Analog) |
|
|
SD: 480i, 480p |
See page 45. |
|
HD: 720p, 1080i |
|
|
• Audio L/R (Analog) |
|
|
|
|
|
Input |
|
|
• S-Video (Analog) |
See pages 45, 47. |
|
• Audio L/R (Analog) |
|
|
|
|
|
Input |
|
|
• Composite (Analog) |
See page 45. |
|
• Audio L/R (Analog) |
|
|
|
|
Compatible Signal |
Notes |
Output |
|
• Audio L/R (Digital) |
See page 46. |
(PCM or Dolby Digital) |
|
|
|
Output |
|
• Audio L/R (Analog) |
See page 46. |
(Fixed) |
|
|
|
Basics
17
