TABLE TOP Water Cooler
Enfriador de Agua de MESA
OWNER’S MANUAL
Read and save these instructions before use
MANUAL DE INSTRUCCIONES
Lea y guarde estas instrucciones antes de usar el producto
Modelo HWB2052W/S/B Series
For customer service please contact: 1-855-687-2223 Para servicio al consumidor favor contactar: 1-855-687-2223
LISTED
XXXXXXX
contents
1. |
Before First Use.......................................................................... |
3 |
2. |
Parts and Features..................................................................... |
4 |
3. |
Important Safety Instructions..................................................... |
5 |
4. |
Function Buttons........................................................................ |
6 |
5. |
Indicator Lights.......................................................................... |
7 |
6. |
Installation Guidelines................................................................ |
7 |
7. |
Installing Your Water Cooler For The First Time........................... |
8 |
8. |

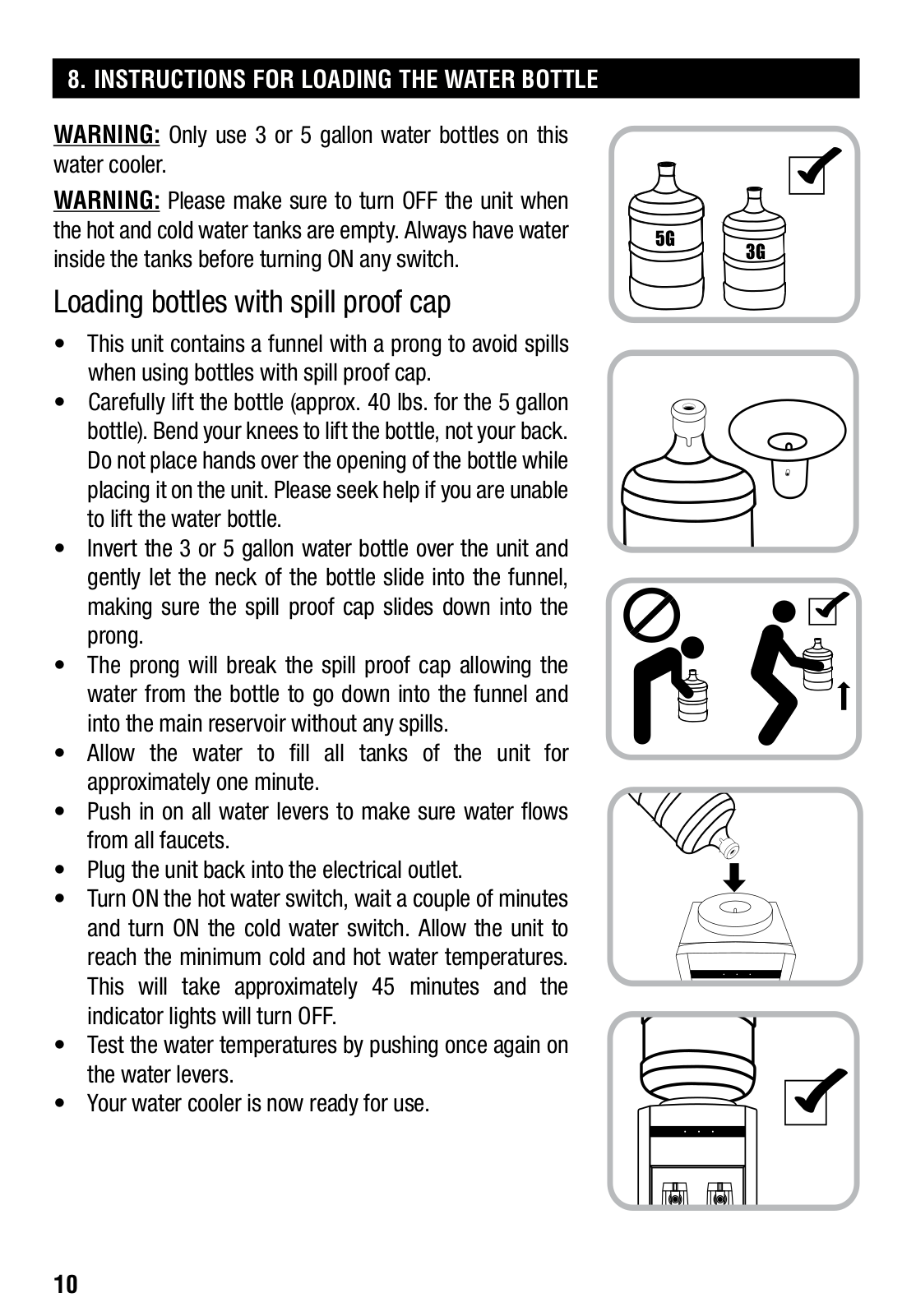

Instructions For Loading The Water Bottle................................ |
10 |
9. |

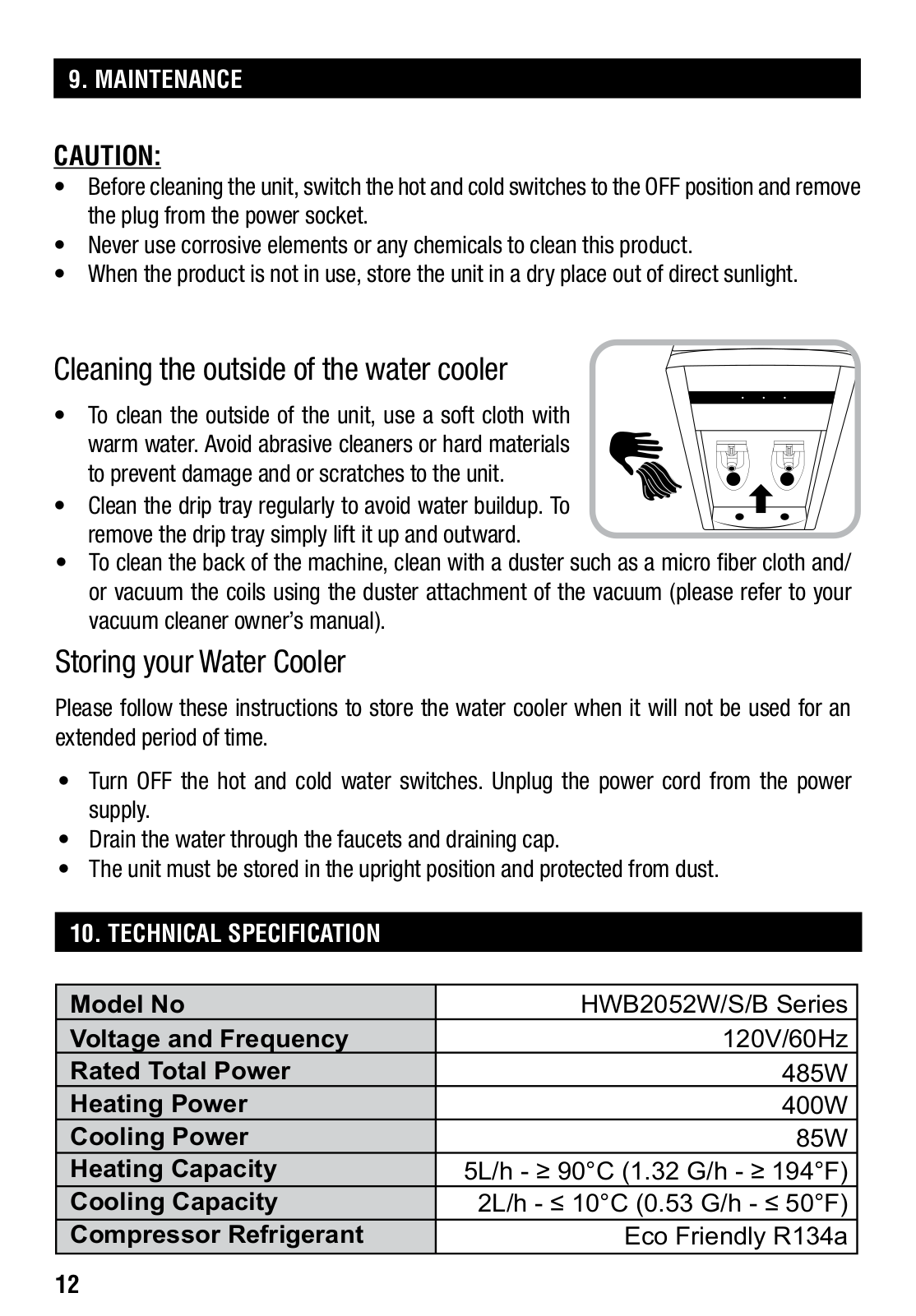

Maintenance............................................................................ |
12 |
10. |
Technical Specification............................................................. |
12 |
11. |
Troubleshooting Guide.............................................................. |
13 |
2
1. Before first use
Read all instructions carefully before setting up and operating the unit. Please keep this instruction manual for future reference. This manual is designed to provide you with important information needed to operate and maintain your water dispenser. If you don’t understand something or you need more assistance please contact us. Failure to follow these instructions may damage and/or impair operation and void the warranty.
Keep proof of the original purchase date with this guide to establish the warranty period. Keep a copy of the sales receipt.
Write down the model and serial numbers which can be found on a label located on the side of the water cooler.
Please write the information here:
Date of Purchase: __________________________
Model Number: HWB2052
Color: ( ) White ( ) Silver ( ) Black
Serial Number: ____________________________
WARNING: BEFORE CONNECTING THE APPLIANCE TO THE POWER SOURCE, LET IT STAND UPRIGHT FOR APPROXIMATELY 24 HOURS. THIS WILL REDUCE THE POSSIBILITY OF A MALFUNCTION IN THE COOLING SYSTEM FROM MISHANDLING DURING DELIVERY.
3
2. Parts and features
1 |
2 |
|
|
3 |
4 |
5 |
|
6 |
8 |
|
|
7 |
9 |
|
No |
Name |
No |
Name |
1 |
Water Funnel |
6 |
Hot Water Faucet Tap (Safety Lock) |
2 |
Hot and Cold Power Switches |
7 |
Drip Tray |
3 |
Indicator Lights |
8 |
Power Cord |
4 |
Rating Label |
9 |
Drain Cap |
5 |
Cold Water Faucet Tap |
|
|
4
3. Important safety instructions
WARNING To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:
•Read and understand all instructions before using the water cooler.
•Your water cooler runs on 120 Volt AC, 60 Hz current. Do not plug this product to 220V current.
•Before operating the product remove it from its
packaging and check if it is in good condition.
•DO NOT operate any product with a damaged cord or plug. Using an extension cord is not recommended with this appliance.
•Make sure the water cooler is plugged into an exclusive properly installed GFCI (Ground-fault Circuit-interrupter) wall outlet. Do not cut or remove
the third (ground) prong from the power cord under any circumstances. Any questions concerning power and/or grounding should be directed toward a certified electrician. Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service center.
•DO NOT run power cord under carpeting or cover it with rugs or runners. Keep the cord away from areas where it may be tripped over.
•Always unplug the appliance from the power source before cleaning, servicing or relocating the unit.
•Make sure to turn OFF the unit when the hot and cold water tanks are empty. Always have water inside the tanks before turning ON any switch. Overlook of this warning may cause permanent damage to the unit from overheating.
•Remove the power cord from the electrical receptacle by grasping and pulling on the power cord plug-end only, never pull the cord.
•DO NOT attempt to repair or adjust any electrical or mechanical functions of the unit, as this may void the warranty.
•DO NOT let children play with this appliance, packaging or plastic bags.
•If the unit is damaged or it malfunctions, do not continue to operate it. Refer to the troubleshooting section and /or please seek professional advice.
•Never locate the product where it may fall into a bathtub or other water container. DO NOT use in bathrooms or outdoors.
5
