Gateway ec14t ec18t, EC18T Service Manual

9.17 Mb
Loading...

Gateway EC14T/EC18T Series

Service Guide

Service guide files and updates are available on the ACER/CSD web; for more information, please refer to http://csd.acer.com.tw

PRINTED IN TAIWAN

Revision History

Please refer to the table below for the updates made on this service guide.

Date

Chapter

Updates

























ii

Copyright

Copyright © 2009 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice.

Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation. Intel is a registered trademark of Intel Corporation.

Pentium and Pentium II/III are trademarks of Intel Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective holders.

iii

Conventions

The following conventions are used in this manual:

SCREEN MESSAGES

Denotes actual messages that



appear on screen.





NOTE

Gives bits and pieces of additional



information related to the current



topic.





WARNING

Alerts you to any damage that might



result from doing or not doing



specific actions.





CAUTION

Gives precautionary measures to



avoid possible hardware or software



problems.





IMPORTANT

Reminds you to do specific actions



relevant to the accomplishment of



procedures.





iv

Preface

Before using this information and the product it supports, please read the following general information.

1.This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION decided for Acer's "global" product offering. To better fit local market requirements and enhance product competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g. add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered in this generic service guide. In such cases, please contact your regional offices or the responsible personnel/channel to provide you with further technical details.

2.Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available on your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code to those given in the FRU list of this printed Service Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

v

vi

Table of Contents

System Specifications

1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Your Notebook Tour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Closed Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Left View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Right View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Base View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

TouchPad Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Lock Keys and embedded numeric keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Hot Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Special Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Hardware Specifications and Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

System Utilities

23

BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Navigating the BIOS Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Main . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

BIOS Flash Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

DOS Flash Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

WinFlash Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Remove HDD/BIOS Password Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Removing BIOS Passwords: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Miscellaneous Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Machine Disassembly and Replacement

39

Disassembly Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.39

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.39

Pre-disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.39

Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

40

External Module Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

41

External Modules Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

41

Removing the Dummy Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

42

Removing the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

42

Removing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

44

Removing the Module Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

45

Removing the Hard Disk Drive Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

46

Removing the DIMM Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

48

Removing the WLAN Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

49

Removing the 3G Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

50

Main Unit Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

52

Main Unit Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

52

Removing the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54

Removing the Hinge Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

56

Removing the Upper Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

58

vii

Table of Contents

Removing the Bluetooth Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Removing the Button Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Removing the I/O Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Removing the LED Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Removing the CRT Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Removing the Mainboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

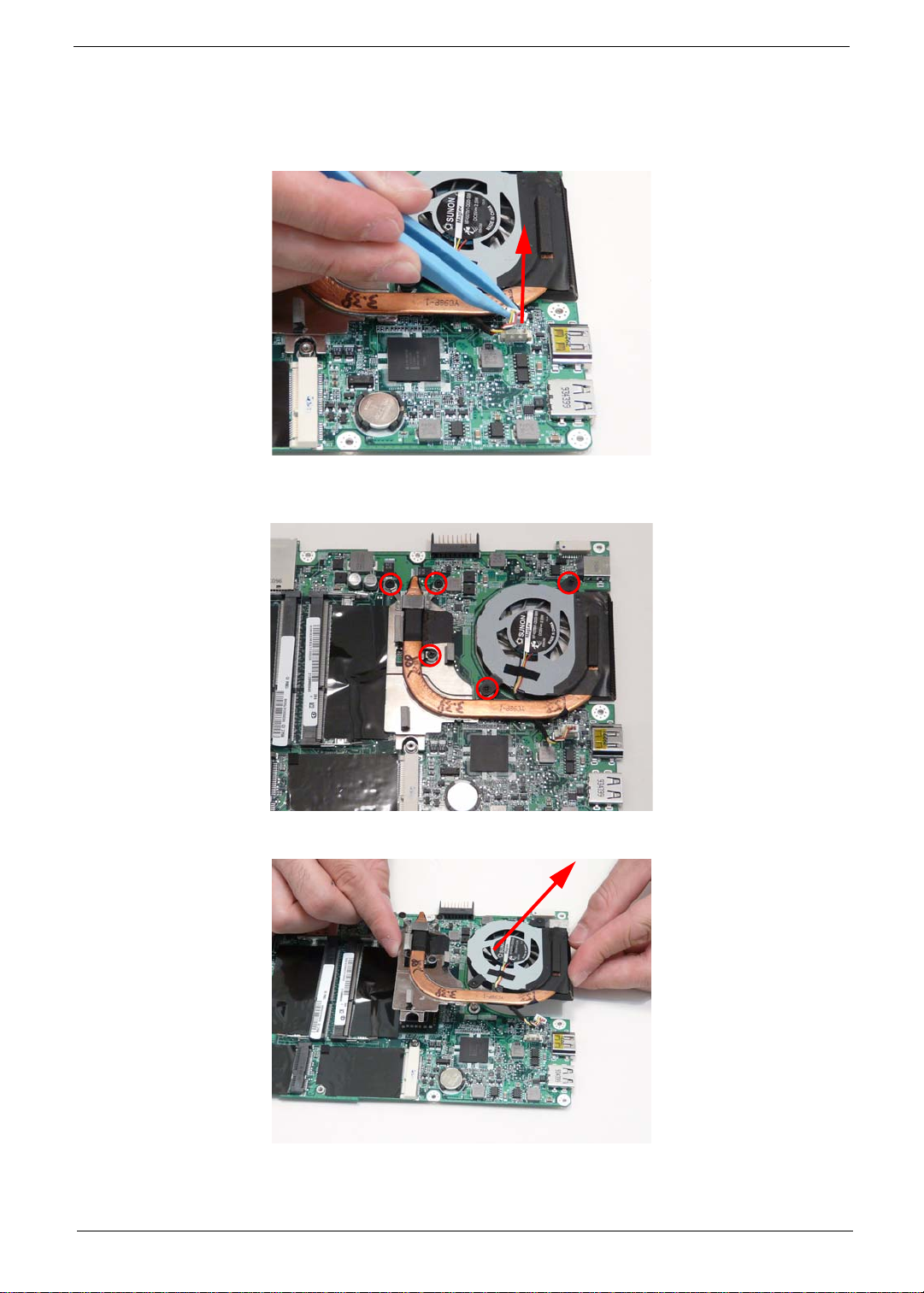

Removing the Thermal Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Removing the RTC Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Removing the Speaker Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Removing the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

LCD Module Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

LCD Module Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Removing the LCD Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Removing the Camera Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

Removing the Microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88

Removing the LCD Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

Removing the LCD Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

Removing the LCD Brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Removing the Touchscreen Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94

Removing the Hinge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95

Removing the Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97

LCD Reassembly Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

Replacing the Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

Replacing the Hinge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103

Replacing the Touchscreen Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104

Replacing the LCD Brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105

Replacing the LCD Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106

Replacing the LCD Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108

Replacing the Microphone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110

Replacing the Camera Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111

Replacing the LCD Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112

Main Unit Reassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

Replacing the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

Replacing the RTC Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

Replacing the Thermal Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

Replacing the Speakers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118

Replacing the Mainboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120

Replacing the CRT Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123

Replacing the LED Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124

Replacing the I/O Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126

Replacing the Button Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129

Replace the Bluetooth Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .133

Replacing the Upper Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .134

Replacing the Hinge Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137

Replacing the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138

Replacing the 3G Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139

Replacing the WLAN Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .141

Replacing the DIMM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142

Replacing the Hard Disk Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142

Replacing the Module Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144

Replacing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146

Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146

Replacing the Dummy Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147

viii

Table of Contents

Troubleshooting

149

Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .149 Power On Issue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150 No Display Issue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .151 Random Loss of BIOS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .152 LCD Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .153 Built-In Keyboard Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .154 TouchPad Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .155 Internal Speaker Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .156 Internal Microphone Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .157 HDD Not Operating Correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .158 USB Failure (Right up/down side) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .159 Other Failures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .159

Intermittent Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .160 Undetermined Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .160 Post Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .161

Jumper and Connector Locations

171

Mainboard Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.171

Mainboard Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.172

Clearing Password Check and BIOS Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . .

.173

Mainboard CMOS Discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.173

BIOS Recovery by Crisis Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.174

FRU (Field Replaceable Unit) List

175

Exploded Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .175

LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .175

Main Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .176

FRU List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .178

Model Definition and Configuration

187

Test Compatible Components

193

On-line Support Information

197

Index

199

ix

Table of Contents

x

Chapter 1

System Specifications

Features

Below is a brief summary of the computer’s many features:

Operating System

Genuine Windows® 7

Platform

Intel® Core™2 Duo processor*

Intel® Pentium® mobile processor*

Intel® Celeron® mobile processor*

Mobile Intel® GS45 Express Chipset

System Memory

Dual-Channel SDRAM support

Up to 4 GB of DDR3 1066 MHz memory, upgradeable to 8 GB using two soDIMM modules

Display and graphics

11.6" HD 1366 x 768

Convertible display

Mobile Intel® GS45 Express Chipset

Storage subsystem

2.5" hard disk drive

Multi-in-1 card reader

Audio subsystem

Optimized 2nd Generation Dolby® Sound Room® audio enhancement

High-definition audio support

S/PDIF (Sony/Philips Digital Interface) support for digital speakers

MS-Sound compatible

Built-in microphone

Communication

Integrated webcam*

WWAN: UMTS/HSPA at 850/900/1900/2100 MHz and quad-band GSM/GPRS/EDGE (850/900/ 1800/1900 MHz)*

Chapter 1

1

WLAN:

Intel® WiFi Link 5100 802.11a/b/g/Draft-N*

Intel® WiFi Link 5100 802.11a/b/g*

Intel® WiFi Link 1000*

WPAN: Bluetooth® 2.1+Enhanced Data Rate*

LAN: Gigabit Ethernet; Wake-on-LAN ready

Privacy control

BIOS user, supervisor, HDD passwords

Kensington lock slot

Dimensions and Weight

285 (W) 208.9 (D) 28.5/34.5 (H) mm (11.22 x 8.22 x 1.12/1.36 inches)

1.72 kg (3.79 lbs.) (non-3G SKU)

Power subsystem

ACPI 3.0

62.16 W 5600 mAh

3-pin 30 W AC adapter

ENERGY STAR®*

Special keys and controls

84-/85-/88-key keyboard

Multi-gesture touchpad pointing device

I/O interface

Multi-in-1 card reader (SD/MMC/MS/MS PRO/xD)

USB 2.0 port

HDMI™ port with HDCP support

External display (VGA) port

Headphones/speaker/line-out jack with S/PDIF support

Microphone-in jack

Ethernet (RJ-45) port

DC-in jack for AC adapter

Environment

Temperature:

Operating: 5 °C to 35 °C

Non-operating: -20 °C to 65 °C

Humidity (non-condensing):

Operating: 20% to 80%

Non-operating: 20% to 80%

NOTE: The specifications listed above are for reference only. The exact configuration of the PC depends on the model purchased.

2

Chapter 1

System Block Diagram

Chapter 1

3

Your Notebook Tour

This section provides an overview of the features and functions of the notebook.

Front View

No.

Icon

Item

Description













1







Webcam

Web camera for video communication

2







Display screen

Also called Liquid-Crystal Display (LCD), displays











computer output (Configuration may vary by











models).













3



P

Programmable

Launch predefined programs or user defined









key

programs at the push of a button.













4







Backup key

Press to start automatic backup procedure.













5







HDD

Indicates when the hard drive is active.





















Num Lock

Lights up when the Num Lock is activated.

































Caps Lock

Lights up when Caps Lock is activated.

























6







Power

Indicated the computer’s power status.

























4

Chapter 1

No.

Icon

Item

Description





















Battery

Indicates the computer's battery status.



















1. Charging: The light shows amber when the





















battery is charging.











2. Fully charged: The light shows blue when in AC











mode.





















Bluetooth

Indicates the status of Bluetooth communication.









communication

(only for certain models)









indicator























Communication

Indicates the status of WLAN / 3G communication.









indicator















7







Click buttons (left

The left and right buttons function like the left and









and right)

right mouse buttons.













8







Touchpad

Touch-sensitive pointing device which functions like











a computer mouse.













9







Palmrest

Comfortable support area for your hands when you











use the computer.













10







Keyboard

For entering data into your computer.













11







Stylus

A pen tool for entering data into your computer













12







Microphone

Internal microphone for sound recording













13







Magnetic lock

A lock that snaps into place to prevent the screen











from inadvertently rotating.













Closed Front View















1



2













No.

Icon

Item





Description













1



Communication





Enables / disables the WLAN / 3G functions.





key



















2



Speakers





Left and right speakers deliver stereo audio











output.













Chapter 1

5

Left View



1

2

3

4

5

























No.



Icon

Item





Description





















1















External display

Connects to a display device (e.g. external

















(VGA) port

monitor, LCD projector).





















2















DC-in jack

Connects to an AC adapter





















































3















Ventilation slots

Enable the computer to stay cool, even after



















prolonged use.























4

HDMI

HDMI port

Supports high definition digital video





connections.























5















USB 2.0 port

Connect to USB 2.0 devices (e.g., USB mouse,



















USB camera).



























Right View



1

2

3

4

5

6



















No.

Icon



Item





Description













1







Multi-in-1 card

Accepts Secure Digital (SD), MultiMediaCard









reader

(MMC), Memory Stick (MS), Memory Stick













PRO (MS PRO), xD-Picture Card (xD).













Note: Push to remove/install the card. Only one













card can operate at any given time.













2







Headphones/

Connects to audio line-out devices (e.g.,









speaker/line-out

speakers, headphones).









jack with

















S/PDIF support





























Microphone-in

Accepts inputs from external microphones.









jack























3







USB 2.0 port

Connects to USB 2.0 devices













(e.g., USB mouse, USB camera).













4







Power button /

Slide the power button to turn the computer on









indicator

and off. / Indicates the computer's power













status.



























6

Chapter 1

5



Kensington lock

Connects to a Kensington-compatible





slot

computer security lock.







Note: Wrap the computer security lock cable







around an immovable object such as a table or







handle of a locked drawer. Insert the lock into







the notch and turn the key to secure the lock.







Some keyless models are also available.









6



Ethernet (RJ-45)

Connects to an Ethernet 10/100/1000-based





port

network.









Base View

1

6

2

5



4

3

No.

Icon

Item

Description

















1











Battery bay

Houses the computer's battery pack.











































2











Hard disk bay

Houses the computer's hard disk (secured with















screws).

















3











Memory

Houses the computer's main memory.













compartment



4











Ventilation slots

Enable the computer to stay cool, even after













and cooling fan

prolonged use.















Note: Do not cover or obstruct the opening of the fan.

















5











Battery lock

Locks the battery in position.

















6











Battery release

Releases the battery for removal.













latch

































Chapter 1

7

Rear View











1













No.

Icon

Item

Description













1







Battery bay

Houses the computer's battery pack.































Indicators

The computer has several easy-to-read status indicators. The battery indicator is visible even when the computer cover is closed.

Icon

Function

Description

















Bluetooth

Indicates the status of Bluetooth communication.

















Wireless LAN

Indicates the status of Wireless LAN/3G communication.

















HDD

Indicates when the hard disk drive is active.

















Num Lock

Lights up when Num Lock is activated.



























Caps Lock

Lights up when Caps Lock is activated.

















Battery

Indicates the computer's battery status.











NOTE: 1. Charging: The battery light shows amber when the battery is charging. 2. Fully charged: The light shows green when in AC mode.

8

Chapter 1

TouchPad Basics

The following items show you how to use the TouchPad:

1

2

3

Move your finger across the TouchPad (1) to move the cursor.

Press the left (2) and right (3) buttons located beneath the TouchPad to perform selection and execution functions. These two buttons are similar to the left and right buttons on a mouse. Tapping on the TouchPad is the same as clicking the left button.

Function

Left Button (2)

Right Button (3)

Main TouchPad (1)









Execute

Quickly click twice.



Tap twice (at the same speed







as double-clicking a mouse







button).









Select

Click once.



Tap once.









Drag

Click and hold, then use



Tap twice (at the same speed



finger on the TouchPad to



as double-clicking a mouse



drag the cursor.



button); rest your finger on







the TouchPad on the second







tap and drag the cursor.









Access



Click once.



context menu















NOTE: When using the TouchPad, keep it - and your fingers - dry and clean. The TouchPad is sensitive to finger movement; hence, the lighter the touch, the better the response. Tapping too hard will not increase the TouchPad’s responsiveness.

Chapter 1

9

Using the Keyboard

This computer has a close-to-full-sized keyboard and an embedded numeric keypad, separate cursor, lock, function and special keys.

Lock Keys and embedded numeric keypad

The keyboard has three lock keys which you can toggle on and off.

Lock key

Description





Caps Lock

When Caps Lock is on, all alphabetic characters typed are in uppercase.

Num Lock

When Num Lock is on, the embedded keypad is in numeric mode. The keys

<Fn> + <F11>

function as a calculator (complete with the arithmetic operators +, -, *, and /). Use



this mode when you need to do a lot of numeric data entry. A better solution



would be to connect an external keypad.





Scroll Lock <Fn> +

When Scroll Lock is on, the screen moves one line up or down when you press

<F12>

the up or down arrow keys respectively. Scroll Lock does not work with some



applications.





The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols are not printed on the keys.

Desired access

Num Lock on

Num Lock off







Number keys on

Type numbers in a normal manner.



embedded keypad











Cursor-control keys on

Hold <Shift> while using cursor-

Hold <Fn> while using cursor-

embedded keypad

control keys.

control keys.







Main keyboard keys

Hold <Fn> while typing letters on

Type the letters in a normal



embedded keypad.

manner.







10

Chapter 1

Windows Keys

The keyboard has two keys that perform Windows-specific functions.







Key

Description

















Windows key

Pressed alone, this key has the same effect as clicking on the Windows Start button;









it launches the Start menu. It can also be used with other keys to provide a variety of









functions:









< >: Open or close the Start menu









< > + <D>: Display the desktop









< > + <E>: Open Windows Explore









< > + <F>: Search for a file or folder









< > + <L>: Lock your computer (if you are connected to a network domain), or









switch users (if you're not connected to a network domain)









< > + <M>: Minimizes all windows









< > + <R>: Open the Run dialog box









< > + <U>: Open Ease of Access Center









< > + <BREAK>: Display the System Properties dialog box









< > + <TAB>: Cycle through programs on the taskbar









<CTRL> + < > + <F>: Search for computers (if you are on a network)









Note: Depending on your edition of Windows 7, some shortcuts may not function as









described.

















Application

This key has the same effect as clicking the right mouse button; it opens the













key

application's context menu.

















Chapter 1

11

Hot Keys

The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness and volume output.

To activate hotkeys, press and hold the <Fn> key before pressing the other key in the hotkey combination.

Hotkey

Icon

Function

Description

<Fn> + <F1>



Power management

Launch Windows power management.

<Fn> + <F2>



System Properties

Display the System Properties dialog box.

<Fn> + <F3>



Bluetooth

Enables/disables the Bluetooth function.







communication switch



<Fn> + <F4>



Sleep

Puts the computer in Sleep mode.

<Fn> + <F5>



Display toggle

Switches display output between the display









screen, external monitor (if connected) and









both.

<Fn> + <F6>



Screen blank

Turns the display screen backlight off to save









power. Press any key to return.

<Fn> + <F7>



Touchpad toggle

Turns the internal touchpad on and off.

<Fn> + <F8>



Speaker toggle

Turns the speakers on and off.

<Fn> + <

>



Brightness up

Increases the screen brightness.

<Fn> + <

>



Brightness down

Decreases the screen brightness.

<Fn> + <

>



Volume up

Increases the sound volume.

<Fn> + <

>



Volume down

Decreases the sound volume.

12

Chapter 1

Special Keys

You can locate the Euro symbol and the US dollar sign at the upper-center and/or bottom-right of your keyboard.

The Euro symbol

1.Open a text editor or word processor.

2.Hold <Alt Gr> and then press the <5> key at the upper-center of the keyboard.

NOTE: Some fonts and software do not support the Euro symbol. See www.microsoft.com/typography/faq/ faq12.htm for more information.

The US dollar sign

1.Open a text editor or word processor.

2.Hold <Shift> and then press the <4> key at the upper-center of the keyboard. NOTE: This function varies according to the language settings.

Chapter 1

13

Hardware Specifications and Configurations

Processor





Item















Specification





































CPU type











Intel Penryn SFF (ULV)







































CPU package









Micro-FCBGA 956 balls







































Features











• Supports Intel architecture with Dynamic execution.















• On-die, primary 32-kB instruction cache and 32-kB write-back

















data cache.

























• On-die, up to 3MB second level shared cache with advanced

















transfer cache architecture.





















• Streaming SIMD Extensions 2 (SSE2),Streaming SIMD

















Extensions 3 (SSE3)

























• Supplemental streaming SIMD extensions 3 (SSSE3) and

















SSE4.1 instruction sets.





















• 800MHz source-synchronous front side bus (FSB)















• Advanced power management features including Enhanced

















Intel SpeedStep®

























• Technology and dynamic FSB frequency switching.















• Digital thermal sensor (DTS).





















• Execute disable bit support for enhanced security.















• Intel® Dynamic Acceleration Technology and Enhanced Multi

















Threaded

























• Thermal Management (EmTTM).





















• Support enhanced Intel Virtualization Technology.





























Core Logic











• Mobile Intel® GS45 Express Chipset





































Processor Specifications





















































Item



CPU

Cores



Cache



Package



Core

Acer P/N





Speed





Size





Voltage



























































SU7300



1.4GHz

1





3MB



Micro-FCBGA 956



1.050V-

C2DSU7300B





















balls



1.150V





































SU4100



1.3GHz

2





2MB



Micro-FCBGA 956



1.050V-

PMDSU4100B





















balls



1.150V





































SU2300



1.2GHz

2





1MB



Micro-FCBGA 956



1.050V-

CMSU2300B





















balls



1.150V





































CPU Fan True Value Table



















































CPU Temperature







Fan Speed (RPM)



SPL Spec (dBA)





(Celsius)

































































38







2400









On



































43







3300









26







































49







4000









29







































56







4500









31































Throttling 50%: On = 88°C; Off = 85°C

















EC shut down at 95°C; H/W shut down at 98°C











North Bridge Specifications























































Item















Specification































Chipset











Intel Crestline GS45 SFF











Package











FCBGA 1363 balls











































14

Chapter 1



Item











Specification

























Features







• Processor host bus supports 667/800/1066Mhz FSB support.











• Supports Dual Channel DDR3 SD-RAM at 800/1066MHz.











• Integrated SDRAM controller up to *GB (2 SODIMM support)











• DMI x2 and DMI x4 for connection between GMCH and













ICH9M.







































South Bridge Specifications

















































Item











Specification





























Chipset







ICH9M SFF





































Package







BGA 676 balls

































Features







• Upstream accelerated Hub architecture interface for access to













GMCH.





















• PCI Express Base Specification, Revision 1.1 support.











• PCI 2.3 interface. (4 PCI Request/Grant pairs).













ACPI Power Management Logic Support. Enhanced DMA













controller, interrupt controller, timers functions.













• Integrated Serial ATA host controllers with independent DMA













operation on six ports and AHCI support.













• USB 1.1 & USB 2.0 Host controllers.













• Supports Intel High Definition Audio (Intel HD Audio) Interface.











• Supports Intel® Matrix Storage Technology.













• Supports Intel® Active Management Technology.













• Low Pin Count (LPC) interface.

















6 PCIe ports.







































System Memory

















































Item











Specification



























Memory size







0MB (No on-board Memory)









DIMM socket number



2 sockets





































Supports memory size per socket

2GB





































Supports maximum memory size

4GB for 64bit OS (with two 2GB SO-DIMM)



























Supports DIMM type



DDR3 Synchronous DRAM

































Supports DIMM Speed



800 MHz





































Supports DIMM voltage



1.5V



































Supports DIMM package



204-pin DDR3-800 SO-DIMM





























Module Combination



Any combination permissible within the above specifications.





























Hard Disk Drive Interface













































Item







Specifications







































Vendor &

Hitachi



Hitachi



Hitachi



Hitachi

Hitachi



Hitachi



Model

HTS545050B



HTS545032B



HTS545025B



HTS545016B

HTS543225L



HTS543216L9



Name

9A300



9A300





9A300



9A300

9A300



SA00





























Capacity

500



320





250



160

250



160



(GB)



















































Bytes per













512









sector



















































Data heads

4



3





2



2

3



2





























Drive Format



















































Chapter 1

15

Item







Specifications





























Disks

2



2



1



1

2

1

Spindle











5400





speed



















(RPM)





































Performance Specifications

































Buffer size











8MB























Interface











SATA



















Internal







3GB/s maximum



1.5GB/s

transfer

















maximum

rate (Gbits/



















sec., max)

































I/O data



875 Mbits/s maximum



845 Mbits/s

775Mbits/s

729Mbits/s

transfer













maximum

maximum

maximum

rate



















(Mbytes/



















sec max)







































DC Power Requirements





































Voltage











+5.0V ± 5%.

























Item





Specifications















Vendor & Model

Toshiba

Toshiba



Toshiba

Toshiba

Name

MK1655GSX

MK2555GSX



MK3255GSX

MK5055GSX























Capacity (GB)

160

250



320

500













Bytes per sector

512

512



512

512













Data heads

2

2



4

4













Drive Format























Disks

1

1



2

2













Spindle speed





5400



(RPM)























Performance Specifications





















Buffer size





8MB













Interface





SATA













Internal transfer





363 ~ 952 typical



rate (Mbits/sec,











max)





















I/O data transfer





300



rate











(Mbytes/sec











max)























DC Power Requirements





















Voltage





5V ±5%















Item



Specifications















Vendor & Model

Western Digital

Western Digital



Western Digital

Western Digital

Name

WD1600BEVT-

WD2500BEVT-22ZCT0



WD3200BEVT-22ZCT0

WD5000BEVT-22ZAT0

22ZCTO































Capacity (GB)

160

250



320

500













Bytes per sector





512















Data heads

2

4



3

4













16

Chapter 1

Item









Specifications

































Drive Format





















Disks



1



2



2



2































Spindle speed









5400











(RPM)













































Performance Specifications









































Buffer size









8 MB

































Interface









SATA

































Internal transfer









N/A











rate (Mbits/sec,























max)













































I/O data transfer









300











rate























(Mbytes/sec























max)













































DC Power Requirements









































Voltage









5V ±5%



































BIOS













































Item









Specification



























BIOS vendor



Insyde

































BIOS ROM type



W25X16AVSSIG































BIOS ROM size



16Mb



































BIOS package



8 PIN SOIC



































Supported Protocols



SPI































BIOS password control

Set by setup manual

































LCD 11.6”













































Item









Specifications





















Vendor/model name



AUO

Chi Mei

LG

Samsung









B116XW02

N116B6-L02

LP116WH1

LTN116AT01-





















A01





















Screen Diagonal (mm)





293.83

























Active Area (mm)







256.125 (H) x 144.00 (V)





















Display resolution (pixels)





1366x3(RGB) x 768

























Pixel Pitch (mm)







0.1875 x 0.1875





0.2265(H) x





















0.2265(V)

















Typical White Luminance (cd/m2)





200 typ. (5 points average)







also called Brightness



















Contrast Ratio









500:1 typ



















Response Time (Optical Rise

8 typ / 16

8 typ / 16 Max

9 typ / 16 max

16 typ / 25



Time/Fall Time) msec



Max









max















Typical Power Consumption

4.0 max.

N/A

3.18 W Typ.

N/A



(watt)



(Include





















Logic and





















Blu power)



























Weight (without inverter)

255g max.

240g max

255g max.





















Physical Size (mm)







268L x 161.5W x 5.0T































Chapter 1

17

Item











Specifications

































Electrical Interface







1 channel



3.3V LVDS



LVDS

LVDS













LVDS







































Viewing Angle (degree)





















Horizontal (Right) / (Left)





45/45



45/45



30/30

45/45





Vertical (Upper) / (Lower)





10/30



20/45



10/20

15/35































Bluetooth

















































Item











Specification































Bluetooth Controller





Foxconn T60H928.33

























Features





• Fully Qualified Bluetooth v2.1 with Class 2 specification RF output













power.





















• Enhanced Data Rate (EDR) compliant.

















• Full Piconet and Scatternet operation.

















• Integrated PIFA Antenna with better RF performance.















• USB 2.0 compliant interface.

















• F/W upgradable via Flash downloads.

















• Very low power consumption.

















• Support Coexistence with Intel WCS (Wireless Coexistence System)











& AFH (Adaptive Frequency Hopping)































Radio Technology





FHSS



































Operating Frequency





2.402GHz ~ 2.480GHz































Channel Numbers





79 channels with 1MHz BW























Transmitter Output Power



-6~4dBm output power for BT class 2 operation























Coverage





10m (Varies depending on operating environment)





























Receiver Sensitivity





-75dBm, BER<0.1%

































Maximum Receiver Signal



-10dBm



































Operating Voltage





3.3V+/-0.3V





























Working Temperature





Operating temp: 0 °C to +70 °C (+32 °F to +158 °F)















Non-operating temp: -10 °C to +75°C (+14 °F to +167 °F)























Interface





USB2.0 with JST SM08B-SURS-TF connector





























Weight





1.75g







































Audio Interface

















































Item













Specification



























Codec Controller



Realtek ALC269X



































Compatibility





Headphone-out



















• S/PDIF, Line-In and Microphone-In.















• 2 stereo ADCs support 16/20/24-bit PCM format recording simultaneously.









Sampling Rate





• All DACs supports 16/20/24-bit, 44.1k/48k/96k/192kHz sample rate.







• Two independent S/PDIF-OUT converters support 16/20/24-bit, 44.1k/48k/









88.2k/96k/192kHz sample rate. One for normal S/PDIF output, the other one









output an independent digital stream to HDMI transmitter.





















Internal





• Digital MICRO PHONE ZK2(HFM-M101-006-L19-G)







Microphone





Digital MICRO PHONE ZK2(A-OA2408FM-018)























Internal Speakers





• Two Med-High Speakers (1W/4Ù)



































18

Chapter 1

LAN Interface

Item







Specification











LAN Chipset





Atheros AR8131L

Package





48pin QFN













Features





It is an ultra-high performance, ultralow cost, and ultra-









low power fully integrated 10/100/1000 Mbps NIC/LOM









Ethernet.







• The AR8131L combines a 10/100/1000BASE-T GbE









media access controller (MAC), a triplespeed Ethernet









physical layer transceiver (PHY), and a PCI Express bus









interface.







• The AR8131L is compliant with IEEE 802.3u









specification for 10/100 Mbps Ethernet and IEEE









802.3ab specification for 1000 Mbps Ethernet.







• The AR8131L device combines pulse shaping, Tx/Rx









PCS, echo canceller, NEXT canceller, equalizer,









decoder, and timing recovery functions to deliver robust









signal performance in noisy environments.







• The AR8131L GbE controller supports checksum off-load









features for IP, TCP, and UDP, lowering CPU utilization









and optimizing network performance.













Keyboard























Item







Specification













Keyboard Controller







Winbond WPCE775LA0DG













Total number of keypads







US: 86









UK: 86









UI: 86









GERMAN: 86













Windows logo key







Yes













Internal & external keyboard work





Plug USB keyboard to the USB port directly: Yes

simultaneously























Features







• Plug USB keyboard to the USB port directly: Yes













Media Card Reader























Item







Specification









Chipset

Alcor AU6433











Features

Fully compatible with USB2.0 High Speed and backward







compatible with USB1.1 specifications





• Supports multiple flash card interfaces, including SD/







MMC/xD/MS.





Supports single LUN





48-pin LQFP















Chapter 1

19



Item



Specification









Compliance



Complies with USB Device Class Definition for Mass







Storage and Bulk-Transport V1.0





Complies with Secure Digital Card (SD) specification up







to ver. 2.0(SDHC)





Complies with MultiMedia Card (MMC) specification up







to ver. 4.2





Complies with Memory Stick (MS) specification up to ver.







1.43





• Complies with Memory Stick PRO (MS_Pro) specification







up to ver. 1.03





Complies with Memory Stick PRO-HG (MS PRO-HG)







specification up to ver. 1.01





Complies with Memory Stick Interface Guideline for PC







peripheral devices with Memory Stick Slot ver. 1.16-00





Complies with xD-Picture Card (xD) specification up to







version 1.2









Interface



USB 2.0









Power



3.3V









Camera







Item







Specifications











































Vendor and model





Chicony CNF9011/9048

Lite-on 09P2SF001



Suyin CN0316-S30C-



























OV06-1



































Interface















USB 2.0





































Optical aperture













N/A





































Focusing range





17.4 cm - infinity



19 CM - infinity



40 CM - infinity





























Dimensions (L x W x H

68 X 8 X 3.64 mm



68 X 8 X 3.84 mm



65 X 7.9 X 3.8 mm



mm)





























































Sensor type















CMOS







































Pixel resolution















640X480









































Wireless LAN



























































Item







Specification



Specification



Specification

Specification

























Manufacturer





Foxconn



Foxconn



Intel



Intel

Type





Atheros AR9283



T77H121.01



WiFi Link 1000



Shirley Peak

























PHY Mode





b,g,n.



b,g,n.



b, g, n.



a, b, g, n.

Supported





























































































Item







Specification



Specification











































Manufacturer





Intel



Lite-on







































Type





Wifi Link 5000



Atheros AR5B93









































PHY Modes





a, b, g, n.



b, g, n.















Supported





























































3G Module



























































Item













Specifications



































3G Module



Qualcomm Gobi1000























Huawei EM770W



























Technical



GSM / GPRS/ EGPRS MSC 12 / DTM Item/ WCDMA R5 / HSDPA 7.2Mbps / HSUPA





Standard



5.76Mbps



















































20

Chapter 1

Item

Specifications













Interface

USB 2.0





Antenna

1 x 2













Embedded Controller









Item

Specifications







Chipset

Winbond WPCE775LA0DG

Features

• Shared SPI BIOS flash memory with page programming support.

High-accuracy, high-speed ADC.

Up to 95 GPIO ports (including keyboard scanning) with a variety of wake-up events (up to 42 wake-up inputs).

16-bit RISC core, with up to 4 Mbytes of external address space, running at up to 25 MHz.

128-pin LQChipFP

Battery

Item

Specifications

6 Cell







Vendor & model name

SIMPLO UM09F70 3S2P



SANYO UM09F36 3S2P





Battery Type

Li-ion





Pack capacity

SANYO 6 cell 5600mAh



SAMSUNG 6 cell 5600mAh



LGC 6 cell 5600mAh





Number of battery cell

6





Package configuration

3 cells in series, 2 series in



parallel





Normal voltage

11.1





Charge voltage

12.6





Chapter 1

21

22

Chapter 1

Chapter 2

System Utilities

BIOS Setup Utility

The BIOS Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/ Output System).

Your computer is already properly configured and optimized, and you do not need to run this utility. However, if you encounter configuration problems, you may need to run Setup. Please also refer to Chapter 4 Troubleshooting when problem arises.

To activate the BIOS Utility, press F2 during POST (when Press <F2> to enter Setup message is prompted on the bottom of screen).

Press F2 to enter setup. The default parameter of F12 Boot Menu is set to “disabled”. If you want to change boot device without entering BIOS Setup Utility, please set the parameter to “enabled”.

Press <F12> during POST to enter multi-boot menu. In this menu, user can change boot device without entering BIOS SETUP Utility.

Navigating the BIOS Utility

There are six menu options: Information, Main, Advanced, Security, Power, Boot, and Exit. Follow these instructions:

To choose a menu, use the left and right arrow keys.

To choose an item, use the up and down arrow keys.

To change the value of a parameter, press F5 or F6.

A plus sign (+) indicates the item has sub-items. Press Enter to expand this item.

Press Esc while you are in any of the menu options to go to the Exit menu.

In any menu, you can load default settings by pressing F9. You can also press F10 to save any changes made and exit the BIOS Setup Utility.

NOTE: You can change the value of a parameter if it is enclosed in square brackets. Navigation keys for a particular menu are shown on the bottom of the screen. Help for parameters are found in the Item Specific Help part of the screen. Read this carefully when making changes to parameter values. Please note that system information is subject to different models.

Chapter 2

23

Information

The Information screen displays a summary of your computer hardware information.













InsydelH20 Setup Utility







Rev. 3.5





Information



Main

Security



Boot

Exit









































CPU Type:





Genuine Intel (R) CPU

U2300











CPU Speed:





1.20GHz















IDE 0 Model Name:



TOSHIBA MK2555GSX















IDE 0 Serial Number:



89IBP6AKT















ATAPI Model Name:



None

















System BIOS Version:



v0.2103

















VGA BIOS Version:



Intel V1800















Serial Number:



ZE80SK01C191A0792500













Asset Tag Number:



20202

















Product Name:





















Manufacturer Name :



Acer

















UUID:





A570A794A5554A0BABFDC44254EFC55F



































































F1

Help

Select

Item

F5/F6

Change Values

F9

Setup

Default





Es c

Exit

Select

Menu

Enter

Select

Sub-Menu

F10

Save

and Exit

NOTE: The system information is subject to different models.

Parameter

Description





CPU Type

This field shows the CPU type and speed of the system.





CPU Speed

This field shows the speed of the CPU.





HDD Model Name

This field shows the model name of HDD installed on primary IDE master.





HDD Serial Number

This field displays the serial number of HDD installed on primary IDE master.





ATAPI Model Name

This field displays the model name of the installed ODD drive.





System BIOS Version

Displays system BIOS version.





VGA BIOS Version

This field displays the VGA firmware version of the system.





Serial Number

This field displays the serial number of this unit.





Asset Tag Number

This field displays the asset tag number of the system.





Product Name

This field shows product name of the system.





Manufacturer Name

This field displays the manufacturer of this system.





UUID Number

Universally Unique Identifier (UUID) is an identifier standard used in software



construction, standardized by the Open Software Foundation (OSF) as part of



the Distributed Computing Environment (DCE).





24

Chapter 2

Main

The Main screen allows the user to set the system time and date as well as enable and disable boot option and recovery.





InsydelH20 Setup Utility

Rev. 3.5

Information

Main

Security

Boot

Exit

System Time

[13:52:10]

System Date

[10/06/2009]

Total Memory

2048 MB

Video Memory:

[64MB]

Quiet Boot

[Enabled]

Network Boot

[Enabled]

F12 Boot Menu

[Disabled]

D2D Recovery

[Enabled]

SATA Mode

[AHCI Mode]

Item Specific Help

This is the help for the hour field. Valid range is from 0 to 23. REDUCE / INCREASE : F5/F6

F1

Help

Select

Item

F5/F6

Change

Values

F9

Setup

Default

Es c

Exit

Select

Menu

Enter

Select

Sub-Menu

F10

Save

and Exit

NOTE: The screen above is for your reference only. Actual values may differ.

The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.

Parameter

Description

Format/Option







System Time

Sets the system time. The hours are displayed with 24-

Format: HH:MM:SS



hour format.

(hour:minute:second)







System Date

Sets the system date.

Format MM/DD/YYYY





(month/day/year)







Total Memory

This field reports the memory size of the system.

N/A



Memory size is fixed to 2048 MB.



Video Memory

Shows the video memory size. VGA Memory size=32 MB

N/A







Quick Boot

Allows startup to skip certain tests while booting,

Option: Enabled or Disabled



decreasing the time needed to boot the system.









Network Boot

Enables, disables the system boot from LAN (remote

Option: Enabled or Disabled



server).









F12 Boot Menu

Enables, disables Boot Menu during POST.

Option: Enabled or Enabled







D2D Recovery

Enables, disables D2D Recovery function. The function

Option: Enabled or Disabled



allows the user to create a hidden partition on hard disc





drive to store operation system and restore the system





to factory defaults.









SATA Mode

Control the mode in which the SATA controller should

Option: AHCI or IDE



operate.



Chapter 2

25

Security

The Security screen contains parameters that help safeguard and protect your computer from unauthorized use.





InsydelH20 Setup Utility

Rev. 3.5

Information

Main

Security

Boot

Exit

Supervisor Password Is :

Clear

User Password Is :

Clear

HDD Password Is :

Clear

Set Supervisor Password



Set User Password



Set Hdd Password



Power on password

[Disabled]

Item Specific Help

Install or Change the password and the length of password must be greater than one word.

F1

Help

Select

Item

F5/F6

Change

Values

F9

Setup

Default

Es c

Exit

Select

Menu

Enter

Select

Sub-Menu

F10

Save

and Exit

The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.

Parameter

Description

Option







Supervisor Password Is

Shows the setting of the Supervisor password

Clear or Set

User Password Is

Shows the setting of the user password.

Clear or Set







Set Supervisor Password

Press Enter to set the supervisor password. When





set, this password protects the BIOS Setup Utility





from unauthorized access. The user can not either





enter the Setup menu nor change the value of





parameters.









Set User Password

Press Enter to set the user password. When user





password is set, this password protects the BIOS





Setup Utility from unauthorized access. The user can





enter Setup menu only and does not have right to





change the value of parameters.









Set Hdd Password

Enter HDD password.









Power on password

Defines whether a password is required or not while

Enabled or



the events defined in this group happened. The

Disabled



following sub-options are all requires the Supervisor





password for changes and should be grayed out if the





user password was used to enter setup.









NOTE: When you are prompted to enter a password, you have three tries before the system halts. Don’t forget your password. If you forget your password, you may have to return your notebook computer to your dealer to reset it.

26

Chapter 2

Setting a Password

Follow these steps as you set the user or the supervisor password:

1.Use the ↑ and ↓ keys to highlight the Set Supervisor Password parameter and press the Enter key. The Set Supervisor Password box appears:

Set Supervisor Password

Enter

New

Password

[



]



Confirm

New

Password

[



]

2.Type a password in the “Enter New Password” field. The password length can not exceeds 8 alphanumeric characters (A-Z, a-z, 0-9, not case sensitive). Retype the password in the “Confirm New Password” field.

IMPORTANT:Be very careful when typing your password because the characters do not appear on the screen.

3.Press Enter. After setting the password, the computer sets the User Password parameter to “Set”.

4.If desired, you can opt to enable the Password on boot parameter.

5.When you are done, press F10 to save the changes and exit the BIOS Setup Utility.

Removing a Password

Follow these steps:

1.Use the ↑ and ↓ keys to highlight the Set Supervisor Password parameter and press the Enter key. The Set Password box appears:

Set Supervisor Password

Enter Current Password

[



]



Enter New Password

[



]

Confirm New Password

[

]

2.Type the current password in the Enter Current Password field and press Enter.

3.Press Enter twice without typing anything in the Enter New Password and Confirm New Password fields. The computer then sets the Supervisor Password parameter to “Clear”.

4.When you have changed the settings, press u to save the changes and exit the BIOS Setup Utility.

Chapter 2

27

Changing a Password

1.Use the ↑ and ↓ keys to highlight the Set Supervisor Password parameter and press the Enter key. The Set Password box appears.

Set Supervisor Password

Enter Current Password

[



]



Enter New Password

[



]

Confirm New Password

[

]

2.Type the current password in the Enter Current Password field and press Enter.

3.Type a password in the Enter New Password field. Retype the password in the Confirm New Password field.

4.Press Enter. After setting the password, the computer sets the User Password parameter to “Set”.

5.If desired, you can enable the Password on boot parameter.

6.When you are done, press F10 to save the changes and exit the BIOS Setup Utility.

If the verification is OK, the screen will display as following.

Setup Notice

Changes have been saved.

[Continue]

The password setting is complete after the user presses Enter.

If the current password entered does not match the actual current password, the screen will show you the Setup Warning.

Setup Warning

Invalid Password.

[Continue]

If the new password and confirm new password strings do not match, the screen displays the following message.

Setup Warning

Passwords do not match. Re-enter password.

[Continue]

28

Chapter 2

Boot

This menu allows the user to decide the order of boot devices to load the operating system. Bootable devices includes the USB diskette drives, the onboard hard disk drive and the DVD drive in the module bay.





InsydelH20 Setup Utility

Rev. 3.5

Information

Main

Security

Boot

Exit

Boot priority order :

1.IDE0 : TOSHIBA MK2555GSX

2.IDE1 :

3.Network Boot : Atheros Boot Agent

4.USB HDD :

5.USB CDROM :

6.USB FDD :

Item Specific Help

Use <> or <> to select a device, then press <F6> to move it up the list, or <F5> to move it down the list. Press

<Esc> to escape the menu

F1

Help

Select

Item

F5/F6

Change

Values

F9

Setup

Default

Es c

Exit

Select

Menu

Enter

Select

Sub-Menu

F10

Save

and Exit

Follow the on-screen instructions to adjust the order in which the devices boot.

Chapter 2

29

Exit

The Exit screen allows you to save or discard any changes you made and quit the BIOS Utility.







InsydelH20 Setup Utility







Rev.

3.5

Information

Main

Security



Boot

Exit









Exit Saving Changes







Item Specific Help





















Exit Discarding Changes

















Load Setup Defaults







Exit system setup and





Discard Changes

















save your changes.





Save Changes































F1

Help

Select

Item

F5/F6

Change

Values

F9

Setup

Default



Es c

Exit

Select

Menu

Enter

Select

Sub-Menu

F10

Save

and Exit

The table below describes the parameters in this screen.

Parameter

Description





Exit Saving Changes

Exit System Setup and save your changes to CMOS.





Exit Discarding

Exit utility without saving setup data to CMOS.

Changes







Load Setup Default

Load default values for all SETUP item.





Discard Changes

Load previous values from CMOS for all SETUP items.





Save Changes

Save Setup Data to CMOS.





30

Chapter 2

BIOS Flash Utility

The BIOS flash memory update is required for the following conditions:

New versions of system programs

New features or options

Restore a BIOS when it becomes corrupted. To run the BIOS flash utility:

1.Copy the BIOS flash tool and the BIOS into a USB flash disk.

2.Set the computer to boot from the USB flash disk. See “Boot” on page 29.

3.On boot-up enter at the DOS prompt:

C:\> flashit.exe v3106.fd /dc /beep:2000

Chapter 2

31

DOS Flash Utility

Perform the following steps to use the DOS Flash Utility:

1.Press F2 during boot to enter the Setup Menu.

2.Select Boot Menu to modify the boot priority order, for example, if using USB HDD to Update BIOS, move USB HDD to position 1.





InsydelH20 Setup Utility



Rev. 3.5

Information

Main

Security

Boot

Exit



Boot priority order :

1.IDE0 : TOSHIBA MK2555GSX

2.IDE1 :

3.Network Boot : Atheros Boot Agent

4.USB HDD :

5.USB CDROM :

6.USB FDD :

Item Specific Help

Use <> or <> to select a device, then press <F6> to move it up the list, or <F5> to move it down the list. Press

<Esc> to escape the menu

F1

Help

Select

Item

F5/F6

Change

Values

F9

Setup

Default

Es c

Exit

Select

Menu

Enter

Select

Sub-Menu

F10

Save

and Exit

3. Execute the FLASH.BAT batch file to update BIOS. The flash process begins as shown.

4. In flash BIOS, the message Please do not remove AC Power Source displays.

NOTE: If the AC power is not connected, the following message displays.

Plug in the AC power to continue.

5.Flash is complete when the message Flash programming complete displays.

32

Chapter 2

WinFlash Utility

Perform the following steps to use the WinFlash Utility:

1.Put the BIOS:ZE8_v3106.fd file under WinFlash file root.

1.Double click the WinFlash executable.

2.Click OK to begin the update. A progress screen displays.

3.When the process is complete, close all programs and applications and reboot the system.

Chapter 2

33

Remove HDD/BIOS Password Utilities

This section provide you with removing HDD/BIOS method:

Remove HDD Password:

When the user keys in the wrong password three times, the system reports the following error code to user.

To unlock the HDD password, perform the following steps:

1.Press Enter to display the Select Item screen.

2. Select Enter Unlock Password and press Enter. An Unlock Password displays.

3.Make a note of the key, 76943488 in the example.

4.Boot up the system to a removable bootable drive containing DOS and the UnlockHD.EXE program and open a DOS prompt. For instructions on changing boot priority see “Boot” on page 29.

5.Enter the UnlockHD.EXE command and input the key to create an unlock code. Make a note of the result, for example 46548274.

6.Reboot to the hard disk and wait for the error code to reappear.

7.Press Enter to display the Select Item screen.

8.Select Enter Unlock Password and press Enter.

9.Enter the unlock code generated by UnlockHD.EXE.

10.Save and exit the BIOS to complete the process.

34

Chapter 2

Removing BIOS Passwords:

If you key in the wrong Supervisor Password three times, System Disabled displays on the screen. See the image below.

To reset the BIOS password, run clnpwd.exe as follows:

1.From a DOS prompt, Execute clnpwd.exe

2.Press 1 or 2 to clean the desired password shown on the screen.

The onscreen message determines whether the function is successful or not.

Chapter 2

35

Miscellaneous Utilities

Using Boot Sequence Selector

Boot Sequence Selector allows the boot order to be changes without accessing the BIOS. To use Boot Sequence Selector, perform the following steps:

1.Enter into DOS.

2.Execute BS.exe to display the usage screen.

3.Select the desired boot sequence by entering the corresponding sequence, for example, enter BS2 to change the boot sequence to HDD|CD ROM|LAN|Floppy.

Using DMITools

The DMI (Desktop Management Interface) Tool copies BIOS information to eeprom to be used in the DMI pool for hardware management.

When the BIOS displays Verifying DMI pool data it is checking the table correlates with the hardware before sending to the operating system (Windows, etc.).

To update the DMI Pool, perform the following steps:

1.Enter into DOS.

2.Execute dmitools.exe. The following messages show dmitools usage:

IMPORTANT:The following write examples (2 to 5) require a system reboot to take effect

36

Chapter 2

Example 1: Read DMI Information from Memory

Input: dmitools /r

Output:

Manufacturer (Type1, Offset04h): Acer

Product Name (Type1, Offset05h): Aspire one xxxxx

Serial Number (Type1, Offset07h): 01234567890123456789

UUID String (Type1, Offset08h): xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx Asset Tag (Type3, Offset04h): Acer Asstag

Example 2: Write Product Name to EEPROM

Input:

dmitools /wp Acer

Example 3: Write Serial Number to EEPROM

Input:

dmitools /ws 01234567890123456789

Example 4: Write UUID to EEPROM

Input:

dmitools /wu

Example 5: Write Asset Tag to EEPROM

Input:

dmitools /wa Acer Asstag

Using the LAN MAC Utility

Perform the following steps to write MAC information to eeprom:

1.Use a text editor, for example Notepad, to edit the MAC.CFG file as shown:

WriteData= '001122334455' <------- MAC value

StartAddr=7A <------- MAC address

WriteLeng=6 <------- MAC value length

KeepByte=0 <------- can be any value

2.Boot into DOS.

3.Execute MAC.BAT to write MAC information to eeprom.

Chapter 2

37

38

Chapter 2

Chapter 3

Machine Disassembly and Replacement

This chapter contains step-by-step procedures on how to disassemble the notebook computer for maintenance and troubleshooting.

Disassembly Requirements

To disassemble the computer, you need the following tools:

Wrist grounding strap and conductive mat for preventing electrostatic discharge

Flat screwdriver

Philips screwdriver

Plastic flat screwdriver

Plastic tweezers

NOTE: The screws for the different components vary in size. During the disassembly process, group the screws with the corresponding components to avoid mismatch when putting back the components.

Related Information

The product previews seen in the disassembly procedures may not represent the final product color or configuration.

IMPORTANT: Cable paths and positioning may not represent the actual model. During the removal and replacement of components, ensure all available cable channels and clips are used and that the cables are replaced in the same position.

General Information

Pre-disassembly Instructions

Before proceeding with the disassembly procedure, make sure that you do the following:

1.Turn off the power to the system and all peripherals.

2.Unplug the AC adapter and all power and signal cables from the system.

3.Place the system on a flat, stable surface.

4.Remove the battery pack.

Chapter 3

39

Disassembly Process

The disassembly process is divided into the following sections:

External components disassembly

Main unit disassembly

LCD module disassembly

The flowcharts provided in the succeeding disassembly sections illustrate the entire disassembly sequence. Observe the order of the sequence to avoid damage to any of the hardware components. For example, if you want to remove the Mainboard, you must first remove the Keyboard, and LCD Module then disassemble the inside assembly frame in that order.

Main Screw List

Screw

Quantity

Part Number







M2*2.5

11

86.TPK07.001







M2*3

9

86.ARE07.002







M2*3 (Nickel)

4

86.W0907.001







M2*4

7

86.W0107.003







M2*5

33

86.TG607.004







40

Chapter 3
