FHD2400 24-inch Widescreen LCD Monitor
USERGUIDE
®
Contents
Contents
Using Your Gateway Flat-Panel Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Connecting the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Attaching the stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Connecting video inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Connecting USB cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Setting up the optional speaker bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Connecting power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Connecting a security cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Adjusting the stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Rotating the screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Ergonomic guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Starting the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Turning on the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Adjusting monitor settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

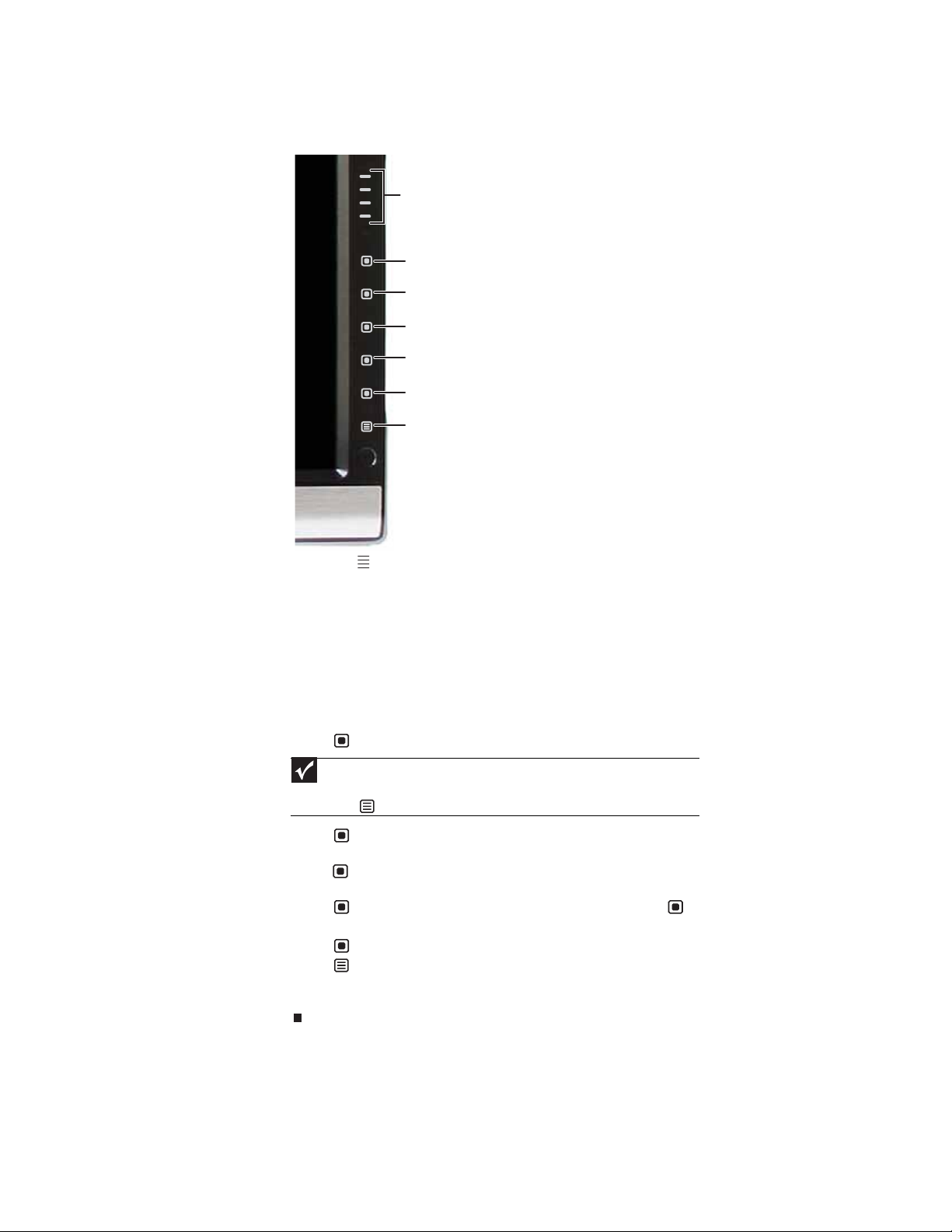

Using the EzTouch menu buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Using the shortcut menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Using the main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

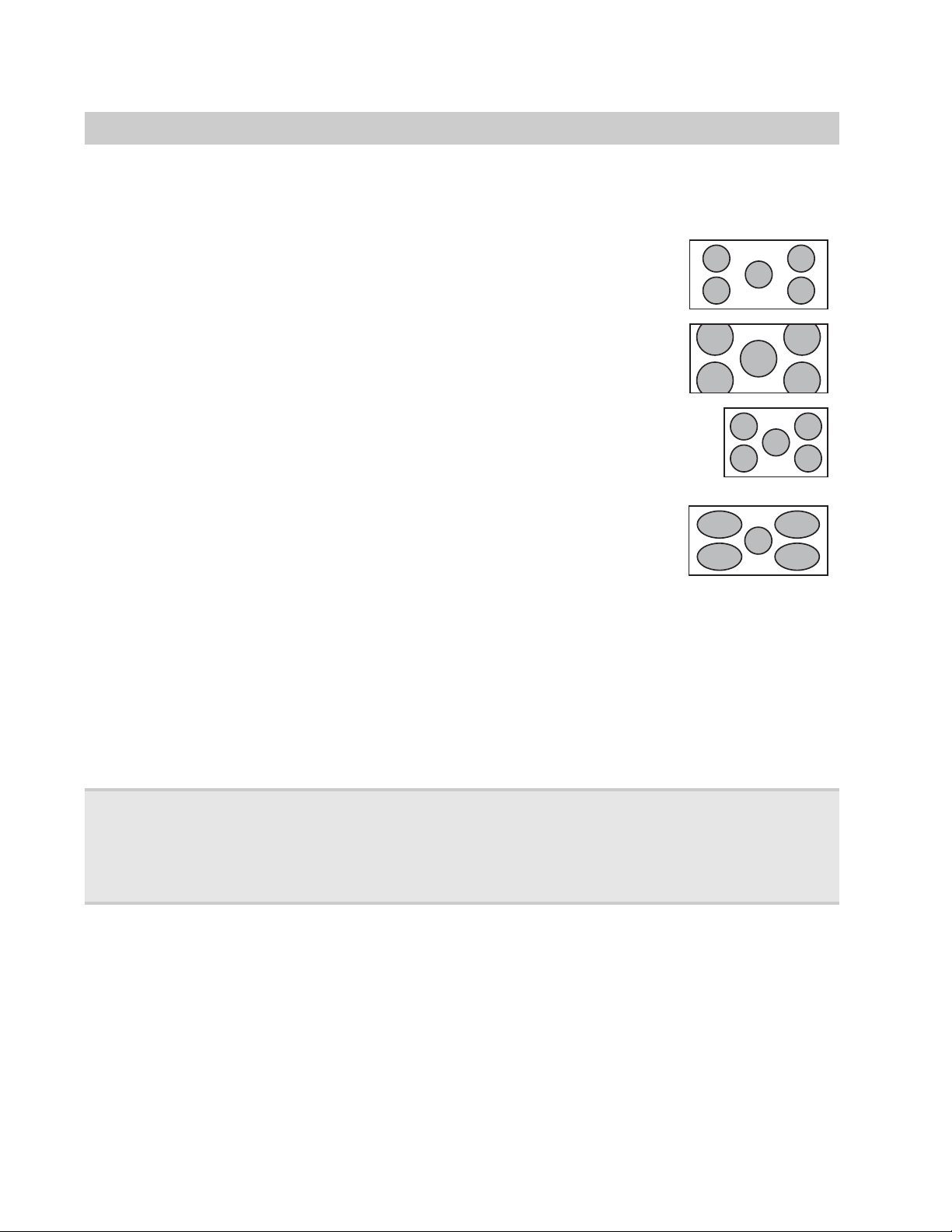

Using Picture-in-Picture (PIP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Changing Windows screen settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Changing color depth and screen resolution . . . . . . . . . . . . . . . . . . . . . . . . . . 16
EzTune software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Using the speaker bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Power management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Energy declaration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Maintaining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Troubleshooting symptoms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
No power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
No picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Display colors are wrong . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Picture has shadows or “ghosts” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Color is not uniform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Image is not sized or centered correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
The monitor has pixels that are alw ays dark or too bright . . . . . . . . . . . . .20
Speaker bar does not work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
FAQs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
How To . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Technical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Video/Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Video modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Safety, Regulatory, and Legal Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
i
Contents
ii
Using Y our Gat ewa y
Flat -P anel Monitor
• Connecting t he monitor
• Adjustin g the s tand
• Starting the monitor
• Adjusting monitor settings
• Changing Windo ws s creen s et tings
• Using t he speak e r bar
• Power management
• Maintaining
• Troubleshooting
• FAQs
• Specifications
1
Using Your Gateway Flat-Pan el Monitor
Connec ting the monit or
To set up the monitor, first atta ch the base, then m ake your cabl e con nections .
Attachi ng the stand
To attach the stand:
1 Place the monitor face-down on a soft, non-marring surface. A non-slip mat on a tabletop
is ideal.
2 Remove the four thumbscrews that are attached to the back of the monitor.
Thumbscrew
Thumbscrew
Thumbscrew
Thumbscrew
3 Lay the stand on the monitor so the thumbscrew holes line up with the hol es in the stand.
4 Replace the thumbscrews.
5 Test the bracket connection to make sure it is secure, then place the monitor upright.
Connec ting video inputs
To connect video sources to your monitor:
Tip
Rotate th e scre en 9 0° to m ake it easi er to c onn ect th e ca ble s.
1 Position yo ur computer and the monitor so you can reach the back of each.
2 Make sure th at you computer is turned off.
2
www.gateway.com
3 If your computer has an HDMI digital audio/video connector, connect an HDMI cable to the
HDMI connector under the back of the display.
Important
An HDMI cable has not been included with your monitor. A cable can be
purchased from www.gateway.com
Internet retailers and electronic retail stores.
- OR If your computer has a digital video connector (DVI), connect a DVI video cable to the white
connector under the back of the display.
(available in the U.S. only) or from various
- OR If your computer has only an analog VGA (blue) port, connect the VGA video cable to the
VGA video connector under the back of the display.
4 Connect the other end of the video cable to the matching video port on the back of your
computer.
3
Using Your Gateway Flat-Pan el Monitor
5 Connect other video sourc es (such as a DVD playe r, video camera, or receiver) to the
appropriate vi deo jacks on the back of th e monitor.
• For basic video quality, connect your video device’s composite video in jack to the
corresponding jack on the back of your monitor (cable not incl uded).
• For better video quality, connect your vi deo device’s S-Video jack to the corresponding
jack on the back of your monitor (cable not included).
• For best video quality, connect your video device’s component video (green Y,
blue Pb, and red Pr) or HDMI jacks to the corresponding jacks on the back of your
monitor (cables not included).
6 Route the cables through the cable clip on the back of the stand. If you plan on using the
screen in portrait mode, make sure you leave enough slack in the cables for screen rotation.
Connec ting USB cables
Your monitor has a built-in, four-port USB 2.0 hub that lets you conveniently connect USB devices.
Because your computer cas e may be under your desk or inside a cabinet, these monitor - mount ed
USB ports can be much easier to access.
T o use t he monitor’ s USB ports, y ou must f irst connect the monit or t o a USB por t on y our computer.
Because the USB hub uses power from the monitor, it does not require its own power connection.
To connect USB cables:
is connected to a USB 1.1 port on your computer or on a USB hub.
HDMI por t
DVI port
VGA po r t
component
Green
video j ack
Blue
component
video ja ck
component
video ja ck
Important
The built-in USB 2. 0 hub pro vides only low-speed connecti ons if its USB in port
Red
S-Video
jack
Composite
video in jack
4
Tip
Use the USB 2.0 ports on the back of the monitor for connecting USB devices
you want to keep connected most of the time, such as a keyboard, a mouse, or a
printer. Use the USB 2.0 ports on the side of the monitor for connecting USB devices
that are frequently disconnected, such as cameras, flash drives, and USB hard drives.
1 Connect the included USB cable to the USB in (“B” type) port on the back of your monitor,
then connect the other end of the cable to a USB 2.0 port on your computer.
USB in (“B” type) port
USB po rt s
www.gateway.com
2 Connect any USB device to one of the available USB 2.0 ports on the left side or back of the
monitor.
Setting up the optional speaker bar
An optional speaker bar is avai lable for mounting underneath your monitor. You can order a
speaker bar from www.gateway.com.
To install the speaker bar:
1 Tu rn of f t h e m o n i t o r.
USB por ts
Important
If you connect the speaker bar to the monitor while the monitor is turned on,
the speaker bar will not initialize and will not work correctly. If this happens, turn
the monitor off, then back on to enable the speaker bar.
2 Tilt the screen back, then match the mounting clips on each side of the speaker bar with
the mounting slots underneath the monitor.
Mounting slot
Mounting clip
3 Sli de the spe ake r b ar onto th e b otto m of th e m on itor u nti l i t s nap s i nto p la ce. Ma ke su re
that it is secure by pulling it downward.
5
Using Your Gateway Flat-Pan el Monitor
4 Plug the speaker bar’s power and audio plugs into the appropriate connectors underneath
the monitor.
Power
connector
Audio jack
5 Plug the speaker bar’s pink and green 3.5 audio plugs into the appropriate speaker and
microphone connectors on the computer.
Important
For best audio performance, if your video connection uses HDMI, the digital
audio is also conveyed along the same cable, and no additional audio connection is
required. You may need to set your video source’s audio mode to PCM or ANALOG
to hear the audio. See your source device’s user guide for more information.
For information on using the s peaker bar, see “Using the speaker bar” on page18.
To remove the speaker bar:
1 Disconnect all audio and power cables from the speaker bar.
2 Press the two clips on the back of your monitor, then slide the speaker bar back.
6
Mounting clip
Connec ting pow er
To connect power:
1 Position y our monitor so you can reach the back, then connect the po w e r cord to the power
2 Plug the power cord into a correctly grounded power outlet. We recommend using a surge
3 To make sure that the monitor ’s power is correctly connected, check the power button on
www.gateway.com
connector under the back of the monitor.
protector to protect your monitor from voltage spikes.
the front button panel. The power icon on the power button should be glowing purple. If
the power icon is not visible, power is n ot connected.
Connec ting a sec urity c able
Y ou can sec ure y our monit or t o y our computer de sk (or t o another hea vy objec t) with a cable lock.
To connect a cable lock, follow the cable lock’s instructions to connect it to the Kensington lock
slot on the back of your monitor (cable lock not included).
Kensington lock slot
7
Using Your Gateway Flat-Pan el Monitor
Adjusting th e stand
Rotating the s creen
Tip
To r otate t he screen while the optional speaker bar is at tached, first tilt the scr een back
for more clearance between the speaker bar and the tabletop.
You can rotate the screen clockwise 90° to change between landscape and portrait views. For
information on automatically rotating the display image as you manually rotate the monitor, see
“Using landscape and portrait modes” on page17.
Tip
For the brighte st viewing angle, adjust the screen so that you are viewing it from
within a 160° angle of the screen. W hen the display is rotated to portrait mode, the
side-to-side viewing angle may be reduced.
Ergonomic guideline s
The recommen ded sc reen positi oning is ba sed up on the f o llow ing guidel ine s. The s e guideline s ar e
based on available sci entific literature and published standards.
Screen height
The recommended screen height for di splays (except in special ci rcumstances, such as for bi focal
use) is that the top of the display should be set at or slightly below (about 1 inch or 25mm) your
eye level while you are sitting in a comfortable working posture. This guideline places the center
of the screen at an ideal 15° to 20° viewing angle for m ost desktop displays. If the display has
multiple users, the screen height should be easily adjustable to accommodate each user’s height
and preference.
Screen tilt
The screen should be tilted so yo ur line of sight is perpendicular to the screen. This angle creates
the m ost co ns iste nt viewi ng di st anc e w hen sc an nin g fro m th e to p of t he scree n to th e bo ttom .
You may need to adjust lighting to avoid screen glare when the screen is tilted upward.
Portrait modeLandscape mode
8
Screen distance from user
The screen should first be placed at arm’s length from the user, then adjusted back and forth to
suit individual preference.
Starting the monit or
T urning on the monit or
To s t a rt t h e m o n i to r :

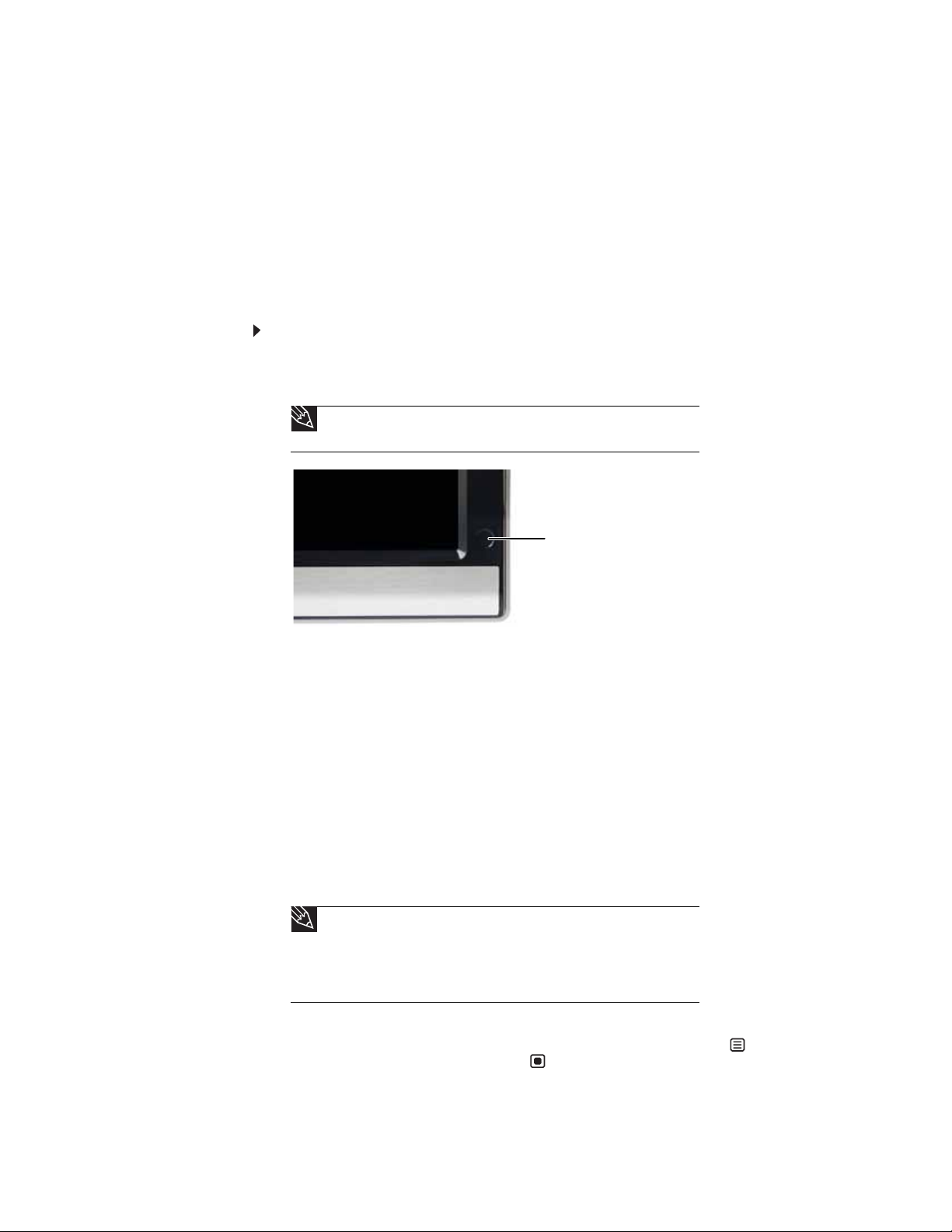

1 T ouch the power button on the fr ont of monitor . The power LED on the power button c hanges
from purple (off) to blue (on), then turns amber/orange (standby) if no video source is
detected.
Tip
For more information on EzTouch buttons, see “Using the EzTouch menu
buttons” on page 10.
www.gateway.com
Power b u tton
2 Turn on your computer. After your computer is running, the power LED on the monitor’s
power butt on should be blue , in dicating that t he monit or ha s detected a video source. Allo w
about 10seconds for the display image to appear.
If you do not see an image after waiting 10seconds, check the color of the power button
light.
• No light—The monitor is not receiving power. Make sure that the monitor is plugged
into an AC outlet.
• Purple—The monitor is turned off. Touch the power button to turn it on.
• Amber—The monitor is not detecting a video source. Check the video input connections
and make sure that the computer is turned on and connected correctly to the monitor.
• Blue—The monitor is detecting a vi deo source. Check the brightness setting.
For more trou bleshooting inform ation, see “Troubleshooting” on page19.
3 The first prompt you see is the language selection menu settings. You must select a default
language for the OSD before you can proceed.
Tip
To modify the language you select at a future time, use the Advanced menu.
If you can not ac c ess the Advanced menu bec ause you chose a language you cannot
read, do the following:
• U npl ug th e m oni tor from the p owe r ou tle t fo r ten o r m ore sec on d s.
• Plug the monitor back into the power outlet.
You will be prompted for the language selection menu settings again.
4 Adjust the tilt of the monitor for the best viewing angle.
5 For VGA input only: After you see the Windows desktop, tou ch the (Menu) butto n o n
the front of your monitor, then touch (Auto) to automa t i ca l ly a dj us t you r di s p la y i m a ge
to the ideal settings.
9
Using Your Gateway Flat-Pan el Monitor
6 To mute the volume of the sounds accompanying button presses, touch the (Menu)
button on the front of your monitor, touch (Main Menu), touch (Advanced), touch
(Audio Feedback), then touch the lower (Adjust) buttons until the volume bar is at
the bottom of the scal e.
7 Use the on-screen display (OSD) to adjust other monitor settings. For more information, see
“Adjusting monitor settings” on page10.
Adjusting monit or set tings
Use the monitor controls (locat ed on the monit or itself) and computer control s (acces sible through
Windows) to adjust the display image. For more information abou t computer controls, see
“Changing Windows screen settings” on page 16.
Using the E zT ouc h menu butt ons
This monitor features an on-screen display (OSD) and EzTouch menu buttons that let you adjust
contrast, brightness, and other settings for the monitor. The monitor saves changes you make to
the settings, even if you turn off the monitor. Your monitor has two levels of menus, and the
functionality of the touch buttons de pends on the menu that is currently open:
• The shortcut menu (the first menu that appears) lets you quickly change some of the most
commonly accessed settings.
• The main menu l ets you precisely adjust a ll levels of settings.
Using the sh ort cut menu
To use the shortcut menu:
1 Touch (Menu) on the front of your monitor. The rest of the button icons light up and the
shortcut menu opens. (T he menu’s appearance and c hoices v ary , depending on the curr ently
active video input and whether the speaker bar is attached.)
Important
The buttons are very sensitive, and may be “pressed” by holding your finger
just above its surface. To completely “release” a to uch button, make sure that you
lift your finger well away from the button.
10
www.gateway.com
2 To use an EzTouch menu button, lightly touch its icon. For adjusting a setting’s values, you
can press and hold touch buttons as you would conve ntional buttons.
Theme Select
Input Select (Mut e wh en opt ional sp eaker bar is connected)
Auto (Input Select when optiona l speaker bar is connected)
PIP On
PIP Settings
Cancel
Main Menu
• To uch the (Theme Select) buttons to cycle through the preset video themes (brightness,
contrast, and temperature configurations):
• User
• Movie
• Game
• Picture
• Web
• Warm
• Cool
• Touch (Input Select) to cycle through the available video sources.
Important
If, after the monitor is turned on, it does not find an active video input, the
monitor enters into standby and the power LED turns orange. To manually switch
inputs, touch (Menu), th en sel e ct the in pu t fro m th e o n- scre en li st.
• Touch (Mute) to mute the optional speaker bar. This option is only available when the
optional speaker bar is connected.
• Touch (Auto) t o au t omati call y ad just your display image to th e ideal s e t tin gs. T his option
is only available when the video inp ut is VGA.
• Touch (PIP On) to turn on Picture -in-Picture, and touch (PIP Settings) to adjust the
PIP position, size, and other advanced PIP settings.
• Touch (Cancel) to exi t th e s ho rtcut me nu.
• Touch (Main Menu) to open the main menu.
• To turn off the button icons and close the menu, wa it about ten seconds without pressing
a bu tton.
11
Using the main menu
To use the main menu:
1 Touch (Menu) on the front of your monitor. The rest of the button icons light up and the
shortcut menu opens.
holding your finger just above its surface. To completely “release” a touch button,
make s ure th a t you li ft yo ur fi ng er we ll away from the bu tton.
press and hold touch buttons as you would conventional buttons.
2 Touch (Main Menu) . The main menu opens.
Using Your Gateway Flat-Pan el Monitor
Important
The EzTouch menu buttons are very sensitive, and may be “pressed” by
Tip
To use a button, light ly touch its icon. For adjusting a setting’ s values, you can
12
Tip
While the OSD is active, on-screen labels appear next to the buttons to help
you identify them.
3 T ouch the (Choose Option) butto ns t o high li ght a se t ti n g, th en touch (Select) to open
the selected menu or setting.
4 Touch the ( Adjust) b utton s to ad jus t th e se ttin g o r ch an ge the optio n.
5 Touch (Back) to ret u rn to a p revio us m e nu.
6 When you have finished making all adjustments, touch (Menu Off) to exit.
OSD Menu Description
www.gateway.com
Main menu
Pictur e menu
PIP Settings menu
Auto—Automatically adjusts your monitor to its optimum settings. (VGA input only)
Picture—Opens the Picture menu, where you can adjust brightness, contrast, and gamma.
PIP Settings—Opens the PIP Settings menu, where you can adjust the source, position, size, and
transparency of the Picture-in-Picture image.
Video a d ju s t —Opens the Video Adjust menu, where you can adjust the RGB (red, green, and blue) values
of the video im age from a source such as composite video, S-Video, or component video.
Geometry—Opens the Geometry menu, where you can adjust image size and minimize distortions. (VGA
input only)
Audio—Opens the Audio menu, where you can adjust volume, bass, treble, 3D audio, audio source, and
audio switching. (Speaker bar must be connected.)
Advanced—Opens the Advanced menu, where you can adjust color balance, change the OSD language,
and display information about current monitor settings.
Reset—Resets the m onitor to its factory setting s for the current ly dis played inpu t.
Brightness—Ad justs the amount of lig ht in the darkest porti on of the picture. Use the lowest brightn ess
setting you are comfortabl e with to maximize the life of the monitor backlights. You may need to readjust
brightness after the mo nitor warms up .
Contrast—Adjusts the level of white between the lightest and darkest portions of an image.
Gamma—Customizes the gamma level. High gamma levels increase white levels and low gamma levels
increase contrast.
PIP Display—Toggles the display of the PIP window.
Source—Sets the source of the video used in the PIP window.
Position—Sets the posi tio n of th e PIP wind ow on th e mai n scree n.
Size—Sets the size of the PIP window.
Transparency—Sets the tra ns parency of the PIP windo w. The PIP window can be from almost transparent
to completely opaque. When the PIP window is transparent, you are able to see through the PIP video
display t o y our W in do w s de skt o p, whic h m ak e s it ea sie r t o acce s s y our c omput e r programs while watchin g
video.
Swap—Switches the PIP image to the main image, and the main image to the PIP image.
PIP Picture—Opens a menu where you can set the PIP brightness, contrast, saturation, and tint/hue.
13
OSD Menu Description
Using Your Gateway Flat-Pan el Monitor
Video Adjust menu
Unless otherwise indicated, these settings apply only to SD (standard definition) video at 480i and below.
Where “PC input” is indicated, the resolutions that apply are from 800× 600 to 1920 × 1200.
Sharpness—Ad justs sha rpness for video images.
Video S cali ng—Sets video aspect ratios and scaling between Wide, Zoom, 1:1, and Panoramic modes.
PCinput: Sets resolution aspect ratios and scaling between Wide, Zoom, and 1:1.
Wide mode stretches a standard broadcast or full-frame image to fill the entire
screen. W i de sc r een (1.7 6:1) images fill the entir e s creen without distort ion, w hile
widescreen (1.85:1 and 2.35:1) images appear without distortion but with black
bars at the top an d bot t om. P Cinput: Stretc hes the image t o f it th e entir e s c re en.
Zoom mo d e crops off a portion of a widescreen image in order to fill the entire
screen with a dis tortio n-free and b lack b ar-free ima ge. PC inpu t: Zooms the
image to fill the screen from top to bottom with black bars on the left and right
sides of the image.
1:1 mode preserves the movie’s original aspect ratio, so a standard broadcast or
full-frame movie appears with black bars on the left and right of the image. PCinput:
Preserv e s t he or iginal aspect ratio of the res oluti on b y u sing blac k bars on t he lef t and
right sides and variable sizes of black bars on the top and bottom of the image
(depends on resolution) .
Pan ora m i c m o de uses selective distortion to stretch a standard broadcast or
full-frame image to fill the entire screen. Unlike Wide mode, Panoramic mode
stretches only the left and right sid es of the image , and leav es the center of the
image distortion free.
Overscan—A video signal is often displayed slightly cut off at all edges. If Overscan is turned off, you may
notice strange video anomalies on the edges of the video being displayed. This is normal and is part of
the data embedded in any video signal. To avoid seeing these anomalies, turn Overscan on.
Noise Reduction—Use s noise reduc tion filters t hat adapt t o the am ount of noise and m otion fr om the v ideo
source.
Film Mode Detection—Detects frame rates of the source image and adapts the frame rate of the display
for ultimate image quality. Bad Edit Detection and Correction corrects incorrectly synchronized video.
Auto Video Enha nce—Enables DCDi, Cross Color Reduction, and MADI for optimized video performance.
■
DCDi by Faroud ja—Directional Correlation De-interlacing reduces jagged edge artifacts on diagonal
lines.
■
Cross Color Reduction—Reduces cross-color artifacts, such as unintentional flashing colors or rainbow
patterns, th at res ult fro m com posite vi deo s igna ls.
■
MADI—Motion-Adaptive De-Interlacing ensures a more static (flicker-free) display image for image
sections not containing moving elements, and ensures smoother edges for moving elements.
Geometry menu
(VGA input only)
14
H Position—Moves the display image left and right. You can also touch Auto to configure the vertical and
horizontal position automatically.
V Position—Moves the display image up anddown. You can also touch Auto to configure the ve rtical and
horizontal position automatically.
Clock—Minimizes any vertical bars or stripes visible on the screen background. The horizontal screen size
will also change.
Phase—Minimizes any horizontal distortion and clears or sharpens the displayed characters.
www.gateway.com
Using Pi cture-in-Pic ture (P IP)
Picture-in-Picture (PIP) is a convenient way to view video from multiple video sources at the same
time. Refer to the following chart to determine which c ombinations of video sources can be used
as a PIP disp lay.
* Only 480i component (Y Pb Pr) video can be used with VGA as a PIP. With this combination, the Swap feature is not available. To
switch to full-screen component video when 480i content is used as a PIP, touch Input on the sidee20.00014(i)-30.c(t)-22.2(c)-b,4 P3 4411423 30.,
15
Using Your Gateway Flat-Pan el Monitor
Changing W indow s sc reen set tings
Adjusting the color depth and screen area ar e two of t he most basic display set ting s you ma y need
to change. You can also adjust settings such as the screen background and screen saver.
Changing color dept h and sc reen re solution
Color depth and screen resolution are two of the most basic monitor settings you may need to
change to suit your needs.
Color depth is the number of colors your computer uses to display images on your monitor. Most
images look best displayed with the maximum number of colors available. If the color in your
images seems “false” or “jump y,” especiall y af t e r y ou ha ve played a game or run a video-intensiv e
program, check the color depth setting and return it to the highest color setting, if necessary.
Screen resol uti on is the number of pixels (individual colored dots) your computer uses to display
images on your monitor. The higher the resolution, the more information and scr e en components
(such as icons and menu bars) can be displayed on the monitor.
Help
For more information about adjusting the screen, click Start, then click Help and
Support. Type adjusting monitor se ttings in the Search Help box, then press E
To change the color depth or screen resolution in Windows Vista®:
1 Click (Start), Control Panel, then under Appearance and Pers onalization , cli ck Adjust
Screen Resolution. The Display Settings dialog box opens.
2 To change the color depth, click the Colors list, then click the color dep th you want.
• Low (8-bit) = 256 colors
• Medium (16-bit) = 65,500 colors
• Highest (32-bit) = 16,700 ,000 colors
3 To change the screen resolution, drag the Resolution slider to the size you prefer.
4 Click Apply. If the new s ettings do not look right, clic k No. If the new settings make the screen
illegible and you cannot click No, the se tti ngs ret urn to thei r previ ous val ue s a fter s evera l
seconds.
5 Click OK, then click Yes to save your cha ng es.
NTER.
16
To change the color depth or screen resolution in Windows XP:
1 Click Start, then click Control Panel. The Contro l Panel opens. If your Control Panel is in
Category View, click Appearance and Themes.
2 Click Display. The Disp lay Prop erties dialog box opens.
3 Click the Settings tab.
4 To change the color depth, click the arrow button to open the Color quality list, then click
the color depth you want.
• Low (8-bit) = 256 colors
• Medium (16-bit) = 65,500 colors
• Highest (32-bit) = 16,700 ,000 colors
5 To change the screen resolution, drag the Screen resolution slider to the size yo u prefer.
6 Click Apply. If the new s ettings do not look right, clic k No. If the new settings make the screen
illegible and you cannot click No, the se tti ngs ret urn to thei r previ ous val ue s a fter s evera l
seconds.
7 Click OK.
EzT une s oftw are
When installed onto your computer, EzTune™ software lets you control many of the monitor
settings from your computer. With EzTune, you can:
For more information, see the program’s CD or the installed program’s online help.
www.gateway.com
• Change the orientation of the image (landscape to portrait) by just rotating the screen
(requires the optional height-adjustable stand available in the U.S. at www.g ateway.com)
• Change brightness, contrast, and color balance
• Change screen geometry
• Set the display position and resolution
Using land scape and por trait modes
EzTune automatically switches the display to the appropriate mode (landscape or portrait) when
you ro tate the scre en . Thi s fe atu re work s o nly with a Wi nd ows c om pat ib le c om pu ter r unn in g
EzTune and using VGA, DVI, or HDMI input ( the OSD itself does not rotate into portra it mode) .
While using po rtrait mod e:
• Full-screen video may display incorrectly or be slow.
• Video games or other full-screen applications may not be fully compatible.
• Some programs are not able to recognize and adapt to your monitor’s portrait mode. If you
experience problems with a progra m while using portrait mode, switch to landscape mode
and restart the program.
17
Using Your Gateway Flat-Pan el Monitor
Using t he speak er bar
Important
If you connect the speaker bar to the monitor while the monitor is turned on, the
speaker bar will not initialize and will not work correctly. If this happens, turn the monitor
off, then back on to enable the speaker bar.
To turn on the speaker bar:
• The speaker bar is alway s on. If you connect ed the speaker bar by f ollow ing the instructions
in “Setting up the optional speak er bar” on page 5, the speaker bar receiv es power constantl y
from the monitor’s speaker bar power connector.
To use headphones :
• Plug headphones into either of the speak er bar’s headphone jacks. The speaker bar’s v olume
is muted, and sound is played through the connected headphones. You can connect
headphones to both headphone jacks, and sound plays out of both sets of headphones.
P ower man agement
Energy declar ation
When connected to a computer that supports the VESA Display Power Management Signaling
(DPMS) Protocol, the monitor can conserve significant energy by reducing power consumption
during periods of non-use. When your computer goes into the energy saving mode, the monitor
will then enter the Active O ff mode (sleep) . In the Active Off mode the Power LED will still show
orange.
Use these convention s and the power can be reduced to the following levels :
VESA State LED Indi cator Power Consumption
On Blue <150W
Standby Orange <2 W
Off Purple <1 W
To “wake” the monitor when it is in Standby/ActiveOff mode, move the mouse or press any
keyboard key. You can change the monitor’s power management settings using the Windows
Control Panel. For more information, see your computer’s User Guide.
Maintaining
To keep the monitor in optimal wo rking order:
• Do not block the ventilation holes.
• Do no t exp ose the mon ito r to rai n o r us e n ea r wa ter.
• Keep th e m on itor away from rad ia tor s o r h ea t ven t s.
• Keep the monitor out of direct sunli ght.
18
Caution
Do not use any type of abrasive pad or glass cleaner. You will permanently
scratch the screen.
• To clean the monitor, use a soft cloth slightly moistene d with water only. Wipe the cabinet,
screen, and controls.
www.gateway.com
Troubleshooting
• If you have problems with the monitor, the information in this chapter may help you solve
them without needing to call Custom er Care.
• Make sure that the monitor has warmed up for about 30 minutes before making any
judgments about the picture quality.
T r oubleshooting sy mptoms
No power
• Make sure that the power cord is connected correctly to both the back of the monitor and
the wall outle t. F or mor e information about connecting t he p ower cord, see “Connecting the
monitor” on page 2.
Important
If the power LED is on, the monitor is receiving p ower.
No picture
• Touch (Menu), then (Input Select) to make sure that you have selected the co rrect
video source.
• Make sure that the power cord is connected correctly to both the back of the monitor and
the wall outle t. F or mor e information about connecting t he p ower cord, see “Connecting the
monitor” on page 2.
• Make s ure tha t th e vi de o ca bl e i s co n necte d se cure ly to the ba ck o f th e m oni tor an d
computer. For more information about connecting the video cable, see “Connecting the
monitor” on page 2.
• Make s ure tha t th e m on ito r i s tu rn ed on .
• Reset th e m on ito r to t he factor y setti ng s. For mo re i nfor ma tio n, see “Advanced menu” on
page 15.
• If the power LED is orange, it means that the monitor is not detec ting a video sour ce or input
detection is disabled. Complete the following steps:
• Move the mouse or press any key on the keyboard to bring the monitor out of sleep
mode.
• Touch (Menu), then touch (Input Select) to choose another input.
• Make sure that yo ur computer is turned on.
• Restart your computer with the monitor turned on.
• Make sure that the video cable is not damaged.
• Check the end of the video cable for any pins that might be bent or p ushed in.
• Reset the OSD. For more information, see “Advanc ed menu” on page 15.
• Turn off the monitor and unplug the video cable from the back of your computer. Turn the
moni tor ba ck o n a nd wai t for ten sec on ds. If th e m oni tor is fun cti on ing co rre ctly, a “No
Signal” message appears. For more information about connecting the video cable, see
“Connecting the monitor” on page 2.
19
Using Your Gateway Flat-Pan el Monitor
Yo u hav e the monitor connect ed t o your not ebook’ s VGA port but see no image on the screen.
• If your notebook supports dual displays, you can use both your notebook’s display and this
monitor in ext ended deskt op multi-monitor mode . See Window s Help t o learn ho w to enable
multiple monitors.
• You c an also use this monitor as your primary monitor and not use the notebook’s screen .
Notebo ok comp uter s ty picall y ha ve an FN k ey co mbination tha t lets y ou toggle between y our
notebook’s display and an externally attached display. On Gateway notebooks, this key
combination is F
user guide for more information.
N+F4. The F4 key is located along the top row of keys. See your notebook
Display colors ar e wrong
• Touch (Menu), (Main Menu), then (Auto) to au tom ati ca lly ad jus t th e d is play
image to the ideal settings. ( VGA input only.)
• Restart your computer with the monitor turned on.
• Make su re that th e vid eo ca ble is co nne cted secu rely to th e b ack of the m o nito r an d yo ur
computer. For more information about connecting the video cable, see “Connecting the
monitor” on page 2.
• Make sure that the video cable is not damaged.
• Check the end of the video cable for any pins that might be bent or p ushed in.
Pic ture has shado ws or “ gho sts”
• Touch (Menu), (Main Menu), then (Auto) to au tom ati ca lly ad jus t th e d is play
image to the ideal settings. ( VGA input only.)
• Remove any extens ion cabl es or switchboxes.
• Make su re that th e vid eo ca ble is co nne cted secu rely to th e b ack of the m o nito r an d yo ur
computer. For more information about connecting the video cable, see “Connecting the
monitor” on page 2.
• Make sure that the video cable is not damaged.
• Check the end of the video cable for any pins that might be bent or p ushed in.
• Make sure that your monit or connection is using the VG A cable that came with your monitor.
20
Speake r bar does not work
I installed the speaker bar, but no sound is coming out of the speakers.
• Make sure that the speaker bar power cord is plugged into the power connector on the back
of your monitor, and that the monitor is plugged into an AC power outlet.
• Make sure th at the speaker bar’s headphone plug (green) is plugged into the headphone
jack on your computer.
• If you are using HDMI audio, you must set your d evice to output audio in PCM mode. See
the user guide that came with your device for more information.
• If you just finished installing and connecting the speaker bar, restart your monitor so that
it can recognize the new speaker bar.
• Make s ure tha t th e v olu me is tu rne d u p.
• Make sure that headphones are not plugged into the headphone jacks on the sides of the
speaker bar. When headphones are connected, no sound comes out of the speaker bar’s
speakers.
• Your h eadphone/speaker jack may have been muted using Windows sound controls. To
check your headphone/speak er mute setti ngs, click the speak er icon in the Windows ta skbar ,
or click (Start), Control Panel, Sounds and Audio Devices, the Volume tab, the n cli ck
Advanced. For optimum volume control using the speaker bar, we recommend that you
set the Windows volume mid-way between the lowest and highest setting.
• Make sure that the audio input and video input match. Touch ( Menu), (Audio), then
(Audio Switching) to m atch t he inp ut s.
www.gateway.com
I want to plug in my headphones, but there is a headphone jack on both sides of the speaker bar. Which should I use?
• You c an use either jack or both jacks at the same time. When headphones are connected,
no sound comes out of the speaker bar’s speakers.
I do not get sound from my headphones.
• Make sure that yo ur speaker bar is connected to an audio source by unplugging your
headphones and adjusting the speaker bar volume.
• After y ou make sur e that your speaker bar can pla y sounds, make sure that y our headphones
are plugged into one of the headphone jacks on the sides of the speaker bar, and not into
the microphon e jack.
The sound comin g from the speakers soun ds distorted.
• Turn down the volume until the distortion disappears.
• Check the audio output vo lume of the sound device the speake r bar is connected to. If the
audio device’s output volume is set too high, the speaker bar’s sound may always be
distorte d. To adjust the audio device’s output volume, see the device’s user guide. To adjust
the volume in Win dows, click the spea ker icon in th e Windows taskba r, or click (Start),
Control Panel, Sounds and Audio Devices, the Volume tab, then click Advanced. For
optimum volume control using the speaker bar, we recommend that you set the Windows
volume mid-way betwee n the lowest and highest setting.
I plugged my microphone into the speaker bar’s microphone jack, but my computer cannot record any sound.
• Make su re th at th e sp eaker bar ’s m icrop ho ne pl ug ( pin k) is co nne cted to the m icrop ho ne
jack on your computer.
• Your mi crophone jack may have been muted usi ng Windows sound controls. To check your
microphone’s mut e settings, c lick the speak er icon in the Window s taskbar , or c lick (Start),
Control Panel, Sounds and Audio Devices, the Volume tab, then click Advanced.
21
FAQs
General
Using Your Gateway Flat-Pan el Monitor
This section contains answers to frequently asked questions.
What is DCDi® by Faroudja?
DCDi® by F aroudja is a vi deo mode algorithm t hat stands f or Direct ional Corr elation De-Inter lacing.
It was initially designed for fast-action video-based material. Its general purpose is to reduce
jagged edges along diagonal lines caused by interpolation. Utilizing this algorithm, DCDi does not
simply weave together two fields of video that match. DCDi creates new information through
interpolation which “smoot hs” t he diagonal edges. DCDi constantly monitors edge transitions and
fills in a ny of the gaps tha t need smoo thing.
I have the monitor connected to my notebook’s VGA port and I see no image on the screen.
You have two options:
• If your notebook supports dual displays, you can use both your notebook’s display and this
monitor in ext ended deskt op multi-monitor mode . See Window s Help t o learn ho w to enable
multiple monitors.
• You c an also use this monitor as your primary monitor and not use the notebook’s screen .
Notebook computers typically ha ve an F
notebook’s display and an externally attached display. On Gateway notebooks, this key
combination is FN+F4. The F4 key is located along the top row of keys. See your notebook
user guide for more information.
N key comb ination that le ts you t oggle betw een your
How T o
Setup
Why does the image looks stretched or fuzzy when I connect the monitor to my computer?
• You must ad just th e op era ti ng system ’s d isp lay setti ng s to m atch the mo ni tor ’s o pt ima l
(native) 1920× 1200 setting. For information on adjusting settings in Windows XP, see
“Changing color depth and screen resolution” on page16.
I do not see 1920 × 1200 available in the Windows display control panel.
• Make sure th at your video card c an display at 1920 × 1200 resolution.
• This may be caus ed by older video drivers on your computer. See the Gateway support Web
site (support.gateway.com
directly t o y our v ideo card’ s support W eb sit e f or the mo st up-t o-date v ideo driv ers. The W eb
sites for the major video card manufacturers are :
ATI®: http://www.ati.com
Intel®: http://www.intel.com
Nvidia®: http://www.nvidia.com
When I connect the monitor’s USB hub to my computer, I see an error message saying that my USB hub may not be ru nning at full speed.
• This can happen if you connected the monitor’s high-speed USB 2.0 hub to a low-speed USB
1.1 hub or a USB 1.1 port on your computer. To use the monitor’s high-speed USB 2.0
capabilities, you must connect the monitor to a USB 2.0 port on your computer.
) for updated video drive rs for your computer. You can also go
22
Technical
www.gateway.com
When I run my games, I do not see support for widescreen displays. What can I do?
• New er game s are adding support f or wi desc ree n displa y s as t he w ides cre en f orma t become s
more popular. Check the game’s Web site for updates. You can also consult the following
Web site for specific settings and options to configure older games to support widescreen:
http://www.widescreengamingforum.com
Some adjustments may require you to make changes to the Windows System Registry. We
recommend making a comp lete system backup before changing the System Registry.
Why do I see “noise” or “trash” on th e screen?
.
• When your display ’s digital capabilities exceed a digital broadcast signal, the signal is
increased (up-converted) to match the display capabilities. Up-converting can cause “noise”
or “trash.” The signal on DVI-D is HDCP encoded. Stop and restart the source to allow
renegotiation.
What is HDCP and how do I troubleshoot it?
• High-bandwidt h Di gita l C ont e nt Pr otection (HDCP) is a specif ication d e veloped by the Intel®
Corporation t o pr otec t digit al enter tainment cont ent that u se s a digital v isual int er f ace (D VI).
HDCP encrypts the transmission of digital content (signal) between the video source
(computer , DVD pla yer, or set-top box) and t he digital display (monitor , digital t elev ision/DT V ,
or projector). HDCP is not designed to prevent copying or recording of digital content, but
only to pr otect the in teg rit y o f th e c onte nt as tran sm itte d.
Video/Display
How does HDCP work?
• Implementation of HDCP requires a license obtainable from the Digital Content Protection,
LLC, which then issues a set of unique secret device keys to all authorized devices. During
authentication, the receiving device only accepts content after it acknowledges the keys. To
further prevent stealing of the data or line tapping, the transmitter and receiver generate
a shared se cret value tha t is co nstan tly checked throu ghout the trans missio n. After
authentication is established, the transmitter encrypts the data and sends it to the receiver
for de cr y pt io n .
What happens if I lose signal to the display while watching a movie on a HDCP-equipped component?
• The component must be restarted to establish renegotiation.
For example, while watching a movie on a HDCP-enabled DVD player, you change the
receiving device (DTV, monitor, or projector) input to watch broadcast TV, then change the
input back to watch the DVD movie. However, you are unable to watch the movie. This is
because when the input was changed, the receiver lost the HDCP signal. Restart the
HDCP-enabled DVD player to allow renegotiation.
What is the cause if a movie starts and then slowly fades to static?
• The receiving device is not HDCP compatible or it is not negotiating correctly. Restart th e
video source and re-plug all video cables from the source to the TV.
How do I know if a component is HDCP compliant?
• If the video sour ce device does not have a DVI or HDMI connection, it is not HDCP compliant.
When I display video from composite, or component, why does the video look overly compressed?
• See your video device user manual to adjust the video or TV format output to 16:9. Setting
this option to 4:3 results in compressed video. This is done differently on all brands of video
devices, so it is important that y ou r ead your v ideo de vice u ser guide or the help t ools wit hin
your video devi ce’s software.
23
I see black bars on left and right of the v ideo. Can I stret ch the video to fit more of the screen?
• Touch (Menu), (Vi deo Ad just ), then (Video Scaling) to fill more of the screen.
Choose Wide, Zoom, or Panoramic modes.
Why when I try t o use P icture in Pi cture (P IP) co mponent vid eo at 480p, 7 20p, or 1 080i, eithe r no video is displayed or I see corrupted video?
• This is a normal operation of the monitor. If you want to view component video in PIP, adjust
the video output of your exte rnal device to 480i.
Can I connect my game console to this monitor?
• Y e s. U sing optional video cables y ou can connect your game console direc tl y to t he monitor.
If your game console supports HDMI or Component (YPbPr), this results in the best picture
quality.
Specif ications
Specificatio ns are subject to change without notice or obligation. Many products for Gateway and
its subsidiaries are custom engineered by our suppliers to Gateway specifications and may vary
from similarly marketed products.
Using Your Gateway Flat-Pan el Monitor
Panel size
Pane l t yp e
Pixel resolution
Pixel pitc h
Aspect ratio
Brightness
Cont rast rat io
Viewing angles
Response time
Frequency
Lamp type/life
Colors
Color gamut
OSD languages
24 inches (diagonal)
24-inch viewable
TFT active matrix TN
Glare
1920 × 1200 (native) (60Hz)
0.0106 × 0.0106 inches (0.270 mm × 0.270 mm)
16:10
400 cd/m
2
1000:1 (typical)
160 ° h o r iz o n t a l , 16 0 ° ve r t i c a l
UltraResponse Enabled: 3 ms (average)
UltraResponse Disabled: 5 ms (typical)
Horizontal: 74 KHz
Vert i c al : 60 Hz
30,000 hours (minimum)
16.7 million
92%
English, French, Spanish, Italian, Japanese
24
Connections and inputs
■
Analog (VGA) : 15-pin mini d-sub VGA
■
Digital (DVI-D): 24-pin DVD-D (supports 480i, 480p, 720p, 1080i, and
1080p). Includes HDCP (High-bandwidth Digital Content Protection)
■
Comp os ite vid e o
■
S-Video
■
Component Y Pb Pr (supports 480i, 480p, 720p, 1080i, and 1080p)
■
HDMI (supports 480i, 480p, 720p, 1080i, and 1080p)
■
AC power input
■
USB 2.0 B-type (input)
■
USB 2.0 A-type (output ×4)
■
12V/2A speaker bar power output
www.gateway.com
Included cables
Power consumption
Power in pu t
Certifications
Wall mo un t br ac ket
Weight
Dimensions
Temperature
Humidity
Altitude
15-pin mini d-sub analog VGA
DVI c ab le
USB A -B
Power
Normal operation: <150 W
Standby mode: <2W
Off: <1 W
100~240 VAC, 50/60 Hz (built-in power supply)
UL, cUL, FCC Class B, CE, PSE, NOM, VCCI
VESA 4 3.937 in ches (4 100mm)
Net weight (with stand): 17.20 lbs. (7.8 kg)
With stand and optional speaker bar: 19.84lbs (9.0kg)
Stand at lowest p osition: 22.48 × 17.36 × 9.92 inches
(571 × 441 × 252 mm)
Stand at hi ghest posit ion: 22.48 × 22.48 × 9.92 inches
(571 × 571 × 252 mm)
Operating: 41~95°F (5~35°C)
Storage: -4~140°F (-20~60°C)
Operating: 45~85% (non-condensing)
Storage: 5~90% (non-condensing)
Operating: 12,000 feet (3,658 m)
Storage: 40,000 feet (12,192 m)
Security
Kensington lock slot
25
Video mo des
Using Your Gateway Flat-Pan el Monitor
Your monitor supports several video modes. If you do not use the best mode for the monitor, the
display image may look s lightly “ fuzzy.”
Mode Resolution Horizontal
freq uen cy ( kHz )
1 720 × 400 31.469 70 N
2 640 × 480 31.469 60 Y
3 640 × 480 37.9 72 N
4 640 × 480 37.5 75 N
5 800 × 600 35.1 56 N
6 800 × 600 37.879 60 Y
7 800 × 600 48.1 72 N
8 800 × 600 46.875 75 N
9 1024 × 768 48.363 60 Y
10 1024 × 76 8 56. 5 70 N
11 1024 × 768 60.123 75 N
12 1152 × 86 4 67.5 75 N
13 1280 × 1024 64 60 Y
14 1280 × 1024 80 75 N
Vertical
frequency (Hz)
Available in DVI
mode
15 1400 × 1050 65.317 60 Y
16 140 0 × 1050 82.278 75 N
17 1440 × 900 55.935 60 Y
18 1440 × 9 00 70.635 75 N
19 1680 × 1050 65.29 60 Y
20 1680 × 1050 74.9 75 N
21 1920 × 1200 74 60 Y
22 1920 × 1200 74.6 60 N
26
Saf ety , Regulat ory , and
Legal Notices
• Important saf ety inf ormation
• Envir onmental inf ormation
• Regulatory compliance statements
• Notices
27
Safety, Regulatory, and Legal Notices
Important saf ety inf ormation
Warning
Alway s follow these instructions to help guard against personal injury and da mage t o you r Gat e w a y product.
Warning
Do not use Gat e w ay products in area s c la s sif ied a s ha za r dou s l ocati ons. Suc h ar ea s include patient care areas
of medical and dental facilities, oxygen-laden environments, or industrial facilities.
Your Gate wa y product is designed and tested t o meet the latest standards for safety of information technology equipment. However,
to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are
followed.
Setting up your syst em
■
Read and follow all instructions marked on the pr oduct and in the documentation before y ou operate your sy st em. Retain all saf ety
and operating instructions for future use.
■
Do not us e th is pr odu ct ne ar w at er o r a heat sou rce suc h as a ra diat or.
■
Set up the system on a stable work surfa ce.
■
The product should only be operated from the type of power source indicated on the rating label.
■
If your product has a voltage select or swit ch, mak e sure that the sw itc h is in the proper position for y our area. The voltage selector
switch is set at the factory to the correct voltage.
■
Openings in the monitor case are provided f or ventilation. Do not block or cover t hese openings. Make sure y ou prov ide adequate
space, at least 6 inches (15cm), around the system for ventilation when you set up your work area. Nev er insert objects of any kind
into the monitor ventilation openings.
■
Some products are equipped with a three-wire power cord to make sure that the product is properly grounded when in use. The
plug on this cord will only fit into a grounding-type outlet. This is a saf ety f eature. If y ou are unable to insert t he plug into an outlet,
contact an elec tric ia n to instal l t he appr opr iat e out let.
■
If you use an extension cord with this system, make sure that the total ampere rating on the products plugged into the extension
cord does not exceed the extension cord ampere rating.
Care during use
Warning
To pr e v ent elec tric shoc k, ne ver r emo v e the cov er. No user serviceable pa rts insid e. Ref er se rvic ing t o qu alified
service personnel.
■
Do not walk on the power cord or allow anything to rest on it.
■
Do not spill anything on the system. Th e best wa y to av oid spills is to a v oid eating and drinking near your system.
■
Do not ex pos e t he mon it or t o r ain or us e ne ar w at er. If the monit or d oes g et exp os ed t o moi stur e , un plug it and allo w it t o dry for
24 hours. Call Gateway Customer Care for advice on whether the monitor is safe to turn back on.
■
When the monitor is turned off, a small amount of electrical curr ent still flow s through the monitor. To avoid electrica l shock,
always unplug all power cables and modem cables from the wall outlets before cleaning the system.
■
Unplug the system fr om the wall outlet and ref er servic ing to qualified personnel if:
■
The power cord or plug is damaged.
■
Liquid has been spilled into the system.
■
The system does not operate pr operly when the operating instructions are follo wed.
■
The system wa s dropped or the cabinet is damaged.
■
The system perf ormance changes.
Replacement parts and accessories
Use only replacement parts and accessories recommended by Gateway.
28
www.gateway.com
Env ironmental inf ormation
Recycling
Mercury Warning
Lamp(s) inside this product contain mercury and must be recycled or disposed of according to local, state,
or federal laws.
Hg
The product you have purchased contains extract ed natural resources t hat have been used in the manufacturing process. This product
may contain substances known to be hazardous to the environment or to human health.
To pre vent release s of harmful substances into the environment and to maximize the use of our natural resources, Gate wa y provides
the following information on how you can responsibly recycle or reu se most of the materials in your “end of lif e” product.
Waste Electrical and Electronic Equipment (commonly known as WEEE) should never be disposed of in the municipal waste
stream (residential garbage collection). The “Crossed-Out Waste Bin” label affix ed to this pr oduct is y our reminder to
dispose of your “end of life” product properl y .
Substances such as glass, plastics, and certain chemical compounds are highly recoverable , recy clable, and reus able. You
can do y our p art f or t he e nv i ronm ent b y following t he se si mple st ep s:
■
When your electrical or electronic equipment is no longer useful to you, “take it back ” to your local or regional w ast e collection
administration for recycling.
■
In some cases, your “end of life” pr oduct may be “traded in” for cr edit towa rds the purchase of ne w Gatewa y equipment. Call
Gateway t o see if this pr ogram is a vailable in your ar ea.
■
If you need further assistance in recycling, reusing, or trading in your “end of life” product, you may contact us at the Customer
Care number listed in your product’s us er guide and we will be glad to help you with y our eff ort.
Finally, we suggest that you practice other environmentally friendl y actions by understanding and using the energy-saving features of
this product (where applicable), recycling the inner and outer packaging (including shipping containers) this product was delivered in,
and by dispos ing of or recy c ling u sed ba tt erie s pr operl y .
With your help, we can reduce the amount of natural resources needed to produce electrical and electronic equipment, minimize the
use of landfills for the disposal of “end of life” products, and generally improv e our quality of life by ensuring that potentially
hazardous substances are not released into the en vironment and are disposed of properly .
For additional recycling inf ormation specific t o your area, pleas e go to www.gateway.com/recycle
.
EP A ENERG Y STAR
press the power button to “wak e” it up.
For more information about the power management features of your Gateway deskt op computer , see “Changing power -sa ving
settings” in the online User Guide.
For more information about the power management features of your Gatew ay notebook, see “Managing Po wer” in the online
Reference Guide.
®
As an ENERGY STAR Partner, Gateway has determined that this product meets or exceeds the ENERGY STAR 4.0
performance guidelines for computer energy efficiency and power management.
ENERGY ST AR P ower Management (standard in the Windows operating sy stem) places inac tiv e components (CPU,
hard drives, and other components except memory) into a low-power Sleep mode. Sleep mode uses less energy to
run your computer, sa ves on y our energy costs, and helps protect the envir onment by reducing greenhouse gas
emissions.
Your computer was shipped with Sleep mode enabled. While your computer is in Sleep mode, the power indicator
flashes. To u se your computer aft er it has entered Sleep mode, move the mouse , pres s a ke y on the ke yboard, or
Help
For more information about Sleep mode in Windows Vista, click Start, then
click Help and Support. Type sleep in the Search Help box, then press E
NTER.
29
Safety, Regulatory, and Legal Notices
Re gulatory compliance statements
United State s of America
Federal Communications Commission (FCC) Unint entional emitter per FCC Part15
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. The se
limits are designed to provide rea sonable protec tion against harmful interfer ence in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may caus e
harmful interference to r adio or telev ision reception. Howe ver, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause interference t o radio and tele vision reception, which can be det ermined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the f ollowing measures:
■
Reorient or relocate the r eceiv ing ante nna
■
Increase the separation between the equipment and receiver
■
Connect the equipment to an outlet on a different circuit f rom that to w hich the recei ver is connect ed
■
Consult the dealer or an experienced radio/TV technician for help.
Compliance Accessories: The accessories a ssocia ted with t his equipment are: shielded video cable. These accessories ar e required t o
be used in order to ensure compliance with FCC rules.
FCC declar ation of conf ormity
Responsible party:
Gateway, Inc.
7565 Irvine Center Drive
Irvine, CA 9261 8USA
This device complies with Part15 of the FCC Rules. Operation of this de vice is subject t o the f ollowing two conditions: ( 1 ) this dev ice
may not caus e harmfu l inter fe rence , and (2) t his de vice mu st accept an y interf erence recei ved, including inter ference that ma y cause
undesired operation.
Canada
Caution
Changes or m odifi cations not e xpressly approved by Gateway could void the FCC com plianc e and negate
your authority to operate the pro duct.
California Proposition65 w arning
This product contains chemicals known to the State of California to cause cancer, birth defects, and/or other
reproductive harm. For additional information regarding this product warning, go to
www.gateway.com/prop65
.
Industry Canada (IC) Unintentional emitter per ICES-003
This digital apparatus does not exceed the Clas sB limits for radio noise emissions from digital apparatus as set out in the radio
interference regulations of Industry Canada.
Le pré se nt appa re il numé riqu e n’é met pa s de br uits radi oé lec tri que s dé pa ssa nt le s l imit es appl icabl es a ux appar ei ls nu mér iqu es de
ClasseB prescrites dans le règlement sur le brouillage radioélectrique édicté par Industrie Canada.
30
Notices
© 2007 Gate wa y , Inc.
All rights reserved.
Gateway, Inc.
7565 Irvine Center Drive
Irvine, CA 92618 U SA
All Rights Reserved
This publication is protected b y copyr ight and all rights are reserved. No part of it may be r eproduced or transmitte d by any means or
in any form, without prior consent in wr iting from Gat ew ay .
The information in this manual has been carefully check ed and is believ ed to be accu rate . Howe ver, changes are made periodically.
These changes are incorporated in new er publication editions. Gatewa y may impro ve and/ or change products des cribed in this
publication at any time. Due to continuing system impro vements, Gate way is not re sponsible for inaccur ate inf ormation which may
appear in this manual. For the latest product updates, consult the Gateway Web site at www.gateway.com. In no event will Gateway
be liable for direct, indirec t, special, exemplary , inc idental, or consequential damages resulting from any defec t or omission in this
manual, even if advised of t he possibility of such damages.
In the interest of continued product development, Gateway reserv es the right to make impro vements in this manual and the products
it describes at an y time, wit hout notices or obligation.
T rademark acknow ledgments
Gatew a y and eM achin es are tr adema rks or r egist er ed tr ademark s of Gat e w ay, Inc. in the Unit ed St ate s and other countr ies. All o ther
brands and product names are trademarks or registered trademarks of their respective companies.
www.gateway.com
31
Safety, Regulatory, and Legal Notices
32
MAN FHD2400 USR GDE R0 8/07
Loading...
