Durametallic® MW-200 Series
Liquid Lubricated Dual Cartridge
Canister Seal for Mixers and Agitators
Installation
Instructions
Experience In Motion
Page 2
1 Equipment Check
1.1 Follow plant safety regulations prior to equipment disassembly:
• Consult the plant Material Safety Data Sheet (MSDS) les for
hazardous material regulation.
• Wear designated personal safety equipment.
• Lock out the mixer or agitator motor and valves to and from
the vessel.
• Relieve any pressure in the vessel.
• Use plant vessel entry procedures if it is necessary to enter
the vessel.
1.2 Secure the mixer or agitator shaft in accordance with the mixer
or agitator manufacturer’s instructions.
1.3 Remove the coupling and/or drive to access the seal area.
Follow the manufacturer’s instructions.
1.4 Remove the existing seal assembly.
1.5 Remove all burrs and sharp edges from the shaft and vessel
ange area. The shaft and vessel ange must be free of burrs,
sharp edges, cuts, dents, or corrosion that might cause leakage
past the sleeve packing O-rings and the gland gasket O-ring.
1.6 Check requirements for the shaft and the vessel ange.
They must agree with the dimensions shown in Figure 1.
1.7 Check the assembly drawing accompanying the seal assembly
for specic seal design data, materials of construction, dimensions,
and recommended piping connections.
1.8 Check the shaft OD, vessel ange bolt size, bolt circle, and
distance to the coupling or drive to ensure that these dimensions
agree with the seal assembly drawing provided.
1.9 Handle the seal assembly with care, it is manufactured to precise
tolerances. The sealing faces of the rotating face and the stationary
faces are of special importance. These sealing faces are lapped to
rigid specications required for liquid lubricated seals. If it becomes
necessary to disassemble the seal, keep these sealing faces
clean and dry at all times and protect them from damage
since they are subject to impact fracture.
The images of parts shown in these instructions may differ visually from the actual
parts due to manufacturing processes that do not affect the part function or quality.
2
Page 3
1.10 Pressure testing of this cartridge canister dual seal prior to
installation is possible using ltered dry nitrogen or instrument air.
Consult Flowserve, Flow Solutions for acceptable gas leakage
rates for this seal design.
Caution: Bench test pressure is 3.5 bar (50 psi) maximum.
Mixer/Agitator Shaft and Flange Requirements Figure 1
To rst obstruction
(See assembly drawing)
Shaft OD to be +0.025 mm
(+0.001 inch) -0.025 mm
(-0.001 inch) with a surface
Face of vessel ange to
be square to the axis of
the shaft to within 0.25 mm
(0.010 inch) FIM and have
a √ 1.6 µm (63 µinch) Ra
nish or better
nish of √ 0.8 µm (32 µinch)
Ra or better
• Bearings, drive, and coupling must be in good condition
• Maximum vertical shaft movement (axial end play) = 0.61 mm (0.024 inch) FIM
• Maximum static vessel ange out of concentricity = 0.50 mm (0.020 inch) FIM
• Maximum static vessel ange to shaft out of squareness = 0.25 mm (0.010 inch) FIM
• Maximum dynamic shaft deection = 3 mm (0.125 inch) FIM
The MW-200 Seal design may include an optional radial bearing in
the canister to protect the seal from excessive shaft runout or whip.
3
Page 4
2 MW-200 Seal Installation
Tools needed:
Tools provided:
• Lubricant for O-rings and equipment shaft OD.
Tools not provided:
• Wrenches to secure housing nuts or bolts
• Allen wrenches for housing cap screws
• Allen wrenches for setting devices and set screws
2.1 Install the seal adapter plate on the vessel ange if required.
2.2 Lightly lubricate the equipment shaft along the entire length the
gasket O-rings will contact the shaft. Use the lubricant provided if it
is compatible with the process uid.
2.3 Secure the vessel ange O-ring in the gasket O-ring groove using
the lubricant provided if it is compatible with the process uid.
2.4 Install the MW-200 seal onto the equipment shaft with the end
containing the setting devices toward the equipment drive end and
position the seal assembly onto the vessel ange. Use the lifting
eyes supplied to gently lower the canister assembly onto the
adapter plate. Do not bolt the canister seal assembly to the adapter
plate or vessel ange at this time. Care should be exercised when
passing the seal sleeve incorporating the sleeve packing O-rings
over any keyways or threads that may be present. Any steps or
shoulders on the equipment shaft should be beveled to prevent
damage (pinching and cutting) of these sleeve gasket O-rings
during installation.
2.5 Position the canister seal assembly so that the liquid barrier ports
and any optional bearing lubrication ttings are easily accessible.
4
Page 5
2.6 Reinstall the shaft coupling and/or drive. Remove any shaft
holding or restraining clamps and complete adjustments so that
the shaft is in its nal operating position.
2.7 Install and tighten the vessel ange studs or cap screws to
secure the canister seal assembly to the vessel ange or adapter
plate. Do not over tighten.
2.8 Tighten the set screws in the sleeve drive collar uniformly with an
Allen wrench.
2.9 Remove the setting devices. Save the setting devices and
attachment hardware for future use.
3 Liquid Barrier Supply
The MW-200 Seal design is engineered to operate with a liquid
barrier uid supplied to the seal chamber at a consistent pressure
2 bar (25 psig) above the maximum vessel pressure. Cooling water
may be required to cool the seal chamber. The liquid barrier uid must
be compatible with the process uid. The liquid barrier uid to be used,
maximum vessel pressure, shaft speed, temperature, equipment, and
shaft size must be specied when the seal is ordered. Do not attempt
to use this seal under other conditions without consulting Flowserve.
4 MW-200 Seal Piping
4.1 Install piping for the liquid barrier uid to the canister taps.
A supply tank with a pressure source and pressure gauge are
recommended. Install cooling water piping to the canister cooling
coils if required. See Figure 2.
4.2 Bearings (optional) have been pre-lubricated during seal assembly.
5
Page 6

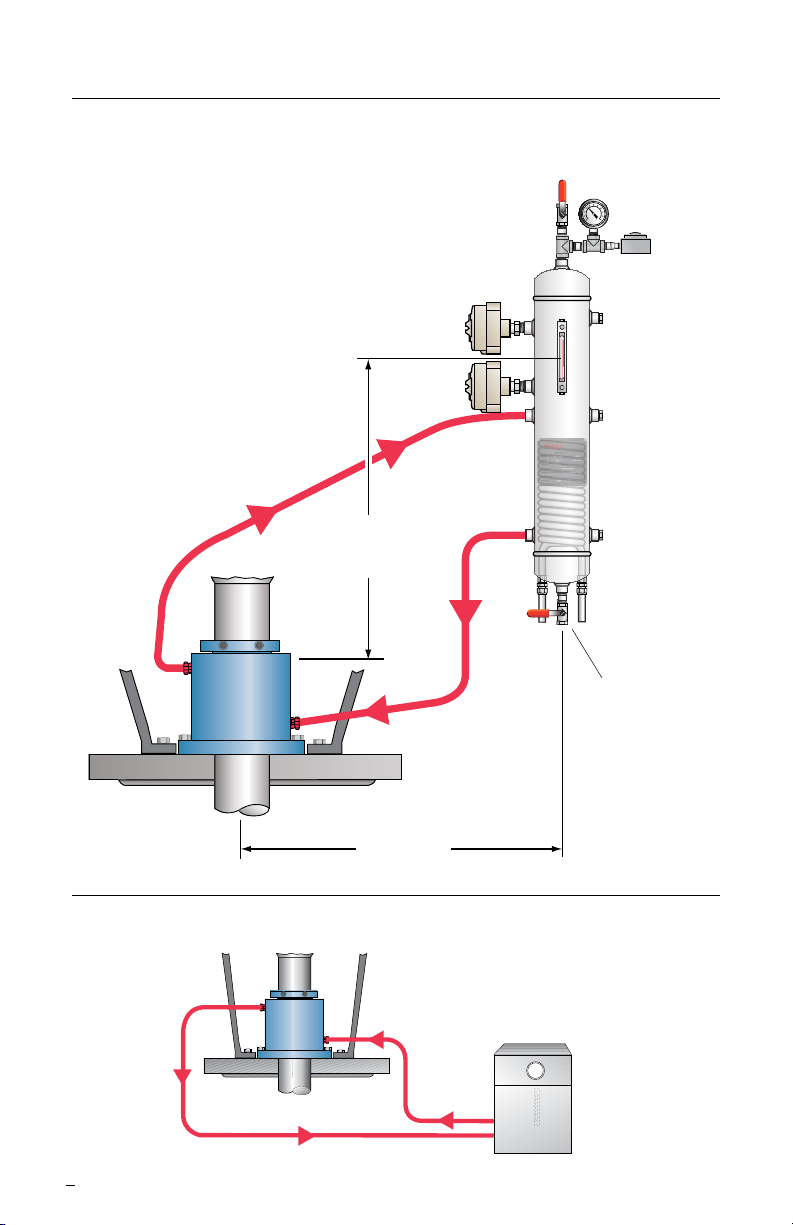

Recommended Piping for Dual Liquid Lubricated Seals
Plan 53A - Induced Circulation (high shaft speeds)
Pressure
Source
Pressure
Indicator
Figure 2
Barrier
Outlet
Seal Support Reservoir
with Cooling Coil Option
Level
Switch
(high)
Level
Switch
(low)
0.91 m (3 ft.)
normal liquid
level
Barrier
Inlet
Pressure
Switch
Fill Connection
Cooling In
Cooling
Out
Drain
Plan 54 - Forced Circulation
Buffer
Outlet
6
1.2 m (4 ft.)
max
Buffer Inlet
Circulator
Page 7
5 Seal Operation
To assure reliable operation of this sealing product, the following
operating guidelines should be observed.
5.1 Maintain the liquid barrier uid pressure both while the seal is
operating and when the equipment is on standby.
5.2 Do not exceed the maximum barrier pressure specied for the
seal design. The barrier pressure should be 2 bar (25 psig) above
the operating vessel pressure.
5.3 Do not exceed the maximum vessel pressure specied for the
application. This could reduce the recommended vessel to barrier
differential pressure which could adversely affect seal performance.
5.4 Do not exceed the maximum vessel temperature specied for
the application. This could exceed the temperature limits of the seal
materials of construction applied to the application.
5.5 Do not exceed the seal material corrosion limits. This seal was
designed for the application shown on the seal assembly drawing.
Do not exceed the limits of the material alloys and elastomers
supplied in its construction.
For any problems encountered during installation and/or operation of
this product, contact your nearest Flowserve Sales and Service
Representative or Authorized Distributor.
6 Repair
This product is a precision sealing device. The design and dimension
tolerances are critical to seal performance. Only parts supplied by
Flowserve should be used to repair a seal. To order replacement parts,
refer to the part code and B/M number. A spare backup seal should be
stocked to reduce repair time.
When seals are returned to Flowserve for repair, decontaminate the
seal assembly and include an order marked "Repair or Replace." A
signed certicate of decontamination must be attached. A Material
Safety Data Sheet (MSDS) must be enclosed for any product that
came in contact with the seal. The seal assembly will be inspected and,
if repairable, it will be rebuilt, tested, and returned.
7
Page 8
TO REORDER REFER TO
B/M #
F.O
.
FIS102eng REV 05/13 Printed in USA
