SpeedTouch™546

Residential ADSL Gateway

User’s Guide

Release R5.3.1

SpeedTouch™

546

User’s Guide

R5.3.1

Passing on, and copying of this document, use and communication of its contents is not permitted without written authorization from THOMSON. The content of this document is furnished for informational use only, may be subject to change without notice, and should not be construed as a commitment by THOMSON. THOMSON assumes no responsibility or liability for any errors or inaccuracies that may appear in this document.

Thomson Telecom Belgium Prins Boudewijnlaan, 47 B-2650 Edegem Belgium

www.speedtouch.com

Trademarks

The following trademarks are used in this document:

 SpeedTouch™ is a trademark of THOMSON.  Microsoft®, MS-DOS®, Windows® and Windows NT® are either registered trademarks or trademarks of Microsoft Corpora-

tion in the United States and/or other countries.

 UNIX® is a registered trademark of UNIX System Laboratories, Incorporated.  Apple® and Mac OS® are registered trademarks of Apple Computer, Incorporated, registered in the United States and other

countries.

 Adobe, the Adobe logo, Acrobat and Acrobat Reader are trademarks or registered trademarks of Adobe Systems, Incorpo-

rated, registered in the United States and/or other countries.

 Netscape® and Netscape Navigator® are registered trademarks of Netscape Communications Corporation.  Ethernet™ is a trademark of Xerox Corporation.  UPnP™ is a certification mark of the UPnP™ Implementers Corporation.  Wi-Fi® and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. "Wi-Fi CERTIFIED", "Wi-Fi ZONE", "Wi-Fi Alli-

ance", their respective logos and "Wi-Fi Protected Access" are trademarks of the Wi-Fi Alliance.

Other products may be trademarks or registered trademarks of their respective manufacturers.

Document Information

Status: v1.0 (May 2005) Reference: E-DOC-CTC-20050429-0100 Short Title: User’s Guide ST546 R5.3.1

Contents

About this User’s Guide .............................................. 1

1 Your SpeedTouch™ ...................................................... 3

1.1 SpeedTouch™ Features .................................................................. 4

1.1.1 Hardware Specifications.................................................................................. 5

1.1.2 Software Features .......................................................................................... 6

1.2 SpeedTouch™ LED Behaviour ........................................................ 8

1.3 How to Access your SpeedTouch™................................................ 9

1.3.1 Access via the Web Interface......................................................................... 10

1.3.2 Access via CLI ............................................................................................. 11

1.3.3 Access via FTP ............................................................................................ 13

1.3.4 Remote Assistance ....................................................................................... 16

2 Local Network Setup .................................................. 17

3 Internet Connectivity Dial-In Clients ......................... 19

3.1 SpeedTouch™ Web Pages ............................................................ 21

3.2 IGD Control Agent ....................................................................... 23

3.3 MS Windows XP BroadBand Connection ..................................... 25

E-DOC-CTC-20050429-0100 v1.0

3.4 Mac OS X PPPoE Dial-in Client .................................................... 29

4 SpeedTouch™ Web Interface .................................... 31

Contents

4.1 Navigation .................................................................................... 32

4.1.1 Menu .......................................................................................................... 33

4.1.2 Language Bar............................................................................................... 34

4.1.3 Navigation Bar ............................................................................................. 35

4.1.4 Notification Area .......................................................................................... 36

4.1.5 Tasks.......................................................................................................... 37

4.2 Home ............................................................................................ 38

4.3 SpeedTouch ................................................................................. 39

4.3.1 Information.................................................................................................. 40

4.3.2 SpeedTouch™ Easy Setup .............................................................................. 41

4.3.3 Restart........................................................................................................ 42

4.3.4 Configuration ............................................................................................... 43

4.3.5 Backup & Restore......................................................................................... 44

4.3.6 Reset to Factory Defaults .............................................................................. 45

4.3.7 Event Logs .................................................................................................. 46

4.3.8 Update........................................................................................................ 47

4.4 Broadband Connection................................................................. 48

4.4.1 Connectivity Check....................................................................................... 49

4.4.2 DSL Connection ........................................................................................... 50

4.4.3 Internet Services .......................................................................................... 51

4.4.4 Internet Service Settings ............................................................................... 52

4.5 Toolbox ........................................................................................ 53

4.5.1 Remote Assistance ....................................................................................... 54

4.5.2 Game & Application Sharing .......................................................................... 55

4.5.3 Defined Games & Applications ....................................................................... 56

4.5.4 Game or Application Definition....................................................................... 57

4.5.5 New Game or Application.............................................................................. 58

4.5.6 Parental Control ........................................................................................... 59

4.5.7 Web Filtering Activation ................................................................................ 62

4.5.8 Content Level .............................................................................................. 63

4.5.9 New Content Level ....................................................................................... 64

4.5.10 Firewall ....................................................................................................... 66

4.5.11 Intrusion Detection ....................................................................................... 67

4.5.12 Dynamic DNS .............................................................................................. 68

4.5.13 User Management ........................................................................................ 69

4.5.14 Edit User ..................................................................................................... 70

4.5.15 Change Default User..................................................................................... 71

4.5.16 Add User..................................................................................................... 72

E-DOC-CTC-20050429-0100 v1.0

Contents

4.6 Home Network ............................................................................. 73

4.6.1 Devices....................................................................................................... 74

4.6.2 Device Settings............................................................................................ 75

4.6.3 Assign Public IP ........................................................................................... 76

4.6.4 Interfaces .................................................................................................... 77

4.6.5 Interface Settings ......................................................................................... 78

4.6.6 DHCP Pool................................................................................................... 79

5 Software Upgrade....................................................... 81

5.1 Upgrade Wizard on Setup CD....................................................... 82

6 Troubleshooting.......................................................... 85

6.1 General SpeedTouch™ Troubleshooting ...................................... 86

6.1.1 Ethernet Troubleshooting............................................................................... 87

6.1.2 Upgrade Troubleshooting............................................................................... 88

6.2 UPnP™ on Windows XP Systems................................................. 89

6.3 Reset to Factory Defaults ............................................................ 91

E-DOC-CTC-20050429-0100 v1.0

iii

Contents

E-DOC-CTC-20050429-0100 v1.0

Used Symbols

About this User’s Guide

A note provides additional information about a topic.

A tip provides an alternative method or shortcut to perform an action.

A caution warns you about potential problems or specific precautions that

need to be taken.

About this User’s Guide

Terminology

Typographical

Conventions

Documentation and

software updates

Generally, the SpeedTouch™546(i) will be referred to as SpeedTouch™ in this User’s Guide.

In interactive input and output, typed input is displayed in a bold font and commands are displayed

Comments are added in italics.

Example:

=>language list CODE LANGUAGE VERSION FILENAME en* english 4.2.0.1 <system>

THOMSON continuously develops new solutions, but is also committed to improve its existing products.

For more information on THOMSON's latest technological innovations, documents and software releases, visit us at:

like this.

Only one language is available

www.speedtouch.com

E-DOC-CTC-20050429-0100 v1.0

About this User’s Guide

E-DOC-CTC-20050429-0100 v1.0

Chapter 1

Your SpeedTouch™

1 Your SpeedTouch™

Introduction With the SpeedTouch™546(i) Residential ADSL Gateway you can build a secure

home or small office network, connecting wired Ethernet devices and surf the Internet at high speed.

Installation For more information on how to set up your SpeedTouch™, installation and wiring

and how to do a first Internet connection setup, refer to the provided Installation and Setup Guide.

Contents This User’s Guide will assist you in configuring your SpeedTouch™.

Safety instructions Before connecting the SpeedTouch™, please read the SpeedTouch™ Quick Installation

Guide and the Safety Instructions and Regularity Notices.

E-DOC-CTC-20050429-0100 v1.0

Chapter 1

Your SpeedTouch™

1.1 SpeedTouch™ Features

Introduction Your SpeedTouch™ offers you a wide range of outstanding features.

In this section you will find a comprehensive overview of the:

 Hardware Specifications

 Software Features

E-DOC-CTC-20050429-0100 v1.0

1.1.1 Hardware Specifications

Gateway Integrated multi-mode ADSL modem, supporting:

 ADSL over POTS for a SpeedTouch™ADSL/POTS variant)

 ADSL over ISDN for a SpeedTouch™ ADSL/ISDN variant)

 ADSL/RE-ADLS2/ADSL2/ADSL2+ for both ADSL over POTS and ADSL over

ISDN

Physical interfaces  WAN: One RJ-11 port for ADSL/POTS or ADSL/ISDN connection

 LAN: Four RJ-45 ports to connect up to 4 PCs to a 10/100 Base-T Ehternet

network

 Power inlet

LEDs LED indicators for all interfaces

Chapter 1

Your SpeedTouch™

Reset button One recessed reset button for restoring the default settings

Power requirement Power supply: 15V AC, 1000mA

E-DOC-CTC-20050429-0100 v1.0

Chapter 1

Your SpeedTouch™

ADSL compliance  If POTS in overlay: G. handshake, Full Rate ADSL, G.dmt, G.lite (splitterless

1.1.2 Software Features

ADSL), ADSL2, RE-ADSL and ADSL2+

 If ISDN in overlay: G.handshake, G.dmt, ADSL2, RE-ADSL and ADSL2+

ATM features  Up to 16 simultaneous PVCs, allowing multiple simultaneous destinations

 ATM QoS per PVC: CBR, VBR-rt, VBR-nrt, UBR

 RFC 1483 / 2684 multiprotocol encapsulation over AAL5 / ATM: both LLC /

SNAP and VC-based multiplexing supported

Bridging features  Multiport self-learning transparent bridge per IEEE 802.1D for LAN interconnect

 Remote bridge ports are isolated from each other

 Pre-defined bridge filters to WAN (no filter, no CPE-to-WAN broadcast, PPPoE

only) and to LAN (no filter, multicast filter)

Routing features  Multi-port (up to 16 PVCs) router

 Static routing, automatic routes (PPP, LAN)

 IP address multi-homing

Services  UPnP with NAT traversal capability:

 enables game technologies (Xbox live, Direct X, and many others)

 enables conferencing functions of Microsoft Messenger

 Transparent bridging (IEEE802.1D)

 PPPoE routing/bridging with integrated PPP Relay

 PPPoA routing, PPPoA-to-PPTP relaying

 IP routing with static routing, packet classified routing and residential RIP

 Hyper-NAT with virtual server mapping (for instance for Web, FTP, Mail

servers) and ALGs (such as NetMeeting, MSN Messenger, VPN passthrough, and others)

 Quality of Service:

 IP QoS

 Integrated Dynamic DNS client

Security  PAP (RFC1334), CHAP (RFC1994) for PPP session

 Integrated Stateful Inspection Firewall, Intrusion Detection

 Parental Control, URL Filtering

 Multi-level SpeedTouch™ access policies, Digest Authentication

Configuration  Home Install Wizard, Easy Setup wizard

 Intuitive web-based GUI (HTTP/HTTPs)

 Advanced configuration via telnet - Command Line Interface (CLI)

 Remote management access control

E-DOC-CTC-20050429-0100 v1.0

Management  Multi-level user protection, Event logging

 DHCP server, client and relay, DHCP-to-PPP spoofing

 DNS server, client and relay

 Time synchronization:

 SNTPv1, SNTPv2, SNTPv3 and SNTPv4

 System logging

 SNMPv1 agent with MIB-II

 Firmware upgradeable via upgrade wizard on Setup CD

Chapter 1

Your SpeedTouch™

E-DOC-CTC-20050429-0100 v1.0

Chapter 1

Your SpeedTouch™

1.2 SpeedTouch™ LED Behaviour

Front panel LEDs The SpeedTouch™ is equipped with a number of LEDs on its front panel, indicating

the state of the device during normal operation.

Power

Ethernet

DSL

Internet

Following table shows the meaning of the different LEDs:

Indicator Description

Name Colour State

Power Green On Power on, normal operation

Red On Power on, self-test failed, indicating

device malfunction

Orange On Bootloader active

Off Power off

Ethernet Green Flashing Ethernet activity

On Ethernet connection, no activity

Off No Ethernet connection

DSL Green Flashing Pending DSL line synchronisation

On DSL line synchronised

Off No DSL line

Internet Green Flashing Internet activity

On Internet connectivity, no activity

Red On Internet connection setup failed

Off No Internet connection

E-DOC-CTC-20050429-0100 v1.0

1.3 How to Access your SpeedTouch™

Access methods Your SpeedTouch™ is accessible in one of following ways:

Access Method Can be used to:

Web Configure your SpeedTouch™ via HTTP or

HTTPS.

For more information, see “1.3.1 Access via

the Web Interface” on page 10.

Command Line Interface (CLI) Fine tune your SpeedTouch™ configuration.

For more information, see “1.3.2 Access via

CLI” on page 11.

File Transfer Protocol (FTP) Backup and restore data on your SpeedTouch™.

For more information, see “1.3.3 Access via

FTP” on page 13.

Chapter 1

Your SpeedTouch™

Remote Assistance Allow a remote user to help you configuring

your SpeedTouch™. For more information, see “1.3.4 Remote

Assistance” on page 16.

E-DOC-CTC-20050429-0100 v1.0

Chapter 1

Your SpeedTouch™

1.3.1 Access via the Web Interface

Procedure To access the SpeedTouch™ via the web interface:

1 Open a web browser.

2 In the address bar type your SpeedTouch™’s IP address or DNS host name, by

default that is ‘http://speedtouch.lan’ or ‘192.168.1.254’.

You can access the pages via the http protocol. For remote assistance the secure version, https, in combination with certificates is used; provide your ISP with the https link, user name and password before he can log on to the pages. For more information, see “1.3.4 Remote

Assistance” on page 16.

3 As a result the SpeedTouch™ Home page appears, from where you can navigate

to all the configurable aspects of the SpeedTouch™.

For more information on the web pages, see “4 SpeedTouch™ Web Interface” on

page 31.

E-DOC-CTC-20050429-0100 v1.0

1.3.2 Access via CLI

Chapter 1

Your SpeedTouch™

Command Line

Interface (CLI)

You can access the Command Line Interface (CLI) via:

 A Telnet session

This requires that TCP/IP connectivity exists between the host from which the Telnet session is opened and the SpeedTouch™. Your SpeedTouch™ and the connected PC must have an IP address in the same subnet.

 Quote site commands (over FTP)

For more information, see “ Quote site command” on page 15.

For information on CLI commands, see the SpeedTouch™ CLI Reference Guide.

E-DOC-CTC-20050429-0100 v1.0

Chapter 1

Your SpeedTouch™

Teln e t ses si on Proceed as follows:

1 Open a telnet application.

You can use the Command Prompt window.

In Windows XP for instance:

1 On the Windows task bar, click Start.

2 Select (All) Programs > Accessories > Command Prompt.

2 Connect to your SpeedTouch™. .

In the Command Prompt window:

At the prompt, type SpeedTouch™ (default is 192.168.1.254).

3 Enter your SpeedTouch™ security user name and password.

The default user is ‘Administrator’ and the default password is blank.

4 As soon as you’ve opened a session to the CLI, the SpeedTouch™ banner is

displayed, followed by the CLI prompt, as shown in the example below:

telnet followed by the IP address of your

Username : Administrator

-----------------------------------------------------------------------

* ______ SpeedTouch * ___/_____/\ * / /\\ Version 5.3 * _____/__ / \\ * _/ /\_____/___ \ Copyright (c) 1999-2005, * // / \ /\ \ THOMSON * _______//_______/ \ / _\/______ * / /\ \ / // /\ * __/ / \ \ / / / / _\__ * / / / \_______\/ / / / / /\ * /_/______/___________________/ /________/ /___/ \ * \ \ \ ___________ \ \ \ \ \ / * \_\ \ / /\ \ \ \ \___\/ * \ \/ /\ \\ \/ * \_____/ / \ \ \________\/ * /__________/ \ \ / * \ _____ \ /_____\/ * \ / /\ \ /___\/ * /____/\\/ * \ \ /___\/ * \____\/

----------------------------------------------------------------------{Administrator}=>

E-DOC-CTC-20050429-0100 v1.0

1.3.3 Access via FTP

Chapter 1

Your SpeedTouch™

File Transfer Protocol

(FTP)

File system The SpeedTouch™ file system is stored on nonvolatile memory, and contains the

FTP session To open an FTP session:

You can access the file system of the SpeedTouch™ via the File Transfer Protocol (FTP), in order to:

 Restore or backup configuration files, templates or language packs.

 Upgrade your configuration or firmware.

SpeedTouch™ software, service template files and (optionally) default setting files.

1 Open a Command Prompt window.

In Windows XP for instance:

1 On the Windows task bar, click Start.

2 Select (All) Programs > Accessories > Command Prompt.

2 At the prompt, type ftp followed by the IP address of your SpeedTouch™

(default is 192.168.1.254).

3 Enter your SpeedTouch™ security user name and password.

The default user is ‘Administrator’ and the default password is blank.

4 The example below shows an FTP session to the SpeedTouch™ file system:

File system structure The structure of the file system is very simple: It consists of a single root directory

called root and a subdirectory called dl.

 The root directory contains:

 all the necessary files for the SpeedTouch™ to boot correctly

 the dl directory

 The dl (download) directory contains the software image.

If you made changes to the SpeedTouch™ configuration and saved them, a user.ini configuration settings file is created in the dl subdirectory.

E-DOC-CTC-20050429-0100 v1.0

Chapter 1

Your SpeedTouch™

File system access

rights

Common FTP

commands

On the different directories you have following privileges:

Directory Access rights

root NO read/write

dl read/write

Depending on the access rights you have on a directory, you can use one of following commands:

Command... You can use to...

cd access another directory than the one currently open.

Example: ftp>cd dl.

dir list the directory files.

Example: ftp>dir.

bin set the transfer mode to ‘binary’.

hash turn on the hashing option.

put upload files.

Example: ftp>put C:/MyBackupFiles/user.ini.

A configuration file must be uploaded to the dl directory.

get download files.

Example: ftp>get user.ini.

Downloading the configuration file must be done from the dl directory.

delete delete files.

bye quit FTP.

E-DOC-CTC-20050429-0100 v1.0

Chapter 1

Your SpeedTouch™

FTP fil e tr a ns f er To allow correct file transfers, set the transfer mode to “binary”: At the ftp prompt,

type bin and press Enter.

Turn on the hashing option to see the progression of the file transfer: At the ftp prompt type hash and press Enter.

Example:

/home/doejohn{1}$ftp 192.168.1.254 Connected to 192.168.1.254 220 Inactivity timer = 120 seconds. Use 'site idle <secs>' to change. Name (192.168.1.254:doejohn): 331 SpeedTouch™ (00-90-D0-01-02-03) User 'doejohn' OK. Password requir ed. Password : ###### 330 OK ftp> ftp>bin 200 TYPE is now 8-bit binary ftp> ftp>hash 200Hash mark printing on (8192 bytes/hash mark). ftp>cd dl 250 Changed to /dl ftp>put C:\user.ini 200 Connected to 192.168.1.10 port 1271 150 Opening data connection for user.ini

226 File written successfully ftp: 256 bytes sent in 0,000Seconds 256000,000Kbytes/sec. ftp>

Quote site command All the CLI commands can be executed from within an FTP session. Only complete

CLI commands (in other words, the complete command syntax with all the parameters already specified) can be executed.

Example: To execute the CLI command type ‘quote site software cleanup’ and press Enter.

ftp> quote site software cleanup 200200 CLI command "software cleanup" executed ftp>

For more information on CLI commands, see the CLI Reference Guide.

:software cleanup: At the FTP prompt

E-DOC-CTC-20050429-0100 v1.0

Chapter 1

Your SpeedTouch™

Enabling remote access To enable remote assistance:

1.3.4 Remote Assistance

Remote access You can make your SpeedTouch accessible from the Internet with regard to remote

support. This way, you can allow your helpdesk to access your SpeedTouch™ remotely.

1 Go to the SpeedTouch™ pages, as described in “1.3.1 Access via the Web

Interface” on page 10.

2 In the menu select Toolbox > Remote Assistance.

3 Click Enable Remote Assistance.

4 Provide the following parameters to your helpdesk:

 URL (the HTTPS link)

 User name

 Password

5 Your ISP is now able to access your SpeedTouch™ via the secure HTTPs link in

combination with the provided certificate (a secure authentication mechanism).

For security reasons, after 20 minutes of inactivity, or on reboot, Remote Assistance will be automatically disabled.

Disabling remote

access

To disable remote assistance:

1 Go to the SpeedTouch™ pages, as described in “1.3.1 Access via the Web

Interface” on page 10.

2 In the menu select Toolbox > Remote Assistance.

3 Click Disable Remote Assistance.

E-DOC-CTC-20050429-0100 v1.0

Chapter 2

Local Network Setup

2 Local Network Setup

Ethernet network The Ethernet ports on the back panel of your SpeedTouch™ allow you to connect the

SpeedTouch™ to an existing 10 or 100 Base-T Ethernet network or to a computer with installed Ethernet card.

Using the SpeedTouch™ Ethernet switch, you can create a local Ethernet network of up to four devices, without needing extra networking devices

In the SpeedTouch™ package, a yellow full-wired straight-through RJ-45/RJ45 Ethernet cable is included.

Standard wiring

procedure

Use the yellow Ethernet cable provided to wire your computer’s Ethernet port to the one of the SpeedTouch™’s Ethernet ports.

The Ethernet cable can also be used to wire any Ethernet port of your SpeedTouch™ to an external hub or switch.

Please follow the installation instructions supplied with the external hub or switch for connections and Ethernet cabling.

E-DOC-CTC-20050429-0100 v1.0

Chapter 2

Local Network Setup

Device settings Once you’ve connected a device, you are able to personalise its settings:

1 Go to the SpeedTouch™ web pages.

2 In the menu select Home Network > Devices.

3 Click the name of your device, or if the device’s settings haven’t been

personalised yet, click the MAC address of the device.

4 On the top right, click Configure.

5 Now you can change the device’s name, lock its IP address and assign

applications and services to the device.

Ethernet link check Depending on the SpeedTouch™ model, LED indicators allow you to check your

Ethernet. See “1.2 SpeedTouch™ LED Behaviour” on page 8 for more information.

E-DOC-CTC-20050429-0100 v1.0

Internet Connectivity Dial-In Clients

3 Internet Connectivity Dial-In Clients

Introduction For setting up initial Internet connectivity, using the Home Install Wizard on the

Setup CD or the embedded Easy Setup, refer to the provided Installation and Setup Guide.

Access methods Depending on the configuration of the SpeedTouch™ you may have:

 Direct access:

As soon as the initial configuration has been done, immediate and uninterrupted WAN access is provided.

In case of direct access, the remote organisation might ask for a user name and password on an Internet welcome page.

 Dial-in access:

Access must be explicitly established, that is by “dialling” into a Broadband Remote Access Server (BRAS).

Depending on the SpeedTouch™ configuration, dial-in access is provided via the SpeedTouch™’s Routed PPPoA or Routed PPPoE packet services with embedded PPP client.

Chapter 3

Connection protocols The applied connection protocol model depends on the service profile you selected to

configure the SpeedTouch™ and should correspond with the Service Provider’s requirements. If your ISP provides PPPoE for instance, you should configure PPPoE.

More information on connection protocols can be found in the Internet Connection Configuration Guide.

Dial-in clients There are different ways of dialling in, depending on the operating system on your PC

and your preferences.

Dial-in method: can be used on

following operating

For more information, see:

system:

Embedded PPP dial-in client:

Dial-in client on embedded pages

MS Windows XP IGD Control Agent for UPnP

Host PPP dial-in client for a SpeedTouch™ configured in pure bridging mode:

MS Windows XP Broadband connection

Mac OS X PPPoE dial-in client

MS Windows, Mac, unix, other

MS Windows XP “3.2 IGD Control Agent”

MS Windows XP “3.3 MS Windows XP

Mac OS X “3.4 Mac OS X PPPoE

“3.1 SpeedTouch™ Web Pages”

on page 23

BroadBand Connection”

Dial-in Client”

E-DOC-CTC-20050429-0100 v1.0

Chapter 3

Internet Connectivity Dial-In Clients

Embedded PPP dial-in

clients

Broadband host PPPoE

dial-in clients

The SpeedTouch™’s embedded PPP dial-in client allows you to establish an Internet connection for computers residing on your local network, using only one computer of the network to control the client.

If this computer runs:

 Any Operating System

you can always use the SpeedTouch™ web pages. See “3.1 SpeedTouch™ Web Pages” on page 21 to proceed.

 MS Windows XP

you can use MS Windows XP’s Internet Gateway Device Control Client. See “3.2 IGD Control Agent” on page 23 to proceed.

You can also connect to the Internet using a Broadband PPPoE dial-in application. The PPP over Ethernet connection scenario provides PPP-like dial-in behaviour over the virtual Ethernet segment.

To be able to use a broadband dial-in application on your computer for connecting to the Internet, the SpeedTouch™ needs to be configured for Bridged Ethernet or Routed PPPoE (with PPPoE relay) via the SpeedTouch™ Home Install Wizard on the Setup CD or the embedded Easy Setup.

If this computer runs:

 MS Windows XP

you can use the MS Windows XP broadband dial-in client. See “3.3 MS

Windows XP BroadBand Connection” on page 25 for more information.

 Mac OS X

you can use a Mac OS X broadband dial-in client. See “3.4 Mac OS X PPPoE

Dial-in Client” on page 29 for more information.

- or -

 A broadband PPPoE dial-in client provided by your Service Provider to connect

to the Internet

Upon availability of OS-specific PPPoE dial-in client applications, the latter method is Operating System independent.

For PPPoE session connectivity from a Mac OS 8.6/9.x, an MS Windows 95/98(SE)/ME/2000 or a Linux system, a host PPPoE dial-in application is mandatory.

E-DOC-CTC-20050429-0100 v1.0

Chapter 3

Internet Connectivity Dial-In Clients

3.1 SpeedTouch™ Web Pages

Introduction As the SpeedTouch™ web pages are controllable from any Operating System with an

installed web browser, the method to establish PPP sessions described below you can use on any computer system.

For more information on Internet connection setup, see the provided Installation and Setup Guide.

Starting an Internet

session

Proceed as follows:

1 Open a web browser on your computer and browse to the SpeedTouch™ web

pages (see “1.3.1 Access via the Web Interface” on page 10 for more information):

Monitoring your

Internet connection

E-DOC-CTC-20050429-0100 v1.0

By default the SpeedTouch™ shows you the Home page.

2 Click Connect at the appropriate broadband connection.

You might be requested to enter your user name and password.

As a result SpeedTouch™’s embedded PPP dial-in client establishes the Internet connection.

3 Now you can surf the Internet.

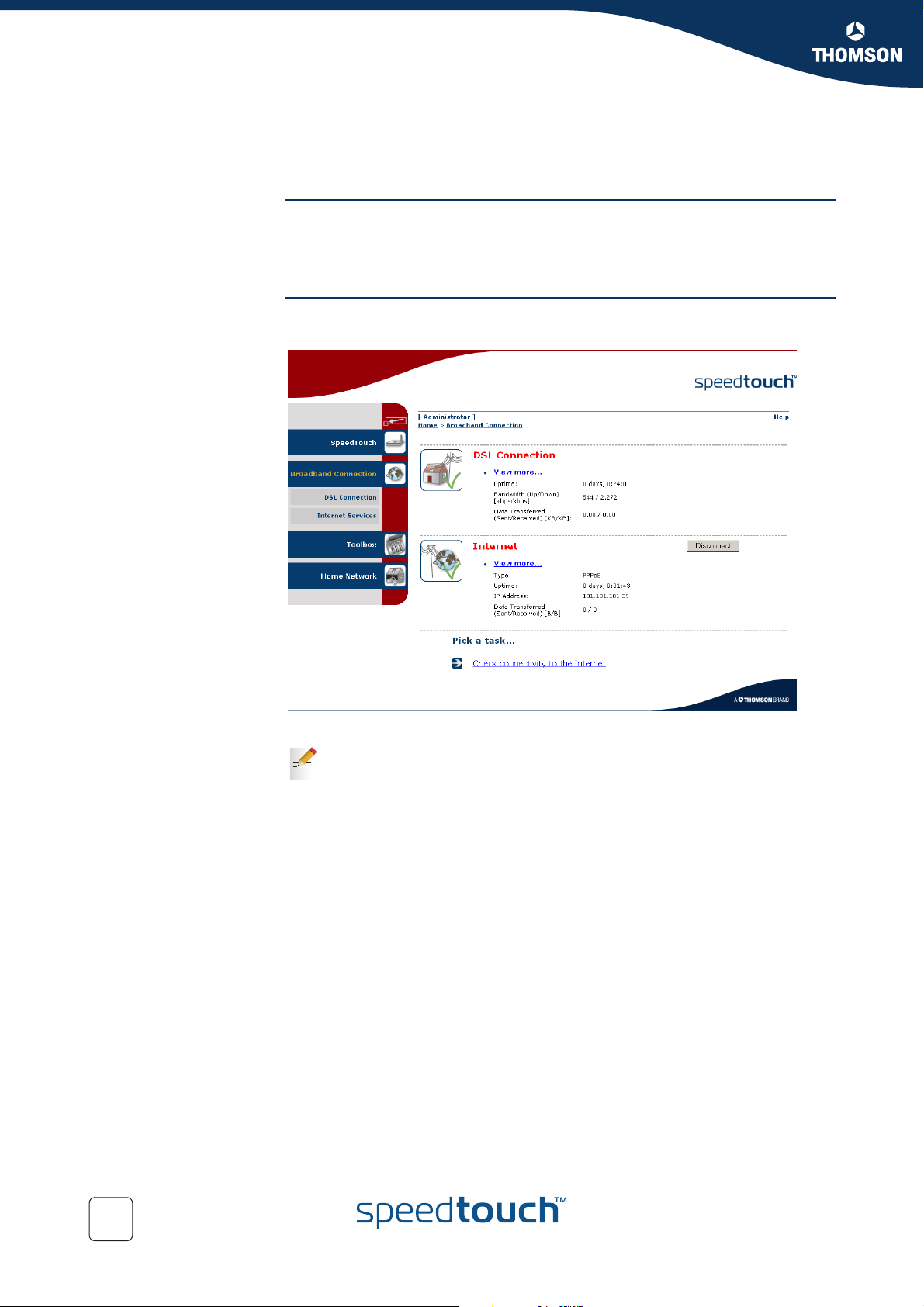

You are able to overview and monitor your Internet connectivity as long as the session is running via:

 The SpeedTouch™ System Information page: see “4.3.1 Information” on

page 40.

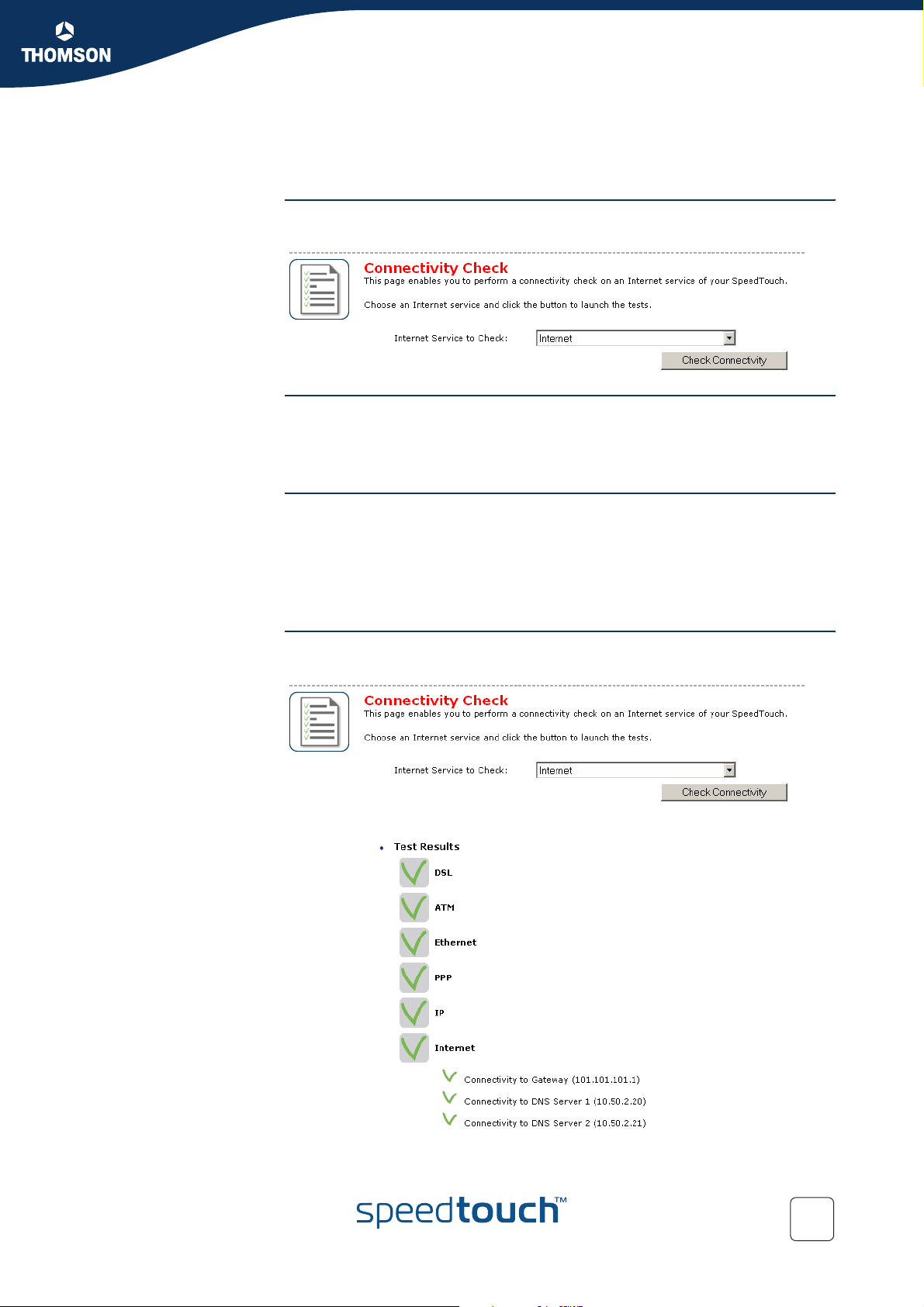

 The SpeedTouch™ Diagnostics task: see “4.4.1 Connectivity Check” on

page 49.

Chapter 3

Internet Connectivity Dial-In Clients

Terminating an Internet

session

To close an active PPP connection:

1 Go to the SpeedTouch™ Home page.

2 Click Disconnect at the appropriate broadband connection.

As a result the SpeedTouch™’s embedded PPP dial-in client will close the Internet connection. The Internet Link status will change to Disconnected and your PC is offline.

E-DOC-CTC-20050429-0100 v1.0

Internet Connectivity Dial-In Clients

3.2 IGD Control Agent

Introduction MS Windows XP users can easily establish PPP sessions, thanks to MS Windows

XP’s Internet Gateway Device (IGD) Discovery and Control Client that allows you to control the SpeedTouch™ directly from you PC.

The IGD control client only allows to connect or to disconnect a fully configured connection.

Preconditions Following conditions must be met:

 Following subcomponents of Windows XP’s Networking Services must be

added to your Windows XP system:

 UPnP™ (see “ SpeedTouch™ not detected by UPnP™ or IGD Control Client”

on page 89).

 IGD Discovery and Control Client (see “ Adding IGD Discovery and

Control” on page 90).

 UPnP™ must be enabled on your SpeedTouch™. To enable UPnP, see

“4.5.2 Game & Application Sharing” on page 55.

Chapter 3

Starting an Internet

session

Proceed as follows:

1 In the Windows task bar, click Start.

2 Select (Settings >) Control Panel.

3 The Control Panel window appears. Go to (Network and Internet Connections

>) Network Connections.

4 The Network Connections window appears:

You will find an Internet Gateway icon, representing the SpeedTouch™ IGD Internet connection ability.

5 Double-click the Internet Connection icon.

As a result the SpeedTouch™’s embedded PPP dial-in client establishes the Internet connection. The Internet Gateway icon displays connected and your PC is online.

6 You can open a web browser and surf the Internet.

E-DOC-CTC-20050429-0100 v1.0

Chapter 3

Internet Connectivity Dial-In Clients

Internet connection

status

Terminating an Internet

session

As long as the SpeedTouch™’s embedded PPP dial-in client is connected, you are able to overview the connection status and some counters by double-clicking the Internet Connection icon in your PC’s Network Connections window:

Proceed as follows:

1 In the Windows task bar, click Start.

2 Select (Settings >) Control Panel > (Network and Internet Connections >)

Network Connections.

3 In the Network Connections window, right-click the Internet Connection icon

and select Disconnect to close the session.

You can also double-click the icon. Then the Internet Connection Status window will appear on which a Disconnect button is available to close the session.

4 As a result the SpeedTouch™’s embedded PPP dial-in client will close the

Internet connection. The Internet Gateway icon displays Disconnected and your computers are off-line.

E-DOC-CTC-20050429-0100 v1.0

Chapter 3

Internet Connectivity Dial-In Clients

3.3 MS Windows XP BroadBand Connection

Prerequisites To be able to use the MS Windows XP BroadBand Connection, your SpeedTouch™

must be configured for either:

 Bridging, or

 PPPoE Relay

Configuring a

broadband connection

Proceed as follows:

1 On the Start menu, click (Settings >) Control Panel.

2 The Control Panel window appears. Go to (Network and Internet Connections

>) Network Connections.

3 In the Network Tasks menu, click Create a new connection.

The New Connection Wizard appears:

Click Next.

4 Select Connect to the Internet and click Next.

5 Select Set up my connection manually and click Next.

6 Select Connect using a broadband connection that requires a user name and

password and click Next.

7 Give a name to the connection you are creating, for example YourISP:

E-DOC-CTC-20050429-0100 v1.0

Chapter 3

Internet Connectivity Dial-In Clients

8 Select whether the connection will be available to any user or only to yourself:

9 Fill in the Internet account information. This information should be provided by

your service provider:

10 At the end of the configuration the following window appears:

Click Finish to complete the configuration.

The Connect Your IS P window (see below) appears.

E-DOC-CTC-20050429-0100 v1.0

Chapter 3

Internet Connectivity Dial-In Clients

Starting a broadband

Internet session

Proceed as follows:

1 On the Start menu, point Connect To and click the name of the connection

you’ve created, for example YourISP.

If you are using the Classic Start menu click Start > Settings > Network (and Dial-up) connections > YourISP.

2 The Connect YourISP window appears:

3 If requested, enter user name and password for your user account at the

Service Provider.

4 Click Connect.

5 As soon as the connection is established, the Connection message box and

Dialup window are minimised into an icon in the notification area:

6 You can open your web browser and surf the Internet.

E-DOC-CTC-20050429-0100 v1.0

Chapter 3

Internet Connectivity Dial-In Clients

Terminating a

broadband Internet

session

Proceed as follows:

1 On the Start menu, point Connect To and click the name of the connection

you’ve created, for example YourISP.

If you are using the Classic Start menu go to Start > Settings > Network (and Dial-up) connections > YourISP.

2 The YourISP Status window appears:

3 Click Disconnect.

4 The connection is released. As a result no Internet connectivity exists any

more.

E-DOC-CTC-20050429-0100 v1.0

Chapter 3

Internet Connectivity Dial-In Clients

3.4 Mac OS X PPPoE Dial-in Client

Prerequisites To be able to use the MS Windows XP BroadBand Connection, your SpeedTouch™

must be configured for either:

 Bridging, or

 PPPoE Relay

Configuring a

broadband connection

Proceed as follows:

1 On the Apple menu, click System Preferences.

2 In the System Preferences window, click the Network icon.

3 The Network window appears. Make sure Built-in Ethernet is selected in the

Show list and click the PPPoE tab:

4 Enter the Account Name and Password provided by your Service Provider.

Select Save password in case you want the computer to remember the password for this account name.

Optionally you can enter a name for this connection in the Service Provider field. All other fields may stay empty.

5 Click Apply Now.

E-DOC-CTC-20050429-0100 v1.0

Chapter 3

Internet Connectivity Dial-In Clients

Starting a broadband

Internet session

Terminating a

broadband Internet

session

Proceed as follows:

1 Click the Internet Connect dockling.

If the Internet Connect dockling is not available, go to the Applications folder on the system startup disk and double-click Internet Connect.

2 The following window appears:

Make sure Built-in Ethernet is selected in the Configuration list.

3 If needed, enter user name and password for your user account at the Service

Provider.

4 Click Connect.

5 As soon as the connection is established you can open your web browser and

surf the Internet.

Proceed as follows:

1 Click the Internet Connect dockling.

If the Internet Connect dockling is not available, go to the Applications folder on the system startup disk and double-click Internet Connect.

2 The following window appears:

Make sure Built-in Ethernet is selected in the Configuration list

3 Click Disconnect.

4 The connection is released. As a result no Internet connectivity exists any

more.

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4 SpeedTouch™ Web Interface

Introduction The SpeedTouch™ comes with embedded HTML pages, providing an interface to the

software installed on the device. It allows easy setup and management of the SpeedTouch™ via your web browser form any PC connected to the SpeedTouch™.

See “1.3.1 Access via the Web Interface” on page 10 to access the pages.

SpeedTouch™

documentation

Consult:

 The SpeedTouch™ Installation and Setup Guide

for more information on setup and installation procedures.

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

Navigation components The SpeedTouch™ web interface consists of following components:

4.1 Navigation

 Menu

 Language Bar

 Navigation Bar

 Notification Area

 Tasks

Navigation bar

Notification area Language bar

Tasks

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.1.1 Menu

Menu items The menu is located on the left side of the page and consists of the following menu

items:

 SpeedTouch:

Provides basic information on the SpeedTouch™.

 Broadband Connection:

Allows you to view/configure your broadband connections.

 Toolbox:

Allows you to assign games or applications to a device and secure your Internet connection.

 Home Network:

Allows you to manage your local network.

Collapsing and

expanding the menu

You are able to collapse/expand the menu by clicking the arrow located on the top of the menu.

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.1.2 Language Bar

Language bar The language bar is located under the SpeedTouch™ logo and allows you to change

the language of the SpeedTouch™ web interface.

The language bar will only be shown if more than one language is available.

E-DOC-CTC-20050429-0100 v1.0

SpeedTouch™ Web Interface

4.1.3 Navigation Bar

Navigation bar The navigation bar is located on the top of the page and allows you to:

 View the current user name.

Click this name to change your password or switch to another user.

 View the current position on the SpeedTouch™ web interface.

 Get context related Help information.

Display level Depending on the page you are viewing following buttons will be available:

 Overview to view a summary of the current status or configuration.

 Details to view more detailed information on the current status or

configuration.

 Configure to change the current settings.

Chapter 4

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.1.4 Notification Area

Notification area The notification area is located under the Navigation Bar and is used to display:

 Error messages indicated by a red traffic light.

 Warnings indicated by an orange traffic light.

 Information indicated by a green traffic light.

If none of these events occur, the notification area will not be shown.

E-DOC-CTC-20050429-0100 v1.0

SpeedTouch™ Web Interface

4.1.5 Tasks

Task s To allow a swift configuration of your SpeedTouch™, some pages may offer you a

number of related tasks. These tasks will guide you to the page where you can perform the selected task.

Chapter 4

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.2 Home

SpeedTouch™ home

page

The SpeedTouch™ home page gives you a short overview of all the configurable aspects of the SpeedTouch™:

 SpeedTouch

 Broadband Connection

 Toolbox

 Home Network

E-DOC-CTC-20050429-0100 v1.0

SpeedTouch™ Web Interface

4.3 SpeedTouch

The SpeedTouch menu The SpeedTouch menu consists of following items:

 Information

 Configuration

 Event Logs

 Update

The SpeedTouch page The SpeedTouch page gives you some basic information on the SpeedTouch™:

 Product Information

 Configuration

Chapter 4

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.3.1 Information

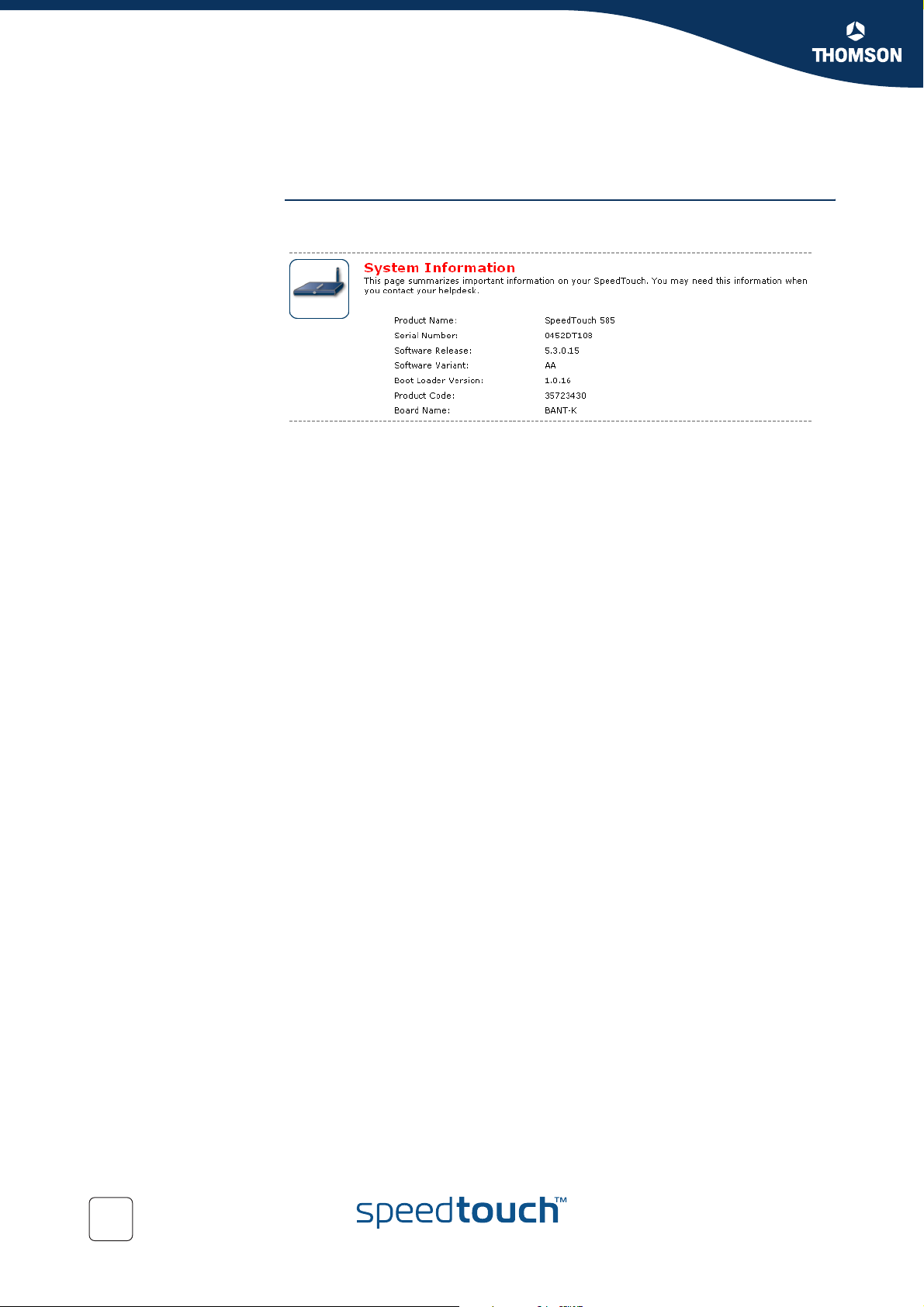

Information The Information page summarizes important information on your SpeedTouch™. You

may need this information when you contact your helpdesk.

E-DOC-CTC-20050429-0100 v1.0

SpeedTouch™ Web Interface

4.3.2 SpeedTouch™ Easy Setup

Easy Setup Wizard This wizard helps you configure your SpeedTouch™ Internet connection.

To configure the SpeedTouch™ using the SpeedTouch™ Easy Setup wizard:

1 On the left menu, click SpeedTouch.

2 In the Pick a task... list, click Set up.

3 The Easy Setup wizard will now guide you through the configuration of your

SpeedTouch™.

Chapter 4

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.3.3 Restart

Accessing the Restart

page

Restarting your

SpeedTouch™

Proceed as follows:

1 On the left menu, click SpeedTouch.

2 In the Pick a task... list, click Restart.

Proceed as follows:

1 Click Yes, restart my SpeedTouch.

2 The SpeedTouch™ restarts.

3 The SpeedTouch™ returns to the Home page.

E-DOC-CTC-20050429-0100 v1.0

SpeedTouch™ Web Interface

4.3.4 Configuration

Overview The Overview page displays the current configuration of your SpeedTouch™.

Details The Details page displays more detailed information on the current configuration of

your SpeedTouch™.

Configure The Configure page allows you to change the current configuration.

Chapter 4

If you want to:

 Reconfigure your SpeedTouch™:

Click Configuration Wizard under Service Configuration. For more information, see “4.3.2 SpeedTouch™ Easy Setup” on page 41.

 Configure the time settings of your SpeedTouch™:

 Select Auto-configuration if you want the SpeedTouch™ to use a time

server to synchronise its clock to a dedicated time server.

 Clear Auto-configuration to manually configure the SpeedTouch™ time

settings.

 Disable/enable web browsing interception or set it to automatic.

If you disable web browsing interception or set it to automatic you will

not be able to use Parental Control.

Click Apply to save your settings.

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.3.5 Backup & Restore

Introduction This page allows you to:

 Save your current configuration.

 Restore a previously saved configuration.

Accessing the Backup

& Restore page

Saving your current

configuration

Restoring a previously

saved configuration

Proceed as follows:

1 On the SpeedTouch menu, click Configuration.

2 Click Configure.

3 In the Pick a task... list, click Save or Restore Configuration.

Proceed as follows:

1 Click Backup Configuration Now.

2 Click Save.

3 Choose a location to save your backup file and click Save.

Proceed as follows:

1 Click Browse.

2 Select the configuration file you want to restore and click Open.

3 Click Restore Configuration Now....

4 The SpeedTouch™ loads your configuration and restarts.

5 At the end of the procedure, the SpeedTouch™ returns to the Home page.

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.3.6 Reset to Factory Defaults

Introduction This page allows you to reset the SpeedTouch™ to return to the initial configuration

of your SpeedTouch™. All your changes will be deleted.

Accessing the Reset to

Factory Defaults page

Resetting the

SpeedTouch™ to

factory defaults

Proceed as follows:

1 On the left menu, click SpeedTouch.

2 In the Pick a task... list, click Return to Factory Default Settings.

If you want to reset your SpeedTouch™ to factory defaults, click Yes, reset my SpeedTouch.

If you reset your SpeedTouch™ to factory default settings, all active

connections will be disconnected.

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.3.7 Event Logs

Event Logging The Event Logs page summarizes the latest events recorded on your SpeedTouch™.

Recorded Events table The Recorded Events table gives you an overview of the latest event logs that have

been recorded since power on. The first column of the table indicates the importance of the event log

Indicator Description

Informational

Warning

Error

The Category list allows you to filter the events shown in the Recorded Events table. For example, by clicking Security you can view all security related events, for example generated by the SpeedTouch™ firewall.

E-DOC-CTC-20050429-0100 v1.0

4.3.8 Update

Chapter 4

SpeedTouch™ Web Interface

Updating the

SpeedTouch™ system

software

The Update page allows you to:

 View System Information.

 View information on the current System Firmware.

 Update your SpeedTouch™ from a remote server.

Use this option if you want to have yourSpeedTouch™ check on the internet for new firmware and update if it found one.

 Update from a PC.

Use this option if you want to install on your SpeedTouch™ that is located on the PC.

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.4 Broadband Connection

The Broadband

Connection menu

The Broadband

Connection page

The Broadband Connection menu consists of following menu items:

 DSL Connection

 Internet Services

The Broadband Connection page gives you a short status overview of the connections configured on the SpeedTouch™.

Click View more to see more information on the selected broadband connection.

If you configured a dial-up connection, you are able to establish/terminate the connection by clicking Connect/Disconnect.

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.4.1 Connectivity Check

Introduction This page enables you to perform a connectivity check on an Internet service of your

SpeedTouch™.

Accessing the

Connectivity Check page

Checking you Internet

Connectivity

Analysing the test

results

Proceed as follows:

1 On the left menu, click Broadband Connection.

2 In the Pick a task... list, click Check connectivity to the Internet.

Proceed as follows:

1 In the Internet Service to Check list, click the Internet service that you want to

check.

2 Click Check Connectivity.

3 The SpeedTouch™ lists the test results in the Test Results list.

If the test is successful, you will get a list of green check marks. Otherwise a red cross will indicate which tests have failed.

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.4.2 DSL Connection

Overview Click Overview to view brief information on your DSL connection.

Details Click Details to view a more detailed information on your DSL connection.

E-DOC-CTC-20050429-0100 v1.0

4.4.3 Internet Services

Chapter 4

SpeedTouch™ Web Interface

Internet Services

information

The Internet Services page displays information on your Internet Connection(s).

If you configured a dial-up connection you are able to establish/terminate the connection by clicking Connect/Disconnect.

To view more detailed information on a specific connection, click the View more... link of the corresponding connection.

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.4.4 Internet Service Settings

Accessing the Internet

Service Settings page

Overview The Overview page gives you basic information on the selected Internet Service.

Details The Details page gives you more detailed information on the selected Internet

Proceed as follows:

1 On the Broadband Connection menu click Internet Services.

2 Click the View more link of the internet service you want to view.

If you configured a connection you are able to establish/terminate the connection by clicking Connect/Disconnect.

Service.

If you configured a dial-up connection you are able to establish/terminate the connection by clicking Connect/Disconnect.

E-DOC-CTC-20050429-0100 v1.0

4.5 Toolbox

The Toolbox menu The To ol box menu consists of following menu items:

 Remote Assistance:

Allows you to make your SpeedTouch™ accessible for remote support.

 Game & Application Sharing:

Allows you to share services and games that you run in your private network towards the internet.

 Parental Control:

Allows you to block/allow access to specific web sites.

 Firewall:

Allows you to configure the security level of the SpeedTouch™ firewall.

 Intrusion Detection:

Allows you to view the intrusions you are protected against.

 Dynamic DNS:

Allows you to assign a DNS host name to your broadband connection(s).

 User Management:

Allows you to manage the users configured on your SpeedTouch™.

Chapter 4

SpeedTouch™ Web Interface

The Toolbox page The To ol bo x page gives you an overview of the available services and their current

status. You can click on the names of these services to go to the corresponding web page.

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.5.1 Remote Assistance

Enabling Remote

Assistance

This page allows you to make your SpeedTouch™ accessible for remote support.

You must be connected to the Internet to be able to enable remote

assistance.

To use remote assistance:

1 If needed, type a password in the Password box.

2 Click Enable Remote Assistance.

3 Pass the information listed under:

 URL

 Username

 Password

to your technical support, in order for them to be able to access your SpeedTouch™.

Once the technical support is connected, no other connections are possible.

4 The remote assistance session ends:

 If the technical support disables remote assistance.

 After 20 minutes of inactivity, or after a reboot, remote management.

E-DOC-CTC-20050429-0100 v1.0

SpeedTouch™ Web Interface

4.5.2 Game & Application Sharing

Overview The Overview page summarizes the games and applications on a particular host on

your network, for which the SpeedTouch™ accepts connections coming from the Internet.

Configure The Configuration page allows you to:

 Select Use UPnP to enable UPnP on the SpeedTouch™.

Universal Plug and Play is an architecture for transparent peer-to-peer connectivity of PCs, intelligent appliances, and (wireless) devices. It enables seamless operation of a wide range of games and messaging applications.

 Select Use Extended Security to only allow the creation of port maps.

 Assign a game or application to a specific network device.

Chapter 4

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.5.3 Defined Games & Applications

Accessing the Defined

Games & Applications

page

The Defined Games &

Applications page

Proceed as follows:

1 In the Toolbox menu, click Game & Application Sharing.

2 In the Pick a task... list, click Modify a game or application.

This page gives you an overview of the games and applications defined on your SpeedTouch™. Each game or application can be assigned to a device on your local network.

To:

 View the translation rules of a game or application, click the name of the rule.

 Change the translation rules of a game or application, click the Edit link of the

the game or application.

E-DOC-CTC-20050429-0100 v1.0

4.5.4 Game or Application Definition

Chapter 4

SpeedTouch™ Web Interface

Accessing the Game or

Application Definition

page

Overview This page gives you an overview of the port mappings used to allow this service or

Configure Under:

Proceed as follows:

1 In the Toolbox menu, click Game & Application Sharing.

2 In the Pick a task... list, click Modify a game or application.

3 Click the name of the game or application you want to view/change.

game to be initiated from the Internet.

Consult the user’s guide or support pages of your application to know which ports are being used by this application.

A service is made of one or more TCP/UDP port ranges. Each incoming port range can be translated into a different internal (local network) port range. Port ranges can be statically assigned to devices or dynamically assigned using an outgoing trigger.

 Game or Application Name you can:

Change the name of the game or application.

 Game or Application Definition you can:

Change the TCP/UDP port definition for this game or application.

Adding a Port

Translation rule

E-DOC-CTC-20050429-0100 v1.0

Proceed as follows:

1 In the Protocol list, click the protocol the game or application uses.

2 In the Port Range box, type the port range the game or application uses.

3 In the Translate To... box, type the port range to which the SpeedTouch™ has to

translate the ports specified under Port Range.

4 If you want to make a dynamic translation rule you must specify a trigger

protocol and port.

As soon as the SpeedTouch™ receives outgoing traffic on this trigger port, it will activate this translation rule.

5 Click Apply.

Chapter 4

SpeedTouch™ Web Interface

4.5.5 New Game or Application

Accessing the Game or

Application Definition

Creating a new game or

application

Proceed as follows:

1 On the Applications page, click Game & Application Sharing.

2 In the Pick a task... list, click Create a new game or application.

Proceed as follows:

1 Type the name of the game or application in the Name box.

2 Click:

 Clone Existing Game or Application if you want to start from the port

mappings of the selected game or application.

 Manual Entry of Port Maps if you want to manually configure the port

mapping for this game or application.

3 The SpeedTouch™ creates the game or application and takes you to the Game

or Application Definition page to configure the port mappings for this game or

application.

4 Enter the necessary port mappings and click Add.

E-DOC-CTC-20050429-0100 v1.0

4.5.6 Parental Control

Parental Control The SpeedTouch™ allows you to block/allow particular web sites:

 Based on the web site’s URL.

As within a web site lots of references can be made to other URLs, it is recommended to use this feature in combination with content based filtering.

 Based on the web site’s content.

 Redirect a web site to another web site.

If your administrator account is configured as default user, make sure to

configure a password for this account or change the default user. Otherwise users on your local network can surf to your SpeedTouch™ to disable your filtering rules.

For more information, see “4.5.13 User Management” on page 69 and

“4.5.15 Change Default User” on page 71.

Chapter 4

SpeedTouch™ Web Interface

Overview The Overview page displays:

 The current Address Based Filtering rules.

 The current Content Based Filtering configuration.

To view which content types are blocked/allowed, click Details. For more information, see “4.5.8 Content Level” on page 63.

Address based filtering rules have priority over content based filtering

rules.

Configure The Configure page allows you to:

 Deny access to a specific web site.

 Allow access to a specific web site.

 Redirect a web site.

 Configure content based filtering settings.

Content levels Following content levels are available:

 All:

Allow all categorized web sites.

 Legal:

Allow all except illegal, extreme, spam and spyware web sites.

 Teenagers:

Block illegal, adult, extreme, online ordering/gambling, spam and spyware web sites.

 Children:

Only allow children-save web sites.

 BlockAll:

Block all categorized web sites.

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

Deny access to a

specific web site

Allow access to a

specific web site

Use this feature if:

 Allow is selected under Action for Unknown Sites.

 Block is selected under Action for Unknown Sites and you want to make an

exception on an allow rule. For example: you are allowing “provider.com” but you want to deny access to “mail.provider.com”.

 A content category/group is allowed by Content Based Filtering and you want

to make an exception. For example: you are allowing Web Mail content but you want to deny access to “mail.provider.com”.

Proceed as follows:

1 Type the URL of the web site you want to block (for example

“mail.provider.com”) in the Web Site box.

2 In the Action list, click:

 Block if you want to block this web site.

 Redirect if you want to redirect to another page. Type the address of the

redirect page in the Redirect box.

3 Click Add.

Use this feature if:

 Block is selected under Action for Unknown Sites

 Allow is selected under Action for Unknown Sites and you want to make an

exception on a block/redirect rule. For example: you are blocking “bank.com” but you want to allow access to “netbanking.bank.com”.

 A content category/group is blocked by Content Based Filtering and you want

to make an exception. For example: you are blocking Finance / Investment content but you want to allow access to “netbanking.bank.com”.

Proceed as follows:

1 Type the URL of the web site you want to allow (for example

“netbanking.bank.com”) in the Web Site box.

2 Click Allow in the Action list.

3 Click Add.

Redirect a web site Proceed as follows:

1 Type the URL of the web site you want to redirect (for example “cracks.am”) in

the Web Site box.

2 Click Redirect in the Action list.

3 Type the URL of the web site you want to redirect to (for example

“mycompany.com/internetpolicy.htm”) in the Redirect box.

4 Click Add.

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

Redirecting all web

sites

Configure content

based filtering settings

Proceed as follows:

1 Type “*” in the Web Site box.

2 Click Redirect in the Action list.

3 Type the URL of the web site you want to redirect to (for example

“mycompany.com/internetpolicy.htm”) in the Redirect box.

4 Click Add.

5 Type the URL of the web site you want to redirect to (for example

“mycompany.com/internetpolicy.htm”) in the Web Site box.

6 Click Allow in the Action list.

7 Click Add.

Under Content Based Filtering you are able to:

 Enable/disable content based filtering.

 Allow/block uncategorized web sites.

 Select a content level in the Content Level list.

To change a content level definition, click the Edit link of the content level you want to change. For more information, see “4.5.8 Content

Level” on page 63.

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.5.7 Web Filtering Activation

Accessing this page Proceed as follows:

1 On the Too lbo x menu, click Web Site Filtering.

2 In the Pick a task... list, click Activate Web filtering License.

Web Filtering Activation

page

Standard license

activation

This page allows you to:

 Activate a Web Filtering evaluation license.

 Activate a free 30-days Web Filtering evaluation license.

Proceed as follows:

1 Click Standard.

2 In the License Key box, type the license key provided by your ISP.

3 Click Apply.

E-DOC-CTC-20050429-0100 v1.0

4.5.8 Content Level

Accessing this page Proceed as follows:

1 On the Too lbo x menu, click Web Site Filtering.

2 Click Configure.

3 Click the Edit link of the content level you want to edit.

Overview This page gives you an overview of the different categories and their rules.

Following icons indicate whether the content type is allowed or not:

Icon Description

The category/group is allowed

The category/group is not allowed.

Chapter 4

SpeedTouch™ Web Interface

The group is partly allowed.

Configure This page allows you to change:

 The content level name.

 The content level description.

 The content level configuration.

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.5.9 New Content Level

Introduction This page allows you to create a new content level. To access this page:

Procedure To apply a new content level following actions must be performed:

1 On the Too lbo x menu, click Web Site Filtering.

2 In the upper right corner, click Configure.

3 Under Pick a task..., click Create a new content level.

1 Content level creation

2 Content level configuration

3 Content level definition

4 Content level activation

You can create up to 16 content levels.

Content level creation Proceed as follows:

1 In the Name box, type a name for the new content level.

2 In the Description box, type a short text to describe what this security level will

do.

3 Click Next.

Content level configuration

Content level definition Only web sites that match the selected content level will be allowed. Proceed as

Proceed as follows:

1 The Configuration section becomes available.

2 Click:

 Clone Existing Level to start from a previously created content level.

If no levels have been defined before, this option will not be shown.

 Black List to allow all web sites by default.

 White List to block all web sites by default.

3 Click Next.

follows:

1 If you want to:

 Allow a category:

Select the check box next to the category name.

 Allow an entire group:

Select the check box next to the group name.

 Block a category:

Clear the check box next to the category name.

 Block an entire group:

Clear the check box next to the group name.

2 Click Apply.

E-DOC-CTC-20050429-0100 v1.0

Content level activation To activate your new content level:

1 On the Too lbo x menu, click Web Site Filtering.

2 In the upper right corner, click Configure.

3 In the Content Level list, select your new content level.

4 The new content level is now active.

Chapter 4

SpeedTouch™ Web Interface

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.5.10 Firewall

Configure The Configure page allows you to select the security level of the SpeedTouch™.

Overview The Overview page summarizes the overall security policy configured on your

SpeedTouch™.

Select one of following security levels:

 Block All: to protect your network from all attempts of incoming (from

untrusted site) connection requests and to perform checks on outgoing (from trusted site) connections. This level is meant to prevent incoming malicious traffic.

 Standard: to protect your network from all incoming (from untrusted site)

connection requests while permitting safe outgoing connections. This is the default.

 Disabled: to allow all incoming and outgoing traffic. This does not mean the

complete SpeedTouch™ firewall is disabled. It means all traffic coming in on one interface and going out on another is allowed, but access to the embedded services of the SpeedTouch™ (as telnet, web interface,...) is only allowed for clients residing on the LAN side, so the SpeedTouch™ itself stays protected.

 High:

Use this Security Level to block all outgoing connections except well known applications (DNS, HTTP, HTTPS, FTP, TELNET, IMAP, POP) and block all incoming connections. Game & Application sharing is not allowed by the firewall.

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.5.11 Intrusion Detection

Intrusion Detection Your SpeedTouch™ is protecting your network against malicious intrusions. This page

shows you the intrusions you are protected against.

The Protected Intrusions table shows the number of times the SpeedTouch™ actively protected your network against each intrusion since last statistics reset.

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.5.12 Dynamic DNS

What is Dynamic DNS The Dynamic DNS service allows you to assign a dynamic DNS host name (e.g.

Configure The Configure page allows you to assign a Dynamic DNS host name to a broadband

john.dyndns.org) to a broadband connection even if it is using a dynamic IP address. As soon as the device gets a new IP address, the dynamic DNS server updates its entry to the new IP address.

Overview Click Overview to view the different Dynamic DNS clients with their name,

hostnames, interface and IP address.

connection:

1 Create an account at the Dynamic DNS service of your choice, for example:

 www.dyndns.org

 www.no-ip.com

 www.dtdns.com

 GnuDIP for Linux

2 On the Dynamic DNS page, click Configure.

3 Select Enabled.

4 If needed, click the broadband connection to which you want to assign the

Dynamic DNS hostname in the Interface list.

5 Type the user name and password of your Dynamic DNS service account in the

corresponding fields.

6 In the Service list, click your Dynamic DNS service.

7 In the Host box, type the host name you want to assign to this interface (for

example myspeedtouch.dyndns.org).

8 Click Apply.

E-DOC-CTC-20050429-0100 v1.0

SpeedTouch™ Web Interface

4.5.13 User Management

Overview The Overview page gives you an overview of the currently configured users and their

privileges.

Clicking the name of a user allows you to edit his user account.

Configure The Configure page allows you to:

 Click Add to create a new user account.

 Click Delete to remove a user.

 Click Edit to change a user account.

Chapter 4

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.5.14 Edit User

Accessing the User Edit

page

Editing a user account The Edit User page allows you to:

Proceed as follows:

1 On the Too lbo x menu, click User Management.

2 Under Local User Data, click on the name of the user you want to edit.

 Click Reset Password to reset the password of the selected user to the user

name. So, if you reset the password of John his password will be “John”.

 Change the administration privileges of the selected user.

You can not change the administration privileges of the account you

are logged on to.

E-DOC-CTC-20050429-0100 v1.0

4.5.15 Change Default User

Chapter 4

SpeedTouch™ Web Interface

Changing the default

user

This page allows you to change the default user. If users browse to the SpeedTouch™ web pages, they will be automatically logged in under this account.

To allow users to automatically log on under this account, this default user

account must be configured with a blank password.

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.5.16 Add User

Adding users This page allows you to add a new user.

Under User definition you can configure:

 The name of the new user.

The password of the new user will be equal to the user name; for

example if the user name is John Doe, the password will be John Doe. Also when resetting a user, the password will be changed into the user name.

 The administration privileges of the new user

You can only add users with less than or equal administration

privileges as yourself.

E-DOC-CTC-20050429-0100 v1.0

4.6 Home Network

Home Network Menu This menu consists of following items:

 Devices

Allows you the view/configure the devices detected on your local network.

 Interfaces

Allows you to view/configure the interfaces that are available on the SpeedTouch™.

Chapter 4

SpeedTouch™ Web Interface

The Home Network

page

Viewing client

information

The Home Network gives you an overview of your SpeedTouch™ network.

If you click a on client you will be able to:

 View the client’s network settings.

 Configure the client’s network settings by clicking Configure.

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.6.1 Devices

Configure The Configure page gives you an overview of the devices that are currently

Overview The Overview page gives you an overview of the devices that are currently

connected to the SpeedTouch™ network. Click on a device name to get more information on a specific device.

connected to the SpeedTouch™ network.

To:

 Get more information on a specific device, click on the name of the device.

See “4.6.2 Device Settings” on page 75 for more information.

 Edit a device from the Detected Device(s) list, click Edit.

 Delete a device from the Detected Device(s) list, click Delete.

Once a device connects to the SpeedTouch™ network, it will remain listed in the Detected Device(s) list until you delete it.

E-DOC-CTC-20050429-0100 v1.0

4.6.2 Device Settings

Chapter 4

SpeedTouch™ Web Interface

Accessing the device

settings page

Overview The Overview page displays following information:

Proceed as follows:

1 On the Home Network menu, click Devices.

2 In the Detected Device(s), click the name of the device you want to view.

 Information allows you to view:

 Status shows whether the device is currently connected to the

SpeedTouch™ network.

 Type shows the device type.

 Connected To shows the interface to which the device is currently

connected.

 Addressing allows you to view:

 Physical Address shows the MAC address of the device.

 IP Address Assignment shows whether the device is using a static or

dynamic IP address.

 IP Address shows the current IP address of the device.

 Connection Sharing:

Gives you an overview of the games or services that are currently assigned to this device. Click the name of the game or service to view the used port mappings. For more information, see “4.5.4 Game or Application Definition” on page 57.

Configure The Configure page allows you to:

 Change the device information.

 Allow a game or service running on this device to be initiated from the Internet.

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.6.3 Assign Public IP

Introduction This page allows you to assign the public IP address of your Internet Connection(s) to

a specific device on your local network. You might want to do this if:

 You do not want to use the Network Address Translation engine of your

SpeedTouch™.

 This device is running server applications (web server,...) and you want it to be

accessible from the Internet.

You can also achieve this by creating a port mapping for the specified server, as described in “4.5.2 Game & Application Sharing” on

page 55.

 This device has to be considered as the unique access point to your local

network (DMZ).

It is not recommended to use this feature as this device will loose all

security offered by the SpeedTouch™.

Accessing the Assign

Public IP page

Assigning the public IP

address to a device

Proceed as follows:

1 On the Home Network menu, click Devices.

2 In the Pick a task... list, click Assign the public IP address of a connection to a

device.

Proceed as follows:

1 Click the Edit link of your Internet connection.

2 In the Device list, select the device you want to assign the public address to.

3 Click Apply.

4 The SpeedTouch™ prompts you that you will have to make some adjustments

as a result of the new configuration, click OK.

5 Release and renew the IP address of the device.

For more information, see your operating system’s user guide or help.

6 If needed, reassign server applications to this device.

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.6.4 Interfaces

Interfaces overview This page gives you an overview of the interfaces used on your SpeedTouch™. If you

want to know more on the network settings of a specific interface, click the name of the interface you want to view.

E-DOC-CTC-20050429-0100 v1.0

Chapter 4

SpeedTouch™ Web Interface

4.6.5 Interface Settings

Overview The Overview page gives you an overview of the current interface settings.

Configure The Configure page allows you to:

Assigning a new IP

address to the

SpeedTouch™

 Change the IP address settings of the SpeedTouch™.

 Change the DHCP IP address pool settings.

Before changing the DHCP pools, make sure that at least one IP

address of the SpeedTouch™ uses the same subnet as the IP addresses in the DHCP pools.

Under IP Addresses:

1 Type the IP address of your choice (for example 192.168.1.1) in the left text

box.

2 Type subnet mask in the right text box (for example 255.255.255.0).

3 Click Add.

4 Network devices using the same subnet mask can now access the

SpeedTouch™ using this IP address.

E-DOC-CTC-20050429-0100 v1.0

4.6.6 DHCP Pool

DHCP Pool This page allows you to create/change a DHCP pool.

Chapter 4

SpeedTouch™ Web Interface

Accessing the DHCP

Pool page

Proceed as follows:

1 On the Home Network menu, click Interfaces.

2 Click on the name of the interface of which you want to change the DHCP pool

settings.

3 Click Configure.

E-DOC-CTC-20050429-0100 v1.0

4 Under DHCP Pools click:

 Add if you want to add a new DCHP pool.

 Edit if you want to edit an existing DHCP pool.

 Delete if you want to delete an existing DHCP pool.

This link will only be shown if there are more than one DHCP pools.

Chapter 4

SpeedTouch™ Web Interface

The DHCP Pool page Following settings are available for configuration:

 Interface:

The SpeedTouch™ interface for which the DHCP pool applies.

 Start Address:

The start IP address of the DHCP server’s address pool.

 End Address:

The end IP address of the DHCP server’s address pool.

Both the start and end IP address define the IP address range used by the DHCP server to assign leases.

 Subnet Mask:

The subnet mask of the DHCP server’s address pool.

 Server:

The SpeedTouch™ IP address used as DHCP server address.

 Gateway:

The IP address that will be assigned to the DHCP clients as their default gateway.

 Primary DNS:

The IP address of the primary DNS server.

 Secondary DNS:

The IP address of the secondary DNS server.

 Primary WINS:

The IP address of the primary WINS server.

 Secondary WINS:

The IP address of the secondary WINS server.

 Lease Time:

The time for which the DHCP client is allowed to use the assigned IP address:

If Always give same address to DHCP clients the lease time will be automatically set to Infinite.

 Always give same address to DHCP clients:

Select this check box if you always want to use the same IP address for the DHCP clients.

E-DOC-CTC-20050429-0100 v1.0

5 Software Upgrade

Introduction This chapter describes how to upgrade the SpeedTouch™ system software or

firmware.

Chapter 5

Software Upgrade

System software

upgrades availability

For the availability of new system software version packages you can:

 Click the SpeedTouch Maintenance link, available on the Setup CD menu.

 Check for SpeedTouch™ upgrades at http://www.speedtouch.com/upgrade.

System software

packages and security

System software

upgrades

All system software packages for the SpeedTouch™ are digitally signed and encrypted. Packages that may have become corrupted, or been altered in any way, will not be accepted by the SpeedTouch™.

This way the SpeedTouch™ or its service can never be corrupted or lost.

Depending on the Operating System your computer is running, you can upgrade your SpeedTouch™ via:

 The SpeedTouch™ Upgrade Wizard (Microsoft Windows or Mac OS X); see

“5.1 Upgrade Wizard on Setup CD” on page 82 for more information.

Preliminary steps Before you start with upgrading the SpeedTouch™, always make sure:

 To inform all people relying on the SpeedTouch™ services, that service may be

down for some short period.

 The new system software file is stored on your local disk or another storage

device.

E-DOC-CTC-20050429-0100 v1.0

Chapter 5

Software Upgrade

5.1 Upgrade Wizard on Setup CD

Introduction The procedures described in this section are valid only in case:

 You run an MS Windows Operating System or Mac OS X.

 Your SpeedTouch™ and computer are properly connected through Ethernet.

During the upgrade procedure in most cases configuration settings are backed up by the wizard and restored after uploading the system software.

Starting the Upgrade

Wizard

To launch the SpeedTouch™ Upgrade Wizard:

1 Insert the Setup CD in your computer’s CD-ROM or DVD-ROM drive. The

SpeedTouch™ CD menu will pop up automatically.

If not:

 In MS Windows:

Click Run on the Start menu and enter the following path: D:\Setup.exe where D stands for the drive letter of your CD-ROM

or DVD-ROM drive.

 On Mac OS X

Double-click the CD icon and then double-click Menu.

2 Optionally, in the Choose Language window, select the language of your

choice and click OK.

3 The SpeedTouch™ safety instructions will be displayed in your default web

browser. Close the window.

4 Select I have read and I fully understand the Safety Instructions and

Regularity Information and click Continue.

5 In the SpeedTouch™ CD Menu, click SpeedTouch Maintenance.

6 Click Upgrade My SpeedTouch, to start the SpeedTouch™ Upgrade Wizard.

7 See “ Upgrade procedure” on page 83 to continue.

E-DOC-CTC-20050429-0100 v1.0

Software Upgrade

Upgrade procedure 1 In the Welcome to the SpeedTouch Upgrade Wizard window, click Next.

2 The SpeedTouch™ Software License Agreement window appears.

You must accept before continuing. Click Yes to accept.

If you accepted this License Agreement in a previous upgrade, this window will not be shown.

Chapter 5

3 The SpeedTouch™ Upgrade Wizard will search for the SpeedTouch™ on the

network. A progress bar is displayed.

4 The SpeedTouch™ Upgrade Wizard should find your SpeedTouch™ device on

the local network. This is indicated by the following window:

If more than one device is found, a list of available devices will be provided. If this is the case, select your SpeedTouch™ device and click Next.

If the wizard does not find any SpeedTouch™ on the network an error window appears, refer to “6.1.2 Upgrade Troubleshooting” on

page 88.

5 Enter your SpeedTouch™ security User name and Password.

E-DOC-CTC-20050429-0100 v1.0

Chapter 5

Software Upgrade

6 The following window shows the system software version currently active on

the SpeedTouch™ as well as one or more system software versions available on the CD:

System software

downgrade

For more information on a found software version, click Firmware Details.

Select the appropriate system software version and click Next.

If your Service Provider has included a separate disk with dedicated upgrade system software, click Have Disk to navigate to the location of the appropriate file.

7 The following window will allow you to overview your selection. Click Next to

continue.

8 A progress bar will be displayed.

9 Finally, click Finish to close the wizard.

Via the identical procedure it is also possible - although not recommended - to downgrade the SpeedTouch™ by uploading an older system software than the current running version.

However, be aware that functionality added by previous upgrades may be lost, that system password settings may be lost as well as end-to-end connectivity and other configuration settings.

In case of a system software downgrade, in step 6, you must specifically

acknowledge your decision before being able to proceed.

E-DOC-CTC-20050429-0100 v1.0

Troubleshooting

6 Troubleshooting

Introduction This chapter suggest solutions for problems you may encounter while installing or

configuring your SpeedTouch™.

If the suggestions do not resolve the problem, look at the support pages on http://

www.speedtouch.com/support or contact your service provider.

For Internet connection troubleshooting, refer to the provided Installation and Setup Guide.

Chapter 6

E-DOC-CTC-20050429-0100 v1.0

Chapter 6

Troubleshooting

6.1 General SpeedTouch™ Troubleshooting

SpeedTouch™ does not

work

SpeedTouch™

unreachable

Poor SpeedTouch™

performance

If none of the LEDs light up, make sure that:

 The SpeedTouch™ is plugged into a power socket outlet.

 You are using the correct power supply for your SpeedTouch™ device, that is

15V AC.

 The power on the SpeedTouch™ is turned on via the push button on the back

panel.

In case your SpeedTouch™ is unreachable due to misconfiguration, you might consider a hardware reset to factory defaults as described in “6.3 Reset to Factory

Defaults” on page 91.

However, note that resetting the SpeedTouch™ to its factory settings will

revoke all the changes you made to the configuration.

Make sure that the SpeedTouch™ is installed and configured as instructed in the Installation and Setup Guide or as instructed by the Service Provider.

E-DOC-CTC-20050429-0100 v1.0

6.1.1 Ethernet Troubleshooting

Chapter 6

Troubleshooting

LAN LED does not light

Make sure that:

 The LAN cable is securely connected to the 10/100Base-T port.

 You are using the correct cable type for your Ethernet equipment, that is UTP

CAT5 with RJ-45 connectors.

E-DOC-CTC-20050429-0100 v1.0

Chapter 6

Troubleshooting

Upgrade via Setup CD If the Upgrade Wizard in step 4, as described in “ Upgrade procedure” on page 83,

6.1.2 Upgrade Troubleshooting

Introduction While upgrading your SpeedTouch™ via the Upgrade Wizard on the Setup CD, you

might encounter one of following problems.

does not find any SpeedTouch™ on the network, an error window will appear, stating your SpeedTouch™ has not been found.

In this case check that:

 The SpeedTouch™ is turned on and fully initialised.

 Your PC is correctly connected to the SpeedTouch™.

 Your PC has a valid IP address. To check this in MS Windows:

1 In the Windows task bar, click Start.

2 Select Run...

3 Type cmd in the Open field.

4 Click OK. A black window will appear with a flashing cursor.

5 Type ipconfig and then press Enter.

6 Verify that your computer has a valid IP address, that is any address but

0.0.0.0.

 No dedicated firewall device or router is placed between your PC and the

SpeedTouch™.

 No personal firewall software is running on your PC.

To repeat the search for your SpeedTouch™, click Back or restart the wizard. As soon as the wizard finds your SpeedTouch™, you can continue with the Upgrade Wizard.

E-DOC-CTC-20050429-0100 v1.0

6.2 UPnP™ on Windows XP Systems

Chapter 6

Troubleshooting

SpeedTouch™ not

detected by UPnP™ or

IGD Control Client

Adding UPnP™ If you are running Microsoft Windows XP, it is recommended to add the UPnP™

Check on following:

 Make sure the UPnP™ and Internet Gateway Device Control Client Networking

components are added to your MS Windows XP system.

 Your computer doesn’t support UPnP™ if you run an operating system other

than MS Windows XP and MS Windows Millennium.

 Make sure that UPnP™ is not disabled in the SpeedTouch™ web page; see

“4.5.2 Game & Application Sharing” on page 55.

component to your system.

Proceed as follows:

1 On the Start menu, click (Settings >) Control Panel.

2 The Control Panel window appears. Click Add or Remove Programs.

3 In the Add or Remove Programs window appears, click Add/Remove

Windows Components.

4 In the Windows Components Wizard, select Networking Services in the

Components list and click Details.

E-DOC-CTC-20050429-0100 v1.0

5 In the Networking Services window, select Universal Plug and Play or UPnP

User Interface and click OK.

6 Click Next to start the installation and follow the instructions in the Windows

Components Wizard.

7 At the end of the procedure the wizard prompts you that the installation was

successful. Click Finish to quit.

Chapter 6

Troubleshooting

Adding IGD Discovery

and Control

Your MS Windows XP system is able to discover and control Internet Gateway Devices (IGD), like the SpeedTouch™ on your local network. Therefore it is recommended to add the IGD Discovery and Control client to your system.

Proceed as follows:

1 On the Windows task bar, click Start.

2 Select (Settings >) Control Panel > Add or Remove Programs.

3 In the Add or Remove Programs window, click Add/Remove Windows

Components.

4 The Windows Components Wizard appears:

Select Networking Services in the Components list and click Details.

5 In the Networking Services window, Select Internet Gateway Device

Discovery and Control Client and click OK.

6 Click Next to start the installation and follow the instructions in the Windows

Components Wizard.

7 At the end of the procedure the wizard prompts you that the installation was

successful. Click Finish to quit.

E-DOC-CTC-20050429-0100 v1.0

6.3 Reset to Factory Defaults

Chapter 6

Troubleshooting

Resetting your

SpeedTouch™

You might consider a reset to factory defaults as described below.

Be aware that a reset to factory defaults will revoke all configurational

changes you made to the SpeedTouch™.

You can choose between:

 Hardware reset

 Software reset

A reset to factory default settings deletes the configuration profile settings. Therefore, after the reset, a reconfiguration of your SpeedTouch™ will be needed.

Hardware reset Proceed as follows:

1 Make sure the SpeedTouch™ is powered on.

2 Use a pen or an unfolded paperclip to push the recessed reset button on the

back panel. The reset button is marked with a red circle. Keep it pushed until the power LED lights red - this will take about 7 seconds.

15VAC ON/OFF

1 2 3 4

3 Release the reset button.

4 The SpeedTouch™ restarts.

Software reset Proceed as follows:

1 Go to the SpeedTouch™ web pages.

2 In the menu select SpeedTouch > Configuration.

3 In the Pick a task... list, click Reset my SpeedTouch to default settings.

4 The SpeedTouch™ restarts.

5 The SpeedTouch™ returns to the SpeedTouch™ Home page (unless the IP

address of your computer is not in the same subnet as the default IP address of the SpeedTouch™, being 192.168.1.254).

E-DOC-CTC-20050429-0100 v1.0

Chapter 6

Troubleshooting

E-DOC-CTC-20050429-0100 v1.0

Apple TM546 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Used Symbols

About this User’s Guide

Terminology

1 Your SpeedTouch™

Introduction With the SpeedTouch™546(i) Residential ADSL Gateway you can build a secure

Installation For more information on how to set up your SpeedTouch™, installation and wiring

Contents This User’s Guide will assist you in configuring your SpeedTouch™.

Safety instructions Before connecting the SpeedTouch™, please read the SpeedTouch™ Quick Installation

1.1 SpeedTouch™ Features

Introduction Your SpeedTouch™ offers you a wide range of outstanding features.

1.1.1 Hardware Specifications

Gateway Integrated multi-mode ADSL modem, supporting:

Physical interfaces  WAN: One RJ-11 port for ADSL/POTS or ADSL/ISDN connection

LEDs LED indicators for all interfaces

Reset button One recessed reset button for restoring the default settings

Power requirement Power supply: 15V AC, 1000mA

ADSL compliance  If POTS in overlay: G. handshake, Full Rate ADSL, G.dmt, G.lite (splitterless

1.1.2 Software Features

ATM features  Up to 16 simultaneous PVCs, allowing multiple simultaneous destinations

Bridging features  Multiport self-learning transparent bridge per IEEE 802.1D for LAN interconnect

Routing features  Multi-port (up to 16 PVCs) router

Services  UPnP with NAT traversal capability:

Security  PAP (RFC1334), CHAP (RFC1994) for PPP session

Configuration  Home Install Wizard, Easy Setup wizard

Management  Multi-level user protection, Event logging

1.2 SpeedTouch™ LED Behaviour

Front panel LEDs The SpeedTouch™ is equipped with a number of LEDs on its front panel, indicating

1.3 How to Access your SpeedTouch™

Access methods Your SpeedTouch™ is accessible in one of following ways:

1.3.1 Access via the Web Interface

Procedure To access the SpeedTouch™ via the web interface:

1.3.2 Access via CLI

Teln e t ses si on Proceed as follows:

1.3.3 Access via FTP

File system The SpeedTouch™ file system is stored on nonvolatile memory, and contains the

FTP session To open an FTP session:

File system structure The structure of the file system is very simple: It consists of a single root directory

FTP fil e tr a ns f er To allow correct file transfers, set the transfer mode to “binary”: At the ftp prompt,

Quote site command All the CLI commands can be executed from within an FTP session. Only complete

Enabling remote access To enable remote assistance:

1.3.4 Remote Assistance

Remote access You can make your SpeedTouch accessible from the Internet with regard to remote

2 Local Network Setup

Ethernet network The Ethernet ports on the back panel of your SpeedTouch™ allow you to connect the

Device settings Once you’ve connected a device, you are able to personalise its settings:

Ethernet link check Depending on the SpeedTouch™ model, LED indicators allow you to check your

3 Internet Connectivity Dial-In Clients

Introduction For setting up initial Internet connectivity, using the Home Install Wizard on the

Access methods Depending on the configuration of the SpeedTouch™ you may have:

Connection protocols The applied connection protocol model depends on the service profile you selected to

Dial-in clients There are different ways of dialling in, depending on the operating system on your PC

3.1 SpeedTouch™ Web Pages

Introduction As the SpeedTouch™ web pages are controllable from any Operating System with an

3.2 IGD Control Agent

Introduction MS Windows XP users can easily establish PPP sessions, thanks to MS Windows

Preconditions Following conditions must be met:

3.3 MS Windows XP BroadBand Connection

Prerequisites To be able to use the MS Windows XP BroadBand Connection, your SpeedTouch™

3.4 Mac OS X PPPoE Dial-in Client

Prerequisites To be able to use the MS Windows XP BroadBand Connection, your SpeedTouch™

4 SpeedTouch™ Web Interface

Introduction The SpeedTouch™ comes with embedded HTML pages, providing an interface to the

Navigation components The SpeedTouch™ web interface consists of following components:

4.1 Navigation

4.1.1 Menu

Menu items The menu is located on the left side of the page and consists of the following menu

4.1.2 Language Bar

Language bar The language bar is located under the SpeedTouch™ logo and allows you to change

4.1.3 Navigation Bar

Navigation bar The navigation bar is located on the top of the page and allows you to:

Display level Depending on the page you are viewing following buttons will be available:

4.1.4 Notification Area

Notification area The notification area is located under the Navigation Bar and is used to display:

4.1.5 Tasks

Task s To allow a swift configuration of your SpeedTouch™, some pages may offer you a
