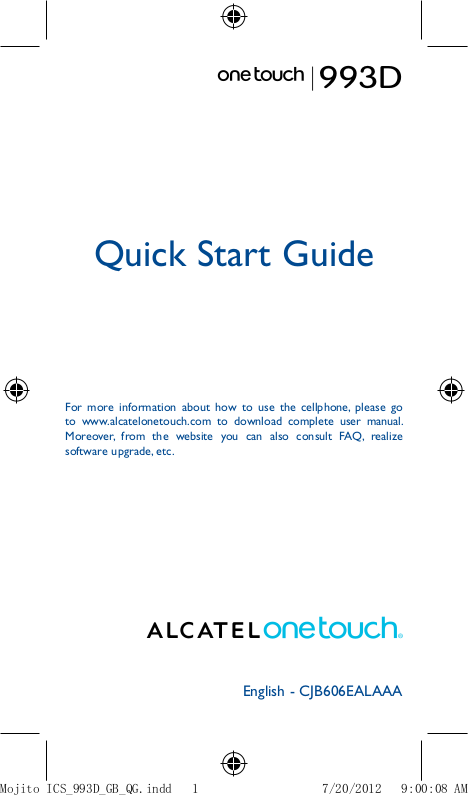

993D
Quick Start Guide
For more information about how to use the cellphone, please go to www.alcatelonetouch.com to download complete user manual. Moreover, from the website you can also consult FAQ, realize software upgrade, etc.
English - CJB606EALAAA
Mojito ICS_993D_GB_QG.indd |
1 |
7/20/2012 |
9:00:08 AM |
Table of contents |
|
|
1 |
Your mobile |
1 |
2 |
Text input |
11 |
3 |
Phone call |
13 |
4 |
Contacts |
14 |
5 |
Messaging |
15 |
6 |
16 |
|
7 |
Getting connected |
17 |
8 |
Locate my location using GPS satellites20 |
|
9 |
Data backup |
20 |
10 |
Factory data reset |
21 |
11 Applications & Internal storage |
22 |
|
12 |
Making the most of your phone |
22 |
Safety and use |
25 |
|
General information |
31 |
|
Warranty |
33 |
|
Troubleshooting |
34 |
|
|
This product meets |
applicable |
|
national SAR limits of 2.0 W/kg. The |
|
|
specific maximum SAR values can be |
|
|
found on page 28 of this user guide. |
|
When carrying the product or using it while worn on your body, either
www.sar-tick.com use an approved accessory such as a holster or otherwise maintain a
distance of 1.5 cm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call.
Prolonged exposure to music at full volume on the music player may damage the listener's hearing. Set your cellphone volume safely. Use only headphones recommended by TCT Mobile Limited and its affiliates.
Mojito ICS_993D_GB_QG.indd 2-1
1 Your mobile
1.1Keys and connectors
Power key
Headset connector
Front camera
Touch screen
Home key
Back key |
Menu key |
1
7/20/2012 9:00:09 AM
Camera |
|
Camera Flash/ |
|
Flashlight |
Volumn Keys |
Micro-USB Connector
Menu key
•Open a list of actions which the user can do on the current screen or options menu.
Home key
•While on any application or screen, touch to return to the Home screen.
•Touch and hold to open the recently-used applications window.
Back key
• Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc.
Power key
•Press: Lock the screen / Light up the screen
•Press and hold: Show the pop-up menu to select from Ringer mode/ Airplane mode/Power off
Power on
•Press Power key and Volumn down key to capture a screenshot.
2
Mojito ICS_993D_GB_QG.indd 2-3
Volume Keys
•Under call mode, adjust the earpiece or headset volume.
•In Music/Video/Streaming mode, adjust the media volume.
•In general mode, adjust the ring tone volume.
•Mute the ringtone of an incoming call.
1.2Getting started
1.2.1Set-up
Removing or installing the back cover
Inserting or removing the SIM card
You must insert your SIM card to make phone calls. Please power off your phone and remove battery before inserting or removing the SIM card.
To install, place the SIM card with SIM1 chip facing downwards and SIM2 chip facing upwards, and then slide it into its slot. Make sure that it is correctly inserted.To remove the card, press and slide it out.
3
7/20/2012 9:00:10 AM
For dual SIM model, the SIM1 slot can support both 2G and
3G network, while the SIM2 slot can only support a 2G network.
Installing or removing the battery
Please power off your phone before removing the battery.
• |
Insert and click the battery into place, then close the phone cover. |
• |
Unclip the cover, then remove the battery. |
Installing and removing the MicroSD card
Insert the microSD card with golden contact facing downwards into the slot.To remove the microSD card, gently press and slide it out.
To remove the microSD card while the phone is on, you
must unmount the storage card from the phone first (refer to Settings\Storage\Unmount SD card), to prevent corrupting or damaging the storage card.
Charging the battery
Connect the battery charger to your phone and mains socket respectively.
4
Mojito ICS_993D_GB_QG.indd 4-5
To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc.
1.2.2Power on your phone
Hold down the Power key until the phone powers on. It will take some seconds before the screen lights up.
Set up your phone for the first time
The first time you power on the phone, you should set following options: language, Keyboard, date & time, etc.
Power on screen without SIM card inserted, you can also connect to a Wi-Fi network to sign into your Google account and to use some features.
1.2.3Power off your phone
Hold down the Power key from the Home screen until the Phone options appear, select Power off, and touch OK to confirm.
1.3Home screen
You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your Home screen for quick access.Touch the Home key to switch to Home screen.
Status bar
•Status/Notification indicators
•Touch and drag down to open the notification panel.
Search bar
•Touch to enter text search screen.
•Touch to enter voice search screen.
Touch an icon to open an application, folder, etc.
Favorite tray applications
•Touch to enter the application.
•Touch and hold to move or change applications.
Application tab
• Touch to open main menu.
5
7/20/2012 9:00:11 AM
Home screen is provided in an extended format to allow more space for adding applications, shortcuts etc. Slide the Home screen horizontally left and right to get a complete view of the Home screen.
1.3.1Using the touchscreen
Touch
To access an application, touch it with your finger.
Touch and Hold
To enter the available options for an item, touch and hold the item. For example, select a contact in Contacts, touch and hold this contact, options list will then appear on screen.
Drag
Place your finger on the screen to drag an object to another location.
Slide/Swipe
Slide the screen to scroll up and down the applications, images, web pages… at your convenience.
Flick
Similar to swiping, but flicking makes it move quicker.
Pinch/Spread
Place your fingers of one hand on the screen surface and draw them apart or together to scale an element on the screen.
Rotate
Automatically change the screen orientation from portrait to landscape by turning the phone sideways to have a better view.
1.3.2Status bar
From status bar, you can view both phone status (to the right side) and notification information (to the left side).When the status bar is full, “
” icon will appear.
6
Mojito ICS_993D_GB_QG.indd 6-7
Status icons
|
GPRS connected |
|
GPS is on |
|
|
|
|
|
GPRS in use |
|
Receiving location data |
|
|
from GPS |
|
|
|
|
|
|
|
|
|
|
EDGE connected |
|
Speakerphone is on |
|
|
|
|
|
EDGE in use |
|
Roaming |
|
|
|
|
|
3G connected |
|
No signal |
|
|
|
|
|
3G in use |
|
No SIM card installed |
|
|
|
|
|
HSPA (3G+) connected |
|
Vibrate mode |
|
|
|
|
|
HSPA (3G+) in use |
|
Ringer is silenced |
|
|
|
|
|
Wi-Fi is on |
|
Phone microphone |
|
|
is mute |
|
|
|
|
|
|
|
|
|
|
Connected to a Wi-Fi |
|
Battery is very low |
|
network |
|
|
|
|
|
|
|
|
|
|
|
Bluetooth is on |
|
Battery is low |
|
|
|
|
|
Connected to a |
|
Battery is partially |
|
Bluetooth device |
|
drained |
|
|
|
|
|
Airplane mode |
|
Battery is full |
|
|
|
|
|
Alarm is set |
|
Battery is charging |
|
|
|
|
|
Signal strength |
|
Headset connected |
|
|
|
|
7
7/20/2012 9:00:12 AM
Notification icons
|
New Gmail message |
|
|
More notifications are |
|
|
|
hidden |
|
|
|
|
|
|
|
|
|
|
|
|
New Email message |
|
|
Call in progress |
|
|
|
|
|
|
New text or |
|
|
Call in progress using |
|
multimedia message |
|
|
Bluetooth headset |
|
|
|
|
|
|
Problem with SMS or |
|
|
Missed call |
|
MMS delivery |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
New Google Talk |
|
|
Call on hold |
|
message |
|
|
|
|
|
|
|
|
|
New voicemail |
|
|
Call forwarding is on |
|
|
|
|
|
|
Upcoming event |
|
|
Uploading data |
|
|
|
|
|
|
Data is synchronizing |
|
|
Downloading data |
|
|
|
|
|
|
Song is playing |
|
|
Download finished |
|
|
|
|
|
|
microSD card is full |
|
|
Select input method |
|
|
|
|
|
|
No microSD card |
|
|
An open Wi-Fi network |
|
installed |
|
|
is available |
|
preparing SD card |
|
|
Phone is connected via |
|
|
|
USB cable |
|
|
|
|
|
|
|
|
|
|
|
|
safe to remove SD card |
|
|
Radio is on |
|
|
|
|
|
|
Screenshot error |
|
|
System update available |
|
|
|
|
|
|
USB tethering is on |
|
|
Connected to VPN |
|
|
|
|
|
|
Portable Wi-Fi hotspot |
|
|
Disconnected from |
|
is on |
|
|
VPN |
|
|
|
|
|
|
Both USB tethering |
|
|
Carrier data use |
|
and portable hotspot |
|
|
threshold approaching |
|
are on |
|
|
or exceeded |
|
|
|
|
|
|
Screenshot captured |
|
|
|
|
|
|
|
|
8 |
|
|
|
|
Mojito ICS_993D_GB_QG.indd |
8-9 |
|||
Notification panel
Touch and drag down the Status bar to open the notification panel. Touch and drag up to close it. From the Notification panel, you can open items and other reminders indicated by notification icons or view wireless service information.
Quick settings bar
•Touch to enable/disable functions or change modes.
•Touch & hold the icon of Wi-Fi, Bluetooth or Sync to access settings screen.
•Slide left and right to view more.
Touch one notificaiton and slide it sideways to delete it.
Touch the icon
to clear all event–based notifications (other ongoing notifications will remain).
Touch the Settings icon
to access settings.
You can drag down the notification panel even from the slide lock screen.
1.3.3Search bar
The phone provides a Search function which can be used to locate information within applications, the phone or the web.
1.3.4Lock/Unlock your screen
To protect your phone and privacy, you can lock the phone screen by creating a variety of patterns, PIN or password etc.
1.3.5 Personalize your Home screen
Add
Touch the application tab
, touch and hold an application or a widget to active the Move mode, and drag the item to any Home screen as you prefer.
9
7/20/2012 9:00:13 AM
Reposition
Touch and hold the item to be repositioned to activate the Move mode, drag the item to the desired position and then release. You can move items both on the Home screen and the Favorite tray. Hold the icon on the left or right edge of the screen to drag the item to another Home screen.
Remove
Touch and hold the item to be removed to activate the Move mode, drag the item up to the top of Remove icon, and release after the item turns red.
Create folders
To improve the organization of items (shortcuts or applications) on the Home screen and the Favorite tray, you can add them to a folder by stacking one item on top of another. To rename a folder, open it, touch the folder’s title bar to input the new name.
Wallpaper customization
Touch and hold an empty area or touch Menu key, then touch Wallpaper on the Home screen to customize wallpaper.
1.3.6Application tab
Touch
from the Home screen to enter applications list. To return to the Home screen, touch the Home key.
Consult recently-used applications
To consult recently-used applications, you can touch and hold the Home key. Touch a thumbnail in the window to open the related application.Touch one thumbnail and slide it sideways to delete it.
10
Mojito ICS_993D_GB_QG.indd 10-11
1.3.7Volume adjustment
You can set ringer, media and phone ringtone volume to your preference by pressing Volume up/down key, or touching Settings menu from the Dial screen.
1.4Applications and widgets list
The list contains all pre-embedded and newly installed applications and widgets.
To access the list, touch
from the Home screen.To return to the Home screen, touch the Home key or the Back key.
Touch the icon
to access the Google Play Shop.
1.4.1Sort applications
Applications can be sorted in two modes. To switch between two modes, touch Menu key from applications list screen, and touch Sort.The window of Sort order will pop up for you to choose.
Sort by alphabet (default)
All applications are listed in alphabetical order.
Sort by favorite
All applications are sorted by the using frequency.
2 Text input
2.1Using Onscreen Keyboard
Onscreen Keyboard settings
Touch Menu key from the Home screen, select Settings\Language & input, touch the Settings icon
on the right of Android keyboard or TouchPal Input, a series of settings are available for your selection.
Adjust the Onscreen Keyboard orientation
Turn the phone sideways or upright to adjust the Onscreen Keyboard orientation. You can also adjust it by changing the settings (Touch Menu key on the Home screen, then touch Settings\Display\ Auto-rotate screen).
11
7/20/2012 9:00:13 AM
