992D
Quick Start Guide
For more information about how to use the cellphone, please go to www.alcatelonetouch.com to download complete user manual. Moreover, from the website you can also consult FAQ, realize software upgrade, etc.
English - CJB32G3ALAAB
1
IP4346_992D_Eng_GB_QG_10_121127.indd 1 |
2012-11-27 14:46:25 |
Table of contents |
|
|
1 |
Your mobile..................................................................... |
3 |
2 |
Text input ...................................................................... |
14 |
3 |
Phone call ...................................................................... |
15 |
4 |
People ............................................................................ |
|
|
|
17 |
5 |
Messaging....................................................................... |
|
|
|
18 |
6 |
Email .............................................................................. |
19 |
7 |
Getting connected........................................................ |
20 |
8 |
Locate my location using GPS satellites ...................... |
23 |
9 |
Data backup .................................................................. |
23 |
10 |
Factory data reset ....................................................... |
24 |
11 |
Applications & Internal storage.................................. |
24 |
12 |
Making the most of your phone.................................. |
25 |
Safety and use......................................................................... |
27 |
|

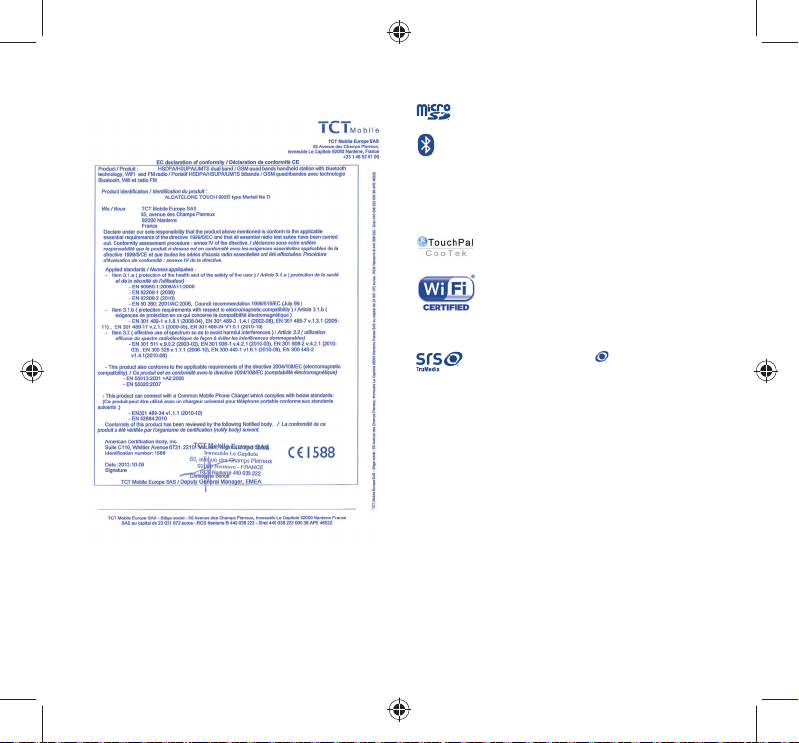

General information .............................................................. |
34 |
|
Warranty................................................................................. |
35 |
|
Troubleshooting...................................................................... |
36 |
|
|
This product meets |
applicable |
|
national SAR limits of 2.0 W/kg. The |
|
|
specific maximum SAR values can be |
|
|
found on page 31 of this user guide. |
|
When carrying the product or using it while worn on your body, either
www.sar-tick.com
use an approved accessory such as a holster or otherwise maintain a distance of 1.5 cm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call.
Prolonged exposure to music at full volume on the music player may damage the listener's hearing. Set your cellphone volume safely. Use only headphones recommended by TCT Mobile Limited and its affiliates.
2
IP4346_992D_Eng_GB_QG_10_121127.indd 2-3
1 Your mobile..................
1.1Keys and connectors
Front camera
Touch screen
Back key |
Recent apps |
|
key/Menu key |
||
|
||
micro-USB |
Home key |
|
Volume up |
||
connector |
||
Volume down |
||
|
||
Power key Headset connector |
||
3
2012-11-27 14:46:25
Camera Flash |
Camera |
|
/Flashlight |
||
|
Recent app keys/Menu key
•Touch: As recent apps key, touch to open a list of thumbnail images of apps you've worked with recently. Touch one image to open app. Swipe it left or right to remove a thumbnail from the list.
• Touch and hold: As Menu key, touch and hold it to access Wallpaper, Manage applications and Settings.
Home key
•While on any application or screen, touch to return to the Home screen.
Back key
•Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc.
Power key
•Press: Lock the screen/Light up the screen
•Press and hold: Show the pop-up menu to select from Ringer mode/Airplane mode/Power off
Press and hold: Power on
•Press and hold Power key and Volume down key to capture a screenshot.
4
Volume Keys
• Under call mode, adjust the earpiece or headset volume.
• In Music/Video/Streaming mode, adjust the media volume.
•In general mode, adjust the ring tone volume.
•Mute the ringtone of an incoming call.
1.2Getting started
1.2.1Set-up
Removing or installing the back cover
Inserting or removing the SIM card
You must insert your SIM card to make phone calls. Please power off your phone and remove battery before inserting or removing the SIM card.
To install, place the SIM card with the chip facing downwards, and then slide it into its slot. Make sure that it is correctly inserted. To remove the card, press and slide it out.
For dual SIM models, both SIM 1 and SIM2 can support 2G and 3G networks.
5
IP4346_992D_Eng_GB_QG_10_121127.indd 4-5 |
2012-11-27 14:46:25 |
Installing or removing the battery
Please power off your phone before removing the battery.
• Insert and click the battery into place, then close the phone cover.
• Unclip the cover, then remove the battery.
Installing and removing the microSD card
Insert the external microSD card into the slot with the gold contact facing down. To remove the external microSD card, gently press and slide it out.
Before removing the microSD card, you should ensure the phone is off, to protect it from corruption or damage. In addition, regularly removing or inserting the SD card may cause the phone to restart.
Charging the battery
Connect the battery charger to your phone, then the charge indicator at the bottom of screen will light.
6
The charging status bar will not float if your battery is extendly consumed. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc.
1.2.2Power on your phone
Hold down the Power key until the phone powers on. It will take some seconds before the screen lights up.
Set up your phone for the first time
The first time you power on the phone, you should set following options: language, date & time, Google account, Google location, etc.
If you power on your phone with no SIM card inserted, you will see a screen giving you the option to connect to a Wi-Fi network to sign into your Google account and to use some features.
1.2.3Power off your phone
Hold down the Power key from the Home screen until the Phone options appear, select Power off, and touch OK to confirm.
1.3Home screen
You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your Home screen for quick access.Touch the Home key to switch to Home screen.
Status bar
•Status/Notification indicators
•Touch and drag down to open the notification panel.
Search bar
•Touch to enter text search screen.
•Touch to enter voice search screen.
Touch an icon to open an application, folder, etc.
Favorite tray applications
•Touch to enter the application.
•Touch and hold to move or change applications.
Application tab
• Touch to open main menu.
7
IP4346_992D_Eng_GB_QG_10_121127.indd 6-7 |
2012-11-27 14:46:25 |
Home screen is provided in an extended format to allow more space for adding applications, shortcuts etc. Slide the Home screen horizontally left and right to get a complete view of the Home screen. Blue line at the lower left and right of the screen indicate which screen you are viewing.
1.3.1Using the touchscreen
Touch
To access an application, touch it with your finger.
Touch and Hold
Touch and hold the home screen to access the available options for setting the wallpaper.
Drag
Place your finger on any item to hold and drag it to another location.
Slide/Swipe
Slide the screen to scroll up and down the applications, images, web pages… at your convenience.
Flick
Similar to swiping, but flicking makes it move quicker.
Pinch/Spread
Place your two fingers of one hand on the screen surface and draw them apart or together to scale an element on the screen.
Rotate
Automatically change the screen orientation from portrait to landscape by turning the phone sideways to have a better view.
1.3.2Status bar
From status bar, you can view both phone status (to the right side) and notification information (to the left side).When the status bar is full, “
” icon will appear.
8
IP4346_992D_Eng_GB_QG_10_121127.indd 8-9
Status icons
For dual SIM model, status icons referring to either SIM1 or SIM2 will be identified by a colour which you have defined.
|
GPRS connected |
|
GPS is on |
|
|
|
|
|
GPRS in use |
|
Receiving location data |
|
|
from GPS |
|
|
|
|
|
|
|
|
|
|
EDGE connected |
|
Speakerphone is on |
|
|
|
|
|
EDGE in use |
|
Roaming |
|
|
|
|
|
3G connected |
|
No signal |
|
|
|
|
|
3G in use |
|
Vibrate mode |
|
|
|
|
|
HSPA (3G+) connected |
|
Ringer is silenced |
|
|
|
|
|
HSPA (3G+) in use |
|
Phone microphone |
|
|
is mute |
|
|
|
|
|
|
|
|
|
|
Wi-Fi is on |
|
No charge in battery |
|
|
|
|
|
Connected to a Wi-Fi |
|
Battery is very low |
|
network |
|
|
|
|
|
|
|
|
|
|
|
Bluetooth is on |
|
Battery is low |
|
|
|
|
|
Connected to a |
|
Battery is partially |
|
Bluetooth device |
|
drained |
|
|
|
|
|
Airplane mode |
|
Battery is full |
|
|
|
|
|
Alarm is set |
|
Battery is charging |
|
|
|
|
|
Signal strength |
|
Headset connected |
|
|
|
|
9
2012-11-27 14:46:26
Notification icons
|
New text or |
|
Call in progress |
|
multimedia message |
|
|
|
|
|
|
|
|
|
|
|
Problem with SMS or |
|
Call in progress using |
|
MMS delivery |
|
Bluetooth headset |
|
|
|
|
|
New Google Talk |
|
Missed call |
|
message |
|
|
|
|
|
|
|
New voicemail |
|
Call on hold |
|
|
|
|
|
Upcoming event |
|
Call forwarding is on |
|
|
|
|
|
Data is synchronizing |
|
Uploading data |
|
|
|
|
|
Song is playing |
|
Downloading data |
|
|
|
|
|
microSD card is full |
|
Download finished |
|
|
|
|
|
No microSD card |
|
Select input method |
|
installed |
|
|
|
|
|
|
|
|
|
|
|
preparing SD card |
|
An open Wi-Fi network |
|
|
is available |
|
|
|
|
|
|
|
|
|
|
safe to remove SD card |
|
Phone is connected via |
|
|
USB cable |
|
|
|
|
|
|
Screenshot error |
|
Radio is on |
|
|
|
|
|
USB tethering is on |
|
System update available |
|
|
|
|
|
Portable Wi-Fi hotspot |
|
Connected to VPN |
|
is on |
|
|
|
|
|
|
|
|
|
|
|
Both USB tethering |
|
Disconnected from |
|
and portable hotspot |
|
|
|
|
VPN |
|
|
are on |
|
|
|
|
|
|
|
|
|
|
|
|
|
Carrier data use |
|
Screenshot captured |
|
threshold approaching |
|
|
|
or exceeded |
|
|
|
|
|
More notifications are |
|
|
|
hidden |
|
|
|
|
|
|
10
IP4346_992D_Eng_GB_QG_10_121127.indd 10-11
Notification panel
Touch and drag down the Status bar to open the notification panel. Touch and drag up to close it. From the Notification panel, you can open items and other reminders indicated by notification icons or view wireless service information.
Quick settings bar
•Touch to enable/disable functions or change modes.
•Slide left and right to view more.
Touch one notificaiton and slide it sideways to delete it.
Touch the icon
to clear all event–based notifications (other ongoing notifications will remain).
Touch the Settings icon
to access Settings.
Once you inserted SIM card, you can drag down the notification panel even from the locked screen.
1.3.3Search bar
The phone provides a Search function which can be used to locate information within applications, the phone or the web.
1.3.4Lock/Unlock your screen
To protect your phone and privacy, you can lock the phone screen by creating a variety of patterns, PIN or password etc.
1.3.5Personalize your Home screen
Add
Touch the application tab
, touch and hold an application or a widget to active the Move mode, and drag the item to any Home screen as you prefer.
11
2012-11-27 14:46:26
Reposition
Touch and hold the item to be repositioned to activate the Move mode, drag the item to the desired position and then release. You can move items both on the Home screen and the Favorite tray. Hold the icon on the left or right edge of the screen to drag the item to another Home screen.
Remove
Touch and hold the item to be removed to activate the Move mode, drag the item up to the top of Remove icon, and release after the item turns red.
Create folders
To improve the organization of items (shortcuts or applications) on the Home screen and the Favorite tray, you can add them to a folder by stacking one item on top of another. To rename a folder, open it, touch the folder’s title bar to input the new name.
Wallpaper customization
Touch and hold an empty area or touch Settings\Display, then touch Wallpaper on the Home screen to customize wallpaper.
1.3.6Application tab
Touch
from the Home screen to enter applications list. To return to the Home screen, touch the Home key.
Consult recently-used applications
To consult recently-used applications, you can touch the Recent apps key. Touch a thumbnail in the window to open the related application.Touch one thumbnail and slide it sideways to delete it.
12
IP4346_992D_Eng_GB_QG_10_121127.indd 12-13
1.3.7Volume adjustment
You can set ringer, media and phone ringtone volume to your preference by pressing Volume up/down key.
1.4Applications and widgets list
The list contains all pre-embedded and newly installed applications and widgets.
To access the list, touch
from the Home screen.To return to the Home screen, touch the Home key or the Back key.
Touch the icon
to access the Google Play Store.
13
