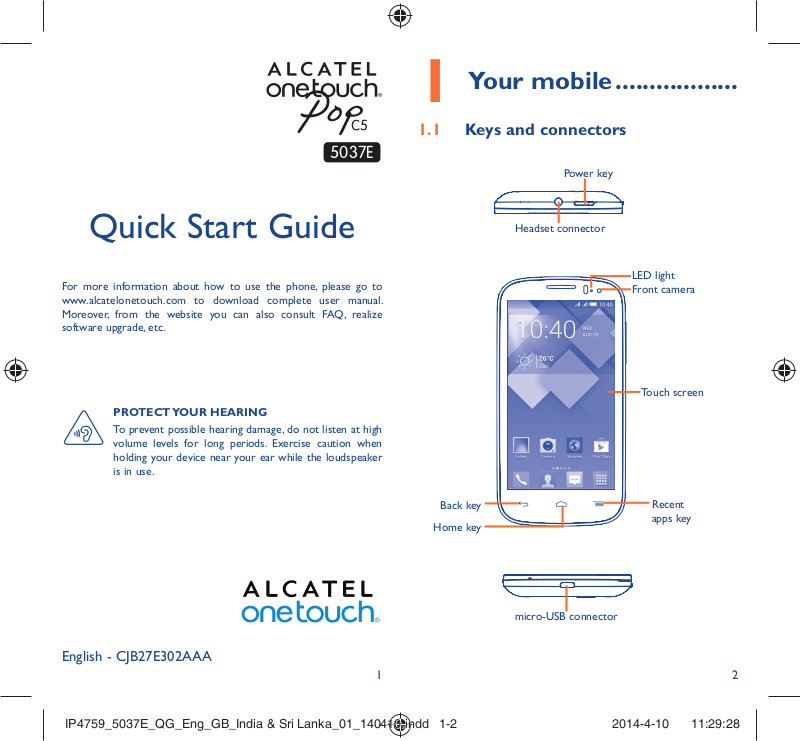

1 Your mobile..................
1.1 Keys and connectors
5037E
Quick Start Guide
For more information about how to use the phone, please go to www.alcatelonetouch.com to download complete user manual. Moreover, from the website you can also consult FAQ, realize software upgrade, etc.
PROTECT YOUR HEARING
To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use.
Power key
Headset connector
LED light
Front camera
Touch screen
Back key |
Recent |
Home key |
apps key |
|
|
|
micro-USB connector |
English - CJB27E302AAA
1 |
2 |
IP4759_5037E_QG_Eng_GB_India & Sri Lanka_01_140410.indd 1-2 |
2014-4-10 11:29:28 |
Camera
Volume up
Volume down
Recent apps key
•Touch: As Menu key, touch to access Wallpaper,
Manage applications and Settings.
•Touch and hold: Open a list of thumbnail images of apps you've worked with recently. Touch it to open an app. Swipe it upwards or downwards to remove a thumbnail from the list.
Home key
•While on any application or screen, touch to return to the Home screen.
Back key
•Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc.
3
Power key
•Press: Lock the screen/Light up the screen
•Press and hold: Show the pop-up menu to select from Power off/Restart/Airplane mode/Quick start
Press and hold: Power on
•Press to mute the ringtone when there’s an incoming call.
•Press and hold for more than 7 seconds to restart the phone when the system halted.
•Press and hold Power key and Volume down key to capture a screenshot.
•Press and hold Power key and Volume up key under power off mode to restore factory set.
Volume keys
•Under call mode, adjust the earpiece or headset volume.
•In Music/Video/Streaming mode, adjust the media volume.
•In general mode, adjust the ring tone volume.
•Mute the ringtone of an incoming call.
•In Camera mode, using it as the capture key allows you to take a photo.
4
IP4759_5037E_QG_Eng_GB_India & Sri Lanka_01_140410.indd 3-4 |
2014-4-10 11:29:28 |
1.2 Getting started |
Installing the microSD card |
1.2.1Set-up
Removing or installing the back cover
Inserting or removing the SIM card
You must insert your SIM card to make phone calls. Please power off your phone before inserting or removing the SIM card.
Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out.
For dual SIM models, both SIM1 and SIM2 can support 2G and 3G networks, but when 3G SIM cards are inserted into both SIM1 and SIM2 slot at the same time, only SIM1 will support 3G network.
Your phone only support mini-SIM card. Do not attempt to insert other SIM type like micro and nano card, otherwise may cause phone damage.
Installing or removing the battery
Please power off your phone before removing the battery.
• Insert and click the battery into place, then close the cover.
• Unclip the cover, then remove the battery.
5
To install, please insert the external microSD card into the slot with the gold contact facing down.To remove the external microSD card, gently press and slide it out.
Charging the battery
Connect the battery charger to your phone and mains socket respectively.
The charging status bar will not float if your battery is extendly consumed. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc.
6
IP4759_5037E_QG_Eng_GB_India & Sri Lanka_01_140410.indd 5-6 |
2014-4-10 11:29:28 |
1.2.2Power on your phone
Hold down the Power key until the phone powers on. It will take some seconds before the screen lights up.
Set up your phone for the first time
The first time you power on the phone, you should set following options: language, input method, date & time, Google account, etc.
If you power on your phone with no SIM card inserted, you can connect to a Wi-Fi network to sign into your Google account and to use some features.
For dual SIM mode, you should select a SIM card or choose Always ask for voice call, messaging, etc.
1.2.3Power off your phone
Hold down the Power key from the Home screen until the Phone options appear, select Power off.
1.3Home screen
You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your Home screen for quick access.Touch the Home key to switch to Home screen.
Status bar
•Status/Notification indicators
•Touch and drag down to open the notification panel.
Add a location to display local weather.
Favorite tray applications
•Touch to enter the application.
•Touch and hold to move or change applications.
Application tab
• Touch to open main menu.
Home screen is provided in an extended format to allow more space for adding applications, shortcuts etc. Slide the Home screen horizontally left and right to get a complete view of the Home screen. The white short line at the lower part of the screen indicates which screen you are viewing.
7
1.3.1Using the touchscreen
Touch
To access an application, touch it with your finger.
Touch and Hold
Touch and hold the home screen to access the available options for setting the wallpaper.
Drag
Place your finger on any item to drag it to another location.
Slide/Swipe
Slide the screen to scroll up and down the applications, images, web pages… at your convenience.
Flick
Similar to swiping, but flicking makes it move quicker.
Pinch/Spread
Place your fingers of one hand on the screen surface and draw them apart or together to scale an element on the screen.
Rotate
Automatically change the screen orientation from portrait to landscape by turning the phone sideways to have a better view.
1.3.2Status bar
From status bar, you can view both phone status (to the right side) and notification information (to the left side).
8
IP4759_5037E_QG_Eng_GB_India & Sri Lanka_01_140410.indd 7-8 |
2014-4-10 11:29:34 |
Status icons
For dual SIM model, status icons referring to either SIM1 or SIM2 will be identified by a colour which you have defined. (1)
|
GPRS connected |
|
Roaming |
|
|
|
|
|
GPRS in use |
|
No SIM card inserted |
|
|
|
|
|
EDGE connected |
|
Vibrate mode |
|
|
|
|
|
EDGE in use |
|
Ringer is silenced |
|
|
|
|
|
3G connected |
|
Phone microphone |
|
|
is mute |
|
|
|
|
|
|
|
|
|
|
3G in use |
|
Battery is very low |
|
|
|
|
|
HSPA (3G+) connected |
|
Battery is low |
|
|
|
|
|
HSPA (3G+) in use |
|
Battery is partially |
|
|
drained |
|
|
|
|
|
|
|
|
|
|
Connected to a Wi-Fi |
|
Battery is full |
|
network |
|
|
|
|
|
|
|
|
|
|
|
Bluetooth is on |
|
Battery is charging |
|
|
|
|
|
Connected to a |
|
Headset connected |
|
Bluetooth device |
|
|
|
|
|
|
|
|
|
|
|
Airplane mode |
|
No signal (gray) |
|
|
|
|
|
Alarm is set |
|
Signal strength (blue) |
|
|
|
|
|
GPS is on |
|
Receiving location data |
|
|
from GPS |
|
|
|
|
|
|
|
|
|
(1)Define through Settings\SIM management\SIM Information\ Set background color.
9
Notification icons
|
New text or |
|
Missed call |
|
multimedia message |
|
|
|
|
|
|
|
|
|
|
|
Problem with SMS or |
|
Call on hold |
|
MMS delivery |
|
|
|
|
|
|
|
|
|
|
|
New Hangouts message |
|
Call forwarding is on |
|
|
|
|
|
New voicemail |
|
Uploading data |
|
|
|
|
|
Upcoming event |
|
Downloading data |
|
|
|
|
|
Data is synchronizing |
|
Download finished |
|
|
|
|
|
Song is playing |
|
Select input method |
|
|
|
|
|
Screenshot error |
|
An open Wi-Fi network |
|
|
is available |
|
|
|
|
|
|
|
|
|
|
USB tethering is on |
|
Phone is connected via |
|
|
USB cable |
|
|
|
|
|
|
|
|
|
|
Portable Wi-Fi hotspot |
|
Radio is on |
|
is on |
|
|
|
|
|
|
|
|
|
|
|
Screenshot captured |
|
System update available |
|
|
|
|
|
Carrier data use |
|
|
|
threshold approaching |
|
Connected to VPN |
|
or exceeded |
|
|
|
|
|
|
|
Call in progress |
|
|
|
|
|
|
10
IP4759_5037E_QG_Eng_GB_India & Sri Lanka_01_140410.indd 9-10 |
2014-4-10 11:29:34 |
Notification panel
Touch and drag down the Status bar to open the notification panel. Touch and drag up to close it. From the Notification panel, you can open items and other reminders indicated by notification icons or view wireless service information.
Touch to access Quick setting bar.
Touch one notification and slide it sideways to delete it.
Touch the icon
to clear all event–based notifications (other ongoing notifications will remain).
Touch
and then the Settings icon
to access Settings.
Quick setting bar
•Touch icons to enable/disable functions or to change modes.
1.3.3Search bar (1)
The phone provides a Search function which can be used to locate information within applications, the phone or the web.
1.3.4Lock/Unlock your screen
To protect your phone and privacy, you can lock the phone screen by creating a variety of patterns, PIN or password etc.
(1)Depends on software version.
11
1.3.5Personalize your Home screen
Add
Touch the application tab
, touch and hold an application or a widget to activate the Move mode, and drag the item to any Home screen as you prefer.
Reposition
Touch and hold the item to be repositioned to activate the Move mode, drag the item to the desired position and then release. You can move items both on the Home screen and the Favorite tray. Hold the icon on the left or right edge of the screen to drag the item to another Home screen.
Remove
Touch and hold the item to be removed to activate the Move mode, drag the item up to the top of Remove icon, and release after the item turns red.
Create folders
To improve the organization of items (shortcuts or applications) on the Home screen and the Favorite tray, you can add them to a folder by stacking one item on top of another. To rename a folder, open it, touch the folder’s title bar to input the new name.
Wallpaper customization
Touch and hold an empty area on the Home screen or touch
Settings\Display\Wallpaper to customize wallpaper.
1.3.6Application tab
Touch
from the Home screen to enter applications list. To return to the Home screen, touch the Home key.
Consult recently-used applications
To consult recently-used applications, you can touch and hold the Recent apps key. Touch a thumbnail in the window to open the related application.Touch one thumbnail and slide it upwards or downwards to delete it.
12
IP4759_5037E_QG_Eng_GB_India & Sri Lanka_01_140410.indd 11-12 |
2014-4-10 11:29:34 |
1.3.7Volume adjustment
You can set ringer, media and phone ringtone volume to your preference by pressing Volume up/down key or touching Settings\ Sound.
1.4Applications and widgets list
The list contains all pre-embedded and newly installed applications and widgets.
To access the list, touch
from the Home screen.To return to the Home screen, touch the Home key or the Back key.
Touch the icon
to access the Google Play Store.
2 Text input .....................
2.1Using Onscreen Keyboard
Onscreen Keyboard settings
Touch application tab from the home screen, select Settings\ Language & input, touch the Settings icon
on the right of Android keyboard, a series of settings are available for your selection.
Adjust the Onscreen Keyboard orientation
Turn the phone sideways or upright to adjust the Onscreen Keyboard orientation. You can also adjust it by changing the settings (Touch
Settings\Display\Orientation).
13
2.1.1Android keyboard
Touch to enter text or numbers.
Touch to switch between "abc/ Abc" mode;Touch & hold to switch between "abc/ABC" mode.
Touch & hold, then select to enter symbols/emoticons.
Touch & hold to show input options; When Wi-Fi or data connection is on, touch to enter voice input.
Touch to switch between symbol and numeric keyboard.
2.2Text editing
You can edit the text you have entered.
• Touch and hold or double-tap within the text you would like to edit.
•Drag the tap to change the high-lighted selection.
•Following options will show: Select all
, Cut
, Copy
and Paste
.
•Touch the icon
to confirm.
14
IP4759_5037E_QG_Eng_GB_India & Sri Lanka_01_140410.indd 13-14 |
2014-4-10 11:29:34 |
