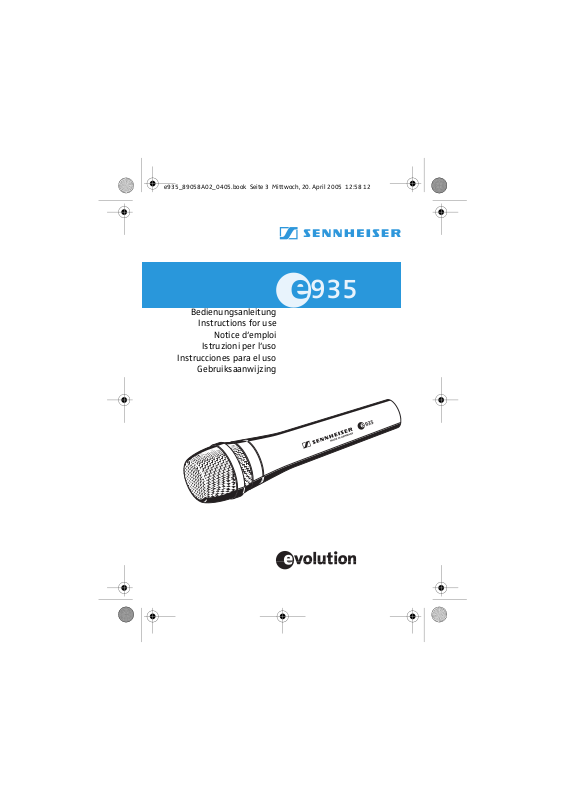

Bedienungsanleitung
Instructions for use
Notice d‘emploi
Istruzioni per l‘uso
Instrucciones para el uso
Gebruiksaanwijzing
Bedienungsanleitung.............................................................. |
3 |
Instructions for use ................................................................. |
9 |
Notice d’emploi ...................................................................... |
15 |
Istruzioni per l’uso................................................................. |
21 |
Instrucciones para el uso...................................................... |
27 |
Gebruiksaanwijzing............................................................... |
33 |
935
Hochwertiges dynamisches Mikrofon mit Nierencharakteristik. Besonders durchsetzungsstarke Akustik auf lauten Bühnen.
Merkmale
yeinzigartige Feedback-Sicherheit
yextrem robust für den rauen Bühnenalltag
yum 3−6 dB erhöhtes „Gain before Feedback“
ydurchsetzungsfähiger, druckvoller Sound bei Vocals
yintegriertes Shock-mount
Lieferumfang
Mikrofon
935
Klammer MZQ 800 Art.-Nr. 4711
Tasche
Bedienungsanleitung
Garantiekarte
3
Besprechen
4
Mikrofonanschluss
+
+ |
2 |
1 |
1 |
+ |
+ |
1 |
|
2 |
2 |
||||
|
|
3 |
|
3 |
3 |
|
|
|
XLR |
|
XLR |
XLR |
|
|
|
|
|
+ |
|
|
|
|
|
1 |
2 |
|
|
|
|
|
|
3 |
|
+ |
|
|
|
|
|
|
|
|
|
|
XLR |
6,3 mm |
|
|
|
|
|
|
+ |
|
|
|
|
|
1 |
2 |
|
|
|
|
|
|
3 |
|
+ |
|
|
|
|
|
|
|
|
|
|
XLR |
6,3 mm |
|
|
|
|
|
|
|
symmetrisch |
|
Einsprachekorb abdrehen
5
Technische Daten
Wandlerprinzip |
dynamisch |
Akustische Arbeitsweise |
Druckgradientenempfänger |
Übertragungsbereich |
40−18.000 Hz |
Richtcharakteristik |
Niere |
Freifeldleerlauf- |
2,8 mV/Pa ± 3 dB |
Übertragungsfaktor (bei 1 kHz) |
|
Magnetfeldstörfaktor |
≤ 1µV/µT |
(bei 50 Hz) |
|
Nennimpedanz (bei 1 kHz) |
350 Ω |
Min. Abschlussimpedanz |
1 kΩ |
Rückwärtsdämpfung |
|
(bei 1 kHz und 180°) |
> 20 dB |
Stecker |
3-polig XLR-3-Stecker |
Gewicht |
355 g |
Maße |
46,6 mm, Länge 181 mm |
6
Übersicht Mikrofonanwendungen
Modell
Anwendung
Gesang
Chor
Studio,
akust. Instrumente
e901 |
e902 |
e904 |
e905 |
e906 |
e908B |
e908B ew |
e908D |
e908T ew |
e914 |
e935 |
e945 |
|
|
|
|
|
|
|
|
|
|
x |
x |
|
|
|
|
|
|
|
|
|
x |
|
|
|
|
|
|
x |
|
|
|
|
x |
|
|
Orchester |
|
|
|
|
|
|
|
x |
|
|
|
|
|
|
|
|
|
Trompete, Posaune |
|
|
x |
|
|
x |
|
x |
|
|
|
|
|
|
|
|
|
Saxophon |
|
|
x |
|
|
x |
x |
|
|
|
|
|
|
|
|
|
|
Akustische Gitarre |
|
|
|
|
|
|
|
x |
|
|
|
|
|
|
|
|
|
Akustischer Bass |
|
|
|
|
|
|
|
x |
|
|
|
|
|
|
|
|
|
Gitarrenverstärker |
|
|
|
|
x |
|
|
|
|
|
|
|
|
|
|
|
|
Bassverstärker |
|
x |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Leslie |
x |
x |
x |
x |
|
|
|
|
|
|
|
|
|
|
|
|
|
Piano, Flügel |
|
|
|
|
|
|
|
x |
|
|
|
|
|
|
|
|
|
Kick Drum |
x |
x |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Snare Drum |
|
|
x |
x |
x |
|
x |
|
|
|
|
|
|
|
|
|
|
Hänge-Tom |
|
|
x |
x |
x |
x |
x |
|
|
|
|
|
|
|
|
|
|
Stand-Tom |
|
x |
x |
x |
x |
|
x |
|
|
|
|
|
|
|
|
|
|
Congas |
|
|
x |
|
x |
x |
x |
|
|
|
|
|
|
|
|
|
|
Becken |
|
|
|
|
|
|
|
x |
|
|
|
|
|
|
|
|
|
Percussion |
|
|
x |
x |
x |
x |
x |
x |
|
|
|
|
|
|
|
|
|
Overhead |
|
|
|
|
|
|
|
x |
7
8
935
High-quality dynamic vocal microphone with cardioid pick-up pattern, specially designed to ensure vocals cut through high on-stage sound levels.
Features
yExceptional feedback rejection
yExtremely rugged for rough stage use
y“Gain before feedback” increased by 3-6 dB
yPowerful sound with presence boost for improved vocal projection
yIntegral shock mount
Delivery includes
935 microphone
MZQ 800 microphone clamp Cat. No. 4711
Pouch
Instruction manual
Guarantee Certificate
9
Sound pick-up
10
Connection details
+
+ |
2 |
1 |
1 |
+ |
+ |
1 |
|
2 |
2 |
||||
|
|
3 |
|
3 |
3 |
|
|
|
XLR |
|
XLR |
XLR |
|
|
|
|
|
+ |
|
|
|
|
|
1 |
2 |
|
|
|
|
|
|
3 |
|
+ |
|
|
|
|
|
|
|
|
|
|
XLR |
6,3 mm |
|
|
|
|
|
|
+ |
|
|
|
|
|
1 |
2 |
|
|
|
|
|
|
3 |
|
+ |
|
|
|
|
|
|
|
|
|
|
XLR |
6,3 mm |
|
|
|
|
|
|
|
balancedsymmetrisch |
|
Removing the sound inlet basket
11
Specifications
Transducer principle |
dynamic |
Acoustic operating principle |
pressure gradient receiver |
Frequency response |
40−18,000 Hz |
Pick-up pattern |
cardioid |
Sensitivity |
2.8 mV/Pa ± 3 dB |
(free field, no load) (at 1 kHz) |
|
Magnetic field |
≤ 1µV/µT |
interference factor (at 50 Hz) |
|
Nominal impedance (at 1 kHz) |
350 Ω |
Min. terminating impedance |
1 kΩ |
Front-to-back rejection |
|
(at 1 kHz and 180°) |
> 20 dB |
Connector |
XLR-3 |
Weight |
355 g |
Dimensions |
diameter: 46.6 mm, |
|
length: 181 mm |
12
