Samsung DW80R5061UT, DW80R5060UG User Manual

DW80K7050 Series

DW80K5050 Series

DW80R5060 Series

DW80R5061 Series

Dishwasher

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

DW7000KM-02025D-01_EN.indd 1			2019-05-01 10:47:10

contents

SETTING UP YOUR DISHWASHER

6

USING YOUR DISHWASHER

11

6Unpacking your dishwasher

6Checking parts

7 Control panel

9Cycle selector

10Meeting installation requirements

11Basic guidelines

14Adjusting the angle of the plate supports

15Adjusting the height of the upper rack

15Removing the upper rack

16Loading the lower rack

17Loading the upper rack

18Using the cutlery rack

19Using the 3rd (cutlery) rack (For applicable models)

20Using detergent

CLEANING AND MAINTAINING YOUR DISHWASHER

22

CYCLES

25

TROUBLESHOOTING

27

APPENDIX

31

22Cleaning the exterior

22Cleaning the interior

22Cleaning the filters (DW80K7050 series)

23Cleaning the nozzles

24Storing your dishwasher

25Cycle chart

27 Check these points if your dishwasher…

30Information codes

31Helping the environment

31Specifications

English - 2

DW7000KM-02025D-01_EN.indd Sec9:2

2019-05-01 10:47:16

safety information

Throughout this manual, you’ll see Warning and Caution notes. These important safety instructions do not cover all possible situations that might occur.

It is your responsibility to use caution when installing, maintaining, and operating your dishwasher. Samsung will not be liable for any damage resulting from improper use.

IMPORTANT SAFETY INSTRUCTIONS

What the icons and signs in this user manual mean :

Hazards or unsafe practices that may result in severe personal injury or death.

WARNING

Hazards or unsafe practices that may result in personal injury or property

CAUTION damage.

	To reduce the risk of fi re, explosion, electric shock, or personal injury when using
CAUTION	your dishwasher, follow these basic safety precautions:

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions explicity.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

WARNING

Cancer and Reproductive Harm-www.P65Warnings.ca.gov.

WARNING - When using the dishwasher, follow basic precautions, including the following:

Read all instructions before using the dishwasher.

As with any equipment using electricity, water, and moving parts, potential hazards exist. Use the dishwasher only for its intended function.

Use only detergents or wetting agents recommended for use in a dishwasher, and keep them out of the reach of children.

When loading items to be washed:

-Locate sharp items so that they are not likely to damage the door seal, and

-Load sharp knives with the handles up to reduce the risk of cut-type injuries.

SAVE THESE INSTRUCTIONS

English - 3

information safety 01

DW7000KM-02025D-01_EN.indd Sec1:3

2019-05-01 10:47:16

safety information

Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations.

Do not touch the HEATING ELEMENT during or immediately after use.

WARNING : When using your dishwasher, follow basic precautions, including the following:

WARNING

1.Read all instructions before using the dishwasher.

2.Use the dishwasher only for its intended function.

3.Use only detergents or wetting agents recommended for use in a dishwasher and keep them out of the reach of children.

4.When loading items to be washed:

-locate sharp items so that they are not likely to damage the door seal, and

-load sharp knives with the handles up to reduce the risk of cut-type injuries.

5.Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations.

6.Do not touch the HEATING ELEMENT during or immediately after use.

7.Do not operate your dishwasher unless all ENCLOSURE panels are properly in place.

8.Do not tamper with the controls.

9.Do not abuse, sit on, or stand on the door or on a dish rack of the dishwasher.

10.To reduce the risk of injury, do not allow children to play in or on the dishwasher.

11.Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hotwater system has not been used for such a period, before using the dishwasher, turn on all hot-water faucets and let the water fl ow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is fl ammable, do not smoke or use an open fl ame during this time.

12.Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.

After unpacking the dishwasher, keep the packaging out of the reach of children.

The dishwasher is extremely heavy. Do not attempt to move or carry the dishwasher by yourself. Two or more people are needed to move a dishwasher and avoid potential injuries.

Do not install the dishwasher near electrical components. Keep the dishwasher away from open fl ames.

Install and level your dishwasher on an uncarpeted fl oor that can support its weight.

Your dishwasher must be properly grounded. Never connect it to an ungrounded outlet. See page 10 for more information on grounding your dishwasher.

Connect the ground wire to the green ground connector in the terminal box.

After the dishwasher is installed, check that the drain hose is properly connected and that there is no leakage from the hose connectors. If the drain hose is loose, it may cause property damage.

The water supply line is susceptible to breakage. As time goes by, it becomes less fl exible. Check the line periodically. If it is swollen, torn, cut, or there is a water leak, replace it immediately.

SAVE THESE INSTRUCTIONS

English - 4

DW7000KM-02025D-01_EN.indd Sec1:4

2019-05-01 10:47:16

To safely operate this appliance, familiarize yourself with its operations and exercise care when using it.

Do not put gasoline, solvents, or other flammable materials inside the dishwasher. Do not wash dishes exposed to these materials.

Keep your dishwasher detergent out of the reach of children. Detergent has an adverse effect on human organs. It contains elements for polishing and is corrosive. Avoid letting the detergent come into contact with your skin and eyes.

Do not push or place pressure on the door when it is open, as this may damage the dishwasher or cause harm.

Do not allow children to play in or on the dishwasher. They may harm themselves or damage the dishwasher.

Disconnect the power cable (or set the circuit breaker to off) before servicing your dishwasher.

Do not repair, replace, or service any part of your dishwasher yourself. Disassembly, repairs and modifi cations must be performed by authorized service technicians only. Work done by an unauthorized person may void your warranty.

Before disposing of your dishwasher, remove the door of the washing compartment or the door latch so that children or small animals do not get trapped inside.

If the dishwasher is left unused for an extended period of time, turn off the water supply.

This dishwasher is intended for residential use only.

BEFORE USING YOUR DISHWASHER

WARNING

WARNING

Tip-Over Hazard

-Do not use the dishwasher until it is correctly installed.

-Do not push down on an open door.

-Do not place excessive weight on the open door.

Electric Shock Hazard

Failure to follow these instructions can result in death, fi re, or electric shock:

-Electrically ground the dishwasher

-Connect the ground wire to the green ground connector in the junction box.

-Do not use an extension cord.

information safety 01

SAVE THESE INSTRUCTIONS

English - 5

DW7000KM-02025D-01_EN.indd Sec1:5

2019-05-01 10:47:17

setting up your dishwasher

Be sure to have your installer follow these instructions closely so that your new dishwasher works properly and that you’re not at risk of injury when washing dishes.

UNPACKING YOUR DISHWASHER

•Once your new dishwasher has been delivered to you, carefully unpack it and check for any damage. If the dishwasher has been damaged, make note of it on the waybill and keep a copy. Do not install the dishwasher, and contact Samsung Customer Service at the number listed below.

•If there is no damage to the product, you can proceed with the installation. If you are going to install it yourself, make sure to read through the installation guide and follow the directions inside.

•After unpacking your dishwasher, keep the packaging out of the reach of children to ensure their safety.

CHECKING PARTS

When your dishwasher has been unpacked, make sure you’ve received all the parts shown below.

If your dishwasher was damaged during shipping, or if you do not have all the parts, contact Samsung Customer Service at 1-800-SAMSUNG (726-7864)

Air brake

Lower nozzle

Filter combination

(For applicable models)

Base	Dispenser
	Door

Middle nozzle

Upper rack	Lower rack	3rd Rack	Cutlery rack
		(For applicable models)

Accessory parts - User/Installation manual, Installation Kit.

English - 6

DW7000KM-02025D-01_EN.indd Sec3:6

2019-05-01 10:47:17

CONTROL PANEL

DW80K7050, DW80K5050, DW80R5060, DW80R5061 Series

1

2

3

4

5

6

7

8

9

1Light indicator Indicates that the product is operating.

When you press the Power button, the entire display turns on and off, and

2 Power

then the light of the most recently fi nished cycle lights up.

When the selected cycle is complete, the dishwasher powers off automatically.

3 Cycle Selector

Select the appropriate wash cycle depending on the soil level of your dishes. After you select a cycle, the Cycle On light for that cycle lights up.

Select this option to wash a small load of dishes. We recommend that you place dishes in the lower rack when you use this feature.

4Lower Rack

When you select Lower Rack, the dishwasher will not wash dishes placed in the upper rack.

			Use this option when you want to wash pots and pans, durable serving
			bowls, and other large, very dirty, hard to clean dishes.
	5	StormWash™	To use StormWash™, place the dishes face down in the marked
			StormWash™ area in the lower basket.
			StormWash™ is not available with the Delicate and Rinse only cycles.
			Raises the main wash temperature to improve cleaning for loads containing
	6 Hi-Temp Wash		tough, baked-on food.
			Hi-Temp Wash is not available for the Delicate and Rinse only cycles.
			The temperature rises to 163 ˚F (73 ˚C) in the fi nal rinse cycle for high
			temperature sanitization.
			If you select the Sanitize option, the “Sanitize” lamp blinks when the water
			temperature reaches the sanitary temperature (over 155 ˚F (68 ˚C)), and
			then remains illuminated until the Sanitize option ends. When you press the
		Sanitize /	Power button, the “Sanitize” lamp turns off.
	7	(Control Lock)	Sanitize is not available for the Delicate and Rinse only cycles.

The Sanitize feature oparates in accordance with NSF/ANSI Standard 184

for Residential Dishwashers. Certified residential dishwashers are not intended for licensed food establishments. Your dishwasher is NSF Cerfified.

Only the Normal cycle with the Sanitize option has been designed to meet the requirements for soil removal and sanitization efficacy in NSF 184.

English - 7

dishwasher your up setting 02

DW7000KM-02025D-01_EN.indd Sec3:7

2019-05-01 10:47:19

setting up your dishwasher

		Control Lock allows you to lock the buttons on the control panel so children
	Sanitize /	cannot accidently start the dishwasher by pressing the buttons on the
	7	panel.
	(Control Lock)	To lock and unlock the buttons on the control panel, hold the Sanitize
		button down for three (3) seconds when power is On.
		Delay a cycle for up to 24 hours in one-hour increments. The hour displayed
	Delay Start	indicates the time at which the wash will be started.
		Displays wash information, Delay Start hours, and Error messages.
	8
	(DISPLAY)	If an trouble occurs during an operation, an check message is displayed
		with a warning sound. Refer to “Information codes” on page 30.
		To start a cycle, press the Start button before closing the door.
	9 Start	To cancel the cycle, press and hold the Start button for 3 seconds or press
		the Power button to power off.

You can select options (Lower Rack, StormWash™, Hi-Temp Wash, Sanitize) before starting a cycle. If you change the cycle after selecting an option, the original cycle is reset.

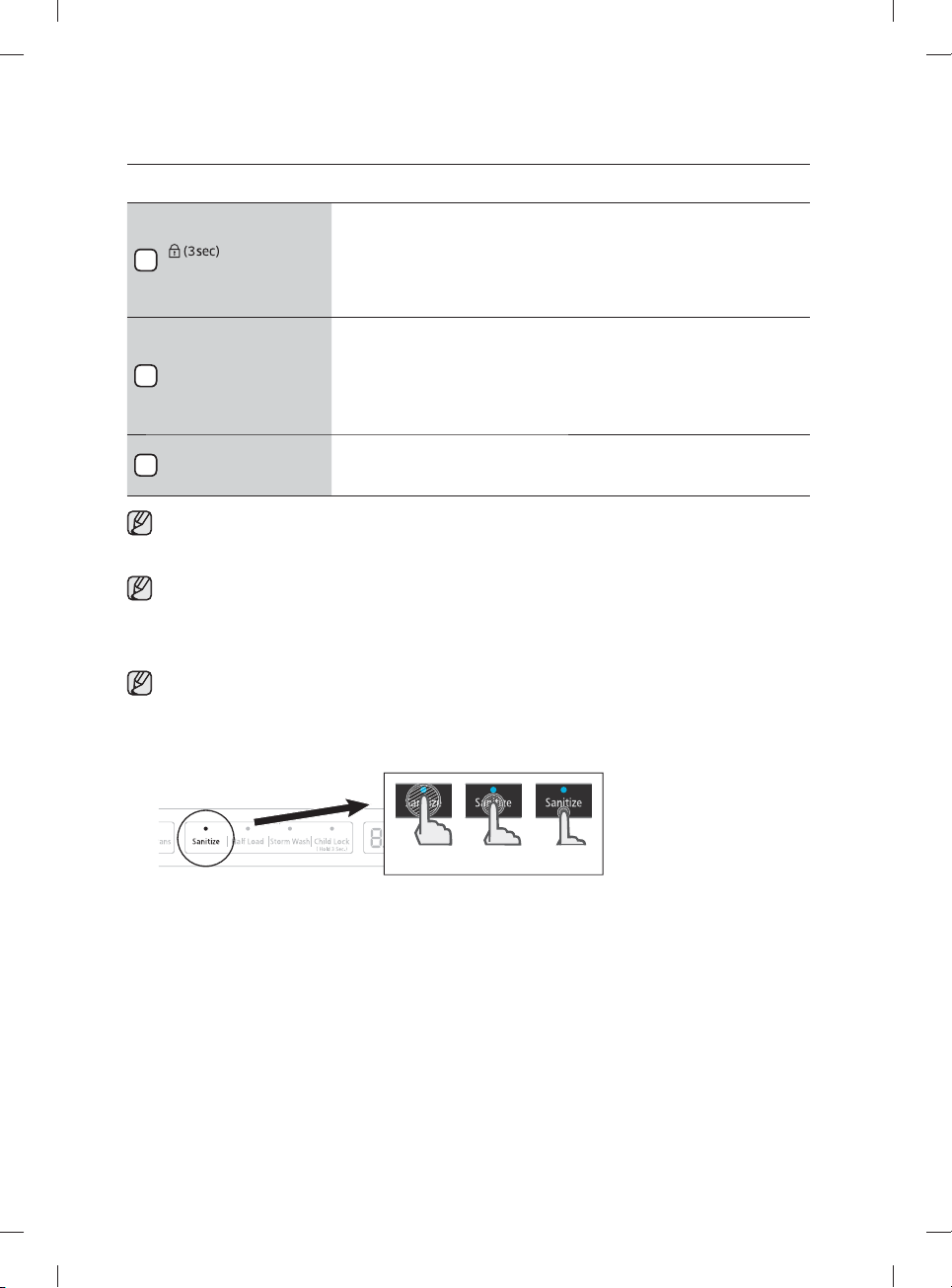

To prevent the touchpad from losing response sensitivity, follow these instructions:

-Touch the center of each keypad using one fi nger. Do not push.

-Clean the touch control’s surface regularly with a soft, damp cloth.

-Be careful not to touch more than one touch key pad at a time, except as directed.

When you pause a cycle by opening the door during operation, press the Start button before closing the door to continue the cycle.

Push door fi rmly closed within 3 seconds of pressing Start button. If the door is not closed within 3 seconds, the cycle will not start.

O O X

English - 8

DW7000KM-02025D-01_EN.indd Sec3:8

2019-05-01 10:47:22

CYCLE SELECTOR

DW80K7050, DW80K5050, DW80R5060, DW80R5061 Series

1

2

3

4

5

6

	1	Auto	This cycle detects the level of soil and automatically initiates the optimal cycle
			after a few minutes of operation.
	2	Normal	Use this cycle for normally soiled dinner dishes.
	3	Heavy	Use this cycle for heavily soiled dishes and dishes with heavy soil.
	4	Delicate	Use this cycle for normally soiled dishes or fragile items such as glasses.
	5	Express 60	Use this cycle for lightly soiled dishes.
	6	Rinse only	Use for rinsing dishes, glasses, and silverware that will not be washed right
			away. Do not use detergent.

English - 9

dishwasher your up setting 02

DW7000KM-02025D-01_EN.indd Sec3:9

2019-05-01 10:47:23

setting up your dishwasher

MEETING INSTALLATION REQUIREMENTS

Electrical supply and grounding

CAUTION

WARNING

To prevent the risk of fire, electric shock, or personal injury, all wiring and grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No. 70 Latest Revision and local codes and ordinances. It is the personal responsibility of the appliance owner to provide adequate electrical service for this appliance.

Never use an extension cord.

When preparing for installation, ensure that you provide:

•An individual branch circuit with a 120 V, 60Hz, 15 AMP fuse or circuit breaker that serves only your dishwasher .

Your dishwasher must be grounded. If your dishwasher malfunctions or breaks down, grounding will reduce the risk of electric shock by providing a path of least resistance for the electric current.

Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.

GROUNDING INSTRUCTIONS

For a permanently connected appliance:

This appliance must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and then connected to the equipment-grounding terminal or lead on the appliance.

Water supply

The hot water supply line pressure must be between 20-120 psi (140-830 kPa).

Adjust the water heater to deliver water between 120 ˚F (49 ˚C) - 149 ˚F (65 ˚C).

Most plumbing supply stores sell water supply lines of various lengths up to 10 feet (305 cm) long.

You can reduce the risk of leaks and water damage by:

•Making water faucets easily accessible.

•Turning off faucets when the dishwasher is not in use.

•Periodically checking for leaks at water supply line fittings.

Before using your dishwasher for the first time, check all connections at the water supply valve WARNING and faucets for leaks.

Flooring

For safety, your dishwasher must be installed on a solidly constructed fl oor.

Never install your dishwasher on a platform or poorly supported structure.

Your dishwasher must be properly installed in accordance with the Installation Guide before you use it. If you did not receive an Installation Guide with your dishwasher, you can obtain one by visiting our website at www.samsung.com.

English - 10

DW7000KM-02025D-01_EN.indd Sec3:10

2019-05-01 10:47:23

using your dishwasher

BASIC GUIDELINES

1. Open the door and load your dishes (see page 14).
- Place dishes into the upper and lower racks, unless you have selected Lower Rack.
- Remove any food remains from the dishes before placing them in the FlexLoad™ rack(s).
- After placing the dishes into the FlexLoad™ racks, rotate the nozzles by hand to check whether any	03
of the dishes will interfere with them.
	using
- Make sure the dishes will not prevent the detergent dispenser from opening.
2. Add detergent to the dispenser (see page 20).	your
- Make sure to use only automatic dishwasher detergent and rinse aid.
- Refer to “Using detergent” on page 20 for instructions explaining how to add detergent and	dishwasher
rinse aid.
3. Press the Power button.
- When you press the Power button, the entire display turns on and off, and then the indicator of the
most recently fi nished cycle lights up.
- If “Low Rinse” ( ) is illuminated, you should refi ll the rinse aid dispenser to improve washing and
drying performance.
4. Select an appropriate cleaning cycle depending on the soil level of the dishes. (See pages 9 and 25.)
- Press the appropriate cycle button.
- When you press a cycle button, the cycle indicator lights up.
5. Press the Start button, and then close the door within 3 seconds.
- The dishwasher will start draining after a few seconds, and then start the selected cycle.
- Make sure to close the door fi rmly. If the door is not closed properly, the selected cycle will not start
automatically.
6. When the wash cycle is completed.
- The light illuminates and the dishwasher sounds a chime.
- The dishwasher powers off automatically.
- The door opens automatically 5 ~ 15 minutes before the cycle ends to improve drying performance.

-If you want to load more dishes or pause the dishwasher while it is already running, make sure to

CAUTION open the door slowly and carefully as there is a possibility of injury from the hot steam inside the dishwasher.

-If the door is opened while the dishwasher is running, a safety mechanism is activated and stops the cycle.

-To resume operation, press the Start button, and then close the door within 3 seconds.

-Adding dishes several minutes after the dishwasher starts operating may affect its performance.

-If you open the door while the dishwasher is running at high temperature, it will drain the hot water automatically to protect you from scalding.

You should use rinse aids for better drying performance. You can further improve drying performance by also selecting the Sanitize option.

After a cycle is complete, the door automatically opens to let steam out. This is normal and not a product malfunction.

.

English - 11

DW7000KM-02025D-01_EN.indd Sec4:11

2019-05-01 10:47:23

using your dishwasher

Touch controls

Touch controls allow you to operate the dishwasher easily.

•They are convenient to operate, requiring only a soft touch.

•Have a simple and stylish design.

•Are easy to clean.

If you have children or you want to clean the Control Interface, we recommend activating the Control Lock feature to lock the control buttons. See page 8.

-Children will not be able to accidently start the dishwasher by touching the controls with this option selected.

-If a cycle is running, the buttons will not respond. (except the Power button)

-If dishwasher is off, only the Power button responds.

Auto Release TM

Auto Release TM is designed to improve the drying performance , which opens the door (5 to

15 minutes before a cycle is complete)in between 15 seconds and 3 minutes after the actuating signal is triggered, You can change the default settings as follows:

Auto Release TM On/Off

Using Setting Mode

•To enter Setting mode, press the Delay Start+Sanitize button for 3 seconds while the dishwasher is on.

•Press the Sanitize button until"A1" or "A0" is displayed,"A0" disables Auto

Release TM Dry. "A1" enables Auto Release TM Dry. Select "A1" for better drying results.

•Press the Delay Start button implement your choice.

Using Toggle keys

•Press the Lower+Hi-Temp Wash

button for 3 seconds to enable or disable Auto ReleaseTM Dry.

•"A0"disables Auto ReleaseTM Dry. "A1"activates Auto ReleaseTM Dry.

•Once the door opens in the

Auto ReleaseTM Dry mode, the door cannot be closed manually for the next 2 minutes.

•The Auto ReleaseTM Dry mode will be disabled for the Rinse Only cyvle.

Changing the “AutoRelease™ Dry” setting can infl uence drying results. Select “A1” mode for better drying results. (“A1” is the default setting.)

After a cycle is complete, the door automatically opens to let steam out. This is normal and not a product malfunction.

Setting Mode

The Setting Mode lets you change the dishwasher’s Sound, Light indicator, and AutoRelease™ Dry settings. To enter the Setting mode, press the Delay Start + Sanitize buttons for 3 seconds while the dishwasher is on. Press the Sanitize button to select a sub-setting menu and then press the Delay Start button to change a setting.

English - 12

DW7000KM-02025D-01_EN.indd Sec4:12

2019-05-01 10:47:24

-Sound Setting: Press the Sanitize button until “U1” or “U0” is displayed. To change the setting, press the Delay Start button. “U0” turns the sound off for all cycles. “U1” turns the sound on.

The dishwasher maintains the Sound Setting you have selected until you change it.

-Light indicator Setting: Press the Sanitize button until “B1“ or “B0” is displayed. To change the setting, press the Delay Start button. “B0” turns the light off for all cycles. “B1” turns the light on.

Delay start

When you select the Delay Start option, your dishwasher will:

•Start draining to remove remaining water at once (pre-drain).

Your dishwasher will operate the selected cycle when the delay time expires.

When using the dishwasher, try to arrange the dishes properly as described on page 16 to 19.

WARNING

•You should remove food remains such as bones, fruit seeds, etc. and any other waste such as toothpicks, paper, etc. from the dishes as these may cause damage to the dishes, create noise, or cause the dishwasher to malfunction.

•Select the appropriate cycle depending on the level of soil and the type of dishes.

•Use only the proper amount of detergent and rinsing agent.

WARNING Do not wash the following items

•Acrylic or Aluminum items: Dishes with printed gold rim decoration may become discolored.

•Dishes treated with adhesive: Treated plastics, wood, ivory, copper, and tin may come loose.

•Plastics with a temperature tolerance less than 194 ˚F (90 ˚C): Thin plastics wash and dry poorly, and may be damaged due to elevated wash temperatures.

•Tin: Tin should be washed by hand and dried immediately as it may rust.

•Wooden utensils: Wooden items may crack.

English - 13

dishwasher your using 03

DW7000KM-02025D-01_EN.indd Sec4:13

2019-05-01 10:47:25

using your dishwasher

ADJUSTING THE ANGLE OF THE PLATE SUPPORTS

You can adjust the angle of the tines in the upper rack to three different positions to match the size and shape of your dishes. To adjust the tines, grasp the handle at the back of the rack and push it left or right. See the illustration below.

In the lower rack, you can easily remove the plate support to make room for large items such as pots and pans. To remove the plate support, lift up the handles (A). To refi t the plate support, align it so it is in place, and then push down on the handles (A). To fold down the fold-down tines on the lower rack, remove the rack from the dishwasher, turn the rack over, grasp the tine (B), and then adjust it backward. See the illustration below.

Upper rack

Lower rack

English - 14

DW7000KM-02025D-01_EN.indd Sec4:14

2019-05-01 10:47:26

ADJUSTING THE HEIGHT OF THE UPPER RACK

You can adjust the height of the upper rack in your Samsung dishwasher so that the lower rack can accommodate larger sized dishes. With the upper rack set at the highest position, the lower rack can accommodate plates up to 12 in. (30 cm) in diameter and the upper rack can accommodated plates up to 8 in. (20 cm) in diameter.

1.To lower the upper rack by 2 in. (5 cm), pull the adjustment handles located at the left

and right sides of the upper rack and push the upper rack downwards slightly at the

same time.

A

2. To raise the upper rack, just pull the upper rack upwards. The adjuster handle will latch

and the upper rack will move to the high

position.

We recommend adjusting the height of the CAUTION upper rack before loading dishes into the

rack. If you adjust the the rack after loading the dishes, you may damage the dishes.

REMOVING THE UPPER RACK

Pull the upper rack towards the front and then remove it by lifting it up slightly and pulling it towards the front. See the illustrations below.

While the upper rack is removable, it must be installed for the dishwasher to operate properly. CAUTION If you attempt to operate the dishwasher without the rack, noise will occur and the dishwasher will

perform poorly.

Step 1.

Step 2.

Step 3.

dishwasher your using 03

English - 15

DW7000KM-02025D-01_EN.indd Sec4:15

2019-05-01 10:47:27

using your dishwasher

LOADING THE LOWER RACK

The lower rack has been especially designed for dinner dishes, soup bowls, plates, pots, lids, casserole dishes, and plates.

Load large items such as pans and pots into the dishwasher so their open sides face downwards. We recommend loading cups, stemware, and small plates into the upper rack.

See the recommended loading patterns below.

Saucer

10 place setting

12 place setting

Loading the large items into the StormWash™ zone

You can load large items such as pots and pans into the StormWash™ Zone - identifi ed by red guide lines - In the lower rack for more effective cleaning. When you select the StormWash™ option, an additional, powerful jet is activated and directed at items in the StormWash™ Zone. Make sure pot handles and other items do not interfere with the rotation of the nozzles.

English - 16

DW7000KM-02025D-01_EN.indd Sec4:16

2019-05-01 10:47:28

LOADING THE UPPER RACK

The upper rack has been designed for small plates, mugs, glasses, and plastic items marked “dishwasher safe”. Load your plates into the dishwasher in two half rows, so that the front of each plate faces the back of the plate in front of it, and the open sides of the plates at the center of the dishwasher face each other. See the illustrations below.

Make sure the loaded dishes do not interfere with the rotation of the nozzle which is located at the bottom of the upper rack. (Check this by rotating the nozzle by hand.)

When loading dishes, pull the upper rack out suffi ciently so you can load it without striking the counter above.

dishwasher your using 03

10 place setting

12 place setting

Using the glass support

You can load cups or glasses onto the glass support. This is also very convenient for washing wine glasses. Hang your wine glasses onto the pegs of the glass support.

You can fold the glass support back when it is not being used.

DW80K7050 Series	DW80K5050 Series
DW80R5060 Series
DW80R5061 Series

English - 17

DW7000KM-02025D-01_EN.indd Sec4:17

2019-05-01 10:47:29

using your dishwasher

USING THE CUTLERY RACK

The cutlery rack consists of two compartments.

You can place each knife, spoon, or fork separately into the spoon stands in the basket’s covers to prevent chipping and discoloration.

You can use the cutlery rack with the cover open. Refer to the illustration to the right.

Left

Right

10 place setting

Left

Right

12 place setting

The spoon stands as seen from above with the suggested placement of cutlery items. Match the numbers in the diagram to the numbers in the list of cutlery items below.

DO NOT let any item extend through the bottom.

1	Forks	4	Knives
2	Tea spoons	5	Serving spoons and Serving forks
3	Dinner spoons	6	Remaining items

1

2

3

4

5

English - 18

DW7000KM-02025D-01_EN.indd Sec4:18

2019-05-01 10:47:33

USING THE 3RD (CUTLERY) RACK (FOR APPLICABLE MODELS)

Loading the cutlery rack

dishwasher your using 03

<Place items randomly or regularly.>

In addition to the standard cutlery basket in the lower rack, some models come with a cutlery rack.

The cutlery rack is best suited for fl atware and cooking or serving utensils. You can place cutlery and utensils randomly or regularly on the cutlery rack.

Heavily soiled utensils or items with baked on foods should be placed in the lower cutlery basket for the most effective cleaning.

Removing the Cutlery Rack

The entire cutlery rack can be removed if more space is needed on the upper rack for larger items.

* When loading the cutlery and utensils onto the cutlery rack, make sure they do not interfere with the top nozzle of the rack. If they interfere, remove the cutlery pad and try again.

English - 19

DW7000KM-02025D-01_EN.indd Sec4:19

2019-05-01 10:47:33

using your dishwasher

USING DETERGENT

All dishwasher cycles require detergent in the detergent compartment.

Add the correct amount of detergent for the selected cycle to ensure the best performance.

CAUTION

WARNING

Use dishwasher detergent only. Regular detergent produces too much foam, which may decrease the dishwasher’s performance or cause it to malfunction.

Do not swallow dishwasher detergent. Avoid breathing in the fumes. Dishwasher detergent contains irritants and caustic chemicals that can induce respiratory conditions. If you have swallowed dishwasher detergent or inhaled the fumes, seek medical attention immediately.

Keep dishwasher detergent out of the reach of children.

WARNING

Filling the detergent dispenser

1.Open the detergent dispenser fl ap by pushing the detergent dispenser release catch.

The fl ap is always open at the end of a dishwashing cycle.

2.Add the recommended amount of detergent to the main wash detergent compartment.

3.Close the fl ap by sliding it to the left and then pressing it down.

4.For better cleaning result, especially if you have very dirt items, pour a small amount (about 1/2 of an ounce or 15 g) of detergent onto the door.

The additional detergent will activate during the pre-wash phase.

English - 20

DW7000KM-02025D-01_EN.indd Sec4:20

2019-05-01 10:47:36

The cover opens automatically to dispense the detergent during the wash.

	CYCLE	AMOUNT OF DETERGENT
		Main wash dispenser	Onto the door for pre-wash
	Auto, Normal	3/4 oz (20 g)	1/3 oz (10 g)
	Heavy, Express 60'	1 oz (30 g)	1/2 oz (15 g)
	Delicate	3/4 oz (20 g)	1/5 oz (5 g)

The numbers inside the dispenser refer to grams.

Filling the rinse aid reservoir

When the Rinse Refi ll indicator lights up on the control panel, refi ll the reservoir with rinse aid. Your dishwasher has been designed to use liquid rinse aid only.

Using a powdered rinse aid will clog the reservoir opening and cause the dishwasher to malfunction.

Rinse aid improves the drying performance of the dishwasher.

Do not add regular detergent to the rinse aid reservoir.

CAUTION

1. Remove the rinse aid reservoir cap by rotating it counterclockwise.

2. Fill the rinse aid reservoir with rinse aid.

Use the viewing port when fi lling the rinse aid reservoir.

Do not fi ll the reservoir above the full level indicator.

CAUTION Excess rinse aid can overfl ow during the wash cycle.

3. Turn the rinse aid indicator dial to a number between 1 and 6. The higher the number, the more rinse aid the dishwasher uses. If you are unable to rotate the rinse aid dial easily, try using a coin.

4. Close the rinse aid reservoir cap by rotating it clockwise.

English - 21

dishwasher your using 03

DW7000KM-02025D-01_EN.indd Sec4:21

2019-05-01 10:47:37

cleaning and maintaining your dishwasher

Keeping your dishwasher clean improves its performance, reduces unnecessary repairs, and lengthens its life.

CLEANING THE EXTERIOR

It’s best to clean spills on the outside of your dishwasher as they occur. Use a soft, damp cloth on the control panel to gently wipe away spills and dust. Do not use benzene, wax, thinner, chlorine bleach, or alcohol. These materials may discolor the inner walls and cause stains. Do not clean the dishwasher by sprinkling water over it and avoid letting water come into contact with any of the electrical parts.

If your dishwasher has a stainless steel door panel, you can clean it with a stainless steel cleaner for Home Appliances or a similar product using a clean, soft cloth.

CLEANING THE INTERIOR

Clean the interior of your dishwasher periodically to remove any dirt or food particles. Wipe the inside of the dishwasher and the inner part of the door with a wet dishcloth. We recommend fi lling the detergent dispenser with dish detergent, and then running the dishwasher empty periodically using either the Normal or Express 60 cycle with the sanitize option. This will keep your dishwasher clean.

If white spots and odor are still present in your dishwasher, run the Normal cycle with the dishwasher empty and without detergent until it fl ushes. Then, interrupt the cycle and put an 8 ounce cup of white vinegar into the lower basket. Close the dishwasher and let the cycle fi nish.

Do not remove the tub front seal (the long rubber seal enclosing the opening of the dishwasher).

CAUTION

CLEANING THE FILTERS (DW80K7050 SERIES)

1. Turn off the dishwasher.

2.Rotate the fi lter insert counterclockwise to unfasten and then detach the fi lter insert.

3. Remove the fi ne fi lter (fl at, rectangular).

English - 22

DW7000KM-02025D-01_EN.indd Sec5:22

2019-05-01 10:47:38

4. Remove any dirt or other remains from the fi lters, and then rinse them under running water.

5. Reassemble the fi lters in the reverse order of the dissasembly, replace the fi lter insert, and rotate clockwise to the close arrow.

If the fi lter insert is not closed properly, its performance will

CAUTION

be decreased.

CLEANING THE NOZZLES

If your dishwasher does not seem to be cleaning adequately or the nozzles seem clogged, you can clean each of the nozzles. When removing the nozzles, take care as they may break.

maintaining and cleaning 04

Lower nozzle

1.Check whether the nozzle holes are clogged by food particles.

2.If cleaning is needed, remove the nozzle by pulling it upwards.

3.Clean the nozzle, and then push it back into place.

4.Check whether the nozzle is engaged correctly by rotating it by hand.

DW80K5050, DW80R5060

DW80R5061 Series

DW80K7050 Series

English - 23

DW7000KM-02025D-01_EN.indd Sec5:23

2019-05-01 10:47:38

cleaning and maintaining your dishwasher

Middle nozzle

1. Pull the upper rack towards the front and remove it.

2. Check whether the nozzle holes are clogged by food particles.

3. If cleaning is needed, remove the nozzle.

4. To remove the nozzle, unfasten and remove the nut, and then remove the nozzle.

5. Clean the nozzle, re-insert it, and fasten the nut.

6.When fastening the nut, turn it fi rmly by hand.

7.Check whether the nozzle is engaged correctly by rotating it by hand.

	Upper nozzle
	1.	Check whether the nozzle holes are	1
		clogged by food particles.
	2.	If cleaning is needed, remove the nozzle.	2
	3.	To remove the nozzle, pull out the upper
		rack fi rst, unfasten the nozzle cap by
		turning it counterclockwise, and then	Cap nozzle
		remove the upper nozzle.
			DW80K7050 Series
	4.	Clean the nozzle, re-insert it, and then
			1
		fasten the nozzle cap to the nozzle by
		turning the cap clockwise.	2
	5.	Check whether the nozzle is engaged
		correctly by rotating it by hand.

STORING YOUR DISHWASHER

Cap nozzle DW80K5050 Series DW80R5060 Series DW80R5061 Series

If you need to store your dishwasher for an extended period of time, fi rst drain and disconnect it. If you leave water in the hoses and internal components, you can damage the dishwasher.

After draining and disconnecting the dishwasher, be sure to turn off the water supply valve and circuit breaker.

English - 24

DW7000KM-02025D-01_EN.indd Sec5:24

2019-05-01 10:47:40

cycles

CYCLE CHART

DW80K7050 Series

	Cycle	Pre-	Pre-	Pre-	Main wash Rinse1 Rinse2 Rinse3	Last Rinse	Dry	Water	Time
		wash1	wash2	wash3		[Sanitize]		[gal(ℓ)]	(min)





Auto













136-154 ˚F



4.5-6.5

128-144

122-140 ˚F

(16.9-24.7)

(58-68 ˚C)

(50-60 ˚C)

[163 ˚F (73

˚C)]





Normal











136-149 ˚F



2.3-6.6

100-167

113-144 ˚F

(9.0-25.1)

(58-65 ˚C)

(45-62 ˚C)

[163 ˚F (73

˚C)]





Heavy







149 ˚F (65 ˚C)







154 ˚F (68

˚C)



7.7 (29.0)

163

[163 ˚F (73

˚C)]

Delicate











3.8 (14.3)

101

122 ˚F (50 ˚C)

149 ˚F (65

˚C)





Express 60

122 ˚F (50 ˚C)



140 ˚F (60

˚C)



3.0 (11.4)

60

[163 ˚F (73

˚C)]



Rinse only

104 ˚F

1.1 (4.2)

14

(40 ˚C)

( : Basic, : Optional step)

DW80K5050, DW80R5060, DW80R5061 Series

Cycle

Pre-

Pre-

Pre-

Main wash

Rinse1

Rinse2

Rinse3

Last Rinse

Dry

Water

Time

wash1

wash2

wash3

[Sanitize]

[gal(ℓ)]

(min)





Auto











136-154 ˚F



4.9-8.4

110-149

131-145 ˚F

(18.4-31.9)

(58-68 ˚C)

(55-63 ˚C)

[163 ˚F (73

˚C)]





Normal











131-149 ˚F



3.1-7.2

103-170

113-145 ˚F

(11.7-27.2)

(55-65 ˚C)

(45-63 ˚C)

[163 ˚F (73

˚C)]





Heavy





149 ˚F (65 ˚C)







154 ˚F (68

˚C)



8.7 (33.1)

166

[163 ˚F (73

˚C)]

Delicate











5.0 (19.0)

103

122 ˚F (50 ˚C)

149 ˚F (65

˚C)





Express 60

122 ˚F (50 ˚C)



140 ˚F (60

˚C)



3.8 (14.3)

60

[163 ˚F (73

˚C)]



Rinse only

104 ˚F

1.3 (4.9)

17

(40 ˚C)

( : Basic, : Optional step)

English - 25

cycles 05

DW7000KM-02025D-01_EN.indd Sec6:25

2019-05-01 10:47:40

cycles

•The numbers in parentheses in the Last Rinse column represent the temperature when you select Sanitize.

•When you select the Auto or Normal cycle, you can eliminate optional steps depending on the soil level of the dishes.

•The water consumption and wash time varies depending on the steps or options you add, and on the pressure and temperature of the supplied water.

•When you select any options, the cycle time can be changed.

•When the Rinse Aid is empty, wash time and Last Rinse temperature will be increased.

English - 26

DW7000KM-02025D-01_EN.indd Sec6:26

2019-05-01 10:47:41

troubleshooting

CHECK THESE POINTS IF YOUR DISHWASHER…

	PROBLEM	POSSIBLE CAUSE	SOLUTION
		The door is not closed completely.	Check if the door is latched and closed
			completely.
		No cycle is selected.	Select a proper cycle.
	Will not start.	The power cable is not connected.	Connect the power cable properly.
		The water supply does not work.	Check if the water supply valve is open.
		The Control Panel is locked.	Unlock the child lock, (See page 8.)
		A circuit breaker is open.	Reset the circuit breaker.
	It’s taking too long	Cold water is being supplied.	Check if the water supply line is connected
			to a hot water supply.
	with an operation or
			(Additional time is required to heat cold
	cycle.
			water.)
		You selected an inappropriate	Select a cycle according to the number and
		cycle.	soil level of the dishes, as directed in this
			manual.
		The water temperature is low.	Connect the water supply line to a hot
			water supply.
			For best performance, the temperature of
			the supplied water should be 120 ˚F (49 ˚C).
		Low water pressure.	The water pressure should be between 20
			and 120 psi (140 - 830 kPa).
		The water is too hard.	Use high-quality, fresh detergent with rinse
			aid.
		Dishwasher detergent was not	Use automatic dishwasher detergent.
		used.	We recommend a powder or gel type
	There are food		dishwasher detergent.
		Detergent remains in the	Make sure large items such as cookie
	particles remaining
		dispenser.	sheets, cutting boards, or contaners, etc.
	on dishes.
			are not blocking the detergent dispenser
	(Not cleaning
			and preventing it from opening properly.
	properly.)
			Rearrange the dishes so they do not
			interfere with detergent dispenser
			operation.
		There is no rinse aid.	Check the dispenser and add rinse aid.
			Use liquid type rinse aid.
		A nozzle is clogged.	Clean the nozzle. See page 23.
		The dishes are improperly loaded.	Rearrange the dishes so they do not
		Too many dishes have been	interfere with nozzle rotation and detergent
		loaded.	dispenser operation.
			Load only an appropriate number of dishes.
			Load your dishes as recommended. (See
			page 16.)

English - 27

troubleshooting 06

DW7000KM-02025D-01_EN.indd Sec7:27

2019-05-01 10:47:41

troubleshooting

PROBLEM	POSSIBLE CAUSE	SOLUTION
	The water supplied is soft and too	Underload the dishwasher and use a rinse
Leaves glasses with	much detergent was used.	aid to minimize this.
a dim polish.	Aluminum dishes were included in	Remove the marks on the dishes using a
	the wash load.	low sensitivity cleaner.
Leaves a yellow	This is caused by coffee and tea	Remove the soils using a spot cleaner.
or brown film on	soils.
the inside of the
dishwasher.
	There is no rinse aid in the	Check the dispenser and add rinse aid.
	dispenser.	Use a liquid type rinse aid.
	The temperature of the water	Connect the water supply line to a hot
	is low when the dishwasher is	water supply.
	running.	Use rinse aid with the Sanitize option.
Does not dry dishes	Too many dishes have been	Proper loading of items can affect drying.
	loaded.	Load your dishes as recommended. (See
well.		page 16.)
	Glasses and cups with concave	After the cycle fi nishes, empty the lower
	bottoms hold water. This water	rack fi rst and then the upper rack. This will
	may spill onto other items when	prevent water from dripping from the upper
	unloading.	rack onto the dishes in the lower rack.
	AutoRelease™ Dry mode is not	Activate the AutoRelease™ Dry mode. (See
	in use.	page 12.)
	Water was left over from an	Insert detergent without loading dishes,
	incomplete cycle.	and run the Normal cycle to clean the
		dishwasher.
	The Drain Hose is obstructed.	Contact a qualifi ed service technician to
		remove any obstruction from the drain
Has a bad odor.		hose.
	The dishwasher is not used daily	With the dishwasher empty and no
	or soiled dishes are left in unit too	detergent, place a glass with 8
	long.	ounces of vinegar upright into the lower
		rack, and then run a Normal
		cycle.
	Sound is generated when the	This is normal operation.
	dispenser cover is open and the
	drain pump is operating in an early
	stage.
	The dishwasher is not level.	Ensure the dishwasher is level.
Is too noisy.
	Foreign material (a screw, a plastic	Contact a qualifi ed service technician to
	piece) is in the pump chamber.	remove foreign material from the pump
		chamber.
	There is a ‘chopping’ sound	Rearrange the dishes.
	because a nozzle is bumping
	against the dishes.

English - 28

DW7000KM-02025D-01_EN.indd Sec7:28

2019-05-01 10:47:42

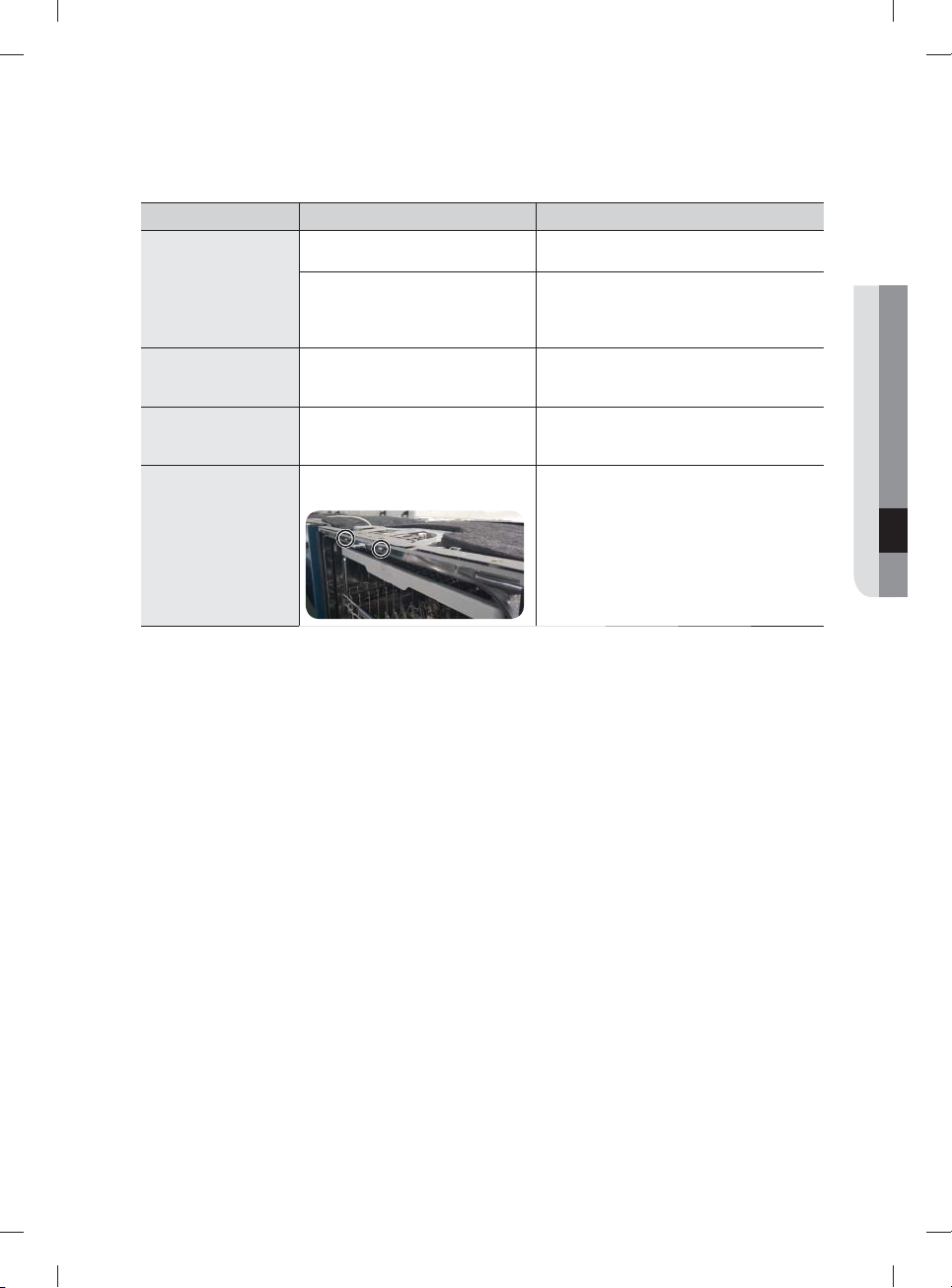

	PROBLEM	POSSIBLE CAUSE	SOLUTION
		The nozzle hole is clogged with	Clean the nozzle hole. See page 23.
	Does not have a	food particles.
		The nozzle is blocked by a dish or	After placing the dishes into the racks,
	smoothly rotating
		pot and cannot rotate.	rotate the nozzles by hand to check
	nozzle.
			whether any of the dishes interfere with
			them.
	Water won’t	The drain is clogged.	Contact a qualifi ed service technician to
	pump out of the		remove any obstruction from the drain hose
	dishwasher.		and check the drain pump operation.
	Has a bent upper	The dishes are not loaded	Load your dishes as recommended.
	rack after loading	properly.	(See page 16.)
	dishes.
		AutoRelease™ Dry mode is in	Once the door opens in the AutoRelease™
		operation.	Dry mode, the door cannot be closed
			manually for the next 2 minutes. You may
	Cannot close the		close the door after 2 minutes.
	door.

English - 29

troubleshooting 06

DW7000KM-02025D-01_EN.indd Sec7:29

2019-05-01 10:47:42

troubleshooting

INFORMATION CODES

The Control Panel displays information codes to help you understand what is occurring with your dishwasher.

	Code	Action
		Over-level water check
	OC	• Functional check. Close the water supply valve and go to your house circuit
		breaker panel, set the dishwasher’s circuit breaker switch to off, and then
		contact an authorized Samsung service center.
		Leakage check
		• If a water supply valve connection leak occurs, close the water supply valve
	LC	and go to your house circuit breaker panel, set the dishwasher’s circuit breaker
		switch to off, and then contact the installer to fi x.
		If the problem continues, contact an authorized Samsung service center.
		Water supply check
		• Check if the water supply valve is closed, the water supply is suspended, or the
	4C	water inlet valve or line is frozen or clogged by foreign particles.
		If the problem continues, close the water supply valve, and then contact an
		authorized Samsung service center.
		Drain check
	5C	• After closing the water supply valve, check whether the drain hose is clogged or
		folded. Also, check whether drain hole inside sump is clogged.
		If the problem continues, contact an authorized Samsung service center.
		High temperature heating check
		• The product ensure that the temperature for hot water line is not too high and
	HC	adjusts to appropriate temperature (120 ˚F (49 ˚C) - 149 ˚F (65 ˚C)) automatically.
		If the problem continues, go to your house circuit breaker panel, set the
		dishwasher’s circuit breaker switch to off, and then contact an authorized
		Samsung service center.
		Pump operation check
	3C	• Functional check. Turn off the dishwasher and try to start it again.
		If the problem continues, contact an authorized Samsung service center.

For any codes not listed above, call 1-800-SAMSUNG (726-7864)

English - 30

DW7000KM-02025D-01_EN.indd Sec7:30

2019-05-01 10:47:43
