5.961-813.0 12/2005
HIGH PRESSURE WASHER OPERATOR MANUAL
|
MODEL OVERVIEW |
|
3 |
|
|
|
IMPORTANT SAFETY INSTRUC- |
4-5 |
|
||
|
TIONS |
|
|
|
|
|
ASSEMBLY INSTRUCTIONS |
5-6 |
|
||
|
OPERATING INSTRUCTIONS |
7 |
|
||
|
USING THE ACCESSORIES |
8 |
|
||
|
WORKING WITH DETERGENTS |
9 |
|
||
|
TAKING A BREAK |
|
10 |
|
|
|
SHUTTING DOWN & CLEAN-UP |
10 |
|
||
|
WINTERIZING AND LONG-TERM |
11 |
|
||
|
STORAGE |
|
|
|
|
|
CARE AND MAINTENANCE IN- |
11 |
|
||
|
STRUCTIONS |
|
|
|
|
|
CLEANING TIPS |
|
12-13 |
|
|
|
OPTIONAL CLEANING ACCESSO- 14-15 |
|
|||
|
RIES |
|
|
|
|
|
TROUBLESHOOTING |
|
16-17 |
|
|
|
|
|
|
|
|
|
Specifications |
|
|
|
|
|
|
|
|
|
|
|
Max. Pressure |
1750 PSI |
|
|
|
|
Water volume |
1.5 GPM |
|
|
|
|
Amp draw |
13 AMPS |
|
|
|
|
Voltage |
120 V |
|
|
|
|
Part No. |
1.636-105.0 |
|
|
|
|
Serial no. |
|
|
|
|
Kärcher Customer Support USA
Call: 1-800-537-4129 for help or visit our website: www.karcher-usa.com/home
Please take a moment to register your pressure washer online at www.karcher-usa.com/warranty
Kärcher Customer Service CDN
Call: 1-800-465-4980 for help or visit our website: www.karcher.ca
Kärcher Customer Support
Mexico
Call: 01-800-024-13-13 for help or visit our website: www.karcher.com.mx
Safety Alert Symbols
DANGER
indicates “an imminently hazardous situation which, if not avoided, will result in death or serious injury.”
WARNING
indicates “a potentially hazardous situation which, if not avoided, could result in death or injury.”
CAUTION
indicates “a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or in property damage incidents.”
Owner/User Responsibility
The owner and/or user must have an understanding of the manufacturer’s operating instructions and warnings before using this pressure washer. Warning information should be emphasized and understood.
If the operator is not fluent in English, the manufacturer’s instructions and warnings shall be read to and discussed with the operator in the operator’s native language by the purchaser/owner, making sure that the operator comprehends its contents.
Owner and/or user must study and maintain for future reference the manufacturers’ instructions.
2 English
MODEL OVERVIEW
1Water inlet with garden hose connector
2Power cord with Ground Fault Circuit Interrupter (GFCI)
3 ON/OFF switch
4 Transport handle, retractable
5 Transport handle lock
6 Accessory storage
7 Detergent tank
8 Cap with detergent suction tube
9 High pressure hose
10 Trigger gun with safety lock
11 Vario Power Spray wand
12 Dirtblaster® (Rotating spray wand)
13 HP hose clip
14 Bearing wheel
15 Carrying handle
CAUTION
This unit has been designed for use with cleaning detergents recommended by the manufacturer. The use of other cleaning detergents may affect the operation of the machine and void the warranty.
For household use only!
English 3
IMPORTANT SAFETY INSTRUCTIONS
WARNING! |
physical injuries to the operator and |
|
When using this product basic |
irreversible damage to the machine. |
|
precautions should always be |
! To reduce the risk of electrocution, |
|
followed, including the following: |
keep all connections dry and off the |
|
! Read all the instructions before us- |
ground. Do not touch plug with wet |
|
ing the product. |
hands. |
|
! To reduce the risk of injury, close su- |
! The Trigger Gun Safety Lock PRE- |
|
pervision is necessary when a prod- |
VENTS the trigger from accidentally |
|
uct is used near children. |
being engaged. This safety feature |
|
! Know how to stop the product and |
DOES NOT lock trigger in the ON |
|
bleed pressures quickly. Be thor- |
position. |
|
oughly familiar with the controls. |
! Do not use extension cord with this |
|
! Stay alert – watch what you are do- |
unit. |
|
ing. |
|
|
GROUNDING INSTRUCTIONS |
||
! Do not operate the product when fa- |
||
This product must be grounded. If it |
||
tigued or under the influence of alco- |
||
hol or drugs. |
should malfunction or breakdown, |
|
! Keep operating area clear of all per- |
grounding provides a path of least resis- |
|
sons. |
tance for electric current to reduce the |
|
! Do not overreach or stand on unsta- |
risk of electric shock. This product is |
|
equipped with a cord having an equip- |
||
ble support. Keep good footing and |
||
ment-grounding conductor and a |
||
balance at all times. |
||
grounding plug. The plug must be |
||
! Follow the maintenance instructions |
||
plugged into an appropriate outlet that is |
||
specified in the manual. |
||
properly installed and grounded in ac- |
||
! This Product Is Provided With A |
||
cordance with all local codes and ordi- |
||
Ground Fault Circuit Interrupter Built |
||
nances. |
||
Into The Power Cord Plug. If Re- |
||
DANGER |
||
placement Of The Plug Or Cord Is |
||
Needed, Use Only Identical Re- |
Improper connection of the equipment- |
|
placement Parts. |
grounding conductor can result in a risk |
|
! Risk of Injection or Injury – Do Not |
of electrocution. Check with a qualified |
|
Direct Discharge Stream At Per- |
electrician or service personnel if you |
|
sons. |
are in doubt as to whether the outlet is |
|
! High pressure jets can be dangerous |
properly grounded. Do not modify the |
|
plug provided with the product - if it will |
||
if misused. The jet must not be di- |
||
not fit the outlet, have a proper outlet in- |
||
rected at persons, animals, electrical |
||
stalled by a qualified electrician. Do not |
||
devices, or the machine itself. |
||
use any type of adapter with this prod- |
||
! Wear safety goggles. |
||
uct. |
||
! Do not use acids and solvents in this |
||
|
||
product. These products can cause |
|
4 English
GROUND FAULT CIRCUIT INTERRUPTER PROTECTION
This product is supplied with a Ground Fault Circuit Interrupter (GFCI) built into the power cord plug. This device provides additional protection from the risk of electric shock. If power is interrupted in the line, the GFCI will automatically re-close the circuit to the load after power is restored. Depending on the GFCI model, it may be necessary to manually operate the reset button to restore power to the GFCI load circuit. If replacement of the plug or cord is needed use identical replacement parts.
WATER SUPPLY
(Cold Water Only)
CAUTION
When connecting the water inlet to the water supply mains, local regulations of your water company must be observed. In some areas the unit must not be connected directly to the public drinking water supply. This is to ensure that there is no feedback of chemicals into the water supply. Direct connection via a receiver tank or backflow preventer, for example, is permitted.
Dirt in the feed water will damage the unit. To avoid this risk, we recommend fitting a water filter.
!Garden hose must be at least 5/8 inch in diameter.
!Flow rate of water supply must not fall below 2 GPM (gallons per minute).
!Flow rate can be determined by running the water for one minute into an empty 5-gallon container.
!The water supply temperature must not exceed 104°F/40°C.
!Never use the pressure washer to draw in water contaminated with solvents, e.g. paint thinners, gasoline, oil, etc.
!Always prevent debris from being drawn into the unit by using a clean water source.
SAVE THESE
INSTRUCTIONS!!
English 5
ASSEMBLY INSTRUCTIONS
Required tools
!Screwdriver, small size (not supplied)
for connecting high pressure hose and trigger gun.
Step 1
"Insert the bearing wheels into the axle box and lock them.
Step 2
"Attach the high pressure hose to the trigger gun. Pull out the locking slide from the right side of the trigger gun handle (A), and insert the small end of the high pressure hose into place
(B). Push the locking slide back into the trigger gun to lock the hose in position (C).
6 English
OPERATING INSTRUCTIONS
"STEP 1:
Insert the spray wand of your choice into the trigger gun. Press in against the spring tension and twist into locked position.
"STEP 2:
Connect garden hose to unit’s water inlet.
"STEP 3:
Connect garden hose to the cold water source and turn water on completely.
Press RESET button, indicator should be “ON”.
Press TEST button, indicator should be “OFF”.
Press RESET button for use.
WARNING
Do not use if above test fails.
"STEP 5:
Unlock the Safety lock. Trigger the gun to eliminate trapped air, wait for a steady flow of water to emerge from the spray nozzle.
" STEP 6: |
Turn on the high pressure washer
(I).
The motor starts only if the trigger of the gun is pulled and shuts off when the trigger is released.
"STEP 4:
Plug the Ground Fault Circuit Interrupter (GFCI) into a receptacle.
English 7
USING THE ACCESSORIES
WARNING
To avoid serious injury never point spray nozzle at yourself, other persons or animals.
Vario Power Spray Wand
!The Vario Power Spray Wand allows you to adjust the cleaning pressure. To clean at maximum pressure, the wand must be positioned to the high pressure setting (Max).
For lower pressure turn the wand collar in the minus (Min) direction. To apply detergent, the wand must be positioned to the lower pressure setting (Min).
Dirtblaster®
!This nozzle features a 0º pencil jet which rotates 360º for maximum dirt cutting action, effectively increasing cleaning performance up to 50%. This nozzle combines the cleaning performance of a 0º pencil jet with the surface coverage of a wide angle nozzle.
Not recommended for soft materials, siding, painted surfaces, decks or autos.
!Always test an inconspicuous area before cleaning with the Dirtblaster
8 English

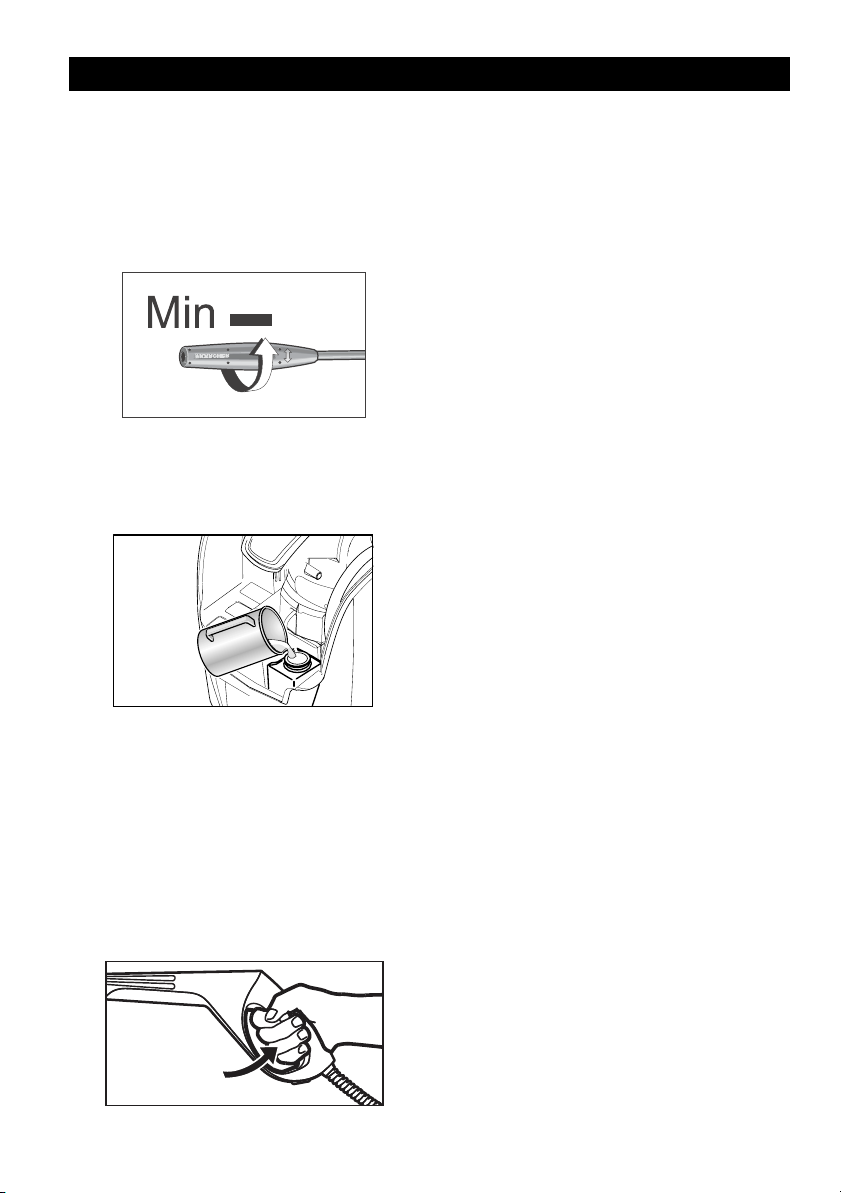

WORKING WITH DETERGENTS
Detergents can only be applied at low pressure (Min.).
"STEP 1:
Install the Vario Power Spray Wand. Set the spray wand to the low pressure setting (Min.).
" STEP 2: |
Fill the Detergent Tank with the selected Ready To Use detergent.
"STEP 3:
Turn on the pressure washer (I). Pull trigger to operate unit: Liquid detergent is drawn into the unit and mixed with water. Apply detergent to work area. Do not allow detergent to dry on surface.
" STEP 4:
Cleaning up: Always draw fresh water through the detergent tank when done to flush any remaining detergents from the injection system.
For best results see Cleaning Tips for specific information on how to clean different surfaces.
Always Use Kärcher Detergent for Best Results
Kärcher biodegradable detergents are specially formulated to protect the environment and your pressure washer. The special formula won’t clog the suction tube filter and will protect the internal parts of the pressure washer for a longer life. For Kärcher Detergents, check your retailer or visit our website: www.karcher-usa.com/home
The following Kärcher detergents are available:
One Gallon ready to use
!All Purpose & Vehicle Cleaner
!Deck & Patio Cleaner
!Heavy Duty Degreaser
!Exterior House Cleaner
CAUTION
Never use:
–Bleach, Chlorine products and other corrosive chemicals
–Liquids containing solvents (i.e., paint thinners, gasoline, oils)
–Tri-sodium phosphate products
–Ammonia products
–Acid-based products
These chemicals will harm the unit and will damage the surface being cleaned.
English 9
TAKING A BREAK ..five minutes or more
"STEP 1:
Release trigger and engage gun safety lock.
"STEP 2:
Turn pressure washer to OFF (O) position.
B
A
SHUTTING DOWN & CLEAN-UP
"STEP 1:
Turn the switch to OFF (0) position and unplug cord from outlet.
"STEP 4:
Disconnect the garden hose from the water inlet on the unit.
" STEP 2: |
" STEP 5: |
Turn off the water source.
"STEP 3:
Press trigger to release water pressure.
2 3 |
Release trigger and engage gun safety lock.
B
A
10 English
WINTERIZING AND LONG-TERM STORAGE
"1: Disconnect all water connections.
"2: Turn on the machine for a few seconds, until the water which had remained in the pump exits, turn off immediately.
"3: Do not allow high pressure hose to become kinked.
"4: Store the machine and accessories in a room which does not reach freezing temperatures. DO NOT store near furnace or other sources
of heat as it may dry out the pump seals.
CAUTION
Failure to follow the above directions will result in damage to the pump assembly and accessories.
Kärcher also recommends the regular practice of using a pump protector like “Kärcher Pump Guard” to help during storage in the winter months.
CARE AND MAINTENANCE INSTRUCTIONS

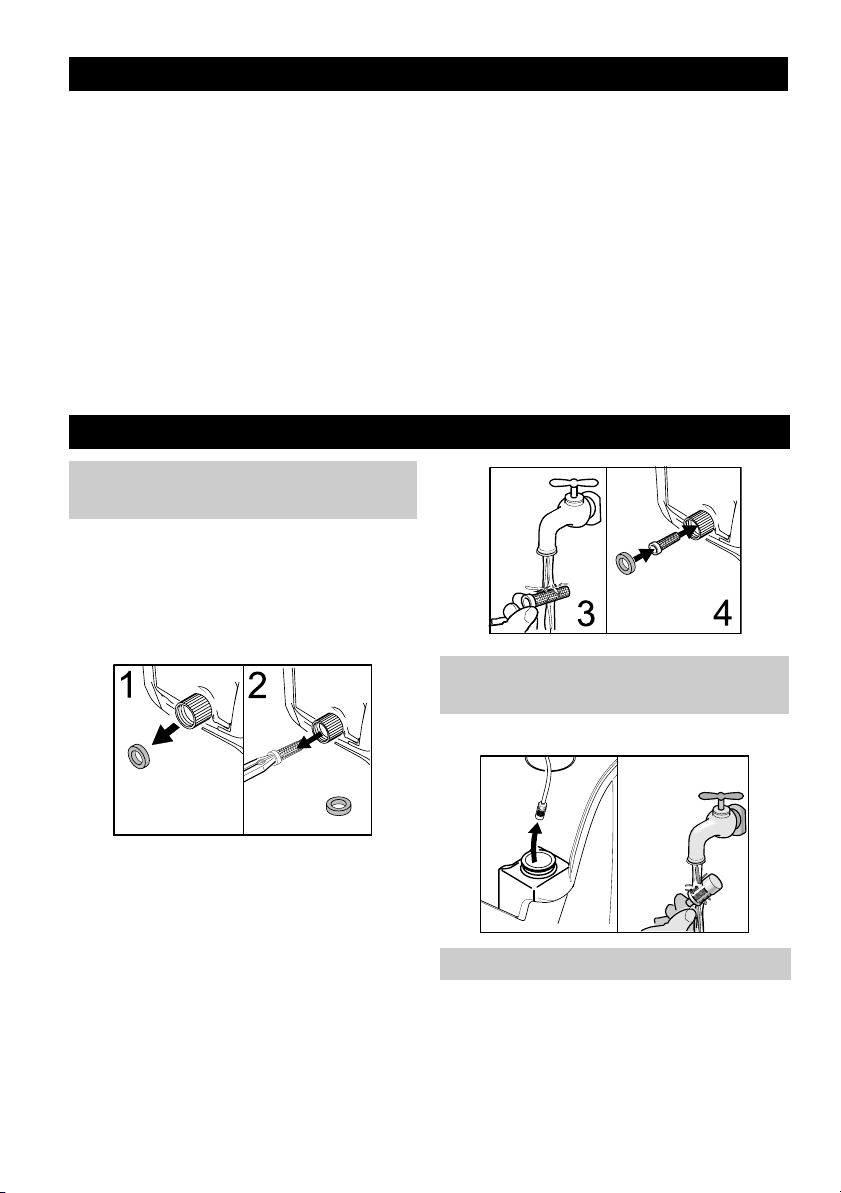

Cleaning the water inlet filter
"STEP 1:
Pull out washer from the water inlet.
"STEP 2:
Pull out water inlet filter with flatnose pliers.
" STEP 3: |
Rinse out water inlet filter in warm water.
"STEP 4:
Reinsert water inlet filter and washer into the water inlet.
Cleaning the detergent inlet filter
Pull it out and rinse out in warm water.
Maintenance
The unit is maintenance-free.
English 11
CLEANING TIPS
Deck Cleaning
(with or without detergent). Pre-rinse deck and surrounding area with fresh water. If using Kärcher Deck Wash, apply to surface at low pressure. For best results, limit your work area to smaller sections of approximately 25 square feet. Allow Deck Wash to remain on surface 1-3 minutes. Do not allow detergent to dry on surface. Rinse at high pressure in a long sweeping motion keeping the spray nozzle approximately 3-6 inches from the cleaning surface. Always clean from top to bottom and from left to right. When moving on to a new section of the cleaning surface, be sure to overlap the previous section to eliminate stop marks and ensure a more even cleaning result.
House Siding
(with or without detergent). Pre-rinse cleaning surface with fresh water. If using Kärcher Pressure Wash, apply to surface at low pressure (for best results, limit your work area to sections of approximately 6 feet and always apply detergent from bottom to top). Allow Pressure Wash to remain on surface 1- 3 minutes. Do not allow detergent to dry on surface, if surface appears to be drying, simply wet down surface with fresh water. If needed, use special wash brush attachment (not included) to remove stubborn dirt. Rinse at high pressure from top to bottom in an even sweeping motion keeping the spray nozzle approximately 6 inches from the cleaning surface.
Cement Patios, Brick and Stone
(with or without detergent). Pre-rinse cleaning surface with fresh water. If using Kärcher Pressure Wash or Degreaser, apply to surface at low pressure. For best results, limit your work area to smaller sections of approximately 25 square feet. Allow Pressure Wash or Degreaser to remain on surface 1-3 minutes. Do not allow detergent to dry on surface. Rinse at high pressure in a sweeping motion keeping the spray nozzle approximately 3-6 inches from the cleaning surface. Always clean from top to bottom and from left to right. For removing extremely stubborn stains, use the Dirtblaster Nozzle.
Cars, Boats & Motorcycles
(with or without detergent). Pre-rinse vehicle with fresh water. If using Kärcher Touchless Vehicle Wash, apply to surface at low pressure. For best results, clean one side of vehicle at a time and always apply detergent from bottom to top, do not allow detergent to dry on surface. If needed, use special wash brush attachment (not included) to remove stubborn dirt. Rinse at high pressure in a sweeping motion keeping the spray nozzle approximately 6-8 inches from the cleaning surface (distance should increase when rinsing pin-strip- ing or other sensitive surfaces). Always clean from top to bottom and from left to right. For best results, wipe surface dry with a chamois or soft dry cloth.
12 English
Barbecue Grills, Outdoor Power
Equipment & Gardening Tools
(with or without detergent). Pre-rinse cleaning surface with fresh water. If using Kärcher Pressure Wash or Degreaser, apply detergent at low pressure.
Allow Pressure Wash to remain on surface 1-3 minutes. Do not allow detergent to dry on surface. Rinse at high pressure keeping the spray nozzle approximately 3-6 inches from the cleaning surface. For removing extremely stubborn dirt, it may be necessary to move the spray nozzle even closer to the surface for greater dirt cutting action.
Patio & Lawn Furniture
(with or without detergent). Pre-rinse furniture and surrounding area with fresh water. If using Pressure Wash, apply to surface at low pressure. Allow Pressure Wash to remain on surface 1- 3 minutes. Do not allow detergent to dry on surface. If needed use special Wash Brush Attachment (not included) to remove stubborn dirt. Rinse at high pressure in a sweeping motion keeping the spray nozzle approximately 3-6 inches from the cleaning surface. For best results, clean from top to bottom and from left to right.
Recommendations
!Before cleaning any surface an inconspicuous area should be cleaned to test spray pattern and distance for maximum cleaning results.
!If painted surfaces are peeling or chipping, use extreme caution as
pressure washer may remove the loose paint from the surface.
!When using on surfaces which might come in contact with food, flush surfaces with plenty of drinking water.
!For additional cleaning tips, visit our website at www.karcher-usa.com/ home
English 13
OPTIONAL CLEANING ACCESSORIES
Optional accessories are available to further enhance your cleaning capabilities. These accessories are accurate as of the printing date of this manual. Please check our website www.karcher-usa.com/home for pricing and up-to-date information.
your pressure washer by up to 66" with this extension kit. Includes 4 aluminum sections for variable length. 66" fully assembled. Fits most Karcher pressure washers up to 2300 PSI. (bayonet)
Part No. 2.640-746.0
Pump Guard
Specially formulated to protect your pressure washer from freezing, corrosion and premature wear. The Pump Guard also adds lubrication to valves and seals to prevent sticking. Highly recommended for all Karcher pressure washers!
Part No. 9.558-998.0
Water Pumping Kit
Attach this accessory to your pressure washer to quickly pump large quantities of water out of a standing source, such as a barrel or bucket. Fits most Karcher pressure washers up to 2300 PSI.
Part No. 2.637-214.0
25 Ft. Extension /Replacement
High-Pressure Hose
Replacement hose fits Kärcher pressure washer with screw-on type gun connections from 2400psi to 2500psi, Extension Hose for all Kärcher high pressure washers between the original equipment hose and machine up to 2500 psi.
Part No. 2.640-850.0
66" Extension Wand (Four piece)
Need to clean second story windows or other high areas? Increase the reach of
Rotating Wash Brush (bayonet)
For more effortless cleaning of all smooth surfaces (painted, glass and plastic) try Karcher's Rotating Wash Brush. Use it on your automobile, house siding or windows. The water pressure from your pressure washer causes the inner brushes to gently spin, making your cleaning job much easier. The angle of brush head is adjustable to help you reach difficult areas. Excellent for the application of detergent. A musthave accessory designed for Karcher pressure washers up to 2300 PSI. (bayonet)
Part No. 2.640-743.0
Soft Clean Washing Brush
Made with soft bristles that will not harm painted surfaces. Easily attaches directly to the trigger gun. Ideal for stubborn dirt on cars, boats, patio furniture and other surfaces. Great for applying detergent. Fits most Karcher pressure washers up to 2300 PSI. (bayonet)
Part No. 2.640-740.0
25 ft. Pipe Cleaning Kit (bayonet)
Need to clean blocked pipes, drains or downspouts? Karcher's pipe cleaning kit is the answer! The pipe cleaner propels itself forward while simultaneously flushing out debris. For example, insert
14 English
the cleaning nozzle in the base of a downspout, pull the trigger on the pressure washer gun and watch as the nozzle shoots out leaves and other debris while climbing upward. Connects directly to the trigger gun of most Karcher pressure washers up to 2300 PSI. (bayonet)
Part No. 2.640-747.0
Wet Sandblasting Kit (bayonet)
Why spend hours stripping old paint and rust by hand using harsh chemicals? Let Karcher's Wet Sandblasting Kit do the work! Attach the kit to your pressure washer, add abrasive material and attack the rust and paint with our ecofriendly alternative. Fits most Karcher pressure washers up to 2300 PSI. (bayonet)
Part No. 2.638-792.0
Detergent Foamer Attachment
Ideal for applications which require a thick foam. Simply fill the resevoir cup with liquid pressure washer detergent to generate a foam spray. Connects directly to the trigger gun. Fits most Karcher pressure washers up to 2300 PSI. (bayonet)
Part No. 6.964-507.0
T-Racer Wide Area Surface
Cleaner
For cleaning surfaces such as patios, terraces and driveways without splashback, there is no better solution than Karcher's T-Racer. It saves time by cleaning a 12" wide area gently as it hovers, providing consistent, streakfree cleaning. When you finish cleaning the patio and driveway, remove the wand and use the handle to clean garage doors and other vertical surfaces. Includes two height-adjustable nozzles which spin at high speed for optimum results. Our top selling accessory for Karcher pressure washers up to 2300 PSI. (bayonet)
Part No. 2.640-508.0
Kärcher Customer Support USA
Call: 1-800-537-4129 for help or visit our website: www.karcher-usa.com/home
English 15
TROUBLESHOOTING
CAUTION |
Disconnect the machine from the power |
|
|
source before making any repair. |
|
|
|
|
Symptom |
Cause |
Solution |
|
|
|
Motor will not start |
On/Off switch is in the “OFF” |
Turn switch to the “ON” (I) posi- |
|
(O) position. |
tion |
|
Power cord is not plugged in. |
Plug in power cord. |
|
Electrical outlet does not sup- |
Try a different outlet. |
|
ply adequate power. |
|
|
Tripped GFCI plug. |
Press “RESET” button on |
|
|
GFCI plug. |
|
Tripped circuit breaker. |
Switch off pressure washer. |
|
|
The reset comes automatically |
|
|
once the temperature of the |
|
|
unit drops. |
Unit does not |
Diameter of garden hose is |
Replace with a 5/8 inch or larg- |
reach high pres- |
too small. |
er garden hose. |
sure. |
|
|
Water supply is restricted. |
Check garden hose for kinks, |
|
|
|
leaks and blockage. |
|
Not enough inlet water sup- |
Open water source full force. |
|
ply. |
|
|
Water inlet filter is clogged. |
Remove filter and rinse out in |
|
|
warm water. |
|
Spray wand is on low pres- |
Turn spray wand to high pres- |
|
sure position. |
sure position. |
Output pressure |
Not enough inlet water sup- |
Turn water on full force. Check |
varies high and |
ply. |
garden hose for kinks, leaks or |
low. |
|
blockage. |
|
Pump is sucking air. |
Check that hoses and fittings |
|
|
are air tight. Turn off machine |
|
|
and purge pump by squeezing |
|
|
trigger gun until a steady flow |
|
|
of water emerges through the |
|
|
nozzle. |
|
Water inlet filter is clogged. |
Remove filter and rinse out in |
|
|
warm water. |
|
Discharge nozzle is obstruct- |
Blow out or remove debris with |
|
ed. |
a fine needle. |
|
Calcified gun, hose or spray |
Run distilled vinegar through |
|
wand. |
detergent suction tube. |
16 English
Loading...
