2004 Model Year
Electrical Guide
BY APPOINTMENT TO
HER MAJESTY QUEEN ELIZABETH
THE QUEEN MOTHER
MANUFACTURERS OF DAIMLER AND JAGUAR CARS
JAGUAR CARS LIMITED COVENTRY
BY APPOINTMENT TO
HIS ROYAL HIGHNESS THE PRINCE OF WALES
MANUFACTURERS OF DAIMLER AND JAGUAR CARS
JAGUAR CARS LIMITED COVENTRY
Published by Parts and Service Communications
Jaguar Cars Limited
Publication Part Number – JJM 10 38 16/25 Issue 2
Jaguar S-TYPE 2002.5
Table of Contents: Figures ................................................................................................................... 2 – 3
Abbreviations and Acronyms ............................................................................................................... 4
Introduction ........................................................................................................................................ 5
Component Index ............................................................................................................................... 6–11
Symbols and Codes ........................................................................................................................... 12 – 14
Network Configuration ...................................................................................................................... 15
Fuse Box Location ............................................................................................................................. 16
Relay and Fuse Location .................................................................................................................... 17
Harness In-Line Connectors ............................................................................................................... 18 – 19
Table of Contents
Control Module Location ................................................................................................................... 20 – 21
Ground Point Location ...................................................................................................................... 22
Control Module Pin Identification ...................................................................................................... 23 – 29
Electrical Guide Figures and Data ............................................................................ follows after page 29
(pages are numbered by Figure number)
Appendix (SCP and CAN Messages) ................................................................... follows Figures and Data
DATE OF ISSUE: June 2002
1
Table of Contents: Figures
Jaguar S-TYPE 2002.5
FIGURES
Fig. Description Variant
01 Power Distribution
Fig. 01.1 ...... Main Power Distribution ............................................................................ All Vehicles
Fig. 01.2 ...... Battery Power Distribution: Part 1 .............................................................. All Vehicles
Fig. 01.3 ...... Battery Power Distribution: Part 2 .............................................................. All Vehicles
Fig. 01.4 ...... Ignition Switched Power Distribution: I (Accessory) ..................................... All Vehicles
Fig. 01.5 ...... Ignition Switched Power Distribution: II (Run) ............................................. All Vehicles
Fig. 01.6 ...... Switched System Power Distribution .......................................................... All Vehicles
Fig. 01.7 ...... Engine Management System Switched Power Distribution ........................... All Vehicles
02 Battery; Starter; Generator
Fig. 02.1 ...... Battery; Starter; Generator: V6 ................................................................... V6 Vehicles
Fig. 02.2 ...... Battery; Starter; Generator: V8 ................................................................... V8 Vehicles
03 Engine Management
Fig. 03.1 ...... Engine Management: V6 – Part 1 ................................................................ V6 Vehicles
Fig. 03.2 ...... Engine Management: V6 – Part 2 ................................................................ V6 Vehicles
Fig. 03.3 ...... Engine Management: V8 N/A – Part 1 ......................................................... V8 N/A Vehicles
Fig. 03.4 ...... Engine Management: V8 N/A – Part 2 ......................................................... V8 N/A Vehicles
Fig. 03.5 ...... Engine Management: V8 SC – Part 1 ........................................................... V8 SC Vehicles
Fig. 03.6 ...... Engine Management: V8 SC – Part 2 ........................................................... V8 SC Vehicles
04 Transmission
Fig. 04.1 ...... Transmissions ............................................................................................ All Vehicles
05 Chassis
Fig. 05.1 ...... Dynamic Stability Control .......................................................................... All Vehicles
Fig. 05.2 ...... Electronic Parking Brake; Variable Assist Power Steering ............................. All Vehicles
Fig. 05.3 ...... Adaptive Speed Control ............................................................................. Adaptive Speed Control Vehicles
Fig. 05.4 ...... Suspension Adaptive Damping ................................................................... Adaptive Damping Vehicles
06 Climate Control
Fig. 06.1 ...... Climate Control System; Windshield Heaters .............................................. All Vehicles
07 Instrumentation
Fig. 07.1 ...... Instrument Cluster; Audible Warnings ........................................................ All Vehicles
08 Exterior Lighting
Fig. 08.1 ...... Exterior Lighting: Front .............................................................................. Non HID Headlamp Vehicles
Fig. 08.2 ...... Exterior Lighting: Front – HID .................................................................... HID Headlamp Vehicles
Fig. 08.3 ...... Exterior Lighting: Rear ................................................................................ All Vehicles
Fig. 08.4 ...... Exterior Lighting: Rear – Trailer Towing ...................................................... Trailer Towing Vehicles
Fig. 08.5 ...... Headlamp Leveling .................................................................................... Headlamp Leveling Vehicles
09 Interior Lighting
Fig. 09.1 ...... Interior Lighting ......................................................................................... All Vehicles
Fig. 09.2 ...... Dimmer-Controlled Lighting ....................................................................... All Vehicles
10 Steering Column; Pedals; Mirrors; Heaters
Fig. 10.1 ...... Steering Column Adjust; Pedal Adjust ......................................................... All Vehicles
Fig. 10.2 ...... Door Mirrors: Movement and Heaters; Heated Rear Window ...................... All Vehicles
Fig. 10.3 ...... Electrochromic Rear View Mirror; Fold-Back Mirrors .................................. All Vehicles; Fold-Back Mirror Vehicles
2
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Table of Contents: Figures
FIGURES
Fig. Description Variant
11 Seat Systems
Fig. 11.1 ...... Driver Seat: 10-Way Movement with Memory ............................................ 10-Way Driver Seat Memory Vehicles
Fig. 11.2 ...... Driver Seat: 16-Way Movement with Memory ............................................ 16-Way Driver Seat Memory Vehicles
Fig. 11.3 ...... Driver Seat: Non Memory .......................................................................... Non Memory Driver Seat Vehicles
Fig. 11.4 ...... Passenger Seat ........................................................................................... 6 / 8 / 10-Way Passenger Seat Vehicles
Fig. 11.5 ...... Passenger Seat: 16-Way Movement ............................................................ 16-Way Passenger Seat Vehicles
Fig. 11.6 ...... Seat Heaters .............................................................................................. Heated Seat Vehicles
12 Central Locking; Security
Fig. 12.1 ...... Central Locking: Double Locking ................................................................ Double Locking Vehicles
Fig. 12.2 ...... Central Locking: Non Double Locking ......................................................... Non Double Locking Vehicles
Fig. 12.3 ...... Security System ......................................................................................... All Vehicles
13 Wash / Wipe
Fig. 13.1 ...... Wash / Wipe System .................................................................................. All Vehicles
14 Powered Windows; Sliding Roof
Fig. 14.1 ...... Powered Windows; Sliding Roof ................................................................. All Vehicles
15 In-Car Entertainment
Fig. 15.1 ...... In-Car Entertainment: Standard .................................................................. Standard ICE Vehicles
Fig. 15.2 ...... In-Car Entertainment: Premium ................................................................. Premium ICE Vehicles
16 Telematics
Fig. 16.1 ...... Telephone System: ROW ........................................................................... ROW Vehicles
Fig. 16.2 ...... Telephone System: NAS ............................................................................. NAS Vehicles
Fig. 16.3 ...... Telephone System with Voice: ROW .......................................................... ROW Vehicles
Fig. 16.4 ...... Telephone System with Voice: NAS ............................................................ NAS Vehicles
Fig. 16.5 ...... Voice Control System ................................................................................. Voice Only Vehicles
Fig. 16.6 ...... Navigation System (except Japan) ............................................................... Navigation Vehicles (except Japan)
Fig. 16.7 ...... Navigation System with TV (except Japan) ................................................... Navigation Vehicles with TV (except Japan)
Fig. 16.8 ...... Navigation System: Japan ........................................................................... Japan Navigation Vehicles
17 Occupant Protection
Fig. 17.1 ...... Advanced Restraint System: Part 1 ............................................................. All Vehicles
Fig. 17.2 ...... Advanced Restraint System: Part 2 ............................................................. All Vehicles
18 Driver Assist
Fig. 18.1 ...... Parking Aid System .................................................................................... Parking Aid Vehicles
19 Ancillaries
Fig. 19.1 ...... Ancillaries: Horn, Cigar Lighter, Power Point,
Accessory Connector, Sun Shade, Singapore Road Pricing ........................... All Vehicles
20 Vehicle Multiplex Systems
Fig. 20.1 ...... Controller Area Network ............................................................................ All Vehicles
Fig. 20.2 ...... Standard Corporate Protocol Network; Serial Data Link .............................. All Vehicles
Fig. 20.3 ...... D2B Network: Part 1 ................................................................................. All Vehicles
Fig. 20.4 ...... D2B Network: Part 2 ................................................................................. All Vehicles
Fig. 20.5 ...... D2B Network: Part 3 ................................................................................. All Vehicles
DATE OF ISSUE: June 2002
3
Abbreviations and Acronyms
Jaguar S-TYPE 2002.5
The following abbreviations and acronyms are used throughout this Electrical Guide:
A/C Air Conditioning
A/CCM Air Conditioning Control Module
APP SENSOR Accelerator Pedal Position Sensor
APP1 Accelerator Pedal Position Sensor Element 1
APP2 Accelerator Pedal Position Sensor Element 2
AUTO Automatic Transmission
B+ Battery Voltage
BANK 1 RH Cylinder Bank (Cylinders 1, 3, 5, 7)
BANK 2 LH Cylinder Bank (Cylinders 2, 4, 6, 8)
CAN Controller Area Network
CKP SENSOR Crankshaft Position Sensor
CM Control Module
CMP SENSOR / 1 Camshaft Position Sensor / RH Bank
CMP SENSOR / 2 Camshaft Position Sensor / LH Bank
D2B D2B Network
DSC Dynamic Stability Control
ECM Engine Control Module
ECT SENSOR Engine Coolant Temperature Sensor
EFT SENSOR Engine Fuel Temperature Sensor
EGR Exhaust Gas Recirculation
EGT SENSOR Exhaust Gas Temperature Sensor
EOT SENSOR Engine Oil Temperature Sensor
EVAP CANISTER CLOSE VALVE Evaporative Emission Canister Close Valve
EVAP CANISTER PURGE VALVE Evaporative Emission Canister Purge Valve
FTP SENSOR Fuel Tank Pressure Sensor
GECM General Electronic Control Module
GPS Global Positioning System
HID High Intensity Discharge
HO2 SENSOR 1 / 1 Heated Oxygen Sensor – RH Bank / Upstream
HO2 SENSOR 1 / 2 Heated Oxygen Sensor – RH Bank / Downstream
HO2 SENSOR 2 / 1 Heated Oxygen Sensor – LH Bank / Upstream
HO2 SENSOR 2 / 2 Heated Oxygen Sensor – LH Bank / Downstream
IAT SENSOR Intake Air Temperature Sensor
IC Instrument Cluster
ICE In-Car Entertainment System
IMT VALVE / 1 Intake Manifold Tuning Valve / Top
IMT VALVE / 2 Intake Manifold Tuning Valve / Bottom
IP SENSOR Injection Pressure Sensor
KS / 1 Knock Sensor / RH Bank
KS / 2 Knock Sensor / LH Bank
LH Left Hand
LHD Left Hand Drive
MAF SENSOR Mass Air Flow Sensor
MAN Manual Transmission
MAP SENSOR Manifold Absolute Pressure Sensor
N/A Normally Aspirated
NAS North American Specification
PATS Passive Anti-Theft System
PWM Pulse Width Modulated
RECM Rear Electronic Control Module
RH Right Hand
RHD Right Hand Drive
ROW Rest of World
SCP Standard Corporate Protocol Network
TCM Transmission Control Module
TP SENSOR Throttle Position Sensor
TP1 Throttle Position Sensor Element 1
TP2 Throttle Position Sensor Element 2
TURN Turn Signal
TV Television
V6 V6 Engine
V8 V8 Engine
VICS Vehicle Information Control System
VVT VALVE / 1 Variable Valve Timing Valve / Bank 1
VVT VALVE / 2 Variable Valve Timing Valve / Bank 2
+ve Positive
–ve Negative
4
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Introduction
Electrical Guide Format
This Electrical Guide is made up of two major sections. The first section, at the front of the book, provides general information for and about
the use of the book, and information and illustrations to aid in the understanding of the Jaguar S-TYPE electrical / electronic systems, as well
as the location and identification of components.
The second section includes the Figures, which are the basis of the book. Each Figure is identified by a Figure Number (i.e. Fig. 01.1) and
Title, and is accompanied by a page of data containing information specific to that Figure.
It is recommended that the user read through the front section of the book to develop a familiarity with the layout of the book and with the
system of symbols and abbreviations used. The Table of Contents should help to guide the user.
Vehicle Identification Numbers (VIN)
VIN ranges are presented throughout the book in the following manner:
VIN 123456 indicates “up to VIN 123456”; VIN 123456 ➞ indicates “from VIN 123456 on”.
➞
Jaguar S-TYPE Electrical System Architecture
Power Supplies
The Jaguar S-TYPE electrical system is a supply-side switched system. The ignition switch directly carries much of the ignition switched power
supply load. Power supply is provided via three methods: direct battery power supply, ignition switched power supply, and “Switched System
Power Supply”. The “Switched System Power Supply” circuit is controlled via the GECM (General Electronic Control Module) and the RECM
(Rear Electronic Control Module). Refer to Figure 01.6 for circuit activation details.
Fuse Boxes
The electrical harness incorporates two hard-wired power distribution fuse boxes: the Front Power Distribution Fuse Box located in the engine
compartment and the Rear Power Distribution Fuse Box located in the trunk. A serviceable Primary Junction Fuse Box is located in the front
right-hand foot well. All fuses and relays (except the trailer towing accessory kit) are located in the two fuse boxes.
Vehicle Networks
The New Jaguar S-TYPE employs three different networks: a CAN (Controller Area Network) for high-speed power train communications,
an SCP (Standard Corporate Protocol) network for slower speed body systems communications, and a D2B (Optical) Network for very highspeed “real-time” audio data transfer. The D2B Network is a fiber optic network with a gateway to the remaining vehicle networks via the
Audio Unit. Technician access to the three networks and the Serial Data Link is via the Data Link Connector.
Ground Studs
Circuit ground connections are made at body studs located throughout the vehicle. There are no separate power and logic grounding systems;
however, there are a certain number of components that use unique ground points.
S-TYPE INSTRUMENT PANEL
DATE OF ISSUE: June 2002
5
Component Index
Jaguar S-TYPE 2002.5
ACCESSORY CONNECTOR ...................................................... Fig. 19.1
ACCESSORY RELAY .................................................................. Fig. 19.1
ACTIVE BRAKE BOOSTER ........................................................ Fig. 05.1
ACTIVE BRAKE BOOSTER SOLENOID ...................................... Fig. 05.1
ACTIVE SECURITY SOUNDER .................................................. Fig. 12.3
ADAPTIVE DAMPING CONTROL MODULE .............................. Fig. 05.4
............................................................................................... Fig. 20.2
ADAPTIVE SPEED CONTROL CHIME MODULE ........................ Fig. 05.3
ADAPTIVE SPEED CONTROL CONTROL MODULE ................... Fig. 05.3
............................................................................................... Fig. 20.1
AIR CLEANER SOLENOID VALVE ............................................. Fig. 03.6
AIR CONDITIONING COMPRESSOR CLUTCH .......................... Fig. 03.6
............................................................................................... Fig. 03.2
............................................................................................... Fig. 03.4
AIR CONDITIONING COMPRESSOR CLUTCH RELAY ............... Fig. 03.2
............................................................................................... Fig. 03.4
............................................................................................... Fig. 03.6
AIR CONDITIONING CONTROL MODULE – PANEL ................ Fig. 06.1
............................................................................................... Fig. 09.2
............................................................................................... Fig. 10.2
............................................................................................... Fig. 20.1
AIR CONDITIONING CONTROL MODULE – REMOTE ............. Fig. 06.1
............................................................................................... Fig. 10.2
............................................................................................... Fig. 20.1
AIR CONDITIONING PRESSURE SENSOR ................................. Fig. 03.2
............................................................................................... Fig. 03.4
............................................................................................... Fig. 03.6
AIRBAG IGNITERS, EXCEPT PASSENGER DUAL ........................ Fig. 17.1
AIRBAG IGNITERS – PASSENGER DUAL ................................... Fig. 17.2
AM / FM ANTENNA AMPLIFIER ............................................... Fig. 15.1
............................................................................................... Fig. 15.2
AMBIENT TEMPERATURE SENSOR ........................................... Fig. 06.1
APP SENSOR ........................................................................... Fig. 03.1
............................................................................................... Fig. 03.3
............................................................................................... Fig. 03.5
AUDIO UNIT ........................................................................... Fig. 09.2
............................................................................................... Fig. 12.3
............................................................................................... Fig. 15.1
............................................................................................... Fig. 15.2
............................................................................................... Fig. 16.1
............................................................................................... Fig. 16.2
............................................................................................... Fig. 16.3
............................................................................................... Fig. 16.4
............................................................................................... Fig. 16.5
............................................................................................... Fig. 20.2
............................................................................................... Fig. 20.3
............................................................................................... Fig. 20.4
............................................................................................... Fig. 20.5
AUXILIARY COOLANT PUMP .................................................. Fig. 06.1
AUXILIARY COOLANT PUMP RELAY ........................................ Fig. 06.1
AUXILIARY LIGHTING SWITCH ................................................ Fig. 07.1
............................................................................................... Fig. 08.1
............................................................................................... Fig. 08.2
............................................................................................... Fig. 08.3
............................................................................................... Fig. 08.5
............................................................................................... Fig. 09.2
BATTERY ................................................................................. Fig. 01.1
............................................................................................... Fig. 02.1
............................................................................................... Fig. 02.2
............................................................................................... Fig. 08.4
BLOWER MOTOR .................................................................... Fig. 06.1
BLOWER MOTOR RELAY ......................................................... Fig. 06.1
BRAKE CANCEL SWITCH ......................................................... Fig. 03.2
............................................................................................... Fig. 03.4
............................................................................................... Fig. 03.6
BRAKE FLUID RESERVOIR ........................................................ Fig. 05.1
BRAKE ON / OFF SWITCH ....................................................... Fig. 03.1
............................................................................................... Fig. 03.3
............................................................................................... Fig. 03.5
............................................................................................... Fig. 08.3
BRAKE PRESSURE SENSOR ...................................................... Fig. 05.1
CD AUTOCHANGER ................................................................ Fig. 15.1
............................................................................................... Fig. 15.2
............................................................................................... Fig. 20.3
............................................................................................... Fig. 20.4
............................................................................................... Fig. 20.5
CELLULAR PHONE CONTROL MODULE .................................. Fig. 16.1
............................................................................................... Fig. 16.2
............................................................................................... Fig. 16.3
............................................................................................... Fig. 16.4
............................................................................................... Fig. 20.3
............................................................................................... Fig. 20.4
............................................................................................... Fig. 20.5
CENTER CONSOLE SWITCH PACK........................................... Fig. 05.1
............................................................................................... Fig. 08.1
............................................................................................... Fig. 08.2
............................................................................................... Fig. 08.3
............................................................................................... Fig. 09.2
............................................................................................... Fig. 11.6
............................................................................................... Fig. 12.1
............................................................................................... Fig. 12.2
............................................................................................... Fig. 14.1
CIGAR LIGHTER ...................................................................... Fig. 09.2
............................................................................................... Fig. 19.1
CIGAR LIGHTER / POWER POINT RELAY ................................. Fig. 19.1
CKP SENSOR (V6) .................................................................... Fig. 03.1
CKP SENSOR (V8) .................................................................... Fig. 03.3
............................................................................................... Fig. 03.5
CLUTCH CANCEL SWITCH ...................................................... Fig. 03.2
............................................................................................... Fig. 04.1
CLUTCH PEDAL POSITION SENSOR ........................................ Fig. 04.1
............................................................................................... Fig. 05.2
CLUTCH PEDAL SAFETY SWITCH ............................................ Fig. 02.1
............................................................................................... Fig. 04.1
CMP SENSORS (V6) ................................................................. Fig. 03.1
CMP SENSORS (V8) ................................................................. Fig. 03.3
............................................................................................... Fig. 03.5
COLD AIR BYPASS ACTUATOR ................................................ Fig. 06.1
COLUMN AND PEDAL ADJUST SWITCH .................................. Fig. 10.1
6
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Component Index
COOLING FAN MODULE ........................................................ Fig. 03.2
............................................................................................... Fig. 03.4
............................................................................................... Fig. 03.6
COURTESY LAMPS .................................................................. Fig. 09.1
DAMPER SOLENOIDS .............................................................. Fig. 05.4
DATA LINK CONNECTOR ....................................................... Fig. 20.1
............................................................................................... Fig. 20.2
DEFROST MODE ACTUATOR .................................................. Fig. 06.1
DISCHARGE TEMPERATURE SENSORS ..................................... Fig. 06.1
DOOR LATCH ASSEMBLY – DRIVER ......................................... Fig. 09.1
............................................................................................... Fig. 10.1
............................................................................................... Fig. 12.1
............................................................................................... Fig. 12.2
............................................................................................... Fig. 12.3
............................................................................................... Fig. 14.1
DOOR LATCH ASSEMBLY – LH REAR ....................................... Fig. 09.1
............................................................................................... Fig. 12.1
............................................................................................... Fig. 12.2
............................................................................................... Fig. 12.3
DOOR LATCH ASSEMBLY – PASSENGER .................................. Fig. 09.1
............................................................................................... Fig. 12.1
............................................................................................... Fig. 12.2
............................................................................................... Fig. 12.3
DOOR LATCH ASSEMBLY – RH REAR ....................................... Fig. 09.1
............................................................................................... Fig. 12.1
............................................................................................... Fig. 12.2
............................................................................................... Fig. 12.3
DOOR MIRRORS ..................................................................... Fig. 10.2
DOOR SWITCH PACK – DRIVER .............................................. Fig. 09.2
............................................................................................... Fig. 10.1
............................................................................................... Fig. 10.2
............................................................................................... Fig. 10.3
............................................................................................... Fig. 11.1
............................................................................................... Fig. 14.1
DOOR SWITCH PACK – LH REAR ............................................ Fig. 14.1
DOOR SWITCH PACK – PASSENGER ....................................... Fig. 14.1
DOOR SWITCH PACK – RH REAR ............................................ Fig. 14.1
DRIVER DOOR CONTROL MODULE ........................................ Fig. 09.1
............................................................................................... Fig. 10.1
............................................................................................... Fig. 10.2
............................................................................................... Fig. 10.3
............................................................................................... Fig. 11.1
............................................................................................... Fig. 12.1
............................................................................................... Fig. 12.2
............................................................................................... Fig. 12.3
............................................................................................... Fig. 14.1
............................................................................................... Fig. 20.2
DRIVER SEAT CONTROL MODULE .......................................... Fig. 11.1
............................................................................................... Fig. 11.2
............................................................................................... Fig. 20.2
DRIVER SEAT POSITION SWITCH ............................................ Fig. 17.1
DUAL COOLANT CONTROL VALVE ........................................ Fig. 06.1
DUAL SOLAR SENSOR (CLIMATE CONTROL) ........................... Fig. 06.1
DUAL SOLAR SENSOR (AUTO HEADLAMP) ............................. Fig. 08.1
............................................................................................... Fig. 08.2
............................................................................................... Fig. 08.3
DYNAMIC STABILITY CONTROL CONTROL MODULE ............. Fig. 05.1
............................................................................................... Fig. 05.3
............................................................................................... Fig. 05.4
............................................................................................... Fig. 20.1
ECT SENSOR ........................................................................... Fig. 03.1
............................................................................................... Fig. 03.3
............................................................................................... Fig. 03.5
EFT SENSOR (V6) ..................................................................... Fig. 03.1
EFT SENSOR (V8) ..................................................................... Fig. 03.3
............................................................................................... Fig. 03.5
EGR VALVE (V8 N/A) ................................................................ Fig. 03.3
EGR VALVE (V8 SC) .................................................................. Fig. 03.5
ELECTROCHROMIC REAR VIEW MIRROR AND COMPASS ....... Fig. 10.3
ELECTRONIC ROAD PRICING MODULE .................................. Fig. 19.1
EMS CONTROL RELAY ............................................................. Fig. 01.7
ENGINE CONTROL MODULE .................................................. Fig. 01.7
............................................................................................... Fig. 02.1
............................................................................................... Fig. 02.2
............................................................................................... Fig. 03.1
............................................................................................... Fig. 03.2
............................................................................................... Fig. 03.3
............................................................................................... Fig. 03.4
............................................................................................... Fig. 03.5
............................................................................................... Fig. 03.6
............................................................................................... Fig. 04.1
............................................................................................... Fig. 05.3
............................................................................................... Fig. 12.3
............................................................................................... Fig. 20.1
............................................................................................... Fig. 20.2
ENGINE COOLANT LEVEL SENSOR ......................................... Fig. 07.1
EOT SENSOR ........................................................................... Fig. 03.1
............................................................................................... Fig. 03.3
............................................................................................... Fig. 03.5
EVAP CANISTER CLOSE VALVE ................................................ Fig. 03.1
............................................................................................... Fig. 03.3
............................................................................................... Fig. 03.5
EVAP CANISTER PURGE VALVE ............................................... Fig. 03.1
............................................................................................... Fig. 03.3
............................................................................................... Fig. 03.5
EXTERNAL TRUNK RELEASE SWITCH ....................................... Fig. 12.1
............................................................................................... Fig. 12.2
FASCIA LAMPS ........................................................................ Fig. 09.1
FLOOR MODE ACTUATOR ...................................................... Fig. 06.1
FRESH / RECIRCULATION ACTUATOR ..................................... Fig. 06.1
FRONT FOG LAMPS ................................................................ Fig. 08.1
............................................................................................... Fig. 08.2
FRONT FOG LAMP RELAY ....................................................... Fig. 08.1
............................................................................................... Fig. 08.2
DATE OF ISSUE: June 2002
7
Component Index
Jaguar S-TYPE 2002.5
FRONT POWER DISTRIBUTION FUSE BOX .............................. Fig. 01.1
............................................................................................... Fig. 01.2
............................................................................................... Fig. 01.5
............................................................................................... Fig. 01.7
............................................................................................... Fig. 02.1
............................................................................................... Fig. 02.2
............................................................................................... Fig. 03.1
............................................................................................... Fig. 03.2
............................................................................................... Fig. 03.3
............................................................................................... Fig. 03.4
............................................................................................... Fig. 03.5
............................................................................................... Fig. 03.6
............................................................................................... Fig. 06.1
............................................................................................... Fig. 08.1
............................................................................................... Fig. 08.2
............................................................................................... Fig. 12.3
............................................................................................... Fig. 13.1
............................................................................................... Fig. 19.1
FTP SENSOR ............................................................................ Fig. 03.1
............................................................................................... Fig. 03.3
............................................................................................... Fig. 03.5
FUEL FLAP AND TRUNK RELEASE SWITCH PACK .................... Fig. 05.3
............................................................................................... Fig. 09.2
............................................................................................... Fig. 12.1
............................................................................................... Fig. 12.2
FUEL FLAP RELAY .................................................................... Fig. 12.1
............................................................................................... Fig. 12.2
FUEL FLAP RELEASE SOLENOID ............................................... Fig. 12.1
............................................................................................... Fig. 12.2
FUEL INJECTORS (V6) .............................................................. Fig. 03.2
FUEL INJECTORS (V8 N/A) ....................................................... Fig. 03.4
FUEL INJECTORS (V8 SC) ......................................................... Fig. 03.6
FUEL LEVEL SENSORS .............................................................. Fig. 07.1
FUEL PUMP 1 .......................................................................... Fig. 03.2
............................................................................................... Fig. 03.4
............................................................................................... Fig. 03.6
FUEL PUMP 2 .......................................................................... Fig. 03.6
FUEL PUMP 2 MODULE .......................................................... Fig. 03.6
FUEL PUMP RELAY .................................................................. Fig. 03.2
............................................................................................... Fig. 03.4
............................................................................................... Fig. 03.6
GENERAL ELECTRONIC CONTROL MODULE ........................... Fig. 01.6
............................................................................................... Fig. 05.2
............................................................................................... Fig. 07.1
............................................................................................... Fig. 08.1
............................................................................................... Fig. 08.2
............................................................................................... Fig. 09.1
............................................................................................... Fig. 09.2
............................................................................................... Fig. 10.1
............................................................................................... Fig. 10.2
............................................................................................... Fig. 12.1
............................................................................................... Fig. 12.2
............................................................................................... Fig. 12.3
............................................................................................... Fig. 13.1
............................................................................................... Fig. 19.1
............................................................................................... Fig. 20.2
GENERATOR (V6) .................................................................... Fig. 02.1
GENERATOR (V8) .................................................................... Fig. 02.2
GLOVE BOX LAMP .................................................................. Fig. 09.1
HAND SET RECEIVER ............................................................... Fig. 16.1
............................................................................................... Fig. 16.2
............................................................................................... Fig. 16.3
............................................................................................... Fig. 16.4
HEADLAMP LEVELING ACTUATORS ........................................ Fig. 08.5
HEADLAMP LEVELING CONTROL MODULE ............................ Fig. 08.5
............................................................................................... Fig. 20.1
............................................................................................... Fig. 20.2
HEADLAMP UNITS (NOT HID) ................................................. Fig. 08.1
............................................................................................... Fig. 08.2
HEATED REAR WINDOW ........................................................ Fig. 10.2
............................................................................................... Fig. 15.1
............................................................................................... Fig. 15.2
HEATED REAR WINDOW RELAY .............................................. Fig. 10.2
HID HEADLAMP UNITS ........................................................... Fig. 08.5
HID RELAYS ............................................................................ Fig. 08.2
HIGH-MOUNTED STOP LAMP ................................................ Fig. 08.3
............................................................................................... Fig. 08.4
HO2 SENSORS ........................................................................ Fig. 03.1
............................................................................................... Fig. 03.3
............................................................................................... Fig. 03.5
HO2S RELAY ........................................................................... Fig. 01.7
HOOD AJAR SWITCH .............................................................. Fig. 12.3
HORN RELAY .......................................................................... Fig. 12.3
............................................................................................... Fig. 19.1
HORNS ................................................................................... Fig. 12.3
............................................................................................... Fig. 19.1
HUMIDITY SENSOR ................................................................. Fig. 06.1
IAT SENSOR 2 ......................................................................... Fig. 03.5
IGNITION CAPACITOR ............................................................ Fig. 03.2
............................................................................................... Fig. 03.4
............................................................................................... Fig. 03.6
IGNITION COIL RELAY ............................................................ Fig. 01.7
IGNITION MODULES AND COILS ............................................ Fig. 03.2
............................................................................................... Fig. 03.4
............................................................................................... Fig. 03.6
IGNITION SWITCH .................................................................. Fig. 01.1
............................................................................................... Fig. 01.4
............................................................................................... Fig. 01.5
............................................................................................... Fig. 02.1
............................................................................................... Fig. 02.2
............................................................................................... Fig. 04.1
............................................................................................... Fig. 07.1
............................................................................................... Fig. 12.3
IMPACT SENSORS ................................................................... Fig. 17.1
IMT SOLENOID VALVES .......................................................... Fig. 03.1
IN-CAR TEMPERATURE SENSOR .............................................. Fig. 06.1
INCLINATION SENSOR............................................................ Fig. 12.3
INERTIA SWITCH ..................................................................... Fig. 01.5
8
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Component Index
INSTRUMENT CLUSTER ........................................................... Fig. 02.1
............................................................................................... Fig. 02.2
............................................................................................... Fig. 05.3
............................................................................................... Fig. 05.4
............................................................................................... Fig. 07.1
............................................................................................... Fig. 08.1
............................................................................................... Fig. 08.2
............................................................................................... Fig. 08.3
............................................................................................... Fig. 09.1
............................................................................................... Fig. 09.2
............................................................................................... Fig. 10.1
............................................................................................... Fig. 10.2
............................................................................................... Fig. 12.3
............................................................................................... Fig. 19.1
............................................................................................... Fig. 20.1
............................................................................................... Fig. 20.2
INTERCOOLER PUMP .............................................................. Fig. 03.6
IP SENSOR (V6) ....................................................................... Fig. 03.1
IP SENSOR (V8 N/A) ................................................................ Fig. 03.3
IP SENSOR (V8 S/C) ................................................................. Fig. 03.5
J GATE MODULE ..................................................................... Fig. 04.1
............................................................................................... Fig. 09.2
............................................................................................... Fig. 20.1
JaguarNet GPS ANTENNA ........................................................ Fig. 16.1
............................................................................................... Fig. 16.2
............................................................................................... Fig. 16.3
............................................................................................... Fig. 16.4
KNOCK SENSORS (V6) ............................................................ Fig. 03.1
KNOCK SENSORS (V8) ............................................................ Fig. 03.3
............................................................................................... Fig. 03.5
LATERAL ACCELEROMETER ..................................................... Fig. 05.4
LH WINDSHIELD HEATER ........................................................ Fig. 06.1
LH WINDSHIELD HEATER RELAY ............................................. Fig. 06.1
LICENSE PLATE LAMPS ............................................................ Fig. 08.3
............................................................................................... Fig. 08.4
LUMBAR PUMP – DRIVER ........................................................ Fig. 11.1
............................................................................................... Fig. 11.2
............................................................................................... Fig. 11.3
LUMBAR PUMP – PASSENGER ................................................. Fig. 11.4
............................................................................................... Fig. 11.5
LUMBAR SOLENOIDS – DRIVER ............................................... Fig. 11.2
LUMBAR SOLENOIDS – PASSENGER ........................................ Fig. 11.5
MAF SENSOR .......................................................................... Fig. 03.1
............................................................................................... Fig. 03.3
............................................................................................... Fig. 03.5
MAIN LIGHTING SWITCH (COLUMN SWITCHGEAR) ............... Fig. 07.1
............................................................................................... Fig. 08.1
............................................................................................... Fig. 08.2
............................................................................................... Fig. 08.3
............................................................................................... Fig. 09.2
MAP LAMPS ............................................................................ Fig. 09.1
MAP SENSOR (V6) ................................................................... Fig. 03.1
MAP SENSOR (V8 N/A) ............................................................ Fig. 03.3
MAP SENSOR (V8 SC) .............................................................. Fig. 03.5
NAVIGATION CONTROL MODULE ......................................... Fig. 16.1
............................................................................................... Fig. 16.2
............................................................................................... Fig. 16.3
............................................................................................... Fig. 16.4
............................................................................................... Fig. 16.6
............................................................................................... Fig. 16.7
............................................................................................... Fig. 16.8
............................................................................................... Fig. 20.2
............................................................................................... Fig. 20.3
............................................................................................... Fig. 20.4
............................................................................................... Fig. 20.5
NAVIGATION GPS ANTENNA ................................................. Fig. 16.6
............................................................................................... Fig. 16.7
............................................................................................... Fig. 16.8
NAVIGATION SCREEN AND TELEMATICS DISPLAY .................. Fig. 16.6
............................................................................................... Fig. 16.7
............................................................................................... Fig. 16.8
NEUTRAL SWITCH .................................................................. Fig. 04.1
............................................................................................... Fig. 05.2
OCCUPANCY SENSING CONTROL MODULE ........................... Fig. 17.2
OIL PRESSURE SWITCH ........................................................... Fig. 07.1
PANEL MODE ACTUATOR ....................................................... Fig. 06.1
PARKING AID CONTROL MODULE ......................................... Fig. 18.1
............................................................................................... Fig. 20.2
PARKING AID SENSORS .......................................................... Fig. 18.1
PARKING AID SOUNDER ......................................................... Fig. 18.1
PARKING BRAKE CONTROL MODULE ..................................... Fig. 04.1
............................................................................................... Fig. 05.2
............................................................................................... Fig. 20.2
PARKING BRAKE MOTOR ....................................................... Fig. 05.2
PARKING BRAKE SWITCH ....................................................... Fig. 05.2
PASSENGER AIRBAG DEACTIVATED INDICATOR LAMP ........... Fig. 17.2
PASSENGER SEAT WEIGHT PRESSURE SENSOR ........................ Fig. 17.2
PASSENGER SEAT WEIGHT SENSING CONTROL MODULE ...... Fig. 17.2
PASSIVE ANTI-THEFT SYSTEM TRANSCEIVER ........................... Fig. 02.1
............................................................................................... Fig. 02.2
............................................................................................... Fig. 12.3
PASSIVE SECURITY SOUNDER ................................................. Fig. 12.3
PEDAL ADJUST MOTOR .......................................................... Fig. 10.1
PEDAL FORCE SWITCH ........................................................... Fig. 05.1
PEDAL TRAVEL SENSOR .......................................................... Fig. 05.1
POWER AMPLIFIER ................................................................. Fig. 15.2
............................................................................................... Fig. 20.3
............................................................................................... Fig. 20.4
............................................................................................... Fig. 20.5
POWER POINT ........................................................................ Fig. 09.2
............................................................................................... Fig. 19.1
POWER WASH PUMP ............................................................. Fig. 13.1
POWER WASH RELAY ............................................................. Fig. 13.1
DATE OF ISSUE: June 2002
9
Component Index
Jaguar S-TYPE 2002.5
PRIMARY JUNCTION FUSE BOX .............................................. Fig. 01.3
............................................................................................... Fig. 01.4
............................................................................................... Fig. 01.5
............................................................................................... Fig. 01.6
............................................................................................... Fig. 02.1
............................................................................................... Fig. 02.2
............................................................................................... Fig. 09.2
............................................................................................... Fig. 19.1
RAIN SENSING MODULE ......................................................... Fig. 13.1
RAIN SENSING UNIT ............................................................... Fig. 13.1
REAR ELECTRONIC CONTROL MODULE ................................. Fig. 01.6
............................................................................................... Fig. 03.2
............................................................................................... Fig. 03.4
............................................................................................... Fig. 03.6
............................................................................................... Fig. 05.4
............................................................................................... Fig. 07.1
............................................................................................... Fig. 08.3
............................................................................................... Fig. 08.4
............................................................................................... Fig. 09.1
............................................................................................... Fig. 10.2
............................................................................................... Fig. 10.3
............................................................................................... Fig. 12.1
............................................................................................... Fig. 12.2
............................................................................................... Fig. 12.3
............................................................................................... Fig. 14.1
............................................................................................... Fig. 20.2
REAR POWER DISTRIBUTION FUSE BOX ................................. Fig. 01.1
............................................................................................... Fig. 01.2
............................................................................................... Fig. 01.3
............................................................................................... Fig. 01.4
............................................................................................... Fig. 01.5
............................................................................................... Fig. 01.6
............................................................................................... Fig. 03.2
............................................................................................... Fig. 03.4
............................................................................................... Fig. 03.6
............................................................................................... Fig. 06.1
............................................................................................... Fig. 10.2
............................................................................................... Fig. 12.1
............................................................................................... Fig. 12.2
............................................................................................... Fig. 19.1
REAR POWER DISTRIBUTION FUSE BOX MEGAFUSE ............... Fig. 01.1
REMOTE KEYLESS ENTRY MODULE ......................................... Fig. 12.1
............................................................................................... Fig. 12.3
RESTRAINTS CONTROL MODULE ............................................ Fig. 17.1
............................................................................................... Fig. 17.2
............................................................................................... Fig. 20.2
REVERSE SWITCH .................................................................... Fig. 04.1
............................................................................................... Fig. 08.3
RIDE HEIGHT SENSORS ........................................................... Fig. 08.5
ROOF CONSOLE ..................................................................... Fig. 09.1
............................................................................................... Fig. 09.2
............................................................................................... Fig. 12.3
............................................................................................... Fig. 14.1
............................................................................................... Fig. 16.1
............................................................................................... Fig. 16.2
............................................................................................... Fig. 16.3
............................................................................................... Fig. 16.4
............................................................................................... Fig. 16.5
............................................................................................... Fig. 16.8
............................................................................................... Fig. 19.1
............................................................................................... Fig. 20.2
SEAT BACK HEATERS ............................................................... Fig. 11.6
SEAT BELT PRETENSIONER IGNITERS ...................................... Fig. 17.1
SEAT BELT SWITCHES .............................................................. Fig. 17.1
SEAT CUSHION HEATERS ........................................................ Fig. 11.6
SEAT HEATER MODULES ......................................................... Fig. 11.6
SEAT MOTORS – PASSENGER .................................................. Fig. 11.4
SEAT MOTORS AND POSITION SENSORS – DRIVER ................ Fig. 11.1
............................................................................................... Fig. 11.2
............................................................................................... Fig. 11.3
SEAT MOTORS AND POSITION SENSORS – PASSENGER ......... Fig. 11.5
SEAT SWITCH PACK – DRIVER ................................................. Fig. 11.1
............................................................................................... Fig. 11.2
............................................................................................... Fig. 11.3
SEAT SWITCH PACK – PASSENGER .......................................... Fig. 11.4
............................................................................................... Fig. 11.5
SECURITY INDICATOR ............................................................ Fig. 12.3
SIDE MARKERS ........................................................................ Fig. 08.1
............................................................................................... Fig. 08.2
SIDE MARKER LAMPS .............................................................. Fig. 08.3
SLIDING ROOF CONTROL MODULE ....................................... Fig. 14.1
SPATIAL SENSORS ................................................................... Fig. 17.2
SPEAKERS ................................................................................ Fig. 15.1
............................................................................................... Fig. 15.2
STARTER MEGAFUSE ............................................................... Fig. 01.1
............................................................................................... Fig. 02.1
............................................................................................... Fig. 02.2
STARTER MOTOR .................................................................... Fig. 02.1
............................................................................................... Fig. 02.2
STARTER RELAY ....................................................................... Fig. 02.1
............................................................................................... Fig. 02.2
STEERING ANGLE SENSOR ...................................................... Fig. 05.1
STEERING COLUMN LOCK CONTROL MODULE ..................... Fig. 12.3
............................................................................................... Fig. 20.2
STEERING COLUMN MOTOR, SOLENOIDS
AND POSITION SENSORS ............................................... Fig. 10.1
STEERING WHEEL AUDIO SWITCHES ...................................... Fig. 15.1
............................................................................................... Fig. 15.2
............................................................................................... Fig. 16.3
............................................................................................... Fig. 16.4
............................................................................................... Fig. 16.5
STEERING WHEEL HORN SWITCH ........................................... Fig. 19.1
STEERING WHEEL LIGHTING ................................................... Fig. 09.2
STEERING WHEEL SPEED CONTROL SWITCHES ...................... Fig. 03.2
............................................................................................... Fig. 03.4
............................................................................................... Fig. 03.6
............................................................................................... Fig. 05.3
SUBWOOFERS ........................................................................ Fig. 15.2
SUN SHADE MOTOR ............................................................... Fig. 19.1
SUN VISOR LAMPS .................................................................. Fig. 09.1
SWITCHED SYSTEM POWER RELAYS ....................................... Fig. 01.6
10
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Component Index
TAIL LAMP UNITS ................................................................... Fig. 08.3
............................................................................................... Fig. 08.4
TELEMATICS DISPLAY .............................................................. Fig. 09.2
............................................................................................... Fig. 16.1
............................................................................................... Fig. 16.2
............................................................................................... Fig. 16.3
............................................................................................... Fig. 16.4
TELEPHONE ANTENNA (BUMPER) .......................................... Fig. 16.1
............................................................................................... Fig. 16.2
............................................................................................... Fig. 16.3
............................................................................................... Fig. 16.4
TELEPHONE ANTENNA (WITH JaguarNet) ............................... Fig. 16.1
............................................................................................... Fig. 16.2
............................................................................................... Fig. 16.3
............................................................................................... Fig. 16.4
THROTTLE MOTOR (V6) .......................................................... Fig. 03.1
THROTTLE MOTOR (V8 N/A) ................................................... Fig. 03.3
THROTTLE MOTOR (V8 SC) ..................................................... Fig. 03.5
THROTTLE MOTOR RELAY ...................................................... Fig. 03.1
............................................................................................... Fig. 03.3
............................................................................................... Fig. 03.5
TP SENSOR ............................................................................. Fig. 03.1
............................................................................................... Fig. 03.3
............................................................................................... Fig. 03.5
TRAILER TOWING CONNECTORS ........................................... Fig. 08.4
TRAILER TOWING CONTROL MODULE ................................... Fig. 08.4
TRAILER TOWING JUNCTION BOX .......................................... Fig. 08.4
TRAILER TOWING RELAY ........................................................ Fig. 08.4
TRANSIT ISOLATION RELAY .................................................... Fig. 01.1
TRANSMISSION CAPACITORS ................................................. Fig. 04.1
TRANSMISSION CONTROL MODULE ...................................... Fig. 02.1
............................................................................................... Fig. 02.2
............................................................................................... Fig. 04.1
............................................................................................... Fig. 05.3
............................................................................................... Fig. 20.1
TRUNK AJAR SWITCH ............................................................. Fig. 09.1
............................................................................................... Fig. 12.1
............................................................................................... Fig. 12.2
............................................................................................... Fig. 12.3
TRUNK LAMP – LH .................................................................. Fig. 09.1
TRUNK LID LAMP .................................................................... Fig. 09.1
TRUNK RELEASE SOLENOID .................................................... Fig. 12.1
............................................................................................... Fig. 12.2
TURN REPEATERS .................................................................... Fig. 08.1
............................................................................................... Fig. 08.2
TV ANTENNAS AND AMPLIFIERS ............................................ Fig. 16.7
............................................................................................... Fig. 16.8
VALET SWITCH ....................................................................... Fig. 12.1
............................................................................................... Fig. 12.2
VARIABLE ASSIST STEERING ACTUATOR ................................. Fig. 05.2
VEHICLE INFORMATION ANTENNA ........................................ Fig. 16.8
VEHICLE INFORMATION CONTROL MODULE ........................ Fig. 16.8
VEHICLE INFORMATION SENSOR ........................................... Fig. 16.8
VERTICAL ACCELEROMETERS .................................................. Fig. 05.4
VOICE ACTIVATION CONTROL MODULE ............................... Fig. 16.3
............................................................................................... Fig. 16.4
............................................................................................... Fig. 16.5
............................................................................................... Fig. 20.3
............................................................................................... Fig. 20.4
............................................................................................... Fig. 20.5
VVT SOLENOID VALVES .......................................................... Fig. 03.1
............................................................................................... Fig. 03.3
WASHER FLUID LEVEL SWITCH ............................................... Fig. 07.1
............................................................................................... Fig. 13.1
WHEEL SPEED SENSORS .......................................................... Fig. 05.1
WINDOW MOTOR ASSEMBLIES .............................................. Fig. 14.1
WINDOW SWITCHES .............................................................. Fig. 09.2
WINDSHIELD WASHER PUMP ................................................. Fig. 13.1
WIPE / WASH SWITCH ............................................................ Fig. 13.1
WIPER HIGH / LOW RELAY ...................................................... Fig. 13.1
WIPER MOTOR ASSEMBLY ...................................................... Fig. 13.1
WIPER PARK HEATER / RH WINDSHIELD HEATER RELAY ........ Fig. 06.1
WIPER PARK HEATER OR RH WINDSHIELD HEATER ............... Fig. 06.1
WIPER PARK RELAY ................................................................. Fig. 13.1
YAW RATE AND LATERAL ACCELERATION
SENSORS CLUSTER .......................................................... Fig. 05.1
DATE OF ISSUE: June 2002
11
Symbols and Codes
Jaguar S-TYPE 2002.5
NOTE: In the examples on this page, an ‘X’ is used where a number would appear on an actual Figure.
Reference Symbols
Battery power supply
X
X
Ignition switched auxiliary power supply (key I, II)
I
X
Ignition switched power supply (key II, III)
II
X
Switched System Power Supply power supply
S
X
Engine Management System power supply
E
XX.X
Figure number reference
CAN
Controller Area Network
SCP
Standard Corporate Protocol network
D2B
D2B network
Wiring Symbols
Splice
Control Module Pin Symbols
I
Input CAN network
O
Output SCP network
B
+
Battery voltage D2B network
P
Power ground Serial and encoded data
+
Sensor/signal supply V *
–
Sensor/signal ground **
* May also indicate Reference Voltage.
** May also indicate Reference Ground or Logic Ground.
Refer to Control Module Pin-Out Information.
C
S
D
2
D
Motor
Simplified splice
Bulb
Capacitor
Connector
Diode
Eyelet and stud
Fuse
Ground
Hall effect sensor
Light emitting diode (LED)
Potentiometer
Power distribution box terminal
Pressure transducer
Resistor
Solenoid
Suppression diode
Suppression resistor
Thermistor
Transistor
H
Wire continued
Zener diode
12
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Symbols and Codes
Harness Codes
AC Climate Control Link
AT Alarm Link
BF Front Bumper Harness
BR Rear Bumper Harness
CA Cabin Harness
CP Intercooler Pump Link
CV Canister Vent Link
DD Driver Door Harness
DM Driver Memory Seat Harness
DT Driver Door Trim Link
FC Fascia Harness
FH Front Harness
FL LH Front Headlamp Link
FP Fuel Pump Harness
FR RH Front Headlamp Link
GB Transmission Harness
IL Fuel Injector Link
PD Passenger Door
PI Engine Harness
PN Passenger Seat Harness
PT Passenger Door Trim Link
RA D2B Network Harness
RF Roof Harness
SL Solar Sensor Link
SR Sliding Roof Harness
SW Subwoofer Link
TT Trailer Tow Harness
Wiring Color Codes
N Brown O Orange
B Black S Slate
W White L Light
K Pink U Blue
G Green P Purple
R Red BRD Braid
Y Yellow BOF Black fiber optic (D2B Network)
Code Numbering
When numbering connectors, grounds and splices, Jaguar Engineering uses a three-position format: CA001, CA002, etc. Because space
is limited in this Electrical Guide the codes have, in most cases, been
shortened. Thus CA001-001 becomes CA1-1, CA002-001 becomes
CA2-1, etc.
DATE OF ISSUE: June 2002
13
Symbols and Codes
Jaguar S-TYPE 2002.5
Grounds
On figures where LHD and RHD circuits are combined and the ground designation differs from LHD to RHD, the RHD ground code is shown
in parentheses. If the ground designation is the same for LHD and RHD, only one ground code is used, with no parentheses.
EXAMPLE:
CA154
(CA141)
LHD Vehicles
RHD Vehicles
CA154
Same for LHD and RHD Vehicles
Relays
All relays are located in the Front and Rear Power Distribution Boxes and the Primary Junction Fuse Box. Relays do not have a separate relay
connector (base). All relays use the ISO pin numbering system (1, 2, 3, 4, 5). Each relay is identified by an “R” number unique only to the
fuse box in which it is located.
EXAMPLE:
3
4
R6
5
R2
3
5
1
CHANGE-OVER RELAY NORMALLY OPEN RELAY
2
1
2
Fuses
All fuses are located in the Front and Rear Power Distribution Boxes and the Primary Junction Fuse Box. Each fuse is identified by an
“F” number unique only to the fuse box in which it is located.
EXAMPLE:
F19 15A
Networks
In most instances, networks are shown as a broken grey line to indicate that there is network communication between the depicted control
modules. Refer to Figures 20.1, 20.2, 20.3, 20.4 and 20.5 for circuit details.
EXAMPLE:
S
IP5-1
S
IP5-2
SCP
Y
20.2
MESSAGE(S)
U
20.2 20.2
MESSAGE(S)
MESSAGE(S)
MESSAGE(S)
20.2
Y
IP10-1
U
IP10-2
S
S
CONTROL MODULE CONTROL MODULE
Component Depictions
EXAMPLE:
COMPLETE COMPONENTS
AND CONTROL MODULES
14
INCOMPLETE COMPONENTS
(EXCEPT CONTROL MODULES)
ASSEMBLIES AND
POWER DISTRIBUTION FUSE BOXES
COMPONENTS WITH
INTERNAL ELECTRONIC CIRCUIT
DATE OF ISSUE: June 2002
RESTRAINTS
CONTROL
MODULE
PARKING AID
CONTROL
MODULE
Jaguar S-TYPE 2002.5
TRANSMISSION
CONTROL
MODULE
ENGINE
CONTROL
MODULE
ADAPTIVE
SPEED CONTROL
CONTROL
MODULE
DYNAMIC
STABILITY
CONTROL
CONTROL
MODULE
HEADLAMP
LEVELING
CONTROL
MODULE
J GATE
AIR CONDITIONING
CONTROL
MODULE
ELECTRONIC
PARKING BRAKE
CONTROL
MODULE
DRIVER DOOR
CONTROL
MODULE
REAR ELECTRONIC
CONTROL
MODULE
Network Configuration
POWER
AMPLIFIER
VOICE
ACTIVATION
CONTROL
MODULE
CELLULAR PHONE
CONTROL
ADAPTIVE
DAMPING
CONTROL
MODULE
DRIVER SEAT
CONTROL
MODULE
GENERAL
ELECTRONIC
CONTROL
MODULE
MODULE
CD
AUTOCHANGER
AUDIO UNIT
NETWORK GATEWAY
NAVIGATION
CONTROL
MODULE
ROOF
CONSOLE
CAN SCP
SERIAL DATA LINK
DATA LINK CONNECTOR
CAN NETWORK
SCP NETWORK
D2B NETWORK
SERIAL DATA LINK
INSTRUMENT
CLUSTER
NETWORK GATEWAY
STEERING
COLUMN LOCK
CONTROL
MODULE
NOTE: TYPICAL S-TYPE NETWORK CONFIGURATION
(AUTOMATIC TRANSMISSION; FULL OPTION SET).
REFER TO FIGURES 20.1, 20.2, 20.3, 20.4 AND 20.5 FOR CIRCUIT DETAILS.
D2B
DATE OF ISSUE: June 2002
15
Fuse Box Location
Jaguar S-TYPE 2002.5
FRONT POWER DISTRIBUTION FUSE BOX
PRIMARY JUNCTION FUSE BOX
REAR POWER DISTRIBUTION FUSE BOX
16
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
FRONT POWER DISTRIBUTION FUSE BOX
F09
50A
F25
40A
F27
F28
30A
30A
R17 R18 R20 R21
R11 R16R15R13R12
R5R4
R3R2
F11
F12
30A
20A
F30
F31
40A
30A
Relay and Fuse Location
F14
F15
F16
F17
F18
F19
15A
15A
F13
80A
15A
F32
F33
F34
10A
15A
15A
F20
15A
20A
10A
30A
F35
F36
F37
F38
D4
30A
D3
15A
15A
10A
R10R7 R8
FH53*
FH7* CA56*
R2 HEATED OXYGEN SENSOR RELAY
R3 IGNITION COIL RELAY
R4 THROTTLE MOTOR RELAY
R5 EMS CONTROL RELAY
R7 AUXILIARY COOLANT PUMP RELAY
R8 A/C COMPRESSOR CLUTCH RELAY
R10 LH HID RELAY
R11 FRONT FOG LAMP RELAY
R12 HORN RELAY
R13 RH HID RELAY
R15 WIPER HIGH / LOW RELAY
R16 WIPER PARK RELAY
R17 LH WINDSHIELD HEATER RELAY
R18 POWER WASH RELAY
R20 STARTER RELAY
R21 WIPER PARK HEATER RELAY OR
RH WINDSHIELD HEATER RELAY
FC37*
R1 CIGAR LIGHTER / POWER POINT RELAY
F515AF53
F55
F57
10A
10A
10A
F425AF43
F59
15A
F44
F46
F47
10A
10A
F48
10A
15A
10A
R1 HEATED REAR WINDOW RELAY
R2 SWITCHED SYSTEM POWER RELAY 1
R4 SWITCHED SYSTEM POWER RELAY 3
R5 SWITCHED SYSTEM POWER RELAY 4
R7 BLOWER MOTOR RELAY
R8 FUEL FLAP RELAY
R10 ACCESSORY RELAY
R11 SWITCHED SYSTEM POWER RELAY 2
R15 FUEL PUMP RELAY
R1
F15AF35AF45AF5
F85AF9
F105AF11
F12
F135AF14
10A
10A
F22
F23
F245AF25
10A
10A
10A
F49
F50
15A
5A
R15
R10
R11
* PRIMARY JUNCTION FUSE BOX CONNECTORS
F155AF16
15A
10A
F26
F27
F295AF30
10A
10A
PRIMARY JUNCTION FUSE BOX
R5 R7
10AF610AF75A
F175AF18
F19
10A
10A
F20
20A
15A
10A
F32
F33
F35
20A
10A
5A
CA2*
R8
R1 R4R2
F26
F28
F29
F30
F31
F32
F33
F34
F35
D1
15A
F1
40AF215A
15A
15A
15A
F10
20A
F3
15AF415A
15A
15A
15A
F18
F19
20A
20A
F11
F12
20A
20A
F5
15AF615A
F37
15A
15A
15A
F21
F20
20A
20A
F14
F13
20A
20A
F7
15A
F23
20A
F15
20A
DATE OF ISSUE: June 2002
REAR POWER DISTRIBUTION FUSE BOX
17
Harness In-Line Connectors
Jaguar S-TYPE 2002.5
LHD
FC4 (14)
FH3 (16)
FH6 (16)
DD8 (16); DT8 (14); DT10 (14)
FC19 (16);
FC23 (10);
FC26 (16);
FC42 (4);
FC98
FH40 (12) FH39 (12)
BF1 (6) FH89 (6)
IS5 (6)
IS6 (6) ST4
PI41(42)
PI42(8)
GB1 (16)
FC107
FC122
SL3 (10)
AC7
FH114 (2)
FC34 (16)
FC10 (14);
FC12 (14)
FH82 (2)
FH1 (20)
FH2 (16)
PD4 (10)
PT1 (14)
FC17 (16);
FC25 (4);
FC33 (16)
FC39 (10)
FC99
DM23 (20); DM22 (4); DM40 (4)
RA1 (2)
CA3A/B
CA4A/B
RL2 (2)
PN40 (4); PN35 (4); PN24 (20); PN23 (4)
RF34 (16)
FP6
FP2
RR2 (2)
BR1 (10)
NOTE: WHERE THE INFORMATION IS AVAILABLE, THE NUMBER OF PINS CONTAINED IN A CONNECTOR IS SHOWN IN PARENTHESES.
18
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Harness In-Line Connectors
RHD
FC4 (14);
FC12 (14)
FH3 (16)
FH6 (16)
PD4 (10)
PT1 (14)
FC19 (16);
FC23 (10);
FC17 (16);
FC25 (4);
FC98
FH40 (12) FH39 (12)
BF1 (6) FH89 (6)
IS6 (6) ST4
IS5 (6)
PI41(42)
PI42(8)
FH114 (2)
FC34 (16)
AC7
GB1 (16)
FC107
FC122
SL3 (10)
FC10 (14)
FH82 (2)
FH1 (20)
FH2 (16)
DT10 (14); DT8 (14); DD8 (16)
FC26 (16);
FC42 (4);
FC33 (16)
FC39 (10)
FC99
PN40 (4); PN35 (4); PN24 (20); PN23 (4)
RA1 (2)
DM23 (20); DM22 (4); DM40 (4)
RF34 (16)
FP6
RL2 (2)
CA4A/BCA3A/B
BR1 (10)
FP2
RR2 (2)
NOTE: WHERE THE INFORMATION IS AVAILABLE, THE NUMBER OF PINS CONTAINED IN A CONNECTOR IS SHOWN IN PARENTHESES.
DATE OF ISSUE: June 2002
19
Control Module Location
ADAPTIVE SPEED CONTROL
CONTROL MODULE
LHD
Jaguar S-TYPE 2002.5
DYNAMIC STABILITY CONTROL
CONTROL MODULE
STEERING COLUMN LOCK
CONTROL MODULE
GENERAL ELECTRONIC
CONTROL MODULE
INSTRUMENT CLUSTER
DRIVER DOOR
CONTROL MODULE
DRIVER SEAT HEATER
CONTROL MODULE
DRIVER SEAT
CONTROL MODULE
AIR CONDITIONING
CONTROL MODULE
(COMBINED WITH
CONTROL PANEL)
POWER AMPLIFIER (TOP);
NAVIGATION CONTROL
CD AUTOCHANGER (BOTTOM)
MODULE (MIDDLE);
RESTRAINTS
CONTROL MODULE
ENGINE CONTROL MODULE
HEADLAMP LEVELING
CONTROL MODULE
AIR CONDITIONING
CONTROL MODULE (REMOTE)
AUDIO UNIT
PASSENGER SEAT
WEIGHT SENSING
CONTROL MODULE
OCCUPANCY SENSING
CONTROL MODULE
PASSENGER SEAT HEATER
CONTROL MODULE
VEHICLE INFORMATION
CONTROL MODULE
VOICE ACTIVATION
CONTROL MODULE
CELLULAR PHONE
CONTROL MODULE
PARKING AID
CONTROL MODULE
NOTE: THE TRANSMISSION CONTROL MODULE IS CONTAINED WITHIN THE TRANSMISSION.
20
PARKING BRAKE
CONTROL MODULE
REAR ELECTRONIC
CONTROL MODULE
TRAILER TOWING MODULE
ADAPTIVE DAMPING
CONTROL MODULE
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
ADAPTIVE SPEED CONTROL
CONTROL MODULE
ENGINE CONTROL MODULE
GENERAL ELECTRONIC
CONTROL MODULE
CONTROL MODULE (REMOTE)
AIR CONDITIONING
PASSENGER SEAT
WEIGHT SENSING
CONTROL MODULE
OCCUPANCY SENSING
CONTROL MODULE
PASSENGER SEAT HEATER
CONTROL MODULE
AIR CONDITIONING
CONTROL MODULE
(COMBINED WITH
CONTROL PANEL)
RHD
Control Module Location
DYNAMIC STABILITY CONTROL
CONTROL MODULE
RESTRAINTS
CONTROL MODULE
STEERING COLUMN LOCK
CONTROL MODULE
HEADLAMP LEVELING
CONTROL MODULE
INSTRUMENT CLUSTER
AUDIO UNIT
DRIVER DOOR
CONTROL MODULE
DRIVER SEAT HEATER
CONTROL MODULE
DRIVER SEAT
CONTROL MODULE
POWER AMPLIFIER (TOP);
NAVIGATION CONTROL
CD AUTOCHANGER (BOTTOM)
NOTE: THE TRANSMISSION CONTROL MODULE IS CONTAINED WITHIN THE TRANSMISSION.
DATE OF ISSUE: June 2002
MODULE (MIDDLE);
VEHICLE INFORMATION
CONTROL MODULE
VOICE ACTIVATION
CONTROL MODULE
CELLULAR PHONE
CONTROL MODULE
PARKING AID
CONTROL MODULE
PARKING BRAKE
CONTROL MODULE
REAR ELECTRONIC
CONTROL MODULE
TRAILER TOWING MODULE
ADAPTIVE DAMPING
CONTROL MODULE
21
Ground Point Location
FH95
Jaguar S-TYPE 2002.5
FH22
PI40 (RHD)
FH77
CA30
CA141
FH42
PI51 (ENGINE BLOCK GROUND)
PI40 (LHD)
ST2
CA50
FC38
CA154
22
CA116
CA156
CA157
JB1
CA158
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Control Module Pin Identification
GU
134
—
133
YB
132
GB
131
BW
130
N
129
N
128
BK
127
—
126
—
125
Y
124
G
123
—
122
121
WU
PI1
PI1 / BLACK
BR
120
BO
ENGINE CONTROL MODULE
119
118
117
116
115
114
113
112
111
110
109
108
107
U
RW
B
BG
BK
BG
UY
B
YU
Y
N
G
106
105
104
103
102
101
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
RW
W
RG
O
B
—
BG
N
N
—
—
R
Y
RW
UY
B
GR
YR
Y
GU
—
—
Y
R
B
B
—
28
B
80
54
GW
27
79
YR
Y
78
—
77
Y
76
R
75
—
74
U
73
—
72
U
71
70
UY
G
69
N
68
O
67
66
UY
65
WR
64
YR
63
GR
62
GW
61
GW
—
60
—
59
—
58
—
57
56
RW
55
RW
WR
53
YR
—
26
52
GR
—
25
51
WU
24
WG
50
WU
23
WG
—
49
22
NR
48
YG
—
21
47
WG
20
BG
46
BK
19
BG
45
BK
B
18
44
GW
B
17
43
BG
—
16
—
42
—
15
—
14
41
GO
—
13
40
BW
12
OY
39
OG
—
11
38
OY
10
GU
B
37
9
U
O
36
8
GO
—
35
7
GO
34
BG
6
Y
33
WG
5
B
—
32
4
B
31
GR
3
—
B
30
2
RU
B
29
1
RU
134
133
132
131
130
129
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
108
107
GU
—
YB
GB
BW
N
N
BK
—
—
Y
G
—
WU
BG
BO
U
RW
B
BR
BK
BG
UY
B
YU
Y
N
G
106
105
104
103
102
101
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
RW
W
RG
O
B
—
BG
N
N
—
—
R
Y
RW
UY
B
GR
YR
Y
GU
—
—
Y
R
B
B
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
GW
—
Y
—
Y
R
—
U
—
U
UY
G
N
O
UY
—
YR
GR
GW
GW
—
—
—
—
RW
RW
—
28
B
54
27
WR
53
YR
—
26
52
GR
—
25
51
WU
24
WG
50
WU
23
WG
—
49
22
NR
48
YG
—
21
47
WG
20
BG
46
BK
19
BG
45
BK
B
18
44
GW
B
17
43
BG
—
16
—
42
—
15
—
14
41
GO
—
13
40
BW
12
OY
39
OG
—
11
38
OY
10
GU
B
37
9
U
O
36
8
GO
—
35
7
GO
34
BG
6
Y
33
WG
5
B
—
32
4
B
31
GR
3
—
B
30
2
RU
B
29
1
RU
134
133
132
131
130
129
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
108
107
GU
—
YB
GB
BW
N
N
BK
—
—
Y
G
—
WU
BG
BO
U
RW
B
BR
BK
BG
UY
B
YU
Y
N
G
106
105
104
103
102
101
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
RW
W
RG
O
B
—
BG
N
N
—
—
R
Y
RW
UY
B
GR
YR
Y
GU
—
—
Y
R
B
B
80
GW
—
79
Y
78
—
77
Y
76
R
75
—
74
U
73
72
YU
U
71
70
UY
G
69
N
68
O
67
66
UY
—
65
64
YR
63
GR
62
GW
61
GW
60
YU
59
YR
58
YG
57
YU
56
RW
55
RW
—
28
B
54
27
WR
53
WU
—
26
52
GR
—
25
51
WU
24
WG
50
WU
23
WG
—
49
22
NR
48
YG
—
21
47
WG
20
BG
46
BK
19
BG
45
BK
B
18
44
GW
B
17
43
BG
—
16
—
42
—
15
U
14
41
GO
—
13
40
BW
12
OY
39
OG
Y
11
38
OY
10
GU
B
37
9
U
O
36
8
GO
—
35
7
GO
34
BG
6
Y
33
WG
5
B
—
32
4
B
31
GR
3
—
B
30
2
RU
B
29
1
RU
DATE OF ISSUE: June 2002
V6
V8 N/A
V8 SC
23
Control Module Pin Identification
FH107
6
G
12
GW
5
—
—
11
4
Y
G
10
3
9
—
—
FH107 / BLACK
2
8
B
—
1
7
NR
NW
Jaguar S-TYPE 2002.5
CA242
7
1
Y
U
8
2
—
YR
9
3
GB
YG
4
Y
10
YB
CA242 / BLACK
5
R
U
11
6
G
W
12
ADAPTIVE SPEED CONTROL CONTROL MODULE
FH103
DYNAMIC STABILITY CONTROL CONTROL MODULE
TOP
B
16
31
NR
G
15
30
YR
G
14
Y
29
13
YR
28
NG
Y
12
27
WG
Y
11
26
WR
—
10
U
25
9
U
24
WB
8
UY
—
23
FH103 / BLACK
7
R
—
22
6
Y
—
21
5
B
20
WB
4
WG
19
NW
3
G
18
YB
2
—
17
WR
1
R
CA241
2
4
B
GW
1
3
NR
RW
CA241 / BLACK
ELECTRONIC PARKING BRAKE CONTROL MODULE
B
47
Y
46
W
45
—
44
N
43
B
42
—
41
W
40
—
39
38
RU
B
37
N
36
—
35
34
WR
33
YR
32
RW
CA12 CA11
ADAPTIVE DAMPING CONTROL MODULE
8
16
NW
WU
7
—
15
BG
6
Y
14
WG
5
U
13
BW
4
12
BO
CA11 / BLUE
CA12 / GREY
NG
3
—
W
11
2
B
10
BG
1
9
N
WB
8
—
—
16
7
—
—
15
6
—
—
14
5
—
—
13
4
—
12
YR
3
—
11
WB
2
—
10
YB
1
9
Y
—
24
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
1
WB
14
NR
3
W
2
WR
16
WU
15
WR
5
NW
4
WG
18
NG
17
NR
7
NG
6
NG
20
NR
19
BG
9
YR
8
—
22
WU
21
WU
11
WR
10
WR
24
W
23
YU
1
G
12
Y
3
NR
2
B
14
NR
13
—
5
NG
4
—
16
NR
15
—
7
WR
6
*
18
**
17
WU
9
WU
8
NW
20
GW
19
NG
11
N
10
WR
22
Y
21
—
13
WB
12
YR
26
YB
25
Y
FC27 FC28
FC40 FC41
* LHD – WB; RHD – WG
** LHD – WG; RHD – WB
1
WB
14
NR
3
W
2
WR
16
WU
15
WR
5
NW
4
WG
18
NG
17
NR
7
NG
6
NG
20
NR
19
BG
9
YR
8
—
22
WU
21
WU
11
WR
10
WR
24
W
23
YU
1
G
12
Y
3
NR
2
B
14
NR
13
—
5
NG
4
—
16
NR
15
—
7
WR
6
*
18
**
17
WU
9
WU
8
NW
20
GW
19
NG
11
N
10
WR
22
Y
21
—
13
WB
12
YR
26
YB
25
Y
* LHD – WB; RHD – WG
** LHD – WG; RHD – WB
Control Module Pin Identification
FC28 / GREY
AIR CONDITIONING CONTROL MODULE – PANEL
FC27 / GREY
FC41 / GREY
AIR CONDITIONING CONTROL MODULE – REMOTE
FC40 / GREY
DATE OF ISSUE: June 2002
25
Control Module Pin Identification
FH9
CA31 CA24 FH59
GENERAL ELECTRONIC CONTROL MODULE
11
BW
22
BO
—
10
21
BO
9
—
—
20
8
R
19
BO
7
BG
—
18
6
BW
Y
17
5
—
Y
FH9 / BLACK
FH59 / BLACK
CA24 / NATURAL
16
4
—
15
WU
3
NG
14
BW
2
—
13
BG
1
NW
—
12
6
NG
B
12
5
BG
—
11
4
NR
10
BR
3
W
9
BG
2
BG
8
NR
1
U
7
Y
—
13
U
26
Y
12
—
25
11
YR
24
YB
—
10
23
WB
9
—
22
NR
8
YR
21
RW
7
WR
20
UY
6
—
—
19
5
W
O
18
4
WG
—
17
3
—
—
16
2
—
15
BG
1
—
—
14
Jaguar S-TYPE 2002.5
8
FH60
7
6
5
4
FH60 / BLACK
3
2
1
B
BW
BW
WG
BR
BW
NG
—
17
BG
16
YB
B
15
B
14
B
13
—
12
B
11
10
BR
9
WG
26
—
10
20
9
—
19
8
BW
18
7
BG
17
6
—
16
5
N
CA31 / BLACK
15
4
—
14
3
WU
13
2
WR
O
12
1
NR
O
11
NW
—
N
—
G
—
Y
GW
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
—
11
—
22
—
10
—
21
9
—
—
20
8
—
—
19
7
NW
—
18
6
—
—
17
5
—
CA102 / BLACK
CA100 / BLACK
CA102
CA100
CA103
CA103 / NATURAL
REAR ELECTRONIC CONTROL MODULE
CA101
—
16
4
WU
—
15
3
—
14
WB
2
Y
13
GO
1
Y
B
12
6
BR
12
BG
5
BG
11
BG
4
—
—
10
3
—
9
BR
2
—
8
GU
1
YG
7
—
N
13
B
26
B
12
B
25
B
11
—
24
O
10
23
NR
9
YU
—
22
8
YU
—
21
7
WB
—
20
6
W
19
WR
5
Y
—
18
4
YG
—
17
3
—
16
**
2
—
—
15
1
—
—
14
Control Module Pin Identification
Y
17
8
BW
—
16
7
BG
—
CA63 (TT2)
CA63 (TT2) / BLACK
** LHD – BO; RHD – BG
15
6
BW
—
14
5
BO
—
13
4
BG
—
12
3
BW
—
11
2
BO
10
BR
1
BG
9
BG
DATE OF ISSUE: June 2002
—
10
—
20
9
—
19
BG
8
—
18
BO
7
—
*
17
6
—
16
WU
5
N
15
CA101 / BLACK
WR
4
BO
—
14
3
N
—
13
2
B
Y
12
1
GR
R
11
* LHD – BG; RHD – BO
27
Control Module Pin Identification
Jaguar S-TYPE 2002.5
—
11
—
22
10
NG
21
WU
9
W
U
20
8
U
R
19
7
BW
N
18
6
*
W
17
5
GW
FC63 / BLACK
16
GU
4
GR
15
GO
3
UY
14
OG
2
OY
U
13
1
UY
O
12
* LHD – GU; RHD – WB
INSTRUMENT PACK
FC15
FC14 FC63
11
GB
22
10
GW
21
9
BO
20
8
WB
19
7
Y
18
6
—
17
5
O
FC14 / GREY
FC15 / BLACK
16
4
W
15
3
WG
14
2
WU
13
1
BG
12
U
10
20
9
G
19
8
Y
18
7
—
17
6
YR
16
5
WR
15
4
BG
14
3
NG
13
2
B
N
12
1
NR
Y
11
O
WR
—
—
—
—
—
—
B
YR
WG
Y
G
Y
—
—
—
Y
G
28
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
2NW1
B
4
3
GO
GW
6
5
GR
RG
2—1
—
4U3
GU
2WU1
UY
4
3
RU
RU
2
1
OG
GO
4
3
—
—
6
5
B
DM35 DM36 DM37 DM38
DRIVER SEAT CONTROL MODULE
DM33 DM34
NR
DM35 / BLACK DM36 / BLACK DM37 / BLACK DM38 / BLACK
1
Y
U
12
2
—
—
13
3
—
—
14
4
U
15
RU
5
16
UY
WG
6
Y
—
17
7
—
18
DM34 / BLACK
DM33 / BLACK
YB
8
N
—
19
9
—
20
YR
O
10
21
RW
11
22
GB
WR
1
—
—
14
2
—
—
15
3
—
—
16
4
—
—
17
5
—
—
18
6
—
—
19
7
O
—
20
8
U
—
21
9
22
WU
WU
R
10
23
WR
—
11
24
WB
Y
12
25
WB
B
13
26
NG
Control Module Pin Identification
6
YG
12
NR
5
WG
11
WG
4
U
10
BO
3
Y
9
CA85 / BLACK
CA85DD4DT2
DD4 / NATURAL
DRIVER DOOR CONTROL MODULE
DT2 / BLACK
BO
2
BG
8
B
1
—
7
B
—
13
26
YG
—
12
25
YG
11
YU
24
OY
10
YR
23
WR
9
—
—
22
8
—
G
21
7
Y
Y
20
6
—
19
WB
5
—
—
18
4
—
—
17
3
UY
—
16
2
—
—
15
1
YR
—
14
Y
10
—
20
9
WU
19
NW
8
YB
18
GW
7
—
17
BW
6
Y
16
BG
5
YB
15
YB
4
U
14
WB
3
OY
W
13
2
YR
—
12
1
WR
—
11
DATE OF ISSUE: June 2002
29

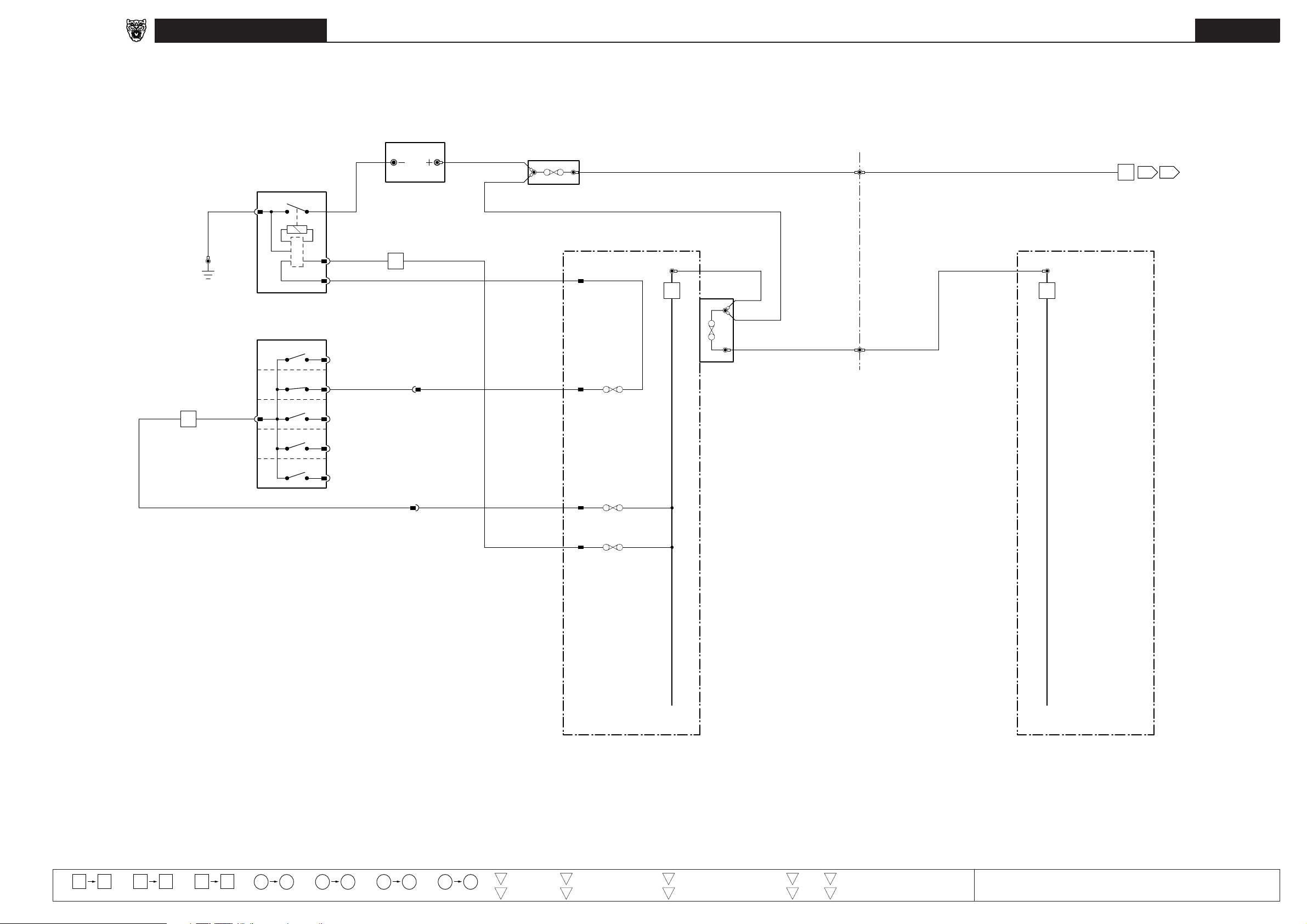

Fig. 01.1
COMPONENTS
Component Connector(s) Connector Description Location
BATTERY —— LUGGAGE COMPARTMENT
FRONT POWER DISTRIBUTION FUSE BOX — — ENGINE COMPARTMENT, RH SIDE
IGNITION SWITCH FC18 7-WAY / BLACK STEERING COLUMN COWLING
REAR POWER DISTRIBUTION FUSE BOX MEGAFUSE — — LUGGAGE COMPARTMENT
REAR POWER DISTRIBUTION FUSE BOX — — LUGGAGE COMPARTMENT
STARTER MEGAFUSE — — LUGGAGE COMPARTMENT
TRANSIT ISOLATION RELAY CA16 2-WAY / WHITE LUGGAGE COMPARTMENT, BATTERY + POST
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
FC39 10-WAY / GREY / CABIN HARNESS TO FASCIA HARNESS BEHIND INSTRUMENT PANEL, RH SIDE
GROUNDS
Ground Location
JB1 LUGGAGE COMPARTMENT, BATTERY GROUND
JB2 NOT AVAILABLE
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, relays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
B
JB2
BATTERY
CA280
Main Power Distribution
CA304
R
CA301
500 A
STARTER
MEGAFUSE
CA302
R
ST10CA281
Main Power Distribution
R
Fig. 01.1
02.1
3
02.2
STARTER
R
JB1
TIMER
TRANSIT ISOLATION
RELAY
KEY-IN
CA16-1
CA16-2
41
0
N
FC18-6
FC39-6
I
NR
7
FC18-4
NW
N
CA61-65
175 A
R
CA133
CA282
CA135
R
FH83CA177
CA44
1
R
FH66
2
MEGAFUSE
N
CA61-56
F50 5A
FRONT
BULKHEAD
II
BATTERY POWER BUS
BATTERY POWER BUS
III
IGNITION SWITCH
FC39-1
NR
NW
CA61-3
CA61-37
F3 20A
F33 5A
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
I
O
Output
POWER DISTRIBUTION FUSE BOX
B
+
REAR
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
POWER DISTRIBUTION FUSE BOX
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
DP
Serial and Encoded Data
C
S
FRONT
All Vehicles
All
June 2002

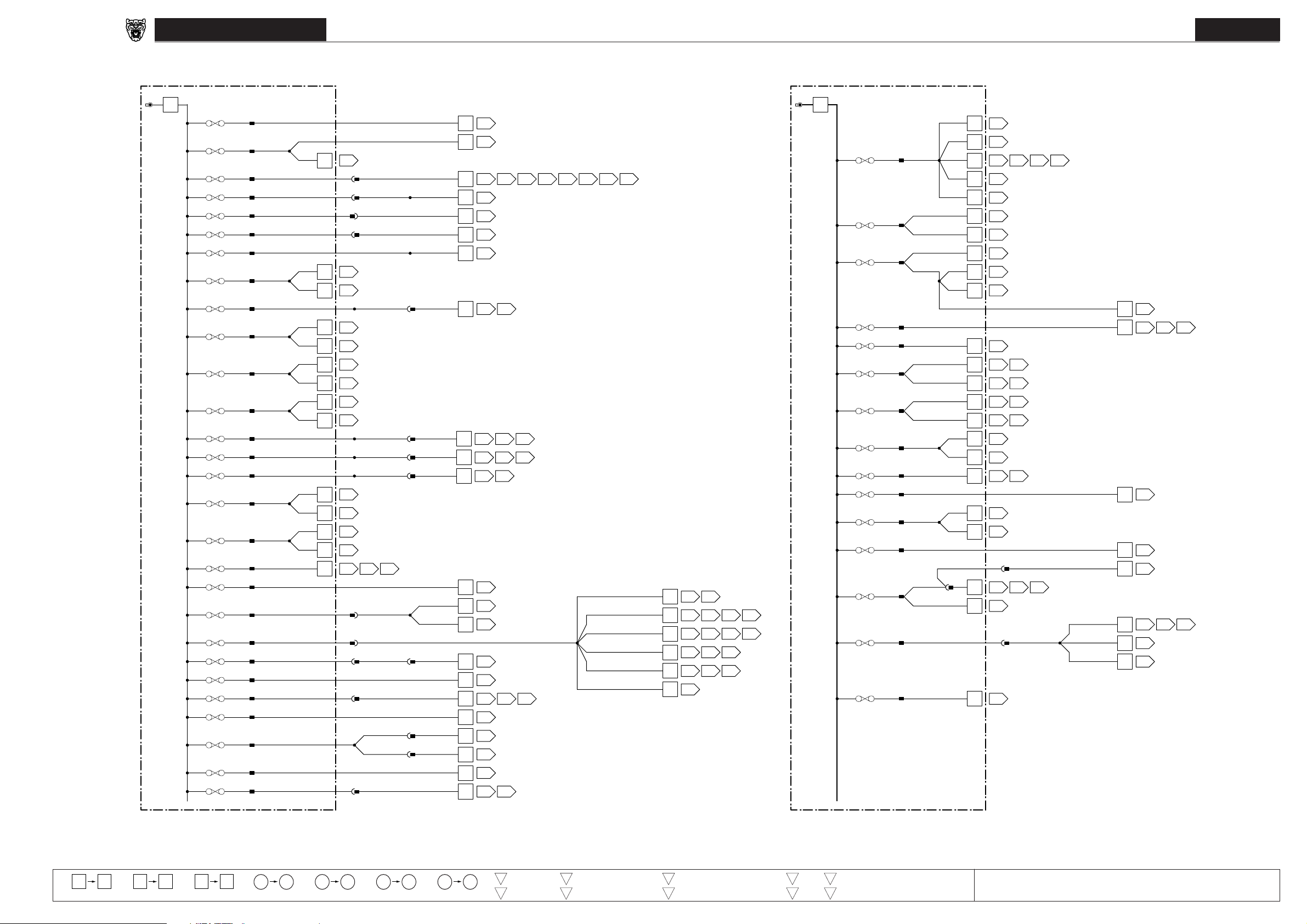

Fig. 01.2
COMPONENTS
Component Connector(s) Connector Description Location
FRONT POWER DISTRIBUTION FUSE BOX — — ENGINE COMPARTMENT, RH SIDE
REAR POWER DISTRIBUTION FUSE BOX — — LUGGAGE COMPARTMENT
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
CA3A/B 14-WAY / GREY / CABIN HARNESS BRIDGE LUGGAGE COMPARTMENT, LH REAR
CP1 10-WAY / BLACK / INTERCOOLER PUMP LINK LEAD ENGINE COMPARTMENT, RH FRONT, ADJACENT TO RADIATOR
DM22 4-WAY / GREY / CABIN HARNESS TO DRIVER SEAT HARNESS UNDER DRIVER SEAT
DM23 20-WAY / BLACK / CABIN HARNESS TO DRIVER SEAT HARNESS UNDER DRIVER SEAT
DT8 14-WAY / GREY / CABIN HARNESS TO DRIVER DOOR TRIM HARNESS DRIVER DOOR
FC39 10-WAY / GREY / CABIN HARNESS TO FASCIA HARNESS BEHIND INSTRUMENT PANEL, RH SIDE
FH1 20-WAY / BLACK / CABIN HARNESS TO FRONT HARNESS RH ‘A’ POST, LOWER
PI41 42-WAY / BLACK / ENGINE HARNESS TO VEHICLE HARNESSES ENGINE COMPARTMENT, BULKHEAD, PASSENGER SIDE
PI42 8-WAY / BLACK / ENGINE HARNESS TO FRONT HARNESS ENGINE COMPARTMENT, BULKHEAD, PASSENGER SIDE
PN23 4-WAY / GREY / CABIN HARNESS TO PASSENGER SEAT HARNESS UNDER PASSENGER SEAT
PN24 20-WAY / BLACK / CABIN HARNESS TO PASSENGER SEAT HARNESS UNDER PASSENGER SEAT
PT1 14-WAY / GREY / CABIN HARNESS TO PASSENGER DOOR TRIM HARNESS PASSENGER DOOR
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Battery Power Distribution: Part 1
Battery Power Distribution: Part 1
Fig. 01.2
1
CA44
F1 40A
F2 20A
F3 20A
F4 20A
F5 20A
BATTERY POWER BUS
F6 20A
F7 20A
F10 30A
F11 30A
F12 30A
F13 30A
F14 30A
F15 30A
F18 30A
F19 30A
F20 30A
F21 30A
F23 30A
F26 15A
F28 30A
F29 10A
F30 5A
F31 20A
F32 10A
F33 5A
F34 15A
F35 30A
F37 10A
CA61-1
CA61-2
CA61-3
CA61-4
CA61-5
CA61-6
CA61-7
CA61-10
CA61-11
CA61-12
CA61-13
CA61-14
CA61-15
CA61-18
CA61-19
CA61-20
CA61-21
CA61-23
CA61-30
CA61-32
CA61-33
CA61-34
CA61-35
CA61-36
CA61-37
CA61-38
CA61-39
CA61-41
REAR POWER DISTRIBUTION FUSE BOX
NW
NR
NR
NW
NR
NG
NR
NG
CAS92
NR
N
NR
NW
NR
NW
NW
NG
R
NG
NW
NG
NG
NG
NG
NG
NW
N
NR
NG
CAR1
CAR3
CAR4
CAR5
CAR6
CAR2
NR
NG
NG
N
N
NR
NR
NW
NW
NG
NG
R
R
19.1
6
FC39-1
CA3A/B-8
DT8-1
PT1-1
06.1
12
06.1
13
CAS67
01.6
15
01.6
16
01.6
17
01.6
18
01.6
19
01.6
20
CAS60
CAS61
CAS71
01.6
24
01.6
25
10.2
26
10.2
27
03.2
28
CA3A/B-7
CA3A/B-6
FH1-19 PI42-6
DM23-4
CAS7
PN24-11
NR
NW
CAS86
CAS87
NR NR
PN23-1
NR NR
DM22-1
NW NW
DM22-2
NW NW
PN23-2
03.4 03.6
NG
CAS40
NG
NG NG
DM23-12
NR NR
PN24-12
NW
NR
NW
NR
NG
NR
NW
NG
NG
NG
NG
NG
NG
NW
NR
NG
01.3
4
19.1
5
01.1
7
14.1
8
14.1
9
14.1
10
14.1
11
11.4
14
11.1
21
11.1 11.2 11.3
22
11.4
23
05.4
29
15.2
30
15.2
31
02.2
38
14.1
39
11.1
40
01.1
41
11.6
42
11.6
43
05.2
44
11.4
45
01.4 01.5 04.1 12.3
11.5
11.2 11.3
11.5
11.2 11.3
11.5
02.1 02.2
CAS26
07.1
NG
NW
NR
NR
NR
32
33
34
35
36
37
15.1
15.2
16.1
16.2 16.3 16.4
16.1
16.2 16.3 16.4
16.3
16.4 16.5
16.6NW16.7
16.8
16.8
2
FH66
F9 50A
BATTERY POWER BUS
F11 30A
F12 20A
F13 80A
F14 15A
F15 15A
F16 15A
F25 40A
F27 30A
F28 30A
F30 40A
F31 30A
F32 10A
F33 15A
F34 15A
FH32-9
FH32-11
FH32-12
FH32-13
FH32-20
FH32-21
FH32-22
FH32-31
FH32-33
FH32-34
FH32-36
FH32-37
FH32-38
FH32-39
FH32-40
FRONT POWER DISTRIBUTION FUSE BOX
YR
FHS59
NR
FHS57
NW
FHS55
R
N
FHS54
RW
NR
YR
YR
YR
YR
YR
YU
Y
NR
NR
NR
NR
NG
NG
NR
NR
NW
NW
NW
N
N
Y
Y
#3
Y
NR
46
47
48
49
50
51
52
53
54
55
58
59
60
61
62
63
64
65
67
68
71
72
76
01.7
01.7
01.7
03.1 03.3 03.5
01.7
01.7
13.1
13.1
13.1
13.1
13.1
08.2
08.1
08.2
08.1 08.2
12.3
19.1
12.3
19.1
06.1
06.1
02.1
02.2
06.1
06.1
CP1-3
03.2
03.4 03.6
06.1
PI41-31
08.2
NR
PIS16
NR
NG
RW
NR
NR
NR
13.1
56
03.2 03.4 03.6
57
R
Y
05.1
66
05.1
69
06.1
70
03.1
73
74
75
03.3 03.5
04.1
04.1
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
I
O
Output
B
+
P
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
D
Serial and Encoded Data
C
S
All Vehicles
All
June 2002
Fig. 01.3
COMPONENTS
Component Connector(s) Connector Description Location
PRIMARY JUNCTION FUSE BOX CA2 26-WAY / BLACK RH ‘A’ POST
REAR POWER DISTRIBUTION FUSE BOX — — LUGGAGE COMPARTMENT
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
FH1 20-WAY / BLACK / CABIN HARNESS TO FRONT HARNESS RH ‘A’ POST, LOWER
SL3 10-WAY / GREY / FASCIA HARNESS TO SOLAR SENSOR LINK BEHIND INSTRUMENT PANEL, RH SIDE
CA56 8-WAY / BLACK
FC37 26-WAY / BLACK
FH7 6-WAY / BLACK
FH53 10-WAY / BLACK
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
1
CA44
F1 40A
REAR POWER DISTRIBUTION FUSE BOX
CA61-1
NW
Battery Power Distribution: Part 2
4
NW
CA2-10
F6 10A
F7 5A
F18 20A
F19 15A
F20 10A
F32 20A
F35 5A
OY
FC37-1
WG
CA2-15
NR
FH7-5
NR
FC37-16
NOTE: SLS1 – Electronic Road Pricing only.
NR
FC37-4
NR
FC37-22
NG
FC37-12
NR
FH7-2
NR
FC37-8
19.1
89
NR
CA2-2
CA2-12
FCS2
FHS2
CAS85
SL3-1
NR
N
SLS1
FH1-1
NR
NR
NG
NG
NG
NR
NR
NR
20.1
77
78
79
80
81
82
83
84
85
86
N
87
88
90
91
92
20.2
09.1
10.1 10.2 10.3 11.1 12.1 12.2
12.3
12.3
19.1
15.1
15.2
16.6
16.7 16.8
10.1
02.1
02.2
07.1 08.1 08.2 09.1 09.2 12.3
01.6
07.1 08.1 08.2 09.1 09.2 12.1 12.2
01.6
03.2 03.4 03.6
06.1
03.1
03.2
02.1
03.3 03.5
04.1
04.1
08.3
08.3 10.1 19.1
07.1 08.3 09.1
Battery Power Distribution: Part 2
12.3 14.1
12.3 19.1
12.1 12.2
12.3 14.110.2 10.3
Fig. 01.3
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
I
O
Output
PRIMARY JUNCTION
B
+
P
Power Ground
FUSE BOX
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
D
Serial and Encoded Data
C
S
All Vehicles
All
June 2002
Fig. 01.4
COMPONENTS
Component Connector(s) Connector Description Location
IGNITION SWITCH FC18 7-WAY / BLACK STEERING COLUMN COWLING
PRIMARY JUNCTION FUSE BOX CA2 26-WAY / BLACK RH ‘A’ POST
REAR POWER DISTRIBUTION FUSE BOX — — LUGGAGE COMPARTMENT
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
FC10 14-WAY / GREEN / FASCIA HARNESS TO FRONT HARNESS BEHIND INSTRUMENT PANEL, RH SIDE
FC39 10-WAY / GREY / CABIN HARNESS TO FASCIA HARNESS BEHIND INSTRUMENT PANEL, RH SIDE
CA56 8-WAY / BLACK
FC37 26-WAY / BLACK
FH7 6-WAY / BLACK
FH53 10-WAY / BLACK
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
FC18-2
W
CA44
1
NR
FC39-1 CA61-3
F3 20A
I
II
III
0
FC18-4
NR
7
FC37-15
F12 15A
FC37-26
YU
F26 10A
CA56-6
WU
F13 5A
FC37-25
W
F27 10A
FC37-18
W
FC10-8
YU
CAS36
WU
3
I
WU
WU
5
I
6
I
4
I
1
I
WU
FCS3
8
I
7
I
WR
WG
WG
WU
WR
CA56-2
W
CAS29
WR
13
I
10
I
11
I
12
I
W
9
I
W
2
I
13.1
07.1
05.2
19.1
19.1
15.1 15.2
16.6
09.2
16.1
16.5
16.8
15.1 15.2
16.7 16.8
16.2 16.3 16.4
16.6 16.7 16.8
16.3 16.4
14
I
19.1
Ignition Switched Power Distribution: I (Accessory)
REAR POWER DISTRIBUTION FUSE BOX
Ignition Switched Power Distribution: I (Accessory)
Fig. 01.4
13
476
Fig. 01.1 Fig. 01.4
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
KEY-IN
IGNITION SWITCH
46 80
SS
81 118
EE
Fig. 01.7
I
O
Output
B
+
P
Power Ground
PRIMARY JUNCTION
FUSE BOX
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
SCP
D
2
D
C
S
D2B NetworkInput Battery Voltage
Serial and Encoded Data
VARIANT:
VIN RANGE:
DATE OF ISSUE:
All Vehicles
All
June 2002
Fig. 01.5
COMPONENTS
Component Connector(s) Connector Description Location
FRONT POWER DISTRIBUTION FUSE BOX — — ENGINE COMPARTMENT, RH SIDE
IGNITION SWITCH FC18 7-WAY / BLACK STEERING COLUMN COWLING
INERTIA SWITCH CA4 3-WAY / GREY LH ‘A’ POST
PRIMARY JUNCTION FUSE BOX CA2 26-WAY / BLACK RH ‘A’ POST
REAR POWER DISTRIBUTION FUSE BOX — — LUGGAGE COMPARTMENT
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
DM23 20-WAY / BLACK / CABIN HARNESS TO DRIVER SEAT HARNESS UNDER DRIVER SEAT
FC10 14-WAY / GREEN / FASCIA HARNESS TO FRONT HARNESS BEHIND INSTRUMENT PANEL, RH SIDE
FC39 10-WAY / GREY / CABIN HARNESS TO FASCIA HARNESS BEHIND INSTRUMENT PANEL, RH SIDE
FH1 20-WAY / BLACK / CABIN HARNESS TO FRONT HARNESS RH ‘A’ POST, LOWER
GB1 16-WAY / GREY / ENGINE HARNESS TO TRANSMISSION HARNESS ADJACENT TO TRANSMISSION BELL HOUSING
PI41 42-WAY / BLACK / ENGINE HARNESS TO VEHICLE HARNESSES ENGINE COMPARTMENT, BULKHEAD, PASSENGER SIDE
PN24 20-WAY / BLACK / CABIN HARNESS TO PASSENGER SEAT HARNESS UNDER PASSENGER SEAT
RF34 16-WAY / GREEN / CABIN HARNESS TO DOOR HARNESS ‘D’ POST, UNDER PARCEL SHELF
CA56 8-WAY / BLACK
FC37 26-WAY / BLACK
FH7 6-WAY / BLACK
FH53 10-WAY / BLACK
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
FC39-1 CA61-3
KEY-IN
0
I
NR
7
FC18-4
II
FC18-7
III
IGNITION SWITCH
NR
WG
Ignition Switched Power Distribution: II (Run)
CA44
1
F3 20A
REAR POWER DISTRIBUTION FUSE BOX
FCS6
WG
WG
FC37-2
FC37-9
F3 5A
F15 5A
F16 10A
F4 5A
FH7-4
CA2-1
CA2-6
CA2-4
FC37-5
FH53-1
CA2-23
WG
GO
CAS39
GO GO
FH1-18 PI41-13
WG
W
NOTE: CAS88 – Vehicles with both Electrochromic Rear View Mirror
and Rain Sensing Module only.
YR
GO
WG
CAR12
WG
CA4-2
INERTIA SWITCH
CA4-1
GU
GO
FHS3
PIS26
CAS14
CAS88
FCS21
CAS31
GO
GB1-7
WU WU
DM23-2
WW
PN24-2
WW
RF34-1
YR
FC10-7
YR
FC10-7
PI41-32
FH1-3
WG
NW
GO
GO
GO
GO
W
NW
YR
YR
YR
GO
WG
GU
GUGU
Ignition Switched Power Distribution: II (Run)
15
05.1
II
16
05.3
II
17
04.1
II
18
02.1
II
19
II
20
II
21
II
22
II
23
II
24
II
25
II
26
II
27
II
28
II
29
II
30
II
31
II
04.1
02.2 04.1
02.1
02.2
11.6
11.6
10.3
13.1
08.5
08.5
08.5
05.3
03.1 03.3
03.2 03.4
03.2 03.4
03.5
03.6
03.6
GU GU
FHS1
PI41-15
GU
GU
32
II
33
II
34
II
03.1 03.3
01.7
03.2 03.4
Fig. 01.5
03.5
03.6
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
I
O
WG
Output
FC37-14
F5 10A
F17 5A
F14 10A
F29 5A
PRIMARY JUNCTION
FUSE BOX
B
+
P
Power Ground
WG WG
FC37-23
WU
FC37-6
WU
CA2-7
WG WG
FC37-13
NR
FC37-19
NG
CA56-1
WU
CA2-8
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
35
02.1
02.2
07.1
16.5
12.3
All Vehicles
All
June 2002
POWER DISTRIBUTION FUSE BOX
II
WU
36
17.2
II
WU
37
17.1
NR
NG
WU
WU
WU
WU
II
38
II
39
II
40
II
41
II
42
II
43
II
44
II
45
II
17.2
07.1
06.1
05.4
16.1
16.2 16.3 16.4
16.3 16.4
18.1
12.3
VIN RANGE:
DATE OF ISSUE:
VARIANT:
CAS68
CAS38
SCP
D
D2B NetworkInput Battery Voltage
2
D
Serial and Encoded Data
C
S
WU WU
PN24-3
FRONT
CONTROL MODULE PIN-OUT INFORMATION
General Electronic Control Module
Pin Description and Characteristic
OFH9-21 SWITCHED SYSTEM POWER RELAYS ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND
SFH59-1 SCP B+ FH59-6 BATTERY POWER SUPPLY (LOGIC): B+
SFH59-7 SCP +
PG FH60-11 POWER GROUND: GROUND
Rear Electronic Control Module
Pin Description and Characteristic
B+ CA101-3 BATTERY POWER SUPPLY: B+
OCA101-4 SWITCHED SYSTEM POWER RELAYS ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND
SCA102-1 SCP +
SCA102-2 SCP -
PG CA102-12 POWER GROUND: GROUND
NOTE: Refer to the Appendix at the rear of this book for Network Messages.

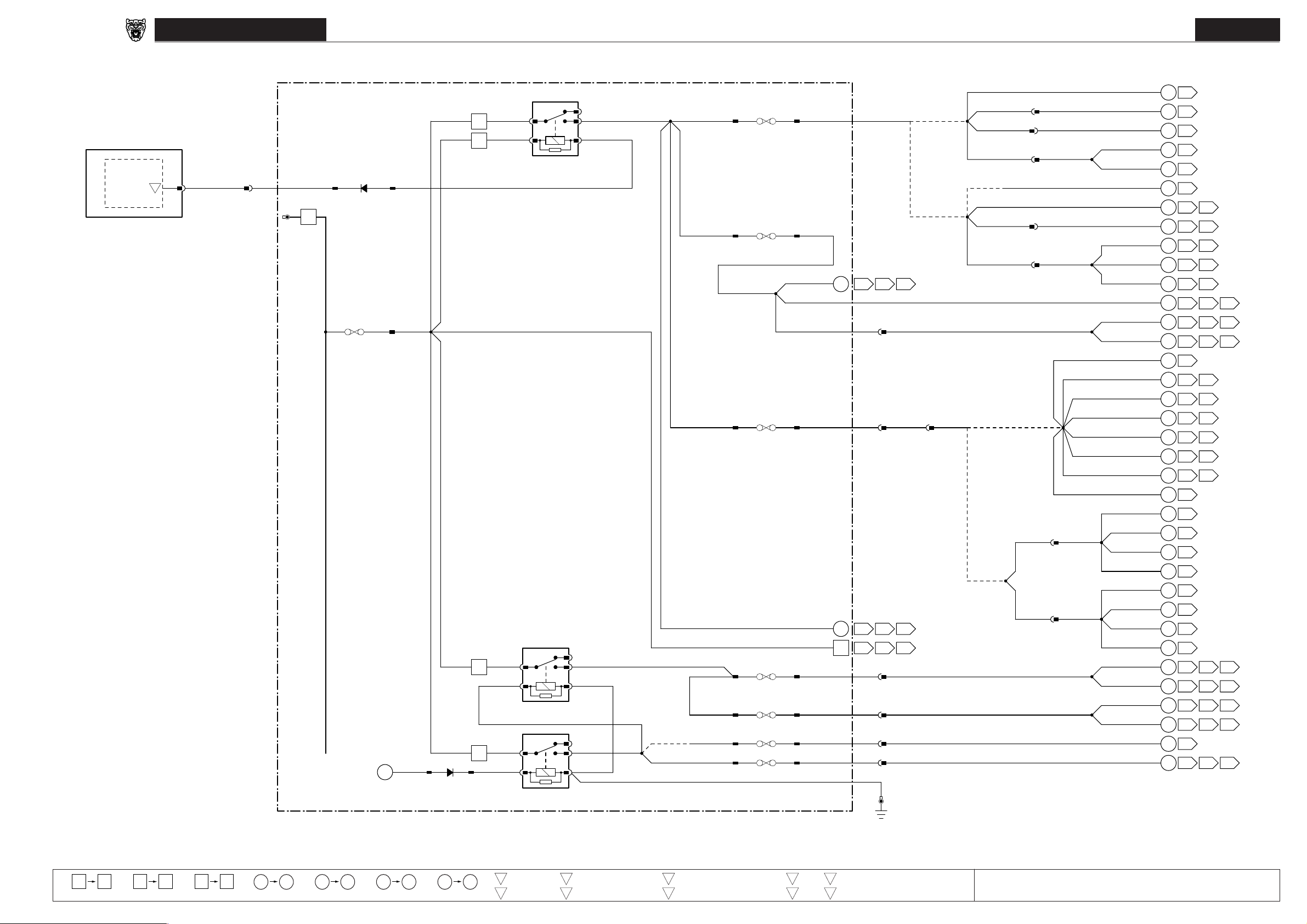

Fig. 01.6
COMPONENTS
Component Connector(s) Connector Description Location
GENERAL ELECTRONIC CONTROL MODULE FH9 22-WAY / BLACK LH ‘A’ POST
PRIMARY JUNCTION FUSE BOX CA2 26-WAY / BLACK RH ‘A’ POST
REAR ELECTRONIC CONTROL MODULE CA63 17-WAY / BLACK LUGGAGE COMPARTMENT, RH REAR
REAR POWER DISTRIBUTION FUSE BOX — — LUGGAGE COMPARTMENT
SWITCHED SYSTEM POWER RELAY 1 — — REAR POWER DISTRIBUTION FUSE BOX – R2
SWITCHED SYSTEM POWER RELAY 2 — — REAR POWER DISTRIBUTION FUSE BOX – R11
SWITCHED SYSTEM POWER RELAY 3 — — REAR POWER DISTRIBUTION FUSE BOX – R4
SWITCHED SYSTEM POWER RELAY 4 — — REAR POWER DISTRIBUTION FUSE BOX – R5
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
BF1 6-WAY / GREY / FRONT HARNESS TO FRONT BUMPER HARNESS BEHIND FRONT BUMPER, LH SIDE
BR1 10-WAY / GREY / CABIN HARNESS TO REAR BUMPER HARNESS BEHIND REAR BUMPER, RH SIDE
CA3A/B 14-WAY / GREY / CABIN HARNESS BRIDGE LUGGAGE COMPARTMENT, LH REAR
FC33 16-WAY / GREEN / CABIN HARNESS TO FASCIA HARNESS BEHIND INSTRUMENT PANEL, RH SIDE
FH1 20-WAY / BLACK / CABIN HARNESS TO FRONT HARNESS RH ‘A’ POST, LOWER
FH39 12-WAY / GREY / FRONT HARNESS TO RH FRONT HEADLAMP LINK BEHIND FRONT BUMPER, RH SIDE
FH40 12-WAY / GREY / FRONT HARNESS TO LH FRONT HEADLAMP LINK BEHIND FRONT BUMPER, LH SIDE
FH6 16-WAY GREEN / CABIN HARNESS TO FRONT HARNESS LH ‘A’ POST, ADJACENT TO GECM
RF34 16-WAY / GREEN / CABIN HARNESS TO DOOR HARNESS ‘D’ POST, UNDER PARCEL SHELF
TT1 6-WAY / GREY / TRAILER TOWING IN-LINE CONNECTOR LUGGAGE COMPARTMENT, ADJACENT TO RH TAIL LAMP
CA24 26-WAY / NATURAL
CA31 20-WAY / BLACK
FH59 12-WAY / BLACK
FH60 17-WAY / BLACK
CA56 8-WAY / BLACK
FC37 26-WAY / BLACK
FH7 6-WAY / BLACK
FH53 10-WAY / BLACK
CA100 12-WAY / BLACK
CA101 20-WAY / BLACK
CA102 22-WAY / BLACK
CA103 26-WAY / NATURAL
GROUNDS
Ground Location
CA156 LUGGAGE COMPARTMENT, RH SIDE
FH77 LH LOWER ‘A’ POST, ADJACENT TO THE GENERAL ELECTRONIC CONTROL MODULE (FORWARD OF CA30)
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Switched System Power Distribution
Switched System Power Distribution
Fig. 01.6
86
20.2
20.2
87
20.2
20.2
SCP NOTE: The switched system power relays are activated by the GECM or the RECM
whenever messages are present on the SCP network. After the ignition is switched off,
the relays remain activated until all SCP messages are removed.
NG
FH59-6
Y
FH59-7
U
FH59-1
N
CA101-3
Y
CA102-1
U
CA102-2
B
LOGIC
S
S
SWITCHED
GENERAL ELECTRONIC
CONTROL MODULE
B
LOGIC
S
S
SWITCHED
CONTROL
REAR ELECTRONIC
CONTROL MODULE
SYSTEM
POWER
CONTROL
SYSTEM
POWER
O
P
O
P
FH9-21
FH60-11
CA101-4
CA102-12
BO
FH6-9
B
FH77
BO
B
CA156
CAR11
NR
NW
FHS21
FHS29
NR
NR
FH39-11
NW
NW
FH53-6
NOTE: FHS21 – Side Marker only.
4
R2
3
N
15
1
N
16
SWITCHED SYSTEM
POWER RELAY 1
5
2
NW
CA2-17
BOBO
F8 5A
(1)
F9 10A
(2)
F10 5A
FH7-6
FH53-4
FH53-4
FH53-2
NR
NR
F11 10A
F22 10A
F24 5A
FH53-10
CA56-4
FC37-24
FH40-12
N
NW
NW
OY
NR
NG
R
NG
NW
N
NW
NG
NW
NW
NW
NW
NG
N
FH53-8
FH53-5
FH53-5
FH7-3
CA2-3
NW
FH39-12
W
CAS30
63
08.3
S
64
08.3
S
65
08.4
S
66
05.3
S
67
08.3 08.4
S
68
08.3 08.4
S
69
09.1
S
70
09.1
S
71
09.1
S
73
09.1
S
74
09.1
S
75
08.3 08.4
S
76
08.3
S
77
08.3 08.4
S
78
08.3 08.4
S
79
08.3 08.4
S
80
10.2 10.3 12.3 14.1
S
08.4
19.1
W
FC33-14
NOTATION:
(1) Non HID headlamp vehicles.
(2) HID headlamp vehicles.
12.1
12.2
F23 10A
(1)
F25 10A FH40-11
4
R11
3
NR
17
1
NR
18
SWITCHED SYSTEM
POWER RELAY 2
5
2
NR
CA2-9
F30 10A
F33 10A
PRIMARY JUNCTION FUSE BOX
(2)
BO
WU
CA61-59 F44 10A CA61-50
NW
CAS37
NW
BR1-2
NW
NR
NG
NR
FH1-20
CAS83
CAS43
CAR9
WU
CA61-66 F51 5A CA61-75
WU
CA61-77 F53 10A CA61-68
WU
CA61-79 F55 10A CA61-70
3
NW
19
1
NW
20
SWITCHED SYSTEM
POWER RELAY 3
5
WU
2
4
R4
BO
TT1-1
N
RF34-10
72
12.1
S
12.2
NW
W
CA61-61 F46 10A CA61-52
4
R5
3
NG
24
1
NG
25
SWITCHED SYSTEM
POWER RELAY 4
5
W
CAR10
2
BO
W
CA61-63 F48 10A CA61-54
W
CA61-81 F57 10A CA61-72
W
CA61-83 F59 15A CA61-74
NW
NW
CAS20
CAS5
NG
CA3A/B-2
NW
BR1-1
FH39-9
BF1-1
FH40-9
BF1-5
NR
NR
NR
NW
NW
NW
NW
NW
NR
NR
NG
NR
NW
NR
NR
W
W
46
08.1 08.2
S
47
08.1 08.2
S
48
08.1 08.2
S
49
08.1
S
50
08.2
S
51
08.1 08.2
S
52
08.1 08.2
S
53
08.1 08.2
S
54
08.1 08.2
S
55
10.2
S
56
02.1
S
57
08.1 08.2
S
58
08.1
S
59
08.2
S
60
05.2 10.1 12.1 12.2 12.3 13.1 19.1
S
61
09.2
S
62
12.1
S
12.1 12.2
10.3 12.3 14.1
02.2
12.3
10.2
12.2
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
REAR POWER DISTRIBUTION FUSE BOX
I
O
Output
B
+
P
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
D
Serial and Encoded Data
C
S
All Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
Engine Control Module
Pin Description and Characteristic
OPI1-40 EMS CONTROL RELAY DRIVE: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
Fig. 01.7
COMPONENTS
Component Connector(s) Connector Description Location
EMS CONTROL RELAY — — FRONT POWER DISTRIBUTION FUSE BOX – R5
ENGINE CONTROL MODULE PI1 134-WAY / BLACK FRONT BULKHEAD, PASSENGER SIDE
FRONT POWER DISTRIBUTION FUSE BOX — — ENGINE COMPARTMENT, RH SIDE
HO2S RELAY —— FRONT POWER DISTRIBUTION FUSE BOX – R2
IGNITION COIL RELAY — — FRONT POWER DISTRIBUTION FUSE BOX – R3
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
CP1 10-WAY / BLACK / INTERCOOLER PUMP LINK LEAD ENGINE COMPARTMENT, RH FRONT, ADJACENT TO RADIATOR
FH1 20-WAY / BLACK / CABIN HARNESS TO FRONT HARNESS RH ‘A’ POST, LOWER
IL10 12-WAY / BLACK / ENGINE HARNESS TO FUEL INJECTOR LINK REAR OF ENGINE
IS5 6-WAY / BLACK / ENGINE HARNESS TO FUEL INJECTOR LINK ENGINE, LH REAR
IS6 6-WAY / BLACK / ENGINE HARNESS TO FUEL INJECTOR LINK ENGINE, RH REAR
PI41 42-WAY / BLACK / ENGINE HARNESS TO VEHICLE HARNESSES ENGINE COMPARTMENT, BULKHEAD, PASSENGER SIDE
GROUNDS
Ground Location
FH42 ENGINE COMPARTMENT, BEHIND RH HEADLAMP
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Engine Management System Switched Power Distribution
Engine Management System Switched Power Distribution
Fig. 01.7
O
ENGINE
CONTROL MODULE
PI1-40
BW
PI41-41
FH66
BW
FH32-46
2
FROM INERTIA SWITCH
DIODE 4
F9 50A
FH32-52
FH32-9
31
II
YR
FHS59
GU
FH32-51 FH32-45
DIODE 3
YR
YR
YR
YR
4
R5
YR
3
1
46
47
EMS CONTROL
3
YR
49
YB
1
RELA Y
R2
5
2
4
5
2
HO2S RELAY
3
YR
50
1
YU
IGNITION COIL
5
2
RELA Y
4
R3
FRONT POWER DISTRIBUTION FUSE BOX
YR
B
YB
B
B
GR
NR
FHS61
FHS60
(SC) YB
GR
FH32-49
F37 15A
GR
FH32-50
F38 10A
WG
GR
FH32-14 FH32-23
F17 15A
FH32-17
F20 30A
YR
FH32-47
F35 30A
FH32-48
FH32-16
F36 15A
F19 10A
YB
FHS5
GU
FH32-43
(V6)YR
FHS4
GU
GU
PI41-5
FH1-4
NG
PI41-11
(S/C)
GU
(V8)
FH32-44
WG
FHS4
91
03.2
E
03.4 03.6
GU
GU
FH1-4
GU
PI41-5
WG WG
PI41-35
NOTE: IL10-6 – V6 only.
NR
NR NR
PI41-33 IL10-6
(N/A)
ILS1 (V6)
PIS23 (V8)
NR
IS5-1
(SC)
PIS24
GR
YR
FH32-26
WG
111
03.1 03.3 03.5
E
03.1
48
03.3 03.5
WG
PI41-1
IS6-1
WRWR
FH32-41
PI41-9
WG
FH32-42
CP1-10
RW RW RW
FH32-25
PI41-30
FH42
NR
NRNR
PIS1
PIS15
PIS2
PIS17
PIS14
ISS1
ISS2
GU
GU
GU
NG
NG
GU
GU
GU
GU
GU
GU
WG
WG
WG
NR
NR
NR
NR
NR
NR
NR
NR
NR
NR
NR
NR
NR
NR
NR
NR
WG
WG
WR
WR
WG
81
03.1
E
82
03.1
E
83
03.1
E
84
03.1
E
85
03.1
E
86
03.6
E
87
03.3
E
88
03.3 03.5
E
89
03.3 03.5
E
90
03.3 03.5
E
92
03.3 03.5
E
93
03.2
E
94
03.1
E
95
03.1
E
96
03.4
E
97
03.2 03.4
E
98
03.2 03.4
E
99
03.2 03.4
E
100
03.2 03.4
E
101
03.2 03.4
E
102
03.2 03.4
E
103
03.4
E
104
03.6
E
105
03.6
E
106
03.6
E
107
03.6
E
108
03.6
E
109
03.6
E
110
03.6
E
112
03.6
E
113
03.1
E
114
03.1 03.3 03.5
E
115
03.1 03.3 03.5
E
116
03.1 03.3 03.5
E
117
03.6
E
118
03.2
E
03.5
03.4 03.6
03.3 03.5
03.3 03.5
03.3 03.5
03.4 03.6
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
I
O
Output
B
+
P
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
D
Serial and Encoded Data
C
S
All Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
Engine Control Module
Pin Description and Characteristic
I PI1-6 ENGINE CRANK: B+
IPI1-31 AUTOMATIC – PARK / NEUTRAL SIGNAL: B+ WHEN ACTIVATED
OPI1-41 STARTER RELAY DRIVE: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-53 FUEL PUMP 2 DRIVE (TO FUEL PUMP 2 MODULE): PWM, 150 Hz, NORMAL POSITIVE DUTY CYCLE RANGE = 4% – 51%
IPI1-65 GENERATOR FIELD RETURN SIGNAL: VARIABLE VOLTAGE BY GENERATOR OPERATING CONDITION
IPI1-79 GENERATOR FAULT; CHARGE WARNING
CPI1-123 CAN CPI1-124 CAN +
MANUAL, ROW – PARK / NEUTRAL SIGNAL: B+ WHEN IGNITION CRANK (III)
MANUAL, NAS – CLUTCH PEDAL SAFETY SWITCH (PARK / NEUTRAL SIGNAL): B+ WHEN ACTIVATED
Instrument Cluster
Pin Description and Characteristic
I FC14-2 KEY-IN AUDIBLE WARNING: B+ WHEN KEY IN
B+ FC14-3 IGNITION SWITCHED POWER SUPPLY (II): B+
SG FC14-14 SIGNAL GROUND: GROUND
PG FC15-2 POWER GROUND: GROUND
B+ FC15-3 BATTERY POWER SUPPLY (LOGIC): B+
I FC15-4 PATS GROUND: GROUND
D FC15-5 PATS TRANSCEIVER: ENCODED COMMUNICATION
D FC15-6 PATS TRANSCEIVER: ENCODED COMMUNICATION
CFC15-18 CAN +
CFC15-19 CAN –
Transmission Control Module
Pin Description and Characteristic
B+ GB2-9 IGNITION SWITCHED POWER SUPPLY: B+
O GB2-10 PARK / NEUTRAL SIGNAL: GROUND WHEN ACTIVATED
PG GB2-13 POWER GROUND: GROUND
PG GB2-16 POWER GROUND: GROUND
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
Fig. 02.1
COMPONENTS
Component Connector(s) Connector Description Location
BATTERY —— LUGGAGE COMPARTMENT
CLUTCH PEDAL SAFETY SWITCH CA286 2-WAY / BLACK TOP OF CLUTCH PEDAL (BOTTOM SWITCH)
ENGINE CONTROL MODULE PI1 134-WAY / BLACK FRONT BULKHEAD, PASSENGER SIDE
FRONT POWER DISTRIBUTION FUSE BOX — — ENGINE COMPARTMENT, RH SIDE
GENERATOR (V6) PI47 4-WAY / BLACK ENGINE, RH SIDE, FRONT
IGNITION SWITCH FC18 7-WAY / BLACK STEERING COLUMN COWLING
INSTRUMENT CLUSTER FC14 22-WAY / GREY INSTRUMENT PANEL
PASSIVE ANTI-THEFT SYSTEM TRANSCEIVER FC52 4-WAY / GREEN STEERING COLUMN, IGNITION SWITCH
PRIMARY JUNCTION FUSE BOX CA2 26-WAY / BLACK RH ‘A’ POST
STARTER MEGAFUSE — — LUGGAGE COMPARTMENT
STARTER MOTOR — — ENGINE BLOCK, RH SIDE
STARTER RELAY — — FRONT POWER DISTRIBUTION FUSE BOX – R20
TRANSMISSION CONTROL MODULE GB2 16-WAY / BLACK TRANSMISSION CONTROL VALVE ASSEMBLY
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
FH3 16-WAY / BLUE / CABIN HARNESS TO FRONT HARNESS LH ‘A’ POST
GB1 16-WAY / GREY / ENGINE HARNESS TO TRANSMISSION HARNESS ADJACENT TO TRANSMISSION BELL HOUSING
PI41 42-WAY / BLACK / ENGINE HARNESS TO VEHICLE HARNESSES ENGINE COMPARTMENT, BULKHEAD, PASSENGER SIDE
PI42 8-WAY / BLACK / ENGINE HARNESS TO FRONT HARNESS ENGINE COMPARTMENT, BULKHEAD, PASSENGER SIDE
ST4 2-WAY / GREY / FRONT HARNESS TO STARTER LINK ENGINE COMPARTMENT, REARWARD OF RH WHEEL ARCH
GROUNDS
Ground Location
FC38 UNDER CENTER OF INSTRUMENT PANEL, ON TRANSMISSION TUNNEL
JB1 LUGGAGE COMPARTMENT, BATTERY GROUND
PI40 (LHD) ENGINE COMPARTMENT, BEHIND RH WHEEL ARCH LINER
PI40 (RHD) ENGINE COMPARTMENT, BEHIND LH WHEEL ARCH LINER
ST2 ENGINE COMPARTMENT, BEHIND LH WHEEL ARCH LINER
ST7 EYELET
FC15 20-WAY / BLACK
FC63 22-WAY / BLACK
CA56 8-WAY / BLACK
FC37 26-WAY / BLACK
FH7 6-WAY / BLACK
FH53 10-WAY / BLACK
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5

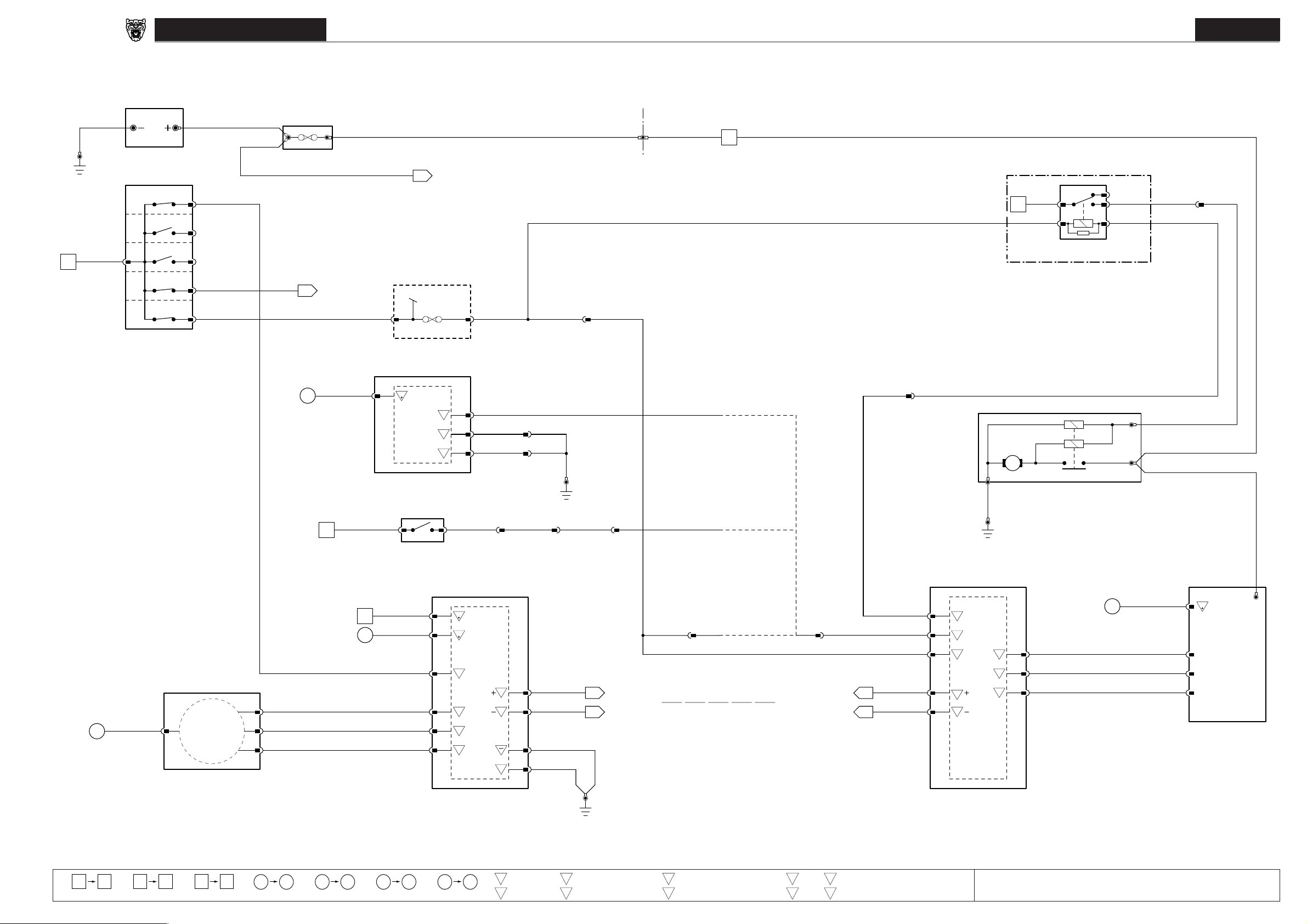

Battery; Starter; Generator: V6
FRONT
BULKHEAD
Battery; Starter; Generator: V6
Fig. 02.1
JB1
7
NR
B
FC18-4
IGNITION SWITCH
BATTERY
KEY-IN
R
CA280
WU
FC18-5
0
I
II
WG
FC18-7
CA304
CA301
500 A
STARTER
MEGAFUSE
01.5
CA302
IGNITION SWITCHED
CIRCUITS (II)
R
ST10CA281
R
01.1
REAR POWER
DISTRIBUTION BOX
R
Y
3
4
R20
3
NW GW
65
1
STARTER
RELAY
5
2
GO
ST4-1
FRONT POWER DISTRIBUTION FUSE BOX
III
FC18-1
WB
F1 5A
PRIMARY JUNCTION
FUSE BOX
GO
18
II
GB2-9
B
O
P, N
P
P
TRANSMISSION CONTROL
MODULE
FH53-3FC37-3
GB2-10
GB2-13
GB2-16
Y
FHS63
GR
YY
PI41-34
PI41-40
(AUTO)
GW
B
B
GB1-10
GB1-9
B
B
PIS30
B
PI40AL
ST3
STARTER MOTOR
ST5
ST6
R
R
B
92
NR GR
CA286-2CA286-1
CLUTCH PEDAL
SAFETY SWITCH
GR GR
FH3-10 PI42-8 GB1-13
GR
(MAN / NAS)
ST2
56
13
Fig. 01.1 Fig. 01.4
NG
S
FC52-1
PASSIVE ANTI-THEFT
SYSTEM TRANSCEIVER
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
85
35
WU
WR
YR
BG
II
46 80
NG
FC15-3
WG
FC14-3
FC14-2
FC15-5FC52-3
FC15-6FC52-4
FC15-4FC52-2
SS
B
LOGIC
B
PASSIVE
ANTI-THEFT
SYSTEM
I
D
D
P
INSTRUMENT
CLUSTER
81 118
EE
Fig. 01.7
C
C
P
I
O
Output
FC15-18
FC15-19
FC14-14
FC15-2
Y
G
B
B
B
+
P
20.1
O.K. TO START
20.1
FC38
Power Ground
PIS27
Y (MAN / ROW)
+
–
Y
GB1-14
Sensor/Signal Supply V CAN
Sensor/Signal Ground
GB1-6
GENERATOR WARNING;
CLUTCH DISENGAGED
SCP
D
D2B NetworkInput Battery Voltage
2
D
Serial and Encoded Data
C
S
20.1
20.1
GO
GR
Y
Y
G
PI1-41
PI1-31
PI1-6
PI1-124
PI1-123
START
O
ENGINE
I
P, N
CRANK
I
ENGINE
REQUEST
C
C
ENGINE
CONTROL MODULE
I
O
I
PI1-65
PI1-53
PI1-79
VARIANT:
VIN RANGE:
DATE OF ISSUE:
V6 Vehicles
All
June 2002
GO
20
II
WR
YR
WG
PI47-2
PI47-3
PI47-1
PI47-4
B
FIELD
CONTROL
FAULT;
CHARGE WARNING
ST7
GENERATOR
CONTROL MODULE PIN-OUT INFORMATION
Engine Control Module
Pin Description and Characteristic
I PI1-6 ENGINE CRANK: B+
IPI1-31 AUTOMATIC – PARK / NEUTRAL SIGNAL: B+ WHEN ACTIVATED
OPI1-41 STARTER RELAY DRIVE: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
IPI1-79 GENERATOR FAULT; CHARGE WARNING
CPI1-123 CAN -
CPI1-124 CAN +
MANUAL, ROW – PARK / NEUTRAL SIGNAL: B+ WHEN IGNITION CRANK (III)
MANUAL, NAS – CLUTCH PEDAL SAFETY SWITCH (PARK / NEUTRAL SIGNAL): B+ WHEN ACTIVATED
Instrument Cluster
Pin Description and Characteristic
I FC14-2 KEY-IN AUDIBLE WARNING: B+ WHEN KEY IN
B+ FC14-3 IGNITION SWITCHED POWER SUPPLY (II): B+
SG FC14-14 SIGNAL GROUND: GROUND
PG FC15-2 POWER GROUND: GROUND
B+ FC15-3 BATTERY POWER SUPPLY (LOGIC): B+
I FC15-4 PATS GROUND: GROUND
D FC15-5 PATS TRANSCEIVER: ENCODED COMMUNICATION
D FC15-6 PATS TRANSCEIVER: ENCODED COMMUNICATION
CFC15-18 CAN +
CFC15-19 CAN –
Fig. 02.2
COMPONENTS
Component Connector(s) Connector Description Location
BATTERY —— LUGGAGE COMPARTMENT
ENGINE CONTROL MODULE PI1 134-WAY / BLACK FRONT BULKHEAD, PASSENGER SIDE
FRONT POWER DISTRIBUTION FUSE BOX — — ENGINE COMPARTMENT, RH SIDE
GENERATOR (V8) PI48 4-WAY / BLACK ENGINE, RH SIDE, FRONT
IGNITION SWITCH FC18 7-WAY / BLACK STEERING COLUMN COWLING
INSTRUMENT CLUSTER FC14 22-WAY / GREY INSTRUMENT PANEL
PASSIVE ANTI-THEFT SYSTEM TRANSCEIVER FC52 4-WAY / GREEN STEERING COLUMN, IGNITION SWITCH
PRIMARY JUNCTION FUSE BOX CA2 26-WAY / BLACK RH ‘A’ POST
STARTER MEGAFUSE — — LUGGAGE COMPARTMENT
STARTER MOTOR — — ENGINE BLOCK, RH SIDE
STARTER RELAY — — FRONT POWER DISTRIBUTION FUSE BOX – R20
TRANSMISSION CONTROL MODULE GB2 16-WAY / BLACK TRANSMISSION CONTROL VALVE ASSEMBLY
ST7 EYELET
FC15 20-WAY / BLACK
FC63 22-WAY / BLACK
CA56 8-WAY / BLACK
FC37 26-WAY / BLACK
FH7 6-WAY / BLACK
FH53 10-WAY / BLACK
Transmission Control Module
Pin Description and Characteristic
B+ GB2-9 IGNITION SWITCHED POWER SUPPLY: B+
O GB2-10 PARK / NEUTRAL SIGNAL: GROUND WHEN ACTIVATED
PG GB2-13 POWER GROUND: GROUND
PG GB2-16 POWER GROUND: GROUND
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
GB1 16-WAY / GREY / ENGINE HARNESS TO TRANSMISSION HARNESS ADJACENT TO TRANSMISSION BELL HOUSING
PI41 42-WAY / BLACK / ENGINE HARNESS TO VEHICLE HARNESSES ENGINE COMPARTMENT, BULKHEAD, PASSENGER SIDE
ST4 2-WAY / GREY / FRONT HARNESS TO STARTER LINK ENGINE COMPARTMENT, REARWARD OF RH WHEEL ARCH
GROUNDS
Ground Location
FC38 UNDER CENTER OF INSTRUMENT PANEL, ON TRANSMISSION TUNNEL
JB1 LUGGAGE COMPARTMENT, BATTERY GROUND
PI40 (LHD) ENGINE COMPARTMENT, BEHIND RH WHEEL ARCH LINER
PI40 (RHD) ENGINE COMPARTMENT, BEHIND LH WHEEL ARCH LINER
ST2 ENGINE COMPARTMENT, BEHIND LH WHEEL ARCH LINER
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5

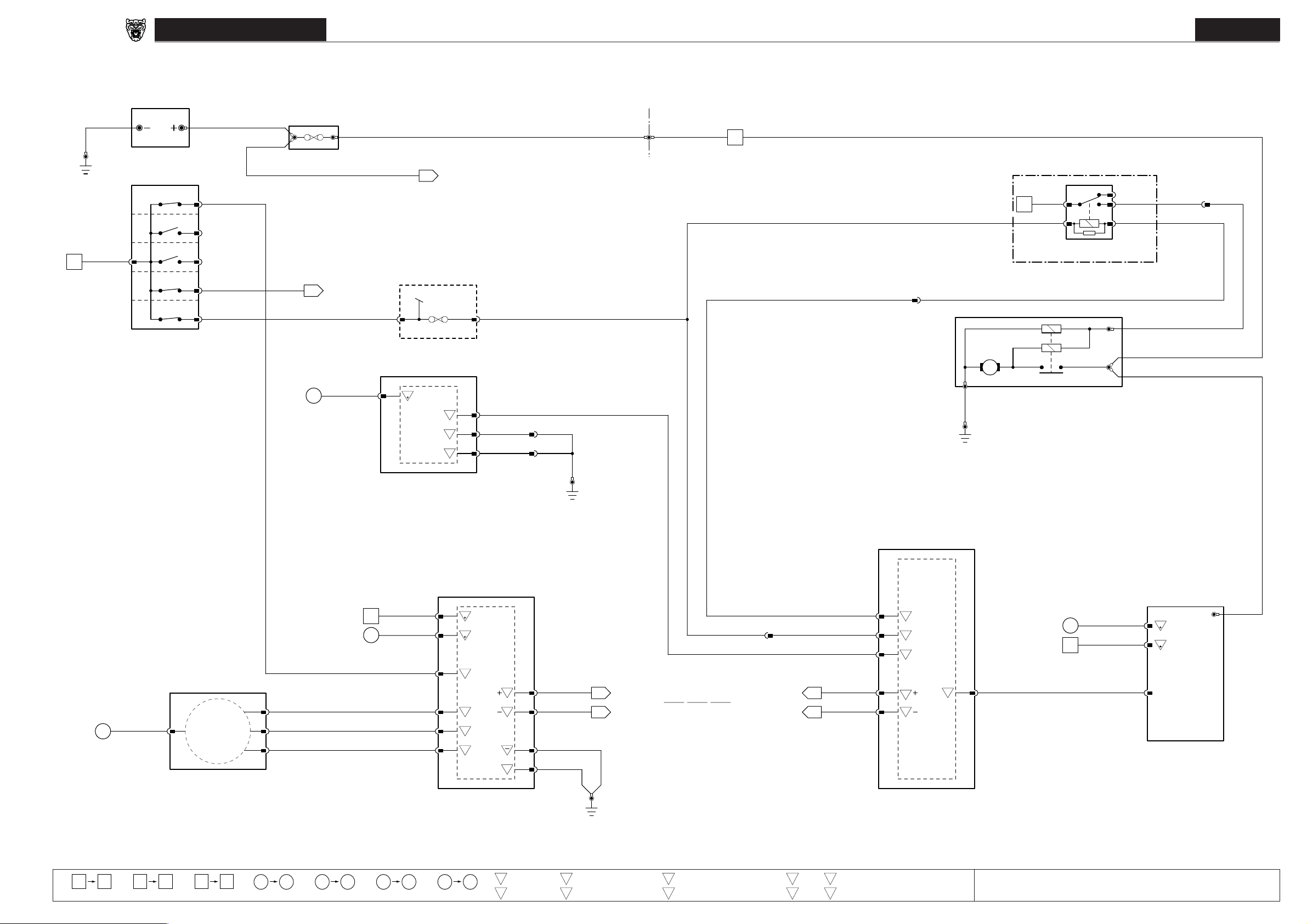

Battery; Starter; Generator: V8
FRONT
BULKHEAD
Battery; Starter; Generator: V8
Fig. 02.2
JB1
7
NR
B
FC18-4
IGNITION SWITCH
BATTERY
KEY-IN
0
I
II
III
CA280
FC18-5
FC18-7
FC18-1
R
WU
CA304
CA301
500 A
STARTER
MEGAFUSE
CA302
R
ST10CA281
R
01.1
REAR POWER
DISTRIBUTION BOX
R
3
4
R20
3
NW GW
65
Y
1
STARTER
RELAY
5
2
GO
ST4-1
FRONT POWER DISTRIBUTION FUSE BOX
WG
WB
IGNITION SWITCHED
01.5
CIRCUITS (II)
19
II
GO
PRIMARY JUNCTION
GB2-9
B
TRANSMISSION CONTROL
MODULE
F1 5A
FUSE BOX
O
P, N
Y
FH53-3FC37-3
FHS63
GR
GB2-10
P
P
B
GB2-13
B
GB2-16
GB1-10
GB1-9
B
B
PIS30
B
PI40AL
PI41-40
ST2
ST5
R
R
ST3
ST9
ST8
STARTER MOTOR
B
GW
56
13
Fig. 01.1 Fig. 01.4
NG
S
FC52-1
PASSIVE ANTI-THEFT
SYSTEM TRANSCEIVER
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
85
35
II
WU
WR
YR
BG
46 80
SS
NG
WG
FC15-3
FC14-3
FC14-2
FC15-5FC52-3
FC15-6FC52-4
FC15-4FC52-2
B
LOGIC
B
PASSIVE
ANTI-THEFT
SYSTEM
I
D
D
P
INSTRUMENT
CLUSTER
81 118
EE
Fig. 01.7
I
O
C
C
P
Output
FC15-18
FC15-19
FC14-14
FC15-2
Y
G
B
B
B
+
P
Power Ground
20.1
20.1
FC38
O.K. TO START
Y
PI41-34
GENERATOR WARNING;
CLUTCH DISENGAGED
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
20.1
20.1
GO
Y
GR
Y
G
PI1-41
PI1-6
PI1-31
PI1-124
PI1-123
O
I
I
C
C
START
ENGINE
CRANK
ENGINE
REQUEST
P, N
GO
20
II
NG
38
I
PI1-79
YR
PI48-2
PI48-3
PI48-1
B
B
FAULT;
CHARGE WARNING
ST7
GENERATOR
ENGINE
CONTROL MODULE
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
D
Serial and Encoded Data
C
S
V8 Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
Engine Control Module
Pin Description and Characteristic
O PI1-1 HO2 SENSOR HEATER CONTROL – 1/1: PWM, 1 CYCLE PER 128 mS, VARIABLE DUTY CYCLE
O PI1-2 HO2 SENSOR HEATER CONTROL – 1/1: PWM, 1 CYCLE PER 128 mS, VARIABLE DUTY CYCLE
PG PI1-4 POWER GROUND 1: GROUND
PG PI1-5 POWER GROUND 2: GROUND
I PI1-6 ENGINE CRANK: B+
I PI1-7 IGNITION ON: B+
I PI1-8 BRAKE ON / OFF SWITCH: NORMALLY OPEN / B+ WHEN ACTIVATED
IPI1-10 INERTIA SWITCH: NORMALLY CLOSED / OPEN CIRCUIT WHEN ACTIVATED
SS PI1-12 SENSOR POWER SUPPLY 1: NOMINAL 5 V
SS PI1-13 SENSOR POWER SUPPLY 2: NOMINAL 5 V
SG PI1-17 SMALL SIGNAL GROUND 1: GROUND
SG PI1-18 SMALL SIGNAL GROUND 2: GROUND
SG PI1-19 SENSOR GROUND 1: GROUND
SG PI1-20 SENSOR GROUND 2: GROUND
B+ PI1-22 BATTERY POWER SUPPLY: B+
B+ PI1-23 EMS SWITCHED POWER SUPPLY 1: B+
B+ PI1-24 EMS SWITCHED POWER SUPPLY 2: B+
SG PI1-29 HO2 SENSOR HEATER GROUND – 1/1: GROUND
SG PI1-30 HO2 SENSOR HEATER GROUND – 1/1: GROUND
IPI1-31 AUTOMATIC – PARK / NEUTRAL SIGNAL: B+ WHEN ACTIVATED
IPI1-36 CRANKSHAFT SENSOR SIGNAL: PULSED SIGNAL, 70 PULSES PER ENGINE CYCLE
SG PI1-37 CRANKSHAFT SENSOR SIGNAL GROUND: GROUND
OPI1-38 INTAKE MANIFOLD TUNING VALVE SOLENOID DRIVE – 1 / TOP: GROUND WHEN ACTIVATED
OPI1-39 INTAKE MANIFOLD TUNING VALVE SOLENOID DRIVE – 2 / BOTTOM: GROUND WHEN ACTIVATED
OPI1-40 EMS CONTROL RELAY DRIVE: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-41 STARTER RELAY DRIVE: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
SG PI1-43 TP AND APP SIGNALS SHIELD: GROUND
IPI1-44 MASS AIR FLOW SENSOR SIGNAL: NOMINAL 0 – 5 V BY ENGINE OPERATING CONDITION
SG PI1-45 MASS AIR FLOW SENSOR GROUND: GROUND
SG PI1-46 MASS AIR FLOW SENSOR GROUND: GROUND
IPI1-50 ENGINE FUEL TEMPERATURE SENSOR SIGNAL, NOMINAL 0 – 5 V: NTC SENSOR – VOLTAGE DECREASES AS TEMPERATURE INCREASES
OPI1-52 THROTTLE MOTOR RELAY DRIVE: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-53 GENERATOR CONTROL: VARIABLE VOLTAGE
SG PI1-54 THROTTLE MOTOR GROUND: GROUND
OPI1-55 HO2 SENSOR HEATER CONTROL – 2/1: PWM, 1 CYCLE PER 128 mS, VARIABLE DUTY CYCLE
OPI1-56 HO2 SENSOR HEATER CONTROL – 2/1: PWM, 1 CYCLE PER 128 mS, VARIABLE DUTY CYCLE
IPI1-65 GENERATOR FIELD RETURN SIGNAL: VARIABLE VOLTAGE BY GENERATOR OPERATING CONDITION
OPI1-66 EVAP CANISTER PURGE VALVE DRIVE: PWM, 10 Hz, POSITIVE DUTY CYCLE RANGE 7% – 100%
OPI1-67 EVAP CANISTER CLOSE VALVE DRIVE: TO CLOSE, ECM SWITCHES CIRCUIT TO GROUND
IPI1-68 BANK 2 CAMSHAFT SENSOR SIGNAL: PULSED SIGNAL, 4 PULSES PER ENGINE CYCLE
SG PI1-69 BANK 2 CAMSHAFT SENSOR GROUND: GROUND
IPI1-70 ENGINE COOLANT TEMPERATURE SENSOR SIGNAL, NOMINAL 0 – 5 V: NTC SENSOR – VOLTAGE DECREASES AS TEMPERATURE INCREASES
IPI1-71 INTAKE AIR TEMPERATURE SENSOR SIGNAL, NOMINAL 0 – 5 V: NTC SENSOR – VOLTAGE DECREASES AS TEMPERATURE INCREASES
IPI1-73 INJECTION PRESSURE SENSOR SIGNAL, NOMINAL 0 – 5 V: POTENTIOMETER – VOLTAGE INCREASES AS PRESSURE INCREASES
IPI1-75 THROTTLE POSITION SENSOR 1 SIGNAL: IDLE = 0.60 V; FULL THROTTLE = 4.30 V
IPI1-76 THROTTLE POSITION SENSOR 2 SIGNAL: IDLE = 1.48 V; FULL THROTTLE = 4.40 V
IPI1-78 ENGINE OIL TEMPERATURE SENSOR SIGNAL, NOMINAL 0 – 5 V: NTC SENSOR – VOLTAGE DECREASES AS TEMPERATURE INCREASES
IPI1-79 GENERATOR FAULT; CHARGE WARNING
OPI1-80 THROTTLE MOTOR DRIVE: B+ TO ACTIVATE MOTOR
SG PI1-81 HO2 SENSOR HEATER GROUND – 2/1: GROUND
SG PI1-82 HO2 SENSOR HEATER GROUND – 2/1: GROUND
IPI1-83 HO2 SENSOR 1/1 SIGNAL: VARIABLE CURRENT
IPI1-84 HO2 SENSOR 1/1 SIGNAL: CONSTANT CURRENT
SG PI1-91 HO2 SENSOR HEATERS 1/2, 2/2 GROUND: GROUND
OPI1-92 HO2 SENSOR HEATER CONTROL – 1/2: PWM, 1 CYCLE PER 256 mS, POSITIVE DUTY CYCLE RANGE 0 mS = 0%, 77 mS = 30%, 256 mS = 100%
OPI1-93 HO2 SENSOR HEATER CONTROL – 2/2: PWM, 1 CYCLE PER 256 mS, POSITIVE DUTY CYCLE RANGE 0 mS = 0%, 77 mS = 30%, 256 mS = 100%
IPI1-94 BANK 1 CAMSHAFT SENSOR SIGNAL: PULSED SIGNAL, 4 PULSES PER ENGINE CYCLE
SG PI1-95 BANK 1 CAMSHAFT SENSOR GROUND: GROUND
IPI1-98 BANK 1 KNOCK SENSOR SIGNAL: VARIABLE VOLTAGE DEPENDENT ON ENGINE VIBRATION
IPI1-99 BANK 2 KNOCK SENSOR SIGNAL: VARIABLE VOLTAGE DEPENDENT ON ENGINE VIBRATION
SG PI1-100 SENSOR SHIELD: GROUND
IPI1-102 ACCELERATOR PEDAL POSITION SENSOR 1 SIGNAL: FOOT OFF = 0.75 V; FULLY DEPRESSED = 3.40 V (AUTO) 3.20 (MAN)
IPI1-103 ACCELERATOR PEDAL POSITION SENSOR 2 SIGNAL: FOOT OFF = 3.38 V; FULLY DEPRESSED = 2.05 V (AUTO) 2.14 V (MAN)
IPI1-104 FUEL TANK PRESSURE SENSOR SIGNAL, NOMINAL 0 – 5 V: VOLTAGE INCREASES AS PRESSURE INCREASES
DPI1-105 SERIAL DATA LINK: SERIAL COMMUNICATION
OPI1-106 THROTTLE MOTOR DRIVE: B+ TO ACTIVATE MOTOR
IPI1-107 HO2 SENSOR 2/1 SIGNAL: VARIABLE CURRENT
IPI1-108 HO2 SENSOR 2/1 SIGNAL: CONSTANT CURRENT
OPI1-109 BANK 1 VVT SOLENOID VALVE: PWM, 300Hz, POSITIVE DUTY CYCLE RANGE 0% – 100%
OPI1-110 BANK 2 VVT SOLENOID VALVE: PWM, 300Hz, POSITIVE DUTY CYCLE RANGE 0% – 100%
SG PI1-111 FUEL INJECTORS 2, 3, 5, 8 GROUND: GROUND
SG PI1-116 FUEL INJECTORS 1, 4, 6, 7 GROUND: GROUND
CPI1-123 CAN -
CPI1-124 CAN +
IPI1-127 MAP SENSOR SIGNAL, NOMINAL 0 – 5 V: VOLTAGE INCREASES AS MANIFOLD ABSOLUTE PRESSURE INCREASES
IPI1-128 HO2 SENSOR 1/2 SIGNAL, NOMINAL 1 V SWING: 0.1 – 0.9 V SWING
IPI1-129 HO2 SENSOR 2/2 SIGNAL, NOMINAL 1 V SWING: 0.1 – 0.9 V SWING
SG PI1-130 HO2 SENSORS SHIELD: GROUND
B+ PI1-134 THROTTLE MOTOR POWER SUPPLY: B+ WHEN RELAY ACTIVATED
MANUAL, ROW – PARK / NEUTRAL SIGNAL: B+ WHEN IGNITION CRANK (III)
MANUAL, NAS – CLUTCH PEDAL SAFETY SWITCH (PARK / NEUTRAL SIGNAL): B+ WHEN ACTIVATED
Fig. 03.1
COMPONENTS
Component Connector(s) Connector Description Location
APP SENSOR CA88 6-WAY / BLACK TOP OF ACCELERATOR PEDAL
BRAKE ON / OFF SWITCH CA37 2-WAY / GREEN TOP OF BRAKE PEDAL
CKP SENSOR (V6) PI55 2-WAY / BLACK ENGINE TIMING COVER, CRANKSHAFT PULLEY
CMP SENSOR 1 (V6) PI57 2-WAY / BLACK BANK 1 (RH) CAMSHAFT COVER, FRONT
CMP SENSOR 2 (V6) PI56 2-WAY / BLACK BANK 2 (LH) CAMSHAFT COVER, FRONT
ECT SENSOR PI25 2-WAY / BLACK ENGINE VEE, COOLANT OUTLET CASTING
EFT SENSOR (V6) IL9 2-WAY / BLACK FUEL RAIL, FRONT
ENGINE CONTROL MODULE PI1 134-WAY / BLACK FRONT BULKHEAD, PASSENGER SIDE
EOT SENSOR PI24 2-WAY / BLACK ADJACENT TO OIL FILTER
EVAP CANISTER CLOSE VALVE CA270 2-WAY / BLACK ABOVE REAR AXLE (FUEL TANK COMPONENTS)
EVAP CANISTER PURGE VALVE FH111 2-WAY / BLACK ENGINE COMPARTMENT, LH SIDE,
FRONT POWER DISTRIBUTION FUSE BOX — — ENGINE COMPARTMENT, RH SIDE
FTP SENSOR FP1 3-WAY / BLACK FUEL TANK PIPING, LH SIDE (UNDER ACCESS PLATE)
HO2 SENSOR DOWNSTREAM 1/2 PI11 4-WAY / BLACK RH EXHAUST, TOP OF CATALYST
HO2 SENSOR DOWNSTREAM 2/2 PI13 4-WAY / BLACK LH EXHAUST, TOP OF CATALYST
HO2 SENSOR UPSTREAM 1/1 PI10 4-WAY / BLACK RH EXHAUST, CATALYST CENTER
HO2 SENSOR UPSTREAM 2/1 PI12 4-WAY / BLACK RH EXHAUST, CATALYST CENTER
IMT SOLENOID VALVE 1 PI30 2-WAY / BLACK INTAKE MANIFOLD, REAR
IMT SOLENOID VALVE 2 PI31 2-WAY / BLACK INTAKE MANIFOLD, REAR
IP SENSOR (V6) IL12 3-WAY / BLACK FUEL RAIL, REAR
KNOCK SENSOR 1 (V6) PI20 2-WAY / BLACK ENGINE VEE, TOWARD FRONT, BANK 2 (FRONT SENSOR)
KNOCK SENSOR 2 (V6) PI19 2-WAY / BLACK ENGINE BLOCK, REAR, BANK 1 (REAR SENSOR)
MAF SENSOR PI14 5-WAY / BLACK ENGINE AIR INTAKE, ADJACENT TO AIR CLEANER
MAP SENSOR (V6) PI29 4-WAY / BLACK INTAKE MANIFOLD, UPPER REAR
THROTTLE MOTOR (V6) PI18 2-WAY / BLACK ENGINE AIR INTAKE, FRONT
THROTTLE MOTOR RELAY — — FRONT POWER DISTRIBUTION FUSE BOX – R4
TP SENSOR PI26 4-WAY / BLACK THROTTLE BODY, THROTTLE SHAFT
VVT SOLENOID VALVE 1 PI16 2-WAY / BLACK RH CYLINDER HEAD, FRONT
VVT SOLENOID VALVE 2 PI17 2-WAY / BLACK LH CYLINDER HEAD, FRONT
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
FC12 14-WAY / GREY / FASCIA HARNESS TO FRONT HARNESS BEHIND INSTRUMENT PANEL, PASSENGER SIDE
FC26 16-WAY / BLUE / CABIN HARNESS TO FASCIA HARNESS BEHIND INSTRUMENT PANEL, DRIVER SIDE
FH1 20-WAY / BLACK / CABIN HARNESS TO FRONT HARNESS RH ‘A’ POST, LOWER
FH3 16-WAY / BLUE / CABIN HARNESS TO FRONT HARNESS LH ‘A’ POST
FP2 8-WAY / BLACK / CABIN HARNESS TO FUEL PUMP HARNESS TOP OF FUEL TANK, RH SIDE
IL10 12-WAY / BLACK / ENGINE HARNESS TO FUEL INJECTOR LINK REAR OF ENGINE
PI41 42-WAY / BLACK / ENGINE HARNESS TO VEHICLE HARNESSES ENGINE COMPARTMENT, BULKHEAD, PASSENGER SIDE
GROUNDS
Ground Location
PI40 (LHD) ENGINE COMPARTMENT, BEHIND RH WHEEL ARCH LINER
PI40 (RHD) ENGINE COMPARTMENT, BEHIND LH WHEEL ARCH LINER
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
ADJACENT TO SUSPENSION TURRET
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Engine Management: V6 – Part 1
Engine Management: V6 – Part 1
Fig. 03.1
VIA INERTIA SWITCH
EMS CONTROL RELAY
GENERATOR: CONTROL
GENERATOR: FIELD
FAU LT; CHARGE WARNING
STARTER RELAY DRIVE
PARK; NEUTRAL
(CIRCUIT CONTINUED)
SERIAL COMMUNICATION
THROTTLE MOTOR
RELAY
4
R4
3
YR
48
1
GR
111
E
POWER DISTRIBUTION FUSE BOX
PI40BR PI40AL
5
2
FRONT
PIS29
ENGINE CRANK
GENERATOR:
04.1
NR
F18 20A
GR
PIS30
BB
73
94
95
29
32
02.1
01.7
02.1
02.1
02.1
02.1
02.1
20.1
20.1
20.2
PIS28
PI40AR
HO2 SENSORS
UPSTREAM
2/11/1
U U
PI10 PI12-3 -4 -1-2 -3 -4 -1-2
R
Y
RU
WG
G
N
RW
113
NR
PI1-022
WG
E
E
II
II
PI1-023
WG
PI1-024
GO
PI1-007
GU
PI1-010
Y
PI1-006
BW
PI1-040
YR
PI1-053
WR
PI1-065
WG
PI1-079
GO
PI1-041
GR
PI1-031
Y
PI1-124
G
PI1-123
W
PI1-105
GU
GU
PI41-38
PI1-134
GR
PI1-052
PI41-39
B
PI1-017
B
PI1-018
B
PI1-005
B
PI1-029
B
PI1-054
B
PI1-091
B
PI1-004
B
PI1-030
B
PI1-111
B
PI1-116
B
PI1-081
B
PI1-082
B
B
I
I
O
O
I
I
O
O
I
O
I
O
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
O
O
I
I
I
O
O
O
O
O
O
MODULE
PI1-083
PI1-084
PI1-001
PI1-002
PI1-107
PI1-108
PI1-055
PI1-056
PI1-130
PI1-128
PI1-092
PI1-129
PI1-093
PI1-037
PI1-036
PI1-094
PI1-095
PI1-100
PI1-068
PI1-069
PI1-098
PI1-099
PI1-044
PI1-045
PI1-046
PI1-071
PI1-070
PI1-019
PI1-078
PI1-073
PI1-050
PI1-012
PI1-127
PI1-104
PI1-103
PI1-102
PI1-020
PI1-013
PI1-043
PI1-080
PI1-106
PI1-076
PI1-075
PI1-008
PI1-067
PI1-066
PI1-039
PI1-038
PI1-110
PI1-109
B
B
I
I
I
O
O
I
I
O
I
+
C
–
C
D
B
O
P
P
ENGINE CONTROL
(CONTINUED Fig. 03.2)
R
Y
RU
RU
G
N
RW
RW
BW
N
UY
N
RW
B
O
Y
R
BG
N
G
N
N
GW
BK
BK
U
UY
BG
Y
U
WU
OY
BK
RG
O
B
BG
Y
GW
RW
Y
R
GO
O
UY
OG
OY
YU
Y
PIS11
PIS13
B
B
E
B
-1-2PI16 -1-2PI17
1
SOLENOID VALVES
2
VVT
BB
BBG
λλ
PI11 PI13-4 -3 -1-2 -4 -3 -1-2
WR
N
115
E
PIS12
PI41-8
PI41-7
PI41-12
PI41-3
PI41-6
84
E
OY
NG
1
SOLENOID VALVES
(1 TOP; 2 BOTTOM)
B
PI31 -2 -1PI30 -2 -1
2
IMT
HO2 SENSORS
DOWNSTREAM
2/21/2
UY
WG
114
E
B
O
B
BG
Y
B
PI41-29
PI41-10
85
E
OG
NG
CKP
SENSOR
PI55
PI55
-1
-2
N
B
RW
WR
B
O
116
E
FC12-3
FC12-4
B
FC12-10
GO GO
O
CANISTER
PURGE VALVE
UY
EVAP
FH1-9PI41-23
FH1-7
81
E
GU
O
CA270 -2 -1FH111 -2 -1
EVAP
CANISTER
CLOSE VALVE *
CMP
SENSORS
21
PI57
-1
Y
PI57
PI56
PI56-2
-1
-2
R
N
G
BG BG
BG BG
PIS19
O
B
BG
Y
B
CAS22
83
E
GU
90
GO
NR
CA37 -2 -1
BRAKE
ON / OFF
SWITCH
KNOCK
SENSORS
1 2
PI14 -1 -3 -2 PI25 -2 -1-5-4
PI20 -1-2 PI19 -1-2
B
N
B
N
GU
82
E
BG
FC26-5
FC26-6
FC26-13FC12-5
FC26-15FC12-6
BB
FC26-7
NOTES:
* EVAP Canister Close Valve and
Fuel Tank Pressure Sensor – NAS
vehicles only.
Shielding shown as dashed lines
are braided wires.
BRD
MAF
SENSOR
GW
BKUBG
PIS25
IATS
υ
PI26
-1
ECT
SENSOR
SENSORIPSENSOR
υ
PI24 -1 -2
UY
BG
BG
R
PI26-3PI26-2PI26
TP1
TP2
TP SENSOR
THROTTLE BODY
EOT
υ
Y
Y
IL12 -3 -2 -1
BG
U
IL10
PIS21
OY
PI18
-4
THROTTLE
BG
ILS2
BGBG
IL10
-11
BG
RW
PI18
-2
MOTOR
EFT
SENSOR
IL9 -1 -2 FP1 -3 -1-2PI29 -2 -1 -4
OY
BG
-12
IL10
OY
PI41-17
OY OY
PIS22
GW
-1
MAP
SENSOR
υ
WU
OYBKBG
FP2
-2
FH3
-10
WU
BG
PI41-18
Y
CA88
CA88-3CA88-4CA88-2CA88-6CA88
-5
-13
FHS6
BG
B
APP1 APP2
APP SENSOR
FTP
SENSOR *
BG
FP2
-3
FH3
-12
BG BG
PI41
-14
FHS7
OY
FC12
-2
OY
FC26
-16
OY
OY
RG
RGRG
FP2
OY
FH3
BG
BG
BG
BG
-6
-11
FC12
-9
FC26
-8
CAS81CAS82
OYOY
O
-1
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
I
O
Output
B
+
P
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
D
Serial and Encoded Data
C
S
V6 Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
Engine Control Module
Pin Description and Characteristic
I PI1-9 BRAKE CANCEL SWITCH: NORMALLY CLOSED / GROUND WHEN ACTIVATED
SS PI1-12 SENSOR POWER SUPPLY 1: NOMINAL 5 V
SG PI1-19 SENSOR GROUND 1: GROUND
OPI1-27 FUEL PUMP DRIVE SIGNAL (TO RECM): PWM, 150 Hz, NORMAL POSITIVE DUTY CYCLE RANGE = 4% – 51%
IPI1-33 CLUTCH CANCEL SWITCH: NORMALLY CLOSED / GROUND WHEN ACTIVATED
OPI1-34 AIR CONDITIONING COMPRESSOR CLUTCH RELAY DRIVE: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
SS PI1-47 SPEED CONTROL SWITCH REQUEST: STEPPED RESISTANCE
IPI1-48 SPEED CONTROL SWITCHES SIGNAL GROUND: GROUND
OPI1-51 COOLING FAN MODULE CONTROL: PWM, 140Hz, POSITIVE DUTY CYCLE RANGE 7% – 95%
OPI1-61 IGNITION COIL ACTIVATE – CYLINDER 2: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-62 IGNITION COIL ACTIVATE – CYLINDER 4: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-63 IGNITION COIL ACTIVATE – CYLINDER 6: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-87 IGNITION COIL ACTIVATE – CYLINDER 1: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-88 IGNITION COIL ACTIVATE – CYLINDER 3: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-89 IGNITION COIL ACTIVATE – CYLINDER 5: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-113 FUEL INJECTOR DRIVE – CYLINDER 5: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-114 FUEL INJECTOR DRIVE – CYLINDER 3: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-115 FUEL INJECTOR DRIVE – CYLINDER 1: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-118 FUEL INJECTOR DRIVE – CYLINDER 6: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-119 FUEL INJECTOR DRIVE – CYLINDER 4: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-120 FUEL INJECTOR DRIVE – CYLINDER 2: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
IPI1-121 AIR CONDITIONING PRESSURE SENSOR SIGNAL, NOMINAL 0 – 5 V: TRANSDUCER – VOLTAGE INCREASES AS PRESSURE INCREASES
IPI1-131 IGNITION MONITOR BANK 1: PULSED SIGNAL, 3 PULSES PER ENGINE CYCLE
IPI1-132 IGNITION MONITOR BANK 2: PULSED SIGNAL, 3 PULSES PER ENGINE CYCLE
Rear Electronic Control Module
Pin Description and Characteristic
B+ CA100-8 IGNITION SWITCHED POWER SUPPLY (II): B+
B+ CA101-1 FUEL PUMP POWER SUPPLY: B+ WHEN FUEL PUMP RELAY IS ACTIVATED
SG CA101-2 LOGIC GROUND / FUEL PUMP DRIVE SHIELD: GROUND
B+ CA101-3 BATTERY POWER SUPPLY: B+
O CA101-11 FUEL PUMP SUPPLY VOLTAGE: B+
O CA101-12 FUEL PUMP ACTIVATE: GROUND (PWM)
SCA102-1 SCP +
SCA102-2 SCP -
I CA103-19 FUEL PUMP DRIVE SIGNAL: PWM, 150 Hz, NORMAL POSITIVE DUTY CYCLE RANGE = 4% – 51%
Fig. 03.2
COMPONENTS
Component Connector(s) Connector Description Location
AIR CONDITIONING COMPRESSOR CLUTCH PI49 2-WAY / BLACK LOWER LH SIDE OF ENGINE
AIR CONDITIONING COMPRESSOR CLUTCH RELAY — — FRONT POWER DISTRIBUTION FUSE BOX – R8
AIR CONDITIONING PRESSURE SENSOR FH110 4-WAY / BLACK ENGINE COMPARTMENT, LH SIDE, HIGH PRESSURE
BRAKE CANCEL SWITCH CA36 2-WAY / GREY TOP OF BRAKE PEDAL
CLUTCH CANCEL SWITCH CA285 (LHD) 2-WAY / BLACK TOP OF CLUTCH PEDAL (TOP SWITCH)
COOLING FAN MODULE FH108 2-WAY / BLACK ENGINE COMPARTMENT, RH FRONT, REARWARD OF RADIATOR
ENGINE CONTROL MODULE PI1 134-WAY / BLACK FRONT BULKHEAD, PASSENGER SIDE
FRONT POWER DISTRIBUTION FUSE BOX — — ENGINE COMPARTMENT, RH SIDE
FUEL INJECTOR 1 (V6) IL3 2-WAY / BLACK FUEL RAIL / INTAKE MANIFOLD
FUEL INJECTOR 2 (V6) IL6 2-WAY / BLACK FUEL RAIL / INTAKE MANIFOLD
FUEL INJECTOR 3 (V6) IL4 2-WAY / BLACK FUEL RAIL / INTAKE MANIFOLD
FUEL INJECTOR 4 (V6) IL7 2-WAY / BLACK FUEL RAIL / INTAKE MANIFOLD
FUEL INJECTOR 5 (V6) IL5 2-WAY / BLACK FUEL RAIL / INTAKE MANIFOLD
FUEL INJECTOR 6 (V6) IL8 2-WAY / BLACK FUEL RAIL / INTAKE MANIFOLD
FUEL PUMP 1 FP2 8-WAY / BLACK FUEL TANK, RH SIDE
FUEL PUMP RELAY — — REAR POWER DISTRIBUTION FUSE BOX – R15
IGNITION CAPACITOR PI54 2-WAY / BLACK LH CYLINDER HEAD, REAR
IGNITION MODULE AND COIL 1 PI2 4-WAY / BLACK RH CYLINDER HEAD
IGNITION MODULE AND COIL 2 PI6 4-WAY / BLACK LH CYLINDER HEAD
IGNITION MODULE AND COIL 3 PI3 4-WAY / BLACK RH CYLINDER HEAD
IGNITION MODULE AND COIL 4 PI7 4-WAY / BLACK LH CYLINDER HEAD
IGNITION MODULE AND COIL 5 PI4 4-WAY / BLACK RH CYLINDER HEAD
IGNITION MODULE AND COIL 6 PI8 4-WAY / BLACK LH CYLINDER HEAD
REAR ELECTRONIC CONTROL MODULE CA63 17-WAY / BLACK LUGGAGE COMPARTMENT, RH REAR
REAR POWER DISTRIBUTION FUSE BOX — — LUGGAGE COMPARTMENT
STEERING WHEEL SPEED CONTROL SWITCHES SQ2 6-WAY / BLACK STEERING WHEEL
CA291 (RHD) 5-WAY / BLACK
FH109 2-WAY / BLACK
FP4 4-WAY / BLACK
CA100 12-WAY / BLACK
CA101 20-WAY / BLACK
CA102 22-WAY / BLACK
CA103 26-WAY / NATURAL
REFRIGERANT LINE, BETWEEN COMPRESSOR AND CONDENSER
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
FC10 14-WAY / GREEN / FASCIA HARNESS TO FRONT HARNESS BEHIND INSTRUMENT PANEL, RH SIDE
FC117 10-WAY / BLACK / STEERING WHEEL CASSETTE STEERING COLUMN
IL10 12-WAY / BLACK / ENGINE HARNESS TO FUEL INJECTOR LINK REAR OF ENGINE
PI41 42-WAY / BLACK / ENGINE HARNESS TO VEHICLE HARNESSES ENGINE COMPARTMENT, BULKHEAD, PASSENGER SIDE
PI42 8-WAY / BLACK / ENGINE HARNESS TO FRONT HARNESS ENGINE COMPARTMENT, BULKHEAD, PASSENGER SIDE
FH1 20-WAY / BLACK / CABIN HARNESS TO FRONT HARNESS RH ‘A’ POST, LOWER
FH3 16-WAY / BLUE / CABIN HARNESS TO FRONT HARNESS LH ‘A’ POST
GROUNDS
Ground Location
CA156 LUGGAGE COMPARTMENT, RH SIDE
FH22 ENGINE COMPARTMENT, BEHIND LH HEADLAMP
FH42 ENGINE COMPARTMENT, BEHIND RH HEADLAMP
FH95 ENGINE COMPARTMENT, BEHIND LH HEADLAMP (RADIATOR FAN GROUND)
PI51 ENGINE COMPARTMENT, ENGINE BLOCK
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Engine Management: V6 – Part 2
Engine Management: V6 – Part 2

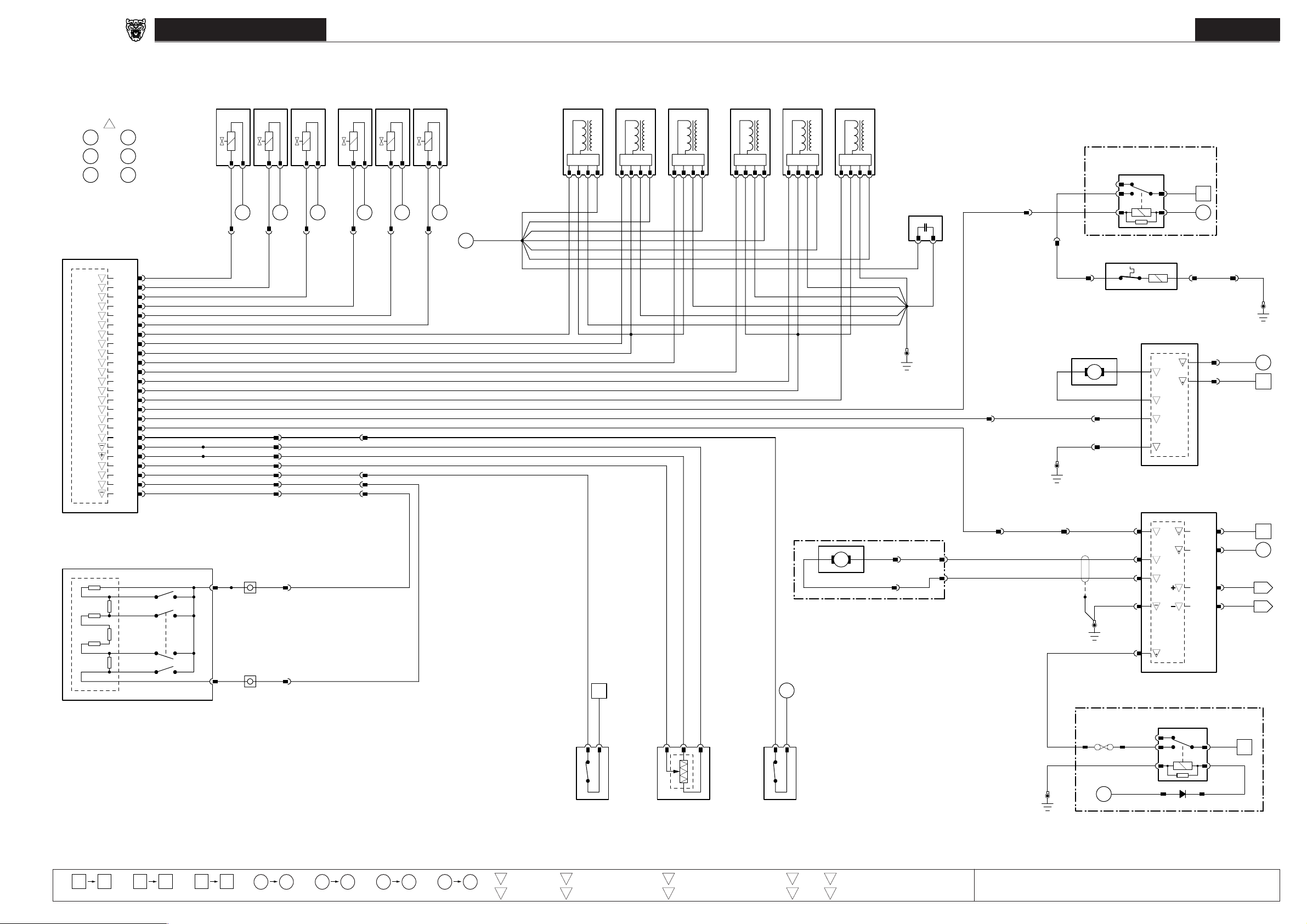

Fig. 03.2
FRONT OF
ENGINE
2
4
6
CYLINDER NUMBERING
1
3
5
O
PI1-115
O
PI1-114
O
PI1-113
O
PI1-120
O
PI1-119
O
PI1-118
O
PI1-087
O
PI1-088
I
PI1-131
O
PI1-089
O
PI1-061
O
PI1-062
I
PI1-132
O
PI1-063
O
PI1-034
O
PI1-051
O
PI1-027
I
PI1-009
PI1-019
PI1-012
I
PI1-121
I
PI1-033
I
PI1-047
PI1-048
BG
BK
BG
BR
BO
U
GU
Y
GB
YR
GW
GW
YB
GR
BG
WU
WR
U
BG
OY
WU
WG
WG
YG
PIS21
PIS22
FUEL INJECTORS IGNITION MODULES AND COILS
1
IL3 -1 -2 IL4 -1 -2 IL5 -1 -2 IL6 -1 -2 IL7 -1 -2 IL8 -1 -2
BG
97
IL10
-1
BG
BG
OY
WU
3 5 2
NR
BK
NR
98
IL10
E
-7
E
BK
PI41-28
PI41-17
PI41-18
PI41-19
BG
IL10
NR
99
E
-2
BG
U
BG
IL10
BR
-8
BR
FH3-1
OY
WU
WG WG
WG
YG
FH3-2PI41-4
FC10-13PI41-25
FC10-12PI41-24
100
NR
E
IL10
4
BO
NR
101
E
IL10
-3
-9
BO
U
6
U
NR
102
E
RW
RW
1
PI2 -4 -2 -3 -13PI3 -4 -2 -3 -15PI4 -4 -2 -3 -12PI6 -4 -2 -3 -14PI7 -4 -2 -3 -16PI8 -4 -2 -3 -1
GUGBB
RWYGBBRWYRGBBRW
GWYBB
RWGWYBBRWGRYBBRW
IGNITION
CAPACITOR
BG
PI41-37
AIR CONDITIONING
COMPRESSOR CLUTCH
RELA Y
4
R8
RG
BG
5
2
3
1
Y
WG
71
91
E
RW
RW
118
E
PIS8
U
RW
RW
RW
PI54-1PI54
PI41
-2
-36
FRONT POWER DISTRIBUTION FUSE BOX
RW
B
B
B
B
B
PIS31
B
RG
PI49-1
AIR CONDITIONING
COMPRESSOR CLUTCH
B
PI49-2
PI41-42
B
FH42
(FH22)
B
PIS9 PIS10
B
PI51
PI42-1
FH95
COOLING FAN
WU
FH108-1
B
FH109-2
WU
B
FH108-2
FH109-1
WG
NG
93
E
57
B
O
B
FAN
O
I
P
COOLING FAN MODULE
ENGINE CONTROL
MODULE
(CONTINUED FROM Fig. 03.1)
NOTE: ECM power supplies and grounds shown on Fig. 03.1.
2.2κ Ω
1κ Ω
510 Ω
300 Ω
180 Ω
120 Ω
RESISTOR PACK
RESUME
SET +
SET –
CANCEL
SQ2-3 FC117-6
CASSETTE
SQ2-1
CASSETTE
STEERING WHEEL SPEED CONTROL SWITCHES
NOTE: Vehicles with Adaptive Speed Control –
refer to Speed Control Switches Fig. 05.3.
FC117-8
YG
WG
* NOTE: Clutch Cancel Switch –
manual transmission vehicles only.
91
WG
NR
CA291 -3 -1 (LHD)
CA285 -2 -1 (RHD)
CLUTCH
CANCEL
SWITCH *
30
OY
WU
FH110 -3 -2 -1 CA36 -2 -1
AIR CONDITIONING
PRESSURE SENSOR
BG
U
BRAKE
CANCEL
SWITCH
II
WG
FUEL PUMP 1
FUEL TANK
KB
B
R
FP4-2
Y
FP4-4
NOTE: The ECM communicates (CAN / SCP)
with the RECM for fuel pump diagnostics.
FP2-4
FP2-1
PI41-26
WR
FH1-15
CA156
B
CA156
WR
R
Y
B
GR
F47 15A
34
II
CA103-19
CA101-11
CA101-12
CA101-02
CA101-01
I
O
O
B
REAR ELECTRONIC
CONTROL MODULE
FUEL PUMP
RELAY
4
5
O
2
B
GU
FUEL PUMP DIODE (2)
REAR POWER DISTRIBUTION FUSE BOX
B
B
S
S
R15
CA101-3
CA100-8
CA102-1
CA102-2
3
1
N
GU
VIA
INERTIA SWITCH
Y
U
NG
28
GU
20.2
20.2
87
31
II
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
I
O
Output
B
+
P
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
D
Serial and Encoded Data
C
S
V6 Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
Engine Control Module
Pin Description and Characteristic
O PI1-1 HO2 SENSOR HEATER CONTROL – 1/1: PWM, 1 CYCLE PER 128 mS, VARIABLE DUTY CYCLE
O PI1-2 HO2 SENSOR HEATER CONTROL – 1/1: PWM, 1 CYCLE PER 128 mS, VARIABLE DUTY CYCLE
PG PI1-4 POWER GROUND 1: GROUND
PG PI1-5 POWER GROUND 2: GROUND
I PI1-6 ENGINE CRANK: B+
I PI1-7 IGNITION ON: B+
I PI1-8 BRAKE ON / OFF SWITCH: NORMALLY OPEN / B+ WHEN ACTIVATED
IPI1-10 INERTIA SWITCH: NORMALLY CLOSED / OPEN CIRCUIT WHEN ACTIVATED
SS PI1-12 SENSOR POWER SUPPLY 1: NOMINAL 5 V
SS PI1-13 SENSOR POWER SUPPLY 2: NOMINAL 5 V
SG PI1-17 SMALL SIGNAL GROUND 1: GROUND
SG PI1-18 SMALL SIGNAL GROUND 2: GROUND
SG PI1-19 SENSOR GROUND 1: GROUND
SG PI1-20 SENSOR GROUND 2: GROUND
B+ PI1-22 BATTERY POWER SUPPLY: B+
B+ PI1-23 EMS SWITCHED POWER SUPPLY 1: B+
B+ PI1-24 EMS SWITCHED POWER SUPPLY 2: B+
SG PI1-29 HO2 SENSOR HEATER GROUND – 1/1: GROUND
SG PI1-30 HO2 SENSOR HEATER GROUND – 1/1: GROUND
IPI1-31 AUTOMATIC – PARK / NEUTRAL SIGNAL: B+ WHEN ACTIVATED
IPI1-36 CRANKSHAFT SENSOR SIGNAL: PULSED SIGNAL, 70 PULSES PER ENGINE CYCLE
SG PI1-37 CRANKSHAFT SENSOR SIGNAL GROUND: GROUND
OPI1-40 EMS CONTROL RELAY DRIVE: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-41 STARTER RELAY DRIVE: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
SG PI1-43 TP AND APP SIGNALS SHIELD: GROUND
IPI1-44 MASS AIR FLOW SENSOR SIGNAL: NOMINAL 0 – 5 V BY ENGINE OPERATING CONDITION
SG PI1-45 MASS AIR FLOW SENSOR GROUND: GROUND
SG PI1-46 MASS AIR FLOW SENSOR GROUND: GROUND
IPI1-50 ENGINE FUEL TEMPERATURE SENSOR SIGNAL, NOMINAL 0 – 5 V: NTC SENSOR – VOLTAGE DECREASES AS TEMPERATURE INCREASES
OPI1-52 THROTTLE MOTOR RELAY DRIVE: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
SG PI1-54 THROTTLE MOTOR GROUND: GROUND
OPI1-55 HO2 SENSOR HEATER CONTROL – 2/1: PWM, 1 CYCLE PER 128 mS, VARIABLE DUTY CYCLE
OPI1-56 HO2 SENSOR HEATER CONTROL – 2/1: PWM, 1 CYCLE PER 128 mS, VARIABLE DUTY CYCLE
OPI1-57 EGR DRIVE 1: B+; EGR DRIVE 1, 2 , 3 AND 4 ARE OPERATED IN TURN
OPI1-58 EGR DRIVE 2: B+; EGR DRIVE 1, 2 , 3 AND 4 ARE OPERATED IN TURN
OPI1-59 EGR DRIVE 3: B+; EGR DRIVE 1, 2 , 3 AND 4 ARE OPERATED IN TURN
OPI1-60 EGR DRIVE 4: B+; EGR DRIVE 1, 2 , 3 AND 4 ARE OPERATED IN TURN
OPI1-66 EVAP CANISTER PURGE VALVE DRIVE: PWM, 10 Hz, POSITIVE DUTY CYCLE RANGE 7% – 100%
OPI1-67 EVAP CANISTER CLOSE VALVE DRIVE: TO CLOSE, ECM SWITCHES CIRCUIT TO GROUND
IPI1-68 BANK 2 CAMSHAFT SENSOR SIGNAL: PULSED SIGNAL, 4 PULSES PER ENGINE CYCLE
SG PI1-69 BANK 2 CAMSHAFT SENSOR GROUND: GROUND
IPI1-70 ENGINE COOLANT TEMPERATURE SENSOR SIGNAL, NOMINAL 0 – 5 V: NTC SENSOR – VOLTAGE DECREASES AS TEMPERATURE INCREASES
IPI1-71 INTAKE AIR TEMPERATURE SENSOR SIGNAL, NOMINAL 0 – 5 V: NTC SENSOR – VOLTAGE DECREASES AS TEMPERATURE INCREASES
IPI1-73 INJECTION PRESSURE SENSOR SIGNAL, NOMINAL 0 – 5 V: POTENTIOMETER – VOLTAGE INCREASES AS PRESSURE INCREASES
IPI1-75 THROTTLE POSITION SENSOR 1 SIGNAL: IDLE = 0.60 V; FULL THROTTLE = 4.30 V
IPI1-76 THROTTLE POSITION SENSOR 2 SIGNAL: IDLE = 1.48 V; FULL THROTTLE = 4.40 V
IPI1-78 ENGINE OIL TEMPERATURE SENSOR SIGNAL, NOMINAL 0 – 5 V: NTC SENSOR – VOLTAGE DECREASES AS TEMPERATURE INCREASES
IPI1-79 GENERATOR FAULT; CHARGE WARNING
OPI1-80 THROTTLE MOTOR DRIVE: B+ TO ACTIVATE MOTOR
SG PI1-81 HO2 SENSOR HEATER GROUND – 2/1: GROUND
SG PI1-82 HO2 SENSOR HEATER GROUND – 2/1: GROUND
IPI1-83 HO2 SENSOR 1/1 SIGNAL: VARIABLE CURRENT
IPI1-84 HO2 SENSOR 1/1 SIGNAL: CONSTANT CURRENT
SG PI1-91 HO2 SENSOR HEATERS 1/2, 2/2 GROUND: GROUND
OPI1-92 HO2 SENSOR HEATER CONTROL – 1/2: PWM, 1 CYCLE PER 256 mS, POSITIVE DUTY CYCLE RANGE 0 mS = 0%, 77 mS = 30%, 256 mS = 100%
OPI1-93 HO2 SENSOR HEATER CONTROL – 2/2: PWM, 1 CYCLE PER 256 mS, POSITIVE DUTY CYCLE RANGE 0 mS = 0%, 77 mS = 30%, 256 mS = 100%
IPI1-94 BANK 1 CAMSHAFT SENSOR SIGNAL: PULSED SIGNAL, 4 PULSES PER ENGINE CYCLE
SG PI1-95 BANK 1 CAMSHAFT SENSOR GROUND: GROUND
IPI1-98 BANK 1 KNOCK SENSOR SIGNAL: VARIABLE VOLTAGE DEPENDENT ON ENGINE VIBRATION
IPI1-99 BANK 2 KNOCK SENSOR SIGNAL: VARIABLE VOLTAGE DEPENDENT ON ENGINE VIBRATION
SG PI1-100 SENSOR SHIELD: GROUND
IPI1-102 ACCELERATOR PEDAL POSITION SENSOR 1 SIGNAL: FOOT OFF = 0.75 V; FULLY DEPRESSED = 3.40 V (AUTO) 3.20 (MAN)
IPI1-103 ACCELERATOR PEDAL POSITION SENSOR 2 SIGNAL: FOOT OFF = 3.38 V; FULLY DEPRESSED = 2.05 V (AUTO) 2.14 V (MAN)
IPI1-104 FUEL TANK PRESSURE SENSOR SIGNAL, NOMINAL 0 – 5 V: VOLTAGE INCREASES AS PRESSURE INCREASES
DPI1-105 SERIAL DATA LINK: SERIAL COMMUNICATION
OPI1-106 THROTTLE MOTOR DRIVE: B+ TO ACTIVATE MOTOR
IPI1-107 HO2 SENSOR 2/1 SIGNAL: VARIABLE CURRENT
IPI1-108 HO2 SENSOR 2/1 SIGNAL: CONSTANT CURRENT
OPI1-109 BANK 1 VVT SOLENOID VALVE: PWM, 300Hz, POSITIVE DUTY CYCLE RANGE 0% – 100%
OPI1-110 BANK 2 VVT SOLENOID VALVE: PWM, 300Hz, POSITIVE DUTY CYCLE RANGE 0% – 100%
SG PI1-111 FUEL INJECTORS 2, 3, 5, 8 GROUND: GROUND
SG PI1-116 FUEL INJECTORS 1, 4, 6, 7 GROUND: GROUND
CPI1-123 CAN -
CPI1-124 CAN +
IPI1-127 MAP SENSOR SIGNAL, NOMINAL 0 – 5 V: VOLTAGE INCREASES AS MANIFOLD ABSOLUTE PRESSURE INCREASES
IPI1-128 HO2 SENSOR 1/2 SIGNAL, NOMINAL 1 V SWING: 0.1 – 0.9 V SWING
IPI1-129 HO2 SENSOR 2/2 SIGNAL, NOMINAL 1 V SWING: 0.1 – 0.9 V SWING
SG PI1-130 HO2 SENSORS SHIELD: GROUND
B+ PI1-134 THROTTLE MOTOR POWER SUPPLY: B+ WHEN RELAY ACTIVATED
MANUAL, ROW – PARK / NEUTRAL SIGNAL: B+ WHEN IGNITION CRANK (III)
MANUAL, NAS – CLUTCH PEDAL SAFETY SWITCH (PARK / NEUTRAL SIGNAL): B+ WHEN ACTIVATED
Fig. 03.3
COMPONENTS
Component Connector(s) Connector Description Location
APP SENSOR CA88 6-WAY / BLACK TOP OF ACCELERATOR PEDAL
BRAKE ON / OFF SWITCH CA37 2-WAY / GREEN TOP OF BRAKE PEDAL
CKP SENSOR (V8) PI21 2-WAY / BLACK ENGINE UNDER SIDE, FORWARD OF BELL HOUSING
CMP SENSOR 1 (V8) PI23 2-WAY / BLACK BANK 1 (RH) CAMSHAFT COVER, FRONT
CMP SENSOR 2 (V8) PI22 2-WAY / BLACK BANK 2 (LH) CAMSHAFT COVER, FRONT
ECT SENSOR PI25 2-WAY / BLACK ENGINE VEE, COOLANT OUTLET CASTING
EFT SENSOR (V8) PI27 2-WAY / BLACK FUEL RAIL, RH REAR
EGR VALVE (V8 N/A) PI15 6-WAY / BLACK INTAKE MANIFOLD, RH FRONT
ENGINE CONTROL MODULE PI1 134-WAY / BLACK FRONT BULKHEAD, PASSENGER SIDE
EOT SENSOR PI24 2-WAY / BLACK ADJACENT TO OIL FILTER
EVAP CANISTER CLOSE VALVE CA270 2-WAY / BLACK ABOVE REAR AXLE (FUEL TANK COMPONENTS)
EVAP CANISTER PURGE VALVE FH111 2-WAY / BLACK ENGINE COMPARTMENT, LH SIDE,
FRONT POWER DISTRIBUTION FUSE BOX — — ENGINE COMPARTMENT, RH SIDE
FTP SENSOR FP1 3-WAY / BLACK FUEL TANK PIPING, LH SIDE (UNDER ACCESS PLATE)
HO2 SENSOR DOWNSTREAM 1/2 PI11 4-WAY / BLACK RH EXHAUST, TOP OF CATALYST
HO2 SENSOR DOWNSTREAM 2/2 PI13 4-WAY / BLACK LH EXHAUST, TOP OF CATALYST
HO2 SENSOR UPSTREAM 1/1 PI10 4-WAY / BLACK RH EXHAUST, CATALYST CENTER
HO2 SENSOR UPSTREAM 2/1 PI12 4-WAY / BLACK RH EXHAUST, CATALYST CENTER
IP SENSOR (V8 N/A) PI28 3-WAY / BLACK FUEL RAIL, RH FRONT
KNOCK SENSOR 1 (V8) PI20 2-WAY / BLACK ENGINE VEE, BANK 1
KNOCK SENSOR 2 (V8) PI19 2-WAY / BLACK ENGINE VEE, BANK 2
MAF SENSOR PI14 5-WAY / BLACK ENGINE AIR INTAKE, ADJACENT TO AIR CLEANER
MAP SENSOR (V8 N/A) PI29 4-WAY / BLACK INTAKE MANIFOLD, LOWER REAR
THROTTLE MOTOR (V8 N/A) PI18 2-WAY / BLACK ENGINE AIR INTAKE, FRONT
THROTTLE MOTOR RELAY — — FRONT POWER DISTRIBUTION FUSE BOX – R4
TP SENSOR PI26 4-WAY / BLACK THROTTLE BODY, THROTTLE SHAFT
VVT SOLENOID VALVE 1 PI16 2-WAY / BLACK RH CYLINDER HEAD, FRONT
VVT SOLENOID VALVE 2 PI17 2-WAY / BLACK LH CYLINDER HEAD, FRONT
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
FC12 14-WAY / GREY / FASCIA HARNESS TO FRONT HARNESS BEHIND INSTRUMENT PANEL, PASSENGER SIDE
FC26 16-WAY / BLUE / CABIN HARNESS TO FASCIA HARNESS BEHIND INSTRUMENT PANEL, DRIVER SIDE
FH1 20-WAY / BLACK / CABIN HARNESS TO FRONT HARNESS RH ‘A’ POST, LOWER
FH3 16-WAY / BLUE / CABIN HARNESS TO FRONT HARNESS LH ‘A’ POST
FP2 8-WAY / BLACK / CABIN HARNESS TO FUEL PUMP HARNESS TOP OF FUEL TANK, RH SIDE
PI41 42-WAY / BLACK / ENGINE HARNESS TO VEHICLE HARNESSES ENGINE COMPARTMENT, BULKHEAD, PASSENGER SIDE
GROUNDS
Ground Location
PI40 (LHD) ENGINE COMPARTMENT, BEHIND RH WHEEL ARCH LINER
PI40 (RHD) ENGINE COMPARTMENT, BEHIND LH WHEEL ARCH LINER
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
ADJACENT TO SUSPENSION TURRET
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Engine Management: V8 N/A – Part 1
Engine Management: V8 N/A – Part 1
Fig. 03.3
VIA INERTIA SWITCH
ENGINE CRANK
EMS CONTROL RELAY
GENERATOR:
STARTER RELAY DRIVE
PAR K; NEUTRAL
4
5
NR
2
F18 20A
GR
04.1
48
111
YR
GR
E
FAULT; CHARGE WARNING
(CIRCUIT CONTINUED)
SERIAL COMMUNICATION
THROTTLE MOTOR
RELAY
R4
3
1
FRONT POWER DISTRIBUTION FUSE BOX
PIS29
PIS30
BB
PI40BR PI40AL
PIS28
PI40AR
73
94
E
95
E
29
II
32
II
02.2
01.7
02.2
02.2
02.2
20.1
20.1
20.2
GU
B
NR
WG
WG
GO
GU
Y
BW
YR
GO
GR
Y
G
W
PI41-38
PI41-39
B
B
B
B
B
B
B
B
B
B
B
B
PI1-022
PI1-023
PI1-024
PI1-007
PI1-010
PI1-006
PI1-040
PI1-079
PI1-041
PI1-031
PI1-124
PI1-123
PI1-105
GU
PI1-134
GR
PI1-052
PI1-017
PI1-018
PI1-005
PI1-029
PI1-054
PI1-091
PI1-004
PI1-030
PI1-111
PI1-116
PI1-081
PI1-082
(CONTINUED Fig. 03.4)
B
I
I
O
O
I
I
O
O
I
O
I
O
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
O
O
I
I
O
O
O
O
I
O
O
O
O
MODULE
PI1-083
PI1-084
PI1-001
PI1-002
PI1-107
PI1-108
PI1-055
PI1-056
PI1-130
PI1-128
PI1-092
PI1-129
PI1-093
PI1-037
PI1-036
PI1-094
PI1-095
PI1-100
PI1-068
PI1-069
PI1-098
PI1-099
PI1-044
PI1-045
PI1-046
PI1-071
PI1-070
PI1-019
PI1-078
PI1-073
PI1-050
PI1-012
PI1-127
PI1-104
PI1-103
PI1-102
PI1-020
PI1-013
PI1-043
PI1-080
PI1-106
PI1-076
PI1-075
PI1-057
PI1-058
PI1-059
PI1-060
PI1-008
PI1-067
PI1-066
PI1-110
PI1-109
B
B
I
I
I
O
I
O
I
+
C
–
C
D
B
O
P
P
ENGINE CONTROL
HO2 SENSORS
UPSTREAM
U U
PI10 PI12-3 -4 -1-2 -3 -4 -1-2
R
Y
RU
WG
113
E
R
Y
RU
PIS11
RU
G
N
RW
RW
BW
N
UY
N
RW
B
O
Y
R
BG
N
G
N
N
GW
BK
BK
U
UY
BG
Y
U
YR
OY
BK
RG
O
B
BG
Y
BG
GW
RW
Y
R
YU
YG
YR
YU
GO
O
UY
YU
Y
PIS13
B
B
1
SOLENOID VALVES
B
PI41-29
PI41-10
-1-2PI16 -1-2PI17
2
VVT
2/11/1
PI11 PI13-4 -3 -1-2 -4 -3 -1-2
G
N
RW
WR
115
E
BB
PIS12
PI41-8
PI41-7
PI41-12
PI41-3
B
PI41-6
GO GO
FH1-9PI41-23
O
FH1-7
87
E
UY
GU
EVAP
CANISTER
PURGE VALVE
HO2 SENSORS
DOWNSTREAM
2/21/2
λλ
PI21
N
B
UY
WG
N
B
RW
WR
90
GO
NR
BRAKE
ON / OFF
SWITCH
116
E
NOTES:
* EVAP Canister Close Valve and
Fuel Tank Pressure Sensor – NAS
vehicles only.
Shielding shown as dashed lines
are braided wires.
114
E
B
O
B
BG
Y
B
CAS22
88
E
O
GU
CA270 -2 -1FH111 -2 -1
EVAP
CANISTER
CLOSE VALVE *
CA37 -2 -1
SENSOR
-1
B
B
BRD
CKP
PI21
PI23
-2
-2
O
Y
SENSORS
PI23
-1
R
CMP
BG BG
BG BG
PIS19
FC12-3
FC12-4
O
B
BG
Y
FC12-10
B
PI22
KNOCK
SENSORS
21
-1
N
PI22
-2
G
1 2
PI20 -1
-2
B
N
PI19 -1
-2
B
N
BG
MAF
SENSOR
PI14 -1 -3 -2 PI25 -2 -1-5-4
GW
BKUBG
GU
89
E
IATS
ECT
SENSOR
υ
UY
EOT
SENSORIPSENSOR
υ
PI24 -1 -2
BG
υ
Y
PI28 -3 -2 -1
BG
U
SENSOR
PI27 -1 -2 FP1 -3 -1-2PI29 -2 -1 -4
BG
OY
BG
EFT
MAP
SENSOR
FTP
SENSOR *
υ
YR
OYBKBG
FP2
FH3
RG
OY
BG
FP2
FP2
-3
-2
-13
FH3
-6
RGRG
OYOY
FH3
-12
-11
BG BG
PI41
-14
PI15
PIS25
FC26-5
FC26-6
FC26-13FC12-5
FC26-15FC12-6
BB
FC26-7
92
E90E
YU
YR
PI15
-6
-3
PI15
YU
YG
PI15
-1
-4
PI15
GU
GU
PI15
-2
-5
BG
R
PI26
PI26-3PI26-2PI26
-1
Y
-4
PIS21
OY
PI18
BG
PIS22
RW
GW
PI18
-1
-2
BG
PI41-17
OY OY
PI41-18
Y
CA88
CA88-3CA88-4CA88-2CA88-6CA88
-5
BG
FHS6
B
FHS7
FC12
FC26
OY
BG
FC12
-9
-2
OY
BG
FC26
-8
-16
OY
BG
CAS81CAS82
BG
O
-1
OY
1234
STEPPER
MOTOR
EGR VALVE
TP1
TP2
TP SENSOR
THROTTLE BODY
THROTTLE
MOTOR
APP1 APP2
APP SENSOR
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
I
O
Output
B
+
P
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
D
Serial and Encoded Data
C
S
V8 N/A Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
Engine Control Module
Pin Description and Characteristic
I PI1-9 BRAKE CANCEL SWITCH: NORMALLY CLOSED / GROUND WHEN ACTIVATED
SS PI1-12 SENSOR POWER SUPPLY 1: NOMINAL 5 V
SG PI1-19 SENSOR GROUND 1: GROUND
OPI1-27 FUEL PUMP DRIVE SIGNAL (TO RECM): PWM, 150 Hz, NORMAL POSITIVE DUTY CYCLE RANGE = 4% – 51%
OPI1-34 AIR CONDITIONING COMPRESSOR CLUTCH RELAY DRIVE: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
SS PI1-47 SPEED CONTROL SWITCH REQUEST: STEPPED RESISTANCE
IPI1-48 SPEED CONTROL SWITCHES SIGNAL GROUND: GROUND
OPI1-51 COOLING FAN MODULE CONTROL: PWM, 140Hz, POSITIVE DUTY CYCLE RANGE 7% – 95%
OPI1-61 IGNITION COIL ACTIVATE – CYLINDER 2: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-62 IGNITION COIL ACTIVATE – CYLINDER 4: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-63 IGNITION COIL ACTIVATE – CYLINDER 6: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-64 IGNITION COIL ACTIVATE – CYLINDER 8: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-87 IGNITION COIL ACTIVATE – CYLINDER 1: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-88 IGNITION COIL ACTIVATE – CYLINDER 3: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-89 IGNITION COIL ACTIVATE – CYLINDER 5: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-90 IGNITION COIL ACTIVATE – CYLINDER 7: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-112 FUEL INJECTOR DRIVE – CYLINDER 8: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-113 FUEL INJECTOR DRIVE – CYLINDER 5: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-114 FUEL INJECTOR DRIVE – CYLINDER 3: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-115 FUEL INJECTOR DRIVE – CYLINDER 2: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-117 FUEL INJECTOR DRIVE – CYLINDER 7: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-118 FUEL INJECTOR DRIVE – CYLINDER 6: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-119 FUEL INJECTOR DRIVE – CYLINDER 4: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-120 FUEL INJECTOR DRIVE – CYLINDER 1: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
IPI1-121 AIR CONDITIONING PRESSURE SENSOR SIGNAL, NOMINAL 0 – 5 V: TRANSDUCER – VOLTAGE INCREASES AS PRESSURE INCREASES
IPI1-131 IGNITION MONITOR BANK 1: PULSED SIGNAL, 3 PULSES PER ENGINE CYCLE
IPI1-132 IGNITION MONITOR BANK 2: PULSED SIGNAL, 3 PULSES PER ENGINE CYCLE
Rear Electronic Control Module
Pin Description and Characteristic
B+ CA100-8 IGNITION SWITCHED POWER SUPPLY (II): B+
B+ CA101-1 FUEL PUMP POWER SUPPLY: B+ WHEN FUEL PUMP RELAY IS ACTIVATED
SG CA101-2 LOGIC GROUND / FUEL PUMP DRIVE SHIELD: GROUND
B+ CA101-3 BATTERY POWER SUPPLY: B+
O CA101-11 FUEL PUMP SUPPLY VOLTAGE: B+
O CA101-12 FUEL PUMP ACTIVATE: GROUND (PWM)
SCA102-1 SCP +
SCA102-2 SCP -
I CA103-19 FUEL PUMP DRIVE SIGNAL: PWM, 150 Hz, NORMAL POSITIVE DUTY CYCLE RANGE = 4% – 51%
Fig. 03.4
COMPONENTS
Component Connector(s) Connector Description Location
AIR CONDITIONING COMPRESSOR CLUTCH PI49 2-WAY / BLACK LOWER LH SIDE OF ENGINE
AIR CONDITIONING COMPRESSOR CLUTCH RELAY — — FRONT POWER DISTRIBUTION FUSE BOX – R8
AIR CONDITIONING PRESSURE SENSOR FH110 4-WAY / BLACK ENGINE COMPARTMENT, LH SIDE, HIGH PRESSURE
BRAKE CANCEL SWITCH CA36 2-WAY / GREY TOP OF BRAKE PEDAL
COOLING FAN MODULE FH108 2-WAY / BLACK ENGINE COMPARTMENT, RH FRONT, REARWARD OF RADIATOR
ENGINE CONTROL MODULE PI1 134-WAY / BLACK FRONT BULKHEAD, PASSENGER SIDE
FRONT POWER DISTRIBUTION FUSE BOX — — ENGINE COMPARTMENT, RH SIDE
FUEL INJECTOR 1 (V8 N/A) PI32 2-WAY / BLACK FUEL RAIL / INTAKE MANIFOLD
FUEL INJECTOR 2 (V8 N/A) PI36 2-WAY / BLACK FUEL RAIL / INTAKE MANIFOLD
FUEL INJECTOR 3 (V8 N/A) PI33 2-WAY / BLACK FUEL RAIL / INTAKE MANIFOLD
FUEL INJECTOR 4 (V8 N/A) PI37 2-WAY / BLACK FUEL RAIL / INTAKE MANIFOLD
FUEL INJECTOR 5 (V8 N/A) P34 2-WAY / BLACK FUEL RAIL / INTAKE MANIFOLD
FUEL INJECTOR 6 (V8 N/A) PI38 2-WAY / BLACK FUEL RAIL / INTAKE MANIFOLD
FUEL INJECTOR 7 (V8 N/A) PI35 2-WAY / BLACK FUEL RAIL / INTAKE MANIFOLD
FUEL INJECTOR 8 (V8 N/A) PI39 2-WAY / BLACK FUEL RAIL / INTAKE MANIFOLD
FUEL PUMP 1 FP2 8-WAY / BLACK FUEL TANK, RH SIDE
FUEL PUMP RELAY — — REAR POWER DISTRIBUTION FUSE BOX – R15
IGNITION CAPACITOR PI54 2-WAY / BLACK LH CYLINDER HEAD, REAR
IGNITION MODULE AND COIL 1 PI2 4-WAY / BLACK RH CYLINDER HEAD
IGNITION MODULE AND COIL 2 PI6 4-WAY / BLACK LH CYLINDER HEAD
IGNITION MODULE AND COIL 3 PI3 4-WAY / BLACK RH CYLINDER HEAD
IGNITION MODULE AND COIL 4 PI7 4-WAY / BLACK LH CYLINDER HEAD
IGNITION MODULE AND COIL 5 PI4 4-WAY / BLACK RH CYLINDER HEAD
IGNITION MODULE AND COIL 6 PI8 4-WAY / BLACK LH CYLINDER HEAD
IGNITION MODULE AND COIL 7 PI5 4-WAY / BLACK RH CYLINDER HEAD
IGNITION MODULE AND COIL 8 PI9 4-WAY / BLACK LH CYLINDER HEAD
REAR ELECTRONIC CONTROL MODULE CA63 17-WAY / BLACK LUGGAGE COMPARTMENT, RH REAR
REAR POWER DISTRIBUTION FUSE BOX — — LUGGAGE COMPARTMENT
STEERING WHEEL SPEED CONTROL SWITCHES SQ2 6-WAY / BLACK STEERING WHEEL
FH109 2-WAY / BLACK
FP4 4-WAY / BLACK
CA100 12-WAY / BLACK
CA101 20-WAY / BLACK
CA102 22-WAY / BLACK
CA103 26-WAY / NATURAL
REFRIGERANT LINE, BETWEEN COMPRESSOR AND CONDENSER
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
FC10 14-WAY / GREEN / FASCIA HARNESS TO FRONT HARNESS BEHIND INSTRUMENT PANEL, RH SIDE
FC117 10-WAY / BLACK / STEERING WHEEL CASSETTE STEERING COLUMN
FH1 20-WAY / BLACK / CABIN HARNESS TO FRONT HARNESS RH ‘A’ POST, LOWER
FH3 16-WAY / BLUE / CABIN HARNESS TO FRONT HARNESS LH ‘A’ POST
PI41 42-WAY / BLACK / ENGINE HARNESS TO VEHICLE HARNESSES ENGINE COMPARTMENT, BULKHEAD, PASSENGER SIDE
PI42 8-WAY / BLACK / ENGINE HARNESS TO FRONT HARNESS ENGINE COMPARTMENT, BULKHEAD, PASSENGER SIDE
GROUNDS
Ground Location
CA156 LUGGAGE COMPARTMENT, RH SIDE
FH22 ENGINE COMPARTMENT, BEHIND LH HEADLAMP
FH42 ENGINE COMPARTMENT, BEHIND RH HEADLAMP
FH95 ENGINE COMPARTMENT, BEHIND LH HEADLAMP (RADIATOR FAN GROUND)
PI51 ENGINE COMPARTMENT, ENGINE BLOCK
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Engine Management: V8 N/A – Part 2
Engine Management: V8 N/A – Part 2

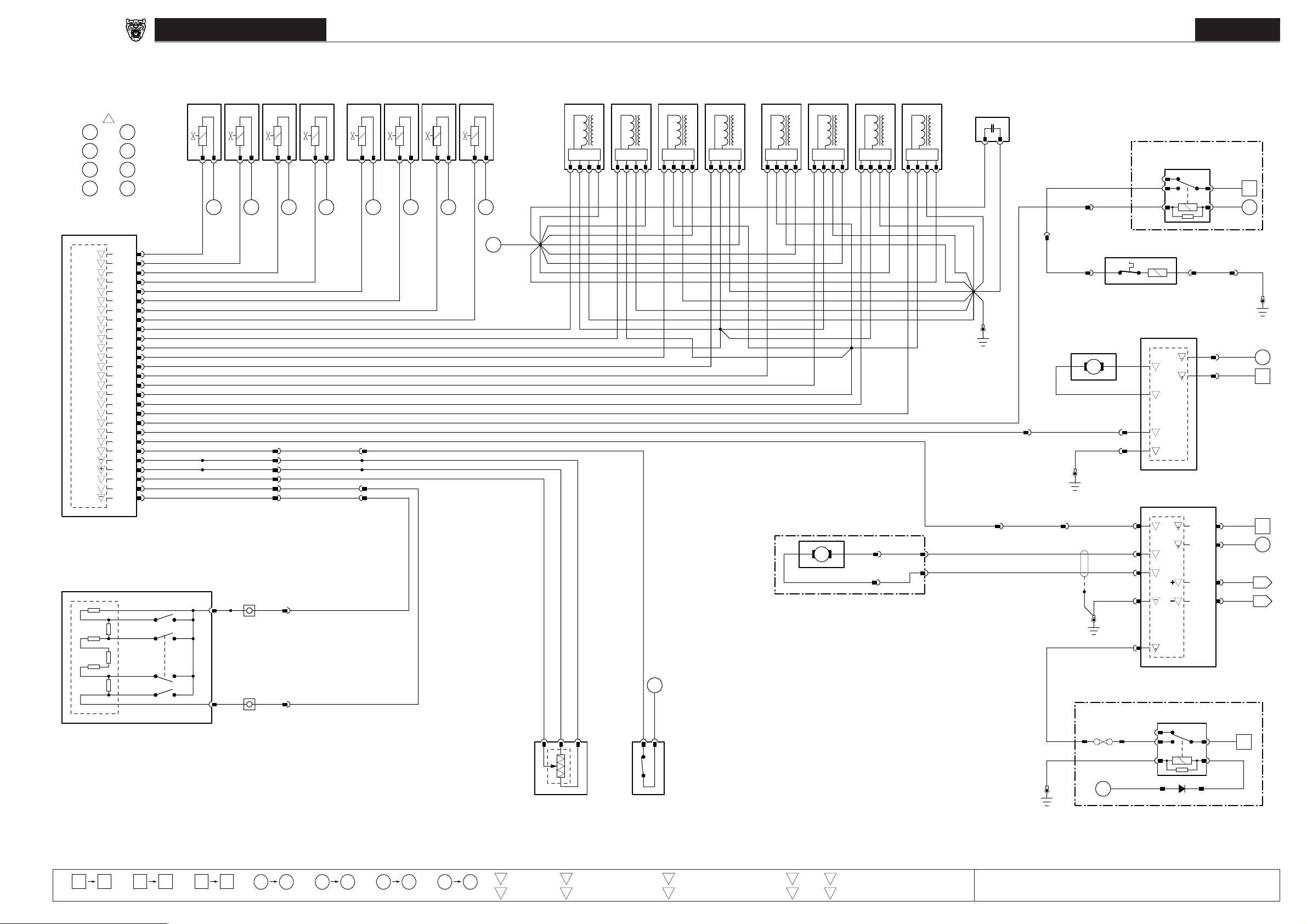

Fig. 03.4
FRONT OF
ENGINE
2
4
6
1
3
5
8 7
CYLINDER NUMBERING
O
PI1-120
O
PI1-114
O
PI1-113
O
PI1-117
O
PI1-115
O
PI1-119
O
PI1-118
O
PI1-112
O
PI1-087
O
PI1-088
I
PI1-131
O
PI1-089
O
PI1-090
O
PI1-061
O
PI1-062
I
PI1-132
O
PI1-063
O
PI1-064
O
PI1-034
O
PI1-051
O
PI1-027
I
PI1-009
PI1-019
PI1-012
I
PI1-121
I
PI1-047
PI1-048
ENGINE CONTROL
MODULE
(CONTINUED FROM Fig. 03.3)
BG
BK
BG
RW
BR
BO
U
UY
GU
Y
GB
YR
GR
GW
GW
YB
GR
YR
BG
WU
WR
U
BG
OY
WU
WG
YG
1
PI32 -1 -2 PI33 -1 -2 PI34 -1 -2 PI35 -1 -2 PI36 -1 -2 PI37 -1 -2
BG
NR
96
E
PIS21
PIS22
BG
OY
WU
NOTE: ECM power supplies and grounds shown on Fig. 03.3.
2.2κ Ω
1κ Ω
510 Ω
300 Ω
180 Ω
120 Ω
RESISTOR PACK
RESUME
SET +
SET –
CANCEL
SQ2-3 FC117-6
CASSETTE
SQ2-1
CASSETTE
STEERING WHEEL SPEED CONTROL SWITCHES
NOTE: Vehicles with Adaptive Speed Control –
refer to Speed Control Switches Fig. 05.3.
3 5 7
BK
NR
BG
NR
97
E
PI41-28
PI41-17
PI41-18
PI41-19
PI41-24
98
E
FC117-8
FUEL INJECTORS IGNITION MODULES AND COILS
RW
2
NR
99
E
BR
100
NR
E
4
BO
101
6
PI38 -1 -2 PI39 -1 -2
NR
U
NR
E
102
E
UY
8
103
NR
E
1
PI2 -4 -2 -3 -13PI3 -4 -2 -3 -15PI4 -4 -2 -3 -17PI5 -4 -2 -3 -1
GUGBB
RWYYBBRWYRYBBRWGRGBBRW
RW
RW
2
PI6 -4 -2 -3 -1
GWYBB
RW
RW
118
RW
E
PIS8
RW
RW
RW
RW
RW
PIS9
U
BG
OY
WU
WG
YG
FH3-1
FHS6
FHS7
FC10-13PI41-25
FC10-12
U
BG
OY
WG
YG
YG
30
II
WG
U
OY
WU
FH110 -3 -2 -1 CA36 -2 -1
BG
WG
4
PI7 -4 -2 -3 -16PI8 -4 -2 -3 -1
GWGBB
RW
RWGRGBBRW
PIS10
KB
FUEL PUMP 1
B
FUEL TANK
IGNITION
CAPACITOR
PI54-1PI54
-4 -2 -3 -1
PI9
YRYBB
8
RW
B
B
B
B
B
PIS31
B
B
B
R
FP4-2
Y
FP4-4
NOTE: The ECM communicates (CAN / SCP)
with the RECM for Fuel Pump diagnostics.
FP2-4
FP2-1
B
B
PI51
-2
PI41-26
PI42-1
WR
PI41
AIR CONDITIONING
COMPRESSOR CLUTCH
RELA Y
4
R8
5
RG
BG
PI41-37
-36
FRONT POWER DISTRIBUTION FUSE BOX
BG
2
RG
PI49-1
AIR CONDITIONING
COMPRESSOR CLUTCH
COOLING FAN
O
FAN
O
FH95
FH1-15
CA156
WU
FH108-1
B
FH109-2
WR
CA103-19
R
CA101-11
Y
CA101-12
B
B
CA101-02
GR
CA101-01
I
P
COOLING FAN
MODULE
I
O
O
B
REAR ELECTRONIC
CONTROL MODULE
FUEL PUMP
4
5
O
F47 15A
2
B
PI49-2
B
B
B
B
S
S
RELA Y
R15
3
1
CA101-3
CA100-8
CA102-1
CA102-2
3
1
Y
WG
B
PI41-42
FH108-2
FH109-1
VIA
INERTIA SWITCH
NG
GU
WG
NG
N
GU
Y
U
(FH22)
28
71
91
E
B
FH42
93
57
87
31
20.2
20.2
E
II
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
AIR CONDITIONING
PRESSURE SENSOR
I
O
Output
B
+
P
Power Ground
BRAKE
CANCEL
SWITCH
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
GU
CA156
34
II
FUEL PUMP DIODE (2)
REAR POWER DISTRIBUTION FUSE BOX
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
D
Serial and Encoded Data
C
S
V8 N/A Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
Engine Control Module
Pin Description and Characteristic
O PI1-1 HO2 SENSOR HEATER CONTROL – 1/1: PWM, 1 CYCLE PER 128 mS, VARIABLE DUTY CYCLE
O PI1-2 HO2 SENSOR HEATER CONTROL – 1/1: PWM, 1 CYCLE PER 128 mS, VARIABLE DUTY CYCLE
PG PI1-4 POWER GROUND 1: GROUND
PG PI1-5 POWER GROUND 2: GROUND
I PI1-6 ENGINE CRANK: B+
I PI1-7 IGNITION ON: B+
I PI1-8 BRAKE ON / OFF SWITCH: NORMALLY OPEN / B+ WHEN ACTIVATED
IPI1-10 INERTIA SWITCH: NORMALLY CLOSED / OPEN CIRCUIT WHEN ACTIVATED
SS PI1-12 SENSOR POWER SUPPLY 1: NOMINAL 5 V
SS PI1-13 SENSOR POWER SUPPLY 2: NOMINAL 5 V
SG PI1-17 SMALL SIGNAL GROUND 1: GROUND
SG PI1-18 SMALL SIGNAL GROUND 2: GROUND
SG PI1-19 SENSOR GROUND 1: GROUND
SG PI1-20 SENSOR GROUND 2: GROUND
B+ PI1-22 BATTERY POWER SUPPLY: B+
B+ PI1-23 EMS SWITCHED POWER SUPPLY 1: B+
B+ PI1-24 EMS SWITCHED POWER SUPPLY 2: B+
SG PI1-29 HO2 SENSOR HEATER GROUND – 1/1: GROUND
SG PI1-30 HO2 SENSOR HEATER GROUND – 1/1: GROUND
IPI1-31 AUTOMATIC – PARK / NEUTRAL SIGNAL: B+ WHEN ACTIVATED
IPI1-36 CRANKSHAFT SENSOR SIGNAL: PULSED SIGNAL, 70 PULSES PER ENGINE CYCLE
SG PI1-37 CRANKSHAFT SENSOR SIGNAL GROUND: GROUND
OPI1-40 EMS CONTROL RELAY DRIVE: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-41 STARTER RELAY DRIVE: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
SG PI1-43 TP AND APP SIGNALS SHIELD: GROUND
IPI1-44 MASS AIR FLOW SENSOR SIGNAL: NOMINAL 0 – 5 V BY ENGINE OPERATING CONDITION
SG PI1-45 MASS AIR FLOW SENSOR GROUND: GROUND
SG PI1-46 MASS AIR FLOW SENSOR GROUND: GROUND
IPI1-50 ENGINE FUEL TEMPERATURE SENSOR SIGNAL, NOMINAL 0 – 5 V: NTC SENSOR – VOLTAGE DECREASES AS TEMPERATURE INCREASES
OPI1-52 THROTTLE MOTOR RELAY DRIVE: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
SG PI1-54 THROTTLE MOTOR GROUND: GROUND
OPI1-55 HO2 SENSOR HEATER CONTROL – 2/1: PWM, 1 CYCLE PER 128 mS, VARIABLE DUTY CYCLE
OPI1-56 HO2 SENSOR HEATER CONTROL – 2/1: PWM, 1 CYCLE PER 128 mS, VARIABLE DUTY CYCLE
OPI1-57 EGR DRIVE 1: B+; EGR DRIVE 1, 2 , 3 AND 4 ARE OPERATED IN TURN
OPI1-58 EGR DRIVE 2: B+; EGR DRIVE 1, 2 , 3 AND 4 ARE OPERATED IN TURN
OPI1-59 EGR DRIVE 3: B+; EGR DRIVE 1, 2 , 3 AND 4 ARE OPERATED IN TURN
OPI1-60 EGR DRIVE 4: B+; EGR DRIVE 1, 2 , 3 AND 4 ARE OPERATED IN TURN
OPI1-66 EVAP CANISTER PURGE VALVE DRIVE: PWM, 10 Hz, POSITIVE DUTY CYCLE RANGE 7% – 100%
OPI1-67 EVAP CANISTER CLOSE VALVE DRIVE: TO CLOSE, ECM SWITCHES CIRCUIT TO GROUND
IPI1-68 BANK 2 CAMSHAFT SENSOR SIGNAL: PULSED SIGNAL, 4 PULSES PER ENGINE CYCLE
SG PI1-69 BANK 2 CAMSHAFT SENSOR GROUND: GROUND
IPI1-70 ENGINE COOLANT TEMPERATURE SENSOR SIGNAL, NOMINAL 0 – 5 V: NTC SENSOR – VOLTAGE DECREASES AS TEMPERATURE INCREASES
IPI1-71 INTAKE AIR TEMPERATURE SENSOR SIGNAL, NOMINAL 0 – 5 V: NTC SENSOR – VOLTAGE DECREASES AS TEMPERATURE INCREASES
IPI1-72 INTAKE AIR TEMPERATURE SENSOR 2 SIGNAL, NOMINAL 0 – 5 V: NTC SENSOR – VOLTAGE DECREASES AS TEMPERATURE INCREASES
IPI1-73 INJECTION PRESSURE SENSOR SIGNAL, NOMINAL 0 – 5 V: POTENTIOMETER – VOLTAGE INCREASES AS PRESSURE INCREASES
IPI1-75 THROTTLE POSITION SENSOR 1 SIGNAL: IDLE = 0.60 V; FULL THROTTLE = 4.30 V
IPI1-76 THROTTLE POSITION SENSOR 2 SIGNAL: IDLE = 1.48 V; FULL THROTTLE = 4.40 V
IPI1-78 ENGINE OIL TEMPERATURE SENSOR SIGNAL, NOMINAL 0 – 5 V: NTC SENSOR – VOLTAGE DECREASES AS TEMPERATURE INCREASES
IPI1-79 GENERATOR FAULT; CHARGE WARNING
OPI1-80 THROTTLE MOTOR DRIVE: B+ TO ACTIVATE MOTOR
SG PI1-81 HO2 SENSOR HEATER GROUND – 2/1: GROUND
SG PI1-82 HO2 SENSOR HEATER GROUND – 2/1: GROUND
IPI1-83 HO2 SENSOR 1/1 SIGNAL: VARIABLE CURRENT
IPI1-84 HO2 SENSOR 1/1 SIGNAL: CONSTANT CURRENT
SG PI1-91 HO2 SENSOR HEATERS 1/2, 2/2 GROUND: GROUND
OPI1-92 HO2 SENSOR HEATER CONTROL – 1/2: PWM, 1 CYCLE PER 256 mS, POSITIVE DUTY CYCLE RANGE 0 mS = 0%, 77 mS = 30%, 256 mS = 100%
OPI1-93 HO2 SENSOR HEATER CONTROL – 2/2: PWM, 1 CYCLE PER 256 mS, POSITIVE DUTY CYCLE RANGE 0 mS = 0%, 77 mS = 30%, 256 mS = 100%
IPI1-94 BANK 1 CAMSHAFT SENSOR SIGNAL: PULSED SIGNAL, 4 PULSES PER ENGINE CYCLE
SG PI1-95 BANK 1 CAMSHAFT SENSOR GROUND: GROUND
IPI1-98 BANK 1 KNOCK SENSOR SIGNAL: VARIABLE VOLTAGE DEPENDENT ON ENGINE VIBRATION
IPI1-99 BANK 2 KNOCK SENSOR SIGNAL: VARIABLE VOLTAGE DEPENDENT ON ENGINE VIBRATION
SG PI1-100 SENSOR SHIELD: GROUND
IPI1-102 ACCELERATOR PEDAL POSITION SENSOR 1 SIGNAL: FOOT OFF = 0.75 V; FULLY DEPRESSED = 3.40 V (AUTO) 3.20 (MAN)
IPI1-103 ACCELERATOR PEDAL POSITION SENSOR 2 SIGNAL: FOOT OFF = 3.38 V; FULLY DEPRESSED = 2.05 V (AUTO) 2.14 V (MAN)
IPI1-104 FUEL TANK PRESSURE SENSOR SIGNAL, NOMINAL 0 – 5 V: VOLTAGE INCREASES AS PRESSURE INCREASES
DPI1-105 SERIAL DATA LINK: SERIAL COMMUNICATION
OPI1-106 THROTTLE MOTOR DRIVE: B+ TO ACTIVATE MOTOR
IPI1-107 HO2 SENSOR 2/1 SIGNAL: VARIABLE CURRENT
IPI1-108 HO2 SENSOR 2/1 SIGNAL: CONSTANT CURRENT
SG PI1-111 FUEL INJECTORS 2, 3, 5, 8 GROUND: GROUND
SG PI1-116 FUEL INJECTORS 1, 4, 6, 7 GROUND: GROUND
CPI1-123 CAN -
CPI1-124 CAN +
IPI1-127 MAP SENSOR SIGNAL, NOMINAL 0 – 5 V: VOLTAGE INCREASES AS MANIFOLD ABSOLUTE PRESSURE INCREASES
IPI1-128 HO2 SENSOR 1/2 SIGNAL, NOMINAL 1 V SWING: 0.1 – 0.9 V SWING
IPI1-129 HO2 SENSOR 2/2 SIGNAL, NOMINAL 1 V SWING: 0.1 – 0.9 V SWING
SG PI1-130 HO2 SENSORS SHIELD: GROUND
B+ PI1-134 THROTTLE MOTOR POWER SUPPLY: B+ WHEN RELAY ACTIVATED
MANUAL, ROW – PARK / NEUTRAL SIGNAL: B+ WHEN IGNITION CRANK (III)
MANUAL, NAS – CLUTCH PEDAL SAFETY SWITCH (PARK / NEUTRAL SIGNAL): B+ WHEN ACTIVATED
Fig. 03.5
COMPONENTS
Component Connector(s) Connector Description Location
APP SENSOR CA88 6-WAY / BLACK TOP OF ACCELERATOR PEDAL
BRAKE ON / OFF SWITCH CA37 2-WAY / GREEN TOP OF BRAKE PEDAL
CKP SENSOR (V8) PI21 2-WAY / BLACK ENGINE UNDER SIDE, FORWARD OF BELL HOUSING
CMP SENSOR 1 (V8) PI23 2-WAY / BLACK BANK 1 (RH) CAMSHAFT COVER, FRONT
CMP SENSOR 2 (V8) PI22 2-WAY / BLACK BANK 2 (LH) CAMSHAFT COVER, FRONT
ECT SENSOR PI25 2-WAY / BLACK ENGINE VEE, COOLANT OUTLET CASTING
EFT SENSOR (V8) PI27 2-WAY / BLACK FUEL RAIL, RH REAR
EGR VALVE (V8 SC) PI15 6-WAY / BLACK INTAKE MANIFOLD, REAR
ENGINE CONTROL MODULE PI1 134-WAY / BLACK FRONT BULKHEAD, PASSENGER SIDE
EOT SENSOR PI24 2-WAY / BLACK ADJACENT TO OIL FILTER
EVAP CANISTER CLOSE VALVE CA270 2-WAY / BLACK ABOVE REAR AXLE (FUEL TANK COMPONENTS)
EVAP CANISTER PURGE VALVE FH111 2-WAY / BLACK ENGINE COMPARTMENT, LH SIDE,
FRONT POWER DISTRIBUTION FUSE BOX — — ENGINE COMPARTMENT, RH SIDE
FTP SENSOR FP1 3-WAY / BLACK FUEL TANK PIPING, LH SIDE (UNDER ACCESS PLATE)
HO2 SENSOR DOWNSTREAM 1/2 PI11 4-WAY / BLACK RH EXHAUST, TOP OF CATALYST
HO2 SENSOR DOWNSTREAM 2/2 PI13 4-WAY / BLACK LH EXHAUST, TOP OF CATALYST
HO2 SENSOR UPSTREAM 1/1 PI10 4-WAY / BLACK RH EXHAUST, CATALYST CENTER
HO2 SENSOR UPSTREAM 2/1 PI12 4-WAY / BLACK RH EXHAUST, CATALYST CENTER
IAT SENSOR 2 PI43 2-WAY / BLACK INTAKE MANIFOLD, RH SIDE, REAR
IP SENSOR (V8 S/C) PI28 3-WAY / BLACK FUEL RAIL, LH REAR
KNOCK SENSOR 1 (V8) PI20 2-WAY / BLACK ENGINE VEE, BANK 1
KNOCK SENSOR 2 (V8) PI19 2-WAY / BLACK ENGINE VEE, BANK 2
MAF SENSOR PI14 5-WAY / BLACK ENGINE AIR INTAKE, ADJACENT TO AIR CLEANER
MAP SENSOR (V8 SC) PI29 4-WAY / BLACK INTAKE MANIFOLD, REAR, BELOW THROTTLE ASSEMBLY
THROTTLE MOTOR (V8 SC) PI18 2-WAY / BLACK ENGINE AIR INTAKE, REAR
THROTTLE MOTOR RELAY — — FRONT POWER DISTRIBUTION FUSE BOX – R4
TP SENSOR PI26 4-WAY / BLACK THROTTLE BODY, THROTTLE SHAFT
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
FC12 14-WAY / GREY / FASCIA HARNESS TO FRONT HARNESS BEHIND INSTRUMENT PANEL, PASSENGER SIDE
FC26 16-WAY / BLUE / CABIN HARNESS TO FASCIA HARNESS BEHIND INSTRUMENT PANEL, DRIVER SIDE
FH1 20-WAY / BLACK / CABIN HARNESS TO FRONT HARNESS RH ‘A’ POST, LOWER
FH3 16-WAY / BLUE / CABIN HARNESS TO FRONT HARNESS LH ‘A’ POST
FP2 8-WAY / BLACK / CABIN HARNESS TO FUEL PUMP HARNESS TOP OF FUEL TANK, RH SIDE
PI41 42-WAY / BLACK / ENGINE HARNESS TO VEHICLE HARNESSES ENGINE COMPARTMENT, BULKHEAD, PASSENGER SIDE
GROUNDS
Ground Location
PI40 (LHD) ENGINE COMPARTMENT, BEHIND RH WHEEL ARCH LINER
PI40 (RHD) ENGINE COMPARTMENT, BEHIND LH WHEEL ARCH LINER
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
ADJACENT TO SUSPENSION TURRET
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Engine Management: V8 SC – Part 1
Engine Management: V8 SC – Part 1
Fig. 03.5
VIA INERTIA SWITCH
ENGINE CRANK
EMS CONTROL RELAY
GENERATOR:
STARTER RELAY DRIVE
PARK; NEUTRAL
4
5
NR
2
F18 20A
GR
04.1
48
111
YR
GR
E
FAULT; CHARGE WARNING
(CIRCUIT CONTINUED)
SERIAL COMMUNICATION
THROTTLE MOTOR
RELAY
R4
3
1
FRONT POWER DISTRIBUTION FUSE BOX
PIS29
PIS30
BB
PI40BR PI40AL
PIS28
PI40AR
73
94
E
95
E
29
II
32
II
02.2
01.7
02.2
02.2
02.2
20.1
20.1
20.2
B
GU
NR
WG
WG
GO
GU
Y
BW
YR
GO
GR
Y
G
W
PI41-38
PI41-39
B
B
B
B
B
B
B
B
B
B
B
B
PI1-022
PI1-023
PI1-024
PI1-007
PI1-010
PI1-006
PI1-040
PI1-079
PI1-041
PI1-031
PI1-124
PI1-123
PI1-105
GU
PI1-134
GR
PI1-052
PI1-017
PI1-018
PI1-005
PI1-029
PI1-054
PI1-091
PI1-004
PI1-030
PI1-111
PI1-116
PI1-081
PI1-082
(CONTINUED Fig. 03.6)
B
I
I
O
O
I
I
O
O
I
O
I
O
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
O
O
I
I
O
O
O
O
I
O
O
I
MODULE
PI1-083
PI1-084
PI1-001
PI1-002
PI1-107
PI1-108
PI1-055
PI1-056
PI1-130
PI1-128
PI1-092
PI1-129
PI1-093
PI1-037
PI1-036
PI1-094
PI1-095
PI1-100
PI1-068
PI1-069
PI1-098
PI1-099
PI1-044
PI1-045
PI1-046
PI1-071
PI1-070
PI1-019
PI1-078
PI1-073
PI1-050
PI1-012
PI1-127
PI1-104
PI1-103
PI1-102
PI1-020
PI1-013
PI1-043
PI1-080
PI1-106
PI1-076
PI1-075
PI1-057
PI1-058
PI1-059
PI1-060
PI1-008
PI1-067
PI1-066
PI1-072
B
B
I
I
I
O
I
O
I
+
C
–
C
D
B
O
P
P
ENGINE CONTROL
HO2 SENSORS
UPSTREAM
U U
PI10 PI12-3 -4 -1-2 -3 -4 -1-2
R
Y
RU
WG
113
E
R
Y
RU
PIS11
RU
B
G
N
RW
PIS13
RW
BW
N
UY
N
RW
B
O
Y
R
BG
N
G
N
N
GW
BK
BK
U
UY
BG
Y
U
YR
OY
BK
RG
O
B
BG
Y
GW
RW
Y
R
YU
YG
YR
YU
GO
O
UY
YU
PI41-29
PI41-10
YU
PI43 -1 -2
υ
IAT
SENSOR 2
2/11/1
G
N
RW
115
BB
PIS12
BBG
GO GO
FH1-9PI41-23
O
FH1-7
BG
UY
EVAP
CANISTER
PURGE VALVE
HO2 SENSORS
DOWNSTREAM
2/21/2
λλ
PI11 PI13-4 -3 -1-2 -4 -3 -1-2
WR
N
B
UY
WG
N
E
PI41-12
87
E
GU
PI41-8
PI41-7
PI41-3
PI41-6
114
E
B
O
B
BG
Y
B
CAS22
88
E
GU
O
CA270 -2 -1FH111 -2 -1
EVAP
CANISTER
CLOSE VALVE *
CA37 -2 -1
ON / OFF
B
RW
90
NR
GO
BRAKE
SWITCH
CKP
SENSOR
116
WR
E
PI21
-1
B
PI21
PI23
PI23
-2
-2
O
Y
BG BG
BG BG
PIS19
FC12-3
FC12-4
B
FC12-10
NOTES:
* EVAP Canister Close Valve and
Fuel Tank Pressure Sensor – NAS
vehicles only.
Shielding shown as dashed lines are
braided wires.
BRD
CMP
SENSORS
21
PI22
-1
-1
R
O
B
BG
Y
B
N
PI22
-2
STEPPER
MOTOR
PI20 -1
G
PI15
KNOCK
SENSORS
1 2
-2
B
N
BG
YU
YR
PI15
-6
-3
EGR VALVE
MAF
SENSOR
IATS
υ
PI14 -1 -3 -2 PI25 -2 -1-5-4
PI19 -1
-2
B
N
BB
YG
PI15
PI15
-1
GW
BKUBG
GU
89
E
PIS25
FC26-5
FC26-6
FC26-13FC12-5
FC26-15FC12-6
FC26-7
92
E90E
YU
-4
PI15
GU
GU
PI15
-2
-5
PI26
-1
1234
ECT
SENSOR
SENSORIPSENSOR
υ
PI24 -1 -2
UY
BG
BG
PIS47
BG
R
PI26-3PI26-2PI26
TP1
TP2
TP SENSOR
THROTTLE BODY
EOT
υ
Y
BG
BG
Y
PI28 -3 -2 -1
BG
U
PIS48
PIS49
OY
PI18
-2
-4
THROTTLE
BG
PIS41
OY
PIS40
RW
PI18
-1
MOTOR
EFT
SENSOR
υ
PI27 -1 -2 FP1 -3 -1-2PI29 -2 -1 -4
OY
GW
BG
PI41-17
OY OY
PI41-18
CA88
YR
Y
-5
MAP
SENSOR
OYBKBG
SENSOR *
FP2
-2
FH3
-13
FP2
BG
FH3
-12
FTP
-3
RG
RGRG
FP2
OY
FH3
-11
-6
OYOY
BG BG
PI41
-14
BG
FHS6
FHS7
OY
BG
FC12
FC26
BG
B
CA88-3CA88-4CA88-2CA88-6CA88
FC12
-9
-2
OY
BG
FC26
-8
-16
OY
BG
CAS81CAS82
OY
BG
APP1 APP2
APP SENSOR
O
-1
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
I
O
Output
B
+
P
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
D
Serial and Encoded Data
C
S
V8 SC Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
Engine Control Module
Pin Description and Characteristic
I PI1-9 BRAKE CANCEL SWITCH: NORMALLY CLOSED / GROUND WHEN ACTIVATED
IPI1-11 FUEL PUMP 2 MODULE MONITOR: 1Hz FREQUENCY; 50% DUTY CYCLE = OK, 25% OR 75% DUTY CYCLE = FAULT
SS PI1-12 SENSOR POWER SUPPLY 1: NOMINAL 5 V
OPI1-14 AIR CLEANER SOLENOID VALVE DRIVE: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
SG PI1-19 SENSOR GROUND 1: GROUND
OPI1-27 FUEL PUMP DRIVE SIGNAL (TO RECM): PWM, 150 Hz, NORMAL POSITIVE DUTY CYCLE RANGE = 4% – 51%
OPI1-34 AIR CONDITIONING COMPRESSOR CLUTCH RELAY DRIVE: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
SS PI1-47 SPEED CONTROL SWITCH REQUEST: STEPPED RESISTANCE
IPI1-48 SPEED CONTROL SWITCHES SIGNAL GROUND: GROUND
OPI1-51 COOLING FAN MODULE CONTROL: PWM, 140Hz, POSITIVE DUTY CYCLE RANGE 7% – 95%
OPI1-53 FUEL PUMP 2 DRIVE (TO FUEL PUMP 2 MODULE): PWM, 150 Hz, NORMAL POSITIVE DUTY CYCLE RANGE = 4% – 51%
OPI1-61 IGNITION COIL ACTIVATE – CYLINDER 2: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-62 IGNITION COIL ACTIVATE – CYLINDER 4: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-63 IGNITION COIL ACTIVATE – CYLINDER 6: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-64 IGNITION COIL ACTIVATE – CYLINDER 8: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-87 IGNITION COIL ACTIVATE – CYLINDER 1: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-88 IGNITION COIL ACTIVATE – CYLINDER 3: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-89 IGNITION COIL ACTIVATE – CYLINDER 5: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-90 IGNITION COIL ACTIVATE – CYLINDER 7: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-112 FUEL INJECTOR DRIVE – CYLINDER 8: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-113 FUEL INJECTOR DRIVE – CYLINDER 5: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-114 FUEL INJECTOR DRIVE – CYLINDER 3: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-115 FUEL INJECTOR DRIVE – CYLINDER 2: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-117 FUEL INJECTOR DRIVE – CYLINDER 7: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-118 FUEL INJECTOR DRIVE – CYLINDER 6: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-119 FUEL INJECTOR DRIVE – CYLINDER 4: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
OPI1-120 FUEL INJECTOR DRIVE – CYLINDER 1: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
IPI1-121 AIR CONDITIONING PRESSURE SENSOR SIGNAL, NOMINAL 0 – 5 V: TRANSDUCER – VOLTAGE INCREASES AS PRESSURE INCREASES
IPI1-131 IGNITION MONITOR BANK 1: PULSED SIGNAL, 3 PULSES PER ENGINE CYCLE
IPI1-132 IGNITION MONITOR BANK 2: PULSED SIGNAL, 3 PULSES PER ENGINE CYCLE
Rear Control Module
Pin Description and Characteristic
B+ CA100-8 IGNITION SWITCHED POWER SUPPLY (II): B+
B+ CA101-1 FUEL PUMP POWER SUPPLY: B+ WHEN FUEL PUMP RELAY IS ACTIVATED
SG CA101-2 LOGIC GROUND / FUEL PUMP DRIVE SHIELD: GROUND
B+ CA101-3 BATTERY POWER SUPPLY: B+
O CA101-11 FUEL PUMP SUPPLY VOLTAGE: B+
O CA101-12 FUEL PUMP ACTIVATE: GROUND (PWM)
SCA102-1 SCP +
SCA102-2 SCP -
I CA103-19 FUEL PUMP DRIVE SIGNAL: PWM, 150 Hz, NORMAL POSITIVE DUTY CYCLE RANGE = 4% – 51%
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
Fig. 03.6
COMPONENTS
Component Connector(s) Connector Description Location
AIR CLEANER SOLENOID VALVE FH10 2-WAY / BLACK AIR CLEANER HOUSING
AIR CONDITIONING COMPRESSOR CLUTCH PI49 2-WAY / BLACK LOWER LH SIDE OF ENGINE
AIR CONDITIONING COMPRESSOR CLUTCH RELAY — — FRONT POWER DISTRIBUTION FUSE BOX – R8
AIR CONDITIONING PRESSURE SENSOR FH110 4-WAY / BLACK ENGINE COMPARTMENT, LH SIDE, HIGH PRESSURE
BRAKE CANCEL SWITCH CA36 2-WAY / GREY TOP OF BRAKE PEDAL
COOLING FAN MODULE FH108 2-WAY / BLACK ENGINE COMPARTMENT, RH FRONT, REARWARD OF RADIATOR
ENGINE CONTROL MODULE PI1 134-WAY / BLACK FRONT BULKHEAD, PASSENGER SIDE
FRONT POWER DISTRIBUTION FUSE BOX — — ENGINE COMPARTMENT, RH SIDE
FUEL INJECTOR 1 (V8 SC) IS1 2-WAY / BLACK FUEL RAIL / INTAKE MANIFOLD
FUEL INJECTOR 2 (V8 SC) IS7 2-WAY / BLACK FUEL RAIL / INTAKE MANIFOLD
FUEL INJECTOR 3 (V8 SC) IS2 2-WAY / BLACK FUEL RAIL / INTAKE MANIFOLD
FUEL INJECTOR 4 (V8 SC) IS8 2-WAY / BLACK FUEL RAIL / INTAKE MANIFOLD
FUEL INJECTOR 5 (V8 SC) IS3 2-WAY / BLACK FUEL RAIL / INTAKE MANIFOLD
FUEL INJECTOR 6 (V8 SC) IS9 2-WAY / BLACK FUEL RAIL / INTAKE MANIFOLD
FUEL INJECTOR 7 (V8 SC) IS4 2-WAY / BLACK FUEL RAIL / INTAKE MANIFOLD
FUEL INJECTOR 8 (V8 SC) IS10 2-WAY / BLACK FUEL RAIL / INTAKE MANIFOLD
FUEL PUMP 1 FP2 8-WAY / BLACK FUEL TANK, RH SIDE
FUEL PUMP 2 FP2 8-WAY / BLACK FUEL TANK, LH SIDE
FUEL PUMP 2 MODULE CA283 10-WAY / BLACK LUGGAGE COMPARTMENT, RH REAR
FUEL PUMP RELAY — — REAR POWER DISTRIBUTION FUSE BOX – R15
IGNITION CAPACITOR PI54 2-WAY / BLACK LH CYLINDER HEAD, REAR
IGNITION MODULE AND COIL 1 PI2 4-WAY / BLACK RH CYLINDER HEAD
IGNITION MODULE AND COIL 2 PI6 4-WAY / BLACK LH CYLINDER HEAD
IGNITION MODULE AND COIL 3 PI3 4-WAY / BLACK RH CYLINDER HEAD
IGNITION MODULE AND COIL 4 PI7 4-WAY / BLACK LH CYLINDER HEAD
IGNITION MODULE AND COIL 5 PI4 4-WAY / BLACK RH CYLINDER HEAD
IGNITION MODULE AND COIL 6 PI8 4-WAY / BLACK LH CYLINDER HEAD
IGNITION MODULE AND COIL 7 PI5 4-WAY / BLACK RH CYLINDER HEAD
IGNITION MODULE AND COIL 8 PI9 4-WAY / BLACK LH CYLINDER HEAD
INTERCOOLER PUMP CP2 2-WAY / BLACK ENGINE COMPARTMENT, RH SIDE, ADJACENT TO RADIATOR
REAR ELECTRONIC CONTROL MODULE CA63 17-WAY / BLACK LUGGAGE COMPARTMENT, RH REAR
REAR POWER DISTRIBUTION FUSE BOX — — LUGGAGE COMPARTMENT
STEERING WHEEL SPEED CONTROL SWITCHES SQ2 6-WAY / BLACK STEERING WHEEL
FH109 2-WAY / BLACK
FP4 4-WAY / BLACK
FP3 4-WAY / BLACK
CA100 12-WAY / BLACK
CA101 20-WAY / BLACK
CA102 22-WAY / BLACK
CA103 26-WAY / NATURAL
REFRIGERANT LINE, BETWEEN COMPRESSOR AND CONDENSER
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
CP1 10-WAY / BLACK / INTERCOOLER PUMP LINK LEAD ENGINE COMPARTMENT, RH FRONT, ADJACENT TO RADIATOR
FC10 14-WAY / GREEN / FASCIA HARNESS TO FRONT HARNESS BEHIND INSTRUMENT PANEL, RH SIDE
FC117 10-WAY / BLACK / STEERING WHEEL CASSETTE STEERING COLUMN
FH1 20-WAY / BLACK / CABIN HARNESS TO FRONT HARNESS RH ‘A’ POST, LOWER
FH2 16-WAY / GREY / CABIN HARNESS TO FRONT HARNESS RH ‘A’ POST, LOWER
FH3 16-WAY / BLUE / CABIN HARNESS TO FRONT HARNESS LH ‘A’ POST
IS5 6-WAY / BLACK / ENGINE HARNESS TO FUEL INJECTOR LINK ENGINE, LH REAR
IS6 6-WAY / BLACK / ENGINE HARNESS TO FUEL INJECTOR LINK ENGINE, RH REAR
PI41 42-WAY / BLACK / ENGINE HARNESS TO VEHICLE HARNESSES ENGINE COMPARTMENT, BULKHEAD, PASSENGER SIDE
PI42 8-WAY / BLACK / ENGINE HARNESS TO FRONT HARNESS ENGINE COMPARTMENT, BULKHEAD, PASSENGER SIDE
GROUNDS
Ground Location
CA156 LUGGAGE COMPARTMENT, RH SIDE
FH22 ENGINE COMPARTMENT, BEHIND LH HEADLAMP
FH42 ENGINE COMPARTMENT, BEHIND RH HEADLAMP
FH95 ENGINE COMPARTMENT, BEHIND LH HEADLAMP (RADIATOR FAN GROUND)
PI51 ENGINE COMPARTMENT, ENGINE BLOCK
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Engine Management: V8 SC – Part 2
Engine Management: V8 SC – Part 2

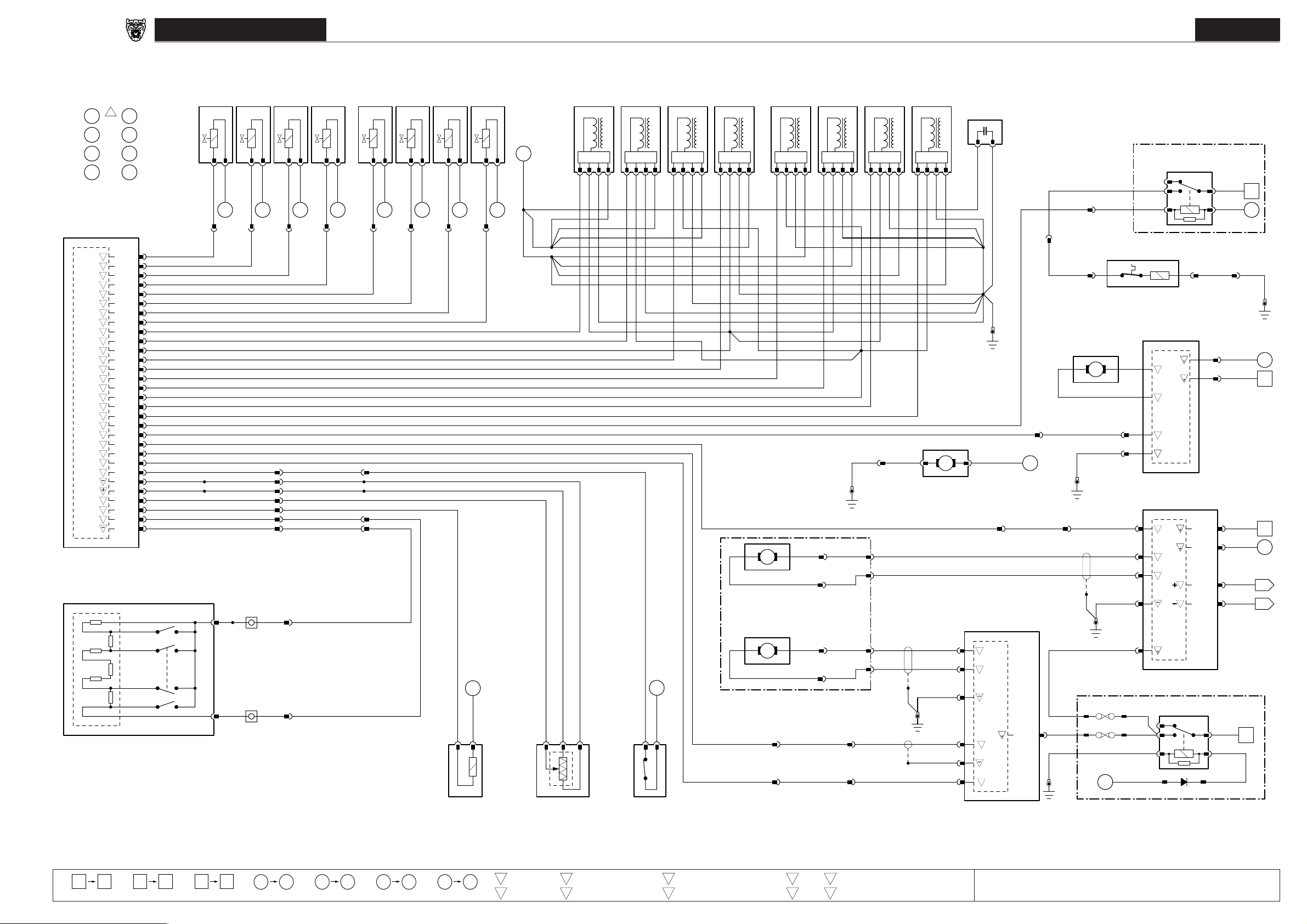

Fig. 03.6
FRONT OF
ENGINE
2
4
6
1
3
5
8 7
CYLINDER NUMBERING
O
PI1-120
O
PI1-114
O
PI1-113
O
PI1-117
O
PI1-115
O
PI1-119
O
PI1-118
O
PI1-112
O
PI1-087
O
PI1-088
I
PI1-131
O
PI1-089
O
PI1-090
O
PI1-061
O
PI1-062
I
PI1-132
O
PI1-063
O
PI1-064
O
PI1-034
O
PI1-051
O
PI1-027
O
PI1-053
I
PI1-011
I
PI1-009
PI1-019
PI1-012
I
PI1-121
O
PI1-014
I
PI1-047
PI1-048
ENGINE CONTROL
MODULE
(CONTINUED FROM Fig. 03.5)
BG
BK
BG
BW
BR
BO
U
UY
GU
Y
GB
YR
GR
GW
GW
YB
GR
YR
BG
WU
WR
WU
Y
U
BG
OY
WU
U
WG
YG
1
IS1 -1 -2 IS2 -1 -2 IS3 -1 -2 IS4 -1 -2 IS7 -1 -2 IS8 -1 -2
BG
NR
104
E
IS5
-2
PIS21
PIS22
BG
OY
WU
NOTE: ECM power supplies and grounds shown on Fig. 03.5.
2.2κ Ω
1κ Ω
510 Ω
300 Ω
180 Ω
120 Ω
RESISTOR PACK
RESUME
SET +
SET –
CANCEL
SQ2-3 FC117-6
SQ2-1
STEERING WHEEL SPEED CONTROL SWITCHES
NOTE: Vehicles with Adaptive Speed Control –
refer to Speed Control Switches Fig. 05.3.
3 5 7
BK
NR
BG
105
E
IS5
-3
CASSETTE
CASSETTE
PI41-28
PI41-17
PI41-18
PI41-19
PI42-7
PI41-24
IS5
-4
FC117-8
FUEL INJECTORS IGNITION MODULES AND COILS
1
PI2 -4 -2-3-13PI3 -4 -2-3-15PI4 -4 -2-3-17PI5 -4 -2-3-1
GUGBB
RWYYBBRWYRYBBRWGRGBBRW
RW
RW
RW
RW
RW
RW
RW
106
NR
E
2
BW
NR
107
E
IS5
-5
BG
108
IS6
-2
NR
E
4
BK
109
IS6
-3
6
IS9 -1 -2 IS10 -1 -2
NR
BG
E
110
E
IS6
-4
NR
8
118
E
BW
NR
RW
112
E
IS6
-5
RW
PIS44
RW
PIS46
PIS45
RW
RW
PIS9
U
BG
OY
WU
FH3-1
FHS6
FHS7
U
BG
OY
U
WG
YG
FC10-13PI41-25
FC10-12
WG
YG
FUEL PUMP 1
YG
FUEL PUMP 2
WG
86
U
FH10 -2 -1
E
GU
OY
WU
FH110 -3 -2 -1 CA36 -2 -1
BG
30
II
U
WG
WU
Y
AIR CLEANER
SOLENOID VALVE
AIR CONDITIONING
PRESSURE SENSOR
BRAKE
CANCEL
SWITCH
2
PI6 -4 -2-3-1
GWYBB
KB
B
KB
B
4
PI7 -4 -2-3-16PI8 -4 -2-3-1
GWGBB
RW
RWGRGBBRW
PIS10
FH42
R
FP4-2
Y
FP4-4
R
FP3-2
Y
FP3-4
FUEL TANK
WU
PI42-2 FH2-4 (LHD)
FH3-14 (RHD)
Y
PI42-3 FH2-5 (LHD)
FH3-15 (RHD)
8
-4 -2 -3 -1
PI9
YRYBB
RW
B
B
B
B
B
B
B
B
B
B
CP2-1 CP2-2
CP1-9
INTERCOOLER
PUMP
FP2-4
FP2-1
NOTE: The ECM communicates (CAN / SCP)
with the RECM for Fuel Pump 1 diagnostics.
R
FP2-7
CA283-10
Y
FP2-8
B
CA156
CA283-3
B
CA283-2
WU
CA283-1
B
CA283-4
Y
CA283-7
IGNITION
CAPACITOR
PI54-1PI54
-2
PIS42
B
B
PIS43
B
PI41-26
O
O
I
O
FUEL PUMP 2
MODULE
PI51
WG
AIR CONDITIONING
COMPRESSOR CLUTCH
RELAY
4
R8
5
RG
BG
2
PI41
BG
PI41-37
-36
FRONT POWER DISTRIBUTION FUSE BOX
RG
PI49-1
AIR CONDITIONING
COMPRESSOR CLUTCH
COOLING FAN
O
FAN
O
WU
PI42-1
FH108-1
B
117
WR
E
FH95
FH1-15
FH109-2
WR
CA103-19
R
CA101-11
Y
CA101-12
B
B
CA101-02
CA156
GR
CA101-01
B
CA283-9
UY
CA156
F47 15A
F49 15A
34
II
I
P
COOLING FAN
MODULE
I
O
O
B
REAR ELECTRONIC
CONTROL MODULE
FUEL PUMP
O
4
OY
5
2
B
GU
FUEL PUMP DIODE (2)
PI49-2
B
B
B
B
S
S
RELA Y
R15
3
1
CA101-3
CA100-8
CA102-1
CA102-2
3
1
Y
WG
B
PI41-42
FH108-2
FH109-1
VIA
INERTIA SWITCH
NG
GU
WG
NG
N
GU
Y
U
(FH22)
28
71
91
E
B
FH42
93
57
87
31
20.2
20.2
E
II
REAR POWER DISTRIBUTION FUSE BOX
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
I
O
Output
B
+
P
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
D
Serial and Encoded Data
C
S
V8 SC Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
Parking Brake Control Module
Pin Description and Characteristic
ICA242-3 IN-GEAR SWITCH (NORMALLY OPEN): OPEN CIRCUIT / GROUND
SS CA242-8 SIGNAL SUPPLY VOLTAGE: NOMINAL 5 V
SG CA242-9 SIGNAL GROUND: GROUND
I CA242-11 CLUTCH PEDAL POSITION SENSOR FEEDBACK SIGNAL: VARIABLE VOLTAGE
Engine Control Module
Pin Description and Characteristic
IPI1-31 AUTOMATIC – PARK / NEUTRAL SIGNAL: B+ WHEN ACTIVATED
IPI1-33 CLUTCH CANCEL SWITCH: NORMALLY CLOSED / GROUND WHEN ACTIVATED
MANUAL, ROW – PARK / NEUTRAL SIGNAL: B+ WHEN IGNITION CRANK (III)
MANUAL, NAS – CLUTCH PEDAL SAFETY SWITCH (PARK / NEUTRAL SIGNAL): B+ WHEN ACTIVATED
Transmission Control Module
Pin Description and Characteristic
C GB2-2 CAN C GB2-6 CAN +
B+ GB2-9 IGNITION SWITCHED POWER SUPPLY: B+
O GB2-10 PARK / NEUTRAL SIGNAL: GROUND WHEN ACTIVATED
PG GB2-13 POWER GROUND: GROUND
B+ GB2-14 BATTERY POWER SUPPLY: B+
PG GB2-16 POWER GROUND: GROUND
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
Fig. 04.1
COMPONENTS
Component Connector(s) Connector Description Location
CLUTCH CANCEL SWITCH CA285 (LHD) 2-WAY / BLACK TOP OF CLUTCH PEDAL (TOP SWITCH)
CLUTCH PEDAL POSITION SENSOR CA287 6-WAY / BLACK TOP OF CLUTCH PEDAL
CLUTCH PEDAL SAFETY SWITCH CA286 2-WAY / BLACK TOP OF CLUTCH PEDAL (BOTTOM SWITCH)
ENGINE CONTROL MODULE PI1 134-WAY / BLACK FRONT BULKHEAD, PASSENGER SIDE
IGNITION SWITCH FC18 7-WAY / BLACK STEERING COLUMN COWLING
J GATE MODULE CA245 16-WAY / BLACK J GATE ASSEMBLY
NEUTRAL SWITCH GB4 2-WAY / BLACK TRANSMISSION, LH REAR
PARKING BRAKE CONTROL MODULE CA241 4-WAY / BLACK LUGGAGE COMPARTMENT, RH REAR
REVERSE SWITCH GB5 2-WAY / BLACK TRANSMISSION, LH REAR
TRANSMISSION CAPACITOR (V6) GB17 2-WAY / BLACK ENGINE COMPARTMENT, BULKHEAD
TRANSMISSION CAPACITOR (V8) PI59 2-WAY / BLACK ENGINE COMPARTMENT, BULKHEAD
TRANSMISSION CONTROL MODULE GB2 16-WAY / BLACK TRANSMISSION CONTROL VALVE ASSEMBLY
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
FC26 16-WAY / BLUE / CABIN HARNESS TO FASCIA HARNESS BEHIND INSTRUMENT PANEL, DRIVER SIDE
FH1 20-WAY / BLACK / CABIN HARNESS TO FRONT HARNESS RH ‘A’ POST, LOWER
FH3 16-WAY / BLUE / CABIN HARNESS TO FRONT HARNESS LH ‘A’ POST
GB1 16-WAY / GREY / ENGINE HARNESS TO TRANSMISSION HARNESS ADJACENT TO TRANSMISSION BELL HOUSING
PI41 42-WAY / BLACK / ENGINE HARNESS TO VEHICLE HARNESSES ENGINE COMPARTMENT, BULKHEAD, PASSENGER SIDE
PI42 8-WAY / BLACK / ENGINE HARNESS TO FRONT HARNESS ENGINE COMPARTMENT, BULKHEAD, PASSENGER SIDE
GROUNDS
Ground Location
CA141 UNDER LH FRONT SEAT
PI40 (LHD) ENGINE COMPARTMENT, BEHIND RH WHEEL ARCH LINER
PI40 (RHD) ENGINE COMPARTMENT, BEHIND LH WHEEL ARCH LINER
CA291 (RHD) 5-WAY / BLACK
CA242 12-WAY / BLACK
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Transmissions
Transmissions
Fig. 04.1
GBS4
B
GO
GO
GR
GB1-6
NR
ECM: PARK, NEUTRAL
(CIRCUIT CONTINUED)
03.103.303.5 02.102.2
V6
74
V6
V8
NOTE: GB1-6 – V6 only.
NR NR
GB1-8
GB17-1
GB17-2
GR
18
II
19
II
NR
CAPACITOR (V6)
V8
PIS30
PI40AL
75
B
B
GB1-10
B
NR
GB1-9
PI59-1
PI59-2
PIS54
NR
B
B
GBS3
B
B
NR
CAPACITOR (V8)
B
PIS30
PIS53
B
B
B
PI40AL
AUTOMATIC TRANSMISSION
GB2-9
GB2-9
GB2-10
GB2-14
GB2-13
GB2-16
GB2-14
GB2-13
GB2-16
B
B
O
B
O
O
O
O
O
O
O
I
V6
P
P
B
P
P
TRANSMISSION
CONTROL MODULE
V8
I
I
I
I
I
I
C
+
C
–
GB2-6
GB2-2
SHIFT
SOLENOID
TCC
6
PRESSURE REGULATOR
SOLENOID
5
4
PRESSURE REGULATOR
3
SOLENOIDS
2
1
υ
FLUID TEMPERATURE
SENSOR
TURBINE
SPEED SENSOR
P
OUTPUT
SPEED SENSOR
R
N
P
R
N
GEAR POSITION
D
SWITCH
5
4
3
Y
G
20.1
20.1
CAN MESSAGES:
• GEAR SELECTOR
POSITIONS 2 3 4 5
• BRAKE ON / OFF
20.1
20.1
20.1
20.1
Y
CA245-9
G
CA245-10
Y
CA245-11
G
CA245-12
AUTOMATIC TRANSMISSION
D
2
3
4
5
C
+
C
–
C
+
C
–
J GATE ASSEMBLY
B
O
GEARSHIFT
INTERLOCK
SOLENOID
O
I
MODE
SWITCH
NOT-IN-PARK
SWITCH
P
CA245-1
CA245-3
CA245-4
CA245-2
GO
17
II
UY
Y
Y
Y
FC26-4
FCS25
Y
FC18-3
B
CA141
REFER TO APPENDIX
CAN
TCM / CAN MESSAGES
GEAR SELECTOR AND
09.2
MODE SWITCH ILLUMINATION
KEY-IN AUDIBLE WARNING
07.1
(CIRCUIT CONTINUED)
KEY LOCK
SOLENOID
IGNITION SWITCH
FC18-4
NR
7
MANUAL TRANSMISSION
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
I
I
ENGINE
CONTROL MODULE
15 45
II II
PI1-033
GR
GB1-6
WG
46 80
SS
GR
WG
FH3-2PI41-4
81 118
EE
Fig. 01.7
GR
PI42-8
91
WG
NR
CA291 -3 -1 (LHD)
CA285 -2 -1 (RHD)
CLUTCH CANCEL
SWITCH
I
O
Output
GR
FH3-10PI1-031 GB1-13
SAFETY SWITCH
B
+
Power Ground
92
GR
NR
CA286 -2 -1
CLUTCH PEDAL
(NAS ONLY)
CA287-3CA287
POSITION SENSOR *
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
CA287
-2
-1
CLUTCH PEDAL
PI40AL
PI40AL
B
B
PIS30
GB1-9
B
GB5-1
REVERSE SWITCH
GB5-2
GB
08.3
REVERSE LAMPS
YR
GB
CA242-8
FH1-2
CA242-9
CA242-11
CA242-3
I
I
PARKING BRAKE
CONTROL MODULE
R
B
PIS30
B
B YG
GB1-10
GB4-1
NEUTRAL
SWITCH
GB4-2
GB1-12
YGYG
PI42-5
YG
* NOTE: Early production vehicles – feature not enabled.
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
DP
Serial and Encoded Data
C
S
All Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
Dynamic Stability Control Control Module
Pin Description and Characteristic
B+ FH103-1 BATTERY POWER SUPPLY – PUMP: B+
– FH103-3 STEERING ANGLE SENSOR SIGNAL (A): PULSED SIGNAL
B+ FH103-4 IGNITION SWITCHED POWER SUPPLY (II): B+
SG FH103-5 SENSOR GROUND – YAW RATE, STEERING ANGLE SENSORS: GROUND
I FH103-6 STEERING ANGLE SENSOR SIGNAL (B): PULSED SIGNAL
SS FH103-7 YAW RATE, STEERING ANGLE SENSORS SUPPLY VOLTAGE: B+
SG FH103-8 BRAKE FLUID LEVEL SENSOR SIGNAL GROUND: GROUND
I FH103-9 BRAKE FLUID LEVEL SENSOR SIGNAL: BRAKE FLUID LEVEL LOW = GROUND
CFH103-11 CAN +
CFH103-12 CAN +
OFH103-13 VEHICLE SPEED SIGNAL (SLIDING ROOF THRESHOLD): < 62 KM/H (38.5 MPH) = GROUND; > 62 KM/H (38.5 MPH) = B+
CFH103-14 CAN -
CFH103-15 CAN PG FH103-16 POWER GROUND – VALVES: GROUND
SS FH103-17 ACTIVE BRAKE BOOSTER SOLENOID SUPPLY VOLTAGE: NOMINAL 5 V
SS FH103-18 BRAKE PRESSURE SENSOR SUPPLY VOLTAGE: NOMINAL 5 V
SG FH103-19 SENSOR GROUND – BRAKE PRESSURE SENSOR: GROUND
IFH103-20 BRAKE PRESSURE SENSOR SIGNAL, NOMINAL 0.5 – 4.5 V: VOLTAGE INCREASES AS PRESSURE INCREASES
SG FH103-24 ACTIVE BRAKE BOOSTER TRAVEL SENSOR SIGNAL GROUND: GROUND
CFH103-25 CAN - (LOCAL)
SS FH103-26 ACTIVE BRAKE BOOSTER TRAVEL SENSOR SUPPLY VOLTAGE: NOMINAL 5 V
SS FH103-27 ACTIVE BRAKE BOOSTER FORCE SWITCH NORMALLY OPEN (NOMINAL 5 V): OPEN / CLOSED CIRCUIT
IFH103-28 ACTIVE BRAKE BOOSTER FORCE SWITCH SIGNAL: GROUND
CFH103-29 CAN + (LOCAL)
SS FH103-30 ACTIVE BRAKE BOOSTER FORCE SWITCH NORMALLY CLOSED (NOMINAL 5 V): CLOSED / OPEN CIRCUIT
OFH103-31 ACTIVE BRAKE BOOSTER SOLENOID DRIVE: GROUND (PWM)
B+ FH103-32 BATTERY POWER SUPPLY – VALVES: B+
SG FH103-33 RH FRONT WHEEL SPEED SENSOR SIGNAL GROUND: GROUND
IFH103-34 RH FRONT WHEEL SPEED SENSOR SIGNAL: 46 PULSES PER WHEEL REVOLUTION
IFH103-36 LH REAR WHEEL SPEED SENSOR SIGNAL: 46 PULSES PER WHEEL REVOLUTION
SG FH103-37 LH REAR WHEEL SPEED SENSOR SIGNAL GROUND: GROUND
IFH103-38 DYNAMIC STABILITY CONTROL SWITCH: NORMALLY OPEN / GROUND WHEN ACTIVATED
IFH103-40 ACTIVE BRAKE BOOSTER TRAVEL SENSOR SIGNAL, NOMINAL 0.5 – 4.5 V: VARIABLE VOLTAGE
SG FH103-42 RH REAR WHEEL SPEED SENSOR SIGNAL GROUND: GROUND
IFH103-43 RH REAR WHEEL SPEED SENSOR SIGNAL: 46 PULSES PER WHEEL REVOLUTION
IFH103-45 LH FRONT WHEEL SPEED SENSOR SIGNAL: 46 PULSES PER WHEEL REVOLUTION
SG FH103-46 LH FRONT WHEEL SPEED SENSOR SIGNAL GROUND: GROUND
PG FH103-47 POWER GROUND – PUMP: GROUND
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
Fig. 05.1
COMPONENTS
Component Connector(s) Connector Description Location
ACTIVE BRAKE BOOSTER — — ENGINE COMPARTMENT BULKHEAD, DRIVER SIDE
ACTIVE BRAKE BOOSTER SOLENOID FH56 6-WAY / BLACK ENGINE COMPARTMENT, BRAKE BOOSTER
BRAKE FLUID RESERVOIR FH104 2-WAY / BLACK BRAKE BOOSTER
BRAKE PRESSURE SENSOR FH54 3-WAY / BLACK BRAKE MASTER CYLINDER, UNDERSIDE
CENTER CONSOLE SWITCH PACK FC113 8-WAY / BLACK CENTER CONSOLE
DYNAMIC STABILITY CONTROL CONTROL MODULE FH103 47-WAY / BLACK ENGINE COMPARTMENT, RH FRONT
PEDAL FORCE SWITCH FH56 6-WAY / BLACK ENGINE COMPARTMENT, BRAKE BOOSTER
PEDAL TRAVEL SENSOR FH11 3-WAY / BLACK ENGINE COMPARTMENT, BRAKE BOOSTER
STEERING ANGLE SENSOR FC110 4-WAY / GREY STEERING COLUMN
WHEEL SPEED SENSOR – LH FRONT FH115 2-WAY / BLACK LH FRONT WHEEL HUB
WHEEL SPEED SENSOR – LH REAR RL1 2-WAY / BLACK LH REAR WHEEL HUB
WHEEL SPEED SENSOR – RH FRONT FH116 2-WAY / BLACK RH FRONT WHEEL HUB
WHEEL SPEED SENSOR – RH REAR RR1 2-WAY / BLACK RH REAR WHEEL HUB
YAW RATE AND LATERAL ACCELERATION SENSORS CLUSTER CA236 6-WAY / BLACK UNDER CENTER CONSOLE
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
FC10 14-WAY / GREEN / FASCIA HARNESS TO FRONT HARNESS BEHIND INSTRUMENT PANEL, RH SIDE
FC26 16-WAY / BLUE / CABIN HARNESS TO FASCIA HARNESS BEHIND INSTRUMENT PANEL, DRIVER SIDE
FH1 20-WAY / BLACK / CABIN HARNESS TO FRONT HARNESS RH ‘A’ POST, LOWER
FH2 16-WAY / GREY / CABIN HARNESS TO FRONT HARNESS RH ‘A’ POST, LOWER
FH6 16-WAY GREEN / CABIN HARNESS TO FRONT HARNESS LH ‘A’ POST, ADJACENT TO GECM
RL2 2-WAY / BLACK / LH REAR LINK REAR SUSPENSION SUBFRAME RH SIDE
RR2 2-WAY / BLACK / RH REAR LINK REAR SUSPENSION SUBFRAME RH SIDE
GROUNDS
Ground Location
FC38 UNDER CENTER OF INSTRUMENT PANEL, ON TRANSMISSION TUNNEL
FH42 ENGINE COMPARTMENT, BEHIND RH HEADLAMP
FC119 8-WAY / BLACK
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Dynamic Stability Control
Dynamic Stability Control
Fig. 05.1
FC38
REFER TO APPENDIX
DSC / CAN MESSAGES
FH104-2 FH104-1
BRAKE FLUID
RESERVOIR
B
FC113-8
B
FC119-4
TRACTION CONTROL
SWITCHES
CENTER CONSOLE SWITCH PACK
CAN
SLIDING ROOF: VEHICLE SPEED
(CIRCUIT CONTINUED)
RU
FC113-4
15
II
66
69
20.1
20.1
20.1
20.1
14.1
FC10-10
PRESSURE
PUMP
WG
R
RW
Y
G
Y
G
YR
U
UY
RU
FH103-4
FH103-1
FH103-32
FH103-11
FH103-14
FH103-12
FH103-15
FH103-13
FH103-9
FH103-8
FH103-38
BRAKE PRESSURE
SENSOR
B
LH FRONT
WHEEL SPEED
SENSOR
H H
B
PUMP
B
VAL VE S
I
C
+
C
–
C
+
C
–
O
FH103-20
FH103-18
FH103-19
I
FH103-45
FH103-46
I
FH103-34
WB
YB
NW
W
Y
WR
FH54-2FH54-3FH54
-1
YR
FH103-33
I
FH103-36
N
FH6-7
B
I
FH103-37
I
FH103-43
N
FH6-6
FH1-16
B
O
FH103-42
I
FH103-3
I
FH103-6
G
Y
FH1-8
R
FH103-7
B
LOCAL
FH103-5
C
+
C
–
FH103-29
FH103-25
Y
U
WB
FH103-24
WR
FH103-26
I
FH103-40
W
WG
FH103-27
YR
FH103-30
I
FH103-28
O
FH103-31
NG
NR
WR
FH103-17
FH115-1 FH116-1FH115-2 FH116-2
N
RL2-1
B
RL2-2
N
RR2-1
B
RR2-2
FC10-3
FC10-2
FC10-1
FC10-4
FH2-14
FH2-13
RH FRONT
WHEEL SPEED
SENSOR
R
B
LH REAR
WHEEL SPEED
SENSOR
RH REAR
WHEEL SPEED
SENSOR
H H
RL1-2 RR1-2
RL1-1 RR1-1
NB NB
WB
WR
W
WG
YR
NG
NR
WR
STEERING ANGLE
SENSOR
FC110
FC110
-3
-2
G
Y
FC110
FCS18
-1
R
FC110
FCS19
YAW RATE AND
LATERAL ACCELERATION
SENSORS CLUSTER
–+
CC
CA236
CA236
CA236
-5
-4
BK
CA236
-3
-2
-1
R
Y
U
B
BK
FC26-10
R
FC26-9
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
CONTROL
VALVES
46 80
SS
P
VAL VES
P
PUMP
DYNAMIC STABILITY CONTROL
CONTROL MODULE
81 118
EE
Fig. 01.7
I
O
Output
FH103-16
FH103-47
B
B
FH42
B
+
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
FH56-4FH56
ACTIVE BRAKE
BOOSTER
SOLENOID
-3
FH56-5FH56-2FH56
PEDAL
FORCE
SWITCH
-1
FH11-3FH11-1FH11
PEDAL
TRAVEL
SENSOR
-2
ACTIVE BRAKE BOOSTER
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
DP
Serial and Encoded Data
C
S
All Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
Parking Brake Control Module
Pin Description and Characteristic
B+ CA241-1 BATTERY POWER SUPPLY: B+
OCA241-2 PARKING BRAKE MOTOR ENGAGE: ACTIVATE = B+
OCA241-3 PARKING BRAKE MOTOR DISENGAGE: ACTIVATE = B+
PG CA241-4 POWER GROUND: GROUND
SCA242-1 SCP +
ICA242-3 IN-GEAR SWITCH (NORMALLY OPEN): OPEN CIRCUIT / GROUND
ICA242-4 PARKING BRAKE MOTOR POSITION SENSOR FEEDBACK SIGNAL: VARIABLE VOLTAGE
ICA242-5 PARKING BRAKE SWITCH – APPLY: CHANGE IN RESISTANCE
ICA242-6 PARKING BRAKE SWITCH – RELEASE: CHANGE IN RESISTANCE
SCA242-7 SCP SS CA242-8 SIGNAL SUPPLY VOLTAGE: NOMINAL 5 V
SG CA242-9 SIGNAL GROUND: GROUND
SS CA242-10 SIGNAL SUPPLY VOLTAGE: NOMINAL 5 V
I CA242-11 CLUTCH PEDAL POSITION SENSOR FEEDBACK SIGNAL: VARIABLE VOLTAGE
SG CA242-12 SIGNAL GROUND: GROUND
General Electronic Control Module
Pin Description and Characteristic
SFH59-1 SCP -
SFH59-7 SCP +
PG FH59-12 POWER GROUND: GROUND
B+ FH60-1 SWITCHED SYSTEM POWER SUPPLY: B+
IFH60-2 VARIABLE ASSIST STEERING ACTUATOR RETURN: VARIABLE VOLTAGE
OFH60-9 VARIABLE ASSIST STEERING ACTUATOR DRIVE: B+ (PWM)
PG FH60-11 POWER GROUND: GROUND
PG FH60-13 POWER GROUND: GROUND
PG FH60-14 POWER GROUND: GROUND
PG FH60-15 POWER GROUND: GROUND
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
Fig. 05.2
COMPONENTS
Component Connector(s) Connector Description Location
CLUTCH PEDAL POSITION SENSOR CA287 6-WAY / BLACK TOP OF CLUTCH PEDAL
ELECTRONIC PARKING BRAKE SWITCH CA243 8-WAY / BLACK CENTER CONSOLE
GENERAL ELECTRONIC CONTROL MODULE FH9 22-WAY / BLACK LH ‘A’ POST
NEUTRAL SWITCH GB4 2-WAY / BLACK TRANSMISSION, LH REAR
PARKING BRAKE CONTROL MODULE CA241 4-WAY / BLACK LUGGAGE COMPARTMENT, RH REAR
PARKING BRAKE MOTOR CA269 6-WAY / GREY REAR SUSPENSION SUBFRAME
VARIABLE ASSIST STEERING ACTUATOR FH16 2-WAY / BLACK STEERING RACK PINION HOUSING
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
FH1 20-WAY / BLACK / CABIN HARNESS TO FRONT HARNESS RH ‘A’ POST, LOWER
GB1 16-WAY / GREY / ENGINE HARNESS TO TRANSMISSION HARNESS ADJACENT TO TRANSMISSION BELL HOUSING
PI42 8-WAY / BLACK / ENGINE HARNESS TO FRONT HARNESS ENGINE COMPARTMENT, BULKHEAD, PASSENGER SIDE
GROUNDS
Ground Location
CA141 UNDER LH FRONT SEAT
CA156 LUGGAGE COMPARTMENT, RH SIDE
FH77 LH LOWER ‘A’ POST, ADJACENT TO THE GENERAL ELECTRONIC CONTROL MODULE (FORWARD OF CA30)
PI40 (LHD) ENGINE COMPARTMENT, BEHIND RH WHEEL ARCH LINER
PI40 (RHD) ENGINE COMPARTMENT, BEHIND LH WHEEL ARCH LINER
CA24 26-WAY / NATURAL
CA31 20-WAY / BLACK
FH59 12-WAY / BLACK
FH60 17-WAY / BLACK
CA242 12-WAY / BLACK
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Electronic Parking Brake; Variable Assist Power Steering
Electronic Parking Brake; Variable Assist Power Steering
Fig. 05.2
PI40AL
REFER TO APPENDIX:
EPB / SCP MESSAGES
WU G
CA243-6
RELEASE
453 Ω 150 Ω
WU B
4
I
CA243-1
B
PIS30
B
GB1-10
APPLY
100 Ω 100 Ω
SWITCH ILLUMINATION
ELECTRONIC
PARKING BRAKE SWITCH
B
GB4-1
POSITION SENSOR *
NOTE: Neutral Switch and Clutch Pedal Position Sensor – manual
transmission vehicles only.
* Early production vehicles – feature not enabled.
150 Ω453 Ω
GB4-2
NEUTRAL
SWITCH
CLUTCH PEDAL
CA243-4
CA243-8
CA243-2
GB1-12
CA287-4
CA287-3
SCP
44
20.2
20.2
NR
CA241-1
Y
CA242-1
U
CA242-7
CA242-6
U
CA242-5
CA141
PI42-5
YG
FH1-2
YG
CA242-3
YGYG
R
YR
CA242-11
GB
CA242-8
CA242-9CA287-1
B
S
S
I
I
I
I
PARKING BRAKE
CONTROL MODULE
O
O
I
P
CA242-12
CA241-3
CA241-2
CA242-10
CA242-4
CA241-4
W
CAS97
RW
CA269-1
GW
CA269-6
Y
CA269-3
H
WU
CA269-5
YB
CA269-4
PARKING BRAKE
MOTOR
VEHICLE SPEED
60
S
20.2
20.2
NR
FH60-1
Y
FH59-7
U
FH59-1
B
S
S
GENERAL ELECTRONIC
CONTROL MODULE
O
I
P
P
P
P
P
FH60-9
FH60-2
FH59-12
FH60-11
FH60-13
FH60-14
FH60-15
WG
NG
FH16-1
FH16-2
VARIABLE ASSIST
B
B
STEERING
ACTUATOR
B
B
B
FH77
B
CA156
ELECTRONIC PARKING BRAKE
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
I
O
Output
B
+
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
VARIABLE ASSIST POWER STEERING
SCP
D
D2B NetworkInput Battery Voltage
2
DP
Serial and Encoded Data
C
S
VARIANT:
VIN RANGE:
DATE OF ISSUE:
All Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
Adaptive Speed Control Control Module
Pin Description and Characteristic
B+ FH107-1 SWITCHED SYSTEM POWER SUPPLY: B+
PG FH107-2 POWER GROUND: GROUND
C FH107-4 CAN -
O FH107-6 CHIME MODULE DRIVE: CHIME ACTIVATE
B+ FH107-7 IGNITION SWITCHED POWER SUPPLY: B+
CFH107-10 CAN +
I/O FH107-12 FORWARD ALERT SWITCH / INDICATOR DRIVE: MONITOR FORWARD ALERT SWITCH / FORWARD ALERT INDICATOR DRIVE
Dynamic Stability Control Control Module
Pin Description and Characteristic
CFH103-11 CAN +
CFH103-12 CAN +
CFH103-14 CAN -
CFH103-15 CAN -
Engine Control Module
Pin Description and Characteristic
SS PI1-47 SPEED CONTROL SWITCH REQUEST: STEPPED RESISTANCE
IPI1-48 SPEED CONTROL SWITCHES SIGNAL GROUND: GROUND
CPI1-123 CAN -
CPI1-124 CAN +
Instrument Cluster
Pin Description and Characteristic
C FC15-8 CAN +
C FC15-9 CAN –
CFC15-18 CAN +
CFC15-19 CAN –
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
Fig. 05.3
COMPONENTS
Component Connector(s) Connector Description Location
ADAPTIVE SPEED CONTROL CHIME MODULE FC120 4-WAY / BLACK LH ‘A’ POST
ADAPTIVE SPEED CONTROL CONTROL MODULE FH107 12-WAY / BLACK BELOW LH FRONT BUMPER
DYNAMIC STABILITY CONTROL CONTROL MODULE FH103 47-WAY / BLACK ENGINE COMPARTMENT, RH FRONT
ENGINE CONTROL MODULE PI1 134-WAY / BLACK FRONT BULKHEAD, PASSENGER SIDE
FUEL / TRUNK RELEASE SWITCH PACK FC43 10-WAY / GREY INSTRUMENT PANEL
INSTRUMENT CLUSTER FC14 22-WAY / GREY INSTRUMENT PANEL
STEERING WHEEL — — STEERING WHEEL
TRANSMISSION CONTROL MODULE GB2 16-WAY / BLACK TRANSMISSION CONTROL VALVE ASSEMBLY
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
FC4 14-WAY / GREEN / FASCIA HARNESS IN-LINE CONNECTOR BEHIND INSTRUMENT PANEL, LH SIDE
FC10 14-WAY / GREEN / FASCIA HARNESS TO FRONT HARNESS BEHIND INSTRUMENT PANEL, RH SIDE
FC117 10-WAY / BLACK / STEERING WHEEL CASSETTE STEERING COLUMN
PI41 42-WAY / BLACK / ENGINE HARNESS TO VEHICLE HARNESSES ENGINE COMPARTMENT, BULKHEAD, PASSENGER SIDE
GROUNDS
Ground Location
FC38 UNDER CENTER OF INSTRUMENT PANEL, ON TRANSMISSION TUNNEL
FH42 ENGINE COMPARTMENT, BEHIND RH HEADLAMP
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
FC15 20-WAY / BLACK
FC63 22-WAY / BLACK
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
FC4-4FC10-14
YR
G
FC120-1
FC120-3
FH107-6
G
Y
FH107-10
FH107-4
O
NW
NR
FH107-7
FH107-1
FH107-2
B
FH42
FH107-12
GW
16
II
P
B
C
C
20.1
20.1
G
Y
PI1-124
PI1-123
PI1-47
WG
I
PI1-48
YG
C
C
20.1
20.1
G
Y
FC15-8
FC15-9
C
C
B
S
66
28
II
G
I
FC120-4
B
FC38
P
GW
FC43-9
B
FC38
FC43-7
270 Ω
SQ2-1
SQ2-3
FC10-13 PI41-25
FC10-12 PI41-24
FC117-8
WG
YG
WG
YG
G
Y
GB2-6
GB2-2
C
C
20.1
20.1
–
+
G
FH103-15
Y
G
FH103-14
FH103-12
Y
FH103-11
20.1
C
C
C
C
–
+
–
+
CAN
G
Y
FC15-18
FC15-19
C
C
1κ Ω
2.2κ Ω
510 Ω
300 Ω
180 Ω
120 Ω
20.1
20.1
20.1
20.1
20.1
20.1
20.1
OI
FORWARD ALERT
SWITCH
FUEL / TRUNK RELEASE
SWITCH PACK
Adaptive Speed Control
Adaptive Speed Control
Fig. 05.3
RESUME
SET +
HEADWAY –
HEADWAY +
SET –
CANCEL
RESISTOR PACK
STEERING WHEEL
NOTE: Vehicles without Adaptive Speed Control –
refer to Speed Control Switches, Figs. 03.2, 03.4, 03.6.
CASSETTE
CASSETTE
ADAPTIVE
SPEED CONTROL
CHIME MODULE
MESSAGE CENTER
BRAKE FORCE
WARNINGS;
REFER TO APPENDIX
ASC / CAN MESSAGES
BRAKE CONTROL:
REFER TO FIG. 05.1.
DYNAMIC STABILITY CONTROL
CONTROL MODULE
SPEED CONTROL
CONTROL MODULE
CONTROL MODULE
ADAPTIVE
ENGINE
ENGINE CONTROL:
REFER TO FIGURE SERIES 03.
TRANSMISSION
STATUS
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
TRANSMISSION
CONTROL MODULE
I
O
Output
B
+
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
SCP
D
D2B NetworkInput Battery Voltage
2
DP
Serial and Encoded Data
C
S
NOTE: Early production vehicles – Adaptive Speed Control not fitted.
VIN RANGE:
DATE OF ISSUE:
VARIANT:
INSTRUMENT
CLUSTER
Adaptive Speed Control Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
Adaptive Damping Control Module
Pin Description and Characteristic
O CA11-1 RH REAR DAMPER SOLENOID DRIVE: PWM +
O CA11-2 RH REAR DAMPER SOLENOID DRIVE: PWM -
O CA11-3 LH REAR DAMPER SOLENOID DRIVE: PWM +
O CA11-4 LH REAR DAMPER SOLENOID DRIVE: PWM -
O CA11-5 LH FRONT DAMPER SOLENOID DRIVE: PWM O CA11-6 LH FRONT DAMPER SOLENOID DRIVE: PWM +
O CA11-7 RH FRONT DAMPER SOLENOID DRIVE: PWM O CA11-8 RH FRONT DAMPER SOLENOID DRIVE: PWM +
SG CA11-9 SIGNAL GROUND (INTERNALLY CONNECTED TO PIN 10): GROUND
PG CA11-10 POWER GROUND: GROUND
B+ CA11-12 IGNITION SWITCHED POWER SUPPLY (II): B+
SCA11-13 SCP -
SCA11-14 SCP +
B+ CA11-16 BATTERY POWER SUPPLY: B+
SS CA12-9 SENSOR SIGNAL SUPPLY VOLTAGE: NOMINAL 5 V
ICA12-10 REAR VERTICAL ACCELEROMETER SIGNAL: SENSOR SIGNAL
ICA12-11 LATERAL ACCELEROMETER SIGNAL: SENSOR SIGNAL
ICA12-12 FRONT VERTICAL ACCELEROMETER SIGNAL: SENSOR SIGNAL
Dynamic Stability Control Control Module
Pin Description and Characteristic
CFH103-11 CAN +
CFH103-12 CAN +
CFH103-14 CAN -
CFH103-15 CAN -
Instrument Cluster
Pin Description and Characteristic
C FC15-8 CAN +
C FC15-9 CAN –
SFC15-10 SCP –
CFC15-18 CAN +
CFC15-19 CAN –
SFC15-20 SCP +
Fig. 05.4
COMPONENTS
Component Connector(s) Connector Description Location
ADAPTIVE DAMPING CONTROL MODULE CA11 16-WAY / BLUE LUGGAGE COMPARTMENT, REAR
DAMPER SOLENOID – LH FRONT FH117 2-WAY BLACK TOP OF LH FRONT DAMPER
DAMPER SOLENOID – LH REAR CA140 2-WAY BLACK TOP OF LH REAR DAMPER
DAMPER SOLENOID – RH FRONT FH118 2-WAY BLACK TOP OF RH FRONT DAMPER
DAMPER SOLENOID – RH REAR CA111 2-WAY BLACK TOP OF RH REAR DAMPER
DYNAMIC STABILITY CONTROL CONTROL MODULE FH103 47-WAY / BLACK ENGINE COMPARTMENT, RH FRONT
INSTRUMENT CLUSTER FC14 22-WAY / GREY INSTRUMENT PANEL
LATERAL ACCELEROMETER FH70 3-WAY / BLACK REARWARD OF FRONT BUMPER, LH SIDE
REAR ELECTRONIC CONTROL MODULE CA63 17-WAY / BLACK LUGGAGE COMPARTMENT, RH REAR
VERTICAL ACCELEROMETER – FRONT FH63 3-WAY / BLACK REARWARD OF FRONT BUMPER, LH SIDE
VERTICAL ACCELEROMETER – REAR CA17 3-WAY / BLACK LUGGAGE COMPARTMENT, RH REAR
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
CA3A/B 14-WAY / GREY / CABIN HARNESS BRIDGE LUGGAGE COMPARTMENT, LH REAR
CA4A/B 10-WAY / GREY / CABIN HARNESS BRIDGE LUGGAGE COMPARTMENT, LH REAR
FH2 16-WAY / GREY / CABIN HARNESS TO FRONT HARNESS RH ‘A’ POST, LOWER
FH6 16-WAY GREEN / CABIN HARNESS TO FRONT HARNESS LH ‘A’ POST, ADJACENT TO GECM
GROUNDS
Ground Location
CA158 LUGGAGE COMPARTMENT, LH SIDE REAR CORNER
CA12 16-WAY / GREY
FC15 20-WAY / BLACK
FC63 22-WAY / BLACK
CA100 12-WAY / BLACK
CA101 20-WAY / BLACK
CA102 22-WAY / BLACK
CA103 26-WAY / NATURAL
Rear Electronic Control Module
Pin Description and Characteristic
SCA102-1 SCP +
SCA102-2 SCP -
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Suspension Adaptive Damping
Suspension Adaptive Damping
Fig. 05.4
C
C
C
C
DYNAMIC STABILITY CONTROL
CONTROL MODULE
C
C
C
C
S
S
INSTRUMENT CLUSTER
FH103-12
FH103-14
FH103-12
FH103-15
FC15-8
FC15-9
FC15-18
FC15-19
FC15-20
FC15-10
29
41
Y
20.1
G
20.1
20.1
20.1
20.1
20.1
20.1
20.1
20.2
20.2
VEHICLE SPEED
20.2
SYSTEM STATE
20.2
Y
G
Y
G
Y
G
Y
U
NW
CA11-16
NG
II
CA11-12
Y
CA11-14
U
CA11-13
B
B
S
S
O
O
O
O
O
O
O
O
I
CA11-6
CA11-5
CA11-8
CA11-7
CA11-3
CA11-4
CA11-1
CA11-2
CA12-11
WG
BW
WU
BG
W
BO
WB
BG
WB
CA4A/B-1
CA4A/B-6
CA4A/B-5
CA4A/B-10
WB
CA3A/B-10
WG
FH6-12
BW
FH6-13
FH2-9
FH2-10
FH6-11
WG
BW
WU
BG
W
BO
WB
BG
FH117-1
FH117-2
FH118-1
FH118-2
CA140-1
CA140-2
CA111-1
CA111-2
Y
FH70-3
N
FH70-1
WB
FH70-2
LH FRONT
DAMPER SOLENOID
RH FRONT
DAMPER SOLENOID
LH REAR
DAMPER SOLENOID
RH REAR
DAMPER SOLENOID
LATERAL
ACCELEROMETER
S
S
REAR ELECTRONIC
CONTROL MODULE
CA102-1
CA102-2
Y
20.2
20.2
BRAKE ON / OFF
CA12-12
YR
CA3A/B-3
I
YR
FH6-10
U
FHS30
FHS31
FH6-8FH6-2
Y
N
YR
FH63-3
FH63-1
FH63-2
FRONT VERTICAL
ACCELEROMETER
NY
CA158
B
CA11-10
P
ADAPTIVE DAMPING
CONTROL MODULE
I
CA12-9
CA11-9
CA12-10
Y
N
YB
CAS54
CAS53
Y
N
YB
CA17-3
CA17-1
CA17-2
REAR VERTICAL
ACCELEROMETER
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
I
O
Output
B
+
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
DP
Serial and Encoded Data
C
S
Adaptive Damping Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
Air Conditioning Control Module – Panel
Pin Description and Characteristic
I FC27-1 DEFROST MODE ACTUATOR POSITION FEEDBACK: VARIABLE VOLTAGE
I FC27-2 COLD AIR BYPASS ACTUATOR POSITION FEEDBACK: VARIABLE VOLTAGE
I FC27-3 PANEL MODE ACTUATOR POSITION FEEDBACK: VARIABLE VOLTAGE
I FC27-4 HUMIDITY SENSOR SIGNAL: VARIABLE VOLTAGE
O FC27-5 DRIVER SIDE DUAL COOLANT CONTROL VALVE CONTROL DRIVE: ACTIVATE = GROUND (PWM)
O FC27-6 PASSENGER SIDE DUAL COOLANT CONTROL VALVE CONTROL DRIVE: ACTIVATE = GROUND (PWM)
SS FC27-7 HUMIDITY SENSOR SIGNAL SUPPLY VOLTAGE: NOMINAL 5 V
O FC27-9 FRESH / RECIRCULATION ACTUATOR DRIVE – CLOSE: ACTIVATE = B+
OFC27-10 FRESH / RECIRCULATION ACTUATOR DRIVE – OPEN: ACTIVATE = B+
OFC27-11 COLD AIR BYPASS ACTUATOR DRIVE – OPEN: ACTIVATE = B+
OFC27-12 COLD AIR BYPASS ACTUATOR DRIVE – CLOSE: ACTIVATE = B+
OFC27-13 DEFROST MODE ACTUATOR DRIVE – OPEN: ACTIVATE = B+
SG FC27-14 IN-CAR TEMPERATURE SENSOR SIGNAL GROUND: GROUND
IFC27-15 FRESH / RECIRCULATION ACTUATOR POSITION FEEDBACK: VARIABLE VOLTAGE
IFC27-16 FLOOR MODE ACTUATOR POSITION FEEDBACK: VARIABLE VOLTAGE
SG FC27-17 ACTUATOR SIGNAL GROUND: GROUND
OFC27-18 AUXILIARY COOLANT PUMP RELAY ACTIVATE: TO ACTIVATE, A/CCM SWITCHES CIRCUIT TO GROUND
OFC27-19 BLOWER MOTOR RELAY ACTIVATE: TO ACTIVATE, A/CCM SWITCHES CIRCUIT TO GROUND
OFC27-20 HEATED WIPER PARK OR HEATED WINDSHIELD RELAY(S) ACTIVATE: TO ACTIVATE, A/CCM SWITCHES CIRCUIT TO GROUND
OFC27-21 BLOWER MOTOR CONTROL: B+ (PWM)
OFC27-22 FLOOR MODE ACTUATOR DRIVE – OPEN: ACTIVATE = B+
OFC27-23 FLOOR MODE ACTUATOR DRIVE – CLOSE: ACTIVATE = B+
OFC27-24 PANEL MODE ACTUATOR DRIVE – OPEN: ACTIVATE = B+
OFC27-25 PANEL MODE ACTUATOR DRIVE – CLOSE: ACTIVATE = B+
OFC27-26 DEFROST MODE ACTUATOR DRIVE – CLOSE: ACTIVATE = B+
C FC28-1 CAN -
PG FC28-2 POWER GROUND: GROUND
B+ FC28-3 IGNITION SWITCHED POWER SUPPLY (II): B+
I FC28-5 BLOWER MOTOR CONTROL FEEDBACK: VARIABLE FREQUENCY
I FC28-6 PASSENGER SIDE DISCHARGE TEMPERATURE SENSOR SIGNAL: NTC SENSOR / VOLTAGE DECREASES AS TEMPERATURE INCREASES
I FC28-7 DUAL SOLAR SENSOR SIGNAL – LH: VOLTAGE DECREASES AS LIGHT INCREASES
SG FC28-8 AMBIENT TEMPERATURE SENSOR SIGNAL GROUND: GROUND
I FC28-9 IN-CAR TEMPERATURE SENSOR SIGNAL: NTC SENSOR / VOLTAGE DECREASES AS TEMPERATURE INCREASES
IFC28-10 EVAPORATOR DISCHARGE TEMPERATURE SENSOR SIGNAL: NTC SENSOR / VOLTAGE DECREASES AS TEMPERATURE INCREASES
SG FC28-11 ACTUATORS SIGNAL GROUND: GROUND
CFC28-12 CAN
B+ FC28-14 BATTERY POWER SUPPLY: B+
IFC28-15 PANEL ILLUMINATION (DIMMER CONTROLLED): B+ (PWM)
SG FC28-16 EVAPORATOR DISCHARGE TEMPERATURE SENSOR SIGNAL GROUND: GROUND
IFC28-17 AMBIENT TEMPERATURE SENSOR SIGNAL: NTC SENSOR / VOLTAGE DECREASES AS TEMPERATURE INCREASES
IFC28-18 DRIVER SIDE DISCHARGE TEMPERATURE SENSOR SIGNAL: NTC SENSOR / VOLTAGE DECREASES AS TEMPERATURE INCREASES
SG FC28-19 LH / RH DISCHARGE TEMPERATURE SENSORS SIGNAL GROUND: GROUND
IFC28-20 DUAL SOLAR SENSOR SIGNAL – RH: VOLTAGE DECREASES AS LIGHT INCREASES
SS FC28-22 ACTUATORS SIGNAL SUPPLY VOLTAGE: NOMINAL 5 V
Air Conditioning Control Module – Remote
Pin Description and Characteristic
I FC40-1 DEFROST MODE ACTUATOR POSITION FEEDBACK: VARIABLE VOLTAGE
I FC40-2 COLD AIR BYPASS ACTUATOR POSITION FEEDBACK: VARIABLE VOLTAGE
I FC40-3 PANEL MODE ACTUATOR POSITION FEEDBACK: VARIABLE VOLTAGE
I FC40-4 HUMIDITY SENSOR SIGNAL: VARIABLE VOLTAGE
O FC40-5 DRIVER SIDE DUAL COOLANT CONTROL VALVE CONTROL DRIVE: ACTIVATE = GROUND (PWM)
O FC40-6 PASSENGER SIDE DUAL COOLANT CONTROL VALVE CONTROL DRIVE: ACTIVATE = GROUND (PWM)
SS FC40-7 HUMIDITY SENSOR SIGNAL SUPPLY VOLTAGE: NOMINAL 5 V
O FC40-9 FRESH / RECIRCULATION ACTUATOR DRIVE – CLOSE: ACTIVATE = B+
OFC40-10 FRESH / RECIRCULATION ACTUATOR DRIVE – OPEN: ACTIVATE = B+
OFC40-11 COLD AIR BYPASS ACTUATOR DRIVE – OPEN: ACTIVATE = B+
OFC40-12 COLD AIR BYPASS ACTUATOR DRIVE – CLOSE: ACTIVATE = B+
OFC40-13 DEFROST MODE ACTUATOR DRIVE – OPEN: ACTIVATE = B+
SG FC40-14 IN-CAR TEMPERATURE SENSOR SIGNAL GROUND: GROUND
IFC40-15 FRESH / RECIRCULATION ACTUATOR POSITION FEEDBACK: VARIABLE VOLTAGE
IFC40-16 FLOOR MODE ACTUATOR POSITION FEEDBACK: VARIABLE VOLTAGE
SG FC40-17 ACTUATOR SIGNAL GROUND: GROUND
OFC40-18 AUXILIARY COOLANT PUMP RELAY ACTIVATE: TO ACTIVATE, A/CCM SWITCHES CIRCUIT TO GROUND
OFC40-19 BLOWER MOTOR RELAY ACTIVATE: TO ACTIVATE, A/CCM SWITCHES CIRCUIT TO GROUND
OFC40-20 HEATED WIPER PARK OR HEATED WINDSHIELD RELAY(S) ACTIVATE: TO ACTIVATE, A/CCM SWITCHES CIRCUIT TO GROUND
OFC40-21 BLOWER MOTOR CONTROL: B+ (PWM)
OFC40-22 FLOOR MODE ACTUATOR DRIVE – OPEN: ACTIVATE = B+
OFC40-23 FLOOR MODE ACTUATOR DRIVE – CLOSE: ACTIVATE = B+
OFC40-24 PANEL MODE ACTUATOR DRIVE – OPEN: ACTIVATE = B+
OFC40-25 PANEL MODE ACTUATOR DRIVE – CLOSE: ACTIVATE = B+
OFC40-26 DEFROST MODE ACTUATOR DRIVE – CLOSE: ACTIVATE = B+
C FC41-1 CAN -
PG FC41-2 POWER GROUND: GROUND
B+ FC41-3 IGNITION SWITCHED POWER SUPPLY (II): B+
I FC41-5 BLOWER MOTOR CONTROL FEEDBACK: VARIABLE FREQUENCY
I FC41-6 PASSENGER SIDE DISCHARGE TEMPERATURE SENSOR SIGNAL: NTC SENSOR / VOLTAGE DECREASES AS TEMPERATURE INCREASES
I FC41-7 DUAL SOLAR SENSOR SIGNAL – LH: VOLTAGE DECREASES AS LIGHT INCREASES
SG FC41-8 AMBIENT TEMPERATURE SENSOR SIGNAL GROUND: GROUND
I FC41-9 IN-CAR TEMPERATURE SENSOR SIGNAL: NTC SENSOR / VOLTAGE DECREASES AS TEMPERATURE INCREASES
IFC41-10 EVAPORATOR DISCHARGE TEMPERATURE SENSOR SIGNAL: NTC SENSOR / VOLTAGE DECREASES AS TEMPERATURE INCREASES
SG FC41-11 ACTUATORS SIGNAL GROUND: GROUND
CFC41-12 CAN +
B+ FC41-14 BATTERY POWER SUPPLY: B+
SG FC41-16 EVAPORATOR DISCHARGE TEMPERATURE SENSOR SIGNAL GROUND: GROUND
IFC41-17 AMBIENT TEMPERATURE SENSOR SIGNAL: NTC SENSOR / VOLTAGE DECREASES AS TEMPERATURE INCREASES
IFC41-18 DRIVER SIDE DISCHARGE TEMPERATURE SENSOR SIGNAL: NTC SENSOR / VOLTAGE DECREASES AS TEMPERATURE INCREASES
SG FC41-19 LH / RH DISCHARGE TEMPERATURE SENSORS SIGNAL GROUND: GROUND
IFC41-20 DUAL SOLAR SENSOR SIGNAL – RH: VOLTAGE DECREASES AS LIGHT INCREASES
SS FC41-22 ACTUATORS SIGNAL SUPPLY VOLTAGE: NOMINAL 5 V
Fig. 06.1
COMPONENTS
Component Connector(s) Connector Description Location
AIR CONDITIONING CONTROL MODULE – PANEL FC27 26-WAY / GREY CENTER CONSOLE
AIR CONDITIONING CONTROL MODULE – REMOTE FC40 26-WAY / GREY BEHIND INSTRUMENT PANEL, RH SIDE (LHD), LH SIDE (RHD)
AMBIENT TEMPERATURE SENSOR FH30 2-WAY / BLACK UNDER FRONT BUMPER, CENTER, FORWARD OF RADIATOR
AUXILIARY COOLANT PUMP CP4 2-WAY / BLACK ENGINE COMPARTMENT, BEHIND RADIATOR, LH SIDE
AUXILIARY COOLANT PUMP RELAY — — FRONT POWER DISTRIBUTION FUSE BOX – R7
BLOWER MOTOR AC2 6-WAY / BLACK UNDER INSTRUMENT PANEL, RH SIDE (LHD), LH SIDE (RHD)
BLOWER MOTOR RELAY — — REAR POWER DISTRIBUTION FUSE BOX – R7
COLD AIR BYPASS ACTUATOR AC4 6-WAY / BLACK AIR DISTRIBUTION BOX
DEFROST MODE ACTUATOR FC29 6-WAY / BLACK AIR DISTRIBUTION BOX
DISCHARGE TEMPERATURE SENSOR – EVAPORATOR AC5 2-WAY / GREY AIR DISTRIBUTION BOX
DISCHARGE TEMPERATURE SENSOR – LH FC20 2-WAY BLACK AIR DISTRIBUTION BOX
DISCHARGE TEMPERATURE SENSOR – RH FC30 2-WAY BLACK AIR DISTRIBUTION BOX
DUAL COOLANT CONTROL VALVE CP5 3-WAY / BLACK ENGINE COMPARTMENT, RH SIDE, REARWARD OF RADIATOR
DUAL SOLAR SENSOR SL1 6-WAY / BLACK INSTRUMENT PANEL GLARE SHIELD, FRONT CENTER
FLOOR MODE ACTUATOR FC21 6-WAY / BLACK AIR DISTRIBUTION BOX
FRESH / RECIRCULATION ACTUATOR AC3 6-WAY / BLACK BLOWER INTAKE
FRONT POWER DISTRIBUTION FUSE BOX — — ENGINE COMPARTMENT, RH SIDE
HUMIDITY SENSOR FC24 4-WAY / BLACK INSTRUMENT PANEL, ADJACENT TO STEERING COLUMN
IN-CAR TEMPERATURE SENSOR FC24 4-WAY / BLACK INSTRUMENT PANEL, ADJACENT TO STEERING COLUMN
LH WINDSHIELD HEATER CA122 1-WAY / BLACK CONNECTORS LOCATED IN LH UPPER ‘A’ POST
LH WINDSHIELD HEATER RELAY — — FRONT POWER DISTRIBUTION FUSE BOX – R17
PANEL MODE ACTUATOR FC22 6-WAY / BLACK AIR DISTRIBUTION BOX
REAR POWER DISTRIBUTION FUSE BOX — — LUGGAGE COMPARTMENT
WIPER PARK HEATER / RH WINDSHIELD HEATER RELAY — — FRONT POWER DISTRIBUTION FUSE BOX – R21
WIPER PARK HEATER OR RH WINDSHIELD HEATER CA65 1-WAY / BLACK CONNECTORS LOCATED IN RH UPPER ‘A’ POST
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
AC7 2-WAY / GREY / CABIN HARNESS TO CLIMATE CONTROL HARNESS BEHIND PASSENGER AIRBAG
CP1 10-WAY / BLACK / INTERCOOLER PUMP LINK LEAD ENGINE COMPARTMENT, RH FRONT, ADJACENT TO RADIATOR
FC4 14-WAY / GREEN / FASCIA HARNESS IN-LINE CONNECTOR BEHIND INSTRUMENT PANEL, LH SIDE
FC10 14-WAY / GREEN / FASCIA HARNESS TO FRONT HARNESS BEHIND INSTRUMENT PANEL, RH SIDE
FC33 16-WAY / GREEN / CABIN HARNESS TO FASCIA HARNESS BEHIND INSTRUMENT PANEL, RH SIDE
FC34 16-WAY / GREEN / FASCIA HARNESS IN-LINE CONNECTOR ADJACENT TO BLOWER MOTOR
FH82 2-WAY / GREY / CABIN HARNESS TO FRONT HARNESS RH ‘A’ POST
FH114 2-WAY / GREY / FRONT HARNESS TO CABIN HARNESS BEHIND INSTRUMENT PANEL, LH SIDE
SL3 10-WAY / GREY / FASCIA HARNESS TO SOLAR SENSOR LINK BEHIND INSTRUMENT PANEL, RH SIDE
GROUNDS
Ground Location
CA30 LH LOWER ‘A’ POST, ADJACENT TO THE GENERAL ELECTRONIC CONTROL MODULE (REARWARD OF FH77)
CA50 RH LOWER ‘A’ POST, BELOW PRIMARY JUNCTION FUSE BOX
FC38 UNDER CENTER OF INSTRUMENT PANEL, ON TRANSMISSION TUNNEL
FH42 ENGINE COMPARTMENT, BEHIND RH HEADLAMP
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
FC28 22-WAY / GREY
FC41 22-WAY / GREY
CA279 1-WAY / BLACK
CA71 1-WAY / BLACK
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Climate Control System; Windshield Heaters
Climate Control System; Windshield Heaters
Fig. 06.1
INSTRUMENT CLUSTER:
AUTO HEADLAMPS
INSTRUMENT CLUSTER:
DIMMER CONTROLLED LIGHTING:
PANEL ILLUMINATION –
CONTROL PANEL ONLY.
GROUND
CAN
REFER TO APPENDIX
CAN / A/CCM MESSAGES
NOTE: Mirror Heaters and Heated Rear
Window controlled via A/CCM / CAN / SCP /
GECM / DDCM. Refer to Fig. 10.2.
NOTE: Refer to Figures 03.2, 03.4, 03.6 for Air Conditioning Compressor
and Refrigerant Pressure Sensor circuits.
08.208.3
08.1
08.208.3 08.1
NR
88
FC41/28-14
NR
40
II
FC41/28-03
UY
09.2
20.1
20.1
NOTE: Remote A/CCM (navigation): FC40 / FC41;
A/CCM with control panel: FC27 / FC28.
Connector numbers are shown as FC40 / 27 and FC41 / 28.
FC28-15
Y
FC41/28-12
G
FC41/28-01
WU
NG
B
B
I
C
C
AIR CONDITIONING
CONTROL MODULE
I
I
I
I
O
O
O
O
O
O
O
I
I
O
O
O
O
O
O
O
O
O
P
I
I
I
I
I
I
I
I
I
I
FC40 / 27-01
FC40 / 27-02
FC40 / 27-03
FC40 / 27-04
FC40 / 27-05
FC40 / 27-06
FC40 / 27-07
FC40 / 27-09
FC40 / 27-10
FC40 / 27-11
FC40 / 27-12
FC40 / 27-13
FC40 / 27-14
FC40 / 27-15
FC40 / 27-16
FC40 / 27-17
FC40 / 27-18
FC40 / 27-19
FC40 / 27-20
FC40 / 27-21
FC40 / 27-22
FC40 / 27-23
FC40 / 27-24
FC40 / 27-25
FC40 / 27-26
FC41 / 28-02
FC41 / 28-05
FC41 / 28-06
FC41 / 28-06
FC41 / 28-07
FC41 / 28-08
FC41 / 28-09
FC41 / 28-10
FC41 / 28-11
FC41 / 28-16
FC41 / 28-17
FC41 / 28-18
FC41 / 28-18
FC41 / 28-19
FC41 / 28-20
FC41 / 28-22
LH DISCHARGE
TEMPERATURE
FC20-1FC20
WB
WR
W
WG
NW
NG
NG
YR
WR
WR
YR
WB
NR
WR
WU
NR
NG
BG
NR
WU
WU
YU
W
Y
YB
B
NG
WB (LHD)
WG (RHD)
WR
NW
WU
WR
N
NR
WU
WB (RHD)
WG (LHD)
NG
GW
Y
SENSOR
υ
-2
RH DISCHARGE
TEMPERATURE
SENSOR
υ
FC30-1FC30
-2
NW WB
FCS31
FC4
-10
NW
CP1
NW YNGNG
CP5-3
70
-2
CP5-2 CP5-1
DRIVER PASSENGER
DUAL COOLANT
CONTROL VALVE
FC4
CP1
-9
-1
SL1
WU
SL3
EVAPORA TOR
DUAL
SOLAR
SENSOR
LH RH
SL1
SL1
-1
-2
SL1
-5
-6
NGNG WG WR
GW
IN-CAR
TEMPERATURE
SENSOR
υ
FC24-1FC24
-3
WU NR
HUMIDITY
SENSOR
FC24-2FC24
NG WG
-4
DISCHARGE
TEMPERATURE
SENSOR
υ
AC5-2AC5
-1
WR NR
SL3
SL3
-8
SL3
-6
-3
-2
FC34-3FC34
-7
AMBIENT
TEMPERATURE
SENSOR
υ
FH30-1FH30
-2
WU NW
FC4-1FC4
-8
(LHD)
(RHD)
FC34-9FC34-1FC34
AC4
AC4
-1
-6
COLD AIR
ACTUATOR
AC4
-6
AC4
-1
YRWR
BYPASS
WR
AC4-3AC4-5AC4
AC4-3AC4-4AC4
YR NR
ACS2
NR
FC34
-10
FRESH / RECIRCULATION
AC3
-4
-6
-5
FC34-6FC34
-4
ACTUATOR
AC3-3AC3-4AC3
AC3
-1
YRWR WR YR NR
ACS1
YR
FC34
FC34
-15
-14
-11
DEFROST MODE
ACTUATOR
FC29
FC29
-5
-6
FC29-3FC29-4FC29
-1
-5
YBWB WB YB NW
FC22
FC22
-6
PANEL MODE
ACTUATOR
FC22-3FC22-4FC22
-1
W
YW
-5
YN
FC21
-1
FLOOR MODE
ACTUATOR
FC21
FC21-3FC21-5FC21
-6
YUWU WU
-4
YU NW
YR
FCS23
FCS32
FC10
-5
4
R21
R17
RELA Y
R7
RELAY *
3
NW
63
1
NW
64
3
N
67
1
N
68
3
Y
72
1
Y
FC38
AC7-1
CA50
(CA30)
B
FC34-5FC34
-12
NG
WU
AC2-3AC2
-6
BLOWER MOTOR
RU
CA65-1CA71-1
FH82-1
RU
NR
CA50
B
WIPER PARK HEATER OR
RH WINDSHIELD HEATER
RH WINDSHIELD HEATER RELAY
FC33
-5
CA30
4
R7
RELA Y
3
NG
12
1
NG
13
FH42
RB
AC7-2AC2-2AC2-1
R
BG
5
2
BLOWER MOTOR
LH WINDSHIELD HEATER
B
B
CP4-2 CP4-1
CP1-4
COOLANT PUMP *
AUXILIARY
* NOTE: Auxiliary Coolant Pump and circuit – V8 only.
REAR POWER DISTRIBUTION FUSE BOX
RWB
CA279-1CA122-1
FH114-1
RW
NR
FC10
-9
RW
CP1-5
RW
NG
FRONT POWER DISTRIBUTION FUSE BOX
5
2
WIPER PARK HEATER /
4
5
2
LH WINDSHIELD HEATER
4
5
2
AUXILIARY COOLANT PUMP
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
I
O
Output
B
+
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
DP
Serial and Encoded Data
C
S
All Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
General Electronic Control Module
Pin Description and Characteristic
IFH9-15 WASHER FLUID LEVEL SWITCH (NORMALLY OPEN): OPEN CIRCUIT / GROUND
SFH59-1 SCP -
B+ FH59-6 BATTERY POWER SUPPLY (LOGIC): B+
SFH59-7 SCP +
IFH59-9 ENGINE OIL PRESSURE SWITCH (NORMALLY OPEN): OPEN CIRCUIT / GROUND
PG FH59-12 POWER GROUND: GROUND
PG FH60-11 POWER GROUND: GROUND
PG FH60-13 POWER GROUND: GROUND
PG FH60-14 POWER GROUND: GROUND
PG FH60-15 POWER GROUND: GROUND
Instrument Cluster
Pin Description and Characteristic
I FC14-1 AIR BAG WARNING: HARD WIRED TO AIR BAG INDICATOR
I FC14-2 KEY-IN AUDIBLE WARNING: B+ WHEN KEY IN
B+ FC14-3 IGNITION SWITCHED POWER SUPPLY (II): B+
B+ FC14-4 IGNITION SWITCHED POWER SUPPLY (I): B+
I FC14-5 LOW ENGINE COOLANT LEVEL WARNING: GROUND WHEN COOLANT LEVEL LOW
I FC14-7 KEY-IN AUDIBLE WARNING (J-GATE): GROUND WHEN NOT-IN-PARK
I FC14-8 SEAT BELT AUDIBLE WARNING REQUEST: AUDIBLE WARNING REQUEST ACTIVE = GROUND
B+ FC14-12 IGNITION SWITCHED POWER SUPPLY (II) (AIRBAG WARNING): B+
SG FC14-14 SIGNAL GROUND: GROUND
PG FC15-2 POWER GROUND: GROUND
B+ FC15-3 BATTERY POWER SUPPLY (LOGIC): B+
C FC15-8 CAN +
C FC15-9 CAN –
SFC15-10 SCP –
CFC15-18 CAN +
CFC15-19 CAN –
SFC15-20 SCP +
SG FC63-3 MAIN LIGHTING SWITCH SIGNAL GROUND: GROUND
I FC63-4 TRIP COMPUTER – MESSAGE CENTER SIGNALS: VARIABLE RESISTANCE
IFC63-14 TRIP CYCLE SWITCH – MESSAGE CENTER SIGNAL: VARIABLE RESISTANCE
SG FC63-15 AUXILIARY LIGHTING SWITCH SIGNAL GROUND: GROUND
Rear Electronic Control Module
Pin Description and Characteristic
B+ CA101-3 BATTERY POWER SUPPLY: B+
I CA101-15 RH FUEL LEVEL SENSOR SIGNAL: VARIABLE RESISTANCE
I CA101-16 LH FUEL LEVEL SENSOR SIGNAL: VARIABLE RESISTANCE
SCA102-1 SCP +
SCA102-2 SCP -
PG CA102-12 POWER GROUND: GROUND
PG CA103-11 POWER GROUND: GROUND
PG CA103-12 POWER GROUND: GROUND
SG CA103-23 FUEL LEVEL SENSORS SIGNAL GROUND: GROUND
PG CA103-25 POWER GROUND: GROUND
PG CA103-26 POWER GROUND: GROUND
Fig. 07.1
COMPONENTS
Component Connector(s) Connector Description Location
AUXILIARY LIGHTING SWITCH FC11 10-WAY / YELLOW FASCIA, ADJACENT TO STEERING COLUMN
ENGINE COOLANT LEVEL SENSOR CP3 2-WAY / BLACK ENGINE COMPARTMENT, COOLANT EXPANSION TANK
FUEL LEVEL SENSOR – LH SIDE FP3 4-WAY / BLACK FUEL TANK, LH SIDE
FUEL LEVEL SENSOR – RH SIDE FP4 4-WAY / BLACK FUEL TANK, RH SIDE
GENERAL ELECTRONIC CONTROL MODULE FH9 22-WAY / BLACK LH ‘A’ POST
IGNITION SWITCH FC18 7-WAY / BLACK STEERING COLUMN COWLING
INSTRUMENT CLUSTER FC14 22-WAY / GREY INSTRUMENT PANEL
MAIN LIGHTING SWITCH (COLUMN SWITCHGEAR) FC116 6-WAY / BLACK STEERING COLUMN COWLING
OIL PRESSURE SWITCH PI46 1-WAY / BLACK ADJACENT TO OIL FILTER
REAR ELECTRONIC CONTROL MODULE CA63 17-WAY / BLACK LUGGAGE COMPARTMENT, RH REAR
WASHER FLUID LEVEL SWITCH FH37 2-WAY / BLACK WASHER FLUID CONTAINER
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
CP1 10-WAY / BLACK / INTERCOOLER PUMP LINK LEAD ENGINE COMPARTMENT, RH FRONT, ADJACENT TO RADIATOR
FC4 14-WAY / GREEN / FASCIA HARNESS IN-LINE CONNECTOR BEHIND INSTRUMENT PANEL, LH SIDE
FC26 16-WAY / BLUE / CABIN HARNESS TO FASCIA HARNESS BEHIND INSTRUMENT PANEL, DRIVER SIDE
FP2 8-WAY / BLACK / CABIN HARNESS TO FUEL PUMP HARNESS TOP OF FUEL TANK, RH SIDE
FP6 2-WAY / BLACK / CABIN HARNESS TO FUEL PUMP HARNESS TOP OF FUEL TANK, RH SIDE
PI41 42-WAY / BLACK / ENGINE HARNESS TO VEHICLE HARNESSES ENGINE COMPARTMENT, BULKHEAD, PASSENGER SIDE
GROUNDS
Ground Location
CA156 LUGGAGE COMPARTMENT, RH SIDE
FC38 UNDER CENTER OF INSTRUMENT PANEL, ON TRANSMISSION TUNNEL
FH42 ENGINE COMPARTMENT, BEHIND RH HEADLAMP
FH77 LH LOWER ‘A’ POST, ADJACENT TO THE GENERAL ELECTRONIC CONTROL MODULE (FORWARD OF CA30)
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
CA24 26-WAY / NATURAL
CA31 20-WAY / BLACK
FH59 12-WAY / BLACK
FH60 17-WAY / BLACK
FC15 20-WAY / BLACK
FC63 22-WAY / BLACK
CA100 12-WAY / BLACK
CA101 20-WAY / BLACK
CA102 22-WAY / BLACK
CA103 26-WAY / NATURAL
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Instrument Cluster; Audible Warnings
Instrument Cluster; Audible Warnings
Fig. 07.1
NR
7
RESTRAINTS CONTROL MODULE:
AIRBAG INDICATOR DRIVE
RESTRAINTS CONTROL MODULE:
SEAT BELT AUDIBLE WARNING DRIVE
KEY-IN
IGNITION SWITCH
9.1 ΚΩ
3.9 ΚΩ
1.1 ΚΩ
360 ΚΩ
LIGHTING SWITCH
MLS / KM
TRIP A / B
RESET
TRIP COMPUTER
SWITCHES
AUXILIARY
REFER TO APPENDIX
CAN / IC MESSAGES.
(CIRCUIT CONTINUED)
(CIRCUIT CONTINUED)
J GATE: NOT-IN-PARK
(CIRCUIT CONTINUED)
FC18-5FC18-4
FC11-2
FC11-7
17.1
17.1
04.1
CAN
BG
WB
Y
WU
GR
GO
FC26-12
FC26-11
85
35
39
NG
FC15-3
W
2
I
II
20.1
20.1
20.1
20.1
II
FC14-4
WG
FC14-3
Y
FC15-8
G
FC15-9
Y
FC15-18
G
FC15-19
WG
FC14-12
BG
FC14-1
WB
FC14-8
FC14-7
FC14-2
FC63-4
FC63-15
B
LOGIC
B
B
C
C
C
C
B
AIRBAG
WARNINGS
I
AIRBAG
WARNING INDICATOR
I
SEAT BELT
AUDIBLE WARNING
I
KEY-IN
AUDIBLE WARNING
I
KEY-IN
AUDIBLE WARNING
I
MESSAGE CENTER
FC15-20
FC15-10
Y
20.2
U
20.2
86
20.2
20.2
87
20.2
20.2
NG
FH59-6
Y
FH59-7
U
FH59-1
N
CA101-3
Y
CA102-1
U
CA102-2
B
S
S
GENERAL ELECTRONIC
CONTROL MODULE
B
S
S
SCP
LOGIC
LOGIC
REFER TO APPENDIX
SCP / IC MESSAGES
I
FH59-9
I
FH9-15
P
P
P
P
P
FH59-12
FH60-11
FH60-13
FH60-14
FH60-15
I
CA101-15
CA103-23
I
CA101-16
WR
NR
WU
BG
WU
B
B
B
B
B
FP6-1
FP2-5
FP6-2
PI41-16
FH77
WR
NR
WU
FPS1
BG
PI46-1
FH37-2
FP4-1
NR
FP4-3
NR
FP3-3
FP3-1
P
OIL PRESSURE
SWITCH
WASHER FLUID
LEVEL SWITCH
RH SIDE
FUEL LEVEL SENSOR
E
YW
KO
KO
YW
LH SIDE
FUEL LEVEL SENSOR
FH37-1
B
FH42
F
160Ω20Ω
FE
160Ω20Ω
S
S
FUEL TANK
330 ΚΩ
470 ΚΩ
TRIP CYCLE
SWITCH
MAIN LIGHTING SWITCH
(COLUMN SWITCHGEAR)
B
CP1-7
FH42
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
ENGINE
COOLANT LEVEL
SENSOR
77 92
Fig. 01.3 Fig. 01.6
114
II
FC116-5
FC116-6
OB
CP1-6 FC4-13CP3-1 CP3-2
15 45
II II
OG
UY
O
46 80
SS
FC63-14
FC63-3
O
FC14-5
81 118
EE
Fig. 01.7
I
MESSAGE CENTER
LOW ENGINE COOLANT LEVEL
I
WARNING
INSTRUMENT CLUSTER
I
O
Output
B
+
Power Ground
P
P
P
P
P
REAR ELECTRONIC
CONTROL MODULE
CA102-12
CA103-11
CA103-12
CA103-25
CA103-26
B
B
B
B
B
CA156
B
FC14-14
P
B
FC15-2
FC38
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
DP
Serial and Encoded Data
C
S
All Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
General Electronic Control Module
Pin Description and Characteristic
OFH9-7 LH TURN SIGNAL REPEATER LAMP ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND (PULSED)
OFH9-11 RH SIDE MARKER LAMP ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND
OFH9-19 RH TURN SIGNAL REPEATER LAMP ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND (PULSED)
OFH9-22 LH SIDE MARKER LAMP ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND†
SFH59-1 SCP -
OFH59-2 LH FRONT SIDE LAMP ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND
OFH59-5 FRONT FOG LAMP RELAY ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND
B+ FH59-6 BATTERY POWER SUPPLY (LOGIC): B+
SFH59-7 SCP +
O FH59-10 RH FRONT SIDE LAMP ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND
PG FH59-12 POWER GROUND: GROUND
OFH60-4 RH FRONT TURN SIGNAL ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND (PULSED)
OFH60-5 LH FRONT TURN SIGNAL ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND (PULSED)
OFH60-7 RH DIP BEAM ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND
OFH60-8 LH DIP BEAM ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND
O FH60-10 RH MAIN BEAM ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND
PG FH60-11 POWER GROUND: GROUND
PG FH60-13 POWER GROUND: GROUND
PG FH60-14 POWER GROUND: GROUND
PG FH60-15 POWER GROUND: GROUND
O FH60-17 LH MAIN BEAM ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND
Instrument Cluster
Pin Description and Characteristic
O FC14-9 HAZARD INDICATOR: PULSED B+
SG FC14-14 SIGNAL GROUND: GROUND
PG FC15-2 POWER GROUND: GROUND
B+ FC15-3 BATTERY POWER SUPPLY (LOGIC): B+
SFC15-10 SCP –
SFC15-20 SCP +
I FC63-1 MAIN LIGHTING SWITCH SIGNALS – TURN SIGNALS, HAZARD WARNING: TURN = VARIABLE RESISTANCE; HAZARD = GROUND
I FC63-2 MAIN LIGHTING SWITCH SIGNALS – EXIT DELAY: VARIABLE RESISTANCE
SG FC63-3 MAIN LIGHTING SWITCH SIGNAL GROUND: GROUND
I FC63-6 FOG LAMPS SWITCH SIGNAL: VARIABLE RESISTANCE
SG FC63-10 AUTOLAMP SENSOR GROUND: GROUND
IFC63-12 MAIN LIGHTING SWITCH SIGNALS – MAIN, FLASH: VARIABLE RESISTANCE
IFC63-13 MAIN LIGHTING SWITCH SIGNALS – OFF, SIDE, DIP, AUTOLAMP: VARIABLE RESISTANCE
SG FC63-15 AUXILIARY LIGHTING SWITCH SIGNAL GROUND: GROUND
IFC63-21 AUTOLAMP SENSOR SIGNAL: VARIABLE RESISTANCE
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
Fig. 08.1
COMPONENTS
Component Connector(s) Connector Description Location
AUXILIARY LIGHTING SWITCH FC11 10-WAY / YELLOW FASCIA, ADJACENT TO STEERING COLUMN
CENTER CONSOLE SWITCH PACK FC113 8-WAY / BLACK CENTER CONSOLE
DUAL SOLAR SENSOR (AUTO HEADLAMP) SL1 6-WAY / BLACK INSTRUMENT PANEL GLARE SHIELD, FRONT CENTER
FRONT FOG LAMP – LH BF4 2-WAY / BLACK FRONT BUMPER, LH SIDE
FRONT FOG LAMP – RH BF5 2-WAY / BLACK FRONT BUMPER, RH SIDE
FRONT FOG LAMP RELAY — — FRONT POWER DISTRIBUTION FUSE BOX – R11
FRONT POWER DISTRIBUTION FUSE BOX — — ENGINE COMPARTMENT, RH SIDE
GENERAL ELECTRONIC CONTROL MODULE FH9 22-WAY / BLACK LH ‘A’ POST
HEADLAMP UNIT – LH HL2 2-WAY / BLACK ENGINE COMPARTMENT, LH FRONT
HEADLAMP UNIT – RH HR2 2-WAY / BLACK ENGINE COMPARTMENT, RH FRONT
INSTRUMENT CLUSTER FC14 22-WAY / GREY INSTRUMENT PANEL
MAIN LIGHTING SWITCH (COLUMN SWITCHGEAR) FC116 6-WAY / BLACK STEERING COLUMN COWLING
SIDE MARKER – LH BF2 2-WAY / BLACK FRONT BUMPER, LH SIDE
SIDE MARKER – RH BF3 2-WAY / BLACK FRONT BUMPER, RH SIDE
TURN REPEATER – LH FH62 2-WAY / BLACK LH FRONT FENDER
TURN REPEATER – RH FH76 2-WAY / BLACK RH FRONT FENDER
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
BF1 6-WAY / GREY / FRONT HARNESS TO FRONT BUMPER HARNESS BEHIND FRONT BUMPER, LH SIDE
FH40 12-WAY / GREY / FRONT HARNESS TO LH FRONT HEADLAMP LINK BEHIND FRONT BUMPER, LH SIDE
FH39 12-WAY / GREY / FRONT HARNESS TO RH FRONT HEADLAMP LINK BEHIND FRONT BUMPER, RH SIDE
SL3 10-WAY / GREY / FASCIA HARNESS TO SOLAR SENSOR LINK BEHIND INSTRUMENT PANEL, RH SIDE
GROUNDS
Ground Location
FC38 UNDER CENTER OF INSTRUMENT PANEL, ON TRANSMISSION TUNNEL
FH22 ENGINE COMPARTMENT, BEHIND LH HEADLAMP
FH77 LH LOWER ‘A’ POST, ADJACENT TO THE GENERAL ELECTRONIC CONTROL MODULE (FORWARD OF CA30)
FC119 8-WAY / BLACK
BF6 2-WAY / BLACK
BF7 2-WAY / BLACK
CA24 26-WAY / NATURAL
CA31 20-WAY / BLACK
FH59 12-WAY / BLACK
FH60 17-WAY / BLACK
HL3 2-WAY / BLACK
HL4 2-WAY / BLACK
HL7 3-WAY / GREY
HL8 2-WAY / BLACK
HR3 2-WAY / BLACK
HR4 2-WAY / BLACK
HR7 3-WAY / GREY
HR8 2-WAY / BLACK
FC15 20-WAY / BLACK
FC63 22-WAY / BLACK
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
CLIMATE CONTROL:
SOLAR LOAD
470 Ω
270 Ω
180 Ω
470 Ω
270 Ω
180 Ω
56 Ω
Jaguar S-TYPE 2002.5
WR
GW
RH
LH
DUAL SOLAR SENSOR
(AUTO HEADLAMP)
SL1-6
SL1-5
SL1-1
SL1-2
FC116-4
FC116-3
FC116-1
220 Ω
270 Ω
470 Ω
06.1
06.1
AUTOLAMP
DIP BEAM
SIDE LAMPS
OFF
AUTOLAMP
EXIT DELAY 1
EXIT DELAY 2
EXIT DELAY 3
LH TURN
RH TURN
GW
NG
WR
WU
UY
FCS5
SL3-6
SL3-8
U
OY
Exterior Lighting: Front
REFER TO APPENDIX
SCP
SCP / GECM LIGHTING MESSAGES
NG
85
FC15-3
NG
FC63-10
WU
FC63-21
FC63-13
FC63-2
B
LOGIC
FC15-20
FC15-10
Y
20.2
U
20.2
S
S
I
I
I
86
20.2
20.2
NG
Y
U
FH59-6
FH59-7
FH59-1
B
LOGIC
S
S
O
O
O
O
O
O
O
O
FH9-7
FH9-22
FH60-5
FH60-5
FH59-2
FH60-8
FH60-17
FH9-19
BG
BO
BF1-2
BW
FH40-3
BW
FH40-3
BG
FH40-4
BR
FH40-5
BG
FH40-6
BO
Exterior Lighting: Front
BG
FH62-2 FH62-1
LH TURN REPEATER
BF2-1 BF2-2
LH SIDE MARKER *
HL8-1 HL8-2
TURN **
HL7-1 HL7-3
TURN **
HL4-1 HL4-2
HL3-1 HL3-2
HL2-2 HL2-1
MAIN
LH HEADLAMP UNIT
BO
FH76-1 FH76-2
SIDE
DIP
NW
NWBO
NWBW
NWBW
NWBG
NWBW
NRBR
NR
Fig. 08.1
53
S
52
S
NW
51
HLS1
S
58
S
54
S
48
S
RH TURN REPEATER
UY
FC63-1
FH9-11
BW
BF1-4
BF3-1 BF3-2
I
O
RH SIDE MARKER *
NRBW
47
S
FC38
B
B
FC119-4
FC113-8
220 Ω
FLASH
270 Ω
470 Ω
MAIN BEAM
MAIN LIGHTING SWITCH
(COLUMN SWITCHGEAR)
1.2 ΚΩ
1.2 ΚΩ
HAZARD SWITCH
AND INDICATOR
CENTER CONSOLE
SWITCH PACK
3.9 ΚΩ
FRONT
820 Ω (LHD)
470 Ω (RHD)
REAR
470 Ω (LHD)
820 Ω (RHD)
FOG LAMP
SWITCHES
AUXILIARY
LIGHTING SWITCH
FC116-2
FC116-6
FC119-3
FC119-7
FC11-5 (LHD)
FC11-6 (RHD)
FC11-7
UY
O
UY
BO
GU (LHD)
WB (RHD)
GO
FC63-12
FC63-3
FC14-9
FC63-6
FC63-15
INSTRUMENT CLUSTER
FH60-4
FH60-4
FH59-10
FH60-7
FH60-10
BW
BW
BR
BW
BR
FH39-3
FH39-3
FH39-4
FH39-5
FH39-6
HR8-1 HR8-2
TURN **
HR7-1 HR7-3
TURN **
HR4-1 HR4-2
SIDE
HR3-1 HR3-2
DIP
HR2-2 HR2-1
MAIN
O
I
O
O
O
O
O
NRBW
NRBW
HRS1
NR
46
S
NRBG
NWBW
NRBR
49
S
57
S
RH HEADLAMP UNIT
NW
BF6-2 BF6-1
NW
4
I
B
FC14-14
P
B
FC15-2
B
FH59-12
B
FH60-11
B
FH60-13
B
FH60-14
B
FH60-15
P
P
P
P
P
O
FH59-5
BG
FHS62
NG
59
BG
R11
3
2
FRONT FOG LAMP
5
1
RELA Y
NW
NG
NW
BF1-6
BFS1
60
FRONT POWER DISTRIBUTION FUSE BOX
FC38
FH77
GENERAL ELECTRONIC
CONTROL MODULE
NOTES:
* Side Marker Lamps – NAS only.
** Either single or dual filament turn signals fitted.
BF4-2 BF4-1
LH FRONT
FOG LAMP
NW
BF5-2 BF5-1
NW
BF7-2 BF7-1
RH FRONT
FOG LAMP
B
B
B
BFS2
B
B
BF1-3
B
FH22
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
I
O
Output
B
+
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
DP
Serial and Encoded Data
C
S
Non HID Headlamp Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
General Electronic Control Module
Pin Description and Characteristic
OCA31-20 LH HID RELAY ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND†
OFH9-6 RH HID RELAY ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND
OFH9-7 LH TURN SIGNAL REPEATER LAMP ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND (PULSED)
OFH9-11 RH SIDE MARKER LAMP ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND
OFH9-19 RH TURN SIGNAL REPEATER LAMP ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND (PULSED)
OFH9-22 LH SIDE MARKER LAMP ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND†
SFH59-1 SCP OFH59-2 LH FRONT SIDE LAMP ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND
OFH59-5 FRONT FOG LAMP RELAY ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND
B+ FH59-6 BATTERY POWER SUPPLY (LOGIC): B+
SFH59-7 SCP +
O FH59-10 RH FRONT SIDE LAMP ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND
PG FH59-12 POWER GROUND: GROUND
OFH60-4 RH FRONT TURN SIGNAL ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND (PULSED)
OFH60-5 LH FRONT TURN SIGNAL ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND (PULSED)
O FH60-10 RH MAIN BEAM ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND
PG FH60-11 POWER GROUND: GROUND
PG FH60-13 POWER GROUND: GROUND
PG FH60-14 POWER GROUND: GROUND
PG FH60-15 POWER GROUND: GROUND
O FH60-17 LH MAIN BEAM ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND
Instrument Cluster
Pin Description and Characteristic
O FC14-9 HAZARD INDICATOR: PULSED B+
SG FC14-14 SIGNAL GROUND: GROUND
PG FC15-2 POWER GROUND: GROUND
B+ FC15-3 BATTERY POWER SUPPLY (LOGIC): B+
SFC15-10 SCP –
SFC15-20 SCP +
I FC63-1 MAIN LIGHTING SWITCH SIGNALS – TURN SIGNALS, HAZARD WARNING: TURN = VARIABLE RESISTANCE; HAZARD = GROUND
I FC63-2 MAIN LIGHTING SWITCH SIGNALS – EXIT DELAY: VARIABLE RESISTANCE
SG FC63-3 MAIN LIGHTING SWITCH SIGNAL GROUND: GROUND
I FC63-6 FOG LAMPS SWITCH SIGNAL: VARIABLE RESISTANCE
SG FC63-10 AUTOLAMP SENSOR GROUND: GROUND
IFC63-12 MAIN LIGHTING SWITCH SIGNALS – MAIN, FLASH: VARIABLE RESISTANCE
IFC63-13 MAIN LIGHTING SWITCH SIGNALS – OFF, SIDE, DIP, AUTOLAMP: VARIABLE RESISTANCE
SG FC63-15 AUXILIARY LIGHTING SWITCH SIGNAL GROUND: GROUND
IFC63-21 AUTOLAMP SENSOR SIGNAL: VARIABLE RESISTANCE
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
Fig. 08.2
COMPONENTS
Component Connector(s) Connector Description Location
AUXILIARY LIGHTING SWITCH FC11 10-WAY / YELLOW FASCIA, ADJACENT TO STEERING COLUMN
CENTER CONSOLE SWITCH PACK FC113 8-WAY / BLACK CENTER CONSOLE
DUAL SOLAR SENSOR (AUTO HEADLAMP) SL1 6-WAY / BLACK INSTRUMENT PANEL GLARE SHIELD, FRONT CENTER
FRONT FOG LAMP – LH BF4 2-WAY / BLACK FRONT BUMPER, LH SIDE
FRONT FOG LAMP – RH BF5 2-WAY / BLACK FRONT BUMPER, RH SIDE
FRONT FOG LAMP RELAY — — FRONT POWER DISTRIBUTION FUSE BOX – R11
FRONT POWER DISTRIBUTION FUSE BOX — — ENGINE COMPARTMENT, RH SIDE
GENERAL ELECTRONIC CONTROL MODULE FH9 22-WAY / BLACK LH ‘A’ POST
HEADLAMP UNIT – LH HL2 2-WAY / BLACK ENGINE COMPARTMENT, LH FRONT
HEADLAMP UNIT – RH HR2 2-WAY / BLACK ENGINE COMPARTMENT, RH FRONT
HID RELAY – LH — — FRONT POWER DISTRIBUTION FUSE BOX – R10
HID RELAY – RH — — FRONT POWER DISTRIBUTION FUSE BOX – R13
INSTRUMENT CLUSTER FC14 22-WAY / GREY INSTRUMENT PANEL
MAIN LIGHTING SWITCH (COLUMN SWITCHGEAR) FC116 6-WAY / BLACK STEERING COLUMN COWLING
SIDE MARKER – LH BF2 2-WAY / BLACK FRONT BUMPER, LH SIDE
SIDE MARKER – RH BF3 2-WAY / BLACK FRONT BUMPER, RH SIDE
TURN REPEATER – LH FH62 2-WAY / BLACK LH FRONT FENDER
TURN REPEATER – RH FH76 2-WAY / BLACK RH FRONT FENDER
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
BF1 6-WAY / GREY / FRONT HARNESS TO FRONT BUMPER HARNESS BEHIND FRONT BUMPER, LH SIDE
FH6 16-WAY GREEN / CABIN HARNESS TO FRONT HARNESS LH ‘A’ POST, ADJACENT TO GECM
FH39 12-WAY / GREY / FRONT HARNESS TO RH FRONT HEADLAMP LINK BEHIND FRONT BUMPER, RH SIDE
FH40 12-WAY / GREY / FRONT HARNESS TO LH FRONT HEADLAMP LINK BEHIND FRONT BUMPER, LH SIDE
SL3 10-WAY / GREY / FASCIA HARNESS TO SOLAR SENSOR LINK BEHIND INSTRUMENT PANEL, RH SIDE
FC119 8-WAY / BLACK
BF6 2-WAY / BLACK
BF7 2-WAY / BLACK
CA24 26-WAY / NATURAL
CA31 20-WAY / BLACK
FH59 12-WAY / BLACK
FH60 17-WAY / BLACK
HL3 2-WAY / BLACK
HL4 2-WAY / BLACK
HL6 (HID) 2-WAY / WHITE
HL7 3-WAY / GREY
HL8 2-WAY / BLACK
HR3 2-WAY / BLACK
HR4 2-WAY / BLACK
HR6 (HID) 2-WAY / WHITE
HR7 3-WAY / GREY
HR8 2-WAY / BLACK
FC15 20-WAY / BLACK
FC63 22-WAY / BLACK
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
GROUNDS
Ground Location
FC38 UNDER CENTER OF INSTRUMENT PANEL, ON TRANSMISSION TUNNEL
FH22 ENGINE COMPARTMENT, BEHIND LH HEADLAMP
FH42 ENGINE COMPARTMENT, BEHIND RH HEADLAMP
FH77 LH LOWER ‘A’ POST, ADJACENT TO THE GENERAL ELECTRONIC CONTROL MODULE (FORWARD OF CA30)
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
FC38
CLIMATE CONTROL:
SOLAR LOAD
56 Ω
B
FC119-4
B
FC113-8
Jaguar S-TYPE 2002.5
06.1
06.1
AUTOLAMP
470 Ω
180 Ω
470 Ω
180 Ω
DIP BEAM
270 Ω
SIDE LAMPS
OFF
AUTOLAMP
EXIT DELAY 1
270 Ω
EXIT DELAY 2
EXIT DELAY 3
220 Ω
LH TURN
270 Ω
470 Ω
RH TURN
220 Ω
FLASH
270 Ω
470 Ω
MAIN BEAM
MAIN LIGHTING SWITCH
(COLUMN SWITCHGEAR)
HAZARD SWITCH
CENTER CONSOLE
SWITCH PACK
3.9 ΚΩ
FOG LAMP
SWITCHES
AUXILIARY
LIGHTING SWITCH
WR
GW
RH
LH
DUAL SOLAR SENSOR
(AUTO HEADLAMP)
1.2 ΚΩ
1.2 ΚΩ
AND INDICATOR
FRONT
820 Ω (LHD)
470 Ω (RHD)
REAR
470 Ω (LHD)
820 Ω (RHD)
GW
SL1-6
NG
SL1-5
WR
SL1-1
WU
SL1-2
FC116-4
FC116-3
FC116-1
FC116-2
FC116-6
FC119-3
FC119-7
FC11-5 (LHD)
FC11-6 (RHD)
FC11-7
UY
UY
OY
FCS5
O
UY
BO
GU (LHD)
WB (RHD)
GO
SL3-6
SL3-8
U
Exterior Lighting: Front – HID
REFER TO APPENDIX
SCP
SCP / GECM LIGHTING MESSAGES
NG
85
FC15-3
NG
FC63-10
WU
FC63-21
FC63-13
FC63-2
B
LOGIC
FC15-20
FC15-10
Y
20.2
U
20.2
S
S
I
I
I
86
20.2
20.2
NG
B
S
S
LOGIC
O
O
O
O
O
O
O
FH9-7
FH9-22
FH60-5
FH60-5
FH59-2
FH60-17
CA31-20
NW
BG
BO
BW
BW
BG
BG
FH6-14
BF1-2
FH40-3
FH40-3
FH40-4
FH40-6
3
NR
76
2
NW
5
NR
1
NW
50
S
4
R10
FH59-6
Y
FH59-7
U
FH59-1
LH HID RELAY
FRONT POWER DISTRIBUTION FUSE BOX
O
FH9-19
BO
Exterior Lighting: Front – HID
BG
FH62-2 FH62-1
LH TURN REPEATER
BF2-1 BF2-2
LH SIDE MARKER *
HL8-1 HL8-2
HL7-1 HL7-3
HL4-1 HL4-2
HL2-2 HL2-1
N
FH40-5
HL6-2 HL6-1
LH HEADLAMP UNIT
BO
FH76-1 FH76-2
TURN **
TURN **
SIDE
MAIN
BALLAST
DIP
Fig. 08.2
NW
NWBO
NWBW
NWBW
NWBG
NRBR
B
FH40-11
NR
53
S
52
S
NW
51
HLS1
S
54
S
B
FH22
48
S
RH TURN REPEATER
UY
FC63-1
FC63-12
FC63-3
FC14-9
FC63-6
FC63-15
INSTRUMENT CLUSTER
I
O
FH9-11
BW
BF1-4
BF3-1 BF3-2
RH SIDE MARKER *
O
I
O
O
O
O
O
FH60-4
FH60-4
FH59-10
FH60-10
FH9-6
BW
BW
BR
BR
BW
FH39-3
FH39-3
FH39-4
FH39-6
HR8-1 HR8-2
HR7-1 HR7-3
HR4-1 HR4-2
HR2-2 HR2-1
4
R13
58
3
2
RH HID RELAY
5
NR
1
NRBW
59
S
FH39-5
N
HR6-2 HR6-1
NW
BF6-2 BF6-1
TURN **
TURN **
SIDE
MAIN
BALLAST
DIP
RH HEADLAMP UNIT
NW
4
I
B
FC14-14
P
B
FC15-2
B
FH59-12
B
FH60-11
B
FH60-13
B
FH60-14
B
FH60-15
P
P
P
P
P
O
FH59-5
BG
FHS62
NG
59
BG
R11
3
2
FRONT FOG LAMP
5
1
RELA Y
NW
NG
NW
BF1-6
BFS1
60
FRONT POWER DISTRIBUTION FUSE BOX
FC38
FH77
GENERAL ELECTRONIC
CONTROL MODULE
NOTES:
* Side Marker Lamps – NAS only.
** Either single or dual filament turn signals fitted.
BF4-2 BF4-1
LH FRONT
FOG LAMP
NW
BF5-2 BF5-1
NW
BF7-2 BF7-1
RH FRONT
FOG LAMP
NRBW
47
S
NRBW
NRBW
HRS1
NR
46
S
NRBG
NRBR
B
FH39-11
57
S
BNR
FH42
B
B
B
BFS2
B
B
BF1-3
B
FH22
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
I
O
Output
B
+
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
DP
Serial and Encoded Data
C
S
HID Headlamp Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
Instrument Cluster
Pin Description and Characteristic
O FC14-9 HAZARD INDICATOR: PULSED B+
IFC14-11 REVERSE SWITCH SIGNAL: REVERSE = GROUND
SG FC14-14 SIGNAL GROUND: GROUND
PG FC15-2 POWER GROUND: GROUND
B+ FC15-3 BATTERY POWER SUPPLY (LOGIC): B+
SFC15-10 SCP –
SFC15-20 SCP +
I FC63-1 MAIN LIGHTING SWITCH SIGNALS – TURN SIGNALS, HAZARD WARNING: TURN = VARIABLE RESISTANCE; HAZARD = GROUND
I FC63-2 MAIN LIGHTING SWITCH SIGNALS – EXIT DELAY: VARIABLE RESISTANCE
SG FC63-3 MAIN LIGHTING SWITCH SIGNAL GROUND: GROUND
I FC63-6 FOG LAMPS SWITCH SIGNAL: VARIABLE RESISTANCE
SG FC63-10 AUTOLAMP SENSOR GROUND: GROUND
IFC63-12 MAIN LIGHTING SWITCH SIGNALS – MAIN, FLASH: VARIABLE RESISTANCE
IFC63-13 MAIN LIGHTING SWITCH SIGNALS – OFF, SIDE, DIP, AUTOLAMP: VARIABLE RESISTANCE
SG FC63-15 AUXILIARY LIGHTING SWITCH SIGNAL GROUND: GROUND
IFC63-21 AUTOLAMP SENSOR SIGNAL: VARIABLE RESISTANCE
Rear Electronic Control Module
Pin Description and Characteristic
O CA63-1 RH STOP LAMP ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND
O CA63-2 LH STOP LAMP ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND
O CA63-3 LH REAR TURN SIGNAL ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND (PULSED)
O CA63-4 RH REAR TURN SIGNAL ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND (PULSED)
O CA63-5 RH TAIL LAMPS ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND
O CA63-6 LH TAIL LAMPS ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND
O CA63-7 LH REAR FOG LAMP ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND
O CA63-8 RH REAR FOG LAMP ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND
O CA63-9 LH REVERSE LAMP ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND
OCA63-10 RH REVERSE LAMP ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND
OCA63-17 HIGH-MOUNTED STOP LAMP ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND
OCA100-5 LICENSE PLATE LAMPS ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND
OCA100-6 LH REAR SIDE MARKER LAMP ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND
O CA100-12 RH REAR SIDE MARKER LAMP ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND
B+ CA101-3 BATTERY POWER SUPPLY: B+
SCA102-1 SCP +
SCA102-2 SCP -
PG CA102-12 POWER GROUND: GROUND
I CA102-13 BRAKE ON / OFF SWITCH (NORMALLY OPEN): OPEN CIRCUIT / B+
PG CA103-11 POWER GROUND: GROUND
PG CA103-12 POWER GROUND: GROUND
PG CA103-25 POWER GROUND: GROUND
PG CA103-26 POWER GROUND: GROUND
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
Fig. 08.3
COMPONENTS
Component Connector(s) Connector Description Location
AUXILIARY LIGHTING SWITCH FC11 10-WAY / YELLOW FASCIA, ADJACENT TO STEERING COLUMN
BRAKE ON / OFF SWITCH CA37 2-WAY / GREEN TOP OF BRAKE PEDAL
CENTER CONSOLE SWITCH PACK FC113 8-WAY / BLACK CENTER CONSOLE
DUAL SOLAR SENSOR (AUTO HEADLAMP) SL1 6-WAY / BLACK INSTRUMENT PANEL GLARE SHIELD, FRONT CENTER
HIGH-MOUNTED STOP LAMP CA18 3-WAY / GREY PARCEL SHELF, CENTER
INSTRUMENT CLUSTER FC14 22-WAY / GREY INSTRUMENT PANEL
LICENSE PLATE LAMPS CA66 4-WAY / BLACK LUGGAGE COMPARTMENT LID
MAIN LIGHTING SWITCH (COLUMN SWITCHGEAR) FC116 6-WAY / BLACK STEERING COLUMN COWLING
REAR ELECTRONIC CONTROL MODULE CA63 17-WAY / BLACK LUGGAGE COMPARTMENT, RH REAR
REVERSE SWITCH GB5 2-WAY / BLACK TRANSMISSION, LH REAR
SIDE MARKER LAMP – LH BR6 2-WAY / BLACK REAR BUMPER, LH SIDE
SIDE MARKER LAMP – RH BR7 2-WAY / BLACK REAR BUMPER, RH SIDE
TAIL LAMP UNIT – LH CA10 7-WAY / BLACK LUGGAGE COMPARTMENT, LH REAR
TAIL LAMP UNIT – RH CA68 7-WAY / BLACK LUGGAGE COMPARTMENT, RH REAR
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
BR1 10-WAY / GREY / CABIN HARNESS TO REAR BUMPER HARNESS BEHIND REAR BUMPER, RH SIDE
FC12 14-WAY / GREY / FASCIA HARNESS TO FRONT HARNESS BEHIND INSTRUMENT PANEL, PASSENGER SIDE
GB1 16-WAY / GREY / ENGINE HARNESS TO TRANSMISSION HARNESS ADJACENT TO TRANSMISSION BELL HOUSING
PI41 42-WAY / BLACK / ENGINE HARNESS TO VEHICLE HARNESSES ENGINE COMPARTMENT, BULKHEAD, PASSENGER SIDE
SL3 10-WAY / GREY / FASCIA HARNESS TO SOLAR SENSOR LINK BEHIND INSTRUMENT PANEL, RH SIDE
GROUNDS
Ground Location
CA116 BEHIND REAR SEAT BACK, RH SIDE
CA156 LUGGAGE COMPARTMENT, RH SIDE
FC38 UNDER CENTER OF INSTRUMENT PANEL, ON TRANSMISSION TUNNEL
PI40 (LHD) ENGINE COMPARTMENT, BEHIND RH WHEEL ARCH LINER
PI40 (RHD) ENGINE COMPARTMENT, BEHIND LH WHEEL ARCH LINER
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
FC119 8-WAY / BLACK
FC15 20-WAY / BLACK
FC63 22-WAY / BLACK
CA67 2-WAY / BLACK
CA100 12-WAY / BLACK
CA101 20-WAY / BLACK
CA102 22-WAY / BLACK
CA103 26-WAY / NATURAL
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Exterior Lighting: Rear
Exterior Lighting: Rear
Fig. 08.3
PI40AL
CLIMATE CONTROL:
B
PIS30
56 Ω
06.1
SOLAR LOAD
06.1
DUAL SOLAR SENSOR
B
B GB
GB1-9
GB5-1
REVERSE SWITCH *
AUTOLAMP
470 Ω
180 Ω
470 Ω
180 Ω
DIP BEAM
270 Ω
SIDE LAMPS
OFF
AUTOLAMP
EXIT DELAY 1
270 Ω
EXIT DELAY 2
EXIT DELAY 3
220 Ω
LH TURN
270 Ω
470 Ω
RH TURN
220 Ω
FLASH
270 Ω
470 Ω
MAIN BEAM
MAIN LIGHTING SWITCH
(COLUMN SWITCHGEAR)
WR
GW
RH
LH
(AUTO HEADLAMP)
GB5-2
GW
SL1-6
NG
SL1-5
WR
SL1-1
WU
SL1-2
GB
GB
GB1-11
* NOTE: Reverse Switch –
manual transmission only.
FC116-4
FC116-3
PI41-2
UY
FC116-1
O
FC116-2
UY
FC116-6
FCS5
SL3-6
SL3-8
U
OY
85
FC12-7
UY
NG
NG
WU
GB
FC15-3
FC63-10
FC63-21
FC14-11
FC63-13
FC63-2
FC63-1
FC63-12
FC63-3
REFER TO APPENDIX
SCP
SCP / RECM LIGHTING MESSAGES
B
LOGIC
FC15-20
FC15-10
Y
20.2
U
20.2
CAS22
S
S
I
I
90
GO
I
I
I
I
NR
CA37 -2 -1
BRAKE
ON / OFF
SWITCH
N
87
20.2
20.2
CA101-3
Y
CA102-1
U
CA102-2
GO
CA102-13
B
LOGIC
S
S
I
O
CA63-17
O
CA63-2
O
CA63-6
O
CA63-7
O
CA63-3
O
CA63-9
O
CA100-6
O
CA63-1
O
CA63-5
O
CA63-8
Y
BO
BW
BG
BW
BG
BR
BG
BO
BW
CAS84
Y
CAS2
BR1-7
WR
PARKING AID: REVERSE SELECTED
18.1
(CIRCUIT CONTINUED)
CA18-2 CA18-1
B
CA18-3
10 ΚΩ
HIGH–MOUNTED
STOP LAMP
CA10-3
CA10-1 CA10-2
CA10-7
CA10-5
BG
CA10-4
REVERSE
LH TAIL LAMP
BR
BR6-2 BR6-1
LH SIDE
MARKER LAMP *
CA68-5
CA68-7 CA68-6
CA68-1
STOP
TAIL
FOG
TURN
UNIT
STOP
TAIL
FOG
BRD
CA10-6
NG
NW
NW
NG
R
B
CA116
68
S
79
S
63
S
64
S
67
S
B
FC119-4
B
FC113-8
HAZARD SWITCH
FC38
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
CENTER CONSOLE SWITCH PACK
77 92
Fig. 01.3 Fig. 01.6
AND INDICATOR
3.9 ΚΩ
820 Ω (LHD)
470 Ω (RHD)
470 Ω (LHD)
820 Ω (RHD)
FOG LAMP
SWITCHES
AUXILIARY
LIGHTING SWITCH
114
II
1.2 ΚΩ
1.2 ΚΩ
FRONT
REAR
FC119-3
FC119-7
FC11-5 (LHD)
FC11-6 (RHD)
FC11-7
15 45
II II
UY
46 80
BO
GU (LHD)
WB (RHD)
GO
SS
FC14-9
FC63-6
FC63-15
INSTRUMENT CLUSTER
81 118
EE
Fig. 01.7
O
CA63-4
O
I
FC14-14
P
FC15-2
B
FC38
B
CA156
B
B
B
B
B
CA102-12
CA103-11
CA103-12
CA103-25
CA103-26
P
P
P
P
P
REAR ELECTRONIC
CONTROL MODULE
O
CA63-10
O
CA100-12
O
CA100-5
BG
BR
BG
BG
BR1-6
CAS12 (LHD)
CAS1 (RHD)
CA68-3
CA68-4
TURN
REVERSE
RH TAIL LAMP
UNIT
BG
BR7-2 BR7-1
RH SIDE
MARKER LAMP *
BO
CA66-1 CA66-2
CA67-1
LH
RH
LICENSE PLATE
LAMPS
CA67-2
CA68-2
NW
NW
NW
NWBR
75
S
76
S
77
S
78
S
* NOTE: Side Marker Lamps – NAS only.
I
O
Output
B
+
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
DP
Serial and Encoded Data
C
S
All Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
Rear Electronic Control Module
Pin Description and Characteristic
OCA100-5 LICENSE PLATE LAMPS ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND
O TT2-1 RH STOP LAMP ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND
O TT2-2 LH STOP LAMP ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND
O TT2-3 LH REAR TURN SIGNAL ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND (PULSED)
O TT2-4 RH REAR TURN SIGNAL ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND (PULSED)
O TT2-5 RH TAIL LAMPS ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND
O TT2-6 LH TAIL LAMPS ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND
O TT2-9 LH REVERSE LAMP ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND
OTT2-10 RH REVERSE LAMP ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND
OTT2-17 HIGH-MOUNTED STOP LAMP ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND
Fig. 08.4
COMPONENTS
Component Connector(s) Connector Description Location
BATTERY —— LUGGAGE COMPARTMENT
HIGH-MOUNTED STOP LAMP CA18 3-WAY / GREY PARCEL SHELF, CENTER
LICENSE PLATE LAMPS CA66 4-WAY / BLACK LUGGAGE COMPARTMENT LID
REAR ELECTRONIC CONTROL MODULE CA63 17-WAY / BLACK LUGGAGE COMPARTMENT, RH REAR
TAIL LAMP UNIT – LH CA10 7-WAY / BLACK LUGGAGE COMPARTMENT, LH REAR
TAIL LAMP UNIT – RH CA68 7-WAY / BLACK LUGGAGE COMPARTMENT, RH REAR
TRAILER TOWING CONNECTOR TJ2 NOT AVAILABLE LUGGAGE COMPARTMENT
TRAILER TOWING CONNECTORS TJ3 NOT AVAILABLE LUGGAGE COMPARTMENT
TRAILER TOWING CONTROL MODULE TT7 NOT AVAILABLE LUGGAGE COMPARTMENT
TRAILER TOWING JUNCTION BOX TT5 NOT AVAILABLE LUGGAGE COMPARTMENT
TRAILER TOWING RELAY TT6 RELAY CONNECTOR LUGGAGE COMPARTMENT
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
BR1 10-WAY / GREY / CABIN HARNESS TO REAR BUMPER HARNESS BEHIND REAR BUMPER, RH SIDE
TT1 6-WAY / GREY / TRAILER TOWING IN-LINE CONNECTOR LUGGAGE COMPARTMENT, ADJACENT TO RH TAIL LAMP
GROUNDS
Ground Location
CA116 BEHIND REAR SEAT BACK, RH SIDE
JB1 LUGGAGE COMPARTMENT, BATTERY GROUND
TT4 NOT AVAILABLE
CA67 2-WAY / BLACK
CA100 12-WAY / BLACK
CA101 20-WAY / BLACK
CA102 22-WAY / BLACK
CA103 26-WAY / NATURAL
TJ4 NOT AVAILABLE
TT8 NOT AVAILABLE
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Exterior Lighting: Rear – Trailer Towing
Exterior Lighting: Rear – Trailer Towing
Fig. 08.4
B
JB1
REVERSE PARKING AID:
TRAILER CONNECTED
(CIRCUIT CONTINUED)
TRAILER TOWING
CONNECTOR *
BATTERY
TJ2-15
TJ2-14
TJ2-2
TJ2-4
TJ2-5
TJ2-6
TJ2-7
TJ2-1
TJ2-3
TJ2-9
TJ2-8
TJ2-10
TJ2-11
TJ2-13
WU
BR
RW
GU
NG
RU
NW
Y
WU
RW
RU
OY
WU
WU
TT3
TJS2
18.1
CA63-7
CA63-3
Y
CA18-2 CA18-1
B
CA18-3
10 ΚΩ
HIGH–MOUNTED
STOP LAMP
BO
CA10-3
STOP
BW
CA10-1 CA10-2
TAIL
BG
CA10-7
FOG
BW
CA10-5
TURN
BRD
CA10-6
NG
NW
R
B
CA116
79
S
63
S
68
S
O
O
LIGHTING INPUTS:
REFER TO FIG. 08.3.
R
TTS8
65
R
TT6-3
OY
S
WU
TT6-1
TRAILER TOWING
RELAY
RU
TT6-5
B
TT6-2
TT4
O
O
O
O
O
O
O
O
TT2-17
TT2-2
TT2-6
TT2-3
TT2-9
TT2-1
TT2-5
TT2-4
TT2-10
CA100-5
Y
BO
BW
BW
BG
BG
BG
BG
BR
BG
CA63-17
CA63-2
CA63-6
CA63-9
Y
TTS3
CAS84
BG
BW
BG
WU
BR
TJ1-7
TJ1-10
TJ1-12
TJ1-3
TJ1-1
TJ1-4
TJ1-11
TJ1-5
TJ1-6
TJ1-2
TJ1-8
TJ1-13
TJ1-14
RU
RU
TTS1
RU
RU
TRAILER TOWING
CONNECTORS *
TT5-7 TT5-8
TT5-5 TT5-6
TT5-3 TT5-4
TT5-1 TT5-2
TJ4-8
TJ4-9
TJ4-2
TJ4-4
TJ4-5
TJ4-6
TJ4-7
TJ4-1
TJ4-3
TJ3-4
TJ3-1
TJ3-6
TJ3-2
TJ3-3
TJ3-7
F2 15A
F3 15A
F4 15A
F5 15A
TRAILER TOWING
JUNCTION BOX
WU
BR BR
RW
GU
NG
RU
NW
Y
WU
TJS1
WU
RW RW
O
OY
RU
WU
WU
TT1-2
TJ1-7
TJ1-10
TJ1-12
TJ1-3
TJ1-1
TJ1-4
TJ1-11
TJ1-5
TJ1-6
TJ1-2
TJ1-8
TJ1-9
TJ1-13
TJ1-14
RW
BR
WU
WU
WU
TTS9
TT4
BR
RW
GU
NG
RU
NW
Y
O
OY
RU
B
WU
RU
RU
RU
TT7-9
TT8-1
TT7-1
TT8-3
TT7-7
TT7-3
TT7-15
TT7-2
TT7-12
TT7-13
TT7-14
TT7-10
TT8-2
TT8-4
TT7-8
REAR ELECTRONIC
CONTROL MODULE
B
B
B
B
TRAILER TOWING
CONTROL MODULE
TT7-17
TT7-18
TT7-11
TT7-20
TT7-19
TT7-4
BO
BW
BG
BW
BG
BR
TTS7
TTS4
TTS5
TTS2
TTS6
BG
BG
BG
BG
BR
CAS12 (LHD)
CAS1 (RHD)
CA63-1
CA63-5
CA63-8
CA63-4
CA63-10
CA10-4
BG
CA68-5
BO
CA68-7 CA68-6
BW
CA68-1
BG
CA68-3
BR
CA68-4
BO
CA66-1 CA66-2
CA67-1 CA67-2
REVERSE
LH TAIL LAMP
UNIT
STOP
TAIL
FOG
TURN
REVERSE
RH TAIL LAMP
UNIT
LH
RH
LICENSE PLATE
LAMPS
CA68-2
NG
NW
NW
NWBR
67
S
75
S
77
S
78
S
* NOTE: Either single connector or two connectors fitted.
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
I
O
Output
B
+
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
DP
Serial and Encoded Data
C
S
Trailer Towing Vehicles
All
June 2002
Fig. 08.5
COMPONENTS
Component Connector(s) Connector Description Location
AUXILIARY LIGHTING SWITCH FC11 10-WAY / YELLOW FASCIA, ADJACENT TO STEERING COLUMN
HEADLAMP LEVELING ACTUATOR – LH HL1 3-WAY / BLACK BEHIND LH HEADLAMP UNIT
HEADLAMP LEVELING ACTUATOR – RH HR1 3-WAY / BLACK BEHIND RH HEADLAMP UNIT
HEADLAMP LEVELING CONTROL MODULE FH12 26-WAY / BLACK RH ‘A’ POST, ABOVE PRIMARY JUNCTION FUSE BOX
HID HEADLAMP UNIT – LH HL10 4-WAY / BLACK ENGINE COMPARTMENT, LH FRONT
HID HEADLAMP UNIT – RH HR10 4-WAY / BLACK ENGINE COMPARTMENT, RH FRONT
RIDE HEIGHT SENSOR – FRONT AXLE FH113 6-WAY / BLACK RH FRONT SUSPENSION
RIDE HEIGHT SENSOR – REAR AXLE CA240 6-WAY / BLACK RH REAR SUSPENSION
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
FC4 14-WAY / GREEN / FASCIA HARNESS IN-LINE CONNECTOR BEHIND INSTRUMENT PANEL, LH SIDE
FH2 16-WAY / GREY / CABIN HARNESS TO FRONT HARNESS RH ‘A’ POST, LOWER
FH39 12-WAY / GREY / FRONT HARNESS TO RH FRONT HEADLAMP LINK BEHIND FRONT BUMPER, RH SIDE
FH40 12-WAY / GREY / FRONT HARNESS TO LH FRONT HEADLAMP LINK BEHIND FRONT BUMPER, LH SIDE
GROUNDS
Ground Location
FC38 UNDER CENTER OF INSTRUMENT PANEL, ON TRANSMISSION TUNNEL
FH22 ENGINE COMPARTMENT, BEHIND LH HEADLAMP
FH42 ENGINE COMPARTMENT, BEHIND RH HEADLAMP
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Headlamp Leveling
Headlamp Leveling
Fig. 08.5
26
II
NR
390 Ω
27
II
YR
FC11-11
HEADLAMP LEVELING
AUXILIARY
LIGHTING SWITCH
2800 Ω5000 Ω6040 Ω
SWITCH
FC11-12
FC11-10
FC4-6
B
FC38
NR NR
YR
FHS40
FHS20
YR
FH40-1
FH40-7
B
FH40-8
FH22
YR
NR
FH39-1
FH39-7
B
FH39-8
FH42
YR
NR
B
YR
NR
B
HL1-3
HL1-2
HL1-1
HR1-3
HR1-2
HR1-1
SERVO
AMPLIFIER
LH HEADLAMP
LEVELING ACTUATOR
SERVO
AMPLIFIER
RH HEADLAMP
LEVELING ACTUATOR
DRIVER–CONTROLLED HEADLAMP LEVELING
FRONT AXLE
RIDE HEIGHT
SENSOR
REAR AXLE
RIDE HEIGHT
SENSOR
FH113-6
FH113-5
FH113-1
CA240-6
CA240-5
CA240-1
YR
GW
YB
YR
YU
YG
FH2-2
FH2-1
FH2-3
25
20.1
20.1
20.2
YR
GW
YB
YR
YU
YG
NW
II
FH12-23
Y
FH12-2
G
FH12-3
W
FH12-5
B
C
C
D
O
O
O
O
FH12-19
FH12-16
FH12-18
FH12-17
YY
FH40-1
HL10-4
GG
FH40-7
HL10-1
UUY
FH40-8
HL10-3
OO
FH40-2
HL10-2
STEPPER MOTOR
HEADLAMP
LEVELING
LH HID HEADLAMP UNIT
FH12-6
FH12-25
FH12-11
FH12-7
FH12-10
FH12-12
I
O
I
O
HEADLAMP LEVELING
CONTROL MODULE
O
O
O
O
P
FH12-21
FH12-22
FH12-20
FH12-15
FH12-24
WY
FH39-1
HR10-4
GG
FH39-7
HR10-1
NUY
FH39-8
HR10-3
RO
FH39-2
HR10-2
B
FH42
HEADLAMP
LEVELING
STEPPER MOTOR
RH HID HEADLAMP UNIT
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
AUTOMATIC HEADLAMP LEVELING (HID HEADLAMPS)
81 118
EE
Fig. 01.7
I
O
Output
B
+
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
DP
Serial and Encoded Data
C
S
Headlamp Leveling Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
Driver Door Control Module
Pin Description and Characteristic
S CA85-3 SCP +
S CA85-4 SCP -
PG CA85-8 POWER GROUND: GROUND
B+ CA85-11 BATTERY POWER SUPPLY: B+
I DT2-16 DRIVER DOOR ALARM SET / LOCK SWITCH (NORMALLY OPEN): OPEN CIRCUIT / GROUND
I DT2-17 DRIVER DOOR ALARM RESET / UNLOCK SWITCH (NORMALLY OPEN): OPEN CIRCUIT / GROUND
General Electronic Control Module
Pin Description and Characteristic
ICA24-15 PASSENGER DOOR AJAR SWITCH (NORMALLY OPEN): OPEN CIRCUIT / GROUND
I CA31-8 DRIVER DOOR AJAR SWITCH (NORMALLY OPEN): OPEN CIRCUIT / GROUND
–CA31-12 INTERIOR LIGHTING ACTIVATE: TO ACTIVATE, GECM SWITCHES CIRCUIT TO GROUND (PWM)
SFH59-1 SCP -
B+ FH59-6 BATTERY POWER SUPPLY (LOGIC): B+
SFH59-7 SCP +
PG FH60-11 POWER GROUND: GROUND
Instrument Cluster
Pin Description and Characteristic
SG FC14-13 ROOF CONSOLE COURTESY LAMP SWITCH GROUND: SWITCH OPEN = GROUND
SG FC14-14 SIGNAL GROUND: GROUND
PG FC15-2 POWER GROUND: GROUND
B+ FC15-3 BATTERY POWER SUPPLY (LOGIC): B+
SFC15-10 SCP –
SFC15-20 SCP +
Rear Electronic Control Module
Pin Description and Characteristic
O CA100-11 TRUNK LAMPS ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND
B+ CA101-3 BATTERY POWER SUPPLY: B+
I CA101-17 LHD – RH REAR DOOR AJAR SWITCH (NORMALLY OPEN): OPEN CIRCUIT / GROUND
SCA102-1 SCP +
SCA102-2 SCP -
PG CA102-12 POWER GROUND: GROUND
I CA102-14 TRUNK AJAR SWITCH (NORMALLY OPEN): OPEN CIRCUIT / GROUND
I CA103-16 LHD – LH REAR DOOR AJAR SWITCH (NORMALLY OPEN): OPEN CIRCUIT / GROUND
RHD – LH REAR DOOR AJAR SWITCH (NORMALLY OPEN): OPEN CIRCUIT / GROUND
RHD – RH REAR DOOR AJAR SWITCH (NORMALLY OPEN): OPEN CIRCUIT / GROUND
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
Fig. 09.1
COMPONENTS
Component Connector(s) Connector Description Location
COURTESY LAMP – DRIVER DOOR DD6 2-WAY BLACK DRIVER DOOR CASING
COURTESY LAMP – PASSENGER DOOR PD3 2-WAY BLACK PASSENGER DOOR CASING
DOOR LATCH ASSEMBLY – DRIVER DT5 10-WAY / BLACK DRIVER DOOR
DOOR LATCH ASSEMBLY – PASSENGER PT3 10-WAY / BLACK PASSENGER DOOR
DOOR LATCH ASSEMBLY – LH REAR CA81 10-WAY / BLACK LH REAR DOOR
DOOR LATCH ASSEMBLY – RH REAR CA90 10-WAY / BLACK RH REAR DOOR
DRIVER DOOR CONTROL MODULE CA85 12-WAY / BLACK DRIVER DOOR
FASCIA LAMP – LH FC44 2-WAY / WHITE INSTRUMENT PANEL, LH SIDE
FASCIA LAMP – RH FC51 2-WAY / WHITE INSTRUMENT PANEL, RH SIDE
GENERAL ELECTRONIC CONTROL MODULE FH9 22-WAY / BLACK LH ‘A’ POST
GLOVE BOX LAMP GL1 2-WAY / BLACK GLOVE BOX
INSTRUMENT CLUSTER FC14 22-WAY / GREY INSTRUMENT PANEL
MAP LAMP – LH REAR RF20 3-WAY / BLACK LH REAR ASSIST HANDLE
MAP LAMP – RH REAR RF23 3-WAY / BLACK RH REAR ASSIST HANDLE
REAR ELECTRONIC CONTROL MODULE CA63 17-WAY / BLACK LUGGAGE COMPARTMENT, RH REAR
ROOF CONSOLE CA250 22-WAY / BLACK ROOF HEADLINER
SUN VISOR LAMP – LH RF12 2-WAY / BLACK LH SUN VISOR
SUN VISOR LAMP – RH RF24 2-WAY / BLACK RH SUN VISOR
TRUNK AJAR SWITCH CA117 2-WAY / BLACK LUGGAGE COMPARTMENT LID
TRUNK LAMP – LH CA96 2-WAY / BLACK LUGGAGE COMPARTMENT, LH SIDE
TRUNK LID LAMP CA167 2-WAY / BLACK LUGGAGE COMPARTMENT LID
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
CA3A/B 14-WAY / GREY / CABIN HARNESS BRIDGE LUGGAGE COMPARTMENT, LH REAR
DD8 16-WAY / BLUE / CABIN HARNESS TO DRIVER DOOR HARNESS DRIVER DOOR
DT8 14-WAY / GREY / CABIN HARNESS TO DRIVER DOOR TRIM HARNESS DRIVER DOOR
FC23 10-WAY / GREY / CABIN HARNESS TO FASCIA HARNESS BEHIND INSTRUMENT PANEL, LH SIDE
FC33 16-WAY / GREEN / CABIN HARNESS TO FASCIA HARNESS BEHIND INSTRUMENT PANEL, RH SIDE
FC117 10-WAY / BLACK / STEERING WHEEL CASSETTE STEERING COLUMN
PD4 10-WAY / GREY / CABIN HARNESS TO PASSENGER DOOR HARNESS PASSENGER DOOR
PT1 14-WAY / GREY / CABIN HARNESS TO PASSENGER DOOR TRIM HARNESS PASSENGER DOOR
RF34 16-WAY / GREEN / CABIN HARNESS TO DOOR HARNESS ‘D’ POST, UNDER PARCEL SHELF
DD4 26-WAY / NATURAL
DT2 20-WAY / BLACK
CA24 26-WAY / NATURAL
CA31 20-WAY / BLACK
FH59 12-WAY / BLACK
FH60 17-WAY / BLACK
FC15 20-WAY / BLACK
FC63 22-WAY / BLACK
CA100 12-WAY / BLACK
CA101 20-WAY / BLACK
CA102 22-WAY / BLACK
CA103 26-WAY / NATURAL
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
GROUNDS
Ground Location
CA30 LH LOWER ‘A’ POST, ADJACENT TO THE GENERAL ELECTRONIC CONTROL MODULE (REARWARD OF FH77)
CA50 RH LOWER ‘A’ POST, BELOW PRIMARY JUNCTION FUSE BOX
CA116 BEHIND REAR SEAT BACK, RH SIDE
CA141 UNDER LH FRONT SEAT
CA154 UNDER RH FRONT SEAT
CA156 LUGGAGE COMPARTMENT, RH SIDE
FC38 UNDER CENTER OF INSTRUMENT PANEL, ON TRANSMISSION TUNNEL
FH77 LH LOWER ‘A’ POST, ADJACENT TO THE GENERAL ELECTRONIC CONTROL MODULE (FORWARD OF CA30)
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Interior Lighting
Interior Lighting
Fig. 09.1
B
CA50
(CA30)
B
CA30
(CA50)
PT1-7
DT8-7
NG
86
B
B
PTS1
PT3-6
DOOR AJAR
SWITCH
PASSENGER DOOR LATCH
ASSEMBLY
PT3-8
BG
PT1-8
BW
DOOR AJAR
SWITCH
DT5-8
DT8-3
78
B
B
DTS2
DT5-6
ALARM SET /
LOCK SWITCH
DT5-7
BG
FH59-6
BG
CA24-15
BW
CA31-8
WG
CA85-11
DT2-16
BW
ALARM RESET /
UNLOCK SWITCH
DRIVER DOOR LATCH
ASSEMBLY
DT5-5
DT2-17
B
LOGIC
I
I
GENERAL ELECTRONIC
CONTROL MODULE
B
LOGIC
I
I
DRIVER DOOR
CONTROL MODULE
NR
CA250-3
COURTESY LAMP
SWITCH
YR YR
CA250-2
85
FC33-10
NG
FC15-3
FC14-13
B
LOGIC
P
ROOF CONSOLE
INSTRUMENT CLUSTER
N
CA154
CA141
B
CA90-6
DOOR LATCH ASSEMBLY
B
CA81-6
DOOR LATCH ASSEMBLY
DOOR AJAR
SWITCH
RH REAR
DOOR AJAR
SWITCH
LH REAR
87
BG
CA90-8
BO
CA81-8
CA101-3
CA101-17 (LHD)
CA103-16 (RHD)
CA103-16 (LHD)
CA101-17 (RHD)
BWB
CA156
CA117-2
TRUNK AJAR
SWITCH
CA117-1
CA102-14
B
LOGIC
I
I
I
REAR ELECTRONIC
CONTROL MODULE
REMOTE
ENTRY
NR
NW
BG
B
GL1-2 GL1-1
FC121-2
GLOVE BOX
BW NW
FC51-1 FC51-2
RH FASCIA LAMP
BW NW
FCS27
FC44-1 FC44-2
LAMP
B
FH59-7
FH59-1
CA31-12
FH60-11
Y
20.2
U
20.2
FC38
O
B
O
FH77
FC23-9
S
S
O
P
FC121-1
FC33-6
NR
CAS96
FCS28
NR
FC33-9
NW
NW
CAS52
NG
69
S
LH FASCIA LAMP
N
DD8-7
CA85-3
CA85-4
CA85-8
Y
20.2
U
20.2
CAS91
NG
PD4-8
B
CA30
(CA50)
CA50
S
S
P
N NW
DD6-2 DD6-1
DRIVER DOOR
COURTESY LAMP
NG O
B
CA250-1
PD3-2 PD3-1
PASSENGER DOOR
COURTESY LAMP
GARAGE DOOR
OPENER
19.1
LH
RH
MAP LAMPS
DD8-2
PD4-1
CA250-9
NW
NW
O
70
S
ROOF CONSOLE
FC15-20
FC15-10
FC14-14
FC15-2
Y
20.2
U
20.2
B
RF12-1 RF12-2
NG
LH SUN VISOR LAMP
B
B
FC38
RF34-11
NN
RFS3
B
RF24-1 RF24-2
RH SUN VISOR LAMP
NG
RF20-1
B
RF20-3
RF20-2
NG
NR
RFS2
N
71
S
S
S
P
LH REAR MAP LAMP
CA102-1
CA102-2
CA100-11
CA102-12
Y
U
BG
B
20.2
20.2
CA156
CA116
CAS25
NW
RF23-3
RF34-6
B
RFS1
B
B
RF23-1
RF23-2
NR
RH REAR MAP LAMP
BO
CA167-2 CA167-1
NW
73
S
TRUNK LID LAMP
BG
CA3A/B-9
BG
CA96-2 CA96-1
NG
74
S
S
S
O
P
LH TRUNK LAMP
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
I
O
Output
B
+
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
DP
Serial and Encoded Data
C
S
All Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
Air Conditioning Control Module – Panel
Pin Description and Characteristic
IFC28-15 PANEL ILLUMINATION (DIMMER CONTROLLED): B+ (PWM)
Audio Unit
Pin Description and Characteristic
IFC94-17 DIMMER CONTROLLED ILLUMINATION: PWM, 80Hz, GROUND = 0% DUTY CYCLE, B+ = 100% DUTY CYCLE
General Electronic Control Module
Pin Description and Characteristic
B+ CA31-1 SWITCHED SYSTEM POWER SUPPLY: B+
OCA31-11 BACKLIGHTING ACTIVATE: B+ (PWM)
SFH59-1 SCP -
B+ FH59-6 BATTERY POWER SUPPLY (LOGIC): B+
SFH59-7 SCP +
PG FH59-12 POWER GROUND: GROUND
PG FH60-11 POWER GROUND: GROUND
PG FH60-13 POWER GROUND: GROUND
PG FH60-14 POWER GROUND: GROUND
PG FH60-15 POWER GROUND: GROUND
Instrument Cluster
Pin Description and Characteristic
SG FC14-14 SIGNAL GROUND: GROUND
IFC14-22 INSTRUMENT CLUSTER LOCATE LIGHTING DRIVE: B+ (PWM)
PG FC15-2 POWER GROUND: GROUND
B+ FC15-3 BATTERY POWER SUPPLY (LOGIC): B+
SFC15-10 SCP –
SFC15-20 SCP +
I FC63-2 MAIN LIGHTING SWITCH SIGNALS – EXIT DELAY: VARIABLE RESISTANCE
SG FC63-3 MAIN LIGHTING SWITCH SIGNAL GROUND: GROUND
I FC63-5 DIMMER SIGNAL: VARIABLE VOLTAGE
IFC63-13 MAIN LIGHTING SWITCH SIGNALS – OFF, SIDE, DIP, AUTOLAMP: VARIABLE RESISTANCE
SG FC63-15 AUXILIARY LIGHTING SWITCH SIGNAL GROUND: GROUND
SS FC63-16 DIMMER SUPPLY VOLTAGE: B+
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
Fig. 09.2
COMPONENTS
Component Connector(s) Connector Description Location
AIR CONDITIONING CONTROL MODULE – PANEL FC27 26-WAY / GREY CENTER CONSOLE
AUDIO UNIT FC94 20-WAY / BLACK CENTER CONSOLE
AUXILIARY LIGHTING SWITCH FC11 10-WAY / YELLOW FASCIA, ADJACENT TO STEERING COLUMN
CENTER CONSOLE SWITCH PACK FC113 8-WAY / BLACK CENTER CONSOLE
CIGAR LIGHTER CA109 3-WAY / BLACK CENTER CONSOLE
DOOR SWITCH PACK – DRIVER DD2 26-WAY / YELLOW DRIVER DOOR ARM REST
FUEL FLAP / TRUNK RELEASE SWITCH PACK FC43 10-WAY / GREY INSTRUMENT PANEL
GENERAL ELECTRONIC CONTROL MODULE FH9 22-WAY / BLACK LH ‘A’ POST
INSTRUMENT CLUSTER FC14 22-WAY / GREY INSTRUMENT PANEL
J GATE MODULE CA245 16-WAY / BLACK J GATE ASSEMBLY
MAIN LIGHTING SWITCH (COLUMN SWITCHGEAR) FC116 6-WAY / BLACK STEERING COLUMN COWLING
POWER POINT CA237 3-WAY / BROWN ADJACENT TO CIGAR LIGHTER
PRIMARY JUNCTION FUSE BOX CA2 26-WAY / BLACK RH ‘A’ POST
ROOF CONSOLE CA250 22-WAY / BLACK ROOF HEADLINER
STEERING WHEEL LIGHTING SQ1 4-WAY / BLACK STEERING WHEEL
TELEMATICS DISPLAY FC92 22-WAY / BLACK CENTER CONSOLE
WINDOW SWITCH – LH REAR CA78 5-WAY / GREEN LH REAR DOOR ARM REST
WINDOW SWITCH – PASSENGER PD1 5-WAY / GREEN PASSENGER DOOR ARM REST
WINDOW SWITCH – RH REAR CA95 5-WAY / GREEN RH REAR DOOR ARM REST
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
DD8 16-WAY / BLUE / CABIN HARNESS TO DRIVER DOOR HARNESS DRIVER DOOR
FC23 10-WAY / GREY / CABIN HARNESS TO FASCIA HARNESS BEHIND INSTRUMENT PANEL, LH SIDE
FC117 10-WAY / BLACK / STEERING WHEEL CASSETTE STEERING COLUMN
PD4 10-WAY / GREY / CABIN HARNESS TO PASSENGER DOOR HARNESS PASSENGER DOOR
FC28 22-WAY / GREY
FC96 ANTENNA CONNECTOR
FC108 FIBER OPTIC CONNECTOR
FC119 8-WAY / BLACK
CA24 26-WAY / NATURAL
CA31 20-WAY / BLACK
FH59 12-WAY / BLACK
FH60 17-WAY / BLACK
FC15 20-WAY / BLACK
FC63 22-WAY / BLACK
CA56 8-WAY / BLACK
FC37 26-WAY / BLACK
FH7 6-WAY / BLACK
FH53 10-WAY / BLACK
SQ2 6-WAY / BLACK
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
GROUNDS
Ground Location
CA30 LH LOWER ‘A’ POST, ADJACENT TO THE GENERAL ELECTRONIC CONTROL MODULE (REARWARD OF FH77)
CA50 RH LOWER ‘A’ POST, BELOW PRIMARY JUNCTION FUSE BOX
CA141 UNDER LH FRONT SEAT
CA154 UNDER RH FRONT SEAT
FC38 UNDER CENTER OF INSTRUMENT PANEL, ON TRANSMISSION TUNNEL
FH77 LH LOWER ‘A’ POST, ADJACENT TO THE GENERAL ELECTRONIC CONTROL MODULE (FORWARD OF CA30)
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Dimmer-Controlled Lighting
Dimmer-Controlled Lighting
Fig. 09.2
56 Ω
360 Ω
5 ΚΩ
DIMMER
AUXILIARY LIGHTING SWITCH
AUTOLAMP
470 Ω
180 Ω
470 Ω
180 Ω
DIP BEAM
270 Ω
SIDE LAMPS
OFF
AUTOLAMP
EXIT DELAY 1
270 Ω
EXIT DELAY 2
EXIT DELAY 3
MAIN LIGHTING SWITCH
(COLUMN SWITCHGEAR)
FC11-8
FC11-9
FC11-7
FC116-4
FC116-3
FC116-6
03.2 03.4YG03.6
NG
85
FC15-3
GW
FC63-5
B
LOGIC
FC15-20
FC15-10
Y
20.2
DIMMING CURVE;
20.2
BACKLIGHTING
INTENSITY
U
S
I
S
GU
FC63-16
GO
FC63-15
U
FC63-13
OY
FC63-2
I
ILLUMINATION
I
FC14-22
O
I
SWITCH
ILLUMINATION
AUDIO UNIT
SWITCH
ILLUMINATION
TELEMATICS DISPLAY
SWITCH
ILLUMINATION
A/CCM
(WITH PANEL CONTROLS)
FC94-17
FC92-9
FC28-15
U
UY
UY
FCS26
SQ1-2
SQ2-3
SQ2-4
SQ1-1
WU
FC117-6
FC117-4
CASSETTE
CASSETTE
UY B
W
9
I
U
NOTE: Accessory power supply to
Center Console Switch Pack is used
for two-stage dimming.
STEERING WHEEL LIGHTING
FC11-3
AUXILIARY LIGHTING SWITCH
FC113-5
FC113-3
AUDIO
SPEED
CONTROL
FC11-4
FC113-8
FC119-4
B
B
ECM: GROUND
U
CENTER CONSOLE SWITCH PACK
GU
FC43-5
FUEL FLAP AND TRUNK RELEASE
SWITCH PACK
B
FC43-10
FC38
UY
FC63-3
INSTRUMENT CLUSTER
B
FC14-14
P
B
FC15-2
FC38
FC23-8
NG
86
61
S
FH59-6
W
CA31-1
B
LOGIC
SWITCH
B
ILLUMINATION
OY
OY
CA2-26CA2-24
O
CA95-2
RH REAR WINDOW SWITCH
CA95-4
OYOY
S
S
O
P
P
P
P
P
GENERAL ELECTRONIC
CONTROL MODULE
FH59-7
FH59-1
CA31-11
FH59-12
FH60-11
FH60-13
FH60-14
FH60-15
Y
20.2
U
20.2
O
B
CA109-3 CA109-2
CAS95
OY
PRIMARY
JUNCTION FUSE BOX
CA2-25
PD4-2
DD8-3
CIGAR LIGHTER
B
CA237-3 CA237-2
B
POWER POINT
UY
PD1-2
PASSENGER WINDOW SWITCH
OYOY
DD2-8
DRIVER DOOR SWITCH PACK
O
CA78-2 CA78-4
LH REAR WINDOW SWITCH
B
B
B
B
B
FH77
CA141
SWITCH
ILLUMINATION
J GATE ASSEMBLY
UY
CA245-3CA245-2
UY
CA250-10 CA250-1
SWITCH
ILLUMINATION
ROOF CONSOLE
PD1-4
DD2-25
DD2-14
DD2-23
B
CA154
B
B
PD4-5
B
DD8-8
CA50
(CA30)
B
CA30
(CA50)
B
CA141
B
CA50
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
I
O
Output
B
+
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
DP
Serial and Encoded Data
C
S
All Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
Driver Door Control Module
Pin Description and Characteristic
S CA85-3 SCP +
S CA85-4 SCP -
PG CA85-8 POWER GROUND: GROUND
B+ CA85-11 BATTERY POWER SUPPLY: B+
ODD4-7 MEMORY SET INDICATOR: TO ACTIVATE, DDCM SWITCHES CIRCUIT TO B+
I DD4-10 MEMORY 1: GROUND WHEN SELECTED
I DD4-11 MEMORY 2: GROUND WHEN SELECTED
I DD4-25 MEMORY SET: GROUND WHEN SELECTED
General Electronic Control Module
Pin Description and Characteristic
I CA24-5 PEDAL ADJUST MOTOR POSITION SENSOR SIGNAL: VARIABLE VOLTAGE
OCA24-12 PEDAL ADJUST MOTOR DRIVE – IN: TO ACTIVATE, GECM SWITCHES CIRCUIT TO B+
SG CA24-18 PEDAL ADJUST MOTOR POSITION SENSOR SIGNAL GROUND: GROUND
OCA24-26 PEDAL ADJUST MOTOR DRIVE – OUT: TO ACTIVATE, GECM SWITCHES CIRCUIT TO B+
I CA31-8 DRIVER DOOR AJAR SWITCH (NORMALLY OPEN): OPEN CIRCUIT / GROUND
SS CA31-16 PEDAL ADJUST MOTOR POSITION SENSOR SIGNAL SUPPLY VOLTAGE: NOMINAL 5 V
IFH9-8 PEDALS OUT REQUEST (NORMALLY OPEN): OPEN CIRCUIT / GROUND
IFH9-17 PEDALS IN REQUEST (NORMALLY OPEN): OPEN CIRCUIT / GROUND
SFH59-1 SCP SFH59-7 SCP +
B+ FH60-1 SWITCHED SYSTEM POWER SUPPLY: B+
PG FH60-11 POWER GROUND: GROUND
Instrument Cluster
Pin Description and Characteristic
SG FC14-14 SIGNAL GROUND: GROUND
B+ FC15-1 BATTERY POWER SUPPLY (COLUMN MOTOR)
PG FC15-2 POWER GROUND: GROUND
B+ FC15-3 BATTERY POWER SUPPLY (LOGIC): B+
SFC15-10 SCP –
OFC15-11 STEERING COLUMN MOTOR DOWN / IN DRIVE: B+ WHEN ACTIVATED
OFC15-12 STEERING COLUMN MOTOR UP / OUT DRIVE: B+ WHEN ACTIVATED
OFC15-13 STEERING COLUMN IN / OUT FUNCTION SOLENOID DRIVE: B+ WHEN ACTIVATED
OFC15-14 STEERING COLUMN UP / DOWN FUNCTION SOLENOID DRIVE: B+ WHEN ACTIVATED
SFC15-20 SCP +
I FC63-7 FUNCTION SELECT SIGNAL: VARIABLE RESISTANCE
SG FC63-8 STEERING COLUMN POSITION FEEDBACK POTENTIOMETERS SIGNAL GROUND: GROUND
I FC63-9 STEERING COLUMN IN / OUT POSITION FEEDBACK POTENTIOMETER SIGNAL: VARIABLE VOLTAGE
IFC63-17 STEERING COLUMN MOVEMENT SWITCH SIGNAL: VARIABLE VOLTAGE
SG FC63-18 STEERING COLUMN MOVEMENT / SELECT SIGNAL GROUND: GROUND
OFC63-19 STEERING COLUMN POSITION FEEDBACK POTENTIOMETERS SUPPLY VOLTAGE: B+
IFC63-20 STEERING COLUMN UP / DOWN POSITION FEEDBACK POTENTIOMETER SIGNAL: VARIABLE VOLTAGE
Fig. 10.1
COMPONENTS
Component Connector(s) Connector Description Location
COLUMN AND PEDAL ADJUST SWITCH FC45 8-WAY / BLACK STEERING COLUMN COWLING
DOOR LATCH ASSEMBLY – DRIVER DT5 10-WAY / BLACK DRIVER DOOR
DOOR SWITCH PACK – DRIVER DD2 26-WAY / YELLOW DRIVER DOOR ARM REST
DRIVER DOOR CONTROL MODULE CA85 12-WAY / BLACK DRIVER DOOR
GENERAL ELECTRONIC CONTROL MODULE FH9 22-WAY / BLACK LH ‘A’ POST
INSTRUMENT CLUSTER FC14 22-WAY / GREY INSTRUMENT PANEL
PEDAL ADJUST MOTOR CA234 2-WAY / BLACK PEDAL MOUNTING BRACKET ASSEMBLY
STEERING COLUMN MOTOR, SOLENOIDS AND POSITION SENSORS FC115 10-WAY / BLACK UPPER STEERING COLUMN
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
DD8 16-WAY / BLUE / CABIN HARNESS TO DRIVER DOOR HARNESS DRIVER DOOR
DT8 14-WAY / GREY / CABIN HARNESS TO DRIVER DOOR TRIM HARNESS DRIVER DOOR
FC4 14-WAY / GREEN / FASCIA HARNESS IN-LINE CONNECTOR BEHIND INSTRUMENT PANEL, LH SIDE
GROUNDS
Ground Location
CA30 LH LOWER ‘A’ POST, ADJACENT TO THE GENERAL ELECTRONIC CONTROL MODULE (REARWARD OF FH77)
CA50 RH LOWER ‘A’ POST, BELOW PRIMARY JUNCTION FUSE BOX
FC38 UNDER CENTER OF INSTRUMENT PANEL, ON TRANSMISSION TUNNEL
FH77 LH LOWER ‘A’ POST, ADJACENT TO THE GENERAL ELECTRONIC CONTROL MODULE (FORWARD OF CA30)
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
DD4 26-WAY / NATURAL
DT2 20-WAY / BLACK
CA24 26-WAY / NATURAL
CA31 20-WAY / BLACK
FH59 12-WAY / BLACK
FH60 17-WAY / BLACK
FC15 20-WAY / BLACK
FC63 22-WAY / BLACK
CA235 3-WAY / BLACK
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
CA30
(CA50)
Steering Column Adjust; Pedal Adjust
MEMORY
SCP
WG
78
CA85-11
Y
MEMORY SET
INDICATOR
DD2-11
DD4-7
YG
MEMORY SET
DD2-12
DD4-25
YR
MEMORY 1
DD8-8
B
DD2-14
MEMORY 2
DRIVER DOOR
SWITCH PACK
B
DD2-24
YU
DD2-13
DD4-10
DD4-11
B
LOGIC
O
S
S
I
I
P
I
DRIVER DOOR
CONTROL MODULE
CA85-3
CA85-4
CA85-8
Y
20.2
MEMORY
20.2
POSITIONS
U
B
CA30
(CA50)
FUNCTIONS
Steering Column Adjust; Pedal Adjust
FC115-3
FC115-4
STEERING COLUMN
MOTOR
Fig. 10.1
820 Ω
330 Ω
1.5 ΚΩ
2.2 ΚΩ
FC45-5
FC45-1
FC45-3
BW
W
N
B
FC115-10
B
FC115-9
FC115-1
FC115-2
FC115-6
FC115-7
STEERING COLUMN
SOLENOIDS
NG
85
84
FC15-3
NR
FC15-1
FC63-7
B
B
I
LOGIC
COLUMN
MOTOR
FC15-20
FC15-10
FC15-12
FC15-11
FC15-14
FC15-13
FC63-19
FC63-20
Y
20.2
U
20.2
N
Y
Y
G
FC38
R
U
S
S
O
O
O
O
O
I
U
FC63-17
I
FC63-8
I
FC63-9
W
FC115-5
FC115-8
B
FC63-18
P
INSTRUMENT CLUSTER
FC14-14
B
FC15-2
FC38
STEERING COLUMN
POSITION SENSORS
COLUMN
ADJUST
13
Fig. 01.1 Fig. 01.4
COLUMN
ADJUST +
ENTRY / EXIT
476
Fig. 01.2 Fig. 01.5
PEDAL
ADJUST
77 92
Fig. 01.3 Fig. 01.6
114
II
FC38
B
FC45-7
(CA50)
15 45
II II
CA30
COLUMN AND PEDAL ADJUST SWITCH
B
DT8-7
46 80
B
B
DTS2
DT5-6
SS
DOOR AJAR
SWITCH
DRIVER DOOR LATCH
ASSEMBLY
81 118
EE
Fig. 01.7
I
O
FC45-4
FC45-2
Output
DT5-8
S
DT8-3
NR
FH60-1
Y
FH9-17
R
FH9-8
BW
CA31-8
60
Y
FC4-11
R
FC4-12
BW
B
+
Power Ground
B
I
S
FH59-7
S
FH59-1
I
CA31-16
O
I
O
P
GENERAL ELECTRONIC
CONTROL MODULE
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
CA24-12
CA24-26
I
CA24-5
CA24-18
FH60-11
Y
20.2
U
20.2
G
Y
CA235-1
CA234-1
U
W
CA234-2
O
CA235-2
B
FH77
SCP
D
D2B NetworkInput Battery Voltage
2
DP
Serial and Encoded Data
C
S
CA235-3
PEDAL ADJUST
MOTOR
VARIANT:
VIN RANGE:
DATE OF ISSUE:
All Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
Air Conditioning Control Module – Panel
Pin Description and Characteristic
C FC28-1 CAN CFC28-12 CAN
Air Conditioning Control Module – Remote
Pin Description and Characteristic
C FC41-1 CAN CFC41-12 CAN +
Driver Door Control Module
Pin Description and Characteristic
S CA85-3 SCP +
S CA85-4 SCP -
PG CA85-7 POWER GROUND: GROUND
PG CA85-8 POWER GROUND: GROUND
B+ CA85-11 BATTERY POWER SUPPLY: B+
B+ CA85-12 SWITCHED SYSTEM POWER SUPPLY: B+
IDD4-3 MIRROR MOVEMENT UP: GROUND WHEN ACTIVATED
ODD4-7 MEMORY SET INDICATOR: TO ACTIVATE, DDCM SWITCHES CIRCUIT TO B+
I DD4-10 MEMORY 1: GROUND WHEN SELECTED
I DD4-11 MEMORY 2: GROUND WHEN SELECTED
I DD4-19 MIRROR MOVEMENT RIGHT: GROUND WHEN ACTIVATED
I DD4-20 MIRROR MOVEMENT DOWN: GROUND WHEN ACTIVATED
I DD4-21 MIRROR MOVEMENT LEFT: GROUND WHEN ACTIVATED
I DD4-23 LH DOOR MIRROR MOVEMENT SELECT: GROUND WHEN SELECTED
I DD4-24 RH DOOR MIRROR MOVEMENT SELECT: GROUND WHEN SELECTED
I DD4-25 MEMORY SET: GROUND WHEN SELECTED
O DT2-1 DRIVER DOOR MIRROR LEFT: TO ACTIVATE, DDCM SWITCHES CIRCUIT TO B+
O DT2-2 DRIVER DOOR MIRROR RIGHT: TO ACTIVATE, DDCM SWITCHES CIRCUIT TO B+
O DT2-3 DRIVER DOOR MIRROR UP: TO ACTIVATE, DDCM SWITCHES CIRCUIT TO B+
O DT2-4 DRIVER DOOR MIRROR DOWN: TO ACTIVATE, DDCM SWITCHES CIRCUIT TO B+
SS DT2-5 DRIVER DOOR MIRROR POSITION SENSORS SIGNAL SUPPLY VOLTAGE: B+
I DT2-14 DRIVER DOOR MIRROR LEFT / RIGHT POSITION FEEDBACK SIGNAL : VARIABLE VOLTAGE
I DT2-15 DRIVER DOOR MIRROR UP / DOWN POSITION FEEDBACK SIGNAL : VARIABLE VOLTAGE
SG DT2-19 DRIVER DOOR MIRROR POSITION SENSORS SIGNAL GROUND: GROUND
General Electronic Control Module
Pin Description and Characteristic
I CA24-7 PASSENGER DOOR MIRROR LEFT / RIGHT POSITION FEEDBACK SIGNAL : VARIABLE VOLTAGE
SS CA24-8 PASSENGER DOOR MIRROR POSITION SENSORS SIGNAL SUPPLY VOLTAGE: B+
ICA24-11 PASSENGER DOOR MIRROR UP / DOWN POSITION FEEDBACK : VARIABLE VOLTAGE
OCA24-20 PASSENGER DOOR MIRROR UP: TO ACTIVATE, GECM SWITCHES CIRCUIT TO B+
OCA24-21 PASSENGER DOOR MIRROR DOWN: TO ACTIVATE, GECM SWITCHES CIRCUIT TO B+
SG CA24-22 PASSENGER DOOR MIRROR POSITION SENSORS SIGNAL GROUND: GROUND
OCA24-23 PASSENGER DOOR MIRROR LEFT: TO ACTIVATE, DDCM SWITCHES CIRCUIT TO B+
OCA24-24 PASSENGER DOOR MIRROR RIGHT: TO ACTIVATE, DDCM SWITCHES CIRCUIT TO B+
SFH59-1 SCP -
SFH59-7 SCP +
B+ FH60-1 SWITCHED SYSTEM POWER SUPPLY: B+
PG FH60-11 POWER GROUND: GROUND
Fig. 10.2
COMPONENTS
Component Connector(s) Connector Description Location
AIR CONDITIONING CONTROL MODULE – PANEL FC27 26-WAY / GREY CENTER CONSOLE
AIR CONDITIONING CONTROL MODULE – REMOTE FC40 26-WAY / GREY BEHIND INSTRUMENT PANEL, RH SIDE (LHD), LH SIDE (RHD)
DOOR MIRROR – DRIVER DT6 22-WAY / BLACK DRIVER DOOR
DOOR MIRROR – PASSENGER CA19 22-WAY / BLACK PASSENGER DOOR
DOOR SWITCH PACK – DRIVER DD2 26-WAY / YELLOW DRIVER DOOR ARM REST
DRIVER DOOR CONTROL MODULE CA85 12-WAY / BLACK DRIVER DOOR
GENERAL ELECTRONIC CONTROL MODULE FH9 22-WAY / BLACK LH ‘A’ POST
HEATED REAR WINDOW RELAY — — REAR POWER DISTRIBUTION FUSE BOX – R1
HEATED REAR WINDOW CA20 2-WAY / GREY CONNECTOR LOCATED BELOW PARCEL SHELF, LH SIDE
INSTRUMENT CLUSTER FC14 22-WAY / GREY INSTRUMENT PANEL
REAR ELECTRONIC CONTROL MODULE CA63 17-WAY / BLACK LUGGAGE COMPARTMENT, RH REAR
REAR POWER DISTRIBUTION FUSE BOX — — LUGGAGE COMPARTMENT
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
CA3A/B 14-WAY / GREY / CABIN HARNESS BRIDGE LUGGAGE COMPARTMENT, LH REAR
DD8 16-WAY / BLUE / CABIN HARNESS TO DRIVER DOOR HARNESS DRIVER DOOR
DT8 14-WAY / GREY / CABIN HARNESS TO DRIVER DOOR TRIM HARNESS DRIVER DOOR
GROUNDS
Ground Location
CA30 LH LOWER ‘A’ POST, ADJACENT TO THE GENERAL ELECTRONIC CONTROL MODULE (REARWARD OF FH77)
CA50 RH LOWER ‘A’ POST, BELOW PRIMARY JUNCTION FUSE BOX
CA156 LUGGAGE COMPARTMENT, RH SIDE
FH77 LH LOWER ‘A’ POST, ADJACENT TO THE GENERAL ELECTRONIC CONTROL MODULE (FORWARD OF CA30)
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
FC28 22-WAY / GREY
FC41 22-WAY / GREY
DD4 26-WAY / NATURAL
DT2 20-WAY / BLACK
CA24 26-WAY / NATURAL
CA31 20-WAY / BLACK
FH59 12-WAY / BLACK
FH60 17-WAY / BLACK
FC15 20-WAY / BLACK
FC63 22-WAY / BLACK
CA100 12-WAY / BLACK
CA101 20-WAY / BLACK
CA102 22-WAY / BLACK
CA103 26-WAY / NATURAL
Instrument Cluster
Pin Description and Characteristic
SFC15-10 SCP –
CFC15-18 CAN +
CFC15-19 CAN –
SFC15-20 SCP +
Rear Electronic Control Module
Pin Description and Characteristic
B+ CA101-3 BATTERY POWER SUPPLY: B+
SCA102-1 SCP +
SCA102-2 SCP -
OCA102-7 HEATED REAR WINDOW ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND
PG CA102-12 POWER GROUND: GROUND
B+ CA103-13 SWITCHED SYSTEM POWER SUPPLY: B+
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Door Mirrors: Movement and Heaters; Heated Rear Window
Door Mirrors: Movement and Heaters; Heated Rear Window
Fig. 10.2
CA30
(CA50)
WG
78
55
S
CA85-11
NR
CA85-12
Y
MEMORY SET
INDICATOR
DD2-11
DD4-7
YG
MEMORY SET
DD2-12
DD4-25
YR
MEMORY 1
DD2-24
DD4-10
YU
MEMORY 2
DD2-13
RH
DD2-15 (LHD)
DD2-2 (RHD)
LH
DD2-2 (LHD)
DD2-15 (RHD)
DD4-11
OY
DD4-24
WR
DD4-23
UY
DD2-16
DD4-3
WB
B
B
DD8-8
DD2-14
DD2-3
DD2-17
DD4-19
Y
DD4-20
G
DD2-1
DD4-21
DRIVER DOOR SWITCH PACK
B
LOGIC
B
S
S
O
CA85-3
CA85-4
Y
20.2
U
20.2
DRIVER DOOR MIRROR
HEATER
20.2
20.2
Y
U
FH59-7
FH59-1
S
S
I
I
QQ5
I
I
I
O
I
O
I
I
I
I
I
O
O
DT2-4
DT2-3
DT2-15
DT2-5
DT2-14
DT2-1
DT2-2
DT2-19
U
OY
YB
YB
WB
WR
YR
NW
QQ5
DT6
QQ5-5QQ5
-8
-6
DT6
DT6-3DT6
-2
-4
-7
-1
QQ5-1QQ5-2QQ5
DT6-7DT6-8DT6
QQ5
-3
-4
DT6
-5
-6
DT6
DT8
DT6
-10
-9
B
O
DT8
-6
-2
B
CA30
(CA50)
B
O
O
I
I
O
O
FH60-1
CA24-21
CA24-20
CA24-11
CA24-8
CA24-7
CA24-23
CA24-24
CA24-22
NR
RW
UY
YR
YR
WR
WB
YB
NR
60
S
PASSENGER DOOR MIRROR
HEATER
QQ4
QQ4
CA19
-6
-4
CA19
-8
-2
QQ4-5QQ4
CA19-3CA19
-7
-1
QQ4-1QQ4-2QQ4
CA19-7CA19-8CA19
QQ4
-3
-4
CA19
-6
CA19
CA19
-5
-10
-9
B
CA50
(CA30)
+
C
–
C
AIR CONDITIONING
CONTROL MODULE
Y
FC28-12 *
FC41-12 *
G
FC28-1 *
FC41-1 *
* NOTE:
FC28 – A/CCM with panel controls;
FC41 – Remote A/CCM with navigation.
20.1
20.1
HEATERS
REQUEST
87
80
P
P
DRIVER DOOR
CONTROL MODULE
CA85-7
CA85-8
B
B
CA30
(CA50)
GENERAL ELECTRONIC
CONTROL MODULE
P
FH60-11
B
FH77
O
20.1
20.1
Y
FC15-18
G
FC15-19
+
C
–
C
S
S
INSTRUMENT CLUSTER
N
CA101-3
N
S
CA103-13
B
LOGIC
B
S
S
O
P
REAR ELECTRONIC
CONTROL MODULE
FC15-20
FC15-10
CA102-1
CA102-2
CA102-7
CA102-12
Y
20.2
U
20.2
OY
CA61-48
Y
20.2
U
20.2
26
NW
3
R
2
HEATED REAR WINDOW
B
CA156
REAR POWER DISTRIBUTION FUSE BOX
F42 5A
R1
RELAY
CA61-57
4
5
1
GW
R
27
CAS8
GW
CAS6
OG
GW
CA3A/B-1
GW
CA20-1
HEATED REAR WINDOW
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
I
O
Output
B
+
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
DP
Serial and Encoded Data
C
S
All Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
Driver Door Control Module
Pin Description and Characteristic
O CA85-5 MIRROR FOLD FLAT DRIVE: TO ACTIVATE, DDCM SWITCHES CIRCUIT TO B+
O CA85-6 MIRROR FOLD FLAT DRIVE: TO ACTIVATE, DDCM SWITCHES CIRCUIT TO B+
PG CA85-7 POWER GROUND: GROUND
PG CA85-8 POWER GROUND: GROUND
B+ CA85-11 BATTERY POWER SUPPLY: B+
B+ CA85-12 SWITCHED SYSTEM POWER SUPPLY: B+
I DD4-20 MIRROR FOLD FLAT (MIRROR SELECT IN NEUTRAL POSITION): GROUND WHEN ACTIVATED
I DD4-23 LH DOOR MIRROR MOVEMENT SELECT: GROUND WHEN SELECTED
I DD4-24 RH DOOR MIRROR MOVEMENT SELECT: GROUND WHEN SELECTED
Rear Electronic Control Module
Pin Description and Characteristic
B+ CA101-3 BATTERY POWER SUPPLY: B+
SCA102-1 SCP +
SCA102-2 SCP -
OCA102-7 HEATED REAR WINDOW ACTIVATE: TO ACTIVATE, RECM SWITCHES CIRCUIT TO GROUND
PG CA102-12 POWER GROUND: GROUND
B+ CA103-13 SWITCHED SYSTEM POWER SUPPLY: B+
Fig. 10.3
COMPONENTS
Component Connector(s) Connector Description Location
DOOR MIRROR – DRIVER DT6 22-WAY / BLACK DRIVER DOOR
DOOR MIRROR – PASSENGER CA19 22-WAY / BLACK PASSENGER DOOR
DOOR SWITCH PACK – DRIVER DD2 26-WAY / YELLOW DRIVER DOOR ARM REST
DRIVER DOOR CONTROL MODULE CA85 12-WAY / BLACK DRIVER DOOR
ELECTROCHROMIC REAR VIEW MIRROR AND COMPASS RF5 6-WAY / BLACK WINDSHIELD, CENTER
REAR ELECTRONIC CONTROL MODULE CA63 17-WAY / BLACK LUGGAGE COMPARTMENT, RH REAR
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
DD8 16-WAY / BLUE / CABIN HARNESS TO DRIVER DOOR HARNESS DRIVER DOOR
DT10 10-WAY / GREY / CABIN HARNESS TO DRIVER DOOR TRIM HARNESS DRIVER DOOR
RF34 16-WAY / GREEN / CABIN HARNESS TO DOOR HARNESS ‘D’ POST, UNDER PARCEL SHELF
DD4 26-WAY / NATURAL
DT2 20-WAY / BLACK
CA100 12-WAY / BLACK
CA101 20-WAY / BLACK
CA102 22-WAY / BLACK
CA103 26-WAY / NATURAL
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
GROUNDS
Ground Location
CA30 LH LOWER ‘A’ POST, ADJACENT TO THE GENERAL ELECTRONIC CONTROL MODULE (REARWARD OF FH77)
CA50 RH LOWER ‘A’ POST, BELOW PRIMARY JUNCTION FUSE BOX
CA116 BEHIND REAR SEAT BACK, RH SIDE
CA156 LUGGAGE COMPARTMENT, RH SIDE
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Electrochromic Rear View Mirror; Fold-Back Mirrors
Electrochromic Rear View Mirror; Fold-Back Mirrors
Fig. 10.3
REVERSE GEAR
87
80
S
20.2
20.2
N
N
Y
U
CA101-3
CA103-13
CA102-1
CA102-2
B
LOGIC
B
S
S
REAR ELECTRONIC
CONTROL MODULE
O
P
CA102-4
CA102-12
DRIVER
DOOR MIRROR
ELECTROCHROMIC
MIRROR
DT6
DT6
-11
-14
PASSENGER
DOOR MIRROR
ELECTROCHROMIC
MIRROR
CA19
CA19
-11
-14
OY
W
23
WU
II
WU
RF34-9
RF5-1
RF5-2
B
CA156
B
I
REVERSE
O
P
ELECTROCHROMIC
REAR VIEW MIRROR
AND COMPASS *
RF5-4
RF5-5
RF5-3
DT10
DT10
-3
-2
OYUYUY
OY
RF34-7
UY
RF34-15
B
BB
RFS1
RF34-6
OY
UY
CA116
CAS69 (LHD)
CAS70 (RHD)
CAS70 (LHD)
CAS69 (RHD)
OY
UY
ELECTROCHROMIC REAR VIEW MIRRORS
RH
LH
B
B
DD8-8
CA30
(CA50)
DD2-14
DRIVER DOOR SWITCH PACK
FOLD-BACK MIRRORS
78
55
S
DD2-15 (LHD)
DD2-2 (RHD)
DD2-2 (LHD)
DD2-15 (RHD)
DD2-16
DD2-3
DD2-17
DD2-1
WG
NR
OY
WR
Y
CA85-11
CA85-12
DD4-24
DD4-23
DD4-20
B
LOGIC
B
I
I
O
I
DRIVER DOOR
CONTROL MODULE
O
P
P
* NOTE: Includes compass, when fitted.
CA85-5
CA85-6
B
CA85-7
B
CA85-8
CA30
(CA50)
WG
YG
DRIVER
DOOR MIRROR
FOLD-FLAT
MOTOR
DT6
-16
WG
DT10
-1
WG
CAS41
DT6
YG
DT10
YG
-15
-5
CAS42
WG
YG
PASSENGER
DOOR MIRROR
FOLD-FLAT
MOTOR
CA19
-16
CA19
-15
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
I
O
Output
B
+
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
DP
Serial and Encoded Data
C
S
All Vehicles; Fold-Back Mirror Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
Driver Door Control Module
Pin Description and Characteristic
S CA85-3 SCP +
S CA85-4 SCP -
PG CA85-8 POWER GROUND: GROUND
B+ CA85-11 BATTERY POWER SUPPLY: B+
ODD4-7 MEMORY SET INDICATOR: TO ACTIVATE, DDCM SWITCHES CIRCUIT TO B+
I DD4-10 MEMORY 1: GROUND WHEN SELECTED
I DD4-11 MEMORY 2: GROUND WHEN SELECTED
I DD4-25 MEMORY SET: GROUND WHEN SELECTED
Driver Seat Control Module
Pin Description and Characteristic
IDM33-7 SEAT CUSHION FRONT POSITION SENSOR SIGNAL: 5 V PULSED SIGNAL
IDM33-8 SEAT HEIGHT POSITION SENSOR SIGNAL: 5 V PULSED SIGNAL
IDM33-9 HEADREST POSITION SENSOR SIGNAL: 5 V PULSED SIGNAL
I DM33-10 SEAT BACK RECLINE POSITION SENSOR SIGNAL: 5 V PULSED SIGNAL
SG DM33-11 SIGNAL GROUND: GROUND
B+ DM33-13 BATTERY POWER SUPPLY: LOGIC: B+
I DM33-22 SEAT POSITION SENSOR SIGNAL: 5 V PULSED SIGNAL
SG DM33-25 SIGNAL GROUND: GROUND
SG DM33-26 LOGIC GROUND: GROUND
SDM34-1 SCP +
IDM34-4 SEAT CUSHION FRONT RAISE REQUEST: ACTIVE = B+
IDM34-5 SEAT CUSHION FRONT LOWER REQUEST: ACTIVE = B+
I DM34-10 SEAT BACK RECLINE REARWARD REQUEST: ACTIVE = B+
I DM34-11 SEAT BACK RECLINE FORWARD REQUEST: ACTIVE = B+
S DM34-12 SCP –
I DM34-17 SEAT RAISE REQUEST: ACTIVE = B+
I DM34-18 SEAT LOWER REQUEST: ACTIVE = B+
I DM34-19 SEAT FORWARD REQUEST: ACTIVE = B+
I DM34-20 SEAT REARWARD REQUEST: ACTIVE = B+
ODM35-1 SEAT HEIGHT MOTOR DRIVE – RAISE: TO ACTIVATE, DSCM SWITCHES CIRCUIT TO B+
ODM35-2 SEAT HEIGHT MOTOR DRIVE – LOWER: TO ACTIVATE, DSCM SWITCHES CIRCUIT TO B+
PG DM35-5 POWER GROUND: GROUND
B+ DM35-6 BATTERY POWER SUPPLY: B+
ODM36-1 SEAT POSITION MOTOR DRIVE – FORWARD: TO ACTIVATE, DSCM SWITCHES CIRCUIT TO B+
ODM36-2 SEAT POSITION MOTOR DRIVE – REARWARD: TO ACTIVATE, DSCM SWITCHES CIRCUIT TO B+
ODM37-3 SEAT BACK RECLINE MOTOR DRIVE – REARWARD: TO ACTIVATE, DSCM SWITCHES CIRCUIT TO B+
ODM37-4 SEAT BACK RECLINE MOTOR DRIVE – FORWARD: TO ACTIVATE, DSCM SWITCHES CIRCUIT TO B+
PG DM38-1 POWER GROUND: GROUND
B+ DM38-2 BATTERY POWER SUPPLY: B+
ODM38-5 SEAT CUSHION FRONT MOTOR DRIVE – RAISE: TO ACTIVATE, DSCM SWITCHES CIRCUIT TO B+
ODM38-6 SEAT CUSHION FRONT MOTOR DRIVE – LOWER: TO ACTIVATE, DSCM SWITCHES CIRCUIT TO B+
Fig. 11.1
COMPONENTS
Component Connector(s) Connector Description Location
DOOR SWITCH PACK – DRIVER DD2 26-WAY / YELLOW DRIVER DOOR ARM REST
DRIVER DOOR CONTROL MODULE CA85 12-WAY / BLACK DRIVER DOOR
DRIVER SEAT CONTROL MODULE DM33 26-WAY / BLACK UNDER DRIVER SEAT
LUMBAR PUMP – DRIVER DL4 3-WAY / BLACK LOWER SEAT BACK
SEAT MOTORS AND POSITION SENSORS – DRIVER DM25 4-WAY / BLACK DRIVER SEAT
SEAT SWITCH PACK – DRIVER DM7 12-WAY / BLACK DRIVER SEAT
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
DD8 16-WAY / BLUE / CABIN HARNESS TO DRIVER DOOR HARNESS DRIVER DOOR
DL2 6-WAY / BLACK / DRIVER SEAT IN-LINE CONNECTOR DRIVER SEAT BACK REST
DM22 4-WAY / GREY / CABIN HARNESS TO DRIVER SEAT HARNESS UNDER DRIVER SEAT
DM23 20-WAY / BLACK / CABIN HARNESS TO DRIVER SEAT HARNESS UNDER DRIVER SEAT
GROUNDS
Ground Location
CA30 LH LOWER ‘A’ POST, ADJACENT TO THE GENERAL ELECTRONIC CONTROL MODULE (REARWARD OF FH77)
CA50 RH LOWER ‘A’ POST, BELOW PRIMARY JUNCTION FUSE BOX
CA141 UNDER LH FRONT SEAT
CA154 UNDER RH FRONT SEAT
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
DD4 26-WAY / NATURAL
DT2 20-WAY / BLACK
DM34 22-WAY / BLACK
DM35 6-WAY / BLACK
DM36 4-WAY / BLACK
DM37 4-WAY / BLACK
DM38 6-WAY / BLACK
DM26 4-WAY / BLACK
DM27 4-WAY / BLACK
DM28 4-WAY / BLACK
DM29 4-WAY / BLACK
DM31 4-WAY / BLACK
DM43 14-WAY / BLACK
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Driver Seat: 10-Way Movement with Memory
DRIVER SEAT MOTORS AND POSITION SENSORS
Driver Seat: 10-Way Movement with Memory
Fig. 11.1
WG
78
CA85-11
Y
MEMORY SET
INDICATOR
DD2-11
DD4-7
YG
MEMORY SET
DD2-12
DD4-25
YR
DD2-24
DD2-13
CA30
(CA50)
MEMORY 1
B
B
DD8-8
DD2-14
MEMORY 2
DRIVER DOOR
SWITCH PACK
21
22
NG
40
DMS1
NG
DD4-10
YU
DD4-11
NR
DM35-6
NW
DM38-2
DM33-13
NG
DM7-7
DM7-5
U
DM34-4
NG
DM43-8
DM7-11
UY
DM34-5
B
LOGIC
S
O
I
I
I
DRIVER DOOR
CONTROL MODULE
B
B
B
I
I
S
P
S
S
O
O
I
CA85-3
CA85-4
CA85-8
DM34-1
DM34-12
DM38-5
DM38-6
DM33-7
Y
20.2
MEMORY
20.2
POSITIONS
DM28
H
DM28
DM28-4DM28
-1
-5
-2
DM27
DM27
-1
-2
H
DM27-4DM27
H
DM26
DM26
-2
-3
-1
DM26-4DM26
-3
DM25
(LHD)
DM25
(RHD)
DM25
-1
(LHD)
DM25
-2
(RHD)
-2
-1
H
DM25-4DM25
-3
U
B
CA30
(CA50)
Y
20.2
U
20.2
GRRG O WB
OGGO U WB
DMS4
GUURWB
UYYU WU WB
RG
GR
O
CA141
(CA154)
B
DM23-1
NG
DM7-12
DM7-4
DM7-10
DM7-3
Y
YB
GB
DM34-17
DM34-18
DM34-11
I
I
I
B
DM7-1
DM7-9
DM7-2
RW
N
DM34-10
DM34-19
I
I
B
DM7-6
DM7-8
B
B
DMS6
DM43-1
DM43-9
YR
DM34-20
I
DRIVER SEAT
CONTROL MODULE
U
O
O
I
O
O
I
O
O
I
P
P
N
DM43-4
DRIVER SEAT SWITCH PACK
DM35-1
DM35-2
DM33-8
DM33-11
DM37-4
DM37-3
DM33-10
DM36-1
DM36-2
DM33-22
DM33-25
DM33-26
DM38-1
DM35-5
GO
OG
U
WB
U
GU
R
YU
UY
WU
WB
B
DMS6 DM23-1
B
B
B
DM22-4
DM22-3
B
B
B
CA141
(CA154)
N
DL2-1
DL2-3
DL4-1
B
DL4-2
B
DL2-6
U
DL4-3
DRIVER
LUMBAR PUMP
BB
DMS6
DM23-1
CA141
(CA154)
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
I
O
Output
B
+
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
DP
Serial and Encoded Data
C
S
10-Way Driver Seat Memory Vehicles
All
June 2002
CONTROL MODULE PIN-OUT INFORMATION
Driver Seat Control Module
Pin Description and Characteristic
IDM33-7 SEAT CUSHION FRONT POSITION SENSOR SIGNAL: 5 V PULSED SIGNAL
IDM33-8 SEAT HEIGHT POSITION SENSOR SIGNAL: 5 V PULSED SIGNAL
IDM33-9 HEADREST POSITION SENSOR SIGNAL: 5 V PULSED SIGNAL
I DM33-10 SEAT BACK RECLINE POSITION SENSOR SIGNAL: 5 V PULSED SIGNAL
SG DM33-11 SIGNAL GROUND: GROUND
SG DM33-12 SIGNAL GROUND: GROUND
B+ DM33-13 BATTERY POWER SUPPLY: LOGIC: B+
I DM33-22 SEAT POSITION SENSOR SIGNAL: 5 V PULSED SIGNAL
I DM33-23 SEAT CUSHION EXTEND POSITION SENSOR SIGNAL: 5 V PULSED SIGNAL
SG DM33-25 SIGNAL GROUND: GROUND
SG DM33-26 LOGIC GROUND: GROUND
SDM34-1 SCP +
IDM34-4 SEAT CUSHION FRONT RAISE REQUEST: ACTIVE = B+
IDM34-5 SEAT CUSHION FRONT LOWER REQUEST: ACTIVE = B+
I DM34-10 SEAT BACK RECLINE REARWARD REQUEST: ACTIVE = B+
I DM34-11 SEAT BACK RECLINE FORWARD REQUEST: ACTIVE = B+
S DM34-12 SCP –
I DM34-15 HEAD REST RAISE REQUEST: ACTIVE = B+
I DM34-16 HEADREST LOWER REQUEST: ACTIVE = B+
I DM34-17 SEAT RAISE REQUEST: ACTIVE = B+
I DM34-18 SEAT LOWER REQUEST: ACTIVE = B+
I DM34-19 SEAT FORWARD REQUEST: ACTIVE = B+
I DM34-20 SEAT REARWARD REQUEST: ACTIVE = B+
I DM34-21 SEAT CUSHION EXTEND REARWARD REQUEST: ACTIVE = B+
I DM34-22 SEAT CUSHION EXTEND FORWARD REQUEST: ACTIVE = B+
ODM35-1 SEAT HEIGHT MOTOR DRIVE – RAISE: TO ACTIVATE, DSCM SWITCHES CIRCUIT TO B+
ODM35-2 SEAT HEIGHT MOTOR DRIVE – LOWER: TO ACTIVATE, DSCM SWITCHES CIRCUIT TO B+
PG DM35-5 POWER GROUND: GROUND
B+ DM35-6 BATTERY POWER SUPPLY: B+
ODM36-1 SEAT POSITION MOTOR DRIVE – FORWARD: TO ACTIVATE, DSCM SWITCHES CIRCUIT TO B+
ODM36-2 SEAT POSITION MOTOR DRIVE – REARWARD: TO ACTIVATE, DSCM SWITCHES CIRCUIT TO B+
ODM36-3 SEAT CUSHION EXTEND MOTOR DRIVE – REARWARD: TO ACTIVATE, DSCM SWITCHES CIRCUIT TO B+
ODM36-4 SEAT CUSHION EXTEND MOTOR DRIVE – FORWARD: TO ACTIVATE, DSCM SWITCHES CIRCUIT TO B+
ODM37-3 SEAT BACK RECLINE MOTOR DRIVE – REARWARD: TO ACTIVATE, DSCM SWITCHES CIRCUIT TO B+
ODM37-4 SEAT BACK RECLINE MOTOR DRIVE – FORWARD: TO ACTIVATE, DSCM SWITCHES CIRCUIT TO B+
PG DM38-1 POWER GROUND: GROUND
B+ DM38-2 BATTERY POWER SUPPLY: B+
ODM38-3 HEADREST POSITION MOTOR DRIVE – RAISE: TO ACTIVATE, DSCM SWITCHES CIRCUIT TO B+
ODM38-4 HEADREST POSITION MOTOR DRIVE – LOWER: TO ACTIVATE, DSCM SWITCHES CIRCUIT TO B+
ODM38-5 SEAT CUSHION FRONT MOTOR DRIVE – RAISE: TO ACTIVATE, DSCM SWITCHES CIRCUIT TO B+
ODM38-6 SEAT CUSHION FRONT MOTOR DRIVE – LOWER: TO ACTIVATE, DSCM SWITCHES CIRCUIT TO B+
Fig. 11.2
COMPONENTS
Component Connector(s) Connector Description Location
DRIVER SEAT CONTROL MODULE DM33 26-WAY / BLACK UNDER DRIVER SEAT
LUMBAR PUMP – DRIVER (16-WAY) DL3 2-WAY / BLACK LOWER SEAT BACK
LUMBAR SOLENOIDS – DRIVER DL1 6-WAY / BLACK UPPER SEAT BACK
SEAT MOTORS AND POSITION SENSORS – DRIVER DM25 4-WAY / BLACK DRIVER SEAT
SEAT SWITCH PACK – DRIVER DM7 12-WAY / BLACK DRIVER SEAT
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
DL2 6-WAY / BLACK / DRIVER SEAT IN-LINE CONNECTOR DRIVER SEAT BACK REST
DM22 4-WAY / GREY / CABIN HARNESS TO DRIVER SEAT HARNESS UNDER DRIVER SEAT
DM23 20-WAY / BLACK / CABIN HARNESS TO DRIVER SEAT HARNESS UNDER DRIVER SEAT
GROUNDS
Ground Location
CA141 UNDER LH FRONT SEAT
CA154 UNDER RH FRONT SEAT
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT.
DM34 22-WAY / BLACK
DM35 6-WAY / BLACK
DM36 4-WAY / BLACK
DM37 4-WAY / BLACK
DM38 6-WAY / BLACK
DM26 4-WAY / BLACK
DM27 4-WAY / BLACK
DM28 4-WAY / BLACK
DM29 4-WAY / BLACK
DM31 4-WAY / BLACK
DM43 14-WAY / BLACK
NOTE: Refer to the Appendix at the rear of this book for Network Messages.
The following abbreviations are used to represent values for Control Module Pin-Out data
I Input PG Power Ground C CAN Network D Serial and Encoded Data
O Output SS Sensor / Signal Supply V S SCP Network V Voltage (DC)
B+ Battery Voltage SG Sensor / Signal Ground D2 D2B Network PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to aid the user in understanding circuit oper ation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components
connected and fitted.
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Jaguar S-TYPE 2002.5
Driver Seat: 16-Way Movement with Memory
Driver Seat: 16-Way Movement with Memory
Fig. 11.2
40
CA141
(CA154)
B
NG
DMS1
DM23-1
DRIVER SEAT MOTORS AND POSITION SENSORS DRIVER LUMBAR SOLENOIDS
H
DM26
DM26
-2
DM26-4DM26
-1
GUURWB
-3
(LHD)
DM25
(RHD)
(LHD)
DM25
-2
(RHD)
DM25
DM25
-1
UYYU WU WB
-2
-1
H
DM25-4DM25
DMS5
H
DM31
DM31
-4
-3
-1
DM31-3DM31
-2
GOGW WU WB
DM29
DM29
-1
RURU WR Y
-5
H
DM29-4DM29
-2
DL1
DL1
-4
G
DL1
-2
-5
Y
R
G
DL2-5
Y
DL2-2
R
DL2-4
U
DL2-3
DL2-1
N
DL3-1
DRIVER
LUMBAR PUMP
B
DL3-2
B
DL2-6
BB
DMS6
DM23-1
CA141
(CA154)
DL1
-3
U
NG
NG
NG
NG
DM7-7
DM7-12
DM43-8
B
DM7-1
B
DM7-6
11.1
MEMORY
POSITIONS
DM7-5
DM7-11
DM7-4
DM7-10
DM7-3
DM7-9
DM7-2
DM7-8
DM43-5
DM43-12
DM43-14
DM43-7
NR
21
22
20.2
20.2
DM35-6
NW
DM38-2
Y
DM34-1
U
DM34-12
DM33-13
U
DM34-4
UY
DM34-5
Y
DM34-17
YB
DM34-18
GB
DM34-11
RW
DM34-10
N
DM34-19
YR
DM34-20
RU
DM34-15
WG
DM34-16
WR
DM34-22
O
DM34-21
B
B
S
S
B
I
I
I
I
I
I
I
I
I
I
I
I
DRIVER SEAT
CONTROL MODULE
O
O
I
O
O
I
O
O
I
O
O
I
O
O
I
O
O
I
P
P
DM38-5
DM38-6
DM33-7
DM35-1
DM35-2
DM33-8
DM33-11
DM37-4
DM37-3
DM33-10
DM36-1
DM36-2
DM33-22
DM33-25
DM38-3
DM38-4
DM33-9
DM36-4
DM36-3
DM33-23
DM33-12
DM33-26
DM38-1
DM35-5
RG
GR
O
GO
OG
U
WB
U
GU
R
YU
UY
WU
WB
GW
GO
WU
RU
RU
WR
Y
B
DMS6 DM23-1
B
B
DM28
-5
B
DM22-4
DM22-3
DM28
GRRG
-1
H
DM28-4DM28
OWB
B
B
B
CA141
(CA154)
H
DM27
DM27
-1
-2
DM27-4DM27
-2
OGGO U WB
DMS4
-3
G
DM43-10
Y
DM43-2
R
B
B
DMS6
DM43-1
DM43-3
U
DM43-9
N
DM43-4
DRIVER SEAT SWITCH PACK
13
Fig. 01.1 Fig. 01.4
476
Fig. 01.2 Fig. 01.5
77 92
Fig. 01.3 Fig. 01.6
114
II
15 45
II II
46 80
SS
81 118
EE
Fig. 01.7
I
O
Output
B
+
Power Ground
+
Sensor/Signal Supply V CAN
–
Sensor/Signal Ground
VARIANT:
VIN RANGE:
DATE OF ISSUE:
SCP
D
D2B NetworkInput Battery Voltage
2
DP
Serial and Encoded Data
C
S
16-Way Driver Seat Memory Vehicles
All
June 2002
Fig. 11.3
COMPONENTS
Component Connector(s) Connector Description Location
LUMBAR PUMP – DRIVER DL4 3-WAY / BLACK LOWER SEAT BACK
SEAT MOTORS AND POSITION SENSORS – DRIVER DM25 4-WAY / BLACK DRIVER SEAT
SEAT SWITCH PACK – DRIVER DM7 12-WAY / BLACK DRIVER SEAT
HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location Location
DL2 6-WAY / BLACK / DRIVER SEAT IN-LINE CONNECTOR DRIVER SEAT BACK REST
DM22 4-WAY / GREY / CABIN HARNESS TO DRIVER SEAT HARNESS UNDER DRIVER SEAT
DM23 20-WAY / BLACK / CABIN HARNESS TO DRIVER SEAT HARNESS UNDER DRIVER SEAT
GROUNDS
Ground Location
CA141 UNDER LH FRONT SEAT
CA154 UNDER RH FRONT SEAT
DM26 4-WAY / BLACK
DM27 4-WAY / BLACK
DM28 4-WAY / BLACK
DM43 14-WAY / BLACK
Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, r elays, fuses, grounds, control
modules and control module pins.
DATE OF ISSUE: June 2002
Loading...
