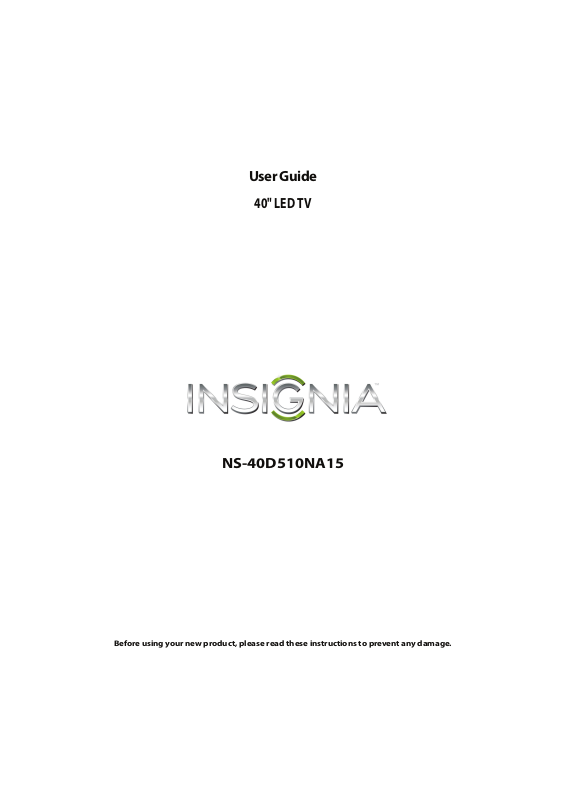

User Guide
40" LED TV
NS-40D510NA15
Before using your new product, please read these instructions to prevent any damage.
Contents
CHILD SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 CAUTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
MHL™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Roku Ready® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 INlink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 DTS Sound™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Game mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Install the stand or wall-mount bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
5 |
Install the stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Install a wall-mount bracket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
TV components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Right side buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Left side jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
What connection should I use? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Connect a cable or satellite box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
HDMI (best) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 DVI (same as HDMI but requires an audio connection) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Component video (better) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 AV (composite video) (good). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Coaxial (good). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Connect an antenna or cable TV (no box) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Connect a DVD or Blu-ray player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
HDMI (best) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Component video (better) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 AV (composite video) (good). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Connect a Roku Streaming Stick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Connect an MHL-enabled device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Connect a game console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
HDMI (best) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Component video (better) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
ii |
www.insigniaproducts.com |
Contents

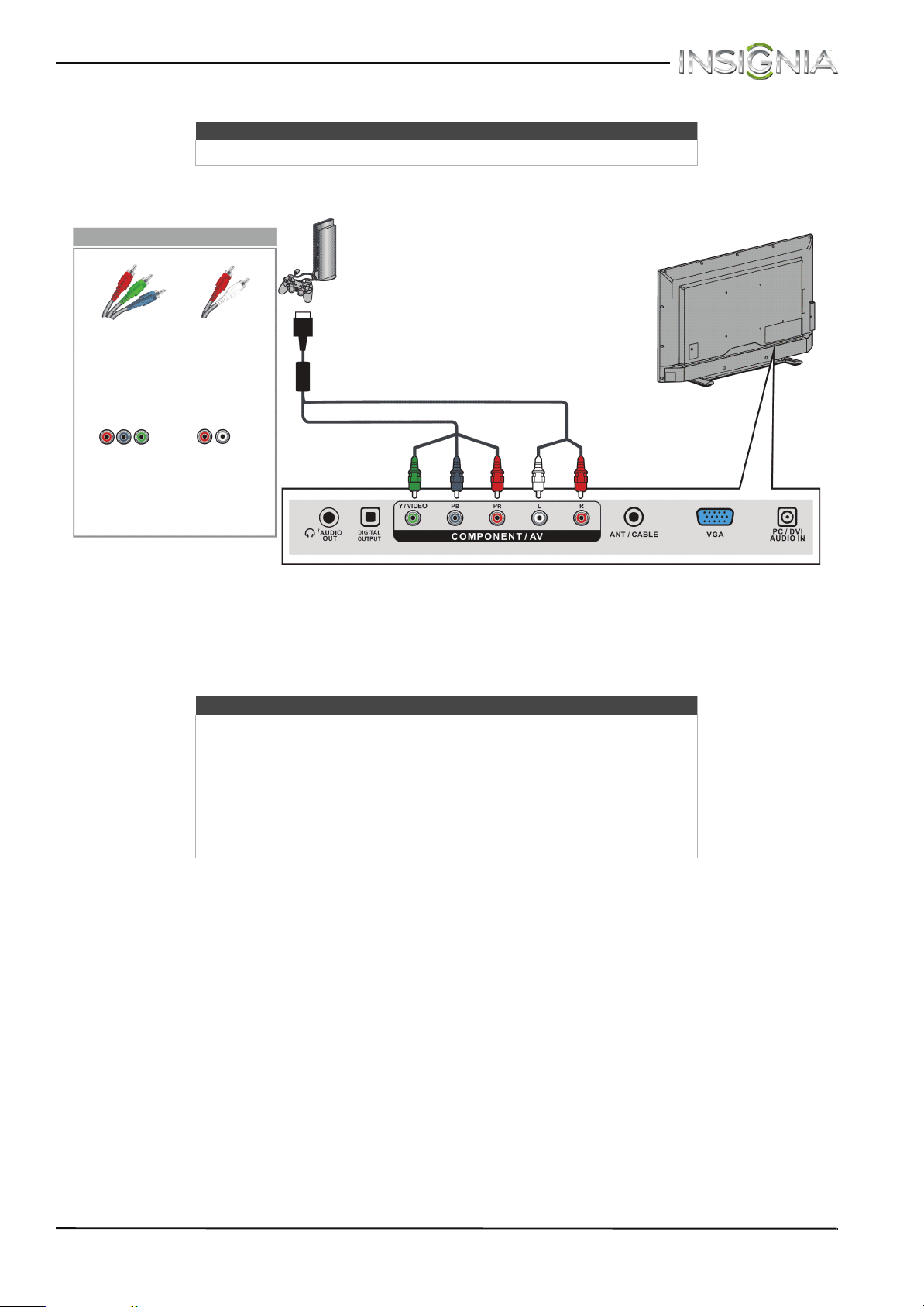

AV (composite video) (good). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Connect a computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
HDMI (best) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 DVI (same as HDMI but requires an audio connection) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 VGA (good). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Connect a USB flash drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
31 |
Connect headphones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
32 |
Connect external speakers or a sound bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
33 |
Digital audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Analog audio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Connect a home theater system with multiple devices . . . . . . . . . . . . . . . . . . . . . . 35 Connect power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Use the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Install remote control batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Aim the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

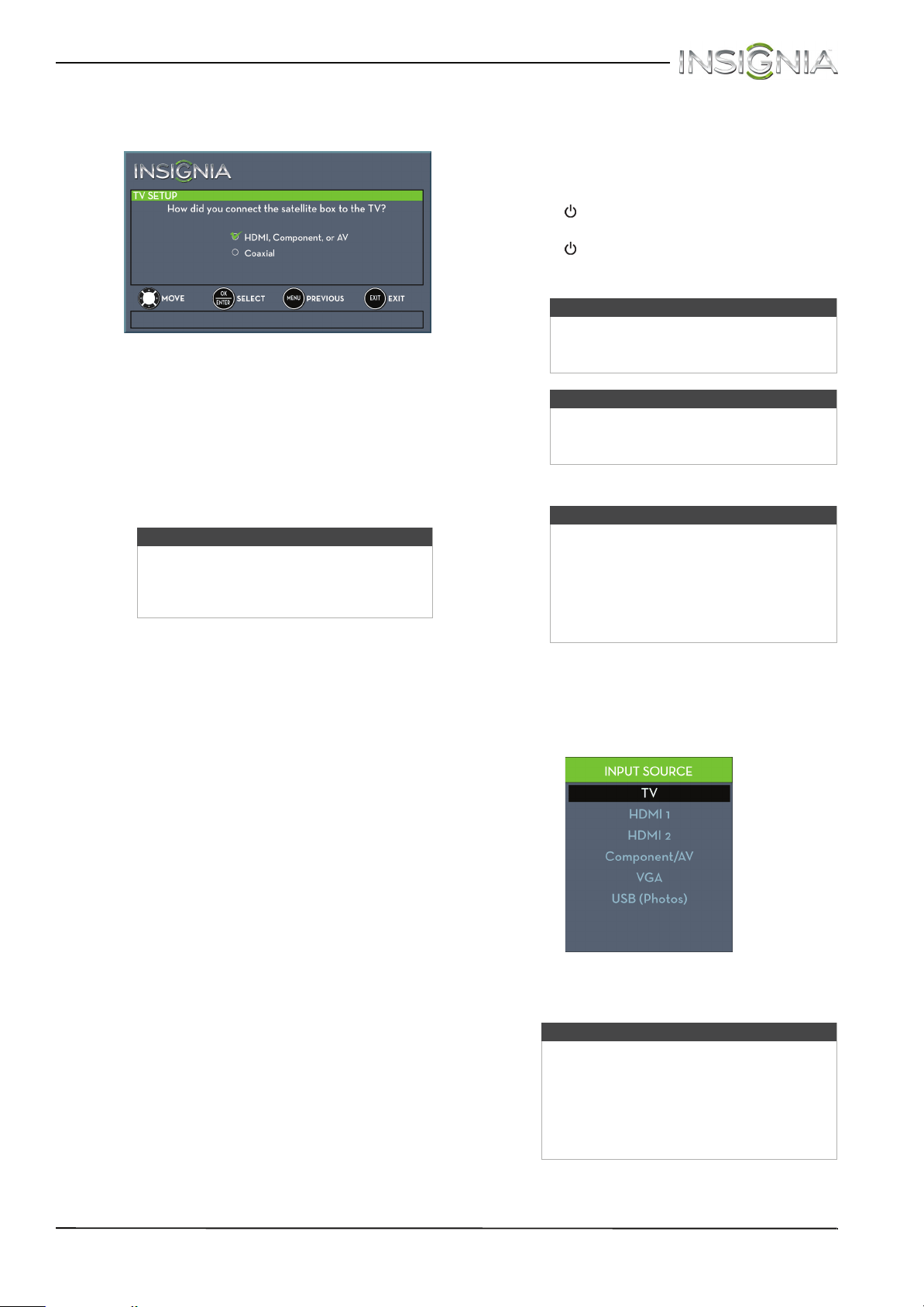

Turn on your TV for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Understand the basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Turn your TV on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Select the video input source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 On-screen menu overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Navigate the menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Select a channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Adjust the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 View channel information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

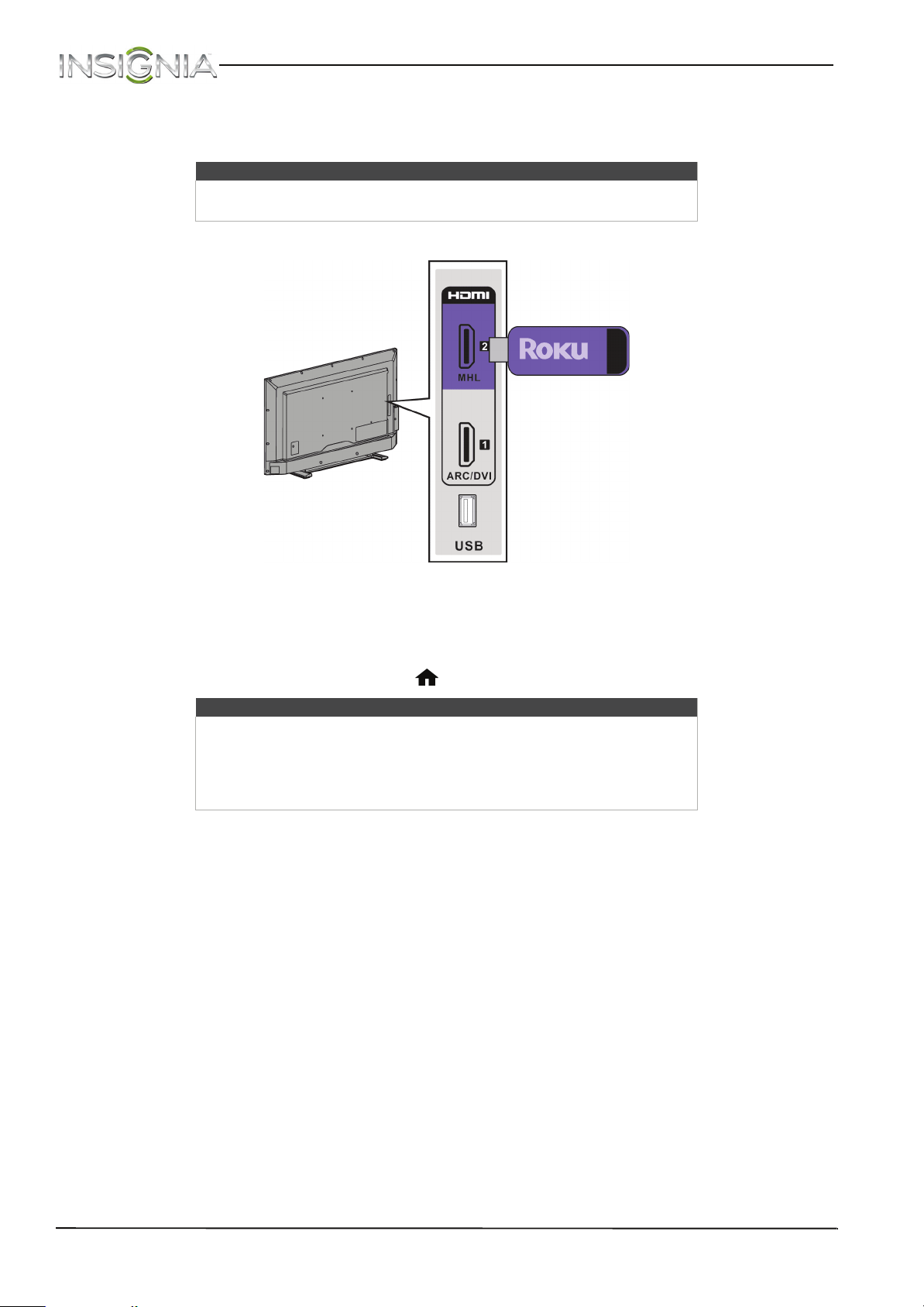

Use a Roku Streaming Stick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Connect and use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Switch back to the Roku Streaming Stick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Use an MHL-enabled device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Connect and use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Switch back to the connected device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

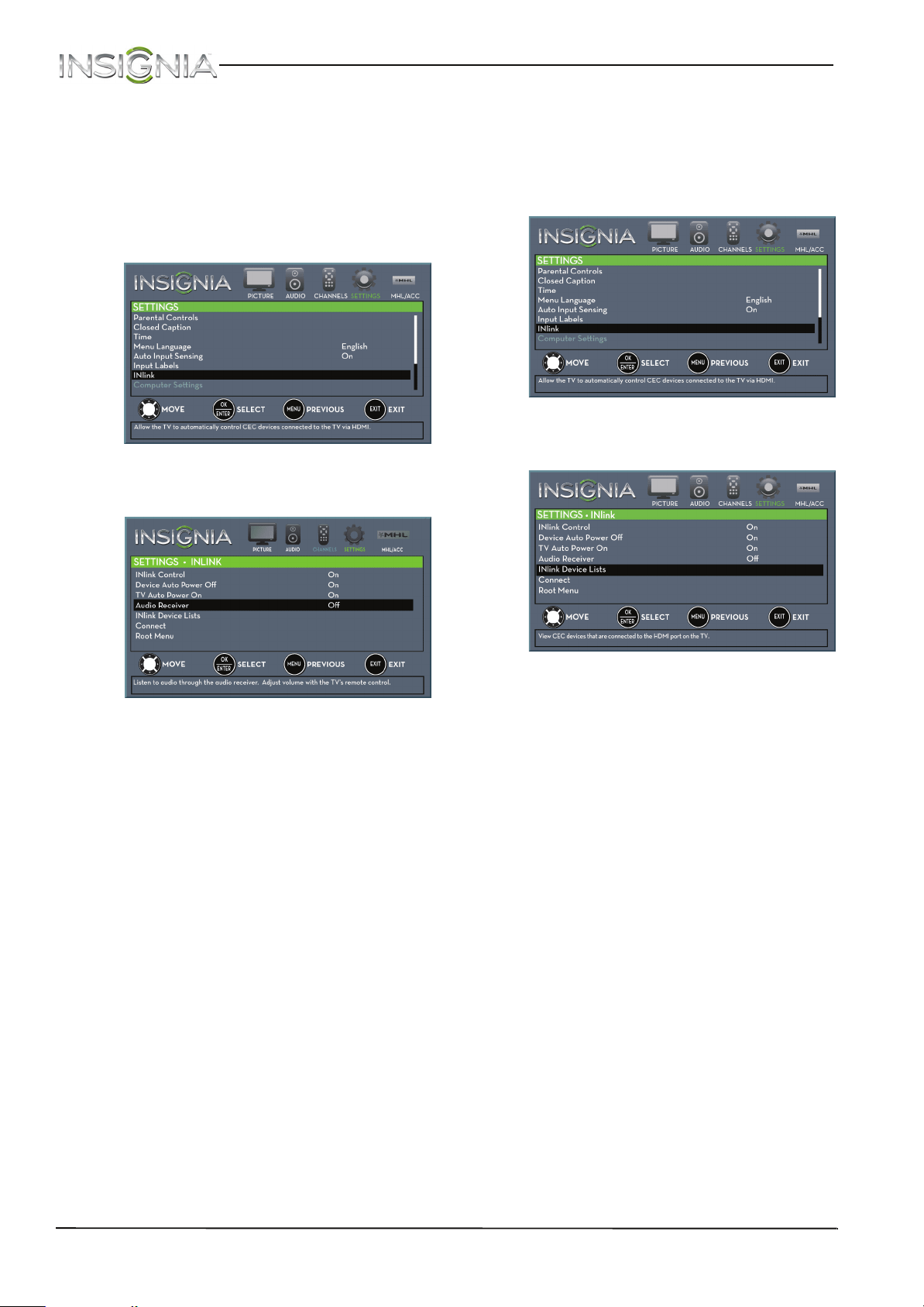

Use INlink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Turn INlink on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Turn Device Auto Power Off on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Turn TV Auto Power On on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Turn Audio Receiver on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Display a list of INlink-compatible devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Select an INlink-compatible device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Open an INlink-compatible device’s root menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

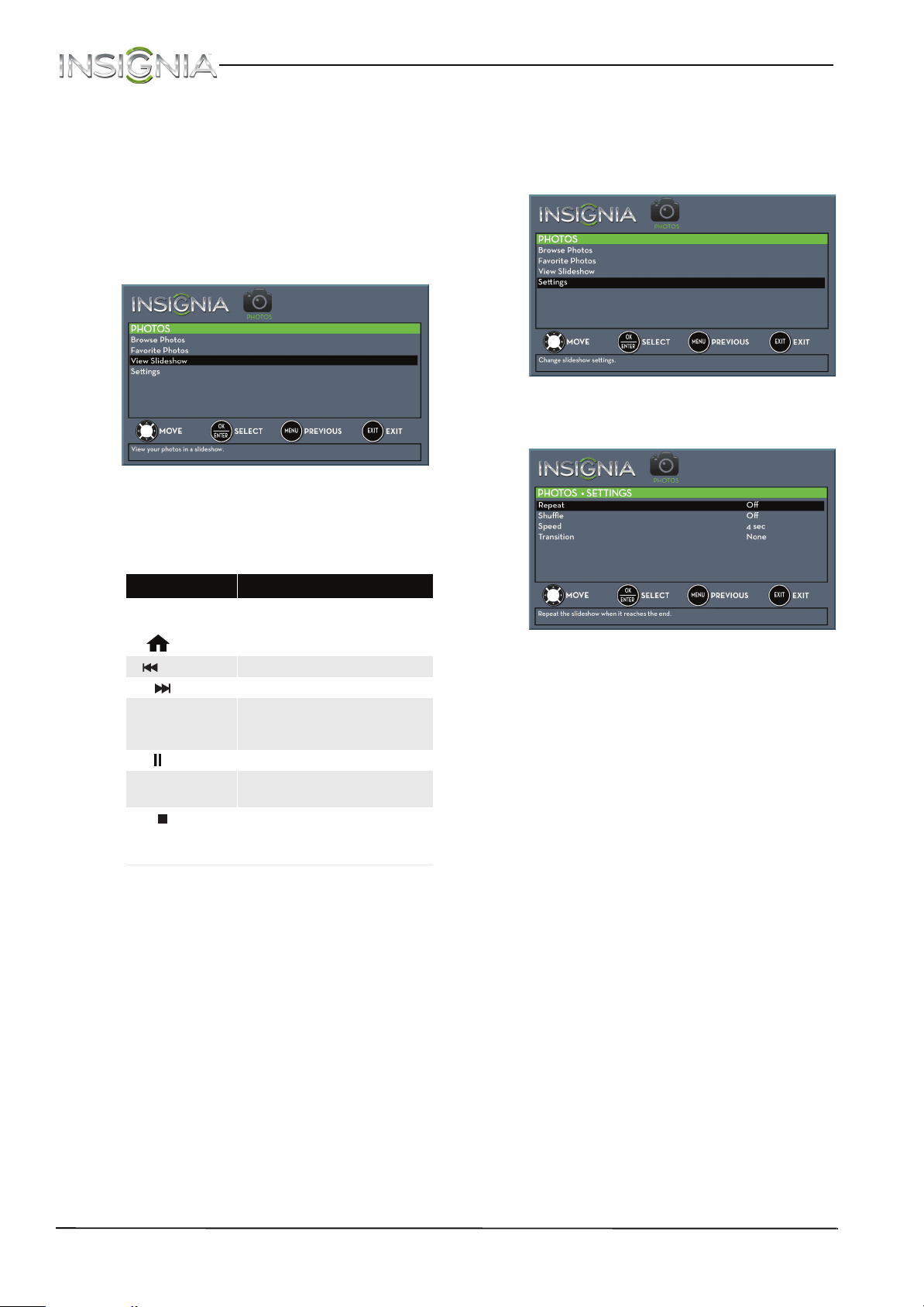

Use a USB flash drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Switch to USB mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Browse photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 View favorite photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 View photos in a slideshow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Customize slideshow settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
www.insigniaproducts.com |
iii |
Contents
Adjust the picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Adjust the TV picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Automatically adjust the aspect ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Set the power on picture mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Adjust the computer image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Adjust the sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Adjust sound settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Select the audio out mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 Play TV audio only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Change channel settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
57 |
Automatically scan for channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
57 |
Hide channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
59 |
Set up a favorite channel list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
59 |
View a favorite channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
59 |
Add or change a channel label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
60 |
Check the digital signal strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
60 |
Set parental controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Set or change the password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Lock control buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Block unrated TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Set parental control levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Download rating information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Use closed captioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Turn closed captioning on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 Select the analog closed captioning mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 Select the digital closed captioning mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 Customize digital closed captioning settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Adjust time settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Set the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 Set the sleep timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Adjust menu settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Select the menu language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 Label an input source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 Turn Input Sensor on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Clean the TV cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 Clean the TV screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Troubleshoot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

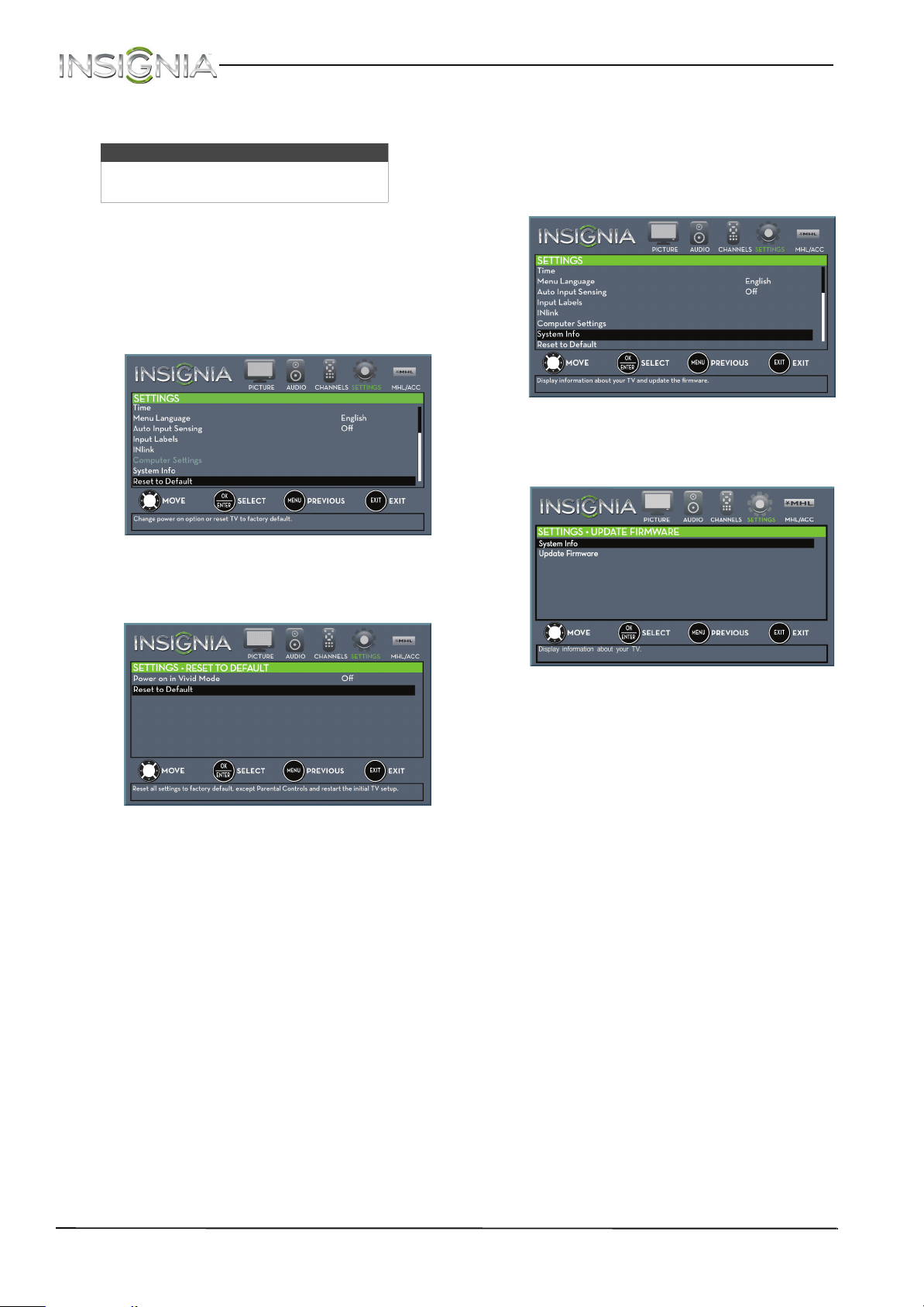

Restore settings to the defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 View system information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 Update the TV firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 Video and audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76 Roku Streaming Stick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 MHL-enabled device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
iv |
www.insigniaproducts.com |
Contents
INlink (CEC-compatible) device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 Program universal remote controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Common universal remote control codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Legal notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83 One-year limited warranty - Insignia Televisions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
www.insigniaproducts.com |
v |
It makes a difference how and where you use your flat panel display
As you enjoy your new product, keep these safety tips in mind
The issue
The home theater entertainment experience is a growing trend, and larger TVs are popular purchases. However, TVs are not always supported on the proper stands or installed according to the manufacturer’s recommendations. We and the consumer electronics industry are committed to making home entertainment enjoyable and safe.
TVs that are inappropriately placed on dressers, bookcases, shelves, desks, speakers, chests, or carts may fall over and cause injury.
Tune into safety
•
•
•
•
•
•
One size of TV stand does not fit all. Use only a TV stand rated for the weight of your TV.
Carefully read and understand all enclosed instructions for proper use of this product.
Don’t let children climb on or play with entertainment system furniture and TVs.
Don’t place TVs on furniture that can easily be used as steps, such as a crate or chest of drawers.
Remember that children can become excited while watching a program, especially on a “larger-than-life” TV. Make sure that you place or install the TV where it cannot be pushed, pulled over, or knocked down.
Make sure that you route all cords and cables so that they cannot be pulled or grabbed by curious children.
Wall mounting
If you decide to wall mount your TV, always remember:
•One size of wall mount does not fit all. Use only a wall mount rated for the weight of your TV and that has been recommended by this TV manufacturer, listed in this manual, or otherwise listed by an independent laboratory as suitable for your TV.
•Follow all instructions supplied by the TV and wall mount manufacturers.
•If you have any doubts about your ability to safely wall mount your TV, get help from a professional installer.
•Make sure that the wall where you are mounting the TV is appropriate. Some wall mounts are not designed to be mounted to walls backed with steel studs or cinder blocks. If you are unsure, ask a professional installer.
•TVs can be heavy. At least two people are required for safe wall mount installation.
www.insigniaproducts.com |
1 |
Important Safety
Instructions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your TV. This label is located on the back of your TV.
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your TV.
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11Only use attachments/accessories specified by the manufacturer.
12Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13Unplug this apparatus during lightning storms or when unused for long periods of time.
14Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15The wall plug is the disconnecting device. The plug must remain readily operable.
16Remote control batteries should not be exposed to excessive heat such as sunshine, fire, or the like.
17The apparatus should not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, should be placed on the apparatus.
To reduce the risk of fire or electric shock, do not remove any cover or expose the device to rain or moisture. No user-serviceable parts are inside. Refer servicing to qualified service technicians.
For added protection for your device receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the power outlet and disconnect any antenna or cable system. This helps prevent property damage and personal injury from lightning and power line surges.
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, take extreme care to keep from touching such power lines or circuits as contact with them might be fatal.
•Your TV’s screen is made of glass. Do not drop your TV or hit, jolt, or press hard against the LCD panel. If the screen breaks, be careful of broken glass.
•If the LCD panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause skin inflammation.
•If the liquid gets in your mouth, immediately gargle, rinse, and consult with your doctor. Also, if the liquid gets in your eyes or touches your skin, consult with your doctor after rinsing for at least 15 minutes or longer in clean water.
When replacement parts are required, make sure that the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, personal injury, or other hazards.
2 |
www.insigniaproducts.com |
NS-40D510NA15
After completing any service or repair to this device, ask the service technician to perform routine safety checks to determine that your TV is in correct operating condition.
Operate your TV only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult an electrician or your local power company.
These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
Article 820 of the National Electrical Code, ANSI/NFPA No. 40 provides guidance for correct grounding. Specifically, it states that the cable ground must be connected to the grounding system of the building as close to the point of cable entry as practical.
Moisture will form on the TV if the TV is brought from cool surroundings into a warm room or if the temperature of the room rises suddenly. When this happens, the TV's performance may be impaired. To prevent this, let the TV stand in its new surroundings for about an hour before switching it on, or make sure that the room temperature rises gradually.
Condensation may also form during the summer if the TV is exposed to the breeze from an air conditioner. In such cases, change the location of the TV.
Unplug this TV from the power outlet and refer servicing to qualified service personnel under the following conditions:
•When the power supply cord or plug is damaged or frayed.
•If liquid has been spilled or objects have fallen into your TV.
•If your TV has been exposed to rain or water.
•If your TV does not operate normally by following the operating instructions. Adjust only those controls covered by the operating instructions because incorrect adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore your TV to its normal operation.
•If your TV has been dropped or damaged in any way.
•When your TV exhibits a distinct change in performance.
If an outside antenna or cable system is connected to your TV, make sure that the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to correct grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of the antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
1 Antenna lead-in wire
2 Grounding clamp
Antenna discharge 3 unit
4 Grounding conductors
5 Ground clamps
Power service
6 grounding electrode system
Electric service 7 equipment
To avoid interference with your TV picture and sound, operating problems, or even damage, keep your cordless and cellular telephones away from the TV.
Your TV may contain materials that are regulated for environmental reasons. Your TV also contains materials that can be recycled and reused. To help protect the environment, contact your local authorities for information about disposal or recycling and about finding a recycler in your area before you dispose of your TV.
The LCD panel contains almost 3 million thin film transistors, which provide exceptionally sharp video quality. Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green, or red point. These non-active pixels do not adversely affect the performance of your TV, and are not considered defects.
www.insigniaproducts.com |
3 |
Insignia 40" LED TV
Insignia 40" LED TV
Congratulations on your purchase of a high-quality Insignia product. Your NS-40D510NA15 represents the state of the art in LED TV design and is designed for reliable and trouble-free performance.
Enjoy the benefit of having HDMI CEC compatible products plug and play! No setup is needed! CEC technology lets different devices discover and communicate with each other. (See page 45 for instructions on how to use INlink.)
MHL™
Connect your MHL-enabled device, such as a cell phone or Roku Streaming Stick™, and view your device’s screen on your TV. Supports 1080p HD video and 5.1 digital surround sound playback from your mobile device. (Requires an MHL-enabled phone or tablet and an MHL cable.) (See page 24 for connection instructions.)
Your Insignia TV is certified to work with the Roku Streaming Stick® (sold separately) to instantly stream 1000+ entertainment channels, including Netflix, M-GO, HBO GO, Hulu Plus, WatchESPN, Vudu, Amazon Instant Video, Pandora, PBS, and many more. Operate the Streaming Stick with your TV remote or a mobile device —it’s that simple! Just plug the Streaming Stick into the purple MHL port on your TV and enjoy. Roku requires high-speed Internet and WiFi. (See page 23 for connection instructions.)
DTS Sound delivers clear, crisp, and natural sound while providing deep enveloping bass.
Video games generally require adjustments to the television picture settings to get the maximum experience. By simply pressing a button on your remote control, your television settings will automatically adjust for video games. It couldn't be easier. (See the Game option in “Adjust the TV picture” on page 52 for instruction on how to select Game mode.)
4 |
www.insigniaproducts.com |
NS-40D510NA15 Insignia 40" LED TV
Notes
•If you plan to wall-mount your TV, do not install the stand.
•Store the stand and stand screws in case you decide to use the stand in the future.
1Carefully place your TV face-down on a cushioned, clean surface to protect the screen from damages and scratches.
2 Align the TV stand to the TV.
www.insigniaproducts.com |
5 |
Insignia 40" LED TV
3 Secure the TV stand to the TV with the four provided M4 20 mm screws.
Screw type |
Screw length |
# of screws |
M4 |
20 mm |
4 |
|
|
|
6 |
www.insigniaproducts.com |
NS-40D510NA15 Insignia 40" LED TV
Warning
This TV is intended to be supported by a UL Listed wall mount bracket with suitable weight/load. (See “Miscellaneous” on page 81.)
1Carefully place your TV face-down on a cushioned, clean surface to protect the screen from damages and scratches.
2 If the TV stand is attached, remove the four screws that secure the stand to the TV, then remove the stand.
3 Remove the wall-mount screws from the back of your TV.
www.insigniaproducts.com |
7 |
Insignia 40" LED TV
4Attach the wall-mount bracket using the screws you removed or the screws that came with the wall-mount bracket. See the instructions that came with the wall-mount bracket for information about which screws to use and how to correctly hang your TV.
Notes
•The length of the wall-mount screws vary depending on the wall-mount bracket you purchased. See the instructions that came with the wall-mount bracket for screw lengths.
•The mounting holes on the back of your TV take type M4 screws.
7.87in. (200 mm)
7.87 in. (200 mm)
8 |
www.insigniaproducts.com |
NS-40D510NA15 Insignia 40" LED TV
•40" LED TV
•Remote control and batteries (2 AAA)
•TV stand and screws (4)
•Power cord
•Quick Setup Guide
•Important Information
# |
Item |
Description |
1 |
Remote control |
Receives signals from the remote |
control. Do not block. |
||
|
sensor |
|
|
|
Turns off when your TV is on. |
2 |
Power indicator |
Lights red when your TV is off |
|
|
(standby mode). |
# |
Item |
1 |
MENU |
2 INPUT
3 |
VOL+/VOL– |
4 |
CH /CH |
5 (power)
Description
Press to open the on-screen menu. For more information, see “Navigate the menus” on
page 41.
Press one or more times to select the video input source you want, then wait a few seconds. Your TV switches to the source you selected. For more information, see “Select the video input source” on page 40.
In menu mode, press to confirm selections.
Press to increase or decrease the volume.
Press to go to the next or previous channel in the channel list. For more information, see “Select a channel” on page 42.
Press to turn your TV on or off (standby mode).
Warning: When your TV is off, power still flows through it. To completely disconnect power, unplug the power cord.
www.insigniaproducts.com |
9 |
Insignia 40" LED TV
#Item
1 HDMI 2/MHL
2HDMI 1/ ARC/DVI
3 USB
Description
Connect an HDMI device to this jack. For more information, see “HDMI (best)” on pages 14, 20, 25, or 28.
OR
Connect an MHL-enabled device, such as a cell phone or Roku Streaming Stick®, to this jack to view your device’s screen on your TV.
For more information about MHL, see “Connect an MHL-enabled device” on page 24 and “Use an MHL-enabled device” on page 44.
For more information about Roku, see “Connect a Roku Streaming Stick” on page 23 and “Use a Roku Streaming Stick” on page 43.
Connect an HDMI device to this jack. For more information, see “HDMI (best)” on pages 14, 20, 25, or 28.
OR
Connect an ARC-enabled home theater receiver to this jack.
OR
Connect the video for a DVI device to this jack. For more information, see “DVI (same as HDMI but requires an audio connection)” on pages 15 or 29.
Connect a USB flash drive to this jack to view compatible JPEG picture files. For more information, see “Connect a USB flash drive” on page 31 and “Use a USB flash drive” on page 49.
10 |
www.insigniaproducts.com |
#Item
1 /AUDIO OUT
2 DIGITAL(optical)OUTPUT
Y/VIDEO, PB, PR
3OR Y/VIDEO
4 L and R (audio)
NS-40D510NA15 Insignia 40" LED TV
Description
Connect headphones, a sound bar, analog speaker system, or a home theater system to this jack to listen to TV audio through external speakers. For more information, see “Analog audio” on page 34.
Connect a sound bar, digital speaker system, or home theater system to this jack to listen to TV audio through external speakers. For more information, see “Digital audio” on page 33.
The component video and AV (composite video) jacks are shared. You can connect only one component video or AV device at a time.
Connect the video for a component video device to the Y/VIDEO, PB, and PR jacks. For more information, see “Component video (better)” on page 16, 21, or 26.
OR
Connect the video for an AV (composite video) device to the Y/VIDEO jack. For more information, see “AV (composite video) (good)” on page 17, 22, or 27.
Connect the audio for a component video device to these jacks. For more information, see “Component video (better)” on page 16, 21, or 26.
OR
Connect the audio for an AV (composite video) device to these jacks. For more information, see “AV (composite video) (good)” on page 17, 22, or 27.
#Item
5 ANT/CABLE
6 VGA
7 PC/DVI AUDIO IN
Description
Connect an antenna or cable TV to this jack. For more information, see “Coaxial (good)” on page 18 or “Connect an antenna or cable TV (no box)” on page 19.
Connect the video for a computer to this jack. For more information, see “VGA (good)” on page 30.
Connect the audio for a computer to this jack. For more information see “VGA (good)” on page 30.
OR
Connect the audio for a DVI device to this jack. For more information see, “DVI (same as HDMI but requires an audio connection)” on pages 15 or 29.
www.insigniaproducts.com |
11 |
Insignia 40" LED TV
Remote control |
|
# |
Button |
Description |
|||||||
|
|
|
|
|
|
10 |
|
|
Press to open the Favorite channel list. See “Set up a favorite |
||
|
|
|
|
|
|
FAVORITE |
channel list” on page 59 and “View a favorite channel” on |
||||
|
|
|
|
|
|
|
|
|
|
page 59. |
|
|
|
|
|
|
|
|
|
|
|
INlink—Press to control INlink-compatible (HDMI CEC) |
|
|
|
|
|
|
|
|
|
|
|
devices. For more information, see “Use INlink” on page 45. |
|
|
|
|
|
|
|
11 |
|
|
USB—Press to control a photo slideshow. See “View photos |
||
|
|
|
|
|
|
Media controls |
in a slideshow” on page 51. |
||||
|
|
|
|
|
|
|
|
|
|
|
—Press to control a movie or show that is streaming |
|
|
|
|
|
|
|
|
|
|
through a connected Roku Streaming Stick. See “Use a Roku |
|
|
|
|
|
|
|
|
|
|
|
Streaming Stick” on page 43. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
12 |
|
|
Press to open the INPUT SOURCE list, press Sor Ton the |
||
|
|
|
|
|
|
INPUT |
|
remote control to select the video input source, then press |
|||
|
|
|
|
|
|
|
|
|
|
ENTER. See “Select the video input source” on page 40. |
|
|
|
|
|
|
|
13 |
(return) |
TV—Press to return to the previous channel. |
|||
|
|
|
|
|
|
|
—Press to replay the last 10 seconds of video. |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TV menus—Press to navigate in on-screen TV menus and |
|
|
|
|
|
|
|
14 |
STWX |
to adjust settings. |
|||
|
|
|
|
|
|
|
|
|
|
|
—Press to navigate in Roku screens. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
15 |
|
(home) |
MHL—Press to open a connected MHL device’s home menu. |
||
|
|
|
|
|
|
|
|
—Press return to a connected Roku Streaming |
|||
|
|
|
|
|
|
|
|
|
|
Stick’s home screen. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TV—Press to display TV status information, such as the |
|
|
|
|
|
|
|
16 |
|
|
channel number, channel name (if available), or signal |
||
|
|
|
|
|
|
INFO* |
|
source. See “View channel information” on page 42. |
|||
|
|
|
|
|
|
|
|
|
|
|
—Press to access special Roku options when a Roku |
|
|
|
|
|
|
|
|
|
|
Streaming Stick is plugged in. |
|
|
|
|
|
|
|
17 |
|
|
Press to turn closed captioning on or off. You can select CC |
||
|
|
|
|
|
|
CCD |
|
Off, CC On, or CC On when mute. See “Turn closed |
|||
|
|
|
|
|
|
|
|
|
|
captioning on or off” on page 65. |
|
|
|
|
|
|
|
|
|
|
|
TV—Press to mute the sound. Press again to restore the |
|
|
|
|
|
|
|
18 |
MUTE |
|
sound. |
||
|
|
|
|
|
|
|
|
—Press to mute the sound. Press again to restore |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
the sound. |
|
|
|
|
|
|
|
19 |
CH |
/CH |
Press to change TV channels. See “Select a channel” on |
||
|
|
|
|
|
|
page 42. |
|||||
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
Analog programs—Press to select the audio mode for an |
|
# |
Button |
Description |
|
|
|
|
analog program. You can select: |
||||
|
|
|
|
|
|
|
|
|
|
• Mono—Select this option if there is noise or static |
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
Press to turn your TV on or off (standby mode). |
|
|
|
|
|
on weak stereo broadcasts. |
|
1 |
|
|
(power) |
Warning: When your TV is off, power still flows through it. |
20 |
MTS/SAP |
• Stereo—Select this option for programs |
||||
|
|
|
|
To disconnect power, unplug the power cord. |
|
|
|
|
|
broadcast in stereo. |
|
|
|
|
|
|
|
|
|
• SAP—Select this option to listen to a secondary |
|||
|
|
|
|
|
|
|
|
|
|
||
2 |
Numbers |
Press to enter channel numbers and the parental control |
|
|
|
|
|
audio program, if available. |
|||
password. |
|
|
|
|
Digital programs—Press to select the audio language for |
||||||
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
a digital program, if alternate languages are available. |
|
3 |
|
|
|
Press to enter a digital sub-channel number. See “Select a |
|
|
|
|
|||
|
|
|
|
|
|
|
Press to select the picture mode. You can select Vivid, |
||||
|
|
|
channel” on page 42. |
|
|
|
|
||||
|
|
|
|
21 |
|
|
|||||
|
|
|
|
|
|
PICTURE |
Standard, Energy Savings, Movie, Game, or Custom. |
||||
|
|
|
|
TV menus—Press to confirm selections or changes in |
|||||||
|
|
|
|
|
|
|
|
See “Picture Mode” in “Adjust the TV picture” on page 52. |
|||
4 |
ENTER |
on-screen TV menus. |
|
|
|
|
|
|
|||
|
|
|
|
Press to select the sound mode. You can select Standard, |
|||||||
|
—Press to confirm selections or changes on Roku |
22 |
|
|
|||||||
|
|
|
|
|
AUDIO |
|
Theater, Music, News, or Custom. See “Sound Mode” in |
||||
|
|
|
|
screens. |
|
||||||
|
|
|
|
|
|
|
|
“Adjust sound settings” on page 55. |
|||
5 |
MENU |
Press to open the on-screen menu. |
|
|
|
|
|||||
|
|
|
|
|
|
||||||
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
6 |
EXIT |
TV—Press to close the on-screen TV menu. |
|
|
|
|
|
|
|||
|
—Press to close a Roku menu or video. |
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7 |
|
|
|
Press to change how the picture looks on the screen (aspect |
|
|
|
|
|
|
|
ASPECT |
ratio). See the “Aspect Ratio” option in “Adjust the TV |
|
|
|
|
|
|
||||
|
|
|
|
picture” on page 52. |
|
|
|
|
|
|
|
8 |
VOL+/– |
Press to increase or decrease the volume. |
|
|
|
|
|
|
|||
9 |
|
|
|
Press to set the sleep timer. You can select Off, 5, 10, 15, 30, |
|
|
|
|
|
|
|
SLEEP |
60, 90, 120, 180, or 240 minutes. See “Set the sleep timer” |
|
|
|
|
|
|
||||
|
|
|
|
on page 69. |
|
|
|
|
|
|
12 |
www.insigniaproducts.com |
NS-40D510NA15 Insignia 40" LED TV
Your TV has several connection types for connecting devices to your TV.
For the best video quality, you should connect a device to the best available connection.
Use the following tables to identify cables:
Video |
Connection |
Cable connector |
|
type and |
|||
quality |
|||
jack |
|
||
|
|
||
Best (use this |
HDMI |
|
|
video/audio |
|
||
if your devices |
|
||
|
|
||
have HDMI) |
|
|
|
Component |
|
Better than |
video (requires |
|
an audio |
||
composite or |
||
connection) |
||
coaxial |
||
|
AV (composite video) (requires
an audio Better than connection)
coaxial
Coaxial video/audio
Good
Connection
type and Cable connectors jack
Optical digital audio output
Analog audio input
3.5mm analog audio output
VGA (computer) video and 3.5mm audio
You can use the HDMI 1/ARC/DVI jack on your TV to connect a DVI device to your TV. For more information, see “DVI (same as HDMI but requires an audio connection)” on page 15 or 29.
Cautions
•Check the jacks for position and type before making any connections.
•Loose connections can result in image or color problems. Make sure that all connections are tight and secure.
•The external audio/video equipment shown may be different from your equipment. If you have questions, refer to the documentation that came with your equipment.
•Always unplug the power cord when connecting external equipment.
www.insigniaproducts.com |
13 |
Insignia 40" LED TV
Many cable or satellite TV boxes have more than one connection type. To get the best video, you should use the best connection type available. For more information, see “What connection should I use?” on page 13.
|
Side of TV |
|
On your TV |
Cable or |
|
satellite box |
||
|
HDMI cable connector
HDMI cable
HDMI jack
1 Make sure that your TV’s power cord is unplugged and all connected equipment is turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3Connect an HDMI cable (not provided) to one of the HDMI jacks on the side of your TV and to the HDMI OUT jack on the cable or satellite box.
4 Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the cable or satellite box. 5 Press INPUT to open the INPUT SOURCE list.
6 Press S or T to highlight HDMI 1 or HDMI 2, then press ENTER.
Note
An HDMI cable carries both audio and video. You do not need to use any audio cables.
14 |
www.insigniaproducts.com |
NS-40D510NA15 Insignia 40" LED TV
Note
You must use the HDMI 1/ARC/DVI jack to connect a cable or satellite box using DVI. If you use another HDMI jack, you will not hear sound from the TV speakers.
|
Cable or |
Side of TV |
satellite box |
On your TV |
|
HDMI cable with
HDMI-DVI adapter
HDMI cable |
Audio cable |
connector |
connector |
Audio cable
HDMI 1/ |
PC/DVI |
ARC/DVI |
AUDIO IN |
jack |
jack |
Back of TV
1 Make sure that your TV’s power cord is unplugged and all connected equipment is turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3Connect an HDMI-DVI adapter (not provided) to one end of an HDMI cable (not provided), then connect the adapter to the DVI OUT jack on the cable or satellite box.
4 Connect the other end of the cable to the HDMI 1/ARC/DVI jack on the side of your TV.
5Connect an audio cable (not provided) to the PC/DVI AUDIO IN jack on the back of your TV and to the AUDIO OUT jacks on the cable or satellite box.
Note
When you connect the audio using the PC/DVI AUDIO IN jack, the audio output is analog.
6 Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the cable or satellite box. 7 Press INPUT to open the INPUT SOURCE list.
8 Press S or T to highlight HDMI 1, then press ENTER.
www.insigniaproducts.com |
15 |
Insignia 40" LED TV
Note
Cables are often color-coded to match color-coded jacks.
Cable or satellite box
On your TV
Component |
Audio cable |
Audio cable |
video cable |
connectors |
|
connectors |
|
|
|
|
Component video |
|
|
cable |
Component |
Analog |
|
video jacks |
audio jacks |
|
Back of TV
1 Make sure that your TV’s power cord is unplugged and all connected equipment is turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3Connect a component video cable (not provided) to the Y/VIDEO, PB, and PR jacks on the back of your TV and the component video out jacks on the cable or satellite box.
4Connect an audio cable (not provided) to the L and R audio jacks on the back of your TV and to the audio out jacks on the cable or satellite TV box.
Notes
•The Y/VIDEO, PB, and PR video jacks (used to connect a component device) share the L and R audio jacks with the Y/VIDEO jack (used to connect an AV (composite video) device).
•When you connect the audio using the L and R audio jacks, the audio output is analog.
5 Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the cable or satellite box. 6 Press INPUT to open the INPUT SOURCE list.
7 Press S or T to highlight Component, then press ENTER.
16 |
www.insigniaproducts.com |
NS-40D510NA15 Insignia 40" LED TV
Notes
•Cables are often color-coded to match color-coded jacks.
•The yellow video connector on the AV cable connects to the green
Y/VIDEO jack.
Cable or satellite box
On your TV
AV |
Audio cable |
|
(composite |
connectors |
AV cable |
video) |
|
(composite video cable) |
cable |
|
|
connector |
|
|
AV |
Analog |
|
(composite |
audio jacks |
|
video) jack |
|
|
Back of TV
1 Make sure that your TV’s power cord is unplugged and all connected equipment is turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3Connect an AV cable (not provided) to the green Y/VIDEO jack and L and R audio jacks on the back of your TV and to the AV (composite video) and audio out jacks on the cable or satellite box.
Notes
•The Y/VIDEO, PB, and PR video jacks (used to connect a component device) share the L and R audio jacks with the Y/VIDEO jack (used to connect an AV (composite video) device).
•When you connect the audio using the L and R audio jacks, the audio output is analog.
4 Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the cable or satellite box. 5 Press INPUT to open the INPUT SOURCE list.
6 Press S or T to highlight AV, then press ENTER.
www.insigniaproducts.com |
17 |
Insignia 40" LED TV
Cable or satellite box
On your TV
Coaxial cable |
|
connector |
Coaxial cable |
|
ANT/CABLE jack
Back of TV
1 Make sure that your TV’s power cord is unplugged and all connected equipment is turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3Connect a coaxial cable (not provided) to the ANT/CABLE jack on the back of your TV and to the coaxial out jack on the cable or satellite box.
4 Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the cable or satellite box. 5 Press INPUT to open the INPUT SOURCE list.
6 Press S or T to highlight TV, then press ENTER.
7If you cannot tune to channels you know exist, scan for channels. See “Automatically scan for channels” on page 57.
Notes
•Use a coaxial cable to eliminate interference and noise from radio waves.
•Do not bundle the coaxial cable with the power cord or other cables.
18 |
www.insigniaproducts.com |
NS-40D510NA15 Insignia 40" LED TV
On your TV |
Antenna or cable TV |
|
(no box) |
Coaxial cable connector
Coaxial cable
ANT/CABLE jack
Back of TV
1 Make sure that your TV’s power cord is unplugged and all connected equipment is turned off.
2Connect a coaxial cable (not provided) to the ANT/CABLE jack on the back of your TV and to the antenna or cable TV wall jack.
3 Plug your TV’s power cord into a power outlet, then turn on your TV. 4 Press INPUT to open the INPUT SOURCE list.
5 Press S or T to highlight TV, then press ENTER.
6If you cannot tune to channels you know exist, scan for channels. See “Automatically scan for channels” on page 57.
Notes
•Use a coaxial cable to eliminate interference and noise from radio waves.
•Do not bundle the coaxial cable with the power cord or other cables.
•If the antenna is not installed correctly, contact qualified service personnel to correct the problem.
•If the signal level for a channel is weak, the picture may be distorted. Adjust the antenna or use a highly directional outdoor or set-top antenna with a built-in amplifier.
•If the picture quality is good on some channels and poor on others, the problem may be caused by a poor or weak signal from the broadcaster or cable TV provider.
•If you connect to cable TV without a set-top box and experience poor picture quality, you may need to install a set-top box to improve signal reception and picture quality. Contact your cable TV provider about upgrading to a set-top box.
•Many high-definition (HD) channels upscale standard-definition (SD) content. The picture displayed on your TV is still displayed as SD, thus the picture quality will not be as clear or crisp as it would be if the content was originally recorded in HD.
www.insigniaproducts.com |
19 |
Insignia 40" LED TV
Many DVD or Blu-ray players have more than one connection type. To get the best video, you should use the best connection type available. For more information, see “What connection should I use?” on page 13.
Side of TV
DVD or Blu-ray player
On your TV
HDMI cable connector
HDMI cable
HDMI jack
1 Make sure that your TV’s power cord is unplugged and the DVD or Blu-ray player is turned off.
2Connect an HDMI cable (not provided) to one of the HDMI jacks on the side of your TV and to the HDMI OUT jack on the DVD or Blu-ray player.
3 Plug your TV’s power cord into a power outlet, then turn on your TV and DVD or Blu-ray player. 4 Press INPUT to open the INPUT SOURCE list.
5 Press S or T to highlight HDMI 1 or HDMI 2, then press ENTER.
Note
An HDMI cable carries both audio and video. You do not need to use any audio cables.
20 |
www.insigniaproducts.com |
NS-40D510NA15 Insignia 40" LED TV
Note
Cables are often color-coded to match color-coded jacks.
DVD or Blu-ray player
On your TV
Component |
Audio cable |
video cable |
connectors |
connectors |
|
Audio cable
Component
video cable
Component |
Analog |
video jacks |
audio jacks |
Back of TV
1 Make sure that your TV’s power cord is unplugged and the DVD or Blu-ray player is turned off.
2Connect a component video cable (not provided) to the Y/VIDEO, PB, and PR jacks on the back of your TV and to the COMPONENT OUT jacks on the DVD or Blu-ray player.
3Connect an audio cable (not provided) to the L and R audio jacks on the back of your TV and to the L and R AUDIO OUT jacks on the DVD or Blu-ray player.
Notes
•The Y/VIDEO, PB, and PR video jacks (used to connect a component device) share the L and R audio jacks with the Y/VIDEO jack (used to connect an AV (composite video) device).
•When you connect the audio using the L and R audio jacks, the audio output is analog.
4 Plug your TV’s power cord into a power outlet, then turn on your TV and DVD or Blu-ray player. 5 Press INPUT to open the INPUT SOURCE list.
6 Press S or T to select Component, then press ENTER.
www.insigniaproducts.com |
21 |
Insignia 40" LED TV
Notes
•Cables are often color-coded to match color-coded jacks.
•The yellow video connector on the AV cable connects to the green
Y/VIDEO jack.
On your TV
DVD or Blu-ray player
AV |
Audio cable |
|
(composite |
connectors |
AV cable |
video) cable |
|
|
|
(composite video cable) |
|
connector |
|
|
|
|
AV Analog (composite audio jacks video) jack
Back of TV
1 Make sure that your TV’s power cord is unplugged and the DVD or Blu-ray player is turned off.
2Connect an AV cable (not provided) to the green Y/VIDEO jack and L and R audio jacks on the back of your TV and to the AV OUT jacks on the DVD or Blu-ray player.
Notes
•The Y/VIDEO, PB, and PR video jacks (used to connect a component device) share the L and R audio jacks with the Y/VIDEO jack (used to connect an AV (composite video) device).
•When you connect the audio using the L and R audio jacks, the audio output is analog.
3 Plug your TV’s power cord into a power outlet, then turn on your TV.
4Turn on the DVD or Blu-ray player, then set it to the correct output mode. For more information, see the documentation that came with the player.
5 Press INPUT to open the INPUT SOURCE list. 6 Press S or T to select AV, then press ENTER.
22 |
www.insigniaproducts.com |
