Welcome
Congratulations on your purchase of a high-quality Insignia product. Your IS-PA040722A represents the state of the art in personal CD player design, and is designed for reliable and trouble-free performance.
Contents
Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Getting to know your CD player . . . . . . . . . . . . . . . . . . . . . . . . 4 Setting up your CD player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Using your CD player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Additional functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Español. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
www.insignia-products.com |
1 |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Personal CD Player - combined.fm Page 2 Monday, June 27, 2005 1:27 PM
IS-PA040722A Personal CD player
Safety precautions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol within a triangle is intended to alert you to the presence of uninsulated dangerous voltage within the player’s enclosure that may be of sufficient magnitude to constitute risk of electric shock to persons.
The exclamation point within a triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the player.
Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Caution It is recommended to use a surge protector for AC connection. Lightning and power surges ARE NOT covered under warranty for this product.
2 |
www.insignia-products.com |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Personal CD Player - combined.fm Page 3 Monday, June 27, 2005 1:27 PM
IS-PA040722A Personal CD player
Information for the user:
Modifications not authorized by the manufacturer may void the user’s authority to operate this device.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance witch the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
•Place the unit on a stable surface.
•Avoid installing the unit in the following locations:
•Places exposed to direct sunlight or close to heat radiation appliances such as electric heaters.
•On top of other stereo equipment that radiates too much heat.
•Places lacking ventilation or dusty places.
•Places subject to constant vibration.
•Humid or moist places.
www.insignia-products.com |
3 |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Personal CD Player - combined.fm Page 4 Monday, June 27, 2005 1:27 PM
IS-PA040722A Personal CD player
Getting to know your CD player

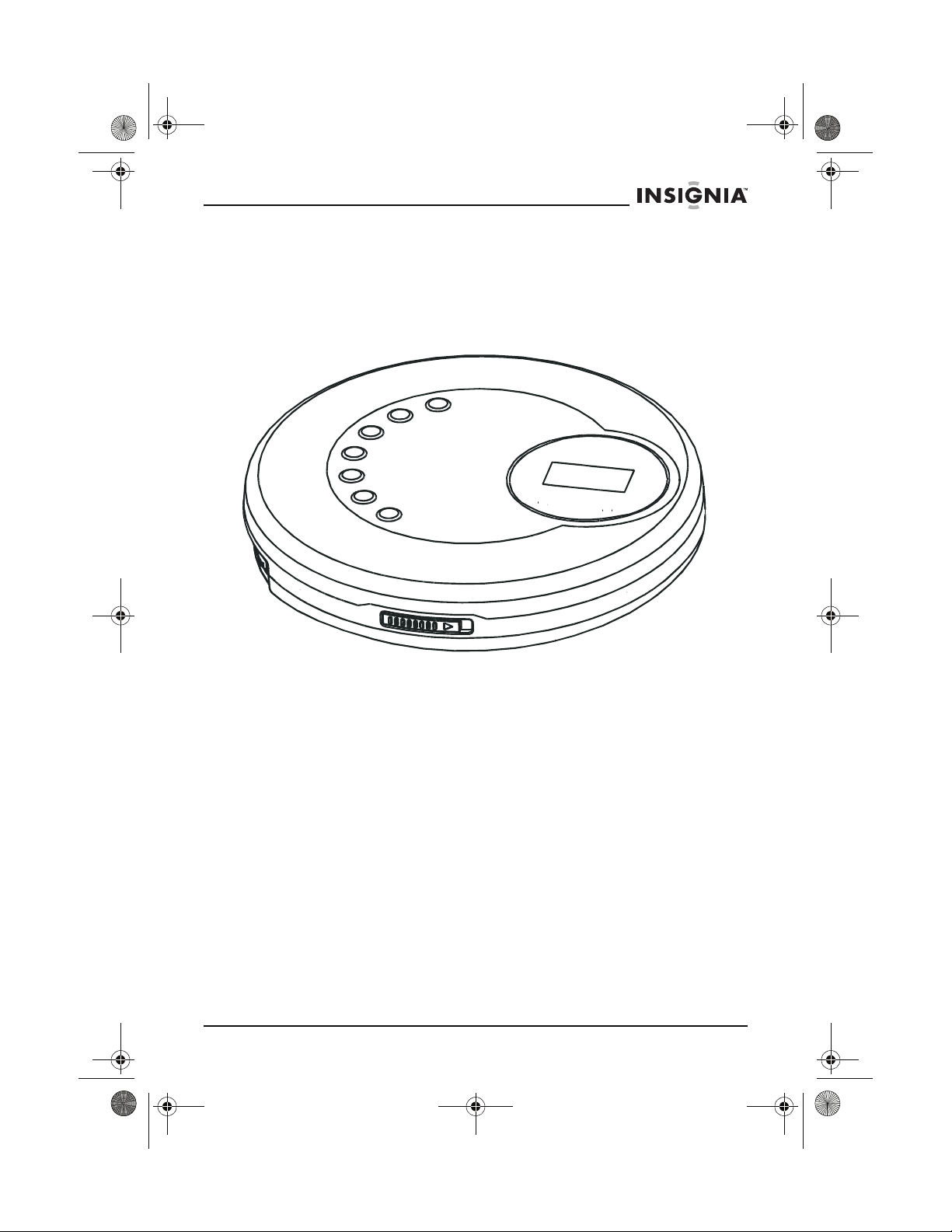

Location of controls
|
3 |
|
2 |
4 |
5 |
|
|
6 |
1
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8 |
9 |
|
11 |
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
12 |
|
|
|
|
|
|||
7 |
|
|
|
10 |
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
# |
|
Description |
|
|
|
|
|
|
|
|
|
|
# |
Description |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
|
Stop button |
|
|
|
|
|
|
|
|
|
|
|
|
7 |
Earphone or headphone |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
jack |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
Play or pause button |
|
|
|
|
|
|
8 |
Volume control |
|||||||||||
|
|
|
|
|
|
|
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
Skip or search button |
|
|
|
|
|
|
|
|
9 |
Program button |
|||||||||
|
|
|
|
|
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
Skip or search button |
|
|
|
|
|
|
10 |
Random button |
|||||||||||
|
|
|
|
|
|
|
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
Display window |
|
|
|
|
|
|
|
|
|
|
11 |
Mode button |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4 |
www.insignia-products.com |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Personal CD Player - combined.fm Page 5 Monday, June 27, 2005 1:27 PM
IS-PA040722A Personal CD player
# |
Description |
# |
Description |
|
|
|
|
6 |
DC input jack |
12 |
Open switch |
|
|
|
|
Setting up your CD player
Power supply

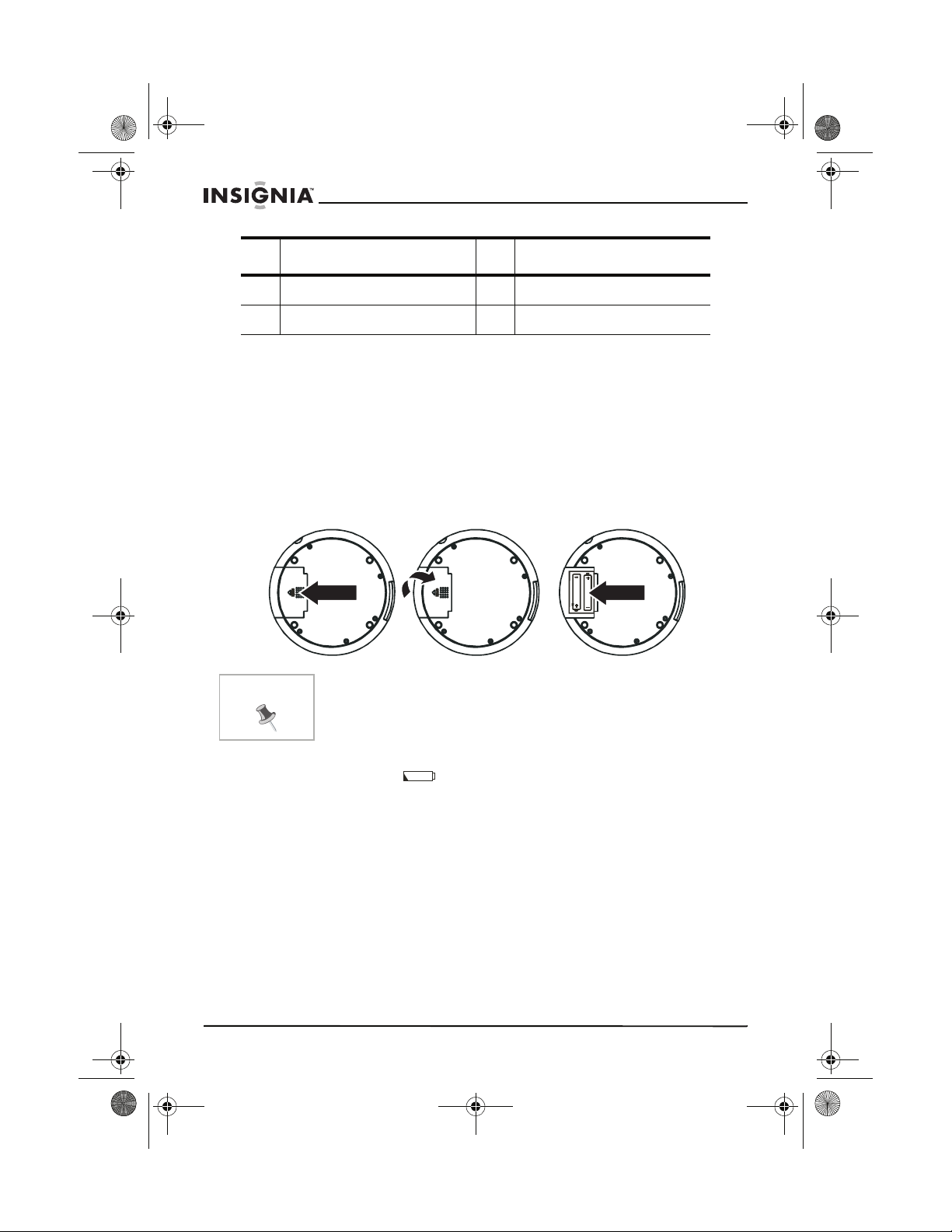

To install the batteries (not supplied):
1Open the battery compartment cover.
2Insert two “AA” (LR6) alkaline batteries. Match the battery polarities (+ and -) with those in the diagram inside the battery compartment.
3Replace the cover.
Note For battery operation, the AC adapter lead must be disconnected from the DC input jack.
WHEN TO REPLACE THE BATTERIES
When the
indicator flashes in the LCD display, replace the batteries with new alkaline batteries.
www.insignia-products.com |
5 |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Personal CD Player - combined.fm Page 6 Monday, June 27, 2005 1:27 PM
IS-PA040722A Personal CD player

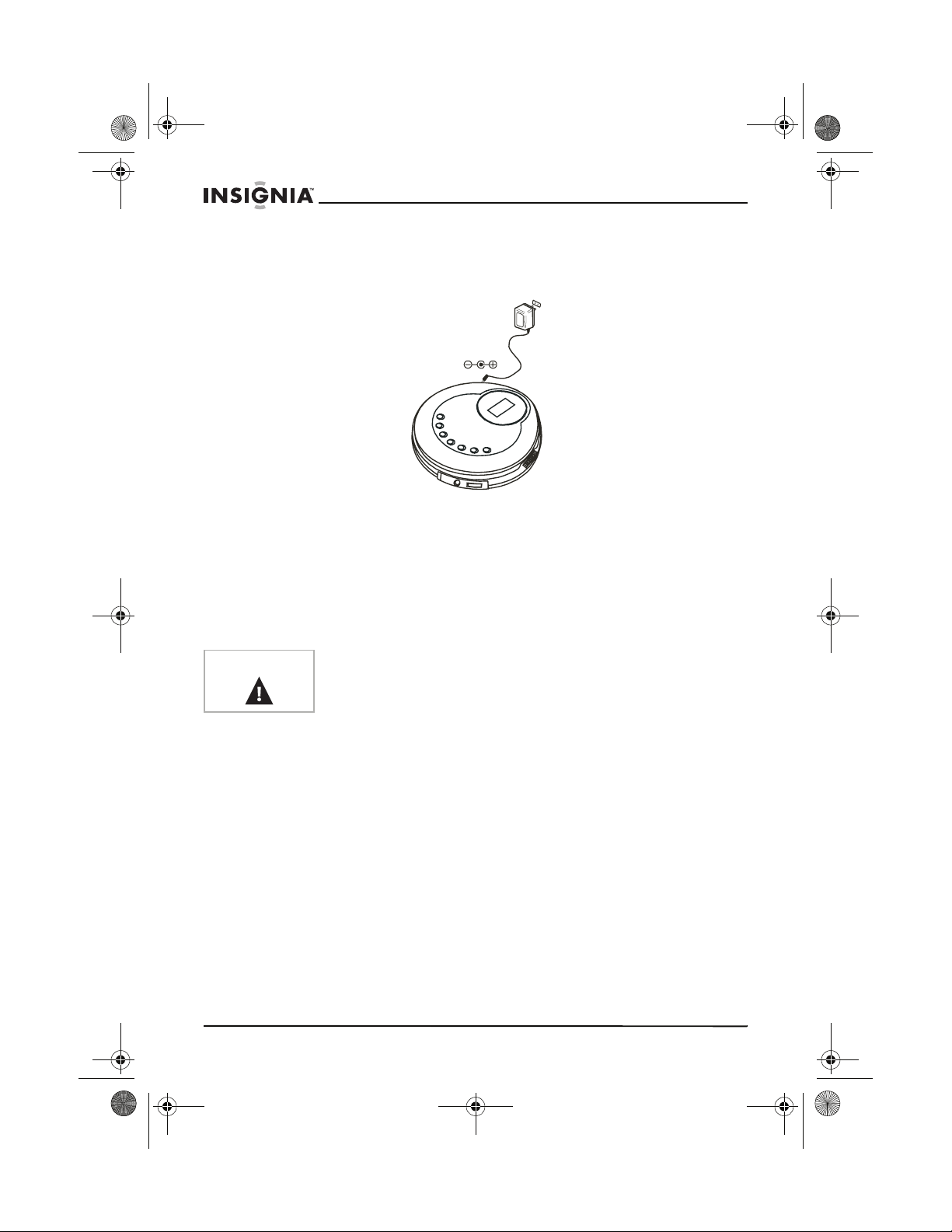

To connect the AC adapter (not supplied):
1Plug the round AC adapter plug into the DC input jack on the player.
2 Plug the AC power cord into a standard household power outlet.
Earphones or headphones
To listen with the earphones:
1Insert the plug of the stereo earphones (supplied) or stereo headphones (not supplied) into the green PHONES jack.
2Place the earphones or stereo headphones on your ears.
Warning Avoid excessive sound levels and prolonged periods of listening through earphones or headphones, which could impair your hearing.
6 |
www.insignia-products.com |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Personal CD Player - combined.fm Page 7 Monday, June 27, 2005 1:27 PM
IS-PA040722A Personal CD player
Using your CD player
Making connections

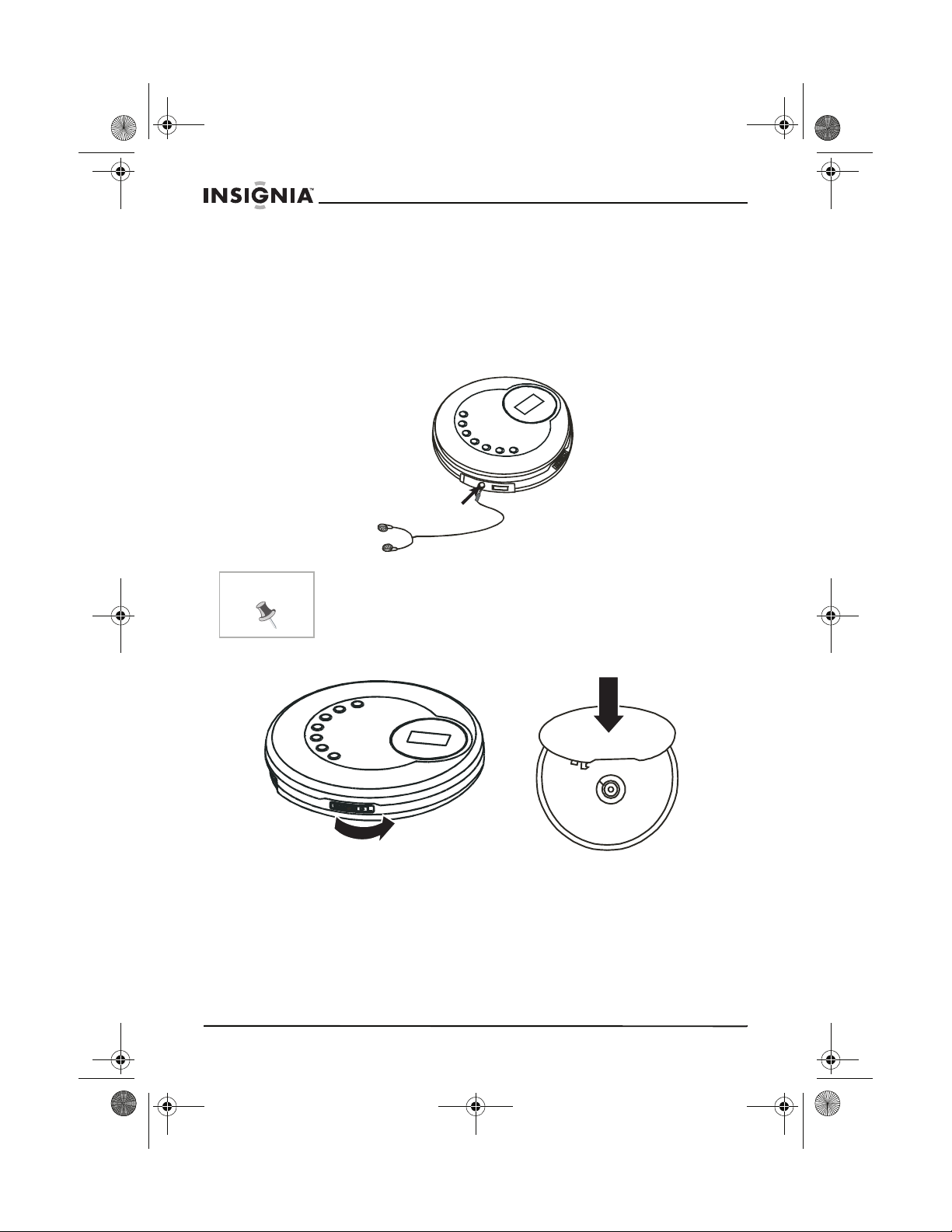

To connect the earphones:
•Plug the earphones firmly into the green PHONES jack. A poor connection could generate noise during play.
Note Refer to “Power supply” on page 5 for information on battery operation.
Inserting a CD
To insert a CD:
1Open the cover by sliding the Open button to the right.
2Place the CD firmly onto the center spindle, then close the CD cover.
www.insignia-products.com |
7 |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Personal CD Player - combined.fm Page 8 Monday, June 27, 2005 1:27 PM
IS-PA040722A Personal CD player

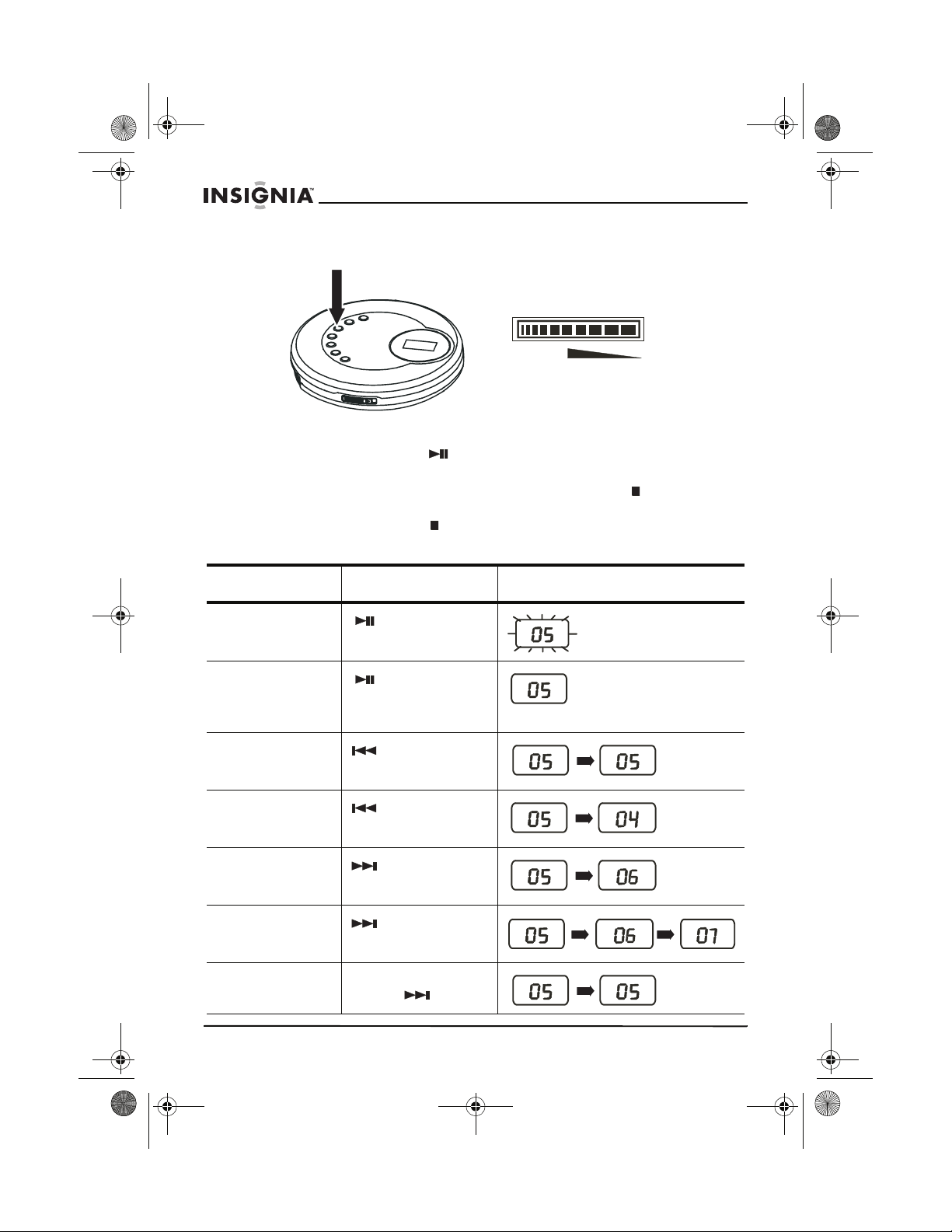

Playing a CD
VOL.

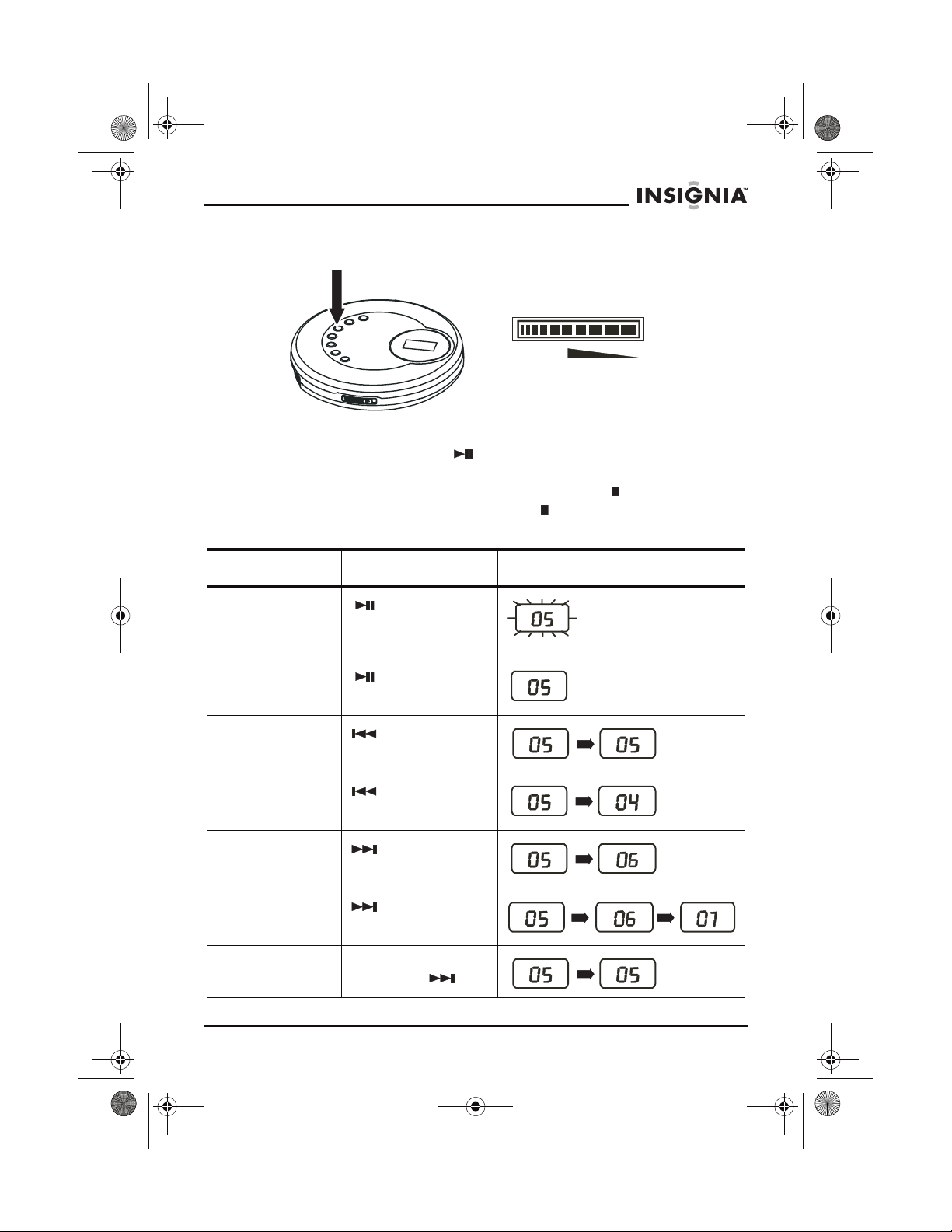

To play a CD:
1Press the
PLAY or PAUSE button.
2Adjust the volume control to a comfortable level.
3To stop, press the
STOP button.
4Press the
STOP button again, twice, to turn off the power.
To |
Press |
Display |
Pause play |
|
[flashing] |
|
|
|
Resume play after |
|
|
pausing |
|
|
Move to the start |
once |
|
of the current track |
|
|
Move to the start |
more than once |
|
of the previous |
|
|
track |
|
|
Move to the start |
once |
|
of the next track |
|
|
Move to the start |
more than once |
|
of later tracks |
|
|
Fast forward |
Press and hold |
|
Rewind (fast) |
Press and hold |
|
8 |
www.insignia-products.com |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Personal CD Player - combined.fm Page 9 Monday, June 27, 2005 1:27 PM
IS-PA040722A Personal CD player

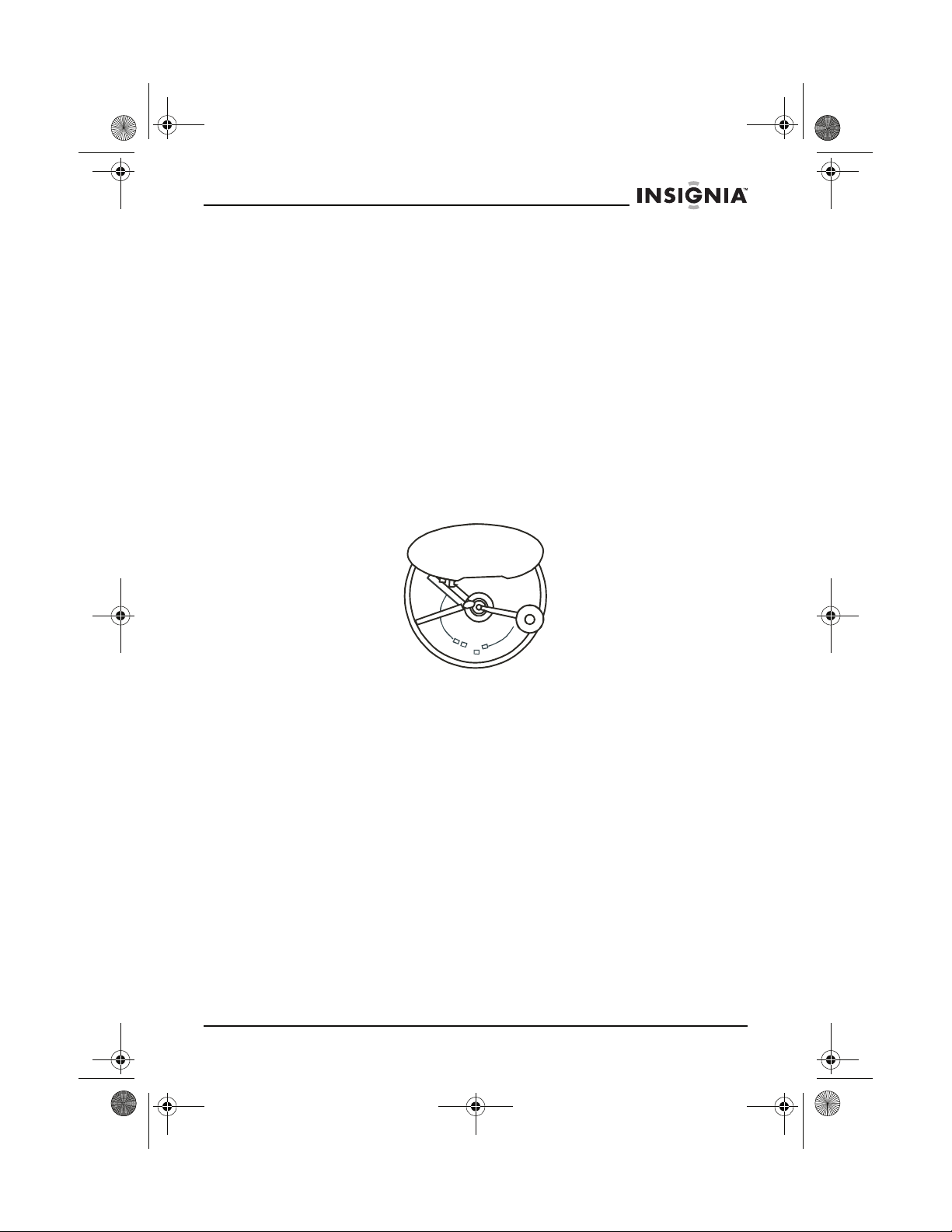

Removing the CD
To remove the CD:
1Open the CD player by sliding the Open button to the right.
2Remove the CD by pressing on the center spindle.
Additional functions
Repeat play

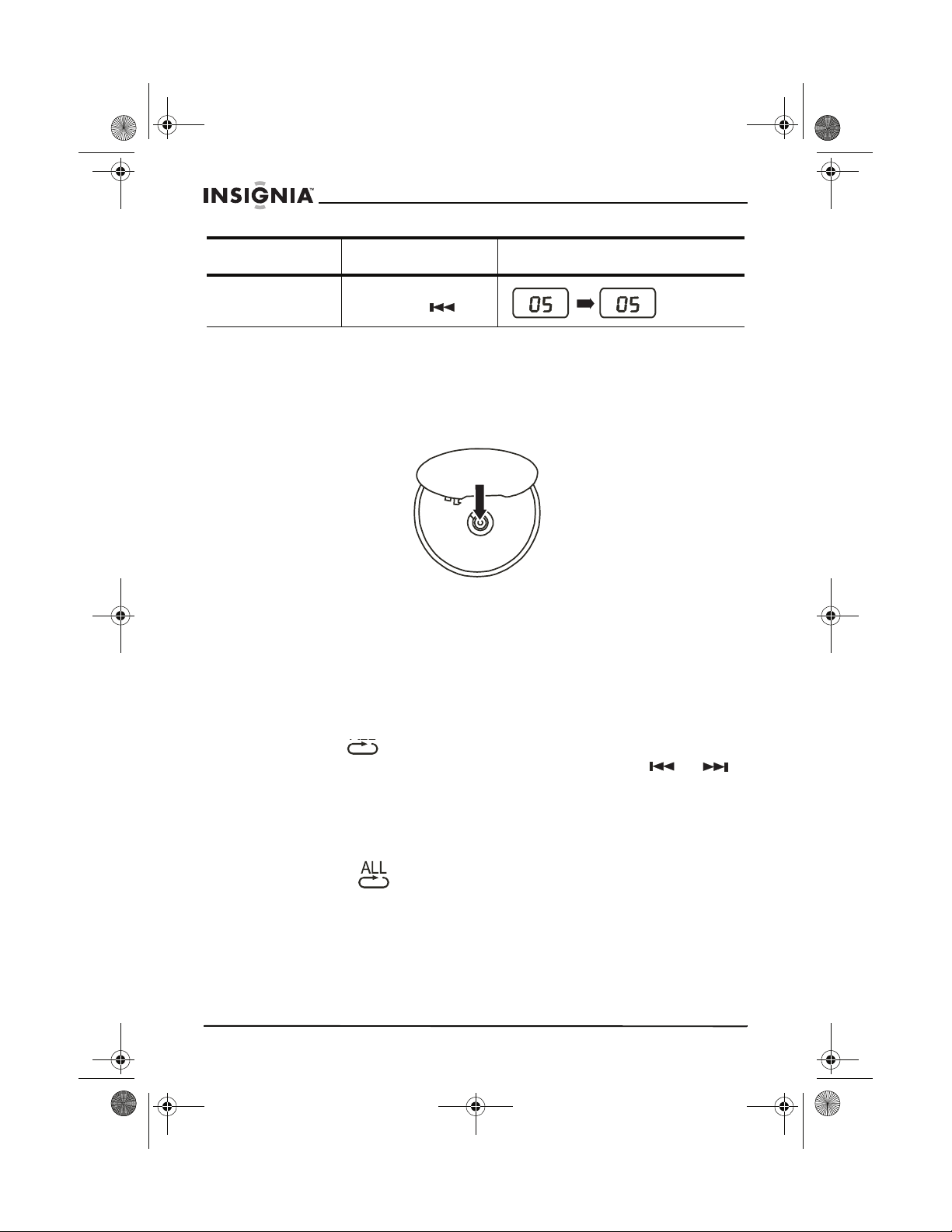

You can play tracks over again in either Normal or Program play mode. You can also repeat all the tracks or just one track.
To repeat single tracks:
1Press the MODE button while listening to the track you want to hear again. The
symbol is displayed in the LCD display.
2To repeat another track, press the
or
SKIP or SEARCH buttons.
3To cancel Repeat play, press the MODE button three times.
To repeat all tracks:
1Press the Mode button twice during play. The
symbol is displayed in the LCD display and all the tracks will be repeated, one after another.
2To cancel Repeat play, press the MODE button twice.
Intro play
To use Intro play:
1Press the Mode button 3 times to enter the Intro mode, “INTRO” flashes on the display.
2Press the PLAY or PAUSE button. The CD plays the first 10 seconds of each track.
3Press the MODE button once to cancel Intro play and resume normal playback.
After all tracks have been played, power is turned off automatically after 60 seconds.
www.insignia-products.com |
9 |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Personal CD Player - combined.fm Page 10 Monday, June 27, 2005 1:27 PM
IS-PA040722A Personal CD player
Random track play
To play random tracks:
1Press the RAND button once while the player is stopped.
“RAND” flashes in the LCD display and the player randomly plays tracks.
2To cancel Random track play, press the RAND button once again.
Programmed play
You can program up to 24 tracks in the order you select.
To play tracks in programmed order:
1While the player is stopped, press the PROG button until “PGM” flashes in the LCD display. The track number and order of play are displayed.
2Press the
or
SKIP or SEARCH buttons to choose a track.
3Press the PROG button to include the track in the program.
4Repeat steps 2 and 3 to program all the tracks you want.
5Press the
PLAY or PAUSE button. The “PGM” symbol stops flashing and the player plays the selected tracks in the order you specified.
6To cancel Program play, press the
STOP button or open the player’s cover.
To check the program:
•To check while you are programming, press the PROG button. Each time you press the PROG button, the next track number is displayed, in the order you specified.
10 |
www.insignia-products.com |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Personal CD Player - combined.fm Page 11 Monday, June 27, 2005 1:27 PM
IS-PA040722A Personal CD player
Maintenance
Cleaning the case
Wipe with a soft cloth. If the case is very dirty, moisten the cloth with a weak solution of non-caustic detergent and water.
Cleaning the lens
A dirty lens can cause skipping and can even stop the CD player from working.
To clean dry particles and dust from the lens:
1Open the CD cover.
2Use a camera lens puffer/brush to blow repeatedly on the lens, then wipe with the brush to remove dust.
3Blow again to remove loose particles.
To clean fingerprints from the lens:
•If the lens does not come clean with the puffer/brush, wipe it with a soft cotton cloth.
Cleaning CDs
Using a soft cleaning cloth, wipe the CD from the center outwards.
Caution Do not use solvents such as benzene, thinners, commercial cleaning fluids, or anti-static sprays designed for vinyl records.
www.insignia-products.com |
11 |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Personal CD Player - combined.fm Page 12 Monday, June 27, 2005 1:27 PM
|
|
|
|
IS-PA040722A Personal CD player |
||
|
|
|
|
|||
Troubleshooting |
|
|
||||
|
|
|
|
|
||
|
Problem |
Possible cause |
Solution |
|||
|
|
|
|
|
||
|
The CD player |
The batteries are low or |
Replace the batteries. |
|||
|
does not work. |
dead. |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
The AC adapter is not |
Check the AC adapter |
|
|
|
|
|
correctly connected. |
connection. |
|
|
|
|
|
|
||
|
The CD does |
The CD was incorrectly |
Reinsert the CD, label up. |
|||
|
not play. |
inserted. |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
The CD is defective. |
Try another CD. |
|
|
|
|
|
|
|
|
|
|
|
|
The CD compartment is not |
Close the CD compartment. |
|
|
|
|
|
closed. |
|
|
|
|
|
|
|
|
|
|
|
|
|
There is condensation in the |
Remove the CD and leave the |
|
|
|
|
|
CD compartment. |
cover open for about an hour in a |
|
|
|
|
|
|
dry environment. |
|
|
|
|
|
|
||
|
There is no |
The earphone jack is not |
Reinsert the earphone plut into |
|||
|
sound in the |
correctly inserted. |
the jack. |
|||
|
earphones. |
|
|
|
||
|
The volume control is turned |
Increase the volume. |
||||
|
|
|
|
|||
|
|
|
|
down. |
|
|
|
|
|
|
|
|
|
|
|
|
|
The batteries are low. |
Replace the batteries or use the |
|
|
|
|
|
|
AC adapter. |
|
|
|
|
|
|
|
|
|
|
|
|
The CD is defective. |
Try another CD. |
|
|
|
|
|
|
||
|
The CD skips |
The CD or lens is dirty. |
Clean or replace the CD, or clean |
|||
|
during play. |
|
the lens. |
|||
|
|
|
|
|
|
|
|
|
|
|
Strong shaking or vibrations. |
Place the CD player on a flat and |
|
|
|
|
|
|
stable surface without vibration. |
|
|
|
|
|
|
|
|
12 |
www.insignia-products.com |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Personal CD Player - combined.fm Page 13 Monday, June 27, 2005 1:27 PM
IS-PA040722A Personal CD player
Specifications
|
AUDIO |
|
Frequency |
20 Hz ~ 20 KHz |
|
response |
|
|
Wow and flutter |
Below measurable levels |
|
Number of channels |
2 channels (stereo) |
|
Output level |
Earphones: 15mW (32 Ohms) |
|
|
GENERAL |
|
Power supply |
2 “AA” (LR6) alkaline batteries |
|
Power supply |
4.5V ( |
) |
socket |
DC socket 3.5 mm |
|
Copyright
© 2005 Insignia. Insignia and the Insignia logo are trademarks of Best Buy Enterprise Services, Inc. Other brands and product names are trademarks or registered trademarks of their respective holders. Specifications and features are subject to change without notice or obligation.
www.insignia-products.com |
13 |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
