Haier HL52T, HL42T, HL26R, HL40R, HL42R User Manual
...
TFT-LCD TV OWNER'S MANUAL
Please READ this manual carefully before operating your TV, and retain it for future reference.
MODELS:
HL26R HL37T
HL32R HL42T
HL40R HL47T
HL42R HL52T
Warning
CAUTION |
! |
RISK ELECTRIC SHOCK |
|
DO NOT OPEN |
|
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is
!intended to alert the user to the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
Important Safety Instructions
1)Read these instructions.
2)Keep these instructions.
3)Heed all warnings.
4)Follow all instructions.
5)Do not use this apparatus near water.
6)Clean only with dry cloth.
7)Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8)Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11)Only use attachments/accessories specified by the manufacturer.
12)Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ Apparatus combination to avoid injury from tip-over.
13)Unplug this apparatus during lightning storms or when unused for long periods of time.
14)Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15)The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases,
shall be placed on the apparatus.
16)The mains plug or appliance inlet is used as the disconnect device, remain it readily operable during the apparatus normal use.
Class I apparatus shall be connected to a mains socket outlet with a protective earthing connection.
2 TV LCD-TFT
Safety Instructions
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rule. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, use and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encourage to try to correct the interference by one or more of the following measures:
*Reorient or relocate the receiving antenna.
*Increase the separation between the equipment and receiver.
*Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. *Consult the dealer or an experienced radio/TV technician for help.
This device compiles with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)This device may be not cause harmful interference.
(2)this device must accept any interference received, including interference that may cause undesired operation.
FCC CAUTION:
To assure continued compliance and possible undesirable interference, the provided ferrite cores must be used when connecting this LCD display to video equipment; and maintain at least 40cm spacing to other peripheral device.
CANADIAN NOTICE:
This Class B digital apparatus compiles with Canadian ICES-003.
Owner
s Manual 3
Safety Instructions
SAVE THESE INSTRUCTIONS
Thank you for purchasing the Haier product. This easy-to-use manual will guide you in getting the best use of your product. Remember to record the model and serial number. They are on label in back of the unit.
Model number
serial number
Date of purchase
Staple your receipt to your manual. You will need it to obtain warranty service.
4 TV LCD-TFT
Introduction
Contents
War ni ng . . . . . . . . .. .. .. .. .. .. . . . . . . . . . . . . . . . . . . . . . . 2 Sa fe ty I ns tr uc ti on s . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Introduction
Co nt ro ls . . . . . . . . . |
. . . . . . . . . . . |
. . . . . . . . . . . .. .. .. .. .. |
6 |
. . . . . . . . . .Co nn ec ti on O pt io ns |
. . . . . . . . . . . . .. .. .. .. |
7 |
|
Universal Remote control . ............ |
. . . . . . . . ......... |
8 |
|
Installation |
|
|
|
|
|
|
|
Ac ce ss or ie s . . . . . . |
. . . . . . . . . . . |
. . . . . . . . . . . .... .. .. |
9 |
Antenna Connection . . . . . . . . . |
. .......................... |
9 |
|
Co nn ec ti ng a V CR . |
. . . . . . . . . . |
. . . . . . . . . . .. .. .. .. .. . |
10 |
External A/V Source Setup . . . . |
.. . . . . .................. |
11 |
|
Co nn ec ti ng a D VD p la ye r . . . . . |
.. .. .. . . . . . . . . . . . . . |
11 |
|
Connecting a DTV(digital TV) .............................. |
|
12 |
|
Connecting digital audio output |
. . . . . . . . . . . . . . . . . |
12 |
|
Co nn ec ti ng a c om pu te r. . . . . . . . |
. . . . . . . . . . . . . . . .13 |
||
Monitor Out Setup. . |
. . . . . . . . . |
. . . . . . . . . .... .. .. .. .. . |
14 |
HD MI a nd D VI i np ut . . . . . . . . . . . |
. . . . . . . . . . . . . . . . . |
14 |
|
Cable sample |
|
|
|
|
|
15 |
|
. . . . . .Connecting Headphones |
. . . . . . . . . . . . . ..... |
16 |
|
Power source................ |
. . . . . . |
. . . . . . . . . . . . . . . . |
16 |

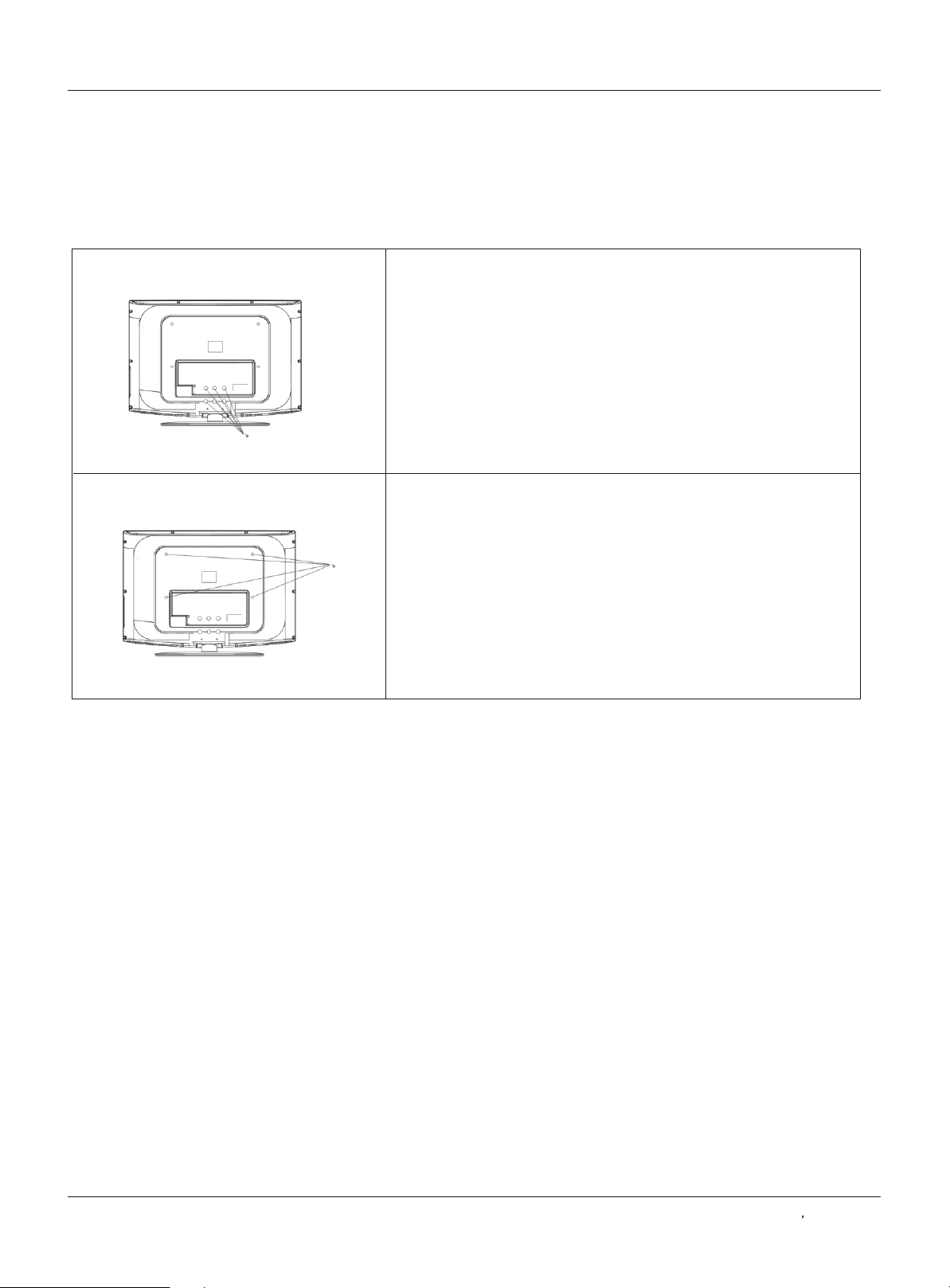

Removing the table stand and installing a |
|
||
wall mount bracket. . . |
. . . . . . . . . |
. . . . . . . . . . . . . . . . |
17 |
Operation |
|
|
|
Switching On/Off the TV set . . . |
. . ... . . . . . . . . . . .... |
18 |
|
Choose the Menu Language . . . |
. ..... .................... |
18 |
|
Choose the input source...................................... |
|
18 |
|
Channel Menu |
|
|
|
Channel Scan............... |
. . . . . . |
. . . . . . . . . . . . . . . . . |
19 |
Ch an ne l Sk ip .. .. .. . . . . |
. . . . . . . . . |
. . . . . . . . . . . . . . . . |
19 |
Se le ct t he d es ir ed p ro gr am . . . . |
. . . . . . . . . . . . . . . . . |
20 |
|
Se le ct t he d es ir ed s ou nd . . . . . . |
. . . . . . . . . . . . .. . . . |
20 |
|
Mu te . . . . . . . . . . . . |
. . . . . . . . . . . . . . . . . . . . . . . . . . . 20 |
||
Video Menu |
|
|
|
How to select picture mode.................................. |
|
21 |
|
How to customize your own picture status ............. |
21 |
||
VG A Set . . . . . . . . . . |
. . . . . . . . . . . . . . . . . . . . . . . . . . |
22 |
|
Audio Menu |
|
|
|
How to select audio mode.................................... |
|
22 |
|
How to customize your own audio status ............... |
22 |
||
SAP Broadcasts Setup........................................ |
|
23 |
|
Function Menu
Menu Language...................................................
OSD Timeout.......................................................
OSD Transparency...............................................
Screen Mode.......................................................
Blue Screen.........................................................
DPMS.................................................................
Time zone setting.................................................
Date /Time setting................................................
Sleep Timer setting..............................................
DTV Caption Style................................................

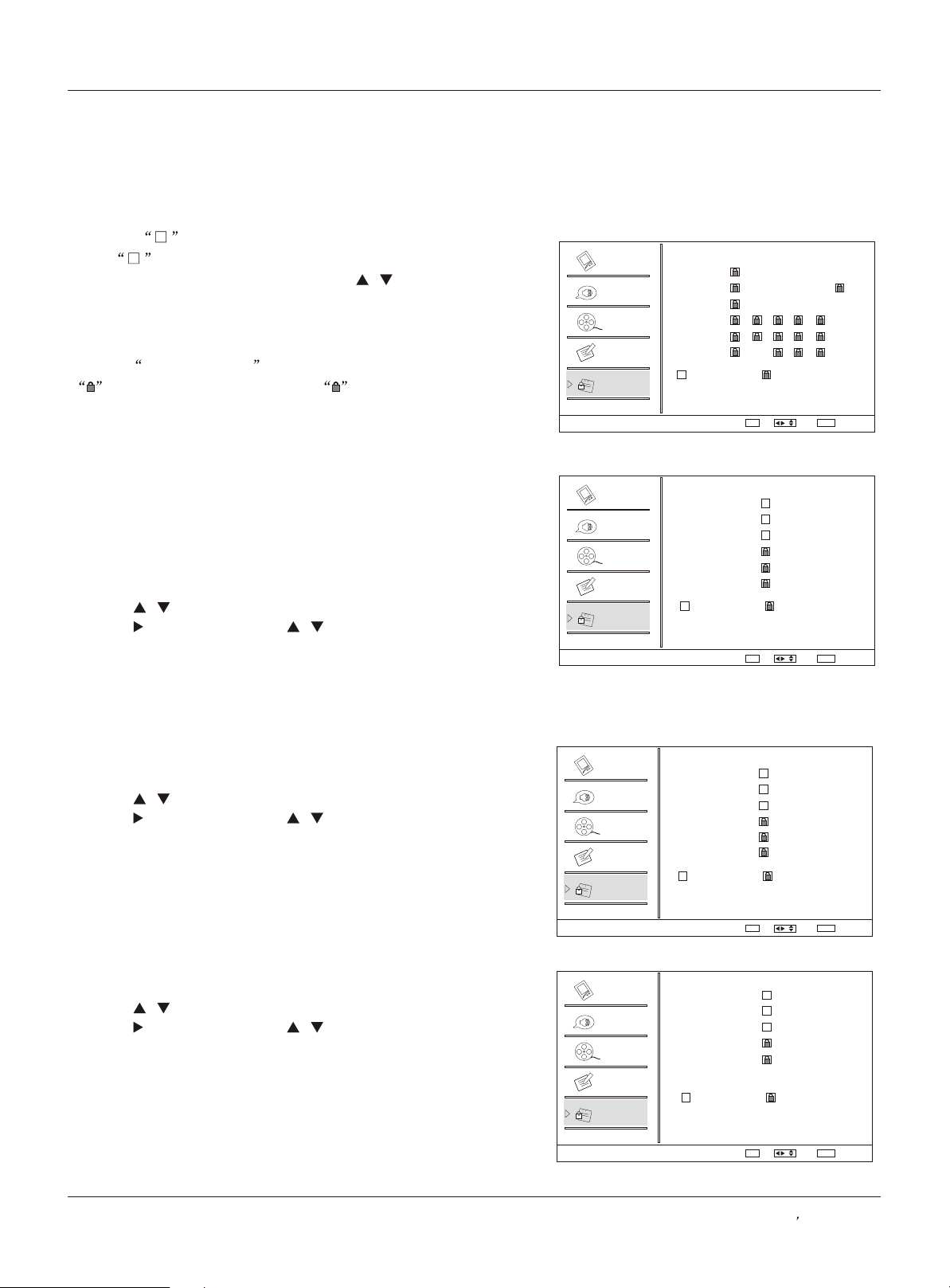

Lock Menu
Parental Control rating and categories...................
Lock setup...........................................................
Others Functions

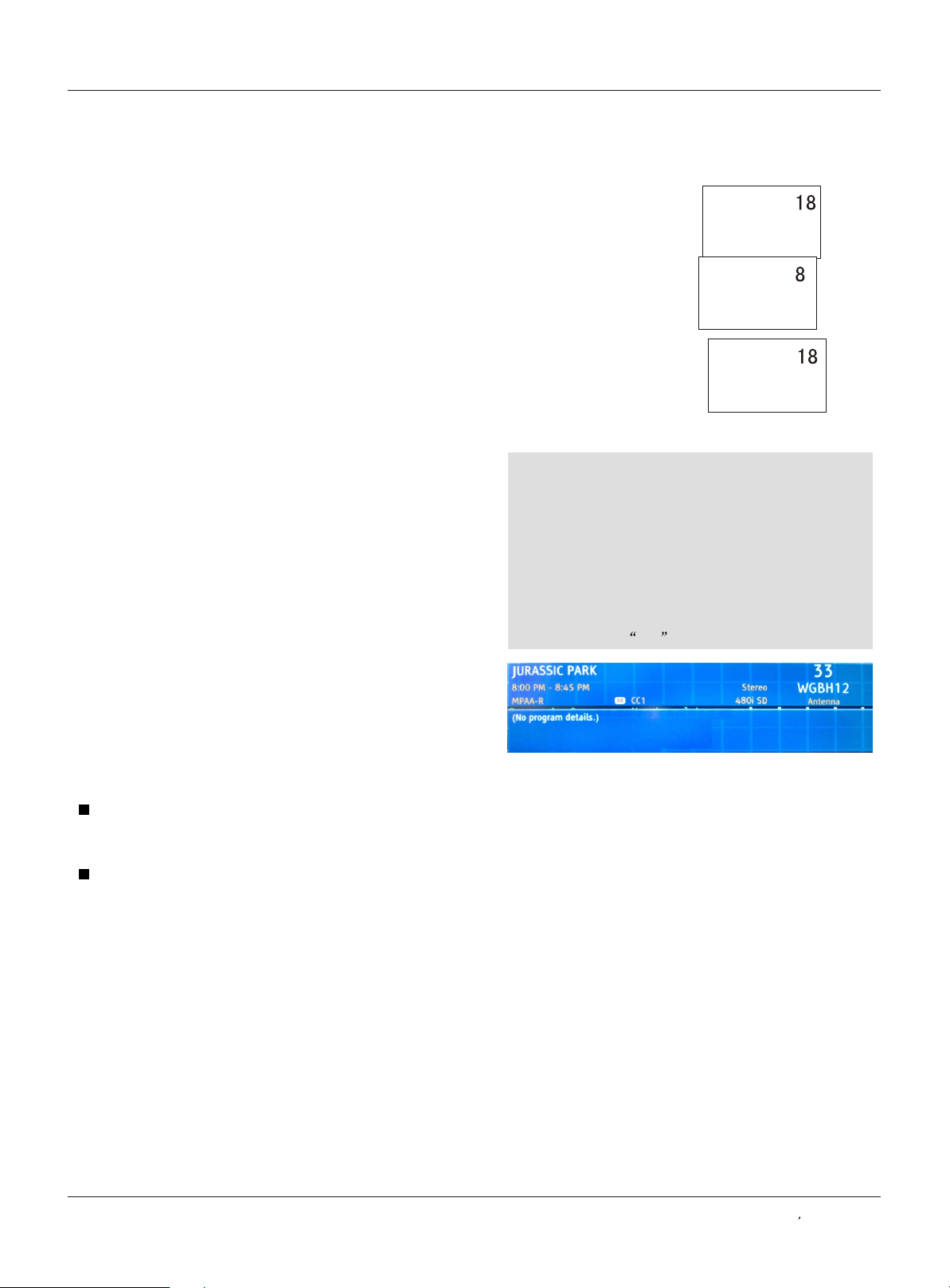

Br ie f In fo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. .. .. .. ..
Using the Guide. . . . . . . . . . . . . . . . . . . . . . . .. .. .. .. .. ..
Quick program view..............................................
CC (Closed Caption Display) . . . . . . . . . . . . . ... . .. .
Remote Control
Setting up your remote control ..............................
Remote Control Codes ........................................
Maintenance . . .. .. .. . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Specifications . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty ............................................................
Owner s Manual 5
Introduction
Controls
This is a simplified representation of front panel.
Here shown may be somewhat different from your TV.
Front panel controls
HL26R,HL32R,HL40R,HL42R
HL37T,HL42T,HL47T,HL52T
HL42T,HL47T
HL37T,HL52T |
|
HDMI3 IN |
VIDEO2 IN |
VIDEO |
L - AUDIO - R |
POWER -CH CH+ -VOL VOL+ INPUT MENU
-CH CH+ -VOL VOL+ INPUT MENU
1.MENU: Press to show the on-screen menu.
2.INPUT: Press to show the input source mode. In the MENU/INPUT screen, these buttons serve as OK button.
3.VOL -/+: Press to adjust the volume .In the MENU screen, these buttons serve as left/right buttons. 4.CH -/+ : Press to scan through channels. To scan quickly through channels, press and hold down
either +/- . In the MENU screen, these buttons serve as up/down buttons. 5.POWER: Press to turn on and off the TV.
6.AV2 AUDIO IN: Connect to hear stereo sound from an external device. 7.AV2 VIDEO IN: Connects the video signal from a video device. 8.HDMI3 IN: Connect a signal from an external device to HDMI. 9.Headphone jack : Headphone audio output terminal.
6 TV LCD-TFT
Introduction
Connection Options
Back panel controls
HL26R,HL32R,HL40R,HL42R,HL42T,HL47T
HDMI IN |
VGA IN |
|
|
|
|
COMPONENT IN |
|
OPTICAL |
|
AV OUT |
VIDEO IN |
ANT IN |
|
|
VGA AUDIO |
|
|
|
|
|
OUT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
VGA |
|
2 |
Y |
Pb |
Pr |
L-AUDIO- R |
|
VIDEO |
L-AUDIO-R |
|
|
|
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
L- |
DVI |
- R |
1 |
Y |
Pb |
Pr |
L-AUDIO- R |
1 |
VIDEO |
L-AUDIO- R |
S-VIDEO |
L-AUDIO- R |
|
|
AUDIO |
|
|
|
|
|
|
|
|
|
|
|
|
HL37T,HL52T
|
|
|
|
|
|
|
|
|
|
ANT IN |
|
OUT |
|
|
|
|
|
|
|
|
|
|
|
IN OPTICAL |
|
|
|
|
|
|
L |
|
2 |
HDMI IN |
|
|
|
|
|
|
|
|
|
||||
2 |
|
|
|
|
|
DVI AUDIO |
|
|
|||
|
|
|
|
|
|
|
1 |
||||
|
|
|
|
|
|
R |
|
||||
COMPONENT |
|
|
|
|
|
|
|
|
|
||
1 |
|
|
|
|
|
|
|
|
VGA IN |
||
Y |
Pb |
Pr |
L AUDIO R |
VGA AUDIO |
VGA |
|
|||||
|
|
|
|||||||||
VIDEO IN |
1 |
|
|
|
|
|
1 |
|
|
AV OUT |
|
VIDEO |
L AUDIO |
R |
S-VIDEO |
L AUDIO |
R |
VIDEO |
L AUDIO |
||||
|
R |
||||||||||
1 HDM IN: Connect an HDMI signal to the jack.
2 VGA Video IN: Connect a video cable from a computer to the jack. 3 VGA Audio IN: Connect an audio cable from a computer to the jack. 4 DVI Audio IN: Connect a component video device to these jacks.
5 DVD/DTV IN(Component ): Connect a component video device to these jacks.
6 AUDIO IN(Component ): Connect the Audio L/R cables from the Component Video signal source these jacks. 7 Digital Audio Output: Connect digital audio from an external device.
NOTE: In standby mode, these ports will not work.
8 VIDEO Out: Connect the second TV or monitor to the TV`s AV OUT. 9 AUDIO Out: Connect the audio L/R cables to the second TV`s AV IN. 10 VIDEO IN: Connects the video signal from a video device.
11 AUDIO IN: Connect the audio L/R cables from the Video signal source these jacks. 12 S-VIDEO IN: Connect the S-Video cable from an external signal source to the jack. 13 AUDIO IN: Connect the audio L/R cables from the S-Video signal source these jacks.
14 Antenna IN: Connect cable or antenna signals to the TV, either directly or through your cable box. 15 Headphone jack : Headphone audio output terminal.
Owner
s Manual 7
Introduction

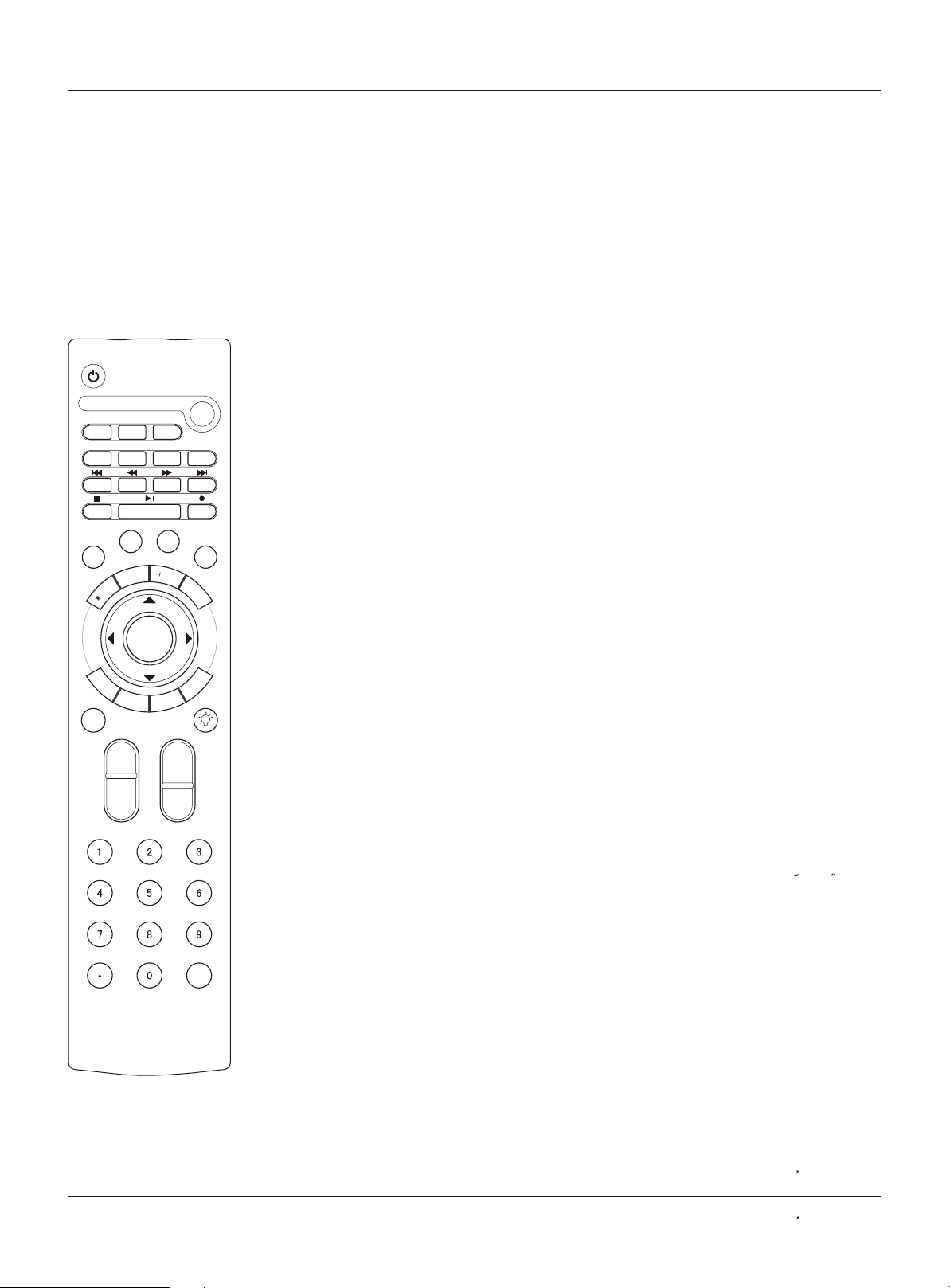

Universal Remote control
The remote control cannot be operated unless the batteries are properly loaded. When using the remote control, aim it at the remote control sensor on the TV.
Function introduction
TV DVD VCR SETBOX CABLE AUDIO
SELECT
CH.LIST FAV.LIST ADD/ERASE
TODAY |
NEXT DAY |
PAGE- |
PAGE+ |
|
P.MODE |
S.MODE |
|
CC |
|
|
FREEZE |
|
IDE |
NP |
UT |
|
GU |
|
|
|
U |
|
IN |
N |
|
F |
|
|
|
O |
|
E |
|
|
|
|
OK |
|
|
|
|
X |
|
|
|
|
EP |
E |
|
|
|
E |
|
IT |
|
|
L |
|
|
|
S |
|
|
||
|
|
|
|
|
|
AR |
C |
P |
|
|
|
|
SA |
|
|
|
|
MUTE
VOL+ CH+
VOL - CH-
Q.VIEW
1POWER
Press to turn on and off the TV.
2CH.LIST
Open the channel list.
3Shortcut Button of Input
TODAY: Press to enter TODAY signal;
NEXT DAY: Press to enter NEXT DAY signal;
PAGE-: Press to enter PAGEsignal;
PAGE+: Press to enter PAGE+ signal.
4VCR/DVD Functions
Control some video cassette recorders or DVD players.
/ |
Rewind / Fast |
/ |
backward /Forward |
|
|
Stop |
Play/Pause |
REC |
|
5P.MODE
Press repeatedly to cycle through the available picture modes.
6CC(closed caption)
Select a closed caption.
7GUIDE
Press to display the guide when you are watching analog or digital channels.
8MENU
Press to show the on-screen menu.
9EXIT
Clears all on-screen displays and returns to TV viewing from any menu.
10ARC(Aspect Ratio Control)
Press to chang the aspect ratio.
11MUTE
Switches the sound on or off.
12VOLUME UP/DOWN
Press to adjust the volume.
13Number buttons
Press to change a channel.
14
button
Press to select digital channels. For example, to enter “54-3”, press “54”, “
” and “3”.
15TV DVD VCR SETBOX CABLE AUDIO
Press the SELECT button repeatedly to select one of the system modes in which the remote control can be used. When the desired device is
selected, the corresponding LED lights on 5 seconds.
16FADD/ERASE
Press to add or erase a favorite program.
17FAV.LIST
Press to open the favorite channel list.
18S.MODE
Press to cycle through different sound settings.
19FREEZE
Press once to display a frozen image of the current program, but audio continues. Press again to return to the program.
20INPUT
Show the input source mode.
21INFO
When you watch the TV, press the key, the information displays on top of the screen.
22THUMBSTICK (Up/Down/Left/Right/OK)
Allows you to navigate the on-screen menus and adjust the system settings to your preference.
23SLEEP button
Press to display the sleep timer option.
24SAP
Selects MTS sound: Mono, Stereo, and SAP in Analog mode. Change the audio language in DTV mode.
25LIGHT
Press the light button, white LED will be ON, release this key, white LED will be OFF.
26CHANNEL UP/DOWN
Press to scan through channels. To scan quickly through channels, press and hold down either +/- .
27Q.VIEW
Press to jump back and forth between two channels.
8 TV LCD-TFT
Installation
External Equipment Connections

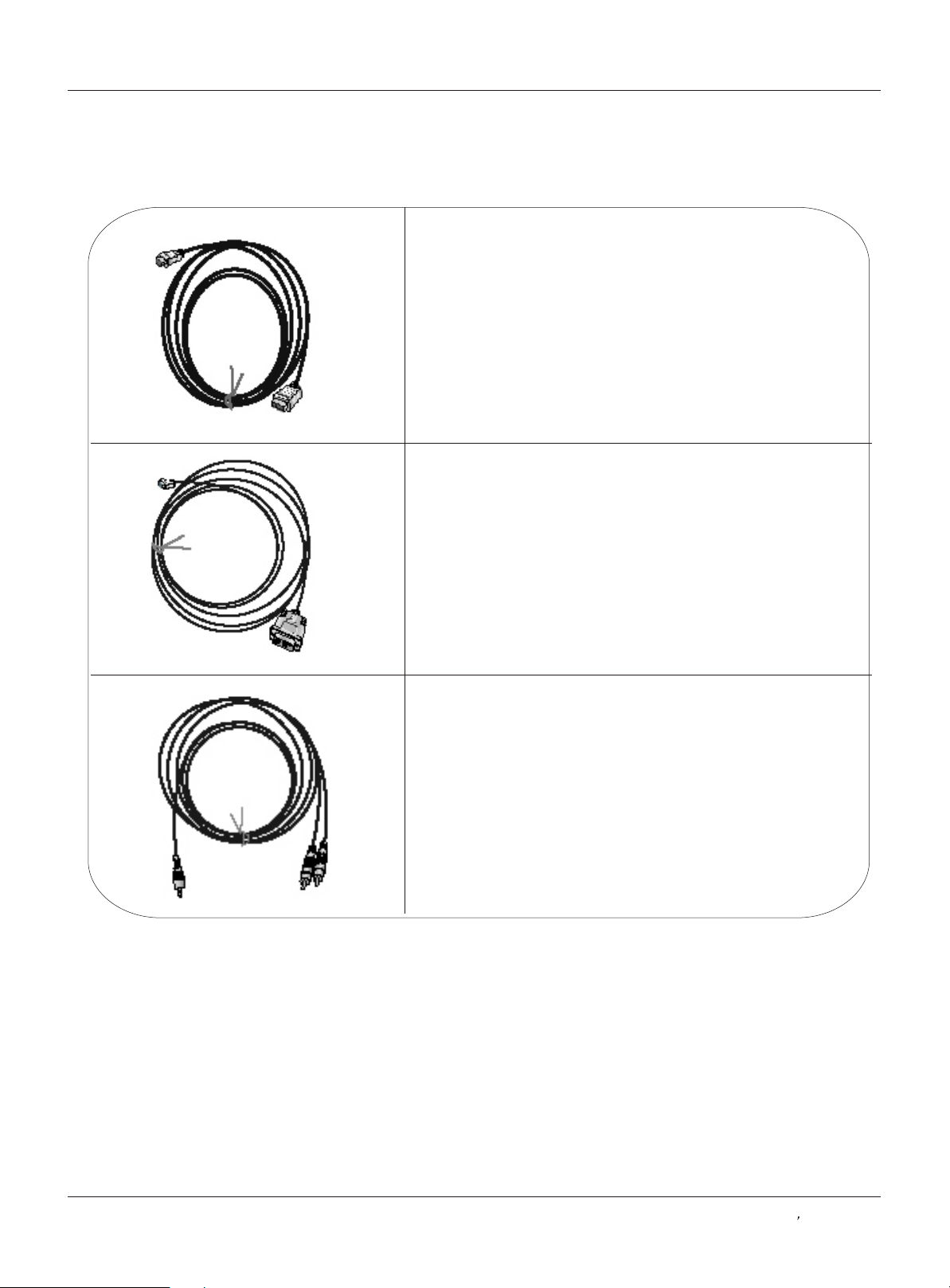

Accessories
TV DVD VCR SETBOX CABLE AUDIO
P.MODE |
S.MODE |
|
TFT-LCD TV |
CC |
|
FREEZE |
OWNER'S MANUAL |
|
|
INFO |
Please READ this manual carefully before |
|
|
|
|
|
|
|
operating your TV, and retain it for future |
OK |
|
reference. |
|
|
|
||
EXIT |
|
|
|
VOL+ |
CH+ |
|
|
VOL - |
CH- |
|
|
|
|
|
MODELS: |
|
|
|
HL26R HL37T |
|
|
|
HL32R HL42T |
|
|
|
HL40R HL47T |
|
|
|
HL42R HL52T |
Remote control Owner`s manual Alkaline battery(AAA)
2 Power cable
Antenna Connection
Generally speaking, to enjoy a clearer picture, we recommend that you use a CATV system or an
outdoor antenna .Over-the-air TV reception quality will depend on your antenna type, antenna
location and antenna positioning.
Multi-family Dwellings/Apartments (Connect to wall antenna socket) Wall Antenna
Socket
Bronze Wire
RF Coaxial Wire (75 ohm)
|
|
AV OUT |
VIDEO IN |
ANT IN |
|
|
VIDEO |
L-AUDIO-R |
|
|
|
1 |
VIDEO |
L-AUDIO- R |
S-VIDEO |
L-AUDIO- R |
|
VHF Antenna
UHF Antenna
Turn clockwise to tighten
Single-family Dwellings /Houses (Connect to wall jack for outdoor antenna) Outdoor
Antenna
Bronze Wire
Be careful not to bend the bronze wire when connecting the antenna.
ANT IN
To improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly.
If the antenna needs to be split for two TV`s, install a
2-Way Signal Splitter in the connections.
To install the antenna properly please contact a professional in your area.
Owner
s Manual 9
Installation
External Equipment Connections
NOTE: All cables shown are not included with the TV.
Choose Your Connection
There are several ways to connect your television, depending on the components you want to connect and the quality of the signal you want to achieve. The following are examples of some different ways to connect your TV with different input sources.

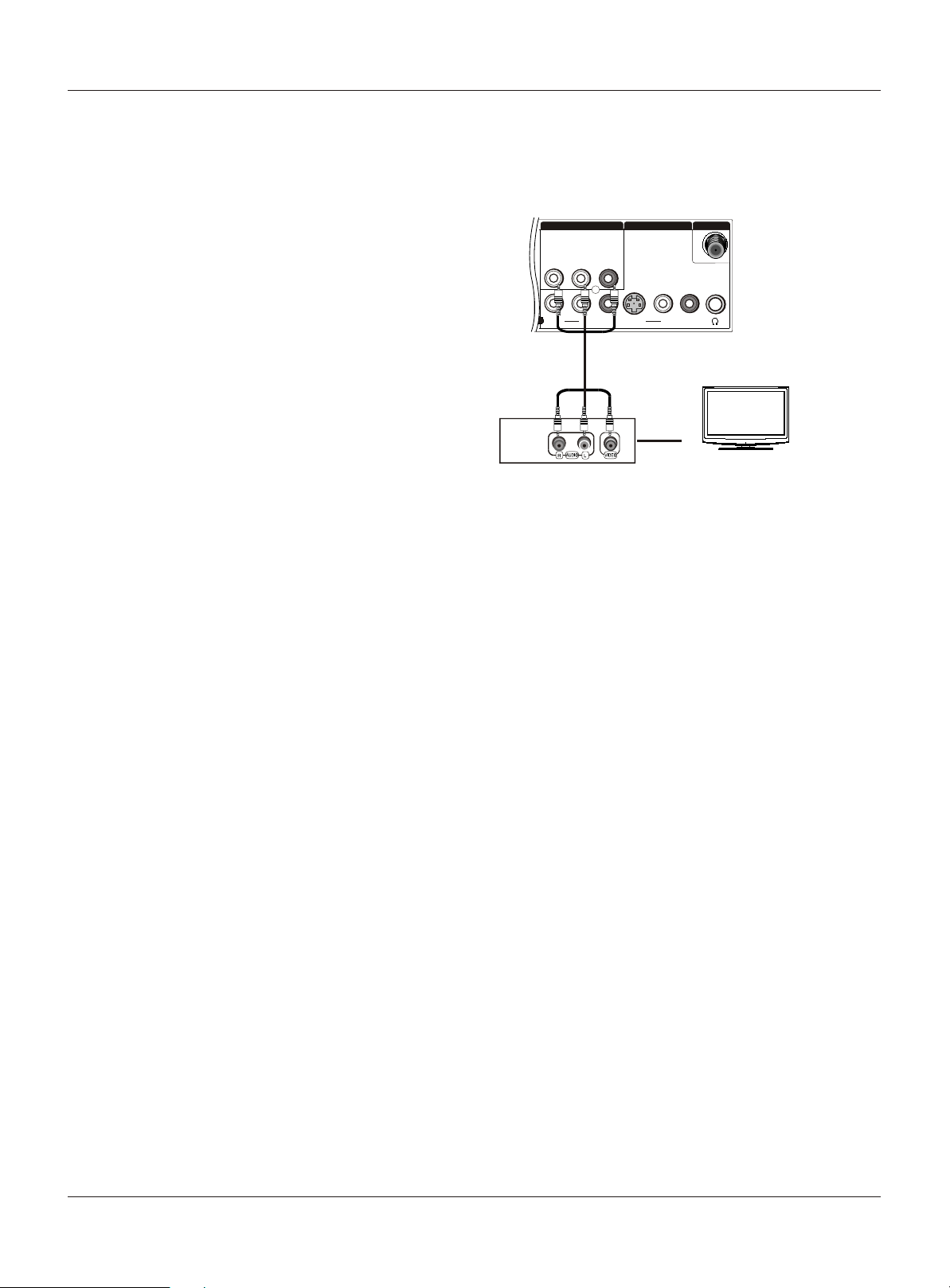

Connecting a VCR
To avoid picture noise (interference), leave an adequate distance between the VCR and TV.
Connection Option 1
Set VCR output switch to channel 3 or 4 and then tune the TV to the same channel number.
Connection Option 2
1.Connect the audio and video cables from the VCR's output jacks to the TV input jacks, as shown in the figure. When connecting the TV to VCR, match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red). If you connect a S-VIDEO output from VCR to the
S-VIDEO input, the picture quality is improved; compared to connecting a regular VCR to the Video input.
2.Insert a video tape into the VCR and press PLAY on
the VCR. (Refer to the VCR owner`s manual.)
3. Select the input source with using the INPUT button on the remote control, and then press
/
button to select the source, press OK button to confirm.
|
|
AV OUT |
VIDEO IN |
ANT IN |
|
|
VIDEO |
L-AUDIO-R |
|
|
|
1 |
VIDEO |
L-AUDIO- R |
S-VIDEO |
L-AUDIO- R |
|
10 TV LCD-TFT
Installation
External Equipment Connections
External A/V Source Setup
How to connect
Connect the audio and video cables from the external equipment's output jacks to the TV input jacks, as shown in the figure.
When connecting the TV to external equipment, match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red).
How to use
1.Select the input source with using the INPUT button on the remote control.
2.Press
/
button to select the desired source.
3.Press OK button to confirm.
2. Operate the corresponding external equipment.
Connecting a DVD player
How to connect
|
|
AV OUT |
VIDEO IN |
ANT IN |
|
|
VIDEO |
L-AUDIO-R |
|
|
|
1 |
VIDEO |
L-AUDIO- R |
S-VIDEO |
L-AUDIO- R |
|
Camcorder
Video Game Set
1.Connect the DVD video outputs (COMPONENT) to the Y Pb Pr jacks on the TV and connect the DVD audio outputs to the YPbPr Audio IN jacks on the TV, as shown in the figure.
2.If your DVD only has an S-VIDEO output jack, connect this to the S-VIDEO input on the TV. as shown in the figure.
Note
If your DVD player does not have component video output, use S-Video.
How to use
1.Turn on the DVD player, insert a DVD.
2.Use INPUT button on the remote control to select Y Pb Pr mode.
3.Press Play button on external equipment for program play.
4.Refer to the DVD player's manual for operating instructions.
Component Input ports
To get better picture quality, connect a DVD player to the component input ports as shown below.
Component ports |
Y |
Pb Pr |
on the TV |
|
|
|
COMPONENT IN |
|
OPTICAL |
|
AV OUT |
VIDEO IN |
ANT IN |
|
|
|
|
|
|
OUT |
|
|
|
|
|
2 |
Y |
Pb |
Pr |
L-AUDIO- R |
|
VIDEO |
L-AUDIO R |
|
|
|
1 |
Y |
Pb |
Pr |
L-AUDIO- R |
1 |
VIDEO |
L-AUDIO- R |
S-VIDEO |
L-AUDIO- R |
|
Video output ports |
Y |
Pb |
Pr |
Y |
B-Y |
R-Y |
|
on DVD player |
Y |
Cb |
Cr |
|
Y |
PB |
PR |
Owner s Manual 11
Installation
External Equipment Connections
Connecting a DTV(digital TV)
This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do receive Digital signals from a digital set-top box or other digital external device, refer to the figure as shown below.
This TV supports HDCP (High-bandwidth Digital Contents Protection) protocol for Digital Contents (480p,720p,1080i).
How to connect
Use the TV`s COMPONENT , VGA or HDMI jack for video connections, depending on your set-top box connector. Then, make the corresponding audio connections.
How to use
1.Turn on the digital set-top box. (Refer to the owner`s manual for the digital set-top box.)
2.Use INPUT on the remote control to select COMPONENT , VGA or HDMI source.
Signal |
COMPONENT |
HDMI |
480i |
Yes |
Yes |
480p |
Yes |
Yes |
720p |
Yes |
Yes |
1080i |
Yes |
Yes |
1080p |
Yes |
Yes |
HDMI IN |
VGA IN |
|
|
|
|
COMPONENT IN |
OPTICAL |
VGA AUDIO |
|
|
|
|
OUT |
||
|
|
|
|
|
|||
|
VGA |
|
2 |
Y |
Pb |
Pr |
L-AUDIO- R |
2 |
|
|
|
|
|
|
|
1 |
|
|
|
|
|
|
|
L- |
DVI |
- R |
1 |
Y |
Pb |
Pr |
L-AUDIO- R |
AUDIO |
|||||||
HDMI |
|
|
|
|
|
|
|
Connecting a digital audio output
Send the TV`s audio to external audio equipment (stereo system) via the Digital Audio Output (Optical) port.
How to connect
1.Connect one end of an optical cable to the TV Digital Audio(Optical) Output port.
2.Connect the other end of the optical cable to the digital audio (optical) input on the audio equipment.
See the external audio equipment instruction manual for operation.
Note
When connecting with external audio equipments, such as amplifers or speakers, please turn the TV speakers off.
Caution: Do not look into the optical output port. Looking at the laser beam may damage your vision.
Digital Set-top Box
OPTICAL
OUT
L-AUDIO- R |
|
|
|
VIDEO OUT |
|
|
|
|
|
|
|
|
|
|
L-AUDIO- R |
1 VIDEO |
12 TV LCD-TFT
Installation
External Equipment Connections
Connecting a computer
How to connect
1.To get the best picture quality, adjust the VGAgraphics card to 1024x768 .
2.Use theTV`s VGAor DVI (DigitalVisual Interface)AudioIN port foraudio connections, dependingon your computer
connector.
If the graphic card on the computer does not output analog and digital RGB simultaneously, connect only one of either VGAIN or HDMI IN todisplay the VGAon theTV.
If the graphic card onthe computer doesoutput analog anddigital RGB simultaneously, set theTV to either VGAor HDMI ; (theother mode isset to Plugand Play automaticallyby theTV.)
3.Then,make the corresponding audio connection. If using a sound card, adjust the VGA sound as required.
How to use
1. Turnon the computer a nd theTV.
2. Use INPUT onthe remote control to select VGAor HDMI source.
3. Check the image on your TV. There may be noise associated with the resolution, vertical pattern, contrast or brightness in VGAmode. If noise is present, change the VGA mode to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the VGA graphic card cannot be changed,change the VGAgraphic card orconsult the manufacturerof the VGA graphiccard.
Note
1.Use a DVI cable.
2.Avoid keeping a fixed imageon the TV's screen fora long periodof time. The fixed image may becomepermanently imprinted on the screen.
3. Thesynchronization input formfor Horizontal andVertical frequenciesis separate.
Resolution
Frame Mode Resolution frequency
(Hz)
VGA |
640x480 |
60Hz |
60Hz
SVGA 800x600
75Hz
60Hz
XGA 1024x768
75Hz
HDMIIN |
VGA IN |
|
|
|
|
COMPONENT IN |
|
VGA AUDIO |
|
|
|
|
|
||
|
VGA |
|
2 |
Y |
Pb |
Pr |
L-AUDIO- R |
2 |
|
|
|
|
|
|
|
1 |
|
|
|
|
|
|
|
L- |
DVI |
- R |
1 |
Y |
Pb |
Pr |
L-AUDIO- R |
|
AUDIO |
|
|
|
|
|
|
Owner
s Manual 13
Loading...
