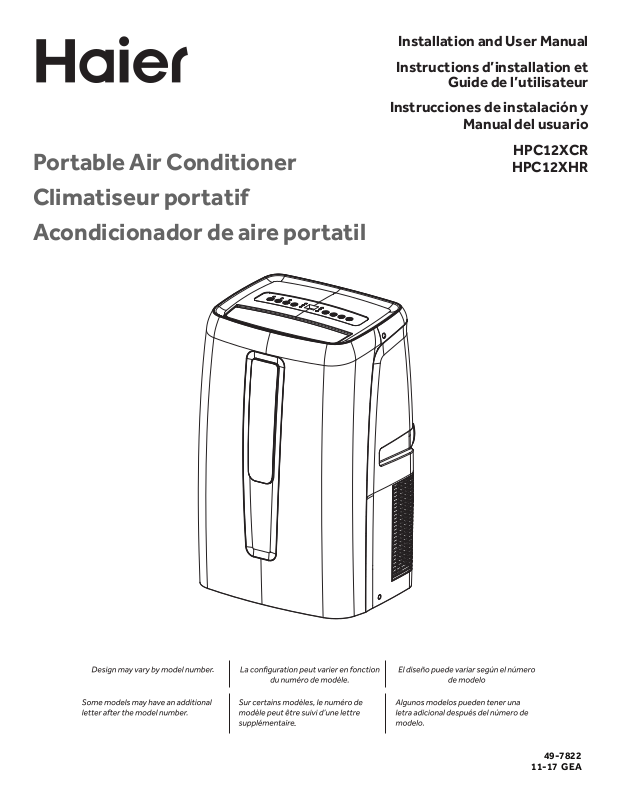

Portable Air Conditioner Climatiseur portatif Acondicionador de aire portatil
Installation and User Manual
Instructions d’installation et Guide de l’utilisateur
Instrucciones de instalación y Manual del usuario
HPC12XCR
HPC12XHR
49-7822
11-17 GEA
TABLE OF CONTENTS
AIR CONDITIONER SAFETY .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PARTS AND FEATURES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTALLATION REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Location Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. .
.
..
. . . .
. .
.. ..
. . . . . . . . . .
. . . . .
.. .. .. .. .. .
2
3
. 4
. 4 4 4
INSTALLATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. ... ... . ... . .. . ... . ... . .. . ... . ... . .. . ... . ... ... . ... . ... ... . ... . . . . . . . . . . . |
5 |
||
Step 1 - Unpack Air Conditioner. . . . . . . . . . . |
. 5 |
|||
Step 2 |
- Install Exhaust . . |
. . . . . . . . . . . . . |
. . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. 5 |
Step 3 |
- Install Window Panel. . . . . . . . . . . . |
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
6 |
|
Step 4 |
- Attach Exhaust Hose to the Exhaust Nozzle . |
. . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. 6 |
|
Step 5 |
- Complete Installation. . . . . . . . . . . . |
. . . . . . . . . . . . . . . . . . . . . . . . . . . . |
6 |
|
CONTROL PANEL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
7 |
Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
7 |
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
8 |
AIR CONDITIONER USE .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. |
.. 9 |
AIR CONDITIONER CARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. 9 |
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. 9 |
Air Filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. 9 |
Internal Water Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. 9 |
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
9 |
TROUBLESHOOTING .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. |
10 |
LIMITED WARRANTY .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
11 |
RECORD KEEPING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
1 |
RECORD KEEPING
Thank you for purchasing this Haier product. This user manual will |
_______________________________________ |
help you get the best performance from your new air conditioner. |
Model number |
For future reference, record the model and serial number located on |
_______________________________________ |
the label on the side of your air conditioner, and the date of purchase. |
Serial number |
Staple your proof of purchase to this manual to aid in obtaining war- |
_______________________________________ |
ranty service if needed. |
Date of purchase |
ENGLISH
1
ENGLISH
AIR CONDITIONER SAFETY
Your safety and the safety of others are very important..
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER,” “WARNING” or “CAUTION.”
These words mean:
DANGER
WARNING
CAUTION
An imminently hazardous situation. You could be killed or seriously injured if you don’t immediately follow instructions.
A potentially hazardous situation which, if not avoided, could result in death or serious bodily injury.
A potentially hazardous situation which, if not avoided, may result in moderate or minor injury.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electrical shock, injury to persons, or damage when using the air conditioner, follow basic precautions, including the following:
•Read all of the instructions before using this appliance.
•Plug into a grounded 3 prong outlet.
•Do not remove ground prong.
•Do not use an adapter.
•Do not use an extension cord.
•Do not operate the air conditioner if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.
•Theairconditionershouldbeservicedonlybyqualified service personnel. Call an authorized service company for examination, repair, or adjustment.
•Disconnect power before servicing.
• Disconnect power before cleaning.
NOTE: TurningoffpowerbypressingthePowerbutton does NOT disconnect the appliance from the power supply.
•Do not install or use the air conditioner in any area where the atmosphere contains combustible gases or where the atmosphere is contaminated. Avoid any chemicals coming in contact with your air conditioner.
•Do not store anything directly on top of the air conditioner.
•Use two or more people to move and install air conditioner.
•Neveroperatetheairconditionerwithoutthefiltersin place.
•Do not use the air conditioner near a bathtub, shower or wash basin or other wet area.
READ AND SAVE THESE INSTRUCTIONS
2

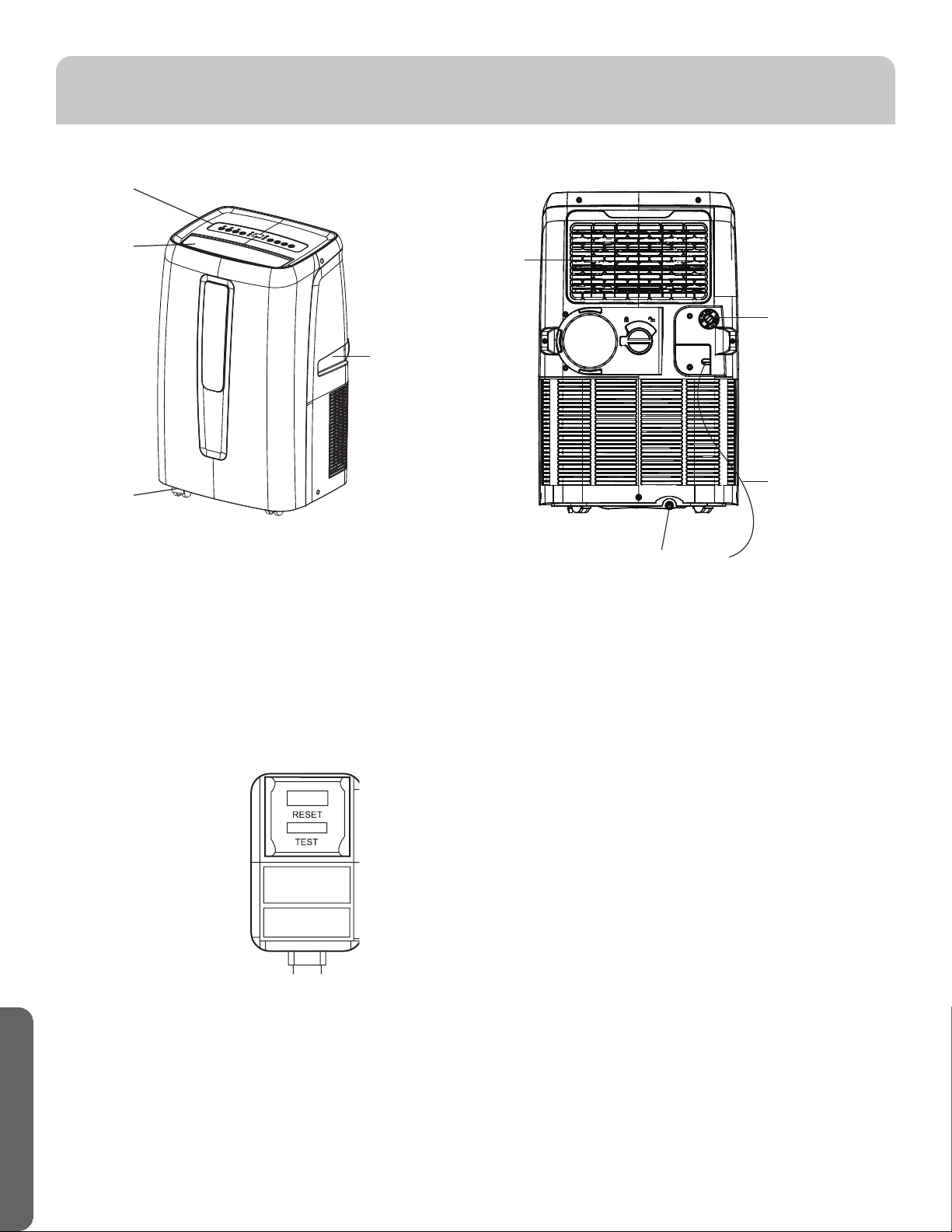

PARTS AND FEATURES
2
1
5
3
1.Air Outlet
2.Control Panel
3.Casters
4.Air Filter
5.Handle
Power Cord
TEST: When this button is pressed or when there is a current leak, the unit will not operate.
RESET: After resolving the problem, press the reset button to resume operation.
ENGLISH
4
6
7
8
6.Upper Drain
7.Power Cord
8.Lower Drain
NOTE: Please ensure if the water outlet drain is well installed before use.
3
ENGLISH

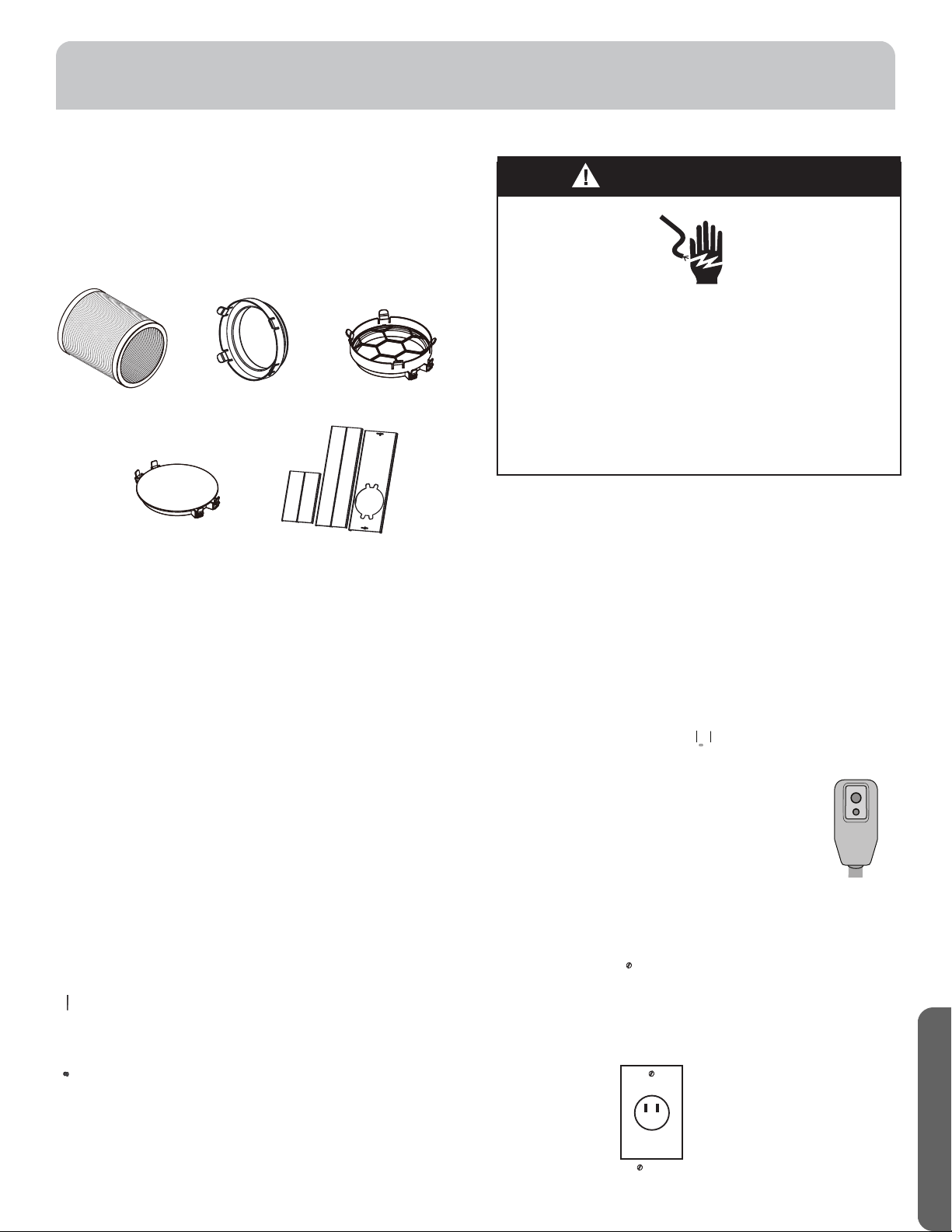

INSTALLATION REQUIREMENTS
TOOLS AND PARTS
Gather the required tools and parts before starting installation.
PARTS SUPPLIED
Hose Connector |
Hose Connector |
Exhaust Hose |
|
Cover #5 |
Window Panel and |
|
|
|
Extension Panel (3) |
LOCATION REQUIREMENTS
•Placetheairconditioneronaflat,levelsurfaceina location that is at least 20” (51 cm) from any wall.
NOTE: The recommended distance from the window for optimal performance is 31.5 inches.
•Maintain a minimum 20” (51 cm) clearance around the air conditionertonotblockairflow.
•Keep the air conditioner free of any obstructions such as drapes, curtains, blinds, etc.
•The exhaust hose should be free of any obstructions.
•Do not place the air conditioner on an unstable or raised surface because it could fall and cause damage or injury.
•Do not place the air conditioner in direct sunlight or near a heat source such as baseboard heaters, stoves, etc.
•The window panel can be installed in a window with a minimum 20” (51 cm) to a maximum 40” (101.6 cm) opening.
ELECTRICAL REQUIREMENTS
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove the ground prong from the power cord plug.
Do not use an adapter.
Do not use an extension cord.
Failuretodosocanresultindeath,fireor electrical shock.
POWER SUPPLY CORD
Wiring Requirements
•115 Volt, 60Hz, 15-amp fused grounded 3 prong outlet
•The use of a time-delay fuse or time-delay circuit breaker is recommended.
•Use a dedicated circuit only.
NOTE: Do not operate any other electrical appliances on this circuit or you may trip the circuit breaker/fuse.
If this power supply cord is damaged, it cannot be repaired. It must be replaced with a cord from the product manufacturer. If the power supply cord is damaged call Haier Customer Service: 1-877-337-3639.
RESET
TEST
To test the power supply cord before operation:
1..Plug the power cord into a grounded 3 prong outlet.
2..Press the Test button, and then press and release the Reset button to restore power.
REQUIRED GROUNDING METHOD
This air conditioner must be grounded. The air conditioner is equipped with a power supply cord that has a 3 prong grounding plug. The power supply cord must be plugged into a mating, grounded 3 prong outlet, and grounded in accordance with all local codes and ordinances.
115V
15 Amp
4
INSTALLATION INSTRUCTIONS
STEP 1 - UNPACK AIR |
#2) to rear panel. |
CONDITIONER |
2.. Sliding in one end of hose assembly (with hose connector |
|
WARNING
Excessive Weight Hazard
Use two or more people to move and install air conditioner.
Failure to do so can result in back or other injury.
• Remove packaging materials. Save the carton and the foam |
|
|
|
packaging for storing the air conditioner when not in use. |
|
|
NOTE: There are NO packing materials inside the |
|
• |
air conditioner to remove—Do Not open the cabinet. |
|
Properly dispose of/recycle all packing material. |
|
|
• |
Handle the air conditioner gently. |
Thenpushtheknobtofixthehoseassemblyfirmly. |
• |
Keep the air conditioner upright and level. Do not set the air |
|
|
conditioner on its side, front, back or upside down. |
|

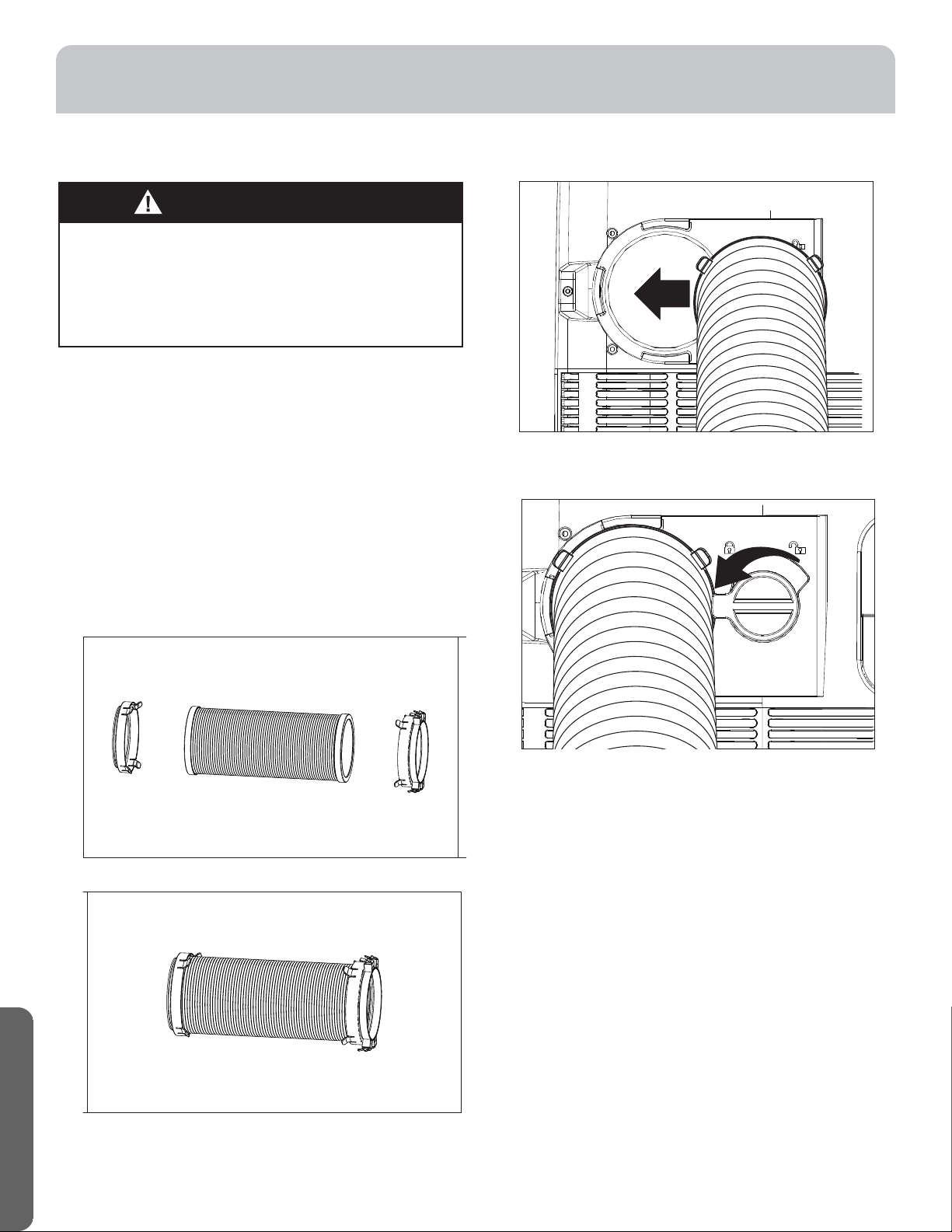

STEP 2 - INSTALL EXHAUST
1.. Connect the connectors #2 and #3 to two sides of exhaust hose #1 to create an exhaust assembly.
ENGLISH
2 |
1 |
3 |
5
ENGLISH
INSTALLATION INSTRUCTIONS

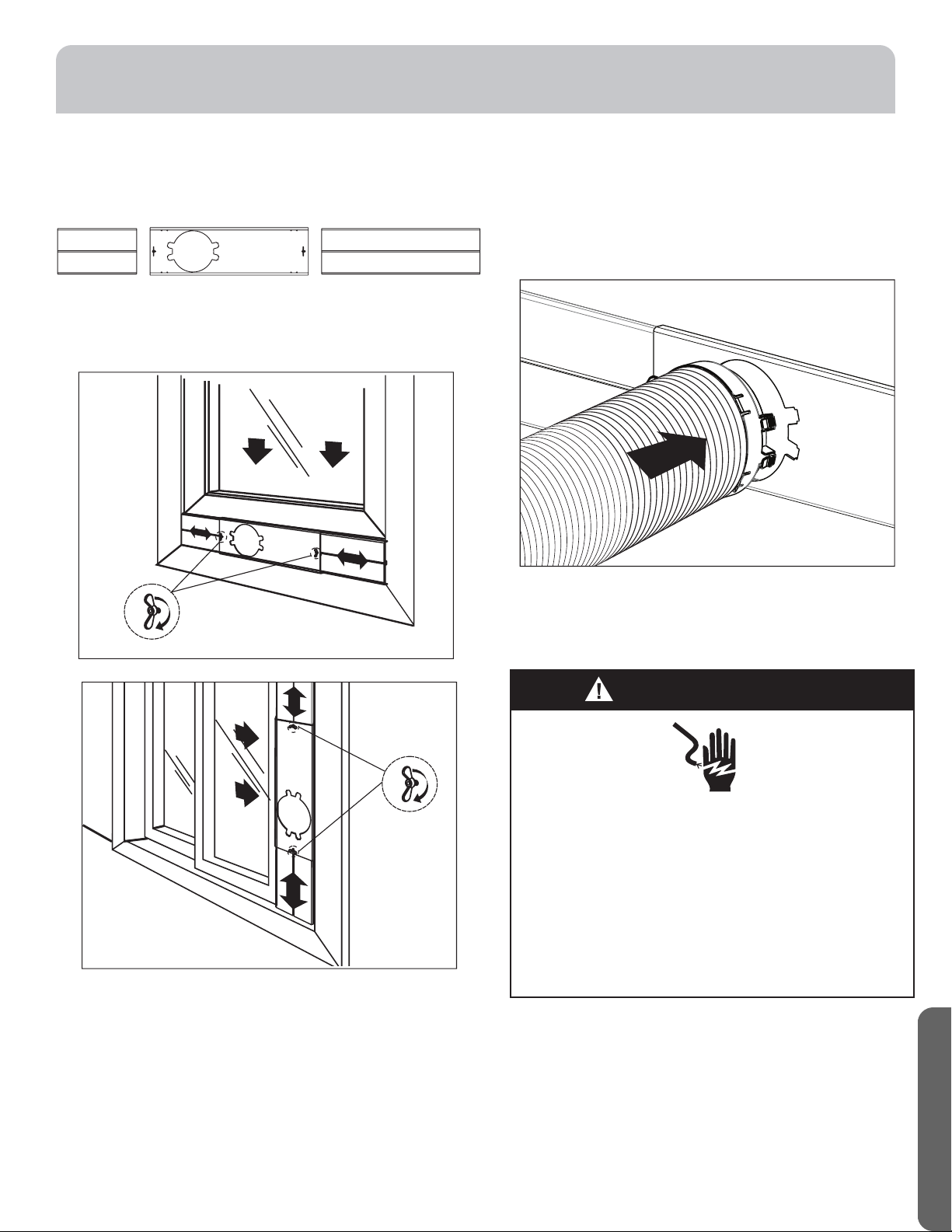

STEP 3 - INSTALL WINDOW PANELS |
STEP 4 - ATTACH EXHAUST HOSE |
||
panelA. Adjusttofixthelengthofwindow |
|
TO THE EXHAUST NOZZLE |
|
1.. Insert the window panel B and C to each end of the main |
|
||
|
|
|
1.. Insert the other end of the exhaust hose assembly (with |
|
|
|
hose connector #3) onto the window bracket. |
C |
A |
B |
|
2. Open the window and place window panels into window. |
|
||
Adjusttheextensionpanelstofitwidthorheightofwindow |
|
||
by the screw and nut sets mounted on the main panel A. |
|
||
STEP 5 - COMPLETE INSTALLATION
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove the ground prong from the power cord plug.
Do not use an adapter.
Do not use an extension cord.
Failuretodosocanresultindeath,fireor electrical shock.
1.. Plug the power cord into a grounded 3 prong outlet.
2.. Press the Reset button on the power cord to ensure the safety plug is providing power to the air conditioner.
3. Allow 8” of space around the unit for proper air circulation.
4. When removing the portable air conditioner for storage, the window panel may be left in place. Simply place the cover (#5) over the hole on the window panel.
6
