Your computer includes Help and Support, an easily accessible collection of help
information, troubleshooters, and automated support. Use Help and Support to answer
questions about Windows and to help you quickly discover and use the many features of
your Gateway computer.
To start Help and Support:
■Click Start, then click Help and Support. Help and Support opens.
You can find help information by clicking a link, performing a search, or browsing the
index.
2
www.gateway.com
Using Your Computer guide
Searching for a topic
To search for a topic in Help and Support, type a word or phrase (keyword) in the Search
box located at the top of any Help and Support screen, then click the arrowbutton.
For each search, you receive the following search result types:
■Suggested Topics - These topics are located in Help and Support and are relevant to
your search topic.
■Full-text Search Matches - These topics are located in Help and Support and contain
the words you entered in the
■Microsoft Knowledge Base - These topics are located on the Microsoft Web site and
contain the words you entered in the
Internet to search for and access these topics.
To view a list of your search results, click the results header for the type of results you
want to view.
Search box.
Search box. You must be connected to the
To view a topic, click the topic name in the
Search Results list.
Using Your Computer guide
In addition to this guide, the Using Your Computer guide has been included on your hard
drive. This guide includes information on using Windows, using the Internet, sending a
fax, and changing power-saving settings as well as other topics.
To access the Using Your Computer guide:
■Click Start, All Programs, then click Gateway Documentation.
www.gateway.com
3
Chapter 1: Getting Help
Online help
Many programs provide information online so you can research a topic or learn how to
perform a task while you are using the program. You can access most online help
information by selecting a topic from a
You can search for information by viewing the help contents, checking the index, searching
for a topic or keyword, or browsing through the online help.
Help menu or by clicking a Help button.
Gateway contact information
For Technical Support, see the Gateway Business Service Plans guide that came with your
system.
Identifying your computer
You can find your computer’s serial number on a label on the side of the computer case.
4
www.gateway.com
Chapter 2
Checking Out Your
Gateway Computer
• Identifying features
• Locating your computer serial number
• Locating the Microsoft Certificate of
Authenticity
• Locating the specifications for your
computer
• Purchasing accessories
5
Chapter 2: Checking Out Your Gateway Computer
Front
Your computer includes the following components.
Recordable drives
CD/DVD/
(optional)
Diskette drive
Drive indicator
Power button/
power indicator
USB ports
IEEE 1394 ports
Microphone jack
Headphone jack
6
www.gateway.com
ComponentIconDescription
Front
CD/DVD/Recordable
drives
Power button /
Power indicator
Diskette driveInsert a standard 3.5-inch diskette into the diskette drive. For more
USB ports Plug a USB (Universal Serial Bus) device (such as a printer, scanner,
IEEE 1394 portPlug an IEEE 1394 (also known as Firewire
Microphone jack
(pink or red)
Headphone jack
(green)
Use these drives to listen to audio CDs, install games and programs,
watch DVDs, and store large files onto recordable discs (depending on
drive type).
These drives may be CD, recordable CD, DVD, or recordable DVD drives.
To identify your drive types and for more information about your drives,
see “Identifying drive types” on page 29.
Press this button to turn the power on or off. You can also configure the
power button to operate in Standby/Resume mode or Hibernate mode.
The button lights when the computer is turned on.
information, see “Using the diskette drive” on page 28.
camera, keyboard, or mouse) into this port. For more information, see
“Installing a printer, scanner, or other peripheral device” on page 26.
®
or i.Link®) device (such as
a digital camcorder) into this 4-pin IEEE 1394 port. For more information,
see “Installing a printer, scanner, or other peripheral device” on page 26.
Plug a microphone into this jack. Although the default active microphone
jack is the one on the back of the computer, this jack can be activated
through your computer’s sound settings.
Plug powered, analog front speakers, an external amplifier, or
headphones into this jack.
www.gateway.com
7
Chapter 2: Checking Out Your Gateway Computer
Back
Your computer includes the following components:
Power connector
Voltage switch
Case thumbscrew
PS/2 keyboard por t
Serial port
Video/TV out jack
TOSLink (optical
digital audio) port
Audio jacks
USB ports
VGA (monitor)
port
Kensington lock slot
PS/2 mouse port
Parallel port
IEEE 1394/FireWire™/
i.Link™ port
Ethernet
(network) jack
S-Video out jack
Case thumbscrew
Digital (monitor) port
8
www.gateway.com
ComponentIconDescription
Power connectorPlug the power cord into this connector.
Voltage switchBefore turning on your computer, make sure that this switch is
in the correct position for the correct power available. The
switch is preset at the factory with the correct voltage for your
area.
In the United States, the utility power is supplied at a nominal
115 volts at 60 Hz. The power supply should always be set to
this when your computer is operating in the United States. In
other areas of the world, such as Europe, the utility power is
supplied at 230 volts at 50 Hz. If your computer is operating
in an environment such as this, the voltage switch should be
moved to 230.
®
PS/2 keyboard portPlug a Personal System/2
Serial portPlug a serial device (such as a digital camera) into this port.
For more information, see “Installing a printer, scanner, or other
peripheral device” on page 26.
Video/TV out jackPlug an RCA cable into this jack to connect a video device, such
as a TV or a video recorder.
(PS/2) keyboard into this port.
Back
TOSLINK (optical
digital audio) jack
Audio jacksPlug audio devices into these jacks.
USB portsPlug USB (Universal Serial Bus) devices (such as a printer,
VGA (monitor) portPlug a monitor into this port.
Kensington™
lock slot
PS/2 mouse portPlug a PS/2 mouse into this port.
Parallel portPlug a parallel device (such as a printer) into this port. For more
IEEE 1394 portsPlug IEEE 1394 (also known as Firewire
Plug a TOSLINK optical digital audio cable to this jack.
scanner, camera, keyboard, or mouse) into these ports. For
more information, see “Installing a printer, scanner, or other
peripheral device” on page 26.
Secure your computer to an object by connecting a Kensington
cable lock to this slot.
information, see “Installing a printer, scanner, or other
peripheral device” on page 26.
®
or i.Link®) devices
(such as a digital camcorder) into these 4-pin IEEE 1394 ports.
For more information, see “Installing a printer, scanner, or other
peripheral device” on page 26.
www.gateway.com
9
Chapter 2: Checking Out Your Gateway Computer
ComponentIconDescription
Ethernet (network)
jack
S-Video out jack
(optional)
Case thumbscrewsRemove these screws before opening the case.
Digital (monitor)
port
Plug a 10/100 Ethernet network cable or a device (such as a
DSL or cable modem for a broadband Internet connection) into
this jack.
For more information, see “Networking Your Computer” on
page 71 or see “Learning about the Internet” in
Computer
access this guide, click Start, All Programs, then click
Gateway Documentation.
Plug a standard S-Video cable into this optional jack. Plug the
other end of the cable into an S-Video jack on a television.
Plug a digital monitor into this port. (optional)
which has been included on your hard drive. To
Using Your
10
www.gateway.com
Locating your serial number
Locating your serial number
The label on the side of your computer case contains information that identifies your
computer serial number. Gateway Technical Support will need this information if you
call for assistance.
Microsoft Certificate of Authenticity
The Microsoft Certificate of Authenticity label found on the back or side of your computer
includes the product key code for your operating system.
www.gateway.com
11
Chapter 2: Checking Out Your Gateway Computer
Finding your specifications
For more information about your computer, such as memory size, memory type, and hard
drive size, visit Gateway’s Support page at support.gateway.com
links to additional Gateway documentation and detailed specifications.
. The Support page also has
12
www.gateway.com
Accessories
Accessories
To order accessories, visit the Accessory Store at accessories.gateway.com.
Memory
Large programs, such as multimedia games or graphics programs, use a lot of memory. If
your programs are running more slowly than you think they should, try adding more
memory.
Printers
You can attach almost any type of printer to your computer. The most common types are
inkjet and laser printers, which print in color or black and white. See “Installing a printer,
scanner, or other peripheral device” on page 26 for more information about attaching a
printer.
Inkjet printers and cartridges are relatively inexpensive, but they are slower than laser
printers. Using an inkjet color printer, you can print pictures, banners, and greeting cards,
as well as documents.
Laser printers and cartridges are more expensive, but they print much faster than inkjet
printers. Laser printers are better than inkjet printers when you are printing large
documents.
Storage Devices
If you need additional storage space or you want to back up your files, you can add storage
devices to you computer.
With a recordable CD or DVD drive, you can free up hard drive space by backing up files,
then removing them from your hard drive. Writable CDs can hold as much as 700 MB of
data. Single layer writable DVDs can hold as much as 4700 MB of data. Dual layer writable
DVDs hold as much as 8500 MB of data. For more information about using recordable
drives, see “Creating CDs and DVDs” on page 31.
If you need to back up your entire system, you probably need a tape backup (TBU) drive.
TBU drives, like tape recorders, use magnetic tape cartridges to store data. Tape drive
cartridges can store 2 GB, 20 GB, 40 GB, 130 GB, or more of data.
If you want to increase your internal storage space, try replacing your existing hard drive
with a larger drive.
www.gateway.com
13
Chapter 2: Checking Out Your Gateway Computer
USB flash drive
Use a USB flash drive for storing files or transferring files to another computer.
Uninterruptible power supplies
A standby, uninterruptible power supply (UPS) protects your computer from data loss
during a total power failure. A UPS uses a battery to keep your computer running
temporarily during a power failure so you can save your work and shut down your
computer correctly. A UPS may also provide protection from power surges.
14
www.gateway.com
Chapter 3
Getting Started
• Using your computer safely
• Protecting your computer from power
source problems
• Turning your computer on and off
• Adjusting the volume
• Connecting the modem and network
• Installing peripheral devices
15
Chapter 3: Getting Started
Working safely
Before using your computer, read the following recommendations for setting up a safe and
comfortable work area and avoiding discomfort and strain.
Top of screen is not
higher than eye level
Screen is
perpendicular to
Hands and
arms are
parallel to
the floor
your line of sight
Feet are flat on the floor
Reducing eye strain
Sunlight or bright indoor lighting should not reflect on the monitor screen or shine directly
into your eyes.
■Position the computer desk and monitor so you can avoid glare on your screen and
light shining directly into your eyes. Reduce glare by installing shades or curtains on
windows, and by installing a glare screen filter on your monitor.
■Use soft, indirect lighting in your work area. Do not use your computer in a dark room.
■Avoid focusing your eyes on your computer screen for long periods of time. Look away
from your computer occasionally, and try to focus on distant objects.
16
www.gateway.com
Working safely
Setting up your computer desk and chair
When you are setting up your computer desk and chair, make sure that the desk is the
appropriate height and the chair helps you maintain good posture.
■Select a flat surface for your computer desk.
■Adjust the height of the computer desk so your hands and arms are positioned parallel
to the floor when you use the keyboard and mouse. If the desk is not adjustable or
is too tall, consider using a keyboard drawer.
■Use an adjustable chair that is comfortable, distributes your weight evenly, and keeps
your body relaxed.
■Position your chair so the keyboard is at or slightly below the level of your elbow.
This position lets your shoulders relax while you type.
■Adjust the chair height, adjust the forward tilt of the seat, or use a footrest to distribute
your weight evenly on the chair and relieve pressure on the back of your thighs.
■Adjust the back of the chair so it supports the lower curve of your spine. You can use
a pillow or cushion to provide extra back support.
Setting up your computer and computer accessories
■Set up the monitor so the top is no higher than eye level, the monitor controls are
within reach, and the screen is tilted to be perpendicular to your line of sight.
■Place your keyboard and mouse at a comfortable distance. You should be able to reach
them without stretching.
■Set paper holders at the same height and distance as the monitor.
Sitting at your computer
■Avoid bending, arching, or angling your wrists. Make sure that they are in a relaxed
position when you type.
■Do not slouch forward or lean far back. Sit with your back straight so your knees,
hips, and elbows form right angles when you work.
■Take breaks to stand and stretch your legs.
■Avoid twisting your torso or neck.
www.gateway.com
17
Chapter 3: Getting Started
Avoiding discomfort and injury from repetitive strain
■Vary your activities to avoid excessive repetition.
■Take breaks to change your position, stretch your muscles, and relieve your eyes.
■Find ways to break up the work day, and schedule a variety of tasks.
Protecting from power source problems
During a power surge, the voltage level of electricity coming into your computer can
increase to far above normal levels and cause data loss or system damage. Protect your
computer and peripheral devices by connecting them to a surge protector, which absorbs
voltage surges and prevents them from reaching your computer.
WarningHigh voltages can enter your computer through both the power cord
and the modem connection. Protect your computer by using a surge
protector. If you have a telephone modem, use a surge protector that
has a modem jack. If you have a cable modem, use a surge protector
that has an antenna/cable TV jack. During an electrical storm, unplug
both the surge protector and the modem.
An uninterruptible power supply (UPS) supplies battery power to your computer during a
power failure. Although you cannot run your computer for an extended period of time
with a UPS, a UPS lets you run your computer long enough to save your work and shut
down your computer normally.
Checking the voltage selection
A power supply is integrated into your computer to provide power to the system board,
add-in cards, and peripheral devices. The voltage selection for your location is typically
set at the factory. Use the power selection switch on the back of your computer to set the
power supply to 115V or 230V. To verify that your system has the correct setting for your
environment, check the voltage selection switch.
CautionIf you set the voltage selection switch incorrectly, your system will be
damaged. Make sure this switch is set correctly for your location
before turning on your computer.
In the United States, the utility power is supplied at a nominal 115
volts at 60 Hz. The power supply should always be set to this when
your computer is operating in the United States. In other areas of the
world, such as Europe, the utility power is supplied at 230 volts at
50 Hz. If your computer is operating in an environment such as this,
the voltage switch should be moved to 230.
18
www.gateway.com
Starting your computer
To set the voltage selection switch:
■Use a tool such as an opened paper clip to slide the voltage selection switch to the
correct voltage position.
Voltage switch
Starting your computer
To start your computer:
1 Connect the cables to your computer. See the setup poster for setup instructions.
2 Turn on your computer.
3 If you are starting your computer for the first time, follow the on-screen instructions
to set up your computer.
ImportantYour computer has a built-in variable speed fan. In addition, your
computer uses a powerful processor which produces heat. Both the
system fan and processor can run at different speeds at times to
ensure proper system cooling. You may notice an increase in the fan
noise when the fan is running at high speed and a decrease in the
fan noise when it switches to normal speed.
4 Turn on any peripheral devices, such as printers or scanners, and see the
documentation that came with the device for setup instructions.
www.gateway.com
19
Chapter 3: Getting Started
Waking up your computer
When you have not used your computer for several minutes or have not turned off your
computer, it may enter a power-saving mode called Standby. While in Standby, the power
indicator flashes.
If your computer is in Standby mode, move the mouse or press the power button to “wake”
it up.
Tips & TricksFor more information about changing the power button mode, see
“Changing Power-Saving Settings” in
been included on your hard drive. To access this guide, click Start, All Programs, then click Gateway Documentation.
Using Your Computer
which has
Turning off your computer
WarningWhen you turn off your computer, certain components in the power
supply and system board remain energized. In order to remove all
electrical power from your computer, unplug the power cord and
modem cable from the wall outlets. We recommend disconnecting the
power cord and modem cable when your computer will not be used
for long periods.
For more information about changing the power button mode, see
“Changing Power-Saving Settings” in
been included on your hard drive. To access this guide, click Start, All Programs, then click Gateway Documentation.
Using Your Computer
which has
To turn off your computer:
1 Click Start, then click Turn Off Computer. The Turn O ff Computer dialog box opens.
2 Click Turn Off. Windows shuts down and turns off your computer.
ImportantIf for some reason you cannot use the Turn Off Computer option in
Windows to turn off your computer, press and hold the power button
for about five seconds, then release it.
20
www.gateway.com
Restarting (rebooting) your computer
Restarting (rebooting) your computer
If your computer does not respond to keyboard or mouse input, you may have to close
programs that are not responding. If closing unresponsive programs does not restore your
computer to normal operation, you may have to restart (reboot) your computer.
To close unresponsive programs and restart your computer:
1 Press CTRL+ALT+DEL. The Task Manager window opens.
2 Click the Applications tab, then click the program that is not responding.
3 Click End Task.
4 Click X in the top-right corner of the Windows Task Manager dialog box.
5 If your computer does not respond, turn it off, wait ten seconds, then turn it on again.
ImportantIf your computer does not turn off, press and hold the power button
for about five seconds, then release it.
As a part of the regular startup process, a program to check the disk status runs
automatically. When the checks are finished, Windows starts.
www.gateway.com
21
Chapter 3: Getting Started
Using the keyboard
Standard keyboard
This keyboard is the basic model of keyboard available with your computer.
Function keysNavigation keys Indicators
Windows keysApplication
Press these keys...To...
Function keysStart program actions. Each program uses different function keys for
different purposes. See the program documentation to find out more
about the function key actions.
Navigation keysPress these keys to move the cursor to the beginning of a line, to the
end of a line, up the page, down the page, to the beginning of a
document, or to the end of a document.
IndicatorsShow if your
activated. Press the corresponding key to activate the function.
Windows keysPress one of these keys to open the Windows Start menu. These keys
can also be used in combination with other keys to open utilities like
F (Search utility), R (Run utility), and E (Explorer utility).
Application keyAccess shortcut menus and help assistants in Windows.
Directional keysMove the cursor up, down, right, or left.
Numeric keypadUse these keys to type numbers when the numeric keypad (
is turned on.
NUM LOCK, CAPS LOCK, or SCROLL LOCK keys are
key
Directional
keys
Numeric
keypad
NUM LOCK)
22
www.gateway.com
Multifunction keyboard

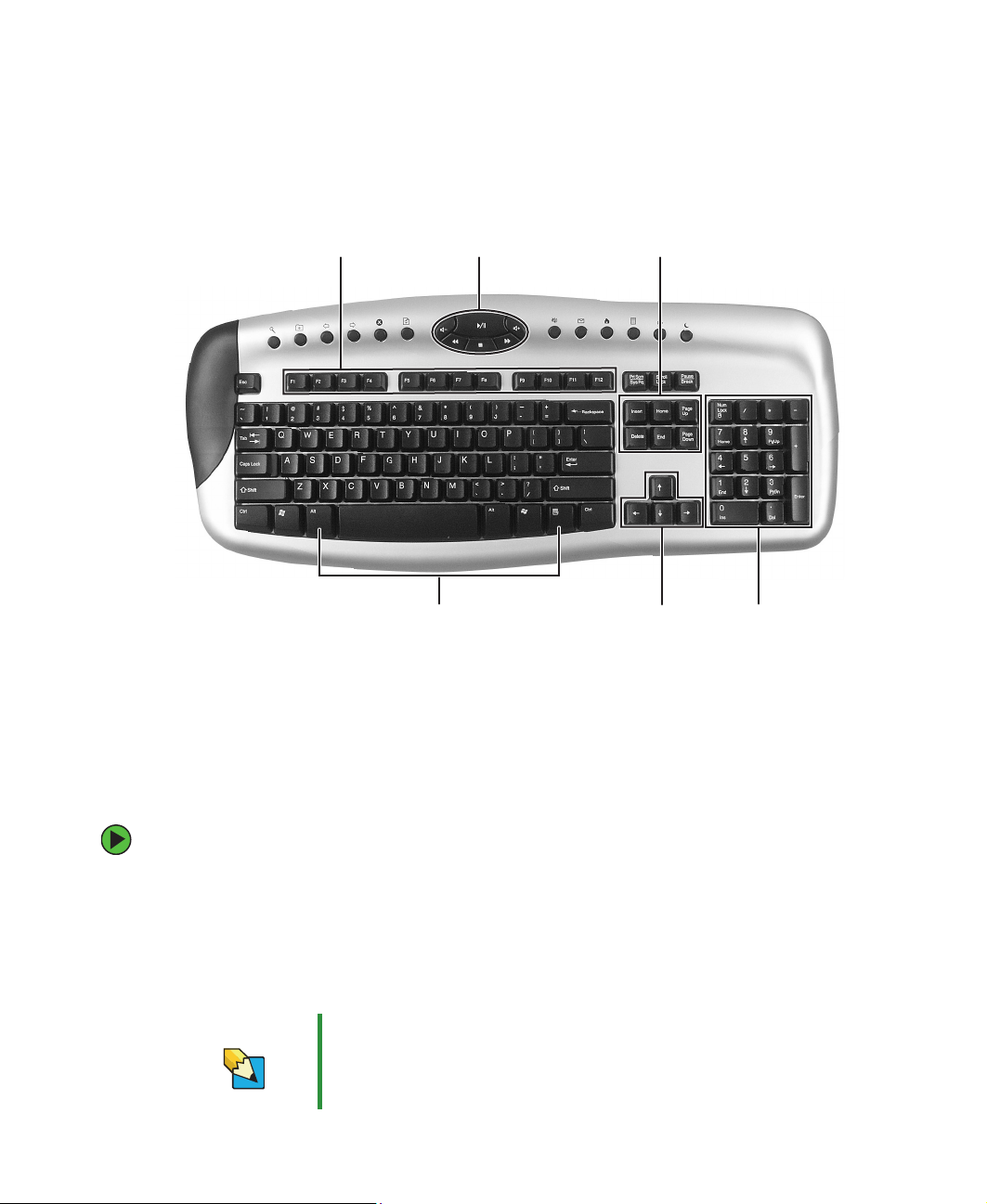

This keyboard is the full-featured model available with your computer.
Function keysNavigation keysIndicators
Using the keyboard
Press these
Windows keysApplication
key
To...
Directional
keys
Numeric
keypad
keys...
Function keysStart program actions. Each program uses different function keys for different
purposes. See the program’s help to learn more about function key actions.
Navigation keysPress these keys to move the cursor to the beginning of a line, to the end
of a line, up the page, down the page, to the beginning of a document, or
to the end of a document.
IndicatorsShow if your NUM LOCK, CAPS LOCK, or SCROLL LOCK keys are activated.
Press the corresponding key to activate the function.
Windows keysPress this key to open the Windows Start menu. This key can also be used
in combination with other keys to open utilities like
utility), and
Application keyAccess shortcut menus and help assistants in Windows.
Directional keysMove the cursor up, down, right, or left.
Numeric keypadUse these keys to type numbers when the numeric keypad (
turned on.
E (Explorer utility).
F (Search utility), R (Run
NUM LOCK) is
www.gateway.com
23
Chapter 3: Getting Started
Special-function buttons
Previous
Play/Pause
Volume down
Vol u m e u p
Special-function buttons
PreviousReturn to the previous CD track or DVD chapter.
Play/PauseStart or pause the play of the CD or DVD.
StopStop the play of CD or DVD.
NextMove to the next CD track or DVD chapter.
IconsPress to...
Mute
My Documents
Stop
Help
Next
Search
InternetE-mail
Volume downDecrease the volume.
Volume upIncrease the volume.
MuteTurn off all sound.
My DocumentsOpens the My Documents folder. You can customize this
button to open another program.
HelpOpen online help. You can customize this button to open
another program.
E-mailOpen your e-mail program. You can customize this
button to open another program.
SearchOpen online search. You can customize this button to
open another program.
InternetOpen your Web browser. You can customize this button
to open another program.
24
www.gateway.com
Adjusting the volume
Wireless keyboard
This keyboard does not connect to your computer with cables. If a wireless keyboard came
with your computer, use the instructions included in the box to set it up and use it. (Your
wireless keyboard may differ from the illustration.)
Special-function
Function keysNavigation keys
buttons
Application
key
Directional
keys
Numeric
keypad
Adjusting the volume
You can use the volume controls to adjust the overall volume and the volume of specific
sound devices in your computer.
To adjust the overall volume level using hardware controls:
■If you are using external speakers, turn the knob on the front of the speakers.
-OR-
If you have the multimedia or wireless keyboard, use the mute and volume control
buttons on the keyboard.
Tips & TricksFor instructions on how to adjust the volume in Windows, see
“Adjusting the Volume” in
included on your hard drive. To access this guide, click Start, All Programs, then click Gateway Documentation.
www.gateway.com
Using Your Computer
which has been
25
Chapter 3: Getting Started
Installing a printer, scanner, or other
peripheral device
Important
Your computer has one or more of the following ports: IEEE 1394 (also known as Firewire®
or i.Link
peripheral devices such as printers, scanners, and digital cameras to your computer. For
more information about port locations, “Checking Out Your Gateway Computer” on
page 5.
IEEE 1394 and USB ports support plug-and-play and hot-swapping, which means that your
computer will usually recognize such a device whenever you plug it into the appropriate
port. When you use an IEEE 1394 or USB device for the first time, your computer will
prompt you to install any software the device needs. After doing this, you can disconnect
and reconnect the device at any time.
Parallel and serial port devices are not plug-and-play. See the device documentation for
detailed information and installation instructions.
®
), Universal Serial Bus (USB), serial, and parallel. You use these ports to connect
Help and
Support
Before you install a printer, scanner, or other peripheral device, see
the device documentation and installation instructions.
For more information about installing peripheral devices, click Start,
then click Help and Support.
Type the keyword installing devices in the Search box
, then click the arrow.
26
www.gateway.com
Chapter 4
Using Drives and Ports
• Using the diskette drive
• Using CD or DVD drives
27
Chapter 4: Using Drives and Ports
Using the diskette drive
The diskette drive uses 3.5-inch diskettes (sometimes called floppy disks). Diskettes are
useful for storing files or transferring files to another computer.
Diskette
slot
Eject buttonActivity indicator
To use a diskette:
1 Insert the diskette into the diskette drive with the label facing up (or to the left, if
using your Micro Tower case vertically).
2 To access a file on the diskette, click Start, then click My Computer. Double-click the
drive letter (for example, the A: drive), then double-click the file name.
3 To remove the diskette, make sure that the drive activity light is off, then press the
diskette eject button.
28
www.gateway.com
Using the CD or DVD drive
Using the CD or DVD drive
You can use your computer to enjoy a wide variety of multimedia features.
Identifying drive types
Your Gateway computer may contain one of the following drive types. Look on the front
of the drive for one or more of the following logos:
If your drive has this logo...This is your drive type...Use your drive for...
CD drive
CD-RW drive
DVD/CD-RW drive
DVD drive
DVD+RW
Installing programs,
playing audio CDs, and
accessing data.
Installing programs,
playing audio CDs,
accessing data, and
creating CDs.
Installing programs,
playing audio CDs,
accessing data, creating
CDs, and playing DVDs.
Installing programs,
playing audio CDs,
playing DVDs, and
accessing data.
Installing programs,
playing audio CDs,
playing DVDs, accessing
data, and recording video
and data to CDs and
DVD+R or DVD+RW
discs.
DVD R/RW drive
www.gateway.com
Installing programs,
playing audio CDs,
playing DVDs, accessing
data, and recording video
and data to CDs and
DVD+R, DVD+RW,
DVD-R, and DVD-RW
discs.
29
Chapter 4: Using Drives and Ports
Inserting a CD or DVD
Activity
indicator
ImportantSome music CDs have copy protection software. You may not be able
to play these CDs on your computer.
Manual
eject hole
Eject
button
To insert a CD or DVD:
1 Press the eject button on the CD or DVD drive.
2 Place the disc in the tray with the label facing up (or to the left, if using your Micro
Tower case vertically).
ImportantWhen you place a single-sided disc in the tray, make sure that the
label side is facing up (or to the left, if using your Micro Tower case
vertically). If the disc has two playable sides, place the disc so the
name of the side you want to play is facing up (or left).
3 Press the eject button to close the tray.
30
www.gateway.com
Playing a CD
Use the music program or Windows Media Player on your computer to:
■Play music CDs
■Create MP3 music files from your music CDs
■Edit music track information
■Use your music files to build a music library
■Listen to Internet Radio
Using the CD or DVD drive
Tips & TricksFor more information about playing CDs, see “Playing CDs” in
Your Computer
access this guide, click Start, All Programs, then click Gateway Documentation.
which has been included on your hard drive. To
Using
Playing a DVD
A Digital Versatile Disc (DVD) is similar to a standard CD but has greater data capacity.
Because of this increased capacity, full-length movies, several albums of music, or several
gigabytes of data can fit on a single disc. You can play DVDs with the DVD program or
Windows Media Player on your computer.
Tips & TricksFor more information about playing DVDs, see “Playing DVDs” in
Using Your Computer
To access this guide, click Start, All Programs, then click Gateway Documentation.
which has been included on your hard drive.
Creating CDs and DVDs
You can use the CD and DVD burning program on your computer to copy tracks from a
music CD to your hard drive, copy or create data CDs and DVDs, create music CDs, create
video DVDs, and more.
Tips & TricksFor more information about creating CDs and DVDs, see “Creating
CDs and DVDs” in
on your hard drive. To access this guide, click Start, All Programs,
then click Gateway Documentation.
Using Your Computer
www.gateway.com
which has been included
31
Chapter 4: Using Drives and Ports
32
www.gateway.com
Chapter 5
Maintaining Your Computer
• Caring for your computer
• Updating Windows
• Protecting your computer from viruses
• Cleaning your computer
• Restoring your system
• Opening the computer case
• Adding memory and replacing the battery
33
Chapter 5: Maintaining Your Computer
Caring for your computer
To extend the life of your computer:
■When transporting your computer, we recommend that you put it in the original
packaging materials.
■Keep diskettes and your computer away from magnetic fields. Magnetic fields can erase
data on both diskettes and hard drives.
■Avoid subjecting your computer to extreme temperature changes.
■Keep all liquids away from your computer. When spilled onto computer components,
almost any liquid can result in extremely expensive repairs that are not covered under
your warranty.
■Avoid dusty or dirty work environments. Dust and dirt can clog the internal
mechanisms.
■Do not block the ventilation fan.
■When storing your computer for an extended period of time, unplug AC power.
Updating Windows
Windows Update is the online extension of Windows that helps you to keep your computer
up-to-date. Use Windows Update to choose updates for your computer’s operating system,
software, and hardware. New content is added to the site regularly, so you can always get
the most recent updates and fixes to protect your computer and keep it running smoothly.
Windows Update scans your computer and provides you with a tailored selection of
updates that apply only to the software and hardware on your computer.
To run Windows Update:
1 Connect to the Internet.
2 Click Start, All Programs, then click Windows Update.
3 Click Scan for Available Updates.
Help and
Support
For more information about Windows Update, click Start, then click
Help and Support.
Type the keyword Windows Update in the HelpSpot Search box
, then click the arrow.
34
www.gateway.com
Protecting your computer from viruses
Protecting your computer from viruses
A virus is a program that attaches itself to a file on a computer, then spreads from one
computer to another. Viruses can damage data or cause your computer to malfunction.
Some viruses go undetected for a period of time because they are activated on a certain date.
Protect your computer from a virus by:
■Registering and subscribing to Norton AntiVirus. You received a free, limited-time
subscription to the Norton AntiVirus service when you purchased your computer.
■Using the Norton
diskettes, attached to e-mail messages, or downloaded from the Internet.
■Checking all programs for viruses before installing them.
■Disabling macros on suspicious Microsoft Word and Excel files. These programs will
warn you if a document that you are opening contains a macro that might have a
virus.
■Periodically updating the Norton AntiVirus program to protect against the latest
viruses.
®
AntiVirus program to check files and programs that are on
Help and
Support
For more information about protecting your computer against viruses,
click Start, then click Help and Support.
Type the keyword viruses in the Search box ,
then click the arrow.

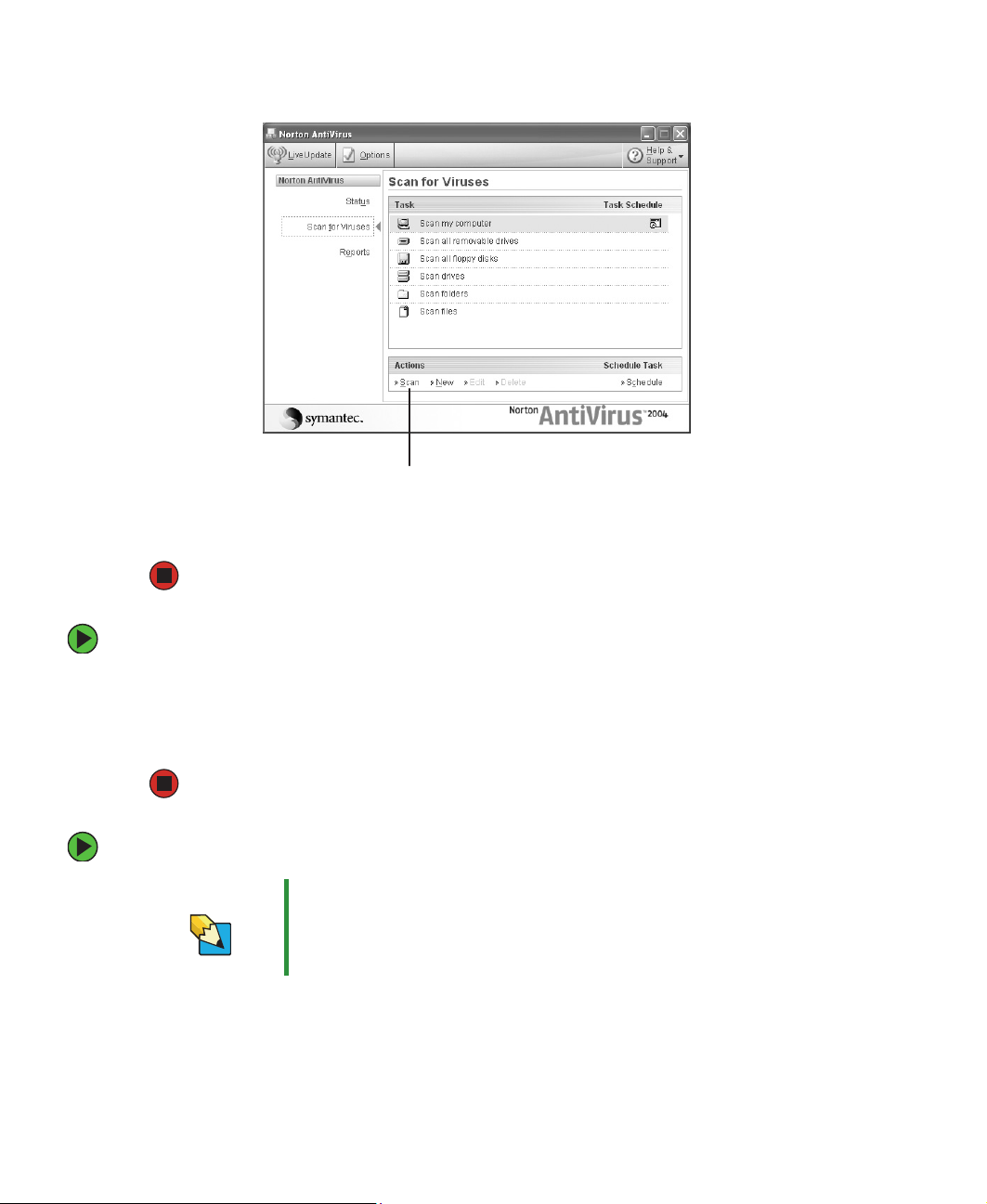

To scan for viruses:
1 Click Start, All Programs, Norton AntiVirus, then click Norton AntiVirus 2004. Norton
AntiVirus opens.
Scan for
viruses
www.gateway.com
35
Chapter 5: Maintaining Your Computer
2 Click Scan for Viruses.
Scan
3 Click the type of scan you want to make in the Scan for Viruses area, then under
Actions, click
Scan.
To remove a virus:
1 If Norton AntiVirus finds a virus, follow all on-screen instructions to remove the virus.
2 Turn off your computer and leave it off for at least 30 seconds.
3 Turn on your computer and rescan for the virus.
To update Norton AntiVirus:
Tips & TricksYou received a free, limited-time subscription to the Norton AntiVirus
service when you purchased your computer. To update Norton
AntiVirus after the free subscription period, you must extend your
subscription.
1 Make sure that you are connected to the Internet.
2 Click Start, All Programs, Norton AntiVirus, then click LiveUpdate - Norton AntiVirus. The
LiveUpdate wizard opens.
36
www.gateway.com
Cleaning your computer
3 Follow the on-screen instructions to update your Norton AntiVirus program with the
latest virus protection files.
4 When the program has finished, click Finish.
Cleaning your computer
Keeping your computer clean and the vents free from dust helps keep your computer
performing at its best. You may want to gather these items and put together a computer
cleaning kit:
■A soft, lint-free cloth
■An aerosol can of air that has a narrow, straw-like extension
■Cotton swabs
■A CD or DVD drive cleaning kit
Cleaning the exterior
WarningWhen you shut down your computer, the power turns off, but some
electrical current still flows through your computer. To avoid possible
injury from electrical shock, unplug the power cord and modem cable
from the wall outlets.
Always turn off your computer and other peripherals before cleaning any components.
Use a damp, lint-free cloth to clean your computer and other parts of your system. Do
not use abrasive or solvent cleaners because they can damage the finish on components.
Your computer is cooled by air circulated through the vents on the case, so keep the vents
free of dust. With your computer turned off and unplugged, brush the dust away from
the vents with a damp cloth. Be careful not to drip any water into the vents. Do not attempt
to clean dust from the inside of your computer.
Cleaning the keyboard
You should clean the keyboard occasionally by using an aerosol can of air with a narrow,
straw-like extension to remove dust and lint trapped under the keys.
If you spill liquid on the keyboard, turn off your computer and turn the keyboard upside
down. Let the liquid drain, then let the keyboard dry before trying to use it again. If the
keyboard does not work after it dries, you may need to replace it.
www.gateway.com
37
Chapter 5: Maintaining Your Computer
Cleaning the monitor
To clean an LCD or flat panel display monitor, use a soft cloth and water to clean the
LCD screen. Squirt a little water on the cloth (never directly on the screen), and wipe the
screen with the cloth.
CautionA flat panel display or LCD screen is made of specially coated glass
and can be scratched or damaged by abrasive or ammonia-based
glass cleaners.
To clean a CRT monitor, use a soft cloth and glass cleaner to clean the monitor screen.
Squirt a little cleaner on the cloth (never directly on the screen), and wipe the screen with
the cloth.
Cleaning the mouse
If the mouse pointer begins moving erratically across the computer screen or becomes
difficult to control precisely, cleaning the mouse will likely improve its accuracy.
To clean your trackball mouse:
1 Turn the mouse upside down.
2 Rotate the retaining ring on the bottom of the mouse counter-clockwise, then remove
the retaining ring and mouse ball.
3 Remove any dust, lint, or dirt from the mouse ball with a soft cloth.
38
www.gateway.com
Cleaning your computer
4 Clean the mouse rollers with a cotton swab dipped in isopropyl alcohol.
Mouse rollers
5 Replace the mouse ball and lock the retaining ring into place.
To clean your optical mouse:
■ Wipe the bottom of the mouse with a damp lint-free cloth
Cleaning CDs or DVDs
Wipe from the center to the edge, not around in a circle, using a product made especially
for the purpose.
www.gateway.com
39
Chapter 5: Maintaining Your Computer
Restoring your system
Microsoft System Restore
If your computer is not working correctly after you install a program or change a setting
in the Control Panel, you may need to use Microsoft System Restore to restore the computer
to an earlier configuration.
To run Microsoft System Restore:
1 Click Start, All Programs, Accessories, System Tools, then click System Restore.
2 Follow the on-screen instructions.
Help and Support
For more information about System Restore, click Start, then click
Help and Support. Type the keyword System Restore in the HelpSpot Search box , then click the arrow.
Reinstalling programs and drivers
If a program or device on your computer is not working correctly, you may need to reinstall
your program or driver.
To reinstall your program or driver:
1 Click Start, All Programs, System Recovery, then click Application & Driver Recovery.
2 Follow the on-screen instructions.
40
www.gateway.com
Restoring your system
Restoring your computer to the original configuration
If Windows does not start or if the two previous procedures do not correct the problem,
you may need to restore your computer to the original configuration.
To restore your computer to the original configuration:
1 Turn on your computer, then press F11.
2 Follow the on-screen instructions.
www.gateway.com
41
Chapter 5: Maintaining Your Computer
Preventing static electricity discharge
The components inside your computer are extremely sensitive to static electricity, also
known as electrostatic discharge (ESD).
WarningTo avoid exposure to dangerous electrical voltages and moving parts,
turn off your computer and unplug the power cord and modem and
network cables before opening the case.
CautionESD can permanently damage electrostatic discharge-sensitive
components in your computer. Prevent ESD damage by following
ESD guidelines every time you open the computer case.
Before opening the computer case, follow these guidelines:
■Turn off your computer.
■Wear a grounding wrist strap (available at most electronics stores) and attach it to a
bare metal part of your computer.
WarningTo prevent risk of electric shock, do not insert any object into the vent
holes of the power supply.
■Touch a bare metal surface on the back of the computer.
■Unplug the power cord and the modem and network cables.
Before working with computer components, follow these guidelines:
■Avoid static-causing surfaces such as carpeted floors, plastic, and packing foam.
■Remove components from their antistatic bags only when you are ready to use them.
Do not lay components on the outside of antistatic bags because only the inside of
the bags provide electrostatic protection.
■Always hold expansion cards by their edges or their metal mounting brackets. Avoid
touching the edge connectors and components on the cards. Never slide expansion
cards or components over any surface.
42
www.gateway.com
Opening the case
Opening the case
WarningTo avoid exposure to dangerous electrical voltages and moving parts,
turn off your computer, then unplug the power cord and modem cable
before opening the case.
To open the case:
1 Follow the instructions in “Preventing static electricity discharge” on page 42.
2 Shut down your computer, then disconnect the power cord and modem, network,
and all peripheral device cables.
3 Press the power button to drain any residual power from your computer.
4 Remove the two thumbscrews on the back of the case.
5 Pull the side panel away from the computer.
www.gateway.com
43
Chapter 5: Maintaining Your Computer
Removing the front bezel
Some upgrading procedures may require you to remove the front bezel.
To remove the front bezel:
1 Open the case by following the instructions in “Opening the case” on page 43.
2 In the lower front area of the case, press the two bezel retention tabs outward until
the lower part of the bezel detaches from the case.
44
www.gateway.com
Opening the case
3 Position the computer where you can grasp the front bottom edge of the bezel, then
pull the bezel out and away from the case.
www.gateway.com
45
Chapter 5: Maintaining Your Computer
To replace the front bezel:
1 Align the latch pins with the computer latch holes.
2 Press the bezel firmly into place.
46
www.gateway.com
Closing the case
Closing the case
To close the case:
1 Make sure that all of the internal cables are arranged inside the case so they will not
be pinched when you close the case.
2 Align the tabs on the front of the panel into the case notches.
3 Swing the side panel toward the case until it is flush with the side of the case.
4 Replace the thumbscrews.
5 Reconnect the cables and power cord.
www.gateway.com
47
Chapter 5: Maintaining Your Computer
Installing memory
When you upgrade the computer memory, make sure that you install the correct type of
memory module for your computer. Your computer uses DIMM memory.
To install or replace DIMM memory:
1 Open the case by following the instructions in “Opening the case” on page 43.
2 Find the memory module banks on your system board.
3 If you are removing a DIMM from the memory module bank, gently pull the plastic
tabs away from the sides of the memory module and remove it.
- OR -
If you are adding a DIMM to an empty memory module bank, gently pull the plastic
tabs away from the sides of the memory module bank.
48
www.gateway.com
Installing memory

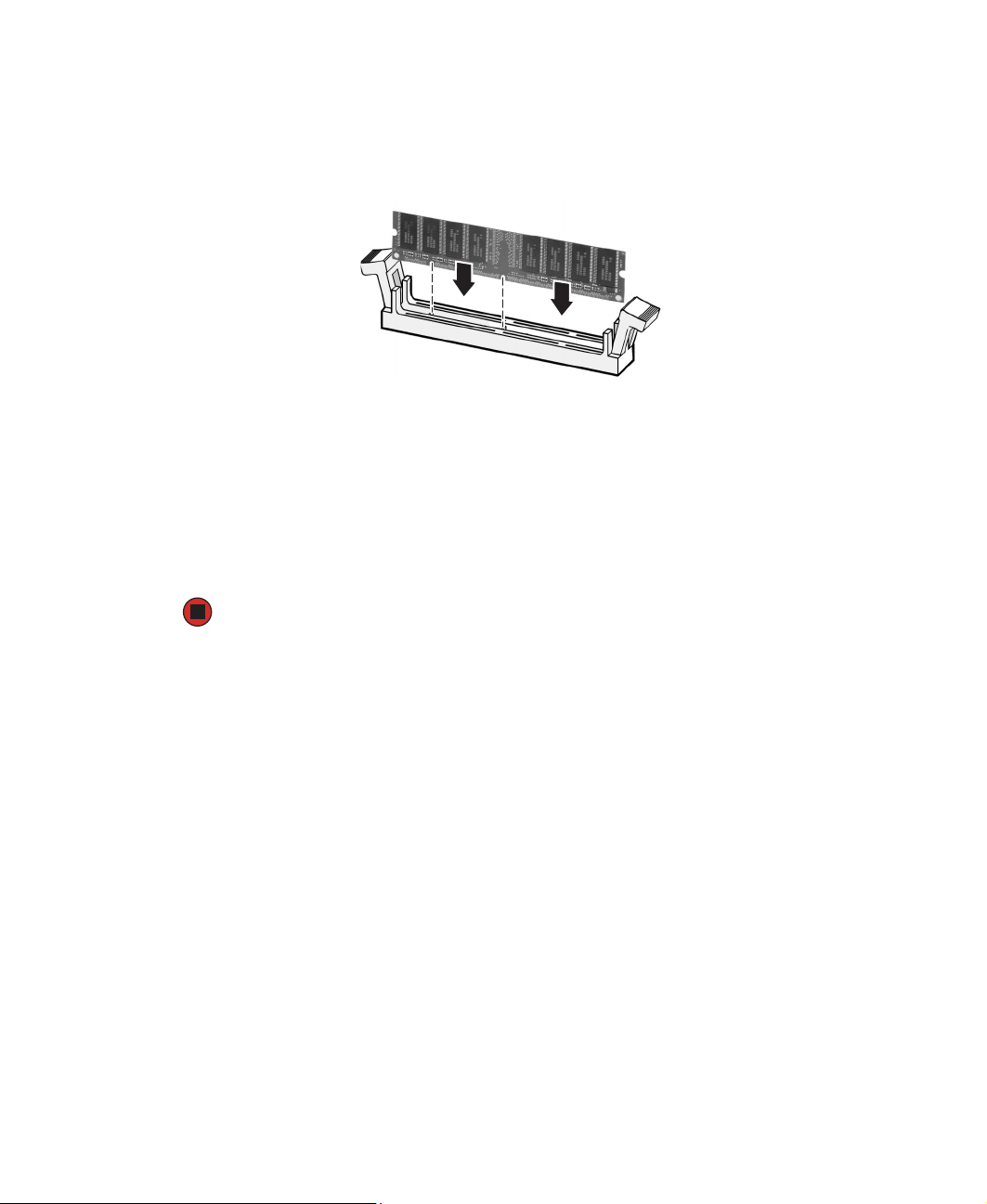

4 Align the notches on the new DIMM with the notches on the memory module bank
and press the module firmly into the bank. The tabs on the sides of the memory
module should secure the memory module automatically. When the module is secure,
you hear a click.
5 Close the case by following the instructions in “Closing the case” on page 47.
6 Reconnect the cables and the power cord.
7 Turn on your computer. Windows starts and the Windows desktop appears.
8 Click Start, Control Panel, then click Performance and Maintenance (if in Category view).
Click/Double-click
bottom of the System Properties dialog box in the General tab.
System. The amount of memory in your computer is shown at the
www.gateway.com
49
Chapter 5: Maintaining Your Computer
Replacing the system battery
If the computer clock does not keep time or the settings in the BIOS Setup utility are not
saved when you turn off your computer, replace the system battery. Use a battery of the
same size and voltage as the original battery that was in your computer.
WarningDanger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries following the manufacturer’s
instructions.
To replace the battery:
1 Shut down your computer.
2 Open the case by following the instructions in “Opening the case” on page 43.
3 Locate the old battery on the system board and note its orientation. You will need
to install the new battery the same way.
4 While pushing down on the battery release tab, place the edge of a small flat-head
screwdriver under the battery and lift the battery up until it pops out of the socket.
Battery
5 Make sure that the positive (+) side of the new battery is facing up, then press the
battery into the socket until it snaps into place.
6 Close the case by following the instructions in “Closing the case” on page 47.
50
www.gateway.com
7 Reconnect all external cables and the power cord.
8 Turn on your computer.
Replacing the system battery
www.gateway.com
51
Chapter 5: Maintaining Your Computer
52
www.gateway.com
Chapter 6
Troubleshooting
• Troubleshooting typical hardware and
software problems
53
Chapter 6: Troubleshooting
Safety guidelines
While troubleshooting your computer, follow these safety guidelines:
■Never remove your computer case cover while your computer is turned on and while
the modem cable and the power cord are connected.
■Make sure that you are correctly grounded before accessing internal components. For
more information about preventing damage from static electricity, see “Preventing
static electricity discharge” on page 42.
WarningTo avoid bodily injury, do not attempt to troubleshoot your computer
problem if:
■
Power cords or plugs are damaged
■
Liquid has been spilled into your computer
■
Your computer was dropped
■
The case was damaged
Instead, unplug your computer and contact a qualified computer
technician.
First steps
If you have problems with your computer, try these things first:
■Make sure that the AC power adapter is connected to your computer and an AC outlet
and that the AC outlet is supplying power.
■If you use a power strip or surge protector, make sure that it is turned on.
■If a peripheral device (such as a keyboard or mouse) does not work, make sure that
all connections are secure.
■Make sure that your hard drive is not full.
■If an error message appears on the screen, write down the exact message. The message
may help Gateway Customer Care in diagnosing and fixing the problem.
■If you added or removed peripheral devices, review the installation procedures you
performed and make sure that you followed each instruction.
■If an error occurs in a program, see the program’s printed documentation or the online
help.
54
www.gateway.com
Troubleshooting
Troubleshooting
Add-in cards
The computer does not recognize an add-in card
■Shut down and restart your computer.
■Make sure that you have installed the required software. For more information, see
the documentation that came with your add-in card.
Audio
See “Sound” on page 68.
CD or DVD drives
The computer does not recognize a disc or the CD or DVD drive
■Make sure that the disc label is facing up, then try again.
■Try a different disc. Occasionally discs are flawed or become scratched and cannot be
read by the CD or DVD drive.
■If you are trying to play a DVD, make sure that you have a DVD drive. To identify
your drive type, see “Identifying drive types” on page 29.
■Your computer may be experiencing some temporary memory problems. Shut down
and restart your computer.
■Some music CDs have copy protection software. You may not be able to play these
CDs on your computer.
■Clean the disc. For more information, see “Cleaning CDs or DVDs” on page 39.
■Make sure that the drive is configured correctly by following the instructions in the
drive documentation.
■Reinstall the device driver.
Audio CD does not produce sound
■Make sure that the disc label is facing up, then try again.
■Some music CDs have copy protection software. You may not be able to play these
CDs on your computer.
■Make sure that the volume controls are turned up. For more information, see
“Adjusting the volume” on page 25.
www.gateway.com
55
Chapter 6: Troubleshooting
■Make sure that the mute controls are turned off. For more information, see “Adjusting
the volume” on page 25.
■Make sure that the speaker cables are connected correctly and securely.
■Shut down and restart your computer.
■Clean the disc. For more information, see “Cleaning CDs or DVDs” on page 39.
■Reinstall the audio device drivers.
A DVD movie will not play
■Make sure that you have a DVD drive. To identify your drive type, see “Identifying
drive types” on page 29.
■Make sure that the disc label is facing up, then try again.
■Try a different disc. Occasionally discs are flawed or become scratched and cannot be
read by the DVD drive.
■Shut down and restart your computer.
■Clean the disc. For more information, see “Cleaning CDs or DVDs” on page 39.
■Reinstall the device driver.
■Make sure that the DVD program has been installed on your computer.
■DVDs and DVD drives contain regional codes that help control DVD title exports and
help reduce illegal disc distribution. To be able to play a DVD, the disc’s regional code
and your DVD drive’s regional code must match.
The regional code on your DVD drive is determined by your computer’s delivery
address. The regional code for the United States and Canada is 1. The regional code
for Mexico is 4. Your DVD drive’s regional code must match the regional code for the
disc. The regional code for the disc is on the disc, disc documentation, or disc
packaging.
If the DVD movie does not play, the disc’s regional code and your DVD drive’s regional
code may not match.
Computer
The computer will not start
■Make sure that the power cord is connected to an AC power source and your computer
is turned on.
56
www.gateway.com
Troubleshooting
Diskette drive
The diskette drive is not recognized
■Shut down and restart your computer.
You cannot save a file to diskette or you see the message “disk is full or
write-protected”
■Make sure that the write-protection tab on the upper-right corner of the diskette is
down (unprotected).
■Delete unnecessary files on the diskette and try again.
■Make sure that the diskette you are using is IBM-compatible.
■Try a different diskette. Occasionally diskettes are flawed and cannot be read by the
diskette drive.
■Run Error-checking on the diskette. For more information, see “Checking the hard
drive for errors” in Using Your Computer which has been included on your hard drive.
To access this guide, click
If errors are detected and corrected, try using the diskette again.
Start, All Programs, then click Gateway Documentation.
You see a “Access Denied” or “Write protect” error message
■Move the write-protection tab in the upper-right corner of the diskette down
(unprotected).
■The diskette may be full. Delete unnecessary files on the diskette and try again.
■Make sure that the diskette you are using is IBM-compatible.
■Try a different diskette. Occasionally diskettes are flawed and cannot be read by the
diskette drive.
You see a “Disk is full” error message
■Delete unnecessary files on the diskette.
■Try a different diskette. Occasionally diskettes are flawed and cannot be read by the
diskette drive.
■Run Error checking on the diskette. For more information, see “Checking the hard
drive for errors” in Using Your Computer which has been included on your hard drive.
To access this guide, click
Start, All Programs, then click Gateway Documentation.
You see a “Non-system disk” or “Disk error” error message
■Eject the diskette from the diskette drive, then press ENTER.
■Make sure that the diskette you are using is IBM-compatible.
www.gateway.com
57
Chapter 6: Troubleshooting
The diskette drive LED is lit continuously
■Remove the diskette from the drive. If the light stays on, try restarting your computer.
DVD drives
See “CD or DVD drives” on page 55.
File management
A file was accidentally deleted
If a file was deleted while holding down the SHIFT key, the file cannot be restored.
To restore deleted files:
1 Double-click the Recycle Bin icon.
2 Right-click the file you want to restore, then click Restore. The file is restored to
the place where it was originally deleted from.
If the Recycle Bin was emptied before you try to restore a file, the file cannot be
restored.
Help and
Support
For more information about restoring deleted files, click Start, then
click Help and Support.
Type the keyword System Restore in the Search box
, then click the arrow.
Hard drive
You see an “Insufficient disk space” error message
■Delete unnecessary files from the hard drive using Disk Cleanup. For instructions on
deleting unnecessary files, see “Using Disk Cleanup” in Using Your Computer which
has been included on your hard drive. To access this guide, click
then click
■Empty the Recycle Bin by right-clicking the Recycle Bin icon, then clicking Empty
Recycle Bin
CautionAll deleted files will be lost when you empty the Recycle Bin.
58
Gateway Documentation.
.
www.gateway.com
Start, All Programs,
Troubleshooting
■Save your files to another drive. If the hard drive is full, copy any files not regularly
used to backup media, then delete them from the hard drive.
Help and
Support
For more information about file management, click Start, then click
Help and Support.
Type the keyword file management in the Search box
, then click the arrow.
You see a “Data error” message
This may be the result of a defective area on the hard drive. To fix hard drive problems,
run the Error checking program. For instructions on fixing hard drive problems, see
“Checking the hard drive for errors” in Using Your Computer which has been included on
your hard drive. To access this guide, click
Documentation
.
Start, All Programs, then click Gateway
The hard drive cannot be accessed, or you see a “General failure reading drive C” error
message
■If a diskette is in the diskette drive, eject it and restart your computer.
■Press CTRL+ALT+DEL to restart your computer.
■If your computer has been subjected to static electricity or physical shock, you may
need to reinstall the operating system.
You see a “Non-system disk” or “disk error” error message
■Eject the diskette from the diskette drive, then press ENTER.
Internet
You cannot connect to the Internet
■If you are using a dial-up modem, make sure that the modem cable is plugged into
the modem jack and not the Ethernet network jack. See “Back” on page 8 to make
sure that the connections have been made correctly.
- OR -
If you are using a cable or DSL modem, make sure that the modem cable is plugged
into the Ethernet network jack and not the modem jack. See “Back” on page 8 to make
sure that the connections have been made correctly.
■Make sure that you do not have a problem with your modem. For more information,
“Modem (dial-up)” on page 61.
■Make sure that your account with your Internet service provider (ISP) is set up
correctly. Contact your ISP technical support for help.
www.gateway.com
59
Chapter 6: Troubleshooting
Help and
Support
For more information about troubleshooting Internet connections,
click Start, then click Help and Support.
Type the keyword troubleshooting connections in the Search box
, then click the arrow.
You see an “Unable to locate host” message and are unable to browse the Internet
This problem can occur when you have typed a URL (Web address) incorrectly, you have
lost your Internet connection, or your ISP is having technical difficulties.
Double-check the URL or try a different URL. If the error message still appears, disconnect
from the ISP connection and close your browser, then reconnect and open the browser.
If you still get the error, your ISP may be having technical difficulties.
Connecting to a Web site takes too long
Many factors can affect Internet performance:
■The condition of the telephone lines in your residence or at your local telephone
service
■The condition of the Internet computers to which you connect and the number of
users accessing those computers
■The complexity of graphics and multimedia on Web pages
■Having multiple Web browsers open, performing multiple downloads, and having
multiple programs open on your computer
People are sending you e-mail messages, but you have not received any mail
■Click the receive button in your e-mail program.
■Make sure that your account with your Internet service provider (ISP) is set up
correctly. Contact your ISP for technical support.
Keyboard
The keyboard does not work
■Make sure that the keyboard cable is plugged in correctly. For more information, see
the poster that came with your computer.
■Remove all extension cables and switch boxes.
■Clean the keyboard by using an aerosol can of air with a narrow, straw-like extension
to remove dust and lint trapped under the keys.
■Try a keyboard that you know works to make sure that the keyboard port works.
■Reinstall the keyboard device driver.
60
www.gateway.com
Troubleshooting
A keyboard character keeps repeating or you see a “keyboard stuck” or “key failure”
error message
■Make sure that nothing is resting on the keyboard.
■Make sure that a key is not stuck. Press each key to loosen a key that might be stuck,
then restart your computer.
Liquid spilled in the keyboard
■If you spilled liquid in the keyboard, turn off your computer and unplug the keyboard.
Clean the keyboard and turn it upside down to drain it. Let the keyboard dry before
using it again. If the keyboard does not work after it dries, you may need to replace it.
Memory
You see a “Memory error” message
■Use a third-party diagnostic program to help determine if a memory module is failing.
You see a “Not enough memory” error message
■Close all programs, then restart your computer.
Help and
Support
For more information about troubleshooting memory errors, click
Start, then click Help and Support.
Type the keyword memory error in the Search box
, then click the arrow.
Modem (dial-up)
Your modem does not dial or does not connect
■Make sure that the modem cable is plugged into the modem jack and not the Ethernet
network jack. See “Back” on page 8 to make sure that the connections have been made
correctly.
■Make sure that your computer is connected to the telephone line and the telephone
line has a dial tone.
■Make sure that the modem cable is less than 6 feet (1.8 meters) long.
■Remove any line splitters or surge protectors from your telephone line, then check
for a dial tone by plugging a working telephone into the telephone wall jack.
■If you have additional telephone services such as call waiting, call messaging, or voice
mail, make sure that all messages are cleared and call waiting is disabled before using
the modem. Contact your telephone service to get the correct code to temporarily
disable the service. Also make sure that the modem dialing properties are set correctly.
www.gateway.com
61
Chapter 6: Troubleshooting
To check the dialing properties:
1 Click Start, then click Control Panel. The Control Panel window opens. If your
Control Panel is in Category View, click
2 Click/Double-click the Phone and Modem Options icon, then click the Dialing Rules
tab.
3 Click the location from which you are dialing, then click Edit.
4 Make sure that all settings are correct.
Printers and Other Hardware.
Help and
Support
■Disconnect any answering machine, fax machine, or printer that is on the same line
as the modem. Do not connect these devices to the same telephone line as the modem.
■Make sure that you are not using a digital, rollover, or PBX line. These lines do not
work with your modem.
■Check for line noise (scratchy, crackling, or popping sounds). Line noise is a common
problem that can cause the modem to connect at a slower rate, abort downloads, or
even disconnect. The faster the modem, the less line noise it can tolerate and still
work correctly.
Listen to the line using your telephone. Dial a single number (such as 1). When the
dial tone stops, listen for line noise. Wiggle the modem cable to see if that makes a
difference. Make sure that the connectors are free from corrosion and all screws in
the wall or telephone wall jack are secure.
You can also call your telephone service and have the telephone line checked for noise
or low line levels.
■Try another telephone line (either a different telephone number in your house or a
telephone line at a different location). If you can connect on this line, call your
telephone service.
For more information about dialing properties, click Start, then click
Help and Support.
Type the keyword dialing in the Search box ,
then click the arrow.
■Try connecting with the modem at a lower connection speed. If reducing the connect
speed lets you connect, call your telephone service. The telephone line may be too
noisy.
You cannot connect to the Internet
■The ISP may be having technical difficulties. Contact your ISP for technical support.
62
www.gateway.com
Troubleshooting
■See if the modem works with a different communications program. The problem may
be with just one program.
■Review the troubleshooting information under “Internet” on page 59.
Your 56K modem does not connect at 56K
■Current FCC regulations restrict actual data transfer rates over public telephone lines
to 53K. Other factors, such as line noise, telephone service provider equipment, or
ISP limitations, may lower the speed even further.
If your computer has a v.90 modem, the speed at which you can upload (send) data
is limited to 33.6K. If your computer has a v.92 modem, the speed at which you can
upload data is limited to 48K. Your ISP may not support 48K uploads.
Your fax communications program only sends and receives faxes at 14,400 bps when
you have a 56K modem
Current fax technology only supports a maximum send and receive rate of 14,400 bps.
The modem is not recognized by your computer
■Make sure that the line connected to the modem is working and plugged into the
appropriate port on your computer. See “Back” on page 8 to make sure that the
connections have been made correctly.
■If the modem shares the telephone line with another device, make sure that the
telephone line is not in use (for example, someone is on the telephone, or another
modem is in use).
■Use the modem cable that came with your computer. Some telephone cables do not
meet required cable standards and may cause problems with the modem connection.
■Shut down and restart your computer.
■Run Windows modem diagnostics.
To run modem diagnostics:
1 Close all open programs.
2 Click Start, then click Control Panel. The Control Panel window opens. If your
Control Panel is in Category View, click
Printers and Other Hardware.
3 Click/Double-click the Phone and Modem Options icon, then click the Modems tab.
4 Click your modem, then click Properties. The Modem Properties dialog box opens.
www.gateway.com
63
Chapter 6: Troubleshooting
5 Click the Diagnostic tab, then click Query Modem. If information about the modem
appears, the modem passed diagnostics. If no modem information is available,
a white screen appears with no data, or if you get an error such as port already open or the modem has failed to respond, the modem did not pass diagnostics.
Help and
Support
For more information about modem troubleshooting, click Start, then
click Help and Support.
Type the keyword modem troubleshooting in the Search box
, then click the arrow.
The modem is noisy when it dials and connects
When your modem tries to connect to another modem, it begins handshaking.
Handshaking is a digital “getting acquainted” conversation between the two modems that
establishes connection speeds and communication protocols. You may hear unusual
handshaking sounds when the modems first connect. If the handshaking sounds are too
loud, you can turn down the modem volume.
To turn down the modem volume:
1 Click Start, then click Control Panel. The Control Panel window opens. If your
Control Panel is in Category View, click
Printers and Other Hardware.
2 Click/Double-click the Phone and Modem Options icon, then click the Modems tab.
3 Click the modem you want to adjust, then click Properties.
4 Click the Modem tab, then adjust the Speaker volume control.
5 Click OK twice to close the Phone and Modem Options dialog box.
Monitor
The screen resolution is not correct
Change the screen resolution from the Display Properties dialog box.
Tips & TricksFor more information, see “Adjusting the color depth” in
Computer
guide, click Start, All Programs, then click Gateway
Documentation.
64
which has been included on your hard drive. To access this
www.gateway.com
Using Your
Troubleshooting
Help and
Support
For more information about changing the screen resolution, click
Start, then click Help and Support.
Type the keyword screen resolution in the Search box
, then click the arrow.
The computer is running but there is no picture
■Make sure that the monitor is plugged in and turned on. If the monitor is turned on,
the power LED should be lit.
■Adjust the brightness and contrast controls to the center position.
■Make sure that the monitor cable is connected to the video port on the back of your
computer.
■Check the cable for bent or damaged pins.
■Reinstall the device driver.
■Connect a monitor that you know works to your computer.
The color is not uniform
Make sure that the monitor warms up for at least 30 minutes before making a final
judgment about color uniformity.
Make sure that:
■Non-shielded speakers are not placed too close to the monitor.
■The monitor is not positioned too close to another monitor, electric fan, fluorescent
light, metal shelf, or laser printer.
■You demagnetize the screen using the monitor’s degauss feature. For more information
on degauss, see your monitor’s documentation.
Why is there a horizontal line or wire visible across the monitor screen?
Your monitor may use a thin damper wire, located approximately 1/3 of the way down
from the upper screen edge and 1/3 of the way up from the lower screen edge, to stabilize
the internal aperture grille. These wires are most obvious when the monitor displays a
white background. The aperture grille allows more light to pass through the screen for
brighter colors and greater luminescence. The damper wire is a critical part of the overall
monitor design and does not negatively affect the monitor's function.
The text on the display is dim or difficult to read
■Adjust the brightness and contrast controls.
■Use the monitor degauss feature (see your monitor documentation) or turn off your
computer and monitor, leave them off for at least a half hour, then restart your
computer.
■Change the display settings.
www.gateway.com
65
Chapter 6: Troubleshooting
Tips & TricksFor more information, see “Adjusting the screen and desktop settings”
in
Using Your Computer
To access this guide, click Start, All Programs, then click Gateway Documentation.
■Move the monitor away from sources of electrical interference, such as televisions,
which has been included on your hard drive.
unshielded speakers, microwaves, fluorescent lights, and metal beams or shelves.
For more information about display types, see your monitor and video card
documentation.
Mouse
The mouse does not work
■Make sure that the mouse cable is plugged in correctly.
■Shut down and restart your computer.
■Remove all extension cables and switch boxes.
■Try a mouse you know is working to make sure that the mouse port works.
The mouse works erratically
If the mouse pointer begins moving erratically across the computer display or becomes
difficult to control precisely, cleaning the mouse will likely improve its accuracy.
If you have an optical mouse, clean the mouse by wiping the bottom with a clean, damp
cloth. Make sure that the optical sensor is clean and free of debris.
If you have a trackball mouse, see “Cleaning the mouse” on page 38.
Networks
You cannot connect to your company network
Every network is unique. Contact your company computer department or network
administrator for help. For more information about setting up a network in your home,
see “Networking Your Computer” on page 71 or see “Troubleshooting Your Ethernet
network” on page 83.
Help and
Support
For more information about network troubleshooting, click Start, then
click Help and Support.
Type the keyword network troubleshooting in the Search box
, then click the arrow.
66
www.gateway.com
Troubleshooting
Passwords
Your computer does not accept your password
Make sure that CAPSLOCK is turned off, then retype the password.
Power
Your computer will not turn on
■Make sure that your power cord is connected correctly to your computer.
■If your computer is plugged into a surge protector, make sure that the surge protector
is connected securely to an electrical outlet, turned on, and working correctly. To test
the outlet, plug a working device, such as a lamp, into the outlet and turn it on.
■Make sure that the power cord is free from cuts or damage. Replace any damaged
cables.
Printer
The printer will not turn on
■Make sure that the printer is online. Many printers have an online/offline button that
you may need to press.
■Make sure that the power cable is plugged into an AC power source.
The printer is on but will not print
■Check the cable between the printer and your computer. Make sure that it is connected
to the correct port.
■Make sure that the printer is online. Many printers have an online/offline button that
you may need to press so the printer can start printing. Press the button to put the
printer online.
■Check the cable for bent or broken pins.
■If the printer you want to print to is not the default printer, make sure that you have
selected it in the printer setup.
To set a default printer:
1 Click Start, then click Control Panel. The Control Panel window opens. If your
Control Panel is in Category View, click
Printers and Other Hardware.
2 Click/Double-click the Printers and Faxes icon. The Printers and Faxes window
opens.
www.gateway.com
67
Chapter 6: Troubleshooting
3 Right-click the name of the printer you want to be the default printer, then click
Set as Default Printer.
■Reinstall the printer driver. See the guide that came with your printer for instructions
on installing the printer driver.
You see a “Printer queue is full” error message
■Make sure that the printer is not set to work offline.
To make sure that the printer is not set to work offline:
1 Click Start, then click Control Panel. The Control Panel window opens. If your
Control Panel is in Category View, click
Printers and Other Hardware.
2 Click/Double-click the Printers and Faxes icon. The Printers and Faxes window
opens.
3 Right-click the name of the printer you want to use. If the menu shows a check
mark next to
Use Printer Offline, click Use Printer Offline to clear the check mark.
Help and
Support
■Wait until files have been printed before sending additional files to the printer.
■If you print large files or many files at one time, you may want to add additional
memory to the printer. See the printer documentation for instructions for adding
additional memory.
For more information about printer troubleshooting, click Start, then
click Help and Support.
Type the keyword printer troubleshooter in the Search box
, then click the arrow.
You see a “Printer is out of paper” error message
After adding paper, make sure that the printer is online. Most printers have an
online/offline button that you need to press after adding paper.
Sound
You are not getting sound from the speakers
■Make sure that the speakers are turned on.
■Make sure that the volume controls are turned up. For more information, see
“Adjusting the volume” on page 25.
68
www.gateway.com
Troubleshooting
■Make sure that mute controls are turned off. For more information, see “Adjusting
the volume” on page 25.
■If you are using external speakers, see the speaker setup poster to check your speaker
connections.
Help and
Support
For more information about sound troubleshooting, click Start, then
click Help and Support.
Type the keyword sound troubleshooter in the Search box
, then click the arrow.
www.gateway.com
69
Chapter 6: Troubleshooting
70
www.gateway.com
Chapter 7
Networking Your Computer
• Introducing networking
• Creating an Ethernet network
• Testing your network
• Troubleshooting your Ethernet network
71
Chapter 7: Networking Your Computer
Introduction to Networking
An Ethernet network consists of two or more computers connected together through an
Ethernet cable. This connection type is commonly used in offices around the world and
can be used to build computer networks in the home.
Ethernet, Fast Ethernet, or Gigabit Ethernet
Ethernet is available at three different speeds. Standard Ethernet runs at 10 Mbps, Fast
Ethernet runs at 100 Mbps, and Gigabit Ethernet runs at 1000 Mbps. Most home networks
are built using Standard or Fast Ethernet components. Business networks are typically built
using Fast or Gigabit Ethernet components.
To create an Ethernet network, you or your electrician must install special Ethernet cables
in your home or office.
Important
Check local code requirements before installing Ethernet cable or
other wiring in your home or office. Your municipality may require you
to obtain a permit and hire a licensed installer.
Using a router
The most common way to set up an Ethernet network is Dynamic Host Control Protocol
(DHCP) using a router. A DHCP network configuration uses a router to automatically assign
IP addresses to each computer or network device.
72
www.gateway.com
Introduction to Networking
Example router-based Ethernet network
The following is an example of an Ethernet network. The network is made up of a router,
a cable or DSL modem, your computers, and cables connecting each of these components.
The router is the central control point for the network. Attached to the router are all of
your computers or Ethernet-ready devices. Also connected to the router is a cable or DSL
modem that provides access to the Internet.
Cable/DSL
modem
Router
Tips & Tricks
To add the ability to access a wireless Ethernet network to your wired
Ethernet network, connect an access point to the router or use a
router that has a built-in access point, such as the Linksys wireless
access point router with 4-port switch.
Equipment you need for a router-based Ethernet network
For an Ethernet network you need:
■ Two or more computers with Ethernet jacks
■ One router
■ One broadband Internet connection (optional)
■ Ethernet cables connecting all of the network equipment
www.gateway.com
73
Chapter 7: Networking Your Computer
Important
Tips & Tricks
For best results, all Ethernet components should be either standard
Ethernet (10 Mbps), Fast Ethernet (100 Mbps or 10/100), or Gigabit
Ethernet (1000 Mbps or 10/100/1000). A mixture of components rated
at different speeds will result in your network running at the speed
of the slowest rated component.
When buying your router, be sure the model includes everything your
network needs, including:
■
Internet security features - such as a firewall to protect your network
from unwanted intruders
■
4-port switch - to eliminate the need for additional network hardware
■
DHCP server/dynamic IP address assignment - to automatically
configure network and IP addresses
Determining if an Ethernet is already installed on your computers
To determine if Ethernet is already installed on your computer:
1 Click Start, then click Control Panel. The Control Panel window opens. If your Control
Panel is in Category View, click
Performance and Maintenance.
2 Click/Double-click System, click the Hardware tab, then click Device Manager. The Device
Manager window opens.
3 Click the plus (+) in front of Network adapters. The Ethernet device installed in your
computer is listed. If one is not listed, you must install one.
Creating an Ethernet network
Installing Ethernet cards and drivers
After you have determined the type of Ethernet you are using for your network, you need
to install Ethernet cards and drivers on the computers that do not have Ethernet already
installed. To order wired or wireless Ethernet PCI or PC cards, visit the Accessories Store
at accessories.gateway.com
Use the documentation that comes with your Ethernet cards for instructions on installing
the card and any required drivers.
74
.
www.gateway.com
Creating an Ethernet network
Making sure your broadband connection works
Before you change anything about your home setup, make sure that your broadband
connection is working correctly. To test the connection, log onto the Internet using your
current setup. If the connection is not working, contact your Internet service provider.
Important
Important
If you do not have a broadband connection already installed, make
the necessary arrangements with your ISP. Be sure to find out how
soon after the installation the line will be activated.
Broadband Internet settings will differ from ISP to ISP. Before you
begin setting up your network, you should contact your ISP for any
specific instructions they have for setting up a network.
Naming the computers and the workgroup
Important
To identify this computer on the network:
1 Click Start, then click Control Panel. The Control Panel window opens. If your Control
Panel is in Category View, click
Maintenance window opens.
2 Click/Double-click System. The System Properties dialog box opens.
3 Click Computer Name.
4 Click Change. The Computer Name Changes dialog box opens.
You must give each computer on the network a unique Computer
Name and the same Workgroup Name.
Performance and Maintenance. The Performance and
5 Type a unique computer name in the Computer name box. This name identifies the
computer to other users on the network. Use a computer name of up to 15 characters
with no blank spaces. Each computer name must be unique on your network.
All-numeric computer names are not allowed. Names must contain some letters.
6 Type a name for your workgroup in the Workgroup box. Use a workgroup name of up
to 15 characters with no blank spaces. The workgroup name must be the same for
all computers in your network workgroup, and the name must be different than any
computer name on your network.
7 Click OK to close the Computer Name Changes dialog box.
www.gateway.com
75
Chapter 7: Networking Your Computer
Configuring the TCP/IP protocol
A networking protocol is a language computers use to talk to each other. One of several
available protocols must be set up on each computer you plan to use on your network.
We recommend you use the Transmission Control Protocol/Internet Protocol (TCP/IP),
which is widely accepted and compatible for local area networks (LANs), as well as for
Internet communications.
When networking is set up in Windows XP, TCP/IP is automatically installed as the default
protocol.
Terms you should know
DHCP - Dynamic Host Configuration Protocol (DHCP) lets a router temporarily assign an
IP address to a computer on the network.
IP Address - Internet Protocol (IP) address is a number that uniquely identifies a computer
on the network.
Subnet Mask - Subnet mask is a number that identifies what subnetwork the computer
is located on. This number will be the same on all computers on a home network.
Using a DHCP server
In order to use the TCP/IP protocol on each computer with a router or access point router,
you must set the protocol to “Obtain an IP address from a DHCP server.”
To use a DHCP server
1 Click Start, then click Control Panel. The Control Panel window opens. If your Control
Panel is in Category View, click
Internet Connections window opens.
Network and Internet Connections. The Network and
2 Click/Double-click Network Connections. The Network Connections window opens.
76
www.gateway.com
Creating an Ethernet network
3 Right-click Local Area Connection, then click Properties. The Local Area Connection
Properties dialog box opens.
- OR -
If you do not have a LAN connection setup, click
the instructions in the New Connection Wizard.
Create a new connection and follow
4 Click to select the Internet Protocol (TCP/IP) check box in the This connection uses the
following items
list. If you do not see TCP/IP, drag the scroll bar to see more choices.
5 Click Properties. The Internet Protocol (TCP/IP) Properties dialog box opens.
www.gateway.com
77
Chapter 7: Networking Your Computer
6 Click the General tab.
7 Click Obtain an IP address automatically.
8 Click OK to close the Internet Protocol (TCP/IP) Properties dialog box.
9 Click OK to close the Local Area Connection Properties dialog box.
10 Click X to close the Network Connections window.
11 Repeat this procedure for every computer on your network.
Setting up an Ethernet network
We recommend using category 5, unshielded, twisted-pair cable (approximately 1/4” in
diameter with a thin outer-jacket, containing eight color-coded wires), and equipment
compatible with this type of cable. This type of cable is equipped with RJ-45 connectors
(like a large telephone jack connector, but with eight pins) on each end.
78
www.gateway.com
Creating an Ethernet network
Important
Category 5 cables are available in two different types; straight-through
cables, used to connect computers to a router, and crossover cables,
used to connect two computers.
To determine which type of cable you have, hold both ends of the
cable with the connectors facing away from you and with the spring
clip on the bottom. For straight-through cable, the wires on both
connectors are attached to copper pins in the same order (same
colors, left to right). For a crossover cable, the wires on each
connector are attached to the copper pins in a different order (different
colors, left to right).
Setting up a network using a router
If you are setting up a network for more than two computers and you will be connecting
your network to a high-speed Broadband Internet connection (cable or DSL modem), we
recommend the use of a router. A router lets you access the Internet connection from any
network computer. The router can assign IP addresses to the computers on the network
and can provide firewall protection for your network as well.
In addition to a router, you need a straight-through cable for each computer you want to
connect to the network.
Cable/DSL
modem
Router
www.gateway.com
WAN port
79
Chapter 7: Networking Your Computer
To set up a network using a router:
1 Plug one end of the power adapter into the AC connector on the router and the other
end into a grounded, 110V electrical outlet.
2 Turn on your computers.
3 Plug one end of a straight-through network cable into any numbered port on the
router (except the WAN port). The WAN port is used to connect the router to the DSL
or cable modem, and is identified by a label or a switch. Plug the other end of the
cable into the network connector on the computer. As each computer is connected
to the router, the corresponding green indicator should light on the front of the router,
indicating a good connection.
4 Repeat Step 3 for each computer on the network.
5 For an Internet connection, plug a straight-through cable into the WAN port on the
router and the other end into the Ethernet jack on the DSL or cable modem.
Configuring your router
After you have named your computers and set up TCP/IP on them, you can configure your
router using your Web browser. For these instructions, we assume that you are using the
router to connect your network to a high-speed Broadband Internet connection through
an Internet service provider (ISP) and that you are configuring it as a DHCP server.
®
Important
The following configuration information applies to the Linksys
EtherFast Cable/DSL routers. For any other brand or model of router,
see the manufacturer’s documentation, which may accompany the
router or be available from the manufacturer’s Web site.
To configure the Linksys EtherFast Cable/DSL router:
1 From one of the computers connected to the network, open your Web browser, type
http://192.168.1.1 in the browser’s address box, then press ENTER.
2 When prompted for a username and password, leave the username box empty and
type
admin in the password box, then click OK. The Setup page opens.
3 Enter the following values in the appropriate fields:
80
www.gateway.com
Creating an Ethernet network
■ Router Name and Domain Name - Check with your ISP to see if entries are required
in these fields and, if so, what entries are required. Normally, leaving the fields
blank will work.
■ LAN IP Address - We recommend that you accept the defaults.
■ WAN IP Address - If your ISP assigns you a different IP address each time you
log on, click
address, click
Obtain an IP Address Automatically. If your ISP requires a fixed IP
Specify an IP Address, then type the values provided by your ISP.
4 When you are finished entering information on the Setup page, click Apply.
5 Click the DHCP tab on the top of the screen.
6 Click the Enable checkbox, then click Apply.
7 Press the reset button on your cable or DSL modem, then restart the computer. Your
network should be running. Go to “Testing your network” on page 82.
www.gateway.com
81
Chapter 7: Networking Your Computer
Testing your network
Now that your home network is set up, log onto one of your computers and access a favorite
Internet Web site.
If you are unable to connect to the Internet:
■ Run the New Connection Wizard (for more information, see “Using Your Computer
guide” on page 4)
■ Check all physical cable connections
■ Compare the status lights on the front of the router or access point with the
patterns described in the router or access point literature
■ Temporarily turn off any firewall software on your desktop computer
■ Turn off all of the devices, then power them back on
■ Refer to your router’s or access point’s troubleshooting information
■ Contact your Internet service provider
82
www.gateway.com
Troubleshooting Your Ethernet network
Troubleshooting Your Ethernet network
You cannot see the other computers on your network
■ Make sure that your Ethernet cable is plugged into the Ethernet jack on your
computer. Make sure that the other end is plugged into a router.
■ Make sure that all computers are plugged into a powered electrical outlet and
turned on.
■ Make sure that the router is plugged into a powered electrical outlet and turned
on. Most routers have lights that indicate they are working. For more information,
seethe documentation that came with your router.
■ Make sure that all computers on your network have the same workgroup name.
■ Make sure that all computers are using the same Subnet Mask.
■ If you assigned IP addresses to the computers, make sure that all computers have
different IP addresses. For home networks, IP addresses should be 192.168.N.N
where N is a number you assign between 0 and 254. The first N should be the
same for all computers on your network and the second N should be different for
all computers on your network.
The computer does not recognize an add-in Ethernet card
■ Shut down and restart your computer.
■ Make sure that you have installed the required software. For more information,
see the documentation that came with your Ethernet card.
■ Reseat the card. For more information, about opening your computer case, see
“Opening the case” on page 51. For more information about your Ethernet card,
seethe documentation that came with your Ethernet card.
Your Ethernet network is running slower than you expect
■ If your Ethernet network is running slower than you expect, check the speed of
each Ethernet component. For best results, all Ethernet components should be
standard Ethernet (10 Mbps), Fast Ethernet (100 Mbps or 10/100 Mbps), or Gigabit
Ethernet (1000 Mbps or 10/100/1000 Mbps). A mixture of Ethernet, Fast Ethernet,
and Gigabit Ethernet components will result in your network running at the
slowest component speed.
www.gateway.com
83
Chapter 7: Networking Your Computer
84
www.gateway.com
Appendix A
Safety, Regulatory, and Legal
Information
• Safety information
• Regulatory statements
• Notices
85
Appendix A: Safety, Regulatory, and Legal Information
Important safety information
Your Gateway system is designed and tested to meet the latest standards for safety of information technology
equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the
product and in the documentation are followed.
Warni ng
and damage to your Gateway system.
Setting up your system
Always follow these instructions to help guard against personal injury
■
Read and follow all instructions marked on the product and in the documentation before you operate your
system. Retain all safety and operating instructions for future use.
■
Do not use this product near water or a heat source such as a radiator.
■
Set up the system on a stable work surface.
■
The product should be operated only from the type of power source indicated on the rating label.
■
If your computer has a voltage selector switch, make sure that the switch is in the proper position for your area.
The voltage selector switch is set at the factory to the correct voltage.
■
Openings in the computer case are provided for ventilation. Do not block or cover these openings. Make sure
you provide adequate space, at least 6 inches (15 cm), around the system for ventilation when you set up your
work area. Never insert objects of any kind into the computer ventilation openings.
■
Some products are equipped with a three-wire power cord to make sure that the product is properly grounded
when in use. The plug on this cord will fit only into a grounding-type outlet. This is a safety feature. If you are
unable to insert the plug into an outlet, contact an electrician to install the appropriate outlet.
■
If you use an extension cord with this system, make sure that the total ampere rating on the products plugged
into the extension cord does not exceed the extension cord ampere rating.
■
If you r sy ste m is fit ted wit h a T V Tuner, c abl e, or sa tellite receiver card, make sure that the antenna or cable
system is electrically grounded to provide some protection against voltage surges and buildup of static charges.
Care during use
■
Do not wal k on the pow er c ord or a llo w an ythin g to res t on it .
■
Do not spill anything on the system. The best way to avoid spills is to avoid eating and drinking near your
system.
■
Some products have a replaceable CMOS battery on the system board. There is a danger of explosion if the
CMOS battery is replaced incorrectly. Replace the battery with the same or equivalent type recommended by
the manufacturer. Dispose of batteries according to the manufacturer’s instructions.
■
When the computer is turned off, a small amount of electrical current still flows through the computer. To
avoid electrical shock, always unplug all power cables and modem cables from the wall outlets before cleaning
the system.
■
Unplug the system from the wall outlet and refer servicing to qualified personnel if:
■
The system was dropped or damaged, or the power cord or plug is damaged.
■
Liquid has been spilled into the system.
■
The system does not operate properly when the operating instructions are followed.
Replacement parts and accessories
Use only replacement parts and accessories recommended by Gateway.
86
Warni ng
Warni ng
Do not use Gateway products in areas classified as hazardous
locations. Such areas include patient care areas of medical and
dental facilities, oxygen-laden environments, or industrial facilities.
To reduce the risk of fire, use only No. 26 AWG or larger
telecommunications line cord.
www.gateway.com
Regulatory compliance statements
United States of America
Federal Communications Commission (FCC) Unintentional emitter per FCC Part 15
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio or television
reception. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause interference to radio and television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
■
Reorient or relocate the receiving antenna
■
Increase the separation between the equipment and receiver
■
Connect the equipment to an outlet on a different circuit from that to which the receiver is connected
■
Consult the dealer or an experienced radio/TV technician for help.
Compliance Accessories: The accessories associated with this equipment are: shielded video cable when an
external monitor is connected. These accessories are required to be used in o rde r to en sur e co mpl ian ce w ith FCC
rules.
FCC declaration of conformity
Responsible party:
Gateway Companies, Inc.
7565 Irvine Center Drive
Irvine, CA 92618 USA
(605) 232-2000 Fax: (605) 232-2023
Product:
■
Gateway E4350
For unique identification of the product configuration, please submit the 10-digit serial number found on the
product to the responsible party.
This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Caution
void the FCC compliance and negate your authority to operate the
product.
California Proposition 65 Warning
Changes or modifications not expressly approved by Gateway could
Warni ng
This product contains chemicals, including lead, known to the State
of California to cause cancer, birth defects or reproductive harm.
www.gateway.com
87
Appendix A: Safety, Regulatory, and Legal Information
Telecommunications per Part 68 of the Code of Federal Regulations (CFR 47) (applicable to products
fitted with USA modems)
Your modem complies with Part 68 of the Code of Federal Regulations (CFR 47) rules. On the computer or
modem card is a label that contains the FCC registration number and Ringer Equivalence Number (REN) for this
device. If requested, this information must be provided to the telephone company.
A telephone line cord with a modular plug is required for use with this device. The modem is designed to be
connected to the telephone network or premises wiring using a compatible modular jack which is
Part 68-compliant. See installation instructions for details.
The Ringer Equivalence Number (REN) is used to determine the number of devices which may be connected to
the telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an
incoming call. In most areas, the sum of RENs should not exceed five (5.0). To be certain of the number of
devices that may be connected to a line, as determined by the total RENs, contact the local telephone company.
If this device causes harm to the telephone network, the telephone company will notify you in advance that
temporary discontinuance of service may be required. The telephone company may request that you disconnect
the equipment until the problem is resolved.
The telephone company may make changes in its facilities, equipment, operations, or procedures that could
affect the operation of this equipment. If this happens, the telephone company will provide advance notice in
order for you to make necessary modifications to maintain uninterrupted service.
This equipment cannot be used on telephone company-provided coin service. Connection to party line service is
subject to state tariffs. Contact the state public utility commission or public service commission for information.
When programming or making test calls to emergency numbers:
■
Remain on the line and briefly explain to the dispatcher the reason for the call.
■
Perform such activities in the off-peak hours such as early morning or late evenings.
The United States Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a
computer or other electronic device to send any message via a telephone fax machine unless such message
clearly contains, in a margin at the top or bottom of each transmitted page or on the first page of the
transmission, the date and time it is sent, an identification of the business, other entity, or other individual
sending the message, and the telephone number of the sending machine or such business, other entity, or
individual. Refer to your fax communication software documentation for details on how to comply with the
fax-branding requirement.
Canada
Industry Canada (IC) Unintentional emitter per ICES-003
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set
out in the radio interference regulations of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux
appareils numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par Industrie
Canada.
Telecommunications per Industry Canada CS-03 (for products fitted with an IC-compliant modem)
The Industry Canada label identifies certified equipment. This certification means that the equipment meets
certain telecommunications network protective, operation, and safety requirements. The Department does not
guarantee the equipment will operate to the users’ satisfaction.
Before installing this equipment, users should make sure that it is permissible to be connected to the facilities of
the local telecommunications company. The equipment must also be installed using an acceptable method of
connection. In some cases, the inside wiring associated with a single-line individual service may be extended by
means of a certified connector assembly. The customer should be aware that compliance with the above
conditions may not prevent degradation of service in some situations.
88
www.gateway.com
Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by
the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give
the telecommunications company cause to request the user to disconnect the equipment.
Users should make sure, for their own protection, that the electrical ground connections of the power utility,
telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution may
be particularly important in rural areas.
Warni ng
The Ringer Equivalence Number (RE N) assign ed to each t erm ina l de vic e pr ovi des an i ndi cat ion of t he
maximum number of terminals allowed to be connected to a telephone interface. The termination on an
interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer
Equivalence Numbers of all the devices does not exceed 5.
To avoid electrical shock or equipment malfunction do not attempt to
make electrical ground connections by yourself. Contact the
appropriate inspection authority or an electrician, as appropriate.
Laser safety statement
All Gateway systems equipped with CD and DVD drives comply with the appropriate safety standards, including
IEC 825. The laser devices in these components are classified as “Class 1 Laser Products” under a US Department
of Health and Human Services (DHHS) Radiation Performance Standard. Should the unit ever need servicing,
contact an authorized service location.
Warni ng
Use of controls or adjustments or performance of procedures other
than those specified in this manual may result in hazardous radiation
exposure. To prevent exposure to laser beams, do not try to open the
enclosure of a CD or DVD drive.
Television antenna connectors protection (for systems
fitted with TV/cable TV tuner cards)
External television antenna grounding
If an o uts ide ant enn a or cable system is to be co nne cte d to your Ga teway PC, mak e sure tha t the anten na o r
cable system is electrically grounded to provide some protection against voltage surges and static charges.
Article 810 of the National Electrical Code, ANSI/NFPSA 70, provides information with regard to proper
grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size
of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
Lightning protection
For added protection of any Gateway product during a lightning storm or when it is left unattended or unused
for long periods of time, unplug the product from the wall outlet and disconnect the antenna or cable system.
Power lines
Do not locate the antenna near overhead light or power circuits, or where it could fall into such power lines or
circuits.
www.gateway.com
89
Appendix A: Safety, Regulatory, and Legal Information
Warni ng
When installing or realigning an outside antenna system, extreme
care should be taken to keep from touching such power lines or
circuits. Contact with them could be fatal.
1
Antenna and satellite grounding
ReferenceGrounding component
1Electric service equipment
7
6
5
4
3
2
90
2Power service grounding electrode system (NEC Art 250, Part H)
3Ground clamps
4Grounding conductors (NEC Section 810-21)
5Antenna discharge unit (NEC Section 810-20)
6Ground clamp
7Antenna lead-in wire
www.gateway.com
Environmental information
The product you have purchased contains extracted natural resources that have been used in the manufacturing
process. This product may contain substances known to be hazardous to the environment or to human health.
To prevent releases of harmful substances into the environment and to maximize the use of our natural
resources, Gateway provides the following information on how you can responsibly recycle or reuse most of the
materials in your “end of life” product.
Waste Electrical and Electronic Equipment (commonly known as WEEE) should never be disposed of in the
municipal waste stream (residential garbage collection). The “Crossed-Out Waste Bin” label affixed to this
product is your reminder to dispose of your “end of life” product properly.
Substances such as glass, plastics, and certain chemical compounds are highly recoverable, recyclable, and
reusable. You can do your part for the environment by following these simple steps:
■
When your electrical or electronic equipment is no longer us eful t o yo u, “take it back” to yo ur l oca l or reg ion al
waste collection administration for recycling.
■
In some cases, your “end of life” product may be “traded in” for credit towards the purchase of new Gateway
equipment. Call Gateway to see if this program is available in your area.
■
If you need further assistance in recycling, reusing, or trading in your “end of life” product, you may contact us
at the Customer Care number listed in your product’s user guide and we will be glad to help you with your
effort.
Finally, we suggest that you practice other environmentally friendly actions by understanding and using the
energy-saving features of this product (where applicable), recycling the inner and outer packaging (including
shipping containers) this product was delivered in, and by disposing of or recycling used batteries properly.
With your help, we can reduce the amount of natural resources needed to produce electrical and electronic
equipment, minimize the use of landfills for the disposal of “end of life” products, and generally improve our
quality of life by ensuring that potentially hazardous substances are not released into the environment and are
disposed of properly.
www.gateway.com
91
Appendix A: Safety, Regulatory, and Legal Information
This publication is protected by copyright and all rights are reserved. No part of it may be reproduced or
transmitted by any means or in any form, without prior consent in writing from Gateway.
The information in this manual has been carefully checked and is believed to be accurate. However, changes are
made periodically. These changes are incorporated in newer publication editions. Gateway may improve and/or
change products described in this publication at any time. Due to continuing system improvements, Gateway is
not responsible for inaccurate information which may appear in this manual. For the latest product updates,
consult the Gateway Web site at www.gateway.com
special, exemplary, incidental, or consequential damages resulting from any defect or omission in this manual,
even if advised of the possibility of such damages.
In the interest of continued product development, Gateway reserves the right to make improvements in this
manual and the products it describes at any time, without notices or obligation.
Trademark Acknowledgments
Gateway and the Black-and-White Spot Design are trademarks or reg istered tr ad ema rks of G ate way, Inc . in the
U.S. and other countries. SpotShop, Spotshop.com, and Your:)Ware are trademarks of Gateway, Inc. Intel, Intel
Inside logo, and Pentium are registered trademarks and MMX is a trademark of Intel Corporation. Microsoft, MS,
MS-DOS, and Windows are trademarks or registered trademarks of Microsoft Corporation. All other product
names mentioned herein are used for identification purposes only, and may be the trademarks or registered
trademarks of their respective companies.
. In no event will Gateway be liable for direct, indirect,
Macrovision statement
If your computer has a DVD drive and an analog TV Out port, the following paragraph applies:
This product incorporates copyright protection technology that is protected by method claims of certain U.S.
patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of
this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home
and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
92
www.gateway.com
Index
A
AC power connector9
accessories13
safety precautions86
activity indicators
See indicators
application key
arrow keys22, 23
audio
audio in jack
front speaker jack9
headphone jack9
line in jack9
line out jack9
microphone jack7, 9
muting24, 25
side speaker jack9
audio CD
See CD
audio in jack
22, 23
9
9
B
battery
replacing
bezel
removing
broadband connection75
connecting10
50
44
C
cable lock9
cable modem73, 79
connecting10
Caps Lock indicator22, 23
cards
troubleshooting add-in card
case
opening
CD
cleaning
controlling play with keyboard24
inserting30
playing audio31
PS/2 keyboard
PS/2 mouse9
to Ethernet network10
to Internet10
to network10
connections
audio in
digital audio9
digital camera7, 9, 26
digital video camera7, 9, 26
Ethernet10
external audio9
external speakers9
fiber optic audio9
Firewire7, 9, 26
front speaker9
29
39
47
75
80
9
9
www.gateway.com
93
headphone9
i.Link7, 9, 26
IEEE 13947, 9, 26
keyboard7, 9
line in9
line out9
microphone7, 9
monitor9, 10
mouse7, 9
network10
parallel9
power9
power cord9
printer7, 9
PS/2 keyboard9
PS/2 mouse9
scanner7, 9
serial9
side speaker9
S-Video (TV) out10
TOSLINK9
TV out9
USB7, 9
video camera7, 9
video out9
D
default printer67
DHCP76
digital camera
locating serial port
locating USB port7, 9
digital video camera
locating IEEE 1394 port
DIMM
See memory
directional keys
diskette
troubleshooting
diskette drive
identifying
troubleshooting57
using28
display
troubleshooting
documentation
22, 23
28
57
58
9
7, 9
2
help
Help and Support2
online help4
Using Your Computer3
