User's Guide
NPD5093-01 EN
User's Guide
Copyright
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Seiko Epson Corporation. No patent liability is assumed with respect to the use of the information contained herein. Neither is any liability assumed for damages resulting from the use of the information herein. The information contained herein is designed only for use with this Epson printer. Epson is not responsible for any use of this information as applied to other printers.
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation's operating and maintenance instructions.
Seiko Epson Corporation and its affiliates shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as Original Epson Products or Epson Approved Products by Seiko Epson Corporation.
Seiko Epson Corporation shall not be held liable for any damage resulting from electromagnetic interference that occurs from the use of any interface cables other than those designated as Epson Approved Products by Seiko Epson Corporation.
© 2014 Seiko Epson Corporation. All rights reserved.
The contents of this manual and the specifications of this product are subject to change without notice.
2
User's Guide
Trademarks
EPSON®is a registered trademark, and EPSON EXCEED YOUR VISION or EXCEED YOUR VISION is a trademark of Seiko Epson Corporation.
PRINT Image Matching™ and the PRINT Image Matching logo are trademarks of Seiko Epson Corporation. Copyright © 2001 Seiko Epson Corporation. All rights reserved.
EPSON Scan software is based in part on the work of the Independent JPEG Group.
libtiff
Copyright © 1988-1997 Sam Leffler Copyright © 1991-1997 Silicon Graphics, Inc.
Permission to use, copy, modify, distribute, and sell this software and its documentation for any purpose is hereby granted without fee, provided that (i) the above copyright notices and this permission notice appear in all copies of the software and related documentation, and (ii) the names of Sam Leffler and Silicon Graphics may not be used in any advertising or publicity relating to the software without the specific, prior written permission of Sam Leffler and Silicon Graphics.
THE SOFTWARE IS PROVIDED "AS-IS" AND WITHOUT WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR OTHERWISE, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT SHALL SAM LEFFLER OR SILICON GRAPHICS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER OR NOT ADVISED OF THE POSSIBILITY OF DAMAGE, AND ON ANY THEORY OF LIABILITY, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.
SDXC Logo is a trademark of SD-3C, LLC.
PictBridge is a trademark.
Microsoft®, Windows®, and Windows Vista®are registered trademarks of Microsoft Corporation.
Apple, Macintosh, Mac OS, OS X, Bonjour, Safari, iPad, iPhone, iPod touch, and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries. AirPrint and the AirPrint logo are trademarks of Apple Inc.
Google Cloud Print™, Chrome™, Chrome OS™, and Android™ are trademarks of Google Inc.
Adobe, Adobe Reader, Acrobat, and Photoshop are trademarks of Adobe systems Incorporated, which may be registered in certain jurisdictions.
ABBYY®and ABBYY FineReader® names and logos are registered trademarks of ABBYY Software House.
Intel® is a registered trademark of Intel Corporation.
3
User's Guide
Trademarks
General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks.
4
User's Guide
Contents
Copyright
Trademarks
About This Manual
Introduction to the Manuals. . . . . . . . . . . . . . . . . . .8
Marks and Symbols. . . . . . . . . . . . . . . . . . . . . . . . . 8
Descriptions Used in this Manual. . . . . . . . . . . . . . . 8
Operating System References. . . . . . . . . . . . . . . . . . 9
Important Instructions
Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . 10
Printer Advisories and Warnings. . . . . . . . . . . . . . 10
Advisories and Warnings for Setting Up/
Using the Printer. . . . . . . . . . . . . . . . . . . . . . . . 11 Advisories and Warnings for Using the
Printer with a Wireless Connection. . . . . . . . . . . 12 Advisories and Warnings for Using Memory Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Advisories and Warnings for Using the
Touchpad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Protecting Your Personal Information. . . . . . . . . . . 12
Printer Basics
Part Names and Functions. . . . . . . . . . . . . . . . . . . 13
Control Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Guide to the LCD Screen. . . . . . . . . . . . . . . . . . 16
Menu Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Copy Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Print Photos Mode. . . . . . . . . . . . . . . . . . . . . . . 18
Scan Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Wi-Fi Setup Mode. . . . . . . . . . . . . . . . . . . . . . . 21
Quiet Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
More Functions Mode. . . . . . . . . . . . . . . . . . . . 21
Setup Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Help Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Loading Paper
Paper Handling Precautions. . . . . . . . . . . . . . . . . . 31
Available Paper and Capacities. . . . . . . . . . . . . . . . 32
List of Paper Types. . . . . . . . . . . . . . . . . . . . . . . 33
Loading Paper in the Paper Cassette 1. . . . . . . . . . . 34
Loading Paper in the Paper Cassette 2. . . . . . . . . . . 37
Placing Originals on the Scanner Glass
Inserting a Memory Card
Supported Memory Cards. . . . . . . . . . . . . . . . . . . 45
Inserting and Removing a Memory Card. . . . . . . . .45
Loading a CD/DVD for Printing
Printable CD/DVDs. . . . . . . . . . . . . . . . . . . . . . . . 48
CD/DVD Handling Precautions. . . . . . . . . . . . . . . 48
Loading a CD/DVD. . . . . . . . . . . . . . . . . . . . . . . . 48
Removing a CD/DVD. . . . . . . . . . . . . . . . . . . . . . 50
Printing
Printing from the Control Panel. . . . . . . . . . . . . . . 52
Printing Photos by Selecting from a Memory
Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Printing Photos from a Memory Card onto a CD/DVD Label. . . . . . . . . . . . . . . . . . . . . . . . . 53 Printing Photos from a Memory Card with Handwritten Notes. . . . . . . . . . . . . . . . . . . . . . .54 Printing Original Writing Paper and Calendars. . 56 Printing Original Envelopes. . . . . . . . . . . . . . . . 56 Printing Photos Using Other Features. . . . . . . . . 58
Printing from a Computer. . . . . . . . . . . . . . . . . . . 59
Printing Basics - Windows. . . . . . . . . . . . . . . . . 59 Printing Basics - Mac OS X. . . . . . . . . . . . . . . . .61 Printing on 2-Sides. . . . . . . . . . . . . . . . . . . . . . .63 Printing Several Pages on One Sheet. . . . . . . . . . 65 Printing to Fit the Paper Size. . . . . . . . . . . . . . . .66 Printing Multiple Files Together (for
Windows Only). . . . . . . . . . . . . . . . . . . . . . . . . 68 Enlarged Printing and Making Posters (for Windows Only). . . . . . . . . . . . . . . . . . . . . . . . . 69 Printing Using Advanced Features. . . . . . . . . . . 75 Printing Photos Using Epson Easy Photo Print. . 77 Printing a CD/DVD Label with Epson Print
CD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Printing from Smart Devices. . . . . . . . . . . . . . . . . 78
Using Epson iPrint. . . . . . . . . . . . . . . . . . . . . . . 78
Using AirPrint. . . . . . . . . . . . . . . . . . . . . . . . . . 80
Printing from a Digital Camera. . . . . . . . . . . . . . . .80
5
User's Guide
Contents

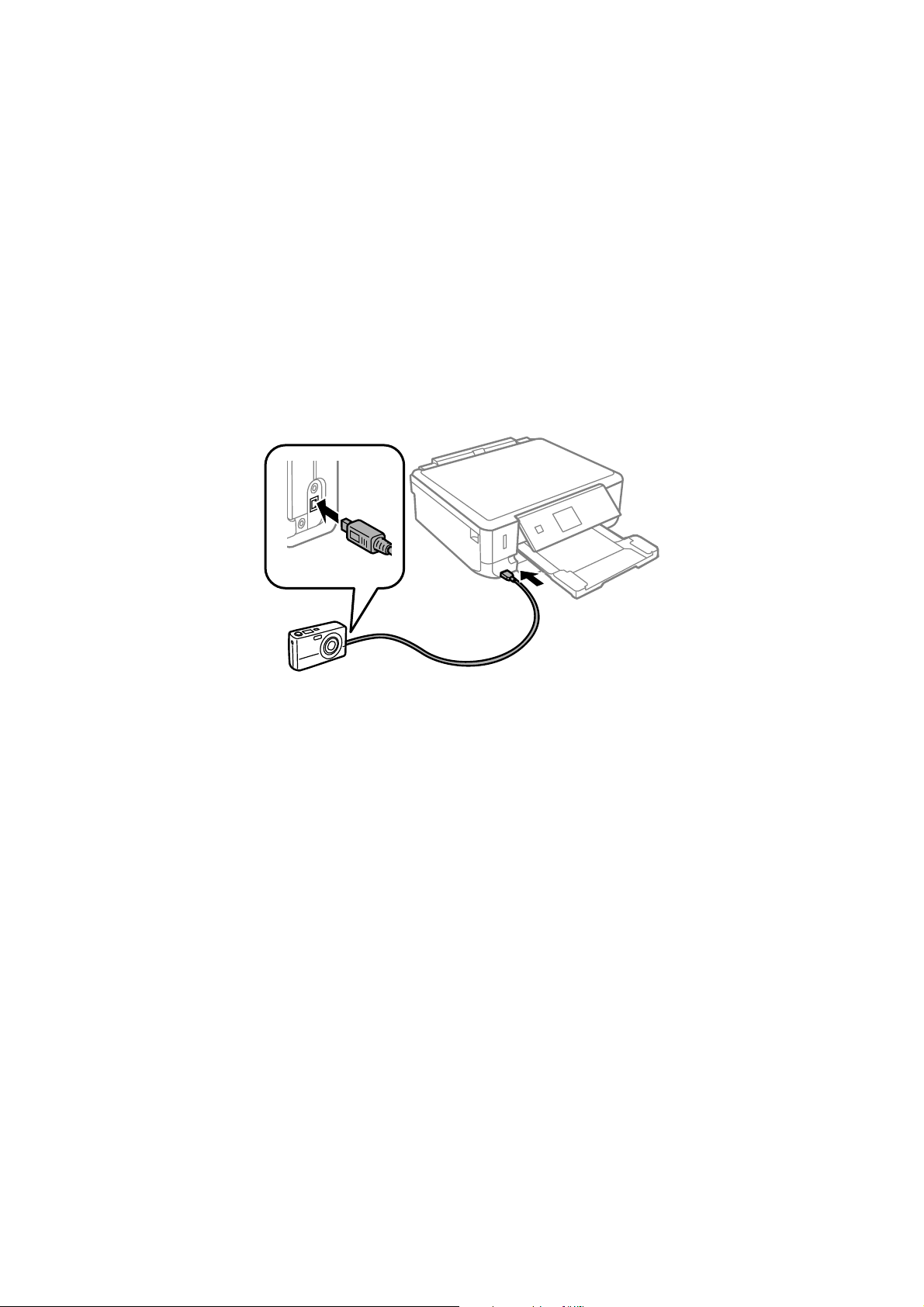

Printing from a Digital Camera Connected
by USB Cable. . . . . . . . . . . . . . . . . . . . . . . . . . .81 Printing from a Digital Camera Connected Wirelessly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Canceling Printing. . . . . . . . . . . . . . . . . . . . . . . . . 82
Canceling Printing - Printer Button. . . . . . . . . . .82
Canceling Printing - Windows. . . . . . . . . . . . . . 82
Canceling Printing - Mac OS X. . . . . . . . . . . . . . 83
Copying
Copying Basics. . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Copying Photos. . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Copying on a CD/DVD Label. . . . . . . . . . . . . . . . . 85
Scanning
Scanning Using the Control Panel. . . . . . . . . . . . . .87
Scanning to a Memory Card. . . . . . . . . . . . . . . . 87 Scanning to the Cloud. . . . . . . . . . . . . . . . . . . . 87 Scanning to a Computer. . . . . . . . . . . . . . . . . . .87 Scanning to a Computer (WSD). . . . . . . . . . . . . 88
Scanning from a Computer. . . . . . . . . . . . . . . . . . .89
Scanning Basics. . . . . . . . . . . . . . . . . . . . . . . . . 89
Scanning Using Advanced Features. . . . . . . . . . .91
Scanning from Smart Devices. . . . . . . . . . . . . . . . .94
Replacing Ink Cartridges
Checking the Ink Levels. . . . . . . . . . . . . . . . . . . . . 96
Checking the Ink Levels - Control Panel. . . . . . . 96
Checking the Ink Levels - Windows. . . . . . . . . . .96
Checking the Ink Levels - Mac OS X. . . . . . . . . . 96
Ink Cartridge Codes. . . . . . . . . . . . . . . . . . . . . . . .96
Ink Cartridge Handling Precautions. . . . . . . . . . . . 97
Replacing Ink Cartridges. . . . . . . . . . . . . . . . . . . . 99
Temporarily Printing with Black Ink. . . . . . . . . . . 102
Temporarily Printing with Black Ink - Windows 103 Temporarily Printing with Black Ink - Mac
OS X. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Conserving Black Ink when the Black Ink Is
Low (for Windows Only). . . . . . . . . . . . . . . . . . . 105
Improving Print and Scan Quality
Checking and Cleaning the Print Head. . . . . . . . . 106
Checking and Cleaning the Print Head -
Control Panel. . . . . . . . . . . . . . . . . . . . . . . . . .106
Checking and Cleaning the Print Head -
Windows. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Checking and Cleaning the Print Head -
Mac OS X. . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Aligning the Print Head. . . . . . . . . . . . . . . . . . . . 108
Aligning the Print Head - Control Panel. . . . . . 108
Aligning the Print Head - Windows. . . . . . . . . .108
Aligning the Print Head - Mac OS X. . . . . . . . . 109
Cleaning the Paper Path. . . . . . . . . . . . . . . . . . . . 109
Cleaning the Scanner Glass. . . . . . . . . . . . . . . . . .109
Applications and Network Service
Information
Epson Connect Service. . . . . . . . . . . . . . . . . . . . . 111
Web Conf ig. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Running Web Config on a Web Browser. . . . . . 111 Running Web Config on Windows. . . . . . . . . . 112 Running Web Conf ig on Mac OS X. . . . . . . . . . 112
Necessary Applications. . . . . . . . . . . . . . . . . . . . .112
Windows Printer Driver. . . . . . . . . . . . . . . . . . 112
Mac OS X Printer Driver. . . . . . . . . . . . . . . . . 116

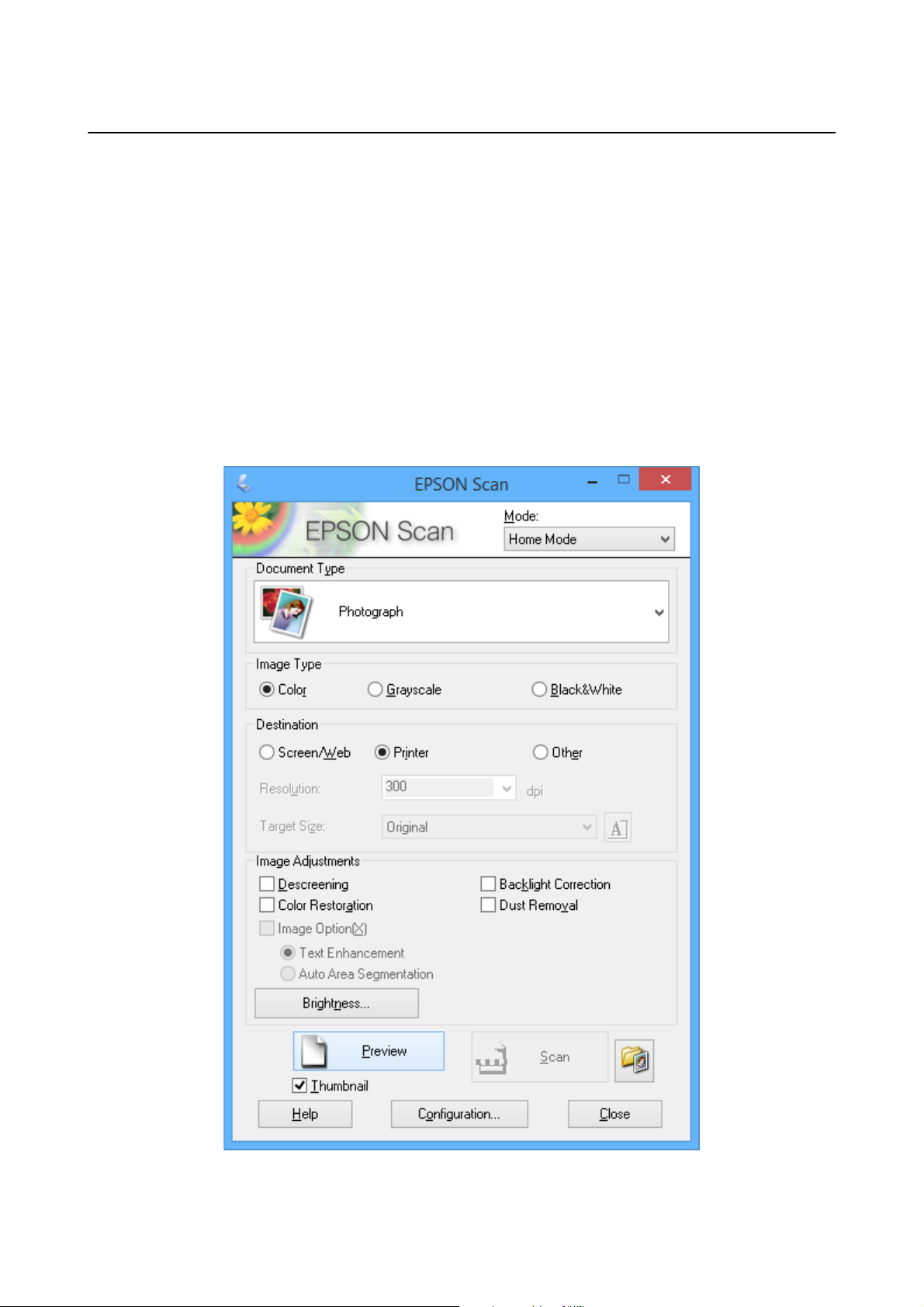

EPSON Scan (Scanner Driver). . . . . . . . . . . . . 119
Epson Event Manager. . . . . . . . . . . . . . . . . . . .119
Epson Easy Photo Print. . . . . . . . . . . . . . . . . . 120
Epson Print CD. . . . . . . . . . . . . . . . . . . . . . . . 120
E-Web Print (for Windows Only). . . . . . . . . . . 120
Easy Photo Scan. . . . . . . . . . . . . . . . . . . . . . . .121
EPSON Software Updater. . . . . . . . . . . . . . . . . 121
Uninstalling Applications. . . . . . . . . . . . . . . . . . . 121
Uninstalling Applications - Windows. . . . . . . . .121
Uninstalling Applications - Mac OS X. . . . . . . . 122
Installing Applications. . . . . . . . . . . . . . . . . . . . . 123
Updating Applications and Firmware. . . . . . . . . . 123
Solving Problems
Checking the Printer Status. . . . . . . . . . . . . . . . . .125
Checking Messages on the LCD Screen. . . . . . . 125 Checking the Printer Status - Windows. . . . . . . 126 Checking Printer Status - Mac OS X. . . . . . . . . 126
Removing Jammed Paper. . . . . . . . . . . . . . . . . . . 126
Removing Jammed Paper from the Paper
Cassette. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127 Removing Jammed Paper from Inside the
Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128 Removing Jammed Paper from the Rear Cover. 130
Paper Does Not Feed Correctly. . . . . . . . . . . . . . . 131
CD/DVD Tray is Ejected. . . . . . . . . . . . . . . . . .132
Power and Control Panel Problems. . . . . . . . . . . . 132
Power Does Not Turn On. . . . . . . . . . . . . . . . . 132
6
User's Guide
Contents
Lights Came On and then Went Out. . . . . . . . . 132 Power Does Not Turn Of f. . . . . . . . . . . . . . . . . 132 LCD Screen Gets Dark. . . . . . . . . . . . . . . . . . . 133
Printer Does Not Print. . . . . . . . . . . . . . . . . . . . . 133
Printout Problems. . . . . . . . . . . . . . . . . . . . . . . . 134
Print Quality Is Poor. . . . . . . . . . . . . . . . . . . . 134 Copy Quality Is Poor. . . . . . . . . . . . . . . . . . . . 135 An Image of the Reverse Side of the Original Appears in the Copied Image. . . . . . . . . . . . . . 135 The Position, Size, or Margins of the Printout
Are Incorrect. . . . . . . . . . . . . . . . . . . . . . . . . . 135 Paper Is Smeared or Scuf fed. . . . . . . . . . . . . . . 136 Printed Characters Are Incorrect or Garbled. . . 137 T he Printed Image Is Inverted. . . . . . . . . . . . . . 137 The Printout Problem Could Not be Cleared. . . 138
Printing Is Too Slow. . . . . . . . . . . . . . . . . . . . . . . 138
Cannot Start Scanning. . . . . . . . . . . . . . . . . . . . . 138
Cannot Start Scanning when Using the
Control Panel. . . . . . . . . . . . . . . . . . . . . . . . . .139
Scanned Image Problems. . . . . . . . . . . . . . . . . . . 139
Scan Quality Is Poor. . . . . . . . . . . . . . . . . . . . . 139 Characters Are Blurred. . . . . . . . . . . . . . . . . . .140 An Image of the Reverse Side of the Original Appears in the Scanned Image. . . . . . . . . . . . . 140 Moire (Cross-Hatch) Patterns Appear in the Scanned Image. . . . . . . . . . . . . . . . . . . . . . . . .140 Scanning Area or Direction Is Not Correct. . . . 141 The Scanned Image Problem Could Not be Cleared. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Other Scanning Problems. . . . . . . . . . . . . . . . . . . 142
Cannot Scan in Full Auto Mode in EPSON
Scan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142 Thumbnail Preview Does Not Work Properly. . .142 Scanning Is Too Slow. . . . . . . . . . . . . . . . . . . . 142 Scanning Stops when Scanning to PDF/ Multi-TIFF. . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Other Problems. . . . . . . . . . . . . . . . . . . . . . . . . . 142
Slight Electric Shock when Touching the
Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142 Operation Sounds Are Loud. . . . . . . . . . . . . . . 143 Cannot Save the Data to a Memory Card. . . . . .143 Application Is Blocked by a Firewall (for
Windows Only). . . . . . . . . . . . . . . . . . . . . . . . 143 "?" Is Displayed on the Photo Selection Screen. . 143
Appendix
Technical Specif ications. . . . . . . . . . . . . . . . . . . . 144
Printer Specifications. . . . . . . . . . . . . . . . . . . . 144 Scanner Specif ications. . . . . . . . . . . . . . . . . . . 145 Interface Specif ications. . . . . . . . . . . . . . . . . . . 145
Wi-Fi Specif ications. . . . . . . . . . . . . . . . . . . . . 145 Security Protocol. . . . . . . . . . . . . . . . . . . . . . . 146 Supported T hird Party Services. . . . . . . . . . . . . 146 External Storage Device Specif ications. . . . . . . .146 Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . 148 Electrical Specif ications. . . . . . . . . . . . . . . . . . 148 Environmental Specif ications. . . . . . . . . . . . . . 149 System Requirements. . . . . . . . . . . . . . . . . . . . 149
Regulatory Information. . . . . . . . . . . . . . . . . . . . 150
Standards and Approvals. . . . . . . . . . . . . . . . . 150 Restrictions on Copying. . . . . . . . . . . . . . . . . . 151
Transporting the Printer. . . . . . . . . . . . . . . . . . . . 151
Accessing a Memory Card From a Computer. . . . .153
Where to Get Help. . . . . . . . . . . . . . . . . . . . . . . . 154
Technical Support Web Site. . . . . . . . . . . . . . . .154
Contacting Epson Support. . . . . . . . . . . . . . . . 154
7
User's Guide
About This Manual
The latest versions of the following manuals are available from the Epson support website.
http://www.epson.eu/Support (Europe)
http://support.epson.net/ (outside Europe)
Start Here (paper manual)
Provides you with information on setting up the printer and installing the software.
User's Guide (digital manual)
This manual. Provides instructions on using the printer, replacing ink cartridges, maintenance, and solving problems.
Network Guide (digital manual)
Provides information on network settings and solving problems when using the printer on a network.
As well as the manuals above, see the help included in the various Epson software applications.
!Caution:
Instructions that must be followed carefully to avoid bodily injury.
cImportant:
Instructions that must be observed to avoid damage to your equipment.
Note:
Instructions containing useful tips and restrictions on printer operation.
& Related Information
Links to related sections.
Screenshots of the printer driver and the EPSON Scan (scanner driver) screens are from Windows 8.1 or Mac OS X v10.9.x. The content displayed on the screens varies depending on the model and situation.
Illustrations of the printer used in this manual are examples only. Although there may be slight differences depending on the model, the method of operation is the same.
Some of the menu items on the LCD screen vary depending on the model and settings.
8
User's Guide
About This Manual
Windows
In this manual, terms such as "Windows 8.1", "Windows 8", "Windows 7", "Windows Vista", and "Windows XP" refer to the following operating systems. Additionally, "Windows" is used to refer to all versions.
Microsoft® Windows® 8.1 operating system
Microsoft® Windows® 8 operating system
Microsoft® Windows® 7 operating system
Microsoft® Windows Vista® operating system
Microsoft® Windows® XP operating system
Microsoft® Windows® XP Professional x64 Edition operating system
Mac OS X
In this manual, "Mac OS X v10.9.x" refers to "OS X Mavericks" and "Mac OS X v10.8.x" refers to "OS X Mountain Lion". Additionally, "Mac OS X" is used to refer to "Mac OS X v10.9.x", "Mac OS X v10.8.x", "Mac OS X v10.7.x" and "Mac OS X v10.6.x".
9
User's Guide
Important Instructions
Read and follow these instructions to ensure safe use of this printer. Make sure you keep this manual for future reference. Also, be sure to follow all warnings and instructions marked on the printer.
Use only the power cord supplied with the printer and do not use the cord with any other equipment. Use of other cords with this printer or the use of the supplied power cord with other equipment may result in fire or electric shock.
Be sure your AC power cord meets the relevant local safety standard.
Never disassemble, modify, or attempt to repair the power cord, plug, printer unit, scanner unit, or options by yourself, except as specifically explained in the printer's manuals.
Unplug the printer and refer servicing to qualified service personnel under the following conditions:
The power cord or plug is damaged; liquid has entered the printer; the printer has been dropped or the casing damaged; the printer does not operate normally or exhibits a distinct change in performance. Do not adjust controls that are not covered by the operating instructions.
Place the printer near a wall outlet where the plug can be easily unplugged.
Do not place or store the printer outdoors, near excessive dirt or dust, water, heat sources, or in locations subject to shocks, vibrations, high temperature or humidity.
Take care not to spill liquid on the printer and not to handle the printer with wet hands.
Keep the printer at least 22 cm away from cardiac pacemakers. Radio waves from this printer may adversely affect the operation of cardiac pacemakers.
If the LCD screen is damaged, contact your dealer. If the liquid crystal solution gets on your hands, wash them thoroughly with soap and water. If the liquid crystal solution gets into your eyes, flush them immediately with water. If discomfort or vision problems remain after a thorough flushing, see a doctor immediately.

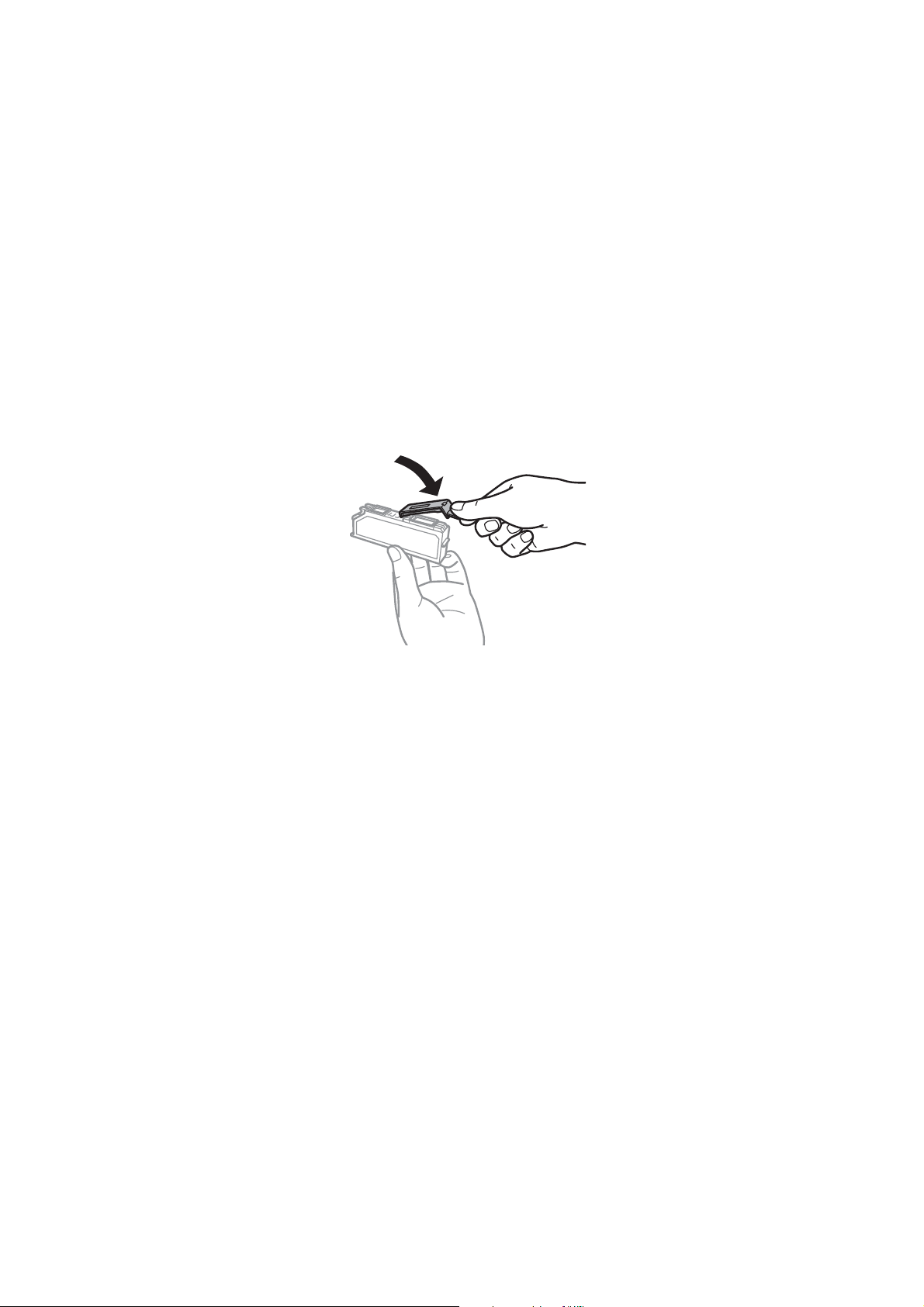

Be careful when you handle used ink cartridges, as there may be some ink around the ink supply port.
If ink gets on your skin, wash the area thoroughly with soap and water.
If ink gets into your eyes, flush them immediately with water. If discomfort or vision problems continue after a thorough flushing, see a doctor immediately.
If ink gets into your mouth, see a doctor right away.
Do not disassemble the ink cartridge; otherwise ink may get into your eyes or on your skin.
Do not shake ink cartridges too vigorously and do not drop them. Also, be careful not to squeeze them or tear their labels. Doing so may cause ink leakage.
Keep ink cartridges out of the reach of children.
Read and follow these instructions to avoid damaging the printer or your property. Make sure you keep this manual for future reference.
10
User's Guide
Important Instructions
Do not block or cover the vents and openings in the printer.
Use only the type of power source indicated on the printer's label.
Avoid using outlets on the same circuit as photocopiers or air control systems that regularly switch on and off.
Avoid electrical outlets controlled by wall switches or automatic timers.
Keep the entire computer system away from potential sources of electromagnetic interference, such as loudspeakers or the base units of cordless telephones.
The power-supply cords should be placed to avoid abrasions, cuts, fraying, crimping, and kinking. Do not place objects on top of the power-supply cords and do not allow the power-supply cords to be stepped on or run over. Be particularly careful to keep all the power-supply cords straight at the ends and the points where they enter and leave the transformer.
If you use an extension cord with the printer, make sure that the total ampere rating of the devices plugged into the extension cord does not exceed the cord's ampere rating. Also, make sure that the total ampere rating of all devices plugged into the wall outlet does not exceed the wall outlet's ampere rating.
If you plan to use the printer in Germany, the building installation must be protected by a 10 or 16 amp circuit breaker to provide adequate short-circuit protection and over-current protection for the printer.
When connecting the printer to a computer or other device with a cable, ensure the correct orientation of the connectors. Each connector has only one correct orientation. Inserting a connector in the wrong orientation may damage both devices connected by the cable.
Place the printer on a flat, stable surface that extends beyond the base of the printer in all directions. The printer will not operate properly if it is tilted at an angle.
When storing or transporting the printer, avoid tilting it, placing it vertically, or turning it upside down; otherwise ink may leak.
Allow space above the printer so that you can fully raise the document cover.
Leave enough space in front of the printer for the paper to be fully ejected.
Avoid places subject to rapid changes in temperature and humidity. Also, keep the printer away from direct sunlight, strong light, or heat sources.
Do not insert objects through the slots in the printer.
Do not put your hand inside the printer during printing.
Do not touch the white flat cable inside the printer.
Do not use aerosol products that contain flammable gases inside or around the printer. Doing so may cause fire.
Do not move the print head by hand; otherwise, you may damage the printer.
Be careful not to trap your fingers when closing the scanner unit.
Do not press too hard on the scanner glass when placing the originals.
Always turn the printer off using the P button. Do not unplug the printer or turn off the power at the outlet until the P light stops flashing.
Before transporting the printer, make sure that the print head is in the home (far right) position and the ink cartridges are in place.
If you are not going to use the printer for a long period, be sure to unplug the power cord from the electrical outlet.
11
User's Guide
Important Instructions
Radio waves from this printer may negatively affect the operation of medical electronic equipment, causing them to malfunction. When using this printer inside medical facilities or near medical equipment, follow directions from the authorized personnel representing the medical facilities, and follow all posted warnings and directions on the medical equipment.
Radio waves from this printer may negatively affect the operation of automatically controlled devices such as automatic doors or fire alarms, and could lead to accidents due to malfunction. When using this printer near automatically controlled devices, follow all posted warnings and directions on these devices.
Do not remove a memory card or turn off the printer while the memory card light is flashing.
The methods for using memory cards vary according to card type. Be sure to refer to the manual packaged with your memory card for details.
Use only memory cards compatible with the printer.
Related Information
& “Supported Memory Card Specifications” on page 146
The LCD screen may contain a few small bright or dark spots, and because of its features it may have an uneven brightness. These are normal and do not indicate that it is damaged in any way.
Only use a dry, soft cloth for cleaning. Do not use liquid or chemical cleaners.
The exterior cover of the touchpad could break if it receives a heavy impact. Contact your dealer if the touchpad's surface chips or cracks, and do not touch or attempt to remove the broken pieces.
Press the touchpad gently with your finger. Do not press forcefully or operate with your nails.
The touchpad is a capacitive touch panel, which responds only when touched directly with a finger. The panel may not respond when touched with wet hands, gloved hands, or touched through a protective sheet or sticker.
Do not operate using sharp objects such as a ball point pen, pencil and so on.
Condensation inside the touchpad due to abrupt changes in temperature or humidity may cause performance to deteriorate.
When you give the printer to someone else or dispose of it, erase all the personal information stored in the printer's memory by selecting Setup > Restore Default Settings > All Settings on the control panel.
12
User's Guide
Printer Basics
A |
Control Panel |
Operates the printer. |
|
|
|
B |
CD/DVD tray |
Place a CD/DVD for label printing. This should usually |
|
|
be stored on the bottom of the printer. |
|
|
|
A |
Ink cartridge holder |
Install the ink cartridges. Ink is ejected from the print |
|
|
head nozzles underneath. |
|
|
|
B |
Output tray |
Holds the ejected paper. Pull out manually and push it |
|
|
back in to store. |
|
|
|
13
User's Guide
Printer Basics
A |
Paper cassette 1 |
Loads paper. |
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
B |
Paper cassette 2 |
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
C |
Front cover |
Open to load paper in the paper cassette. |
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
D |
Edge guide |
Feeds the paper straight into the printer. Slide to the |
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
edges of the paper. |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A |
Document cover |
Blocks external light while scanning. |
|
|
|
B |
Scanner glass |
Place the originals. |
|
|
|
C |
Scanner unit |
Scans placed originals. Open to replace ink cartridges |
|
|
or to remove jammed paper. This unit should usually be |
|
|
kept closed. |
|
|
|
D |
Memory card slot |
Insert a memory card. |
|
|
|
14
User's Guide
|
|
|
|
|
|
Printer Basics |
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
E |
External interface USB port |
|
|
|
|
|
|
|
|
Connects an external storage device or a PictBridge |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
capable device. |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A |
AC inlet |
Connects the power cord. |
|
|
|
B |
Rear cover |
Remove when removing jammed paper. |
|
|
|
C |
Vent |
Releases heat from the inside of the printer. Vents are |
|
|
on the bottom right, bottom left, and on the right-hand |
|
|
side. Do not cover the vents when placing the printer. |
|
|
|
D |
USB port |
Connects a USB cable. |
|
|
|
You can change the angle of the control panel.
15
User's Guide
Printer Basics
Available buttons light up.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A |
|
|
|
|
Turns the printer on or off. |
|||||||||||
|
|
|
|
|
Do not turn off while the power light is flashing (while the printer is operating or processing |
|||||||||||
|
|
|
|
|
data). |
|||||||||||
|
|
|
|
|
Unplug the power cord when the power light is off. |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
||||||
B |
|
|
|
|
Displays the home screen. |
|||||||||||
|
|
|
|
|
|
|
|
|
||||||||
C |
u d l r OK |
|
Use the u d l r buttons to select a menu, and then press the OK button to open the selected |
|||||||||||||
|
|
|
|
|
menu. |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
||||||
D |
|
|
|
|
Selects the number of pages to print. |
|||||||||||
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
||||||
E |
|
|
|
|
Stops the current operation. |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
||||||
F |
|
|
|
|
Displays menus such as CD/DVD label printing and copying. |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
||||||
G |
|
|
|
|
Returns to the previous screen. |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
||||||
H |
|
|
|
|
Starts an operation such as printing or copying. |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Menus and messages are displayed on the LCD screen. Select a menu or setting by pressing the u d l r buttons.
To learn the meaning of the icons, press l or r to select Help, and then select Icon List.
A Icons that show the network status are displayed.
16
User's Guide
|
Printer Basics |
|
|
B |
When l and r are displayed, you can scroll right or left. |
|
|
C |
Available buttons are displayed. In this example, you can proceed to the next screen by pressing the OK button, and |
|
select another menu by pressing the l or r button. |
|
|
D |
The name of the screen displayed. |
|
|
E |
When u and d are displayed, you can scroll up or down. |
|
|
Copy Mode Top Screen
Menu |
Settings and Explanations |
|
|
The number of |
Enter the number of copies. |
copies |
|
|
|
Color/B&W |
Select the color for copying. |
|
|
Menu Options for Copy
To access the following menus, press the d button on the Copy mode top screen, select Paper and Copy Settings using the u or d button, and then press the OK button.
Menu |
Settings and Explanations |
|
|
|
|
Density |
Set the density of your copies. Increase the level of density when the copying results are too light. |
|
|
Decrease the level of density when ink smears. |
|
|
|
|
2-Sided Copying |
1>1-Sided |
Copies one side of an original onto a single side of paper. |
|
|
|
|
1>2-Sided |
Copies two single-sided originals onto both sides of a single sheet of paper. |
|
|
|
Layout |
With Border |
Copies with margins around the edges. |
|
|
|
|
Borderless |
Copies without margins around the edges. The image is enlarged a little to |
|
|
remove borders from the edges of the paper. |
|
|
|
|

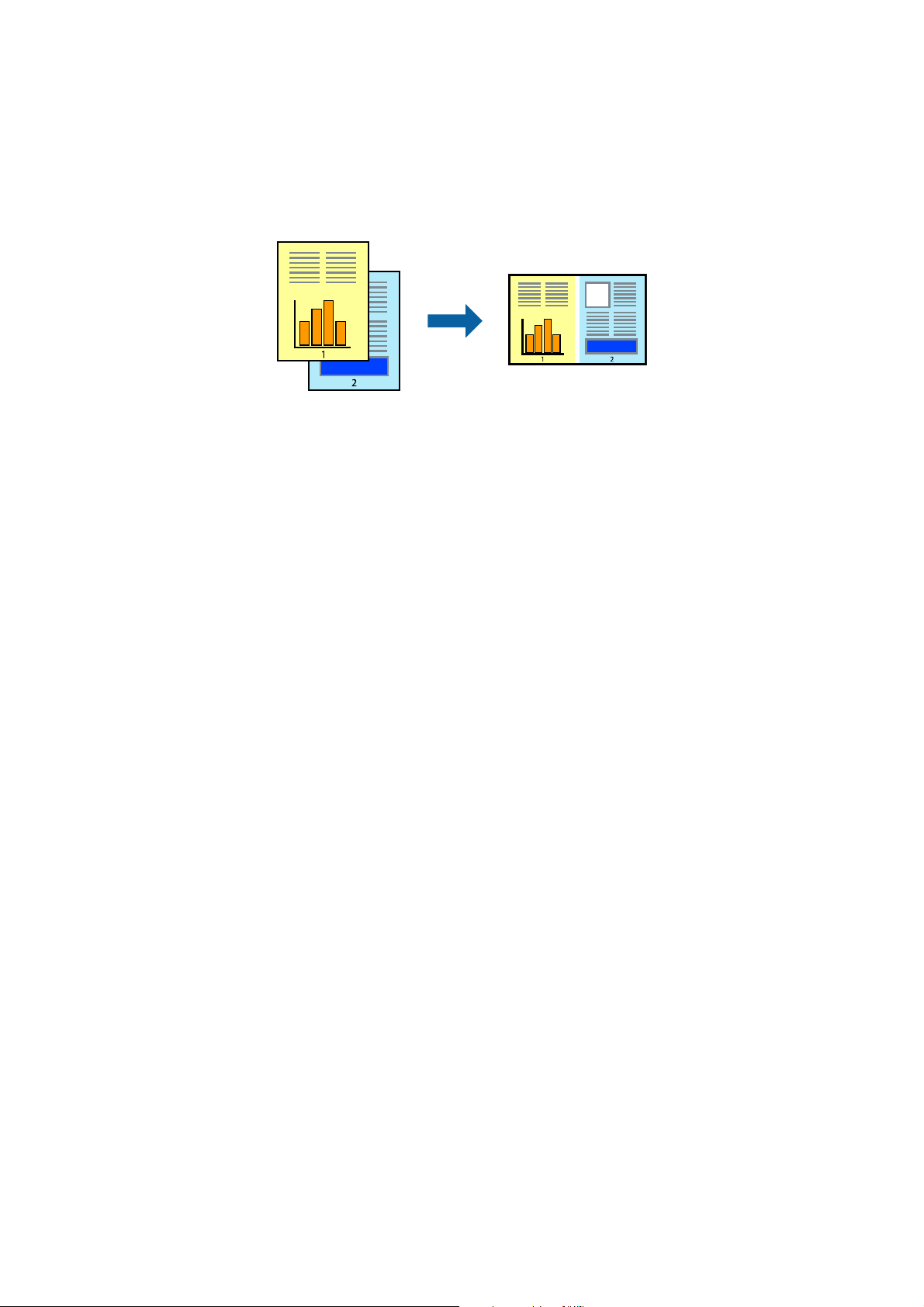

A4, 2-up Copy |
Copies two single-sided originals onto a single sheet of A4 size paper in 2-up |
|
|
layout. |
|
|
|
|
A4, Book/2-up |
Copies two facing pages of a book and so on onto a single sheet of A4 size |
|
|
paper in 2-up layout. |
|
|
|
|
Book/2-Sided |
Copies two separate pages of a book and so on onto both sides of a single |
|
|
sheet of paper. Only available when 1>2-Sided is selected as the 2-sided |
|
|
copying setting. |
|
|
|
17
User's Guide
Printer Basics
Menu |
Settings and Explanations |
||||||||
|
|
|
|
|
|
|
|
|
|

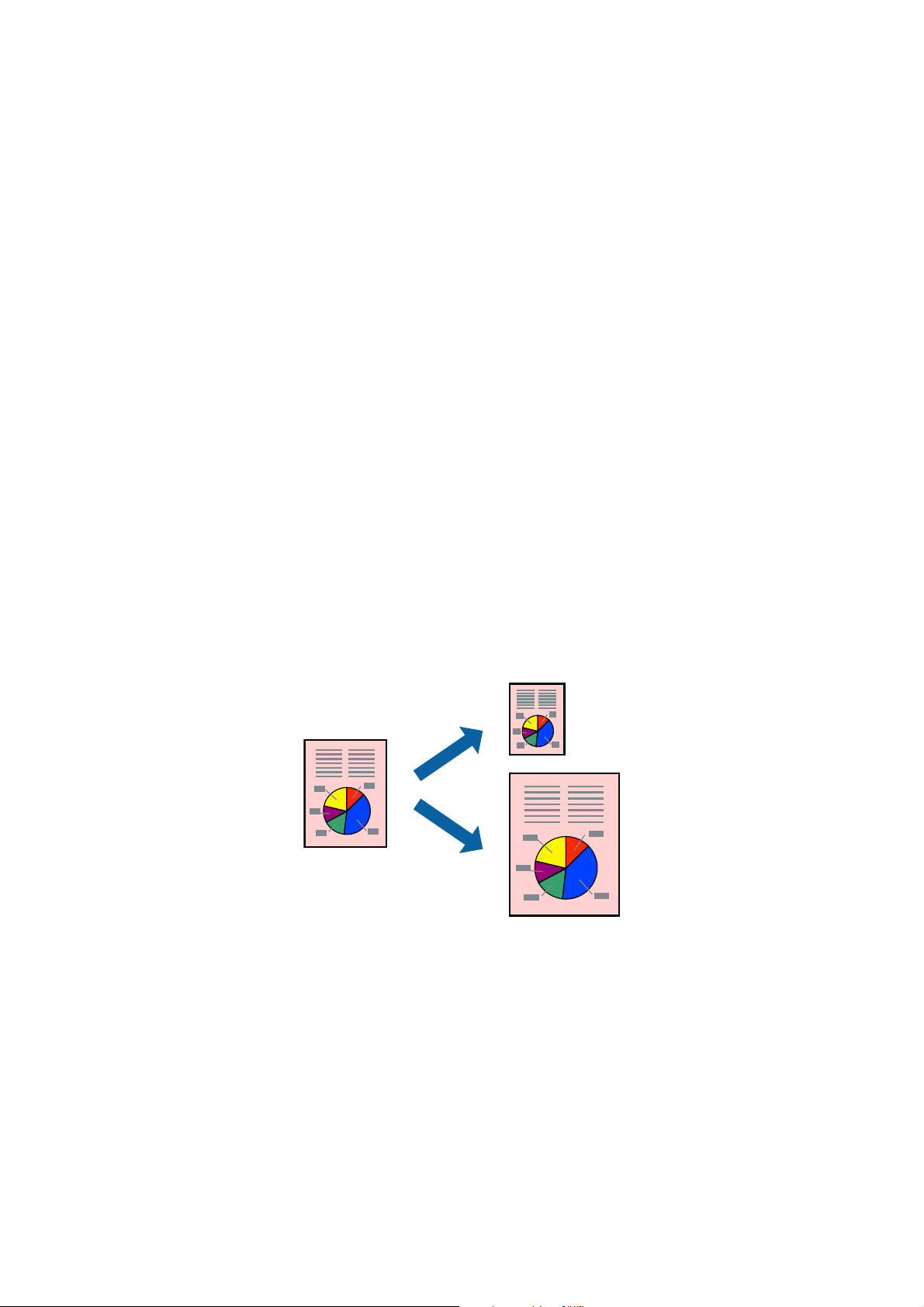

Reduce/Enlarge |
Enlarges or reduces the original. |
||||||||
|
Auto Fit Page: All areas that include text and images in the original as well as the space from the |
||||||||
|
corner mark are scanned, and the scanned data is enlarged or reduced to fit to the selected paper |
||||||||
|
size. |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Custom Size (%): Specifies the magnification to enlarge or reduce the original. |
|
|
Paper Size |
Select the paper size you loaded. |
|
|
Paper Type |
Select the paper type you loaded. |
|
|
Paper Source |
Select the paper source that you want to use. |
|
|
Document Type |
Select the type of your original. |
|
|
Quality |
Select the quality for copying. |
|
Draft: Provides faster printing, but the printouts may be faint. |
|
Best: Provides higher quality printing, but the printing speed may be slower. |
|
|
Document |
Select the orientation of your original. |
Orientation |
|
|
|
Binding Margin |
Select the binding position of the copies. |
|
|
Expansion |
With borderless printing, the image is enlarged a little to remove borders from the edges of the |
|
paper. Select how much to enlarge the image. |
|
|
Dry Time |
Select the drying time for 2-sided copying. Increase the level of drying time when ink smears. |
Menu Options for Print Photos
To access the following menus, press the d button when a photo is displayed on a screen.
Menu |
Settings and Explanations |
|
|
|
|
Browse |
Browse by |
Displays the photos on the memory card sorted by date. Select a date to display all photos |
|
Date |
saved on that date. |
|
|
|
|
Cancel |
Cancels sorting photos and displays all the photos. |
|
Browse |
|
|
|
|
18
User's Guide
|
|
Printer Basics |
|||
|
|
|
|
|
|
Menu |
Settings and Explanations |
|
|||
|
|
|
|
||
Select |
Select All |
Select all the photos on the memory card and set the number of prints. |
|||
Photos |
Photos |
|
|
|
|
|
|
|
|
||
|
Cancel |
Returns the number of copies of all photos to 0 (zero). |
|||
|
Photo |
|
|
|
|
|
Selection |
|
|
|
|
|
|
|
|
||
Display |
1-up |
Displays one photo on a screen. Information on settings, such as zoom, is also displayed. |
|||
Mode |
|
|
|
|
|
1-up |
Displays one photo on a screen. Information on settings, such as zoom, is not displayed. |
||||
|
|||||
|
without |
|
|
|
|
|
Informatio |
|
|
|
|
|
n |
|
|
|
|
|
|
|
|
|
|
|
9-up |
Displays nine photos on a screen. |
|
||
|
|
|
|
|
|
Paper Size |
Select the paper size you loaded. |
|
|||
Settings |
|
|
|
|
|
Paper Type |
Select the paper type you loaded. |
|
|||
|
|
||||
|
|
|
|
||
|
Paper |
Select the paper source that you want to use. |
|||
|
Source |
|
|
|
|
|
|
|
|
||
|
Borderless |
Prints without margins around the edges. The image is enlarged a little to remove borders |
|||
|
|
from the edges of the paper. |
|
||
|
|
|
|
||
|
Quality |
Select the print quality. Selecting Best provides higher quality printing, but the printing |
|||
|
|
speed may be slower. |
|
||
|
|
|
|
||
|
Expansion |
With borderless printing, the image is enlarged a little to remove borders from the edges of |
|||
|
|
the paper. Select how much to enlarge the image. |
|||
|
|
|
|
||
|
Date |
Select a date format to print photos with a date. The date is not printed for some layouts or if |
|||
|
|
date information is not included in the photo data. |
|||
|
|
|
|
|
|
|
Print Info. |
Camera Text |
|
Prints text set on the digital camera. For information on the |
|
|
On Photos |
|
|
text settings, see the documentation provided with your |
|
|
|
|
|
camera. |
|
|
|
|
|
|
|
|
|
Landmark |
|
Prints the name of the place or landmark where the photo |
|
|
|
|
|
was taken for digital cameras that have the landmark |
|
|
|
|
|
feature. See the website of the manufacturer of your |
|
|
|
|
|
camera for more details. The information can only be |
|
|
|
|
|
printed in borderless printing. |
|
|
|
|
|
||
|
Fit Frame |
Trims your photo. This may not be available for panorama photos. The photo is always |
|||
|
|
trimmed in Borderless printing. |
|
||
|
|
|
|
||
|
|
On |
|
Crops the top and bottom or left and right of the image. |
|
|
|
|
|
|
|
|
|
Off |
|
Creates margins on the left and right or top and bottom of |
|
|
|
|
|
the image. |
|
|
|
|
|
||
|
Bidirection |
Prints while the print head moves to the left and to the right. Selecting Off (prints while |
|||
|
al |
moving in one direction) provides higher quality printing, but the printing speed may be |
|||
|
|
slower. |
|
||
|
|
|
|
|
19
User's Guide
|
|
|
|
|
Printer Basics |
|
|
|
|
|
|
Menu |
|
Settings and Explanations |
|||
|
|
|
|
|
|
Photo |
|
Enhance |
Select one of the image adjustment options. |
||
Adjustment |
|
|
|
|
PhotoEnhance: Produces sharper images and more vivid colors by automatically adjusting |
s |
|
|
|
|
|
|
|
|
|
the contrast, saturation, and brightness of the original image data. |
|
|
|
|
|
|
|
|
|
|
|
|
P.I.M.: Adjusts the image based on the printing information provided by a digital camera |
|
|
|
|
|
compatible with PRINT Image Matching. |
|
|
|
|
|
|
|
|
Scene |
|
Available when selecting PhotoEnhance as the Enhance setting. Improves the image quality |
|
|
|
Detection |
for photos of people, landscapes, and night scenes. |
||
|
|
|
|
|
|
|
|
Fix Red-Eye |
Fixes red-eye in photos. Corrections are not applied to the original file, only to the printouts. |
||
|
|
|
|
|
Depending on the type of photo, parts of the image other than the eyes may be corrected. |
|
|
|
|
|
|
|
|
Brightness |
Adjusts the brightness of the image. |
||
|
|
|
|
|
|
|
|
Contrast |
Adjusts the difference between the brightness and darkness. |
||
|
|
|
|
|
|
|
|
Sharpness |
Enhances or defocuses the outline of the image. |
||
|
|
|
|
|
|
|
|
Saturation |
Adjusts the vividness of the image. |
||
|
|
|
|
|
|
Filter |
|
Prints in sepia or monochrome. |
|||
|
|
|
|
||
Crop/Zoom |
|
Enlarges a part of the photo to be printed. |
|||
|
|
|
|
|
|
Scan Mode |
|
|
|||
|
|
|
|
||
Menu |
|
|
Settings and Explanations |
||
|
|
|
|||
Scan to Memory |
|
Scans your original and saves the scanned image to the memory card inserted into the printer. You |
|||
Card |
|
|
can change the format, color, or scan area. |
||
|
|
|
|
||
Scan to Cloud |
|
|
Sends the scanned image to the registered destination. Make settings using Epson Connect to use |
||
|
|
|
|
this feature. See the following for details. |
|
|
|
|
|
https://www.epsonconnect.com/ |
|
|
|
|
|
http://www.epsonconnect.eu (Europe only) |
|
|
|
|
|||
Scan to Computer |
|
Saves the scanned image to a computer in JPEG format. |
|||
(JPEG) |
|
|
|
|
|
|
|
|
|||
Scan to Computer |
|
Saves the scanned image to a computer in PDF format. |
|||
(PDF) |
|
|
|
|
|
|
|
|
|||
Scan to Computer |
|
Attaches the scanned image to an email. |
|||
(Email) |
|
|
|
|
|
|
|
|
|||
Scan to Computer |
|
Stores scanned data on a network-connected computer running an English version of Windows 8.1, |
|||
(WSD) |
|
|
Windows 8, Windows 7, or Windows Vista. |
||
|
|
|
|
|
|
Menu Options for Scan
The following menus are only available for Scan to Memory Card and Scan to Cloud.
Menu |
Settings and Explanations |
|
|
Format |
Select the format in which to save the scanned image. |
|
|
20
User's Guide
|
Printer Basics |
|
|
Menu |
Settings and Explanations |
|
|
Color |
Select whether to scan in color or in monochrome. |
|
|
Scan Area |
Select the scan area. |
|
Auto Cropping: Crops the white space around the text or image when scanning. |
|
Max Area: Scans at the maximum scan area of the scanner glass. |
|
Select this setting and scan again if the edges of the scanned image are cropped when A4 is selected. |
|
|
Document |
Select the type of your original. |
|
|
Resolution |
Select the scanning resolution. |
|
|
Contrast |
Select the contrast of the scanned image. |
|
|
Document |
Select the orientation of your original. This is only available when PDF is selected as the save format. |
Orientation |
|
|
|
See the Network Guide to make the following settings.
Menu |
Settings and Explanations |
|
|
Wi-Fi Setup Wizard |
Select an SSID, enter a password, and then connect the printer to a wireless (Wi-Fi) network. |
|
|
Push Button Setup |
Connect the printer to a wireless network by using the WPS button on your wireless router. |
(WPS) |
|
|
|
PIN Code Setup |
In the wireless router utility, enter the PIN code displayed on the printer's screen and connect the |
(WPS) |
printer to a wireless (Wi-Fi) network. |
|
|
Wi-Fi Auto Connect |
Easily connect the printer to a wireless (Wi-Fi) network using a computer connected to the wireless |
|
router. By simply following the on-screen instructions on the computer, you can make the network |
|
settings without entering an SSID or security key. |
|
|
Disable Wi-Fi |
Disables the connection by turning the Wi-Fi off without deleting the network information. To enable |
|
the connection, set up the wireless (Wi-Fi) network again. |
|
|
Wi-Fi Direct Setup |
Connects the printer to a wireless (Wi-Fi) network without a wireless router. |
|
|
Select Quiet Mode using the l or r button on the home screen, and then press the OK button. Prints quietly when enabled. However, the printing speed may be slower.
Copy/Restore Photos
You can copy your printed photos. For more details, see the page that describes the procedure for copying photos.
21
User's Guide
Printer Basics
Menu |
Settings and Explanations |
|
|
Color Restoration |
Restores the colors in faded photos. |
|
|
Menu Options for Copy/Restore Photos
To access the following menus, press the d button when a scanned photo is displayed on a screen.
Menu |
Settings and Explanations |
||
|
|
|
|
Display Mode |
1-up |
|
Displays one photo on a screen. Information on settings, such as zoom, is also |
|
|
|
displayed. |
|
|
|
|
|
1-up without |
|
Displays one photo on a screen. Information on settings, such as zoom, is not |
|
Information |
|
displayed. |
|
|
|
|
Paper and Copy |
Paper Size |
|
Select the paper size you loaded. |
Settings |
|
|
|
Paper Type |
|
Select the paper type you loaded. |
|
|
|
||
|
|
|
|
|
Paper Source |
|
Select the paper source that you want to use. |
|
|
|
|
|
Borderless |
|
Copies without margins around the edges. The image is enlarged a little to |
|
|
|
remove borders from the edges of the paper. |
|
|
|
|
|
Expansion |
|
With borderless printing, the image is enlarged a little to remove borders from |
|
|
|
the edges of the paper. Select how much to enlarge the image. |
|
|
|
|
Photo Adjustments |
Enhance |
|
Selecting PhotoEnhance produces sharper images and more vivid colors by |
|
|
|
automatically adjusting the contrast, saturation, and brightness of the original |
|
|
|
image data. |
|
|
|
|
Filter |
Prints in monochrome. |
|
|
|
|
||
Crop/Zoom |
Enlarges a part of the photo to be printed. |
||
|
|
|
|
Photo Layout Sheet
You can print your photos in various layouts, such as printing multiple photos on a sheet of photo paper.
20-up: The serial number or date is printed below each photo.
Sticker 16-up: Select when printing on photo stickers.
P.I.F. is displayed if you have a P.I.F. frame on your memory card.
Menu |
Settings and Explanations |
|
|
|
|
|
|
Paper Size |
Select the paper size you loaded. |
||
|
|
|
|
Paper Type |
Select the paper type you loaded. |
||
|
|
|
|
Layout |
Select how to place the photos. |
|
|
Method |
|
|
|
Automatic Layout |
|
Photos are placed automatically using the selected layout. If the number of |
|
|
|
||
|
|
|
selected photos is less than that of the selected layout, blank spaces appear |
|
|
|
on the printout. |
|
|
|
|
|
Place Photos Manually |
|
Manually place the photos in a selected layout. Selecting Leave Blank |
|
|
|
provides a blank space in the printout. |
|
|
|
|
22
User's Guide
Printer Basics
Menu Options for Photo Layout Sheet
The method of accessing the following menus varies depending on the Layout Method. When Automatic Layout is selected: Press the d button when selecting photos.
When Place Photos Manually is selected: Select Menu using the u or d button, and then press the OK button.
Menu |
Settings and Explanations |
|
|||
|
|
|
|
||
Browse |
Browse by |
Displays the photos on the memory card sorted by date. Select a date to display all photos |
|||
|
Date |
saved on that date. |
|
||
|
|
|
|
||
|
Cancel |
Cancels sorting photos and displays all the photos. |
|||
|
Browse |
|
|
|
|
|
|
|
|
||
Select |
Select All |
Select all the photos on the memory card and set the number of prints. |
|||
Photos |
Photos |
|
|
|
|
|
|
|
|
||
|
Cancel |
Returns the number of copies of all photos to 0 (zero). |
|||
|
Photo |
|
|
|
|
|
Selection |
|
|
|
|
|
|
|
|
||
Display |
1-up |
Displays one photo on a screen. Information on settings, such as zoom, is also displayed. |
|||
Mode |
|
|
|
|
|
1-up |
Displays one photo on a screen. Information on settings, such as zoom, is not displayed. |
||||
|
|||||
|
without |
|
|
|
|
|
Informatio |
|
|
|
|
|
n |
|
|
|
|
|
|
|
|
|
|
|
9-up |
Displays nine photos on a screen. |
|
||
|
|
|
|
||
Paper |
Select the paper source that you want to use. |
||||
Settings |
Source |
|
|
|
|
|
|
|
|
||
|
Quality |
Select the print quality. Selecting Best provides higher quality printing, but the printing |
|||
|
|
speed may be slower. |
|
||
|
|
|
|
||
|
Expansion |
With borderless printing, the image is enlarged a little to remove borders from the edges of |
|||
|
|
the paper. Select how much to enlarge the image. |
|||
|
|
|
|
||
|
Date |
Select a date format to print photos with a date. The date is not printed for some layouts or if |
|||
|
|
date information is not included in the photo data. |
|||
|
|
The date is printed automatically when selecting 20-up. The date used is the date the photo |
|||
|
|
was taken or the date you saved the photo data. |
|||
|
|
|
|
||
|
Fit Frame |
Trims your photo. This may not be available for panorama photos. The photo is always |
|||
|
|
trimmed in Borderless, Upper 1/2, or Lower 1/2 printing. |
|||
|
|
|
|
|
|
|
|
On |
|
Crops the top and bottom or left and right of the image. |
|
|
|
|
|
|
|
|
|
Off |
|
Creates margins on the left and right or top and bottom of |
|
|
|
|
|
the image. |
|
|
|
|
|
||
|
Bidirection |
Prints while the print head moves to the left and to the right. Selecting Off (prints while |
|||
|
al |
moving in one direction) provides higher quality printing, but the printing speed may be |
|||
|
|
slower. |
|
||
|
|
|
|
|
23
User's Guide
|
|
Printer Basics |
|
|
|
Menu |
Settings and Explanations |
|
|
|
|
Photo |
Enhance |
Select one of the image adjustment options. |
Adjustment |
|
PhotoEnhance: Produces sharper images and more vivid colors by automatically adjusting |
s |
|
|
|
the contrast, saturation, and brightness of the original image data. |
|
|
|
|
|
|
P.I.M.: Adjusts the image based on the printing information provided by a digital camera |
|
|
compatible with PRINT Image Matching. |
|
|
|
|
Scene |
Available when selecting PhotoEnhance as the Enhance setting. Improves the image quality |
|
Detection |
for photos of people, landscapes, and night scenes. |
|
|
|
|
Fix Red-Eye |
Fixes red-eye in photos. Corrections are not applied to the original file, only to the printouts. |
|
|
Depending on the type of photo, parts of the image other than the eyes may be corrected. |
|
|
|
|
Brightness |
Adjusts the brightness of the image. |
|
|
|
|
Contrast |
Adjusts the difference between the brightness and darkness. |
|
|
|
|
Sharpness |
Enhances or defocuses the outline of the image. |
|
|
|
|
Saturation |
Adjusts the vividness of the image. |
|
|
|
Filter |
Prints in sepia or monochrome. |
|
|
|
|
Crop/Zoom |
Enlarges a part of the photo to be printed. |
|
|
|
|
Print Photo Greeting Card
You can add handwritten text to a photo or print as photo stickers. For more details, see the page that explains the procedure for printing a greeting card.

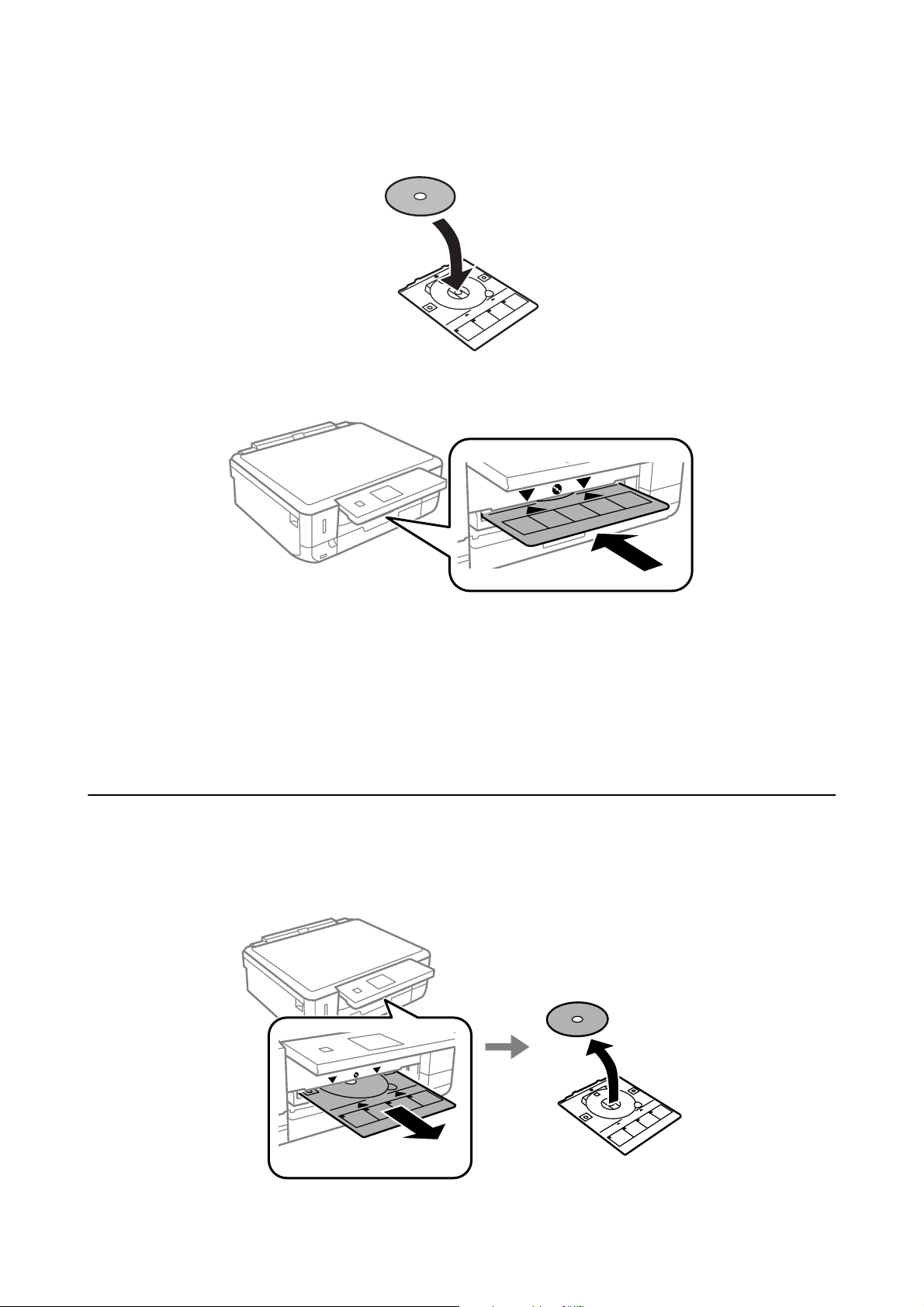

Copy to CD/DVD
You can copy your photo or CD/DVD label onto a CD/DVD. For more details, see the page that explains the procedure for copying on a CD/DVD.
Menu |
Settings and Explanations |
|
|
Outer/Inner |
Specify the print range. Up to 120 mm for the outer diameter, and a minimum of 18 mm for the inner |
|
diameter can be specified. Depending on the setting, the CD/DVD or CD/DVD tray may get dirty. Set |
|
the range to fit the printable area of your CD/DVD. |
|
|
Select an Option |
Select whether to print a test on A4 size plain paper or print on a CD/DVD. |
|
|
Color/B&W |
Select the color for copying. |
|
|
Menu Options for Copy to CD/DVD
To access the following menus, press the d button when selecting a color for copying.
24
User's Guide
|
|
Printer Basics |
|
|
|
Menu |
Settings and Explanations |
|
|
|
|
Paper and Copy |
Density |
Set the density of your copies. Increase the level of density when the copying |
Settings |
|
results are too light. Decrease the level of density when ink smears. |
|
|
|
|
Document Type |
Select the type of your original. |
|
|
|
|
Quality |
Select the quality for copying. Best is only available when selecting Print on a |
|
|
CD/DVD. |
|
|
Standard: Provides faster printing, but the printouts may be faint. |
|
|
Best: Provides higher quality printing, but the printing speed may be slower. |
|
|
|
Preview |
Shows a scanned image to preview the copy results. |
|
|
|
|
Print on CD/DVD
You can print a photo from your memory card onto a CD/DVD. For more details, see the page that explains the procedure for printing on a CD/DVD.
Menu |
Settings and Explanations |
|||
|
|
|
|
|
Layout |
Select the layout you want to use to print onto a CD/DVD. CD/DVD Variety automatically lays out the |
|||
|
10 photos you selected. |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Layout Method |
Select how to place the photos. |
|
|
|
|
|
Automatic Layout |
Photos are placed automatically using the selected layout. If the number of |
|
|
selected photos is less than that of the selected layout, blank spaces appear |
|
|
on the printout. |
|
|
|
|
Place Photos |
Manually place the photos in the selected layout. Selecting Leave Blank |
|
Manually |
provides a blank space on the printout. |
|
|
|
Menu Options for Print on CD/DVD
The method of accessing the following menus varies depending on the Layout Method. When Automatic Layout is selected: Press the d button when selecting photos.
When Place Photos Manually is selected: Select Menu using u or d button, and then press the OK button.
Menu |
Settings and Explanations |
|
|
|
|
Browse |
Browse by |
Displays the photos on the memory card sorted by date. Select a date to display all photos |
|
Date |
saved on that date. |
|
|
|
|
Cancel |
Cancels sorting photos and displays all the photos. |
|
Browse |
|
|
|
|
25
User's Guide
|
|
Printer Basics |
|
|
|
|
|
Menu |
Settings and Explanations |
||
|
|
|
|
Display |
1-up |
Displays one photo on a screen. Information on settings, such as zoom, is also displayed. |
|
Mode |
|
|
|
1-up |
Displays one photo on a screen. Information on settings, such as zoom, is not displayed. |
||
|
|||
|
without |
|
|
|
Informatio |
|
|
|
n |
|
|
|
|
|
|
|
9-up |
Displays nine photos on a screen. |
|
|
|
|
|
CD Density |
Set the density of your copies. Increase the level of density when the copying results are too |
||
Settings |
|
light. Decrease the level of density when ink smears. |
|
|
|
|
|
Photo |
Enhance |
Select one of the image adjustment options. |
|
Adjustment |
|
PhotoEnhance: Produces sharper images and more vivid colors by automatically adjusting |
|
s |
|
||
|
the contrast, saturation, and brightness of the original image data. |
||
|
|
||
|
|
P.I.M.: Adjusts the image based on the printing information provided by a digital camera |
|
|
|
compatible with PRINT Image Matching. |
|
|
|
|
|
|
Scene |
Available when selecting PhotoEnhance as the Enhance setting. Improves the image quality |
|
|
Detection |
for photos of people, landscapes, and night scenes. |
|
|
|
|
|
|
Fix Red-Eye |
Fixes red-eye in photos. Corrections are not applied to the original file, only to the printouts. |
|
|
|
Depending on the type of photo, parts of the image other than the eyes may be corrected. |
|
|
|
|
|
|
Brightness |
Adjusts the brightness of the image. |
|
|
|
|
|
|
Sharpness |
Enhances or defocuses the outline of the image. |
|
|
|
|
|
|
Saturation |
Adjusts the vividness of the image. |
|
|
|
|
|
Filter |
Prints in sepia or monochrome. |
||
|
|
||
Crop/Zoom |
Enlarges a part of the photo to be printed. |
||
|
|
|
To access the following menus, press the OK button when you have finished selecting photos.
Menu |
Settings and Explanations |
|
|
Outer/Inner |
Specify the print range. Up to 120 mm for the outer diameter, and a minimum of 18 mm for the inner |
|
diameter can be specified. Depending on the setting, the CD/DVD or CD/DVD tray may get dirty. Set |
|
the range to fit the printable area of your CD/DVD. |
|
|
Select Media |
Select whether to print a test on A4 size plain paper or print on a CD/DVD. |
|
|

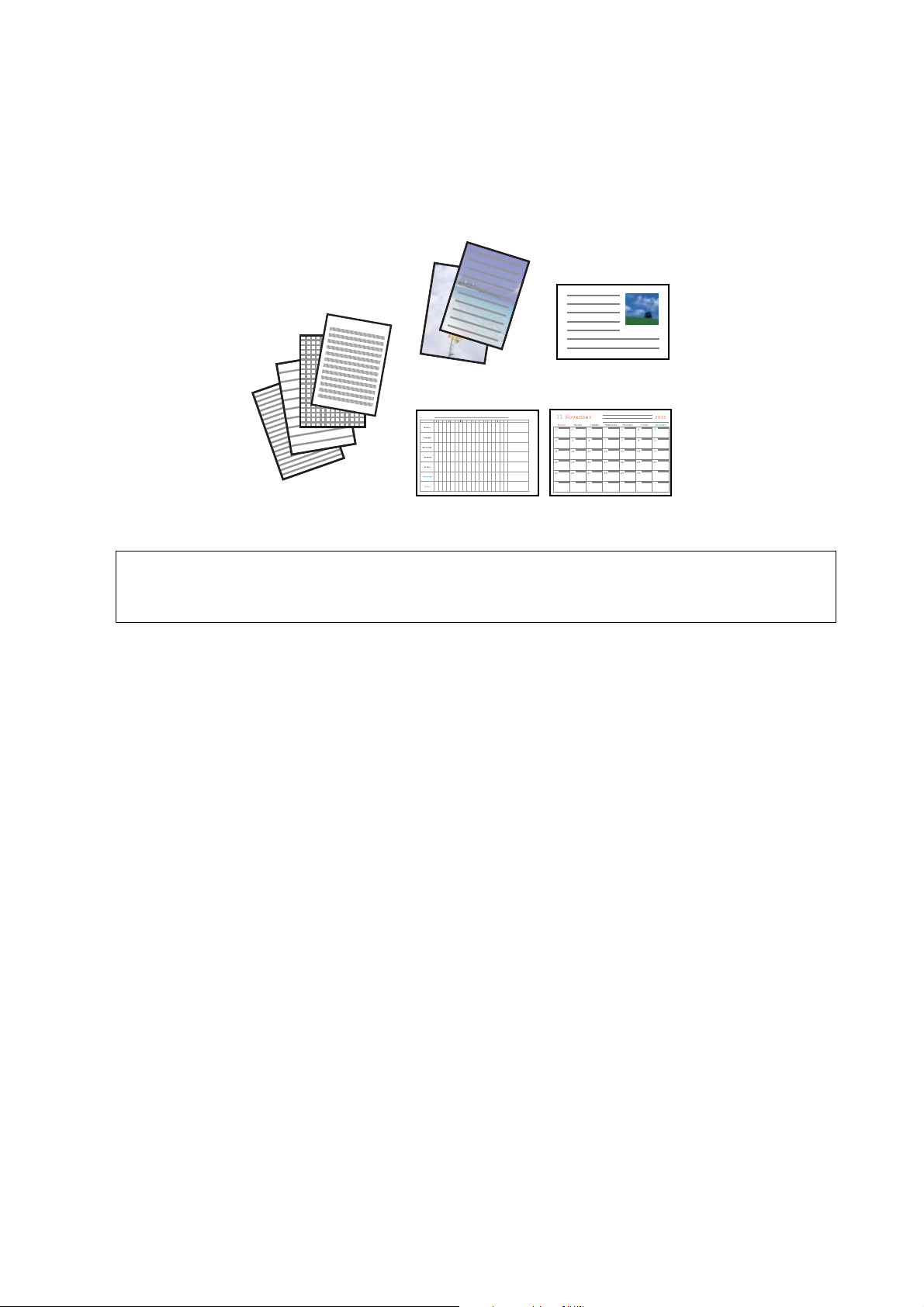

Personal Stationery
You can print lined paper and calenders or create your own writing paper and message cards.
Menu |
Settings and Explanations |
|
|
Lined Papers |
Prints some types of lined paper, graph paper, or music paper on A4 size paper. |
|
|
Writing Papers |
Prints some types of writing paper on A4 size paper with a photo from the memory card set as the |
|
background. The photo is printed lightly so that it can be easily written on. |
|
|
Calendar |
Prints a weekly or monthly calender on A4 size paper. Select the period for the monthly calender. |
|
|
26
User's Guide
|
|
|
|
|
Printer Basics |
|
|
|
|
|
|
||
Menu |
|
Settings and Explanations |
||||
|
|
|
|
|
||
Message Card |
|
Prints a greeting card on A4 size paper using images stored on the printer or images on a memory |
||||
|
|
card. |
|
|
|
|
|
|
|
|
|
|
|
Origami |
|
Origami Envelope |
|
Prints a diagram of an envelope on A4 size paper using images stored on the |
||
|
|
|
|
|
printer. Enable Fold Line to print fold lines on the diagram of the envelope. |
|
|
|
|
|
|
|
|
|
|
Origami Envelope |
|
Prints a sheet that explains how to fold the diagram of the envelope on A4 size |
||
|
|
Instruction |
|
paper. Place the sheet on top of the diagram and fold both sheets together. |
||
|
|
|
|
|
For more details, see the page that describes the procedure for creating |
|
|
|
|
|
|
envelopes. |
|
|
|
|
|
|
|
|
Menu Options for Personal Stationery |
|
|||||
|
|
|
|
|||
Menu |
Settings and Explanations |
|
||||
|
|
|
||||
Message |
Paper Type |
Select the paper type you loaded. |
||||
Card |
|
|
|
|
|
|
Select from |
Select an image to print on the greeting card. |
|||||
|
||||||
|
|
|
||||
|
Layout |
Select whether to print the greeting card in 2-up or 4-up layout. |
||||
|
|
|
||||
|
To access the following menus, such as Image Position, press the d button after selecting images. |
|||||
|
|
|
||||
|
Image |
Select where to place the image on the greeting card. |
||||
|
Position |
|
|
|
||
|
|
|
||||
|
Line Type |
Select the type of ruled line to print on the greeting card. |
||||
|
|
|
||||
|
Line Color |
Select the color of the ruled line to print on the greeting card. |
||||
|
|
|
||||
|
Layout |
Select whether to print the greeting card in 2-up or 4-up layout. |
||||
|
method |
|
|
|
||
|
|
|
||||
Origami |
Fold Line |
Select whether to print fold lines on the diagram of the envelope. |
||||
|
|
|
||||
|
Image |
Select where to place the image on the envelope. |
||||
|
Position |
|
|
|
||
|
|
|
||||
|
Envelope |
Select the size of the envelope. |
||||
|
size |
|
|
|
||
|
|
|
|
|
|
Coloring Book
You can create a coloring sheet by extracting only the outline of photos or illustrations. Scan a photo or select a photo on your memory card to print a coloring book.
Menu Options for Coloring Book
Menu |
Settings and Explanations |
|
|
Paper |
Select the paper type you loaded. |
Settings |
|
|
|
Paper |
Select the paper source that you want to use. |
Source |
|
|
|
Density |
Select the level of density for the outlines on the coloring sheet. |
|
|
27
User's Guide
Printer Basics
Menu |
Settings and Explanations |
|
|
Line |
Select the sensitivity used to detect outlines in the photo. |
Detection |
|
|
|
To access the following menus, select Photo on Memory Card, and then press the d button.
Menu |
Settings and Explanations |
||
|
|
|
|
Browse |
Browse by |
Displays the photos on the memory card sorted by date. Select a date to display all photos |
|
|
Date |
saved on that date. |
|
|
|
|
|
|
Cancel |
Cancels sorting photos and displays all the photos. |
|
|
Browse |
|
|
|
|
|
|
Display |
1-up |
Displays one photo on a screen. Information on settings, such as zoom, is also displayed. |
|
Mode |
|
|
|
9-up |
Displays nine photos on a screen. |
||
|
|||
|
|
|
Related Information
&“Copying Photos” on page 84
&“Printing Photos from a Memory Card with Handwritten Notes” on page 54
&“Copying on a CD/DVD Label” on page 85
&“Printing Photos from a Memory Card onto a CD/DVD Label” on page 53
&“Folding Envelopes” on page 57
Menu |
Settings and Explanations |
|
|
|
|
Ink Levels |
Displays the approximate levels of the ink cartridges. |
|
|
When an ! icon is displayed, the ink cartridge is running low. When a X mark is displayed, the ink cartridge is |
|
|
expended. |
|
|
|
|
Maintenanc |
Nozzle |
Prints a pattern to check if the print head nozzles are clogged. |
eCheck
Head |
Cleans clogged nozzles in the print head. |
Cleaning |
|
|
|
Print Head |
Adjusts the print head to improve print quality. |
Alignment |
|
|
|

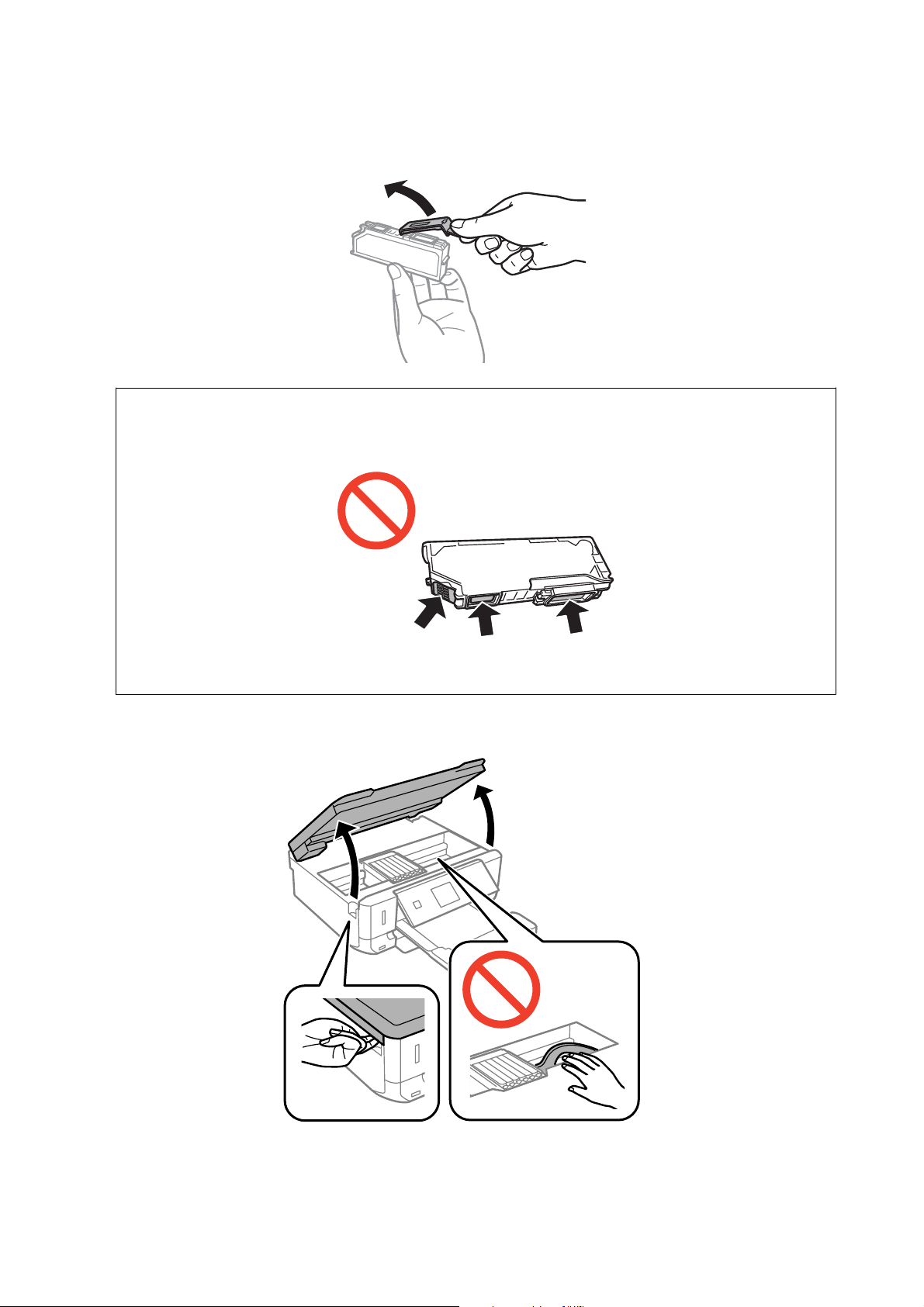

Ink |
Use this feature to replace the ink cartridges before the ink is expended. |
Cartridge(s) |
|
Replacemen |
|
t |
|
28
User's Guide
|
|
|
|
Printer Basics |
|
|
|
|
|
Menu |
Settings and Explanations |
|
||
|
|
|
|
|
Printer |
Paper |
Paper Setup |
|
Select the paper size and paper type you loaded. |
Setup |
Source |
|
|
|
Paper |
|
Automatically displays the paper settings screen when paper is loaded. |
||
|
Setting |
|
||
|
|
Configuration |
|
AirPrint is not available when disabled. In addition, the printer does not |
|
|
|
|
warn you even if the paper settings do not match the paper you |
|
|
|
|
loaded. |
|
|
|
|
|
|
CD/DVD |
Adjusts the printing position of a CD/DVD by moving up, down, left, or right to fit. |
||
|
|
|
||
|
Stickers |
Adjusts the printing position of a photo sticker by moving up, down, left, or right to fit. |
||
|
|
|
||
|
Thick Paper |
Use this feature if ink smears and the paper gets dirty. When enabled, the printing speed |
||
|
|
may be slower. Only enable this setting when ink smears. It is disabled when the printer is |
||
|
|
turned off. |
|
|
|
|
|
||
|
Sound |
Turns on or off the beeps that sound when operating the buttons or when an error occurs, |
||
|
|
and changes the volume. |
||
|
|
|
||
|
Quiet Mode |
Prints quietly when enabled. However, the print speed may be slower. |
||
|
|
|
||
|
Screen Saver |
By selecting Memory Card Data, photos are displayed sequentially when no operations are |
||
|
|
performed for about three minutes. |
||
|
|
|
||
|
Power Off |
Turns the printer off automatically when a specified time has passed and no operations |
||
|
Timer |
have been performed. You can adjust the time before power management is applied. Any |
||
|
|
increase will affect the product’s energy efficiency. Please consider the environment before |
||
|
|
making any change. |
|
|
|
|
|
||
|
Sleep Timer |
Select the time period before the printer enters sleep mode (energy saving mode) when no |
||
|
|
operations are performed. The LCD screen turns black when the set time passes. |
||
|
|
|
||
|
Language |
Select the display language. |
||
|
|
|
|
|
Network |
Network |
Press the l or r button to check the status of the network connection, Epson Connect |
||
Settings |
Status |
connection, and so on. Select Print Status Sheet to print the network status sheet. |
||
|
|
|||
|
|
|
||
|
Wi-Fi Setup |
Wi-Fi Setup on the home screen is a shortcut to access this menu. For details on each |
||
|
|
menu, see the Wi-Fi Setup table. |
||
|
|
|
||
|
Manual |
Changes the network settings, such as the printer name or TCP/IP. |
||
|
Network |
|
|
|
|
Setup |
|
|
|
|
|
|
||
|
Connection |
Checks the status of the network connection and prints the network connection check |
||
|
Check |
report. If there are any problems with the connection, see the check report to solve the |
||
|
|
problem. See the Network Guide for more details. |
||
|
|
|
|
|
Epson |
You can suspend or resume the Epson Connect or Google Could Print service, or cancel using the services |
|||
Connect |
(restore the default settings). See the following for details. |
|||
Services |
https://www.epsonconnect.com/ |
|
||
|
|
|||
http://www.epsonconnect.eu (Europe only) |
||||
Cloud Print |
|
|
|
|
Services |
|
|
|
|
|
|
|||
File Sharing |
Select the connection method between the printer and the computer when giving write access to the |
|||
Setup |
memory card inserted in the printer. Read and write access is given to the computer with the priority |
|||
|
connection. Only read access is given to other computers. |
|||
|
|
|
|
|
29
User's Guide
|
|
Printer Basics |
|
|
|
Menu |
Settings and Explanations |
|
|
|
|
External |
Change the print settings to print directly from an external device such as a digital camera. |
|
Device |
|
|
Setup |
|
|
|
|
|
Guide |
Paper |
Warns you when the paper settings do not match the paper you loaded. |
Functions |
Setting Alert |
|
|
|
|
Restore |
Resets the selected settings to their defaults. |
|
Default |
|
|
Settings |
|
|
|
|
|
Related Information
& “Wi-Fi Setup Mode” on page 21
See the Help for information on using the printer or when printouts are unsatisfactory.
30
