PowerLite® 520/525W/530/535W User's Guide
Contents |
|
PowerLite 520/525W/530/535W User's Guide............................................................................................ |
9 |
Introduction to Your Projector ................................................................................................................. |
10 |
Projector Features.............................................................................................................................. |
10 |
Product Box Contents.................................................................................................................... |
11 |
Additional Components ................................................................................................................ |
13 |
Optional Equipment and Replacement Parts................................................................................. |
13 |
Warranty and Registration Information .......................................................................................... |
15 |
Notations Used in the Documentation ................................................................................................ |
15 |
Where to Go for Additional Information .............................................................................................. |
15 |
Projector Part Locations ..................................................................................................................... |
16 |
Projector Parts - Front/Top ............................................................................................................ |
17 |
Projector Parts - Rear .................................................................................................................... |
18 |
Projector Parts - Base.................................................................................................................... |
20 |
Projector Parts - Control Panel ...................................................................................................... |
21 |
Projector Parts - Remote Control................................................................................................... |
22 |
Setting Up the Projector ........................................................................................................................... |
24 |
Projector Placement........................................................................................................................... |
24 |
Projector Setup and Installation Options ....................................................................................... |
24 |
Projection Distance........................................................................................................................ |
26 |
Projector Connections........................................................................................................................ |
32 |
Connecting to Computer Sources.................................................................................................. |
33 |
Connecting to a Computer for USB Video and Audio................................................................ |
33 |
Connecting to a Computer for VGA Video................................................................................. |
34 |
Connecting to a Computer for HDMI Video and Audio.............................................................. |
35 |
Connecting to a Computer for USB Mouse Control................................................................... |
35 |
Connecting to a Computer for Sound........................................................................................ |
36 |
Connecting to Video Sources ........................................................................................................ |
36 |
Connecting to an HDMI Video Source ...................................................................................... |
37 |
Connecting to a Component-to-VGA Video Source .................................................................. |
37 |

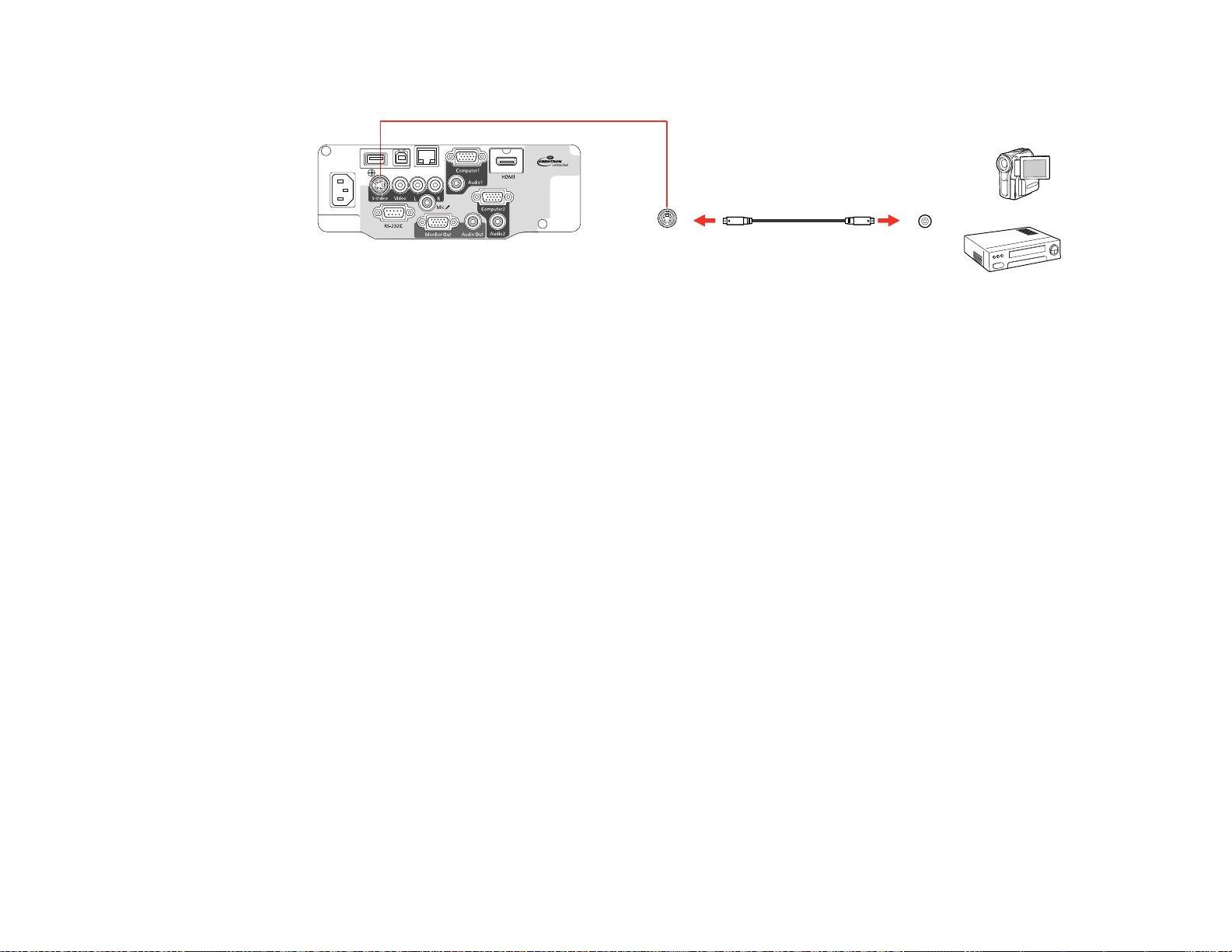

Connecting to a Composite Video Source ................................................................................ |
38 |
3
Connecting to an S-Video Video Source................................................................................... |
38 |
Connecting to a Video Source for Sound .................................................................................. |
39 |
Connecting to an External Computer Monitor................................................................................ |
40 |
Connecting to External Speakers .................................................................................................. |
41 |

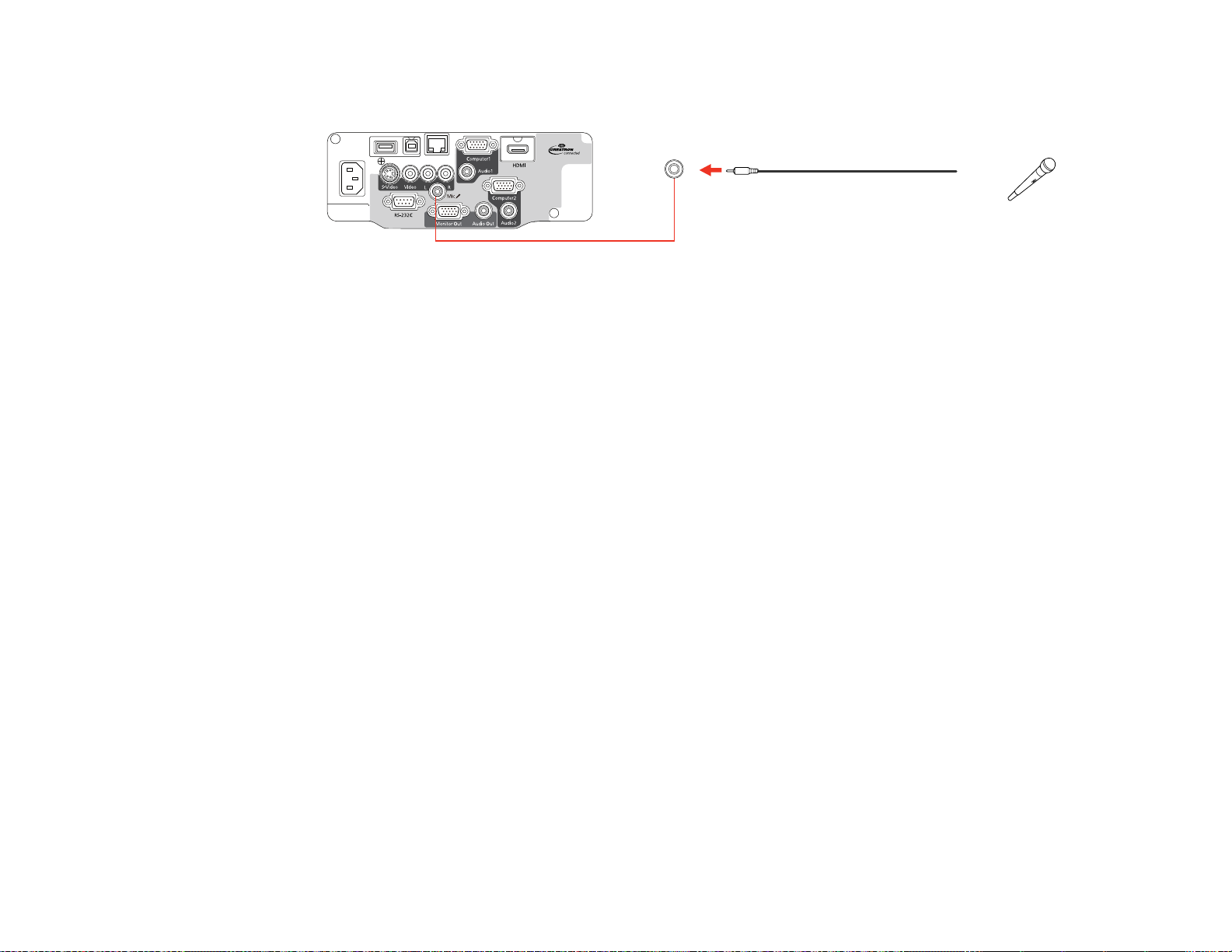

Connecting a Microphone.............................................................................................................. |
41 |
Connecting to External USB Devices ............................................................................................ |
42 |
USB Device Projection.............................................................................................................. |
42 |

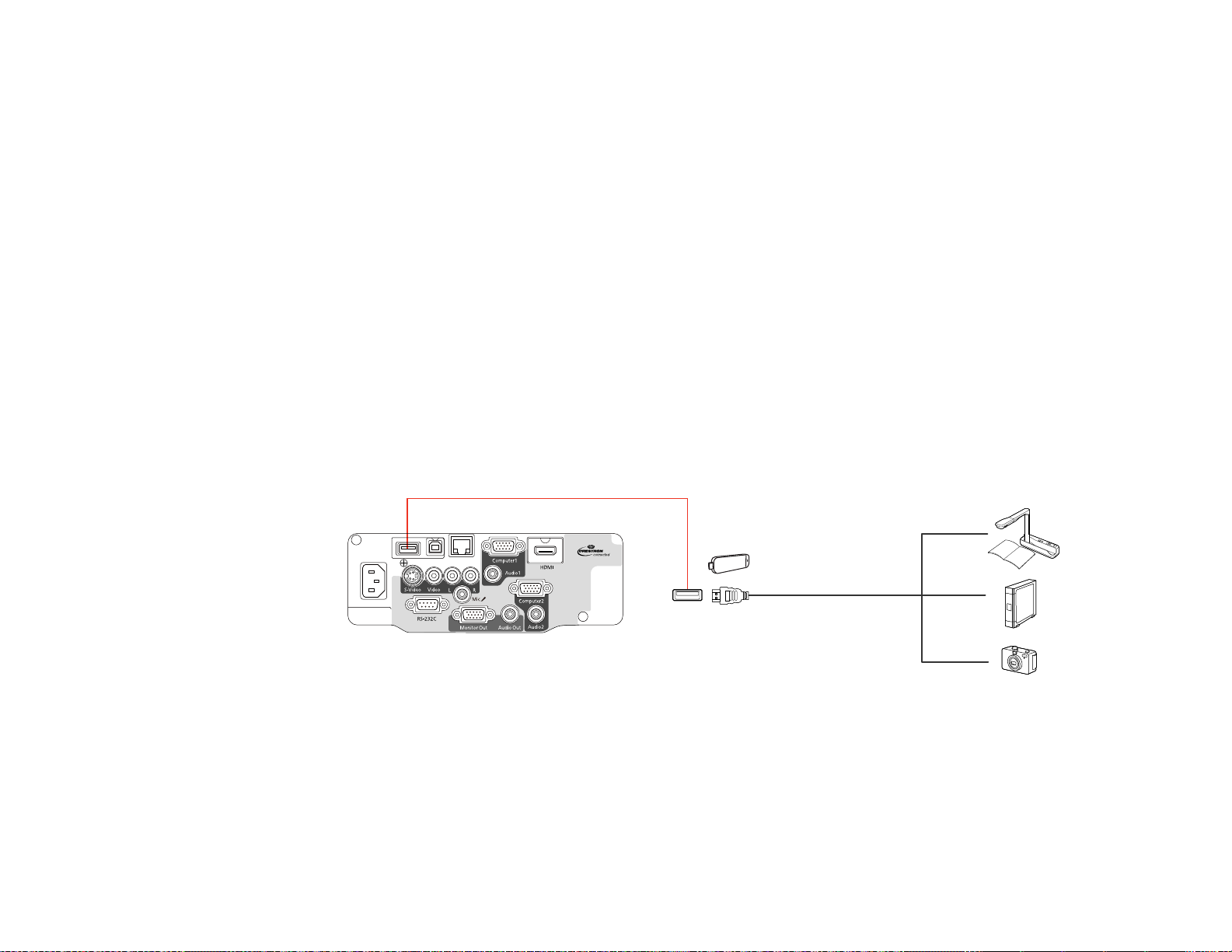

Connecting a USB Device or Camera to the Projector.............................................................. |
43 |
Selecting the Connected USB Source ...................................................................................... |
44 |
Disconnecting a USB Device or Camera From the Projector .................................................... |
44 |
Connecting to a Document Camera .............................................................................................. |
44 |

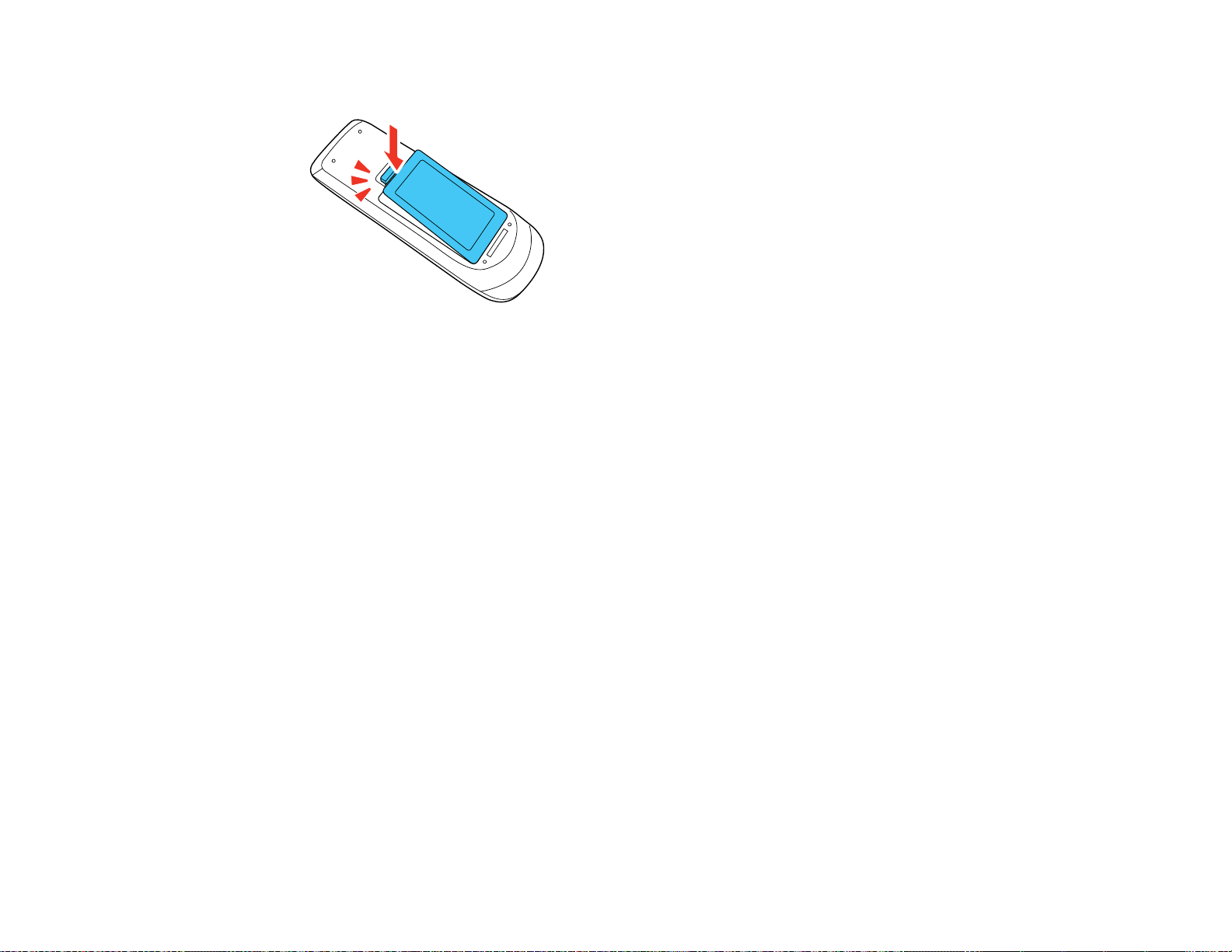

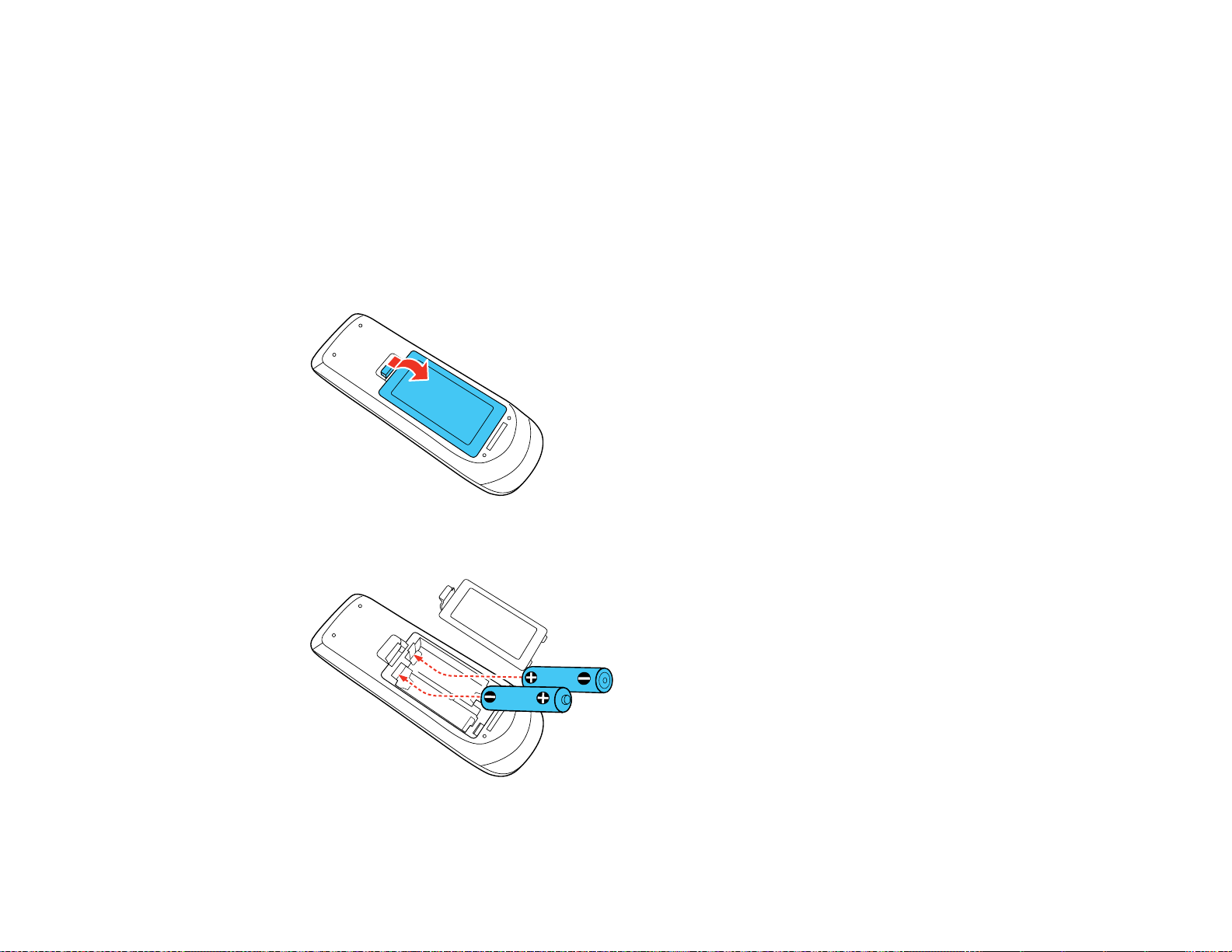

Installing Batteries in the Remote Control .......................................................................................... |
45 |
Using the Projector on a Network ............................................................................................................ |
47 |
Wired Network Projection................................................................................................................... |
47 |
Connecting to a Wired Network ..................................................................................................... |
48 |
Selecting Wired Network Settings ................................................................................................. |
48 |
Wireless Network Projection .............................................................................................................. |
51 |
Installing the Wireless LAN Module ............................................................................................... |
52 |
Using Quick Wireless Connection (Windows Only) ....................................................................... |
54 |
Selecting Wireless Network Settings Manually.............................................................................. |
55 |
Wireless LAN Menu Settings .................................................................................................... |
57 |
Selecting Wireless Network Settings in Windows.......................................................................... |
58 |
Selecting Wireless Network Settings in OS X................................................................................ |
59 |
Setting Up Wireless Network Security ........................................................................................... |
59 |
Wireless Security Menu Settings .............................................................................................. |
60 |

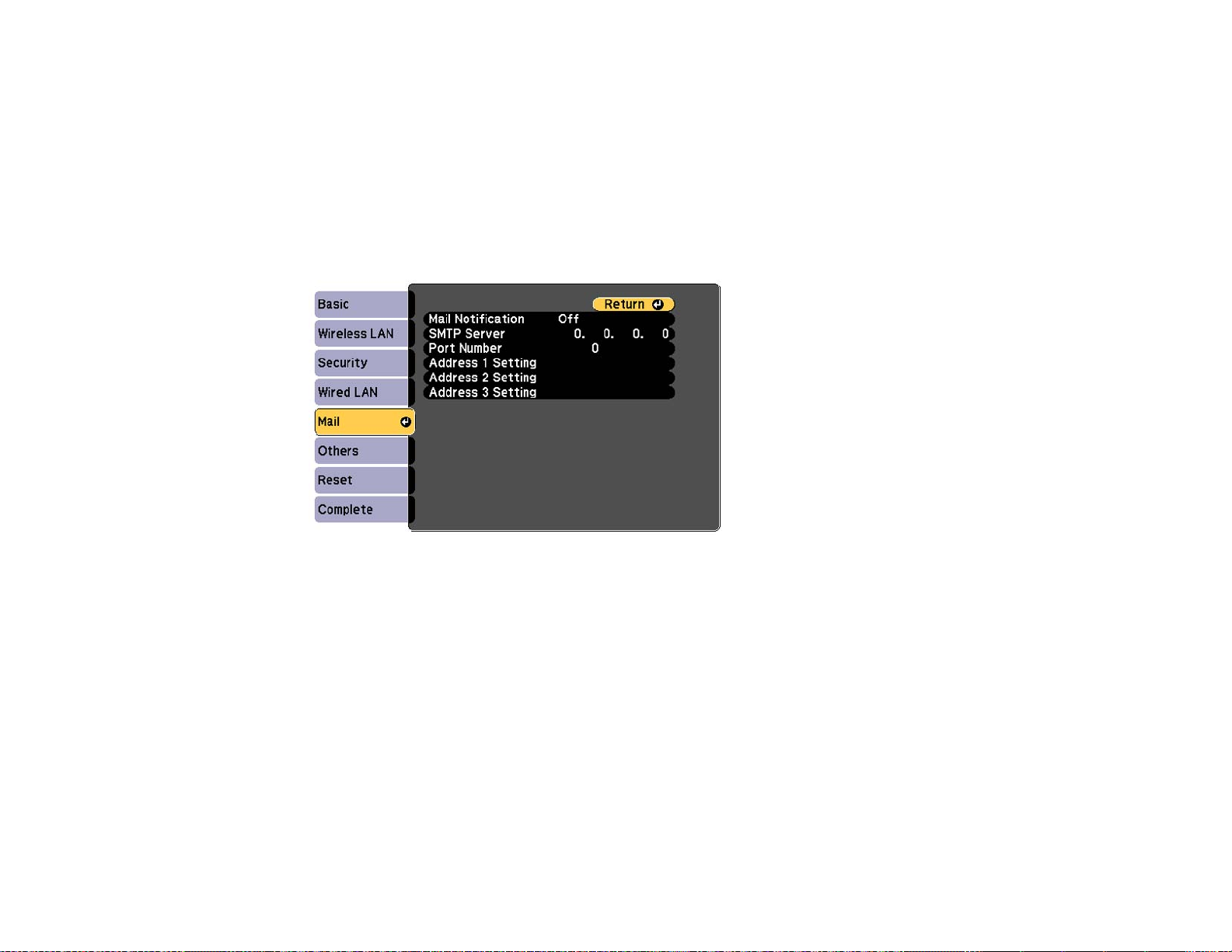

Setting Up Projector Network E-Mail Alerts ........................................................................................ |
61 |
Network Projector E-mail Alert Messages ..................................................................................... |
62 |

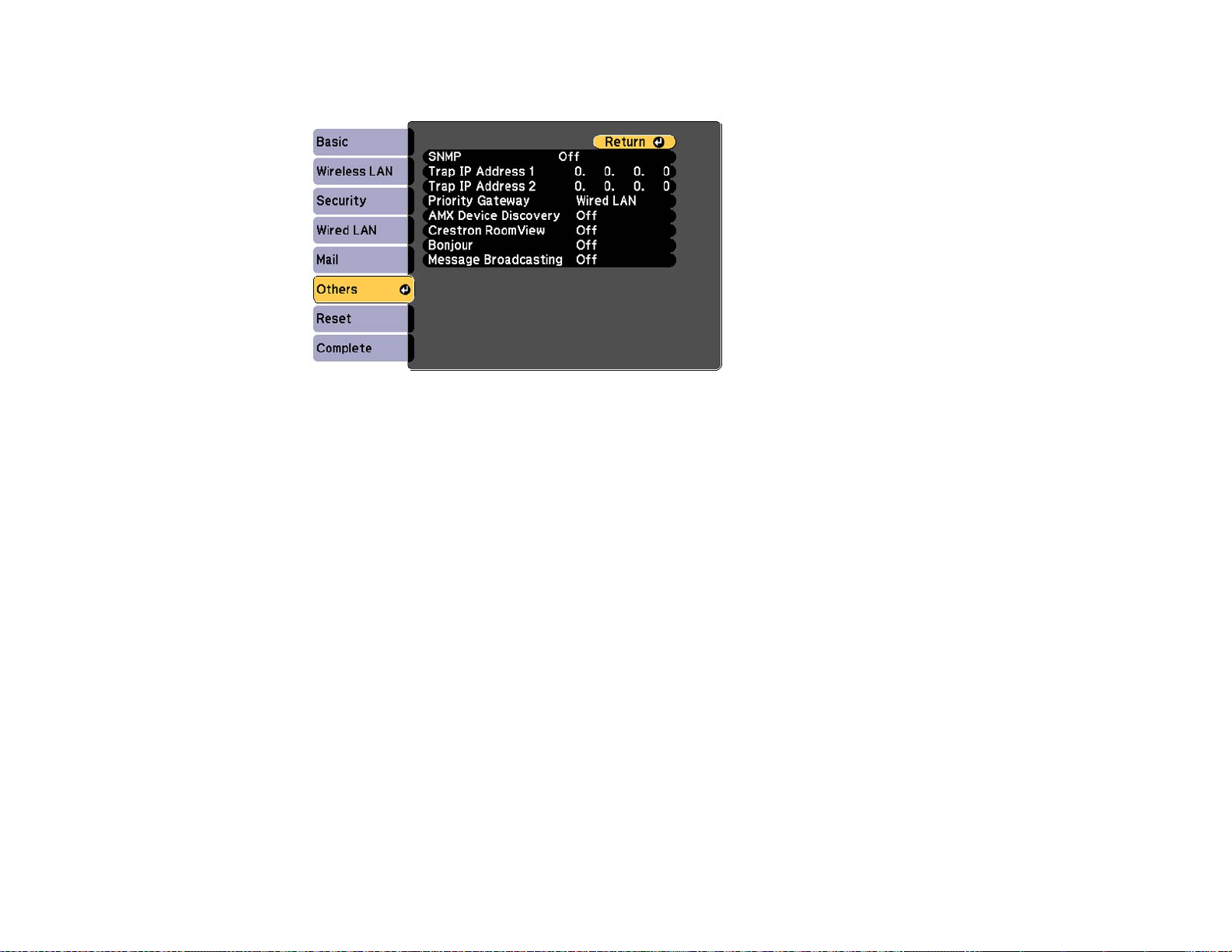

Setting Up Monitoring Using SNMP ................................................................................................... |
62 |
Controlling a Networked Projector Using a Web Browser .................................................................. |
64 |
Crestron RoomView Support.............................................................................................................. |
66 |
Setting Up Crestron RoomView Support ....................................................................................... |
66 |
Controlling a Networked Projector Using Crestron RoomView ...................................................... |
67 |
4
Using Basic Projector Features ............................................................................................................... |
69 |
Turning On the Projector .................................................................................................................... |
69 |
Turning Off the Projector .................................................................................................................... |
70 |
Selecting the Language for the Projector Menus................................................................................ |
72 |
Adjusting the Image Height ................................................................................................................ |
72 |
Image Shape...................................................................................................................................... |
74 |

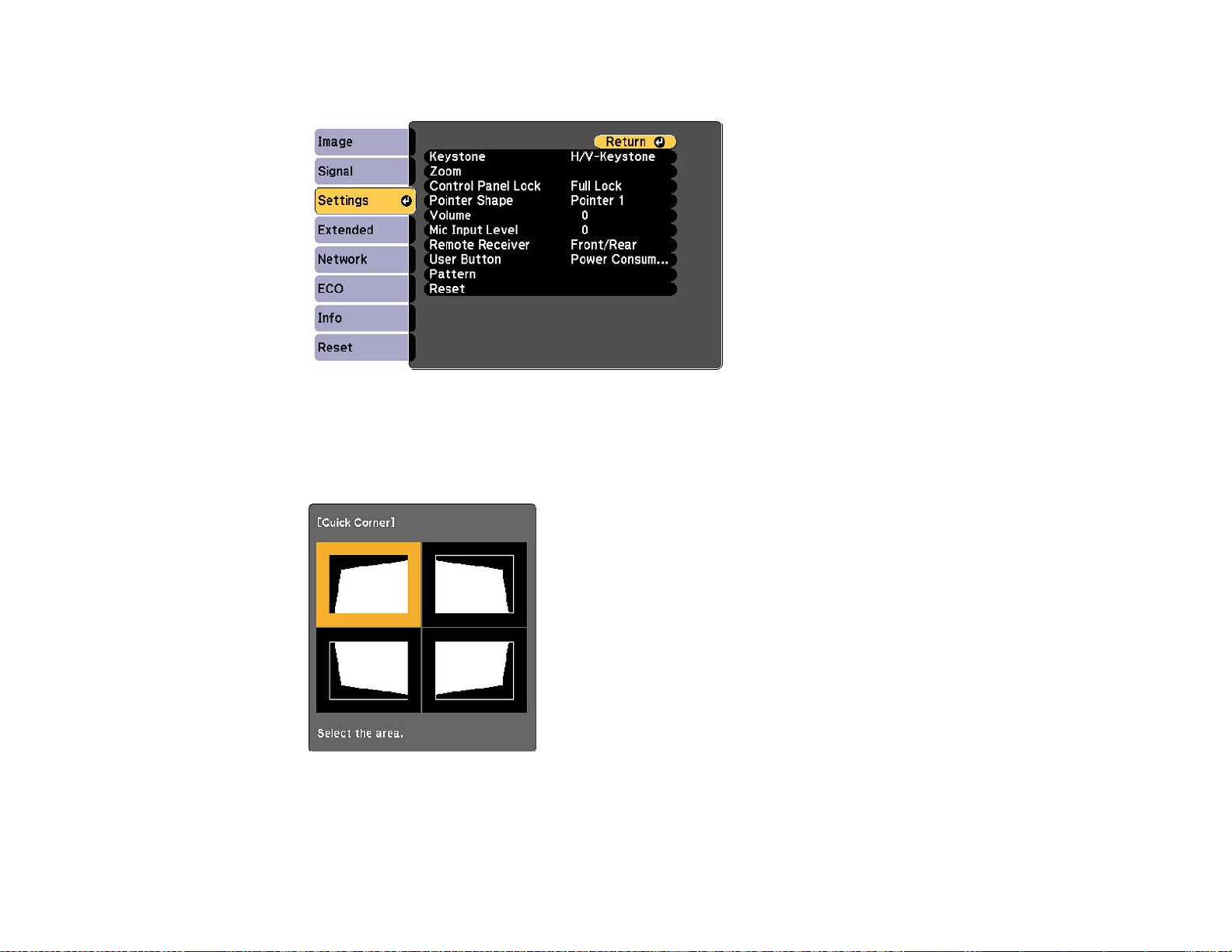

Correcting Image Shape with Quick Corner .................................................................................. |
74 |

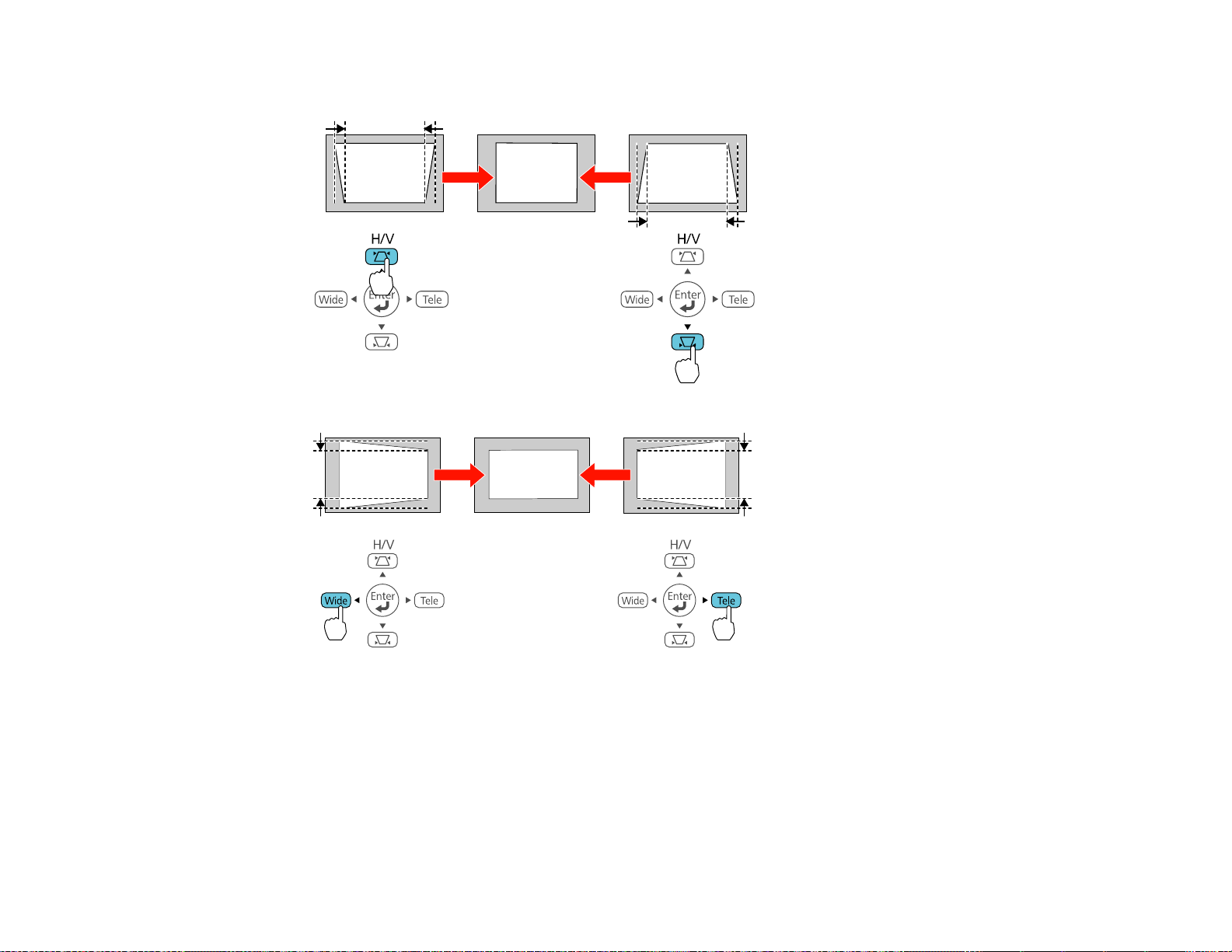

Correcting Image Shape with the Keystone Buttons...................................................................... |
76 |

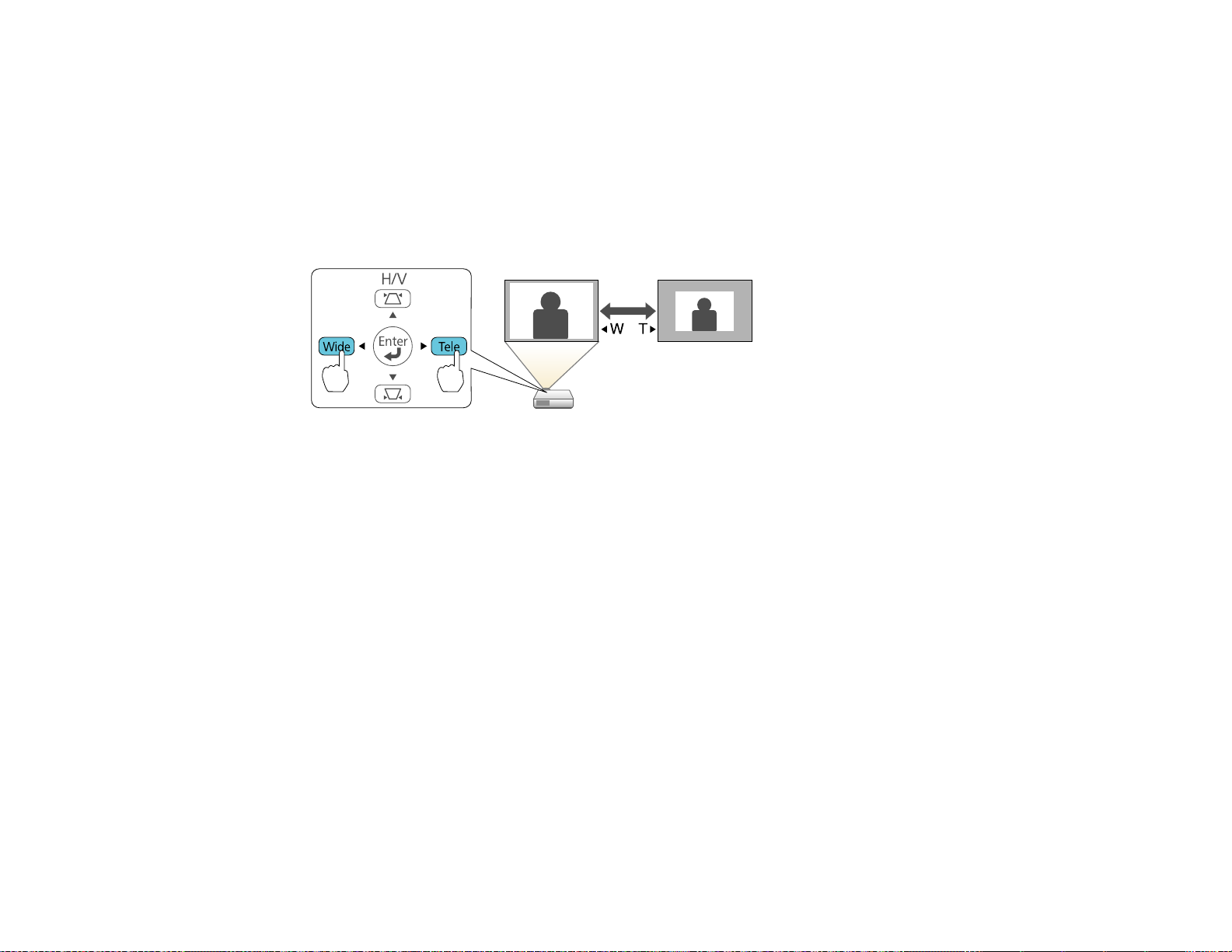

Resizing the Image with the Wide and Tele Buttons .......................................................................... |
78 |

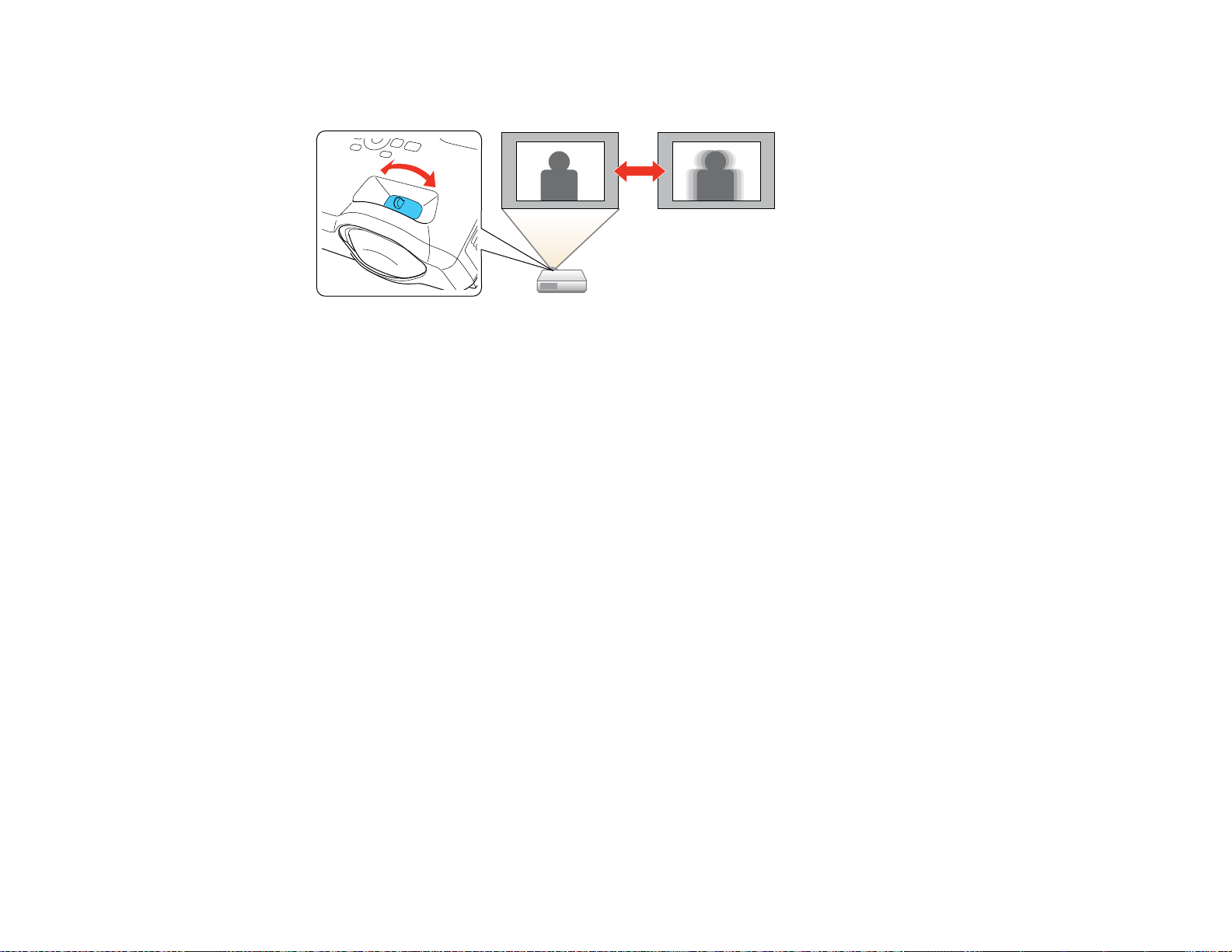

Focusing the Image Using the Focus Ring......................................................................................... |
78 |
Remote Control Operation ................................................................................................................. |
79 |
Using the Remote Control as a Wireless Mouse ........................................................................... |
80 |
Using the Remote Control as a Pointer.......................................................................................... |
81 |
Selecting an Image Source ................................................................................................................ |
82 |
Projection Modes ............................................................................................................................... |
84 |
Changing the Projection Mode Using the Remote Control ............................................................ |
84 |
Changing the Projection Mode Using the Menus........................................................................... |
85 |
Image Aspect Ratio ............................................................................................................................ |
85 |
Changing the Image Aspect Ratio ................................................................................................. |
86 |
Available Image Aspect Ratios ...................................................................................................... |
86 |
Color Mode......................................................................................................................................... |
87 |
Changing the Color Mode.............................................................................................................. |
88 |
Available Color Modes................................................................................................................... |
88 |
Turning On Auto Iris....................................................................................................................... |
89 |
Controlling the Volume with the Volume Buttons................................................................................ |
90 |
Projecting a PC Free Presentation ..................................................................................................... |
90 |
Slideshow Features....................................................................................................................... |
91 |
Supported PC Free File Types ...................................................................................................... |
91 |

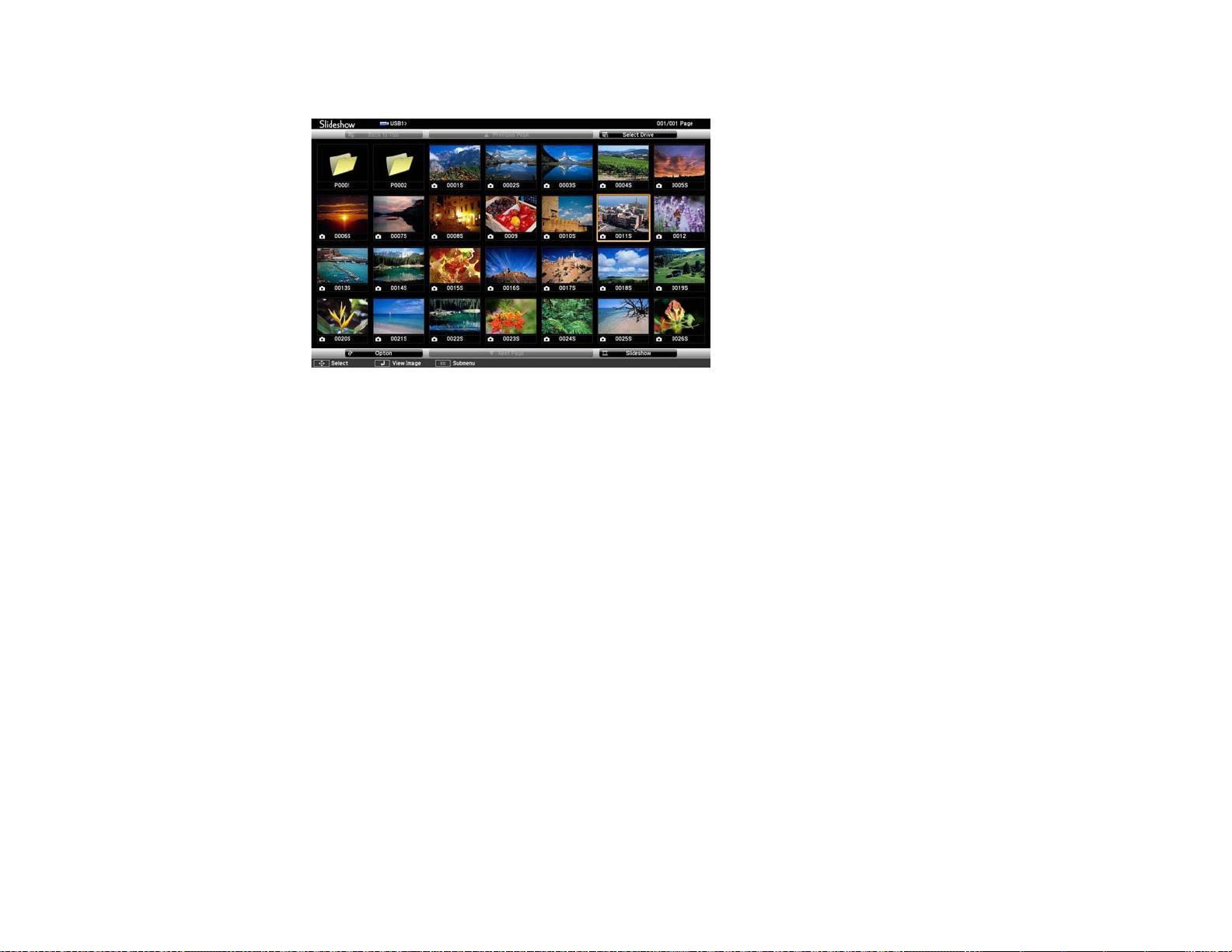

Starting a Slide Show .................................................................................................................... |
92 |
Display Options......................................................................................................................... |
94 |
Adjusting Projector Features ................................................................................................................... |
96 |
Shutting Off the Picture and Sound Temporarily ................................................................................ |
96 |
Stopping Video Action Temporarily .................................................................................................... |
96 |
5
Zooming Into and Out of Images ........................................................................................................ |
97 |
Projector Security Features................................................................................................................ |
98 |
Password Security Types .............................................................................................................. |
98 |
Setting a Password ................................................................................................................... |
98 |
Selecting Password Security Types........................................................................................ |
100 |
Entering a Password to Use the Projector............................................................................... |
101 |
Saving a User's Logo Image to Display................................................................................... |
102 |
Locking the Projector's Buttons ................................................................................................... |
104 |
Unlocking the Projector's Buttons ........................................................................................... |
105 |
Installing a Security Cable ........................................................................................................... |
105 |
Creating a User Pattern to Display ................................................................................................... |
105 |
Adjusting the Menu Settings .................................................................................................................. |
107 |
Using the Projector's Menus............................................................................................................. |
107 |
Image Quality Settings - Image Menu .............................................................................................. |
109 |
Input Signal Settings - Signal Menu.................................................................................................. |
111 |
Projector Feature Settings - Settings Menu...................................................................................... |
114 |
Projector Setup Settings - Extended Menu....................................................................................... |
116 |

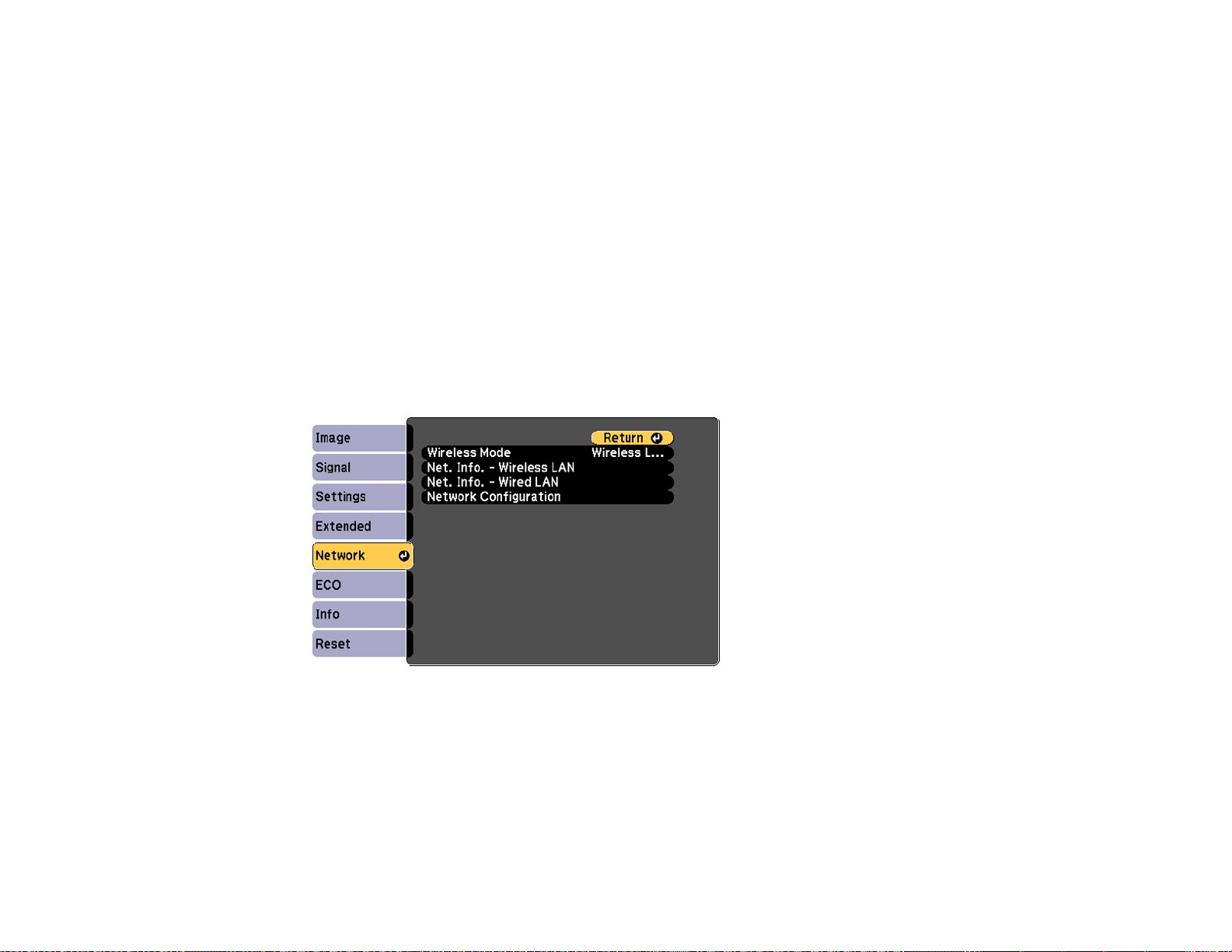

Projector Network Settings - Network Menu..................................................................................... |
120 |
Projector Setup Settings - ECO Menu .............................................................................................. |
122 |
Projector Information Display - Info Menu ........................................................................................ |
124 |
Event ID Code List....................................................................................................................... |
125 |
Projector Reset Options - Reset Menu............................................................................................. |
126 |
Maintaining and Transporting the Projector ......................................................................................... |
128 |
Projector Maintenance ..................................................................................................................... |
128 |
Cleaning the Lens........................................................................................................................ |
128 |
Cleaning the Projector Case........................................................................................................ |
129 |
Air Filter and Vent Maintenance .................................................................................................. |
129 |
Cleaning the Air Filter and Vents............................................................................................. |
130 |
Replacing the Air Filter............................................................................................................ |
132 |
Projector Lamp Maintenance....................................................................................................... |
134 |
Replacing the Lamp ................................................................................................................ |
135 |
Resetting the Lamp Timer....................................................................................................... |
140 |
Replacing the Remote Control Batteries ..................................................................................... |
141 |
6
Transporting the Projector................................................................................................................ |
142 |
Solving Problems .................................................................................................................................... |
144 |
Projection Problem Tips ................................................................................................................... |
144 |
Projector Light Status ....................................................................................................................... |
145 |
Using the Projector Help Displays .................................................................................................... |
147 |
Solving Image or Sound Problems ................................................................................................... |
148 |
Solutions When No Image Appears............................................................................................. |
148 |
Solutions When Image is Incorrect Using the USB Display Function .......................................... |
149 |
Solutions When "No Signal" Message Appears........................................................................... |
150 |
Displaying From a PC Laptop ................................................................................................. |
150 |
Displaying From a Mac Laptop ............................................................................................... |
150 |
Solutions When "Not Supported" Message Appears ................................................................... |
151 |
Solutions When Only a Partial Image Appears............................................................................ |
151 |
Solutions When the Image is Not Rectangular ............................................................................ |
151 |
Solutions When the Image Contains Noise or Static ................................................................... |
152 |
Solutions When the Image is Fuzzy or Blurry .............................................................................. |
153 |
Solutions When the Image Brightness or Colors are Incorrect .................................................... |
153 |
Solutions to Sound Problems ...................................................................................................... |
154 |
Solutions to Microphone Problems .............................................................................................. |
154 |
Solving Projector or Remote Control Operation Problems ............................................................... |
155 |
Solutions to Projector Power or Shut-Off Problems ..................................................................... |
155 |
Solutions to Problems with the Remote Control........................................................................... |
156 |
Solutions to Password Problems ................................................................................................. |
156 |
Solving Network Problems ............................................................................................................... |
157 |
Solutions When Network Alert E-Mails are Not Received............................................................ |
157 |
Solutions When You Cannot Access the Projector Through the Web ......................................... |
158 |
Where to Get Help............................................................................................................................ |
158 |
Technical Specifications ........................................................................................................................ |
160 |
General Projector Specifications ...................................................................................................... |
160 |
Projector Lamp Specifications.......................................................................................................... |
163 |
Remote Control Specifications ......................................................................................................... |
164 |
Projector Dimension Specifications.................................................................................................. |
164 |
Projector Electrical Specifications .................................................................................................... |
164 |
7
Projector Environmental Specifications............................................................................................ |
166 |
Projector Safety and Approvals Specifications................................................................................. |
166 |
Supported Video Display Formats.................................................................................................... |
166 |
USB Display System Requirements................................................................................................. |
169 |
Notices ..................................................................................................................................................... |
170 |
Recycling.......................................................................................................................................... |
170 |
Important Safety Information ............................................................................................................ |
170 |
Important Safety Instructions............................................................................................................ |
171 |
Restriction of Use ........................................................................................................................ |
173 |
FCC Compliance Statement............................................................................................................. |
174 |
Trademarks...................................................................................................................................... |
175 |
Open Source Software License........................................................................................................ |
175 |
Copyright Notice............................................................................................................................... |
220 |
A Note Concerning Responsible Use of Copyrighted Materials................................................... |
221 |
Copyright Attribution.................................................................................................................... |
221 |
8
PowerLite 520/525W/530/535W User's Guide
Welcome to the PowerLite 520/525W/530/535W User's Guide.
9
Refer to these sections to learn more about your projector and this manual.
Notations Used in the Documentation
Where to Go for Additional Information
Projector Part Locations
Projector Features
The PowerLite 520/525W/530/535W projectors include these special features:
Short-throw projection system
•Project an 87-inch (221 cm) image (16:10) from just 35.7 inches (90 cm) away with WXGA models
•Easily mounted to the wall for fast, low-cost installations
•Ideal for use with interactive whiteboards
•Reduced shadow interference and glare
Bright, high-resolution projection system
•PowerLite 520: Up to 2700 lumens of color brightness (color light output) and 2700 lumens of white brightness (white light output)
PowerLite 525W: Up to 2800 lumens of color brightness (color light output) and 2800 lumens of white brightness (white light output)
PowerLite 530: Up to 3200 lumens of color brightness (color light output) and 3200 lumens of white brightness (white light output)
PowerLite 535W: Up to 3400 lumens of color brightness (color light output) and 3400 lumens of white brightness (white light output)
Note: Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
•PowerLite 520/530: Native resolution of 1024 × 768 pixels (XGA) PowerLite 525W/535W: Native resolution of 1280 × 800 pixels (WXGA)
10
Flexible connectivity
•Plug-and-play 3-in-1 USB projection, audio, and mouse control for instant setup
•HDMI port for computer or video device connection
•Wired network support for projection, monitoring, and control via remote network computer
•Optional wireless network support, including video and audio transfer
•PC Free photo slide shows via connected USB memory devices or Epson document camera
•Dual VGA ports for connections by multiple presenters
•Port for connecting an external monitor or second projector
•Port for connecting a microphone
Innovative display and operation features
•Low total cost of ownership with long-life projector lamp and high-efficiency air filter
•High zoom ratio for larger images in shorter projection distances
•16000:1 contrast ratio and Auto Iris control for crisply detailed images
•Built-in closed captioning decoder
•Powerful 16 W speaker system with audio out port for connecting external speakers
•Epson's Instant Off and Direct Power On features for quick setup and shut down
•Support for Crestron RoomView network monitoring systems
•Network message broadcast system to project timely messages to all networked projectors
Additional Components
Optional Equipment and Replacement Parts
Warranty and Registration Information
Parent topic: Introduction to Your Projector
Related concepts
Projector Part Locations
Product Box Contents
Save all the packaging in case you need to ship the projector. Always use the original packaging (or equivalent) when shipping.
11
Make sure your projector box included all of these parts:
1Projector
2Lens cover
3Remote control
4Remote control batteries (two AA alkaline)
5Power cord
6VGA computer cable
7Password Protected sticker
8Projector documentation CD-ROM
9Projector software CD-ROM
12
Parent topic: Projector Features
Related concepts
Projector Connections
Depending on how you plan to use the projector, you may need to obtain the following additional components:
•To receive an S-Video signal, you need an S-Video cable compatible with your device. See your local computer or electronics dealer for purchase information.
•To receive a component video signal, you need a D-sub, 15-pin, component-to-VGA video cable. You can purchase one from Epson or an authorized Epson reseller.
•To receive an HDMI signal, you need a compatible HDMI cable. You can purchase one from Epson or an authorized Epson reseller.
Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port. Contact Apple for compatible adapter options. Older Mac computers (2009 and earlier) may not support audio through the HDMI port.
•To project with audio from certain ports, you may need a commercially available audio cable compatible with your device. See your local computer or electronics dealer for purchase information.
•To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video output to the projector's VGA video port, you need to obtain an adapter. Contact Apple for compatible adapter options.
Parent topic: Projector Features
You can purchase screens, other optional accessories, and replacement parts from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at epsonstore.com (U.S. sales) or epson.ca (Canadian sales).
Epson offers the following optional accessories and replacement parts for your projector:
Option or part |
Part number |
Genuine Epson replacement lamp (ELPLP87) |
V13H010L87 |
13
Option or part |
Part number |
Air filter replacement (ELPAF47) |
V13H134A47 |
Wireless LAN module (ELPAP07) |
V12H418P12 |
Quick Wireless Connection USB key (ELPAP09) |
V12H005M09 |
Epson DC-06 document camera (ELPDC06) |
V12H321005 |
Epson DC-11 document camera (ELPDC11) |
V12H377020 |
Epson DC-12 document camera (ELPDC12) |
V12H594020 |
Epson DC-20 document camera (ELPDC20) |
V12H500020 |
PowerLite Pilot 2 (ELPCB02) |
V12H614020 |
Active speakers (ELPSP02) |
V12H467020 |
Short Throw Wall Mount (ELPMB45) |
V12H706020 |
Universal projector ceiling mount |
ELPMBPJF |
Adjustable suspended ceiling channel kit |
ELPMBP01 |
False ceiling plate kit |
ELPMBP02 |
Structural round ceiling plate |
ELPMBP03 |
Adjustable extension column (pipe) 8" - 11" (20 to 28 cm) |
ELPMBC01 |
Kensington security lock |
ELPSL01 |
Accolade Duet portable projector screen |
ELPSC80 |
ES-3000 Ultra portable projector screen (ELPSC26H) |
V12H002S3Y |
ES-1000 portable screen |
V12H002S4Y |
Component-to-VGA video cable (ELPKC19) |
V12H005C19 |
1-Year Extended Depot Repair Service Plan |
EPPFTPA1 |
1-Year Extended Exchange Warranty |
EPPEXPA1 |
2-Year Extended Depot Repair Service Plan |
EPPFTPA2 |
2-Year Extended Exchange Warranty |
EPPEXPA2 |
Parent topic: Projector Features
14
Your projector comes with a basic warranty that lets you project with confidence. For details, see the warranty that came with your projector.
In addition, Epson offers free Extra Care Road Service. In the unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See the Extra Care Road Service brochure for details.
Register your product online using the projector CD or at this site: epson.com/webreg.
Registering also lets you receive special updates on new accessories, products, and services.
Parent topic: Projector Features
Follow the guidelines in these notations as you read your documentation:
•Warnings must be followed carefully to avoid bodily injury.
•Cautions must be observed to avoid damage to your equipment.
•Notes contain important information about your projector.
•Tips contain additional projection information.
Parent topic: Introduction to Your Projector
Need quick help on using your projector? Here's where to look for help:
•Built-in help system
Press the Help button on the remote control or projector to get quick solutions to common problems.
•epson.com/support (U.S) or epson.ca/support (Canada)
View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24 hours a day.
•For detailed instructions on using your projector in a network environment, see the EasyMP Network Projection Operation Guide.
•For detailed instructions on monitoring your projector in a network environment (Windows only), see the EasyMP Monitor Operation Guide.
•For detailed instructions on using your projector to hold interactive meetings in a network environment, see the EasyMP Multi PC Projection Operation Guide.
15
•If you still need help after checking this manual and the sources listed above, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help".
Parent topic: Introduction to Your Projector
Related references
Where to Get Help
Check the projector part illustrations to learn about the parts on your projector.
Projector Parts - Front/Top
Projector Parts - Rear
Projector Parts - Base
Projector Parts - Control Panel
Projector Parts - Remote Control
Parent topic: Introduction to Your Projector
16
1Remote control receiver
2Foot release lever
3Front adjustable foot
4Projector lens
5Air intake vent (air filter)
6Focus ring
7Control panel
8Lamp cover
17
9Exhaust vent
10A/V Mute button
11Lens cover
Parent topic: Projector Part Locations
1Power inlet
2S-Video port
3RS-232C port
4Video port
5L-Audio-R ports
6Mic (microphone) port
7Monitor Out port
8Audio1 port
9Audio Out port
18
10Audio2 port
11Speaker
12HDMI port
13Computer2 port
14Computer1 port
15Remote receiver
16Network (LAN) port
17USB-B port
18USB-A port
19Wireless LAN unit cover screw
Parent topic: Projector Part Locations
19
1Ceiling mount holes (3)
2Wall mount holes (5)
3Security cable attachment point
4Rear feet
5Front adjustable foot
20
Parent topic: Projector Part Locations
1Status lights
2Source Search button (searches for connected video sources)
3Enter button (selects options)
4Vertical keystone adjustment buttons (adjust screen shape) and arrow buttons
5Help button (accesses projector help information)
6Esc button (cancels/exits functions)
7Wide/Tele buttons (adjust projected image size), horizontal keystone adjustment buttons (adjust screen shape), and arrow buttons
8Menu button (accesses projector menu system)
9Power button and light
Parent topic: Projector Part Locations
Related references
Projector Light Status
21
1 Power button
22
2Computer button (cycles through connected computer sources)
3Video button (cycles through connected video sources)
4Numeric buttons (enter numbers)
5Auto button (automatically adjusts position, tracking, and sync settings)
6Aspect button (selects the image aspect ratio)
7Num button (when held down, switches numeric buttons to number function)
8Menu button (accesses projector menu system)
9Arrow buttons (move through on-screen options and control wireless mouse functions)
10Enter button (selects options and controls wireless mouse functions)
11User button (customizable for different functions)
12Page up/down buttons (control presentation slides)
13E-Zoom +/– buttons (zoom into and out of the image)
14A/V Mute button (turns off picture and sound)
15Help button (accesses projector help information)
16Freeze button (stops video action)
17Volume up/down buttons (adjust speaker volume)
18Pointer button (activates on-screen pointer)
19Esc button (cancels/exits functions and controls wireless mouse functions)
20Pen Mode button (not active)
21Color Mode button (selects display modes)
22MHL Menu button (not active)
23LAN button (cycles between network and optional Quick Wireless Connection USB Key sources)
24USB button (cycles through connected USB sources)
25Source Search button (searches for connected sources)
Parent topic: Projector Part Locations
Related references
Remote Control Operation
23
Follow the instructions in these sections to set up your projector for use.
Projector Connections
Installing Batteries in the Remote Control
Projector Placement
You can place the projector on almost any flat surface to project an image.
You can also install the projector in a ceiling or wall mount if you want to use it in a fixed location. Keep these considerations in mind as you select a projector location:
•Place the projector on a sturdy, level surface or install it using a compatible mount.
•Leave plenty of space around and under the projector for ventilation, and do not place it on top of or next to anything that could block the vents.
•Position the projector within reach of a grounded electrical outlet or extension cord.
Projection Distance
Parent topic: Setting Up the Projector
Projector Setup and Installation Options
You can set up or install your projector in the following ways:
Front
24
Rear
Front ceiling
Rear ceiling
25
Wall-mounted
Wherever you set up the projector, make sure to position it squarely in front of the screen, not at an angle.
If you project from the ceiling or wall, or from the rear, be sure to select the correct Projection option in the projector's menu system.
Parent topic: Projector Placement
Related references
Projector Setup Settings - Extended Menu
The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.
Use the tables here to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.) You can also use the projector Throw Distance Calculator at epson.com/support (U.S.) or epson.ca/support (Canada).
26
PowerLite 520/530
4:3 Aspect Ratio
Screen or image |
Projection distance (1) |
Offset from lens center (2) |
size |
Wide to Tele |
|
|
|
|
50 inches |
21 to 29 inches (55 to 75 cm) |
2.5 inches (6 cm) |
60 inches |
26 to 36 inches (66 to 90 cm) |
3.1 inches (8 cm) |
27
4:3 Aspect Ratio |
|
|
Screen or image |
Projection distance (1) |
Offset from lens center (2) |
size |
Wide to Tele |
|
|
|
|
70 inches |
31 to 42 inches (78 to 106 cm) |
3.6 inches (9 cm) |
80 inches |
35 to 48 inches (89 to 122 cm) |
4.1 inches (10 cm) |
90 inches |
40 inches (101 cm)* |
4.6 inches (12 cm) |
100 inches |
44 inches (112 cm)* |
5.1 inches (13 cm) |
108 inches |
48 inches (122 cm)* |
5.5 inches (14 cm) |
* Wide resolution only
16:9 Aspect Ratio |
|
|
|
Screen or image |
Projection distance (1) |
Offset from lens center (2) |
|
size |
Wide to Tele |
|
|
|
|
||
50 inches |
24 to 32 inches (60 to 82 cm) |
6.9 inches (17 cm) |
|
60 inches |
28 to 39 inches (72 to 99 cm) |
8.2 inches (21 cm) |
|
70 inches |
33 to 46 inches (85 to 116 cm) |
9.6 inches (24 cm) |
|
80 inches |
38 inches (98 cm)* |
11 inches (28 cm) |
|
99 inches |
48 inches (121 cm)* |
13.6 inches (34 cm) |
|
* Wide resolution only |
|
|
|
|
|
|
|
16:10 Aspect Ratio |
|
|
|
Screen or image |
|
Projection distance (1) |
Offset from lens center (2) |
size |
|
Wide to Tele |
|
|
|
|
|
50 inches |
|
23 to 31 inches (58 to 79 cm) |
5.3 inches (14 cm) |
60 inches |
|
28 to 38 inches (70 to 96 cm) |
6.4 inches (16 cm) |
70 inches |
|
33 to 44 inches (83 to 113 cm) |
7.5 inches (19 cm) |
80 inches |
|
37 inches (95 cm)* |
8.6 inches (22 cm) |
28
16:10 Aspect Ratio |
|
|
Screen or image |
Projection distance (1) |
Offset from lens center (2) |
size |
Wide to Tele |
|
|
|
|
90 inches |
42 inches (107 cm)* |
9.6 inches (24 cm) |
100 inches |
47 inches (119 cm)* |
10.7 inches (27 cm) |
102 inches |
48 inches (122 cm)* |
10.9 inches (28 cm) |
* Wide resolution only
29
PowerLite 525W/535W
16:10 Aspect Ratio
Screen or image |
Projection distance (1) |
Offset from lens center (2) |
size |
Wide to Tele |
|
|
|
|
55 inches |
22 to 30 inches (56 to 77 cm) |
3.4 inches (9 cm) |
60 inches |
24 to 33 inches (61 to 84 cm) |
3.7 inches (9 cm) |
30
