Ecovacs DEEBOT-900 User Manual

Instruction Manual

Manuel d’instructions

Manual de instrucciones

Instruction Manual

........................................................................................................... 2

FR-CA

ES-LATAM

Live Smart. Enjoy Life.

Congratulations on the purchase of your ECOVACS ROBOTICS DEEBOT! We hope it brings you many years of satisfaction. We believe that your new robot will help keep your home clean and give you more quality time to do other things.

Before you go any further, please register your product on the ECOVACS ROBOTICS website at www.ecovacsrobotics.com/ registration/. We also suggest you record your model number, serial number, date of purchase and attach your receipt to this page for safekeeping.

MODEL # _______________________

SERIAL # _______________________

DATE OF PURCHASE _______/_____/_____

Should you have any problems programming the robot or getting your robot to function properly, please call us before contacting or returning it to the place of purchase. Call toll free number 1-844-ECOVACS (1-844-326-8227) or 1-330-994-1760 from outside the United States of America and Canada for assistance.

Manuel d’instructions

Manual de instrucciones

.................................................................................................... 23

.............................................................................................. 45

Thank you for choosing DEEBOT!

Contents

1. Important Safety Instructions ...........................................................................................................................................4

2. Package Contents and Technical Specifications ...........................................................................................................9

3. Operating and Programming ..........................................................................................................................................12

4. Maintenance .....................................................................................................................................................................17

5. Troubleshooting ..............................................................................................................................................................21

1. Important Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. SAVE THESE INSTRUCTIONS

For Household use only When using an electrical appliance, basic precautions should always be followed, including the following:

WARNING:

Failure to follow the warnings and instructions may result

in electric shock, re or serious injury.

1. Do not allow to be used as a toy. Close attention is necessary when used by or near children.

2. Clear the area to be cleaned. Remove power

cords and small objects from the oor that

could entangle the Appliance. Tuck rug fringe under the rug base, and lift items such as

curtains and tablecloths off the oor.

3. If there is a drop off in the cleaning area due to a step or stairs, you should operate the Appliance to ensure that it can detect the step without falling over the edge. It may become

Read all safety warnings and instructions.

necessary to place a physical barrier at the edge to keep the unit from falling. Make sure the physical barrier is not a trip hazard.

4. Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.

5. Please make sure your power supply voltage matches the power voltage marked on the Docking Station.

6. Do not handle plug or appliance with wet hands.

7. Nonrechargeable batteries are prohibited. For battery information, please refer to

Specications section.

8. Do not use without dust bin and/or lters in place.

9. Do not operate the vacuum in an area where there are lit candles or fragile objects on the

oor to be cleaned.

10. Do not use and store in extremely hot or

cold environments (below -5˚C /23˚F or above 40˚C/104˚F). Please charge the robot

in temperature above 0°C/32°F and below 40°C/104°F.

1. Important Safety Instructions

11. Keep hair, loose clothing, ngers, and all

parts of body away from any openings and moving parts.

12. Do not operate the Appliance in a room where an infant or child is sleeping.

13. For INDOOR use ONLY. Do not use the Appliance in outdoor, commercial or industrial environments. Do not use Appliance on wet surfaces or surfaces with standing water.

14. Do not allow the Appliance to pick up large objects like stones, large pieces of paper or any item that may clog the Appliance.

15. Do not use Appliance to pick up ammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present.

16. Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could

cause a re.

17. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint,

hair, and anything that may reduce air ow.

18. Take care not to damage the power cord. Do not pull on or carry the Appliance or Docking Station by the power cord, use the power cord as a handle, close a door on the power cord, or pull power cord around sharp edges or corners. Do not run Appliance over the power cord. Keep power cord away from hot surfaces. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

19. If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.

20. Do not use the Docking Station if it is damaged.

21. Do not use with a damaged power cord or plug. Do not use the Appliance or Docking Station if it is not working properly, has been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.

22. Turn OFF the power switch before cleaning or maintaining the Appliance.

1. Important Safety Instructions

23. The plug must be removed from the receptacle before cleaning or maintaining the Docking Station.

24. Remove the Appliance from the Docking Station, and turn OFF the power switch to the Appliance before removing the battery for disposal of the Appliance.

25. The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.

26. Please dispose of used batteries according to local laws and regulations.

27. Do not incinerate the Appliance even if it is severely damaged. The batteries can explode

in a re.

28. When not using the Docking Station for a long period of time, please unplug it.

29. The Appliance must be used in accordance with the directions in this Instruction Manual. ECOVACS ROBOTICS cannot be held liable or responsible for any damages or injuries caused by improper use.

30. Prevent unintentional starting. Ensure the switch is in the off position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your

nger on the switch or energizing appliance

that have the switch on invites accidents.

31. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery

terminals together may cause burns or a re.

32. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If

contact accidentally occurs, ush with water.

If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

33. Do not use a battery pack or appliance that is

damaged or modied. Damaged or modied

batteries may exhibit unpredictable behavior

resulting in re, explosion or risk of injury.

1. Important Safety Instructions

34. Do not expose a battery pack or appliance to

re or excessive temperature. Exposure to re or temperature above 130°C may cause

explosion. The temperature of 130°C can be replaced by the temperature of 265°F.

35. Follow all charging instructions and do not charge the battery pack or appliance

outside of the temperature range specied

in the instructions. Charging improperly or at

temperatures outside of the specied range

may damage the battery and increase the risk

of re.

36. Have servicing performed by a qualied repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.

37. Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in the instructions for use and care.

38. Place the cords from other appliances out of the area to be cleaned.

39. Do not operate the vacuum in a room that has lit candles on furniture that the vacuum may accidentally hit or bump into.

40. Do not allow children to sit on the vacuum.

41. Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of battery pack may create a risk

of re when used with another battery pack.

42. Use appliances only with specically designated battery packs. Use of any other battery packs

may create a risk of injury and re.

43. The robot contains batteries that are only replaceable by skilled persons. To replace the robot’s battery, please contact Customer Service.

44. If the robot will not be used for a long time, fully charge the robot and power OFF for storage and unplug the Docking Station.

1. Important Safety Instructions

Federal Communications Commission (FCC) Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for

help.

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

RF exposure warning

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter.

To disable Wi-Fi module on DEEBOT, power the robot ON. Place the robot on the Docking Station making sure the Charging Contacts on DEEBOT and the Docking Station Pins make a connection. Press and hold the AUTO Mode Button on the robot for 20 seconds until DEEBOT emits 3 beeps. To enable Wi-Fi module on DEEBOT, power the robot OFF and then power ON. The Wi- Fi module is turned on when DEEBOT is restarted.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

2.1 Package Contents

2. Package Contents and Technical Specifications

Robot

(4) Side Brushes

Note: Figures and illustrations are for reference only and may differ from actual product appearance.

Product design and specications are subject to changes without notice.

Main Brush Option

(Pre-installed)

Docking Station

Direct Suction Option

Instruction Manual

Sponge Filter and High-

efciency Filter

Quick Start Guide

Multi-function Cleaning

Tool

2. Package Contents and Technical Specifications

2.2 Specifications 2.3 Product Diagram

Model DE5G

Working voltage 12V DC

Docking Station Model

Input

Battery ZJ1517-HFR 3000mAh

Laser

Note: Technical and design specications may be changed for continuous

product improvement.

100-130V AC,

50/60Hz,0.5A

Rotate Speed 300± 5 circle/min

CH1630A

Output

Max. Power 2.5mW

Frequency 1.8KHz

20V DC,

0.8A

Robot

RESET Button

LDS (Laser Distance Sensor)

Anti-collision Sensors and Bumper

Wi-Fi Indicator Light

AUTO Mode Button

Power Switch

Upgrade Port

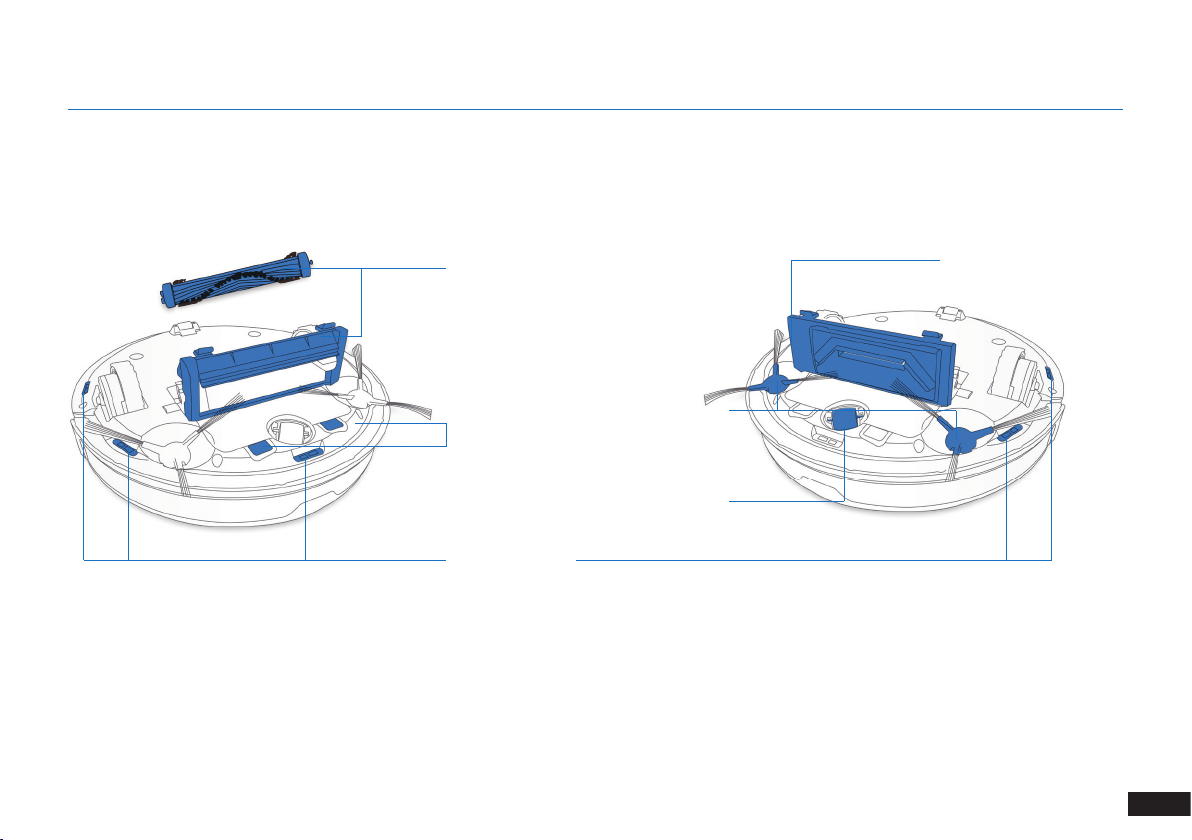

Bottom View

2. Package Contents and Technical Specifications

Main Brush Option

Charging Contacts

Anti-drop Sensors

Side Brushes

Universal Wheel

Direct Suction Option

3. Operating and Programming

3.1 Notes Before Cleaning

WARNING: Do not use DEEBOT on wet surfaces or surfaces with standing water.

Before using the product on a rug with tasseled edges, please fold the rug edges under.

Remove power cords and small objects from the oor that the robot

could be obstructed by, and tidy up the area to be cleaned by putting furniture, such as chairs, in their proper place.

It may be necessary to place a physical barrier at the edge of a drop to stop the unit from falling over the edge.

3.2 Quick Start

Remove Protective Strip

3. Operating and Programming

Docking Station Placement

Install Side Brushes

Power ON

3. Operating and Programming

Charge DEEBOT

Note: When DEEBOT completes the cleaning cycle or when battery

power gets low, DEEBOT automatically returns to the Docking Station to recharge itself. DEEBOT can also be sent back to the Docking Station at any time by using ECOVACS App or by pressing the AUTO Button on the robot for 3 seconds.

Pause

Note: The robot’s Control Panel stops glowing after the robot is paused

for a few minutes. Press the AUTO Mode Button on DEEBOT to wake up the robot.

Start

Power OFF

Note: When DEEBOT is not working, it is recommended to keep it

switched ON and charging.

3. Operating and Programming

Note: For models with app-connectivity, various functions can be

performed using the ECOVACS App.

3.3 Choosing a Suction Option

Main Brush Option: The best choice for deep cleaning, with a combination

of the Main Brush and strong suction.

Direct Suction Option: The best choice for daily cleaning. This Suction

Option is specically designed to pick up hair without getting clogged by

it, and is ideal for pet owners.

iOS 9.0 or later Android 4.0 or later

3. Operating and Programming

Install the Direct Suction Option

Install the Main Brush Option

4. Maintenance

Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Docking Station.

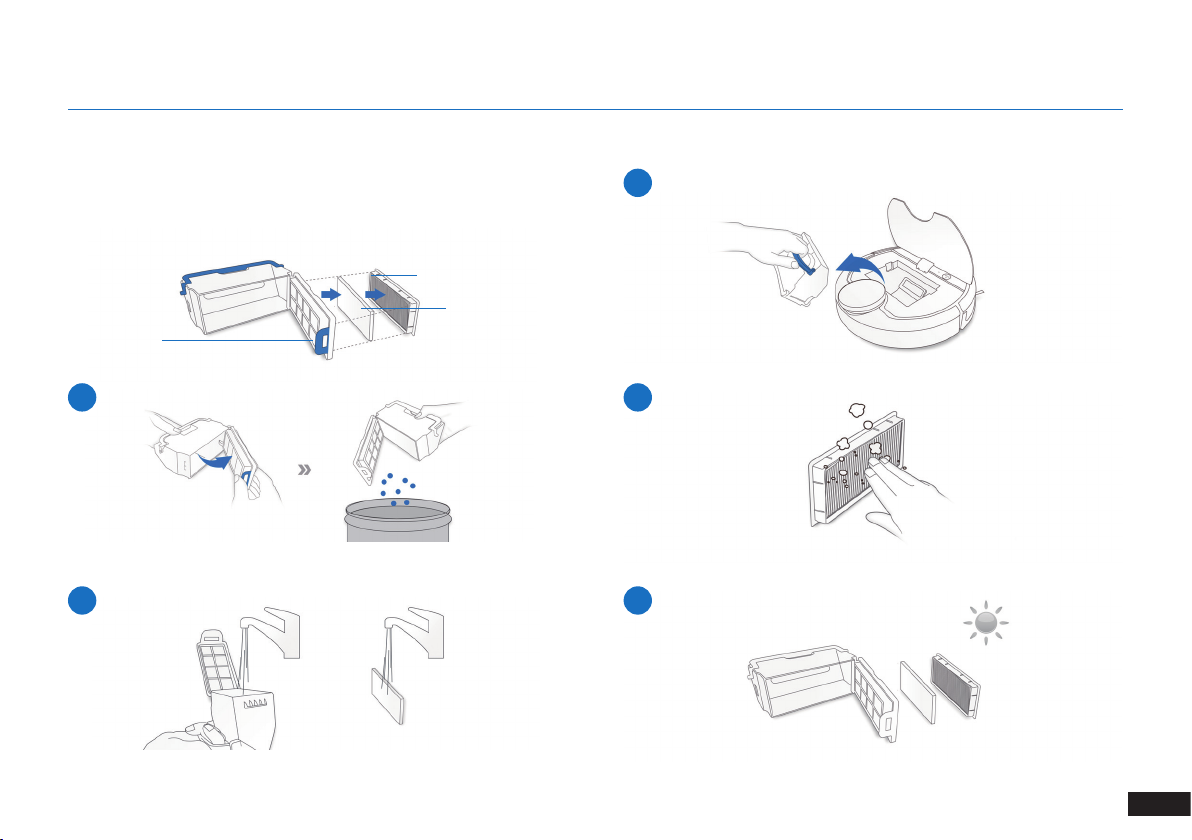

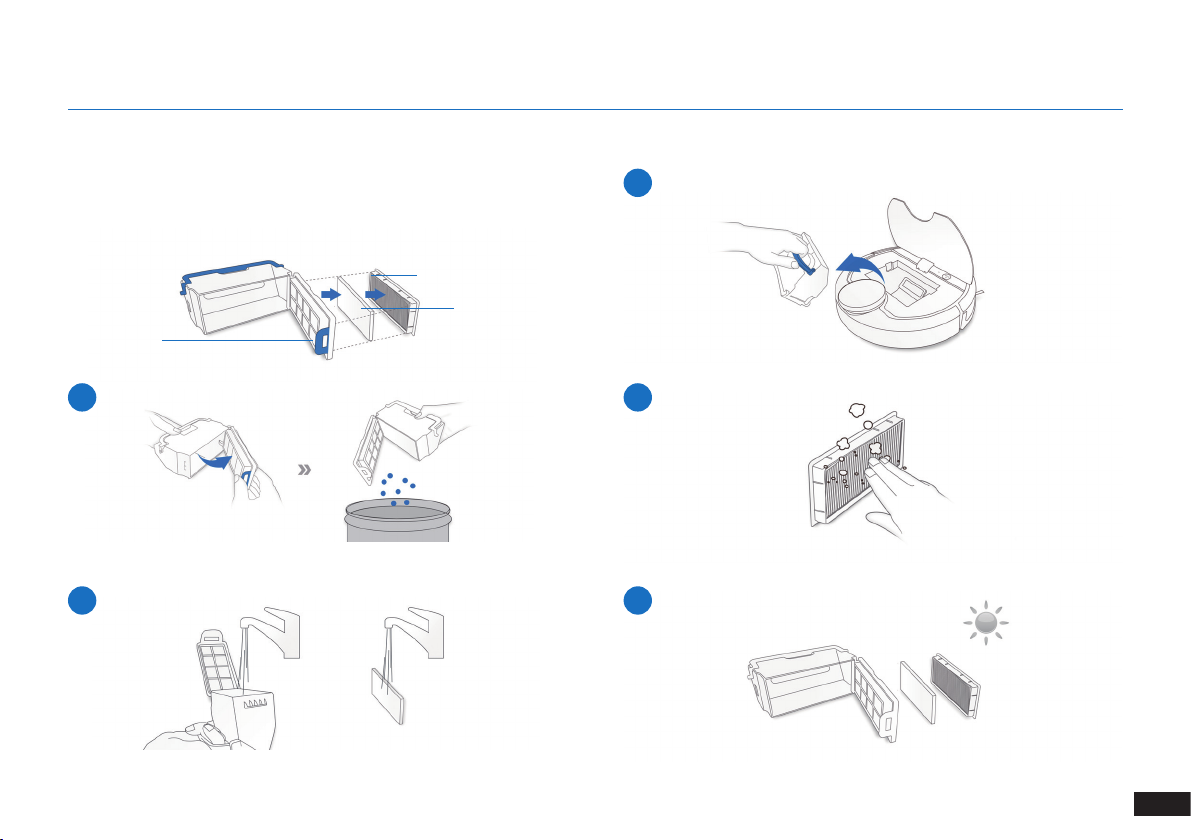

4.1 Dust Bin and Filters

Dust Bin

Filter Net

High Efciency Filter

Sponge Filter

4. Maintenance

4.2 Main Brush, Direct Suction Option and Side Brushes

Note: A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.

Main Brush

1 2 3

Direct Suction Option Side Brushes

4.3 Other Components

Note: Before cleaning the robot’s Charging Contacts

and Docking Station Pins, turn the robot OFF and unplug the Docking Station.

4. Maintenance

4.4 Regular Maintenance

To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts with the following frequencies:

Robot Part Maintenance Frequency Replacement Frequency

Side Brush Once every 2 weeks Every 3-6 months

Main Brush Once per week Every 6-12 months

Sponge Filter/ High Efciency Filter Once per week Every 3-6 months

Universal Wheel

Anti-Drop Sensors

Bumper

Charging Contacts

Docking Station Pins

A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.

Note: ECOVACS manufactures various replacement parts and ttings. Please contact Customer Service for more information on replacement parts.

Once per week /

5. Troubleshooting

DEEBOT will tell you something is wrong with an alarm indicator light and sounds.

More detailed support is available through the ECOVACS App and online.

No. Malfunction Possible Causes Solutions

DEEBOT is not switched ON. Switch ON DEEBOT.

1 DEEBOT is not charging.

DEEBOT cannot return to the

Docking Station.

DEEBOT gets stuck while

working and stops.

DEEBOT returns to the

Docking Station before it has

nished cleaning.

DEEBOT has not connected to the Docking Station.

The battery is completely discharged.

The Docking Station is not correctly placed. Refer to section 3.2 to correctly place the Docking Station.

DEEBOT is tangled with something on the oor

(electrical wires, curtains, carpet fringing, etc.).

When the battery gets low, DEEBOT automatically switches to Return to Charger Mode and returns to the Docking Station to recharge itself.

Working time varies according to oor

surface, room complexity and the Cleaning Mode selected.

Be sure that the robot’s Charging Contacts have connected to the Docking Station Pins.

Re-activate the battery. Switch ON Place DEEBOT on the Docking Station by hand, remove after charging for 3 minutes, repeat 3 times; then charge normally.

DEEBOT will try various ways to free itself. If it is unsuccessful, manually remove the obstacles and restart.

This is normal. No solution necessary.

+ 47 hidden pages
