Congratulations on the purchase of your ECOVACS ROBOTICS DEEBOT! We hope it brings you many years of satisfaction. We believe that your new robot will help keep your home clean and give you more quality time to do other things.
Live Smart. Enjoy Life.
Should you encounter situations that have not been properly addressed in this Instruction Manual, please contact our Customer Service Center where a technician will be able to help you with your specific problem or question.
For more information, please visit the ECOVACS ROBOTICS official website: www.ecovacs.com
The company reserves the right to make technological and/or design changes to this product for continuous improvement.
Thank you for choosing DEEBOT!
Contents
1. |
Important Safety Instructions |
...................................................................................................................................4 |
2. |
Package Contents .................................................................................................................................................... |
8 |
3. |
Operating and Programming................................................................................................................................. |
11 |
4. |
Maintenance .......................................................................................................................................................... |
18 |
5. |
Indicator Light |
23 |
6. |
Troubleshooting..................................................................................................................................................... |
24 |
7. |
Technical Specifications.......................................................................................................................................... |
27 |
3 EN
1. Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical Appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
SAVE THESE INSTRUCTIONS
1.This Appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the Appliance in a safe way and understand the hazards involved. Children shall not play with the Appliance. Cleaning and user maintenance shall not be made by children without supervision.
2.Clear the area to be cleaned. Remove power cords and small objects from the floor that could entangle the Appliance. Tuck rug fringe under the rug base, and lift items such as curtains and tablecloths off the floor.
3.If there is a drop off in the cleaning area due to a step or stairs, you should operate the Appliance to ensure that it can detect the step without falling over the edge. It may become necessary to place a physical barrier at the edge to keep the unit from falling. Make sure the physical barrier is not a trip hazard.
4.Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.
5.Please make sure your power supply source voltage matches the power voltage marked on the Docking Station.
6.For INDOOR household use ONLY. Do not use the Appliance in outdoor, commercial or industrial environments.
7.Use only the original rechargeable battery and Docking Station provided with the Appliance from the manufacturer. Nonrechargeable batteries are prohibited. For battery information, please refer to Specifications section.
EN 4
1. Important Safety Instructions
8.Do not use without dust bin and/or filters in place.
9.Do not operate the Appliance in an area where there are lit candles or fragile objects.
10.Do not use in extremely hot or cold environments (below -5˚C/23˚F or above 40˚C/104˚F).
11.Keep hair, loose clothing, fingers, and all parts of body away from any openings and moving parts.
12.Do not operate the Appliance in a room where an infant or child is sleeping.
13.Do not use Appliance on wet surfaces or surfaces with standing water.
14.Do not allow the Appliance to pick up large objects like stones, large pieces of paper or any item that may clog the Appliance.
15.Do not use Appliance to pick up flammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present.
16.Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes,
matches, hot ashes, or anything that could cause a fire.
17.Do not put objects into the suction intake. Do not use if the suction intake is blocked. Keep the intake clear of dust, lint, hair, or anything that may reduce air flow.
18.Take care not to damage the power cord. Do not pull on or carry the Appliance or Docking Station by the power cord, use the power cord as a handle, close a door on the power cord, or pull power cord around sharp edges or corners. Do not run Appliance over the power cord. Keep power cord away from hot surfaces.
19.If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
20.Do not use the Docking Station if it is damaged. The power supply is not to be repaired and not to be used any longer if it is damaged or defective.
21.Do not use with a damaged power cord or receptacle. Do not use the Appliance or Docking Station if it is not working properly,
5 EN
1. Important Safety Instructions
has been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.
22.Turn OFF the power switch before cleaning or maintaining the Appliance.
23.The plug must be removed from the receptacle before cleaning or maintaining the Docking Station.
24.Remove the Appliance from the Docking Station, and turn OFF the power switch to the Appliance before removing the battery for disposal of the Appliance.
25.The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.
26.Please dispose of used batteries according to local laws and regulations.
27.Do not incinerate the Appliance even if it is severely damaged. The batteries can explode in a fire.
28.When not using the Docking Station for a long period of time, please unplug it.
29.The Appliance must be used in accordance with the directions in this Instruction Manual. ECOVACS ROBOTICS cannot be held liable or responsible for any damages or injuries caused by improper use.
30.The robot contains batteries that are only replaceable by skilled persons. To replace the robot’s battery, please contact Customer Service.
31.If the robot will not be used for a long time, power OFF the robot for storage and unplug the Docking Station.
32.WARNING: For the purposes of recharging the battery, only use the detachable supply unit CH1822 provided with the Appliance.
EN 6
1. Important Safety Instructions
To disable Wi-Fi module on DEEBOT, power the robot ON.
Place the robot on the Docking Station making sure the Charging Contacts on DEEBOT and the Docking Station Pins make a connection.
Press and hold the AUTO Mode Button on the robot for 20 seconds until DEEBOT emits 3 beeps.
To enable Wi-Fi module on DEEBOT, power the robot OFF and then power ON. The WiFi module is turned on when DEEBOT is restarted.

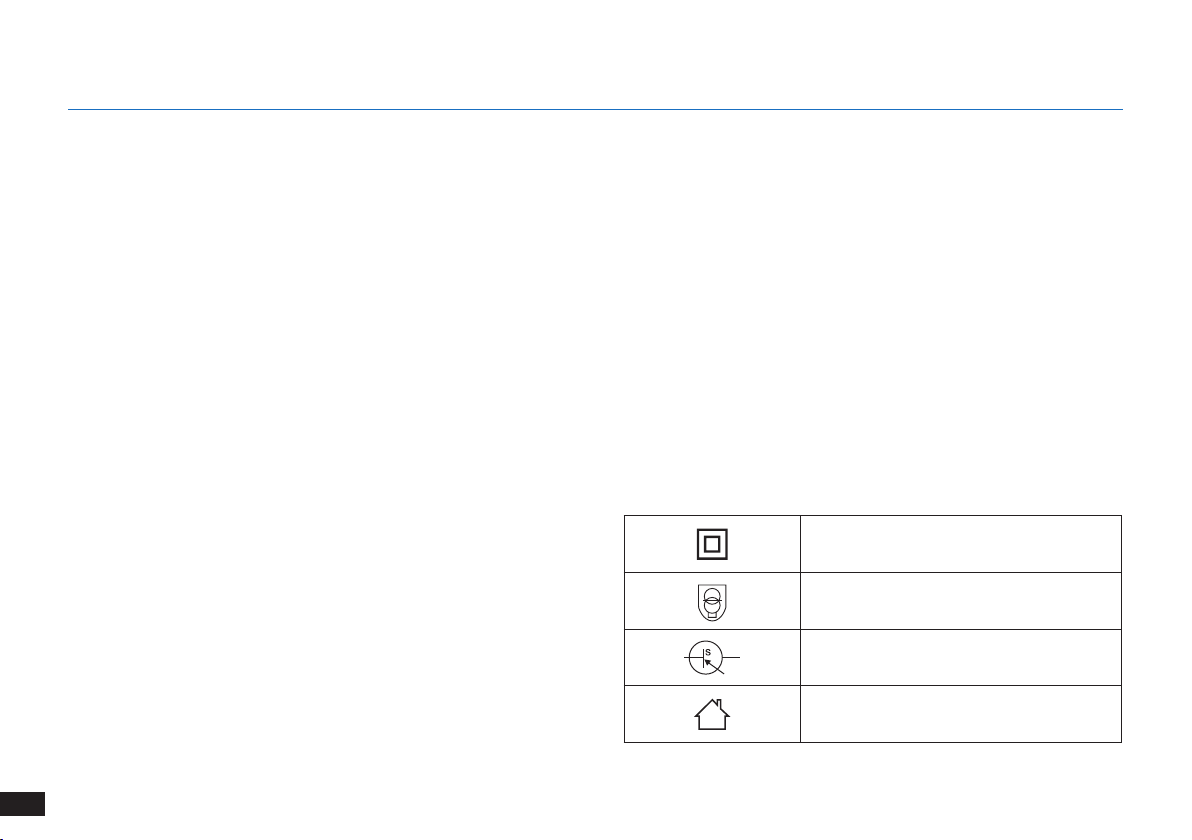

Class II
Short-circuit-proof safety isolating transformer
Switch mode power supply
For indoor use only
For EU Countries
For EU Declaration of Conformity information, visit https://www. ecovacs . com/global/ compliance
Correct Disposal of this Product
This marking indicates that this product should not be disposed of with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To recycle your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can safely recycle this product.
7 EN
2. Package Contents
2.1 Package Contents
|
|
|
|
Robot |
Docking Station |
Instruction Manual |
(4) Side Brushes |
Main Brush Option |
Direct Suction Option |
|
(Pre-installed) |
|||
|
|
Washable/Reusable |
Disposable Cleaning Cloth |
Cleaning Cloth Plate |
|
Microfiber Cleaning Cloth |
|||
|
|
Note: Figures and illustrations are for reference only and may differ from actual product appearance. Product design and specifications are subject to changes without notice.
EN 8
Quick Start Guide
Reservoir
Washable High Efficiency
Filter and Sponge Filter
2. Package Contents
2.3 Product Diagram
Robot
LDS (Laser Distance Sensor)
Anti-Collision Sensors and Bumper
Power Switch
AUTO Mode
Button
Multi-function
Cleaning Tool
Bottom View
Direct Suction Option
RESET Button
Wi-Fi Indicator
Carpet Detection
Sensor
Side Brushes
Universal Wheel
Main Brush Option
Charging Contacts
Anti-drop Sensors
9 EN
2. Package Contents
Reservoir |
Docking Station |
Water Inlet
Reservoir Release Button
Cleaning Cloth |
|
Plate |
|
Docking Station Pins |
Power Cord |
|
Washable/Reusable
Microfiber Cleaning Cloth
EN 10
3. Operating and Programming
3.1 Notes Before Cleaning
WARNING: Do not use DEEBOT on wet surfaces or surfaces with standing water.
Before using the product on a rug with tasseled edges, please fold the rug edges under.
Tidy up the area to be cleaned by putting furniture, such as chairs, in their proper place.
It may be necessary to place a physical barrier at the edge of a drop to stop the unit from falling over the edge.
Remove power cords and small objects from the floor that the robot could be obstructed by.
11 EN
3. Operating and Programming
3.2 Preparation
1 Remove Protection Strip |
2 |
4 Install Side Brushes |
5 |
Assemble Docking Station |
3 Docking Station Placement |
Please place the Docking Station on a hard floor surface.
Power ON
EN 12
3. Operating and Programming
6 Charge DEEBOT |
8 Start |
Note: When DEEBOT completes the cleaning cycle or when the battery gets low, DEEBOT automatically returns to the Docking Station to recharge itself. DEEBOT can also be sent back to the Docking Station at any time by using the ECOVACS App or by pressing the AUTO Button on the robot for 3 seconds.
Empty remaining water from the Reservoir and remove the Cleaning Cloth Plate before charging DEEBOT.
7 Pause |
9 Power OFF |
Note: The robot’s Control Panel stops glowing after the robot is paused for a few minutes. Press the AUTO Mode Button on DEEBOT to wake up the robot.
Note: When DEEBOT is not working, it is recommended to keep it switched ON and charging.
13 EN
3. Operating and Programming
All the functions mentioned above can be enabled on the App. Download ECOVACS App to access more features, including MAX Mode, Scheduled Cleaning, etc.
ECOVACS HOME
iOS 9.0 or later |
Android 4.0 or later |
EN 14
3. Operating and Programming
3.3 OZMO Mopping System
1
2
Click
3
Note: To add water into the Reservoir when DEEBOT is cleaning, pause the robot, press the Reservoir Release Button, draw out the reservoir, and add water.
15 EN
3. Operating and Programming
3.4 Choosing a Suction Option
Main Brush Option: The best choice for deep cleaning, with a combination of the Main Brush and strong suction.
Direct Suction Option: The best choice for daily cleaning. This Suction Option is specifically designed to pick up hair without getting clogged by it, and is ideal for pet owners.
EN 16
3. Operating and Programming
Install the Direct Suction Option
1 |
2 |
3 |
Install the Main Brush Option
1 |
2 |
3 |
17 EN
4. Maintenance
Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Docking Station.
4.1 OZMO Mopping System
1 |
2 |
3 |
4 |
5 |
6 |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
EN 18
4. Maintenance
4.2 Dust Bin and Filters
Dust Bin
High Efficiency Filter
Filter Net
Sponge Filter
1 |
2 |
3 |
4 |
5 |
6 |
7 |
Note: 1. Please rinse the filter with water as shown above. 2. Do not use finger or brush to clean the filter. 3. Be sure to dry out the filter for at least 24 hours after washing.
19 EN
4. Maintenance

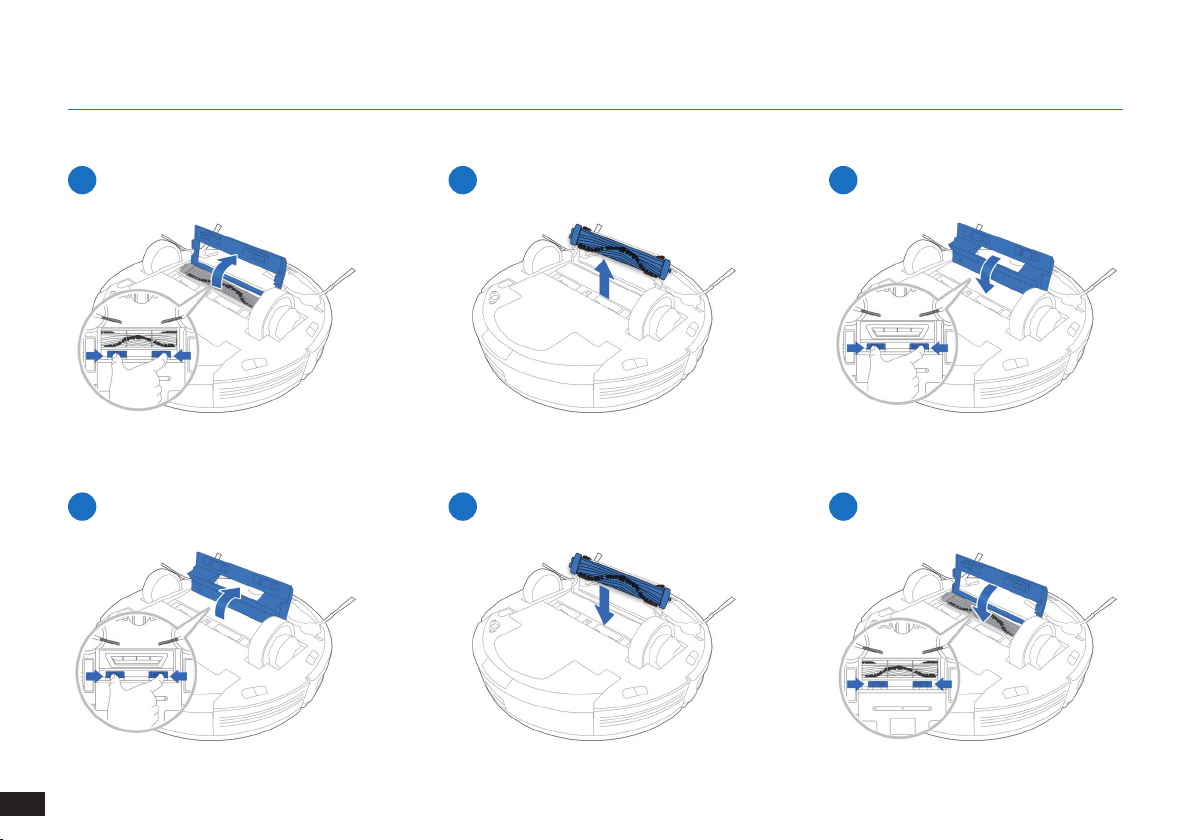

4.3 Main Brush, Direct Suction Option and Side Brushes
Note: A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
Main Brush
1 |
2 |
3 |
Direct Suction Option |
Side Brushes |
EN 20
4. Maintenance
4.4 Other Components
Note: Before cleaning the robot’s Charging Contacts and Docking Station Pins, turn the robot OFF and unplug the Docking Station.
21 EN
4. Maintenance
4.5 Regular Maintenance
To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts with the following frequencies:
Robot Part |
Maintenance Frequency |
Replacement Frequency |
|
|
|
|
|
Cleaning Cloth |
After each use |
Every 50 washings |
|
|
|
|
|
Reservoir/Cleaning Cloth Plate |
After each use |
/ |
|
|
|
|
|
Side Brush |
Once every 2 weeks |
Every 3-6 months |
|
|
|
|
|
Main Brush |
Once per week |
Every 6-12 months |
|
|
|
|
|
Sponge Filter/ High Efficiency Filter |
Once per week |
Every 3-6 months |
|
|
|
|
|
Universal Wheel |
|
|
|
Anti-Drop Sensors Bumper |
Once per week |
/ |
|
Charging Contacts |
|||
|
|
||
Docking Station Pins |
|
|
|
|
|
|
A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
Note: ECOVACS manufactures various replacement parts and fittings. Please contact Customer Service for more information on replacement parts.
EN 22
5. Indicator Light
DEEBOT will tell you something is wrong with an indicator light and voice report. More detailed support is available through the ECOVACS HOME and online website.
Indicator Light |
Scenario |
|
|
|
|
|
The robot is cleaning |
|
AUTO Mode Button glows a solid WHITE |
|
|
The robot is paused while cleaning |
||
|
||
|
|
|
|
The robot is charging |
|
|
|
|
AUTO Mode Button flashes WHITE |
The robot is starting |
|
|
|
|
|
The robot is relocating |
|
|
|
|
AUTO Mode Button glows a solid RED |
The robot has low battery |
|
|
|
|
AUTO Mode Button flashes RED |
The robot has a problem |
|
|
|
23 EN
6. Troubleshooting
No. |
Malfunction |
Possible Causes |
Solutions |
|
|
|
|
|
|
|
|
DEEBOT is not switched ON. |
Switch ON DEEBOT. |
|
|
|
|
|
|
|
|
DEEBOT has not connected to the Docking |
Be sure that the robot’s Charging Contacts have |
|
|
|
Station. |
connected to the Docking Station Pins. |
|
|
|
|
|
|
1 |
DEEBOT is not charging. |
The Power Cord is not connected to the |
Make sure the Power Cord is firmly connected to the |
|
Docking Station. |
Docking Station. |
|||
|
|
|
|
|
|
|
|
Re-activate the battery. Switch ON. Place DEEBOT on |
|
|
|
The battery is completely discharged. |
the Docking Station by hand, remove after charging for 3 |
|
|
|
|
minutes, repeat 3 times; then charge normally. |
|
|
|
|
|
|
|
|
Make sure the Docking Station is connected |
The Docking Station is not connected to the power |
|
|
|
to the power supply. |
supply. |
|
|
|
|
|
|
2 |
DEEBOT cannot return to the |
The Docking Station is not correctly placed. |
Refer to section 3.2 to correctly place the Docking |
|
Docking Station. |
Station. |
|||
|
|
|||
|
|
|
|
|
3 |
DEEBOT gets stuck while |
DEEBOT is tangled with something on the floor |
DEEBOT will try various ways to free itself. If it is |
|
working and stops. |
(electrical wires, curtains, carpet fringing, etc.). |
unsuccessful, manually remove the obstacles and restart. |
||
|
||||
|
|
|
|
|
|
|
When the battery gets low, DEEBOT |
|
|
|
|
automatically switches to Return to Charger |
This is normal. No solution necessary. |
|
|
DEEBOT returns to the |
Mode and returns to the Docking Station to |
||
|
|
|||
|
recharge itself. |
|
||
4 |
Docking Station before it has |
|
||
|
|
|||
|
finished cleaning. |
Working time varies according to floor |
|
|
|
|
|
||
|
|
surface, room complexity and the Cleaning |
This is normal. No solution necessary. |
|
|
|
Mode selected. |
|
|
|
|
|
|
EN 24
|
|
|
6. Troubleshooting |
|
|
|
|
|
|
|
|
|
|
|
No. |
Malfunction |
Possible Causes |
Solutions |
|
|
|
|
|
|
|
|
Time Scheduling function is cancelled. |
Program DEEBOT to clean at specific times using the |
|
|
|
ECOVACS App. |
||
|
|
|
||
|
|
|
|
|
|
|
The Continued Cleaning function is turned |
|
|
|
|
ON and DEEBOT has just finished cleaning |
This is normal. No solution necessary. |
|
|
|
the scheduled cleaning area. |
|
|
|
DEEBOT does not clean |
|
|
|
|
DEEBOT is switched OFF. |
Switch ON DEEBOT. |
||
5 |
automatically at the scheduled |
|||
|
|
|||
|
time. |
|
Keep DEEBOT switched ON and connected to the |
|
|
|
|
||
|
|
The robot’s battery is low. |
Docking Station to make sure it has a full battery to work |
|
|
|
|
at any time. |
|
|
|
|
|
|
|
|
The robot’s Suction Intake is blocked and/or |
Power OFF DEEBOT, clean the Dust Bin and invert the |
|
|
|
robot. Clean the robot’s Suction Intake, Side Brushes and |
||
|
|
there is debris stuck in its components. |
||
|
|
the Main Brush as described in section 4. |
||
|
|
|
||
|
|
|
|
|
6 |
DEEBOT does not clean the |
The cleaning area is not tidy. |
Remove small objects from the floor and tidy up the |
|
whole area. |
cleaning area before DEEBOT starts cleaning. |
|||
|
|
|||
|
|
|
|
|
|
|
The water inlet filter on the bottom of |
Unscrew the water inlet on the bottom of Reservoir and |
|
|
The water is not coming out of |
Reservoir is clogged. |
clean the filter. |
|
|
|
|
||
|
|
|
||
7 |
the Reservoir when DEEBOT is |
The Reservoir runs out of water. |
Add water into the Reservoir. |
|
|
mopping. |
|
|
|
|
The water outlets on the bottom of DEEBOT |
Check the water outlets on the bottom and clean. |
||
|
|
|||
|
|
are clogged. |
||
|
|
|
||
|
|
|
|
25 EN
6. Troubleshooting
No. |
Malfunction |
Possible Causes |
Solutions |
|
|
|
|
|
|
|
|
Incorrect home Wi-Fi username or password |
Enter the correct home Wi-Fi username and password. |
|
|
|
entered. |
||
|
|
|
||
|
|
|
|
|
|
|
DEEBOT is not within range of your home |
Make sure DEEBOT is within range of your home Wi-Fi |
|
|
|
Wi-Fi signal. |
signal. |
|
|
|
|
|
|
8 |
DEEBOT is not able to connect |
|
Turn ON Power Switch. Press the RESET Button for 3 |
|
to the home Wi-Fi network. |
Network setup started before DEEBOT was |
seconds. DEEBOT is ready for network setup when it |
||
|
||||
|
|
ready. |
plays a musical tune and its Wi-Fi Indicator light flashes |
|
|
|
|
slowly. |
|
|
|
|
|
|
|
|
Your smartphone’s operating system needs to |
Update your smartphone’s operating system. The |
|
|
|
ECOVACS App runs on iOS 9.0 and above, Android 4.0 |
||
|
|
be updated. |
||
|
|
and above. |
||
|
|
|
||
|
|
|
|
EN 26
7. Technical Specifications
Model |
|
DX9G |
|
|
|
|
||
|
|
|
|
|
|
|
|
|
Rated Input |
|
20 V |
|
, 1 A |
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
Docking Station Model |
|
CH1822 |
|
|
|
|
||
|
|
|
|
|
|
|
|
|
Rated Input |
100-240 V ~, 50-60 Hz, 0.5 A |
Rated Output |
|
20 V |
|
, 1 A |
||
|
|
|||||||
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
Max. Power (mW) |
|
|
|
2.5 mW |
|
|
|
|
|
|
|
|
|
|
|
|
Laser |
Frequency (KHz) |
|
|
|
1.8 KHz |
|
|
|
|
|
|
|
|
|
|
|
|
|
Rotate Speed (circle/min) |
|
|
|
300±5 circle/min |
|
|
|
|
|
|
|
|
|
|||
Frequency bands |
|
2.400~2.4835 GHz |
|
|
||||
|
|
|
|
|
|
|
|
|
Off Mode Power |
|
Less than 0.50 W |
|
|
|
|
||
|
|
|
|
|
|
|
|
|
Networked |
|
Less than 2.00 W |
|
|
|
|
||
Standby Power |
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Output power of the WIFI module is less than 100mW.
Note: Technical and design specifications may be changed for continuous product improvement.
27 EN
Herzlichen Glückwunsch zum Kauf Ihres neuen DEEBOT von ECOVACS ROBOTICS! Wir hoffen, dass er viele Jahre lang zu Ihrer vollen Zufriedenheit arbeiten wird. Wir sind sicher, dass Ihr neuer Roboter Ihnen dabei helfen wird, Ihr Zuhause sauber zu halten, während Sie Ihre wertvolle Zeit für die angenehmen Dinge im Leben nutzen.
Live Smart. Enjoy Life.
Sollten Sie mit einer Situation konfrontiert sein, die in dieser Bedienungsanleitung nicht ausreichend behandelt wird, wenden Sie sich an das Kundenservicecenter, damit sich ein Techniker mit Ihrem speziellen Problem bzw. Ihrer Frage
befassen kann.
Weitere Informationen finden Sie auf der offiziellen Webseite von ECOVACS ROBOTICS: www.ecovacs.com
Das Unternehmen behält sich im Sinne einer kontinuierlichen Verbesserung das Recht auf technische Änderungen und/ oder Designänderungen an diesem Produkt vor.
Vielen Dank, dass Sie sich für den DEEBOT entschieden haben.
DE 28
Inhalt
1. |
Wichtige Sicherheitshinweise................................................................................................................................. |
30 |
2. |
Lieferumfang.......................................................................................................................................................... |
35 |
3. |
Bedienung und Programmierung |
38 |
4. |
Wartung................................................................................................................................................................. |
45 |
5. |
Kontrollleuchte ...................................................................................................................................................... |
50 |
6. |
Fehlerbehandlung.................................................................................................................................................. |
51 |
7. |
Technische Daten ................................................................................................................................................... |
54 |
29 DE
1. Wichtige Sicherheitshinweise
WICHTIGE SICHERHEITSHINWEISE
Beim Gebrauch eines elektrischen Gerätes sind einige grundlegende Sicherheitshinweise zu beachten. Dazu gehören auch die folgenden Hinweise:
LESEN SIE ALLE ANWEISUNGEN VOR GEBRAUCH DIESES GERÄTES. BEWAHREN SIE DIESE ANWEISUNGEN AUF.
1.Dieses Gerät ist zur Verwendung durch Kinder ab 8 Jahren oder durch Personen mit eingeschränkten physischen, sensorischen oder geistigen Fähigkeiten bzw. fehlenden Erfahrungen und Kenntnissen geeignet, sofer n sie dabei beaufsichtigt oder bezüglich der sicheren Handhabung des Gerätes angeleitet werden und die damit verbundenen Gefahren verstanden haben. Kinder dürfen nicht mit dem Gerät spielen. Reinigung und anwenderseitige Wartung dürfen nicht durch unbeaufsichtigte Kinder erfolgen.
2.Räumen Sie den zu reinigenden Bereich frei. Entfernen Sie Netzkabel und kleine Gegenstände, in denen sich das Gerät verfangen könnte, vom Boden. Legen Sie Teppichfransen unter den Teppich und achten Sie darauf, dass Vorhänge, Tischdecken u. ä. nicht bis zum Boden herunterhängen.
3.Wenn sich im zu reinigenden Bereich Absätze in Form von Stufen oder Treppen befinden, ist das Gerät so zu bedienen, dass die Stufe erkannt wird, ohne dass das Gerät über die Kante fällt. Es kann erforderlich sein, eine physische Barriere an der Kante anzubringen, um ein Herunterfallen des Gerätes zu verhindern. Stellen Sie sicher, dass die physische Barriere keine Stolperfalle darstellt.
4.Verwenden Sie das Gerät nur gemäß der Beschreibung in dieser Bedienungsanleitung. Verwenden Sie nur empfohlene bzw. vom Hersteller angebotene Zubehörteile.
5.Stellen Sie sicher, dass die Netzspannung mit der auf dem Typenschild der Dockingstation angegebenen Netzspannung übereinstimmt.
DE 30
