Inkjet DCP/MFC
PARTS REFERENCE LIST
MODEL:
DCP-195C / DCP-197C DCP-365CN / DCP-373CW DCP-375CW / DCP-377CW DCP-395CN / MFC-253CW MFC-255CW / MFC255CWE MFC-257CW / MFC-295CN MFC-495CW / MFC-795CW
Read this list thoroughly before maintenance work.
Keep this list in a convenient place for quick and easy reference at all times.
April 2009 PL-FAX163 8CAJ06 Ver. M-1
NOTE FOR USING THIS PARTS REFERENCE LIST
1.In the case of ordering parts, it is necessary to mention the following items;
(1)Code
(2)Q'ty
(3)Description
(4)Symbol ( PCB No. etc )
Note: Orders without Parts Code or Tool No. can not be accepted.
< Example >
|
|
(1) |
(2) |
(3) |
|
(4) |
|
|
|
|||
|
REF.NO. |
|
CODE |
|
Q’TY |
|
DESCRIPTION |
|
SYMBOL |
|
REMARK |
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
2.Design-changed parts :
If any of the parts is changed, one of the following symbols is indicated in the REMARK column.
CHG(chg) : The parts is changed to a new parts. ADD(add) : The parts is newly added.
DEL(del) : The parts is deleted.
Symbol in capital letters indicates the latest parts change information in the page.
3.Parts change will be informed by the Parts change information.
4.Parts are subject to change in design without prior notice.
COUNTRIES
U.S.A. ----- |
US |
|
|
TURKEY ---- |
TUR |
|
|
CANADA ---- |
CAN |
|
HONG KONG ---- |
HK |
|
||
GERMANY ----- |
GER |
POLAND ---- |
POL |
|
|
||
UNITED KINGDOM |
----- UK |
ASIA (SINGAPORE & GULF) ---- |
ASA |
||||
FRANCE ---- |
FRA |
|
RUSSIA ---- |
RUS |
|
|
|
BELGIUM |
---- BEL |
|
OCEANIA |
|
|
|
|
NETHERLANDS --- |
NLD |
(AUSTRALIA & NEW ZEALAND) |
---- OCE |
||||
SWITZERLAND |
---- |
CHE |
PAN NORDIC |
|
|
||
AUSTRIA ---- |
AUS |
|
(NORWAY/FINLAND/DENMARK/SWEDEN)--- PND |
||||
SPAIN ---- |
SPA |
|
|
CEE GENERAL --- |
CEE |
|
|
PORTUGAL ---- |
POR |
IBERIA (SPAIN & PORTUGAL) ---- |
IBR |
||||
ITALY ---- |
ITA |
|
|
|
|
|
|
ISRAEL ---- |
ISR |
|
|
|
|
|
|
CHINA ---- |
CHN |
|
|
|
|
|
|
TAIWAN ---- |
TWN |
|
|
|
|
|
|
SOUTH AFRICA ---- |
ZAF |
|
|
|
|
||
CONTENTS
1. |
SCANNER UNIT.................................................................................. |
1 |
2. |
CARTRIDGE CASE.............................................................................. |
3 |
3. |
ENGINE ................................................................................................ |
5 |
4. |
HEAD.................................................................................................... |
7 |
5. |

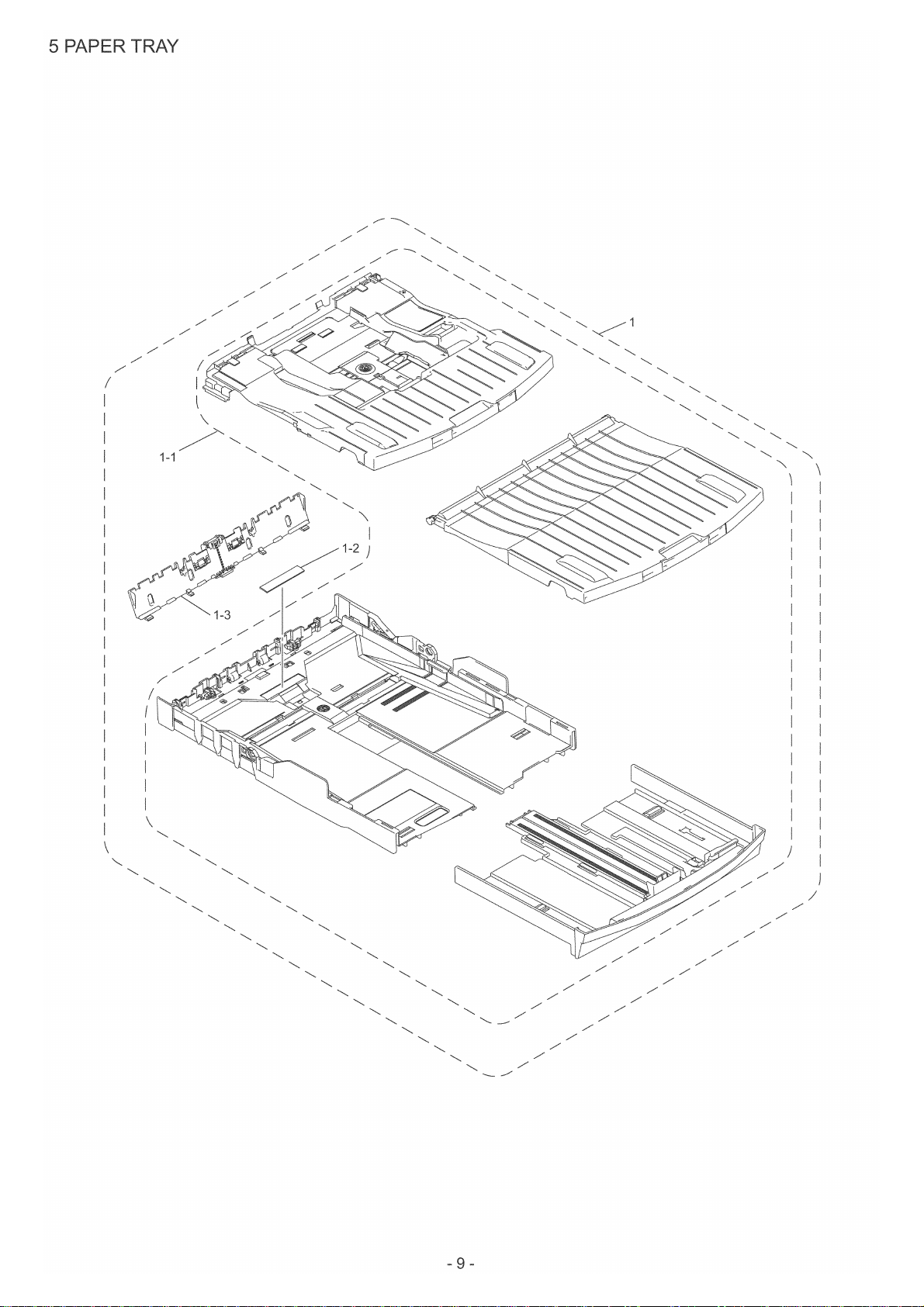

PAPER TRAY....................................................................................... |
9 |
6. |
COVER ............................................................................................... |
11 |
7. |
PANEL................................................................................................ |
13 |
8. |
PCB .................................................................................................... |
17 |
9. |
ACCESSORIES.................................................................................. |
19 |
10. |
PRINTED MATERIALS ...................................................................... |
22 |
11. |
PACKAGING ...................................................................................... |
24 |
12. |
OTHERS............................................................................................. |
28 |
1 SCANNER UNIT
1
1-1-8 |
|
|
1-1-9 |
1-1-7-3 |
1-1-7 |
|
1-1-7-1 |
|
|
1-1-7-3 |
|
|
1-1-7-3 |
|
1-1-7-3 |
|
|
1-1-7-2
1-1-6
1-1-6
1-1-5
1-1-2
1-1-2
1-1-3
1-1-4 |
1-1-1 |
3
1-1
2
2-1
1-3
1-2
4 |
4 |
|
1-2
- 1 -
|
|
|
|
|
List1(SCANNER UNIT) |
|
|
|
|
|
CODE |
|
Q'TY |
|
DESCRIPTION |
|
SYMBOL |
|
REMARKS |
REF No. |
|
|
|
|
|||||
1 |
LX1706001 |
|
1 |
|
ADF & SCANNER COVER ASSY (SP), MFC295CN |
|
|
|
|
1 |
LX1714003 |
|
1 |
|
ADF & SCANNER COVER ASSY (SP), MFC495CW |
|
|
|
chg |
1 |
LX1714005 |
|
1 |
|
ADF & SCANNER COVER ASSY (SP), MFC795CW |
|
|
|
CHG |
1-1 |
LX1707001 |
|
1 |
|
ADF & DOCUMENT COVER ASSY (SP), MFC295CN |
|
|
|
|
1-1 |
LS6546002 |
|
1 |
|
ADF & DOCUMENT COVER ASSY (SP), MFC495CW |
|
|
|
|
1-1 |
LS6546003 |
|
1 |
|
ADF & DOCUMENT COVER ASSY (SP), MFC795CW |
|
|
|
|
1-1-1 |
LS6891001 |
|
1 |
|
DOCUMENT SPONGE ASSY (SP), MFC295CN/MFC495CW/MFC795CW |
|
|
|
|
1-1-2 |
LG6753001 |
|
2 |
|
DOCUMENT SENSOR PCB ASSY, MFC295CN/MFC495CW/MFC795CW |
|
|
|
|
1-1-3 |
LS4406001 |
|
1 |
|
DOCUMENT ROLLER HOLDER ASSY, MFC295CN/MFC495CW/MFC795CW |
|
|
|
|
1-1-4 |
087310816 |
|
1 |
|
TAPTITE CUP B M3X8, MFC295CN/MFC495CW/MFC795CW |
|
|
|
|
1-1-5 |
LS4414001 |
|
1 |
|
ADF MOTOR, MFC295CN/MFC495CW/MFC795CW |
|
|
|
|
1-1-6 |
0A5300606 |
|
2 |
|
SCREW PAN (S/P WASHER) M3X6, MFC295CN/MFC495CW/MFC795CW |
|
|
|
|
1-1-7 |
LS4691002 |
|
1 |
|
ADF UNIT, MFC295CN |
|
|
|
|
1-1-7 |
LS4422002 |
|
1 |
|
ADF UNIT, MFC495CW |
|
|
|
|
1-1-7 |
LS4422003 |
|
1 |
|
ADF UNIT, MFC795CW |
|
|
|
|
1-1-7-1 |
LS4693010 |
|
1 |
|
DOCUMENT STOPPER, MFC295CN |
|
|
|
|
1-1-7-1 |
LS4424011 |
|
1 |
|
DOCUMENT STOPPER, MFC495CW |
|
|
|
|
1-1-7-1 |
LS4424007 |
|
1 |
|
DOCUMENT STOPPER, MFC795CW |
|
|
|
|
1-1-7-2 |
LS5437001 |
|
1 |
|
SEPARATION PAD AND FILM, MFC295CN/MFC495CW/MFC795CW |
|
|
|
|
1-1-7-3 |
LP1429001 |
|
4 |
|
EXIT FILM, MFC295CN/MFC495CW/MFC795CW |
|
|
|
|
1-1-8 |
LS4435001 |
|
1 |
|
ADF COVER, MFC295CN/MFC495CW/MFC795CW |
|
|
|
|
1-1-9 |
LS5961001 |
|
1 |
|
DOCUMENT COVER SUPPORT, MFC295CN/MFC495CW/MFC795CW |
|
|
|
|
1-2 |
LS4442010 |
|
2 |
|
HINGE, MFC295CN |
|
|
|
|
1-2 |
LS4442011 |
|
2 |
|
HINGE, MFC495CW |
|
|
|
|
1-2 |
LS4442007 |
|
2 |
|
HINGE, MFC795CW |
|
|
|
|
1-3 |
LS5965001 |
|
1 |
|
PAPER JAM INST. LABEL, MFC295CN/MFC495CW/MFC795CW |
|
|
|
CHG |
2 |
LX1551002 |
|
1 |
|
SCANNER COVER ASSY (SP), DCP195C/DCP197C |
|
|
|
|
2 |
LX1551005 |
|
1 |
|
SCANNER COVER ASSY (SP), DCP365CN |
|
|
|
CHG |
2 |
LS6532004 |
|
1 |
|
SCANNER COVER ASSY (SP), DCP373CW/DCP375CW/DCP377CW/DCP395CN |
|
|
|
DEL |
2 |
LX1551001 |
|
1 |
|
SCANNER COVER ASSY (SP), DCP373CW/DCP375CW/DCP377CW/DCP395CN/ |
|
|
|
|
|
|
|
|
|
MFC253CW/MFC255CW/MFC255CWE/MFC257CW |
|
|
|
|
2-1 |
LS5965001 |
|
1 |
|
PAPER JAM INST. LABEL, |
|
|
|
|
|
|
|
|
|
DCP195C/DCP197C/DCP365CN/DCP373CW/DCP375CW/DCP377CW/DCP395CN/ |
|
|
|
|
|
|
|
|
|
MFC253CW/MFC255CW/MFC255CWE/MFC257CW |
|
|
|
|
3 |
LS6545006 |
|
1 |
|
DOCUMENT COVER ASSY (SP), DCP195C/DCP197C |
|
|
|
|
3 |
LS6545005 |
|
1 |
|
DOCUMENT COVER ASSY (SP), DCP365CN |
|
|
|
add |
3 |
LS6856002 |
|
1 |
|
DOCUMENT COVER ASSY (SP), DCP373CW/DCP375CW/DCP377CW |
|
|
|
|
3 |
LS6856001 |
|
1 |
|
DOCUMENT COVER ASSY (SP), DCP395CN |
|
|
|
|
3 |
LS6545004 |
|
1 |
|
DOCUMENT COVER ASSY (SP), MFC253CW/MFC255CW/MFC257CW |
|
|
|
|
3 |
LX1549001 |
|
1 |
|
DOCUMENT COVER ASSY (SP), DCP375CW/MFC255CWE |
|
|
|
|
4 |
LS4537008 |
|
2 |
|
HINGE, DCP195C/DCP197C |
|
|
|
|
4 |
LS4537011 |
|
2 |
|
HINGE, DCP365CN |
|
|
|
|
4 |
LS4537007 |
|
2 |
|
HINGE, DCP373CW/DCP375CW/DCP377CW/DCP395CN/ |
|
|
|
|
|
|
|
|
|
MFC253CW/MFC255CW/MFC255CWE/MFC257CW |
|
|
|
|
|
DCP195C/DCP197C/DCP365CN |
8CAJ06/11/13/15/17/33 |
DCP373CW/DCP375CW/DCP377CW/DCP395CN |
MFC253CW/MFC255CW/MFC255CWE/MFC257CW |
|
36/35/37/41/43/47 |
MFC295CN/MFC495CW/MFC795CW |
|
- 2 - |
2 CARTRIDGE CASE
2
1-1
1
- 3 -
|
|
|
|
|
List2(CARTRIDGE CASE) |
|
|
|
|
|
CODE |
|
Q'TY |
|
DESCRIPTION |
|
SYMBOL |
|
REMARKS |
REF No. |
|
|
|
|
|||||
1 |
LK3553001 |
|
1 |
|
INK REFILL ASSY (SP), |
|
|
|
|
|
|
|
|
|
DCP395CN/MFC255CWE/MFC495CW/MFC795CW FOR ALL COUNTRIES, |
|
|
|
|
|
|
|
|
|
DCP375CW/MFC295CN FOR US/CAN |
|
|
|
|
1 |
LK3554001 |
|
1 |
|
INK REFILL ASSY (SP), |
|
|
|
|
|
|
|
|
|
DCP195C/DCP197C/DCP365CN/DCP373CW/DCP377CW/ |
|
|
|
|
|
|
|
|
|
MFC253CW/MFC255CW/MFC257CW FOR ALL COUNTRIES, |
|
|
|
|
|
|
|
|
|
DCP375CW/MFC295CN EXCEPT FOR US/CAN |
|
|
|
|
1-1 |
LK3329001 |
|
1 |
|
INK CARTRIDGE DETECTION SENSOR PCB |
|
B57C002 |
|
ADD |
2 |
LK3555001 |
|
1 |
|
HEAD JOINT RUBBER (SP) |
|
|
|
|
|
DCP195C/DCP197C/DCP365CN |
8CAJ06/11/13/15/17/33 |
DCP373CW/DCP375CW/DCP377CW/DCP395CN |
MFC253CW/MFC255CW/MFC255CWE/MFC257CW |
|
36/35/37/41/43/47 |
MFC295CN/MFC495CW/MFC795CW |
|
- 4 - |
3 ENGINE
3
1
6
1-11
1-11
1-10 |
1-7 |
1-3
1-1
2 |
1-2 |
8
7-2
7-1
7-3
7-3
5
1-5-1
1-5
4
1-8
1-12
1-4
1-6
1-14
1-9
1-13
9
9
9
7
- 5 -
|
|
|
|
|
List3(ENGINE) |
|
|
|
CODE |
|
Q'TY |
|
DESCRIPTION |
|
REMARKS |
REF No. |
|
|
|
||||
1 |
LS6537001 |
|
1 |
|
ENGINE UNIT (SP), |
|
|
|
|
|
|
|
DCP195C/DCP197C/DCP365CN/DCP373CW/DCP375CW/DCP377CW/ |
|
|
|
|
|
|
|
MFC253CW/MFC255CW/MFC255CWE/MFC257CW/MFC295CN |
|
|
1 |
LX1876001 |
|
1 |
|
ENGINE UNIT (SP), DCP395CN/MFC495CW/MFC795CW |
|
|
1-1 |
LS4301001 |
|
1 |
|
STAR WHEEL HOLDER |
|
|
1-2 |
LS4303001 |
|
1 |
|
PLATEN F ASSY, |
|
|
|
|
|
|
|
DCP195C/DCP197C/DCP365CN/DCP373CW/DCP375CW/DCP377CW/ |
|
|
|
|
|
|
|
MFC253CW/MFC255CW/MFC255CWE/MFC257CW/MFC295CN |
|
|
1-2 |
LS4304001 |
|
1 |
|
PLATEN M ASSY, DCP395CN/MFC495CW/MFC795CW |
|
|
1-3 |
LX3629001 |
|
1 |
|
CARRIAGE MOTOR |
|
CHG |
1-4 |
LP1471001 |
|
1 |
|
RF ENCODER DISK |
|
|
1-5 |
LS4249001 |
|
1 |
|
INNER CHUTE ASSY |
|
|
1-5-1 |
LS4251001 |
|
1 |
|
REGISTRATION SENSOR ACTUATOR |
|
|
1-6 |
LT0466001 |
|
1 |
|
SENSOR HARNESS UNIT |
|
|
1-7 |
LS4198001 |
|
1 |
|
TIMING BELT |
|
|
1-8 |
LS4260001 |
|
1 |
|
ASF GEAR SHAFT OUTER |
|
|
1-9 |
LX0126001 |
|
1 |
|
ASF ROLLER 9 UNIT ASSY |
|
|
1-10 |
LS4467001 |
|
1 |
|
ENCODER STRIP |
|
|
1-11 |
000300606 |
|
2 |
|
SCREW BIND M3X6 |
|
|
1-12 |
000021206 |
|
1 |
|
SCREW BIND M2X12 |
|
|
1-13 |
LS4120001 |
|
1 |
|
PE ACTUATOR 9 ASSY |
|
add |
1-14 |
LS4075001 |
|
1 |
|
PE ACTUATOR SPRING |
|
add |
2 |
LS4253002 |
|
1 |
|
JAM CLEAR COVER, DCP195C/DCP197C |
|
|
2 |
LS4253007 |
|
1 |
|
JAM CLEAR COVER, DCP365CN |
|
|
2 |
LS4253003 |
|
1 |
|
JAM CLEAR COVER, DCP373CW/DCP375CW/DCP377CW/DCP395CN/ |
|
|
|
|
|
|
|
MFC253CW/MFC255CW/MFC255CWE/MFC257CW/MFC295CN/MFC495CW/MFC795CW |
|
|
3 |
LS4383001 |
|
1 |
|
HEAD COVER |
|
|
4 |
LX0376001 |
|
1 |
|
TUBE SUPPORT PLATE |
|
|
5 |
LS4469001 |
|
1 |
|
TUBE SUPPORT WIRE |
|
|
6 |
LS6543001 |
|
1 |
|
CARRIAGE PCB ASSY (SP) |
|
|
7 |
LS6544001 |
|
1 |
|
MAINTENANCE UNIT (SP) |
|
|
7-1 |
LS4091001 |
|
1 |
|
ASF MOTOR |
|
|
7-2 |
LS4098001 |
|
1 |
|
SWITCHING LEVER GUIDE |
|
|
7-3 |
LS4375001 |
|
2 |
|
SCREW PAN (S/P WASHER) M3X5 |
|
|
8 |
LS5775001 |
|
1 |
|
EARTH SPRING |
|
|
9 |
087311016 |
|
3 |
|
TAPTITE CUP B M3X10 |
|
|
DCP195C/DCP197C/DCP365CN
DCP373CW/DCP375CW/DCP377CW/DCP395CN 8CAJ06/11/13/15/17/33 MFC253CW/MFC255CW/MFC255CWE/MFC257CW 36/35/37/41/43/47 MFC295CN/MFC495CW/MFC795CW
- 6 -
