ZyXEL NBG6815 User Manual

Download

Pop-up Windows, JavaScript and Java

In order to use the web configurator you need to allow:

• Web browser pop-up windows from your device.

• JavaScript (enabled by default).

• Java permissions (enabled by default).

Note: The screens used below belong to Internet Explorer version 6, 7 and 8. Screens for

other Internet Explorer versions may vary.

Internet Explorer Pop-up Blockers

You may have to disable pop-up blocking to log into your device.

APPENDIX A

Permissions

Either disable pop-up blocking (enabled by default in Windows XP SP (Service Pack) 2) or allow pop-up blocking and create an exception for your device’s IP address.

Disable Pop-up Blockers

1 In Internet Explorer, select To ols, Pop - u p Bl ocker and then select T urn Of f Pop - up Blocke r.

Figure 104 Pop-up Blocker

You can also check if pop-up blocking is disabled in the Po p-up Block er section in the Priv acy tab.

1 In Internet Explorer, select To ols, I n t ern e t O ptions, Pr iv a cy.

2 Clear the Block pop - ups check box in the Pop- up Blo ck e r section of the screen. This disables any

web pop-up blockers you may have enabled.

NBG6815 User’s Guide

159

Appendix A Pop-up Windows, JavaScript and Java Permissions

Figure 105 Internet Options: Privacy

3 Click Ap ply to save this setting.

Enable Pop-up Blockers with Exceptions

Alternatively, if you only want to allow pop-up windows from your device, see the following steps.

1 In Internet Explorer, select To ols, I n t ern e t O ptions and then the Pri vacy tab.

2 Select Se t t ing s…to open the Pop- up Block er Se t t ing s screen.

NBG6815 User’s Guide

160

Appendix A Pop-up Windows, JavaScript and Java Permissions

Figure 106 Internet Options: Privacy

3 Type the IP address of your device (the web page that you do not want to have blocked) with the

prefix “http://”. For example, http://192.168.167.1.

4 Click Ad d to move the IP address to the list of All ow ed sites.

Figure 107 Pop-up Blocker Settings

NBG6815 User’s Guide

161

5 Click Close to return to the Pri vacy screen.

6 Click Ap ply to save this setting.

JavaScript

1 In Internet Explorer, click To ols, I n t erne t Op tio ns and then the Se cu r it y tab.

Appendix A Pop-up Windows, JavaScript and Java Permissions

If pages of the web configurator do not display properly in Internet Explorer, check that JavaScript are allowed.

Figure 108 Internet Options: Security

2 Click the Cust om Lev e l. .. button.

3 Scroll down to Scr ipt i ng.

4 Under Activ e scriptin g make sure that Enable is selected (the default).

5 Under Scriptin g of Ja va applets make sure that Ena b le is selected (the default).

6 Click OK to close the window.

NBG6815 User’s Guide

162

Appendix A Pop-up Windows, JavaScript and Java Permissions

Figure 109 Security Settings - Java Scripting

Java Permissions

1 From Internet Explorer, click To ol s, I n t ern e t O pti ons and then the Security tab.

2 Click the Cust om Lev e l. .. button.

3 Scroll down to Micro soft VM.

4 Under Ja va perm issions make sure that a safety level is selected.

5 Click OK to close the window.

NBG6815 User’s Guide

163

Appendix A Pop-up Windows, JavaScript and Java Permissions

Figure 110 Security Settings - Java

JAVA (Sun)

1 From Internet Explorer, click To ol s, I n t ern e t O pti ons and then the Adv a nced tab.

2 Make sure that Use Ja va 2 for < ap ple t > under Ja va ( Sun) is selected.

3 Click OK to close the window.

Figure 111 Java (Sun)

NBG6815 User’s Guide

164

Mozilla Firefox

Mozilla Firefox 2.0 screens are used here. Screens for other versions may vary slightly. The steps below apply to Mozilla Firefox 3.0 as well.

You can enable Java, Javascript and pop-ups in one screen. Click Tools, then click Opt ion s in the screen that appears.

Figure 112 Mozilla Firefox: TOOLS > Options

Appendix A Pop-up Windows, JavaScript and Java Permissions

Click Co ntent to show the screen below. Select the check boxes as shown in the following screen.

Figure 113 Mozilla Firefox Content Security

NBG6815 User’s Guide

165

Opera

Opera 10 screens are used here. Screens for other versions may vary slightly.

Allowing Pop-Ups

From Opera, click Tools, then P refe r ences. In the Ge nera l tab, go to Cho ose h ow y ou pre f er t o hand le po p-ups and select Open all p op- u ps.

Figure 114 Opera: Allowing Pop-Ups

Appendix A Pop-up Windows, JavaScript and Java Permissions

Enabling Java

From Opera, click Tools, then P refe r ences. In the Ad vanced tab, select Cont e nt from the left- side menu. Select the check boxes as shown in the following screen.

NBG6815 User’s Guide

166

Appendix A Pop-up Windows, JavaScript and Java Permissions

Figure 115 Opera: Enabling Java

To customize JavaScript behavior in the Opera browser, click Java Script Opt ion s.

Figure 116 Opera: JavaScript Options

Select the items you want Opera’s JavaScript to apply.

NBG6815 User’s Guide

167

APPENDIX B

Setting Up Your Computer’s IP Address

Note: Your specific NBG6815 may not support all of the operating systems described in

this appendix. See the product specifications for more information about which operating systems are supported.

This appendix shows you how to configure the IP settings on your computer in order for it to be able to communicate with the other devices on your network. Windows Vista/XP/2000, Mac OS 9/ OS X, and all versions of UNIX/LINUX include the software components you need to use TCP/IP on your computer.

If you manually assign IP information instead of using a dynamic IP, make sure that your network’s computers have IP addresses that place them in the same subnet.

In this appendix, you can set up an IP address for:

Windows XP/NT/2000 on page 168

•

• Windows Vista on page 171

• Windows 7 on page 174

• Mac OS X: 10.3 and 10.4 on page 178

• Mac OS X: 10.5 and 10.6 on page 181

• Linux: Ubuntu 8 (GNOME) on page 184

• Linux: openSUSE 10.3 (KDE) on page 188

Windows XP/NT/2000

The following example uses the default Windows XP display theme but can also apply to Windows 2000 and Windows NT.

1 Click St a r t > Con t rol Pane l.

NBG6815 User’s Guide

168

Appendix B Setting Up Your Computer’s IP Address

2 In the Cont r ol Pa nel, click the N etw ork Conn e ct ion s icon.

3 Right-click Local Ar ea Conn e ct ion and then select Pr ope r t ies.

4 On the Ge nera l tab, select I nt e r net Pr otocol ( TCP/ I P) and then click Prop ertie s.

NBG6815 User’s Guide

169

Appendix B Setting Up Your Computer’s IP Address

5 The I nter n et Prot ocol T CP/ I P Pr ope r t ie s window opens.

NBG6815 User’s Guide

170

6 Select Obt a in an I P add ress aut om a tical ly if your network administrator or ISP assigns your IP

address dynamically. Select Use t h e f ollow in g I P Ad dress and fill in the I P add ress, Su b net m a sk , and D efa u lt

gat e w ay fields if you have a static IP address that was assigned to you by your network administrator or ISP. You may also have to enter a Pre f erred DN S se r ver and an Alt e r nate D N S se r ver , if that information was provided.

7 Click OK to close the I nter n et Prot ocol ( TCP/ I P) Pr op e rtie s window.

8 Click OK to close the Loca l Ar e a Co nne ct i on Pr ope r t ie s window.

Verifying Settings

1 Click St a r t > Al l Pr ogr a m s > Accessori es > Com m and Pr ompt .

2 In the Comm a nd Pr om pt window, type "ipconfig" and then press [ENTER].

You can also go to St a r t > Cont r ol Pa nel > N e t w o rk Conne ct ion s, right-click a network connection, click St a t us and then click the Su pport tab to view your IP address and connection information.

Appendix B Setting Up Your Computer’s IP Address

Windows Vista

This section shows screens from Windows Vista Professional.

1 Click St a r t > Cont r ol Pa nel .

2 In the Cont r ol Pa nel, click the N etw ork a nd I nt e r net icon.

NBG6815 User’s Guide

171

Appendix B Setting Up Your Computer’s IP Address

3 Click the N etw ork a nd Sh aring Center icon.

4 Click M anag e n e t w o rk co nne cti ons.

5 Right-click Local Ar ea Conn e ct ion and then select Pr ope r t ies.

Note: During this procedure, click Con t inue whenever Windows displays a screen saying

that it needs your permission to continue.

6 Select I nter n e t Prot ocol Ve r sion 4 ( TCP / I Pv 4 ) and then select Pr ope r t ie s.

NBG6815 User’s Guide

172

Appendix B Setting Up Your Computer’s IP Address

7 The I nter n et Prot ocol V e rsion 4 ( TCP/ I Pv 4 ) Prop erti es window opens.

NBG6815 User’s Guide

173

8 Select Obt a in an I P add ress aut om a tical ly if your network administrator or ISP assigns your IP

address dynamically. Select Use t h e f ollow in g I P Ad dress and fill in the I P add ress, Su b net m a sk , and D efa u lt

9 Click OK to close the I nter n et Prot ocol ( TCP/ I P) Pr op e rtie s window.

10 Click OK to close the Loca l Ar e a Co nne ct i on Pr ope r t ie s window.

Verifying Settings

1 Click St a r t > Al l Pr ogr a m s > Accessori es > Com m and Pr ompt .

2 In the Comm a nd Pr om pt window, type "ipconfig" and then press [ENTER].

Appendix B Setting Up Your Computer’s IP Address

Windows 7

This section shows screens from Windows 7 Enterprise.

1 Click St a r t > Cont r ol Pa nel .

2 In the Cont r ol Pa nel, click Vie w netw ork st a tus a n d t a sk s under the N e t w or k a n d I n terne t

category.

NBG6815 User’s Guide

174

Appendix B Setting Up Your Computer’s IP Address

3 Click Chang e a d apt e r settings.

4 Double click Lo ca l Ar e a Con nection and then select Pr ope rtie s.

NBG6815 User’s Guide

175

Appendix B Setting Up Your Computer’s IP Address

Note: During this procedure, click Con t inue whenever Windows displays a screen saying

that it needs your permission to continue.

5 Select I nter n e t Prot ocol Ve r sion 4 ( TCP / I Pv 4 ) and then select Pr ope r t ie s.

6 The I nter n et Prot ocol V e rsion 4 ( TCP/ I Pv 4 ) Prop erti es window opens.

NBG6815 User’s Guide

176

Appendix B Setting Up Your Computer’s IP Address

7 Select Obt a in an I P add ress aut om a tical ly if your network administrator or ISP assigns your IP

address dynamically. Select Use t h e f ollow in g I P Ad dress and fill in the I P add ress, Su b net m a sk , and D efa u lt

8 Click OK to close the I nter n et Prot ocol ( TCP/ I P) Pr op e rtie s window.

9 Click OK to close the Loca l Ar e a Co nne ct i on Pr ope r t ie s window.

Verifying Settings

1 Click St a r t > Al l Pr ogr a m s > Accessori es > Com m and Pr ompt .

2 In the Comm a nd Pr om pt window, type "ipconfig" and then press [ENTER].

3 The IP settings are displayed as follows.

NBG6815 User’s Guide

177

Mac OS X: 10.3 and 10.4

The screens in this section are from Mac OS X 10.4 but can also apply to 10.3.

1 Click Ap ple > Sy st e m Pr e fer e nces.

Appendix B Setting Up Your Computer’s IP Address

2 In the Sy st e m Pr e fer e nces window, click the Net w or k icon.

NBG6815 User’s Guide

178

Appendix B Setting Up Your Computer’s IP Address

3 When the N etw ork preferences pane opens, select Built-in Ethe r net from the network

connection type list, and then click Con fig ure .

4 For dynamically assigned settings, select Usin g DH CP from the Conf igu re I Pv4 list in the TCP / I P

tab.

NBG6815 User’s Guide

179

Appendix B Setting Up Your Computer’s IP Address

5 For statically assigned settings, do the following:

•From the Conf ig ure I Pv 4 list, select Manu a ll y.

•In the I P Ad dress field, type your IP address.

•In the Su bne t Mask field, type your subnet mask.

•In the Ro uter field, type the IP address of your device.

6 Click Ap ply N o w and close the window.

Verifying Settings

Check your TCP/IP properties by clicking App li ca t io ns > Utilit ies > N etw ork Utilit ie s, and then selecting the appropriate N etw ork I nter f a ce from the I n fo tab.

NBG6815 User’s Guide

180

Figure 117 Mac OS X 10.4: Network Utility

Mac OS X: 10.5 and 10.6

The screens in this section are from Mac OS X 10.5 but can also apply to 10.6.

Appendix B Setting Up Your Computer’s IP Address

1 Click Ap ple > Sy st e m Pr e fer e nces.

2 In Sy st e m Pr e fere n ce s, click the Ne t w or k icon.

NBG6815 User’s Guide

181

Appendix B Setting Up Your Computer’s IP Address

3 When the N etw ork preferences pane opens, select Et hern e t from the list of available connection

types.

4 From the Conf ig ure list, select U si ng DHCP for dynamically assigned settings.

NBG6815 User’s Guide

182

Appendix B Setting Up Your Computer’s IP Address

5 For statically assigned settings, do the following:

•From the Conf ig ure list, select Manu a lly.

•In the I P Ad dress field, enter your IP address.

•In the Su bne t Mask field, enter your subnet mask.

•In the Ro uter field, enter the IP address of your NBG6815.

6 Click Ap ply and close the window.

Verifying Settings

Check your TCP/IP properties by clicking App li ca t io ns > Utilit ies > N etw ork Utilit ie s, and then selecting the appropriate N etw ork int e r face from the I nfo tab.

NBG6815 User’s Guide

183

Appendix B Setting Up Your Computer’s IP Address

Figure 118 Mac OS X 10.5: Network Utility

Linux: Ubuntu 8 (GNOME)

This section shows you how to configure your computer’s TCP/IP settings in the GNU Object Model Environment (GNOME) using the Ubuntu 8 Linux distribution. The procedure, screens and file locations may vary depending on your specific distribution, release version, and individual configuration. The following screens use the default Ubuntu 8 installation.

Note: Make sure you are logged in as the root administrator.

Follow the steps below to configure your computer IP address in GNOME:

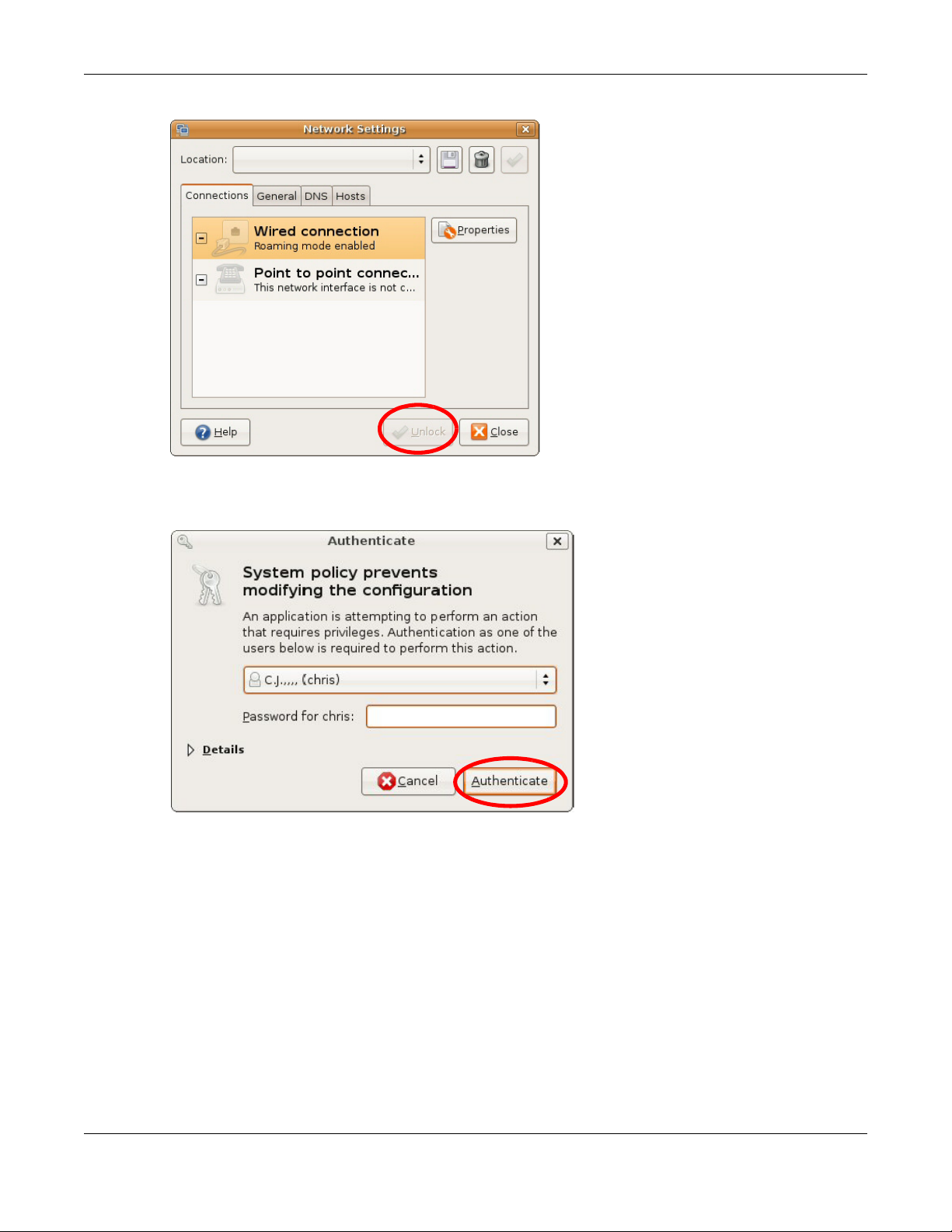

1 Click Sy st e m > A dmin istrat i on > N e t w o r k.

2 When the N etw ork Se t t ing s window opens, click U nlo ck to open the Au t hent ica t e window. (By

default, the Unl ock button is greyed out until clicked.) You cannot make changes to your configuration unless you first enter your admin password.

NBG6815 User’s Guide

184

Appendix B Setting Up Your Computer’s IP Address

3 In the Au t h ent ica t e window, enter your admin account name and password then click the

Au t hent ica t e button.

4 In the N etw ork Se t t ing s window, select the connection that you want to configure, then click

Pr oper t ies.

NBG6815 User’s Guide

185

Appendix B Setting Up Your Computer’s IP Address

5 The Pr o per t ies dialog box opens.

•In the Conf ig urat i on list, select Aut om at ic Con figu ration ( DHCP ) if you have a dynamic IP address.

•In the Conf igu ration list, select St a t ic I P a ddr e ss if you have a static IP address. Fill in the I P add ress, Su b net m a sk , and Gatew a y a ddr e ss fields.

6 Click OK to save the changes and close the Propert i es dialog box and return to the Netw ork

Se t t in g s screen.

7 If you know your DNS server IP address(es), click the DN S tab in the Netw ork Se t tin gs window

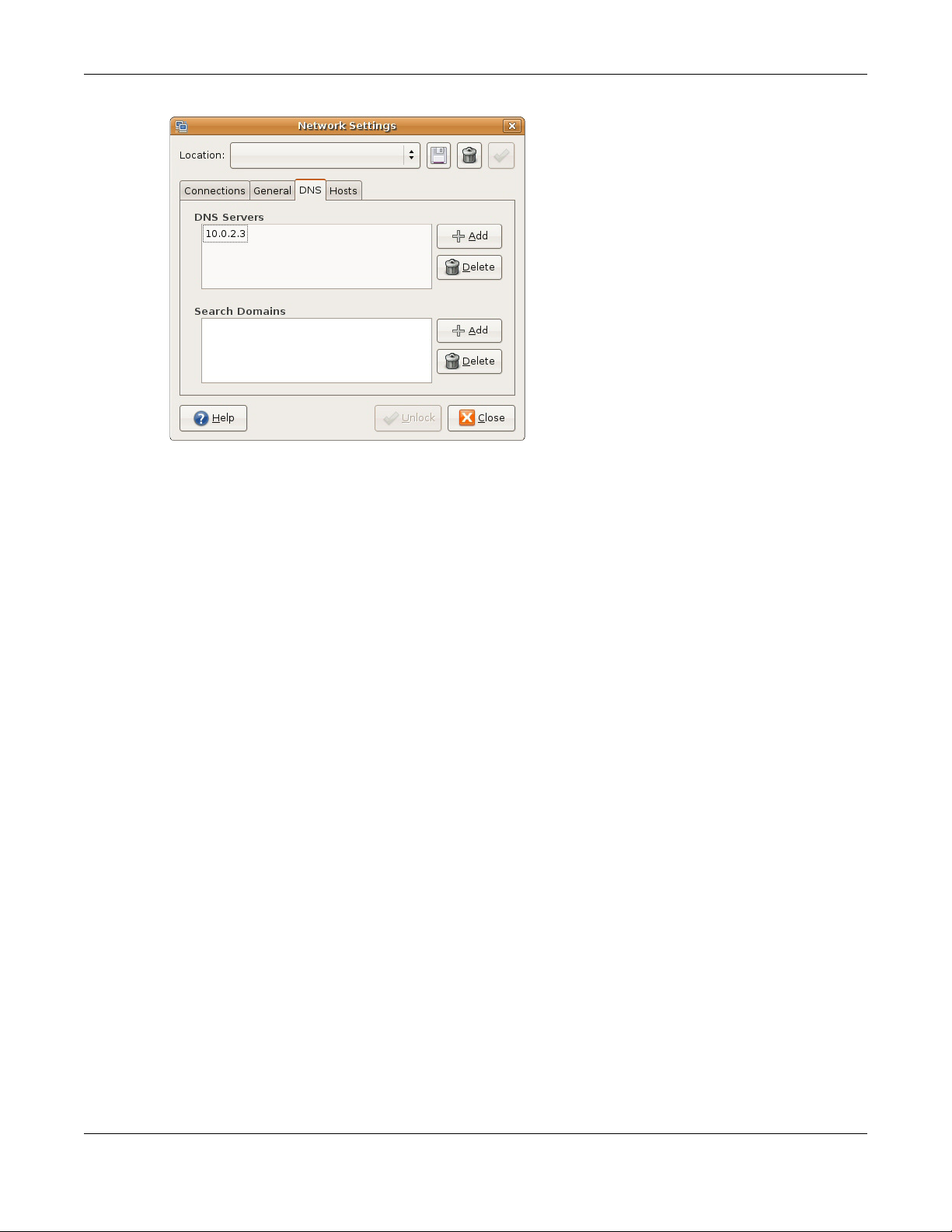

and then enter the DNS server information in the fields provided.

NBG6815 User’s Guide

186

Appendix B Setting Up Your Computer’s IP Address

8 Click the Close button to apply the changes.

Verifying Settings

Check your TCP/IP properties by clicking Syst em > Adm i nist r a t ion > Netw ork To ol s, and then selecting the appropriate N etw ork device from the D e vice s tab. The I nter f ace Statist ics column shows data if your connection is working properly.

NBG6815 User’s Guide

187

Appendix B Setting Up Your Computer’s IP Address

Figure 119 Ubuntu 8: Network Tools

Linux: openSUSE 10.3 (KDE)

This section shows you how to configure your computer’s TCP/IP settings in the K Desktop Environment (KDE) using the openSUSE 10.3 Linux distribution. The procedure, screens and file locations may vary depending on your specific distribution, release version, and individual configuration. The following screens use the default openSUSE 10.3 installation.

Note: Make sure you are logged in as the root administrator.

Follow the steps below to configure your computer IP address in the KDE:

1 Click K Menu > Com put e r > Adm ini st r ator Settin gs ( Ya ST ) .

NBG6815 User’s Guide

188

Appendix B Setting Up Your Computer’s IP Address

2 When the Ru n a s Ro ot - KDE su dialog opens, enter the admin password and click OK.

3 When the YaST Con t r ol Ce n t e r window opens, select Netw ork Devices and then click the

N etw ork Card icon.

NBG6815 User’s Guide

189

Appendix B Setting Up Your Computer’s IP Address

4 When the N etw ork Se t t ing s window opens, click the Ov ervi ew tab, select the appropriate

connection Nam e from the list, and then click the Configur e button.

5 When the N etw ork Card Se t up window opens, click the Add ress tab

NBG6815 User’s Guide

190

Appendix B Setting Up Your Computer’s IP Address

Figure 120 openSUSE 10.3: Network Card Setup

6 Select Dyna m i c Addr e ss ( DH CP) if you have a dynamic IP address.

Select St a t ically assign e d I P Address if you have a static IP address. Fill in the I P a ddr e ss, Su bne t m a sk , and Ho st n am e fields.

7 Click N ext to save the changes and close the Net w or k Ca r d Se t up window.

8 If you know your DNS server IP address(es), click the Host n a m e / D N S tab in N e tw o rk Se t t ing s

and then enter the DNS server information in the fields provided.

NBG6815 User’s Guide

191

Appendix B Setting Up Your Computer’s IP Address

9 Click Fi nish to save your settings and close the window.

Verifying Settings

Click the KN e t w or k M a nage r icon on the Task bar to check your TCP/IP properties. From the Op t ion s sub-menu, select Sh ow Con n ection I nfo rm a tion.

Figure 121 openSUSE 10.3: KNetwork Manager

When the Conn e ct ion Stat u s - KN etw ork Mana g er window opens, click the St atist i cs t ab to see if your connection is working properly.

NBG6815 User’s Guide

192

Appendix B Setting Up Your Computer’s IP Address

Figure 122 openSUSE: Connection Status - KNetwork Manager

NBG6815 User’s Guide

193

APPENDIX C

Common Services

The following table lists some commonly-used services and their associated protocols and port numbers. For a comprehensive list of port numbers, ICMP type/code numbers and services, visit the IANA (Internet Assigned Number Authority) web site.

• N am e : This is a short, descriptive name for the service. You can use this one or create a different one, if you like.

• Pr otocol: This is the type of IP protocol used by the service. If this is T CP/ U D P, then the service uses the same port number with TCP and UDP. If this is U SER- DEFI N ED, the Po rt( s) is the IP protocol number, not the port number.

• Po rt( s) : This value depends on the Pro t ocol. Please refer to RFC 1700 for further information about port numbers.

•If the Pro t ocol is TCP, UD P, or TCP/ UD P, this is the IP port number.

•If the Pro t ocol is USER, this is the IP protocol number.

• Descr ipt ion : This is a brief explanation of the applications that use this service or the situations in which this service is used.

Table 60 Commonly Used Services

NAME PROTOCOL PORT(S) DESCRIPTION

AH (IPSEC_TUNNEL)

AIM/New-ICQ TCP 5190 AOL’s Internet Messenger service. It is also used as

AUTH TCP 113 Authentication protocol used by some servers. BGP TCP 179 Border Gateway Protocol. BOOTP_CLIENT UDP 68 DHCP Client. BOOTP_SERVER UDP 67 DHCP Server. CU-SEEME TCP

DNS TCP/UDP 53 Domain Name Server, a service that matches web

ESP (IPSEC_TUNNEL)

FINGER TCP 79 Finger is a UNIX or Internet related command that

FTP TCP

H.323 TCP 1720 NetMeeting uses this protocol. HTTP TCP 80 Hyper Text Transfer Protocol - a client/server

User-Defined 51 The IPSEC AH (Authentication Header) tunneling

protocol uses this service.

a listening port by ICQ.

7648

UDP

User-Defined 50 The IPSEC ESP (Encapsulation Security Protocol)

TCP

24032

A popular videoconferencing solution from White Pines Software.

names (for example numbers.

tunneling protocol uses this service.

can be used to find out if a user is logged on. File Transfer Program, a program to enable fast

transfer of files, including large files that may not be possible by e-mail.

protocol for the world wide web.

www.zyxel.com) to IP

NBG6815 User’s Guide

194

Appendix C Common Services

Table 60 Commonly Used Services (continued)

NAME PROTOCOL PORT(S) DESCRIPTION

HTTPS TCP 443 HTTPS is a secured http session often used in e-

commerce.

ICMP User-Defined 1 Internet Control Message Protocol is often used for

diagnostic or routing purposes. ICQ UDP 4000 This is a popular Internet chat program. IGMP (MULTICAST) User-Defined 2 Internet Group Management Protocol is used when

IKE UDP 500 The Internet Key Exchange algorithm is used for

IRC TCP/UDP 6667 This is another popular Internet chat program. MSN Messenger TCP 1863 Microsoft Networks’ messenger service uses this

NEW-ICQ TCP 5190 An Internet chat program. NEWS TCP 144 A protocol for news groups. NFS UDP 2049 Network File System - NFS is a client/server

NNTP TCP 119 Network News Transport Protocol is the delivery

PING User-Defined 1 Packet INternet Groper is a protocol that sends out

POP3 TCP 110 Post Office Protocol version 3 lets a client computer

PPTP TCP 1723 Point-to-Point Tunneling Protocol enables secure

PPTP_TUNNEL (GRE)

RCMD TCP 512 Remote Command Service. REAL_AUDIO TCP 7070 A streaming audio service that enables real time

REXEC TCP 514 Remote Execution Daemon. RLOGIN TCP 513 Remote Login. RTELNET TCP 107 Remote Telnet. RTSP TCP/UDP 554 The Real Time Streaming (media control) Protocol

SFTP TCP 115 Simple File Transfer Protocol. SMTP TCP 25 Simple Mail Transfer Protocol is the message-

SNMP TCP/UDP 161 Simple Network Management Program. SNMP-TRAPS TCP/UDP 162 Traps for use with the SNMP (RFC:1215).

User-Defined 47 PPTP (Point-to-Point Tunneling Protocol) enables

sending packets to a specific group of hosts.

key distribution and management.

protocol.

distributed file service that provides transparent file

sharing for network environments.

mechanism for the USENET newsgroup service.

ICMP echo requests to test whether or not a remote

host is reachable.

get e-mail from a POP3 server through a temporary

connection (TCP/IP or other).

transfer of data over public networks. This is the

control channel.

secure transfer of data over public networks. This is

the data channel.

sound over the web.

(RTSP) is a remote control for multimedia on the

Internet.

exchange standard for the Internet. SMTP enables

you to move messages from one e-mail server to

another.

NBG6815 User’s Guide

195

Appendix C Common Services

Table 60 Commonly Used Services (continued)

NAME PROTOCOL PORT(S) DESCRIPTION

SQL-NET TCP 1521 Structured Query Language is an interface to

access data on many different types of database

systems, including mainframes, midrange systems,

UNIX systems and network servers. SSH TCP/UDP 22 Secure Shell Remote Login Program. STRM WORKS UDP 1558 Stream Works Protocol. SYSLOG UDP 514 Syslog allows you to send system logs to a UNIX

server. TACACS UDP 49 Login Host Protocol used for (Terminal Access

Controller Access Control System). TELNET TCP 23 Telnet is the login and terminal emulation protocol

TFTP UDP 69 Trivial File Transfer Protocol is an Internet file

VDOLIVE TCP 7000 Another videoconferencing solution.

common on the Internet and in UNIX environments.

It operates over TCP/IP networks. Its primary

function is to allow users to log into remote host

systems.

transfer protocol similar to FTP, but uses the UDP

(User Datagram Protocol) rather than TCP

(Transmission Control Protocol).

NBG6815 User’s Guide

196

any language, or transmitted in any form or by any means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without the prior written permission of ZyXEL Communications Corporation.

Disclaimers

ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it convey any license under its patent rights nor the patent rights of others. ZyXEL further reserves the right to make changes in any products described herein without notice. This publication is subject to change without notice.

Your use of the NBG6815 is subject to the terms and conditions of any related service providers.

Trademarks

Trademarks mentioned in this publication are used for identification purposes only and may be properties of their respective owners.

Regulatory Notice and Statement

UNITED STATEs of AMERICA

APPENDIX D

Legal Information

CANADA

The following information applies if you use the product within USA area.

FCC EMC Statement

• This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1 This device may not cause harmful interference, and 2 This device must accept any interference received, including interference that may cause undesired operation.

• Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the device.

• This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

• If this device does cause harmful interference to radio or television reception, which is found by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1 Reorient or relocate the receiving antenna. 2 Increase the separation between the devices. 3 Connect the device to an outlet other than the receiver's. 4 Consult a dealer or an experienced radio/TV technician for assistance.

FCC Radiation Exposure Statement

• This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.

• This transmitter must be at least 21 cm from the user and must not be co-located or operating in conjunction with any other antenna or transmitter.

The following information applies if you use the product within Canada area.

NBG6815 User’s Guide

197

Appendix D Legal Information

Industry Canada ICES statement

CAN ICES-3 (B)/NMB-3(B)

Industry Canada RSS-GEN & RSS-247 statement

• This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

• This radio transmitter (2468C-NBG6815) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

• If the product has 5G wireless function, the following attention shall be paid that, the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;

• Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

• Le présent émetteur radio (2468C-NBG6815) de modèle s'il fait partie du matériel de catégorieI) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.

• Si vous utilisez le produit avec 5G sans fil fonction, suivant l'attention doit être versée que, les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;

Industry Canada radiation exposure statement

This device complies with IC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with a minimum distance of 20 cm between the radiator and your body.

Déclaration d’exposition aux radiations:

Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.

EUROPEAN UNION

The following information applies if you use the product within the European Union.

Declaration of Conformity with Regard to EU Directive 1999/5/EC (R&TTE Directive)

Compliance information for 2.4GHz and/or 5GHz wireless products relevant to the EU and other Countries following the EU Directive 1999/ 5/EC (R&TTE).

Б (Bulgarian)

Español (Spanish)

Čeština (Czech)

Dansk (Danish) Undertegnede ZyXEL erklærer herved, at følgende udstyr udstyr overholder de væsentlige krav og øvrige relevante

Deutsch (German)

Eesti keel (Estonian)

Εηά (Greek)

English Hereby, ZyXEL declares that this device is in compliance with the essential requirements and other relevant provisions

Français (French)

Hrvatski (Croatian)

Íslenska (Icelandic)

С я ZyXEL , ч        я       1999/5/C.

Por medio de la presente ZyXEL declara que el equipo cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.

ZyXEL tímto prohlašuje, že tento zařízení je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/EC.

krav i direktiv 1999/5/EF.

Hiermit erklärt ZyXEL, dass sich das Gerät Ausstattung in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EU befindet.

Käesolevaga kinnitab ZyXEL seadme seadmed vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.

Ε Η ΑΑ ZyXEL ∆ΗΩΕ  επσός ΦΩΕΑ   Ω∆Ε ΑΑΗΕ Α  Ε

ΧΕΕ ∆ΑΑΕ Η ∆ΗΓΑ 1999/5/ΕC.

of Directive 1999/5/EC.

Par la présente ZyXEL déclare que l'appareil équipements est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/EC.

ZyXEL ovime izjavljuje da je radijska oprema tipa u skladu s Direktivom 1999/5/EC.

Hér með lýsir, ZyXEL því yfir að þessi búnaður er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipunar 1999/5/EC.

NBG6815 User’s Guide

198

Appendix D Legal Information

Italiano (Italian)

Latviešu valoda (Latvian)

Lietuvių kalba (Lithuanian)

Magyar (Hungarian)

Malti (Maltese) Hawnhekk, ZyXEL, jiddikjara li dan tagħmir jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li

Nederlands (Dutch)

Polski (Polish) Niniejszym ZyXEL oświadcza, że sprzęt jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi

Português (Portuguese)

Română (Romanian)

Slovenčina (Slovak)

Slovenščina (Slovene)

Suomi (Finnish)

Svenska (Swedish)

Norsk (Norwegian)

Con la presente ZyXEL dichiara che questo attrezzatura è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.

Ar šo ZyXEL deklarē, ka iekārtas atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.

Šiuo ZyXEL deklaruoja, kad šis įranga atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.

Alulírott, ZyXEL nyilatkozom, hogy a berendezés megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EK irányelv egyéb elõírásainak.

hemm fid-Dirrettiva 1999/5/EC.

Hierbij verklaart ZyXEL dat het toestel uitrusting in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EC.

postanowieniami Dyrektywy 1999/5/EC.

ZyXEL declara que este equipamento está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/EC.

Prin prezenta, ZyXEL declară că acest echipament este în conformitate cu cerinţele esenţiale şi alte prevederi relevante ale Directivei 1999/5/EC.

ZyXEL týmto vyhlasuje, že zariadenia spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/EC.

ZyXEL izjavlja, da je ta oprema v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/EC.

ZyXEL vakuuttaa täten että laitteet tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.

Härmed intygar ZyXEL att denna utrustning står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EC.

Erklærer herved ZyXEL at dette utstyret er I samsvar med de grunnleggende kravene og andre relevante bestemmelser I direktiv 1999/5/EF.

National Restrictions

This product may be used in all EU countries (and other countries following the EU Directive 2014/53/EU) without any limitation except for the countries mentioned below: Ce produit peut être utilisé dans tous les pays de l’UE (et dans tous les pays ayant transposés la directive 2014/53/UE) sans aucune

limitation, excepté pour les pays mentionnés ci-dessous: Questo prodotto è utilizzabile in tutte i paesi EU (ed in tutti gli altri paesi che seguono le direttiva 2014/53/UE) senza nessuna limitazione,

eccetto per i paesii menzionati di seguito: Das Produkt kann in allen EU Staaten ohne Einschränkungen eingesetzt werden (sowie in anderen Staaten die der Richtlinie 2014/53/EU

folgen) mit Außnahme der folgenden aufgeführten Staaten: In the majority of the EU and other European countries, the 2.4GHz and 5GHz bands have been made available for the use of wireless

local area networks (LANs). Later in this document you will find an overview of countries in which additional restrictions or requirements or both are applicable.

The requirements for any country may evolve. ZyXEL recommends that you check with the local authorities for the latest status of their national regulations for both the 2.4GHz and 5GHz wireless LANs.

The following countries have restrictions and/or requirements in addition to those given in the table labeled “Ov erv iew of Reg ula to ry Requ ir em ent s f or Wireless LANs”:.

Belgium The Belgian Institute for Postal Services and Telecommunications (BIPT) must be notified of any outdoor wireless link having a range

exceeding 300 meters. Please check http://www.bipt.be for more details. Draadloze verbindingen voor buitengebruik en met een reikwijdte van meer dan 300 meter dienen aangemeld te worden bij het Belgisch

Instituut voor postdiensten en telecommunicatie (BIPT). Zie http://www.bipt.be voor meer gegevens. Les liaisons sans fil pour une utilisation en extérieur d’une distance supérieure à 300 mètres doivent être notifiées à l’Institut Belge des

services Postaux et des Télécommunications (IBPT). Visitez http://www.ibpt.be pour de plus amples détails. Denmark In Denmark, the band 5150 - 5350 MHz is also allowed for outdoor usage. I Danmark må frekvensbåndet 5150 - 5350 også anvendes udendørs. Italy This product meets the National Radio Interface and the requirements specified in the National Frequency Allocation Table for Italy. Unless

this wireless LAN product is operating within the boundaries of the owner's property, its use requires a “general authorization.” Pl ease check http://www.sviluppoeconomico.gov.it/ for more details.

Questo prodotto è conforme alla specifiche di Interfaccia Radio Nazionali e rispetta il Piano Nazionale di ripartizione delle frequenze in Italia. Se non viene installato all 'interno del proprio fondo, l'utilizzo di prodotti Wireless LAN richiede una “Autorizzazione Generale”. Consultare http://www.sviluppoeconomico.gov.it/ per maggiori dettagli.

Latvia The outdoor usage of the 2.4 GHz band requires an authorization from the Electronic Communications Office. Please check http://

www.esd.lv for more details.

NBG6815 User’s Guide

199

Appendix D Legal Information

2.4 GHz frekvenèu joslas izmantoðanai ârpus telpâm nepiecieðama atïauja no Elektronisko sakaru direkcijas. Vairâk informâcijas: http://

www.esd.lv. Notes:

1. Although Norway, Switzerland and Liechtenstein are not EU member states, the EU Directive 2014/53/EU has also been implemented in

those countries.

2. The regulatory limits for maximum output power are specified in EIRP. The EIRP level (in dBm) of a device can be calculated by adding

the gain of the antenna used(specified in dBi) to the output power available at the connector (specified in dBm).

List of national codes

COUNTRY ISO 3166 2 LETTER CODE COUNTRY ISO 3166 2 LETTER CODE

Austria AT Liechtenstein LI

Belgium BE Lithuania LT

Bulgaria BG Luxembourg LU

Croatia HR Malta MT

Cyprus CY Netherlands NL

Czech Republic CR Norway NO

Denmark DK Poland PL

Estonia EE Portugal PT

Finland FI Romania RO

France FR Serbia RS

Germany DE Slovakia SK

Greece GR Slovenia SI

Hungary HU Spain ES

Iceland IS Sweden SE

Ireland IE Switzerland CH

Italy IT Turkey TR

Latvia LV United Kingdom GB

Safety Warnings

• Do not use this product near water, for example, in a wet basement or near a swimming pool.

• Do not expose your device to dampness, dust or corrosive liquids.

• Do not store things on the device.

• Do not install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from lightning.

• Connect ONLY suitable accessories to the device.

• Do not open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY qualified service personnel should service or disassemble this device. Please contact your vendor for further information.

• Make sure to connect the cables to the correct ports.

• Place connecting cables carefully so that no one will step on them or stumble over them.

• Always disconnect all cables from this device before servicing or disassembling.

• Do not remove the plug and connect it to a power outlet by itself; always attach the plug to the power adaptor first before connecting it to a power outlet.

• Do not allow anything to rest on the power adaptor or cord and do NOT place the product where anyone can walk on the power adaptor or cord.

• Please use the provided or designated connection cables/power cables/ adaptors. Connect it to the right supply voltage (for example, 110V AC in North America or 230V AC in Europe). If the power adaptor or cord is damaged, it might cause electrocution. Remove it from the device and the power source; repairing the power adapter or cord is prohibited. Contact your local vendor to order a new one.

• Do not use the device outside, and make sure all the connections are indoors. There is a remote risk of electric shock from lightning.

• Caution: risk of explosion if battery (on the motherboard) is replaced by an incorrect type. dispose of used batteries according to the instructions. Dispose them at the applicable collection point for the recycling of electrical and electronic device. For detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the store where you purchased the product.

• Do not obstruct the device ventilation slots, as insufficient airflow may harm your device.

The following warning statements apply, where the disconnect device is not incorporated in the device or where the plug on the power supply cord is intended to serve as the disconnect device,

• For permanently connected devices, a readily accessible disconnect device shall be incorporated external to the device;

• For pluggable devices, the socket-outlet shall be installed near the device and shall be easily accessible.

Environment statement

ErP (Energy-related Products)

ZyXEL products put on the EU market in compliance with the requirement of the European Parliament and the Council published

NBG6815 User’s Guide

200

Appendix D Legal Information

Directive 2009/125/EC establishing a framework for the setting of ecodesign requirements for energy-related products (recast), so called as "ErP Directive (Energy-related Products directive) as well as ecodesign requirement laid down in applicable implementing measures,

power consumption has satisfied regulation requirements which are: Network standby power consumption < 12W, and/or Off mode power consumption < 0.5W, and/or Standby mode power consumption < 0.5W. Wireless setting, please refer to the "Wireless" chapter for more detail.

European Union - Disposal and Recycling Information

The symbol below means that according to local regulations your product and/or its battery shall be disposed of separately from domestic waste. If this product is end of life, take it to a recycling station designated by local authorities. At the time of disposal, the separate collection of your product and/or its battery will help save natural resources and ensure that the environment is sustainable development.

Die folgende Symbol bedeutet, dass Ihr Produkt und/oder seine Batterie gemäß den örtlichen Bestimmungen getrennt vom Hausmüll entsorgt werden muss. Wenden Sie sich an eine Recyclingstation, wenn dieses Produkt das Ende seiner Lebensdauer erreicht hat. Zum Zeitpunkt der Entsorgung wird die getrennte Sammlung von Produkt und/oder seiner Batterie dazu beitragen, natürliche Ressourcen zu sparen und die Umwelt und die menschliche Gesundheit zu schützen.

El símbolo de abajo indica que según las regulaciones locales, su producto y/o su batería deberán depositarse como basura separada de la doméstica. Cuando este producto alcance el final de su vida útil, llévelo a un punto limpio. Cuando llegue el momento de desechar el producto, la recogida por separado éste y/o su batería ayudará a salvar los recursos naturales y a proteger la salud humana y medioambiental.

Le symbole ci-dessous signifie que selon les réglementations locales votre produit et/ou sa batterie doivent être éliminés séparément des ordures ménagères. Lorsque ce produit atteint sa fin de vie, amenez-le à un centre de recyclage. Au moment de la mise au rebut, la collecte séparée de votre produit et/ou de sa batterie aidera à économiser les ressources naturelles et protéger l'environnement et la santé humaine.

Il simbolo sotto significa che secondo i regolamenti locali il vostro prodotto e/o batteria deve essere smaltito separatamente dai rifiuti domestici. Quando questo prodotto raggiunge la fine della vita di servizio portarlo a una stazione di riciclaggio. Al momento dello smaltimento, la raccolta separata del vostro prodotto e/o della sua batteria aiuta a risparmiare risorse naturali e a proteggere l'ambiente e la salute umana.

Symbolen innebär att enligt lokal lagstiftning ska produkten och/eller dess batteri kastas separat från hushållsavfallet. När den här produkten når slutet av sin livslängd ska du ta den till en återvinningsstation. Vid tiden för kasseringen bidrar du till en bättre miljö och mänsklig hälsa genom att göra dig av med den på ett återvinningsställe.

NBG6815 User’s Guide

201

Environmental Product Declaration

Appendix D Legal Information

NBG6815 User’s Guide

202

󱌹灣

Appendix D Legal Information

以下訊息僅適用於產品銷售至󱌹灣地󱊉

第󱊊二條→經型式認證合格之低󱇨率射頻電機，非經許󱌸，公司，商號或使用者均不得擅自變更頻率󱇩大󱇨率或變更原設計之特性及󱇨能

第󱊊四條→低󱇨率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用

前項合法通信，指依電信法規定作業之無線電通信 低󱇨率射頻電機須忍受合法通信或工業科學及醫療用電波輻射性電機設備之干擾

安全警告

為了您的安全，請先閱讀以下警告及指示 :

• 請勿將此產品接近水火焰或放置在高溫的環境

• 避免設備接觸

• 任何液體 - 勿讓設備接觸水雨水高濕度污水腐蝕性的液體或其他水份

• 灰塵及污物 - 勿接觸灰塵污物沙土食物或其他不合適的材料

• 雷雨天氣時，不要安裝，使用或維修此設備有遭受電擊的風險

• 勿重摔或撞擊設備，並勿使用不正確的電源變壓器

• 若接上不正確的電源變壓器會有爆炸的風險

• 請勿隨意更換產品內的電池

• 如果更換不正確之電池型式，會有爆炸的風險，請依製造商說明書處理使用過之電池

• 請將廢電池丟棄在適當的電器或電子設備回收處

• 請勿將設備解體

• 請勿阻礙設備的散熱孔，空氣對流不足將會造成設備損害

• 請插在正確的電壓供給插座 ( 如 : 北美 / 台灣電壓 110V AC，歐洲是 230V AC)

• 假若電源變壓器或電源變壓器的纜線損壞，請從插座拔除，若您還繼續插電使用，會有觸電死亡的風險

• 請勿試圖修理電源變壓器或電源變壓器的纜線，若有毀損，請直接聯絡您購買的店家，購買一個新的電源變壓器

• 請勿將此設備安裝於室外，此設備僅適合放置於室內

• 請勿隨一般垃圾丟棄

• 請參閱產品背貼上的設備額定功率

• 請參考產品型錄或是彩盒上的作業溫度

• 產品沒有斷電裝置或者採用電源線的插頭視為斷電裝置的一部，以下警語將適用: －對永久連接之設備，在設備外部須安裝可觸及之斷電裝置；

－對插接式之設備，插座必須接近安裝之地點而且是易於觸及的

Viewing Certifications

Go to

http://www.zyxel.com to view this product’s documentation and certifications.

ZyXEL Limited Warranty

ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in material or workmanship for a specific period (the Warranty Period) from the date of purchase. The Warranty Period varies by region. Check with your vendor and/or the authorized ZyXEL local distributor for details about the Warranty Period of this product. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, ZyXEL will, at its discretion, repair or replace the defective products or components without charge for either parts or labor, and to whatever extent it shall deem necessary to restore the product or components to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal or higher value, and will be solely at the discretion of ZyXEL. This warranty shall not apply if the product has been modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions.

Note

Repair or replacement, as provided under this warranty, is the exclusive remedy of the purchaser. This warranty is in lieu of all other warranties, express or implied, including any implied warranty of merchantability or fitness for a particular use or purpose. ZyXEL shall in no event be held liable for indirect or consequential damages of any kind to the purchaser.

To obtain the services of this warranty, contact your vendor. You may also refer to the warranty policy for the region in which you bought the device at http://www.zyxel.com/web/support_warranty_info.php.

Registration

Open Source Licenses

This product contains in part some free software distributed under GPL license terms and/or GPL like licenses. Open source licenses are provided with the firmware package. You can download the latest firmware at www.zyxel.com. If you cannot find it there, contact your vendor or ZyXEL Technical Support at support@zyxel.com.tw.

To obtain the source code covered under those Licenses, please contact your vendor or ZyXEL Technical Support at support@zyxel.com.tw.

NBG6815 User’s Guide

203

Appendix D Legal Information

NBG6815 User’s Guide

204

APPENDIX E

Customer Support

In the event of problems that cannot be solved by using this manual, you should contact your vendor. If you cannot contact your vendor, then contact a ZyXEL office for the region in which you bought the device.

ht t p: / / ww w .zyx el.com / h om epage. shtml and also

See

htt p: / /ww w .zyx el .com / about _zyxel/ zyx el_w or ldwide.shtm l for the latest information.

Please have the following information ready when you contact an office.

Required Information

• Product model and serial number.

• Warranty Information.

• Date that you received your device.

• Brief description of the problem and the steps you took to solve it.

Corporate Headquarters (Worldwide)

Taiw an

• ZyXEL Communications Corporation

• http://www.zyxel.com

Asia

China

• ZyXEL Communications (Shanghai) Corp. ZyXEL Communications (Beijing) Corp. ZyXEL Communications (Tianjin) Corp.

• http://www.zyxel.cn

India

• ZyXEL Technology India Pvt Ltd

• http://www.zyxel.in

Kazakhstan

•ZyXEL Kazakhstan

NBG6815 User’s Guide

205

• http://www.zyxel.kz

Korea

• ZyXEL Korea Corp.

• http://www.zyxel.kr

Malaysia

• ZyXEL Malaysia Sdn Bhd.

• http://www.zyxel.com.my

Pakistan

• ZyXEL Pakistan (Pvt.) Ltd.

• http://www.zyxel.com.pk

Philippines

• ZyXEL Philippines

• http://www.zyxel.com.ph

Appendix E Customer Support

Europe

Singapore

• ZyXEL Singapore Pte Ltd.

• http://www.zyxel.com.sg

Taiw an

• ZyXEL Communications Corporation

• http://www.zyxel.com/tw/zh/

Thailand

• ZyXEL Thailand Co., Ltd

• http://www.zyxel.co.th

Vietnam

• ZyXEL Communications Corporation-Vietnam Office

• http://www.zyxel.com/vn/vi

Austria

• ZyXEL Deutschland GmbH

• http://www.zyxel.de

NBG6815 User’s Guide

206

Appendix E Customer Support

Belarus

•ZyXEL BY

• http://www.zyxel.by

Belgium

• ZyXEL Communications B.V.

• http://www.zyxel.com/be/nl/

• http://www.zyxel.com/be/fr/

Bulgaria

•ZyXEL България

• http://www.zyxel.com/bg/bg/

Czech Republic

• ZyXEL Communications Czech s.r.o

• http://www.zyxel.cz

Denmark

• ZyXEL Communications A/S

• http://www.zyxel.dk

Estonia

•ZyXEL Estonia

• http://www.zyxel.com/ee/et/

Finland

• ZyXEL Communications

• http://www.zyxel.fi

France

•ZyXEL France

• http://www.zyxel.fr

Germany

• ZyXEL Deutschland GmbH

• http://www.zyxel.de

Hungary

• ZyXEL Hungary & SEE

• http://www.zyxel.hu

NBG6815 User’s Guide

207

Appendix E Customer Support

Italy

• ZyXEL Communications Italy

• http://www.zyxel.it/

Latvia

•ZyXEL Latvia

• http://www.zyxel.com/lv/lv/homepage.shtml

Lithuania

• ZyXEL Lithuania

• http://www.zyxel.com/lt/lt/homepage.shtml

Netherlands

•ZyXEL Benelux

• http://www.zyxel.nl

Norway

• ZyXEL Communications

• http://www.zyxel.no

Poland

• ZyXEL Communications Poland

• http://www.zyxel.pl

Romania

•ZyXEL Romania

• http://www.zyxel.com/ro/ro

Russia

• ZyXEL Russia

• http://www.zyxel.ru

Slovakia

• ZyXEL Communications Czech s.r.o. organizacna zlozka

• http://www.zyxel.sk

Spain

• ZyXEL Communications ES Ltd

• http://www.zyxel.es

Sweden

• ZyXEL Communications

NBG6815 User’s Guide

208

Appendix E Customer Support

• http://www.zyxel.se

Switzerland

•Studerus AG

• http://www.zyxel.ch/

Turkey

•ZyXEL Turkey A.S.

• http://www.zyxel.com.tr

• ZyXEL Communications UK Ltd.

• http://www.zyxel.co.uk

Ukraine

•ZyXEL Ukraine

• http://www.ua.zyxel.com

Latin America

Argentina

• ZyXEL Communication Corporation

• http://www.zyxel.com/ec/es/

Brazil

• ZyXEL Communications Brasil Ltda.

• https://www.zyxel.com/br/pt/

Ecuador

• ZyXEL Communication Corporation

• http://www.zyxel.com/ec/es/

Middle East

Israel

• ZyXEL Communication Corporation

• http://il.zyxel.com/homepage.shtml

Middle East

• ZyXEL Communication Corporation

NBG6815 User’s Guide

209

• http://www.zyxel.com/me/en/

North America

USA

• ZyXEL Communications, Inc. - North America Headquarters

• http://www.zyxel.com/us/en/

Oceania

Australia

• ZyXEL Communications Corporation

• http://www.zyxel.com/au/en/

Africa

Appendix E Customer Support

South Africa

• Nology (Pty) Ltd.

• http://www.zyxel.co.za

NBG6815 User’s Guide

210

Index

Address Assignment AP 10 AP Mode

menu status screen 43

AP+Bridge 10

Bridge/Repeater

certifications

viewing Channel 37, 44 channel 85 CIFS 109 Common Internet File System, see CIFS Configuration

restore contact information 205 content filtering

by keyword (in URL) copyright 197 CPU usage 37, 44 customer support 205

203

143, 146, 148

108

Daylight saving DDNS

service providers 135 DHCP 59

141

see also Dynamic Host Configuration Protocol DHCP server Digital Living Network Alliance 109 disclaimer 197 DLNA 109, 119

indexing 120

overview 119

rescan 120 DLNA-compliant client 109 DNS Server 68 documentation

related Domain Name System. See DNS. duplex setting 37, 45 Dynamic Host Configuration Protocol 59 DynDNS 135 DynDNS see also DDNS 135

59, 104

encryption

and local (user) database 87

key 87

WPA compatible 87 ESSID 156

FCC interference statement file sharing 122

access right 123, 125

bandwidth 125

example 125

FTP 124, 129

overview 122

Samba 122

user account 123, 124

Windows Explorer 122

197

NBG6815 User’s Guide

211

Index

work group 122

Firewall

guidelines ICMP packets 135

firewall

stateful inspection

Firmware upload 142

file extension using HTTP

firmware version

133

132

36, 44

General wireless LAN screen Guest WLAN 87 Guest WLAN Bandwidth 88 Guide

Quick Start

IGMP

IGMP version Internet Group Multicast Protocol 69 IP Address 104

see also Internet Group Multicast Protocol version

MAC MAC address 68, 85

cloning 68 MAC address filter 85 MAC address filtering 97 MAC filter 97 managing the device

good habits

using the web configurator. See web configurator.

using the WPS. See WPS. MBSSID Media access control 97 media client 119 media file 119, 120

type 120 media server

overview meida file play 119 Memory usage 37, 44 mode 10 Multicast 69

IGMP 69

119

NAT Traversal Navigation Panel 38, 45 navigation panel 38, 45

131

103

LAN LAN overview 103 LAN setup 103 Language 144 Link type 37, 44 local (user) database 86

and encryption 87

Local Area Network 103

operating mode other documentation 2

Point-to-Point Protocol over Ethernet port speed 37, 45 PPPoE 75

NBG6815 User’s Guide

212

Index

dial-up connection

product registration 203

Quality of Service (QoS) Quick Start Guide 2

RADIUS server registration

product related documentation 2 Reset button 11 Reset the device 11 Restore configuration 143, 146, 148 Roaming 98 Router Mode

status screen RTS/CTS Threshold 85, 98

203

Samba Scheduling 101 Server Message Block, see SMB Service Set Service Set IDentification 90, 96 Service Set IDentity. See SSID. SMB 109 SSID 37, 44, 85, 90, 96 stateful inspection firewall 132 Static DHCP 62 Status 35 StreamBoost

Subnet Mask 104 System General Setup 138

109

90, 96

bandwidth

device priority 118

example 116

116

System restart 144

TCP/IP configuration Time setting 140 trademarks 197

Universal Plug and Play

Application 131

Security issues 131 UPnP 121 user authentication 86

local (user) database 86

RADIUS server 86

121

WAN (Wide Area Network) WAN MAC address 68 warranty 203

note 203 Web Configurator

how to access

Overview 14 web configurator 10 WEP Encryption 92 windows media player 119 wireless channel 156 wireless LAN 156 wireless LAN scheduling 101 Wireless network

basic guidelines

channel 85

encryption 86

example 84

MAC address filter 85

overview 84

security 85

SSID 85

NBG6815 User’s Guide

213

Wireless security 85

overview 85

type 85 wireless security 156 Wireless tutorial 48 Wizard setup 17 WLAN button 11 work group 109

name 109

Windows 109 WPA compatible 87 WPS 10

Index

NBG6815 User’s Guide

214

ZyXEL NBG6815 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Setting Up Your Computer’s IP Address

Common Services

Legal Information

Customer Support

Index
