12.1 Overview

This chapter describes how to configure LAN settings.

A Local Area Network (LAN) is a shared communication system to which many computers are attached. A LAN is a computer network limited to the immediate area, usually the same building or floor of a building.

Figure 61 LAN Example

CHAPTER 12

LAN

The LAN screens can help you configure a manage IP address, and partition your physical network into logical networks.

12.2 What You Can Do

•Use the LAN IP screen to configure the IPv4 and IPv6 addresses for your NBG6617 on the LAN (Section 12.4 on page 100).

•Use the Static DHCP screen to assign IP addresses on the LAN to specific individual computers based on their MAC Addresses (Section 12.5 on page 101).

•Use the IPv6 LAN screen to configure the IPv6 address for your NBG6617 on the LAN (Section

12.6 on page 102).

12.3 What You Need To Know

The actual physical connection determines whether the NBG6617 ports are LAN or WAN ports. There are two separate IP networks, one inside the LAN network and the other outside the WAN network as shown next.

NBG6617 User’s Guide

Chapter 12 LAN

Figure 62 LAN and WAN IP Addresses

The LAN parameters of the NBG6617 are preset in the factory with the following values:

• IPv4 address of 192.168.1.1 with subnet mask of 255.255.255.0 (24 bits)

• DHCP server enabled with 32 client IPv4 addresses starting from 192.168.1.33.

These parameters should work for the majority of installations.

12.4 LAN IP Screen

Use this screen to change the IP address for your NBG6617. Click Expert Mode > LAN > LAN IP.

Figure 63 Expert Mode > LAN > LAN IP

The following table describes the labels in this screen.

Table 37 Expert Mode > LAN > LAN IP

LABEL DESCRIPTION

IP Address Type the IP address of your NBG6617 in dotted decimal notation. IP Subnet Mask The subnet mask specifies the network number portion of an IP address. Your NBG6617

will automatically calculate the subnet mask based on the IP address that you assign. Unless you are implementing subnetting, use the subnet mask computed by the NBG6617.

NBG6617 User’s Guide

100

Table 37 Expert Mode > LAN > LAN IP (continued)

LABEL DESCRIPTION

DHCP Server Select Enable to activate DHCP for LAN.

DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows individual clients (computers) to obtain TCP/IP configuration at startup from a server. Enable the DHCP server unless your ISP instructs you to do otherwise. Select Disable to stop the NBG6617 acting as a DHCP server. When configured as a server, the NBG6617 provides TCP/IP configuration for the clients. If not, DHCP service is disabled and you must have another DHCP server on your LAN, or else the computers must be manually configured. When set as a server, fill in the following four fields.

IP Pool Starting Address

Pool Size This field specifies the size, or count of the IP address pool for LAN. Apply Click Apply to save your changes back to the NBG6617. Cancel Click Cancel to begin configuring this screen afresh.

This field specifies the first of the contiguous addresses in the IP address pool for LAN.

12.5 Static DHCP Screen

This screen allows you to assign IP addresses on the LAN to specific individual computers based on their MAC addresses.

Chapter 12 LAN

To change your NBG6617’s static DHCP settings, click Expert Mode > LAN > Static DHCP.

Figure 64 Expert Mode > LAN > Static DHCP

The following table describes the labels on this screen.

Table 38 Expert Mode > LAN > Static DHCP

LABEL DESCRIPTION

# This is the index number of the static IP table entry (row). Select Auto Detection to

MAC Address This field displays the MAC address of a computer on your LAN. If you select User

IP Address This field displays the LAN IP address of a computer on your LAN. If you select User

Add/Delete Click to add the rule in the MAC filter summary table.

automatically detect the MAC address of a computer on your LAN. Otherwise, select User define to enter the MAC address of a computer on your LAN in the MAC Address field.

define in the # field, enter the MAC address(es) manually.

define in the # field, enter the IP address(es) manually.

Click to remove a rule.

NBG6617 User’s Guide

101

Table 38 Expert Mode > LAN > Static DHCP (continued)

LABEL DESCRIPTION

Apply Click Apply to save your changes with the NBG6617. Cancel Click Cancel to begin configuring this screen afresh.

12.6 IPv6 LAN Screen

Use this screen to configure the IP address for your NBG6617 on the LAN. Click Expert Mode > LAN > IPv6 LAN.

Figure 65 Expert Mode > LAN > IPv6 LAN

Chapter 12 LAN

The following table describes the labels in this screen.

Table 39 Expert Mode > LAN > IPv6 LAN

LABEL DESCRIPTION

LAN IPv6 Address Assignment Enable_DHCPv6-PD

Select this option to use DHCPv6 prefix delegation. The NBG6617 will obtain an IPv6 prefix from the ISP or a connected uplink router for the LAN.

Autoconfiguration Typ e

IPv6 Address range (Start)

IPv6 Address range (End)

Select SLAAC + RDNSS to enable IPv6 stateless auto-configuration on this interface. The interface will generate an IPv6 IP address itself from a prefix obtained from an IPv6 router in the network.

Select SLAAC + Stateless DHCPv6 to enable IPv6 stateless auto-configuration on this interface. The interface will get an IPv6 address from an IPv6 router and the DHCP server. The IP address information gets through DHCPv6.

Select Stateful DHCPv6 to allow a DHCP server to assign and pass IPv6 network addresses, prefixes and other configuration information to DHCP clients.

Enter the beginning of the range of IP addresses that this address object represents.

Enter the end of the range of IP address that this address object represents.

NBG6617 User’s Guide

102

Chapter 12 LAN

Table 39 Expert Mode > LAN > IPv6 LAN (continued)

LABEL DESCRIPTION

IPv6 Lifetime Enter the IPv6 lifetime in the LAN. Static IP Address

Select this option to manually enter an IPv6 address if you want to use a static IP address. LAN IPv6 Address Enter the LAN IPv6 address you want to assign to your NBG6617 in hexadecimal

LAN IPv6 Prefix Length (48~64)

Prefix Preferred Lifetime

Prefix Valid Lifetime Enter the valid lifetime for the prefix. Link Local Only

Select this option to only use the link local address on the NBG6617 interfaces in the LAN. ULA

Select this option to identify a unique local address of the NBG6617 in the LAN. RA period Minimum RA period Enter the minimum time in seconds between router advertisement messages. Apply Click Apply to save your changes back to the NBG6617. Cancel Click Cancel to begin configuring this screen afresh.

notation. Enter the 48 to 64 address prefix length to specify in an IPv6 address compose the

network address. Enter the preferred lifetime for the prefix.

NBG6617 User’s Guide

103

13.1 Overview

This chapter shows you how to configure parental control, bandwidth management, USB media sharing, UPnP and file sharing.

13.1.1 What You Can Do

•Use the Parental Control screens to enable parental control, configure the parental control rules and schedules, and send e-mail notifications. (Section 13.2 on page 106).

•Use the Bandwidth Management screen to configure bandwidth management and the device priority (Section 13.3 on page 112).

•Use the USB Media Sharing screen to use the NBG6617 as a media server and allow DLNAcompliant devices to play media files stored in the attached USB device (Section 13.4 on page

117).

•Use the UPnP screen to enable UPnP on your NBG6617 (Section 13.5 on page 118).

•Use the File Sharing screen to allow file sharing via the NBG6617 using Windows Explorer, the workgroup name or FTP (Section 13.6 on page 119).

•Use the One Connect screen to enable or disable Wi-Fi auto-configuration (Section 13.7 on page

126).

CHAPTER 13

Applications

13.1.2 What You Need To Know

The following terms and concepts may help as you read through this chapter.

Keyword Blocking URL Checking

The NBG6617 checks the URL’s domain name (or IP address) and file path separately when performing keyword blocking.

The URL’s domain name or IP address is the characters that come before the first slash in the URL. For example, with the URL www.zyxel.com.tw/news/pressroom.php

www.zyxel.com.tw

The file path is the characters that come after the first slash in the URL. For example, with the URL

www.zyxel.com.tw/news/pressroom.php

Since the NBG6617 checks the URL’s domain name (or IP address) and file path separately, it will not find items that go across the two. For example, with the URL www.zyxel.com.tw/news/

pressroom.php, the NBG6617 would find “tw” in the domain name (www.zyxel.com.tw). It would

also find “news” in the file path (news/pressroom.php

, the domain name is

, the file path is news/pressroom.php.

) but it would not find “tw/news”.

NBG6617 User’s Guide

104

Chapter 13 Applications

DLNA

The Digital Living Network Alliance (DLNA) is a group of personal computer and electronics companies that works to make products compatible in a home network. DLNA clients play files stored on DLNA servers. The NBG6617 can function as a DLNA-compliant media server and stream files to DLNA-compliant media clients without any configuration.

Workgroup name

This is the name given to a set of computers that are connected on a network and share resources such as a printer or files. Windows automatically assigns the workgroup name when you set up a network.

File Systems

A file system is a way of storing and organizing files on your hard drive and storage device. Often different operating systems such as Windows or Linux have different file systems. The file-sharing feature on your NBG6617 supports New Technology File System (NTFS), File Allocation Table (FAT) and FAT32 file systems.

Windows/CIFS

Common Internet File System (CIFS) is a standard protocol supported by most operating systems in order to share files across the network.

CIFS runs over TCP/IP but uses the SMB (Server Message Block) protocol found in Microsoft Windows for file and printer access; therefore, CIFS will allow all applications, not just Web browsers, to open and share files across the Internet.

The NBG6617 uses Common Internet File System (CIFS) protocol for its file sharing functions. CIFS compatible computers can access the USB file storage devices connected to the NBG6617. CIFS protocol is supported on Microsoft Windows, Linux Samba and other operating systems (refer to your systems specifications for CIFS compatibility).

Samba

SMB is a client-server protocol used by Microsoft Windows systems for sharing files, printers, and so on.

Samba is a free SMB server that runs on most Unix and Unix-like systems. It provides an implementation of an SMB client and server for use with non-Microsoft operating systems.

File Transfer Protocol

This is a method of transferring data from one computer to another over a network such as the Internet.

NBG6617 User’s Guide

105

Universal Plug-and-Play (UPnP)

UPnP hardware is identified as an icon in the Network Connections folder (Windows XP). Each UPnP compatible device installed on your network will appear as a separate icon. Selecting the icon of a UPnP device will allow you to access the information and properties of that device.

13.1.3 Before You Begin

Make sure the NBG6617 is connected to your network and turned on.

1 Connect the USB device to one of the NBG6617’s USB ports.

2 The NBG6617 detects the USB device and makes its contents available for browsing. If you are

connecting a USB hard drive that comes with an external power supply, make sure it is connected to an appropriate power source that is on.

Note: If your USB device cannot be detected by the NBG6617, see the troubleshooting

for suggestions.

Chapter 13 Applications

13.2 Parental Control

Parental Control allows you to block specific URLs. You can also define time periods and days during which the NBG6617 performs parental control on a specific user.

13.2.1 General Screen

Use this screen to enable parental control, view the parental control rules and schedules.

In Expert mode, click Applications > Parental Control > General to open the following screen.

Figure 66 Expert Mode > Applications > Parental Control > General

NBG6617 User’s Guide

106

Chapter 13 Applications

The following table describes the fields in this screen.

Table 40 Expert Mode > Applications > Parental Control > General

LABEL DESCRIPTION

General Parental

Control Add new rules Click this if you want to configure a new parental control rule. Parental Control Rules # This shows the index number of the rule. Status This indicates whether the rule is active or not.

User Name This shows the name of the user to which this rule applies. Schedule This shows whether the user is able to access the Internet through the NBG6617 (Allow) or

Modify Click the Edit icon to go to the screen where you can edit the rule.

Bonus If the user is currently not permitted to access the Internet, you can click the Bonus to

Remaining Time

Apply Click Apply to save your changes. Cancel Click Cancel to restore your previously saved settings.

Select Enable to activate parental control. Otherwise, select Disable to turn it off.

A yellow bulb signifies that this rule is active. A gray bulb signifies that this rule is not active.

not (Block) at the moment.

Click the Delete icon to delete an existing rule.

allow access for a specified period of time. A screen then displays allowing you to set how long (in minutes) the user is allowed to access the Internet.

This button is grayed out if the user is now able to access the Internet. This field displays the amount of Internet access time that remains for each user before the

NBG6617 blocks the user from accessing the Internet.

None means there is no extra Internet access time.

13.2.1.1 Add/Edit a Parental Control Rule

Click Add new rules in the Parental Control screen to add a new rule or click the Edit icon next to an existing rule to edit it. Use this screen to configure a restricted access schedule and/or URL filtering settings to block the users on your network from accessing certain web sites.

NBG6617 User’s Guide

107

Chapter 13 Applications

Figure 67 Expert Mode > Applications > Parental Control > General: Add/Edit new rules

The following table describes the fields in this screen.

Table 41 Expert Mode > Applications > Parental Control > General: Add/Edit new rules

LABEL DESCRIPTION

General Active Select the checkbox to activate this parental control rule. User Name Enter a descriptive name for the user. Device List The left text box lists the system name of the LAN user device which is connected to the

Internet Access Schedule

Clean All Click Clean All to remove blocks you selected. Select All Click Select All to choose all blocks.

NBG6617 and assigned an IP address.

From the left text box, select the LAN user device to which you want to apply this rule and click Add to move it to the right text box.

To remove a user device, select it from the right text box and click Delete. The y-axis shows the days that you want the NBG6617 to perform parental control and

allow the user to access the Internet.

The x-axis shows the time period during which the LAN user is allowed access.

A blue block signifies that this rule is active. A gray block signifies that this rule is not active.

NBG6617 User’s Guide

108

Chapter 13 Applications

Table 41 Expert Mode > Applications > Parental Control > General: Add/Edit new rules (continued)

LABEL DESCRIPTION

Network Service Network

Service Setting

Add new service

# This shows the index number of the rule. Select the checkbox next to the rule to activate it. Service Name This shows the name of the service. Protocol:Port This shows the protocol and the port of the service. Modify Click the Edit icon to go to the screen where you can edit the rule.

Block Site/URL Keyword Keyword Enter a keyword and click Add to add it to the keyword list. This has the NBG6617 block

Keyword List Select a keyword and click Delete to remove it.

Apply Click Apply to save your settings back to the NBG6617. Back Click Back to return to the previous screen.

If you select Block, the NBG6617 prohibits the users from using the services listed below.

If you select Allow, the NBG6617 blocks all services except ones listed below. Click this to show a screen in which you can add a new service rule. You can configure the

Service Name, Protocol, and Port of the new rule.

Click the Delete icon to delete an existing rule.

access to the website URLs that contain the keyword.

Click Clear All to remove all keywords from the keyword list.

13.2.1.2 Add/Edit a Service

Click Add new service in the Parental Control > Add new rules screen to add a new entry or click the Edit icon next to an existing entry to edit it. Use this screen to configure a service rule.

Figure 68 Expert Mode > Applications > Parental Control > General: Add/Edit new rules: Add new

service

The following table describes the fields in this screen.

Table 42 Expert Mode > Applications > Parental Control > General: Add/Edit new rules: Add new service

LABEL DESCRIPTION

Service Name Select the name of the service. Otherwise, select UserDefined and manually specify the

Protocol Select the transport layer protocol used for the service. Choices are TCP, UDP, or TCP/

protocol and the port of the service.

If you have chosen a pre-defined service in the Service Name field, this field will not be configurable.

UDP.

NBG6617 User’s Guide

109

Table 42 Expert Mode > Applications > Parental Control > General: Add/Edit new rules: Add new

service (continued)

LABEL DESCRIPTION

Port Enter the port of the service.

If you have chosen a pre-defined service in the Service Name field, this field will not be

configurable. Apply Click Apply to save your settings with the NBG6617. Back Click Back to return to the previous screen.

13.2.2 Notification Screen

Use this screen to have the NBG6617 send e-mail notifications when the user(s) is connected to the NBG6617 for Internet access during the specified time periods.

In Expert mode, click Applications > Parental Control > Notification to open the following screen.

Figure 69 Expert Mode > Applications > Parental Control > Notification

Chapter 13 Applications

The following table describes the fields in this screen.

Table 43 Expert Mode > Applications > Parental Control > Notification

LABEL DESCRIPTION

General E-mail

Notification Add new rules Click this if you want to configure a new parental monitor rule. Notification Rules # This shows the index number of the rule.

Select Enable to activate e-mail notifications.

NBG6617 User’s Guide

110

Chapter 13 Applications

Table 43 Expert Mode > Applications > Parental Control > Notification (continued)

LABEL DESCRIPTION

Status This indicates whether the rule is active or not.

A yellow bulb signifies that this rule is active. A gray bulb signifies that this rule is not active. User Name This shows the name of the user to which this rule applies. Notification This shows the e-mail address to which the notification is sent. Modify Click the Edit icon to go to the screen where you can edit the rule.

Click the Delete icon to delete an existing rule. Email Notification Configuration Mail Server Select the mail server. Otherwise, select UserDefined and manually specify the mail server

Mail Server Address

Mail Server Port Enter the same port number here as is on the mail server for mail traffic. Authentication

Username Authentication

Password Mail From Type the e-mail address from which the outgoing e-mail is delivered. This address is used in

E-Mail Type the e-mail address (or addresses) to which the outgoing e-mail is delivered. Apply Click Apply to save your changes. Cancel Click Cancel to restore your previously saved settings.

address and the port of the mail server.

Type the name or IP address of the outgoing SMTP server.

Type the user name to provide to the SMTP server for authentication when the notification is

e-mailed.

Type the password to provide to the SMTP server for authentication when the notification is

e-mailed.

replies.

13.2.2.1 Add/Edit a Notification Rule

Click Add new rules in the Notification screen to add a new rule or click the Edit icon next to an existing rule to edit it. Use this screen to set a schedule and have the NBG6617 send a notification when the specified user connects to the NBG6617 at the scheduled time.

Figure 70 Expert Mode > Applications > Notification: Add/Edit new rules

NBG6617 User’s Guide

111

Chapter 13 Applications

The following table describes the fields in this screen.

Table 44 Expert Mode > Applications > Notification: Add/Edit new rules

LABEL DESCRIPTION

Notification

Active Select the checkbox to activate this notification rule. Home Network

User

Schedule Day Select check boxes for the days that you want the NBG6617 to perform notification. Time (Begin ~

End) Apply Click Apply to save your settings back to the NBG6617. Back Click Back to return to the previous screen.

Select the user that you want to apply this rule to from the drop-down list box.

Note: You should have configured a parental control rule already for the specified user.

Define the time period during that you want the NBG6617 to perform notification.

13.3 Bandwidth Management

The NBG6617 supports the new StreamBoost technology, introduced by Qualcomm, to redistribute traffic over the NBG6617 for the best possible performance in a home network.

Streamboost is smart Quality of Service (QoS). Streamboost detects traffic flow and applies traffic shaping policies automatically. It gives each device and each application priority and provides the exact amount of bandwidth they need at a given time. This helps free up bandwidth for other applications or connected devices. If there is not enough bandwidth for optimal performance, Streamboost makes sure the application or device has the minimum acceptable bandwidth which is determined according to StreamBoost’s cloud-based database.

Real-time application traffic (such as on-line games or communications) and video/audio streaming are given the highest priority. Downloads or torrent files are classified as best effort and placed lower than general network traffic (general browsing).

In the figure below, the StreamBoost-enabled NBG6617 differentiates incoming traffic flow going from the LAN device (A) or wireless device (B) to the Internet. It shapes traffic and gives priority and allocates bandwidth according to traffic types.

NBG6617 User’s Guide

112

Chapter 13 Applications

Figure 71 StreamBoost Management Example

The StreamBoost engine on the NBG6617 can identify the types of connected devices (such as PC, smart phone, tablet, TV or game console) in your network. When there is not enough bandwidth to support traffic of the same priority, the NBG6617 refers to the connected device priority. Traffic from the device with the lowest priority is classified as best-effort traffic. Use the Advanced screen to prioritize the connected devices (Section 13.3.2 on page 113).

13.3.1 General Screen

Use this screen to enable StreamBoost.

In Expert mode, click Applications > Bandwidth Management > General to open the following screen.

Figure 72 Expert Mode > Applications > Bandwidth Management > General

The following table describes the labels in this screen.

Table 45 Expert Mode > Applications > Bandwidth Management > General

LABEL DESCRIPTION

Enable StreamBoost

Apply Click Apply to save your customized settings. Cancel Click Cancel to begin configuring this screen afresh.

Select this option to turn on Streamboost management on the NBG6617.

13.3.2 Advanced Screen

Use this screen to configure the maximum allowable bandwidth on the NBG6617 and allow the NBG6617 to get StreamBoost database updates automatically.

NBG6617 User’s Guide

113

Chapter 13 Applications

In Expert mode, click Applications > Bandwidth Management > Advanced to open the following screen.

Figure 73 Expert Mode > Applications > Bandwidth Management > Advanced

The following table describes the labels in this screen.

Table 46 Expert Mode > Applications > Bandwidth Management > Advanced

LABEL DESCRIPTION

Management Bandwidth Upstream

Bandwidth

Downstream Bandwidth

Application List # This is the index number of the application on the NBG6617. Priority Use the drop-down list box to select the priority of the connected device.

Select the total amount of bandwidth that you want to dedicate to uplink (or outgoing) traffic. Otherwise, select User Defined to manually enter the bandwidth.

This is traffic from LAN/WLAN to WAN. Select the total amount of bandwidth that you want to dedicate to downlink (or

incoming) traffic. Otherwise, select User Defined to manually enter the bandwidth.

This is traffic from WAN to LAN/WLAN.

NBG6617 User’s Guide

114

Table 46 Expert Mode > Applications > Bandwidth Management > Advanced (continued)

LABEL DESCRIPTION

Category This column displays the categories to which the connected device applies. Service This displays the name of the service. Edit Click the Edit icon to open the edit screen where you can modify an existing rule. User-defined Service # This is the index number of the user-defined service. Enable Select the check box to enable the service. Clear the check box to disable the service. Direction Use the drop-down list box to select a direction of travel of packets for which you want

to configure services. Service Name Enter a descriptive name for the service. Category Use the drop-down list box to select a category of the service. Modify Click the Edit icon to open the edit screen where you can modify an existing rule.

Click the Delete icon to remove a rule. Apply Click Apply to save your customized settings. Cancel Click Cancel to begin configuring this screen afresh.

13.3.2.1 Application List Edit

Chapter 13 Applications

Click the Edit icon next to an existing rule to edit it. Use this screen to view and configure the application rules.

Figure 74 Expert Mode > Applications > Bandwidth Management > Advanced: Application List: Edit

The following table describes the labels in this screen.

Table 47 Expert Mode > Applications > Bandwidth Management > Advanced: Application List: Edit

LABEL DESCRIPTION

# This is the index number of the service rule. Enable Select the check box to enable the rule. Clear the check box to disable the rule. Direction This displays traffic direction of the service. Bandwidth Select Maximum Bandwidth or Minimum Bandwidth and enter the maximum

Destination Port This displays the port number of the destination that define the traffic type. Source Port This displays the port number of the source that define the traffic type. Protocol This is the transport layer protocol used for the service.

bandwidth or minimum bandwidth (in Kbps) next to the drop-down list box allowed for

the traffic.

NBG6617 User’s Guide

115

Table 47 Expert Mode > Applications > Bandwidth Management > Advanced: Application List: Edit

LABEL DESCRIPTION

Apply Click Apply to save your customized settings. Cancel Click Cancel to begin configuring this screen afresh.

13.3.2.2 User-defined Service Edit

Click the Edit icon in the Modify field to open the edit screen. Use this screen to configure user- defined service rules.

Figure 75 Expert Mode > Applications > Bandwidth Management > Advanced: User-defined

Service: Edit

Chapter 13 Applications

The following table describes the labels in this screen.

Table 48 Expert Mode > Applications > Bandwidth Management > Advanced: User-defined Service: Edit

LABEL DESCRIPTION

Bandwidth Budget Select Maximum Bandwidth or Minimum Bandwidth and enter the maximum

Destination Address Start

Destination Address End

Destination Port This is a single port number that defines your user-defined service. Source Address

Start Source Address End Enter the ending IP address in a range here. Source Port This is a single port number that defines your user-defined service. Protocol Select the transport layer protocol (TCP, UDP or BOTH) that defines your user-defined

Apply Click Apply to save your customized settings. Cancel Click Cancel to begin configuring this screen afresh.

bandwidth or minimum bandwidth (in Kbps) next to the drop-down list box allowed for

the service.

Enter the single IP address or the starting IP address in a range here.

Enter the ending IP address in a range here.

Enter the single IP address or the starting IP address in a range here.

service.

NBG6617 User’s Guide

116

Chapter 13 Applications

13.4 USB Media Sharing Screen

You can set up your NBG6617 to act as a media server to provide media (like video) to DLNAcompliant players, such as Windows Media Player, ZyXEL DMAs (Digital Media Adapters), Xboxes or PS3s. The media server and clients must have IP addresses in the same subnet.

The NBG6617 media server enables you to:

• Publish all folders for everyone to play media files in the USB storage device connected to the NBG6617.

• Use hardware-based media clients like the DMA-2500 to play the files.

Note: Anyone on your network can play the media files in the published folders. No user

name and password nor other form of security is required.

The following figure is an overview of the NBG6617’s media server feature. DLNA devices A and B can access and play files on a USB device (C) which is connected to the NBG6617 (D).

Figure 76 Media Server Overview

Use this screen to have the NBG6617 act as a DLNA-compliant media server that lets DLNAcompliant media clients on your network play video, music, and photos from the NBG6617 (without having to copy them to another computer).

In Expert mode, click Applications > USB Media Sharing to open the following screen.

NBG6617 User’s Guide

117

Chapter 13 Applications

Figure 77 Expert Mode > Applications > USB Media Sharing

The following table describes the labels in this screen.

Table 49 Expert Mode > Applications > USB Media Sharing

LABEL DESCRIPTION

DLNA Setup Enable DLNA Select this to have the NBG6617 function as a DLNA-compliant media server. Enable Shared Media Types USB1 Select the media type that you want to share on the USB device connected to the

Rescan Media Contents Rescan Click this button to have the NBG6617 scan the media files on the connected USB device

Apply Click Apply to save your changes back to the NBG6617. Cancel Click Cancel to begin configuring this screen afresh.

NBG6617’s USB port.

and do indexing of the file list again so that DLNA clients can find the new files if any.

13.5 UPnP Screen

Universal Plug and Play (UPnP) is a distributed, open networking standard that uses TCP/IP for simple peer-to-peer network connectivity between devices. A UPnP device can dynamically join a network, obtain an IP address, convey its capabilities and learn about other devices on the network. In turn, a device can leave a network smoothly and automatically when it is no longer in use.

Use this screen to enable UPnP on your NBG6617.

In Expert mode, click Applications > UPnP to open the following screen.

NBG6617 User’s Guide

118

Chapter 13 Applications

Figure 78 Expert Mode > Applications > UPnP

The following table describes the fields in this screen.

Table 50 Expert Mode > Applications > UPnP

LABEL DESCRIPTION

UPnP Select Enable to activate UPnP. Be aware that anyone could use a UPnP application to

Display Select the page number from the drop-down list box to display the UPnP port mapping

UPnP Portmap Table # This is the number of an individual UPnP entry. Protocol This is the transport layer protocol used for the service. In Port In Port is a port that a LAN computer uses when it requests a particular service. This

Out Port Out Port is the well-known port that the WAN server uses to reply to the LAN computer

IP Address This field displays the IP address of this UPnP entry. Apply Click Apply to save the setting to the NBG6617. Cancel Click Cancel to return to the previously saved settings.

open the web configurator's login screen without entering the NBG6617's IP address (although you must still enter the password to access the web configurator).

rules.

port is only applicable to the local network.

This field displays the port number of the UPnP entry.

that made the request using In Port.

In the below example, In Port 8000 is paired with Out Port 80. A user on the WAN could enter http://A.B.C.D:8000 to access the internal computer with private IP address

192.168.77.55 where A.B.C.D is the WAN IP address or URL of the NBG6617.

This field displays the port number of the UPnP entry.

13.6 File Sharing

You can also share files on a USB memory stick or hard drive connected to your NBG6617 with users on your network.

NBG6617 User’s Guide

119

Chapter 13 Applications

The following figure is an overview of the NBG6617’s file-sharing server feature. Computers A and B can access files on a USB device (C) which is connected to the NBG6617 (D).

Figure 79 File Sharing Overview

Note: The read and write performance may be affected by amount of file-sharing traffic

on your network, type of connected USB device and your USB version (1.1 or 2.0).

13.6.1 SAMBA Server Screen

Use this screen to set up file-sharing via the NBG6617 using Windows Explorer or the workgroup name. You can also configure the workgroup name and create file-sharing user accounts.

In Expert mode, click Applications > File Sharing > SAMBA to open the following screen.

Figure 80 Expert Mode > Applications > File Sharing > SAMBA

NBG6617 User’s Guide

120

Chapter 13 Applications

The following table describes the labels in this screen.

Table 51 Expert Mode > Applications > File Sharing > SAMBA

LABEL DESCRIPTION

SAMBA Setup Enable SAMBA Select this to enable file sharing through the NBG6617 using Windows Explorer or by

Name Specify the name to identify the NBG6617 in a work group. Work Group You can add the NBG6617 to an existing or a new workgroup on your network. Enter the

browsing to your work group.

name of the workgroup which your NBG6617 automatically joins. You can set the NBG6617’s workgroup name to be exactly the same as the workgroup name to which your computer belongs to.

Note: The NBG6617 will not be able to join the workgroup if your local area network has

restrictions set up that do not allow devices to join a workgroup. In this case, contact your network administrator.

Description Enter the description of the NBG6617 in a work group. Require username

and password User Accounts Before you can share files you need a user account. Configure the following fields to set

# This is the index number of the user account. Enable This field displays whether a user account is activated or not. Select the check box to

User Name Enter a user name that will be allowed to access the shared files. You can enter up to 20

Password Enter the password used to access the shared files. You can enter up to 20 characters.

USB1 Specify the user’s access rights to the USB storage device which is connected to the

Apply Click Apply to save your changes back to the NBG6617. Cancel Click Cancel to begin configuring this screen afresh.

Select Yes to need a user account for access to the connected USB stick from any computer. Otherwise, select No.

up a file-sharing account.

enable the account. Clear the check box to disable the account.

characters. Only letters and numbers allowed.

Only letters and numbers are allowed. The password is case sensitive.

NBG6617’s USB port.

Read & Write - The user has read and write rights, meaning that the user can create and edit the files on the connected USB device.

Read - The user has read rights only and can not create or edit the files on the connected USB device.

13.6.2 FTP Server Screen

Use this screen to set up file sharing via the NBG6617 using FTP and create user accounts.

In Expert mode, click Applications > File Sharing > FTP to open the following screen.

NBG6617 User’s Guide

121

Chapter 13 Applications

Figure 81 Expert Mode > Applications > File Sharing > FTP

The following table describes the labels in this screen.

Table 52 Expert Mode > Applications > File Sharing > FTP

LABEL DESCRIPTION

Enable FTP Select this to enable the FTP server on the NBG6617 for file sharing using FTP. Port You may change the server port number for FTP if needed, however you must use the

User Accounts Before you can share files you need a user account. Configure the following fields to set

# This is the index number of the user account. Enable This field displays whether a user account is activated or not. Select the check box to

User Name Enter a user name that will be allowed to access the shared files. You can enter up to 20

Password Enter the password used to access the shared files. You can enter up to 20 characters.

USB1 Specify the user’s access rights to the USB storage device which is connected to the

Upstream Bandwidth

Downstream Bandwidth

Apply Click Apply to save your changes back to the NBG6617. Cancel Click Cancel to begin configuring this screen afresh.

same port number in order to use that service for file sharing.

up a file-sharing account.

enable the account. Clear the check box to disable the account.

characters. Only letters and numbers allowed.

Only letters and numbers are allowed. The password is case sensitive.

NBG6617’s USB port.

Read & Write - The user has read and write rights, meaning that the user can create and edit the files on the connected USB device.

Read - The user has read rights only and can not create or edit the files on the connected USB device.

None - The user cannot access the files on the USB device(s) connected to the USB port.

Enter the maximum bandwidth (in Kbps) allowed for incoming FTP traffic.

Enter the maximum bandwidth (in Kbps) allowed for outgoing FTP traffic.

NBG6617 User’s Guide

122

Chapter 13 Applications

13.6.3 Example of Accessing Your Shared Files From a Computer

You can use Windows Explorer or FTP to access the USB storage devices connected to the NBG6617.

This example shows you how to use Microsoft’s Windows XP to browse your shared files. Refer to your operating system’s documentation for how to browse your file structure.

Use Windows Explorer to Share Files

You should have enabled file sharing and create a user account (Bob/1234 for example) with read and write access to USB 1 in the Applications > File Sharing > SAMBA screen.

Open Windows Explorer to access the connected USB device using either Windows Explorer browser or by browsing to your workgroup.

1 In Windows Explorer’s Address bar type a double backslash “\\” followed by the IP address of the

NBG6617 (the default IP address of the NBG6617 in router mode is 192.168.1.1) and press [ENTER]. A screen asking for password authentication appears. Type the user name and password (Bob and 1234 in this example) and click OK.

Note: Once you log into the shared folder via your NBG6617, you do not have to relogin

unless you restart your computer.

NBG6617 User’s Guide

123

Chapter 13 Applications

2 You can also use the workgroup name to access files by browsing to the workgroup folder using the

folder tree on the left side of the screen. It is located under My Network Places. In this example the workgroup name is the default “Workgroup”.

Use FTP to Share Files

You can use FTP to access the USB storage devices connected to the NBG6617. In this example, we use the web browser to share files via FTP from the LAN. The way or screen you log into the FTP server (on the NBG6617) varies depending on your FTP client. See your FTP client documentation for more information.

You should have enabled file sharing and create a user account (Bob/1234 for example) with read and write access to USB 1 in the Applications > File Sharing > FTP screen.

1 In your web browser’s address or URL bar type “ftp://” followed by the IP address of the NBG6617

(the default LAN IP address of the NBG6617 in router mode is 192.168.1.1) and click Go or press [ENTER].

NBG6617 User’s Guide

124

Chapter 13 Applications

2 A screen asking for password authentication appears. Enter the user name and password (you

configured in the Applications > File Sharing > FTP screen) and click Log On.

3 The screen changes and shows you the folder for the USB storage device connected to your

NBG6617. Double-click the folder to display the contents in it.

NBG6617 User’s Guide

125

Chapter 13 Applications

13.7 ONE Connect Screen

One Connect is a ZyXEL-proprietary feature. It complies with the IEEE 1905.1 standard and allows auto-detection and auto-configuration.

If your wireless router supports ZyXEL One Connect, NBG6617 for example, you can download and install the ZyXEL One Connect App in your mobile device to check the connection status, do speed test, turn on or turn off the devices in your network, block or allow a device’s access and set up a guest Wi-Fi network from the mobile device. You can even use the App to access the NBG6617’s web configurator. The mobile device with the App installed must be connected to the NBG6617 wirelessly.

Note: You have to go to https://mycloud.zyxel.com and pair your device again when you

reset the NBG6617.

Figure 82 ZyXEL ONE Connect App

Use this screen to enable or disable Wi-Fi auto-configuration on the NBG6617.

In Expert mode, click Applications > ONE Connect to open the following screen.

Figure 83 Expert Mode > Applications > ONE Connect

The following table describes the labels in this screen.

Table 53 Expert Mode > Applications > ONE Connect

LABEL DESCRIPTION

ONE Connect QR Code Scan the QR code and go to a website to download the ZyXEL One Connect App in your

mobile device. One is for the iTunes App Store, and the other is for Google Play.

NBG6617 User’s Guide

126

Chapter 13 Applications

Table 53 Expert Mode > Applications > ONE Connect

LABEL DESCRIPTION

One Connect Compatible Devices Automatically

Update AP/ Repeater Wi-Fi Settings

Apply Click Apply to save your changes back to the NBG6617. Cancel Click Cancel to begin configuring this screen afresh.

Select Enable to allow the NBG6617 to automatically update the wireless settings on the APs or wireless repeaters (which also support ZyXEL One Connect) in its network.

Select Disable to turn this feature off if you want to have the APs or repeaters in the network use different wireless settings.

13.8 Technical Reference

The following section contains additional technical information about the NBG6617 features described in this chapter.

Customizing Keyword Blocking URL Checking

You can use commands to set how much of a website’s URL the content filter is to check for keyword blocking. See the appendices for information on how to access and use the command interpreter.

Domain Name or IP Address URL Checking

By default, the NBG6617 checks the URL’s domain name or IP address when performing keyword blocking.

This means that the NBG6617 checks the characters that come before the first slash in the URL.

For example, with the URL www.zyxel.com.tw/news/pressroom.php for keywords within www.zyxel.com.tw

, content filtering only searches

Full Path URL Checking

Full path URL checking has the NBG6617 check the characters that come before the last slash in the URL.

For example, with the URL www.zyxel.com.tw/news/pressroom.php searches for keywords within www.zyxel.com.tw/news/

Use the ip urlfilter customize actionFlags 6 [disable | enable] command to extend (or not extend) the keyword blocking search to include the URL's full path.

, full path URL checking

File Name URL Checking

Filename URL checking has the NBG6617 check all of the characters in the URL.

For example, filename URL checking searches for keywords within the URL www.zyxel.com.tw/

news/pressroom.php.

NBG6617 User’s Guide

127

Chapter 13 Applications

Use the ip urlfilter customize actionFlags 8 [disable | enable] command to extend (or not extend) the keyword blocking search to include the URL's complete filename.

NAT Traversal

UPnP NAT traversal automates the process of allowing an application to operate through NAT. UPnP network devices can automatically configure network addressing, announce their presence in the network to other UPnP devices and enable exchange of simple product and service descriptions. NAT traversal allows the following:

• Dynamic port mapping

• Learning public IP addresses

• Assigning lease times to mappings

Windows Messenger is an example of an application that supports NAT traversal and UPnP.

See the NAT chapter for more information on NAT.

Cautions with UPnP

The automated nature of NAT traversal applications in establishing their own services and opening firewall ports may present network security issues. Network information and configuration may also be obtained and modified by users in some network environments.

When a UPnP device joins a network, it announces its presence with a multicast message. For security reasons, the NBG6617 allows multicast messages on the LAN only.

All UPnP-enabled devices may communicate freely with each other without additional configuration. Disable UPnP if this is not your intention.

NBG6617 User’s Guide

128

14.1 Overview

Use these screens to enable and configure the firewall that protects your NBG6617 and your LAN from unwanted or malicious traffic.

Enable the firewall to protect your LAN computers from attacks by hackers on the Internet and control access between the LAN and WAN. By default the firewall:

• allows traffic that originates from your LAN computers to go to all of the networks.

• blocks traffic that originates on the other networks from going to the LAN.

The following figure illustrates the default firewall action. User A can initiate an IM (Instant Messaging) session from the LAN to the WAN (1). Return traffic for this session is also allowed (2). However other traffic initiated from the WAN is blocked (3 and 4).

CHAPTER 14

Security

Figure 84 Default Firewall Action

LAN

14.1.1 What You Can Do

•Use the IPv4 Firewall screen to enable or disable the NBG6617’s IPv4 firewall (Section 14.2 on

page 130).

•Use the IPv6 Firewallscreen to enable or disable the NBG6617’s IPv6 firewall (Section 14.3 on

page 132).

14.1.2 What You Need To Know

WAN

1 2

3 4

The following terms and concepts may help as you read through this chapter.

NBG6617 User’s Guide

129

Chapter 14 Security

About the NBG6617 Firewall

The NBG6617’s firewall feature physically separates the LAN and the WAN and acts as a secure gateway for all data passing between the networks.

It is a stateful inspection firewall and is designed to protect against Denial of Service attacks when activated (click the IPv4 Firewall or IPv6 Firewall tab under Security and then click the Enable Firewall check box). The NBG6617's purpose is to allow a private Local Area Network (LAN) to be securely connected to the Internet. The NBG6617 can be used to prevent theft, destruction and modification of data, as well as log events, which may be important to the security of your network.

The NBG6617 is installed between the LAN and a broadband modem connecting to the Internet. This allows it to act as a secure gateway for all data passing between the Internet and the LAN.

The NBG6617 has one Ethernet WAN port and four Ethernet LAN ports, which are used to physically separate the network into two areas.The WAN (Wide Area Network) port attaches to the broadband (cable or DSL) modem to the Internet.

The LAN (Local Area Network) port attaches to a network of computers, which needs security from the outside world. These computers will have access to Internet services such as e-mail, FTP and the World Wide Web. However, "inbound access" is not allowed (by default) unless the remote host is authorized to use a specific service.

Guidelines For Enhancing Security With Your Firewall

1 Change the default password via Web Configurator.

2 Think about access control before you connect to the network in any way, including attaching a

modem to the port.

3 Limit who can access your router.

4 Don't enable any local service (such as NTP) that you don't use. Any enabled service could present

a potential security risk. A determined hacker might be able to find creative ways to misuse the enabled services to access the firewall or the network.

5 For local services that are enabled, protect against misuse. Protect by configuring the services to

communicate only with specific peers, and protect by configuring rules to block packets for the services at specific interfaces.

6 Protect against IP spoofing by making sure the firewall is active.

7 Keep the firewall in a secured (locked) room.

14.2 IPv4 Firewall Screen

Use this screen to enable or disable the NBG6617’s IPv4 firewall, and set up firewall logs. Click Expert Mode > Security > IPv4 Firewall to open the firewall setup screen.

NBG6617 User’s Guide

130

Chapter 14 Security

Figure 85 Expert Mode > Security > IPv4 Firewall

The following table describes the labels in this screen.

Table 54 Expert Mode > Security > IPv4 Firewall

LABEL DESCRIPTION

ICMP Internet Control Message Protocol is a message control and error-reporting protocol

Respond to Ping onThe NBG6617 will not respond to any incoming Ping requests when Disable is selected.

Firewall Setup Enable Firewall Select this check box to activate the firewall. The NBG6617 performs access control and

Enable Firewall Rule Enable Firewall

Rule Filter table type Select DROP to silently discard the packets which meet the firewall rules. The others are

Add Firewall Rule

between a host server and a gateway to the Internet. ICMP uses Internet Protocol (IP) datagrams, but the messages are processed by the TCP/IP software and directly apparent to the application user.

Select LAN to reply to incoming LAN Ping requests. Select WAN to reply to incoming WAN Ping requests. Otherwise select LAN&WAN to reply to all incoming LAN and WAN Ping requests.

protects against Denial of Service (DoS) attacks when the firewall is activated.

Select this check box to activate the firewall rules that you define (see Add Firewall Rule below).

accepted.Select ACCEPT to allow the passage of the packets which meet the firewall rules. The others are blocked.

NBG6617 User’s Guide

131

Chapter 14 Security

Table 54 Expert Mode > Security > IPv4 Firewall (continued)

LABEL DESCRIPTION

Service Name Enter a name that identifies or describes the firewall rule. MAC Address Enter the MAC address of the computer for which the firewall rule applies. Dest IP Address Enter the IP address of the computer to which traffic for the application or service is

Source IP Address Enter the IP address of the computer that initializes traffic for the application or service.

Protocol Select the protocol (TCP, UDP or ICMP) used to transport the packets for which you want

Dest Port Range This is the port number/range of the destination that define the traffic type, for example

Source Port Range

Add Rule Click Add Rule to save the firewall rule. Firewall Rule # This is your firewall rule number. The ordering of your rules is important as rules are

Service Name This is a name that identifies or describes the firewall rule. MAC addresse This is the MAC address of the computer for which the firewall rule applies. Dest IP This is the IP address of the computer to which traffic for the application or service is

Source IP This is the IP address of the computer from which traffic for the application or service is

Protocol This is the protocol (TCP, UDP or ICMP) used to transport the packets for which you

Dest Port Range This is the port number/range of the destination that define the traffic type, for example

Source Port Range

Apply Click Apply to save the settings. Cancel Click Cancel to start configuring this screen again.

entering.

The NBG6617 applies the firewall rule to traffic initiating from this computer.

to apply the firewall rule.

TCP port 80 defines web traffic. This is the port number/range of the source that define the traffic type, for example TCP

port 80 defines web traffic.

applied in turn.

entering.

initialized.

want to apply the firewall rule.

TCP port 80 defines web traffic. This is the port number/range of the source that define the traffic type, for example TCP

port 80 defines web traffic. Click to remove the firewall rule.

14.3 IPv6 Firewall Screen

This chapter shows you how to enable and create IPv6 firewall rules to block unwanted IPv6 traffic.

NBG6617 User’s Guide

132

Chapter 14 Security

Click Expert Mode > Security > IPv6 Firewall. The IPv6 Firewall screen appears as shown.

Figure 86 Expert Mode > Security > IPv6 Firewall

The following table describes the labels in this screen.

Table 55 Expert Mode > Security > IPv6 Firewall

LABEL DESCRIPTION

Enable Firewall Rule Enable Firewall Rule Select this check box to activate the firewall rules that you define (see Add Firewall

Action Select DROP to silently discard the packets which meet the firewall rules. The others

Add Firewall Rule Service Name Enter a name that identifies or describes the firewall rule. MAC Address Enter the MAC address of the computer for which the firewall rule applies. Dest IP Address Enter the IPv6 address of the computer to which traffic for the application or service is

Source IP Address Enter the IPv6 address of the computer that initializes traffic for the application or

Protocol Select the protocol (TCP, UDP or ICMPv6) used to transport the packets for which you

Dest Port Range Enter the port number/range of the destination that defines the traffic type, for

Source Port Range Enter the port number/range of the source that defines the traffic type, for example

Rule below).

are accepted.

Select ACCEPT to allow the passage of the packets which meet the firewall rules. The others are blocked.

entering.

The NBG6617 applies the firewall rule to traffic destined for this computer.

service.

The NBG6617 applies the firewall rule to traffic initiating from this computer.

want to apply the firewall rule.

example TCP port 80 defines web traffic.

TCP port 80 defines web traffic.

NBG6617 User’s Guide

133

Chapter 14 Security

Table 55 Expert Mode > Security > IPv6 Firewall (continued)

LABEL DESCRIPTION

Add Rule Click Add Rule to save the firewall rule. Firewall Rule # This is your firewall rule number. The ordering of your rules is important as rules are

ServiceName This is a name that identifies or describes the firewall rule. MAC Address This is the MAC address of the computer for which the firewall rule applies. Dest IP This is the IP address of the computer to which traffic for the application or service is

Source IP This is the IP address of the computer to which traffic for the application or service is

Protocol This is the protocol (TCP, UDP or ICMPv6) used to transport the packets for which you

Dest Port Range This is the port number/range of the destination that defines the traffic type, for

Source Port Range This is the port number/range of the source that defines the traffic type, for example

Apply Click Apply to save the settings. Cancel Click Cancel to restore your previously saved settings.

applied in turn.

entering.

initialized.

want to apply the firewall rule.

example TCP port 80 defines web traffic.

TCP port 80 defines web traffic. Click to remove the firewall rule.

NBG6617 User’s Guide

134

15.1 Overview

This chapter provides information on the Maintenance screens.

15.2 What You Can Do

•Use the General screen to set the timeout period of the management session (Section 15.3 on

page 135).

•Use the Password screen to change your NBG6617’s system password (Section 15.4 on page

136).

•Use the Time screen to change your NBG6617’s time and date (Section 15.5 on page 137).

•Use the Firmware Upgrade screen to upload firmware to your NBG6617 (Section 15.6 on page

139).

•Use the Backup/Restore screen to view information related to factory defaults, backup configuration, and restoring configuration (Section 15.7 on page 140).

•Use the Restart screen to reboot the NBG6617 without turning the power off (Section 15.8 on

page 141).

•Use the Language screen to change the language for the Web Configurator (Section 15.9 on

page 141).

•Use the Remote Management screen to configure the interface/s from which the NBG6617 can be managed remotely and specify a secure client that can manage the NBG6617

on page 142).

•Use the Log screen to see the logs for the activity on the NBG6617 (Section 15.11 on page 145).

•Use the Operation Mode screen to select how you want to use your NBG6617 (Section 15.13 on

page 147).

CHAPTER 15

Maintenance

. (Section 15.10

15.3 General Screen

Use this screen to set the management session timeout period. Click Expert Mode > Maintenance > General. The following screen displays.

NBG6617 User’s Guide

135

Chapter 15 Maintenance

Figure 87 Expert Mode > Maintenance > General

The following table describes the labels in this screen.

Table 56 Expert Mode > Maintenance > General

LABEL DESCRIPTION

System Name System Name is a unique name to identify the NBG6617 in an Ethernet network. Domain Name Enter the domain name you want to give to the NBG6617. Administrator

Inactivity Timer

Apply Click Apply to save your changes back to the NBG6617. Cancel Click Cancel to begin configuring this screen afresh.

Type how many minutes a management session can be left idle before the session times out. The default is 5 minutes. After it times out you have to log in with your password again. Very long idle timeouts may have security risks. A value of "0" means a management session never times out, no matter how long it has been left idle (not recommended).

15.4 Password Screen

It is strongly recommended that you change your NBG6617's password.

If you forget your NBG6617's password (or IP address), you will need to reset the device. See

Section 15.8 on page 141 for

Click Expert Mode > Maintenance > Password. The screen appears as shown.

Figure 88 Expert Mode > Maintenance > Password

The following table describes the labels in this screen.

Table 57 Expert Mode > Maintenance > Password

LABEL DESCRIPTION

Old Password Type the default password or the existing password you use to access the system in

this field.

New Password Type your new system password (up to 30 characters). Note that as you type a

password, the screen displays an asterisk (*) for each character you type.

Retype to Confirm Type the new password again in this field.

details.

NBG6617 User’s Guide

136

Table 57 Expert Mode > Maintenance > Password (continued)

LABEL DESCRIPTION

Apply Click Apply to save your changes back to the NBG6617. Cancel Click Cancel to begin configuring this screen afresh.

15.5 Time Screen

Use this screen to configure the NBG6617’s time based on your local time zone. To change your NBG6617’s time and date, click Expert Mode > Maintenance > Time. The screen appears as shown.

Figure 89 Expert Mode > Maintenance > Time

Chapter 15 Maintenance

The following table describes the labels in this screen.

Table 58 Expert Mode > Maintenance > Time

LABEL DESCRIPTION

Current Time and Date Current Time This field displays the time of your NBG6617.

Each time you reload this page, the NBG6617 synchronizes the time with the time server.

Current Date This field displays the date of your NBG6617.

Each time you reload this page, the NBG6617 synchronizes the date with the time

server. Time and Date Setup Manual Select this radio button to enter the time and date manually. If you configure a new

time and date, Time Zone and Daylight Saving at the same time, the new time and date

you entered has priority and the Time Zone and Daylight Saving settings do not affect

it.

NBG6617 User’s Guide

137

Chapter 15 Maintenance

Table 58 Expert Mode > Maintenance > Time (continued)

LABEL DESCRIPTION

New Time

(hh:mm:ss)

New Date

(yyyy/mm/dd)

Get from Time Server

User Defined Time Server Address

Time Zone Setup Time Zone Choose the time zone of your location. This will set the time difference between your

Daylight Savings Daylight saving is a period from late spring to early fall when many countries set their

Start Date Configure the day and time when Daylight Saving Time starts if you selected Daylight

End Date Configure the day and time when Daylight Saving Time ends if you selected Daylight

Apply Click Apply to save your changes back to the NBG6617. Cancel Click Cancel to begin configuring this screen afresh.

This field displays the last updated time from the time server or the last time

configured manually.

When you select Manual, enter the new time in this field and then click Apply.

This field displays the last updated date from the time server or the last date configured

manually.

When you select Manual, enter the new date in this field and then click Apply.

Select this radio button to have the NBG6617 get the time and date from the time

server you specified below.

Select User Defined Time Server Address and enter the IP address or URL (up to 20

extended ASCII characters in length) of your time server. Check with your ISP/network

administrator if you are unsure of this information.

time zone and Greenwich Mean Time (GMT).

clocks ahead of normal local time by one hour to give more daytime light in the

evening.

Select this option if you use Daylight Saving Time.

Savings. The at field uses the 24 hour format. Here are a couple of examples:

Daylight Saving Time starts in most parts of the United States on the second Sunday of

March. Each time zone in the United States starts using Daylight Saving Time at 2 A.M.

local time. So in the United States you would select Second, Sunday, March and

select 2 in the at field.

Daylight Saving Time starts in the European Union on the last Sunday of March. All of

the time zones in the European Union start using Daylight Saving Time at the same

moment (1 A.M. GMT or UTC). So in the European Union you would select Last,

Sunday, March. The time you select in the at field depends on your time zone. In

Germany for instance, you would select 2 because Germany's time zone is one hour

ahead of GMT or UTC (GMT+1).

Savings. The at field uses the 24 hour format. Here are a couple of examples:

Daylight Saving Time ends in the United States on the first Sunday of November. Each

time zone in the United States stops using Daylight Saving Time at 2 A.M. local time.

So in the United States you would select First, Sunday, November and select 2 in the

at field.

Daylight Saving Time ends in the European Union on the last Sunday of October. All of

the time zones in the European Union stop using Daylight Saving Time at the same

moment (1 A.M. GMT or UTC). So in the European Union you would select Last,

Sunday, October. The time you select in the at field depends on your time zone. In

Germany for instance, you would select 2 because Germany's time zone is one hour

ahead of GMT or UTC (GMT+1).

NBG6617 User’s Guide

138

Chapter 15 Maintenance

15.6 Firmware Upgrade Screen

Find firmware at www.zyxel.com in a file that uses the version number and project code with a “*.bin” extension, e.g., “V1.00(AARO.0).bin”. The upload process uses HTTP (Hypertext Transfer Protocol) and may take up to two minutes. After a successful upload, the system will reboot.

Click Expert Mode > Maintenance > Firmware Upgrade. Follow the instructions in this screen to upload firmware to your NBG6617.

Figure 90 Expert Mode > Maintenance > Firmware Upgrade

The following table describes the labels in this screen.

Table 59 Expert Mode > Maintenance > Firmware Upgrade

LABEL DESCRIPTION

File Path Click Choose File to find the location of the file you want to upload in this field. Choose File Click Choose File to find the .bin file you want to upload. Remember that you must

Upload Click Upload to begin the upload process. This process may take up to two minutes. Check for Latest

Firmware Now

decompress compressed (.zip) files before you can upload them.

Click this to check for the latest updated firmware.

Note: Do not turn off the NBG6617 while firmware upload is in progress!

After you see the Firmware Upload In Process screen, wait two minutes before logging into the NBG6617 again.

The NBG6617 automatically restarts in this time causing a temporary network disconnect. In some operating systems, you may see the following icon on your desktop.

Figure 91 Network Temporarily Disconnected

After two minutes, log in again and check your new firmware version in the Status screen.

If the upload was not successful, an error message appears. Click Return to go back to the Firmware Upgrade screen.

NBG6617 User’s Guide

139

Chapter 15 Maintenance

15.7 Backup/Restore Screen

Backup configuration allows you to back up (save) the NBG6617’s current configuration to a file on your computer. Once your NBG6617 is configured and functioning properly, it is highly recommended that you back up your configuration file before making configuration changes. The backup configuration file will be useful in case you need to return to your previous settings.

Restore configuration allows you to upload a new or previously saved configuration file from your computer to your NBG6617.

Click Expert Mode > Maintenance > Backup/Restore. Information related to factory defaults, backup configuration, and restoring configuration appears as shown next.

Figure 92 Expert Mode > Maintenance > Backup/Restore

The following table describes the labels in this screen.

Table 60 Expert Mode > Maintenance > Backup/Restore

LABEL DESCRIPTION

Backup Click Backup to save the NBG6617’s current configuration to your computer. File Path Click Choose File to find the location of the file you want to upload in this field. Choose File Click Choose File to find the file you want to upload. Remember that you must

decompress compressed (.ZIP) files before you can upload them.

NBG6617 User’s Guide

140

Chapter 15 Maintenance

Table 60 Expert Mode > Maintenance > Backup/Restore (continued)

LABEL DESCRIPTION

Upload Click Upload to begin the upload process.

Note: Do not turn off the NBG6617 while configuration file upload is in progress.

After you see a “configuration upload successful” screen, you must then wait one minute before logging into the NBG6617 again. The NBG6617 automatically restarts in this time causing a temporary network disconnect.

If you see an error screen, click Back to return to the Backup/Restore screen.

Reset Pressing the Reset button in this section clears all user-entered configuration information

and returns the NBG6617 to its factory defaults.

You can also press the RESET button on the rear panel to reset the factory defaults of your NBG6617. Refer to the chapter about introducing the Web Configurator for more information on the RESET button.

Note: If you uploaded the default configuration file you may need to change the IP

address of your computer to be in the same subnet as that of the default NBG6617 IP address (192.168.1.1). See Appendix B on page 162 for details on how to

set up

your computer’s IP address.

15.8 Restart Screen

System restart allows you to reboot the NBG6617 without turning the power off.

Click Expert Mode > Maintenance > Restart to open the following screen.

Figure 93 Expert Mode > Maintenance > Restart

Click Restart to have the NBG6617 reboot. This does not affect the NBG6617's configuration.

15.9 Language Screen

Use this screen to change the language for the Web Configurator.

Select the language you prefer and click Apply. The Web Configurator language changes after a while without restarting the NBG6617. Click Expert Mode > Maintenance > Language to open the following screen.

NBG6617 User’s Guide

141

Chapter 15 Maintenance

Figure 94 Expert Mode > Maintenance > Language

15.10 Remote Management Screen

Remote Management allows you to manage your NBG6617 from a remote location through the LAN/WLAN or WAN interface.

15.10.1 Remote Access

Use this screen to change your NBG6617’s remote management settings. You can use Telnet, HTTP or HTTPS to access and manage the NBG6617.

Click Expert Mode > Maintenance > Remote Management > Remote Access to open the following screen.

NBG6617 User’s Guide

142

Chapter 15 Maintenance

Figure 95 Expert Mode > Maintenance > Remote Management > Remote Access

The following table describes the labels in this screen.

Table 61 Expert Mode > Maintenance > Remote Management > WAN Access

LABEL DESCRIPTION

WWW Port You may change the server port number for a service if needed, however you must use the

Access Status Select the interface(s) through which a computer may access the NBG6617 using this

Secured Client IP Address

Telne t

same port number in order to use that service for remote management.

service. Select All to allow all computes to access the NBG6617.

Otherwise, check Selected and specify the IP address of the computer that can access the NBG6617.

NBG6617 User’s Guide

143

Chapter 15 Maintenance

Table 61 Expert Mode > Maintenance > Remote Management > WAN Access

LABEL DESCRIPTION

Port You may change the server port number for a service if needed, however you must use the

Access Status Select the interface(s) through which a computer may access the NBG6617 using this

Secured Client IP Address

HTTPS Port You may change the server port number for a service if needed, however you must use the

Access Status Select the interface(s) through which a computer may access the NBG6617 using this

Secured Client IP Address

Apply Click Apply to save your changes back to the NBG6617. Cancel Click Cancel to begin configuring this screen afresh.

same port number in order to use that service for remote management.

service. Select All to allow all computes to access the NBG6617.

Otherwise, check Selected and specify the IP address of the computer that can access the NBG6617.

same port number in order to use that service for remote management.

service. Select All to allow all computes to access the NBG6617.

Otherwise, check Selected and specify the IP address of the computer that can access the NBG6617.

15.10.2 Wake On LAN

Wake On LAN (WoL) allows you to remotely turn on a device on the network, such as a computer, storage device or media server. To use this feature the remote hardware (for example the network adapter on a computer) must support Wake On LAN using the “Magic Packet” method.

You need to know the MAC address of the remote device. It may be on a label on the device.

Use this screen to remotely turn on a device on the network. Click the Expert Mode > Maintenance > Remote Management > Wake On LAN to open the following screen.

Figure 96 Expert Mode > Maintenance > Remote Management > Wake On LAN

NBG6617 User’s Guide

144

Chapter 15 Maintenance

The following table describes the labels in this screen.

Table 62 Expert Mode > Maintenance > Remote Management > Wake On LAN

LABEL DESCRIPTION

Wake On LAN over WAN Settings Enable Wake On

LAN over WAN

Port Type a port number from which a WoL packet is forwarded to the LAN. Wake On LAN Wake MAC

Address

Start Click this to have the NBG6617 generate a WoL packet and forward it to turn the specified

Apply Click Apply to save your changes back to the NBG6617. Cancel Click Cancel to begin configuring this screen afresh.

Select Enable to have the NBG6617 forward a WoL “Magic Packet” to all devices on the LAN if the packet comes from the WAN or remote network and uses the port number specified in the Port field. A LAN device whose hardware supports Wake on LAN then will be powered on if it is turned off previously.

This field displays the hostname and MAC address of the LAN device by default. Otherwise, select User define to enter the MAC Address of the device on the network that will be turned on.

A MAC address consists of six hexadecimal character pairs.

device on.

A screen pops up displaying MAC address error if you input the MAC address incorrectly.

15.11 Log Screen

The Web Configurator allows you to look at all of the NBG6617’s logs in one location.

You can configure which logs to display in the Log screen. Select the logs you wish to display. Click Apply to save your settings. Click Cancel to start the screen afresh.

Use this screen to see the logged messages for the NBG6617. The log wraps around and deletes the old entries after it fills. Select what logs you want to see from the Display drop list. The log choices depend on your settings above this screen. Click Refresh to renew the log screen. Click Clear Log to delete all the logs.

NBG6617 User’s Guide

145

Chapter 15 Maintenance

Figure 97 Expert Mode > Maintenance > Log

15.12 System Operation Mode Overview

The Sys OP Mode (System Operation Mode) function lets you configure your NBG6617 as a router or access point. You can choose between Router Mode, and Access Point Mode depending on your network topology and the features you require from your device.

The following describes the device modes available in your NBG6617.

Router

A router connects your local network with another network, such as the Internet. The router has two IP addresses, the LAN IP address and the WAN IP address.

Figure 98 LAN and WAN IP Addresses in Router Mode

NBG6617 User’s Guide

146

Chapter 15 Maintenance

Access Point

An access point enabled all ethernet ports to be bridged together and be in the same subnet. To connect to the Internet, another device, such as a router, is required.

Figure 99 Access Point Mode

15.13 Operation Mode Screen

Use this screen to select how you want to use your NBG6617.

Figure 100 Expert Mode > Maintenance > Operation Mode

The following table describes the labels in the Operation Mode screen.

Table 63 Expert Mode > Maintenance > Operation Mode

LABEL DESCRIPTION

Configuration Mode Router Mode Select Router Mode if your device routes traffic between a local network and

another network such as the Internet. This mode offers services such as a firewall or bandwidth management.

You can configure the IP address settings on your WAN port. Contact your ISP or system administrator for more information on appropriate settings.

NBG6617 User’s Guide

147

Chapter 15 Maintenance

Table 63 Expert Mode > Maintenance > Operation Mode (continued)

LABEL DESCRIPTION

Access Point Mode Select Access Point Mode if your device bridges traffic between clients on the

Apply Click Apply to save your settings. Cancel Click Cancel to return your settings to the default (Router).

same network.

•In Access Point Mode, all Ethernet ports have the same IP address.

• All ports on the rear panel of the device are LAN ports, including the port labeled WAN. There is no WAN port.

• The DHCP server on your device is disabled.

• Router functions (such as NAT, bandwidth management, remote management, firewall and so on) are not available when the NBG6617 is in Access Point Mode.

• The IP address of the device on the local network is set to 192.168.1.2.

Note: If you select the incorrect system operation Mode you may not be able to connect

to the Internet.

NBG6617 User’s Guide

148

16.1 Overview

This chapter offers some suggestions to solve problems you might encounter. The potential problems are divided into the following categories.

• Power, Hardware Connections, and LEDs

• NBG6617 Access and Login

• Internet Access

• Resetting the NBG6617 to Its Factory Defaults

• Wireless Connections

• USB Device Problems

CHAPTER 16

Troubleshooting

16.2 Power, Hardware Connections, and LEDs

The NBG6617 does not turn on. None of the LEDs turn on.

1 Make sure you are using the power adaptor or cord included with the NBG6617.

2 Make sure the power adaptor or cord is connected to the NBG6617 and plugged in to an appropriate

power source. Make sure the power source is turned on.

3 Disconnect and re-connect the power adaptor or cord to the NBG6617.

4 If the problem continues, contact the vendor.

One of the LEDs does not behave as expected.

1 Make sure you understand the normal behavior of the LED. See Section 1.7 on page 12.

2 Check the hardware connections. See the Quick Start Guide.

3 Inspect your cables for damage. Contact the vendor to replace any damaged cables.

4 Disconnect and re-connect the power adaptor to the NBG6617.

NBG6617 User’s Guide

149

Chapter 16 Troubleshooting

5 If the problem continues, contact the vendor.

16.3 NBG6617 Access and Login

I don’t know the IP address of my NBG6617.

6 The default IP address of the NBG6617 in Router Mode is 192.168.1.1. If the NBG6617 obtains a

WAN IP address in the same subnet as the LAN IP address 192.168.1.1, the default LAN IP address will be changed to 10.0.0.1 automatically. See Auto-IP Change on page 64 for more information. The default IP address of the NBG6617 in Access Point Mode is 192.168.1.2.

7 If you changed the IP address and have forgotten it, you might get the IP address of the NBG6617

in Router Mode by looking up the IP address of the default gateway for your computer. To do this in most Windows computers, click Start > Run, enter cmd, and then enter ipconfig. The IP address of the Default Gateway might be the IP address of the NBG6617 (it depends on the network), so enter this IP address in your Internet browser.

8 If your NBG6617 in Access Point Mode is a DHCP client, you can find your IP address from the

DHCP server. This information is only available from the DHCP server which allocates IP addresses on your network. Find this information directly from the DHCP server or contact your system administrator for more information.

9 Reset your NBG6617 to change all settings back to their default. This means your current settings

are lost. See Section 16.5 on page 153 in the Troubleshooting for information on resetting your NBG6617.

I forgot the password.

1 The default password is 1234.

2 If this does not work, you have to reset the device to its factory defaults. See Section 16.5 on page

153.

I cannot see or access the Login screen in the Web Configurator.

1 Make sure you are using the correct IP address.

2 The default IP address of the NBG6617 in Router Mode is 192.168.1.1. If the NBG6617 obtains a

• If you changed the IP address (Section 12.4 on page 100), use the new IP address.

NBG6617 User’s Guide

150

Chapter 16 Troubleshooting

• If you changed the IP address and have forgotten it, see the troubleshooting suggestions for I

don’t know the IP address of my NBG6617.

3 Check the hardware connections, and make sure the LEDs are behaving as expected. See the Quick

Start Guide.

4 Make sure your Internet browser does not block pop-up windows and has JavaScript and Java

enabled.

5 Make sure your computer is in the same subnet as the NBG6617. (If you know that there are

routers between your computer and the NBG6617, skip this step.)

• If there is a DHCP server on your network, make sure your computer is using a dynamic IP address. See Section 12.4 on page 100.

• If there is no DHCP server on your network, make sure your computer’s IP address is in the same subnet as the NBG6617. See Section 12.4 on page 100.

6 Reset the device to its factory defaults, and try to access the NBG6617 with the default IP address.

See Section 1.5 on page 11.

7 If the problem continues, contact the network administrator or vendor, or try one of the advanced

suggestions.

Advanced Suggestions

• Try to access the NBG6617 using another service, such as Telnet. If you can access the NBG6617, check the remote management settings and firewall rules to find out why the NBG6617 does not respond to HTTP.

• If your computer is connected to the WAN port or is connected wirelessly, use a computer that is connected to a LAN/ETHERNET port.

I can see the Login screen, but I cannot log in to the NBG6617.

1 Make sure you have entered the password correctly. The default password is 1234. This field is

case-sensitive, so make sure [Caps Lock] is not on.

2 This can happen when you fail to log out properly from your last session. Try logging in again after

5 minutes.

3 Disconnect and re-connect the power adaptor or cord to the NBG6617.

4 If this does not work, you have to reset the device to its factory defaults. See Section 16.5 on page

153.

16.4 Internet Access

I cannot access the Internet.

NBG6617 User’s Guide

151

Chapter 16 Troubleshooting

1 Check the hardware connections, and make sure the LEDs are behaving as expected. See the Quick

Start Guide.

2 Go to Expert > Maintenance > Operation Mode. Check your System Operation Mode setting.

• If the NBG6617 is in Router Mode, make sure the WAN port is connected to a broadband modem or router with Internet access. Your computer and the NBG6617 should be in the same subnet.

• If the NBG6617 is in Access Point Mode, make sure the WAN port is connected to a broadband modem or router with Internet access and your computer is set to obtain an dynamic IP address.

3 If the NBG6617 is in Router Mode, make sure you entered your ISP account information correctly

in the wizard or the WAN screen. These fields are case-sensitive, so make sure [Caps Lock] is not on.

4 If you are trying to access the Internet wirelessly, make sure the wireless settings in the wireless

client are the same as the settings in the AP.

5 Disconnect all the cables from your device, and follow the directions in the Quick Start Guide again.

6 If the problem continues, contact your ISP.

I cannot access the Internet anymore. I had access to the Internet (with the NBG6617), but my Internet connection is not available anymore.

1 Check the hardware connections, and make sure the LEDs are behaving as expected. See the Quick

Start Guide and Section 1.7 on page 12.

2 Reboot the NBG6617.

3 If the problem continues, contact your ISP.

The Internet connection is slow or intermittent.

1 There might be a lot of traffic on the network. Look at the LEDs, and check Section 1.7 on page 12.

If the NBG6617 is sending or receiving a lot of information, try closing some programs that use the Internet, especially peer-to-peer applications.

2 Check the signal strength. If the signal strength is low, try moving the NBG6617 closer to the AP if

possible, and look around to see if there are any devices that might be interfering with the wireless network (for example, microwaves, other wireless networks, and so on).

3 Reboot the NBG6617.

4 If the problem continues, contact the network administrator or vendor, or try one of the advanced

suggestions.

Advanced Suggestion

NBG6617 User’s Guide

152

Chapter 16 Troubleshooting

• Check the settings for QoS. If it is disabled, you might consider activating it.

16.5 Resetting the NBG6617 to Its Factory Defaults

If you reset the NBG6617, you lose all of the changes you have made. The NBG6617 re-loads its default settings, and the password resets to 1234. You have to make all of your changes again.

You will lose all of your changes when you push the RESET button.

To reset the NBG6617:

1 Make sure the power LED is on.

2 Press the RESET button for one to four seconds to restart/reboot the NBG6617.

3 Press the RESET button for longer than five seconds to set the NBG6617 back to its factory-default

configurations.

If the NBG6617 restarts automatically, wait for the NBG6617 to finish restarting, and log in to the Web Configurator. The password is “1234”.

If the NBG6617 does not restart automatically, disconnect and reconnect the NBG6617’s power. Then, follow the directions above again.

16.6 Wireless Connections

I cannot access the NBG6617 or ping any computer from the WLAN.

1 Make sure the wireless LAN is enabled on the NBG6617.

2 Make sure the wireless adapter on your computer is working properly.

3 Make sure the wireless adapter installed on your computer is IEEE 802.11 compatible and supports

the same wireless standard as the NBG6617.

4 Make sure your computer (with a wireless adapter installed) is within the transmission range of the

NBG6617.

5 Check that both the NBG6617 and the wireless adapter on your computer are using the same

wireless and wireless security settings.

6 Make sure traffic between the WLAN and the LAN is not blocked by the firewall on the NBG6617.

NBG6617 User’s Guide

153

Chapter 16 Troubleshooting

7 Make sure you allow the NBG6617 to be remotely accessed through the WLAN interface. Check

your remote management settings.

• See the chapter on Wireless LAN

in the User’s Guide for more information.

I set up URL keyword blocking, but I can still access a website that should be blocked.

Make sure that you enable parental control in the Parental Control screen, set up rules and turn on the rules. Make sure that the keywords that you type are listed in the rule’s Keyword List.

If a keyword that is listed in the Keyword List is not blocked when it is found in a URL, customize the keyword blocking using commands. See the Keyword Blocking URL Checking section in the

Applications chapter.

I cannot access the Web Configurator after I switched to AP mode.

When you change from router mode to AP mode, your computer must have an IP address in the range between “192.168.1.3” and “192.168.1.254”.

Refer to Appendix B on page 162 for instructions on how to change your computer’s IP address.

What factors may cause intermittent or unstabled wireless connection? How can I solve this problem?

The following factors may cause interference:

• Obstacles: walls, ceilings, furniture, and so on.

• Building Materials: metal doors, aluminum studs.

• Electrical devices: microwaves, monitors, electric motors, cordless phones, and other wireless devices.

To optimize the speed and quality of your wireless connection, you can:

• Move your wireless device closer to the AP if the signal strength is low.

• Reduce wireless interference that may be caused by other wireless networks or surrounding wireless electronics such as cordless phones.

• Place the AP where there are minimum obstacles (such as walls and ceilings) between the AP and the wireless client.

• Reduce the number of wireless clients connecting to the same AP simultaneously, or add additional APs if necessary.

• Try closing some programs that use the Internet, especially peer-to-peer applications. If the wireless client is sending or receiving a lot of information, it may have too many programs open that use the Internet.

NBG6617 User’s Guide

154

Chapter 16 Troubleshooting

• Position the antennas for best reception. If the AP is placed on a table or floor, point the antennas upwards. If the AP is placed at a high position, point the antennas downwards. Try pointing the antennas in different directions and check which provides the strongest signal to the wireless clients.

16.7 USB Device Problems

I cannot access or see a USB device that is connected to the NBG6617.

1 Disconnect the problematic USB device, then reconnect it to the NBG6617.

2 Ensure that the USB device has power.

3 Check your cable connections.

4 Restart the NBG6617 by disconnecting the power and then reconnecting it.

5 If the USB device requires a special driver, install the driver from the installation disc that came

with the device. After driver installation, reconnect the USB device to the NBG6617 and try to connect to it again with your computer.

6 If the problem persists, contact your vendor.

What kind of USB devices do the NBG6617 support?

1 It is strongly recommended to use version 2.0 or lower USB storage devices (such as memory

sticks, USB hard drives) and/or USB devices. Other USB products are not guaranteed to function properly with the NBG6617.

NBG6617 User’s Guide

155

APPENDIX A

Customer Support

In the event of problems that cannot be solved by using this manual, you should contact your vendor. If you cannot contact your vendor, then contact a ZyXEL office for the region in which you bought the device.

See http://www.zyxel.com/homepage.shtml and also

http://www.zyxel.com/about_zyxel/zyxel_worldwide.shtml for the latest information.

Please have the following information ready when you contact an office.

Required Information

• Product model and serial number.

• Warranty Information.

• Date that you received your device.

• Brief description of the problem and the steps you took to solve it.

Corporate Headquarters (Worldwide)

Taiwa n

• ZyXEL Communications Corporation

• http://www.zyxel.com

Asia

China

• ZyXEL Communications (Shanghai) Corp. ZyXEL Communications (Beijing) Corp. ZyXEL Communications (Tianjin) Corp.

• http://www.zyxel.cn

India

• ZyXEL Technology India Pvt Ltd

• http://www.zyxel.in

Kazakhstan

• ZyXEL Kazakhstan

NBG6617 User’s Guide

156

• http://www.zyxel.kz

Korea

• ZyXEL Korea Corp.

• http://www.zyxel.kr

Malaysia

• ZyXEL Malaysia Sdn Bhd.

• http://www.zyxel.com.my

Pakistan

• ZyXEL Pakistan (Pvt.) Ltd.

• http://www.zyxel.com.pk

Philippines

• ZyXEL Philippines

• http://www.zyxel.com.ph

Appendix A Customer Support

Europe

Singapore

• ZyXEL Singapore Pte Ltd.

• http://www.zyxel.com.sg

Taiwa n

• ZyXEL Communications Corporation

• http://www.zyxel.com/tw/zh/

Thailand

• ZyXEL Thailand Co., Ltd

• http://www.zyxel.co.th

Vietnam

• ZyXEL Communications Corporation-Vietnam Office

• http://www.zyxel.com/vn/vi

Austria

• ZyXEL Deutschland GmbH

• http://www.zyxel.de

NBG6617 User’s Guide

157

Appendix A Customer Support

Belarus

• ZyXEL BY

• http://www.zyxel.by

Belgium

• ZyXEL Communications B.V.

• http://www.zyxel.com/be/nl/

• http://www.zyxel.com/be/fr/

Bulgaria

•ZyXEL 

• http://www.zyxel.com/bg/bg/

Czech Republic

• ZyXEL Communications Czech s.r.o

• http://www.zyxel.cz

Denmark

• ZyXEL Communications A/S

• http://www.zyxel.dk

Estonia

• ZyXEL Estonia

• http://www.zyxel.com/ee/et/

Finland

• ZyXEL Communications

• http://www.zyxel.fi

France

• ZyXEL France

• http://www.zyxel.fr

Germany

• ZyXEL Deutschland GmbH

• http://www.zyxel.de

Hungary

• ZyXEL Hungary & SEE

• http://www.zyxel.hu

NBG6617 User’s Guide

158

Appendix A Customer Support

Italy

• ZyXEL Communications Italy

• http://www.zyxel.it/

Latvia

• ZyXEL Latvia

• http://www.zyxel.com/lv/lv/homepage.shtml

Lithuania

• ZyXEL Lithuania

• http://www.zyxel.com/lt/lt/homepage.shtml

Netherlands

• ZyXEL Benelux

• http://www.zyxel.nl

Norway

• ZyXEL Communications

• http://www.zyxel.no

Poland

• ZyXEL Communications Poland

• http://www.zyxel.pl

Romania

• ZyXEL Romania

• http://www.zyxel.com/ro/ro

Russia

• ZyXEL Russia

• http://www.zyxel.ru

Slovakia

• ZyXEL Communications Czech s.r.o. organizacna zlozka

• http://www.zyxel.sk

Spain

• ZyXEL Communications ES Ltd

• http://www.zyxel.es

Sweden

• ZyXEL Communications

NBG6617 User’s Guide

159

Appendix A Customer Support

• http://www.zyxel.se

Switzerland

• Studerus AG

• http://www.zyxel.ch/

Turkey

•ZyXEL Turkey A.S.

• http://www.zyxel.com.tr

• ZyXEL Communications UK Ltd.

• http://www.zyxel.co.uk

Ukraine

• ZyXEL Ukraine

• http://www.ua.zyxel.com

Latin America

Argentina

• ZyXEL Communication Corporation

• http://www.zyxel.com/ec/es/

Brazil

• ZyXEL Communications Brasil Ltda.

• https://www.zyxel.com/br/pt/

Ecuador

• ZyXEL Communication Corporation

• http://www.zyxel.com/ec/es/

Middle East

Israel

• ZyXEL Communication Corporation

• http://il.zyxel.com/homepage.shtml

Middle East

• ZyXEL Communication Corporation

NBG6617 User’s Guide

160

• http://www.zyxel.com/me/en/

North America

USA

• ZyXEL Communications, Inc. - North America Headquarters

• http://www.zyxel.com/us/en/

Oceania

Australia

• ZyXEL Communications Corporation

• http://www.zyxel.com/au/en/

Africa

South Africa

• Nology (Pty) Ltd.

• http://www.zyxel.co.za

Appendix A Customer Support

NBG6617 User’s Guide

161

APPENDIX B

Setting Up Your Computer’s IP Address

Note: Your specific NBG6617 may not support all of the operating systems described in

this appendix. See the product specifications for more information about which operating systems are supported.

This appendix shows you how to configure the IP settings on your computer in order for it to be able to communicate with the other devices on your network. Windows Vista/XP/2000, Mac OS 9/ OS X, and all versions of UNIX/LINUX include the software components you need to use TCP/IP on your computer.

If you manually assign IP information instead of using a dynamic IP, make sure that your network’s computers have IP addresses that place them in the same subnet.

In this appendix, you can set up an IP address for:

• Windows XP/NT/2000 on page 162

• Windows Vista on page 165

• Windows 7 on page 168

• Mac OS X: 10.3 and 10.4 on page 172

• Mac OS X: 10.5 and 10.6 on page 175

• Linux: Ubuntu 8 (GNOME) on page 178

• Linux: openSUSE 10.3 (KDE) on page 182

Windows XP/NT/2000

The following example uses the default Windows XP display theme but can also apply to Windows 2000 and Windows NT.

1 Click Start > Control Panel.

NBG6617 User’s Guide

162

Appendix B Setting Up Your Computer’s IP Address

2 In the Control Panel, click the Network Connections icon.

3 Right-click Local Area Connection and then select Properties.

4 On the General tab, select Internet Protocol (TCP/IP) and then click Properties.

NBG6617 User’s Guide

163

Appendix B Setting Up Your Computer’s IP Address

5 The Internet Protocol TCP/IP Properties window opens.

NBG6617 User’s Guide

164

6 Select Obtain an IP address automatically if your network administrator or ISP assigns your IP

address dynamically. Select Use the following IP Address and fill in the IP address, Subnet mask, and Default

gateway fields if you have a static IP address that was assigned to you by your network administrator or ISP. You may also have to enter a Preferred DNS server and an Alternate DNS server, if that information was provided.

7 Click OK to close the Internet Protocol (TCP/IP) Properties window.

8 Click OK to close the Local Area Connection Properties window.

Verifying Settings

1 Click Start > All Programs > Accessories > Command Prompt.

2 In the Command Prompt window, type "ipconfig" and then press [ENTER].

You can also go to Start > Control Panel > Network Connections, right-click a network connection, click Status and then click the Support tab to view your IP address and connection information.

Appendix B Setting Up Your Computer’s IP Address

Windows Vista

This section shows screens from Windows Vista Professional.

1 Click Start > Control Panel.

2 In the Control Panel, click the Network and Internet icon.

NBG6617 User’s Guide

165

Appendix B Setting Up Your Computer’s IP Address

3 Click the Network and Sharing Center icon.

4 Click Manage network connections.

5 Right-click Local Area Connection and then select Properties.

Note: During this procedure, click Continue whenever Windows displays a screen saying

that it needs your permission to continue.

6 Select Internet Protocol Version 4 (TCP/IPv4) and then select Properties.

NBG6617 User’s Guide

166

Appendix B Setting Up Your Computer’s IP Address

7 The Internet Protocol Version 4 (TCP/IPv4) Properties window opens.

NBG6617 User’s Guide

167

8 Select Obtain an IP address automatically if your network administrator or ISP assigns your IP

address dynamically. Select Use the following IP Address and fill in the IP address, Subnet mask, and Default

9 Click OK to close the Internet Protocol (TCP/IP) Properties window.

10 Click OK to close the Local Area Connection Properties window.

Verifying Settings

1 Click Start > All Programs > Accessories > Command Prompt.

2 In the Command Prompt window, type "ipconfig" and then press [ENTER].

You can also go to Start > Control Panel > Network Connections, right-click a network connection, click Status and then click the Support tab to view your IP address and connection information.

Appendix B Setting Up Your Computer’s IP Address

Windows 7

This section shows screens from Windows 7 Enterprise.

1 Click Start > Control Panel.

2 In the Control Panel, click View network status and tasks under the Network and Internet

category.

NBG6617 User’s Guide

168

Appendix B Setting Up Your Computer’s IP Address

3 Click Change adapter settings.

4 Double click Local Area Connection and then select Properties.

NBG6617 User’s Guide

169

Appendix B Setting Up Your Computer’s IP Address

Note: During this procedure, click Continue whenever Windows displays a screen saying

that it needs your permission to continue.

5 Select Internet Protocol Version 4 (TCP/IPv4) and then select Properties.

6 The Internet Protocol Version 4 (TCP/IPv4) Properties window opens.

NBG6617 User’s Guide

170

Appendix B Setting Up Your Computer’s IP Address

7 Select Obtain an IP address automatically if your network administrator or ISP assigns your IP

address dynamically. Select Use the following IP Address and fill in the IP address, Subnet mask, and Default

8 Click OK to close the Internet Protocol (TCP/IP) Properties window.

9 Click OK to close the Local Area Connection Properties window.

Verifying Settings

1 Click Start > All Programs > Accessories > Command Prompt.

2 In the Command Prompt window, type "ipconfig" and then press [ENTER].

3 The IP settings are displayed as follows.

NBG6617 User’s Guide

171

Mac OS X: 10.3 and 10.4

The screens in this section are from Mac OS X 10.4 but can also apply to 10.3.

1 Click Apple > System Preferences.

Appendix B Setting Up Your Computer’s IP Address

2 In the System Preferences window, click the Network icon.

NBG6617 User’s Guide

172

Appendix B Setting Up Your Computer’s IP Address

3 When the Network preferences pane opens, select Built-in Ethernet from the network

connection type list, and then click Configure.

4 For dynamically assigned settings, select Using DHCP from the Configure IPv4 list in the TCP/IP

tab.

NBG6617 User’s Guide

173

Appendix B Setting Up Your Computer’s IP Address

5 For statically assigned settings, do the following:

• From the Configure IPv4 list, select Manually.

•In the IP Address field, type your IP address.

•In the Subnet Mask field, type your subnet mask.

•In the Router field, type the IP address of your device.

6 Click Apply Now and close the window.

Verifying Settings

Check your TCP/IP properties by clicking Applications > Utilities > Network Utilities, and then selecting the appropriate Network Interface from the Info tab.

NBG6617 User’s Guide

174

Figure 101 Mac OS X 10.4: Network Utility

Mac OS X: 10.5 and 10.6

The screens in this section are from Mac OS X 10.5 but can also apply to 10.6.

Appendix B Setting Up Your Computer’s IP Address

1 Click Apple > System Preferences.

2 In System Preferences, click the Network icon.

NBG6617 User’s Guide

175

Appendix B Setting Up Your Computer’s IP Address

3 When the Network preferences pane opens, select Ethernet from the list of available connection

types.

4 From the Configure list, select Using DHCP for dynamically assigned settings.

NBG6617 User’s Guide

176

Appendix B Setting Up Your Computer’s IP Address

5 For statically assigned settings, do the following:

• From the Configure list, select Manually.

•In the IP Address field, enter your IP address.

•In the Subnet Mask field, enter your subnet mask.

•In the Router field, enter the IP address of your NBG6617.

6 Click Apply and close the window.

Verifying Settings

Check your TCP/IP properties by clicking Applications > Utilities > Network Utilities, and then selecting the appropriate Network interface from the Info tab.

NBG6617 User’s Guide

177

Appendix B Setting Up Your Computer’s IP Address

Figure 102 Mac OS X 10.5: Network Utility

Linux: Ubuntu 8 (GNOME)

This section shows you how to configure your computer’s TCP/IP settings in the GNU Object Model Environment (GNOME) using the Ubuntu 8 Linux distribution. The procedure, screens and file locations may vary depending on your specific distribution, release version, and individual configuration. The following screens use the default Ubuntu 8 installation.

Note: Make sure you are logged in as the root administrator.

Follow the steps below to configure your computer IP address in GNOME:

1 Click System > Administration > Network.

2 When the Network Settings window opens, click Unlock to open the Authenticate window. (By

default, the Unlock button is greyed out until clicked.) You cannot make changes to your configuration unless you first enter your admin password.

NBG6617 User’s Guide

178

Appendix B Setting Up Your Computer’s IP Address

3 In the Authenticate window, enter your admin account name and password then click the

Authenticate button.

4 In the Network Settings window, select the connection that you want to configure, then click

Properties.

NBG6617 User’s Guide

179

Appendix B Setting Up Your Computer’s IP Address

5 The Properties dialog box opens.

•In the Configuration list, select Automatic Configuration (DHCP) if you have a dynamic IP address.

•In the Configuration list, select Static IP address if you have a static IP address. Fill in the IP address, Subnet mask, and Gateway address fields.

6 Click OK to save the changes and close the Properties dialog box and return to the Network

Settings screen.

7 If you know your DNS server IP address(es), click the DNS tab in the Network Settings window

and then enter the DNS server information in the fields provided.

NBG6617 User’s Guide

180

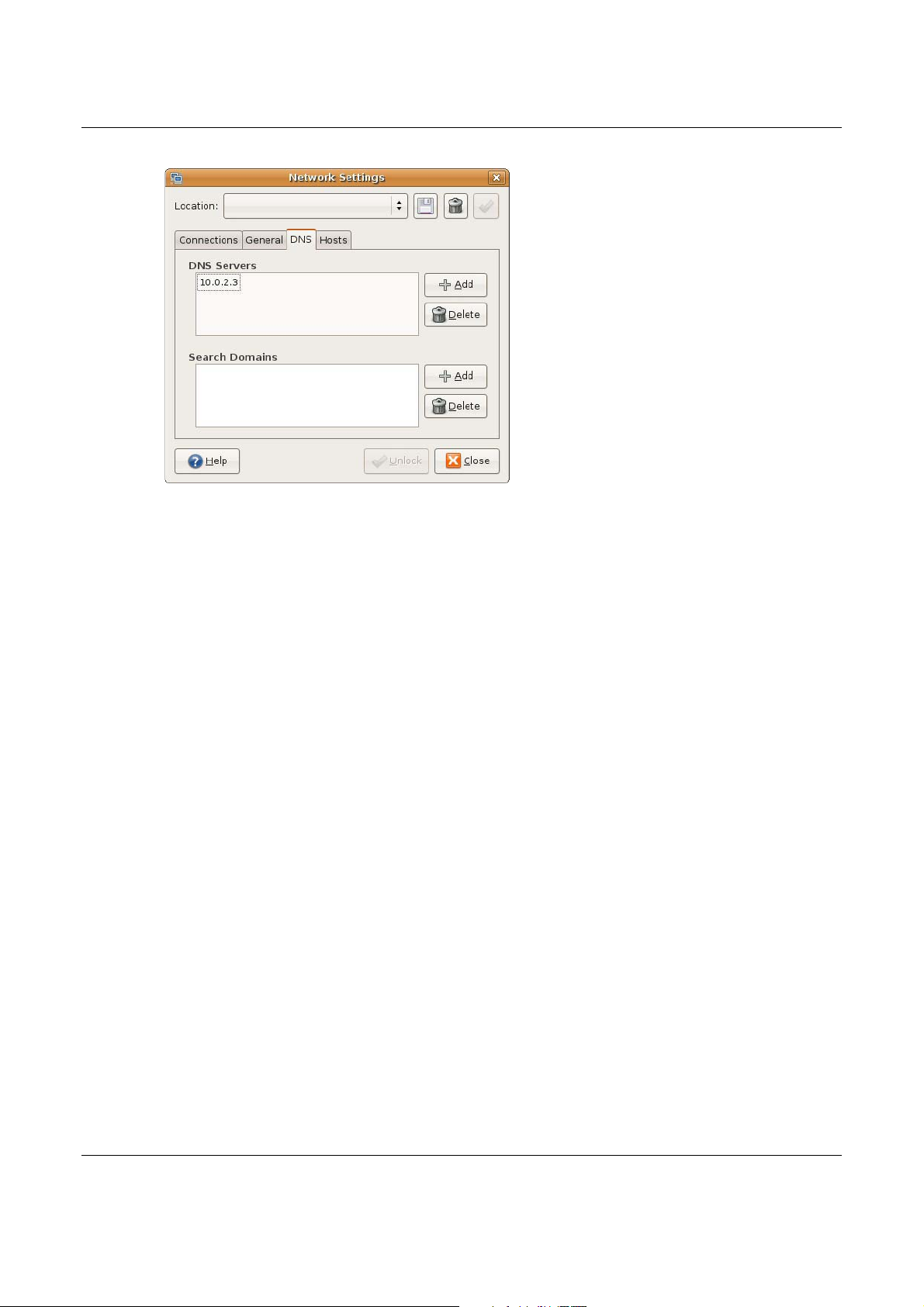

8 Click the Close button to apply the changes.

Verifying Settings

Appendix B Setting Up Your Computer’s IP Address

Check your TCP/IP properties by clicking System > Administration > Network Tools, and then selecting the appropriate Network device from the Devices tab. The Interface Statistics column shows data if your connection is working properly.

NBG6617 User’s Guide

181

Appendix B Setting Up Your Computer’s IP Address

Figure 103 Ubuntu 8: Network Tools

Linux: openSUSE 10.3 (KDE)

This section shows you how to configure your computer’s TCP/IP settings in the K Desktop Environment (KDE) using the openSUSE 10.3 Linux distribution. The procedure, screens and file locations may vary depending on your specific distribution, release version, and individual configuration. The following screens use the default openSUSE 10.3 installation.

Note: Make sure you are logged in as the root administrator.

Follow the steps below to configure your computer IP address in the KDE:

1 Click K Menu > Computer > Administrator Settings (YaST).

NBG6617 User’s Guide

182

Appendix B Setting Up Your Computer’s IP Address

2 When the Run as Root - KDE su dialog opens, enter the admin password and click OK.

3 When the YaST Control Center window opens, select Network Devices and then click the

Network Card icon.

NBG6617 User’s Guide

183

Appendix B Setting Up Your Computer’s IP Address

4 When the Network Settings window opens, click the Overview tab, select the appropriate

connection Name from the list, and then click the Configure button.

5 When the Network Card Setup window opens, click the Address tab

NBG6617 User’s Guide

184

Appendix B Setting Up Your Computer’s IP Address

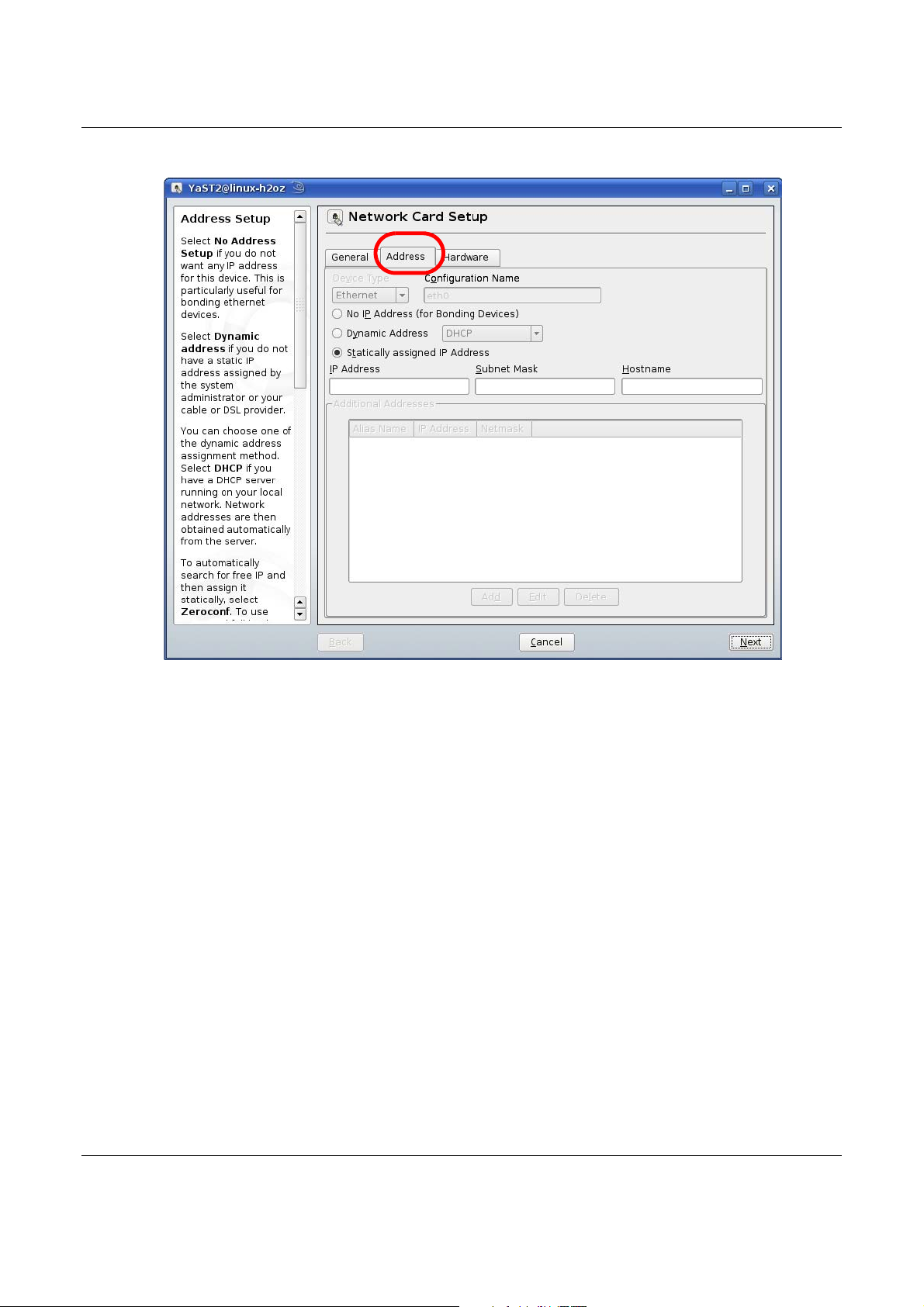

Figure 104 openSUSE 10.3: Network Card Setup

6 Select Dynamic Address (DHCP) if you have a dynamic IP address.

Select Statically assigned IP Address if you have a static IP address. Fill in the IP address, Subnet mask, and Hostname fields.

7 Click Next to save the changes and close the Network Card Setup window.

8 If you know your DNS server IP address(es), click the Hostname/DNS tab in Network Settings

and then enter the DNS server information in the fields provided.

NBG6617 User’s Guide

185

Appendix B Setting Up Your Computer’s IP Address

9 Click Finish to save your settings and close the window.

Verifying Settings

Click the KNetwork Manager icon on the Task bar to check your TCP/IP properties. From the Options sub-menu, select Show Connection Information.

Figure 105 openSUSE 10.3: KNetwork Manager

When the Connection Status - KNetwork Manager window opens, click the Statistics tab to see if your connection is working properly.

NBG6617 User’s Guide

186

Appendix B Setting Up Your Computer’s IP Address

Figure 106 openSUSE: Connection Status - KNetwork Manager

NBG6617 User’s Guide

187

APPENDIX C

Common Services

The following table lists some commonly-used services and their associated protocols and port numbers. For a comprehensive list of port numbers, ICMP type/code numbers and services, visit the IANA (Internet Assigned Number Authority) web site.

• Name: This is a short, descriptive name for the service. You can use this one or create a different one, if you like.

• Protocol: This is the type of IP protocol used by the service. If this is TCP/UDP, then the service uses the same port number with TCP and UDP. If this is USER-DEFINED, the Port(s) is the IP protocol number, not the port number.

• Port(s): This value depends on the Protocol. Please refer to RFC 1700 for further information about port numbers.

•If the Protocol is TCP, UDP, or TCP/UDP, this is the IP port number.

•If the Protocol is USER, this is the IP protocol number.

• Description: This is a brief explanation of the applications that use this service or the situations in which this service is used.

Table 64 Commonly Used Services

NAME PROTOCOL PORT(S) DESCRIPTION

AH (IPSEC_TUNNEL)

AIM/New-ICQ TCP 5190 AOL’s Internet Messenger service. It is also used as

AUTH TCP 113 Authentication protocol used by some servers. BGP TCP 179 Border Gateway Protocol. BOOTP_CLIENT UDP 68 DHCP Client. BOOTP_SERVER UDP 67 DHCP Server. CU-SEEME TCP

DNS TCP/UDP 53 Domain Name Server, a service that matches web

ESP (IPSEC_TUNNEL)

FINGER TCP 79 Finger is a UNIX or Internet related command that

FTP TCP

H.323 TCP 1720 NetMeeting uses this protocol. HTTP TCP 80 Hyper Text Transfer Protocol - a client/server

User-Defined 51 The IPSEC AH (Authentication Header) tunneling

7648

UDP

User-Defined 50 The IPSEC ESP (Encapsulation Security Protocol)

TCP

24032

protocol uses this service.

a listening port by ICQ.

A popular videoconferencing solution from White Pines Software.

names (for example www.zyxel.com numbers.

tunneling protocol uses this service.

can be used to find out if a user is logged on. File Transfer Program, a program to enable fast

transfer of files, including large files that may not be possible by e-mail.

protocol for the world wide web.

) to IP

NBG6617 User’s Guide

188

Appendix C Common Services

Table 64 Commonly Used Services (continued)

NAME PROTOCOL PORT(S) DESCRIPTION

HTTPS TCP 443 HTTPS is a secured http session often used in e-

ICMP User-Defined 1 Internet Control Message Protocol is often used for

ICQ UDP 4000 This is a popular Internet chat program. IGMP (MULTICAST) User-Defined 2 Internet Group Management Protocol is used when

IKE UDP 500 The Internet Key Exchange algorithm is used for

IRC TCP/UDP 6667 This is another popular Internet chat program. MSN Messenger TCP 1863 Microsoft Networks’ messenger service uses this

NEW-ICQ TCP 5190 An Internet chat program. NEWS TCP 144 A protocol for news groups. NFS UDP 2049 Network File System - NFS is a client/server

NNTP TCP 119 Network News Transport Protocol is the delivery

PING User-Defined 1 Packet INternet Groper is a protocol that sends out

POP3 TCP 110 Post Office Protocol version 3 lets a client computer

PPTP TCP 1723 Point-to-Point Tunneling Protocol enables secure

PPTP_TUNNEL (GRE)

RCMD TCP 512 Remote Command Service. REAL_AUDIO TCP 7070 A streaming audio service that enables real time

REXEC TCP 514 Remote Execution Daemon. RLOGIN TCP 513 Remote Login. RTELNET TCP 107 Remote Telnet. RTSP TCP/UDP 554 The Real Time Streaming (media control) Protocol

SFTP TCP 115 Simple File Transfer Protocol. SMTP TCP 25 Simple Mail Transfer Protocol is the message-

SNMP TCP/UDP 161 Simple Network Management Program. SNMP-TRAPS TCP/UDP 162 Traps for use with the SNMP (RFC:1215).

User-Defined 47 PPTP (Point-to-Point Tunneling Protocol) enables

commerce.

diagnostic or routing purposes.

sending packets to a specific group of hosts.

key distribution and management.

protocol.

distributed file service that provides transparent file sharing for network environments.

mechanism for the USENET newsgroup service.

ICMP echo requests to test whether or not a remote host is reachable.

get e-mail from a POP3 server through a temporary connection (TCP/IP or other).

transfer of data over public networks. This is the control channel.

secure transfer of data over public networks. This is the data channel.

sound over the web.

(RTSP) is a remote control for multimedia on the Internet.

exchange standard for the Internet. SMTP enables you to move messages from one e-mail server to another.

NBG6617 User’s Guide

189

Appendix C Common Services

Table 64 Commonly Used Services (continued)

NAME PROTOCOL PORT(S) DESCRIPTION

SQL-NET TCP 1521 Structured Query Language is an interface to

SSH TCP/UDP 22 Secure Shell Remote Login Program. STRM WORKS UDP 1558 Stream Works Protocol. SYSLOG UDP 514 Syslog allows you to send system logs to a UNIX

TACACS UDP 49 Login Host Protocol used for (Terminal Access

TELNET TCP 23 Telnet is the login and terminal emulation protocol

TFTP UDP 69 Trivial File Transfer Protocol is an Internet file

VDOLIVE TCP 7000 Another videoconferencing solution.

access data on many different types of database systems, including mainframes, midrange systems, UNIX systems and network servers.

server.

Controller Access Control System).

common on the Internet and in UNIX environments. It operates over TCP/IP networks. Its primary function is to allow users to log into remote host systems.

transfer protocol similar to FTP, but uses the UDP (User Datagram Protocol) rather than TCP (Transmission Control Protocol).

NBG6617 User’s Guide

190

any language, or transmitted in any form or by any means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without the prior written permission of ZyXEL Communications Corporation.

Disclaimer

ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it convey any license under its patent rights nor the patent rights of others. ZyXEL further reserves the right to make changes in any products described herein without notice. This publication is subject to change without notice.

Regulatory Notice and Statement

UNITED STATES of AMERICA

APPENDIX D

Legal Information

The following information applies if you use the product within USA area.

FCC EMC Statement

• The device complies with Part 15 of FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

• Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the device.

• This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

• If this device does cause harmful interference to radio or television reception, which is found by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna

•Increase the separation between the devices

•Connect the equipment to an outlet other than the receiver’s

•Consult a dealer or an experienced radio/TV technician for assistance

FCC Radiation Exposure Statement

• This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.

This transmitter must be at least 20 cm from the user and must not be co-located or operating in conjunction with any other antenna or

For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor environment.

transmitter.

CANADA

The following information applies if you use the product within Canada area

Industry Canada ICES statement

CAN ICES-3 (B)/NMB-3(B)

NBG6617 User’s Guide

191

Appendix D Legal Information

Industry Canada RSS-GEN & RSS-247 statement

• This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

• This radio transmitter (2468C-NBG6617) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

Antenna Information (For External Antenna)

TYPE MANUFACTURER GAIN CONNECTOR

Dipole 1 Aristotle 1.44dBi

(2400-2500MHz)

0.37dBi (5260-5320MHz)

Dipole 2 Aristotle 1.78dBi

(2400-2500MHz)

3.23dBi (5745-5825MHz)

If the product with 5G wireless function operating in 5150-5250 MHz and 5725-5850 MHz , the following attention must be paid,

• The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to cochannel mobile satellite systems.

• For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits specified for point-to-point and non-point-to-point operation as appropriate; and

• The worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask requirement set forth in Section 6.2.2(3) of RSS 247 shall be clearly indicated.

If the product with 5G wireless function operating in 5250-5350 MHz and 5470-5725 MHz , the following attention must be paid.

• For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 54705725 MHz shall be such that the equipment still complies with the e.i.r.p. limit

• Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

• Le présent émetteur radio (2468C-NBG6617) de modèle s'il fait partie du matériel de catégorieI) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.

UFL

Informations Antenne (For External Antenna)

TYPE FABRICANT GAIN CONNECTEUR

Dipole 1 Aristotle 1.44dBi

(2400-2500MHz)

0.37dBi (5260-5320MHz)

Dipole 2 Aristotle 1.78dBi

(2400-2500MHz)

3.23dBi (5745-5825MHz)

Lorsque la fonction sans fil 5G fonctionnant en5150-5250 MHz and 5725-5850 MHz est activée pour ce produit , il est nécessaire de porter une attention particulière aux choses suivantes

• Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;

• Pour les dispositifs munis d’antennes amovibles, le gain maximal d'antenne permis (pour les dispositifs utilisant la bande de 5 725 à 5 850 MHz) doit être conforme à la limite de la p.i.r.e. spécifiée pour l'exploitation point à point et l’exploitation non point à point, selon le cas;

• Les pires angles d’inclinaison nécessaires pour rester conforme à l’exigence de la p.i.r.e. applicable au masque d’élévation, et énoncée à la section 6.2.2 3) du CNR-247, doivent être clairement indiqués.

Lorsque la fonction sans fil 5G fonctionnant en 5250-5350 MHz et 5470-5725 MHz est activée pour ce produit , il est nécessaire de porter une attention particulière aux choses suivantes

• Pour les dispositifs munis d’antennes amovibles, le gain maximal d'antenne permis pour les dispositifs utilisant les bandes de 5 250 à 5 350 MHz et de 5 470 à 5 725 MHz doit être conforme à la limite de la p.i.r.e.

UFL

NBG6617 User’s Guide

192

Industry Canada radiation exposure statement

This device complies with IC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with a minimum distance of 20 cm between the radiator and your body.

Déclaration d’exposition aux radiations:

Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.

EUROPEAN UNION

The following information applies if you use the product within the European Union.

Declaration of Conformity with Regard to EU Directive 1999/5/EC (R&TTE Directive)

Compliance information for 2.4GHz and/or 5GHz wireless products relevant to the EU and other Countries following the EU Directive 1999/ 5/EC (R&TTE)

Appendix D Legal Information

 (Bulgarian)

Español (Spanish)

eština (Czech)

Dansk (Danish) Undertegnede ZyXEL erklærer herved, at følgende udstyr udstyr overholder de væsentlige krav og øvrige relevante

Deutsch (German)

Eesti keel (Estonian)

 (Greek)

English Hereby, ZyXEL declares that this device is in compliance with the essential requirements and other relevant provisions

Français (French)

Hrvatski (Croatian)

Íslenska (Icelandic)

Italiano (Italian)

Latviešu valoda (Latvian)

Lietuvi kalba (Lithuanian)

Magyar (Hungarian)

Malti (Maltese) Hawnhekk, ZyXEL, jiddikjara li dan tagmir jikkonforma mal-tiijiet essenzjali u ma provvedimenti orajn relevanti li

Nederlands (Dutch)

Polski (Polish) Niniejszym ZyXEL owiadcza, e sprzt jest zgodny z zasadniczymi wymogami oraz pozostaymi stosownymi

Português (Portuguese)

Român (Romanian)

  ZyXEL ,                1999/5/C.

Por medio de la presente ZyXEL declara que el equipo cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.

ZyXEL tímto prohlašuje, že tento zaízení je ve shod se základními požadavky a dalšími píslušnými ustanoveními smrnice 1999/5/EC.

krav i direktiv 1999/5/EF.

Hiermit erklärt ZyXEL, dass sich das Gerät Ausstattung in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EU befindet.

Käesolevaga kinnitab ZyXEL seadme seadmed vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.

   ZyXEL                1999/5/C.

of Directive 1999/5/EC.

Par la présente ZyXEL déclare que l'appareil équipements est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/EC.

ZyXEL ovime izjavljuje da je radijska oprema tipa u skladu s Direktivom 1999/5/EC.

Hér með lýsir, ZyXEL því yfir að þessi búnaður er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipunar 1999/5/EC.

Con la presente ZyXEL dichiara che questo attrezzatura è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.

Ar šo ZyXEL deklar, ka iekrtas atbilst Direktvas 1999/5/EK btiskajm prasbm un citiem ar to saisttajiem noteikumiem.

Šiuo ZyXEL deklaruoja, kad šis ranga atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.

Alulírott, ZyXEL nyilatkozom, hogy a berendezés megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EK irányelv egyéb elõírásainak.

hemm fid-Dirrettiva 1999/5/EC.

Hierbij verklaart ZyXEL dat het toestel uitrusting in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EC.

postanowieniami Dyrektywy 1999/5/EC.

ZyXEL declara que este equipamento está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/EC.

Prin prezenta, ZyXEL declar c acest echipament este în conformitate cu cerinele esen relevante ale Directivei 1999/5/EC.

iale i alte prevederi

NBG6617 User’s Guide

193

Appendix D Legal Information

Slovenina (Slovak)

Slovenšina (Slovene)

Suomi (Finnish)

Svenska (Swedish)

Norsk (Norwegian)

This device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range.

ZyXEL týmto vyhlasuje, že zariadenia spa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/EC.

ZyXEL izjavlja, da je ta oprema v skladu z bistvenimi zahtevami in ostalimi relevantnimi doloili direktive 1999/5/EC.

ZyXEL vakuuttaa täten että laitteet tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.

Härmed intygar ZyXEL att denna utrustning står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EC.

Erklærer herved ZyXEL at dette utstyret er I samsvar med de grunnleggende kravene og andre relevante bestemmelser I direktiv 1999/5/EF.

National Restrictions

This product may be used in all EU countries (and other countries following the EU Directive 1999/5/EC) without any limitation except for the countries mentioned below: Ce produit peut être utilisé dans tous les pays de l’UE (et dans tous les pays ayant transposés la directive 1999/5/CE) sans aucune

limitation, excepté pour les pays mentionnés ci-dessous: Questo prodotto è utilizzabile in tutte i paesi EU (ed in tutti gli altri paesi che seguono le direttiva 1999/5/EC) senza nessuna limitazione,

eccetto per i paesii menzionati di seguito: Das Produkt kann in allen EU Staaten ohne Einschränkungen eingesetzt werden (sowie in anderen Staaten die der Richtlinie 1999/5/CE

folgen) mit Außnahme der folgenden aufgeführten Staaten: In the majority of the EU and other European countries, the 2.4GHz and 5GHz bands have been made available for the use of wireless

local area networks (LANs). Later in this document you will find an overview of countries in which additional restrictions or requirements or both are applicable.

The requirements for any country may evolve. ZyXEL recommends that you check with the local authorities for the latest status of their national regulations for both the 2.4GHz and 5GHz wireless LANs.

The following countries have restrictions and/or requirements in addition to those given in the table labeled “Overview of Regulatory Requirements for Wireless LANs”:.

Belgium The Belgian Institute for Postal Services and Telecommunications (BIPT) must be notified of any outdoor wireless link having a range

exceeding 300 meters. Please check http://www.bipt.be for more details. Draadloze verbindingen voor buitengebruik en met een reikwijdte van meer dan 300 meter dienen aangemeld te worden bij het Belgisch

Instituut voor postdiensten en telecommunicatie (BIPT). Zie http://www.bipt.be voor meer gegevens. Les liaisons sans fil pour une utilisation en extérieur d’une distance supérieure à 300 mètres doivent être notifiées à l’Institut Belge des

services Postaux et des Télécommunications (IBPT). Visitez http://www.ibpt.be pour de plus amples détails. Denmark In Denmark, the band 5150 - 5350 MHz is also allowed for outdoor usage. I Danmark må frekvensbåndet 5150 - 5350 også anvendes udendørs. Italy This product meets the National Radio Interface and the requirements specified in the National Frequency Allocation Table for Italy. Unless

this wireless LAN product is operating within the boundaries of the owner's property, its use requires a “general authorization.” P l e a s e check http://www.sviluppoeconomico.gov.it/ for more details.

Questo prodotto è conforme alla specifiche di Interfaccia Radio Nazionali e rispetta il Piano Nazionale di ripartizione delle frequenze in Italia. Se non viene installato all 'interno del proprio fondo, l'utilizzo di prodotti Wireless LAN richiede una “Autorizzazione Generale”. Consultare http://www.sviluppoeconomico.gov.it/ per maggiori dettagli.

Latvia The outdoor usage of the 2.4 GHz band requires an authorization from the Electronic Communications Office. Please check http://

www.esd.lv for more details.

2.4 GHz frekvenèu joslas izmantoðanai ârpus telpâm nepiecieðama atïauja no Elektronisko sakaru direkcijas. Vairâk informâcijas: http://

www.esd.lv. Notes:

1. Although Norway, Switzerland and Liechtenstein are not EU member states, the EU Directive 1999/5/EC has also been implemented in

those countries.

2. The regulatory limits for maximum output power are specified in EIRP. The EIRP level (in dBm) of a device can be calculated by adding

the gain of the antenna used(specified in dBi) to the output power available at the connector (specified in dBm).

NBG6617 User’s Guide

194

Appendix D Legal Information

List of national codes

COUNTRY ISO 3166 2 LETTER CODE COUNTRY ISO 3166 2 LETTER CODE

Austria AT Liechtenstein LI

Belgium BE Lithuania LT

Bulgaria BG Luxembourg LU

Croatia HR Malta MT

Cyprus CY Netherlands NL

Czech Republic CZ Norway NO

Denmark DK Poland PL

Estonia EE Portugal PT

Finland FI Romania RO

France FR Serbia RS

Germany DE Slovakia SK

Greece GR Slovenia SI

Hungary HU Spain ES

Iceland IS Switzerland CH

Ireland IE Sweden SE

Italy IT Turkey TR

Latvia LV United Kingdom GB

Safety Warnings

• Do not use this product near water, for example, in a wet basement or near a swimming pool.

• Do not expose your device to dampness, dust or corrosive liquids.

• Do not store things on the device.

• Do not obstruct the device ventillation slots as insufficient airflow may harm your device. For example, do not place the device in an enclosed space such as a box or on a very soft surface such as a bed or sofa.

• Do not install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from lightning.

• Connect ONLY suitable accessories to the device.

• Do not open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY qualified service personnel should service or disassemble this device. Please contact your vendor for further information.

• Make sure to connect the cables to the correct ports.

• Place connecting cables carefully so that no one will step on them or stumble over them.

• Always disconnect all cables from this device before servicing or disassembling.

• Do not remove the plug and connect it to a power outlet by itself; always attach the plug to the power adaptor first before connecting it to a power outlet.

• Do not allow anything to rest on the power adaptor or cord and do NOT place the product where anyone can walk on the power adaptor or cord.

• Please use the provided or designated connection cables/power cables/ adaptors. Connect it to the right supply voltage (for example, 110V AC in North America or 230V AC in Europe). If the power adaptor or cord is damaged, it might cause electrocution. Remove it from the device and the power source, repairing the power adapter or cord is prohibited. Contact your local vendor to order a new one.

• Do not use the device outside, and make sure all the connections are indoors. There is a remote risk of electric shock from lightning.

• CAUTION: Risk of explosion if battery is replaced by an incorrect type, dispose of used batteries according to the instruction. Dispose them at the applicable collection point for the recycling of electrical and electronic devices. For detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the store where you purchased the product.

• If you wall mount your device, make sure that no electrical lines, gas or water pipes will be damaged.

The following warning statements apply, where the disconnect device is not incorporated in the device or where the plug on the power supply cord is intended to serve as the disconnect device,

• For permanently connected devices, a readily accessible disconnect device shall be incorporated external to the device;

• For pluggable devices, the socket-outlet shall be installed near the device and shall be easily accessible.

Environment Statement

ErP (Energy-related Products)

ZyXEL products put on the EU market in compliance with the requirement of the European Parliament and the Council published Directive 2009/125/EC establishing a framework for the setting of ecodesign requirements for energy-related products (recast), so called

as "ErP Directive (Energy-related Products directive) as well as ecodesign requirement laid down in applicable implementing measures, power consumption has satisfied regulation requirements which are:

Network standby power consumption < 12W, and/or Off mode power consumption < 0.5W, and/or Standby mode power consumption < 0.5W. Wireless setting, please refer to "Wireless" chapter for more detail.

NBG6617 User’s Guide

195

Appendix D Legal Information

European Union - Disposal and Recycling Information

The symbol below means that according to local regulations your product and/or its battery shall be disposed of separately from domestic waste. If this product is end of life, take it to a recycling station designated by local authorities. At the time of disposal, the separate collection of your product and/or its battery will help save natural resources and ensure that the environment is sustainable development.

Die folgende Symbol bedeutet, dass Ihr Produkt und/oder seine Batterie gemäß den örtlichen Bestimmungen getrennt vom Hausmüll entsorgt werden muss. Wenden Sie sich an eine Recyclingstation, wenn dieses Produkt das Ende seiner Lebensdauer erreicht hat. Zum Zeitpunkt der Entsorgung wird die getrennte Sammlung von Produkt und/oder seiner Batterie dazu beitragen, natürliche Ressourcen zu sparen und die Umwelt und die menschliche Gesundheit zu schützen.

El símbolo de abajo indica que según las regulaciones locales, su producto y/o su batería deberán depositarse como basura separada de la doméstica. Cuando este producto alcance el final de su vida útil, llévelo a un punto limpio. Cuando llegue el momento de desechar el producto, la recogida por separado éste y/o su batería ayudará a salvar los recursos naturales y a proteger la salud humana y medioambiental.

Le symbole ci-dessous signifie que selon les réglementations locales votre produit et/ou sa batterie doivent être éliminés séparément des ordures ménagères. Lorsque ce produit atteint sa fin de vie, amenez-le à un centre de recyclage. Au moment de la mise au rebut, la collecte séparée de votre produit et/ou de sa batterie aidera à économiser les ressources naturelles et protéger l'environnement et la santé humaine.

Il simbolo sotto significa che secondo i regolamenti locali il vostro prodotto e/o batteria deve essere smaltito separatamente dai rifiuti domestici. Quando questo prodotto raggiunge la fine della vita di servizio portarlo a una stazione di riciclaggio. Al momento dello smaltimento, la raccolta separata del vostro prodotto e/o della sua batteria aiuta a risparmiare risorse naturali e a proteggere l'ambiente e la salute umana.

Symbolen innebär att enligt lokal lagstiftning ska produkten och/eller dess batteri kastas separat från hushållsavfallet. När den här produkten når slutet av sin livslängd ska du ta den till en återvinningsstation. Vid tiden för kasseringen bidrar du till en bättre miljö och mänsklig hälsa genom att göra dig av med den på ett återvinningsställe.

NBG6617 User’s Guide

196

Appendix D Legal Information

Environmental Product Declaration

NBG6617 User’s Guide

197

Appendix D Legal Information

⎘䀋

ẍᶳ妲〗⁭怑䓐㕤䓊⑩℟㚱䃉䶂≇傥ᶼ扟ⓖ军⎘䀋⛘⋨ 䫔⋩Ḵ㡅䴻✳⺷娵嫱⎰㟤󰶔Ỷ≇䌯⮬柣暣㨇炻朆䴻姙⎗炻℔⎠炻⓮嘇ㆾἧ䓐侭⛯ᶵ⼿㑭冒嬲㚜柣䌯ˣ≈⣏≇䌯ㆾ嬲㚜⍇姕妰󰶔䈡⿏⍲≇傥ˤ 䫔⋩⚃㡅 Ỷ≇澯⮬柣暣㨇󰶔ἧ䓐澵⼿⼙枧梃凒⬱ℐ⍲⸚㒦⎰㱽忂ᾉ烊䴻䘤䎦㚱⸚㒦䎦尉㗪炻ㅱ灅⌛ 䓐炻󰵯㓡┬军䃉⸚㒦㗪㕡⼿两临ἧ䓐ˤ

⇵枭⎰㱽忂ᾉ炻㊯ὅ暣ᾉ㱽夷⭂ἄ㤕󰶔䃉䶂暣忂ᾉˤ!Ỷ≇澯⮬柣暣㨇枰⽵⍿⎰㱽忂ᾉㆾⶍ㤕ˣ䥹⬠⍲慓瀏䓐暣㲊灕⮬⿏暣㨇姕⁁󰶔⸚㒦ˤ

暣䡩㲊㚅曚慷 NQF 㧁㸾ῤ 2!nX0dn

Ȩႝᅶݢᚼ៛ໆMPE኱ྗ1mW/cm2Ǵଌෳౢࠔჴෳࣁ 0.57110mW/cm2ȩ!

䃉䶂屯妲⁛廠姕⁁⽵⍿⎰㱽忂ᾉ󰶔⸚㒦ᶼ澵⼿⸚㒦⎰㱽忂ᾉ烊⤪忈ㆸ⸚㒦炻ㅱ灅⌛ 䓐炻!ᾇ䃉⸚㒦󰶔嘆炻⥳⼿两临ἧ䓐ˤ

䃉䶂屯妲⁛姕⁁䘬墥忈⺈⓮ㅱ䡢ᾅ柣澯䨑⭂⿏炻⤪ὅ墥忈⺈⓮ἧ䓐ㇳℲᶲ㇨徘㬋ⷠ㑵ἄ炻!䘤⮬䘬ᾉ嘇ㅱ䵕㊩㕤㑵ἄ柣ⷞ󰵶

ẍᶳ妲〗⁭怑䓐㕤䓊⑩㑵ἄ㕤 6/36.6/46!䦕崓柣ⷞℏ󰵯扟ⓖ军⎘䀋⛘⋨ ɀ ⛐ 6/36.6/46!䦕崓柣ⷞℏ㑵ἄ󰶔䃉䶂屯妲⁛廠姕⁁炻旸㕤⭌ℏἧ䓐ˤ

⬱ℐ嬎⏲

䁢Ḯぐ䘬⬱ℐ炻婳󱂑教嬨ẍᶳ嬎⏲⍲㊯䣢 ; ɀ 婳⊧⮯㬌䓊⑩㍍役㯜ˣ䀓䃘ㆾ㓦伖⛐檀㹓䘬䑘⠫ˤ

ɀ 性󱂖姕⁁㍍妠ảỽ㵚橼!.!↯⊧嬻姕⁁㍍妠㯜ˣ暐㯜ˣ檀㽽⹎ˣ㰉㯜僸国⿏䘬㵚橼ㆾ℞Ṿ㯜ấˤ ɀ 䀘⠝⍲㰉䈑!.!↯⊧㍍妠䀘⠝ˣ㰉䈑ˣ㱁⛇ˣ梇䈑ㆾ℞Ṿᶵ⎰怑䘬㛸㕁ˤ ɀ 暟暐⣑㯋㗪炻ᶵ天⬱墅炻ἧ䓐ㆾ䵕ᾖ㬌姕⁁ˤ㚱怕⍿暣㑲䘬桐晒ˤ ɀ ↯⊧慵㏼ㆾ㑆㑲姕⁁炻󰵯⊧ἧ䓐ᶵ㬋䡢䘬暣㸸嬲⡻☐ˤ ɀ 劍㍍ᶲᶵ㬋䡢䘬暣㸸嬲⡻☐㚫㚱䆮䁠䘬桐晒ˤ ɀ 婳⊧晐シ㚜㎃䓊⑩ℏ䘬暣㰈ˤ ɀ ⤪㝄㚜㎃ᶵ㬋䡢󰶔暣㰈✳⺷炻㚫㚱䆮䁠䘬桐晒炻婳ὅ墥忈⓮婒㖶㚠嗽䎮ἧ䓐忶󰶔暣㰈ˤ ɀ 婳⮯⺊暣㰈󰵨㡬⛐怑䔞䘬暣☐ㆾ暣⫸姕⁁⚆㓞嗽ˤ ɀ 婳⊧⮯姕⁁妋橼ˤ ɀ 婳⊧旣䣁姕⁁䘬㔋䅙⫼炻䨢㯋⮵㳩ᶵ嵛⮯㚫忈ㆸ姕⁁㎵⭛ˤ ɀ 婳㍺⛐㬋䡢䘬暣⡻ὃ䴎㍺⹏ ) ⤪ ; ⊿伶 0 ⎘䀋暣⡻ 221W!BD炻㫸㳚㗗 341W!BD*ˤ ɀ `劍暣㸸嬲⡻☐ㆾ暣㸸嬲⡻☐䘬乄䶂㎵⢆炻婳⽆㍺⹏㉼昌炻劍ぐ怬两临㍺暣ἧ䓐炻㚫㚱妠暣㬣ṉ䘬桐晒ˤ ɀ 婳⊧娎⚾ᾖ䎮暣㸸嬲⡻☐ㆾ暣㸸嬲⡻☐䘬乄䶂炻劍㚱㭨㎵炻婳䚜㍍倗䴉ぐ岤屟䘬⸿⭞炻岤屟ᶨᾳ㕘䘬暣㸸嬲⡻☐ˤ ɀ 婳⊧⮯㬌姕⁁⬱墅㕤⭌⢾炻㬌姕⁁⁭怑⎰㓦伖㕤⭌ℏˤ ɀ 婳⊧晐ᶨ凔✫⛦󰵨㡬ˤ ɀ 婳⍫教䓊⑩側層ᶲ䘬姕⁁柵⭂≇䌯ˤ ɀ 婳⍫侫䓊⑩✳抬ㆾ㗗⼑䙺ᶲ䘬ἄ㤕㹓⹎ˤ ɀ 䓊⑩㰺㚱㕟暣墅伖ㆾ侭㍉䓐暣㸸䶂䘬㍺柕夾䁢㕟暣墅伖䘬ᶨ悐↮炻ẍᶳ嬎婆⮯怑䓐 ;

炼!⮵㯠󰶎忋㍍󰶔姕⁁炻!⛐姕⁁⢾悐枰⬱墅⎗妠⍲󰶔㕟暣墅伖烊

!!!炼!⮵㍺㍍⺷󰶔姕⁁炻!㍺⹏⽭枰㍍役⬱墅󰶔⛘溆侴ᶼ㗗㖻㕤妠⍲䘬ˤ

炻㛔䓊⑩ἧ䓐㗪⺢嬘ㅱ嶅暊Ṣ橼 31dnˤ

Viewing Certifications

Go to http://www.zyxel.com to view this product’s documentation and certifications.

ZyXEL Limited Warranty

ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in material or workmanship for a specific period (the Warranty Period) from the date of purchase. The Warranty Period varies by region. Check with your vendor and/or the authorized ZyXEL local distributor for details about the Warranty Period of this product. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, ZyXEL will, at its discretion, repair or replace the defective products or components without charge for either parts or labor, and to whatever extent it shall deem necessary to restore the product or components to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal or higher value, and will be solely at the discretion of ZyXEL. This warranty shall not apply if the product has been modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions.

Note

Repair or replacement, as provided under this warranty, is the exclusive remedy of the purchaser. This warranty is in lieu of all other warranties, express or implied, including any implied warranty of merchantability or fitness for a particular use or purpose. ZyXEL shall in no event be held liable for indirect or consequential damages of any kind to the purchaser.

To obtain the services of this warranty, contact your vendor. You may also refer to the warranty policy for the region in which you bought the device at http://www.zyxel.com/web/support_warranty_info.php.

Registration

Register your product online to receive e-mail notices of firmware upgrades and information at www.zyxel.com for global products, or at www.us.zyxel.com for North American products.

NBG6617 User’s Guide

198

ZyXEL NBG6617 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
