Quick Start Guide
NBG6616
Simultaneous Dual-Band Wireless AC1200 HD Media Router
Version 1.00
Edition 1, 06/2014
User’s Guide
Default Login Details
LAN IP Address http://192.168.1.1
(Router Mode)
www.zyxel.com
Password 1234
http://192.168.1.2
(Access Point Mode)
Copyright © 2014 ZyXEL Communications Corporation
IMPORTANT!
READ CAREFULLY BEFORE USE.
KEEP THIS GUIDE FOR FUTURE REFERENCE.
Screenshots and graphics in this book may differ slightly from your product due to differences in
your product firmware or your computer operating system. Every effort has been made to ensure
that the information in this manual is accurate.
Related Documentation
•Quick Start Guide
The Quick Start Guide shows how to connect the NBG6616 and access the Web Configurator
wizards. It contains information on setting up your network and configuring for Internet access.
NBG6616 User’s Guide
2
Contents Overview
Contents Overview
User’s Guide .......................................................................................................................................11
Introduction .............................................................................................................................................12
Introducing the Web Configurator ...........................................................................................................17
Connection Wizard ..................................................................................................................................20
NBG6616 Modes .....................................................................................................................................30
Easy Mode ..............................................................................................................................................31
Router Mode ...........................................................................................................................................42
Access Point Mode .................................................................................................................................49
Tutorials ..................................................................................................................................................56
Technical Reference ..........................................................................................................................68
Monitor ....................................................................................................................................................69
WAN ........................................................................................................................................................74
Wireless LAN ..........................................................................................................................................84
LAN .......................................................................................................................................................107
DHCP Server ........................................................................................................................................ 111
NAT ....................................................................................................................................................... 116
DDNS ....................................................................................................................................................126
Static Route ...........................................................................................................................................128
Firewall ..................................................................................................................................................131
Content Filtering ....................................................................................................................................136
Parental Control ....................................................................................................................................138
IPv6 Firewall ..........................................................................................................................................144
Bandwidth Management .......................................................................................................................147
Remote Management ............................................................................................................................154
Universal Plug-and-Play (UPnP) ...........................................................................................................158
USB Media Sharing ...............................................................................................................................164
Maintenance ..........................................................................................................................................174
Troubleshooting ....................................................................................................................................184
NBG6616 User’s Guide
3
Table of Contents
Table of Contents
Contents Overview ..............................................................................................................................3
Table of Contents .................................................................................................................................4
Part I: User’s Guide ......................................................................................... 11
Chapter 1
Introduction.........................................................................................................................................12
1.1 Overview ...........................................................................................................................................12
1.2 Applications .......................................................................................................................................12
1.3 Ways to Manage the NBG6616 ........................................................................................................12
1.4 Good Habits for Managing the NBG6616 .........................................................................................13
1.5 Resetting the NBG6616 ....................................................................................................................13
1.5.1 How to Use the RESET Button ................................................................................................13
1.6 The WPS Button ...............................................................................................................................13
1.7 LEDs .................................................................................................................................................14
1.8 Wall Mounting ...................................................................................................................................15
Chapter 2
Introducing the Web Configurator ....................................................................................................17
2.1 Overview ...........................................................................................................................................17
2.2 Accessing the Web Configurator .......................................................................................................17
2.2.1 Login Screen ...........................................................................................................................17
2.2.2 Password Screen ....................................................................................................................18
Chapter 3
Connection Wizard.............................................................................................................................20
3.1 Overview ...........................................................................................................................................20
3.2 Accessing the Wizard ........................................................................................................................20
3.3 Connect to Internet ............................................................................................................................21
3.3.1 Connection Type: IPoE ............................................................................................................22
3.3.2 Connection Type: PPPoE ........................................................................................................24
3.4 Router Password ...............................................................................................................................25
3.5 Wireless Security ..............................................................................................................................26
3.5.1 Wireless Security: No Security ................................................................................................26
3.5.2 Wireless Security: WPA2-PSK .................................................................................................27
NBG6616 User’s Guide
4
Table of Contents
Chapter 4
NBG6616 Modes .................................................................................................................................30
4.1 Overview ...........................................................................................................................................30
4.1.1 Web Configurator Modes .........................................................................................................30
4.1.2 Device Modes ..........................................................................................................................30
Chapter 5
Easy Mode...........................................................................................................................................31
5.1 Overview ...........................................................................................................................................31
5.2 What You Can Do .............................................................................................................................32
5.3 What You Need to Know ...................................................................................................................32
5.4 Navigation Panel ...............................................................................................................................32
5.5 Network Map .....................................................................................................................................33
5.6 Control Panel ....................................................................................................................................34
5.6.1 Game Engine ...........................................................................................................................35
5.6.2 Power Saving ..........................................................................................................................35
5.6.3 Parental Control .......................................................................................................................36
5.6.4 Bandwidth MGMT ....................................................................................................................37
5.6.5 Firewall ....................................................................................................................................38
5.6.6 Wireless Security .....................................................................................................................38
5.6.7 WPS ........................................................................................................................................39
5.7 Status Screen in Easy Mode .............................................................................................................40
Chapter 6
Router Mode........................................................................................................................................42
6.1 Overview ...........................................................................................................................................42
6.2 Router Mode Status Screen ..............................................................................................................42
6.2.1 Navigation Panel .....................................................................................................................45
Chapter 7
Access Point Mode.............................................................................................................................49
7.1 Overview ...........................................................................................................................................49
7.2 What You Can Do .............................................................................................................................49
7.3 What You Need to Know ...................................................................................................................49
7.3.1 Setting your NBG6616 to AP Mode .........................................................................................50
7.3.2 Accessing the Web Configurator in Access Point Mode ..........................................................50
7.3.3 Configuring your WLAN and Maintenance Settings ................................................................51
7.4 AP Mode Status Screen ....................................................................................................................51
7.4.1 Navigation Panel .....................................................................................................................53
7.5 LAN Screen .......................................................................................................................................53
Chapter 8
Tutorials...............................................................................................................................................56
NBG6616 User’s Guide
5
Table of Contents
8.1 Overview ...........................................................................................................................................56
8.2 Set Up a Wireless Network Using WPS ............................................................................................56
8.2.1 Push Button Configuration (PBC) ............................................................................................56
8.2.2 PIN Configuration ....................................................................................................................57
8.3 Connect to Wireless Networks without WPS ....................................................................................58

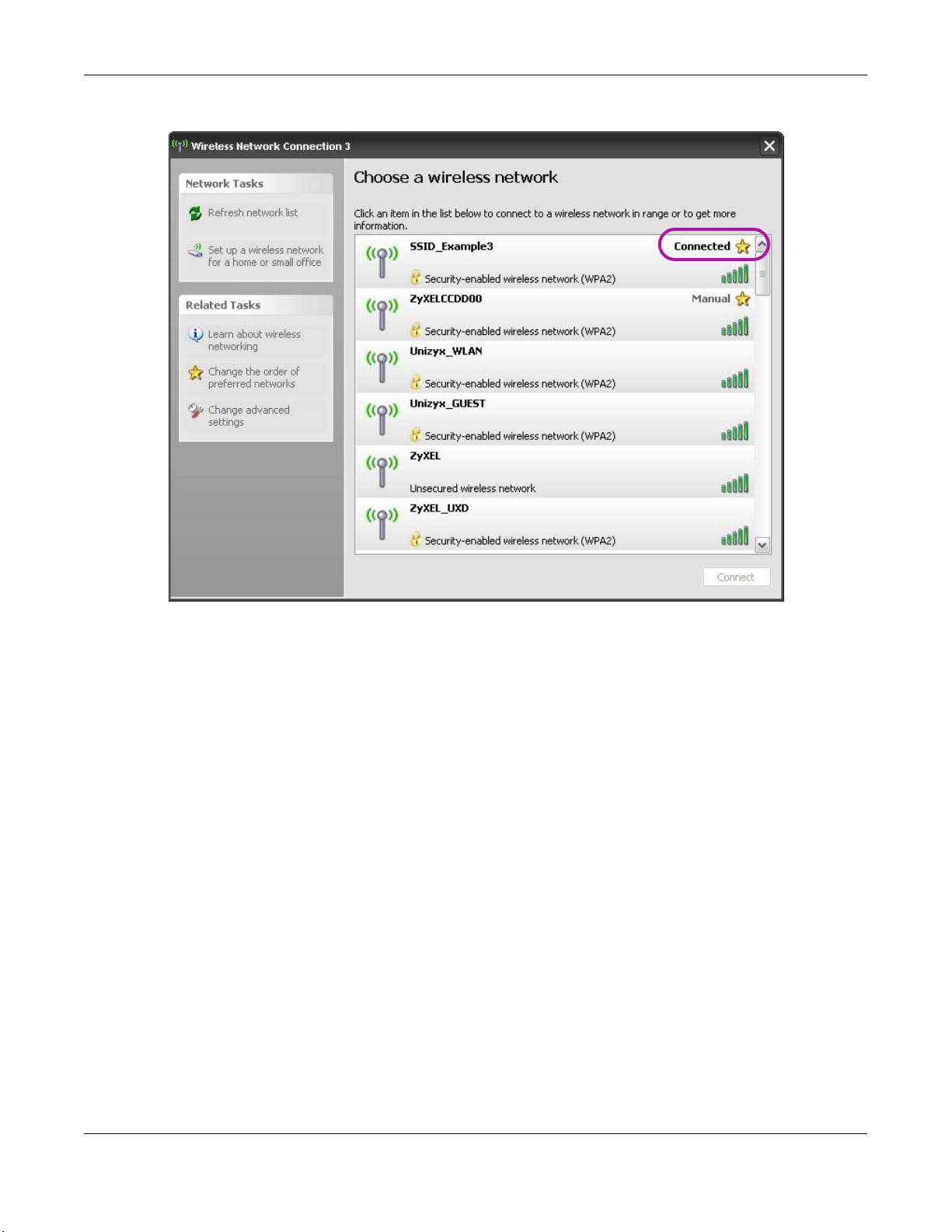

8.3.1 Configure Your Notebook ........................................................................................................60

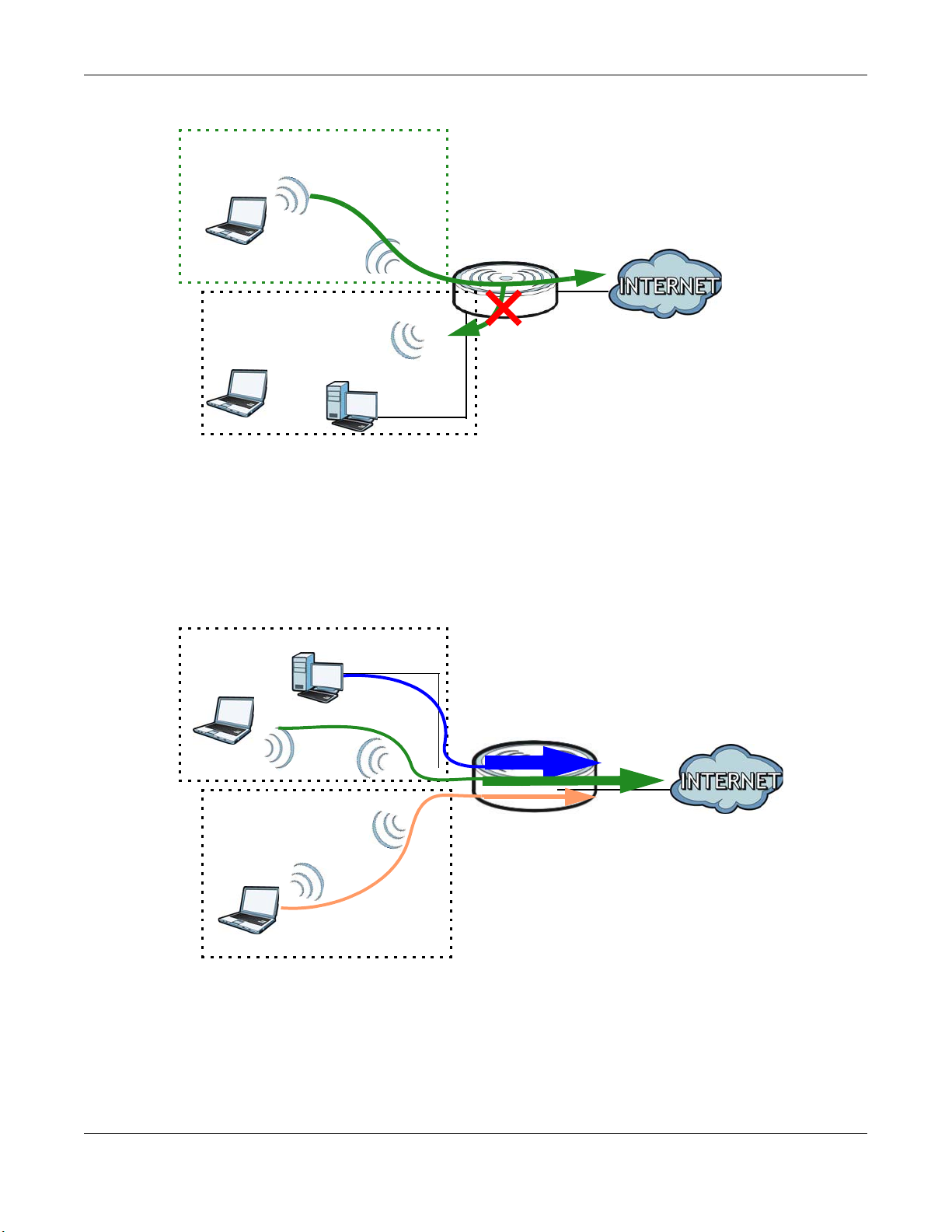

8.4 Using Multiple SSIDs on the NBG6616 .............................................................................................62
8.4.1 Configuring Security Settings of Multiple SSIDs ......................................................................63
Part II: Technical Reference............................................................................68
Chapter 9
Monitor.................................................................................................................................................69
9.1 Overview ...........................................................................................................................................69
9.2 What You Can Do .............................................................................................................................69
9.3 The Log Screen .................................................................................................................................69
9.3.1 View Log ..................................................................................................................................69
9.4 DHCP Table ...................................................................................................................................70
9.5 Packet Statistics .............................................................................................................................71
9.6 WLAN Station Status .....................................................................................................................72
Chapter 10
WAN .....................................................................................................................................................74
10.1 Overview .........................................................................................................................................74
10.2 What You Can Do ...........................................................................................................................74
10.3 What You Need To Know ................................................................................................................74
10.3.1 Configuring Your Internet Connection ....................................................................................75
10.4 Internet Connection .........................................................................................................................76
10.4.1 IPoE Encapsulation ...............................................................................................................76
10.4.2 PPPoE Encapsulation ...........................................................................................................79
10.5 Advanced WAN Screen ..................................................................................................................82
Chapter 11
Wireless LAN.......................................................................................................................................84
11.1 Overview .........................................................................................................................................84
11.1.1 What You Can Do ..................................................................................................................85
11.1.2 What You Should Know .........................................................................................................85

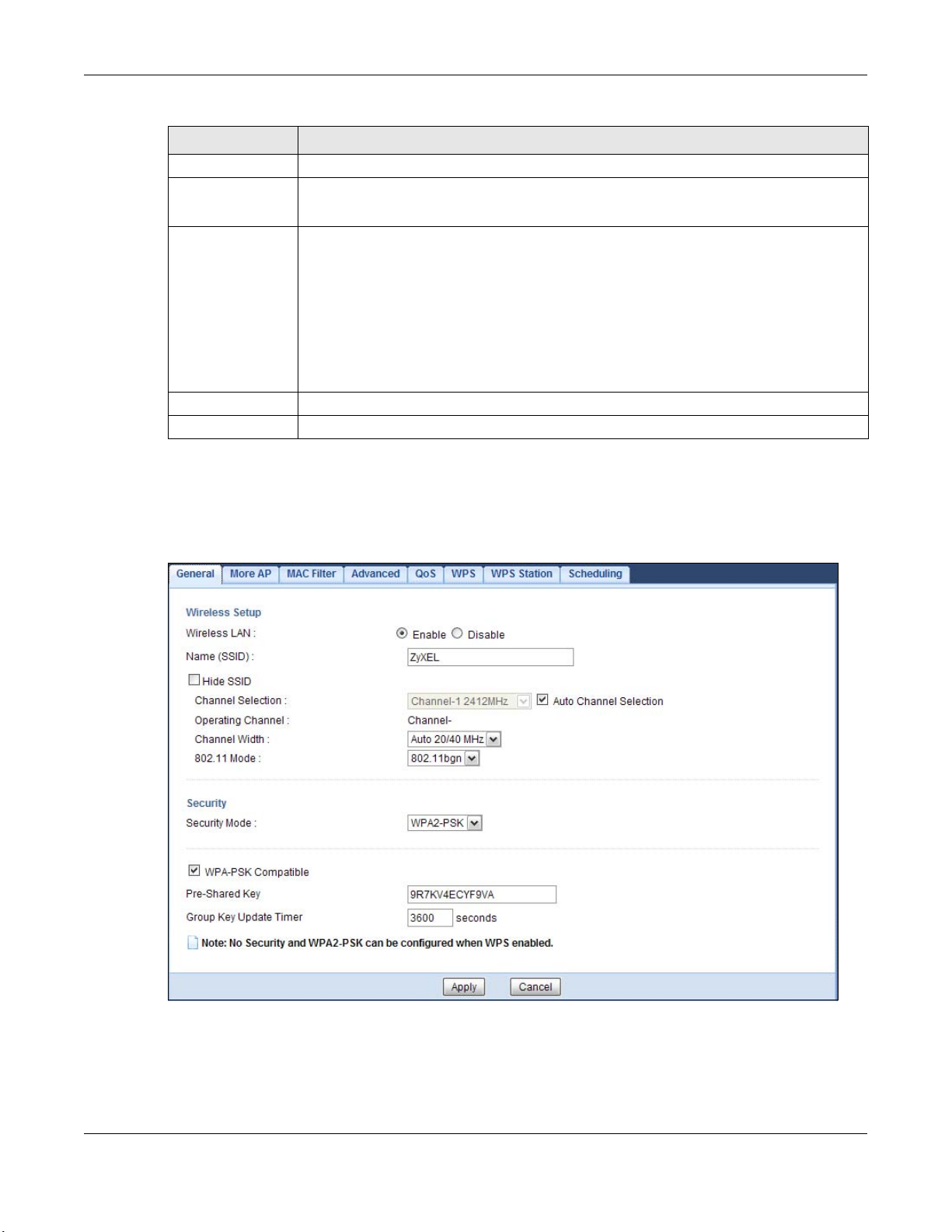

11.2 General Wireless LAN Screen .......................................................................................................89
11.3 Wireless Security .............................................................................................................................91
11.3.1 No Security ............................................................................................................................91
11.3.2 WEP Encryption .....................................................................................................................92
NBG6616 User’s Guide
6
Table of Contents
11.3.3 WPA-PSK/WPA2-PSK ...........................................................................................................94
11.3.4 WPA/WPA2 ............................................................................................................................95
11.4 More AP Screen ..............................................................................................................................97
11.4.1 More AP Edit ..........................................................................................................................98
11.5 MAC Filter Screen ........................................................................................................................100
11.6 Wireless LAN Advanced Screen ...................................................................................................102
11.7 Quality of Service (QoS) Screen ...................................................................................................102
11.8 WPS Screen ..................................................................................................................................103
11.9 WPS Station Screen ......................................................................................................................105
11.10 Scheduling Screen ......................................................................................................................105
Chapter 12
LAN .................................................................................................................................................... 107
12.1 Overview .......................................................................................................................................107
12.2 What You Can Do .........................................................................................................................107
12.3 What You Need To Know ..............................................................................................................107
12.3.1 IP Pool Setup .......................................................................................................................108
12.3.2 LAN TCP/IP .........................................................................................................................108
12.3.3 IP Alias ................................................................................................................................108
12.4 LAN IP Screen ..............................................................................................................................108
12.5 IP Alias Screen ..............................................................................................................................109
12.6 IPv6 LAN Screen ........................................................................................................................... 110
Chapter 13
DHCP Server .....................................................................................................................................111
13.1 Overview ....................................................................................................................................... 111
13.1.1 What You Can Do ................................................................................................................ 111
13.1.2 What You Need To Know ..................................................................................................... 111
13.2 DHCP Server General Screen ...................................................................................................... 111
13.3 DHCP Server Advanced Screen ................................................................................................ 112
13.4 DHCP Client List Screen ............................................................................................................... 114
Chapter 14
NAT.....................................................................................................................................................116
14.1 Overview .................................................................................................................................... 116
14.1.1 What You Can Do ................................................................................................................116
14.1.2 What You Need To Know ..................................................................................................... 117
14.2 General .........................................................................................................................................118
14.3 Port Forwarding Screen ...............................................................................................................119
14.3.1 Port Forwarding Edit Screen ..............................................................................................121
14.4 Port Trigger Screen .......................................................................................................................122
14.5 Technical Reference ......................................................................................................................123
14.5.1 NATPort Forwarding: Services and Port Numbers ..............................................................123
NBG6616 User’s Guide
7
Table of Contents
14.5.2 NAT Port Forwarding Example ............................................................................................123
14.5.3 Trigger Port Forwarding .......................................................................................................124
14.5.4 Trigger Port Forwarding Example ........................................................................................124
14.5.5 Two Points To Remember About Trigger Ports ...................................................................125
Chapter 15
DDNS..................................................................................................................................................126
15.1 Overview ......................................................................................................................................126
15.1.1 What You Need To Know .....................................................................................................126
15.2 General .......................................................................................................................................126
Chapter 16
Static Route.......................................................................................................................................128
16.1 Overview ....................................................................................................................................128
16.2 IP Static Route Screen .................................................................................................................128
16.2.1 Add/Edit Static Route ..........................................................................................................129
Chapter 17
Firewall ..............................................................................................................................................131
17.1 Overview .....................................................................................................................................131
17.1.1 What You Can Do ................................................................................................................131
17.1.2 What You Need To Know .....................................................................................................131
17.2 General Screen ............................................................................................................................133
17.3 Services Screen ............................................................................................................................133
Chapter 18
Content Filtering...............................................................................................................................136
18.1 Overview .......................................................................................................................................136
18.2 Content Filter .................................................................................................................................136
Chapter 19
Parental Control................................................................................................................................138
19.1 Overview .......................................................................................................................................138
19.1.1 What You Need To Know .....................................................................................................138
19.2 Parental Control Screen ................................................................................................................138
19.2.1 Add/Edit a Parental Control Rule .........................................................................................139
19.2.2 Add/Edit a Service ...............................................................................................................141
19.3 Technical Reference ......................................................................................................................142
19.3.1 Customizing Keyword Blocking URL Checking ...................................................................142
Chapter 20
IPv6 Firewall......................................................................................................................................144
20.1 Overview .......................................................................................................................................144
NBG6616 User’s Guide
8
Table of Contents
20.2 IPv6 Firewall Screen ....................................................................................................................144
Chapter 21
Bandwidth Management...................................................................................................................147
21.1 Overview ......................................................................................................................................147
21.2 What You Can Do .........................................................................................................................147
21.3 What You Need To Know ..............................................................................................................148
21.4 General Screen ............................................................................................................................148
21.5 Advanced Screen .........................................................................................................................148
21.5.1 Rule Configuration: Application Rule Configuration ...........................................................150
21.5.2 Rule Configuration: User Defined Service Rule Configuration .........................................151
21.5.3 Predefined Bandwidth Management Services .....................................................................153
Chapter 22
Remote Management........................................................................................................................154
22.1 Overview .......................................................................................................................................154
22.2 What You Can Do in this Chapter .................................................................................................154
22.3 What You Need to Know ...............................................................................................................154
22.3.1 Remote Management and NAT ...........................................................................................155
22.3.2 System Timeout ..................................................................................................................155
22.4 WWW Screen .............................................................................................................................155
22.5 Telnet Screen .............................................................................................................................156
22.6 Wake On LAN Screen ...................................................................................................................156
Chapter 23
Universal Plug-and-Play (UPnP)......................................................................................................158
23.1 Overview ......................................................................................................................................158
23.2 What You Need to Know ...............................................................................................................158
23.2.1 NAT Traversal ......................................................................................................................158
23.2.2 Cautions with UPnP .............................................................................................................158
23.3 UPnP Screen ...............................................................................................................................159
23.4 Technical Reference ......................................................................................................................159
23.4.1 Using UPnP in Windows XP Example .................................................................................159
23.4.2 Web Configurator Easy Access ...........................................................................................161
Chapter 24
USB Media Sharing...........................................................................................................................164
24.1 Overview .......................................................................................................................................164
24.2 What You Can Do .........................................................................................................................165
24.3 What You Need To Know ..............................................................................................................165
24.4 Before You Begin ..........................................................................................................................166
24.5 DLNA Screen ................................................................................................................................167
24.6 SAMBA Screen .............................................................................................................................167
NBG6616 User’s Guide
9
Table of Contents
24.7 FTP Screen ...................................................................................................................................169
24.8 Example of Accessing Your Shared Files From a Computer ........................................................170
24.8.1 Use Windows Explorer to Share Files .................................................................................170
24.8.2 Use FTP to Share Files .......................................................................................................172
Chapter 25
Maintenance......................................................................................................................................174
25.1 Overview .......................................................................................................................................174
25.2 What You Can Do .........................................................................................................................174
25.3 General Screen .............................................................................................................................174
25.4 Password Screen ..........................................................................................................................175
25.5 Time Setting Screen ......................................................................................................................176
25.6 Firmware Upgrade Screen ............................................................................................................177
25.7 Configuration Backup/Restore Screen ..........................................................................................179
25.8 Restart Screen ..............................................................................................................................180
25.9 Language Screen ..........................................................................................................................180
25.10 System Operation Mode Overview .............................................................................................181
25.11 Sys OP Mode Screen ..................................................................................................................182
Chapter 26
Troubleshooting................................................................................................................................184
26.1 Overview .......................................................................................................................................184
26.2 Power, Hardware Connections, and LEDs ....................................................................................184
26.3 NBG6616 Access and Login .........................................................................................................185
26.4 Internet Access .............................................................................................................................186
26.5 Resetting the NBG6616 to Its Factory Defaults ............................................................................188
26.6 Wireless Connections ...................................................................................................................188
26.7 USB Device Problems ...................................................................................................................190
Appendix A Pop-up Windows, JavaScript and Java Permissions ...................................................191
Appendix B Setting Up Your Computer’s IP Address ......................................................................200
Appendix C Common Services........................................................................................................ 228
Appendix D Legal Information .........................................................................................................231
Appendix E Customer Support ........................................................................................................236
Index ..................................................................................................................................................242
NBG6616 User’s Guide
10
PART I
User’s Guide
11
1.1 Overview
This chapter introduces the main features and applications of the NBG6616.
The NBG6616 extends the range of your existing wired network without additional wiring, providing
easy network access to mobile users. You can set up a wireless network with other IEEE 802.11a/b/
g/n/ac compatible devices. The NBG6616 is able to function both 2.4GHz and 5GHz networks at the
same time.
A range of services such as a firewall and content filtering are also available for secure Internet
computing.
There are two USB 2.0 ports on the side panel of your NBG6616. You can connect USB (version 2.0
or lower) memory sticks, USB hard drives, or USB devices for file sharing. The NBG6616
automatically detects the USB devices.
CHAPTER 1
Introduction
Note: For the USB function, it is strongly recommended to use version 2.0 or lower USB
storage devices (such as memory sticks, USB hard drives) and/or USB devices.
Other USB products are not guaranteed to function properly with the NBG6616.
1.2 Applications
Your can have the following networks with the NBG6616:
• Wired. You can connect network devices via the Ethernet ports of the NBG6616 so that they can
communicate with each other and access the Internet.
• Wireless. Wireless clients can connect to the NBG6616 to access network resources. You can
use WPS (Wi-Fi Protected Setup) to create an instant network connection with another WPScompatible device.
• WAN. Connect to a broadband modem/router for Internet access.
1.3 Ways to Manage the NBG6616
Use any of the following methods to manage the NBG6616.
• WPS (Wi-Fi Protected Setup). You can use the WPS button or the WPS section of the Web
Configurator to set up a wireless network with your NBG6616.
• Web Configurator. This is recommended for everyday management of the NBG6616 using a
(supported) web browser.
NBG6616 User’s Guide
12
Chapter 1 Introduction
1.4 Good Habits for Managing the NBG6616
Do the following things regularly to make the NBG6616 more secure and to manage the NBG6616
more effectively.
• Change the password. Use a password that’s not easy to guess and that consists of different
types of characters, such as numbers and letters.
• Write down the password and put it in a safe place.
• Back up the configuration (and make sure you know how to restore it). Restoring an earlier
working configuration may be useful if the device becomes unstable or even crashes. If you
forget your password, you will have to reset the NBG6616 to its factory default settings. If you
backed up an earlier configuration file, you would not have to totally re-configure the NBG6616.
You could simply restore your last configuration.
1.5 Resetting the NBG6616
If you forget your password or IP address, or you cannot access the Web Configurator, you will need
to use the RESET button at the back of the NBG6616 to reload the factory-default configuration
file. This means that you will lose all configurations that you had previously saved, the password
will be reset to “1234” and the IP address will be reset to “192.168.1.1”.
1.5.1 How to Use the RESET Button
1 Make sure the power LED is on.
2 Press the RESET button for one to four seconds to restart/reboot the NBG6616.
3 Press the RESET button for longer than five seconds to set the NBG6616 back to its factory-default
configurations.
1.6 The WPS Button
Your NBG6616 supports Wi-Fi Protected Setup (WPS), which is an easy way to set up a secure
wireless network. WPS is an industry standard specification, defined by the Wi-Fi Alliance.
WPS allows you to quickly set up a wireless network with strong security, without having to
configure security settings manually. Each WPS connection works between two devices. Both
devices must support WPS (check each device’s documentation to make sure).
Depending on the devices you have, you can either press a button (on the device itself, or in its
configuration utility) or enter a PIN (a unique Personal Identification Number that allows one device
to authenticate the other) in each of the two devices. When WPS is activated on a device, it has two
minutes to find another device that also has WPS activated. Then, the two devices connect and set
up a secure network by themselves.
You can use the WPS button ( ) on the front panel of the NBG6616 to activate WPS in order to
quickly set up a wireless network with strong security.
NBG6616 User’s Guide
13
1 Make sure the power LED is on (not blinking).
Power
LAN 1-4
WAN
2.4G WLAN
USB 1/2
WPS
5G WLAN
WPS Button
2 Press the WPS button for more than three seconds and release it. Press the WPS button on another
WPS-enabled device within range of the NBG6616.
Note: You must activate WPS in the NBG6616 and in another wireless device within two
1.7 LEDs
Figure 1 Front Panel
Chapter 1 Introduction
minutes of each other.
For more information on using WPS, see Section 8.2 on page 56.
The following table describes the LEDs.
Table 1 Front panel LEDs
LED COLOR STATUS DESCRIPTION
Power Green On The NBG6616 is receiving power and functioning properly.
Blinking The NBG6616 is in the process of starting up or default
Off The NBG6616 is not receiving power.
NBG6616 User’s Guide
restoring.
14
Chapter 1 Introduction
Table 1 Front panel LEDs (continued)
LED COLOR STATUS DESCRIPTION
WAN Green On The NBG6616’s WAN connection is ready.
Blinking The NBG6616 is sending/receiving data through the WAN.
Off The WAN connection is not ready, or has failed.
LAN 1-4 Green On The NBG6616’s LAN connection is ready.
Blinking The NBG6616 is sending/receiving data through the LAN.
Off The LAN connection is not ready, or has failed.
2.4G/5G WLAN Green On The NBG6616 is ready and the 2.4GHz/5GHz wireless LAN is on,
but is not sending/receiving data through the wireless LAN.
Blinking The NBG6616 is sending/receiving data through the wireless
LAN.
Off The wireless LAN is not ready or has failed.
WPS Green On WPS is enabled.
Blinking The NBG6616 is negotiating a WPS connection with a wireless
Off WPS is disabled.
USB 1/2 Green On The NBG6616 has a USB device installed.
Blinking The NBG6616 is transmitting and/or receiving data from routers
Off There is no USB device connected to the NBG6616.
client.
through an installed USB device.
1.8 W all Mounting
You may need screw anchors if mounting on a concrete or brick wall.
Table 2 Wall Mounting Information
Distance between holes 13 cm
M4 Screws Two
Screw anchors (optional) Two
1 Select a position free of obstructions on a wall strong enough to hold the weight of the device.
2 Mark two holes on the wall at the appropriate distance apart for the screws.
Be careful to avoid damaging pipes or cables located inside the wall
when drilling holes for the screws.
3 If using screw anchors, drill two holes for the screw anchors into the wall. Push the anchors into the
full depth of the holes, then insert the screws into the anchors. Do not insert the screws all the way
in - leave a small gap of about 0.5 cm.
If not using screw anchors, use a screwdriver to insert the screws into the wall. Do not insert the
screws all the way in - leave a gap of about 0.5 cm.
4 Make sure the screws are fastened well enough to hold the weight of the NBG6616 with the
connection cables.
NBG6616 User’s Guide
15
Chapter 1 Introduction
5 Align the holes on the back of the NBG6616 with the screws on the wall. Hang the NBG6616 on the
screws.
Figure 2 Wall Mounting Example
NBG6616 User’s Guide
16
2.1 Overview
This chapter describes how to access the NBG6616 Web Configurator and provides an overview of
its screens.
The Web Configurator is an HTML-based management interface that allows easy setup and
management of the NBG6616 via Internet browser. Use Internet Explorer 9.0 and later versions,
Mozilla Firefox 21 and later versions, Safari 6.0 and later versions or Google Chrome 26.0 and later
versions. The recommended screen resolution is 1024 by 768 pixels.
In order to use the Web Configurator you need to allow:
• Web browser pop-up windows from your device. Web pop-up blocking is enabled by default in
Windows XP SP (Service Pack) 2.
• JavaScript (enabled by default).
• Java permissions (enabled by default).
CHAPTER 2
Introducing the Web Configurator
Refer to the Troubleshooting chapter (Chapter 26 on page 184) to see how to make sure these
functions are allowed in Internet Explorer.
2.2 Accessing the Web Configurator
1 Make sure your NBG6616 hardware is properly connected and prepare your computer or computer
network to connect to the NBG6616 (refer to the Quick Start Guide).
2 Launch your web browser.
3 The NBG6616 is in router mode by default. Type "http://192.168.1.1" as the website address.
If the NBG6616 is in access point, the IP address is 192.168.1.2. See Chapter 4 on page 30 for
more information about the modes of the NBG6616.
Your computer must be in the same subnet in order to access this website address.
2.2.1 Login Screen
Note: If this is the first time you are accessing the Web Configurator, you may be
redirected to the Wizard. Refer to Chapter 3 on page 20 for the Connection Wizard
screens.
The Web Configurator initially displays the following login screen.
NBG6616 User’s Guide
17
Figure 3 Login screen
Chapter 2 Introducing the Web Configurator
The following table describes the labels in this screen.
Table 3 Login screen
LABEL DESCRIPTION
Language Select the language you want to use to configure the Web Configurator.
Password Type "1234" (default) as the password. Click Login.
This shows the current weather, either in celsius or fahrenheit, of the city you specify in
Section 2.2.2.1 on page 19.
This shows the time (hh:mm:ss) and date (yyyy:mm:dd) of the timezone you select in
Section 25.5 on page 176. The time is in 24-hour format, for example 15:00 is 3:00 PM.
2.2.2 Password Screen
You should see a screen asking you to change your password (highly recommended) as shown
next.
Figure 4 Change Password Screen
NBG6616 User’s Guide
18
The following table describes the labels in this screen.
Table 4 Change Password Screen
LABEL DESCRIPTION
New Password Type a new password.
Retype to Confirm Retype the password for confirmation.
Apply Click Apply to save your changes back to the NBG6616.
Ignore Click Ignore if you do not want to change the password this time.
Note: The management session automatically times out when the time period set in the
Administrator Inactivity Timer field expires (default five minutes; go to Chapter
25 on page 174 to change this). Simply log back into the NBG6616 if this happens.
2.2.2.1 Weather Edit
You can change the temperature unit and select the location for which you want to know the
weather.
Click the icon to change the Weather display.
Figure 5 Change Weather
Chapter 2 Introducing the Web Configurator
The following table describes the labels in this screen.
Table 5 Change Weather
LABEL DESCRIPTION
Change Unit Choose which temperature unit you want the NBG6616 to display.
Change Location Select the location for which you want to know the weather. If the city you want is not
listed, choose one that is closest to it.
Finish Click this to apply the settings and refresh the date and time display.
NBG6616 User’s Guide
19
3.1 Overview
This chapter provides information on the wizard setup screens in the Web Configurator.
The Web Configurator’s wizard setup helps you configure your device to access the Internet. Refer
to your ISP for your Internet account information. Leave a field blank if you don’t have that
information.
3.2 Accessing the Wizard
Launch your web browser and type "http://192.168.1.1" as the website address. Type "1234"
(default) as the password and click Login.
CHAPTER 3
Connection Wizard
Note: The Wizard appears when the NBG6616 is accessed for the first time or when you
reset the NBG6616 to its default factory settings.
The Wizard screen opens. Choose your Language and click Connect to Internet.
Figure 6 Welcome
NBG6616 User’s Guide
20
Chapter 3 Connection Wizard
3.3 Connect to Internet
The NBG6616 offers two Internet connection types. They are IPoE or PPPoE. The wizard attempts
to detect which WAN connection type you are using.
Figure 7 Detecting your Internet Connection Type
If the wizard does not detect a connection type, you must select one from the drop-down list box.
Check with your ISP to make sure you use the correct type.
Note: If you get an error message, check your hardware connections. Make sure your
Internet connection is up and running.
The following screen depends on your Internet connection type. Enter the details provided by your
Internet Service Provider (ISP) in the fields (if any).
NBG6616 User’s Guide
21
Chapter 3 Connection Wizard
Figure 8 Internet Connection Type
Your NBG6616 detects the following Internet Connection type.
Table 6 Internet Connection Type
CONNECTION TYPE DESCRIPTION
IPoE Select the IPoE (IP over Ethernet) option when the WAN port is used as a regular
Ethernet.
PPPoE
Select the PPPoE (Point-to-Point Protocol over Ethernet) option for a dial-up
connection.
3.3.1 Connection Type: IPoE
Choose IPoE as the Internet Connection Type when the WAN port is used as a regular Ethernet.
Click Next.
NBG6616 User’s Guide
22
Chapter 3 Connection Wizard
Figure 9 Internet Connection Type: IPoE
The following table describes the labels in this screen.
Table 7 Internet Connection Type: IPoE
LABEL DESCRIPTION
Internet Connection Type Select the IPoE option.
Obtain an IP Address
Automatically
Static IP Address Select this radio button if your ISP assigned an IP address for your Internet
IP Address Enter the IP address provided by your ISP.
Subnet Mask Enter the IP subnet mask in this field.
Gateway IP Address Enter the gateway IP address in this field.
First DNS Server
Second DNS Server
Exit Click this to close the wizard screen without saving.
Back Click this to return to the previous screen.
Next Click this to continue.
Select this radio button if your ISP did not assign you a fixed IP address.
connection.
Select Obtained From ISP if your ISP dynamically assigns DNS server
information (and the NBG6616's WAN IP address). The field to the right displays
the (read-only) DNS server IP address that the ISP assigns.
Select User-Defined if you have the IP address of a DNS server. Enter the DNS
server's IP address in the field to the right.
Select None if you do not want to configure DNS servers. If you do not configure
a DNS server, you must know the IP address of a computer in order to access it.
Note: If you get an error screen after clicking Next, you might have selected the wrong
Internet Connection type. Click Back, make sure your Internet connection is
working and select the right Connection Type. Contact your ISP if you are not sure
of your Internet Connection type.
NBG6616 User’s Guide
23
Chapter 3 Connection Wizard
3.3.2 Connection Type: PPPoE
Point-to-Point Protocol over Ethernet (PPPoE) functions as a dial-up connection. PPPoE is an IETF
(Internet Engineering Task Force) standard specifying how a host personal computer interacts with
a broadband modem (for example DSL, cable, wireless, etc.) to achieve access to high-speed data
networks.
For the service provider, PPPoE offers an access and authentication method that works with existing
access control systems (for instance, RADIUS).
One of the benefits of PPPoE is the ability to let end users access one of multiple network services,
a function known as dynamic service selection. This enables the service provider to easily create
and offer new IP services for specific users.
Operationally, PPPoE saves significant effort for both the subscriber and the ISP/carrier, as it
requires no specific configuration of the broadband modem at the subscriber's site.
By implementing PPPoE directly on the NBG6616 (rather than individual computers), the computers
on the LAN do not need PPPoE software installed, since the NBG6616 does that part of the task.
Furthermore, with NAT, all of the LAN's computers will have Internet access.
Figure 10
The following table describes the labels in this screen.
Table 8 Internet Connection Type: PPPoE
LABEL DESCRIPTION
Internet
Connection Type
Get automatically
from ISP
Use Fixed IP
Address
Internet Connection Type: PPPoE
Select the PPPoE option for a dial-up connection.
Select this radio button if your ISP did not assign you a fixed IP address.
Select this radio button, provided by your ISP to give the NBG6616 a fixed, unique IP
address.
NBG6616 User’s Guide
24
Chapter 3 Connection Wizard
Table 8 Internet Connection Type: PPPoE (continued)
LABEL DESCRIPTION
PPP Username Type the user name given to you by your ISP.
PPP Password Type the password associated with the user name above.
My WAN IP Address Type the name of your service provider.
Exit Click this to close the wizard screen without saving.
Back Click this to return to the previous screen.
Next Click this to continue.
The NBG6616 connects to the Internet.
Figure 11 Connecting to the Internet
Note: If the Wizard successfully connects to the Internet, it proceeds to the next step. If
you get an error message, go back to the previous screen and make sure you have
entered the correct information provided by your ISP.
3.4 Router Password
Change the login password in the following screen. Enter the new password and retype it to
confirm. Click Next to proceed with the Wireless Security screen.
NBG6616 User’s Guide
25
Figure 12 Router Password
Chapter 3 Connection Wizard
3.5 Wireless Security
Configure Wireless Settings. Configure the wireless network settings on your NBG6616 in the
following screen. The fields that show up depend on the kind of security you select.
3.5.1 Wireless Security: No Security
Choose No Security in the Wireless Security screen to let wireless devices within range access
your wireless network.
NBG6616 User’s Guide
26
Chapter 3 Connection Wizard
Figure 13 Wireless Security: No Security
The following table describes the labels in this screen.
Table 9 Wireless Security: No Security
LABEL DESCRIPTION
Wireless
Network Name
(SSID)
Security Mode Select a security level from the drop-down list box.
Enter a descriptive name (up to 32 printable 7-bit ASCII characters) for the wireless LAN.
Note: The setting here applies to both 2.4 GHz and 5 GHz wireless radios.
If you change this field on the NBG6616, make sure all wireless stations use the same SSID
in order to access the network.
Note: The setting here applies to both 2.4 GHz and 5 GHz wireless radios.
Choose No Security to have no wireless LAN security configured. If you do not enable any
wireless security on your NBG6616, your network is accessible to any wireless networking
device that is within range.
Exit Click this to close the wizard screen without saving.
Back Click this to return to the previous screen.
Next Click this to continue.
3.5.2 Wireless Security: WPA2-PSK
Choose WPA2-PSK security in the Wireless Security screen to set up a password for your wireless
network.
NBG6616 User’s Guide
27
Chapter 3 Connection Wizard
Figure 14 Wireless Security: WPA2-PSK
The following table describes the labels in this screen.
Table 10 Wireless Security: WPA2-PSK
LABEL DESCRIPTION
Wireless
Network Name
(SSID)
Security Mode Select a security level from the drop-down list box.
Enter a descriptive name (up to 32 printable 7-bit ASCII characters) for the wireless LAN.
Note: The setting here applies to both 2.4 GHz and 5 GHz wireless radios.
If you change this field on the NBG6616, make sure all wireless stations use the same SSID
in order to access the network.
Note: The setting here applies to both 2.4 GHz and 5 GHz wireless radios.
Choose WPA2-PSK security to configure a Pre-Shared Key. Choose this option only if your
wireless clients support WPA2-PSK.
Wireless
password
Verify Password Retype the password to confirm.
Exit Click this to close the wizard screen without saving.
Back Click this to return to the previous screen.
Next Click this to continue.
Type from 8 to 63 case-sensitive ASCII characters. You can set up the most secure wireless
connection by configuring WPA in the wireless LAN screens.
Congratulations! Open a web browser, such as Internet Explorer, to visit your favorite website.
Note: If you cannot access the Internet when your computer is connected to one of the
NBG6616’s LAN ports, check your connections. Then turn the NBG6616 off, wait for
a few seconds then turn it back on. If that does not work, log in to the web
configurator again and check you have typed all information correctly. See the
User’s Guide for more suggestions.
NBG6616 User’s Guide
28
Figure 15 Congratulations
Chapter 3 Connection Wizard
You can also click GO to open the Easy Mode Web Configurator of your NBG6616.
You have successfully set up your NBG6616 to operate on your network and access the Internet.
You are now ready to connect wirelessly to your NBG6616 and access the Internet.
NBG6616 User’s Guide
29
4.1 Overview
This chapter introduces the different modes available on your NBG6616. First, the term “mode”
refers to two things in this User’s Guide.
• Web Configurator mode. This refers to the Web Configurator interface you want to use for
editing NBG6616 features.
• Device mode. This is the operating mode of your NBG6616, or simply how the NBG6616 is
being used in the network.
4.1.1 Web Configurator Modes
This refers to the configuration interface of the Web Configurator, which has two modes:
CHAPTER 4
NBG6616 Modes
• Easy: The Web Configurator shows this mode by default. Refer to Chapter 5 on page 31 for more
information on the screens in this mode. This interface may be sufficient for users who just want
to use the device.
• Expert: Advanced users can change to this mode to customize all the functions of the NBG6616.
Click Expert Mode after logging into the Web Configurator. The User’s Guide Chapter 2 on page
17 through Chapter 25 on page 182 discusses the screens in this mode.
4.1.2 Device Modes
This refers to the operating mode of the NBG6616, which can act as a:
• Router: This is the default device mode of the NBG6616. Use this mode to connect the local
network to another network, like the Internet. Go to Section 6.2 on page 42 to view the Status
screen in this mode.
• Access Point: Use this mode if you want to extend your network by allowing network devices to
connect to the NBG6616 wirelessly. Go to Section 7.4 on page 51 to view the Status screen in
this mode.
For more information on these modes and to change the mode of your NBG6616, refer to Chapter
25 on page 182.
The menu for changing device modes is available in Expert Mode only.
Note: Choose your device mode carefully to avoid having to change it later.
When changing to another mode, the IP address of the NBG6616 changes. The running applications
and services of the network devices connected to the NBG6616 can be interrupted.
NBG6616 User’s Guide
30
5.1 Overview
Network Map
Control Panel
Go to
Status
Screen
Navigation Panel
The Web Configurator is set to Easy Mode by default. You can configure several key features of the
NBG6616 in this mode. This mode is useful to users who are not fully familiar with some features
that are usually intended for network administrators.
When you log in to the Web Configurator, the following screen opens.
Figure 16 Easy Mode: Network Map
CHAPTER 5
Easy Mode
Click Status to open the following screen.
NBG6616 User’s Guide
31
Chapter 5 Easy Mode
Control Panel
Status Screen
Go to
Network
Map
Screen
Navigation Panel
Figure 17 Easy Mode: Status Screen
5.2 What You Can Do
You can do the following in this mode:
•Use this Navigation Panel to opt out of the Easy mode (Section 5.4 on page 32).
•Use the Network Map screen to check if your NBG6616 can ping the gateway and whether it is
connected to the Internet (Section 5.5 on page 33).
•Use the Control Panel to configure and enable NBG6616 features, including wireless security,
wireless scheduling and bandwidth management and so on (Section 5.6 on page 34).
•Use the Status Screen to view read-only information about the NBG6616, including the WAN IP,
MAC address of the NBG6616 and the firmware version (Section 5.7 on page 40).
5.3 What You Need to Know
Between the different device modes, the Control Panel (Section 5.6 on page 34) changes
depending on which features are applicable to the mode:
• Router Mode: All Control Panel features are available.
• Access Point Mode: Only Power Saving and Wireless Security are available.
5.4 Navigation Panel
Use this navigation panel to opt out of the Easy mode.
NBG6616 User’s Guide
32
Figure 18 Control Panel
The following table describes the labels in this screen.
Table 11 Control Panel
ITEM DESCRIPTION
Home Click this to go to the Login page.
Expert Mode Click this to change to Expert Mode and customize features of the NBG6616.
Logout Click this to end the Web Configurator session.
5.5 Network Map
Note: The Network MAP is viewable by Windows XP (need to install patch), Windows
Vista and Windows 7 users only. For Windows XP (Service Pack 2) users, you can
see the network devices connected to the NBG6616 by downloading the LLTD (Link
Layer Topology Discovery) patch from the Microsoft Website.
Chapter 5 Easy Mode
Note: Don’t worry if the Network Map does not display in your web browser. This feature
may not be supported by your system. You can still configure the Control Panel
(Section 5.6 on page 34) in the Easy Mode and the NBG6616 features that you
want to use in the Expert Mode.
When you log into the Web Configurator, the Network Map is shown as follows.
Figure 19 Network Map
NBG6616 User’s Guide
33
The line connecting the NBG6616 to the gateway becomes green when the NBG6616 is able to ping
the gateway. It becomes red when the ping initiating from the NBG6616 does not get a response
from the gateway. The same rule applies to the line connecting the gateway to the Internet.
You can also view the devices (represented by icons indicating the kind of network device, such as
android device, apple device or Windows OS) connected to the NBG6616, including those
connecting wirelessly. Click the Refresh button or right-click on the NBG6616 icon to refresh the
network map and go to the Wizard. Click on a device icon and select to view information about the
device, block or allow the device’s access to the NBG6616, or view the parental control rules.
5.6 Control Panel
The features configurable in Easy Mode are shown in the Control Panel.
Figure 20 Control Panel
Chapter 5 Easy Mode
Switch ON to enable the feature. Otherwise, switch OFF. If the feature is turned on, the green light
flashes. If it is turned off, the red light flashes.
Additionally, click the feature to open a screen where you can edit its settings.
The following table describes the labels in this screen.
Table 12 Control Panel
ITEM DESCRIPTION
Game Engine Switch ON to maximize bandwidth for gaming traffic in your network. Otherwise,
switch OFF.
Refer to Section 5.6.1 on page 35 to see this screen.
Power Saving Click this to schedule the wireless feature of the NBG6616.
Disabling the wireless function helps lower the energy consumption of the
NBG6616.
Switch ON to apply wireless scheduling. Otherwise, switch OFF.
Refer to Section 5.6.2 on page 35 to see this screen.
Parental Control Click this to restrict access to certain websites, based on keywords contained in
URLs, to which you do not want users in your network to open.
Switch ON to apply website filtering. Otherwise, switch OFF.
Refer to Section 5.6.3 on page 36 to see this screen.
Bandwidth MGMT Click this to edit bandwidth management for predefined applications.
Switch ON to have the NBG6616 management bandwidth for uplink and downlink
traffic according to an application or service. Otherwise, switch OFF.
Refer to Section 5.6.4 on page 37 to see this screen.
NBG6616 User’s Guide
34
Table 12 Control Panel (continued)
ITEM DESCRIPTION
Firewall Switch ON to ensure that your network is protected from Denial of Service (DoS)
Wireless Security Click this to configure the wireless security, such as SSID, security mode and WPS
5.6.1 Game Engine
When this feature is enabled, the NBG6616 maximizes the bandwidth for gaming traffic that
it forwards out through an interface.
Figure 21 Game Engine
Chapter 5 Easy Mode
attacks. Otherwise, switch OFF.
Refer to Section 5.6.5 on page 38 to see this screen.
key on your NBG6616.
Refer to Section 5.6.6 on page 38 to see this screen.
Note: When this is switched on, the Game Console tab in the Bandwidth Mgmt screen
is automatically positioned on top.
Turn this off if your network is not using gaming.
Click OK to close this screen.
5.6.2 Power Saving
Use this screen to set the day of the week and time of the day when your wireless LAN is turned on
and off. Wireless LAN scheduling is disabled by default.
Disabling the wireless capability lowers the energy consumption of the of the NBG6616.
NBG6616 User’s Guide
35
Chapter 5 Easy Mode
Figure 22 Power Saving
The following table describes the labels in this screen.
Table 13 Power Saving
LABEL DESCRIPTION
Wireless Radio Choose whether you want to apply the power saving schedule to 2.4G Hz or 5G Hz
WLAN Status Select On or Off to specify whether the Wireless LAN is turned on or off (depending on
Day Select Everyday or the specific days to turn the Wireless LAN on or off.
For the following
times (24-Hour
Format)
Apply Click Apply to save your changes back to the NBG6616.
Cancel Click Cancel to close this screen without saving any changes.
5.6.3 Parental Control
Use this screen to view the parental control rules configured on the NBG6616. See Chapter 19 on
page 138 for how to enable and configure parental control rules.
wireless radio.
what you selected in the WLAN Status field). This field works in conjunction with the
Day and For the following times fields.
If you select Everyday you can not select any specific days. This field works in
conjunction with the For the following times field.
Select a begin time using the first set of hour and minute (min) drop down boxes and
select an end time using the second set of hour and minute (min) drop down boxes. If
you have chosen On earlier for the WLAN Status the Wireless LAN will turn on between
the two times you enter in these fields. If you have chosen Off earlier for the WLAN
Status the Wireless LAN will turn off between the two times you enter in these fields.
In this time format, midnight is 00:00 and progresses up to 24:00. For example, 6:00
PM is 18:00.
NBG6616 User’s Guide
36
Chapter 5 Easy Mode
Figure 23 Parental Control
The following table describes the labels in this screen.
Table 14 Parental Control
LABEL DESCRIPTION
Status This indicates whether the rule is active or not.
A yellow bulb signifies that this rule is active. A gray bulb signifies that this rule is not
active.
Network User
(MAC)
Internet Access
Schedule
Network Service This shows whether the network service is configured. If not, NONE will be shown.
Website Blocked This shows whether the website block is configured. If not, NONE will be shown.
This shows the MAC address of the LAN user’s computer to which this rule applies.
This shows the day(s) and time when parental controls are enabled.
5.6.4 Bandwidth MGMT
Use this screen to set bandwidth allocation to pre-defined services and applications for bandwidth
allocation.
The NBG6616 uses bandwidth management for incoming and outgoing traffic. Rank the services
and applications by dragging them accordingly from High to Low and click Apply. Click Cancel to
close the screen.
NBG6616 User’s Guide
37
Figure 24 Bandwidth MGNT
Use your mouse
to drag the items
according to how
you want to
prioritize them.
Left-click and
slide up or down.
5.6.5 Firewall
Chapter 5 Easy Mode
Enable this feature to protect the network from Denial of Service (DoS) attacks. The NBG6616
blocks repetitive pings from the WAN that can otherwise cause systems to slow down or hang. See
Chapter 17 on page 131 for how to enable and configure firewall rules.
Figure 25 Firewall
Click OK to close this screen.
5.6.6 Wireless Security
Use this screen to configure security for your the wireless LAN. You can enter the SSID and select
the wireless security mode in the following screen.
NBG6616 User’s Guide
38
Chapter 5 Easy Mode
Note: You can enable the wireless function of your NBG6616 by first turning on the switch
in the back panel.
Figure 26 Wireless Security
The following table describes the general wireless LAN labels in this screen.
Table 15 Wireless Security
LABEL DESCRIPTION
Wireless Radio Choose whether you want to apply the wireless security to 2.4G Hz or 5G Hz wireless
radio.
Wireless
Network Name
(SSID)
Security mode Select WPA2-PSK to add security on this wireless network. The wireless clients which
Wireless
password
Verify password Type the password again to confirm.
Apply Click Apply to save your changes back to the NBG6616.
Cancel Click Cancel to close this screen.
WPS Click this to configure the WPS screen.
(Service Set IDentity) The SSID identifies the Service Set with which a wireless station is
associated. Wireless stations associating to the access point (AP) must have the same
SSID. Enter a descriptive name (up to 32 keyboard characters) for the wireless LAN.
want to associate to this network must have same wireless security settings as this device.
After you select to use a security, additional options appears in this screen.
Select No Security to allow any client to connect to this network without authentication.
This field appears when you choose wither WPA2-PSK as the security mode.
Type a pre-shared key from 8 to 63 case-sensitive keyboard characters.
You can transfer the wireless settings configured here (Wireless Security screen) to
another wireless device that supports WPS.
5.6.7 WPS
Use this screen to add a wireless station to the network using WPS. Click WPS in the Wireless
Security to open the following screen.
NBG6616 User’s Guide
39
Chapter 5 Easy Mode
Figure 27 Wireless Security: WPS
The following table describes the labels in this screen.
Table 16 Wireless Security: WPS
LABEL DESCRIPTION
Wireless Security Click this to go back to the Wireless Security screen.
WPS Create a secure wireless network simply by pressing a button.
The NBG6616 scans for a WPS-enabled device within the range and performs wireless
security information synchronization.
Note: After you click the WPS button on this screen, you have to press a similar button in
the wireless station utility within 2 minutes. To add the second wireless station, you
have to press these buttons on both device and the wireless station again after the
first 2 minutes.
Register Create a secure wireless network simply by entering a wireless client's PIN (Personal
Identification Number) in the NBG6616’s interface and pushing this button.
Type the same PIN number generated in the wireless station’s utility. Then click Register
to associate to each other and perform the wireless security information synchronization.
Exit Click Exit to close this screen.
5.7 Status Screen in Easy Mode
In the Network Map screen, click Status to view read-only information about the NBG6616.
NBG6616 User’s Guide
40
Chapter 5 Easy Mode
Figure 28 Status Screen in Easy Mode
The following table describes the labels in this screen.
Table 17 Status Screen in Easy Mode
ITEM DESCRIPTION
Name This is the name of the NBG6616 in the network. You can change this in the
Maintenance > General screen in Section 25.3 on page 174.
Time This is the current system date and time.
The date is in YYYY:MM:DD (Year-Month-Day) format. The time is in HH:MM:SS
(Hour:Minutes:Seconds) format.
WAN IP This is the IP address of the WAN port.
MAC Address This is the MAC address of the NBG6616.
Firmware Version This shows the firmware version of the NBG6616.
The firmware version format shows the trunk version, model code and release
number.
Wireless 2.4G Network
Name (SSID)
Wireless 5G Network
Name (SSID)
Security This shows the wireless security used by the NBG6616.
This shows the SSID of the wireless network. You can configure this in the Wireless
Security screen (Section 5.6.6 on page 38; Section 11.2 on page 89).
NBG6616 User’s Guide
41
6.1 Overview
Modem
The NBG6616 is set to router mode by default. Routers are used to connect the local network to
another network (for example, the Internet). In the figure below, the NBG6616 connects the local
network (LAN1 ~ LAN4) to the Internet.
Figure 29 NBG6616 Network
CHAPTER 6
Router Mode
Note: The Status screen is shown after changing to the Expert Mode of the Web
Configurator. It varies depending on the device mode of your NBG6616.
6.2 Router Mode Status Screen
Click to open the status screen.
NBG6616 User’s Guide
42
Chapter 6 Router Mode
Figure 30 Status Screen: Router Mode
The following table describes the icons shown in the Status screen.
Table 18 Status Screen Icon Key
ICON DESCRIPTION
Logout Click this at any time to exit the Web Configurator.
Click this icon to view copyright and a link for related product information.
Click this icon to go to Easy Mode. See Chapter 5 on page 31.
Select a number of seconds or None from the drop-down list box to refresh all screen statistics
automatically at the end of every time interval or to not refresh the screen statistics.
Click this button to refresh the status screen statistics.
NBG6616 User’s Guide
43
Chapter 6 Router Mode
Table 18 Status Screen Icon Key (continued)
ICON DESCRIPTION
Click this icon to see the Status page. The information in this screen depends on the device
mode you select.
Click this icon to see the Monitor navigation menu.
Click this icon to see the Configuration navigation menu.
Click this icon to see the Maintenance navigation menu.
The following table describes the labels shown in the Status screen.
Table 19 Status Screen: Router Mode
LABEL DESCRIPTION
Device Information
Host Name This is the System Name you enter in the Maintenance > General screen. It is for
Model Number This is the model name of your device.
Firmware Version This is the firmware version and the date created.
Sys OP Mode This is the device mode (Section 4.1.2 on page 30) to which the NBG6616 is set - Router
WAN Information
MAC Address This shows the WAN Ethernet adapter MAC Address of your device.
IP Address This shows the WAN port’s IP address.
IP Subnet Mask This shows the WAN port’s subnet mask.
Default Gateway This shows the WAN port’s gateway IP address.
IPv6 Address This shows the IPv6 address of the NBG6616 on the WAN.
LAN Information
MAC Address This shows the LAN Ethernet adapter MAC Address of your device.
IP Address This shows the LAN port’s IP address.
IP Subnet Mask This shows the LAN port’s subnet mask.
DHCP This shows the LAN port’s DHCP role - Server or Disable.
IPv6 Address This shows the IPv6 address of the NBG6616 on the LAN.
WLAN 2.4G Information
WLAN OP Mode This is the device mode (Section 4.1.2 on page 30) to which the NBG6616’s wireless LAN is
MAC Address This shows the 2.4GHz wireless adapter MAC Address of your device.
SSID This shows a descriptive name used to identify the NBG6616 in the 2.4GHz wireless LAN.
Channel This shows the channel number which you select manually.
Security This shows the level of wireless security the NBG6616 is using.
WLAN 5G Information
MAC Address This shows the 5GHz wireless adapter MAC Address of your device.
SSID This shows a descriptive name used to identify the NBG6616 in the 5GHz wireless LAN.
Channel This shows the channel number which you select manually.
Security This shows the level of wireless security the NBG6616 is using.
identification purposes.
Mode.
set - Access Point Mode.
NBG6616 User’s Guide
44
Chapter 6 Router Mode
Table 19 Status Screen: Router Mode (continued)
LABEL DESCRIPTION
Firewall This shows whether the firewall is enabled or not.
Summary
Packet Statistics Click Details... to go to the Monitor > Packet Statistics screen (Section 9.5 on page 71).
Use this screen to view port status and packet specific statistics.
WLAN 2.4G Station
Status
WLAN 5G Station Status Click Details... to go to the Monitor > WLAN 5G Station Status screen (Section 9.6 on
System Status
Item This column shows the type of data the NBG6616 is recording.
Data This column shows the actual data recorded by the NBG6616.
System Up Time This is the total time the NBG6616 has been on.
Current Date/Time This field displays your NBG6616’s present date and time.
System Resource
- CPU Usage This displays what percentage of the NBG6616’s processing ability is currently used. When
- Memory Usage This shows what percentage of the heap memory the NBG6616 is using.
Interface Status
Interface This displays the NBG6616 port types. The port types are: WAN, LAN and WLAN.
Status For the LAN and WAN ports, this field displays Down (line is down) or Up (line is up or
Rate For the LAN ports, this displays the port speed and duplex setting or N/A when the line is
Click Details... to go to the Monitor > WLAN 2.4G Station Status screen (Section 9.6 on
page 72). Use this screen to view the wireless stations that are currently associated to the
NBG6616’s 2.4GHz wireless LAN.
page 72). Use this screen to view the wireless stations that are currently associated to the
NBG6616’s 5GHz wireless LAN.
this percentage is close to 100%, the NBG6616 is running at full load, and the throughput is
not going to improve anymore. If you want some applications to have more throughput, you
should turn off other applications (for example, using bandwidth management.)
connected).
For the 2.4GHz/5GHz WLAN, it displays Up when the 2.4GHz/5GHz WLAN is enabled or
Down when the 2.4G/5G WLAN is disabled.
disconnected.
For the WAN port, it displays the port speed and duplex setting if you’re using Ethernet
encapsulation. This field displays N/A when the line is disconnected.
For the 2.4GHz/5GHz WLAN, it displays the maximum transmission rate when the 2.4GHz/
5GHz WLAN is enabled and N/A when the WLAN is disabled.
6.2.1 Navigation Panel
Use the sub-menus on the navigation panel to configure NBG6616 features.
NBG6616 User’s Guide
45
Chapter 6 Router Mode
Figure 31 Navigation Panel: Router Mode
The following table describes the sub-menus.
Table 20 Navigation Panel: Router Mode
LINK TAB FUNCTION
Status This screen shows the NBG6616’s general device, system and interface
status information. Use this screen to access the wizard, and summary
statistics tables.
MONITOR
Log Use this screen to view the list of activities recorded by your NBG6616.
DHCP Table Use this screen to view current DHCP client information.
Packet Statistics Use this screen to view port status and packet specific statistics.
WLAN 2.4G
Station Status
WLAN 5G
Station Status
CONFIGURATION
Network
WAN Internet
Connection
Advanced Use this screen to configure other advanced properties.
Use this screen to view the wireless stations that are currently associated
to the NBG6616’s 2.4GHz wireless LAN.
Use this screen to view the wireless stations that are currently associated
to the NBG6616’s 5GHz wireless LAN.
This screen allows you to configure ISP parameters, WAN IP address
assignment, DNS servers and the WAN MAC address.
NBG6616 User’s Guide
46
Chapter 6 Router Mode
Table 20 Navigation Panel: Router Mode (continued)
LINK TAB FUNCTION
Wireless LAN
2.4G/5G
LAN IP Use this screen to configure LAN IP address and subnet mask.
DHCP Server General Use this screen to enable the NBG6616’s DHCP server.
NAT General Use this screen to enable NAT.
Dynamic
DNS
Static Route Static Route Use this screen to configure IP static routes.
Security
Firewall General Use this screen to activate/deactivate the firewall.
Content
Filter
Parental
Control
IPv6 firewall Services Use this screen to configure IPv6 firewall rules.
Management
Bandwidth
Management
Remote
Management
General Use this screen to enable the wireless LAN and configure wireless LAN and
wireless security settings.
More AP Use this screen to configure multiple BSSs on the NBG6616.
MAC Filter Use the MAC filter screen to configure the NBG6616 to block access to
devices or block the devices from accessing the NBG6616.
Advanced This screen allows you to configure advanced wireless settings.
QoS Use this screen to configure Wi-Fi Multimedia Quality of Service (WMM
WPS Use this screen to configure WPS.
WPS Station Use this screen to add a wireless station using WPS.
Scheduling Use this screen to schedule the times the Wireless LAN is enabled.
IP Alias Use this screen to have the NBG6616 apply IP alias to create LAN subnets.
IPv6 LAN Use this screen to configure the IPv6 address for the NBG6616 on the LAN.
Advanced Use this screen to assign IP addresses to specific individual computers
Client List Use this screen to view information related to your DHCP status.
Port
Forwarding
Port Trigger Use this screen to change your NBG6616’s port triggering settings.
Dynamic DNS Use this screen to set up dynamic DNS.
Services This screen shows a summary of the firewall rules, and allows you to edit/
Content Filter Use this screen to restrict web features and designate a trusted computer.
General Use this screen to enable bandwidth management.
Advanced Use this screen to set the upstream bandwidth and edit a bandwidth
WWW Use this screen to configure through which interface(s) and from which IP
Teln et Use this screen to configure through which interface(s) and from which IP
Wake On LAN Use this screen to enable Wake on LAN to remotely turn on a device on the
QoS). WMM QoS allows you to prioritize wireless traffic according to the
delivery requirements of individual services.
based on their MAC addresses and to have DNS servers assigned by the
DHCP server.
Use this screen to configure servers behind the NBG6616 and forward
incoming service requests to the server(s) on your local network.
add a firewall rule.
Use this screen to block certain web features and sites containing certain
keywords in the URL.
management rule.
address(es) users can use HTTP to manage the NBG6616.
address(es) users can use Telnet to manage the NBG6616.
local network.
NBG6616 User’s Guide
47
Chapter 6 Router Mode
Table 20 Navigation Panel: Router Mode (continued)
LINK TAB FUNCTION
UPnP UPnP Use this screen to enable UPnP on the NBG6616.
USB Media
Sharing
MAINTENANCE
General General Use this screen to view and change administrative settings such as system
Password Password
Time Time Setting Use this screen to change your NBG6616’s time and date.
Firmware
Upgrade
Backup/
Restore
Restart System
Language Language This screen allows you to select the language you prefer.
Sys OP Mode Sys OP Mode This screen allows you to select whether your device acts as a router, or an
DLNA Use this screen to have the NBG6616 function as a DLNA-compliant media
server, that lets DLNA-compliant media clients play video, audio, and photo
content files stored on the connected USB storage device.
SAMBA Use this screen to enable file sharing through the NBG6616.
FTP Use this screen to have the NBG6616 act as a FTP server.
and domain names.
Use this screen to change the password of your NBG6616.
Setup
Firmware
Upgrade
Backup/
Restore
Restart
Use this screen to upload firmware to your NBG6616.
Use this screen to backup and restore the configuration or reset the factory
defaults to your NBG6616.
This screen allows you to reboot the NBG6616 without turning the power
off.
access point.
NBG6616 User’s Guide
48
7.1 Overview
Use your NBG6616 as an access point (AP) if you already have a router or gateway on your
network. In this mode your NBG6616 bridges a wired network (LAN) and wireless LAN (WLAN) in
the same subnet. See the figure below for an example.
Figure 32 Wireless Internet Access in Access Point Mode
CHAPTER 7
Access Point Mode
Many screens that are available in Router Mode are not available in Access Point Mode, such as
bandwidth management and firewall.
7.2 What You Can Do
•Use the Status screen to view read-only information about your NBG6616 (Section 7.4 on page
51).
•Use the LAN screen to set the IP address for your NBG6616 acting as an access point (Section
7.5 on page 53).
7.3 What You Need to Know
See Chapter 8 on page 56 for a tutorial on setting up a network with the NBG6616 as an access
point.
NBG6616 User’s Guide
49
Chapter 7 Access Point Mode
7.3.1 Setting your NBG6616 to AP Mode
1 Log into the Web Configurator if you haven’t already. See the Quick start Guide for instructions on
how to do this.
2 To use your NBG6616 as an access point, go to Maintenance > Sys OP Mode and select Access
Point Mode.
Figure 33 Changing to Access Point mode
Note: You have to log in to the Web Configurator again when you change modes. As soon
as you do, your NBG6616 is already in Access Point mode.
3 When you select Access Point Mode, the following pop-up message window appears.
Figure 34 Pop up for Access Point mode
Click OK. Then click Apply. The Web Configurator refreshes once the change to Access Point mode
is successful.
7.3.2 Accessing the Web Configurator in Access Point Mode
Log in to the Web Configurator in Access Point mode, do the following:
1 Connect your computer to the LAN port of the NBG6616.
2 The default IP address of the NBG6616 is “192.168.1.2”. In this case, your computer must have an
IP address in the range between “192.168.1.3” and “192.168.1.254”.
3 Click Start > Run on your computer in Windows. Type “cmd” in the dialog box. Enter “ipconfig” to
show your computer’s IP address. If your computer’s IP address is not in the correct range then see
Appendix B on page 200 for information on changing your computer’s IP address.
4 After you’ve set your computer’s IP address, open a web browser such as Internet Explorer and
type “192.168.1.2” as the web address in your web browser.
NBG6616 User’s Guide
50
Chapter 7 Access Point Mode
Note: After clicking Login, the Easy Mode appears. Refer to Section on page 31 for the
Easy Mode screens. Change to Expert Mode to see the screens described in the
sections following this.
7.3.3 Configuring your WLAN and Maintenance Settings
The configuration of wireless and maintenance settings in Access Point Mode is the same as for
Router Mode.
•See Chapter 11 on page 84 for information on the configuring your wireless network.
•See Chapter 25 on page 174 for information on configuring your Maintenance settings.
7.4 AP Mode Status Screen
Click to open the Status screen.
Figure 35 Status Screen: Access Point Mode
NBG6616 User’s Guide
51
Chapter 7 Access Point Mode
The following table describes the labels shown in the Status screen.
Table 21 Status Screen: Access Point Mode
LABEL DESCRIPTION
Device Information
Host Name This is the System Name you enter in the Maintenance > General screen. It is for
Model Number This is the model name of your device.
Firmware Version This is the firmware version and the date created.
Sys OP Mode This is the device mode (Section 4.1.2 on page 30) to which the NBG6616 is set - AP Mode.
LAN Information
MAC Address This shows the LAN Ethernet adapter MAC Address of your device.
IP Address This shows the LAN port’s IP address.
IP Subnet Mask This shows the LAN port’s subnet mask.
DHCP This shows the LAN port’s DHCP role - Client or None.
IPv6 Address This shows the IPv6 address of the NBG6616 on the LAN.
WLAN 2.4G Information
WLAN OP Mode This is the device mode (Section 4.1.2 on page 30) to which the NBG6616’s wireless LAN is
MAC Address This shows the 2.4GHz wireless adapter MAC Address of your device.
SSID This shows a descriptive name used to identify the NBG6616 in the 2.4GHz wireless LAN.
Channel This shows the channel number which you select manually.
Security This shows the level of wireless security the NBG6616 is using.
WLAN 5G Information
MAC Address This shows the 5GHz wireless adapter MAC Address of your device.
SSID This shows a descriptive name used to identify the NBG6616 in the 5GHz wireless LAN.
Channel This shows the channel number which you select manually.
Security This shows the level of wireless security the NBG6616 is using.
Summary
Packet Statistics Click Details... to go to the Monitor > Packet Statistics screen (Section 9.5 on page 71).
WLAN 2.4G Station
Status
WLAN 5G Station Status Click Details... to go to the Monitor > WLAN 5G Station Status screen (Section 9.6 on
System Status
Item This column shows the type of data the NBG6616 is recording.
Data This column shows the actual data recorded by the NBG6616.
System Up Time This is the total time the NBG6616 has been on.
Current Date/Time This field displays your NBG6616’s present date and time.
System Resource
- CPU Usage This displays what percentage of the NBG6616’s processing ability is currently used. When
identification purposes.
set - Access Point Mode.
Use this screen to view port status and packet specific statistics.
Click Details... to go to the Monitor > WLAN 2.4G Station Status screen (Section 9.6 on
page 72). Use this screen to view the wireless stations that are currently associated to the
NBG6616’s 2.4GHz wireless LAN.
page 72). Use this screen to view the wireless stations that are currently associated to the
NBG6616’s 5GHz wireless LAN.
this percentage is close to 100%, the NBG6616 is running at full load, and the throughput is
not going to improve anymore. If you want some applications to have more throughput, you
should turn off other applications (for example, using bandwidth management.)
NBG6616 User’s Guide
52
Chapter 7 Access Point Mode
Table 21 Status Screen: Access Point Mode (continued)
LABEL DESCRIPTION
- Memory Usage This shows what percentage of the heap memory the NBG6616 is using.
Interface Status
Interface This displays the NBG6616 port types. The port types are: LAN and WLAN.
Status For the LAN ports, this field displays Down (line is down) or Up (line is up or connected).
For the 2.4GHz/5GHz WLAN, it displays Up when the 2.4GHz/5GHz WLAN is enabled or
Down when the 2.4G/5G WLAN is disabled.
Rate For the LAN ports, this displays the port speed and duplex setting or N/A when the line is
disconnected.
For the 2.4GHz/5GHz WLAN, it displays the maximum transmission rate when the 2.4GHz/
5GHz WLAN is enabled and N/A when the WLAN is disabled.
7.4.1 Navigation Panel
Use the menu in the navigation panel to configure NBG6616 features in Access Point Mode.
Figure 36 Menu: Access Point Mode
Refer to Table 20 on page 46 for descriptions of the labels shown in the navigation panel.
7.5 LAN Screen
Use this section to configure your LAN settings while in Access Point Mode.
Click Network > LAN to see the screen below.
Note: If you change the IP address of the NBG6616 in the screen below, you will need to
log into the NBG6616 again using the new IP address.
NBG6616 User’s Guide
53
Chapter 7 Access Point Mode
Figure 37 Network > LAN > IP
The table below describes the labels in the screen.
Table 22 Network > LAN > IP
LABEL DESCRIPTION
Obtain an IP Address
Automatically
When you enable this, the NBG6616 gets its IP address from the network’s DHCP
server (for example, your ISP). Users connected to the NBG6616 can now access
the network (i.e., the Internet if the IP address is given by the ISP).
The Web Configurator may no longer be accessible unless you know the IP address
assigned by the DHCP server to the NBG6616. You need to reset the NBG6616 to
be able to access the Web Configurator again (see Section 25.7 on page 179 for
details on how to reset the NBG6616).
Also when you select this, you cannot enter an IP address for your NBG6616 in the
field below.
Static IP Address Click this if you want to specify the IP address of your NBG6616. Or if your ISP or
network administrator gave you a static IP address to access the network or the
Internet.
IP Address Type the IP address in dotted decimal notation. The default setting is 192.168.1.2.
If you change the IP address you will have to log in again with the new IP address.
Subnet Mask The subnet mask specifies the network number portion of an IP address. Your
NBG6616 will automatically calculate the subnet mask based on the IP address that
you assign. Unless you are implementing subnetting, use the subnet mask
computed by the NBG6616.
Gateway IP Address Enter a Gateway IP Address (if your ISP or network administrator gave you one)
in this field.
DNS Assignment
NBG6616 User’s Guide
54
Chapter 7 Access Point Mode
Table 22 Network > LAN > IP (continued)
LABEL DESCRIPTION
First DNS Server
Second DNS Server
Third DNS Server
Apply Click Apply to save your changes to the NBG6616.
Cancel Click Cancel to reload the previous configuration for this screen.
Select Obtained From ISP if your ISP dynamically assigns DNS server information
(and the NBG6616's WAN IP address). The field to the right displays the (readonly) DNS server IP address that the ISP assigns.
Select User-Defined if you have the IP address of a DNS server. Enter the DNS
server's IP address in the field to the right. If you chose User-Defined, but leave
the IP address set to 0.0.0.0, User-Defined changes to None after you click
Apply. If you set a second choice to User-Defined, and enter the same IP
address, the second User-Defined changes to None after you click Apply.
Select None if you do not want to configure DNS servers. If you do not configure a
DNS server, you must know the IP address of a computer in order to access it.
NBG6616 User’s Guide
55
CHAPTER 8
8.1 Overview
This chapter provides tutorials for setting up your NBG6616.
• Set Up a Wireless Network Using WPS
• Connect to Wireless Networks without WPS
• Using Multiple SSIDs on the NBG6616
8.2 Set Up a Wireless Network Using WPS
This section gives you an example of how to set up wireless network using WPS. This example uses
the NBG6616 as the AP and NWD210N as the wireless client which connects to a notebook.
Tutorials
Note: The wireless client must be a WPS-aware device (for example, a WPS USB adapter
or PCI card).
There are two WPS methods for creating a secure connection via the web configurator or utility.
This tutorial shows you how to do both.
• Push Button Configuration (PBC) - create a secure wireless network simply by pressing a
button. See Section 8.2.1 on page 56. This is the easier method.
• PIN Configuration - create a secure wireless network simply by entering a wireless client's PIN
(Personal Identification Number) in the NBG6616’s interface. See Section 8.2.2 on page 57. This
is the more secure method, since one device can authenticate the other.
8.2.1 Push Button Configuration (PBC)
1 Make sure that your NBG6616 is turned on. Make sure the WIFI button (at the back panel of the
NBG6616) is pushed in, and that the device is placed within range of your notebook.
2 Make sure that you have installed the wireless client (this example uses the NWD210N) driver and
utility in your notebook.
3 In the wireless client utility, find the WPS settings. Enable WPS and press the WPS button (Start or
WPS button)
4 Log into NBG6616’s Web Configurator and press the Push Button in the Configuration >
Network > Wireless LAN 2.4G > WPS Station screen.
NBG6616 User’s Guide
56
Chapter 8 Tutorials
Wireless Client
Access Point
SECURITY INFO
COMMUNICATION
WITHIN 2 MINUTES
Note: Your NBG6616 has a WPS button located on its panel, as well as a WPS button in its
configuration utility. Both buttons have exactly the same function; you can use one
or the other.
Note: It doesn’t matter which button is pressed first. You must press the second button
within two minutes of pressing the first one.
The NBG6616 sends the proper configuration settings to the wireless client. This may take up to
two minutes. Then the wireless client is able to communicate with the NBG6616 securely.
The following figure shows you an example to set up wireless network and security by pressing a
button on both NBG6616 and wireless client (the NWD210N in this example).
Figure 38 Example WPS Process: PBC Method
8.2.2 PIN Configuration
When you use the PIN configuration method, you need to use both NBG6616’s configuration
interface and the client’s utilities.
1 Launch your wireless client’s configuration utility. Go to the WPS settings and select the PIN method
to get a PIN number.
2 Enter the PIN number to the PIN field in the Configuration > Network > Wireless LAN 2.4G >
WPS Station screen on the NBG6616.
NBG6616 User’s Guide
57
Chapter 8 Tutorials
WITHIN 2 MINUTES
Wireless Client
Access Point
3 Click Start buttons (or button next to the PIN field) on both the wireless client utility screen and the
NBG6616’s WPS Station screen within two minutes.
The NBG6616 authenticates the wireless client and sends the proper configuration settings to the
wireless client. This may take up to two minutes. Then the wireless client is able to communicate
with the NBG6616 securely.
The following figure shows you the example to set up wireless network and security on NBG6616
and wireless client (ex. NWD210N in this example) by using PIN method.
Figure 39 Example WPS Process: PIN Method
8.3 Connect to Wireless Networks without WPS
This example shows you how to configure wireless security settings with the following parameters
on your NBG6616.
SSID SSID_Example3
Channel 6
Security WPA2-PSK
(Pre-Shared Key: ThisismyWPA-PSKpre-sharedkey)
Follow the steps below to configure the wireless settings on your NBG6616.
NBG6616 User’s Guide
58
Chapter 8 Tutorials
The instructions require that your hardware is connected (see the Quick Start Guide) and you are
logged into the Web Configurator through your LAN connection (see Section 2.2 on page 17).
1 Make sure the WIFI switch (at the back panel of the NBG6616) is set to ON.
2 Open the Configuration > Network > Wireless LAN 2.4G > General screen in the AP’s Web
Configurator.
3 Confirm that the wireless LAN is enabled on the NBG6616.
4 Enter SSID_Example3 as the SSID and select Channel-06 as the channel. Set security mode to
WPA2-PSK and enter ThisismyWPA-PSKpre-sharedkey in the Pre-Shared Key field. Click
Apply.
NBG6616 User’s Guide
59
Chapter 8 Tutorials
5 Open the Status screen. Verify your wireless and wireless security settings under Device
Information and check if the WLAN connection is up under Interface Status.
8.3.1 Configure Your Notebook
Note: In this example, we use the ZyXEL NWD6505 wireless adapter as the wireless
client and use the Windows built-in utility (Windows Zero Configuration (WZC)) to
connect to the wireless netwok.
1 The NBG6616 supports IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n and IEEE
802.11ac wireless clients. Make sure that your notebook or computer’s wireless adapter supports
one of these standards.
2 Wireless adapters come with software sometimes called a “utility” that you install on your
computer. See your wireless adapter’s User’s Guide for information on how to do that.
NBG6616 User’s Guide
60
Chapter 8 Tutorials
3 After you’ve installed the driver and attached the NWD6505 to your computer’s USB port, right-
click the Wireless Network Connection icon in your computer’s system tray, select and click
View Available Wireless Networks.
4 The Wireless Network Connection screen displays. Click Refresh network list to view the
available wireless APs within range.
5 Select SSID_Example3 and click Connect.
6 Type the security key in the following screen. Click Connect.
NBG6616 User’s Guide
61
Chapter 8 Tutorials
7 Check the status of your wireless connection in the screen below.
8 If the wireless client keeps trying to connect to or acquiring an IP address from the NBG6616, make
sure you entered the correct security key.
If the connection has limited or no connectivity, make sure the DHCP server is enabled on the
NBG6616.
If your connection is successful, open your Internet browser and enter http://www.zyxel.com or the
URL of any other web site in the address bar. If you are able to access the web site, your wireless
connection is successfully configured.
8.4 Using Multiple SSIDs on the NBG6616
You can configure more than one SSID on a NBG6616. See Section 11.4 on page 97.
This allows you to configure multiple independent wireless networks on the NBG6616 as if there
were multiple APs (virtual APs). Each virtual AP has its own SSID, wireless security type and MAC
filtering settings. That is, each SSID on the NBG6616 represents a different access point/wireless
network to wireless clients in the network.
Clients can associate only with the SSIDs for which they have the correct security settings. Clients
using different SSIDs can access the Internet and the wired network behind the NBG6616 (such as
a printer).
NBG6616 User’s Guide
62
Chapter 8 Tutorials
A
B
C
SSID_Guest
SSID_Worker
SSID_VoIP
For example, you may set up three wireless networks (A, B and C) in your office. A is for workers,
B is for guests and C is specific to a VoIP device in the meeting room.
8.4.1 Configuring Security Settings of Multiple SSIDs
The NBG6616 is in router mode by default.
This example shows you how to configure the SSIDs with the following parameters on your
NBG6616 (in router mode).
SSID SECURITY TYPE KEY MAC FILTERING
SSID_Worker WPA2-PSK
WPA Compatible
SSID_VoIP WPA-PSK VoIPOnly12345678 Allow
SSID_Guest WPA-PSK keyexample123 Disable
1 Connect your computer to the LAN port of the NBG6616 using an Ethernet cable.
2 The default IP address of the NBG6616 in router mode is “192.168.1.1”. In this case, your
computer must have an IP address in the range between “192.168.1.2” and “192.168.1.254”.
3 Click Start > Run on your computer in Windows. Type “cmd” in the dialog box. Enter “ipconfig” to
show your computer’s IP address. If your computer’s IP address is not in the correct range then see
Appendix B on page 200 for information on changing your computer’s IP address.
DoNotStealMyWirelessNetwork Disable
00:A0:C5:01:23:45
4 After you’ve set your computer’s IP address, open a web browser such as Internet Explorer and
type “http://192.168.1.1” as the web address in your web browser.
5 Enter “1234” (default) as the password and click Login.
NBG6616 User’s Guide
63
Chapter 8 Tutorials
6 Type a new password and retype it to confirm, then click Apply. Otherwise, click Ignore.
7 The Easy Mode appears. Click Expert Mode in the navigation panel.
8 Go to Configuration > Network > Wireless LAN 2.4G > More AP. Click the Edit icon of the first
entry to configure wireless and security settings for SSID_Worker.
9 Configure the screen as follows. In this example, you enable Intra-BSS Traffic for SSID_Worker
to allow wireless clients in the same wireless network to communicate with each other. Click Apply.
10 Click the Edit icon of the second entry to configure wireless and security settings for SSID_VoIP.
NBG6616 User’s Guide
64
Chapter 8 Tutorials
11 Configure the screen as follows. You do not enable Intra-BSS Traffic for SSID_VoIP. Click Apply.
12 Click the Edit icon of the third entry to configure wireless and security settings for SSID_Guest.
13 Configure the screen as follows. In this example, you enable Intra-BSS Traffic for SSID_Guest to
allow wireless clients in the same wireless network to communicate with each other. Select Enable
Guest WLAN to allow clients to access the Internet only. Click Apply.
NBG6616 User’s Guide
65
Chapter 8 Tutorials
14 Click the MAC Filter tab to configure MAC filtering for the SSID_VoIP wireless network. Select
SSID_VoIP from the SSID Select drop-down list, enable MAC address filtering and set the Filter
Action to Allow. Enter the VoIP device’s MAC address in the Mac Address field and click Apply to
allow only the VoIP device to associate with the NBG6616 using this SSID.
NBG6616 User’s Guide
66
Chapter 8 Tutorials
NBG6616 User’s Guide
67
PART II
Technical Reference
68
9.1 Overview
This chapter discusses read-only information related to the device state of the NBG6616.
To access the Monitor screens, go to Expert Mode after login, then click .
CHAPTER 9
Monitor
You can also click the links in the Summary table of the Status screen to view the packets sent/
received as well as the status of clients connected to the NBG6616.
9.2 What You Can Do
•Use the Log screen to see the logs for the activity on the NBG6616 (Section 9.3 on page 69).
•Use the DHCP Table screen to view information related to your DHCP status (Section 9.4 on
page 70).
•use the Packet Statistics screen to view port status, packet specific statistics, the "system up
time" and so on (Section 9.5 on page 71).
•Use the WLAN 2.4G/5G Station Status screen to view the wireless stations that are currently
associated to the NBG6616 (Section 9.6 on page 72).
9.3 The Log Screen
The Web Configurator allows you to look at all of the NBG6616’s logs in one location.
9.3.1 View Log
Use the View Log screen to see the logged messages for the NBG6616. The log wraps around and
deletes the old entries after it fills. Select what logs you want to see from the Display drop list. The
log choices depend on your settings in the Log Setting screen. Click Refresh to renew the log
screen. Click Clear Log to delete all the logs.
NBG6616 User’s Guide
69
Figure 40 View Log
Chapter 9 Monitor
You can configure which logs to display in the View Log screen. Go to the Log Setting screen and
select the logs you wish to display. Click Apply to save your settings. Click Cancel to start the
screen afresh.
Figure 41 Log Settings
9.4 DHCP Table
DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows individual clients to
obtain TCP/IP configuration at start-up from a server. You can configure the NBG6616’s LAN as a
DHCP server or disable it. When configured as a server, the NBG6616 provides the TCP/IP
configuration for the clients. If DHCP service is disabled, you must have another DHCP server on
that network, or else the computer must be manually configured.
Click Monitor > DHCP Table or Configuration > Network > DHCP Server > Client List. Readonly information here relates to your DHCP status. The DHCP table shows current DHCP client
NBG6616 User’s Guide
70
Chapter 9 Monitor
information (including MAC Address, and IP Address) of all network clients using the NBG6616’s
DHCP server.
Figure 42 Monitor > DHCP Table
The following table describes the labels in this screen.
Table 23 Monitor > DHCP Table
LABEL DESCRIPTION
# This is the index number of the host computer.
Status This field displays whether the connection to the host computer is up (a yellow bulb) or
Host Name This field displays the computer host name.
IP Address This field displays the IP address relative to the # field listed above.
MAC Address This field shows the MAC address of the computer with the name in the Host Name field.
down (a gray bulb).
Every Ethernet device has a unique MAC (Media Access Control) address which uniquely
identifies a device. The MAC address is assigned at the factory and consists of six pairs of
hexadecimal characters, for example, 00:A0:C5:00:00:02.
Reserve Select this if you want to reserve the IP address for this specific MAC address.
Apply Click Apply to save your changes back to the NBG6616.
Cancel Click Cancel to reload the previous configuration for this screen.
9.5 Packet Statistics
Click Monitor > Packet Statistics or the Packet Statistics (Details...) hyperlink in the Status
screen. Read-only information here includes port status, packet specific statistics and the "system
up time". The Poll Interval(s) field is configurable and is used for refreshing the screen.
NBG6616 User’s Guide
71
Chapter 9 Monitor
Figure 43 Monitor > Packet Statistics
The following table describes the labels in this screen.
Table 24 Monitor > Packet Statistics
LABEL DESCRIPTION
Port This is the NBG6616’s interface type.
Status For the LAN ports, this displays the port speed and duplex setting or Down when the
line is disconnected.
For the WAN port, it displays the port speed and duplex setting if you’re using Ethernet
encapsulation and Idle (line (ppp) idle), Dial (starting to trigger a call) and Drop
(dropping a call) if you're using PPPoE encapsulation. This field displays Down when
the line is disconnected.
For the 2.4GHz or 5GHz WLAN, it displays the maximum transmission rate when the
WLAN is enabled and Down when the WLAN is disabled.
TxPkts This is the number of transmitted packets on this port.
RxPkts This is the number of received packets on this port.
Collisions This is the number of collisions on this port.
Tx B/s This displays the transmission speed in bytes per second on this port.
Rx B/s This displays the reception speed in bytes per second on this port.
Up Time This is the total time the NBG6616 has been for each session.
System Up Time This is the total time the NBG6616 has been on.
Poll Interval(s) Enter the time interval in seconds for refreshing statistics in this field.
Set Interval Click this button to apply the new poll interval you entered in the Poll Interval(s)
field.
Stop Click Stop to stop refreshing statistics.
9.6 WLAN Station Status
Click Monitor > WLAN 2.4G/5G Station Status or the WLAN 2.4G/5G Station Status
(Details...) hyperlink in the Status screen. View the wireless stations that are currently associated
to the NBG6616’s 2.4GHz or 5GHz wireless network in the Association List. Association means
that a wireless client (for example, your network or computer with a wireless network card) has
connected successfully to the AP (or wireless router) using the same SSID, channel and security
settings.
NBG6616 User’s Guide
72
Chapter 9 Monitor
Figure 44 Monitor > WLAN Station Status
The following table describes the labels in this screen.
Table 25 Monitor > WLAN Station Status
LABEL DESCRIPTION
# This is the index number of an associated wireless station.
MAC Address This field displays the MAC address of an associated wireless station.
Association Time This field displays the time a wireless station first associated with the NBG6616’s WLAN.
NBG6616 User’s Guide
73
10.1 Overview
This chapter discusses the NBG6616’s WAN screens. Use these screens to configure your NBG6616
for Internet access.
A WAN (Wide Area Network) connection is an outside connection to another network or the
Internet. It connects your private networks such as a LAN (Local Area Network) and other
networks, so that a computer in one location can communicate with computers in other locations.
Figure 45 LAN and WAN
CHAPTER 10
WAN
10.2 What You Can Do
•Use the Internet Connection screen to enter your ISP information and set how the computer
acquires its IP, DNS and WAN MAC addresses (Section 10.4 on page 76).
•Use the Advanced screen to enable multicasting, configure Windows networking and bridge
(Section 10.5 on page 82).
10.3 What You Need To Know
The information in this section can help you configure the screens for your WAN connection, as well
as enable/disable some advanced features of your NBG6616.
NBG6616 User’s Guide
74
Chapter 10 WAN
10.3.1 Configuring Your Internet Connection
Encapsulation Method
Encapsulation is used to include data from an upper layer protocol into a lower layer protocol. To set
up a WAN connection to the Internet, you need to use the same encapsulation method used by your
ISP (Internet Service Provider). If your ISP offers a dial-up Internet connection using PPPoE (PPP
over Ethernet) or PPTP (Point-to-Point Tunneling Protocol), they should also provide a username
and password (and service name) for user authentication.
WAN IP Address
The WAN IP address is an IP address for the NBG6616, which makes it accessible from an outside
network. It is used by the NBG6616 to communicate with other devices in other networks. It can be
static (fixed) or dynamically assigned by the ISP each time the NBG6616 tries to access the
Internet.
If your ISP assigns you a static WAN IP address, they should also assign you the subnet mask and
DNS server IP address(es) (and a gateway IP address if you use the Ethernet or ENET ENCAP
encapsulation method).
DNS Server Address Assignment
Use Domain Name System (DNS) to map a domain name to its corresponding IP address and vice
versa, for instance, the IP address of www.zyxel.com is 204.217.0.2. The DNS server is extremely
important because without it, you must know the IP address of a computer before you can access
it.
The NBG6616 can get the DNS server addresses in the following ways.
1 The ISP tells you the DNS server addresses, usually in the form of an information sheet, when you
sign up. If your ISP gives you DNS server addresses, manually enter them in the DNS server fields.
2 If your ISP dynamically assigns the DNS server IP addresses (along with the NBG6616’s WAN IP
address), set the DNS server fields to get the DNS server address from the ISP.
WAN MAC Address
The MAC address screen allows users to configure the WAN port's MAC address by either using the
factory default or cloning the MAC address from a computer on your LAN. Choose Factory Default
to select the factory assigned default MAC Address.
Otherwise, click Clone the computer's MAC address - IP Address and enter the IP address of
the computer on the LAN whose MAC you are cloning. Once it is successfully configured, the
address will be copied to configuration file. It is recommended that you clone the MAC address prior
to hooking up the WAN Port.
NBG6616 User’s Guide
75
Chapter 10 WAN
Multicast
Traditionally, IP packets are transmitted in one of either two ways - Unicast (1 sender - 1 recipient)
or Broadcast (1 sender - everybody on the network). Multicast delivers IP packets to a group of
hosts on the network - not everybody and not just 1.
Figure 46 Multicast Example
In the multicast example above, systems A and D comprise one multicast group. In multicasting,
the server only needs to send one data stream and this is delivered to systems A and D.
IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to establish membership
in a multicast group - it is not used to carry user data. The NBG6616 supports both IGMP version 1
(IGMP-v1) and IGMP version 2 (IGMP-v2).
At start up, the NBG6616 queries all directly connected networks to gather group membership.
After that, the NBG6616 periodically updates this information. IP multicasting can be enabled/
disabled on the NBG6616 WAN interface in the Web Configurator (WAN). Select None to disable IP
multicasting on these interfaces.
10.4 Internet Connection
Use this screen to change your NBG6616’s Internet access settings. Click Network > WAN from
the Configuration menu. The screen differs according to the encapsulation you choose.
10.4.1 IPoE Encapsulation
This screen displays when you select IPoE encapsulation.
NBG6616 User’s Guide
76
Chapter 10 WAN
Figure 47 Network > WAN > Internet Connection: IPoE Encapsulation (IPv4 Only)
The following table describes the labels in this screen.
Table 26 Network > WAN > Internet Connection: IPoE Encapsulation
LABEL DESCRIPTION
ISP Parameters for Internet Access
Encapsulation You must choose the IPoE option when the WAN port is used as a regular Ethernet.
IPv4 / IPv6 Select IPv4 Only if you want the NBG6616 to run IPv4 only.
Select Dual Stack to allow the NBG6616 to run IPv4 and IPv6 at the same time.
Select IPv6 Only if you want the NBG6616 to run IPv6 only.
IP Address
NBG6616 User’s Guide
77
Chapter 10 WAN
Table 26 Network > WAN > Internet Connection: IPoE Encapsulation (continued)
LABEL DESCRIPTION
Obtain an IP
Address
Automatically
Static IP Address Select this option If the ISP assigned a fixed IP address.
IP Address Enter your WAN IP address in this field if you selected Static IP Address.
Subnet Mask Enter the Subnet Mask in this field.
Gateway IP
Address
MTU Size Enter the MTU (Maximum Transmission Unit) size for each packet. If a larger packet
6RD
Use IPv6 Rapid Deployment (6rd) when the local network uses IPv6 and the ISP has an IPv4 network. When
the NBG6616 has an IPv4 WAN address and you set IPv6/IPv4 mode to IPv4 Only, you can enable 6rd to
encapsulate IPv6 packets in IPv4 packets to cross the ISP’s IPv4 network.
The NBG6616 generates a global IPv6 prefix from its IPv4 WAN address and tunnels IPv6 traffic to the ISP’s
Border Relay router to connect to the native IPv6 Internet. The local network can also use IPv4 services. The
NBG6616 uses its configured IPv4 WAN IP to route IPv4 traffic to the IPv4 Internet.
This is available only when you select IPv4 Only in the IPv6/IPv4 field.
Enable 6RD Enable IPv6 rapid deployment to tunnel IPv6 traffic from the local network through the
Automatically
configured by
DHCPC
Manually Configured Select this if you have the IPv4 address of the relay server.
Border Relay IPv4
Address
Service Provider
IPv6 Prefix
Service Provider
IPv6 Prefix length
IPv4 mask length Enter the subnet mask number (1~32) for the IPv4 network.
DNS Server
First DNS Server
Second DNS Server
Third DNS Server
Select this option If your ISP did not assign you a fixed IP address. This is the default
selection.
Enter a Gateway IP Address (if your ISP gave you one) in this field.
arrives, the NBG6616 divides it into smaller fragments.
ISP’s IPv4 network.
Select this to have the NBG6616 detect the relay server’s IP address automatically
through DHCP.
Specify the relay server’s IPv4 address.
Enter an IPv6 prefix for tunneling IPv6 traffic to the ISP’s Border Relay router and
connecting to the native IPv6 Internet.
Enter the IPv6 prefix length.
An IPv6 prefix length specifies how many most significant bits (starting from the left) in
the address compose the network address.
Select Obtained From ISP if your ISP dynamically assigns DNS server information
(and the NBG6616's WAN IP address). The field to the right displays the (read-only)
DNS server IP address that the ISP assigns.
Select User-Defined if you have the IP address of a DNS server. Enter the DNS
server's IP address in the field to the right.
Select None if you do not want to configure DNS servers. If you do not configure a DNS
server, you must know the IP address of a computer in order to access it.
WAN MAC Address The MAC address section allows users to configure the WAN port's MAC address by
either using the NBG6616’s MAC address, copying the MAC address from a computer on
your LAN or manually entering a MAC address.
Factory default Select Factory default to use the factory assigned default MAC Address.
Clone the
computer’s MAC
address - IP
Address
Select Clone the computer's MAC address - IP Address and enter the IP address of
the computer on the LAN whose MAC you are cloning.
NBG6616 User’s Guide
78
Chapter 10 WAN
Table 26 Network > WAN > Internet Connection: IPoE Encapsulation (continued)
LABEL DESCRIPTION
Set WAN MAC
Address
IPv6 Address
This is not available when you select IPv4 Only in the IPv6/IPv4 field.
Obtain an IP
Address
Automatically
Static IP Address Select this if you have a fixed IPv6 address assigned by your ISP.
IPv6 Address Enter the IPv6 address assigned by your ISP.
Prefix length Enter the address prefix length to specify how many most significant bits in an IPv6
IPv6 Default
Gateway
IPv6 DNS server
This is not available when you select IPv4 Only in the IPv6/IPv4 field.
Obtain IPv6 DNS
info Automatically
Use the following
Static DNS IPv6
Address
IPv6 DNS Server Enter the IPv6 DNS server address assigned by the ISP.
Apply Click Apply to save your changes back to the NBG6616.
Cancel Click Cancel to begin configuring this screen afresh.
Select this option and enter the MAC address you want to use.
Select this if you want to obtain an IPv6 address from a DHCPv6 server.
address compose the network address.
Enter the IP address of the next-hop gateway. The gateway is a router or switch on the
same segment as your NBG6616's interface(s). The gateway helps forward packets to
their destinations.
Select this to have the NBG6616 get the IPv6 DNS server addresses from the ISP
automatically.
Select this to have the NBG6616 use the IPv6 DNS server addresses you configure
manually.
10.4.2 PPPoE Encapsulation
The NBG6616 supports PPPoE (Point-to-Point Protocol over Ethernet). PPPoE is an IETF standard
(RFC 2516) specifying how a personal computer (PC) interacts with a broadband modem (DSL,
cable, wireless, etc.) connection. The PPP over Ethernet option is for a dial-up connection using
PPPoE.
For the service provider, PPPoE offers an access and authentication method that works with existing
access control systems (for example Radius).
One of the benefits of PPPoE is the ability to let you access one of multiple network services, a
function known as dynamic service selection. This enables the service provider to easily create and
offer new IP services for individuals.
Operationally, PPPoE saves significant effort for both you and the ISP or carrier, as it requires no
specific configuration of the broadband modem at the customer site.
By implementing PPPoE directly on the NBG6616 (rather than individual computers), the computers
on the LAN do not need PPPoE software installed, since the NBG6616 does that part of the task.
Furthermore, with NAT, all of the LANs’ computers will have access.
NBG6616 User’s Guide
79
Chapter 10 WAN
This screen displays when you select PPPoE encapsulation.
Figure 48 Network > WAN > Internet Connection: PPPoE Encapsulation (IPv4 Only)
NBG6616 User’s Guide
80
Chapter 10 WAN
The following table describes the labels in this screen.
Table 27 Network > WAN > Internet Connection: PPPoE Encapsulation
LABEL DESCRIPTION
ISP Parameters for Internet Access
Encapsulation Select PPPoE if you connect to your Internet via dial-up.
IPv4 / IPv6 Select IPv4 Only if you want the NBG6616 to run IPv4 only.
Select Dual Stack to allow the NBG6616 to run IPv4 and IPv6 at the same time.
Select IPv6 Only if you want the NBG6616 to run IPv6 only.
PPP Information
PPP Username Type the user name given to you by your ISP.
PPP Password Type the password associated with the user name above.
MTU Size Enter the Maximum Transmission Unit (MTU) or the largest packet size per frame that
your NBG6616 can receive and process.
PPP Auto Connect Select this option if you do not want the connection to time out.
Idle Timeout
(second)
PPPoE Service
Name
WAN IP Address Assignment
Get automatically
from ISP
Use Fixed IP
Address
My WAN IP
Address
6RD
This value specifies the time in minutes that elapses before the router automatically
disconnects from the PPPoE server.
Enter the PPPoE service name specified in the ISP account.
Select this option If your ISP did not assign you a fixed IP address. This is the default
selection.
Select this option If the ISP assigned a fixed IP address.
Enter your WAN IP address in this field if you selected Use Fixed IP Address.
Use IPv6 Rapid Deployment (6rd) when the local network uses IPv6 and the ISP has an IPv4 network. When
the NBG6616 has an IPv4 WAN address and you set IPv6/IPv4 mode to IPv4 Only, you can enable 6rd to
encapsulate IPv6 packets in IPv4 packets to cross the ISP’s IPv4 network.
The NBG6616 generates a global IPv6 prefix from its IPv4 WAN address and tunnels IPv6 traffic to the ISP’s
Border Relay router to connect to the native IPv6 Internet. The local network can also use IPv4 services. The
NBG6616 uses its configured IPv4 WAN IP to route IPv4 traffic to the IPv4 Internet.
This is available only when you select IPv4 Only in the IPv6/IPv4 field.
Enable 6RD Enable IPv6 rapid deployment to tunnel IPv6 traffic from the local network through the
ISP’s IPv4 network.
Automatically
configured by
DHCPC
Manually
Configured
Border Relay IPv4
Address
Service Provider
IPv6 Prefix
Service Provider
IPv6 Prefix length
IPv4 mask length Enter the subnet mask number (1~32) for the IPv4 network.
Select this to have the NBG6616 detect the relay server’s IP address automatically
through DHCP.
Select this if you have the IPv4 address of the relay server.
Specify the relay server’s IPv4 address.
Enter an IPv6 prefix for tunneling IPv6 traffic to the ISP’s Border Relay router and
connecting to the native IPv6 Internet.
Enter the IPv6 prefix length.
An IPv6 prefix length specifies how many most significant bits (starting from the left) in
the address compose the network address.
NBG6616 User’s Guide
81
Chapter 10 WAN
Table 27 Network > WAN > Internet Connection: PPPoE Encapsulation (continued)
LABEL DESCRIPTION
DNS Server
First DNS Server
Second DNS
Server
Third DNS Server
WAN MAC Address The MAC address section allows users to configure the WAN port's MAC address by using
Factory default Select Factory default to use the factory assigned default MAC Address.
Clone the
computer’s MAC
address - IP
Address
Set WAN MAC
Address
IPv6 DNS server
This is not available when you select IPv4 Only in the IPv6/IPv4 field.
Obtain IPv6 DNS
info Automatically
Use the following
Static DNS IPv6
Address
IPv6 DNS Server Enter the IPv6 DNS server address assigned by the ISP.
Apply Click Apply to save your changes back to the NBG6616.
Cancel Click Cancel to begin configuring this screen afresh.
Select Obtained From ISP if your ISP dynamically assigns DNS server information (and
the NBG6616's WAN IP address). The field to the right displays the (read-only) DNS
server IP address that the ISP assigns.
Select User-Defined if you have the IP address of a DNS server. Enter the DNS server's
IP address in the field to the right. If you chose User-Defined, but leave the IP address
set to 0.0.0.0, User-Defined changes to None after you click Apply. If you set a second
choice to User-Defined, and enter the same IP address, the second User-Defined
changes to None after you click Apply.
Select None if you do not want to configure DNS servers. If you do not configure a DNS
server, you must know the IP address of a computer in order to access it.
the NBG6616’s MAC address, copying the MAC address from a computer on your LAN or
manually entering a MAC address.
Select Clone the computer's MAC address - IP Address and enter the IP address of
the computer on the LAN whose MAC you are cloning.
Select this option and enter the MAC address you want to use.
Select this to have the NBG6616 get the IPv6 DNS server addresses from the ISP
automatically.
Select this to have the NBG6616 use the IPv6 DNS server addresses you configure
manually.
10.5 Advanced WAN Screen
To change your NBG6616’s advanced WAN settings, click Network > WAN > Advanced. The
screen appears as shown.
NBG6616 User’s Guide
82
Chapter 10 WAN
Figure 49 Network > WAN > Advanced
The following table describes the labels in this screen.
Table 28 Network > WAN > Advanced
LABEL DESCRIPTION
Multicast Setup
Multicast Select IGMPv1/v2 to enable multicasting. This applies to traffic routed from the
WAN to the LAN.
Select None to disable this feature. This may cause incoming traffic to be dropped or
sent to all connected network devices.
Auto-Subnet Configuration
Enable Auto-IP-
Change mode
Select this option to have the NBG6616 change its LAN IP address to 10.0.0.1 or
192.168.1.1 accordingly when the NBG6616 gets a dynamic WAN IP address in the
same subnet as the LAN IP address 192.168.1.1 or 10.0.0.1.
The NAT, DHCP server and firewall functions on the NBG6616 are still available in this
mode.
Apply Click Apply to save your changes back to the NBG6616.
Cancel Click Cancel to begin configuring this screen afresh.
NBG6616 User’s Guide
83
11.1 Overview
This chapter discusses how to configure the wireless network settings in your NBG6616. The
NBG6616 is able to function both 2.4GHz and 5GHz network at the same time. You can have
different wireless and wireless security settings for 2.4GHz and 5GHz wireless LANs. Click
Configuration > Network > Wireless LAN 2.4G or Wireless LAN 5G to configure to do so.
See the appendices for more detailed information about wireless networks.
The following figure provides an example of a wireless network.
Figure 50 Example of a Wireless Network
CHAPTER 11
Wireless LAN
The wireless network is the part in the blue circle. In this wireless network, devices A and B are
called wireless clients. The wireless clients use the access point (AP) to interact with other devices
(such as the printer) or with the Internet. Your NBG6616 is the AP.
NBG6616 User’s Guide
84
11.1.1 What You Can Do
•Use the General screen to turn the wireless connection on or off, set up wireless security
between the NBG6616 and the wireless clients, and make other basic configuration changes
(Section 11.2 on page 89).
•Use the More AP screen to set up multiple wireless networks on your NBG6616 (Section 11.4 on
page 97).
•Use the MAC Filter screen to allow or deny wireless stations based on their MAC addresses from
connecting to the NBG6616 (Section 11.5 on page 100).
•Use the Advanced screen to allow intra-BSS networking and set the RTS/CTS Threshold (Section
11.6 on page 102).
•Use the QoS screen to ensure Quality of Service (QoS) in your wireless network (Section 11.7 on
page 102).
•Use the WPS screen to quickly set up a wireless network with strong security, without having to
configure security settings manually (Section 11.8 on page 103).
•Use the WPS Station screen to add a wireless station using WPS (Section 11.9 on page 105).
•Use the Scheduling screen to set the times your wireless LAN is turned on and off (Section
11.10 on page 105).
Chapter 11 Wireless LAN
11.1.2 What You Should Know
Every wireless network must follow these basic guidelines.
• Every wireless client in the same wireless network must use the same SSID.
The SSID is the name of the wireless network. It stands for Service Set IDentity.
• If two wireless networks overlap, they should use different channels.
Like radio stations or television channels, each wireless network uses a specific channel, or
frequency, to send and receive information.
• Every wireless client in the same wireless network must use security compatible with the AP.
Security stops unauthorized devices from using the wireless network. It can also protect the
information that is sent in the wireless network.
Wireless Security Overview
The following sections introduce different types of wireless security you can set up in the wireless
network.
SSID
Normally, the AP acts like a beacon and regularly broadcasts the SSID in the area. You can hide the
SSID instead, in which case the AP does not broadcast the SSID. In addition, you should change
the default SSID to something that is difficult to guess.
This type of security is fairly weak, however, because there are ways for unauthorized devices to
get the SSID. In addition, unauthorized devices can still see the information that is sent in the
wireless network.
NBG6616 User’s Guide
85
MAC Address Filter
Chapter 11 Wireless LAN
Every wireless client has a unique identification number, called a MAC address.1 A MAC address is
usually written using twelve hexadecimal characters
00:A0:C5:00:00:02. To get the MAC address for each wireless client, see the appropriate User’s
Guide or other documentation.
You can use the MAC address filter to tell the AP which wireless clients are allowed or not allowed to
use the wireless network. If a wireless client is allowed to use the wireless network, it still has to
have the correct settings (SSID, channel, and security). If a wireless client is not allowed to use the
wireless network, it does not matter if it has the correct settings.
This type of security does not protect the information that is sent in the wireless network.
Furthermore, there are ways for unauthorized devices to get the MAC address of an authorized
wireless client. Then, they can use that MAC address to use the wireless network.
2
; for example, 00A0C5000002 or
User Authentication
You can make every user log in to the wireless network before they can use it. This is called user
authentication. However, every wireless client in the wireless network has to support IEEE 802.1x
to do this.
For wireless networks, there are two typical places to store the user names and passwords for each
user.
• In the AP: this feature is called a local user database or a local database.
• In a RADIUS server: this is a server used in businesses more than in homes.
If your AP does not provide a local user database and if you do not have a RADIUS server, you
cannot set up user names and passwords for your users.
Unauthorized devices can still see the information that is sent in the wireless network, even if they
cannot use the wireless network. Furthermore, there are ways for unauthorized wireless users to
get a valid user name and password. Then, they can use that user name and password to use the
wireless network.
Local user databases also have an additional limitation that is explained in the next section.
Encryption
Wireless networks can use encryption to protect the information that is sent in the wireless
network. Encryption is like a secret code. If you do not know the secret code, you cannot
understand the message.
1. Some wireless devices, such as scanners, can detect wireless networks but cannot use wireless networks. These kinds
of wireless devices might not have MAC addresses.
2. Hexadecimal characters are 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, and F.
NBG6616 User’s Guide
86
Chapter 11 Wireless LAN
The types of encryption you can choose depend on the type of user authentication. (See page 86
for information about this.)
Table 29 Types of Encryption for Each Type of Authentication
NO AUTHENTICATION RADIUS SERVER
Weakest No Security WPA
Static WEP
WPA-PSK
Strongest WPA2-PSK WPA2
For example, if the wireless network has a RADIUS server, you can choose WPA or WPA2. If users
do not log in to the wireless network, you can choose no encryption, Static WEP, WPA-PSK, or
WPA2-PSK.
Usually, you should set up the strongest encryption that every wireless client in the wireless
network supports. For example, suppose the AP does not have a local user database, and you do
not have a RADIUS server. Therefore, there is no user authentication. Suppose the wireless network
has two wireless clients. Device A only supports WEP, and device B supports WEP and WPA.
Therefore, you should set up Static WEP in the wireless network.
Note: It is recommended that wireless networks use WPA-PSK, WPA, or stronger
encryption. IEEE 802.1x and WEP encryption are better than none at all, but it is
still possible for unauthorized devices to figure out the original information pretty
quickly.
Note: It is not possible to use WPA-PSK, WPA or stronger encryption with a local user
database. In this case, it is better to set up stronger encryption with no
authentication than to set up weaker encryption with the local user database.
When you select WPA2 or WPA2-PSK in your NBG6616, you can also select an option (WPA/
WPA-PSK Compatible) to support WPA/WPA-PSK as well. In this case, if some wireless clients
support WPA and some support WPA2, you should set up WPA2-PSK or WPA2 (depending on the
type of wireless network login) and select the WPA/WPA-PSK Compatible option in the
NBG6616.
Many types of encryption use a key to protect the information in the wireless network. The longer
the key, the stronger the encryption. Every wireless client in the wireless network must have the
same key.
Guest WLAN
Guest WLAN allows you to set up a wireless network where users can access to Internet via the
NBG6616 (Z), but not other networks connected to the Z. In the following figure, a guest user can
access the Internet from the guest wireless network A via Z but not the home or company network
N.
Note: The home or company network N and Guest WLAN network are independent
networks.
Note: Only Router mode supports guest WLAN.
NBG6616 User’s Guide
87
Chapter 11 Wireless LAN
N
A
Z
600 kbps
100 kbps
300 kbps
N
A
Figure 51 Guest Wireless LAN Network
Guest WLAN Bandwidth
The Guest WLAN Bandwidth function allows you to restrict the maximum bandwidth for the guest
wireless network. Additionally, you can also define bandwidth for your home or office network. An
example is shown next to define maximum bandwidth for your networks (A is Guest WLAN and N is
home or company network.)
Figure 52 Example: Bandwidth for Different Networks
WPS
WiFi Protected Setup (WPS) is an industry standard specification, defined by the WiFi Alliance. WPS
allows you to quickly set up a wireless network with strong security, without having to configure
security settings manually. Depending on the devices in your network, you can either press a
button (on the device itself, or in its configuration utility) or enter a PIN (Personal Identification
NBG6616 User’s Guide
88
Chapter 11 Wireless LAN
Number) in the devices. Then, they connect and set up a secure network by themselves. See how
to set up a secure wireless network using WPS in the Section 8.2 on page 56.
11.2 General Wireless LAN Screen
Use this screen to configure the SSID and wireless security of the wireless LAN.
Note: If you are configuring the NBG6616 from a computer connected to the wireless LAN
and you change the NBG6616’s SSID, channel or security settings, you will lose
your wireless connection when you press Apply to confirm. You must then change
the wireless settings of your computer to match the NBG6616’s new settings.
Click Network > Wireless LAN 2.4G/5G to open the General screen.
Figure 53 Network > Wireless LAN 2.4G/5G > General
The following table describes the general wireless LAN labels in this screen.
Table 30 Network > Wireless LAN 2.4G/5G > General
LABEL DESCRIPTION
Wireless LAN Select Enable to activate the 2.4GHz and/or 5GHz wireless LAN. Select Disable to turn it
off.
You can enable or disable both 2.4GHz and 5GHz wireless LANs by using the WIFI button
located on the back panel of the NBG6616.
Name (SSID) The SSID (Service Set IDentity) identifies the Service Set with which a wireless client is
Hide SSID Select this check box to hide the SSID in the outgoing beacon frame so a station cannot
associated. Enter a descriptive name (up to 32 printable characters found on a typical
English language keyboard) for the wireless LAN.
obtain the SSID through scanning using a site survey tool.
NBG6616 User’s Guide
89
Chapter 11 Wireless LAN
Table 30 Network > Wireless LAN 2.4G/5G > General (continued)
LABEL DESCRIPTION
Channel Selection Set the operating frequency/channel depending on your particular region.
Select a channel from the drop-down list box. The options vary depending on the
frequency band and the country you are in.
Refer to the Connection Wizard chapter for more information on channels. This option is
only available if Auto Channel Selection is disabled.
Auto Channel
Selection
Operating
Channel
Channel Width Select the wireless channel width used by NBG6616.
802.11 Mode If you are in the Wireless LAN 2.4G > General screen, you can select from the
Select this check box for the NBG6616 to automatically choose the channel with the least
interference. Deselect this check box if you wish to manually select the channel using the
Channel Selection field.
This displays the channel the NBG6616 is currently using.
A standard 20MHz channel offers transfer speeds of up to 144Mbps (2.4GHz) or 217Mbps
(5GHZ) whereas a 40MHz channel uses two standard channels and offers speeds of up to
300Mbps (2.4GHz) or 450Mbps (5GHZ).
Because not all devices support 40 MHz channels, select Auto 20/40MHz to allow the
NBG6616 to adjust the channel bandwidth automatically.
40MHz (channel bonding or dual channel) bonds two adjacent radio channels to increase
throughput. The wireless clients must also support 40 MHz. It is often better to use the 20
MHz setting in a location where the environment hinders the wireless signal.
Select 20MHz if you want to lessen radio interference with other wireless devices in your
neighborhood or the wireless clients do not support channel bonding.
following:
• 802.11b: allows either IEEE 802.11b or IEEE 802.11g compliant WLAN devices to
associate with the NBG6616. In this mode, all wireless devices can only transmit at
the data rates supported by IEEE 802.11b.
• 802.11g: allows IEEE 802.11g compliant WLAN devices to associate with the Device.
IEEE 802.11b compliant WLAN devices can associate with the NBG6616 only when
they use the short preamble type.
• 802.11bg: allows either IEEE 802.11b or IEEE 802.11g compliant WLAN devices to
associate with the NBG6616. The NBG6616 adjusts the transmission rate
automatically according to the wireless standard supported by the wireless devices.
• 802.11n: allows IEEE 802.11n compliant WLAN devices to associate with the
NBG6616. This can increase transmission rates, although IEEE 802.11b or IEEE
802.11g clients will not be able to connect to the NBG6616.
• 802.11gn: allows either IEEE 802.11g or IEEE 802.11n compliant WLAN devices to
associate with the NBG6616. The transmission rate of your NBG6616 might be
reduced.
• 802.11 bgn: allows IEEE802.11b, IEEE802.11g and IEEE802.11n compliant WLAN
devices to associate with the NBG6616. The transmission rate of your NBG6616 might
be reduced.
If you are in the Wireless LAN 5G > General screen, you can select from the following:
• 802.11a: allows only IEEE 802.11a compliant WLAN devices to associate with the
NBG6616.
• 802.11an: allows both IEEE802.11n and IEEE802.11a compliant WLAN devices to
associate with the NBG6616. The transmission rate of your NBG6616 might be
reduced.
NBG6616 User’s Guide
90
Table 30 Network > Wireless LAN 2.4G/5G > General (continued)
LABEL DESCRIPTION
Security Mode Select Static WEP, WPA-PSK, WPA, WPA2-PSK or WPA2 to add security on this
wireless network. The wireless clients which want to associate to this network must have
same wireless security settings as this device. After you select to use a security,
additional options appears in this screen. See Section 11.3 on page 91 for detailed
information on different security modes. Or you can select No Security to allow any
client to associate this network without authentication.
Note: If the WPS function is enabled (default), only No Security and WPA2-PSK are
available in this field.
Apply Click Apply to save your changes back to the NBG6616.
Cancel Click Cancel to reload the previous configuration for this screen.
See the rest of this chapter for information on the other labels in this screen.
11.3 Wireless Security
The screen varies depending on what you select in the Security Mode field.
Chapter 11 Wireless LAN
11.3.1 No Security
Select No Security to allow wireless clients to communicate with the access points without any
data encryption.
Note: If you do not enable any wireless security on your NBG6616, your network is
accessible to any wireless networking device that is within range.
Figure 54 Network > Wireless LAN 2.4G/5G > General: No Security
NBG6616 User’s Guide
91
The following table describes the labels in this screen.
Table 31 Network > Wireless LAN 2.4G/5G > General: No Security
LABEL DESCRIPTION
Security Mode Choose No Security from the drop-down list box.
Apply Click Apply to save your changes back to the NBG6616.
Cancel Click Cancel to reload the previous configuration for this screen.
11.3.2 WEP Encryption
WEP encryption scrambles the data transmitted between the wireless stations and the access points
to keep network communications private. It encrypts unicast and multicast communications in a
network. Both the wireless stations and the access points must use the same WEP key.
Your NBG6616 allows you to configure up to four 64-bit or 128-bit WEP keys but only one key can
be enabled at any one time.
Select Static WEP from the Security Mode list.
Chapter 11 Wireless LAN
NBG6616 User’s Guide
92
Chapter 11 Wireless LAN
Figure 55 Network > Wireless LAN 2.4G/5G > General: Static WEP
The following table describes the wireless LAN security labels in this screen.
Table 32 Network > Wireless LAN 2.4G/5G > General: Static WEP
LABEL DESCRIPTION
Security Mode Select Static WEP to enable data encryption.
PassPhrase Enter a Passphrase (up to 26 printable characters) and click Generate.
A passphrase functions like a password. In WEP security mode, it is further converted by
the NBG6616 into a complicated string that is referred to as the “key”. This key is
requested from all devices wishing to connect to a wireless network.
WEP Encryption Select 64-bits or 128-bits.
This dictates the length of the security key that the network is going to use.
Authentication
Method
Select Auto or Shared Key from the drop-down list box.
This field specifies whether the wireless clients have to provide the WEP key to login to
the wireless client. Keep this setting at Auto unless you want to force a key verification
before communication between the wireless client and the NBG6616 occurs.
Select Shared Key to force the clients to provide the WEP key prior to communication.
NBG6616 User’s Guide
93
Table 32 Network > Wireless LAN 2.4G/5G > General: Static WEP (continued)
LABEL DESCRIPTION
ASCII Select this option in order to enter ASCII characters as WEP key.
Hex Select this option in order to enter hexadecimal characters as a WEP key.
The preceding "0x", that identifies a hexadecimal key, is entered automatically.
Key 1 to Key 4 The WEP keys are used to encrypt data. Both the NBG6616 and the wireless stations
must use the same WEP key for data transmission.
If you chose 64-bits, then enter any 5 ASCII characters or 10 hexadecimal characters
("0-9", "A-F").
If you chose 128-bits, then enter 13 ASCII characters or 26 hexadecimal characters ("0-
9", "A-F").
You must configure at least one key, only one key can be activated at any one time. The
default key is key 1.
Apply Click Apply to save your changes back to the NBG6616.
Cancel Click Cancel to reload the previous configuration for this screen.
11.3.3 WPA-PSK/WPA2-PSK
Chapter 11 Wireless LAN
Select WPA-PSK or WPA2-PSK from the Security Mode list.
Figure 56 Network > Wireless LAN 2.4G/5G > General: WPA-PSK/WPA2-PSK
NBG6616 User’s Guide
94
The following table describes the labels in this screen.
Table 33 Network > Wireless LAN 2.4G/5G > General: WPA-PSK/WPA2-PSK
LABEL DESCRIPTION
Security Mode Select WPA-PSK or WPA2-PSK to enable data encryption.
WPA-PSK
Compatible
Pre-Shared Key WPA-PSK/WPA2-PSK uses a simple common password for authentication.
Group Key Update
Timer
Apply Click Apply to save your changes back to the NBG6616.
Cancel Click Cancel to reload the previous configuration for this screen.
11.3.4 WPA/WPA2
Chapter 11 Wireless LAN
This field appears when you choose WPA2-PSK as the Security Mode.
Check this field to allow wireless devices using WPA-PSK security mode to connect to
your NBG6616.
Type a pre-shared key from 8 to 63 case-sensitive keyboard characters.
The Group Key Update Timer is the rate at which the AP sends a new group key out to
all clients.
The default is 3600 seconds (60 minutes).
Select WPA or WPA2 from the Security Mode list.
Note: WPA or WPA2 is not available if you enable WPS before you configure WPA or WPA2
in the Wireless LAN 2.4G/5G > General screen.
NBG6616 User’s Guide
95
Chapter 11 Wireless LAN
Figure 57 Network > Wireless LAN 2.4G/5G > General: WPA/WPA2
The following table describes the labels in this screen.
Table 34 Network > Wireless LAN 2.4G/5G > General: WPA/WPA2
LABEL DESCRIPTION
Security Mode Select WPA or WPA2 to enable data encryption.
WPA Compatible This check box is available only when you select WPA2-PSK or WPA2 in the Security
Group Key Update
Timer
PMK Cache Period This field is available only when you select WPA2.
Mode field.
Select the check box to have both WPA2 and WPA wireless clients be able to
communicate with the NBG6616 even when the NBG6616 is using WPA2-PSK or WPA2.
The Group Key Update Timer is the rate at which the AP (if using WPA-PSK/
WPA2-PSK key management) or RADIUS server (if using WPA/WPA2 key
management) sends a new group key out to all clients. The re-keying process is the
WPA/WPA2 equivalent of automatically changing the WEP key for an AP and all
stations in a WLAN on a periodic basis. Setting of the Group Key Update Timer is
also supported in WPA-PSK/WPA2-PSK mode.
Specify how often wireless clients have to resend usernames and passwords in order
to stay connected. Enter a time interval between 10 and 999999 minutes.
Note: If wireless client authentication is done using a RADIUS server, the
reauthentication timer on the RADIUS server has priority.
NBG6616 User’s Guide
96
Chapter 11 Wireless LAN
Table 34 Network > Wireless LAN 2.4G/5G > General: WPA/WPA2 (continued)
LABEL DESCRIPTION
Pre-Authentication This field is available only when you select WPA2.
Pre-authentication enables fast roaming by allowing the wireless client (already
connecting to an AP) to perform IEEE 802.1x authentication with another AP before
connecting to it. Select Enable to turn on preauthentication in WAP2. Otherwise,
select Disable.
Authentication Server
IP Address Enter the IP address of the external authentication server in dotted decimal notation.
Port Number Enter the port number of the external authentication server.
You need not change this value unless your network administrator instructs you to do
so with additional information.
Shared Secret Enter a password (up to 127 alphanumeric characters) as the key to be shared
Session Timeout The NBG6616 automatically disconnects a wireless client from the wireless and wired
Apply Click Apply to save your changes back to the NBG6616.
Cancel Click Cancel to reload the previous configuration for this screen.
between the external authentication server and the NBG6616.
The key must be the same on the external authentication server and your NBG6616.
The key is not sent over the network.
networks after a period of inactivity. The wireless client needs to send the username
and password again before it can use the wireless and wired networks again. Some
wireless clients may prompt users for a username and password; other clients may
use saved login credentials. In either case, there is usually a short delay while the
wireless client logs in to the wireless network again.
Enter the time in seconds from 0 to 999999.
11.4 More AP Screen
This screen allows you to enable and configure multiple wireless networks and guest wireless
network settings on the NBG6616.
You can configure up to four SSIDs to enable multiple BSSs (Basic Service Sets) on the NBG6616.
This allows you to use one access point to provide several BSSs simultaneously. You can then
assign varying security types to different SSIDs. Wireless clients can use different SSIDs to
associate with the same access point.
Click Network > Wireless LAN 2.4G/5G > More AP. The following screen displays.
NBG6616 User’s Guide
97
Chapter 11 Wireless LAN
Figure 58 Network > Wireless LAN 2.4G/5G > More AP
The following table describes the labels in this screen.
Table 35 Network > Wireless LAN 2.4G/5G > More AP
LABEL DESCRIPTION
# This is the index number of each SSID profile.
Status This shows whether the SSID profile is active (a yellow bulb) or not (a gray bulb).
SSID An SSID profile is the set of parameters relating to one of the NBG6616’s BSSs. The SSID
(Service Set IDentifier) identifies the Service Set with which a wireless device is associated.
This field displays the name of the wireless profile on the network. When a wireless client
scans for an AP to associate with, this is the name that is broadcast and seen in the
wireless client utility.
Security This field indicates the security mode of the SSID profile.
Edit Click the Edit icon to configure the SSID profile.
11.4.1 More AP Edit
Use this screen to edit an SSID profile. Click the Edit icon next to an SSID in the More AP screen.
The following screen displays.
Figure 59 Network > Wireless LAN 2.4G/5G > More AP: Edit
NBG6616 User’s Guide
98
Chapter 11 Wireless LAN
Figure 60 Network > Wireless LAN 2.4G/5G > More AP: Edit (the last SSID)
The following table describes the labels in this screen.
Table 36 Network > Wireless LAN 2.4G/5G > More AP: Edit
LABEL DESCRIPTION
Active Select this to activate the SSID profile.
Name (SSID) The SSID (Service Set IDentity) identifies the Service Set with which a wireless client is
associated. Enter a descriptive name (up to 32 printable characters found on a typical
English language keyboard) for the wireless LAN.
Hide SSID Select this check box to hide the SSID in the outgoing beacon frame so a station cannot
obtain the SSID through scanning using a site survey tool.
Intra-BSS Traffic A Basic Service Set (BSS) exists when all communications between wireless clients or
between a wireless client and a wired network client go through one access point (AP).
Intra-BSS traffic is traffic between wireless clients in the BSS. When Intra-BSS is enabled,
wireless clients can access the wired network and communicate with each other. When
Intra-BSS is disabled, wireless clients can still access the wired network but cannot
communicate with each other.
WMM QoS Check this to have the NBG6616 automatically give a service a priority level according to
the ToS value in the IP header of packets it sends.
WMM QoS (Wifi MultiMedia Quality of Service) gives high priority to voice and video, which
makes them run more smoothly.
Enable Guest
WLAN
Select the check box to activate guest wireless LAN. This is available only for the last SSID
on the NBG6616.
Note: Only Router mode supports guest WLAN. AP mode, Universal Repeater mode, WISP
mode and WISP + Universal Repeater mode don’t support guest WLAN.
IP Address Type an IP address for the devices on the Guest WLAN using this as the gateway IP
IP Subnet
Mask
address.
Type the subnet mask for the guest wireless LAN.
NBG6616 User’s Guide
99
Chapter 11 Wireless LAN
Table 36 Network > Wireless LAN 2.4G/5G > More AP: Edit (continued)
LABEL DESCRIPTION
Enable
Bandwidth
Management
for Guest
WLAN
Maximum
Bandwidth
Security Mode Select Static WEP, WPA-PSK, WPA, WPA2-PSK or WPA2 to add security on this
Select this to turn on bandwidth management for the Guest WLAN network.
Enter a number to specify maximum bandwidth the Guest WLAN network can use.
wireless network. The wireless clients which want to associate to this network must have
same wireless security settings as this device. After you select to use a security, additional
options appears in this screen. See Section 11.3 on page 91 for detailed information on
different security modes. Or you can select No Security to allow any client to associate
this network without authentication.
Note: If the WPS function is enabled (default), only No Security and WPA2-PSK are
available in this field.
Apply Click Apply to save your changes back to the NBG6616.
Cancel Click Cancel to reload the previous configuration for this screen.
11.5 MAC Filter Screen
The MAC filter screen allows you to configure the NBG6616 to give exclusive access to devices
(Allow) or exclude devices from accessing the NBG6616 (Deny). Every Ethernet device has a
unique MAC (Media Access Control) address. The MAC address is assigned at the factory and
consists of six pairs of hexadecimal characters, for example, 00:A0:C5:00:00:02. You need to know
the MAC address of the devices to configure this screen.
To change your NBG6616’s MAC filter settings, click Network > Wireless LAN 2.4G/5G > MAC
Filter. The screen appears as shown.
NBG6616 User’s Guide
100
