23.1 Overview

This chapter provides information on the Maintenance screens.

23.2 What You Can Do

•Use the General screen to set the timeout period of the management session (Section 23.3 on

page 166).

•Use the Password screen to change your NBG6716’s system password (Section 23.4 on page

167).

•Use the Time screen to change your NBG6716’s time and date (Section 23.5 on page 168).

•Use the Firmware Upgrade screen to upload firmware to your NBG6716 (Section 23.6 on page

169).

•Use the Backup/Restore screen to view information related to factory defaults, backup configuration, and restoring configuration (Section 23.8 on page 172).

•Use the Restart screen to reboot the NBG6716 without turning the power off (Section 23.8 on

page 172).

•Use the Language screen to change the language for the Web Configurator (Section 23.9 on

page 172) .

•Use the Sys OP Mode screen to select how you want to use your NBG6716 (Section 23.11 on

page 174).

CHAPTER 23

Maintenance

23.3 General Screen

Use this screen to set the management session timeout period. Click Maintenance > General. The following screen displays.

Figure 118 Maintenance > General

NBG6716 User’s Guide 166

The following table describes the labels in this screen.

Ta ble 68 Maintenance > General

LABEL DESCRIPTION

System Name System Name is a unique name to identify the NBG6716 in an Ethernet network. Domain Name Enter the domain name you want to give to the NBG6716. Administrator

Inactivity Timer

Apply Click Apply to save your changes back to the NBG6716. Cancel Click Cancel to begin configuring this screen afresh.

T ype how many minutes a management session can be left idle before the session times out. The default is 5 minutes. After it times out you have to log in with your password again. Very long idle timeouts may have security risks. A value of "0" means a management session never times out, no matter how long it has been left idle (not recommended).

23.4 Password Screen

It is strongly recommended that you change your NBG6716's password.

Chapter 23 Maintenance

If you forget your NBG6716's password (or IP address), you will need to reset the device. See

Section 23.8 on page 172 for details.

Click Maintenance > Password. The screen appears as shown.

Figure 119 Maintenance > Password

The following table describes the labels in this screen.

Ta ble 69 Maintenance > Password

LABEL DESCRIPTION

Password Setup Change your NBG6716’s password (recommended) using the fields as shown. Old Password Type the default password or the existing password you use to access the system in

this field.

New Password Type your new system password (up to 30 characters). Note that as you type a

Retype to Confirm Type the new password again in this field. Apply Click Apply to save your changes back to the NBG6716. Cancel Click Cancel to begin configuring this screen afresh.

password, the screen displays an asterisk (*) for each character you type.

NBG6716 User’s Guide

167

Chapter 23 Maintenance

23.5 Time Setting Screen

Use this screen to configure the NBG6716’s time based on your local time zone. To change your NBG6716’s time and date, click Maintenance > Time. The screen appears as shown.

Figure 120 Maintenance > Time

The following table describes the labels in this screen.

Ta ble 70 Maintenance > Time

LABEL DESCRIPTION

Current Time and Date Current Time This field displays the time of your NBG6716.

Each time you reload this page, the NBG6716 synchronizes the time with the time server.

Current Date This field displays the date of your NBG6716.

Each time you reload this page, the NBG6716 synchronizes the date with the time

server. Current Time and Date Manual Select this radio button to enter the time and date manually. If you configure a new

time and date, Time Zone and Daylight Saving at the same time, the new time and date

you entered has priority and the Time Zone and Daylight Saving settings do not affect

it. New Time

(hh:mm:ss)

This field displays the last updated time from the time server or the last time

configured manually.

When you select Manual, enter the new time in t his field and then click Apply.

168

NBG6716 User’s Guide

Chapter 23 Maintenance

Ta ble 70 Maintenance > Time (continued)

LABEL DESCRIPTION

New Date (yyyy/mm/dd)

Get from Time Server

User Defined Time Server Address

Time Zone Setup Time Zone Choose the time zone of your location. This will set the time difference between your

Daylight Savings Daylight saving is a period from late spring to early fall when many countries set their

Start Date Configure the day and time when Daylight Saving Time starts if you selected Daylight

End Date Configure the day and time when Daylight Saving Time ends if you selected Daylight

This field displays the last updated date from the time server or the last date configured

manually.

When you select Manual, enter the new date in thi s field and then click Apply.

Select this radio button to have the NBG6716 get the time and date from the time

server you specified below.

Select User Defined Time Server Address and enter the IP address or URL (up to 20

extended ASCII characters in length) of your time server. Check with your ISP/network

administrator if you are unsure of this information.

time zone and Greenwich Mean Time (GMT).

clocks ahead of normal local time by one hour to give more daytime light in the

evening.

Select this option if you use Daylight Saving Time.

Savings. The at field uses the 24 hour format. Here are a couple of examples:

Daylight Saving Time starts in most parts of the United States on the second Sunday of

March. Each time zone in the United States starts using Daylight Saving Time at 2 A.M.

local time. So in the United States you would select Second, Sunday, March and

select 2 in the at field.

Daylight Saving Time starts in the European Union on the last Sunday of March. All of

the time zones in the European Union start using Daylight Saving Time at the same

moment (1 A.M. GMT or UTC). So in the European Union you would select Last,

Sunday, March. The ti me you select in the at field depends on your time zone. In

Germany for instance, you would select 2 because Germany's time zone is one hour

ahead of GMT or UTC (GMT+1).

Savings. The at field uses the 24 hour format. Here are a couple of examples:

Daylight Saving Time ends in the United States on the first Sunday of November. Each

time zone in the United States stops using Daylight Saving Time at 2 A.M . local time.

So in the United States you would select First, Sunday, November and select 2 in the

at field.

Daylight Saving Time ends in the European Union on the last Sunday of October. All of

the time zones in the European Union stop using Daylight Saving Time at the same

moment (1 A.M. GMT or UTC). So in the European Union you would select Last,

Sunday, October. The time you select in the at field depends on your time zone. In

Germany for instance, you would select 2 because Germany's time zone is one hour

ahead of GMT or UTC (GMT+1). Apply Click Apply to save your changes back to the NBG6716. Cancel Click Cancel to begin configuring this screen afresh.

23.6 Firmware Upgrade Screen

Find firmware at www.zyxel.com in a file that uses the version number and project code with a “*.bin” extension, e.g., “V1.00(AAKG.0).bin”. The upload process uses HTTP (Hypertext Transfer Protocol) and may take up to two minutes. After a successful upload, the system will reboot.

NBG6716 User’s Guide

169

Chapter 23 Maintenance

Click Maintenance > Firmware Upgrade. Follow the instructions in this screen to upload firmware to your NBG6716.

Figure 121 Maintenance > Firmware Upgrade

The following table describes the labels in this screen.

Ta ble 71 Maintenance > Firmware Upgrade

LABEL DESCRIPTION

File Path Type in the location of the file you want to upload in this field or click Browse... to find it. Browse... Click Browse... to find the .bin file you want to upload. Remember that you must

Upload Click Upload to begin the upload process. This process may take up to two minutes. Check for Latest

Firmware Now

decompress compressed (.zip) files before you can upload them.

Click this to check for the latest updated firmware.

Note: Do not turn off the NBG6716 while firmware upload is in progress!

After you see the Firmware Upload In Process screen, wait two minutes before logging into the NBG6716 again.

The NBG6716 automatically restarts in this time causing a temporary network disconnect. In some operating systems, you may see the following icon on your desktop.

Figure 122 Network Te mporarily Disconnected

After two minutes, log in again and check your new firmware version in the Status screen.

If the upload was not successful, an error message appears. Click Return to go back to the Firmware Upgrade screen.

170

NBG6716 User’s Guide

23.7 Configuration Backup/Restore Screen

Backup configuration allows you to back up (save) the NBG6716’s current configuration to a file on your computer. Once your NBG6716 is configured and functioning properly, it is highly recommended that you back up your configuration file before making configuration changes. The backup configuration file will be useful in case you need to return to your previous settings.

Restore configuration allows you to upload a new or previously saved configuration file from your computer to your NBG6716.

Click Maintenance > Backup/Restore. Information related to factory defaults, backup configuration, and restoring configuration appears as shown next.

Figure 123 Maintenance > Backup/Restore

Chapter 23 Maintenance

The following table describes the labels in this screen.

Ta ble 72 Maintenance > Backup/Restore

LABEL DESCRIPTION

Backup Click Backup to save the NBG6716’s current configuration to your computer. File Path Type in the location of the file you want to upload in this field or click Browse... to find it. Browse... Click Browse... to find the file you want to upload. Remember that you must decompress

NBG6716 User’s Guide

compressed (.ZIP) files before you can upload them.

171

Chapter 23 Maintenance

Ta ble 72 Maintenance > Backup/Restore (continued)

LABEL DESCRIPTION

Upload Click Upload to begin the upload process.

Reset Pressing the Reset button in this section clears all user-entered configuration information

Note: If you uploaded the default configuration file you may need to change the IP

address of your computer to be in the same subnet as that of the default NBG6716 IP address (192.168.1.1). See Appendix B on page 193 for details on how to set up your computer’s IP address.

Note: Do not turn off the NBG6716 while configuration file upload is in progress.

After you see a “configuration upload successful” screen, you must then wait one minute before logging into the NBG6716 again. The NBG6716 automatically restarts in this time causing a temporary network disconnect.

If you see an error screen, click Back to return to the Backup/Restore screen.

and returns the NBG6716 to its factory defaults. You can also press the RESET button on the rear panel t o reset the facto ry defaults of y our

NBG6716. Refer to the chapter about introducing the Web Configurator for more information on the RESET button.

23.8 Restart Screen

System restart allows you to reboot the NBG6716 without turning the power off.

Click Maintenance > Restart to open the following screen.

Figure 124 Maintenance > Restart

Click Restart to have the NBG6716 reboot. This does not affect the NBG6716's configuration.

23.9 Language Screen

Use this screen to change the language for the Web Configurator.

Select the language you prefer and click Apply. The Web Configurator language changes after a while without restarting the NBG6716.

172

NBG6716 User’s Guide

Figure 125 Maintenance > Language

23.10 System Operation Mode Overview

The Sys OP Mode (System Operation Mode) function lets you configure your NBG6716 as a router or access point. You can choose between Router Mode, and Access Point Mode depending on your network topology and the features you require from your device.

The following describes the device modes available in your NBG6716.

Router

A router connects your local network with another network, such as the Internet. The router has two IP addresses, the LAN IP address and the WAN IP address.

Chapter 23 Maintenance

Figure 126 LAN and WAN IP Addresses in Router Mode

Access Point

An access point enabled all ethernet ports to be bridged together and be in the same subnet. To connect to the Internet, another device, such as a router, is required.

NBG6716 User’s Guide

173

Chapter 23 Maintenance

Figure 127 Access Point Mode

23.11 Sys OP Mode Screen

Use this screen to select how you want to use your NBG6716.

Figure 128 Maintenance > Sys OP Mode

The following table describes the labels in the General screen.

Ta ble 73 Maintenance > Sys OP Mode

LABEL DESCRIPTION

Configuration Mode Router Mode Select Router Mode if your device routes traffic between a local network and

another network such as the Internet. This mode offers services such as a firewall or bandwidth management.

174

You can configure the IP address settings on your WAN port. Contact your ISP or system administrator for more information on appropriate settings.

NBG6716 User’s Guide

Chapter 23 Maintenance

Ta ble 73 Maintenance > Sys OP Mode (continued)

LABEL DESCRIPTION

Access Point Mode Select Access Point Mode if your device bridges traffic between clients on the

same network.

•In Access Point Mode, all Ethernet ports have the same IP address.

• All ports on the rear panel of the device are LAN ports, including the port labeled WAN. There is no WAN port.

• The DHCP server on your device is disabled.

• Router functions (such as NAT, bandwidth management, remote management, firewall and so on) are not available when the NBG6716 is in Access Point Mode.

• The IP address of the device on the local network is set to 192.168.1.2.

Apply Click Apply to save your settings. Cancel Click Cancel to return your settings to the default (Router).

Note: If you select the incorrect system operation Mode you may not be able to connect

to the Internet.

NBG6716 User’s Guide

175

24.1 Overview

This chapter offers some suggestions to solve problems you might encounter. The potential problems are divided into the following categories.

• Power, Hardware Connections, and LEDs

• NBG6716 Access and Login

• Internet Access

• Resetting the NBG6716 to Its Factory Defaults

• Wireless Connections

• USB Device Problems

• ZyXEL Share Center Utility Problems

CHAPTER 24

Troubleshooting

24.2 Power, Hardware Connections, and LEDs

The NBG6716 does not turn on. None of the LEDs turn on.

1 Make sure you are using the power adaptor or cord included with the NBG6716.

2 Make sure the power adaptor or cord is connected to the NBG6716 and plugged in to an appropriate

power source. Make sure the power source is turned on.

3 Disconnect and re-connect the power adaptor or cord to the NBG6716.

4 If the problem continues, contact the vendor.

One of the LEDs does not behave as expected.

1 Make sure you understand the normal behavior of the LED. See Section 1.7 on page 16.

2 Check the hardware connections. See the Quick Start Guide.

3 Inspect your cables for damage. Contact the vendor to replace any damaged cables.

NBG6716 User’s Guide 176

4 Disconnect and re-connect the power adaptor to the NBG6716.

5 If the problem continues, contact the vendor.

24.3 NBG6716 Access and Login

I don’t know the IP address of my NBG6716.

1 The default IP address of the NBG6716 in Router Mode is 192.168.1.1. The default IP address of

the NBG6716 in Access Point Mode is 192.168.1.2.

2 If you changed the IP address and have forgotten it, you might get the IP address of the NBG6716

in Router Mode by looking up the IP address of the default gateway for your computer. To do this in most Windows computers, click Start > Run, enter cmd, and then enter ipconfig. The IP address of the Default Gateway might be the IP address of the NBG6716 (it depends on the network), so enter this IP address in your Internet browser.

Chapter 24 Troubleshooting

3 If your NBG6716 in Access Point Mode is a DHCP client, you can find your IP address from the

DHCP server. This information is only available from the DHCP server which allocates IP addresses on your network. Find this information directly from the DHCP server or contact your system administrator for more information.

4 Reset your NBG6716 to change all settings back to their default. This means your current settings

are lost. See Section 24.5 on page 180 in the Troubleshooting for information on resetting your NBG6716.

I forgot the password.

1 The default password is 1234.

2 If this does not work, you have to reset the device to its factory defaults. See Section 24.5 on page

180.

I cannot see or access the Login screen in the Web Configurator.

1 Make sure you are using the correct IP address.

• The default IP address of the NBG6716 in Router Mode is 192.168.1.1. The default IP address of the NBG6716 in Access Point Mode is 192.168.1.2.

• If you changed the IP address (Section 12.4 on page 108), use the new IP address.

• If you changed the IP address and have forgotten it, see the troubleshooting suggestions for I

don’t know the IP address of my NBG6716.

NBG6716 User’s Guide

177

Chapter 24 Troubleshooting

2 Check the hardware connections, and make sure the LEDs are behaving as expected. See the Quick

Start Guide.

3 Make sure your Internet browser does not block pop-up windows and has JavaScript and Java

enabled. See Appendix A on page 184.

4 Make sure your computer is in the same subnet as the NBG6716. (If you know that there are

routers between your computer and the NBG6716, skip this step.)

• If there is a DHCP server on your network, make sure your computer is using a dynamic IP address. See Section 12.4 on page 108.

• If there is no DHCP server on your network, make sure your computer’s IP address is in the same subnet as the NBG6716. See Section 12.4 on page 108.

5 Reset the device to its factory defaults, and try to access the NBG6716 with the default IP address.

See Section 1.5 on page 15.

6 If the problem continues, contact the network administrator or vendor, or try one of the advanced

suggestions.

Advanced Suggestions

• Try to access the NBG6716 using another service, such as Telnet. If you can access the NBG6716, check the remote management settings and firewall rules to find out why the NBG6716 does not respond to HTTP.

• If your computer is connected to the WAN port or is connected wirelessly , use a computer that is connected to a LAN/ETHERNET port.

I can see the Login screen, but I cannot log in to the NBG6716.

1 Make sure you have entered the password correctly. The default password is 1234. This field is

case-sensitive, so make sure [Caps Lock] is not on.

2 This can happen when you fail to log out properly from your last session. Try logging in again after

5 minutes.

3 Disconnect and re-connect the power adaptor or cord to the NBG6716.

4 If this does not work, you have to reset the device to its factory defaults. See Section 24.5 on page

180.

24.4 Internet Access

I cannot access the Internet.

178

NBG6716 User’s Guide

Chapter 24 Troubleshooting

1 Check the hardware connections, and make sure the LEDs are behaving as expected. See the Quick

Start Guide.

2 Go to Maintenance > Sys OP Mode. Check your System Operation Mode setting.

• If the NBG6716 is in Router Mode, make sure the WAN port is connected to a broadband modem or router with Internet access. Your computer and the NBG6716 should be in the same subnet.

• If the NBG6716 is in Access Point Mode, make sure the WAN port is connected to a broadband modem or router with Internet access and your computer is set to obtain an dynamic IP address.

3 If the NBG6716 is in Router Mode, make sure you entered your ISP account information correctly

in the wizard or the WAN screen. These fields are case-sensitive, so make sure [Caps Lock] is not on.

4 If you are trying to access the Internet wirelessly, make sure the wireless settings in the wireless

client are the same as the settings in the AP.

5 Disconnect all the cables from your device, and follow the directions in the Quick Start Guide again.

6 If the problem continues, contact your ISP.

I cannot access the Internet anymore. I had access to the Internet (with the NBG6716), but my Internet connection is not available anymore.

1 Check the hardware connections, and make sure the LEDs are behaving as expected. See the Quick

Start Guide and Section 1.7 on page 16.

2 Reboot the NBG6716.

3 If the problem continues, contact your ISP.

The Internet connection is slow or intermittent.

1 There might be a lot of traffic on the network. Look at the LEDs, and check Section 1.7 on page 16.

If the NBG6716 is sending or receiving a lot of information, try closing some programs that use the Internet, especially peer-to-peer applications.

2 Check the signal strength. If the signal strength is low, try moving the NBG6716 closer to the AP if

possible, and look around to see if there are any devices that might be interfering with the wireless network (for example, microwaves, other wireless networks, and so on).

3 Reboot the NBG6716.

4 If the problem continues, contact the network administrator or vendor, or try one of the advanced

suggestions.

Advanced Suggestion

NBG6716 User’s Guide

179

Chapter 24 Troubleshooting

• Check the settings for QoS. If it is disabled, you might consider activating it.

24.5 Resetting the NBG6716 to Its Factory Defaults

If you reset the NBG6716, you lose all of the changes you have made. The NBG6716 re-loads its default settings, and the password resets to 1234. You have to make all of your changes again.

You will lose all of your changes when you push the RESET button.

To reset the NBG6716:

1 Make sure the power LED is on.

2 Press the RESET button for one to four seconds to restart/reboot the NBG6716.

3 Press the RESET button for longer than five seconds to set the NBG6716 back to its factory-default

configurations.

If the NBG6716 restarts automatically, wait for the NBG6716 to finish restarting, and log in to the Web Configurator. Th e passw ord is “1234”.

If the NBG6716 does not restart automatically, disconnect and reconnect the NBG6716’s power. Then, follow the directions above again.

24.6 Wireless Connections

I cannot access the NBG6716 or ping any computer from the WLAN.

1 Make sure the wireless LAN is enabled on the NBG6716.

2 Make sure the wireless adapter on your computer is working properly.

3 Make sure the wireless adapter installed on your computer is IEEE 802.11 compatible and supports

the same wireless standard as the NBG6716.

4 Make sure your computer (with a wireless adapter installed) is within the transmission range of the

NBG6716.

5 Check that both the NBG6716 and the wireless adapter on your computer are using the same

wireless and wireless security settings.

6 Make sure traffic between the WLAN and the LAN is not blocked by the firewall on the NBG6716.

180

NBG6716 User’s Guide

Chapter 24 Troubleshooting

7 Make sure you allow the NBG6716 to be remotely accessed through the WLAN interface. Check

your remote management settings.

• See the chapter on Wireless LAN in the User’s Guide for more information.

I set up URL keyword blocking, but I can still access a website that should be blocked.

Make sure that you select the Enable URL Keyword Blocking check box in the Content Filtering screen. Make sure that the keywords that you type are listed in the Keyword List.

If a keyword that is listed in the Keyword List is not blocked when it is found in a URL, customize the keyword blocking using commands. See the Customizing Keyword Blocking URL Checking section in the Content Filtering chapter.

I cannot access the Web Configurator after I switched to AP mode.

When you change from router mode to AP mode, your computer must have an IP address in the range between “192.168.1.3” and “192.168.1.254”.

Refer to Appendix B on page 193 for instructions on how to change your computer’s IP address.

What factors may cause intermittent or unstabled wireless connection? How can I solve this problem?

The following factors may cause interference:

• Obstacles: walls, ceilings, furniture, and so on.

• Building Materials: metal doors, aluminum studs.

• Electrical devices: microwaves, monitors, electric motors, cordless phones, and other wireless devices.

To optimize the speed and quality of your wireless connection, you can:

• Move your wireless device closer to the AP if the signal strength is low.

• Reduce wireless interference that may be caused by other wireless networks or surrounding wireless electronics such as cordless phones.

• Place the AP where there are minimum obstacles (such as walls and ceilings) between the AP and the wireless client.

• Reduce the number of wireless clients connecting to the same AP simultaneously, or add additional APs if necessary.

• Try closing some programs that use the Internet, especially peer-to-peer applications. If the wireless client is sending or receiving a lot of information, it may have too many programs open that use the Internet.

NBG6716 User’s Guide

181

Chapter 24 Troubleshooting

• Position the antennas for best reception. If the AP is placed on a table or floor, point the antennas upwards. If the AP is placed at a high position, point the antennas downwards. Try pointing the antennas in different directions and check which provides the strongest signal to the wireless clients.

24.7 USB Device Problems

I cannot access or see a USB device that is connected to the NBG6716.

1 Disconnect the problematic USB device, then reconnect it to the NBG6716.

2 Ensure that the USB device has power.

3 Check your cable connections.

4 Restart the NBG6716 by disconnecting the power and then reconnecting it.

5 If the USB device requires a special driver, install the driver from the installation disc that came

with the device. After driver installation, reconnect the USB device to the NBG6716 and try to connect to it again with your computer.

6 If the problem persists, contact your vendor.

What kind of USB devices do the NBG6716 support?

1 It is strongly recommended to use version 2.0 or lower USB storage devices (such as memory

sticks, USB hard drives) and/or USB devices (such as USB printers). Other USB products are not guaranteed to function properly with the NBG6716.

24.8 ZyXEL Share Center Utility Problems

I cannot access or see a USB device that is connected to the NBG6716.

1 Disconnect the problematic USB device, then reconnect it to the NBG6716.

2 Ensure that the USB device in question has power.

3 Check your cable connections.

4 Restart the NBG6716 by disconnecting the power and then reconnecting it.

182

NBG6716 User’s Guide

Chapter 24 Troubleshooting

5 If the USB device requires a special driver, install the driver from the installation disc that came

with the device. After driver installation, reconnect the USB device to the NBG6716 and try to connect to it again with your computer.

6 If the problem persists, contact your vendor.

I cannot install the ZyXEL Share Center Utility.

1 Make sure that the set up program is one required for your operating system.

2 Install the latest patches and updates for your operating system.

3 Check the zyxel.com download site for a newer version of the utility.

NBG6716 User’s Guide

183

Pop-up Windows, JavaScript and Java

In order to use the web configurator you need to allow:

• Web browser pop-up windows from your device.

• JavaScript (enabled by default).

• Java permissions (enabled by default).

Note: The screens used below belong to Internet Explorer version 6, 7 and 8. Screens for

other Internet Explorer versions may vary.

Internet Explorer Pop-up Blockers

You may have to disable pop-up blocking to log into your device.

APPENDIX A

Permissions

Either disable pop-up blocking (enabled by default in Windows XP SP (Service Pack) 2) or allow pop-up blocking and create an exception for your device’s IP address.

Disable Pop-up Blockers

1 In Internet Explorer, select Tools, Pop-up Blocker and then select Turn Off Pop-up Blocker.

Figure 129 Pop-up Blocker

You can also check if pop-up blocking is disabled in the Pop-up Blocker section in the Privacy tab.

1 In Internet Explorer, select Tools, Internet Options, Privacy.

2 Clear the Block pop-ups check box in the Pop-up Blocker section of the screen. This disables any

web pop-up blockers you may have enabled.

NBG6716 User’s Guide 184

Figure 130 Internet Options: Privacy

Appendix A Pop-up Windows, JavaScript and Java Permissions

3 Click Apply to save this setting.

Enable Pop-up Blockers with Exceptions

Alternatively, if you only want to allow pop-up windows from your device, see the following steps.

1 In Internet Explorer, select Tools, Internet Options and then the Privacy tab.

2 Select Settings…to open the Pop-up Blocker Settings screen.

NBG6716 User’s Guide

185

Appendix A Pop-up Windows, JavaScript and Java Permissions

Figure 131 Internet Options: Privacy

3 Type the IP address of your device (the web page that you do not want to have blocked) with the

prefix “http://”. For example, http://192.168.167.1.

4 Click Add to move the IP address to the list of Allowed sites.

Figure 132 Pop-up Blocker Settings

186

NBG6716 User’s Guide

5 Click Close to return to the Privacy screen.

6 Click Apply to save this setting.

JavaScript

1 In Internet Explorer, click Tools, Internet Options and then the Security tab.

Appendix A Pop-up Windows, JavaScript and Java Permissions

If pages of the web configurator do not display properly in Internet Explorer, check that JavaScript are allowed.

Figure 133 Internet Options: Security

2 Click the Custom Level... button.

3 Scroll down to Scripting.

4 Under Active scripting make sure that Enable is selected (the default).

5 Under Scripting of Java applets make sure that Enable is selected (the default).

6 Click OK to close the window.

NBG6716 User’s Guide

187

Appendix A Pop-up Windows, JavaScript and Java Permissions

Figure 134 Security Settings - Java Scripting

Java Permissions

1 From Internet Explorer, click Tools, Internet Options and then the Security tab.

2 Click the Custom Level... button.

3 Scroll down to Microsoft VM.

4 Under Java permissions make sure that a safety level is selected.

5 Click OK to close the window.

188

NBG6716 User’s Guide

Figure 135 Security Settings - Java

Appendix A Pop-up Windows, JavaScript and Java Permissions

JAVA (Sun)

1 From Internet Explorer, click Tools, Internet Options and then the Advanced tab.

2 Make sure that Use Java 2 for <applet> under Java (Sun) is selected.

3 Click OK to close the window.

Figure 136 Java (Sun)

NBG6716 User’s Guide

189

Appendix A Pop-up Windows, JavaScript and Java Permissions

Mozilla Firefox

Mozilla Firefox 2.0 screens are used here. Screens for other versions may vary slightly. The steps below apply to Mozilla Firefox 3.0 as well.

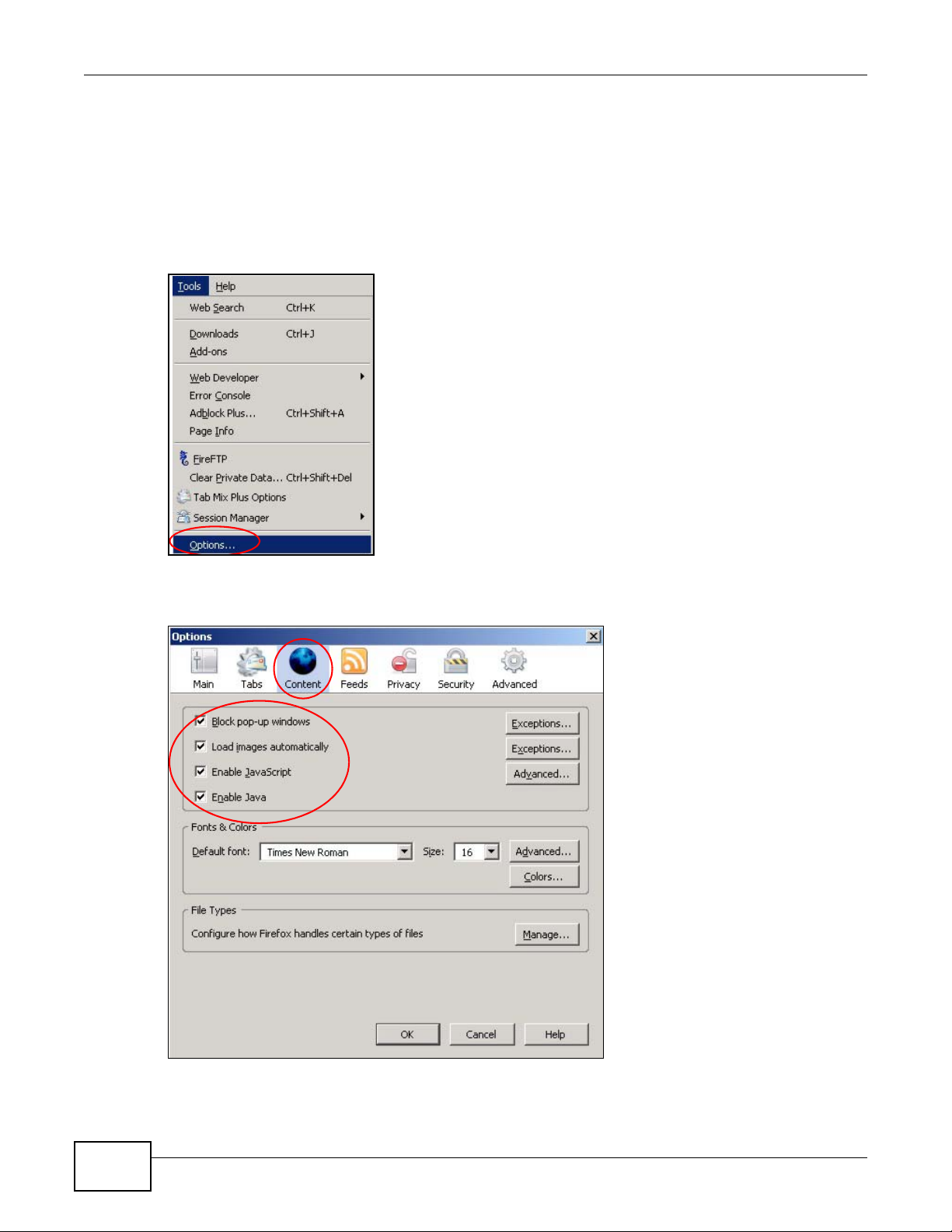

You can enable Java, Javascript and pop-ups in one screen. Click Tools, then click Options in the screen that appears.

Figure 137 Mozilla Firefox: TOOLS > Options

Click Content to show the screen below. Select the check boxes as shown in the following screen.

Figure 138 Mozilla Firefox Content Security

190

NBG6716 User’s Guide

Opera

Opera 10 screens are used here. Screens for other versions may vary slightly.

Allowing Pop-Ups

From Opera, click Tools, then Preferences. In the General tab, go to Choose how you prefer to handle pop-ups and select Open all pop-ups.

Figure 139 Opera: Allowing Pop-Ups

Appendix A Pop-up Windows, JavaScript and Java Permissions

Enabling Java

From Opera, click Tools, then Preferences. In the Advanced tab, select Content from the leftside menu. Select the check boxes as shown in the following screen.

NBG6716 User’s Guide

191

Appendix A Pop-up Windows, JavaScript and Java Permissions

Figure 140 Opera: Enabling Java

To customize JavaScript behavior in the Opera browser, click JavaScript Options.

Figure 141 Opera: JavaScript Options

Select the items you want Opera’s JavaScript to apply.

192

NBG6716 User’s Guide

APPENDIX B

Setting Up Your Computer’s IP Address

Note: Your specific NBG6716 may not support all of the operating systems described in

this appendix. See the product specifications for more information about which operating systems are supported.

This appendix shows you how to configure the IP settings on your computer in order for it to be able to communicate with the other devices on your network. Windows Vista/XP/2000, Mac OS 9/ OS X, and all versions of UNIX/LINUX include the software components you need to use TCP/IP on your computer.

If you manually assign IP information instead of using a dynamic IP, make sure that your network’s computers have IP addresses that place them in the same subnet.

In this appendix, you can set up an IP address for:

• Windows XP/NT/2000 on page 193

• Windows Vista on page 197

• Windows 7 on page 201

• Mac OS X: 10.3 and 10.4 on page 205

• Mac OS X: 10.5 and 10.6 on page 208

• Linux: Ubuntu 8 (GNOME) on page 211

• Linux: openSUSE 10.3 (KDE) on page 215

Windows XP/NT/2000

The following example uses the default Windows XP display theme but can also apply to Windows 2000 and Windows NT.

1 Click Start > Control Panel.

NBG6716 User’s Guide 193

Appendix B Setting Up Your Computer’s IP Address

2 In the Control Panel, click the Network Connections icon.

3 Right-click Local Area Connection and then select Properties.

4 On the General tab, select Internet Protocol (TCP/IP) and then click Properties.

194

NBG6716 User’s Guide

Appendix B Setting Up Your Computer’s IP Address

5 The Internet Protocol TCP/IP Properties window opens.

NBG6716 User’s Guide

195

Appendix B Setting Up Your Computer’s IP Address

6 Select Obtain an IP address automatically if your network administrator or ISP assigns your IP

address dynamically. Select Use the following IP Address and fill in the IP address, Subnet mask, and Default

gateway fields if you have a static IP address that was assigned to you by your network administrator or ISP. Y o u ma y also hav e to enter a Preferred DNS server and an Alternate DNS server, if that information was provided.

7 Click OK to close the Internet Protocol (TCP/IP) Properties window.

8 Click OK to close the Local Area Connection Properties window.

Verifying Settings

1 Click Start > All Programs > Accessories > Command Prompt.

2 In the Command Prompt window, type "ipconfig" and then press [ENTER].

You can also go to Start > Control Panel > Network Connections, right-click a network connection, click Status and then click the Support tab to view your IP address and connection information.

196

NBG6716 User’s Guide

Windows Vista

This section shows screens from Windows Vista Professional.

1 Click Start > Control Panel.

2 In the Control Panel, click the Network and Internet icon.

Appendix B Setting Up Your Computer’s IP Address

3 Click the Network and Sharing Center icon.

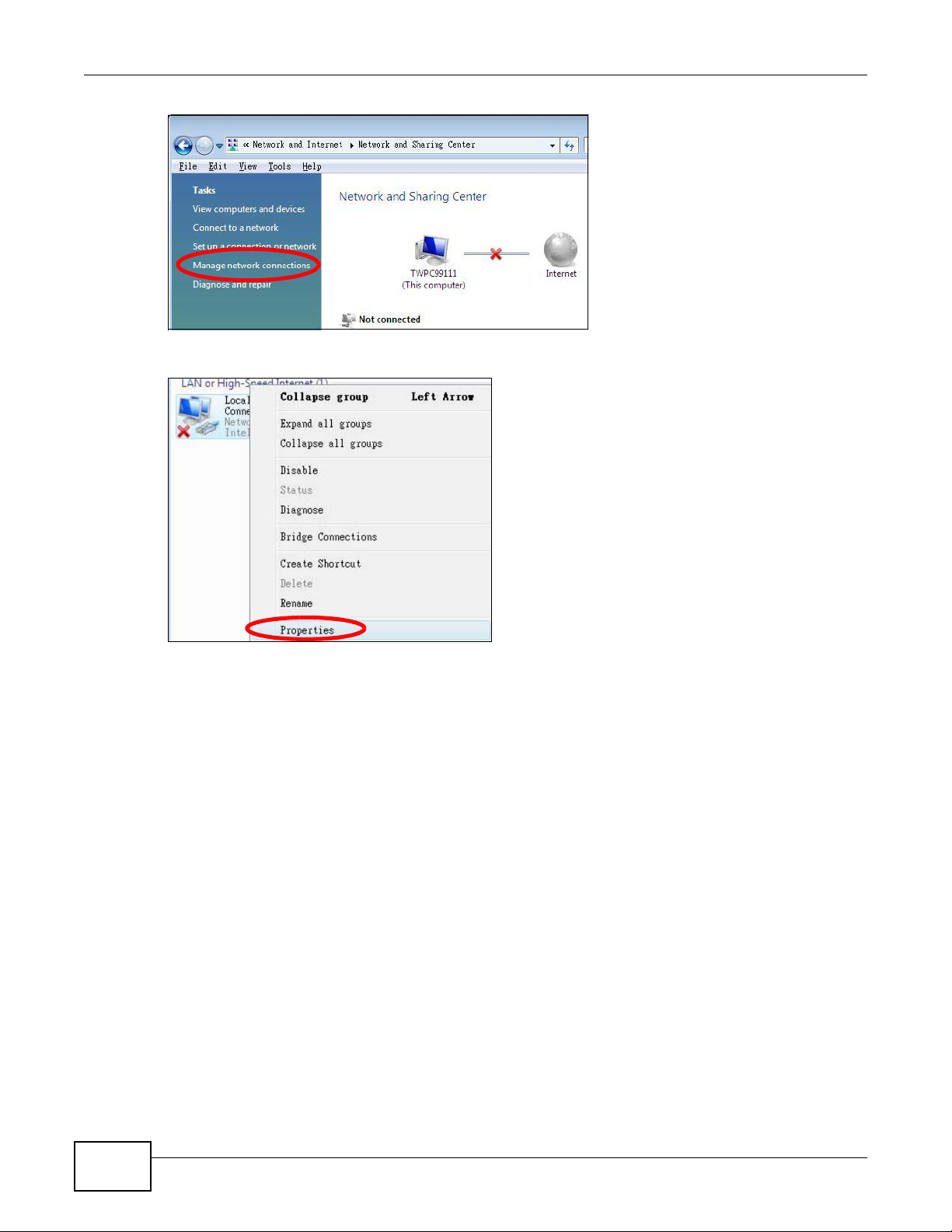

4 Click Manage network connections.

NBG6716 User’s Guide

197

Appendix B Setting Up Your Computer’s IP Address

5 Right-click Local Area Connection and then select Properties.

Note: During this procedure, click Continue whenever Wi ndows displa ys a screen sa ying

that it needs your permission to continue.

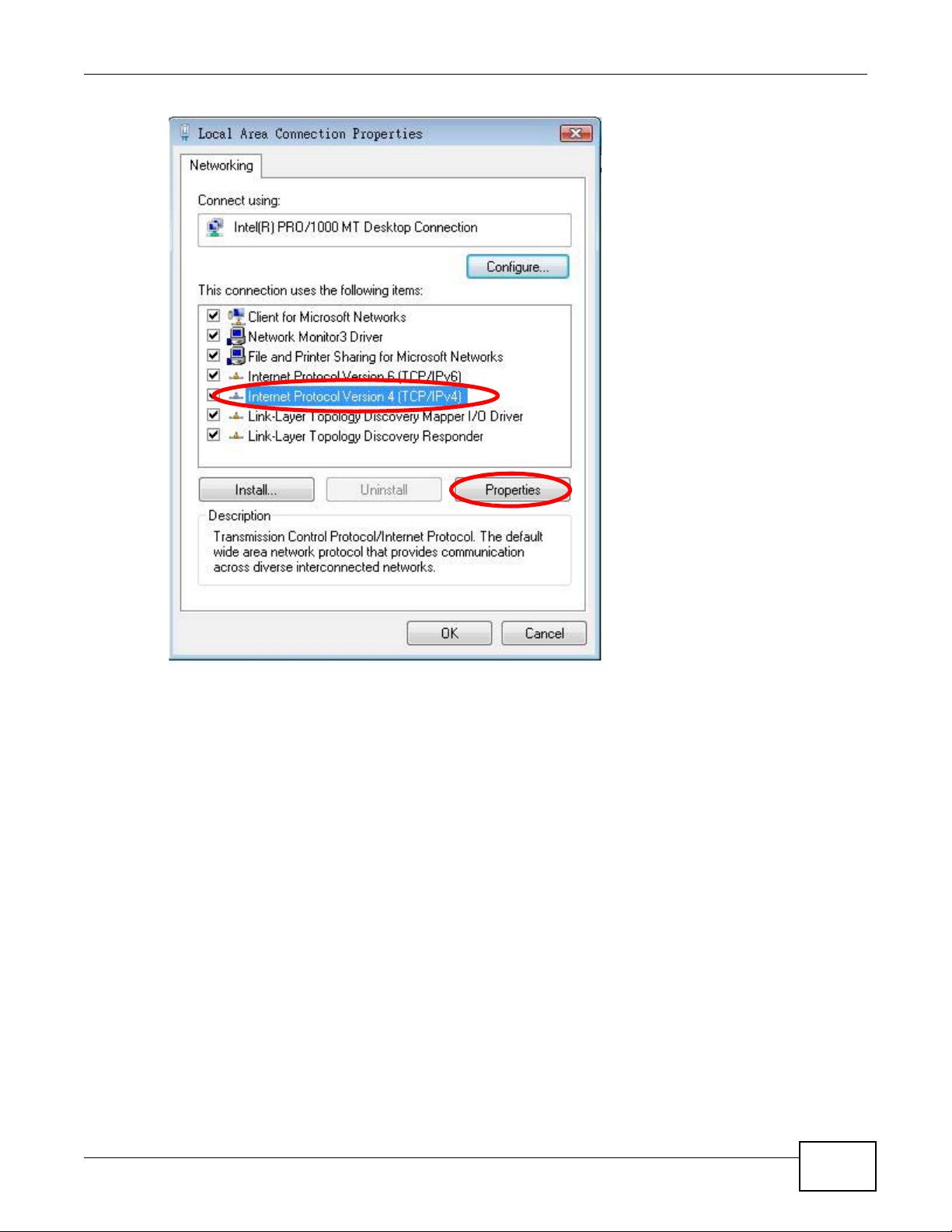

6 Select Internet Protocol Version 4 (TCP/IPv4) and then select Properties.

198

NBG6716 User’s Guide

Appendix B Setting Up Your Computer’s IP Address

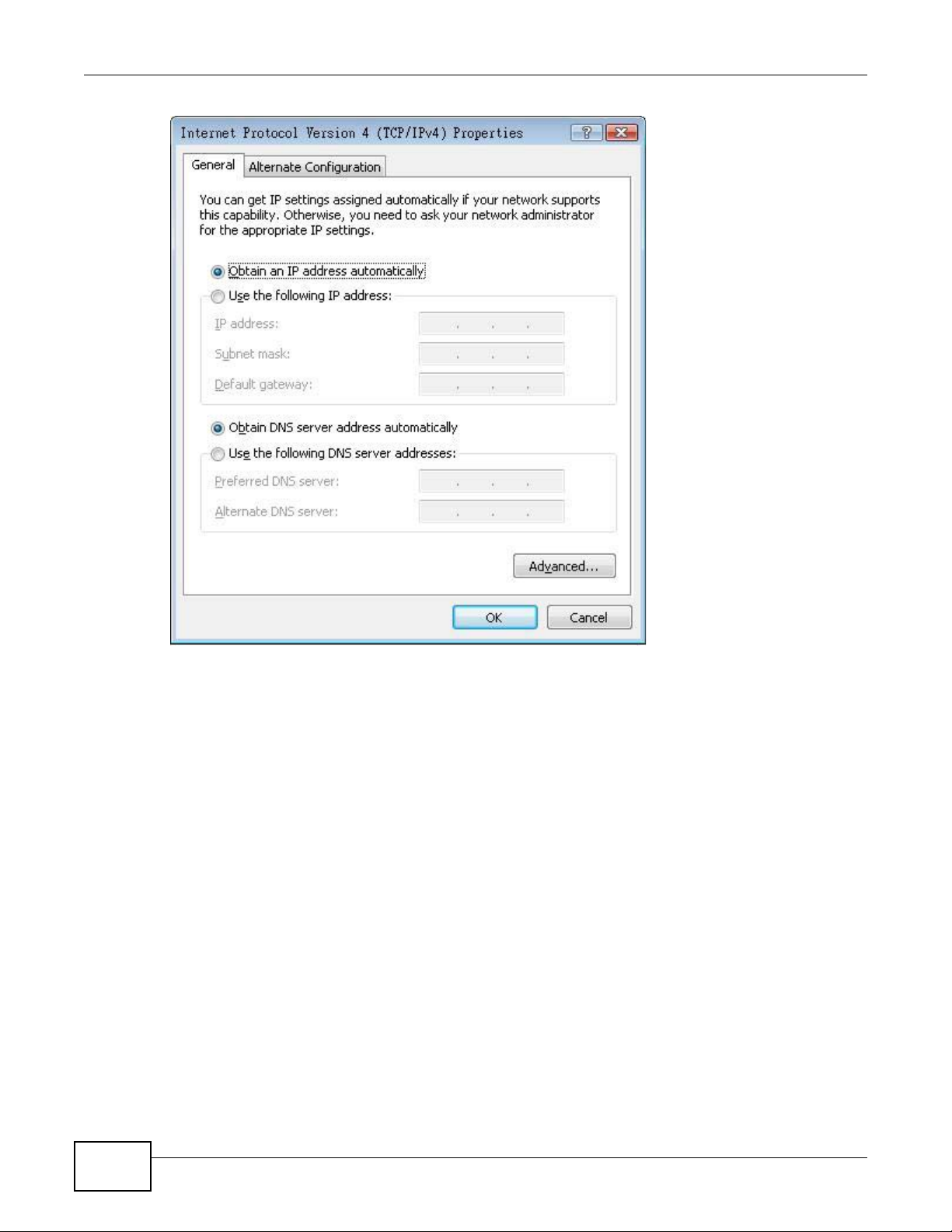

7 The Internet Protocol Version 4 (TCP/IPv4) Properties window opens.

NBG6716 User’s Guide

199

Appendix B Setting Up Your Computer’s IP Address

8 Select Obtain an IP address automatically if your network administrator or ISP assigns your IP

address dynamically. Select Use the following IP Address and fill in the IP address, Subnet mask, and Default

9 Click OK to close the Internet Protocol (TCP/IP) Properties window.

10 Click OK to close the Local Area Connection Properties window.

Verifying Settings

1 Click Start > All Programs > Accessories > Command Prompt.

2 In the Command Prompt window, type "ipconfig" and then press [ENTER].

You can also go to Start > Control Panel > Network Connections, right-click a network connection, click Status and then click the Support tab to view your IP address and connection information.

200

NBG6716 User’s Guide

Windows 7

This section shows screens from Windows 7 Enterprise.

1 Click Start > Control Panel.

2 In the Control Panel, click View network status and tasks under the Network and Internet

category.

Appendix B Setting Up Your Computer’s IP Address

3 Click Change adapter settings.

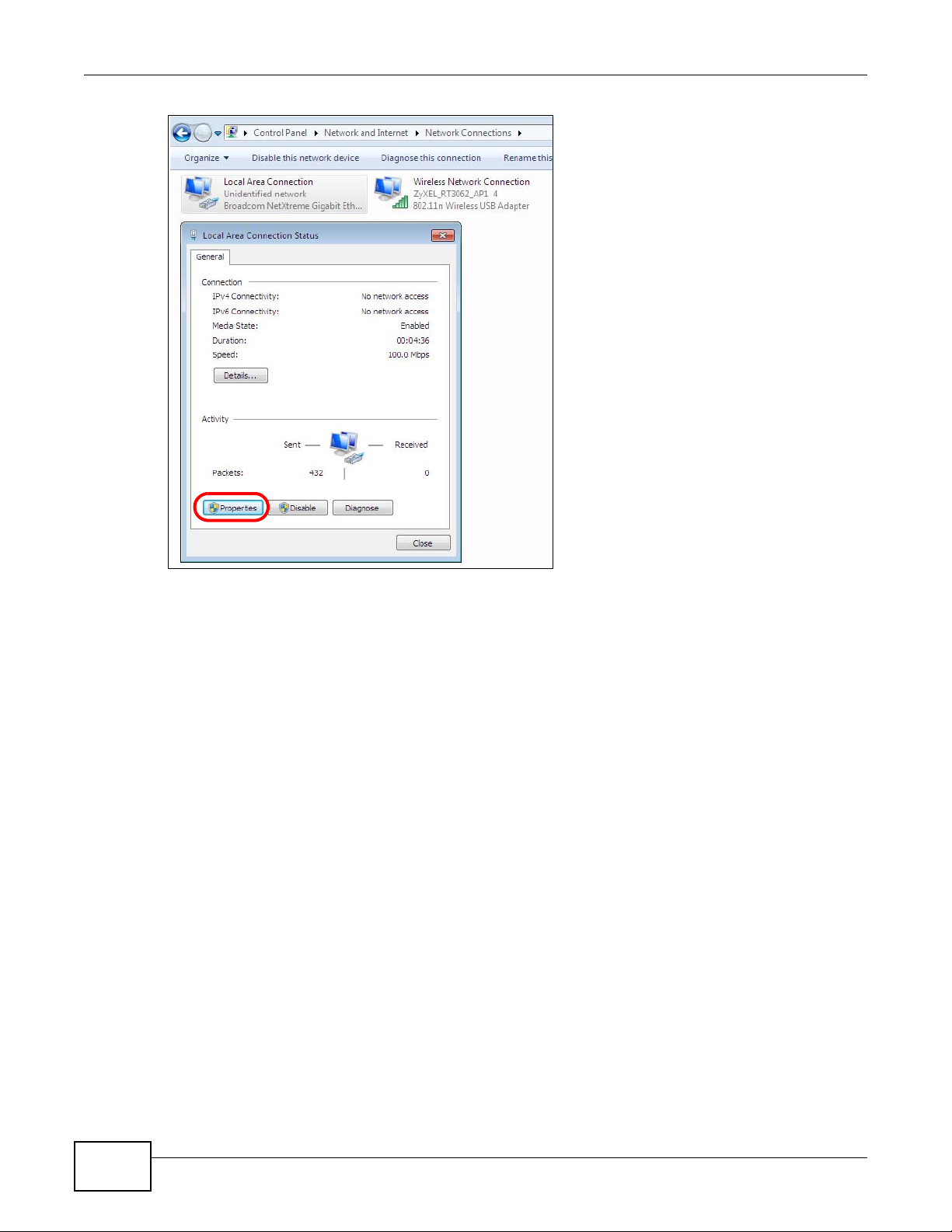

4 Double click Local Area Connection and then select Properties.

NBG6716 User’s Guide

201

Appendix B Setting Up Your Computer’s IP Address

Note: During this procedure, click Continue whenever Wi ndows displa ys a screen sa ying

that it needs your permission to continue.

5 Select Internet Protocol Version 4 (TCP/IPv4) and then select Properties.

202

NBG6716 User’s Guide

Appendix B Setting Up Your Computer’s IP Address

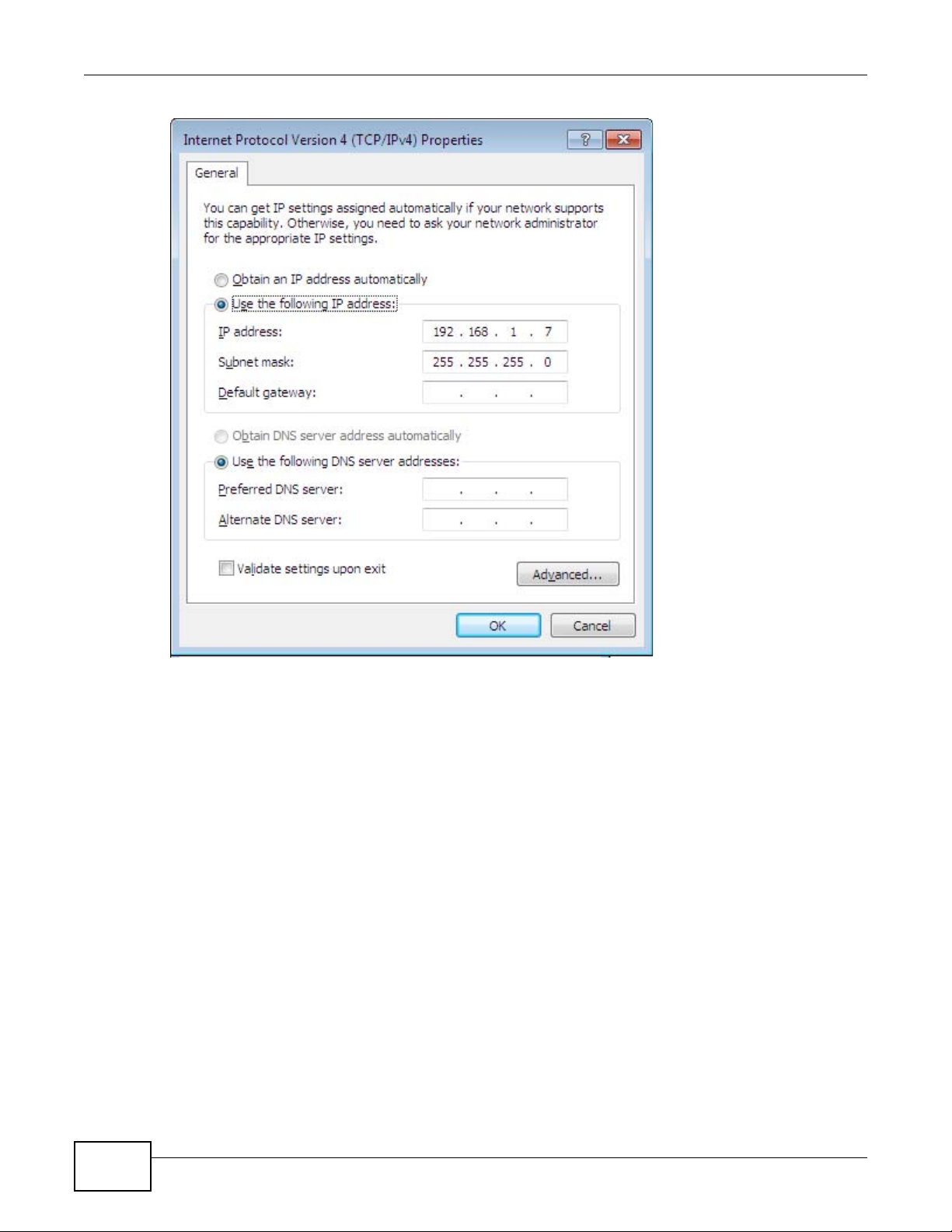

6 The Internet Protocol Version 4 (TCP/IPv4) Properties window opens.

NBG6716 User’s Guide

203

Appendix B Setting Up Your Computer’s IP Address

7 Select Obtain an IP address automatically if your network administrator or ISP assigns your IP

address dynamically. Select Use the following IP Address and fill in the IP address, Subnet mask, and Default

8 Click OK to close the Internet Protocol (TCP/IP) Properties window.

9 Click OK to close the Local Area Connection Properties window.

Verifying Settings

1 Click Start > All Programs > Accessories > Command Prompt.

2 In the Command Prompt window, type "ipconfig" and then press [ENTER].

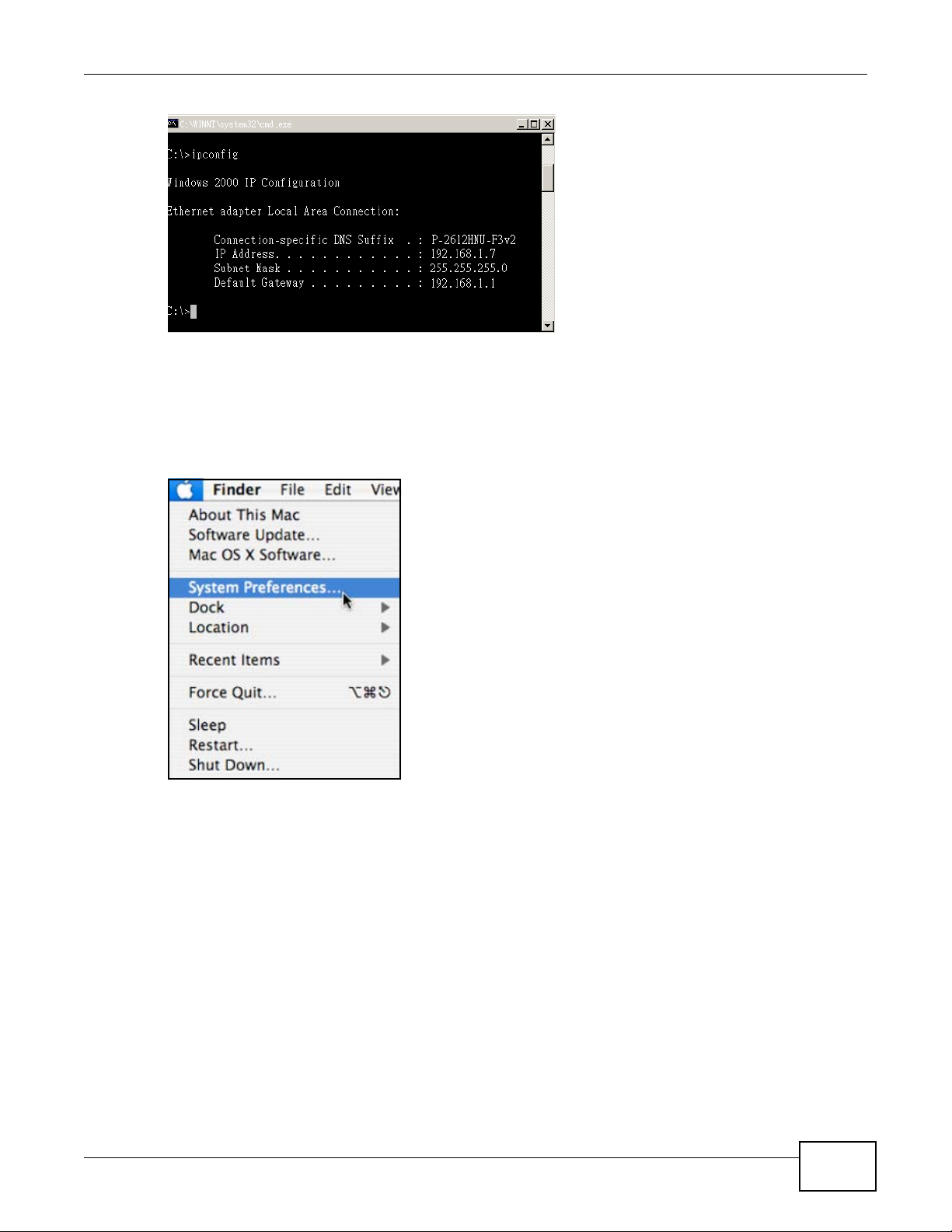

3 The IP settings are displayed as follows.

204

NBG6716 User’s Guide

Mac OS X: 10.3 and 10.4

The screens in this section are from Mac OS X 10.4 but can also apply to 10.3.

1 Click Apple > System Preferences.

Appendix B Setting Up Your Computer’s IP Address

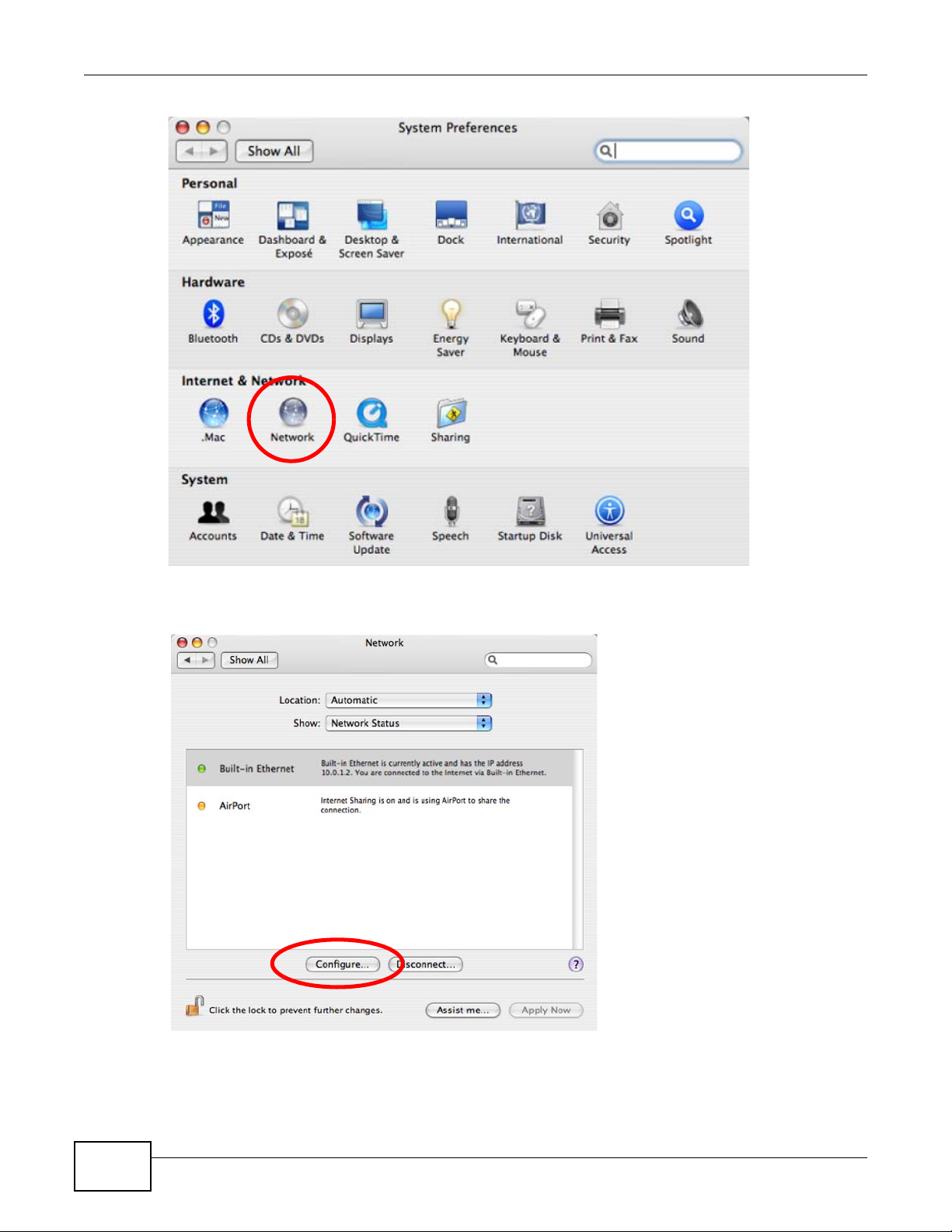

2 In the System Preferences window, click the Network icon.

NBG6716 User’s Guide

205

Appendix B Setting Up Your Computer’s IP Address

3 When the Network preferences pane opens, select Built-in Ethernet from the network

connection type list, and then click Configure.

4 For dynamically assigned settings, select Using DHCP from the Configure IPv4 list in the TCP/IP

tab.

206

NBG6716 User’s Guide

5 For statically assigned settings, do the following:

•From the Configure IPv4 list, select Manually.

•In the IP Address field, type your IP address.

•In the Subnet Mask field, type your subnet mask.

•In the Router field, type the IP address of your device.

Appendix B Setting Up Your Computer’s IP Address

6 Click Apply Now and close the window.

Verifying Settings

Check your TCP/IP properties by clicking Applications > Utilities > Network Utilities, and then selecting the appropriate Network Interface from the Info tab.

NBG6716 User’s Guide

207

Appendix B Setting Up Your Computer’s IP Address

Figure 142 Mac OS X 10.4: Network Utility

Mac OS X: 10.5 and 10.6

The screens in this section are from Mac OS X 10.5 but can also apply to 10.6.

1 Click Apple > System Preferences.

2 In System Preferences, click the Network icon.

208

NBG6716 User’s Guide

Appendix B Setting Up Your Computer’s IP Address

3 When the Network preferences pane opens, select Ethernet from the list of available connection

types.

4 From the Configure list, select Using DHCP for dynamically assigned settings.

NBG6716 User’s Guide

209

Appendix B Setting Up Your Computer’s IP Address

5 For statically assigned settings, do the following:

•From the Configure list, select Manually.

•In the IP Address field, enter your IP address.

•In the Subnet Mask field, enter your subnet mask.

•In the Router field, enter the IP address of your NBG6716.

6 Click Apply and close the window.

Verifying Settings

Check your TCP/IP properties by clicking Applications > Utilities > Network Utilities, and then selecting the appropriate Network interface from the Info tab.

210

NBG6716 User’s Guide

Figure 143 Mac OS X 10.5: Network Utility

Appendix B Setting Up Your Computer’s IP Address

Linux: Ubuntu 8 (GNOME)

This section shows you how to configure your computer’s TCP/IP settings in the GNU Object Model Environment (GNOME) using the Ubuntu 8 Linux distribution. The procedure, screens and file locations may vary depending on your specific distribution, release version, and individual configuration. The following screens use the default Ubuntu 8 installation.

Note: Make sure you are logged in as the root administrator.

Follow the steps below to configure your computer IP address in GNOME:

1 Click System > Administration > Network.

2 When the Network Settings window opens, click Unlock to open the Authenticate window. (By

default, the Unlock button is greyed out until clicked.) You cannot make changes to your configuration unless you first enter your admin password.

NBG6716 User’s Guide

211

Appendix B Setting Up Your Computer’s IP Address

3 In the Authenticate window, enter your admin account name and password then click the

Authenticate button.

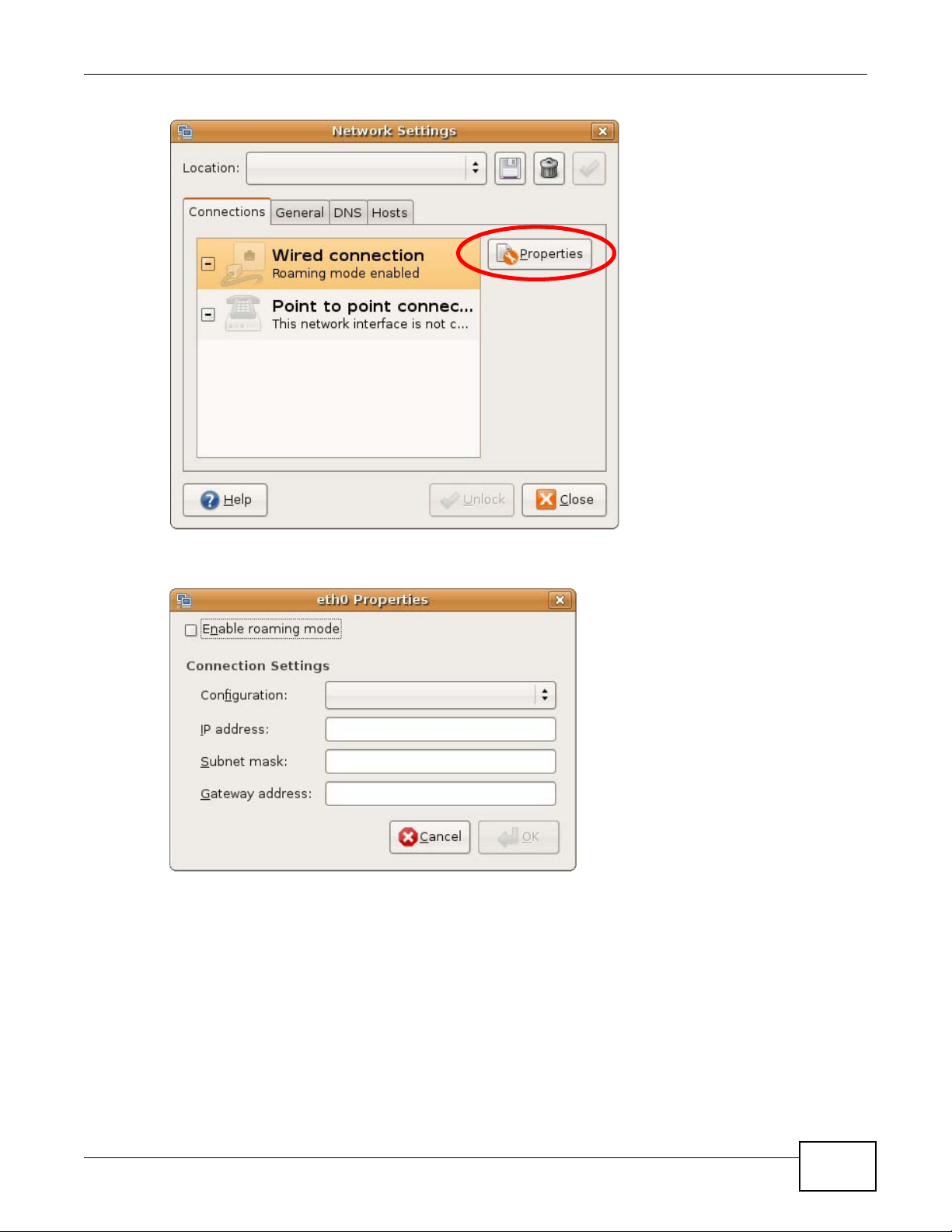

4 In the Network Settings window, select the connection that you want to configure, then click

Properties.

212

NBG6716 User’s Guide

Appendix B Setting Up Your Computer’s IP Address

5 The Properties dialog box opens.

•In the Configuration list, select Automatic Configuration (DHCP) if you have a dyn amic IP address.

•In the Configuration list, select Static IP address if you have a static IP address. Fill in the IP address, Subnet mask, and Gateway address fields.

6 Click OK to save the changes and close the Properties dialog box and return to the Network

Settings screen.

7 If you know your DNS server IP address(es), click the DNS tab in the Network Settings window

and then enter the DNS server information in the fields provided.

NBG6716 User’s Guide

213

Appendix B Setting Up Your Computer’s IP Address

8 Click the Close button to apply the changes.

Verifying Settings

Check your TCP/IP properties by clicking System > Administration > Network Tools, and then selecting the appropriate Network device from the Devices tab. The Interface Statistics column shows data if your connection is working properly.

214

NBG6716 User’s Guide

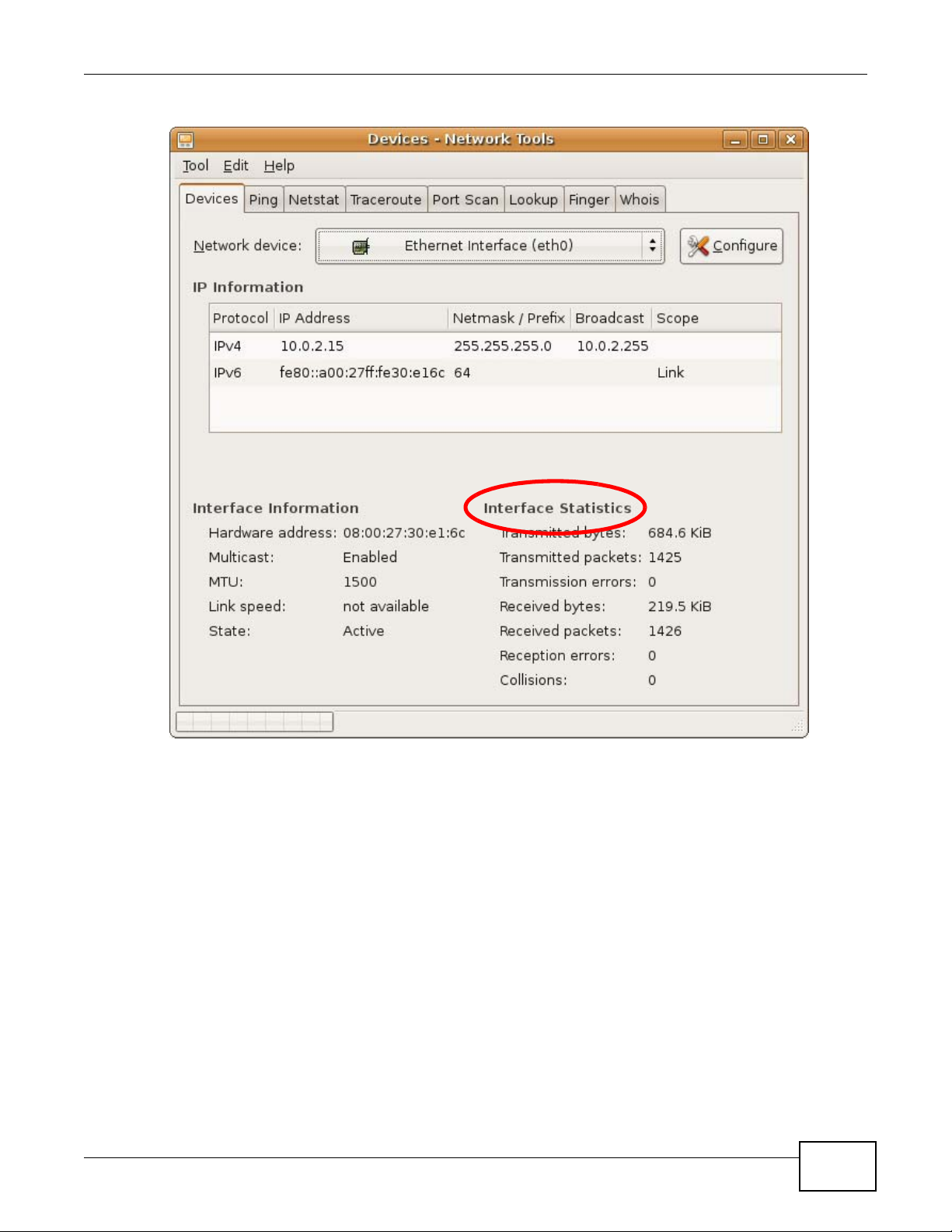

Figure 144 Ubuntu 8: Network Tools

Appendix B Setting Up Your Computer’s IP Address

Linux: openSUSE 10.3 (KDE)

This section shows you how to configure your computer’s TCP/IP settings in the K Desktop Environment (KDE) using the openSUSE 10.3 Linux distribution. The procedure, screens and file locations may vary depending on your specific distribution, release version, and individual configuration. The following screens use the default openSUSE 10.3 installation.

Note: Make sure you are logged in as the root administrator.

Follow the steps below to configure your computer IP address in the KDE:

1 Click K Menu > Computer > Administrator Settings (YaST).

NBG6716 User’s Guide

215

Appendix B Setting Up Your Computer’s IP Address

2 When the Run as Root - KDE su dialog opens, enter the admin password and click OK.

3 When the YaST Control Center window opens, select Network Devices and then click the

Network Card icon.

216

NBG6716 User’s Guide

Appendix B Setting Up Your Computer’s IP Address

4 When the Network Settings window opens, click the Overview tab, select the appropriate

connection Name from the list, and then click the Configure button.

5 When the Network Card Setup window opens, click the Address tab

NBG6716 User’s Guide

217

Appendix B Setting Up Your Computer’s IP Address

Figure 145 openSUSE 10.3: Network Card Setup

6 Select Dynamic Address (DHCP) if you have a dynamic IP address.

Select Statically assigned IP Address if you have a static IP address. Fill in the IP address, Subnet mask, and Hostname fields.

7 Click Next to save the changes and close the Network Card Setup window.

8 If you know your DNS server IP address(es), click the Hostname/DNS tab in Network Settings

and then enter the DNS server information in the fields provided.

218

NBG6716 User’s Guide

Appendix B Setting Up Your Computer’s IP Address

9 Click Finish to save your settings and close the window.

Verifying Settings

Click the KNetwork Manager icon on the Task bar to check your TCP/IP properties. From the Options sub-menu, select Show Connection Information.

Figure 146 openSUSE 10.3: KNetwork Manager

When the Connection Status - KNetwork Manager window opens, click the Statistics tab to see if your connection is working properly.

NBG6716 User’s Guide

219

Appendix B Setting Up Your Computer’s IP Address

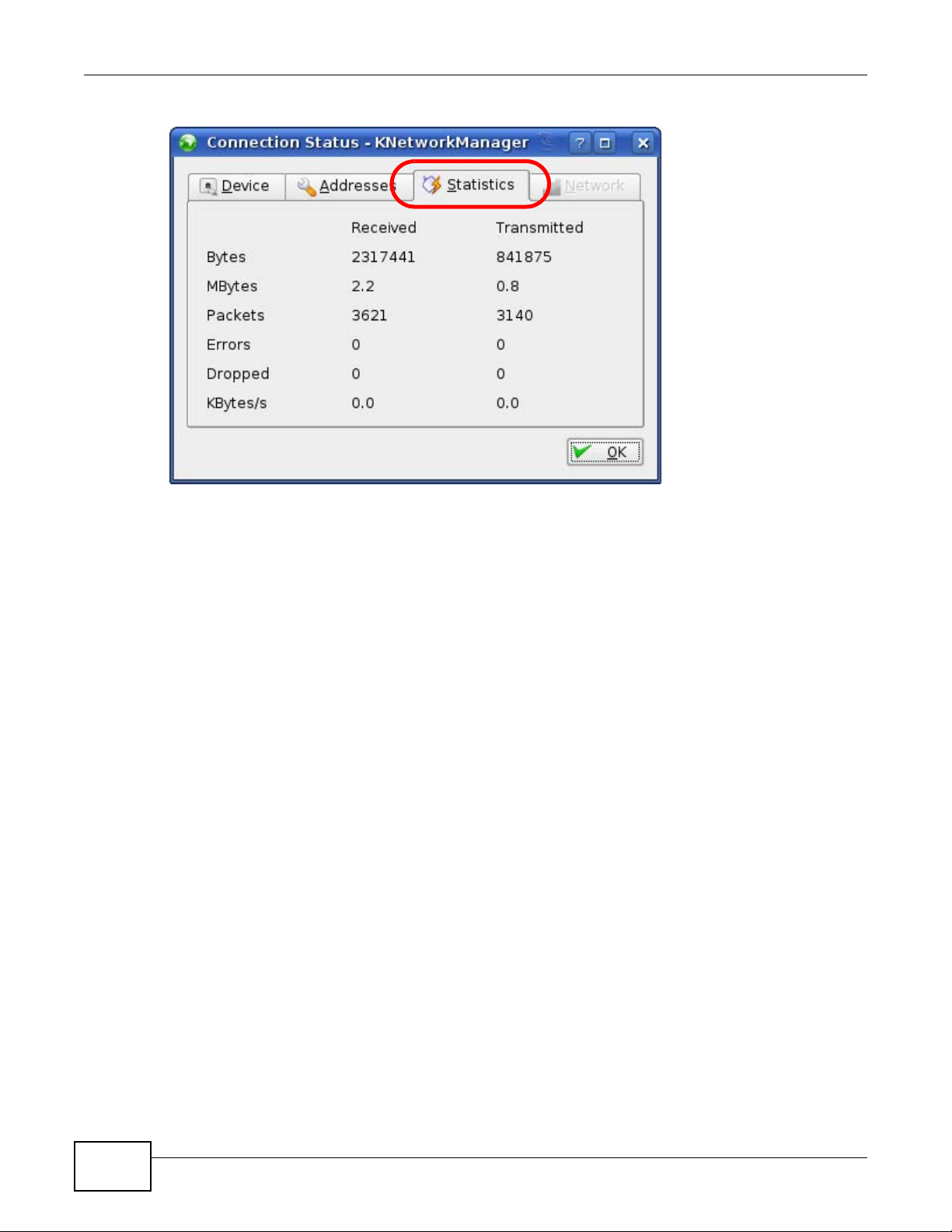

Figure 147 openSUSE: Connection Status - KNetwork Manager

220

NBG6716 User’s Guide

APPENDIX C

Common Services

The following table lists some commonly-used services and their associated protocols and port numbers. For a comprehensive list of port numbers, ICMP type/code numbers and services, visit the IANA (Internet Assigned Number Authority) web site.

• Name: This is a short, descriptive name for the service. You can use this one or create a different one, if you like.

• Protocol: This is the type of IP protocol used by the service. If this is TCP/UDP, then the service uses the same port number with TCP and UDP. If this is USER-DEFINED, the Port(s) is the IP protocol number, not the port number.

• Port(s): This value depends on the Protocol. Please refer to RFC 1700 for further information about port numbers.

•If the Protocol is TCP, UDP, or TCP/UDP, this is the IP port number.

•If the Protocol is USER, this is the IP protocol number.

• Description: This is a brief explanation of the applications that use this service or the situations in which this service is used.

Ta ble 74 Commonly Used Services

NAME PROTOCOL PORT(S) DESCRIPTION

AH (IPSEC_TUNNEL)

AIM/New-ICQ TCP 5190 AOL’s Internet Messenger service. It is

AUTH TCP 113 Authentication protocol used by some

BGP TCP 179 Border Gateway Protocol. BOOTP_CLIENT UDP 68 DHCP Client. BOOTP_SERVER UDP 67 DHCP Server. CU-SEEME TCP

DNS TCP/UDP 53 Domain Name Server, a service that

ESP (IPSEC_TUNNEL)

FINGER TCP 79 Finger is a UNIX or Internet related

FTP TCP

H.323 TCP 1720 NetMeeting uses this protocol.

User-Defined 51 The IPSEC AH (Authentication Header)

tunneling protocol uses this service.

also used as a listening port by ICQ.

servers.

7648

UDP

User-Defined 50 The IPSEC ESP (Encapsulation Security

TCP

24032

20 21

A popular videoconferencing solution from White Pines Software.

matches web names (for example

www.zyxel.com

Protocol) tunneling protocol uses this service.

command that can be used to find out if a user is logged on.

File T ransfer Program, a program to enable fast transfer of files, including large files that may not be possible by e-mail.

) to IP numbers.

NBG6716 User’s Guide 221

Appendix C Common Services

Ta ble 74 Commonly Used Services (continued)

NAME PROTOCOL PORT(S) DESCRIPTION

HTTP TCP 80 Hyper Text Transfer Protocol - a client/

HTTPS TCP 443 HTTPS is a secured http session oft en used

ICMP User-Defined 1 Internet Control Message Protocol is often

ICQ UDP 4000 This is a popular Internet chat program. IGMP (MULTICAST) User-Defined 2 Internet Group Management Protocol is

IKE UDP 500 The Internet Key Exchange algorithm is

IRC TCP/UDP 6667 This is another popular Internet chat

MSN Messenger TCP 1863 Microsoft Networks’ messenger service

NEW-ICQ TCP 5190 An Internet chat program. NEWS TCP 144 A protocol for news groups. NFS UDP 2049 Network File System - NFS is a client/

NNTP TCP 119 Network News Transport Protocol is the

PING User-Defined 1 Packet INternet Groper is a protocol that

POP3 TCP 110 Post Office Protocol version 3 lets a client

PPTP TCP 1723 Point-to-Point Tunneling Protocol enables

PPTP_TUNNEL (GRE)

RCMD TCP 512 Remote Command Service. REAL_AUDIO TCP 7070 A streaming audio service that enables

REXEC TCP 514 Remote Execution Daemo n. RLOGIN TCP 513 Remote Login. RTELNET TCP 107 Remote Telnet. RTSP TCP/UDP 554 The Real Time Streaming (media control)

SFTP TCP 115 Simple File Transfer Protocol.

server protocol for the world wide web.

in e-commerce.

used for diagnostic or routing purposes.

used when sending packets to a specific group of hosts.

used for key distribution and management.

program.

uses this protocol.

server distributed file service that provides transparent file sharing for network environments.

delivery mechanism for the USENET newsgroup service.

sends out ICMP echo requests to test whether or not a remote host is reachable.

computer get e-mail from a POP3 server through a temporary connection (TCP/IP or other).

secure transfer of data over public networks. This is the control channel.

User-Defined 47 PPTP (Point-to-Point Tunneling Protocol)

enables secure transfer of data over public networks. This is the data channel.

real time sound over the web.

Protocol (RTSP) is a remote control for multimedia on the Internet.

222

NBG6716 User’s Guide

Appendix C Common Services

Ta ble 74 Commonly Used Services (continued)

NAME PROTOCOL PORT(S) DESCRIPTION

SMTP TCP 25 Simple Mail Transfer Protocol is the

message-exchange standard for the Internet. SMTP enables you to move messages from one e-mail server to

another. SNMP TCP/UDP 161 Simple Network Management Program. SNMP-TRAPS TCP/UDP 162 Traps for use with the SNMP (RFC:1215). SQL-NET TCP 1521 Structured Query Language is an interface

to access data on many different types of

database systems, including mainframes,

midrange systems, UNIX systems and

network servers. SSH TCP/UDP 22 Secure Shell Remote Login Program. STRM WORKS UDP 1558 Stream Works Protocol. SYSLOG UDP 514 Syslog allows you to send system logs to a

TACACS UDP 49 Login Host Protocol used for (Terminal

TELNET TCP 23 Telnet is the login and terminal emulation

TFTP UDP 69 Trivial File Transfer Protocol is an Internet

VDOLIVE TCP 7000 Another videoconferencing solution.

UNIX server.

Access Controller Access Control System).

protocol common on the Internet and in

UNIX environments. It operates over TCP/

IP networks. Its primary function is to

allow users to log into remote host

systems.

file transfer protocol similar to FTP, but

uses the UDP (User Datagram Protocol)

rather than TCP (Transmission Control

Protocol).

NBG6716 User’s Guide

223

any language, or transmitted in any form or by any means, electron ic, mecha nical, magneti c, optic al, chemic al, photoc opying, ma nual, or otherwise, without the prior written permission of ZyXEL Communications Corporation.

Disclaimer

ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it convey any license under its patent rights nor the patent rights of others. ZyXEL further reserves the right to make changes in any products described herein without notice. This publication is subject to change without notice.

Trademarks

Trademarks mentioned in this publication are used for identification purposes only and may be properties of their respective owners.

Certifications

Federal Communications Commission (FCC) Interference Statement

The device complies with Part 15 of FCC rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause undesired operations. This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio freque ncy ene rgy, and if not installed and used in accordance with the ins truction s, ma y cause harmfu l interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this device does cause harmful inter ference to radi o/televisi on reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1 Reorient or relocate the receiving antenna. 2 Increase the separation between the equipment and the receiver. 3 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4 Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any chang es or mo difica tions no t expres sly appr ove d by the party r espons ible for complia nce cou ld void the user 's authority to operate this equipment.

APPENDIX D

Legal Information

FCC Radiation Exposure Statement

• This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

• IEEE 802.11b, 802.11g or 802.1 1n (20MHz) ope ratio n of this produc t in the U. S.A. i s firmwa re-limited to channels 1 thro ugh 11. IEEE

802.11n (40MHz) operation of this product in the U.S.A. is firmware-limited to channels 3 through 9.

• To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons.

• Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only.

• Operations in the 5.15-5.25GHz band are restricted to indoor usage only.

Industry Canada Statement

This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:

1) this device may not cause interference and

2) this device must accept any interference, including interference that may cause undesired operation of the device

This device has been designed to operate wit h an antenna having a maximum gain of 2dBi. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the EIRP is not more than

required for successful communication.

IC Radiation Exposure Statement

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance.

NBG6716 User’s Guide 224

注意 !

Notices

Changes or modifications not expressly approve d by the party responsible for compliance could void the user's authority to operate the equipment.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Viewing Certifications

Go to http://www.zyxel.com to view this product’s documentation and certifications.

ZyXEL Limited Warranty

ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in material or workmanship for a specific period (the Warranty Period) from the date of purchase. The Warranty Period varies by region. Check with your vendor and/or the authorized ZyXEL local distributor for details about the Warranty Period of this product. During the warranty period, and upon proof of purchase, should the product ha ve indicat ions of failure due to f aulty workma nship and/or materials, Z yXEL wil l, at its discret ion, repair or replace the defective products or components without charge for either parts or labor, and to whatever extent it shall deem necessary to restore the product or components to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal or higher value, and will be solely at the discretion of ZyXEL. This warranty shall not apply if the product has been modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions.

依據低功率電波輻射性電機管理辦法

第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。

第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信規定作業之無線電信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

在 5.25 - 5.35 GHz 頻帶內操作之無線資訊傳輸設備，限於室內使用。

Appendix D Legal Information

Note

Repair or replacement, as provided under this warranty, is the exclusive remedy of the purchaser. This warranty is in lieu of all other warranties, express or implied, including any implied warranty of merchantability or fitness for a particular use or purpose. ZyXEL shall in no event be held liable for indirect or consequential damages of any kind to the purchaser.

To obtain the services of this warranty, contact your vendor. You may also refer to the warranty policy for the region in which you bought the device at http://www.zyxel.com/web/support_warranty_info.php.

Registration

Register your product online to receive e-mail notices of firmware upgrades and information at www.zyxel.com for global products, or at www.us.zyxel.com for North American products.

Open Source Licenses

This product contains in part some free software distributed under GPL license terms and/or GPL like licenses. Open source licenses are provided with the firmware package. You can download the latest firmware at www.zyxel.com. To obtain the source code covered under those Licenses, please contact support@zyxel.com.tw to get it.

Regulatory Information

European Union

The following information applies if you use the product within the European Union.

Declaration of Conformity with Regard to EU Directive 1999/5/EC (R&TTE Directive)

Compliance Information fo r 2.4GHz and 5GHz Wireless Produc ts R elevant to the EU and Other Countries Following the EU Directive 1999/5/EC (R&TTE Directive)

[Czech] ZyXEL tímto prohlašuje, že tento zařízení je ve shodě se základními požadavky a dalšími příslušnými ustanoveními

[Danish] Undertegnede ZyXEL erklærer herved, at følgende udstyr udstyr overholder de væsentlige krav og øvrige relevante

[German] Hiermit erklärt ZyXEL, dass sich das Gerät Ausstattung in Übereinstimmung mit den grundlegenden Anforderungen

[Estonian] Käesolevaga kinnitab ZyXEL seadme seadmed vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist

English Hereby, ZyXEL declares that this equipment is in compliance with the essential requirements and other relevant

[Spanish] Por medio de la presente ZyXEL declara que el equipo cumple con los requisitos esenciales y cualesquiera otras

směrnice 1999/5/EC.

krav i direktiv 1999/5/EF.

und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EU befindet.

tulenevatele teistele asjakohastele sätetele.

provisions of Directive 1999/5/EC.

disposiciones aplicables o exigibles de la Directiva 1999/5/CE.

NBG6716 User’s Guide

225

Appendix D Legal Information

[Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ ZyXEL ΔΗΛΩΝΕΙ ΟΤΙ εξοπλισμός ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ

[French] Par la présente ZyXEL déclare que l'appareil équipements est conforme aux exigences essentielles et aux autres

[Italian] Con la presente ZyXEL dichiara che questo attrezzatura è conforme ai requisiti essenziali ed alle altre disposizioni

[Latvian] Ar šo ZyXEL deklarē, ka iekārtas atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem

[Lithuanian] Šiuo ZyXEL deklaruoja, kad šis įranga atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas. [Dutch] Hierbij verklaart ZyXEL dat het toestel uitrusting in overeenstemming is met de essentiële eisen en de andere

[Maltese] Hawnhekk, ZyXEL, jiddikjara li dan tagħmir jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħr

[Hungarian] Alulírott, ZyXEL nyilatkozom, hogy a berendezés megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EK

[Polish] Niniejszym ZyXEL oświadcza, że sprzęt jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi

[Portuguese] ZyXEL declara que este equipamento está conforme com os requisitos essenciais e outras disposições da Directiva

[Slovenian] ZyXEL izjavlja, da je ta oprema v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/EC. [Slovak] ZyXEL týmto vyhlasuje, že zariadenia spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/EC. [Finnish] ZyXEL vakuuttaa täten että laitteet tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien

[Swedish] Härmed intygar ZyXEL att denna utrustning står I överensstämmelse med de väsentliga egenskapskrav och övriga

[Bulgarian] С настоящото ZyXEL декларира, че това оборудване е в съответствие със съществените изисквания и другите

[Icelandic] Hér með lýsir, ZyXEL því yfir að þessi búnaður er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipunar

[Norwegian] Erklærer herved ZyXEL at dette utstyret er I samsvar med de grunnleggende kravene og andre relevante

[Romanian] Prin prezenta, ZyXEL declară că acest echipament este în conformitate cu cerinţele esenţiale şi alte prevederi

ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕC.

dispositions pertinentes de la directive 1999/5/EC.

pertinenti stabilite dalla direttiva 1999/5/CE.

noteikumiem.

relevante bepalingen van richtlijn 1999/5/EC.

hemm fid-Dirrettiva 1999/5/EC.

irányelv egyéb elõírásainak.

postanowieniami Dyrektywy 1999/5/EC.

1999/5/EC.

direktiivin muiden ehtojen mukainen.

relevanta bestämmelser som framgår av direktiv 1999/5/EC.

приложими разпоредбите на Директива 1999/5/ЕC.

1999/5/EC.

bestemmelser I direktiv 1999/5/EF.

relevante ale Directivei 1999/5/EC.

ajn relevanti li

226

National Restrictions

This product may be used in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned b elow:

Ce produit peut être utilisé dans tous les pays de l’UE (et dans tous les pays ayant transposés la directive 1999/5/CE) sans aucune limitation, excepté pour les pays mentionnés ci-dessous:

Questo prodotto è utilizzabile in tutte i paesi EU (ed in tutti gli altri paesi che seguono le direttive EU 1999/5/EC) senza nessuna limitazione, eccetto per i paesii menzionati di seguito:

Das Produkt kann in allen EU Staaten ohne Einschränkungen eingesetzt werden (sowie in anderen Staaten die der EU Direktive 1995/5/CE folgen) mit Außnahme der folgenden aufgeführten Staaten:

In the majority of the EU and other European countries, the 2, 4- and 5-GHz bands have been made available for the use of wireless local area networks (LANs). Later in this document you will find an overview of countries inwhich additional restrictions or requirements or both are applicable.

The requirements for any country may evolve. ZyXEL recommends that you check wi th the local authorities for the latest status of their national regulations for both the 2,4- and 5-GHz wireless LANs.

The following countries have restrictions and/or requirements in addition to those given in the table labeled “Overview of Regulatory Requirements for Wireless LANs”:.

Overview of Regulatory Requirements for Wireless LANs Frequency Band (MHz) Max Power Level

2400-2483.5 100 V 5150-5350 200 V 5470-5725 1000 V

(EIRP)

(mW)

Indoor ONLY Indoor and Outdoor

NBG6716 User’s Guide

Appendix D Legal Information

Belgium The Belgian Institute for Postal Services and Telecommunications (BIPT) must be notified of any outdoor wireless link having a range

exceeding 300 meters. Please check http://www.bipt.be for more details. Draadloze verbindingen voor buitengebruik en met een reikwijdte van meer dan 300 meter dienen aangemeld te worden bij het Belgisch

Instituut voor postdiensten en telecommunicatie (BIPT). Zie http://www.bipt.be voor meer gegevens. Les liaisons sans fil pour une utilisation en extérieur d’une distance supérieure à 300 mètres doivent être notifiées à l’Institut Belge des

services Postaux et des Télécommunications (IBPT). Visitez http://www.ibpt.be pour de plus amples détails. Denmark In Denmark, the band 5150 - 5350 MHz is also allowed for outdoor usage. I Danmark må frekvensbåndet 5150 - 5350 også anvendes udendørs. Italy This product meets the National Radio Interface and the requirements specified in the National Frequency Allocation Table for Italy. Unless

this wireless LAN product is operating within the boundaries of the owner's property, its use requires a “general authorization.” Please check http://www.sviluppoeconomico.gov.it/ for more details.

Questo prodotto è conforme alla specifiche di Interfaccia Radio Nazionali e rispetta il Piano Nazionale di ripartizione delle frequenze in Italia. Se non viene installato all 'interno del proprio fondo, l'utilizzo di prodotti Wireless LAN richiede una “Autorizzazione Generale”. Consultare http://www.sviluppoeconomico.gov.it/ per maggiori dettagli.

Latvia The outdoor usage of the 2.4 GHz band requires an authorization from the Electronic Communications Office. Please check http://

www.esd.lv for more details.

2.4 GHz frekvenèu joslas izmantoðanai ârpus telpâm nepiecieðama atïauja no Elektronisko sakaru direkcijas. Vairâk informâcijas: http://www.esd.lv.

Notes:

1. Although Norway, Switzerland and Liechtenstein are not EU member states, the EU Directive 1999/5/EC has also been implemented in

those countries.

2. The regulatory limits for maximum output power are specified in EIRP. The EIRP level (in dBm) of a device can be calculated by adding

the gain of the antenna used(specified in dBi) to the output power available at the connector (specified in dBm).

List of national codes

COUNTRY ISO 3166 2 LETTER CODE COUNTRY ISO 3166 2 LETTER CODE

Austria AT Malta MT Belgium BE Netherlands NL Cyprus CY Poland PL Czech Republic CR Portugal PT Denmark DK Slovakia SK Estonia EE Slovenia SI Finland FI Spain ES France FR Sweden SE Germany DE United Kingdom GB Greece GR Iceland IS Hungary HU Liechtenstein LI Ireland IE Norway NO Italy IT Switzerland CH Latvia LV Bulgaria BG Lithuania LT Romania RO Luxembourg LU Turkey TR

Safety Warnings

• Do NOT use this product near water, for example, in a wet basement or near a swimming pool.

• Do NOT expose your device to dampness, dust or corrosive liquids.

• Do NOT store things on the device.

• Do NOT install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from lightning.

• Connect ONLY suitable accessories to the device.

• Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY qualified service personnel should service or disassemble this device. Please contact your vendor for further information.

• Make sure to connect the cables to the correct ports.

• Place connecting cables carefully so that no one will step on them or stumble over them.

• Always disconnect all cables from this device before servicing or disassembling.

• Use ONLY an appropriate power adaptor or cord for your device.

• Connect the power adaptor or cord to the right supply voltage (for example, 110V AC in North America or 230V AC in Europe).

• Do NOT allow anything to rest on the power adaptor or cord and do NOT place the product where anyone can walk on the power adaptor or cord.

• Do NOT use the device if the power adaptor or cord is damaged as it might cause electrocution.

• If the power adaptor or cord is damaged, remove it from the power outlet.

NBG6716 User’s Guide

227

Appendix D Legal Information

• Do NOT attempt to repair the power adaptor or cord. Contact your local vendor to order a new one.

• Do not use the device outside, and make sure all the connections are indoors. There is a remote risk of electric shock from lightning.

• Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your device.

• Antenna Warning! This device meets ETSI and FCC certification requirements when using the included antenna(s). Only use the included antenna(s).

• If you wall mount your device, make sure that no electrical lines, gas or water pipes will be damaged.

Your product is marked with this symbol, which is known as the WEEE mark. WEEE stands for Waste Electronics and Electrical Equipment. It means that u sed el ectr ical and el ectro ni c prod ucts s houl d not be mix e d with g ene r al w ast e. Use d electrical and electronic equipment should be treated separately.

228

NBG6716 User’s Guide

Index

ActiveX 136 Address Assignment 77 AP 13 AP Mode

menu 54 status screen 52

AP+Bridge 13

Bridge/Repeater 13

certifications 224

notices 225

viewing 225 Channel 45, 53 channel 85 CIFS 158 Common Internet File System, see CIFS Configuration

restore 171 content filtering 135

by keyword (in URL) 135 Cookies 136 copyright 224 CPU usage 46, 53

service providers 125

DHCP 72, 110

DHCP server

see also Dynamic Host Configuration Protocol DHCP server 108, 110 Digital Living Network Alliance 157 disclaimer 224 DLNA 156, 157

indexing 159

overview 156

rescan 159 DLNA-compliant client 157 DNS 112 DNS Server 77 DNS server 112 documentation

related 2 Domain Name System 112 Domain Name System. See DNS. duplex setting 46, 54 Dynamic DNS 125 Dynamic Host Configuration Protocol 110 DynDNS 125 DynDNS see also DDNS 125

encryption 86

and local (user) database 87

key 87

WPA compatible 87 ESSID 180

Daylight saving 169 DDNS 125

ZyXEL NBG6716 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
