Sony VPL-EX315, VPL-EW348, VPL-EW315 User Manual

4-577-251-12 (1)

Data

Projector

Operating Instructions

Before operating the unit, please read this manual and supplied Quick Reference Manual thoroughly and retain it for future reference.

VPL-EW348/EW345/EW315

VPL-EX345/EX340/EX315/EX310

Not all models are available in all countries and area. Please check with your local Sony Authorized Dealer.

© 2015 Sony Corporation

Table of Contents
Overview
Location and Function of Controls ....	4
Main Unit .....................................	4
Terminal .......................................	5
Remote Commander and Control
Panel Keys .................................	7
Preparation
Connecting the Projector ...................	9
Connecting a Computer ................	9
Connecting a Video
equipment ................................	11
Connecting a HDBaseTTM
equipment ................................	13
Connecting a microphone ..........	15
Connecting a USB memory
device ......................................	15
Connecting an External Monitor and
Audio Equipment ....................	15
Projecting/Adjusting an
Projecting an Image .........................	16
Adjusting the Projected image ...	17
Turning Off the Power ................	22
Adjustments and Settings
Using a Menu
Using a MENU ................................	23
The Picture Menu .............................	24
The Screen Menu .............................	25
The Function Menu ..........................	29
The Operation Menu ........................	30

The Connection/Power Menu ...........	31
The Installation Menu ......................	34
The Information Menu .....................	35
Network
Using Network Features ...................	36

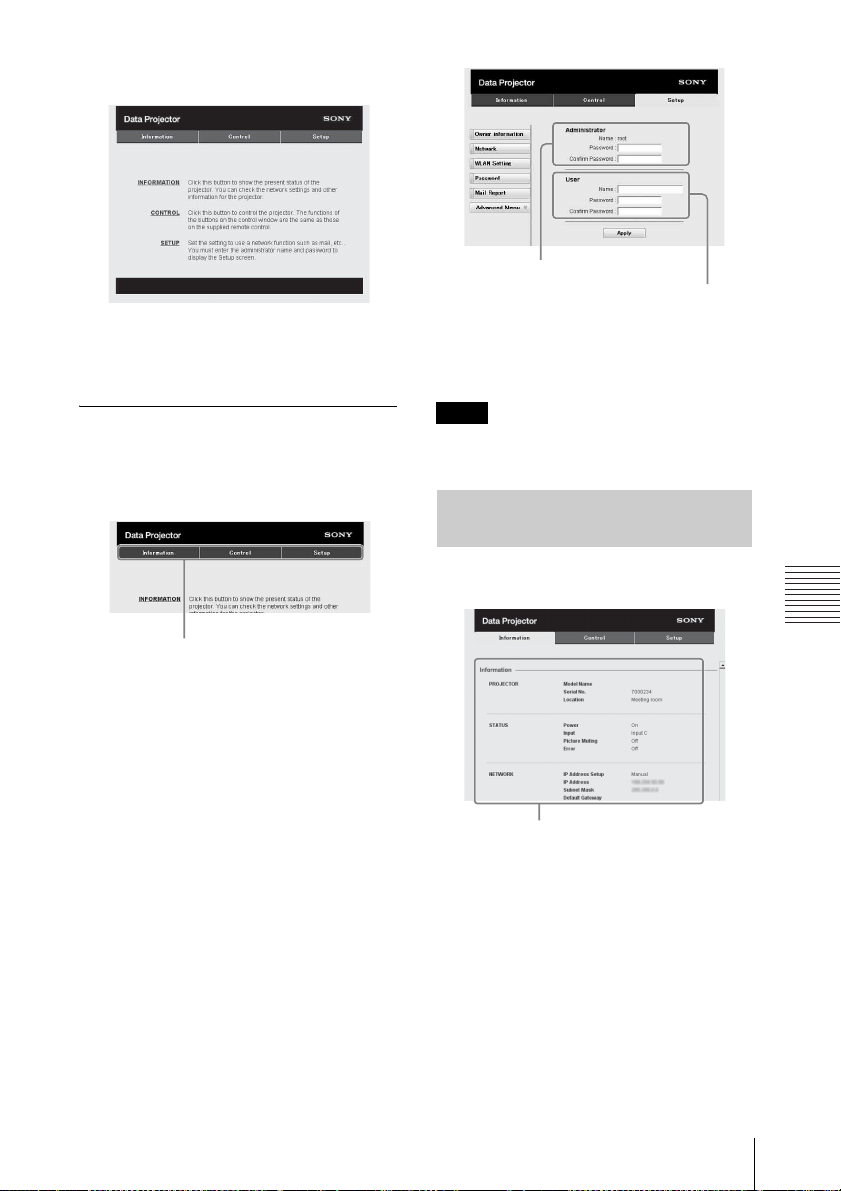

Displaying the Control Window of
the Projector with a Web
Browser ...................................	36
Confirming the Information
regarding the Projector ............	37
Operating the Projector from a
Computer .................................	38
Using the e-mail report
Function ...................................	38

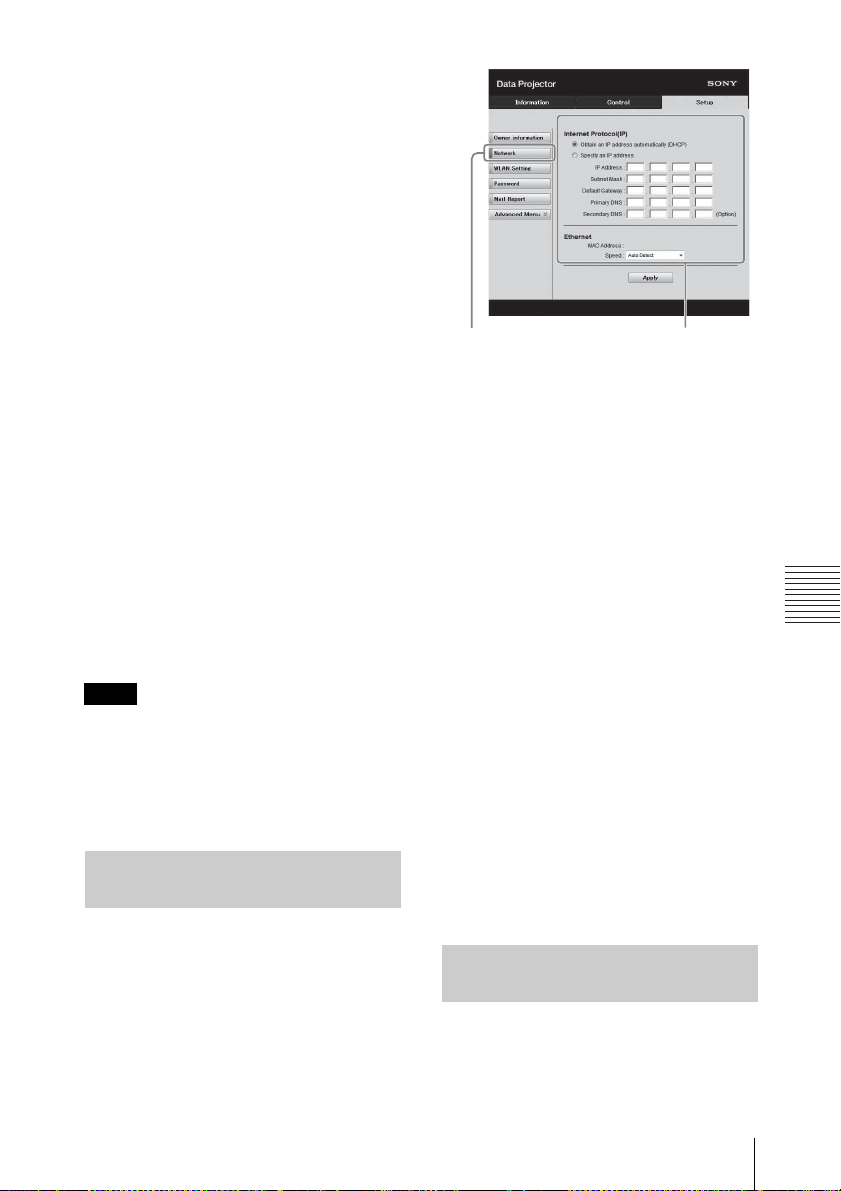

Setting the LAN Network of the
projector ..................................	39

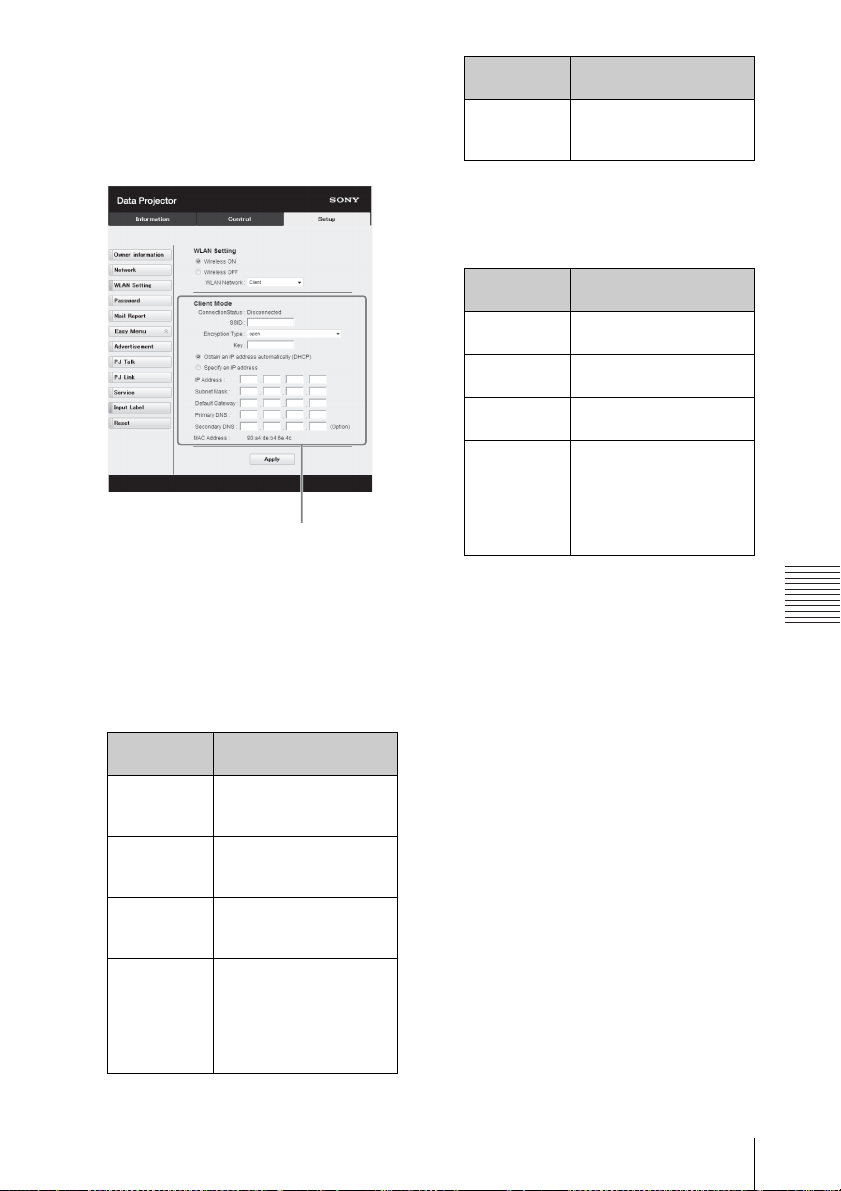

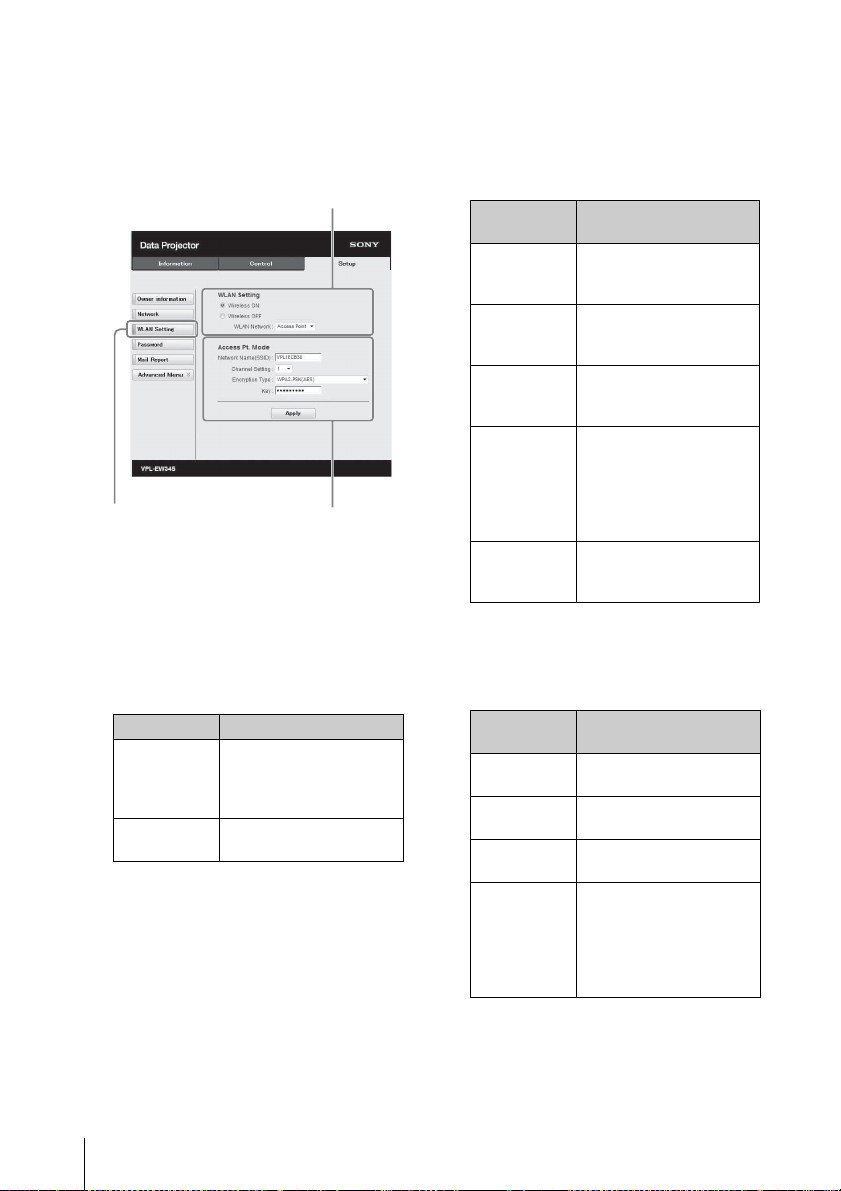

Setting the WLAN Network of the
projector ..................................	39
Setting the Custom Labels for the
Input Terminals of the
Projector ..................................	42

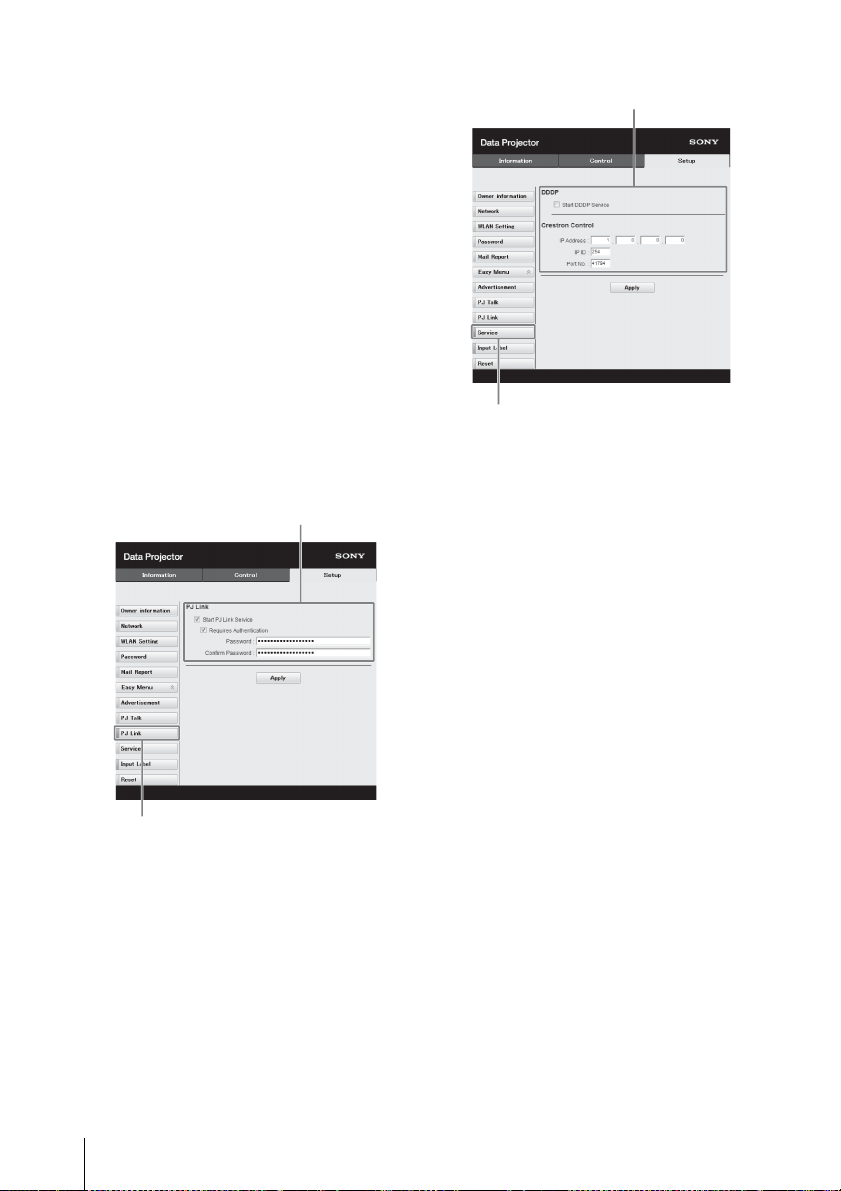

Setting the Control Protocol of the
Projector ..................................	42
Presentation Function via
Network
Using Presentation Function via
Network .........................................	46

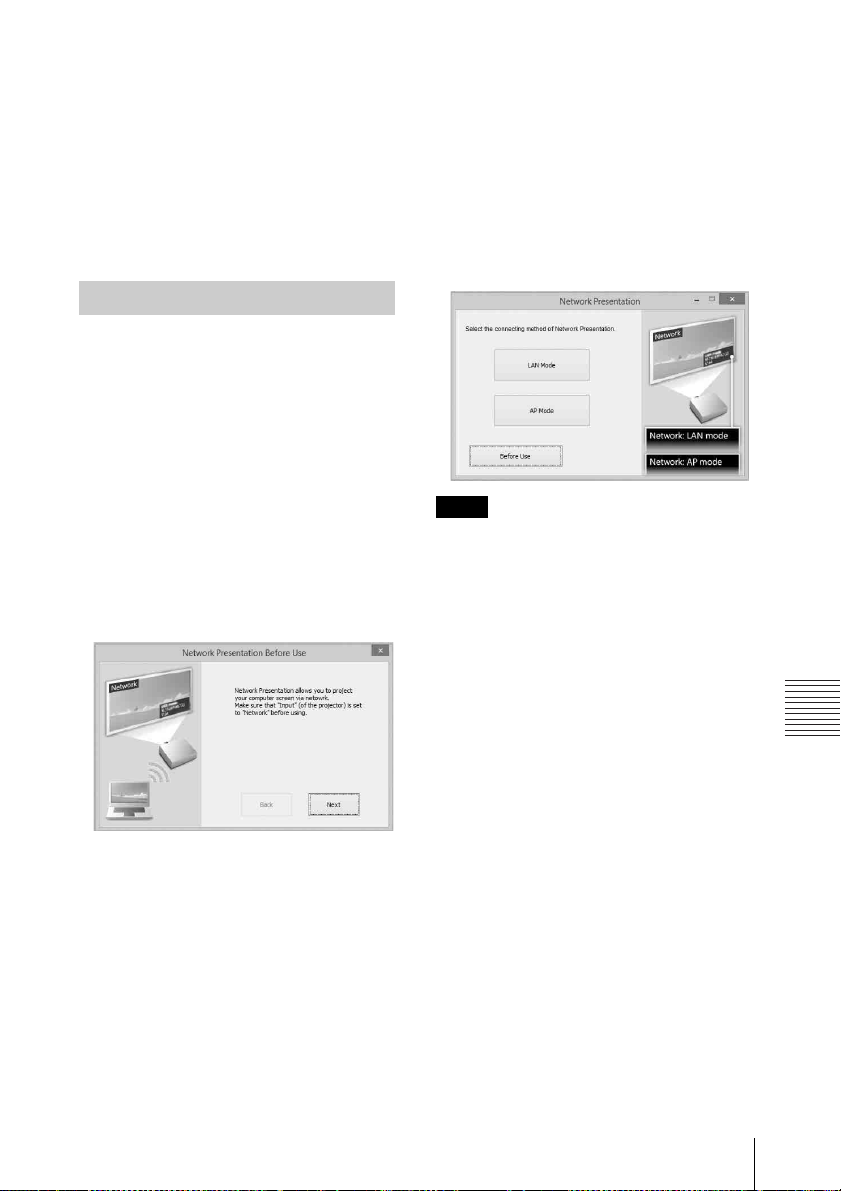

Installing Projector Station for
Network Presentation ..............	46
Starting Projector Station for
Network Presentation ..............	46
Projecting an Image ....................	47

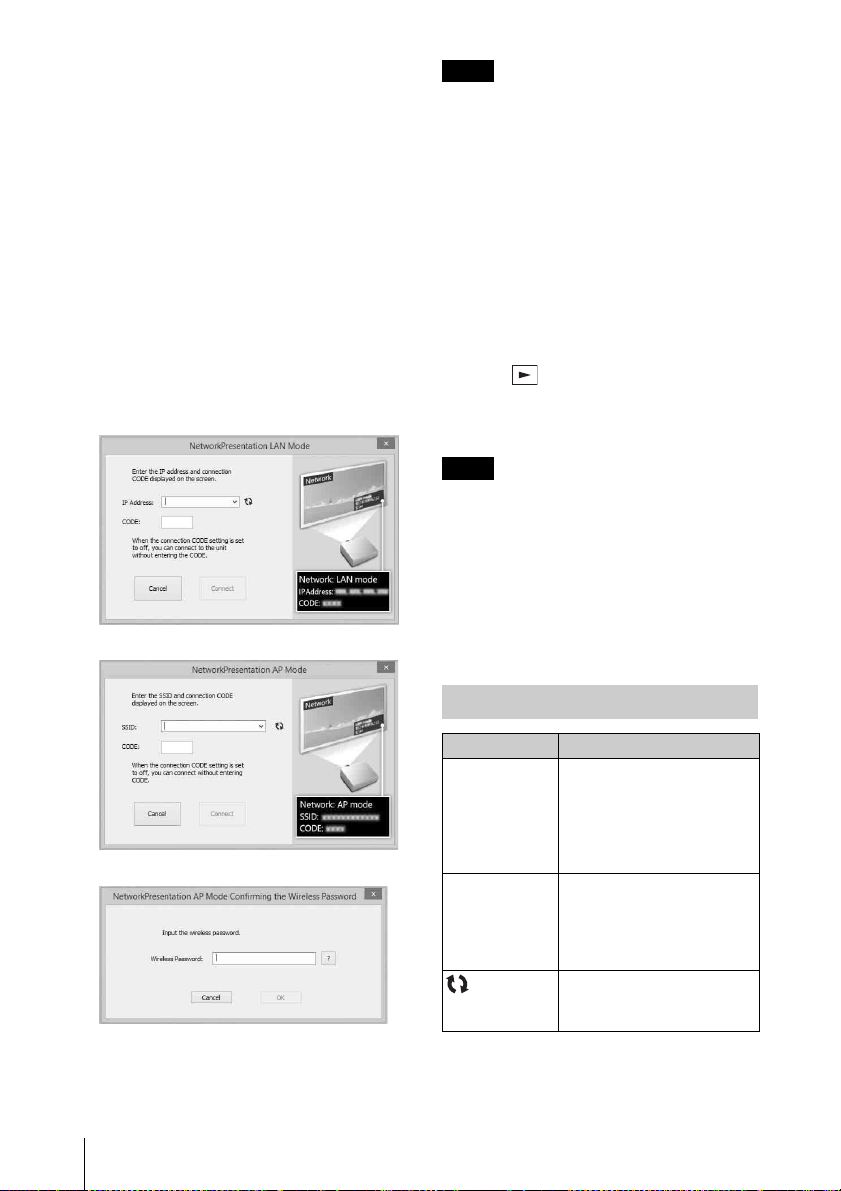

Connection Settings ....................	48

2 Table of Contents

Using the Controller ...................	49
One-Click projecting function ....	49
Option format .............................	50
Use Projector Station for Network
Presentation without installing it
to the computer. .......................	51
Error code list of Projector Station
for Projector Station for Network
Presentation .............................	52
Displaying Images or Files Sent
from a Tablet
PC/Smartphone .......................	53
Playing Video and Audio
using USB Connection

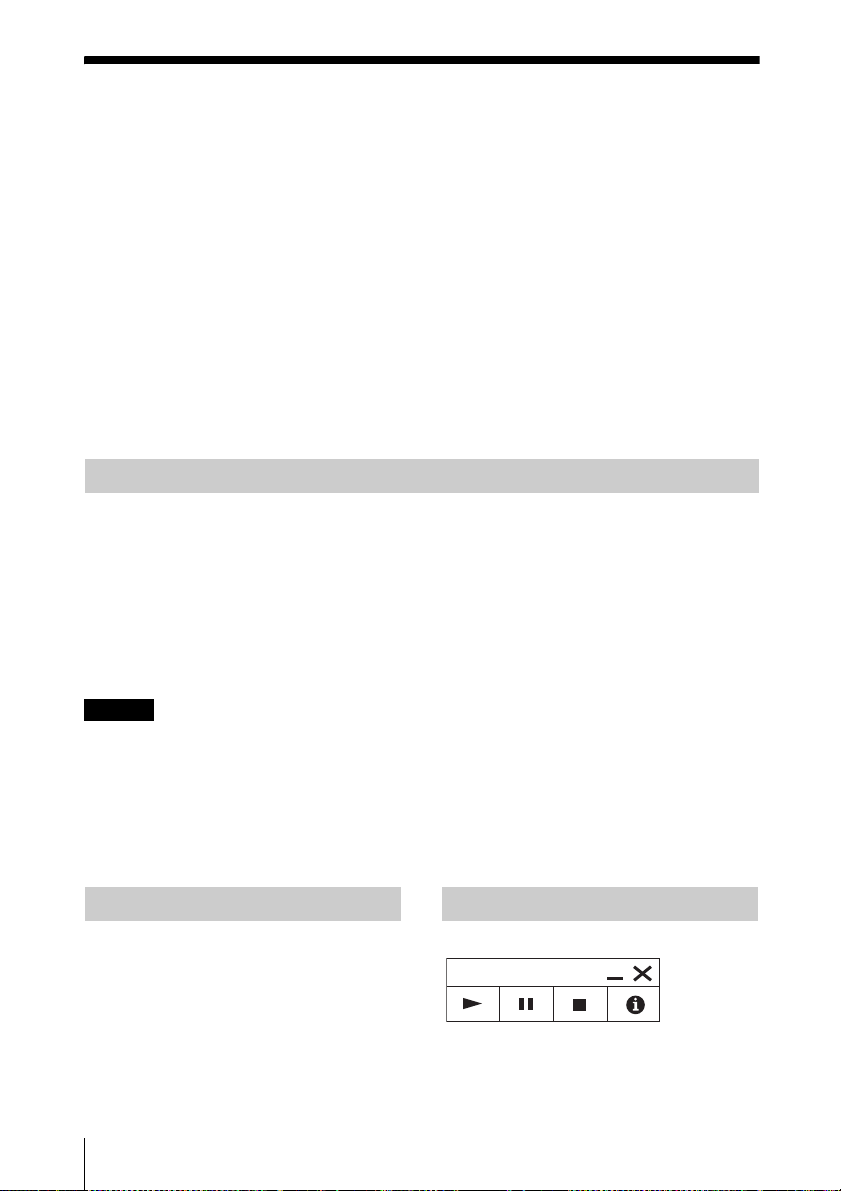

Playing Video and Audio using USB
Connection ....................................	54
Starting USB Display .................	54
Playing Video and Audio ...........	54
Using the Controller ...................	54

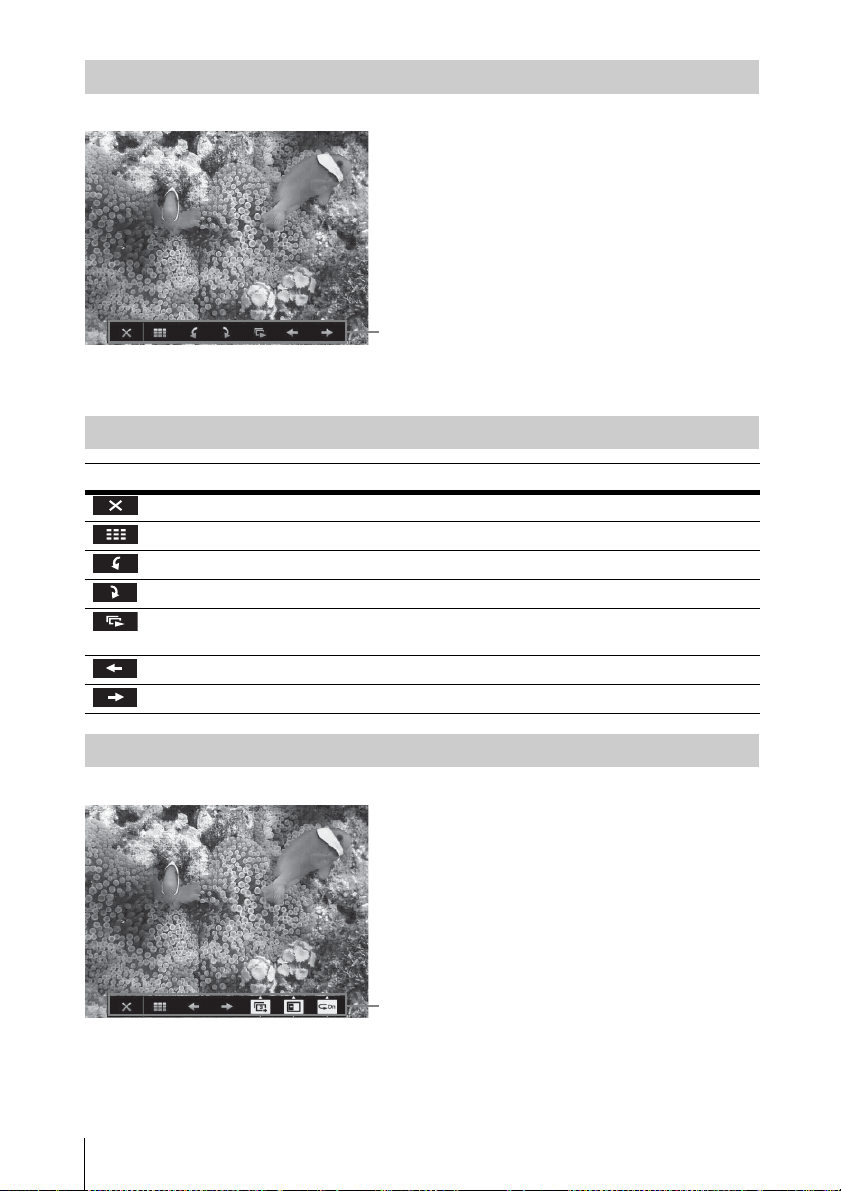

USB Media Viewer

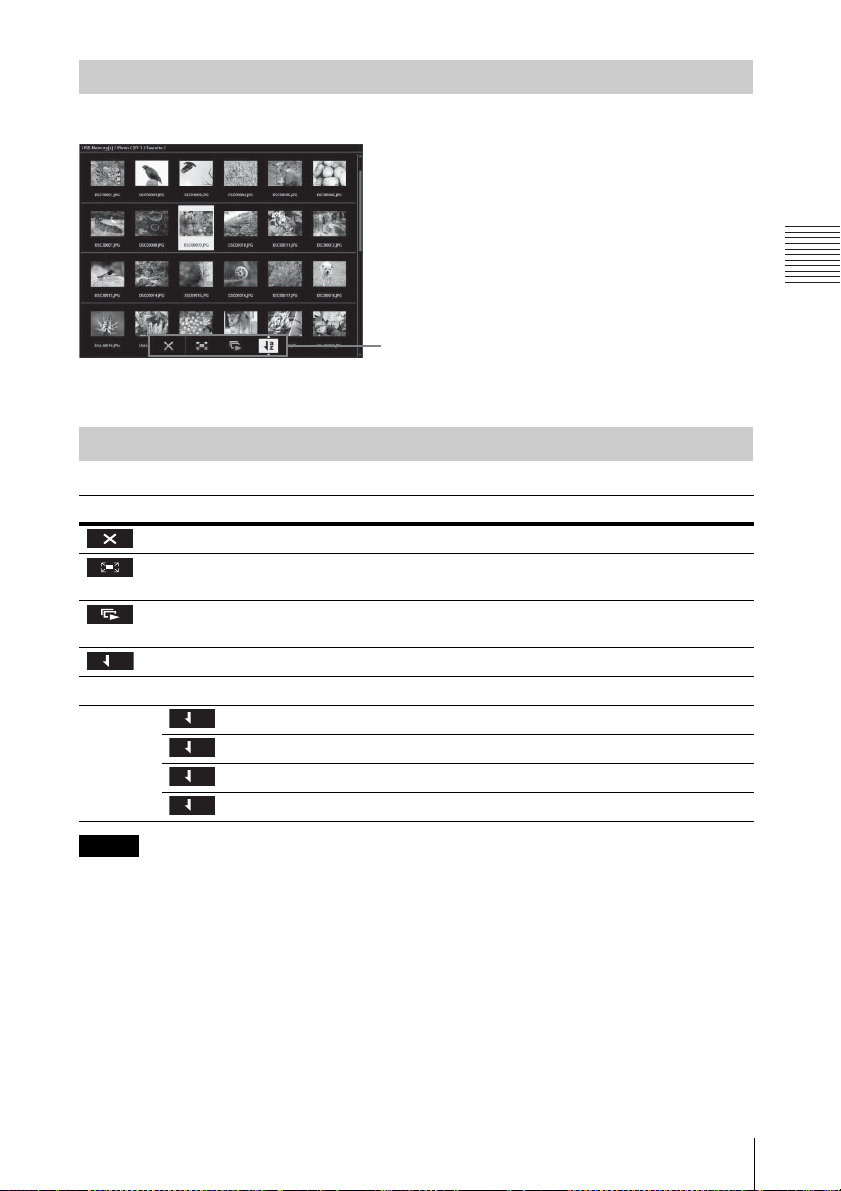

Using USB Media Viewer ................	56
Thumbnail Mode ........................	57

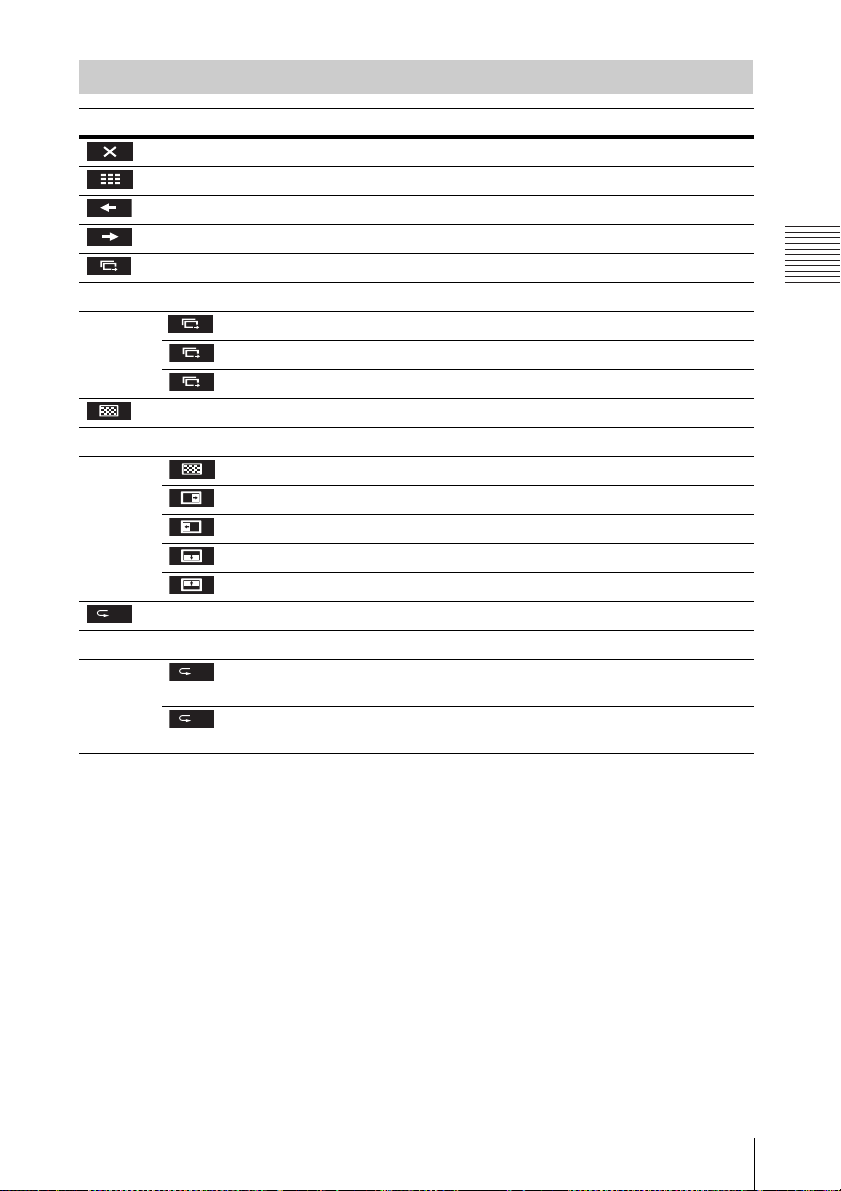

Option Menu ...............................	57
Display Mode .............................	58
Option Menu ...............................	58
Slideshow Mode .........................	58
Option Menu ...............................	59
Others

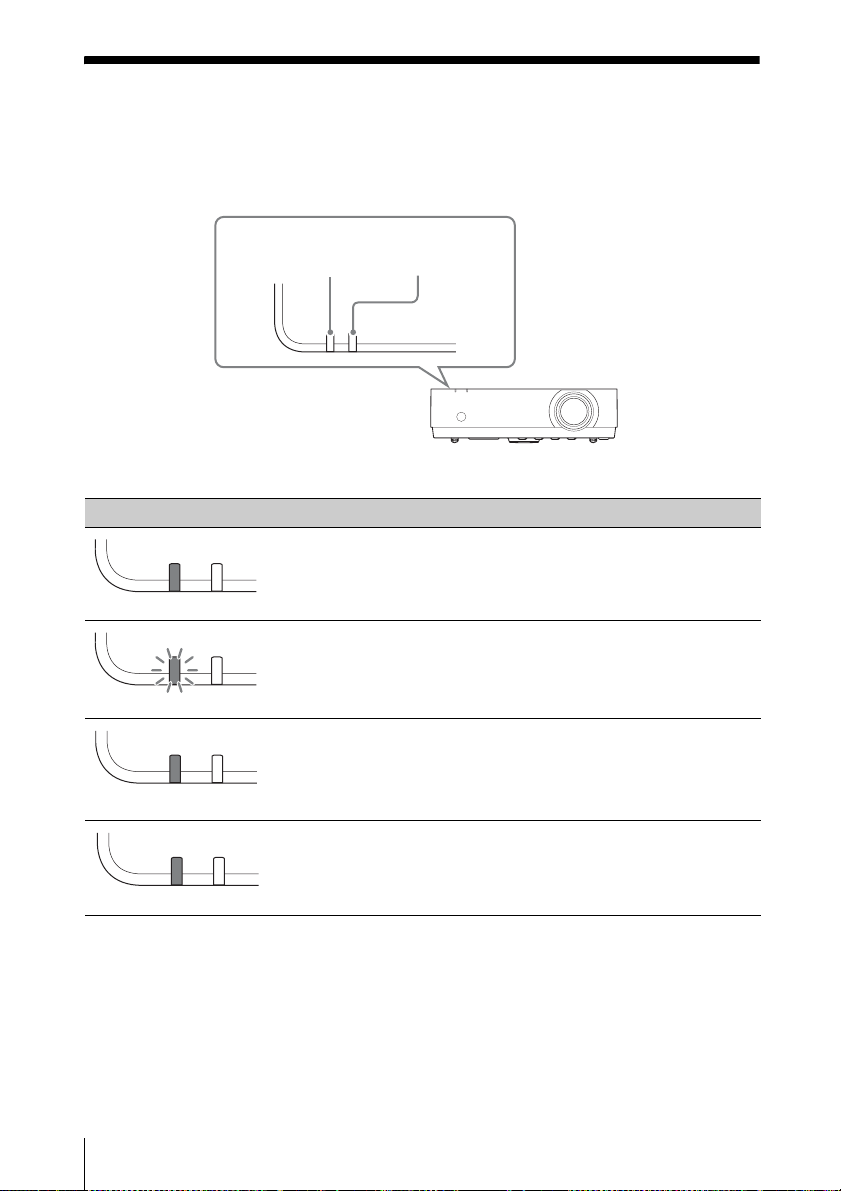

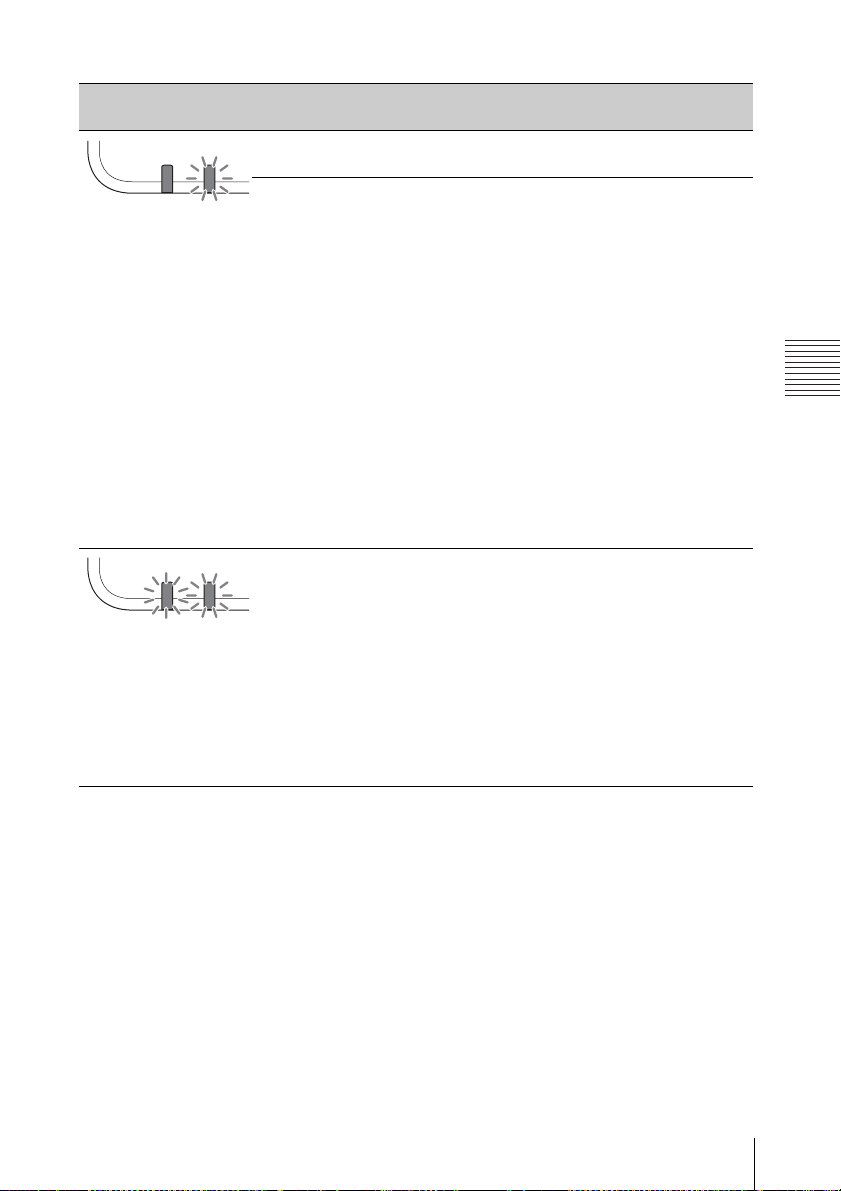

Indicators ..........................................	60
Messages List ...................................	62
Troubleshooting ...............................	63

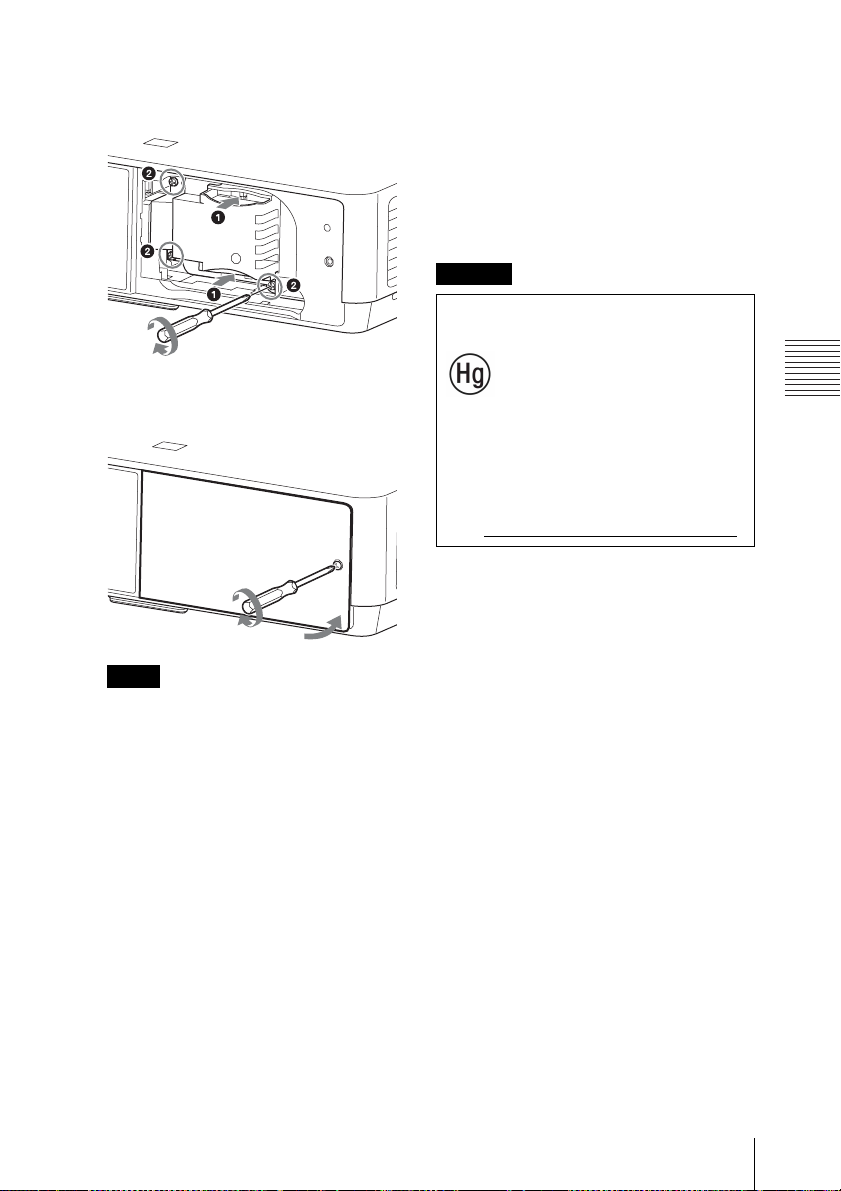

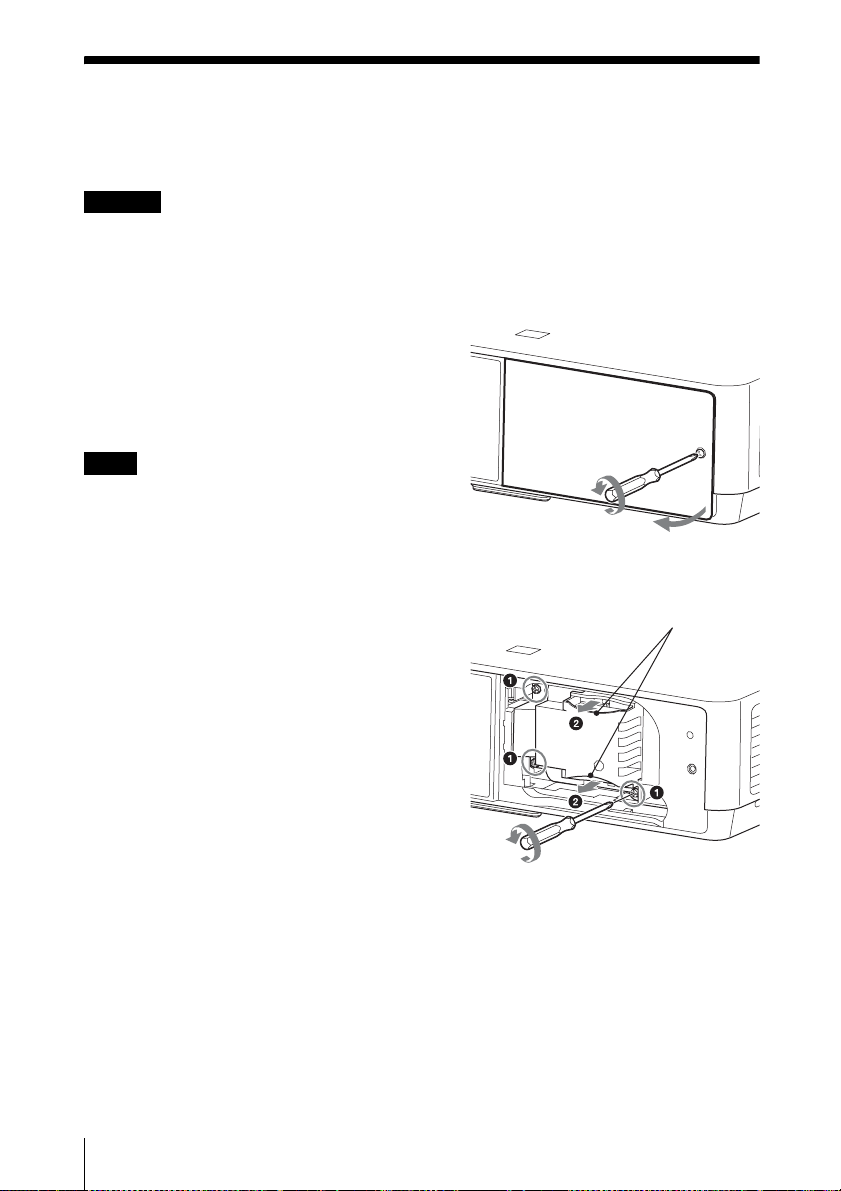

Replacing the Lamp .........................	66

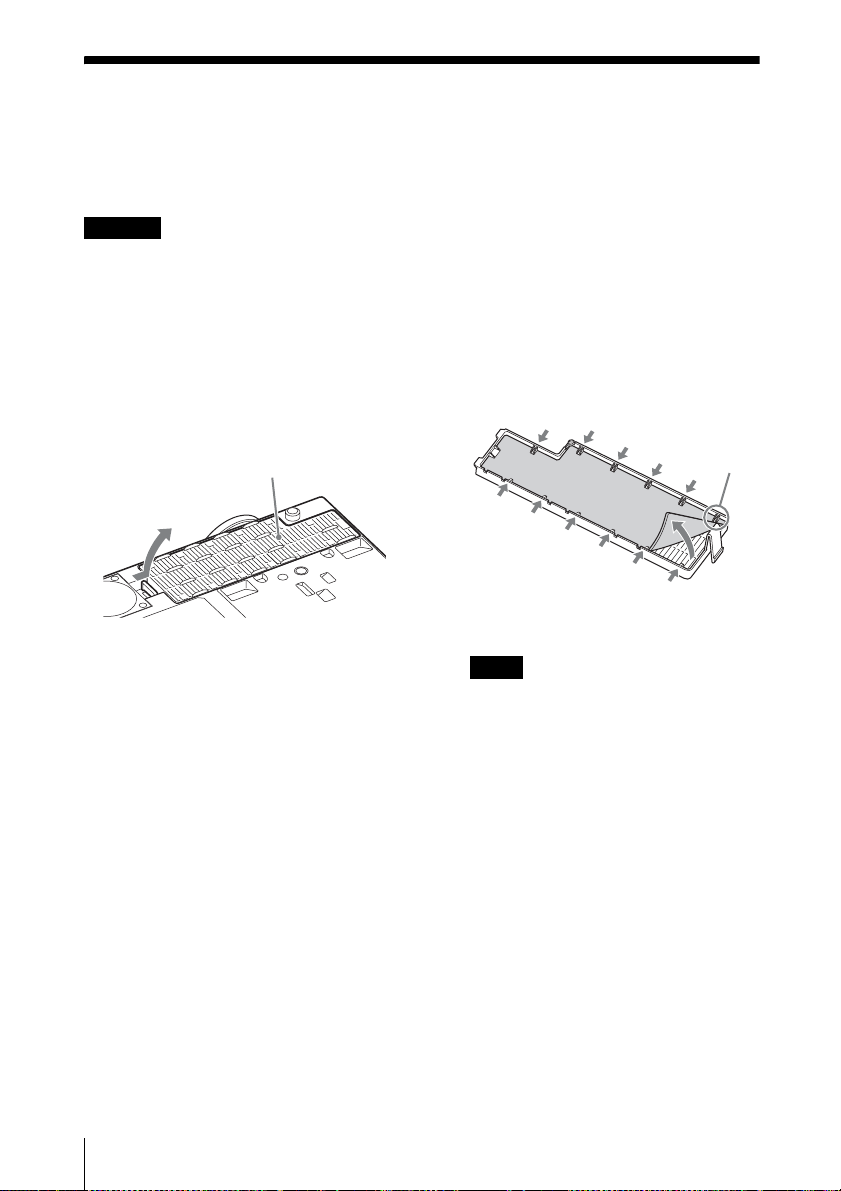

Cleaning the Air Filter .....................	68
Specifications ...................................	69

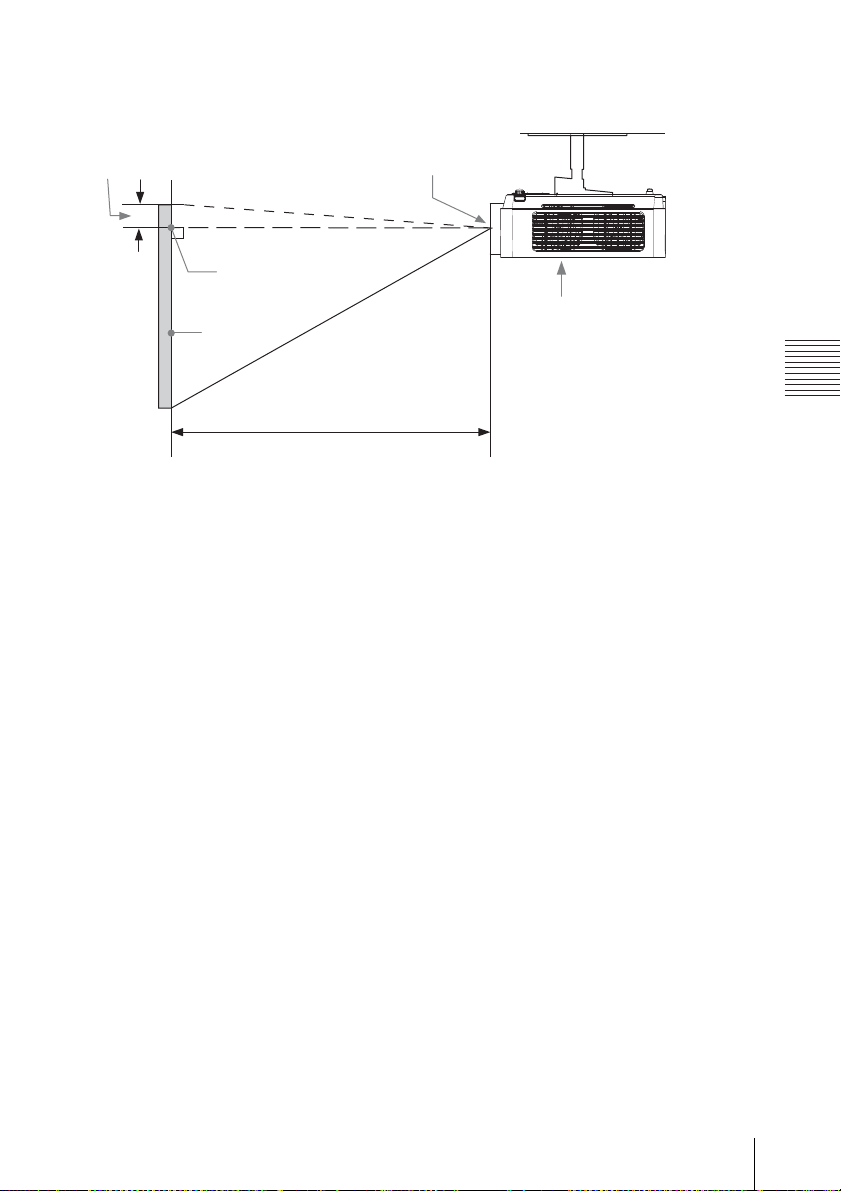

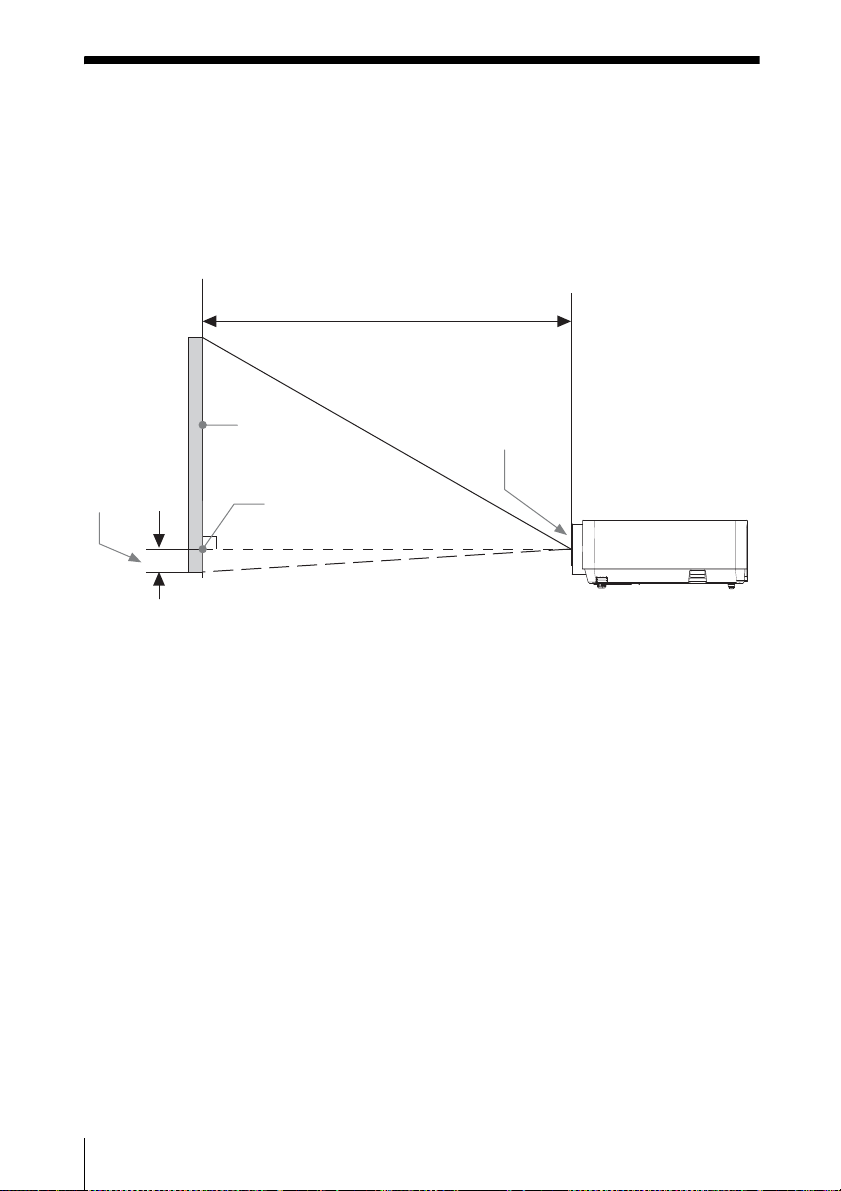

Projection Distance ..........................	76

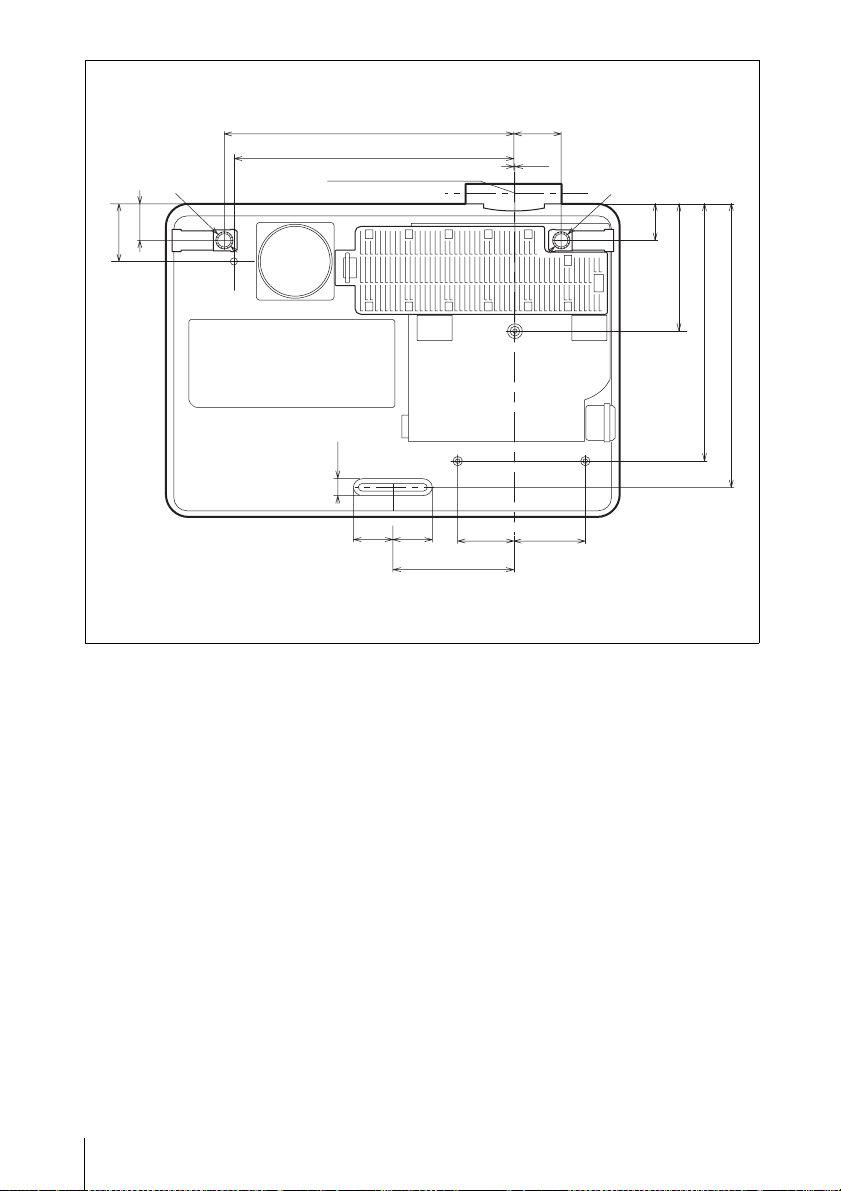

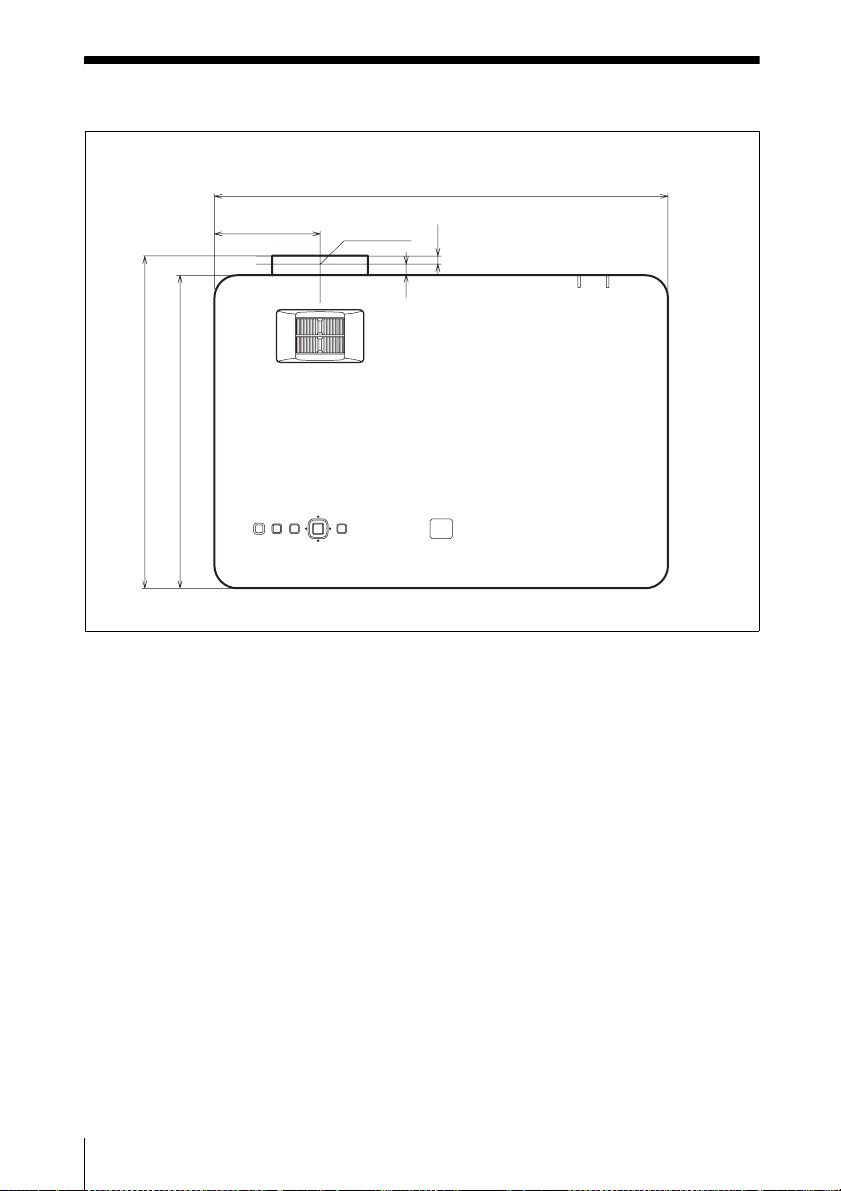

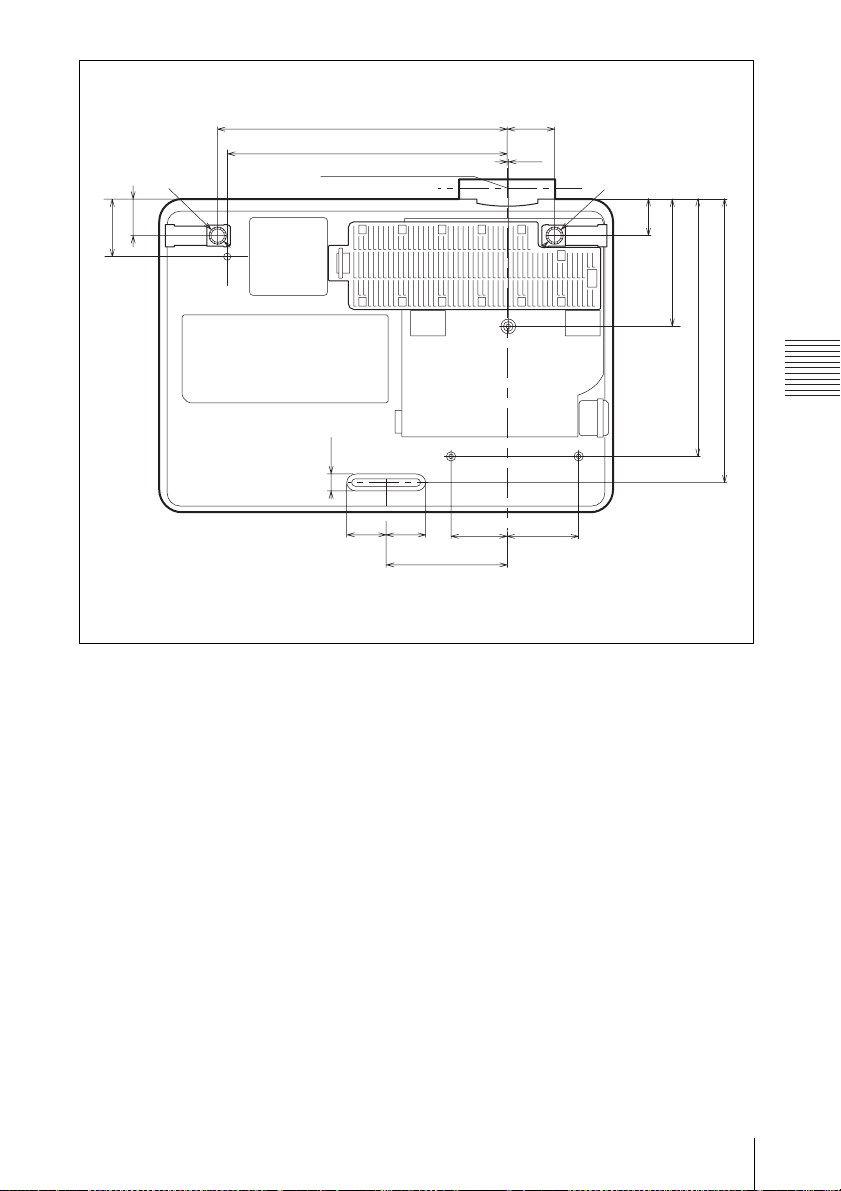

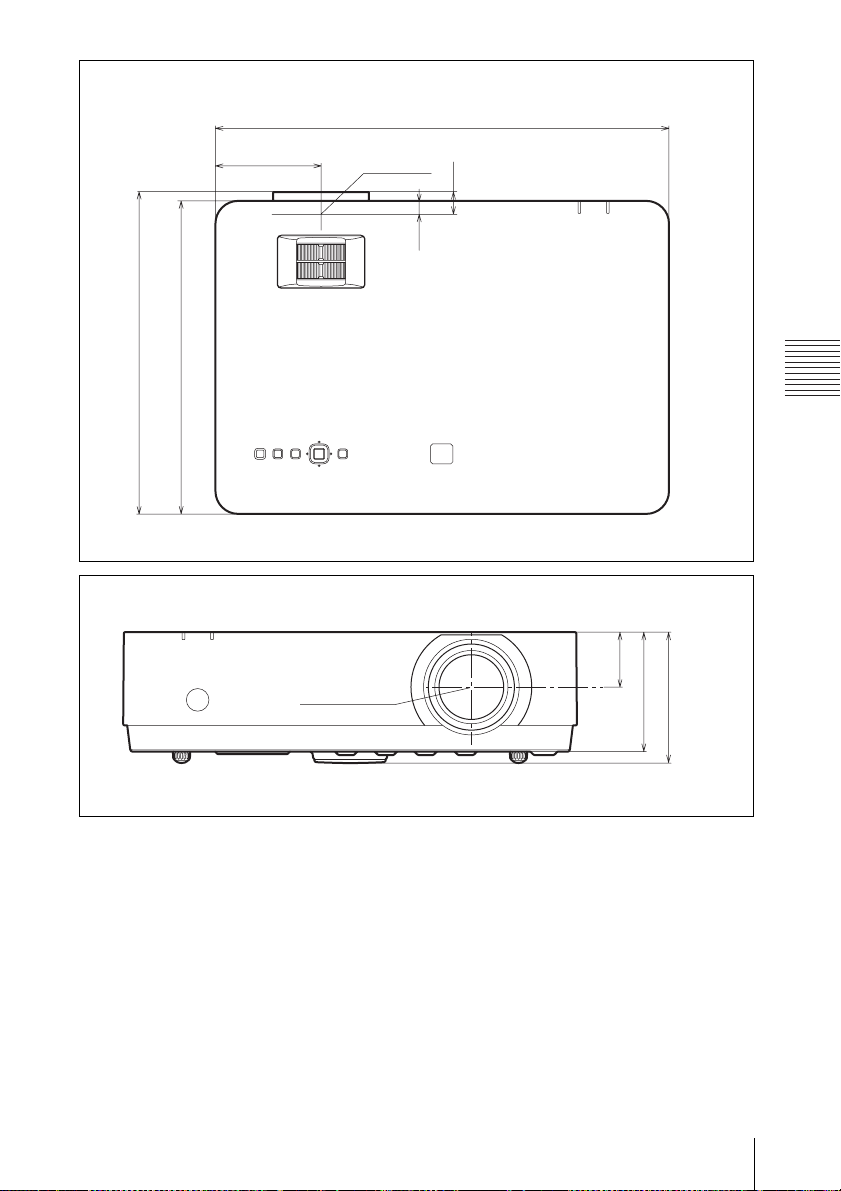

Dimensions ......................................	82
END USER LICENSE
AGREEMENT .............................	86
Index ................................................	92

Table of Contents	3

B Overview

Location and Function of Controls

Main Unit

6

1

	5	2
	4
		3

7

8

7 08

qa

9

a Focus ring (page 17) b Zoom ring (page 17) c Lens

d Remote Control Receiver

eON/STANDBY indicator (page 60)

f WARNING indicator (page 60) g Front feet (adjustable) (page 18) h Foot adjust button (page 18)

iAir filter cover/Ventilation holes (intake) (page 68)

j Ventilation holes (exhaust)

qh

qs

qg

qd

qf

Caution

Do not place anything near the ventilation holes as this may cause internal heat buildup. Do not place your hand near the ventilation holes and the circumference as this may cause injury.

kSpeaker (VPL-EW348/EW345/ EW315/EX345/EX315 only)

l Terminal (page 5)

m Lamp cover (page 66)

nSecurity lock

Connects to an optional security cable manufactured by Kensington.

For details, visit Kensington’s web site. http://www.kensington.com/

oSecurity bar

Connects to a commercially available security chain or wire.

p Control panel keys (page 7)

4 Location and Function of Controls

Terminal

VPL-EW348

	qa 2		Overview
		9
qf		8
4		6
		7
qs 5 qd 3	1	76

VPL-EW345/EW315/EX345/EX315

qa 2

		9
qf		8
4		6
		7
qs q; qd 3	1	76

VPL-EX340/EX310

qa 2

4

qs q; qd 3

9 8

1

76

Input (pages 9, 11)

aINPUT A

Video: RGB/YPBPR input terminal (RGB/YPBPR)

Audio: Audio input terminal (AUDIO)

bINPUT B

Video: RGB input terminal (RGB) Audio: Audio input terminal (AUDIO)

cINPUT C

Video: HDMI input terminal (HDMI) Audio: HDMI input terminal (HDMI)

dINPUT D

Video: HDMI input terminal (HDMI) Audio: HDMI input terminal (HDMI)

Location and Function of Controls	5

eINPUT E

HDBaseT terminal*/LAN terminal (page 36)

Use a straight CAT5e or CAT6 shielded LAN cable (not supplied).

*VPL-EW348 only

fS VIDEO (S VIDEO IN)

Video: S video input terminal (S VIDEO IN)

Audio: Audio input terminal (L (MONO) AUDIO/R)

gVIDEO (VIDEO IN)

Video: Video input terminal (VIDEO) Audio: Audio input terminal (L

(MONO) AUDIO/R)

Notes

•The audio inputs of S VIDEO and VIDEO are shared.

•The audio input terminal and audio output from the HDMI terminal are available only on VPL-EW348/EW345/EW315/EX345/ EX315.

Output (page 15)

hOUTPUT

Video: Monitor output terminal (MONITOR)

Audio: Audio output terminal (AUDIO)

Notes

•This terminal outputs the projected image only when INPUT A or INPUT B is used.

•The audio output terminal is available only on VPL-EW348/EW345/EW315/EX345/ EX315.

Others

iRS-232C terminal (RS-232C)

RS-232C compatible control terminal. Connects the computer’s RS-232C terminal and the RS-232C cross cables.

j LAN terminal (page 36)

kAC IN ( ) socket

Connects the supplied AC power cord.

lUSB terminal (Type A) ( ) (pages 15, 56)

mUSB terminal (Type B) ( ) (page 54)

n Microphone input ( )

Note

Microphone input is available only on VPLEW348/EW345/EW315/EX345/EX315.

6 Location and Function of Controls

Remote Commander and Control Panel Keys

Remote Commander

				7
4				1
INPUT	APA	ECO MODE		6
2
MENU			RESET
3	ENTER
RETURN
ASPECT	KEYSTONE	PATTERN
4			BLANK
D ZOOM	VOLUME	FREEZE	MUTING	5

Control Panel Keys

1 2 3 6

aTurning on the power/Going to standby mode

?/1 (On/Standby) key

bSelecting an input signal (page 16)

INPUT key

cOperating a menu (page 23)

MENU key RESET key

ENTER /V/v/B/b (arrow) keys

RETURN key

dAdjusting the image (page 17)

ASPECT key (page 25) KEYSTONE key (page 19)

PATTERN key (page 21)

APA (Auto Pixel Alignment) key* (page 21)

Note

*Use this key when inputting a computer signal via the RGB input terminal (INPUT A or INPUT B).

eUsing various functions during projecting

D ZOOM (Digital Zoom) +/– key*1

Enlarges a portion of the image while projecting.

1Press the D ZOOM + key to display the digital zoom icon on the projected image.

2Press the V/v/B/b keys to move the digital zoom icon to the point on the image you want to enlarge.

3Press the D ZOOM + key or the D ZOOM – key repeatedly to change the

enlargement ratio. The image can be enlarged up to 4 times.

Press the RESET key to restore the previous image.

BLANK key

Cuts off the projected image temporarily. Press again to restore the previous image. Picture muting helps reduce power consumption.

MUTING key (VPL-EW348/EW345/ EW315/EX345/EX315 only)

Mutes the audio output temporarily. Press again to restore the previous volume.

VOLUME +/– key (VPL-EW348/ EW345/EW315/EX345/EX315 only)

Adjusts the volume output.

FREEZE key*2

Pauses a projected image. Press again to restore the image.

Overview

Location and Function of Controls	7

Notes

*1: Use this key when inputting a computer signal. But it may not be used depending on the resolution of the input signal.

*2: Use this key when inputting a computer signal.You cannot use this key when “Type A USB”, “Type B USB” or “Network” is selected as the input.

fSetting the energy–saving mode easily

ECO MODE key

Energy-saving mode can be set easily. Energy-saving mode consists of “Lamp Mode,” “With No Input,” “With Static Signal” and “Standby Mode.”

1Press the ECO MODE key to display the ECO Mode menu.

ECO Mode

ECO

User

:Sel	RETURN :Back

2Press the V/v key or ECO MODE key to select “ECO” or “User” mode. ECO: Sets each mode to the optimum

energy-saving value. Lamp Mode: Low With No Input: Standby

With Static Signal: Lamp Dimming

Standby Mode: Low

User: Sets each item of the ECO Mode menu as you desire (go to step 3).

3Select “User” then press the b key. The setting items appear.

User

Lamp Mode		High
Constant Brightness		ON
Auto Power Saving
With No Input		Off
With Static Signal		Lamp Dimming
Standby Mode		Standard
:Sel	:Set	RETURN :Back

4Press the V/v key to select the item then press the ENTER key.

5Press the V/v key to select the setting value.

6Press the ENTER key.

The screen returns to the User screen.

For details on ECO Mode settings, see “Lamp Mode,” “With No Input,” “With Static Signal” and “Standby Mode” on the Connection/Power menu (page 31).

Note

If you set “ECO Mode” to “ECO,” or “Standby Mode”(in “User”) to “Low,” the network control function will be disabled in standby mode. If the external control is being performed by using the network or network control function, do not select “ECO,” or do not set “Standby Mode” ( in “User”) to “Low.”

Others

g Infrared transmitter

About remote commander operation

•Direct the remote commander toward the Remote Control Receiver.

•The shorter the distance between the remote commander and the projector is, the wider the angle within which the remote commander can control the projector becomes.

•Make sure that nothing obstructs the infrared beam between the remote commander and the Remote Control Receiver on the projector.

8 Location and Function of Controls

B Preparation

Connecting the Projector

Notes

•Make sure all the equipment is powered off when connecting the projector.

•Use the proper cables for each connection.

•Insert the cable plugs firmly; Loose connections may reduce performance of picture signals or cause a malfunction. When pulling out a cable, be sure to grip it by the plug, not the cable itself.

•For more information, refer also to the instruction manuals of the equipment you are connecting.

•Use a no-resistance audio cable.

Connecting a Computer

Connection with a computer is explained for each input signal.

INPUT A/INPUT B

For connecting a computer with an RGB output terminal.

Mini D-sub 15-pin cable (supplied)

RGB output terminal

	Audio output
Computer	terminal

Audio cable (Stereo mini plug) (not supplied)

Notes

•The audio input terminal is available only on VPL-EW348/EW345/EW315/EX345/EX315.

•It is recommended that you set the resolution of your computer to 1280 × 800 pixels (VPL-EW348/ EW345/EW315) or 1024 × 768 pixels (VPL-EX345/EX340/EX315/EX310) for the external monitor.

INPUT C/INPUT D

For connecting a computer with an HDMI output terminal.

HDMI cable (not supplied)

HDMI output terminal

Computer

Preparation

Connecting the Projector	9

Notes

•Audio output from the HDMI terminal is available only on VPL-EW348/EW345/EW315/EX345/ EX315.

•Use HDMI-compatible equipment which has the HDMI Logo.

•Use a high speed HDMI cable(s) on which the cable type logo is specified. (Sony products are recommended.)

•The HDMI terminal of this projector is not compatible with DSD (Direct Stream Digital) Signal or CEC (Consumer Electronics Control) Signal.

USB terminal (Type B) ( )

For connecting to a computer with a USB terminal (“Playing Video and Audio using USB Connection” (page 54)).

USB terminal

(Type A) USB A-B cable (not supplied)

Computer

LAN terminal

For connecting to a computer, tablet PC, or smartphone via a hub or router (“Presentation Function via Network” (page 46)).

LAN terminal

LAN cable (straight type)

(not supplied) Computer

Wired connection

Tablet PC/Smartphone

	Computer	Hub, router (wireless), etc.
	Wireless connection

10 Connecting the Projector

USB terminal (Type A) ( )

For connecting a USB wireless LAN module IFU-WLM3 (not supplied) (“Presentation Function via Network” (page 46)).

Wireless router, access point

USB wireless LAN module

IFU-WLM3 (not supplied)

Tablet PC/Smartphone

Computer

Notes

•Undesignated USB wireless LAN modules do not work.

•When connecting/disconnecting the USB wireless LAN module, make sure that the projector is in Standby mode (Standby Mode: “Low”), or the AC power cord is unplugged from the wall outlet.

•When wirelessly connecting a tablet PC/smartphone to the projector via USB wireless LAN Module IFU-WLM3 (not supplied), set “WLAN Network” to “Access Pt.” in the projector’s “WLAN Settings” (page 31).

•To connect to an access point, access the Web page, and input the settings for the access point to connect to. For details, see “Setting the WLAN Network of the projector” (page 39).

Connecting a Video equipment

Connections with a VHS video deck, DVD player, or BD player are explained for each input signal.

S VIDEO IN

For connecting video equipment with an S-video output terminal.

Audio cable (Phono plug × 2) (not supplied)

Preparation

Audio output terminal

S video output Computer terminal

S video cable (not supplied)

Note

The audio input terminal is available only on VPL-EW348/EW345/EW315/EX345/EX315.

Connecting the Projector	11

VIDEO IN

For connecting video equipment with a video output terminal.

Audio cable (Phono plug × 2 – stereo mini plug) (not supplied)

Audio output terminal

	Video output
Video equipment	terminal

Video cable (not supplied)

Note

The audio input terminal is available only on VPL-EW348/EW345/EW315/EX345/EX315.

INPUT A

For connecting video equipment with a YPBPR output terminal.

Component – Mini D-sub 15-pin cable (not supplied)

YPBPR output terminal

Audio output

terminal Video equipment

Audio cable (Phono plug × 2 – stereo mini plug) (not supplied)

Note

The audio input terminal is available only on VPL-EW348/EW345/EW315/EX345/EX315.

INPUT C/INPUT D

For connecting video equipment with an HDMI output terminal.

HDMI cable (not supplied)

HDMI output terminal

Video equipment

Notes

•Audio output from the HDMI terminal is available only on VPL-EW348/EW345/EW315/EX345/ EX315.

•Use HDMI-compatible equipment which has the HDMI Logo.

12 Connecting the Projector

•Use a high speed HDMI cable(s) on which the cable type logo is specified. (Sony products are recommended.)

•The HDMI terminal of this projector is not compatible with DSD (Direct Stream Digital) Signal or CEC (Consumer Electronics Control) Signal.

Connecting a HDBaseTTM equipment

For connecting the computer, video equipment, and network equipment via the HDBaseT transmitter.

Connecting to the computer

INPUT E

LAN cable: STP type (CAT5e or higher, straight, not supplied)

HDBaseT transmitter (not supplied)

HDMI output terminal

HDMI cable (not supplied)

Computer

Connecting to the video equipment

INPUT E

LAN cable: STP type (CAT5e or higher, straight, not supplied)

HDBaseT transmitter (not supplied)

HDMI output terminal

Video equipment

HDMI cable (not supplied)

Preparation

Notes for connecting this unit and the HDBaseT transmitter

•Ask a professional or Sony dealer to perform wiring. If wiring is not correct, the transmission characteristics of the cable will not be achieved, and image or sound may break up or you may experience unstable performance.

•Connect the cable directly to the HDBaseT transmitter without going through a hub or router.

•Use cables that meet the following conditions.

-CAT5e or higher

-Shielded type (covering connectors) -Straight wire connection

-Single wire

Connecting the Projector	13

•When installing the cables, use a cable tester, cable analyzer, or similar device to check if the cables meet the CAT5e or higher requirement. If there is a transit connector between this unit and the HDBaseT transmitter, include it when measuring.

•To reduce the affect of noise, install and use the cable in a manner where it is not rolled up and it is as straight as possible.

•Install the cable away from the other cables (especially the power cable).

•When installing multiple cables, do not bind them and keep the running parallel distance as short as possible.

•The transmittable distance of the cable is 100 m (approx. 328 feet) maximum. If it exceeds 100 m (approx. 328 feet), it may cause the image or the sound to break up, or cause a multifunction in LAN communication. Do not use the HDBaseT transmitter beyond the transmittable distance.

•Inquire about operation or function problems caused by other manufacturer's devices with the relevant manufacturer.

Connecting to the network equipment

LAN connector

LAN cable (straight type) (not supplied)

Computer

Wired connection

Tablet PC/Smartphone

Hub, Wireless router

Computer

Wireless connection

HDBaseT transmitter (not supplied)

LAN cable: STP type (CAT5e or higher, straight, not supplied)

Notes

•HDBaseT is available only on VPL-EW348.

•If you are using a network, make sure “HDBaseT/LAN terminal” is set to “HDBaseT” (page 31).

•Connect this unit and the HDBaseT transmitter without a hub or router between them.

14 Connecting the Projector

Connecting a microphone

Microphone ( )

For connecting a microphone.

Microphone (not supplied)

Notes

•The microphone input is available only on VPL-EW348/EW345/EW315/EX345/EX315.

•Only dynamic microphones are supported.

Connecting a USB memory device

USB terminal (Type A) )

For connecting a USB memory device (“Using USB Media Viewer” (page 56)).

Preparation

USB memory device (not supplied)

Connecting an External Monitor and Audio Equipment

OUTPUT

Projected images or input audio can be output to display equipment such as a monitor or audio equipment such as speakers with a built-in amplifier.

Audio cable (stereo mini plug) (not supplied)

Audio equipment

Audio input terminal

Display equipment

RGB input terminal

Mini D-sub 15-pin cable (supplied)

Notes

•The audio output terminal is available only on VPL-EW348/EW345/EW315/EX345/EX315.

•Projected images and audio can be output.

•Projected images can be output from INPUT A and INPUT B only.

Connecting the Projector	15

B Projecting/Adjusting an Image

Projecting an Image

The size of a projected image depends on the distance between the projector and screen. Install the projector so that the projected image fits the screen size. For details on projection distances and projected image sizes, see “Projection Distance” (page 76).

*The display image is VPLEW348.

3 5

		4
	2
		Video equipment
Projector
1	Wall outlet	6
		Computer

1 Plug the AC power cord into the wall outlet.

2 Connect all equipment to the projector (page 9).

3 Press the ?/1 key to turn on the unit.

4 Turn on the connected equipment.

5 Select the input source.

Press the INPUT key on the projector to display the menu for switching input signal on the screen. Press the INPUT key repeatedly, or press the V/v key to select an image to be projected.

6 When projecting a computer image, switch your computer’s output to external display.

The method to switch the output varies depending on the type of computer.

(Example)

+

To project image files stored in a USB memory device, see “USB Media Viewer” (page 56). To play video and audio using USB Connection, see “Playing Video and Audio using USB Connection” (page 54). To use Presentation Function via Network, see “Presentation Function via Network” (page 46).

16 Projecting an Image

7 Adjust the focus, size and position of the projected image (page 17).

Adjusting the Projected image
Focus	Size (Zoom)	Position
Focus ring		Foot	anProjecting/Adjusting
		adjust
		button
	Zoom ring	Front feet	Image
		(adjustable)

Projecting an Image 17

Adjusting the tilt of the projector with the front feet (adjustable)

By changing the tilt of the projector with the foot adjust buttons/front feet (adjustable), you can adjust the position of the projected image.

How to adjust the angle

1 Press and hold the foot adjust buttons.

2 Lift up the front of the projector to adjust the angle.

3 Release the foot adjust buttons.

4 Turn the front feet (adjustable) to set the angle of the projector precisely.

Notes

•Be careful not to let the projector down on your fingers.

•Do not push hard on the top of the projector with the front feet (adjustable) extended.

Changing the aspect ratio of the projected image

Press the ASPECT key on the remote commander to change the aspect ratio of the projected image. You can also change the setting in Aspect of the Screen menu (pages 25, 27).

18 Projecting an Image

Correcting trapezoidal distortion of the projected image (Keystone feature)

Normally the Keystone feature automatically adjusts the projected image. The Keystone feature may not work automatically if the screen is tilted. In this case, set Keystone manually.

1Press the KEYSTONE key on the remote commander or select V Keystone in the Installation menu.

2Use the V/v/B/b keys to set the value. The higher the value, narrower the top of the projected image. The lower the value, the narrower the bottom.

Note

Since the Keystone adjustment is an electronic correction, the image may be deteriorated.

Increase the number towards plus

Increase the number towards minus

Image an Projecting/Adjusting

Projecting an Image 19

Fitting the projected image to the screen (Digital Shrink adjustment)

If the projected image exceeds the size of the screen, you can shrink and adjust the position of it.

1Select “Rid. digitale” in the Installation menu.

2Set the shrinking rate.

Press the V/v/B/b key to adjust the value. The more the value increases towards the plus side, the smaller the projected image becomes.

3Press the ENTER button to display the shift adjustment menu and adjust the display position of the projected image.

Press the V/v/B/b key to adjust the display position.

Note

If the shrinking rate is set to “0,” you cannot move the image. If the projector is projecting an image with a resolution that is different from the panel display resolution of this projector, it may not be possible to move the image.

20 Projecting an Image

Displaying a pattern

You can display a pattern for adjusting the projected image or a grid pattern with the PATTERN key on the remote commander. Press the PATTERN key again to restore the previous image. You can use a grid pattern as a guide to write text or to draw lines and shapes on the whiteboard or blackboard without using a computer.

Note

You cannot use this key when “Type A USB”, “Type B USB” or “Network” is selected as the input.

Automatically adjusts Phase, Pitch and Shift of projected image while a signal is input from a computer (APA (Auto Pixel Alignment))

Press the APA key on the remote commander. Press again to cancel adjusting during the setting. You can also set APA in the Screen Menu (page 26). If Smart APA in the Function menu is set to “On”, executes APA automatically when a signal is input (page 29).

Image an Projecting/Adjusting

Projecting an Image 21

Turning Off the Power

1 Press the ?/1 key on the unit or the remote commander.

The projector starts shutdown and turns off. If you press the ?/1 key within 10 seconds again, shutdown is cancelled.

Note

Do not turn off the projector soon after the lamp lights. It may cause a malfunction of the lamp (does not light ,etc.).

2 Unplug the AC power cord from the wall outlet.

To turn off without displaying confirmation message

Press and hold the ?/1 key on the unit for a few seconds (page 62).

Note

If you turn off the unit soon after the lamp is turned on, the confirmation message will be displayed and may take a longer time for the unit to turn off.

ECO gauge

This gauge indicates the current effectiveness of the projector’s ECO function. (For details on the ECO function, see “ECO MODE key” (page 8) and “ECO” (page 32).)

The leaf icons are displayed when the projector is shut down. The number of displayed icons varies according to how much energy is saved as a result of using the ECO function.

ECO gauge

22 Projecting an Image

B Adjustments and Settings Using a Menu

Using a MENU

Note

The menu displays used for the explanation below may be different depending on the model you are using.

1 Press the MENU key to display the menu.

2 Select the setting menu.

Use the V/v key to select the setting menu then press the b key or ENTER key.

Setting menu


					Picture Mode	Standard
					Reset
					Contrast
					Brightness
					Color
					Hue
					Color Temp.	Middle
					Sharpness
					Expert Setting
		:Sel			:Set	:Back

3 Select the setting item.

Use the V/v key to select the setting menu then press the b key or ENTER key.

To return to the selection screen of the setting menu, press the B or RETURN key.

Setting items


	Picture Mode	Standard
	Reset
	Contrast	80
	Brightness	50
	Color	50
	Hue	50
	Color Temp.	Middle
	Sharpness	5
	Expert Setting
:Sel	:Set	:Back

operations in step 3 and then press the ENTER key to register the setting.

To return to the selection screen of the setting items, press the B or RETURN key. You can press the RESET key to reset an item to its factory setting value to aid setting.

Using a pop-up menu

Press the V/v/B/b key to select an item. A selected item takes effect immediately, except “Language”, which will take effect after you press the ENTER key.

Picture Mode

Dynamic

Standard

Presentation

Blackboard

Whiteboard

Cinema

:Sel RETURN :Back

Using the setting menu

Press the V/v key to select the item. Press the ENTER key to register the setting and return to the previous screen.

Using the adjustment menu

To increase the value, press the V/b key and to decrease the number, press the v/B key. Press the ENTER key to register the setting and return to the previous screen.

Contrast

Adjust

Back

4 Make the setting or adjustment for the selected item.

The setting method varies, depending on the setting item.

If the next menu window is displayed, select the item according to the

5 Press the MENU key to clear the menu.

The menu disappears automatically if no operation is performed.

Menu a Using Settings and Adjustments

Using a MENU 23

The Picture Menu

The Picture is used to adjust the picture for each input signal.

Items		Item descriptions
Picture Mode		Dynamic: Emphasizes the contrast to produce a dynamic and vivid picture.
		Standard: Provides an image which is natural and well balanced.
		Presentation: Provides a bright image, suitable for presentations.
		Blackboard: Provides an image suitable for displaying on a blackboard.
		Whiteboard: Provides an image suitable for displaying on a whiteboard.
		Cinema: Provides an image suitable for viewing movies.
Reset*1		Resets the factory setting.
Contrast		The higher the value, the greater the contrast. The lower the value, the lower
		the contrast.
Brightness		The higher the value, the brighter the picture. The lower the value, the darker
		the picture.
Color*2 *3		The higher the value, the greater the intensity. The lower the value, the lower
		the intensity.
Hue*2 *3 *4		The higher the value, the more greenish the picture becomes. The lower the
		value, the more reddish the picture becomes.
Color Temp.*5		High/Middle/Low: The higher the value, the more bluish the picture. The
		lower the value, the more reddish the picture.
Sharpness*6		The higher the value, the sharper the picture. The lower the value, the softer
		the picture.
Expert Setting
	Gamma	Graphics1: Gamma correction to make halftones brighter. This setting is
	Mode*7	suitable when projecting highly colorful images, such as photos, in a bright
		place.
		Graphics2: Gamma correction to improve the reproduction of halftones.
		Highly colorful images, such as photos, can be reproduced in natural tones.
		Text: Improves black and white contrast. Suitable for images with lots of text
		content.

Notes

*1: The settings in the Picture return to their factory defaults, except for Picture Mode. *2: When a video signal is input, this option is available.

*3: When the signal without color burst signal is input after selecting “Video” or “S-Video”, this option is unavailable.

*4: When an analog TV signal is input, this option may not available, depending on the color system. *5: When “Picture Mode” is set to the item other than “Presentation” or “Blackboard,” this option

is available.

*6: Not available if “Input” is set to “Type A USB.”

*7: When “Picture Mode” is set to “Blackboard,” this option is unavailable.

24 The Picture Menu

The Screen Menu

The Screen menu is used to adjust the size, position and aspect ratio of the projected image for each input signal.

Items		Item descriptions
Aspect*1		Changes the aspect ratio of the projected image (page 27).
	VPL-EW348/EW345/	4:3: Displays the image to fit the maximum projected image size
	EW315: When the	with an aspect ratio fixed to 4:3.
	computer signal is	16:9: Displays the image to fit the maximum projected image size
	input	with an aspect ratio fixed to 16:9.
		Full 1: Displays the image to fit the maximum projected image
		size without changing the aspect ratio of the input signal.
		Full 2: Displays the image to fit the maximum projected image
		size changing the aspect ratio of the input signal.
		Full 3: Displays the image to fit the maximum width or height, up
		to 1280 × 720 pixels, without changing the aspect ratio of the
		input signal.
		Normal: Displays the image on the center position of the
		projected screen without changing the resolution of the input
		signal or enlarging the image.

VPL-EW348/EW345/ EW315: When the video signal is input

4:3: Displays the image to fit the maximum projected image size with an aspect ratio fixed to 4:3.

16:9: Displays the image to fit the maximum projected image size with an aspect ratio fixed to 16:9.

Full: Displays the image to fit the maximum projected image size changing the aspect ratio of the input signal.

Zoom: Zooms the center area of a projected image.

	VPL-EX345/EX340/	4:3: Displays the image to fit the maximum projected image size
	EX315/EX310: When	with an aspect ratio fixed to 4:3.
	the computer signal is	16:9: Displays the image to fit the maximum projected image size
	input	with an aspect ratio fixed to 16:9.
		Full 1: Displays the image to fit the maximum projected image
		size without changing the aspect ratio of the input signal.
		Normal: Displays the image on the center position of the
		projected screen without changing the resolution of the input
		signal or enlarging the image.
	VPL-EX345/EX340/	4:3: Displays the image to fit the maximum projected image size
	EX315/EX310: When	with an aspect ratio fixed to 4:3.
	the video signal is	16:9: Displays the image to fit the maximum projected image size
	input	with an aspect ratio fixed to 16:9.
		Zoom: Zooms the center area of a projected image.

Menu a Using Settings and Adjustments

The Screen Menu 25

Items		Item descriptions
Adjust Signal		Adjusts the image of computer signal. Use this item if the edge of
		the image is cut and reception is bad.
	APA*2 *3	Automatically adjusts the projected image to an optimum quality
		when you press the ENTER key (page 7).
	Phase*2	Adjusts the dot phase of the display pixel and the input signal. Set
		to the value where looks clearest.
	Pitch*2 *5	The higher the value, the wider the horizontal image elements
		(pitch). The lower the value, the narrower the horizontal image
		elements (pitch).
	Shift*4	H (Horizontal): The higher the value, the farther right the image
		is projected on the screen. The lower the value, the image farther
		left.
		V (Vertical): The higher the value, the farther up the image is
		projected on the screen. The lower the value, the image farther
		down.

Notes

*1: • Note that if the projector is used for profit or for public viewing, modifying the original picture by switching to the aspect mode may constitute an infringement of the rights of authors or producers, which are legally protected.

•Depending on the input signal, setting items for aspect ratio or some other setting items cannot be set in some cases, or changing the aspect ratio setting may have no effect.

•A part of the image may be displayed in black, depending on the setting item.

*2: Available when a computer signal is input from the RGB input terminal (INPUT A/INPUT B). *3: If the projected image includes large amount of black portion around it, the APA function will not work properly and a part of the image may not be displayed on the screen and also optimum image cannot be obtained, depending on the type of input signal. In this case, adjust the “Phase,”

“Pitch,” and “Shift” items manually.

*4: Available when a computer or a video signal is input from the RGB/YPBPR input terminal (INPUT A).

*5: When “APA” (page 26) or “Smart APA” (page 29) is performed, the adjusted value for “Pitch” will return to its factory default. If you want to continue using the adjusted value, set “Smart APA” to “Off.”

26 The Screen Menu

Aspect

VPL-EW348/EW345/EW315

	Input signal		Recommended
			setting value and
			projected image
4:3				Full1*1 *2 *3

Computer signal	16:9	Full1*1 *2	*3
	16:10	Full1*3

	4:3	4:3*4 *5
signal
Video	16:9	16:9

*1: If you select “Normal,” the image is projected in the same resolution as the input signal without changing the aspect ratio of the original image.

*2: If you select “Full2,” the image is projected to fit the projected image size, regardless of the aspect ratio of the image.

*3: If you adjust the projected image position using an image with 16:9 aspect ratio and then switch the input source to 4:3 image, the top and bottom edge of the image may be hidden. In this a case, select “Full3.”

*4: Depending on the input signal, the projected image may be projected as illustrated below. In this a case, select “16:9.”

*5: Depending on the input signal, the image may be projected as illustrated below. In this a case, select “Zoom.”

Menu a Using Settings and Adjustments

The Screen Menu 27

VPL-EX345/EX340/EX315/EX310

	Input signal	Recommended
		setting value and
		projected image
4:3			Full1*1

Computer signal	16:9	Full1*1 *2
	16:10	Full1*1 *2

	4:3	4:3*3
signal		16:9*4
Video	16:9

*1: If you select “Normal,” the image is projected in the same resolution as the input signal without changing the aspect ratio of the original image.

*2: If you select “4:3,” the image is projected to fit the projected image size, regardless of the aspect ratio of the image.

*3: Depending on the input signal, the projected image may be projected as illustrated below. In this a case, select “16:9.”

*4: Depending on the input signal, the projected image may be projected as illustrated below. In this a case, select “Zoom.”

28 The Screen Menu

The Function Menu

The Function menu is used for setting various functions of the projector.

Items		Item descriptions
Volume*3		The higher the value, the louder an audio volume and the lower the
		value, the lower the audio volume.
Mic Volume*3		Adjust the volume of the microphone.*2
Speaker*3		On/Off: When set to “On,” speaker outputs sound. To not output
		sound from the speaker, select “Off.”
Smart APA		On/Off: When set to “On,” APA functions automatically when a
		signal is input.*1
CC Display		CC1/CC2/CC3/CC4/Text1/Text2/Text3/Text4: Select the closed
		caption service (captions or text).
		Off: Closed caption does not appear.
Lamp Timer Reset		When replacing the lamp, resets the lamp timer (page 66).
Start Up Image		On/Off: When set to “On,” the Start Up Image is displayed on the
		screen when the projector is powered on.
All Reset		Resets all settings to their factory defaults.

Notes

*1: APA functions when a computer signal is input via the RGB input terminal (INPUT A/INPUT B).

*2: The maximum available mic volume is set by the value of “Volume.” *3: VPL-EW348/EW345/EW315/EX345/EX315 only.

Menu a Using Settings and Adjustments

The Function Menu 29
