Sony VPL-EX276, VPL-EX246, VPL-EW276, VPL-EW246 User Manual

4-464-386-11 (1)

Data

Projector

Operating Instructions

Before operating the unit, please read this manual and supplied Quick Reference Manual thoroughly and retain it for future reference.

VPL-EW276/EW246/EW226 VPL-EX276/EX272/EX246/EX242/EX226/EX222

Not all models are available in all countries and area. Please check with your local Sony Authorized Dealer.

© 2013 Sony Corporation

Table of Contents
Overview
Location and Function of Controls ....	4
Main Unit .....................................	4
Connector Panel ...........................	5
Remote Commander and Control
Panel Keys .................................	6
Preparation
Connecting the Projector ...................	9
Connecting a Computer ................	9
Connecting a Video equipment ...	10
Connecting a microphone ..........	12
Connecting a USB memory
device ......................................	12
Connecting a USB wireless LAN
module ....................................	13
Connecting an External Monitor and
Audio Equipment ....................	13
Projecting/Adjusting an
Projecting an Image .........................	14
Adjusting the Projected image ...	15
Turning Off the Power ................	18
Adjustments and Settings
Using a Menu
Using a MENU ................................	19
The Picture Menu .............................	20
The Screen Menu .............................	21
The Function Menu ..........................	25
The Operation Menu ........................	26
The Connection/Power Menu ..........	27

The Installation Menu ......................	29
The Information Menu .....................	30
Network
Using Network Features ...................	31
Displaying the Control Window of
the Projector with a Web
Browser ...................................	31
Confirming the Information
regarding the Projector ............	32
Operating the Projector from a
Computer .................................	32

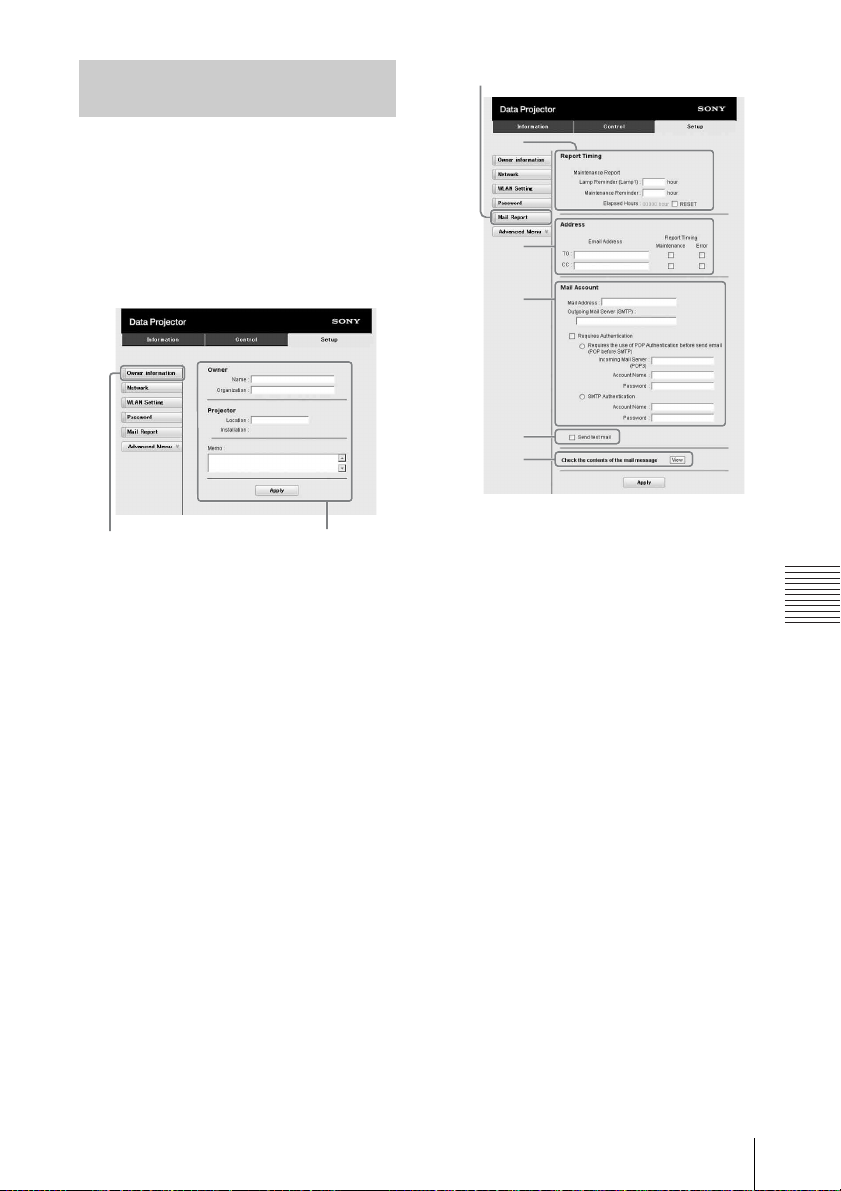

Using the e-mail report
Function ...................................	33
Presentation Function via
Network
Using Presentation Function via
Network .........................................	35
Installing Projector Station for
Network Presentation ..............	35
Starting Projector Station for
Network Presentation ..............	35
Projecting an Image ....................	36

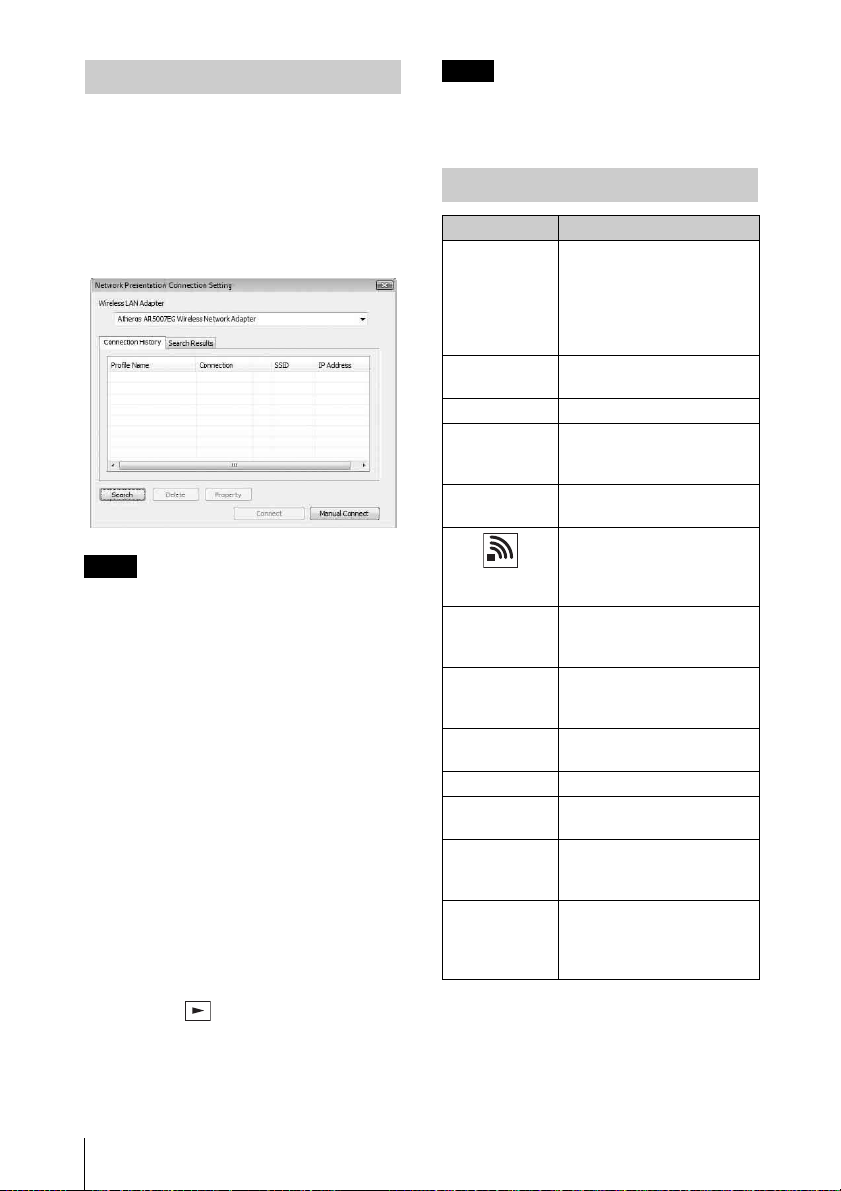

Connection Settings ....................	36

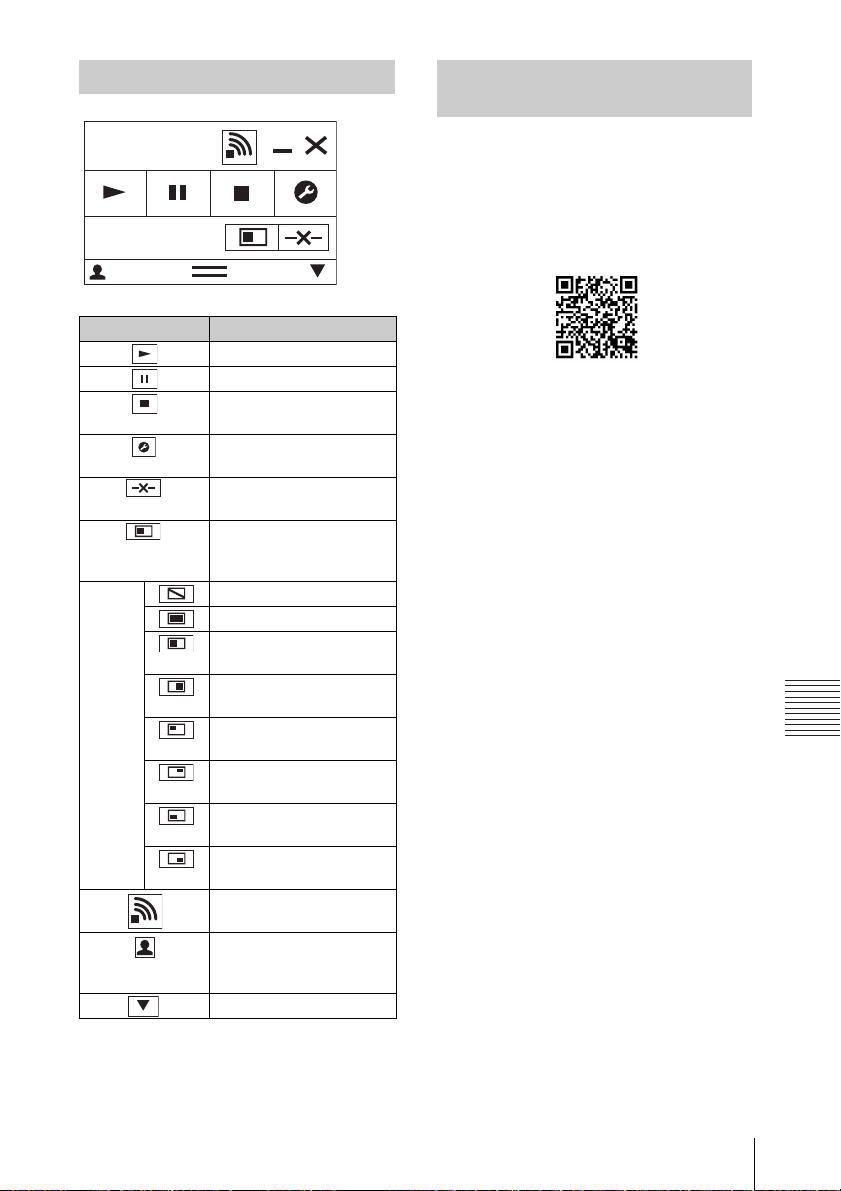

Using the Controller ...................	37
Displaying Images or Files Sent
from a Tablet Device ...............	37
Projecting an Image using
USB Connection
Projecting an Image using USB
Connection ....................................	38
Starting USB Display .................	38

2 Table of Contents

Projecting an Image ....................	38
Using the Controller ...................	38
USB Media Viewer

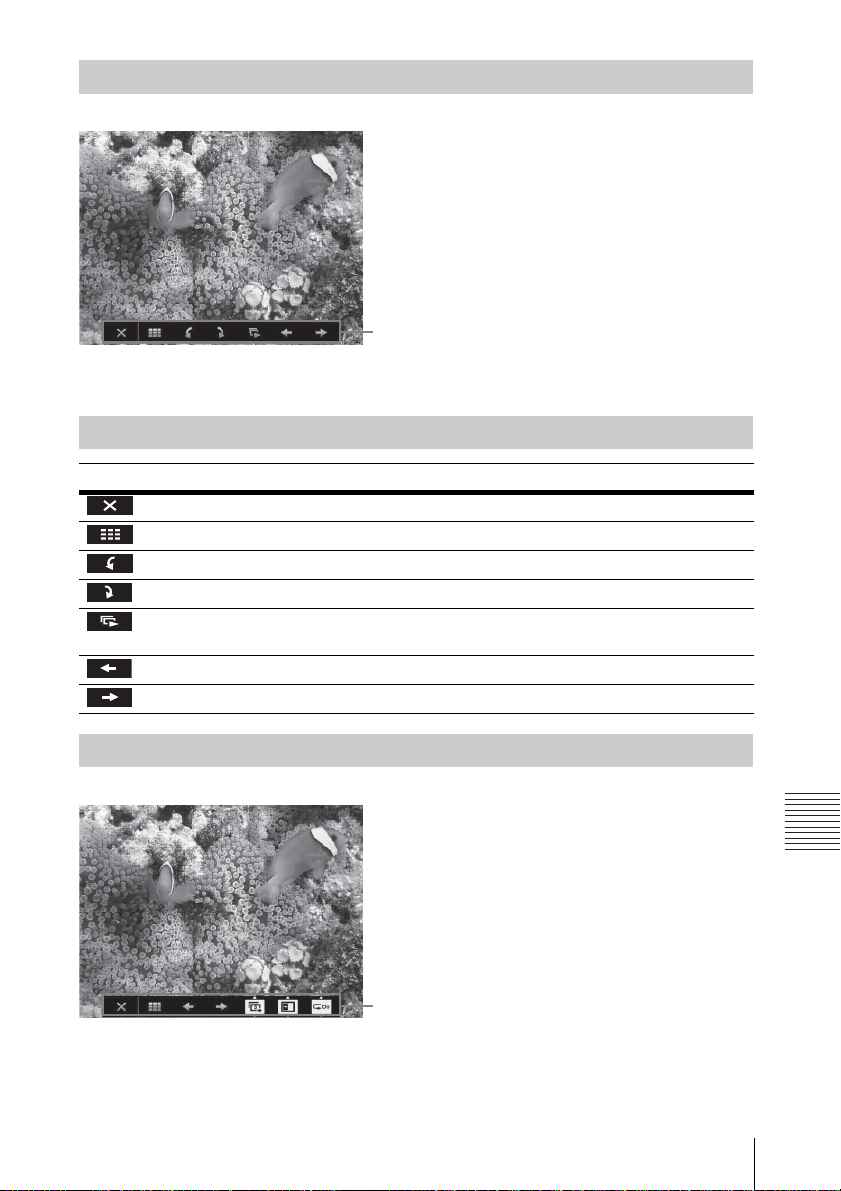

Using USB Media Viewer ................	39

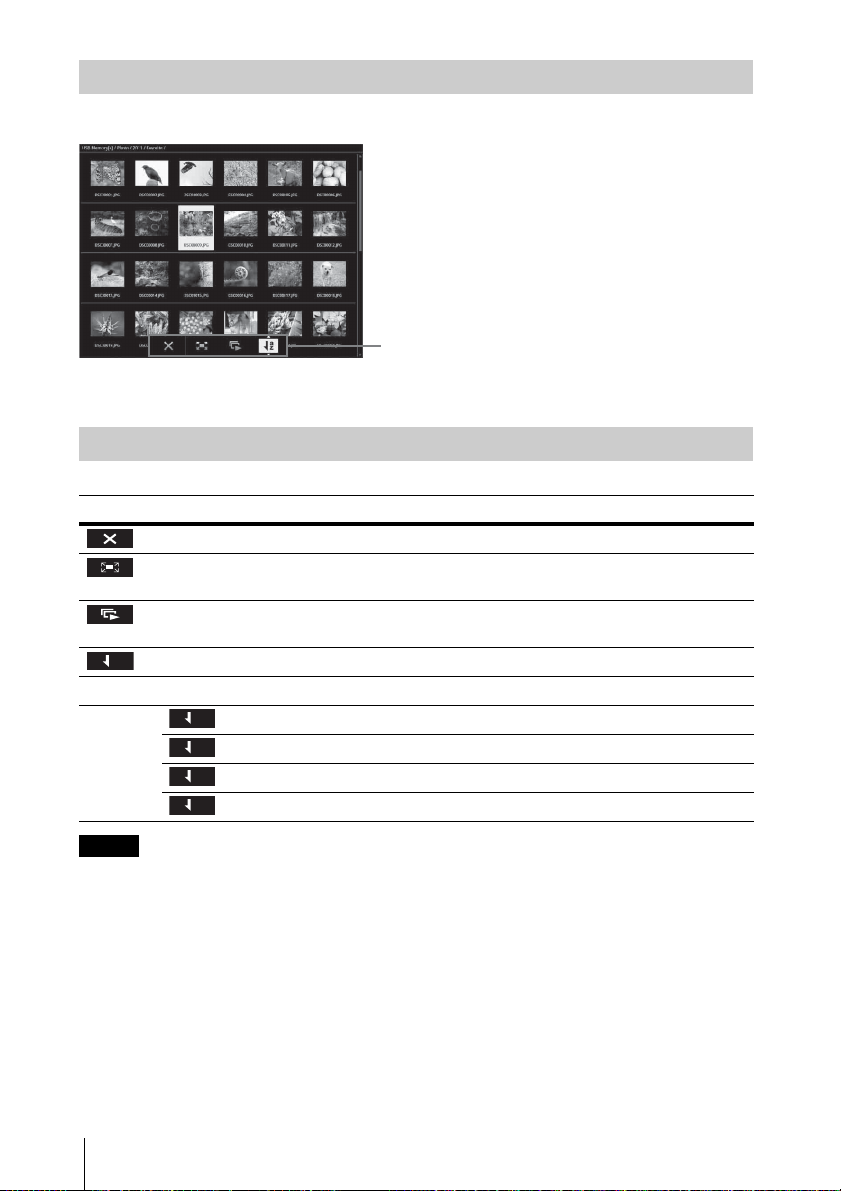

Thumbnail Mode ........................	40
Option Menu ...............................	40
Display Mode .............................	41
Option Menu ...............................	41
Slideshow Mode .........................	41
Option Menu ...............................	42
Others
Indicators ..........................................	43
Messages List ...................................	44
Troubleshooting ...............................	45
Replacing the Lamp .........................	47

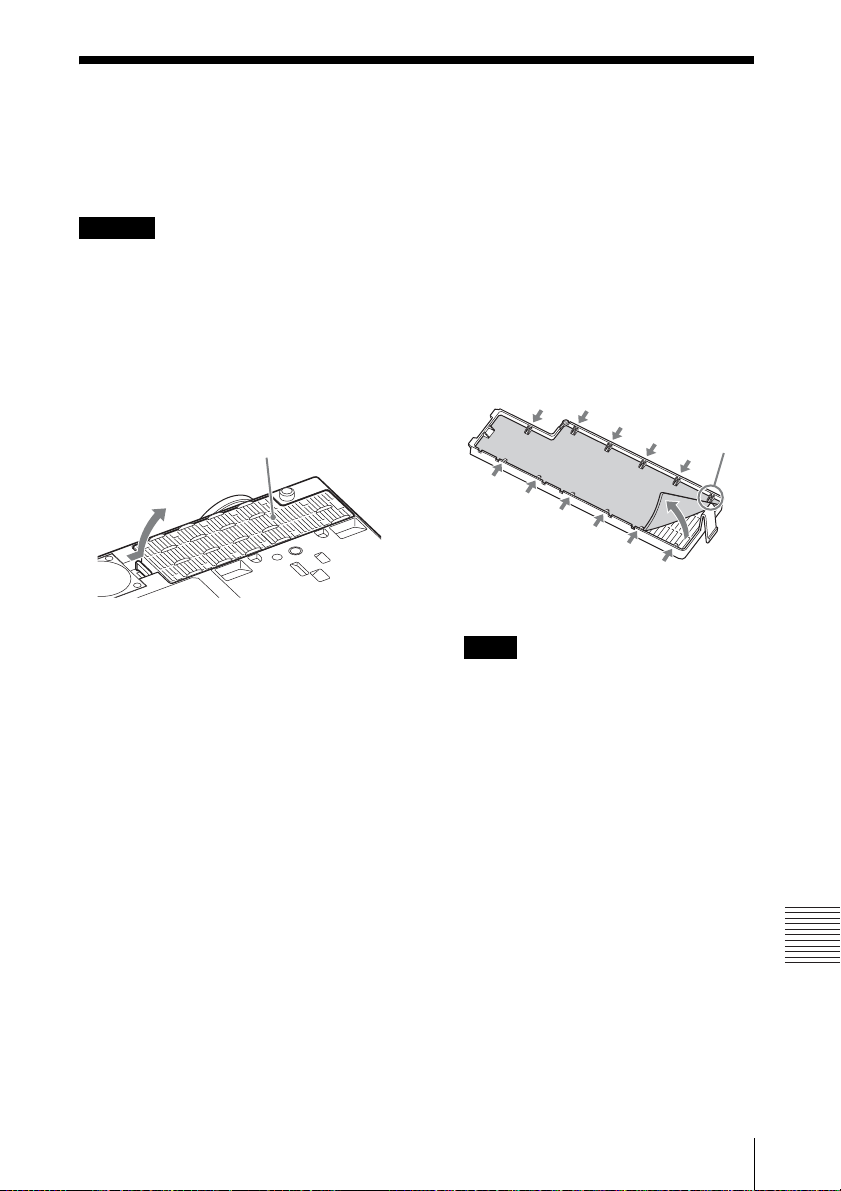

Cleaning the Air Filter .....................	49
Specifications ...................................	50

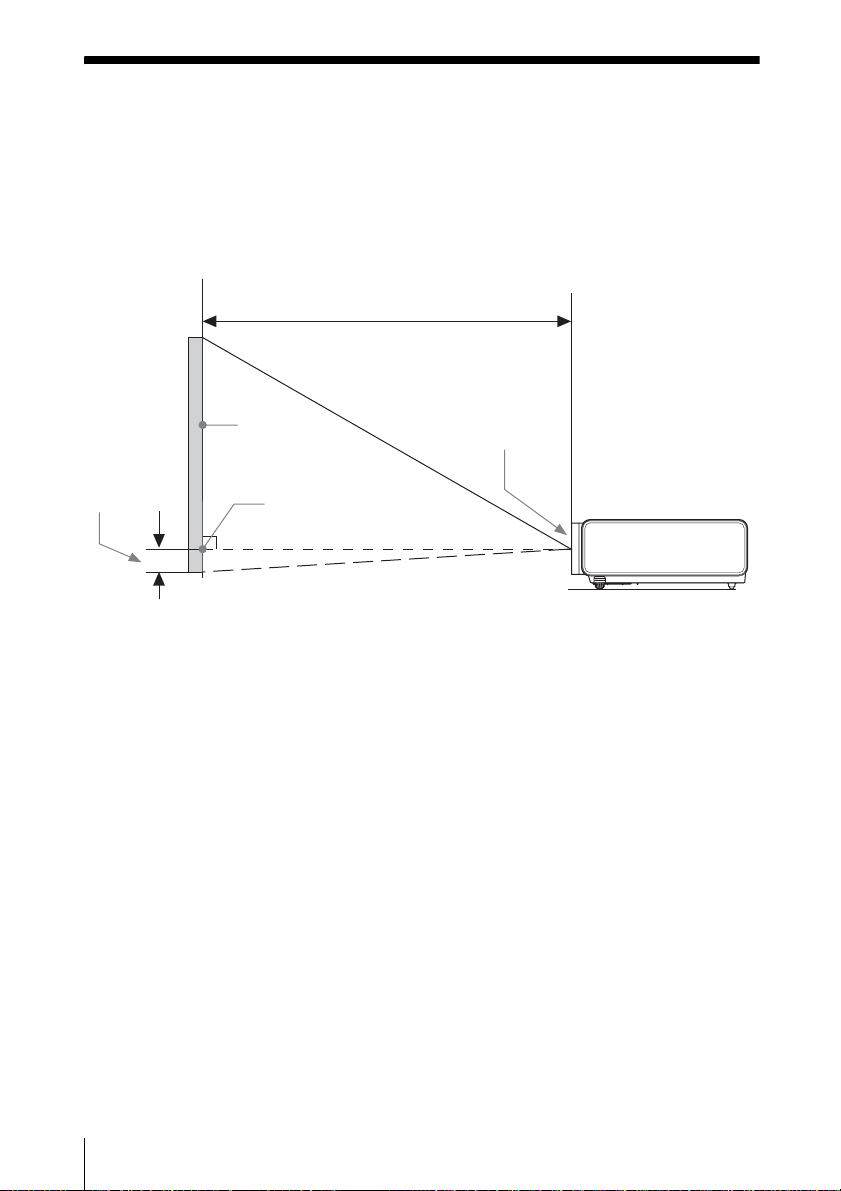

Projection Distance ..........................	58

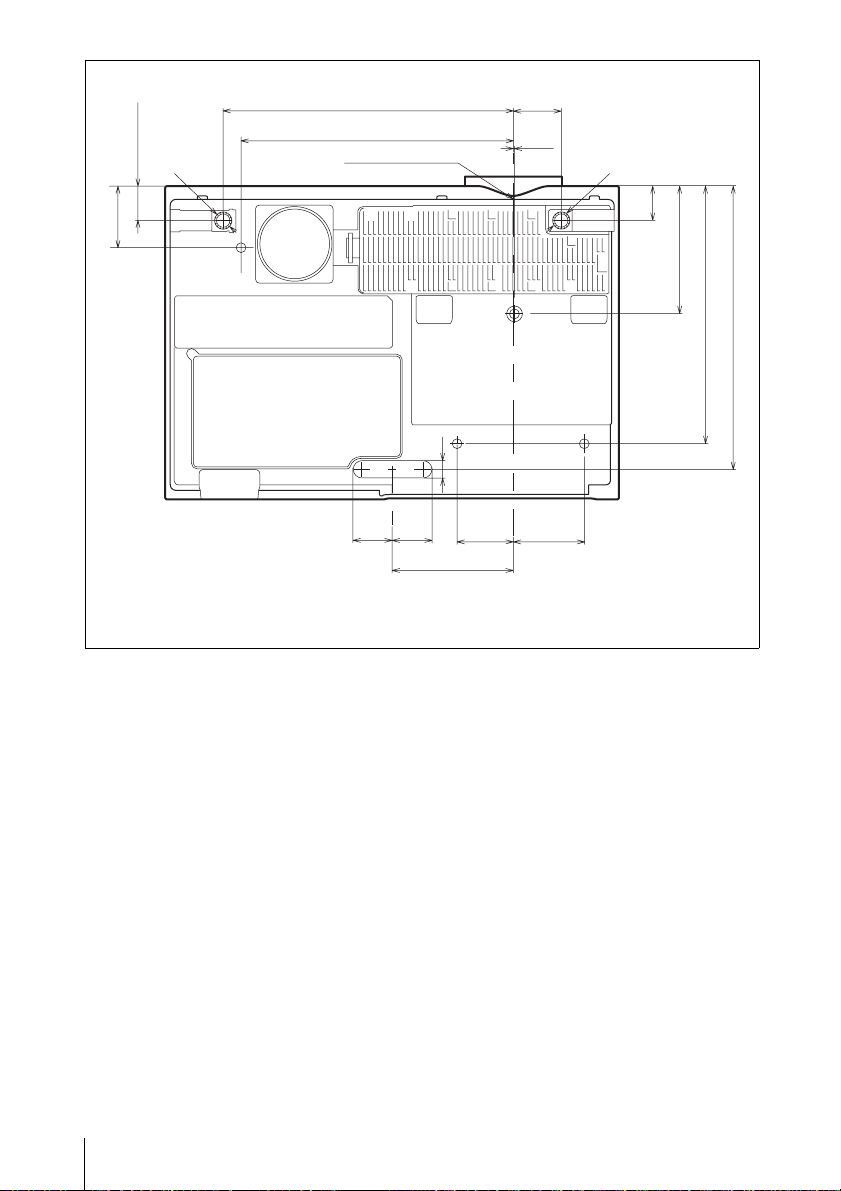

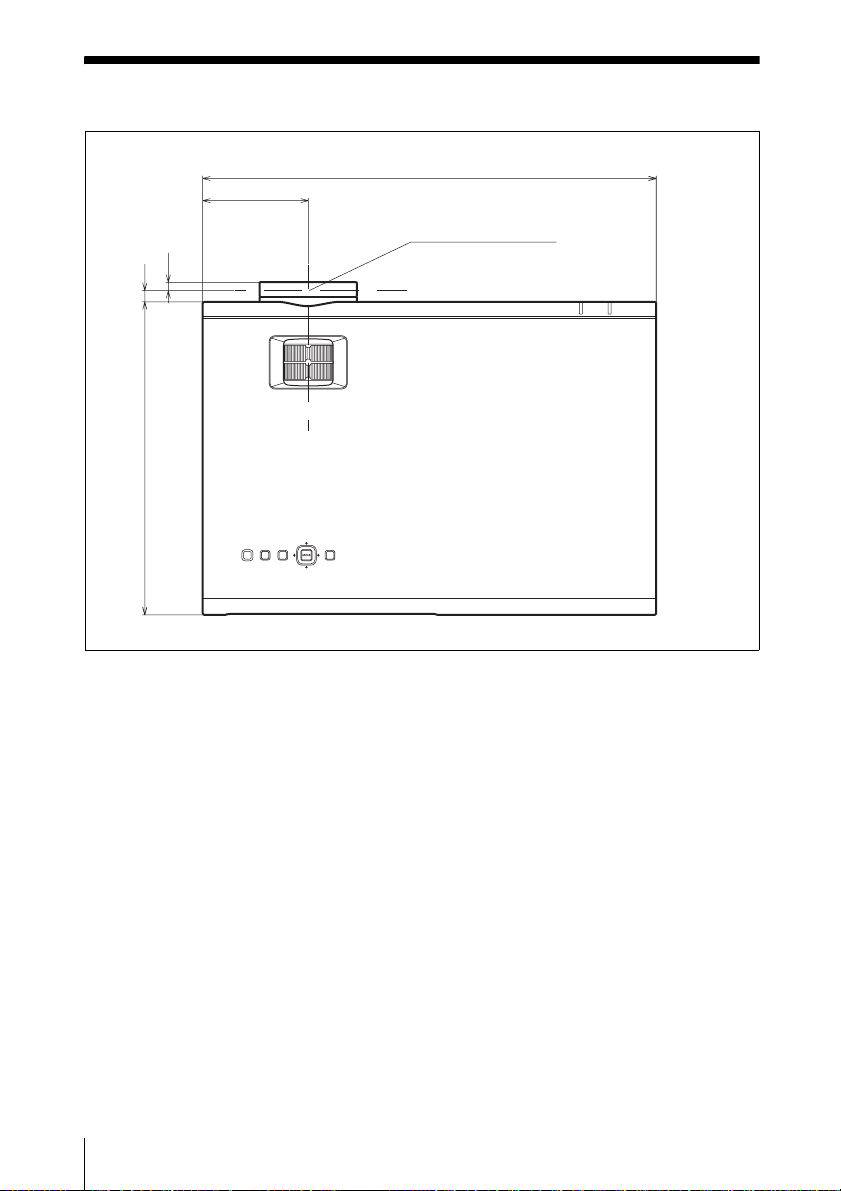

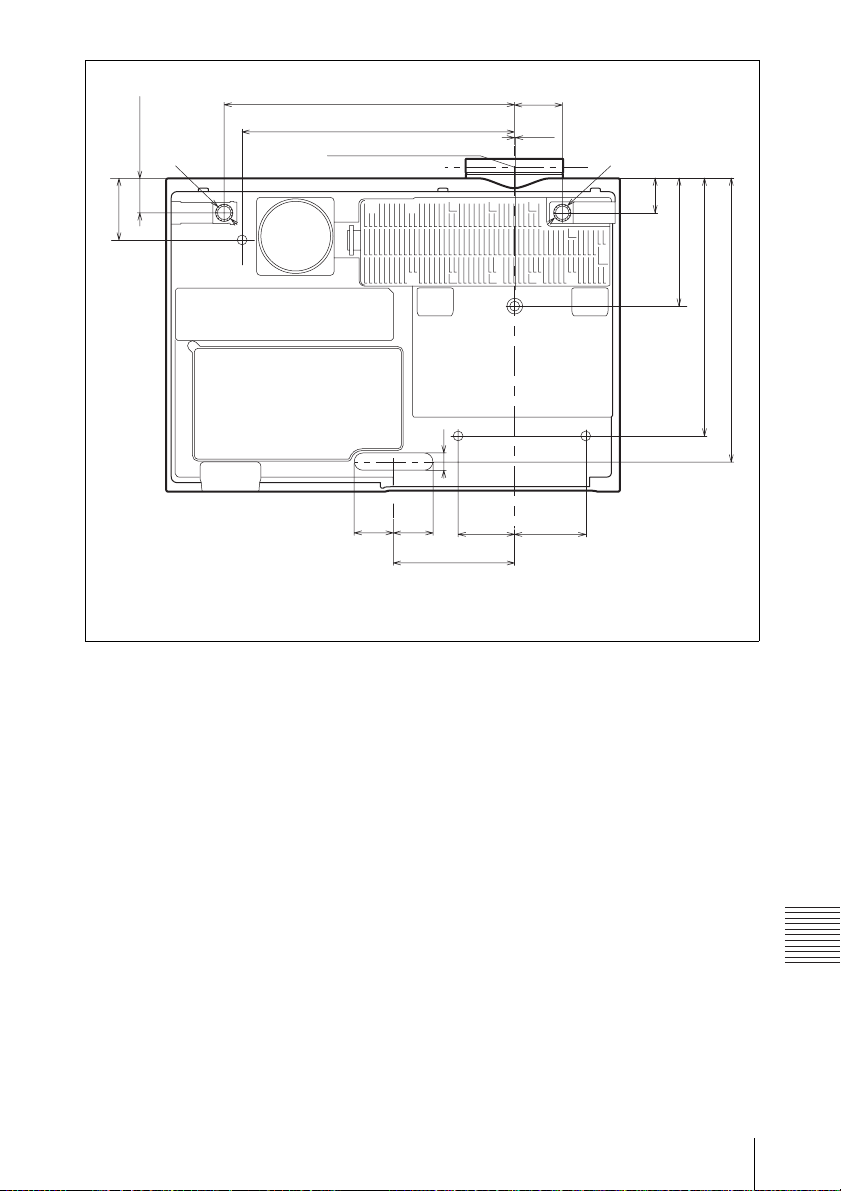

Dimensions .......................................	72
Index .................................................	78

Table of Contents	3

B Overview

Location and Function of Controls

Main Unit

6
5	1	qh	qd
	2
4
			qf
	3	qg

			Caution
	7		Do not place anything near the ventilation
			holes as this may cause internal heat
	8		buildup. Do not place your hand near the
			ventilation holes and the circumference as
	qs	7
			this may cause injury.
		8
	qa		l Speaker (VPL-EW276/EW246/
	0	9	EW226/EX276/EX246/EX226
			only)

a Focus ring (page 15) b Zoom ring (page 15) c Lens

d Remote control detector

eON/STANDBY indicator (page 43)

fLAMP/COVER indicator (page 43)

g Front feet (adjustable) (page 16) h Foot adjust button (page 16)

iAir filter cover/Ventilation holes (intake) (page 49)

j Lamp cover (page 47)

k Ventilation holes (exhaust)

m Connector panel (page 5)

nSecurity bar

Connects to a commercially available security chain or wire.

oSecurity lock

Connects to an optional security cable manufactured by Kensington.

For details, visit Kensington’s web site. http://www.kensington.com/

p Control panel keys (page 6)

4 Location and Function of Controls

Connector Panel
VPL-EW276/EW246/EW226/EX276/EX246/EX226
4 5	1	qa 3 8 q;
5		Overview
4
6		qs
7
	2 9

VPL-EX272/EX242/EX222

4 5 1 qa 3 8 q;

6

7

2 9

Input (pages 9, 10)

aINPUT A

Video: RGB/YPBPR input connector (RGB/YPBPR)

Audio: Audio input connector (AUDIO)

bINPUT B

Video: RGB input connector (RGB) Audio: Audio input connector (AUDIO)

cINPUT C

Video: HDMI input connector (HDMI) Audio: HDMI input connector (HDMI)

dS VIDEO (S VIDEO IN)

Video: S video input connector (S VIDEO IN)

Audio: Audio input connector (L (MONO) AUDIO/R)

eVIDEO (VIDEO IN)

Video: Video input connector (VIDEO) Audio: Audio input connector (L

(MONO) AUDIO/R)

Notes

•The audio inputs of S VIDEO and VIDEO are shared.

•The audio input connector and audio output from the HDMI connector are available only on VPL-EW276/EW246/EW226/EX276/ EX246/EX226.

Output (page 13)

fOUTPUT

Video: Monitor output connector (MONITOR)

Audio: Audio output connector (AUDIO)

Location and Function of Controls	5

Notes

•This connector outputs the projected image or audio only when INPUT A or INPUT B is used.

•The audio output connector is available only on VPL-EW276/EW246/EW226/EX276/ EX246/EX226.

Others

gRS-232C connector (RS-232C)

RS-232C compatible control connector. Connects the computer’s RS-232C connector and the RS-232C cross cables.

h LAN connector (page 31)

iAC IN ( ) socket

Connects the supplied AC power cord.

jUSB connector (Type A) ( ) (pages 12, 39)

kUSB connector (Type B) ( ) (page 38)

l Microphone input ( )

Note

Microphone input is available only on VPLEW276/EW246/EW226/EX276/EX246/ EX226.

Remote Commander and Control Panel Keys

Remote Commander

	7
4	1
INPUT	APA ECO MODE
2	6
MENU	RESET

3

ENTER

RETURN

ASPECT KEYSTONE PATTERN

4

	BLANK
D ZOOM VOLUME FREEZE	MUTING	5

Control Panel Keys

1 2 3 6

aTurning on the power/Going to standby mode

?/1 (On/Standby) key

bSelecting an input signal (page 14)

INPUT key

cOperating a menu (page 19)

MENU key RESET key

ENTER /V/v/B/b (arrow) keys

RETURN key

dAdjusting the image (page 15)

ASPECT key (page 21) KEYSTONE key (page 17) PATTERN key (page 17)

APA (Auto Pixel Alignment) key* (page 17)

Note

*Use this key when inputting a computer signal via the RGB input connector (INPUT A or INPUT B).

6 Location and Function of Controls

eUsing various functions during projecting

D ZOOM (Digital Zoom) +/– key*1

Enlarges a portion of the image while projecting.

1Press the D ZOOM + key to display the digital zoom icon on the projected image.

2Press the V/v/B/b keys to move the digital zoom icon to the point on the image you want to enlarge.

3Press the D ZOOM + key or the D ZOOM – key repeatedly to change the

enlargement ratio. The image can be enlarged up to 4 times.

Press the RESET key to restore the previous image.

BLANK key

Cuts off the projected image temporarily. Press again to restore the previous image. Picture muting helps reduce power consumption.

MUTING key (VPL-EW276/EW246/ EW226/EX276/EX246/EX226 only)

Mutes the audio output temporarily. Press again to restore the previous volume.

VOLUME +/– key (VPL-EW276/ EW246/EW226/EX276/EX246/ EX226 only)

Adjusts the volume output.

FREEZE key*2

Pauses a projected image. Press again to restore the image.

Notes

*1: Use this key when inputting a computer signal. But it may not be used depending on the resolution of the input signal.

*2: Use this key when inputting a computer signal.You cannot use this key when “Type A USB”, “Type B USB” or “Network” is selected as the input.

fSetting the energy–saving mode easily

ECO MODE key

Energy-saving mode can be set easily. Energy-saving mode consists of “Lamp Mode,” “With No Input,” “With Static Signal” and “Standby Mode.”

1Press the ECO MODE key to display the ECO Mode menu.

ECO Mode

ECO

User

:Sel RETURN :Back

2Press the V/v key or ECO MODE key to select “ECO” or “User” mode. ECO: Sets each mode to the optimum

energy-saving value. Lamp Mode: Low With No Input: Standby

With Static Signal: Lamp Dimming

Standby Mode: Low

User: Sets each item of the ECO Mode menu as you desire (go to step 3).

3Select “User” then press the b key. The setting items appear.

User

Lamp Mode		High
Auto Power Saving
With No Input		Off
With Static Signal		Lamp Dimming
Standby Mode		Standard
:Sel	:Set	RETURN :Back

4Press the V/v key to select the item then press the ENTER key.

5Press the V/v key to select the setting value.

6Press the ENTER key.

The screen returns to the User screen.

For details on ECO Mode settings, see “Lamp Mode,” “With No Input,” “With Static Signal” and “Standby Mode” on the Connection/Power menu (page 27).

Overview

Location and Function of Controls	7

Others

g Infrared transmitter

About remote commander operation

•Direct the remote commander toward the remote control detector.

•The shorter the distance between the remote commander and the projector is, the wider the angle within which the remote commander can control the projector becomes.

•Make sure that nothing obstructs the infrared beam between the remote commander and the remote control detector on the projector.

8 Location and Function of Controls

B Preparation

Connecting the Projector

Notes

•Make sure all the equipment is powered off when connecting the projector.

•Use the proper cables for each connection.

•Insert the cable plugs firmly; Loose connections may reduce performance of picture signals or cause a malfunction. When pulling out a cable, be sure to grip it by the plug, not the cable itself.

•For more information, refer also to the instruction manuals of the equipment you are connecting.

•Use a no-resistance audio cable.

Connecting a Computer

Connection with a computer is explained for each input signal.

INPUT A/INPUT B

For connecting a computer with an RGB output connector.

Mini D-sub 15-pin cable (supplied)

Preparation

RGB output connector

	Audio output
Computer	connector

Audio cable (Stereo mini plug) (not supplied)

Notes

•The audio input connector is available only on VPL-EW276/EW246/EW226/EX276/EX246/ EX226.

•It is recommended that you set the resolution of your computer to 1280 × 800 pixels (VPL-EW276/ EW246/EW226) or 1024 × 768 pixels (VPL-EX276/EX272/EX246/EX242/EX226/EX222) for the external monitor.

INPUT C

For connecting a computer with an HDMI output connector.

HDMI cable (not supplied)

HDMI output connector

Computer

Connecting the Projector	9

Notes

•Audio output from the HDMI connector is available only on VPL-EW276/EW246/EW226/ EX276/EX246/EX226.

•Use HDMI-compatible equipment which has the HDMI Logo.

•Use a high speed HDMI cable(s) on which the cable type logo is specified. (Sony products are recommended.)

•The HDMI connector of this projector is not compatible with DSD (Direct Stream Digital) Signal or CEC (Consumer Electronics Control) Signal.

USB connector (Type B) ( )

For connecting to a computer with a USB connector (“Projecting an Image using USB Connection” (page 38)).

USB connector

(Type A) USB A-B cable (not supplied)

Computer

Connecting a Video equipment

Connections with a VHS video deck, DVD player, or BD player are explained for each input signal.

S VIDEO IN

For connecting video equipment with an S-video output connector.

S video cable (not supplied)

S video output connector

Audio output

connector Computer

Audio cable (Phono plug × 2) (not supplied)

Note

The audio input connector is available only on VPL-EW276/EW246/EW226/EX276/EX246/ EX226.

10 Connecting the Projector

VIDEO IN

For connecting video equipment with a video output connector.

Video cable (not supplied)

Video output connector

	Audio output
Video equipment	connector

Audio cable (Phono plug × 2 – stereo mini plug) (not supplied)

Note

The audio input connector is available only on VPL-EW276/EW246/EW226/EX276/EX246/ EX226.

INPUT A

For connecting video equipment with a YPBPR output connector.

Component – Mini D-sub 15-pin cable (not supplied)

YPBPR output connector

Audio output

connector Video equipment

Audio cable (Phono plug × 2 – stereo mini plug) (not supplied)

Note

The audio input connector is available only on VPL-EW276/EW246/EW226/EX276/EX246/ EX226.

Preparation

Connecting the Projector	11

INPUT C

For connecting video equipment with an HDMI output connector.

HDMI cable (not supplied)

HDMI output connector

Video equipment

Notes

•Audio output from the HDMI connector is available only on VPL-EW276/EW246/EW226/ EX276/EX246/EX226.

•Use HDMI-compatible equipment which has the HDMI Logo.

•Use a high speed HDMI cable(s) on which the cable type logo is specified. (Sony products are recommended.)

•The HDMI connector of this projector is not compatible with DSD (Direct Stream Digital) Signal or CEC (Consumer Electronics Control) Signal.

Connecting a microphone

Microphone ()

For connecting a microphone.

Microphone (not supplied)

Notes

•The microphone input is available only on VPL-EW276/EW246/EW226/EX276/EX246/EX226.

•Only dynamic microphones are supported.

Connecting a USB memory device

USB connector (Type A) ()

For connecting a USB memory device (“Using USB Media Viewer” (page 39)).

USB memory device (not supplied)

12 Connecting the Projector

Connecting a USB wireless LAN module

USB connector (Type A) ( )

For connecting a USB wireless LAN module IFU-WLM3 (not supplied) (“Presentation Function via Network” (page 35)).

USB wireless LAN module

IFU-WLM3 (not supplied)

Notes

•Undesignated USB wireless LAN modules do not work.

•When connecting/disconnecting the USB wireless LAN module, make sure that the projector is in Standby mode (Standby Mode: “Low”), or the AC power cord is unplugged from the wall outlet.

Connecting an External Monitor and Audio Equipment

OUTPUT

Projected images or input audio can be output to display equipment such as a monitor or audio equipment such as speakers with a built-in amplifier.

Audio equipment	Audio input	Audio cable
		(stereo mini plug)
	connector
		(not supplied)

Display equipment

RGB input connector

Mini D-sub 15-pin cable (supplied)

Notes

•The audio input connector is available only on VPL-EW276/EW246/EW226/EX276/EX246/ EX226.

•Projected images and audio can be output.

Preparation

Connecting the Projector	13

B Projecting/Adjusting an Image

Projecting an Image

The size of a projected image depends on the distance between the projector and screen. Install the projector so that the projected image fits the screen size. For details on projection distances and projected image sizes, see “Projection Distance” (page 58).

3 5

		4
	2
		Video equipment
Projector
1	Wall outlet	6
		Computer

1 Plug the AC power cord into the wall outlet.

2 Connect all equipment to the projector (page 9).

3 Press the ?/1 key to turn on the unit.

4 Turn on the connected equipment.

5 Select the input source.

Press the INPUT key on the projector to display the menu for switching input signal on the screen. Press the INPUT key repeatedly, or press the V/v key to select an image to be projected.

6 When projecting a computer image, switch your computer’s output to external display.

The method to switch the output varies depending on the type of computer.

(Example)

+

To project image files stored in a USB memory device, see “USB Media Viewer” (page 39). To project an image using USB Connection, see “Projecting an Image using USB Connection” (page 38). To use Presentation Function via Network, see “Presentation Function via Network” (page 35).

14 Projecting an Image

7 Adjust the focus, size and position of the projected image (page 15).

Adjusting the Projected image
Focus	Size (Zoom)	Position
Focus ring		Foot	anProjecting/Adjusting
		adjust
		button
	Zoom ring	Front feet	Image
		(adjustable)

Projecting an Image 15

Adjusting the tilt of the projector with the front feet (adjustable)

By changing the tilt of the projector with the foot adjust buttons/front feet (adjustable), you can adjust the position of the projected image.

How to adjust the angle

1 Press and hold the foot adjust buttons.

2 Lift up the front of the projector to adjust the angle.

3Release the foot adjust buttons.

4Turn the front feet (adjustable) to set the angle of the projector precisely.

Notes

•Be careful not to let the projector down on your fingers.

•Do not push hard on the top of the projector with the front feet (adjustable) extended.

Changing the aspect ratio of the projected image

Press the ASPECT key on the remote commander to change the aspect ratio of the projected image. You can also change the setting in Aspect of the Screen menu (pages 21, 23).

16 Projecting an Image

Correcting trapezoidal distortion of the projected image (Keystone feature)

Normally the Keystone feature automatically adjusts the projected image. The Keystone feature may not work automatically if the screen is tilted. In this case, set Keystone manually.

1Press the KEYSTONE key on the remote commander or select V Keystone in the Installation menu.

2Use the V/v/B/b keys to set the value. The higher the value, narrower the top of the projected image. The lower the value, the narrower the bottom.

Note

Increase the number towards plus

Since the Keystone adjustment is an electronic correction, the image may be deteriorated.

Increase the number towards minus

Displaying a pattern

You can display a pattern for adjusting the projected image or a grid pattern with the PATTERN key on the remote commander. Press the PATTERN key again to restore the previous image. You can use a grid pattern as a guide to write text or to draw lines and shapes on the whiteboard or blackboard without using a computer.

Note

You cannot use this key when “Type A USB”, “Type B USB” or “Network” is selected as the input.

Automatically adjusts Phase, Pitch and Shift of projected image while a signal is input from a computer (APA (Auto Pixel Alignment))

Press the APA key on the remote commander. Press again to cancel adjusting during the setting. You can also set APA in the Screen Menu (page 22). If Smart APA in the Function menu is set to “On”, executes APA automatically when a signal is input (page 25).

Image an Projecting/Adjusting

Projecting an Image 17

Turning Off the Power

1

2

Press the ?/1 key on the unit or the remote commander.

The projector starts shutdown and turns off. If you press the ?/1 key within 10 seconds again, shutdown is cancelled.

Unplug the AC power cord from the wall outlet.

To turn off without displaying confirmation message

Press and hold the ?/1 key on the unit for a few seconds (page 44).

ECO gauge

This gauge indicates the current effectiveness of the projector’s ECO function. (For details on the ECO function, see “ECO MODE key” (page 7) and “ECO” (page 27).)

The leaf icons are displayed when the projector is shut down. The number of displayed icons varies according to how much energy is saved as a result of using the ECO function.

ECO gauge

18 Projecting an Image

B Adjustments and Settings Using a Menu

Using a MENU

Note

The menu displays used for the explanation below may be different depending on the model you are using.

1 Press the MENU key to display the menu.

2 Select the setting menu.

Use the V/v key to select the setting menu then press the b key or ENTER key.

Setting menu


					Picture Mode	Standard
					Reset
					Contrast
					Brightness
					Color
					Hue
					Color Temp.	Low
					Sharpness
					Expert Setting
		:Sel			:Set	:Back

3 Select the setting item.

Use the V/v key to select the setting menu then press the b key or ENTER key.

To return to the selection screen of the setting menu, press the B or RETURN key.

Setting items


	Picture Mode	Standard
	Reset
	Contrast	80
	Brightness	50
	Color	50
	Hue	50
	Color Temp.	Low
	Sharpness	5
	Expert Setting
:Sel	:Set	:Back

operations in step 3 and then press the ENTER key to register the setting.

To return to the selection screen of the setting items, press the B or RETURN key. You can press the RESET key to reset an item to its factory setting value to aid setting.

Using a pop-up menu

Press the V/v/B/b key to select an item. A selected item takes effect immediately, except “Language”, which will take effect after you press the ENTER key.

Picture Mode

Dynamic

Standard

Presentation

Blackboard

Game

Cinema

:Sel RETURN :Back

Using the setting menu

Press the V/v key to select the item. Press the ENTER key to register the setting and return to the previous screen.

Using the adjustment menu

To increase the value, press the V/b key and to decrease the number, press the v/B key. Press the ENTER key to register the setting and return to the previous screen.

Contrast

Adjust

Back

4 Make the setting or adjustment for the selected item.

The setting method varies, depending on the setting item.

If the next menu window is displayed, select the item according to the

5 Press the MENU key to clear the menu.

The menu disappears automatically if no operation is performed.

Menu a Using Settings and Adjustments

Using a MENU 19

The Picture Menu

The Picture is used to adjust the picture for each input signal.

Items	Item descriptions
Picture Mode	Dynamic: Emphasizes the contrast to produce a dynamic and vivid picture.
	Standard: Provides an image which is natural and well balanced.
	Presentation*1: Provides a bright image, suitable for presentations.
	Blackboard: Provides an image suitable for displaying on a blackboard.
	Game: Provides an image suitable for viewing games.
	Cinema: Provides an image suitable for viewing movies.
Reset*2	Resets the factory setting.
Contrast	The higher the value, the greater the contrast. The lower the value, the lower
	the contrast.
Brightness	The higher the value, the brighter the picture. The lower the value, the darker
	the picture.
Color*3 *4	The higher the value, the greater the intensity. The lower the value, the lower
	the intensity.
Hue*3 *4 *5	The higher the value, the more greenish the picture becomes. The lower the
	value, the more reddish the picture becomes.
Color Temp.*6	High/Middle/Low: The higher the value, the more bluish the picture. The
	lower the value, the more reddish the picture.
Sharpness	The higher the value, the sharper the picture. The lower the value, the softer
	the picture.
Expert Setting

Gamma

Mode*1 *7

Graphics1: Gamma correction to make halftones brighter. This setting is suitable when projecting highly colorful images, such as photos, in a bright place.

Graphics2: Gamma correction to improve the reproduction of halftones. Highly colorful images, such as photos, can be reproduced in natural tones. Text: Improves black and white contrast. Suitable for images with lots of text content.

Notes

*1: When a computer signal is input, this option is available.

*2: The settings in the Picture return to their factory defaults, except for Picture Mode. *3: When a video signal is input, this option is available.

*4: When the signal without color burst signal is input after selecting “Video” or “S-Video”, this option is unavailable.

*5: When an analog TV signal is input, this option may not available, depending on the color system. *6: When “Picture Mode” is set to the item other than “Presentation” or “Blackboard,” this option

is available.

*7: When “Picture Mode” is set to “Blackboard,” this option is unavailable.

20 The Picture Menu

The Screen Menu

The Screen menu is used to adjust the size, position and aspect ratio of the projected image for each input signal.

Items		Item descriptions
Aspect*1		Changes the aspect ratio of the projected image (page 23).
	VPL-EW276/EW246/	4:3: Displays the image to fit the maximum projected image size
	EW226: When the	with an aspect ratio fixed to 4:3.
	computer signal is	16:9: Displays the image to fit the maximum projected image size
	input	with an aspect ratio fixed to 16:9.
		Full 1: Displays the image to fit the maximum projected image
		size without changing the aspect ratio of the input signal.
		Full 2: Displays the image to fit the maximum projected image
		size changing the aspect ratio of the input signal.
		Full 3: Displays the image to fit the maximum width or height, up
		to 1280 × 720 pixels, without changing the aspect ratio of the
		input signal.
		Normal: Displays the image on the center position of the
		projected screen without changing the resolution of the input
		signal or enlarging the image.

VPL-EW276/EW246/ EW226: When the video signal is input

4:3: Displays the image to fit the maximum projected image size with an aspect ratio fixed to 4:3.

16:9: Displays the image to fit the maximum projected image size with an aspect ratio fixed to 16:9.

Full: Displays the image to fit the maximum projected image size changing the aspect ratio of the input signal.

Zoom: Zooms the center area of a projected image.

	VPL-EX276/EX272/	4:3: Displays the image to fit the maximum projected image size
	EX246/EX242/	with an aspect ratio fixed to 4:3.
	EX226/EX222: When	16:9: Displays the image to fit the maximum projected image size
	the computer signal is	with an aspect ratio fixed to 16:9.
	input	Full 1: Displays the image to fit the maximum projected image
		size without changing the aspect ratio of the input signal.
		Normal: Displays the image on the center position of the
		projected screen without changing the resolution of the input
		signal or enlarging the image.
	VPL-EX276/EX272/	4:3: Displays the image to fit the maximum projected image size
	EX246/EX242/	with an aspect ratio fixed to 4:3.
	EX226/EX222: When	16:9: Displays the image to fit the maximum projected image size
	the video signal is	with an aspect ratio fixed to 16:9.
	input	Zoom: Zooms the center area of a projected image.

Menu a Using Settings and Adjustments

The Screen Menu 21

Items		Item descriptions
Adjust Signal		Adjusts the image of computer signal. Use this item if the edge of
		the image is cut and reception is bad.
	APA*2 *3	Automatically adjusts the projected image to an optimum quality
		when you press the ENTER key (page 6).
	Phase*2	Adjusts the dot phase of the display pixel and the input signal. Set
		to the value where looks clearest.
	Pitch*2	The higher the value, the wider the horizontal image elements
		(pitch). The lower the value, the narrower the horizontal image
		elements (pitch).
	Shift*4	H (Horizontal): The higher the value, the farther right the image
		is projected on the screen. The lower the value, the image farther
		left.
		V (Vertical): The higher the value, the farther up the image is
		projected on the screen. The lower the value, the image farther
		down.

Notes

*1: • Note that if the projector is used for profit or for public viewing, modifying the original picture by switching to the aspect mode may constitute an infringement of the rights of authors or producers, which are legally protected.

•Depending on the input signal, setting items for aspect ratio or some other setting items cannot be set in some cases, or changing the aspect ratio setting may have no effect.

•A part of the image may be displayed in black, depending on the setting item.

*2: Available when a computer signal is input from the RGB input connector (INPUT A/INPUT B). *3: If the projected image includes large amount of black portion around it, the APA function will not work properly and a part of the image may not be displayed on the screen and also optimum image cannot be obtained, depending on the type of input signal. In this case, adjust the “Phase,”

“Pitch,” and “Shift” items manually.

*4: Available when a computer or a video signal is input from the RGB/YPBPR input connector (INPUT A).

22 The Screen Menu

Aspect

VPL-EW276/EW246/EW226

	Input signal		Recommended
			setting value and
			projected image
4:3				Full1*1 *2 *3

Computer signal	16:9	Full1*1 *2	*3
	16:10	Full1*3

	4:3	4:3*4 *5
signal
Video	16:9	16:9

*1: If you select “Normal,” the image is projected in the same resolution as the input signal without changing the aspect ratio of the original image.

*2: If you select “Full2,” the image is projected to fit the projected image size, regardless of the aspect ratio of the image.

*3: If you adjust the projected image position using an image with 16:9 aspect ratio and then switch the input source to 4:3 image, the top and bottom edge of the image may be hidden. In this a case, select “Full3.”

*4: Depending on the input signal, the projected image may be projected as illustrated below. In this a case, select “16:9.”

*5: Depending on the input signal, the image may be projected as illustrated below. In this a case, select “Zoom.”

Menu a Using Settings and Adjustments

The Screen Menu 23

VPL-EX276/EX272/EX246/EX242/ EX226/EX222

	Input signal	Recommended
		setting value and
		projected image
4:3			Full1*1

Computer signal	16:9	Full1*1 *2
	16:10	Full1*1 *2

	4:3	4:3*3
signal		16:9*4
Video	16:9

*1: If you select “Normal,” the image is projected in the same resolution as the input signal without changing the aspect ratio of the original image.

*2: If you select “4:3,” the image is projected to fit the projected image size, regardless of the aspect ratio of the image.

*3: Depending on the input signal, the projected image may be projected as illustrated below. In this a case, select “16:9.”

*4: Depending on the input signal, the projected image may be projected as illustrated below. In this a case, select “Zoom.”

24 The Screen Menu
