Contents |
|
1 |
The program at a glance .............................................. |
3 |
2 |
The tools ...................................................................... |
4 |
3 |
All contra-angle handpieces – the locking principle |
..... 5 |
4 |
Disassembling the contra-angle handpiece ................. |
6 |
5 |
Disassembling the drive and neck drive ....................... |
7 |
6 |
Assembling the drives ................................................ |
11 |
7 |
Disassembling the head ............................................. |
12 |
8 |
Assembling the head .................................................. |
13 |
9 |

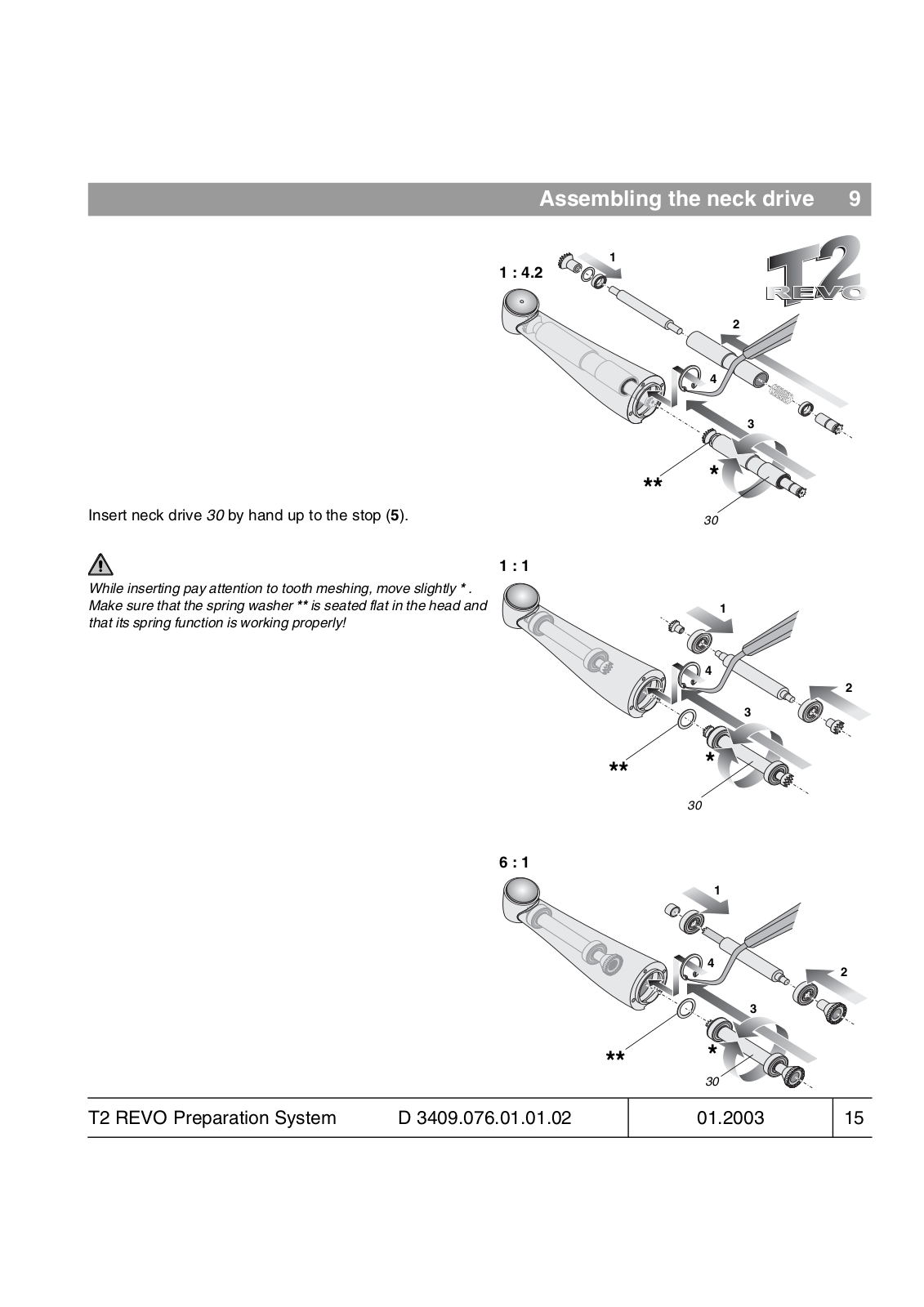

Assembling the neck drive ......................................... |
15 |
10 |
Replacing the sealing insert / SmartClip™ ................. |
16 |
11 |
Assembling the contra-angle handpiece .................... |
17 |
12 |
Disassembling the straight handpiece ....................... |
18 |
13 |
Assembling the straight handpiece ............................ |
19 |
14 |
Functional test of contra-angle handpiece ................. |
20 |
15 |
Functional test of straight handpiece ......................... |
22 |
16 |

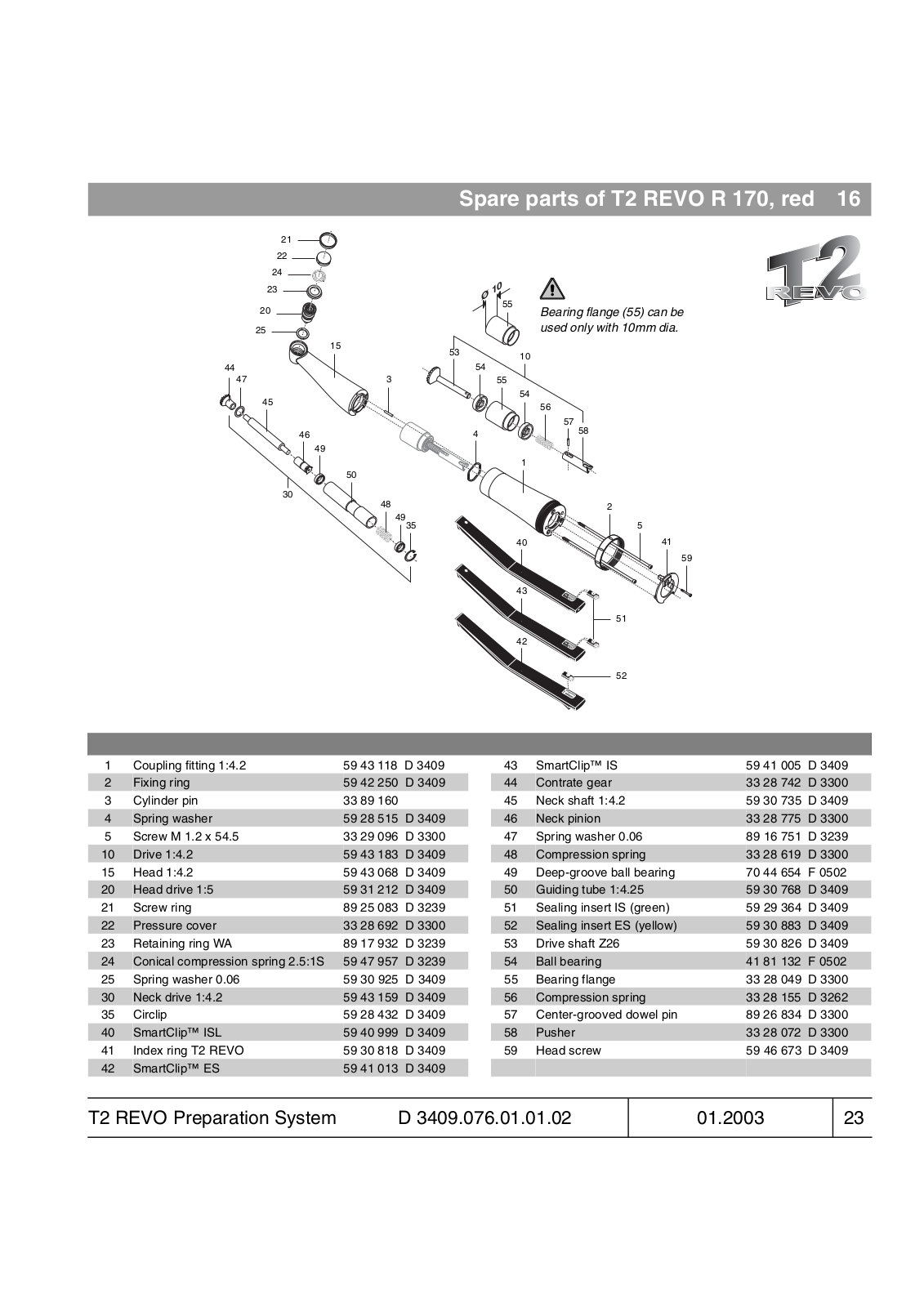

Spare parts of T2 REVO R 170, red .......................... |
23 |
17 |
Spare parts of T2 REVO R 40, blue ........................... |
24 |
18 |
Spare parts of T2 REVO R 6, green .......................... |
25 |
19 |
Spare parts of T2 REVO RH 40 ................................. |
26 |
T2 REVO Preparation System |
D 3409.076.01.01.02 |
01.2003 |
2 |
|
|
|
|
The program at a glance 1
All straight and contra-angle handpieces of the T2 REVO preparation system are related closely to one another technically.
A color code assigns the contra-angle handpiece to the corresponding speed and functional range.
Color code
T2 REVO R 170, red
Gear ratio 1:4.2
Maximum working speed 170,000 rpm Pushbutton clamping system FG 1.6 mm
with replaceable SmartClip™:
T2 REVO R 170 ISL
with internal spray and light guide
T2 REVO R 170 IS
with internal spray without light guide
T2 REVO R 170 ES
with external spray without light guide
T2 REVO R 6, green
Gear ratio 6:1
Maximum working speed 6,000 rpm Pushbutton clamping system WB 2.35 mm
with replaceable SmartClip™:
T2 REVO R 6 ISL
with internal spray and light guide
T2 REVO R 6 IS
with internal spray without light guide
T2 REVO R 6 ES
with external spray without light guide
SmartClip™
T2 REVO R 40, blue
Gear ratio 1:1
Maximum working speed 40,000 rpm Pushbutton clamping system WB 2.35 mm
with replaceable SmartClip™:
T2 REVO R 40 ISL
with internal spray and light guide
T2 REVO R 40 IS
with internal spray without light guide
T2 REVO R 40 ES
with external spray without light guide
T2 REVO RH 40 straight handpiece
Gear ratio 1:1
Maximum working speed 40,000 rpm
Pushbutton clamping system H/WB 2.35 mm
For straight and contra-angle handpiece instruments
as well as for disposable heads used for prophylaxis (Doriot type)
T2 REVO Preparation System |
D 3409.076.01.01.02 |
01.2003 |
3 |
|
|
|
|
The tools 2
.
A (41 78 054), same tool
for T1 LINE
and T1 CLASSIC
1.5 |
B (41 78 088), |
C (33 27 793), |
|
same tool |
same tool |
||
for T1 LINE |
for T1 LINE |
||
|
|||
|
and T1 CLASSIC |
and T1 CLASSIC |
T2 REVO Preparation System |
D 3409.076.01.01.02 |
01.2003 |
4 |
|
|
|
|
All contra-angle handpieces – the locking principle 3
All contra-angle handpieces of the T2 REVO preparation system are locked in the same way:
T2 REVO Preparation System |
D 3409.076.01.01.02 |
01.2003 |
5 |
|
|
|
|
Disassembling the contra-angle handpiece 4
5
6
4
3
2
1
9
10 |
7 |
|
8
T2 REVO Preparation System |
D 3409.076.01.01.02 |
01.2003 |
6 |
|
|
|
|
Disassembling the drive and neck drive 5
All drives / neck drives of the T2 REVO preparation system are constructed in the same way.
1 : 4.2
1 : 1
6 : 1
T2 REVO Preparation System |
D 3409.076.01.01.02 |
01.2003 |
7 |
|
|
|
|
Disassembling the 1:4.2 drive and neck drive
Drive shaft 53 and ball bearing 54 are glued to the bearing flange 55.
53
55
4 |
54 |
|
|
|
5 |
6
3
1
7
2
T2 REVO Preparation System |
D 3409.076.01.01.02 |
01.2003 |
8 |
|
|
|
|
Disassembling the 1:1 drive and neck drive
53
55
4
54
5
6
3
1
7
2
T2 REVO Preparation System |
D 3409.076.01.01.02 |
01.2003 |
9 |
|
|
|
|
