Pilot’s Handbook for Verbzilla
Pilotenhandbuch für Verbzilla Manuel de pilotage pour Verbzilla Pilotenhandboek voor Verbzilla
Patent Pending
40-00-0223 |
Electrophonic Limited Edition available @ www.line6.com |
Rev C |
Line 6, ToneCore, Dr. Distorto, Constrictor, Crunchtone, Echo Park, Liqua-Flange, Otto Filter, Roto-Machine, Space Chorus, Tap Tremolo, Über Metal and Verbzilla are trademarks of Line 6, Inc.
CAUTION
This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
WARNING
To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
The exclamation point within a triangle means, “Caution!” Please read the information next to all caution signs.
The lightning symbol within a triangle means, “Electrical caution!” It indicates the presence of information about operating voltage and potential risks of electrical shock.
Verbzilla Pilot’s Handbook © 2004, Line 6, Inc.
You should read these Important Safety Instructions.
Keep these instructions in a safe place.
Before using your ToneCore, carefully read the applicable items of these operating instructions and the safety suggestions.
1.Obey all warnings on the pedal and in the ToneCore Pilot's Handbook.
2.Connect optional power supply only to AC power outlets rated 100-120V or 200-240V 47-63Hz (see indications on optional power supply).
3.Do not perform service operations beyond those described in the ToneCore Pilot's Handbook. Service is required when the apparatus has been damaged in any way, such as:
•power-supply cord or plug is damaged
•liquid has been spilled or objects have fallen into the apparatus
•the unit has been exposed to rain or moisture
•the unit does not operate normally or changes in performance in a significant way
•the unit is dropped or the enclosure is damaged.
4.Do not place near heat sources, such as radiators, heat registers, or appliances which produce heat. .
5.Guard against objects or liquids entering the enclosure. Do not use or place unit near water.
6.Unplug the power supply when not in use for extended periods of time. Unplug the power supply during lightning storms.
7.Clean only with a damp cloth.
8.Only use attachments/accessories specified by the manufacturer.
9.Prolonged listening at high volume levels may cause irreparable hearing loss and/or damage. Always be sure to practice “safe listening.”
Verbzilla Pilot’s Handbook

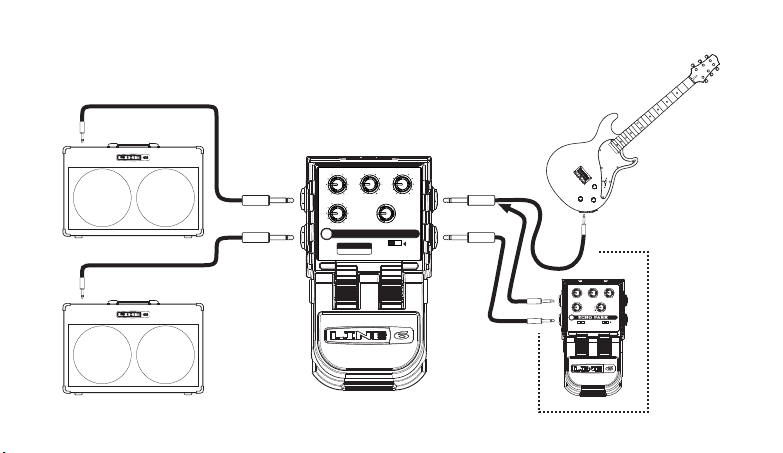

Output your effects mono to a standard amplifier, or to a stereo setup.
Be sure to connect your guitar to the mono input jack on your ToneCore.
MIX |
DECAY |
|
TIME |
TONE |
CHAMBER |
HALL |
DUCKING |
|
ROOM |
|
OCTO |
|
PLATE |
|
CAVE |
|
SPRING |
|
TILE |
|
‘63 SPRING |
|
ECHO |
VERBZILLA |
|||
STUDIO GRADE |
|
TRAILS |
|
|
|
||
ALGORITHMS |
OFF • ON |
||
MIX REPEAT TIME
MOD
|
|
|
TAP TEMPO: |
|
TRAILS |
|
|
||
|
|
|
TAP LIGHTLY |
|
|
|
|||
|
|
TAPEDIGITAL ANALOG |
OFFON |
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Or, you can feed the stereo input of your ToneCore with a mono or stereo effect pedal instead of a guitar.
Greetings and salutations! Thank you for inviting the Line 6 Verbzilla reverb pedal into your life.
Effect On-Off / Power Indicator Light
The Power Indicator Light on your ToneCore uses two colors to indicate the pedal’s state:
•Light not lit – Effect is bypassed (off)
•GREEN – Effect is engaged (on)
•RED (flashing) – Batteries should be replaced
This low power indication will override all other states
Power Jack
Connect an optional ToneCore-compatible Line 6 power supply like the DC-1, and you'll never need a 9-volt battery again!
Connections and Power Indicator Light
In Jacks
Use a standard guitar cable to connect your guitar, or the output of another effect to use in combination with your ToneCore. If you’re feeding a mono signal to your Verbzilla, use the MONO/L jack. Like most pedals, inserting a plug into this jack will turn on the power to your ToneCore. Disconnect both input plugs from jacks when the ToneCore is not being used.
Out Jacks
Use a standard guitar cable to connect to the inputs of a guitar amp, or the inputs of another effect that will feed your amp. For mono, use the MONO/L jack.
Foot Switch
Stomp on this to turn the effect sound processing on and off.
Verbzilla Pilot’s Handbook
MIX DECAY TIME
TONE |
CHAMBER |
HALL DUCKING |
|
ROOM |
OCTO |
|
PLATE |
CAVE |
|
SPRING |
TILE |
|
‘63 SPRING |
ECHO |
VERBZILLA
STUDIO GRADE |
|
TRAILS |
|
||
|
|
|
ALGORITHMS |
OFF • ON |
|
|
|
|

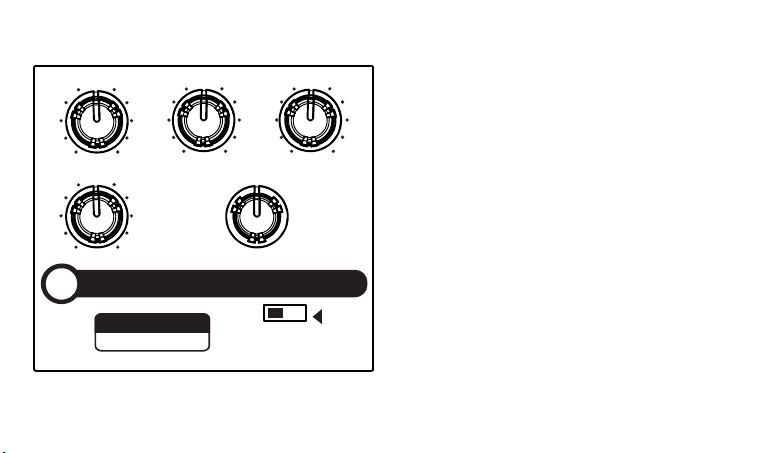

Mix
Allows you to control the amount of reverb in your signal. Fully counter clockwise will give you no reverb, fully clockwise will give you 100% reverb (no dry signal).
Decay
Controls how quickly the reverb tail fades to silence.
Time
Controls the length of pre-delay from 10ms to 200ms. Pre-delay is the amount of delay before the reverb chamber and is adjusted with this control.
Tone
Allows you to adjust the tonal character of the reverb, giving you the flexibility to go from dark and subtle to bright and splashy.
Trails Switch
Turn Trails Switch on to keep Verbzilla’s processing engaged while in bypass, so your reverb smoothly trail away when you kick the effect off.
Verbzilla Pilot’s Handbook
MIX DECAY TIME
TONE |
CHAMBER |
HALL DUCKING |
|
ROOM |
OCTO |
|
PLATE |
CAVE |
|
SPRING |
TILE |
|
‘63 SPRING |
ECHO |
VERBZILLA
STUDIO GRADE |
|
TRAILS |
|
||
|
|
|
ALGORITHMS |
OFF • ON |
|
|
|
|

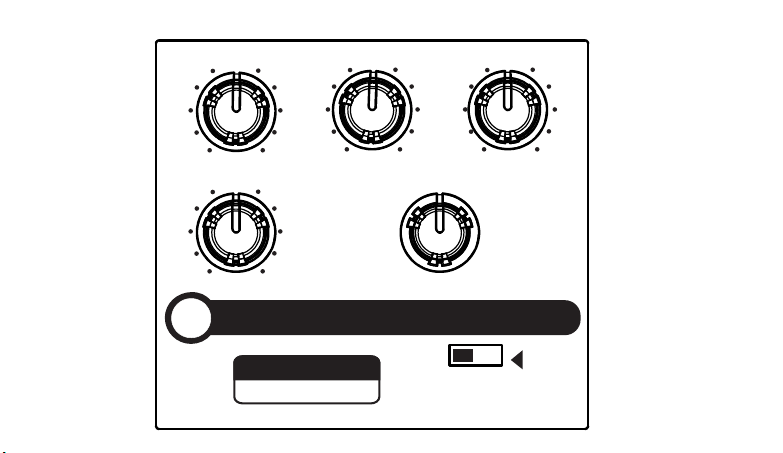

Function Control Knob
•‘63 Spring: Based on a 1963 brown spring reverb head unit. Best known for great surf guitar tone!
•Spring: Based on a studio spring reverb. A spring reverb's characteristic resonant sound was created by springs suspended inside a metal box. Sweet!
•Plate: Based on an studio Plate reverb. A plate reverb's character is similar to that of the spring. They both have a metallic resonant quality. Plate reverbs consisted of a thin metal sheet suspended inside a box. Dampening the metal plate would give the user control over the reverberant effect.
•Room: Simulates the acoustic properties of a classic echo chamber , which was a room used in early recording studios for reverb effects. Smaller then a hall, room reverbs consists mainly of early reflections.
Function Control Knob
•Chamber: An elongated ambient space such as a hall, stairwell or elevator shaft creates this reverb type. Dreamy.
•Hall: Simulates the sound of a concert hall or large open space with a strong reverb tail. Imagine a gymnasium, performance hall, or cathedral.
•Ducking: Built using a 'Hall' but with a ducking effect. The volume of your reverb is “ducked” (reduced) while you’re playing, and increases when you stop. This allows for clean musical passages with a touch of reverb that ramps up in volume once you stop playing. All of your passages will end with a reverb tail, but the passage itself will not be clouded.
Controls
•Octo: Creates a lush, ambient space with a harmonized decay whose harmonic denseness is controlled by the time knob. Use volume swells and prepare to float on a cloud 9!.............CRAZY!
•Cave: Surreal cavernous echo chamber. I’m just a simple caveman... Your world frightens and
c o n f u s e s m e . . . w h a t m o r e c a n b e s a i d .
•Tile: Emulates the acoustic reflections of a tiled room, such as a bathroom or shower, with clearer/brighter discreet early reflections.
•Echo: Just like it says …echo…echo…echo. This is a lush echo with reverb.

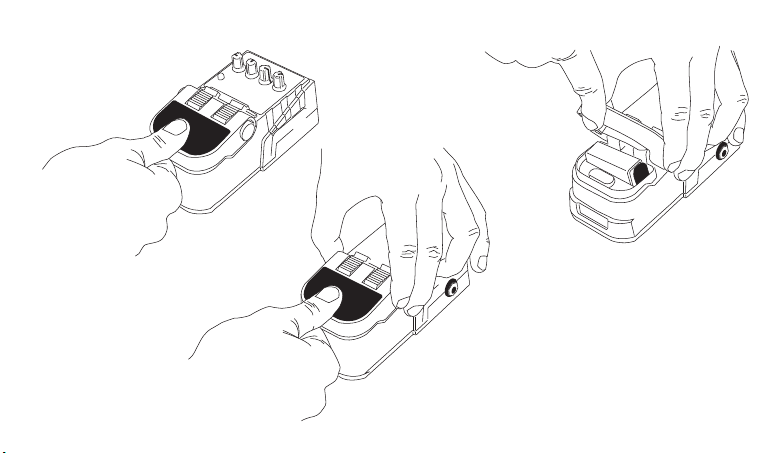

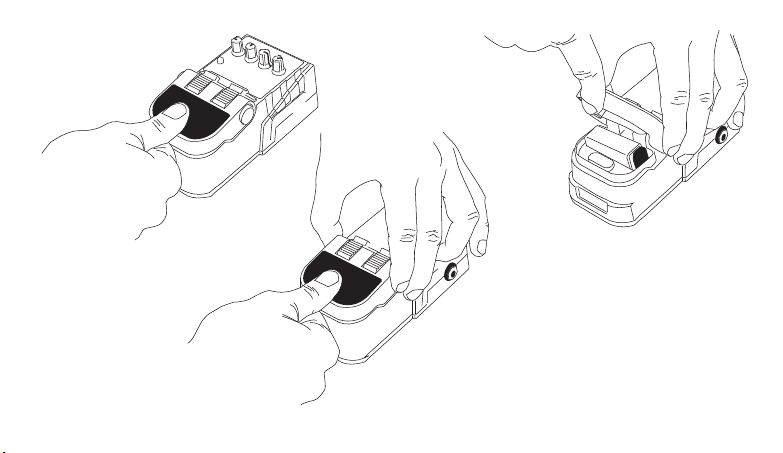

Battery Access Instructions
1) Depress pedal fully.
2) While holding pedal, squeeze both sides of hinge as shown.
3)Squeezing hinge, r a i s e p e d a l t o reveal battery.
Power Supply
Connect an optional Line 6 DC-1 power supply and you'll never need a 9-volt battery again! It is also compatible with most popular 9 Volt DC stomp boxes. Using the power supply will disconnect the battery.
+
Battery Access Instructions
POWER REQUIREMENTS |
|
||
|
Min |
Nominal |
Max |
|
|
|
|
Supply Voltage |
6 VDC |
9.6 VDC |
16 VDC |
|
|
|
|
|
|
|
|
Supply Current |
|
|
|
@ 9.6 VDC |
40mADC |
60mADC 100mADC |
|
|
|
|
|
|
|
|
|
Power |
0.4 Watt |
0.6 Watt |
1 Watt |
@ 9.6VDC |
|||
|
|
|
|

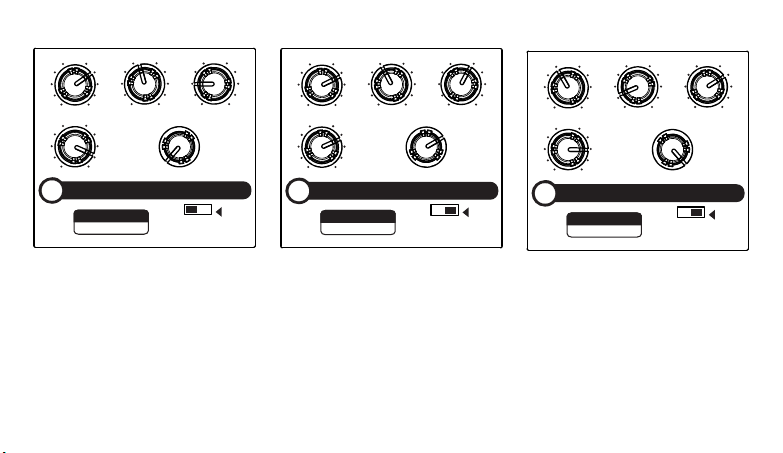

Example Tones
MIX DECAY TIME
TONE |
CHAMBER |
HALL DUCKING |
|
ROOM |
OCTO |
|
PLATE |
CAVE |
|
SPRING |
TILE |
|
‘63 SPRING |
ECHO |
VERBZILLA
STUDIO GRADE |
|
TRAILS |
|
||
ALGORITHMS |
OFF • ON |
|
|
|
|
MIX DECAY TIME
TONE |
CHAMBER |
HALL DUCKING |
|
ROOM |
OCTO |
|
PLATE |
CAVE |
|
SPRING |
TILE |
|
‘63 SPRING |
ECHO |
VERBZILLA
STUDIO GRADE |
|
TRAILS |
|
||
ALGORITHMS |
OFF • ON |
|
|
|
|
MIX DECAY TIME
TONE |
CHAMBER |
HALL DUCKING |
|
ROOM |
OCTO |
|
PLATE |
CAVE |
|
SPRING |
TILE |
|
‘63 SPRING |
ECHO |
VERBZILLA
STUDIO GRADE |
|
TRAILS |
|
||
ALGORITHMS |
OFF • ON |
|
|
|
|
Run, Don’t Walk
Spring reverb with lots O’ Sproing! Grab your stick, jump in your woody and head to Surf heaven... Just add a solid body guitar for that 60’s malibu sound.
Harmonic Pad
Here’s the magic... This is great for holding long, sustained single notes. Try it in a solo for a keyboard like pad to back up your phrases .
ReverBilly
This setting is great for Rockabilly, Blues and Country Swing. What a Hoot! A slap with some toilet splash! Ol’ Billy’s Redheaded step child loves it...
MIX |
DECAY |
TIME |
MIX |
DECAY |
TIME |
TONE |
CHAMBER |
HALL DUCKING |
TONE |
CHAMBER |
HALL DUCKING |
|
ROOM |
OCTO |
|
ROOM |
OCTO |
|
PLATE |
CAVE |
|
PLATE |
CAVE |
|
SPRING |
TILE |
|
SPRING |
TILE |
|
‘63 SPRING |
ECHO |
|
‘63 SPRING |
ECHO |
VERBZILLA |
VERBZILLA |
||||
STUDIO GRADE |
TRAILS |
STUDIO GRADE |
TRAILS |
||
|
|
||||
ALGORITHMS |
OFF • ON |
ALGORITHMS |
OFF • ON |
||
Your Tone Settings
MIX DECAY TIME
TONE |
CHAMBER |
HALL DUCKING |
|
ROOM |
OCTO |
|
PLATE |
CAVE |
|
SPRING |
TILE |
|
‘63 SPRING |
ECHO |
VERBZILLA
STUDIO GRADE |
|
TRAILS |
|
||
ALGORITHMS |
OFF • ON |
|
|
|
|
Mark the knob and switch settings for your favorite tones above.
Line 6, ToneCore, Dr. Distorto, Constrictor, Crunchtone, Echo Park, Liqua-Flange, Otto Filter, Roto-Machine, Space Chorus, Tap Tremolo, Über Metal und Verbzilla sind Warenzeichen der Line 6, Inc.
VORSICHT
Dieses Gerät entspricht den Grenzwerten von “Part 15” der FCC-Bestimmungen für Digital-Geräte der Klasse B. Die Bedienung unterliegt folgenden beiden Bedingungen: (1) Das Gerät darf keine schädlichen Interferenzen verursachen; (2) das Gerät muss alle empfangenen Interferenzen akzeptieren, darunter auch Interferenzen, die Funktionsstörungen verursachen könnten.
WARNUNG
Um Brandund Stromschlaggefahr zu vermeiden, dieses Gerät niemals Regen oder Feuchtigkeit aussetzen.
Das Ausrufezeichen in einem Dreieck bedeutet “Vorsicht!” Lies dir alle Informationen neben solchen Symbolen sorgfältig durch.
Der Blitz in einem Dreieck stellt eine “elektrische Warnung” bezüglich der benötigten Stromspannung bzw. einer denkbaren Stromschlaggefahr dar.
Verbzilla Pilotenhandbuch ©2005, Line 6, Inc.
Bitte die folgenden wichtigen Sicherheitshinweise durchlesen.
Bewahre diese Anleitung an einem sicheren Ort auf.
Vor dem Einsatz des ToneCore musst du dir alle zutreffenden Punkte und Sicherheitshinweise durchlesen.
1.Beachte alle auf dem ToneCore selbst und im Pilotenhandbuch erwähnten Warnungen.
2.Verbinde das optionale Netzteil nur mit einer 100~120Vbzw. 200~240V/47~63Hz-Steckdose (je nachdem, welche Spannung dein Modell benötigt; siehe das Typenschild des Netzteils).
3.Führe nur die im ToneCore-Pilotenhandbuch erwähnten Bedienvorgänge aus. In folgenden Fällen muss das Produkt zur Reparatur eingereicht werden:
•Wenn das Netzkabel oder der Stecker beschädigt ist
•Wenn Flüssigkeiten oder Fremdkörper in das Geräteinnere gelangt sind
•Wenn das Produkt Regen oder Feuchtigkeit ausgesetzt war
•Wenn sich das Gerät abnormal oder nicht mehr in vollem Umfang erwartungsgemäß verhält
•Wenn das Produkt hingefallen ist und das Gehäuse Schäden aufweist
4.Stelle das Produkt niemals in die Nähe von Wärmequellen, z.B. Heizkörpern, Öfen oder anderen Geräten, die starke Hitze erzeugen.
5.Sorge dafür, dass weder Fremdkörper noch Flüssigkeiten in das Geräteinnere gelangen. Verwende dieses Produkt niemals in der Nähe von Wasser.
6.Löse den Anschluss des Netzteils, wenn du das Gerät längere Zeit nicht verwenden möchtest. Im Falle eines Gewitters muss der Netzanschluss gelöst werden.
7.Reinige dieses Produkt nur mit einem feuchten Tuch.
8.Verwende nur Halterungen/Zubehörteile, die vom Hersteller ausdrücklich empfohlen werden.
9.Setze dich niemals über längere Zeiträume hohen Schallpegeln aus, weil das zu Gehörverlust führen kann. Achte immer auf einen auch aus medizinischer Warte “vernünftigen” Pegel.
