Use and Care Manual
For NoFrost Combined Refrigerator-Freezers with IceMaker
CS 1360 B
7085 563-00
Table of Contents
Contents |
Page |
Please Read and Follow these Instructions.................. |
2 |
California Proposition 65................................................ |
2 |
Disposal of Old Appliance.............................................. |
3 |
Disposal of this Appliance.............................................. |
3 |
R600a Refrigerant.......................................................... |
3 |
Important Safety Information.......................................... |
4 |
Electrical Safety.............................................................. |
4 |
Safety Regulations......................................................... |
5 |
Saving energy................................................................. |
5 |
Description of Appliance and Equipment...................... |
5 |
Operating and Control Elements................................... |
6 |
Switching the Appliance On and Off............................. |
7 |
Temperature Display...................................................... |
7 |
Setting the Temperature................................................. |
7 |
SuperCool....................................................................... |
8 |
Audible Alarm Signal...................................................... |
8 |
Power Failure/FrostControl Display............................... |
8 |
Setup Mode.................................................................... |
9 |
Interior Light................................................................... |
11 |
Arranging Food.............................................................. |
11 |
Equipment...................................................................... |
12 |
Freezing......................................................................... |
13 |
Freezing with SuperFrost.............................................. |
13 |
Freezing and Storage.................................................... |
13 |
Safety Instructions and Warnings for the Automatic |
|
Ice Maker ........................................................................ |
14 |
Turning the Ice Maker On and Off................................ |
14 |
Ice Maker Description .................................................. |
14 |
Defrosting...................................................................... |
15 |
Cleaning......................................................................... |
15 |
Vacation Tips................................................................. |
15 |
Troubleshooting............................................................. |
16 |
Customer Service.......................................................... |
16 |

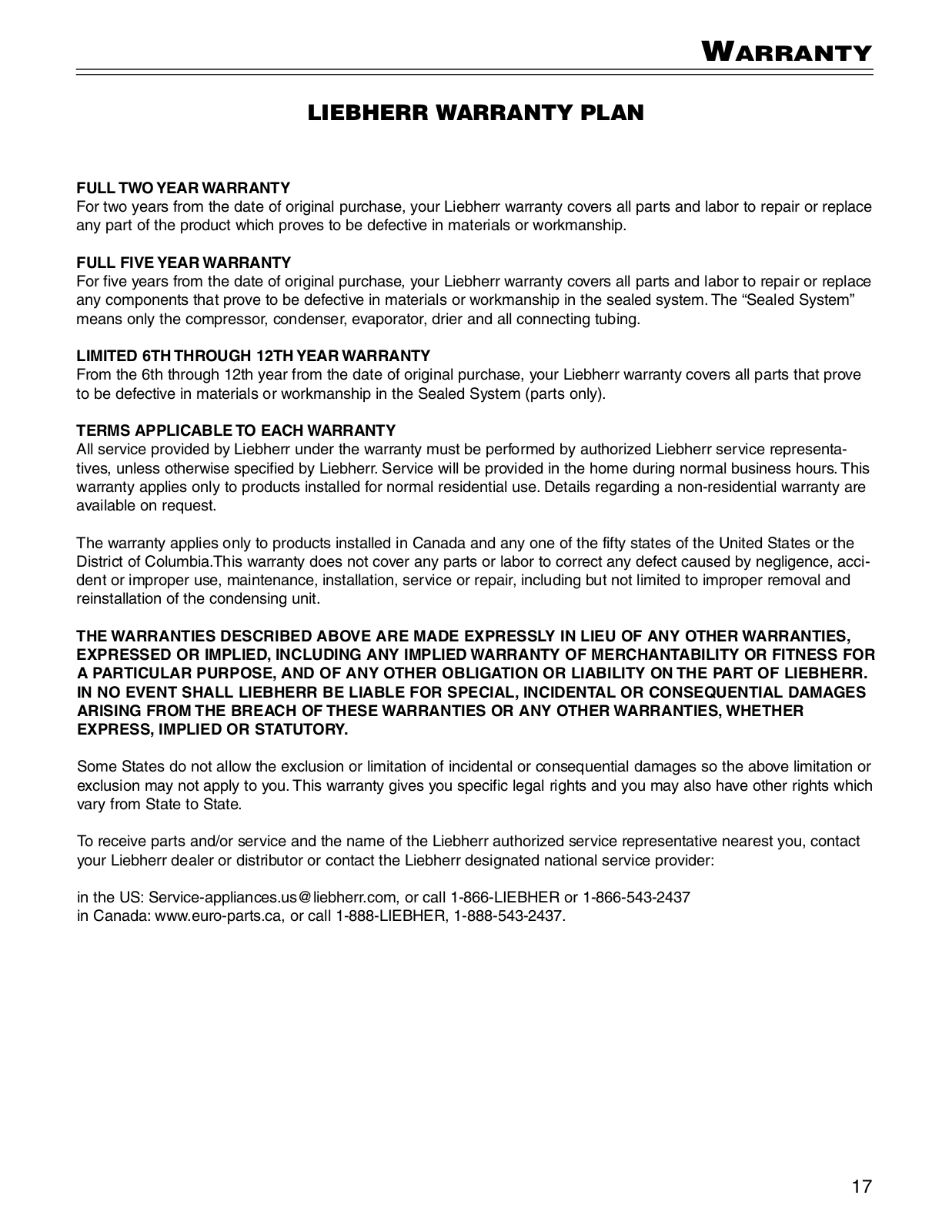

Warranty........................................................................ |
17 |
Please Read and Follow these Instructions
These instructions contain Danger, Warning and Caution notes.
This information is important for safe and efficient installation and operation.
Always read and comply with all Danger, Warning and Caution notes!
DANGER!
Danger indicates a hazard which will cause serious injury or death if precautions are not followed.
WARNING!
Warning indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION!
Caution indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
IMPORTANT
This indicates information that is especially relevant to a problem-free installation and operation.
California Proposition 65
This product contains chemicals known to the state of California to cause cancer or reproductive harm.
IMPORTANT
All types and models are subject to continuous improvement. The manufacturer reserves the right to make modifications to the shape, equipment and technology.
2
Safety
Disposal of Old Appliance
DANGER!
Risk of child entrapment.
Child entrapment and suffocation are not problems of the past.
Junked or abandoned refrigerators are still dangerous – even if they will sit for “just a few days.”
If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents.
Before you discard old appliances:
•Take off the doors.
•Leave the shelves in place so that children may not easily climb inside.
•Cut off the power cable from the discarded appliance. Discard separately from the appliance.
•Be sure to follow your local requirements for disposal of appliances.
Contact the trash collection agency in your area for additional information.
Disposal of this Appliance
This appliance contains flammable gases within the refrigeration circuit and insulation foam.
Contact the municipality or disposal company in your area for information on approved recycling or disposal.
R600a Refrigerant
WARNING!
The refrigerant R600a contained within the appliance is environmentally friendly, but flammable. Leaking refrigerant can ignite.
To prevent possible ignition, follow the warnings below:
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than
those recommended by the manufacturer.
•Do not damage the refrigerant circuit.
•Component parts and power cords shall be replaced with like components performed by factory authorized service personnel only.
•Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
3
Safety
Important Safety Information
•To prevent injury to you or damage to the unit, the appliance should be unpacked and set up by two people.
•If the appliance is damaged on delivery, contact the supplier immediately before connecting to the power source.
•To guarantee safe operation, ensure that the appliance is set up and connected as described in these operating instructions.
•Disconnect the appliance from the power source if a fault occurs. Pull out the plug, turn off or remove the fuse.
•When disconnecting the appliance, use the plug.
Do not pull on the cable.
•Any repairs and work on the appliance should only be carried out by the customer service department. Unauthorized work may be dangerous to the user. Changing the power source cable should only be done by the customer service department.
•Do not eat ice cream, particularly ice cream treats, or ice cubes, immediately from the freezer compartment. There is a risk of “burning” because of the very cold temperatures.
•Do not consume food which has been stored for too long; it could cause food poisoning.
•Do not store explosives or sprays using combustible propellants such as butane, propane, pentane, etc. in the appliance. Electrical components might cause leaking gas to ignite. You may identify such sprays by the printed contents or a flame symbol.
•To prevent possible injury due to an electrical shock, be sure to disconnect the power cord or turn off the circuit breaker before cleaning the appliance.
•To avoid injury or damage to the appliance, do not use steam cleaning equipment to clean the appliance.
•Do not operate the appliance in the presence of explosive fumes.
•In the event of a power outage, minimize opening the appliance door(s). Do not attempt to re-freeze any previously frozen food that has thawed.
•To protect the appliance from possible damage, allow the appliance to stand 1/2 to 1 hour in place before turning the electricity on. This allows the refrigerant and system lubrication to reach equilibrium.
Electrical Safety
Connect this appliance to a 15 amp or 20 amp, 110120 VAC, circuit which is grounded and protected by a circuit breaker or fuse.
We recommend using a dedicated circuit for this appliance to prevent circuit overload and the chance of interruption to the appliance.
This appliance is equipped with a three-prong (grounding) polarized plug for your protection against possible shock hazards.
Where a two-prong wall receptacle is encountered, contact a qualified electrician and have it replaced with a properly grounded three-prong receptacle in accordance with all local codes and ordinances.
WARNING!
Electrocution hazard.
Electrical grounding required.
• Do not remove the round grounding
prong from the plug.
• Do not use extension cords or ungrounded (two-prong) adapters.
•Do not use a power cord that is frayed or damaged.
•Do not use a power strip.
Failure to follow these instructions may result in fire, electrical shock or death.
4
Safety |
features |
|
|
Safety Regulations
The appliance is designed to cool, freeze and store food and to make ice. It is designed as a household appliance.
IMPORTANT
The appliance is not intended for outdoor use.
The appliance is manufactured to operate within specific ambient temperature limits according to its climate rating.
The climate rating indicates the ambient temperature at which the appliance may be operated in order to achieve full refrigeration performance.
Climate Rating |
Ambient Temperature |
SN-T |
50°F to 109°F (10°C to 43°C) |
IMPORTANT
Do not operate the appliance outside the specified ambient temperature range.
-The refrigerant circuit has been tested for leaks.
-The appliance complies with current safety regulations
CAN/CSA C22.2 No.60335-1-11 UL 60335-1 Fifth Edition
CAN/CSA C22.2 No. 60335-2-24-06 UL 60335-2-24 First Edition
We recommend cleaning the appliance before turning it on for the first time. See Cleaning.
Turn on the appliance several hours before loading it.
Do not load with frozen food until the temperature shows approximately 0°F (-18°C).
WARNING!
Do not allow children to play with the appliance. Children must not climb, sit or stand on the racks or door.
Failure to follow these instructions may result in death or serious injury.
Saving energy
If the gap between the rear of the appliance and the wall is less than 2 inch (51 mm), the power consumption level may increase.
Description of Appliance and
Equipment
(1)Operating and control elements
(2)Adjustable door racks
(3)Bottle rack
(4)Adjustable shelves
(5)Vegetable drawers
(6)Model plate (behind the vegetable drawer on the left hand side)
(7)Freezer drawers
(8)Ice maker (in the interior of the drawer)
5
Features
Operating and Control Elements
The electronic control panel has the Touch capacitance technology. Any function can be activated by a fingertip on the symbol of the operating icons.
The exact contact point is between the symbol and its label.
Refrigerator |
Appliance |
Freezer |
||
operating icons |
control icons |
operating icons |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Refrigerator operating icons
IceMaker On/Off
SuperCool
Refrigerator On/Off
Temperature Up control (to increase the refrigerator temperature)
Temperature Down control (to reduce the refrigerator temperature)
Appliance control icons
Power failure LED
SuperCool LED
Child lock LED
Alarm LED
SuperFrost LED
IceMaker ON LED
Top up water tank LED (model CS 1640 only)
Freezer operating icons
Temperature Up control (to increase the freezer temperature)
Temperature Down control (to reduce the freezer temperature)
Freezer On/Off
SuperFrost
Alarm mute (refrigerator and freezer)
Temperature and control display
|
Display mode degrees Celsius |
|
Refrigerator temperature display |
Sabbath mode is activated |
|
Menu mode is activated |
Freezer temperature display |
|
|
(for setting additional functions) |
|
|
Display mode degrees Fahrenheit |
6
