IB xx xx F x D
IB xx xx F D x
IB xx xx F x D x
English
Operating Instructions
REFRIGERATOR/FREEZER COMBINATION
Contents
Operating Instructions, 1
Assistance, 2
Description of the appliance, 3
Description of the appliance, 4
Reversible doors, 5

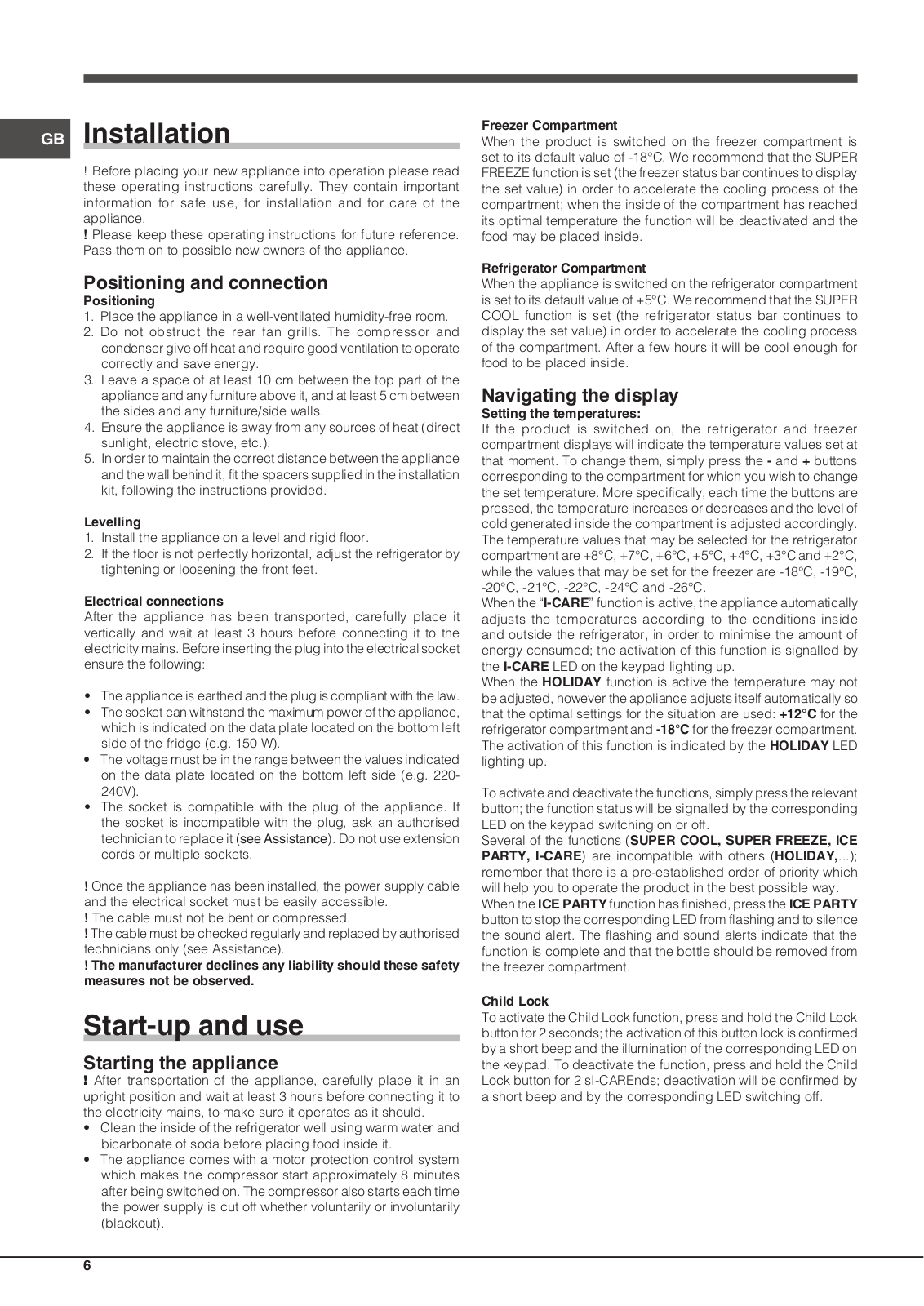

Installation, 6
Start-up and use, 7
Maintenance and care, 7
Precautions and tips,8

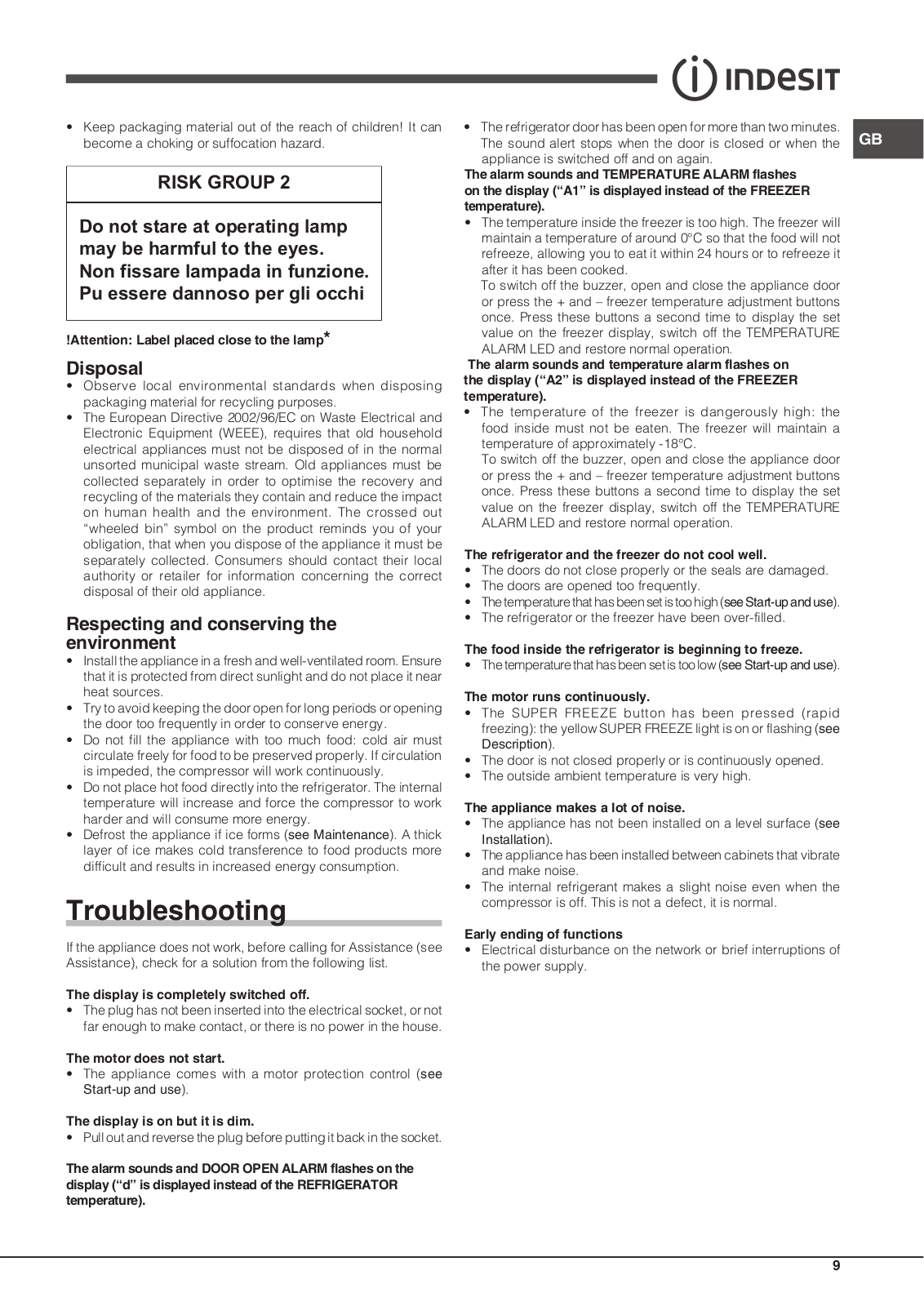

Troubleshooting, 9
Español
Manual de instrucciones
COMBINADO FRIGORÍFICO/CONGELADOR
Sumario
Manual de instrucciones, 1 Asistencia, 2
Descripción del aparato, 3 Descripción del aparato, 4
Reversibilidad de la apertura de las puertas, 5 Instalación, 10
Puesta en funcionamiento y uso, 11 Mantenimiento y cuidados, 12 Precauciones y consejos, 12 Anomalías y soluciones, 13
Assistance
Before calling for Assistance:
•Check if the malfunction can be solved on your own (see Troubleshooting).
•If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre
Communicating:
•type of malfunction
•appliance model (Mod.)
•serial number (S/N)
This information can be found on the data plate located on the bottom left side of the refrigerator compartment.
Never call on unauthorized technicians and always refuse spare parts which are not originals.
- model - modelo
Asistencia
Antes de llamar al Servicio de Asistencia Técnica:
•Verifique si la anomalía puede ser resuelta por Ud. mismo
(ver Anomalías y Soluciones).
•Si, no obstante todos los controles, el aparato no funciona y el inconveniente por Ud detectado continúa, llame al Centro de Asistencia Técnico más cercano.
Comunique:
•el tipo de anomalía
•el modelo de la máquina (Mod.)
•el número de serie (S/N)
Esta información se encuentra en la placa de características ubicada en el compartimento frigorífico abajo a la izquierda.
No recurra nunca a técnicos no autorizados y rechace siempre la instalación de repuestos que no sean originales.
La siguiente información es válida solo para España.
Para otros países de habla hispana consulte a su vendedor.
Ampliación de garantía
Llame al 902.363.539 y le informaremos sobre el fantástico plan de ampliación de garantía hasta 5 años.
Consiga una cobertura total adicional de
•Piezas y componentes
•Mano de obra de los técnicos
•Desplazamiento a su domicilio de los técnicos
Y NO PAGUE AVERIAS NUNCA MAS
Servicio de asistencia técnica (SAT)
Llame al 902.133.133 y nuestros técnicos intervendrán con rapidez y eficacia, devolviendo el electrodoméstico a sus condiciones óptimas de funcionamiento.
En el SAT encontrará recambios, accesorios y productos específicos para la limpieza y mantenimiento de su electrodoméstico a precios competitivos.
ESTAMOS A SU SERVICIO
- serial number
- número de serie
2
Description of the appliance |
|
Descripción del aparato |
|
|||||
Control panel |
|
|
|
|
Panel de control |
|
||
1. ON/OFF |
|
|
|
|
|
1. ENCENDIDO/APAGADO (ON/OFF) |
|
|
The entire product (both the refrigerator and freezer compartments) |
|
Presionando este botón es posible encender todo el aparato (tanto el |
||||||
may be switched on by pressing this button. The red LED indicates |
|
compartimento frigorífico como el congelador). El LED rojo indica que |
||||||
that the product is switched off, while the green LED shows that it is |
|
el producto está apagado, el LED verde que está en funcionamiento. |
||||||
operating. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2. Regulación de la Temperatura del FRIGORÍFICO |
y |
|
2. REFRIGERATOR |
and |
temperature adjustment |
|
Permiten la modificación de los valores de temperatura del frigorífico, |
||||
Used to modify the temperature setting of the refrigerator; confirmation |
|
con la correspondiente confirmación en la pantalla de la temperatura |
||||||
corresponding to the selected temperature appears on the display. |
|
seleccionada. |
|
|||||
3. Refrigerator display |
|
|
|
|
3. Pantalla del FRIGORÍFICO |
|
||
Shows the set temperature for the refrigerator compartment. |
|
Indica la temperatura seleccionada en el compartimento frigorífico. |
||||||
4. I-CARE |
|
|
|
|
|
4. I-CARE |
|
|
Controls the activation and deactivation of the I-CARE function (optimal |
|
Administra la activación y la desactivación de la función I-CARE (la |
||||||
operating temperature for minimal energy consumption). When this |
|
temperatura óptima con un mínimo consumo). Cuando se activa |
||||||
function is activated, the I-CARE LED on the keypad lights up.Press |
|
esta función, en el panel de control se enciende el LED I-CARE.Si |
||||||
and hold the I-CARE button for 8 seconds so that the corresponding |
|
se presiona durante 8 segundos el botón I-CARE, centelleará el led |
||||||
LED begins to flash; this will allow you to set the temperature to |
|
correspondiente y se podrá regular la temperatura en +4°,+5°, +6° en |
||||||
+4°,+5°,+6° in the Refrigerator compartment and -18°,-19°,-20° in |
|
el compartimiento frigorífico y en -18°,-19°, -20° en el compartimiento |
||||||
the Freezer compartment. Ten minutes after the most recent user |
|
congelador. |
Después que han pasado diez minutos de la última |
|||||
interaction, the display enters its energy saving mode.To exit the |
|
interacción con el usuario, la pantalla entra en la modalidad ahorro |
||||||
energy saving mode, simply press any button or open the refrigerator |
|
energético.Para salir de la modalidad ahorro energético es suficiente |
||||||
door. |
|
|
|
|
|
presionar un botón cualquiera o abrir la puerta del frigorífico. |
||
5. ALARM |
|
|
|
|
|
5. ALARMA |
|
|
An alarm situation has been detected in the product (see |
|
Se ha registrado una situación de alarma en el producto (ver sec. |
||||||
Troubleshooting section). |
|
|
|
|
Anomalías y soluciones). |
|
||
6. CHILD LOCK |
|
|
|
|
|
6. CHILD LOCK |
|
|
Activates or deactivates the control panel button lock in order to |
|
Permite activar o desactivar el bloqueo de los botones del panel de |
||||||
avoid the risk of the various functions being activated accidentally by |
|
control para evitar que los niños realicen involuntarias activaciones. |
||||||
children. The CHILD LOCK LED on the keypad lights up. |
|
En el panel de control se enciende el LED CHILD LOCK. |
|
|||||
7. FREEZER |
and |
temperature adjustment |
|
|
7. Regulación de la Temperatura del CONGELADOR |
y |
||
Used to modify the temperature setting of the freezer; confirmation |
|
Permiten la modificación de los valores de temperatura del |
||||||
corresponding to the selected temperature appears on the display. |
|
congelador, con la correspondiente confirmación en la pantalla de |
||||||
8. FREEZER display |
|
|
|
|
la temperatura seleccionada. |
|
||
|
|
|
|
|
|
|
||
Shows the set temperature for the freezer compartment. |
|
8. Pantalla CONGELADOR |
|
|||||
|
|
|
|
|
|
|
Indica la temperatura seleccionada en el |
|
9. SUPER COOL |
|
|
|
|
|
|
compartimento congelador. |
|
Activates or deactivates the SUPER COOL function |
|
|
|
|
|
|||
(rapid cooling). The SUPER COOL LED on the |
1 |
|
|
9. SUPER COOL |
|
|||
keypad lights up and ‘SC’ appears on the refrigerator |
|
|
Permite activar o desactivar la función SUPER COOL |
|||||
display. |
|
|
|
|
|
|
(enfriamiento rápido). En el panel de control se |
|
|
|
|
|
|
|
|
enciende el LED SUPER COOL y en la pantalla del |
|
10. SUPER FREEZE |
|
|
|
2 |
|
frigorífico se visualiza “SC”. |
|
|
Activates or deactivates the SUPER FREEZE function |
|
|
|
|
||||
(rapid freezing). The SUPER FREEZE LED on the |
|
|
|
10. SUPER FREEZE |
|
|||
keypad lights up and ‘SF’ appears on the freezer |
|
|
|
Permite activar o desactivar la función SUPER |
||||
display. |
|
|
|
|
|
3 |
FREEZE (congelamiento rápido). En el panel de |
|
|
|
|
|
|
|
control se enciende el LED SUPER FREEZE y en la |
||
11. HOLIDAY |
|
|
|
|
|
|
pantalla del congelador se visualiza “SF”. |
|
Activates or deactivates the HOLIDAY function (the |
5 |
|
|
|
|
|||
HOLIDAY LED on the keypad lights up), while the |
|
|
11. HOLIDAY |
|
||||
temperature values +12°C and -18°C appear on the |
|
|
|
Permite activar o desactivar la función HOLIDAY (en |
||||
refrigerator and freezer displays respectively. Ten |
|
|
|
el panel de control se enciende el LED HOLIDAY), |
||||
minutes after the most recent user interaction, the |
|
|
|
en la pantalla del frigorífico se visualiza +12ºC y |
||||
display enters its energy saving mode (see I-CARE |
|
|
8 |
en la del congelador -18ºC. Cuando han pasado |
||||
function). |
|
|
|
|
|
diez minutos después de la última interacción con |
||
|
|
|
|
|
|
|
el usuario, la pantalla entra en la modalidad ahorro |
|
12. ICE PARTY |
|
|
|
|
7 |
|
energético (ver la función I-CARE). |
|
Activates the ICE PARTY function (the temperature |
|
|
|
|
||||
is decreased for the amount of time it takes to cool a |
|
|
|
12. ICE PARTY |
|
|||
bottle). The ICE PARTY LED on the keypad lights up. |
|
6 |
|
Permite activar o desactivar la función de ICE PARTY |
||||
|
|
|
|
|
|
(disminuye la temperatura del congelador durante |
||
|
|
|
|
11 |
|
9 |
el tiempo necesario para enfriar una botella). En el |
|
|
|
|
|
|
panel de control se enciende el LED ICE PARTY. |
|||
|
|
|
|
12 |
|
10 |
|
|
|
|
|
|
|
4 |
|
|
|
3
Descripción del aparato
Vista en conjunto
Las instrucciones sobre el uso son válidas para distintos modelos y por lo tanto es posible que la figura presente detalles diferentes a los del aparato que Ud. ha adquirido. La descripción de las piezas más complejas se encuentra en las páginas sucesivas.
1PATAS de regulación
2Compartimiento CONSERVACIÓN
3Cubeta de hielo Ice3 *.
4Compartimiento CONGELAMIENTO y CONSERVACIÓN*
5Recipiente FRUTA y VERDURA *
6Cajon FRESH BOX para CARNE y QUESO *
7WINE RACK *.
8BANDEJAS *.
9BOMBILLA / DUAL LED / LED *(ver Mantenimiento)
10Balconcito extraíble PORTAOBJETOS *
11Balconcito BOTELLAS
*La cantidad y/o su ubicación pueden variar, se encuentra solo en algunos modelos
Description of the appliance
Overall view
The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directly represent the appliance purchased. For more complex features, consult the following pages.
1Levelling FEET
2STORAGE compartment
3Ice3 Ice tray*.
4FREEZER and STORAGE compartment*
5FRUIT and VEGETABLE bin *
6Fresh BOX*
7WINE RACK *
8SHELVES *
9LAMP / DUAL LED / LED *(see Maintenance)
9Removable multipurpose SHELVES *
11BOTTLE shelf
*Varies by number and/or position, available only on certain models.
9
|
10 |
|
|
8 |
|
7 |
|
|
6 |
10 |
|
8 |
||
|
||
5 |
11 |
|
|
4
3
2
1
4
Reversible doors
If it is necessary to change the direction in which the doors open, please contact the Technical Assistance Centre.
Reversibilidad de la apertura de las puertas
Cuando sea necesario cambiar el sentido de apertura de las puertas, llame al servicio de Asistencia Técnica.
