Hitachi CP-X505, CP-X605 Operating Guide

Projector

CP-X505/CP-X605

User's Manual – Operating Guide

Thank you for purchasing this projector.

WARNING ►Before using this product, please read the "User's Manual - Safety Guide" and related manuals to ensure the proper use of this product. After reading them, store them in a safe place for future reference.

About this manual

Various symbols are used in this manual. The meanings of these symbols are described below.

WARNING This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.

CAUTION This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.

 Please refer to the pages written following this symbol.

NOTE • The information in this manual is subject to change without notice.

•The manufacturer assumes no responsibility for any errors that may appear in this manual.

•The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

Trademark acknowledgment

•Mac is registered trademarks of Apple Computer, Inc.

•VESA and SVGA are trademarks of the Video Electronics Standard Association.

•Windows is a registered trademark of Microsoft Corporation.

• is a trademark of SRS Labs, Inc.

•WOW technology is incorporated under license from SRS Labs, Inc. All other trademarks are the properties of their respective owners.

Content

Content

							
About this manual. . . . . . . . . . 1				(EASY MENU continued)
Content. . . . . . . . . . . . . . . . . . . 2				Language, Go to Advanced Menu...

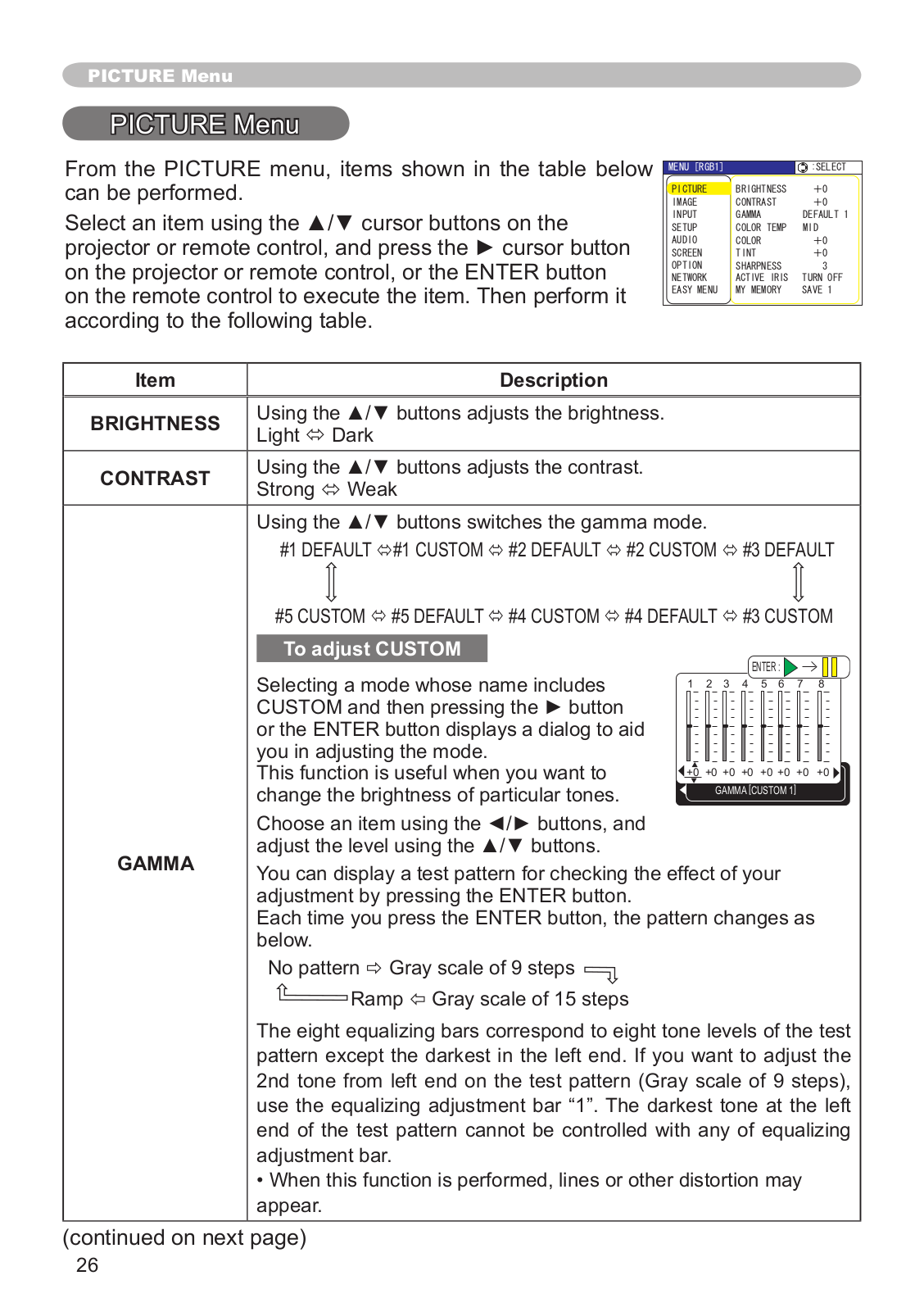

Projector features. . . . . . . . . . 3				PICTURE menu. . . . . . . . . . . . 26
Preparations. . . . . . . . . . . . . . . 3				Brightness, Contrast, Gamma, Color temp,
Contents of package. . . . . .		.	3	Color, Tint, Sharpness, Active iris, My memory
Fastening the lens cover. . . . .			.3	IMAGE menu. . . . . . . . . . . . . . 29
Part names. . . . . . . . . . . . . . . . 4				Aspect, Over scan, V position, H position,
Projector . . . . . . . . . . . .4				H phase, H size, Auto adjust execute
Control panel. . . . . . . . .		.	5	INPUT menu . . . . . . . . . . . . . . 31
Rear panel. . . . . . . . . .		.	5	Progressive, Video nr, 3d-ycs,
Remote control . . . . . . . .		.	6	Color space, Component, Video format,
Setting up. . . . . . . . . . . . . . . . . 7				M1-d, Frame lock, Rgb in, Resolution
Arrangement. . . . . . . . . . 8				SETUP menu.. . . . . . . . . . . . . 35
Adjusting the projector's elevator . .			9	Auto keystone execute,
Using the security bar and slot . .		.	9	Keystone	, Keystone	, Whisper,
Connecting your devices. . . . .			10	Mirror
Connecting power supply . . . .		.12		AUDIO menu. . . . . . . . . . . . . . 37
Remote control.. . . . . . . . . . . 13				Volume, Treble, Bass, Srs wow,
Laser pointer. . . . . . . . .		.13		Speaker, Audio
Putting batteries . . . . . . . .			13	SCREEN menu.. . . . . . . . . . . . 38
About the remote control signal. .		.14		Language, Menu position, Blank,

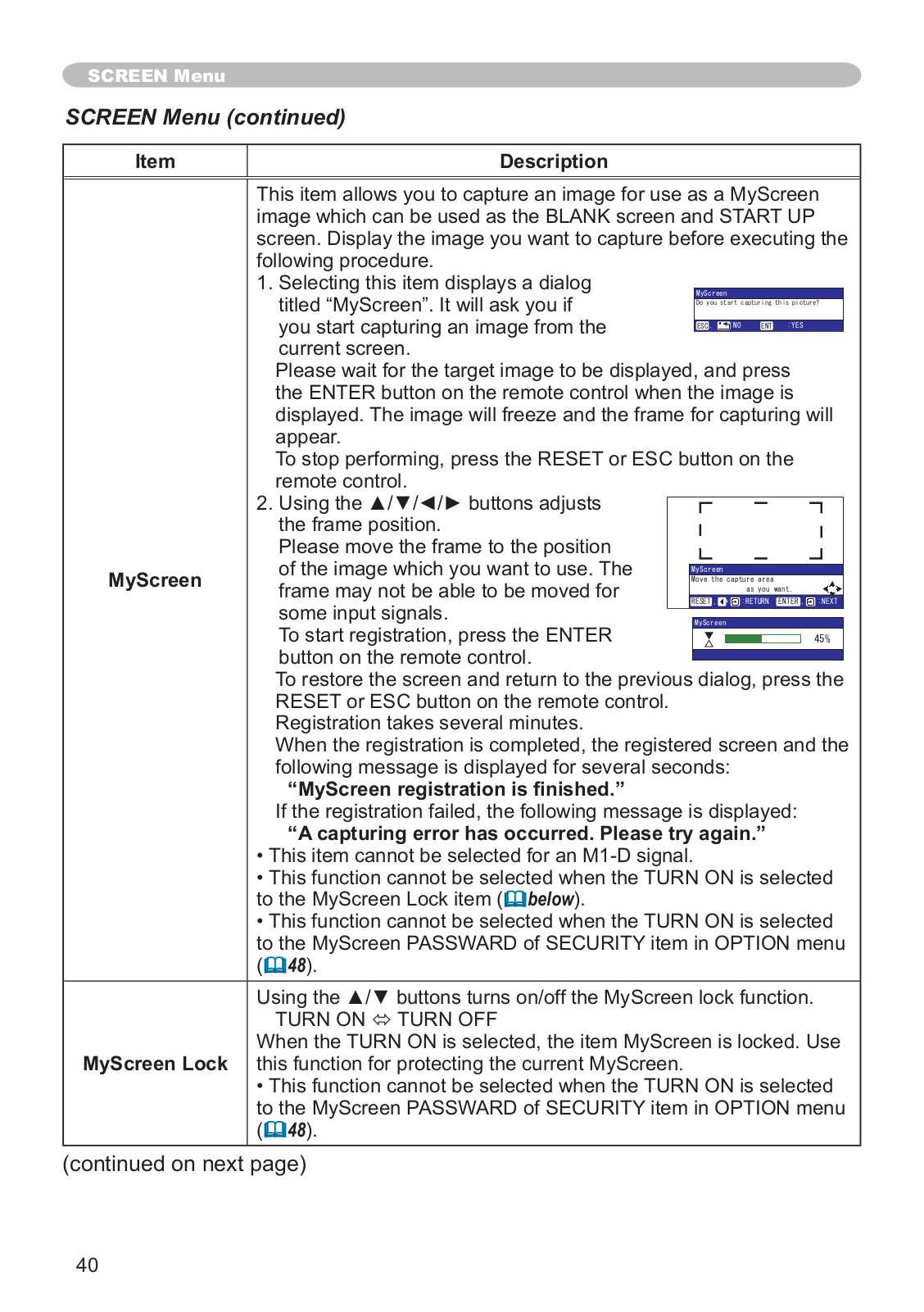

Changing the frequency of remote			14	Start up, MyScreen, MyScreen Lock,
control signal. . . . . . . . .				Message, Source name
Using as a wired remote control. .			15	OPTION menu. . . . . . . . . . . . . 42
Using as a				Auto search, Auto keystone ,
simple PC mouse & keyboard . . 15

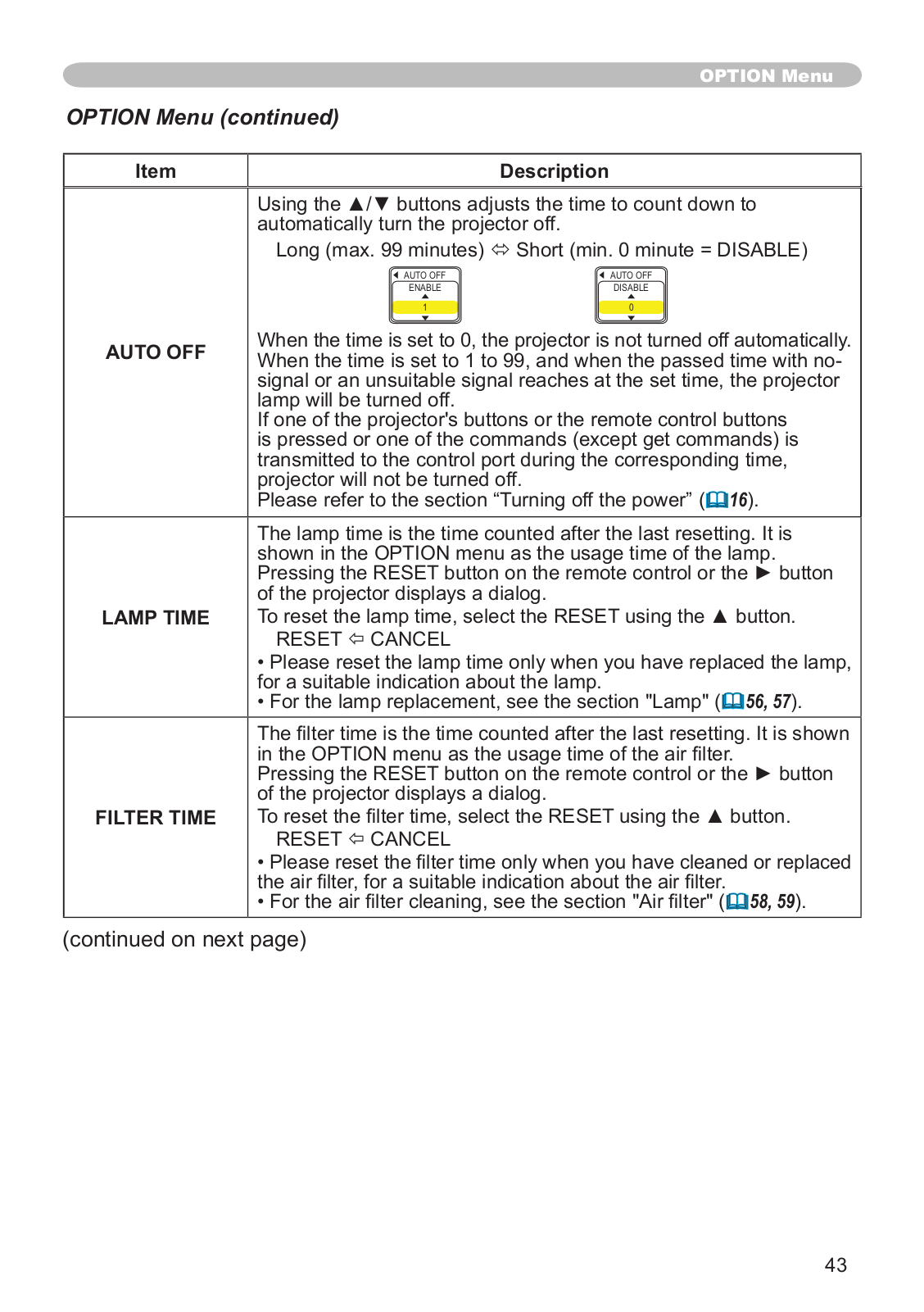

				Auto on, Auto off, Lamp time,
Power on/off . . . . . . . . . . . . . . 16
				Filter time, My button, Service,

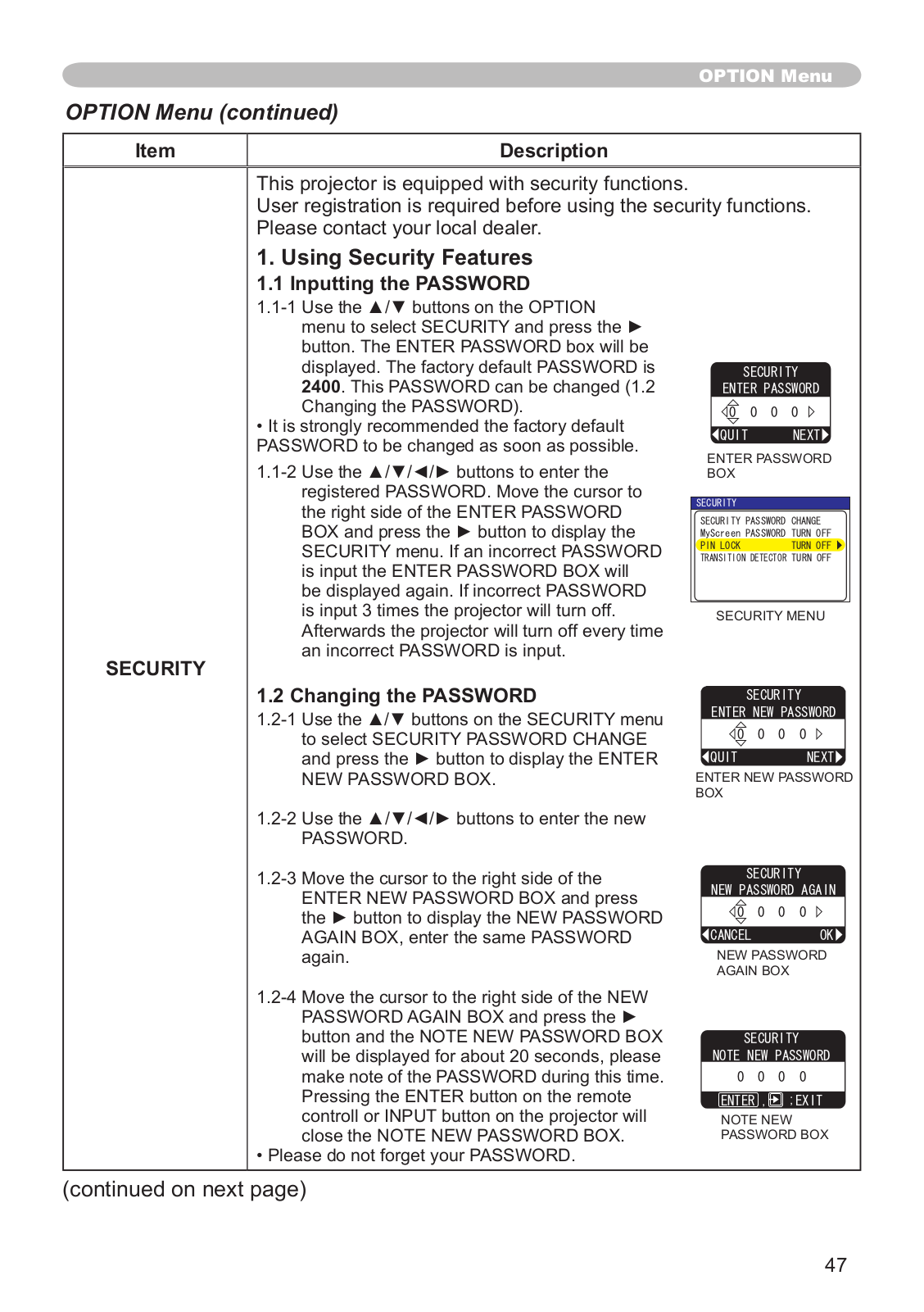

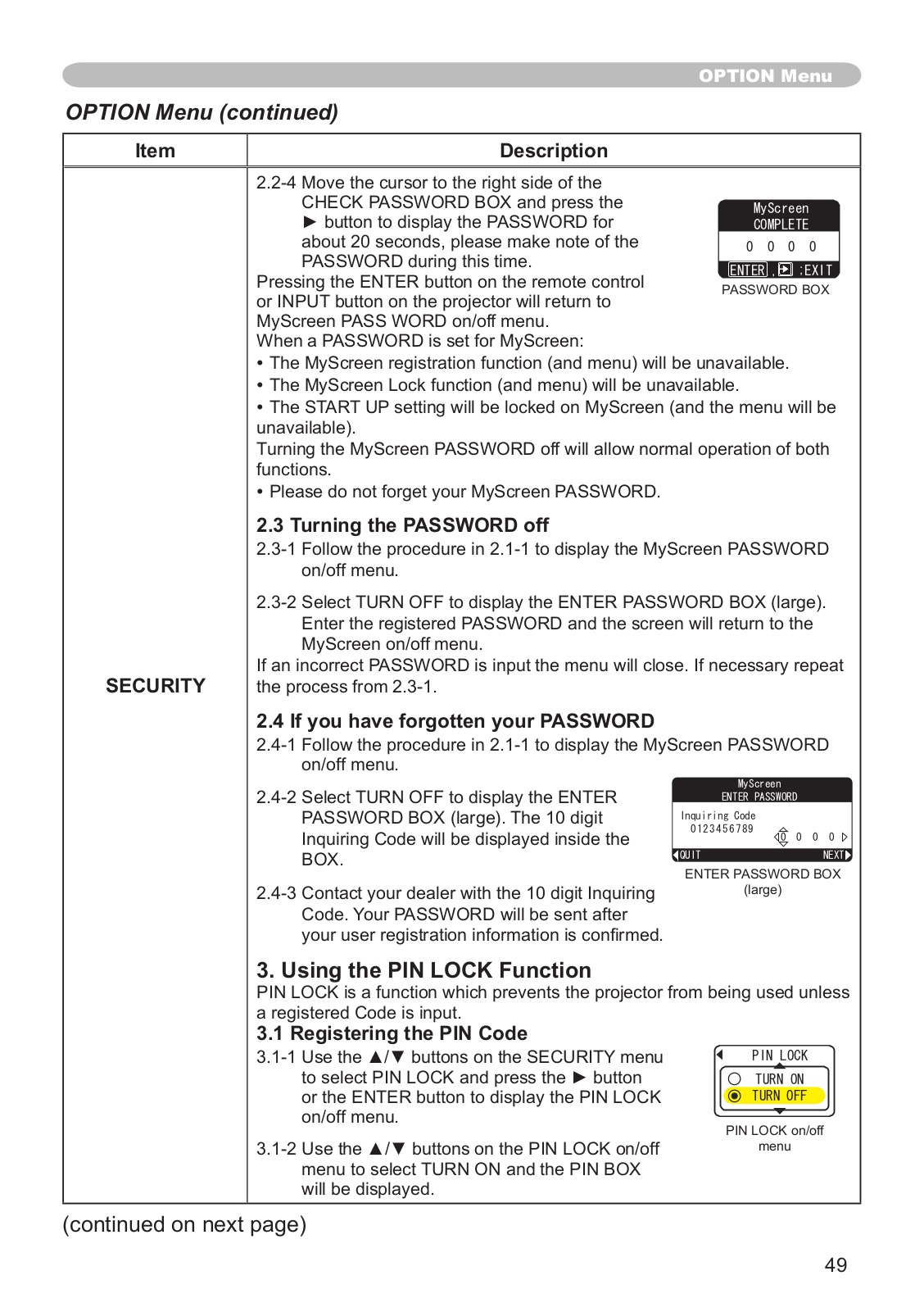

Turning on the power. . . . . .		.16		Security
Turning off the power. . . . . .		.16		NETWORK menu.. . . . . . . . . . 53
Operating . . . . . . . . . . . . . . . . 17				Dhcp, Ip address, Subnet mask,
Adjusting the volume. . . . . .		.17		Default gateway, Time difference,

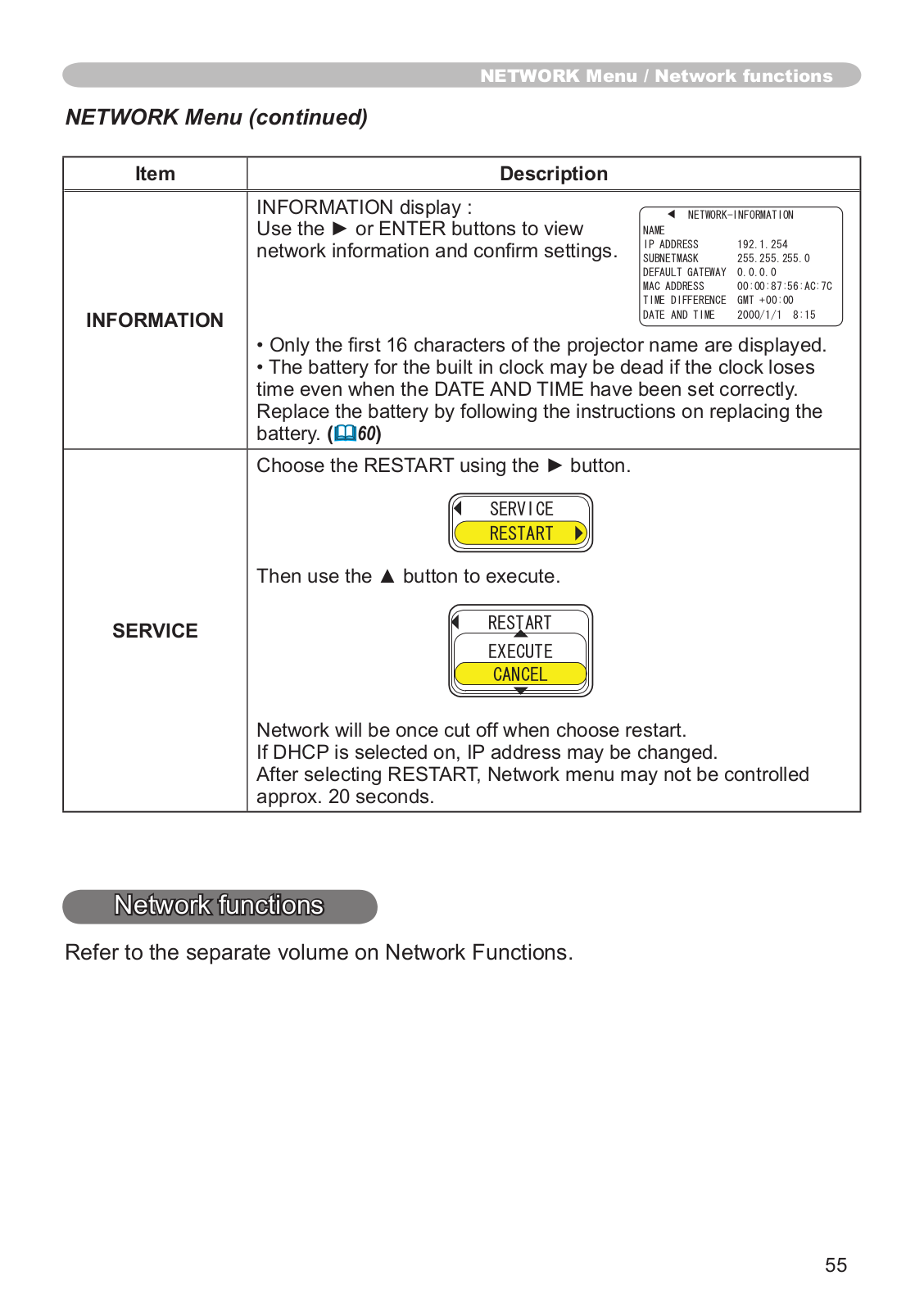

Temporarily muting the sound. . .			17	Date and time, e-shot, Information, Service
Selecting an input signal. . . . .			17	Network functions . . . . . . . . . 55
Searching an input signal . . . .		.18
Selecting an aspect ratio. . . . .			18	Maintenance.. . . . . . . . . . . . . 56
Adjusting the zoom and focus. . .			19	Lamp. . . . . . . . . . . . .56
Adjusting the lens shift . . . . .		.19		Air filter . . . . . . . . . . . .58
Using the automatic adjustment feature.		.19		Internal clock battery. . . . . .			.60
Adjusting the position . . . . . .			20	Other care. . . . . . . . . .			.61
Correcting the keystone distortions. 20				Troubleshooting. . . . . . . . . . . 62
Using the magnify feature. . . .		.21		Related messages. . . . . . .			.62
Freezing the screen. . . . . . .			21	Regarding the indicator lamps. . .			63
Temporarily blanking the screen. .			22	Phenomena that may be easy
Using the menu function . . . . .			23	to be mistaken for machine defects. .65
EASY MENU.. .. .. .. .. .. .. .. .. .. .. .. .. ..		24		Warranty and after-service.. . . 68
Aspect, Auto keystone	execute,			Specifications.. . . . . . . . . . . . 68
Keystone , Keystone	, Picture mode,
Brightness, Contrast, Color, Tint, Sharpness,
Whisper, Mirror, Reset, Filter time,

Projector features / Preparations

Projector features

This projector is used to project various picture signals onto a screen. This projector requires only a minimal amount of space for installation and can produce a large projected image from even a short distance.

Preparations

Contents of package

Please see the “Contents of package” in the “User’s Manual (concise)” which is a book. Your projector should come with the items shown there. Contact immediately your dealer if anything is missing.

NOTE • Keep the original packing materials for future reshipment. Be sure to use the original packing materials when moving the projector. Use special caution for the lens.

Fastening the lens cover

To avoid losing the lens cover, please fasten the lens cover to the projector using the included strap.

Strap hole

1. Fix the strap to the strap hole of the lens cover.

2. Put one side of the strap into the groove on the rivet.

Bottom

3. Push the rivet into the rivet hole.

Rivet hole

Part names

Part names

Projector

(1)Speakers (x 4) (37).

(2)Focus ring (19)

(3)Zoom ring (19)

(4)Lamp cover (56) The lamp unit is inside.

(5)Lens shift cover (19)

(6)Horizontal lens shift dial (19)

(7)Vertical lens shift dial (19)

(8)Front cover

(9)Lens (61)

(10)Lens cover (3)

(11)Remote sensors (x 3) (14)

(12)Elevator feet (x 2) (9)

(13)Elevator knobs (x 2) (9)

(14)Filter cover (58)

The air filter and intake vent are inside.

(15)Exhaust vents

(16)Intake vents

(17)Rivet hole (3)

(18)Handle

(19)Battery cover (60)

(20)Control panel (5)

(21)Rear panel (5)

(5)	(6)
HOT!(4)	(7)
(1)
(3)

(2)

(8)

(15)

HOT!

(12)

(14)

(10)(9) (11) (12) (13)

(12)	(19)	(17)

(16)	(12)
	(13)
(20)

(11)

(1) (21)

(1)

(18)

WARNING ►HOT! : Do not touch around the lamp cover and the exhaust

vents during use or just after use, since it is too hot.

►Do not look into the lens or vents while the lamp is on, since the strong light is not good for your eyes.

►Do not grab the front cover to hold the projector up, since the projector may drop down.

►Do not handle the elevator knobs without holding the projector, since the projector may drop down.

CAUTION ►Maintain normal ventilation to prevent the projector from heating up. Do not cover, block or plug up the vents. Do not place anything that can stick or be sucked to the vents, around the intake vents. Clean the air filter periodically.

Part names

Control panel		(6)
(1)	STANDBY/ON button (16)	(5)
		(4)
(2)	MENU button (23)
	It consists of four cursor buttons.
(3)	INPUT button (17)
(4)	POWER indicator (16)
(5) TEMP indicator (63)
(6)	LAMP indicator (63)
		(1)	(2)	(3)

Rear panel

(1) Shutdown switch (65)

(2) Security slot (9)

(3) Security bar (9)

(4) AC inlet (12) 16 (1) (2)

(5) Power switch ( )

(6) RGB1 port (10)		(14) (13) (17) (6)		(7) (20)			(18) (9) (19) (8)
(7) RGB2 port (10)
(8) CONTROL port (10)						LAN
(9) M1-D port (10)		AUDIO IN 2	RGB	RGB1	RGB2		M1-D
(10) VIDEO port (10)			OUT		CR/PR
			Y	CB/PB
(11) S-VIDEO port ( 10)		AUDIO IN 1	VIDEO
			S-VIDEO R	L R L	OUT	(3.5Φ)
						REMOTE
(12) COMPONENT					AUDIO	CONTROL		CONTROL
			AUDIO IN 3	AUDIO IN 4
(Y, CB/PB, CR/PR) ports (10)							AC IN
					I	O
(13) AUDIO IN1 port (10)
(14) AUDIO IN2 port (10)		(10) (11) (15) (16) (12)
(15) AUDIO IN3 (R/L) ports (10)					(5)		(4)	(3)
(16) AUDIO IN4 (R/L) ports (10)

(17)RGB OUT port (10)

(18)AUDIO OUT port (10)

(19)REMOTE CONTROL port (10)

(20)LAN port (10)

CAUTION ►Do not use the security bar and the security slot to prevent the projector from falling down, since it is not designed for it.

►Use the shutdown switch only when the projector is not turned off by normal procedure, since pushing this switch stops operation of the projector without cooling it down.

Part names

Remote control

(1)	Laser pointer (13)
	It is a beam outlet.
(2)	LASER INDICATOR (13)
(3)	LASER button (13)
(4)	STANDBY/ON button (16)
(5)	VOLUME button (17)
(6)	MUTE button (17)
(7)	VIDEO button (18)
(8)	RGB button (17)
(9)	SEARCH button (18)
(10) AUTO button (19)
(11) ASPECT button (18)
(12)		POSITION button (20)
(13)		KEYSTONE button (20)
(14)		MAGNIFY - ON button (21)
(15)		MAGNIFY - OFF button (21)
(16)		FREEZE button (21)
(17)		BLANK button (22)
(18)		MY BUTTON - 1 button (44)
(19)		MY BUTTON - 2 button (44)
(20)		MENU button (23)
(21)		Lever switch (23) : acting 3 functions as below.
		Cursor button ▲ : to slide toward the side marked ▲.
		Cursor button ▼ : to slide toward the side marked ▼.
		ENTER button : to push down the center point.
(22)		Cursor button ◄ (23)
(23)		Cursor button ► (23)
(24)		RESET button (23)	(32)
(25)		ESC button (23)
(26)		Mouse left button (15)
(27)		Mouse right button (15)
(28)		PAGE UP button (15)
(29)		PAGE DOWN button (15)
(30)		Wired remote control port (15)
(31)		Battery cover (13)	(33)
(32)		Battery holder (13)
(33)		Frequency switch (14)

(2)(1)

(7)

		LASER		(8)
(4)		INDICATOR
	STANDBY/ON	VIDEO	RGB
(17)	BLANK		LASER	(3)
(26)
(11)				(27)
(22)	ASPECT			(21)
	PUSH ENTER			(23)
(28)	PAGE UP		PAGE DOWN	(29)
(20)	ESC	MENU	RESET	(24)
(25)	POSITION	AUTO		(10)
(12)	MAGNIFY	MY BUTTON	VOLUME	(18)
(14)	ON	1		(5)
(15)			MUTE	(6)
	OFF	2
(16)				(9)
	FREEZE	KEYSTONE	SEARCH
(13)				(19)
(30)

of control

WARNING ►Do not look into the beam
point the beam at people and pets while pressing the
LASER button, since the beam is not good for eyes.
CAUTION ►Note that the laser beam may result
in hazardous radiation exposure. Use the laser pointer
only for pointing on the screen.	(31)

Setting up

Setting up

Install the projector according to the environment and manner the projector will be used in.

WARNING ►Place the projector in a stable horizontal position. If the projector falls or is knocked over it could cause injury and/or damage to the projector. Using a damaged projector could then result in fire and/or electric shock.

•Do not place the projector on an unstable, slanted or vibrational surface such as a wobbly or inclined stand.

•Do not place the projector on its side, front or rear position.

•Consult with your dealer before a special installation such as suspending from a ceiling.

►Place the projector in a cool place, and ensure that there is sufficient ventilation. The high temperature of the projector could cause fire, burns and/or malfunction of the projector.

•Do not stop-up, block or otherwise cover the projector's vents.

•Keep a space of 30 cm or more between the sides of the projector and other objects such as walls.

•Do not place the projector on metallic thing or anything weak in heat.

•Do not place the projector on carpet, cushions or bedding.

•Do not place the projector in direct sunlight or near hot objects such as heaters.

•Do not place anything near the projector lens or vents, or on top of the projector.

•Do not place anything that may be sucked into or stick to the vents on the bottom of the projector. This projector has some intake vents also on the bottom.

►Do not place the projector anyplace where it may get wet. Getting the projector wet or inserting liquid into the projector could cause fire, electric shock and/or malfunction of the projector.

•Do not place the projector in a bathroom or the outdoors.

•Do not place anything containing liquid near the projector.

CAUTION ►Avoid placing the projector in smoky, humid or dusty place. Placing the projector in such places could cause fire, electric shock and/or malfunction of the projector.

• Do not place the projector near humidifiers, smoking spaces or a kitchen. ►Position the projector to prevent light from directly hitting the projector's remote sensor.

Setting up

Arrangement

Refer to the illustrations and tables below to determine screen size and projection distance. The values shown in the table are calculated for a full size screen: 1024×768

(a)Screen size (diagonal)

(b)Projection distance (±10%)

(c)Screen height (±10%), when the vertical lens shift is set full upward (19)

	On a horizontal
	surface	(b)
	(a)	(c) up
		(c) down
	Suspended from
	the ceiling
	(a)	(c) up
		(c) down
		(b)

•Keep a space of 30 cm or more between the sides of the projector and other objects such as walls.

•Consult with your dealer before a special installation such as suspending from a ceiling.

(a) Screen						4 : 3 screen										16 : 9 screen
size			(b) Projection distance						(c) Screen height				(b) Projection distance				(c) Screen height
				[m (inch)]					[cm (inch)]					[m (inch)]				[cm (inch)]
[inch (m)]
			min.		max.			down		up			min.		max.		down		up
30	(0.8)		0.9	(35)	1.1	(42)		5	(2)	41	(16)		1.0	(38)	1.2	(46)	-1	(0)	39	(15)
40	(1.0)		1.2	(47)	1.4	(57)		6	(2)	55	(22)		1.3	(51)	1.6	(62)	-2	(-1)	51	(20)
60	(1.5)		1.8	(71)	2.2		(86)	9	(4)	82	(32)		2.0	(78)	2.4	(94)	-2	(-1)	77	(30)
70	(1.8)		2.1	(83)	2.6		(100)	11	(4)	96	(38)		2.3	(91)	2.8	(110)	-3	(-1)	90	(35)
80	(2.0)		2.4	(96)	2.9		(115)	12	(5)	110	(43)		2.6	(104)	3.2	(126)	-3	(-1)	103	(41)
90	(2.3)		2.7	(108)	3.3		(130)	14	(5)	123	(49)		3.0	(117)	3.6	(141)	-4	(-1)	116	(46)
100	(2.5)		3.0	(120)	3.7		(144)	15	(6)	137	(54)		3.3	(131)	4.0	(157)	-4	(-2)	129	(51)
120	(3.0)		3.7	(144)	4.4		(174)	18	(7)	165	(65)		4.0	(157)	4.8	(189)	-5	(-2)	154	(61)
150	(3.8)		4.6	(181)	5.5		(217)	23	(9)	206	(81)		5.0	(197)	6.0	(237)	-6	(-2)	193	(76)
200	(5.1)		6.1	(241)	7.4		(291)	30	(12)	274	(108)		6.7	(263)	8.0	(317)	-8	(-3)	257	(101)
250	(6.4)		7.7	(302)	9.2		(364)	38	(15)	343	(135)		8.4	(329)	10.1 (396)		-10	(-4)	322	(127)
300	(7.6)		9.2	(363)	11.1		(437)	46	(18)	411	(162)		10.0 (395)		12.1 (476)		-12	(-5)	386	(152)
350	(8.9)		10.8 (424)		13.0 (510)			53	(21)	480	(189)		11.7 (462)		14.1 (556)		-15	(-6)	450	(177)

Setting up

Adjusting the projector's elevator

When the place to put the projector is slightly uneven to the left or right, use the elevator feet to place the projector horizontally.

Using the feet can also tilt the projector in order to project at

a suitable angle to the screen, elevating the front side of the projector within 8 degrees.

This projector has 2 elevator feet and 2 elevator knobs. An elevator foot is adjustable while pulling up the elevator knob on the same side as it.

1. Holding the projector, pull the elevator knobs up to loose the elevator feet.

2. Position the front side of the projector to the desired height.

3. Release the elevator knobs in order to lock the elevator feet.

4. After making sure that the elevator feet are locked, put the projector gently.

5. If necessary, the elevator feet can be manually twisted to make more precise adjustments. Hold the projector when twisting the feet.

To loose an elevator foot, pull up the elevator knob on the same side as it.

To finely adjust, twist

the foot.

CAUTION ►Do not handle the elevator knobs without holding the projector, since the projector may drop down.

►Do not tilt the projector other than it elevating its front within 8 degrees using the adjuster feet. A tilt of the projector exceeding the restriction could cause malfunction or shortening the lifetime of consumables, or the projector itself.

Using the security bar and slot

A commercial anti-theft chain or wire up to 10 mm in diameter can be attached to the security bar on the projector.

Also this product has the security slot for the Kensington lock.

For details, see the manual of the security tool.

WARNING ►Do not use the security bar and the

security slot to prevent the projector from falling down, since it is not designed for it.

NOTE • The security bar and the security slot are not comprehensive theft prevention measures. They are intended to be used as supplemental theft prevention measure.

Security bar

Anti-theft chain or wire

Security slot

Setting up

Connecting your devices

Be sure to read the manuals for devices before connecting them to the projector. Make sure that all the devices are suitable to be connected with this product, and prepare the cables required to connect.

Please refer to the following illustrations to connect them.

						PC
	RGB OUT	AUDIO OUT	RGB OUT	AUDIO OUT	LAN	RS-232C
						M1-D M1-D
RGB IN	Monitor					signal
						source

AUDIO IN 1 AUDIO IN 2

					LAN	Remote
						control
	RGB		RGB1	RGB2		M1-D
	OUT
VIDEO	Y		CB/PB
				CR/PR
S-VIDEO				AUDIO		REMOTE
	R	L	R L			CONTROL
				OUT		CONTROL
	AUDIO IN 3		AUDIO IN 4

Speakers

AUDIO IN

COMPONENT VIDEO OUT	AUDIO IN OUT	S-VIDEO OUT	AUDIO IN OUT	AUDIO IN OUT	VCR/DVD player
Y CB/PB CR/PR	R L		R L	VIDEO OUT R L

WARNING ►Do not disassemble or modify the projector.

►Be careful not to damage the cables, and do not use damaged cables. CAUTION ►Turn off all devices and unplug their power cords prior to

connecting them to projector. Connecting a live device to the projector may generate extremely loud noises or other abnormalities that may result in malfunction or damage to the device and the projector.

►Use appropriate accessory or otherwise designed cables. Ask your dealer about non-accessory cables which may have to be of a specific length or equipped with a core. For cables with a core only at one end, connect the end with the core to the projector.

►Make sure that devices are connected to the correct ports. An incorrect connection may result in malfunction or damage to the device and the projector.

10

Setting up

Connecting your devices (continued)

NOTE • Be sure to read the manuals for devices before connecting them to the projector, and make sure that all the devices are suitable to be connected with this product. Before connecting to a PC, check the signal level, the signal timing, and the resolution.

-Do not connect LAN port to any network that might have the excessive voltage.

-Some signal may need an adapter to input this projector.

-Some PCs have multiple screen display modes that may include some signals which are not supported by this projector.

-Although the projector can display signals with resolution up to UXGA (1600X1200), the signal will be converted to the projector’s panel resolution before being displayed.

The best display performance will be achieved if the resolutions of the input signal and the projector panel are identical.

•While connecting, make sure that the shape of the cable's connector fits the port to connect with. And be sure to tighten the screws on connectors with screws.

•When connecting a laptop PC to the projector, be sure to activate the PC’s external RGB output. (Set the laptop PC to CRT display or to simultaneous LCD and CRT display.) For details on how this is done, please refer to the instruction manual of the corresponding laptop PC.

•When the picture resolution is changed on a computer depending on an input, automatic adjustment function may take some time and may not be completed. In this case, you may not be able to see a check box to select “Yes/No” for the new resolution on Windows. Then the resolution will go back to the original. It might be recommended to use other CRT or LCD monitors to change the resolution.

•In some cases, this projector may not display a proper picture or display any picture on screen. For example, automatic adjustment may not function correctly with some input signals. An input signal of composite sync or sync on G may confuse this projector, so the projector may not display a proper picture.

•The M1-D port of this model is compatible with HDCP (High-bandwidth Digital Content Protection) and therefore capable of displaying a video signal from HDCP compatible DVD players or the like.

About Plug-and-Play capability

Plug-and-Play is a system composed of a computer, its operating system and peripheral equipment (i.e. display devices). This projector is VESA DDC 2B compatible. Plug-and- Play can be used by connecting this projector to a computer that is VESA DDC (display data channel) compatible.

•Take advantage of this feature by connecting an RGB cable to the RGB1 port (DDC 2B compatible). Plug-and-Play may not work properly if any other type of connection is attempted.

•Please use the standard drivers in your computer as this projector is a Plug-and-Play monitor.

11

Setting up

Connecting power supply

1.

2.

Connect the connector of the power cord to the AC inlet of the projector.

Firmly plug the power cord's plug into the outlet.

AC inlet

Connector of the power cord to the outlet

WARNING ►Please use extra caution when connecting the power cord, as incorrect or faulty connections may result in fire and/or electrical shock.

•Only use the power cord that came with the projector. If it is damaged, contact your dealer to newly get correct one.

•Only plug the power cord into an outlet rated for use with the power cord's specified voltage range.

•Never modify the power cord. Never attempt to defeat the ground connection of the three-pronged plug.

12

Remote control

Remote control

Laser pointer

This remote control has a laser pointer in place of a finger or rod. The laser beam works and the LASER INDICATOR lights while the LASER button is pressed.

LASER INDICATOR

LASER button

WARNING ►The laser pointer of the remote control is used in place of a finger or rod. Never look directly into the laser beam outlet or point the laser beam at other people. The laser beam can cause vision problems.

CAUTION ►Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Putting batteries

Please load the batteries before using the remote control. If the remote control starts to malfunction, replace the batteries. If you will not use the remote control for an extended period, remove the batteries from the remote control and store them in a safe place.

1. Slide back and remove the battery cover in the direction

of the arrow.

2. Align and insert the two AA batteries according to their

plus and minus terminals as indicated in the remote control.

3. Replace the battery cover in the direction of the arrow and snap it back into place.

WARNING ►Always handle the batteries with care and use them only as directed. Improper use may result in battery explosion, cracking or leakage, which could result in fire, injury and/or pollution of the surrounding environment.

•Be sure to use only the batteries specified. Do not use batteries of different types at the same time. Do not mix a new battery with used one.

•Make sure the plus and minus terminals are correctly aligned when loading a battery.

•Keep a battery away from children and pets.

•Do not recharge, short circuit, solder or disassemble a battery.

•Do not allow a battery in a fire or water. Keep batteries in a dark, cool and dry place.

•If you observe a leakage of a battery, wipe out the flower and then replace a battery. If the flower adheres your body or clothes, rinse well with water immediately.

13

Remote control

About the remote control signal

The remote control works with the projector’s remote sensors. This projector has three remote sensors on the front, on the top, and on the back.

The sensors can be respectively turned active or inactive using the “REMOTE RECEIV” in the SERVICE item of OPTION menu (46). Each sensor senses the signal within the following range when the sensor is active.

The front and top sensors:

60 degrees (30 degrees to the left and right of the sensor) within 3 meters about.

The back sensor:

40 degrees (20 degrees to the left and right of the sensor) within 3 meters about.

NOTE • The remote control signal reflected in the screen or the like may be available. If it is difficult to send the signal to the sensor directly, attempt to make the signal reflect.

•The remote control uses infrared light to send signals to the projector (Class 1 LED), so be sure to use the remote control in an area free from obstacles that could block the remote control’s signal to the projector.

•The remote control may not work correctly if strong light (such as direct sun light) or light from an extremely close range (such as from an inverter fluorescent lamp) shines on the remote sensor

of the projector. Adjust the position of projector avoiding those lights.

30º 30º

Approx. 3 m

30º 30º Approx. 3 m

20º20º Approx.

3 m

Changing the frequency of remote control signal

The accessory remote control has the choice of the mode 1 or the mode 2, in the frequency of its signal. If the remote control does not function properly, attempt to change the signal frequency.

Please remember that the “REMOTE FREQ.” in SERVICE item of OPTION menu (46) of the projector to be controlled should be set to the same mode as the remote control.

To set the mode of the remote control, slide the knob of the frequency switch inside the battery cover into the position indicated by the mode number to choose.

Back of the remote control

Inside of the battery cover

2

1

Frequency switch

14

STANDBY/ON

BLANK

ASPECT

ENTER

PAGE UP

ESC

POSITION

MAGNIFY

ON

OFF

FREEZE

Using as a wired remote control

The accessory remote control works as a wired remote control, when the wired control port at the bottom of the remote control connects with the REMOTE CONTROL port on the back of the projector via an audio cable with 3.5 diameter stereo mini plugs.

When the remote control signal is hard to reach surely to the projector in the environment, this function is effective.

Remote control

		REMOTE
	AUDIO	CONTROL
L	OUT	(3.5Φ)
O IN 4

NOTE • To connect the remote control with the projector, use an audio cable with 3.5 diameter stereo mini plugs.

Using as a simple PC mouse & keyboard

The accessory remote control works as a simple mouse and keyboard of the PC, when an M1-D/USB cable

connects this projector’s M1-D port with the PC’s DVI-D and USB (A type) ports.

(1) Mouse left button

Pushing the button into the center point works instead

of clicking the mouse's left button. Tilting this button to one of eight directions moves the

PC's move pointer on the screen in the direction.

(2) Mouse right button

Pressing the button works instead of clicking the mouse’s right button.

(3) Lever switch

Sliding toward the side marked ▲ works instead of the [↑] key on the keyboard. Sliding toward the side marked

▼ works instead of the [↓] key on the keyboard.

(4)Cursor button ◄

This button works instead of the [←] key on the keyboard.

(5) Cursor button ►

This button works instead of the [→] key on the keyboard.

(6)PAGE UP button

This button works instead of the PAGE UP key on the key board.

(7)PAGE DOWN button

This button works instead of the PAGE DOWN key on the key board.

to a signal source

	BLANK	LASER
(1)
(3)			(2)
	ASPECT
(4)	PUSH ENTER		(5)
(6)			(7)
	PAGE UP	PAGE DOWN
	ESC	MENU RESET
	POSITION	AUTO

NOTE • When the simple mouse & keyboard function of this product does not work correctly, please check the following.

-When an M1-D/USB cable connects this projector with a PC having a built-in pointing device (e.g. track ball) like a notebook PC, open BIOS setup menu, then select the external mouse and disable the built-in pointing device, because the built-in pointing device may have priority to this function.

-Windows 95 OSR 2.1 or higher is required for this function. And also this function may not work depending on the PC’s configurations and mouse drivers.

-Operating simultaneously two or more keys is void except for mouse drag and drop operation.

-This function is activated only when the projector is working properly.

15

Make sure that the power indicator lights in steady orange, and set the power switch to the OFF position. The POWER indicator will go off. Attach the lens cover.

Power on/off

Power on/off

Turning on the power

1. Make sure that the power cord is firmly and correctly connected to the projector and the outlet.

2. Remove the lens cover, and set the power switch to the ON position.

The power indicator will light up in steady orange (63). Then wait several seconds because the buttons may not function for these several seconds.

STANDBY/ON button

	LASER
	INDICATOR
STANDBY/ON VIDEO	RGB
BLANK	LASER
ASPECT
ENTER
PAGE UP	PAGE DOWN

(1) When AUTO ON in OPTION menu is set to TURN ON (42) :	MAGNIFY MY BUTTON VOLUME
	ESC	MENU RESET
The lamp will only be automatically turned on when the	POSITION AUTO
	FREEZE KEYSTONE SEARCH
	ON	1
		MUTE
Power switch is turned on after the power was turned off by	OFF	2
Power switch last time. Afterwards the POWER indicator
will begin blinking in green. When the power is completely
on, the indicator will stop blinking and light in green.

(2) When AUTO ON in the OPTION menu is set to TURN OFF

(42): Please see step 3.

3. Press the STANDBY/ON button on the projector or the remote control.

To display the picture, select an input signal according to the section "Selecting an input signal" (18).

POWER indicator

POWER

(Steady orange)

POWER

(Blinking in green)

POWER

(Steady green)

Turning off the power

1. Press the STANDBY/ON button on the projector or the remote control.

The message "Power off?" will appear on the screen for about 5 seconds.

2. Press the STANDBY/ON button on the projector or the remote control again while the message appears.

The projector lamp will go off, and the POWER indicator will begin blinking in orange.

Then the POWER indicator will stop blinking and light in steady 3.orange when the lamp cooling is complete.

Power off?

POWER

(Blinking in orange)

POWER

(Steady orange)

Do not turn the projector on for 10 minutes or more after turning it off. Turning the projector on again too soon could shorten the lifetime of some consumable parts of the projector.

WARNING ►A strong light is emitted when the projector’s power is on. Do not look into the lens of the projector or look inside of the projector through any of the projector’s openings. ►Do not touch around the lamp cover and the exhaust vents during use or just after use, since it is too hot.

NOTE • Turn the power on/off in right order. Please power on the projector prior to the connected devices. Power off the projector later than the connected devices.

• Use the shutdown switch (65) only when the projector is not turned off by normal procedure.

16

1.

2.

Operating

Operating

Adjusting the volume

Press the VOLUME button on the remote control.

A dialog will appear on the screen to aid you in adjusting the volume.

Use the cursor buttons ▲/▼ to adjust the volume.

To close the dialog and complete the operation, press the VOLUME button again. Even if you do not do anything, the dialog will automatically disappear after a few seconds.

PUSH ENTER

PAGE UP		PAGE DOWN
ESC	MENU	RESET
POSITION	AUTO
MAGNIFY	MY BUTTON	VOLUME
ON	1

●When no audio port is selected for current picture input port, the volume adjustment is disable. Please see the AUDIO item of AUDIO menu. (37)

Temporarily muting the sound

1. Press the MUTE button on the remote control.

A dialog will appear on the screen indicating that you have muted the sound.

To restore the sound, press the MUTE or VOLUME button. Even if you do not do anything, the dialog will automatically disappear after a few seconds.

POSITION	AUTO
MAGNIFY	MY BUTTON	VOLUME
ON	1
		MUTE
OFF	2
FREEZE	KEYSTONE

●As long as no audio input is selected for current picture input port, the sound is always muted. Please see the AUDIO item of AUDIO menu. (37)

Selecting an input signal

1. Press the INPUT button on the projector.

Each time you press the button, the projector switches its input port as below.

RGB 1		 RGB 2			 M1-D
VIDEO		S-VIDEO		COMPONENT (Y, C /R			, C	/B	)
						B B	R	R

1. Press the RGB button on the remote control to select an input port for the RGB signal.

Each time you press the button, the projector switches its RGB input port as below.

RGB 1  RGB 2  M1-D

LASER

INDICATOR

STANDBY/ON VIDEO

RGB

●If the RGB button is pushed (when switching from VIDEO to RGB signals) when TURN ON is selected for the AUTO SEARCH item in the OPTION menu the projector will check the RGB 1 port first. If no input is detected at the port, the projector will check other port in above order.

(continued on next page)

17

Operating

Selecting an input signal (continued)

1. Press the VIDEO button on the remote control to select an input for video signal.

Each time you press the button, the projector switches its video input port as below.

COMPONENT (Y, CB/RB, CR/BR)  S-VIDEO  VIDEO

LASER

INDICATOR

STANDBY/ON VIDEO

RGB

●If the VIDEO button is pushed (when switching from RGB to VIDEO signals) when TURN ON is selected for the AUTO SEARCH item in the OPTION menu the projector will check the COMPONENT (Y, CB/RB, CR/BR) port first. If no input is detected at the port, the projector will check other ports in above order.

Searching an input signal		MAGNIFY	MY BUTTON	VOLUME
		ON	1
1.	Press the SEARCH button on the remote control.			MUTE
		OFF	2
	The projector will start to check its input ports in order to	FREEZE	KEYSTONE	SEARCH

find any input signals.

When an input is found, the projector will stop searching and display the image. If no signal is found, the projector will return to the state selected before the operation.

RGB 1  RGB 2  M1-D  COMPONENT (Y, CB/RB, CR/BR)  S-VIDEO  VIDEO

Selecting an aspect ratio

1. Press the ASPECT button on the remote control.

Each time you press the button, the projector switches the mode for aspect ratio in turn.

 For an RGB signal

NORMAL  4:3  16:9  SMALL

 For an M1-D signal

NORMAL  4:3  16:9  14:9  SMALL

For a video signal, s-video signal or component video signal

4:3  16:9  14:9  SMALL

For no signal

4:3 (fixed)

●The NORMAL mode keeps the original aspect ratio of the signal.

●Performing the automatic adjustment initializes the aspect ratio setting.

18

Adjusting the zoom and focus

1. Use the zoom ring to adjust the screen size.

2. Use the focus ring to focus the picture.

Adjusting the lens shift	2/5
Use the vertical lens shift dial to shift
1. the picture upward or downward.
Use the horizontal lens shift dial to
2. shift the picture left or right.	1/10
NOTE • When the vertical lens	1/10
shift is adjusted, it is recommended to
shift the picture upward.

	Operating
Zoom ring	Focus ring

Top

UP

Lens shift cover

DOWN

LEFTRIGHT

Using the automatic adjustment feature

1. Press the AUTO button on the remote control.

PAGE UP

PAGE DOWN

 For an RGB signal	ESC	MENU	RESET
The vertical position, the horizontal position, the horizontal	POSITION	AUTO
phase and the horizontal size will be automatically adjusted.	MAGNIFY	MY	VOLUME

And the aspect ratio will be automatically set to default. Make sure that the application window is set to its maximum size prior to attempting to use this feature. A dark picture may still be incorrectly adjusted. Use a bright picture when adjusting.

For an M1-D signal

The aspect ratio will be automatically set to default.

For a video signal or s-video signal

The video format best suited for the respective input signal will be selected automatically.

This function is available only when the AUTO is selected to the VIDEO FORMAT item in INPUT menu (32). For a component video signal, the signal type is identified automatically independently of this function.

For a video signal, s-video signal or component video signal

The vertical position, horizontal position and aspect ratio will be automatically set to default.

For a component video signal

The horizontal phase will be automatically set to default.

●The automatic adjustment operation requires about 10 seconds. Also please note that it may not function correctly with some input.

19

Operating

Adjusting the position

1. Press the POSITION button on the remote control. The “POSITION” indication will appear on the screen.

2. Use the cursor buttons ▲/▼/◄/► to adjust the picture position.

PUSH ENTER

PAGE UP		PAGE DOWN
ESC	MENU	RESET
POSITION	AUTO
M	MY BUTTON	VOLUME

When you want to reset the operation, press the RESET button on the remote control during the operation.

To complete this operation, press the POSITION button again. Even if you do not do anything, the dialog will automatically disappear after a few seconds.

●When this function is performed on a video signal, s-video signal or component video signal, some image such as an extra-line may appear at outside of the picture.

●When this function is performed on a video signal, s-video signal, or component video signal of 525i (480i) or 625i (576i), the range of this adjustment depends on the OVER SCAN in IMAGE menu (29) setting. It is not possible to adjust when the OVER SCAN is set to 10.

Correcting the keystone distortions

1.	Press the KEYSTONE button on the
				-';5610'
	remote control. A dialog will appear on the
				#761		':'%76'
screen to aid you in correcting the distortion.		/#07#.
2.	Use the cursor buttons ▲/▼ to select AUTO or
	MANUAL operation, and press the button ► to perform the following.

1)AUTO executes automatic vertical keystone correction.

2)Manual displays a dialog for keystone correction.

Use the cursor buttons ◄/► to select the direction to correct

( or ) then use the buttons ▲/▼ for adjustment.

To close the dialog and complete this operation, press the KEYSTONE button again. Even if you don’t do anything, the dialog will automatically disappear after a few seconds.

MAGNIFY	MY BUTTON	VOLUME
ON	1
		MUTE
OFF	2
FREEZE	KEYSTONE	SEARCH

-';5610'

●The adjustable range of this function will vary among inputs. For some input, this function may not work well.

●When V:INVERT or H&V:INVERT is selected to the MIRROR item in the

SETUP menu, if the projector screen is inclined or angled downward, this function may not work correctly.

●When the zoom adjustment is set to the TELE (telephoto focus), this function may be excessive. This function should be used when the zoom adjustment is set to the full WIDE (wide-angle focus) whenever possible.

●When the projector is placed on the level (about ±3°), this function may not work.

●When the projector is inclined to near ±30 degree or over, this function may not work well.

●When the vertical lens shift is not set fully upward (not set fully downward for the optional lens type FL-601 only (45)), this function may not work well.

●When the horizontal lens shift is not set to the center, this function may not work well.

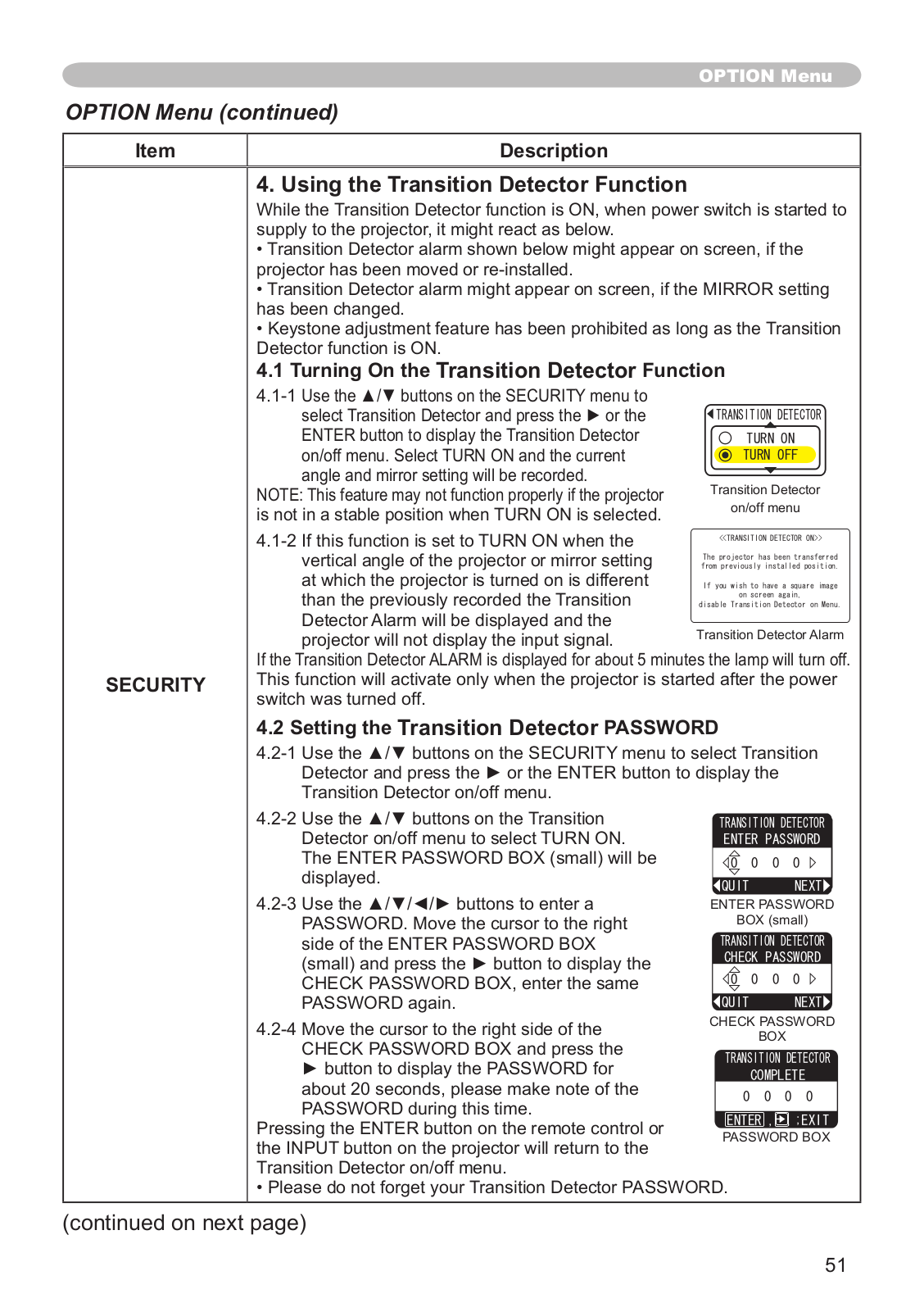

●This function will be unavailable when Transition Detector is on (51).

20

Operating

Using the magnify feature

	Press the ON button of MAGNIFY on the remote control.	ESC	MENU	RESET
	1. The “MAGNIFY” indication will appear on the screen
		POSITION	AUTO
	(although the indication will disappear in several seconds with	MAGNIFY	MY BUTTON	VOLUME
	no operation), and the projector will go into the MAGNIFY		1

mode.	MUTE

2. Use the cursor buttons ▲/▼ to adjust the zoom level.

To move the zoom area, press the POSITION button in the MAGNIFY mode, then use the cursor buttons ▲/▼/◄/► to move the area. And to finalize the zoom area, press the POSITION button again.

To exit from the MAGNIFY mode and restore the screen to normal, press the OFF button of MAGNIFY on the remote control.

●The projector automatically exits from the MAGNIFY mode when the input signal is changed, or when the display condition is changed.

●Although in the MAGNIFY mode, the keystone distortion condition may vary, it will be restored when the projector exits from the MAGNIFY mode.

NOTE • The zoom level can be finely adjusted. Closely watch the screen to find the level you want.

Freezing the screen

1. Press the FREEZE button on the remote control.

The “FREEZE” indication will appear on the screen (although the indication will not appear when the TURN ON is selected to the MESSAGE item of SCREEN menu (41)), and the projector will go into the FREEZE mode.

MAGNIFY	MY BUTTON	VOLUME
ON	1
		MUTE
OFF	2
FREEZE	KEYSTONE	SEARCH

To exit the FREEZE mode and restore the screen to normal, press the FREEZE button again.

●The projector automatically exits from the FREEZE mode when the input signal changes, or when one of the projector’s buttons or the remote control buttons of STANDBY/ON, SEARCH, RGB, VIDEO, BLANK, AUTO, ASPECT, VOLUME, MUTE, KEYSTONE, POSITION, MENU, MAGNIFY and MY BUTTON is pressed.

●If the projector continues projecting a still image for a long time, the LCD panel might possibly be burned in. Do not leave the projector in the FREEZE mode for too long.

21
