Gateway C-58510 Quick Reference Guide

Download

CONVERTIBLE NOTEBOOK

REFERENCEGUIDE

Contents

Chapter 1: About This Reference. . . . . . . . . . . . 1

About this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Accessing your online User Guide . . . . . . . . . . . . . . . . . . . . . 2

Gateway contact information . . . . . . . . . . . . . . . . . . . . . . . . . 3

Gateway model and serial number . . . . . . . . . . . . . . . . . 3

Microsoft Certificate of Authenticity . . . . . . . . . . . . . . . . . . . 3

For more information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Chapter 2: Checking Out Your Notebook . . . . . 5

Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Left . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Right . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Keyboard area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Chapter 3: Setting Up and Getting Started . . 15

Working safely and comfortably . . . . . . . . . . . . . . . . . . . . . 16

Reducing eye strain . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Setting up your computer desk and chair . . . . . . . . . . . 17

Sitting at your convertible notebook . . . . . . . . . . . . . . . 17

Avoiding discomfort and injury from repetitive strain . 18

Connecting the AC adapter . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Protecting from power source problems . . . . . . . . . . . 20

Connecting the dial-up modem . . . . . . . . . . . . . . . . . . . . . . 20

Connecting to a broadband modem or network . . . . . . . . 21

Starting your convertible notebook . . . . . . . . . . . . . . . . . . . 22

Waking up your convertible notebook . . . . . . . . . . . . . 23

Turning off your convertible notebook . . . . . . . . . . . . . . . . 24

Restarting (rebooting) your convertible notebook . . . . . . . 25

Using the status indicators . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Using the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Key types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Contents

System key combinations . . . . . . . . . . . . . . . . . . . . . . . . 30

Using the tablet control buttons . . . . . . . . . . . . . . . . . . . . . 32

Using the fingerprint reader . . . . . . . . . . . . . . . . . . . . . . . . . 34

Running the TouchStrip Tutorial . . . . . . . . . . . . . . . . . . 34

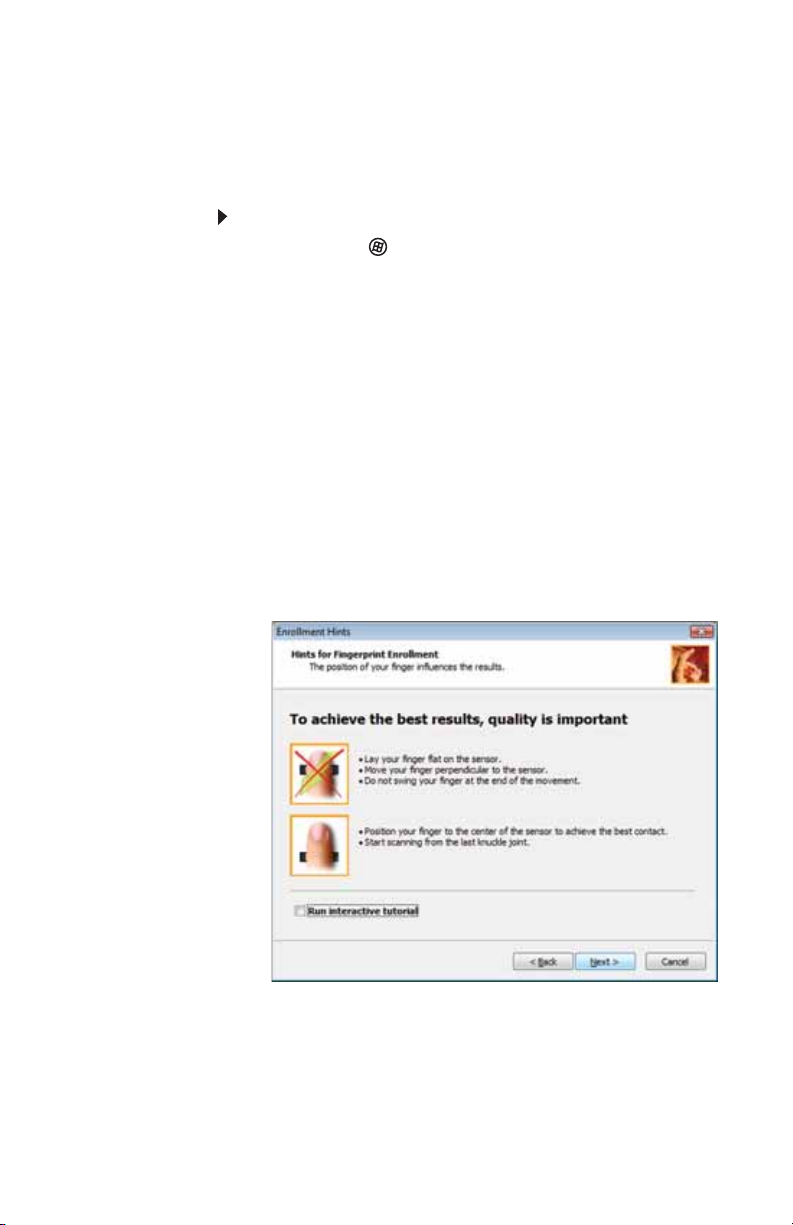

Enrolling your fingerprints . . . . . . . . . . . . . . . . . . . . . . . 35

Using the Fingerprint Control Center . . . . . . . . . . . . . . . 38

Using the fingerprint reader features . . . . . . . . . . . . . . 38

Using the EZ Pad touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Using the fingerprint reader as a touchpad . . . . . . . . . 41

Using the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Converting from notebook to tablet mode . . . . . . . . . . 42

Changing display orientation . . . . . . . . . . . . . . . . . . . . . 44

Adjusting brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Using the digital pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Storing and removing the digital pen . . . . . . . . . . . . . . 46

Pen alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Using the touch sensitive screen feature . . . . . . . . . . . . . . 48

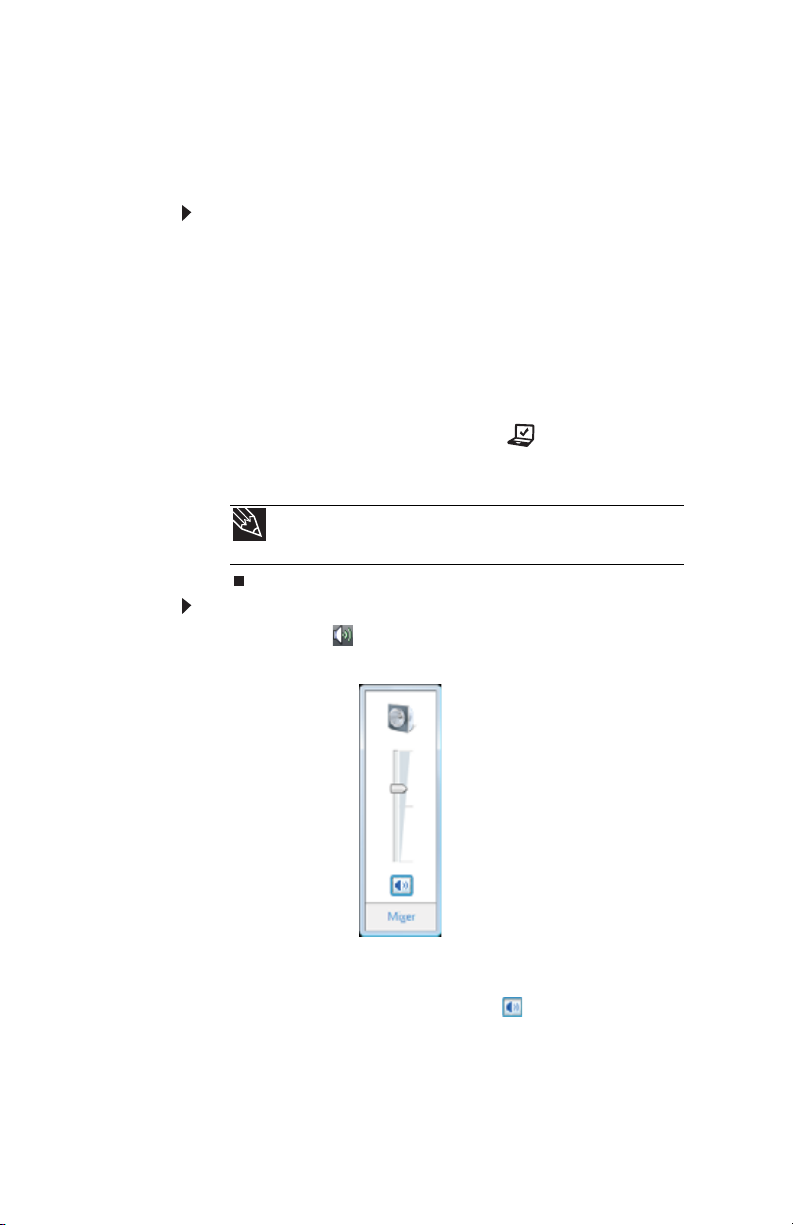

Adjusting the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Turning your wireless radio on or off . . . . . . . . . . . . . . . . . 52

IEEE 802.11 wireless network radio . . . . . . . . . . . . . . . . 52

Bluetooth radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Chapter 4: Using Drives and Accessories . . . . . 55

Using the DVD drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Identifying drive types . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Using a CD or DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Using the memory card reader . . . . . . . . . . . . . . . . . . . . . . 58

Memory card types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Inserting a memory card . . . . . . . . . . . . . . . . . . . . . . . . 58

Using a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Removing a memory card . . . . . . . . . . . . . . . . . . . . . . . 59

Adding and removing a PC Card . . . . . . . . . . . . . . . . . . . . . 59

Using a port replicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Installing a printer or other peripheral device . . . . . . . . . . 61

Connecting a USB device . . . . . . . . . . . . . . . . . . . . . . . . 61

Connecting an IEEE 1394 device . . . . . . . . . . . . . . . . . . . 62

Viewing the display on a projector or monitor . . . . . . . . . . 63

www.gateway.com

Adjusting the display properties . . . . . . . . . . . . . . . . . . 64

Using the projector or monitor for a presentation . . . . 66

Ordering accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Chapter 5: Managing Power . . . . . . . . . . . . . . 69

Monitoring the battery charge . . . . . . . . . . . . . . . . . . . . . . . 70

Recharging the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Changing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Replacing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Recalibrating the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Getting the most from your battery . . . . . . . . . . . . . . . . . . 73

Maximizing battery performance . . . . . . . . . . . . . . . . . . 73

Conserving battery power . . . . . . . . . . . . . . . . . . . . . . . 73

Using alternate power sources . . . . . . . . . . . . . . . . . . . 74

Changing power modes . . . . . . . . . . . . . . . . . . . . . . . . . 75

Changing convertible notebook power settings . . . . . . . . . 76

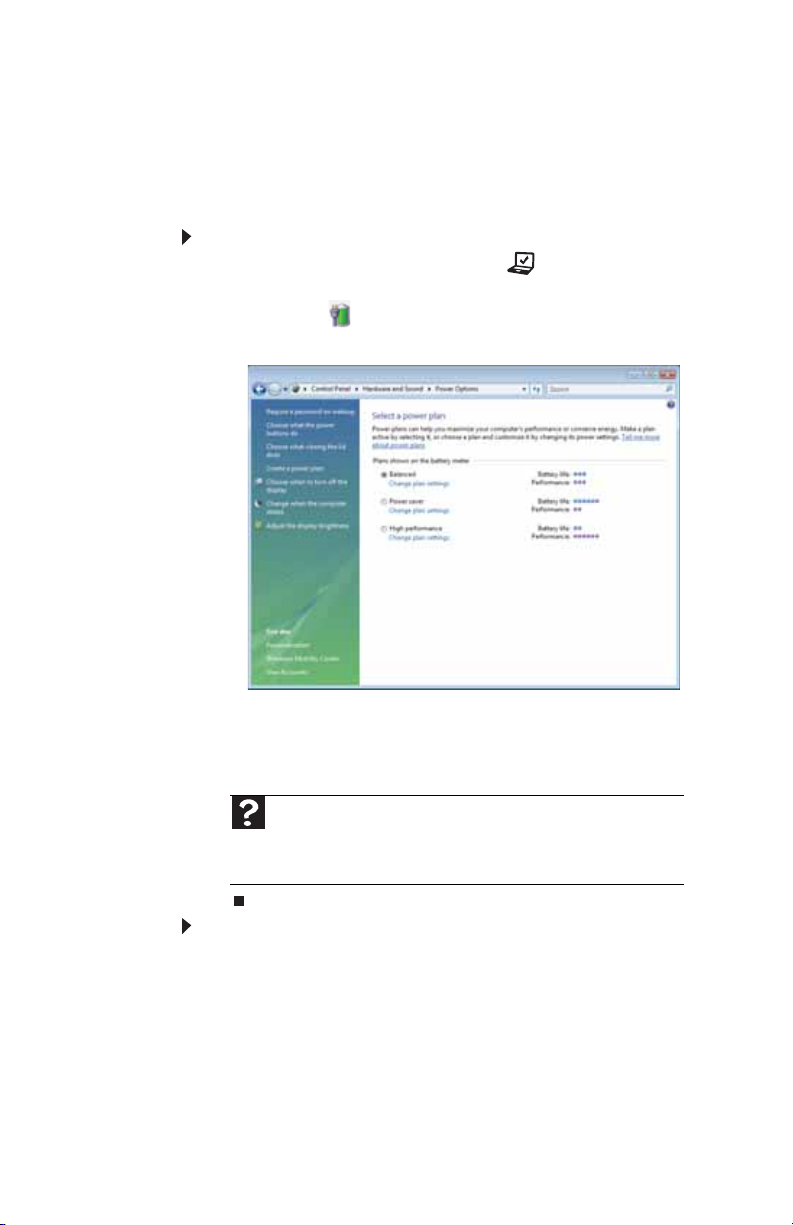

Changing the power plan . . . . . . . . . . . . . . . . . . . . . . . . 76

Changing advanced settings . . . . . . . . . . . . . . . . . . . . . 78

Chapter 6: Traveling with Your Notebook . . . 81

Packing your convertible notebook . . . . . . . . . . . . . . . . . . . 82

Traveling by air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Dial-up modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Radio frequency wireless connections . . . . . . . . . . . . . . . . . 83

Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Additional tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Chapter 7: Maintaining Your Notebook . . . . . 87

Caring for your convertible notebook . . . . . . . . . . . . . . . . . 88

Display screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Digital pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Cleaning your convertible notebook . . . . . . . . . . . . . . . . . . 90

Cleaning the exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Cleaning the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Cleaning the convertible notebook screen . . . . . . . . . . 91

Maintaining the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

iii

Contents

Storing batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Cleaning CDs or DVDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Recovering your system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Recovering pre-installed software and drivers . . . . . . . 94

Using Microsoft System Restore . . . . . . . . . . . . . . . . . 101

Recovering your system to its factory condition . . . . 103

Recovering your system using the Windows DVD . . . 105

Chapter 8: Upgrading Your Notebook . . . . . . 107

Preventing static electricity discharge . . . . . . . . . . . . . . . . 108

Adding or replacing memory modules . . . . . . . . . . . . . . . 109

Replacing the hard drive kit . . . . . . . . . . . . . . . . . . . . . . . . 112

Chapter 9: Troubleshooting . . . . . . . . . . . . . . 117

Safety guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

First steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Digital pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Diskette drive (external) . . . . . . . . . . . . . . . . . . . . . . . . 120

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

DVD drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

File management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Fingerprint reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Hard drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Media Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Memory card reader . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Modem (cable or DSL) . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Modem (dial-up) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Mouse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Networks (wired) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Networks (wireless) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

www.gateway.com

PC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Pointing device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

Status indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

Touchpad or pointing device . . . . . . . . . . . . . . . . . . . . 143

Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

Telephone support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

Before calling Gateway Customer Care . . . . . . . . . . . . 143

Appendix A: Legal Information . . . . . . . . . . . . 145

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

Contents

CHAPTER1

About This Reference

• About this guide

• Accessing your online User Guide

• Gateway contact information

• Microsoft Certificate of Authenticity

• For more information

CHAPTER 1: About This Reference

About this guide

This guide includes information and maintenance instructions that are specific to your model of Gateway convertible notebook. For all other notebook information, see your online User Guide.

Accessing your online User Guide

In addition to this guide, your online User Guide has been included on your hard drive. Your User Guide is an in-depth, easy-to-read manual that includes information on the following topics:

• Help and technical support

• Using and customizing Windows and other software

• Using the Internet

• Protecting your files

• Playing and recording media

• Networking

To access your online User Guide:

• Click or tap (Start), All Programs, then click or tap

Gateway Documentation.

www.gateway.com

Gateway contact information

Important

The labels shown in this sect ion are for informational purposes only. Label

information varies by model, features ordered, and location.

Gateway model and serial number

The label on the bottom of your convertible notebook contains information that identifies your convertible notebook model and its features. Gateway Customer Care will need this information if you call for assistance.

Microsoft Certificate of Authenticity

The Microsoft Certificate of Authenticity label found on the bottom of your convertible notebook includes the product key code for your operating system.

CHAPTER 1: About This Reference

For more information

For more information about your convertible notebook, visit Gateway’s Support page at www.gateway.com address shown on your convertible notebook’s label. The Support page also has links to additional Gateway documentation and detailed specifications.

or the Web

CHAPTER2

Checking Out Your Notebook

• Top

• Front

• Left

• Right

• Back

• Bottom

• Keyboard area

Top

CHAPTER 2: Checking Out Your Notebook

Component Icon Description

Missing pen indicator

Battery charge indicator

Power indicator

■

LED on and missing pen alarm sounding or LED blinking

- Pen is not in the pen holder while the convertible notebook is turned off. For more information, see “Pen

alarm” on page 47.

■

LED off - Pen is in place in the pen holder or pen has been removed while the convertible notebook is turned on.

■

LED blue - Battery is fully charged.

■

LED purple - Battery is charging.

■

LED blinking red - Battery charge is very low.

■

LED solid red - Battery is malfunctioning. Important: This LED only lights up when your notebook is connected to AC power or the battery charge is very low.

■

LED on - Notebook is on.

■

LED blinking - Notebook is in Sleep or Hybrid Sleep mode.

■

LED off - Notebook is off.

Missing pen indicator

Battery charge indicator

Power indicator

www.gateway.com

Front

LCD panel release latch

Component Icon Description

LCD panel release latch

Press to open the LCD panel.

Left

Ventilation fan

Component Icon Description

Ventilation fan Helps cool internal components.

Monitor port

Memory card reader

Docking port

Warning: Do not work with the convertible notebook resting on your lap. If the air vents are blocked, the convertible notebook may become hot enough to harm your skin. Caution: Do not block or insert objects into these slots. If these slots are blocked, your convertible notebook may overheat resulting in unexpected shutdown or permanent damage to the convertible notebook. Caution: Provide adequate space around your convertible notebook so air vents are not obstructed. Do not use the convertible notebook on a bed, sofa, rug, or other similar surface.

PC Card slot

Ethernet jack

Digital pen

CHAPTER 2: Checking Out Your Notebook

Component Icon Description

Monitor port Plug an analog VGA monitor or projector into

Docking port Connect the optional port replicator to this port.

Ethernet jack Plug an Ethernet network cable into this jack.

PC Card slot Insert one Type II PC Card into this slot. For

Memory card reader

Digital pen Write, tap, and input directly on your

this port. For more information, see “Viewing

the display on a projector or monitor” on page 63.

Warning: Power is passed through this port. This docking connection is certified to UL 1950 for use only with port replicators designed for your Gateway convertible notebook.

Plug the other end of the cable into a cable modem, DSL modem, or an Ethernet network jack. For more information, see “Connecting to

a broadband modem or network” on page 21.

more information, see “Adding and removing a

PC Card” on page 59.

Insert a memory card from a digital camera, MP3 player, PDA, or cellular telephone into the memory card reader. For more information, see

“Using the memory card reader” on page 58.

The memory card reader supports Memory Stick®, Memory Stick Pro®, Mini Secure Digital®, MultiMediaCard™, RS-MultiMediaCard™, and Secure Digital™ cards.

convertible notebook’s display using the digital pen.

Right

www.gateway.com

IEEE 1394 port

USB ports

DVD drive

Headphone jack

Microphone jack

Component Icon Description

IEEE 1394 port Plug an IEEE 1394 (also known as Firewire® or

USB ports Plug USB devices (such as a diskette drive, flash

DVD drive Insert CDs or DVDs into this drive. For more

Microphone jack Plug a microphone into this jack. The built-in

Headphone jack Plug amplified speakers or headphones into this

i.Link®) device (such as a digital camcorder or MP3 player) into this 4-pin IEEE 1394 port.

drive, printer, scanner, camera, keyboard, or mouse) into these ports.

information, see “Using the DVD drive” on

page 56. To determine the type of drive in your

notebook, examine the drive tray’s plastic cover and compare the logo to those listed in

“Identifying drive types” on page 56.

array microphones (see “Keyboard area” on

page 12) are turned off while an external

microphone is connected.

jack. The built-in speakers are turned off when speakers or headphones are plugged into this jack.

Back

CHAPTER 2: Checking Out Your Notebook

Modem jack

Kensington lock slot

Power connector

Component Icon Description

Modem jack Plug a dial-up modem cable into this jack. For more

Power connector

Kensington™ lock slot

information, see “Connecting the dial-up modem”

on page 20.

Plug the AC adapter cable into this connector.

Secure your convertible notebook to an object by connecting a Kensington cable lock to this slot.

Bottom

www.gateway.com

Battery

Battery latch

Customer care label

drive bay

Battery lock

DVD drive

Hard

Component Icon Description

Hard drive bay

Customer Care label

DVD drive Insert CDs or DVDs into this drive. For more

The hard drive is located in this bay. For more information, see “Replacing the hard drive kit” on

page 112.

Includes the Customer Care contact information. For more information, see “Gateway contact information”

on page 3.

information, see “Using the DVD drive” on page 56. To determine the type of drive in your notebook, examine the drive tray’s plastic cover and compare the logo to those listed in “Identifying drive types” on

page 56.

Memory bay

Battery lock Slide to unlock the battery. For more information, see

Battery Provides power when the convertible notebook is not

Battery latch Slide to release the battery. For more information, see

Memory bay Install a memory module into this bay. For more

“Changing the battery” on page 71.

plugged into AC power.

“Changing the battery” on page 71.

information, see “Adding or replacing memory

modules” on page 109.

CHAPTER 2: Checking Out Your Notebook

Keyboard area

Power button

Speaker

Keyboard

Tablet control buttons/

Status indicators

Microphone

Touchpad

Microphone

Ambient light sensor

Tablet control buttons

Fingerprint reader

Speaker

Component Icon Description

Keyboard Provides all the features of a full-sized, computer

keyboard. For more information, see “Using the

keyboard” on page 28.

Speakers Provide audio output when headphones or amplified

Power button Press to turn the power on or off. You can also

Tablet control buttons

Status indicators

speakers are not plugged in.

configure the power button for Sleep/Resume mode. For more information on configuring the power button mode, see “Changing advanced settings” on page 78.

See “Using the tablet control buttons” on page 32 for a description of each button.

Inform you when a drive is in use or when a button has been pressed that affects how the keyboard is used. For more information, see “Using the status

indicators” on page 26.

www.gateway.com

Component Icon Description

Microphones Record audio through these array microphones. The

Ambient light sensor

Fingerprint reader

Touchpad Provides all the functionality of a mouse. For more

built-in microphones are turned off while an external microphone is connected. For the location of your microphone jack, see “Right” on page 9.

Automatically adjusts the display brightness based on the available light. For more information, see “Using

the ambient light sensor” on page 45.

Provides enhanced security. For more information, see

“Using the fingerprint reader” on page 34

information, see “Using the EZ Pad touchpad” on

page 39.

CHAPTER 2: Checking Out Your Notebook

CHAPTER3

Setting Up and Getting Started

• Working safely and comfortably

• Connecting the AC adapter

• Connecting the dial-up modem

• Connecting to a broadband modem or

network

• Starting your convertible notebook

• Turning off your convertible notebook

• Restarting (rebooting) your convertible

notebook

• Using the status indicators

• Using the keyboard

• Using the tablet control buttons

• Using the fingerprint reader

• Using the EZ Pad touchpad

• Using the display

• Using the digital pen

• Using the touch sensitive screen feature

• Adjusting the volume

• Turning your wireless radio on or off

CHAPTER 3: Setting Up and Getting Started

Working safely and comfortably

Before using your convertible notebook, follow these general guidelines for setting up a safe and comfortable work area and avoiding discomfort and strain:

• Keep hands and arms parallel to the floor.

• Adjust the screen so it is perpendicular to your line of

sight.

• Place your feet flat on the floor or on a footrest.

• Although notebooks are sometimes called “laptops,” do

not use your convertible notebook while it rests on your unprotected lap. Convertible notebook operating temperatures can become quite high, increasing the risk of burns to your legs. Instead, use a laptop desk to protect your legs.

• Do not use the convertible notebook on any soft,

conforming surface, such as your lap, a blanket, carpet, or a sofa. Soft surfaces can block your convertible notebook’s ventilation openings, leading to overheating, permanent damage to your convertible notebook, and fire danger. Instead, place your convertible notebook on a rigid, hard surface, and make sure that you keep the ventilation openings on the sides clear.

War ning

Do not use your convertible notebook on a soft surface, such as your lap, a blanket, carpet, or a sofa. You must keep your convertible notebook’s ventilation openings clear of obstructions, or your convertible notebook may overheat, increasing the risk of fire and personal injury.

Reducing eye strain

Sunlight or bright indoor lighting should not reflect on the screen or shine directly into your eyes.

• Position the computer desk and screen so you can avoid

glare on your screen and light shining directly into your eyes. Reduce glare by installing shades or curtains on windows.

• Use soft, indirect lighting in your work area. Do not use

your convertible notebook in a dark room.

www.gateway.com

• Avoid focusing your eyes on your screen for long

periods of time. Every 10 or 15 minutes, look around the room, and try to focus on distant objects.

• Where feasible, keep your head vertical while looking

at the screen. If you use an external keyboard, raise the convertible notebook so the top of its screen is no higher than eye level.

Setting up your computer desk and chair

When you are setting up your computer desk and chair, make sure that the desk is the appropriate height and the chair helps you maintain good posture.

• Select a flat surface for your computer desk.

• Adjust the height of the computer desk so your hands

and arms are positioned parallel to the floor when you use the keyboard and touchpad. If the desk is not adjustable or is too tall, consider using an adjustable chair to control your arm’s height above the keyboard.

• Use an adjustable chair that is comfortable, distributes

your weight evenly, and keeps your body relaxed.

• Position your chair so the keyboard is at or slightly

below the level of your elbow. This position lets your shoulders relax while you type.

• Adjust the chair height, adjust the forward tilt of the

seat, or use a footrest to distribute your weight evenly on the chair and relieve pressure on the back of your thighs.

• Adjust the back of the chair so it supports the lower

curve of your spine. You can use a pillow or cushion to provide extra back support.

Sitting at your convertible notebook

• Avoid bending, arching, or angling your wrists. Make

sure that they are in a relaxed position when you type.

• Do not slouch forward or lean far back. Sit with your

back straight so your knees, hips, and elbows form right angles when you work.

• Take breaks to stand and stretch your legs.

• Avoid twisting your torso or neck.

CHAPTER 3: Setting Up and Getting Started

Avoiding discomfort and injury from repetitive strain

• Vary your activities to avoid excessive repetition.

• Take breaks to change your position, stretch your

muscles, and relieve your eyes.

• Find ways to break up the work day, and schedule a

variety of tasks.

Connecting the AC adapter

You can run your convertible notebook using an AC adapter or your convertible notebook’s battery. The battery was shipped to you partially charged. You should use the AC adapter right away to fully charge the battery. Allow three hours for the battery to fully charge.

War ning

Do not attempt to disassemble the AC adapter. The AC adapter has no user-replaceable or user-serviceable parts inside. The AC adapter has dangerous voltages that can cause serious injury or death. Contact Gateway about returning defective AC adapters.

Caution

Make sure that you use the AC adapter that came with your convertible notebook or one of the same type purchased from Gateway. Replace the power cord if it becomes damaged. The replacement cord must be of the same type and voltage rating as the original cord or your convertible notebook may be damaged.

Important

If the battery is not fully charged before you use your convertible notebook on battery power for the first time, the battery life may be much shorter than you expect. If the battery life seems short even after being charged for three hours, the battery may need to be recalibrated. For information on recalibrating the battery, see “Recalibrating the battery” on page 72.

www.gateway.com

To connect the AC adapter:

1 Connect the power cord to the AC adapter.

2 Connect the AC adapter to your convertible notebook’s

power connector.

3 Plug the power cord into a wall outlet. The battery

charge indicator turns on (see “Top” on page 6 and

“Using the status indicators” on page 26 for the location

of the battery charge indicator). If the battery charge indicator does not turn on, complete the following steps until it turns on:

a Unplug the adapter from your convertible notebook,

then plug it back in.

b Press FN+F1 to toggle the status lights on and off.

4 When you finish using your convertible notebook for

the first time, turn off your convertible notebook and leave it connected to AC power until the battery charge indicator turns blue.

Important

If the battery charge indicator does not turn blue after three hours, contact Gateway Customer Care at the location shown on the Customer Care label. For more information, see “Gateway contact

information” on page 3.

CHAPTER 3: Setting Up and Getting Started

Protecting from power source problems

During a power surge, the voltage level of electricity coming into your convertible notebook can increase to levels far above normal levels and cause data loss or system damage. Protect your convertible notebook and peripheral devices by connecting them to a surge protector, which absorbs voltage surges and prevents them from reaching your convertible notebook.

War ning

High voltages can enter your convertible notebook through both the power cord and the modem connection. To protect your convertible notebook and avoid electrical shock, use a surge protector. If you have a telephone modem, use a surge protector that has a modem jack. If you have a cable modem, use a surge protector that has an antenna/cable TV jack. During an electrical storm, unplug both the surge protector and the modem.

Connecting the dial-up modem

Your convertible notebook has a built-in 56K modem that you can use to connect to a standard telephone line.

War ning

To reduce the risk of fire, use only No. 26 AWG or larger (for example, No. 24 AWG) UL-listed or CSA-certified telecommunication line cord for your dialup modem connection.

To connect the modem:

1 Insert one end of the modem cable into the modem

jack on your convertible notebook.

2 Insert the other end of the modem cable into a

telephone wall jack.

Important

The modem will not work with digital or PBX telephone lines.

www.gateway.com

Connecting to a broadband modem or network

Your convertible notebook has a network jack that you can use to connect to a cable or DSL modem or to a wired Ethernet network.

To connect to a cable or DSL modem or to a wired

Ethernet network:

1 Insert one end of the network cable into the network

jack on your convertible notebook.

Tip

For the location of the network jack on an optional port replicator,

see the port replicator user guide.

2 Insert the other end of the network cable into a cable

modem, DSL modem, or Ethernet network jack.

CHAPTER 3: Setting Up and Getting Started

Starting your convertible notebook

War ning

Do not work with the convertible notebook resting on your lap. If the air vents are blocked, the convertible notebook may become hot enough to harm your skin.

Caution

Provide adequate space around your convertible notebook so air vents are not obstructed. Do not use the convertible notebook on a bed, sofa, rug, or other similar surface.

To start your convertible notebook:

1 Press the latch on the front of your convertible

notebook, then lift the LCD panel.

2 Press the power button located at the bottom of the LCD

panel.

Tip

For more information about changing the power button mode,

see “Changing advanced settings” on page 78.

www.gateway.com

3 If you are starting your convertible notebook for the

first time, follow the on-screen instructions to select the language and time zone and to create your first user account.

4 Attach and turn on any peripheral devices, such as

printers, scanners, speakers, and port replicators.

Tip

For more information about connecting peripheral devices, see

“Installing a printer or other peripheral device” on page 61.

Tip

See the documentation that came with each device for its setup

instructions.

5 To open the main menu, click or tap (Start). From

that menu, you can run programs and search for files. For more information on using Windows, see “Using Windows” and “Customizing Windows” in your online User Guide.

Waking up your convertible notebook

When you have not used your convertible notebook for several minutes or if you close the LCD panel without turning off your convertible notebook, it may enter a power-saving mode called Sleep. While in Sleep mode, the power indicator flashes. If your convertible notebook is in Sleep mode, press the power button to “wake” it up.

Tip

For more information about Sleep mode, see “Changing power modes”

on page 75.

CHAPTER 3: Setting Up and Getting Started

Turning off your convertible notebook

Putting your convertible notebook into Sleep mode is the easiest way to power down your convertible notebook. Although it does not turn your convertible notebook completely off, it turns off or slows down most system operations to save power. Sleep mode saves your desktop layout so the next time you restore power, the programs are laid out just as you left them. Waking your convertible notebook from a Sleep state is much faster than turning on your convertible notebook after it has been turned completely off.

Hibernate mode is an alternative to Sleep mode. In Hibernate mode, your convertible notebook is turned completely off. When you wake your convertible notebook from Hibernate mode, however, the programs that were running when your convertible notebook entered Hibernate mode are running just as you left them.

To put your convertible notebook to sleep:

• Click or tap (Start), then click or tap (power).

The convertible notebook saves your session and partially shuts down to save power.

-OR-

Press F

N+F3.

Tip

You can change the Sleep mode from the standard Sleep mode (default) to Hybrid Sleep. For more information about Sleep mode, see “Changing power

modes” on page 75.

To put your convertible notebook into hibernation:

• Click or tap (Start), click or tap the arrow next to

the lock icon, then click or tap Hibernate. The convertible notebook saves your session and shuts down to save power.

www.gateway.com

To turn off your convertible notebook:

• Click or tap (Start), click or tap the arrow next to

the lock icon, then click or tap Shut Down. The convertible notebook turns off.

Important

If for some reason you cannot use the Shut Down option in Windows to turn off your convertible notebook, press and hold the power button for about five seconds, then release it.

Restarting (rebooting) your convertible notebook

If your convertible notebook does not respond to keyboard, touchpad, digital pen, touch screen, or mouse input, you may have to close programs that are not responding. If closing unresponsive programs does not restore your convertible notebook to normal operation, you may have to restart (reboot) your convertible notebook.

To close unresponsive programs on your convertible

notebook:

1 Press CTRL+ALT+DEL.

-OR-

Press the Windows Security button . For more information, see “Using the tablet control buttons” on

page 32.

2 Click or tap Start Task Manager. The Windows Task

Manager dialog box opens.

3 Click or tap the program that is not responding. 4 Click or tap End Task. 5 Click or tap X in the top-right corner of the Windows

Task Manager dialog box.

CHAPTER 3: Setting Up and Getting Started

To restart your convertible notebook:

• Click or tap (Start), click or tap the arrow next to

the lock icon, then click or tap Restart. The convertible notebook turns off, then turns on again.

Important

If your convertible notebook does not turn off immediately,

complete the following steps until the convertible notebook turns off:

1. Press and hold the power button for about five seconds, then release it.

2. Unplug the power cord and remove the battery for more than 10 seconds.

Using the status indicators

Important

If none of the indicators are on, you may need to press FN+F1 to toggle

the status indicators on.

Status indicators inform you when a drive is being used or when a button has been pressed that affects how the keyboard is used. The status indicators are located at the bottom of the LCD panel.

Battery charge

Wireless network

Drive

Num lock

Caps lock

www.gateway.com

Indicator Icon Description

Battery charge

Wireless network

Caps lock

Num lock

Drive

■

LED blue - Battery is fully charged.

■

LED purple - Battery is charging.

■

LED blinking red - Battery charge is very low.

■

LED solid red - Battery is

malfunctioning. Important: This LED only lights up when your convertible notebook is connected to AC power or the battery charge is very low.

■

LED on - Optional wireless IEEE 802.11

radio is turned on.

■

LED off - Optional wireless IEEE 802.11

radio is turned off.

■

LED on - Caps lock is turned on.

■

LED off - Caps lock is turned off.

■

LED on - Numeric keypad is turned on.

■

LED off - Numeric keypad is turned off.

■

LED blinking - The hard drive is in use.

■

LED off - The hard drive is not in use.

CHAPTER 3: Setting Up and Getting Started

Using the keyboard

Your convertible notebook features a full-size keyboard that functions the same as a desktop computer keyboard. Many of the keys have been assigned alternate functions, including shortcut keys for Windows, function keys for specific system operations, and the Num Lock keys for the numeric keypad.

Function keys/ System keys

key

Numeric keypad

Windows key

Application key

Arrow keys/

Navigation keys

Tip

You can attach an external keyboard to the convertible notebook or optional port replicator using a USB port. You do not need to shut down the convertible notebook to connect a USB keyboard.

Key types

The keyboard has several different types of keys. Some keys perform specific actions when pressed alone and other actions when pressed in combination with another key.

www.gateway.com

Key type Icon Description

Function keys Press these keys labeled F1 to F11

System keys Press these colored keys in

Numeric keypad Use these keys to type numbers

N key Press the FN key in combination

Windows key Press this key to open the

to perform actions in programs. For example, pressing F1 may open help. Each program uses different function keys for different purposes. See the program documentation to find out more about the function key actions.

Important: Press FN + F11 to input F12.

combination with the FN key to perform specific actions. For more information, see “System key

combinations” on page 30.

when the numeric keypad is

turned on. Press FN+ to turn on

the numeric keypad.

with a colored system key to perform a specific action.

Windows Start menu. This key can also be used in combination with other keys to open utilities like F (Search utility), R (Run utility), and E (Computer window).

Application key Press this key for quick access to

Arrow keys Press these keys to move the

Navigation keys Press these keys to move the

shortcut menus and help assistants in Windows.

cursor up, down, right, or left.

cursor to the beginning of a line, to the end of a line, up the page, down the page, to the beginning of a document, or to the end of a document.

CHAPTER 3: Setting Up and Getting Started

System key combinations

When you press the FN key and a system key at the same time, your convertible notebook performs the action identified by the text or icon on the key.

Press and hold FN

, then press

this system key...

To...

Toggle the status indicators on or off. For more information, see “Using the status

indicators” on page 26.

Turn the optional IEEE 802.11 wireless network radio on or off. For more information, see “Wireless Ethernet Networking” in your online User Guide. Warning: Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. IEEE 802.11 communication devices are examples of devices that provide wireless communication.

Enter Sleep mode or Hybrid Sleep mode. Press the power button to leave Sleep mode. For more information, see “Changing

convertible notebook power settings” on page 76.

Toggle the notebook display in the following order:

■

The LCD

■

An external monitor or projector (a monitor or projector must be plugged into the monitor port on your notebook)

■

Both displays at the same time For more information, see “Viewing the

display on a projector or monitor” on page 63.

Turn the optional Bluetooth radio on or off. Warning: Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. Bluetooth communication devices are examples of devices that provide wireless communication.

www.gateway.com

Press and hold FN

, then press

this system key...

To...

Increase the LCD panel brightness above the normal brightest setting. Use this feature in bright lighting situations, such as outside in bright sunlight. Press a second time to decrease the brightness below the normal lowest brightness setting. Use this feature in dim lighting situations. Press a third time to return the display to the normal brightness setting. Important: Using this feature will affect battery performance.

Decrease volume. For more information, see “Adjusting the volume” on page 50.

Increase volume. For more information, see

“Adjusting the volume” on page 50.

Mute the sound. Press the key combination again to restore the sound. For more information, see “Adjusting the volume” on

page 50.

Increase the brightness of the display.

Decrease the brightness of the display.

CHAPTER 3: Setting Up and Getting Started

Using the tablet control buttons

Press the tablet control buttons to control the convertible notebook while it is in tablet mode.

Wireless network

Windows security

Mobility center

Screen rotation

Button Icon Description

Windows security

Screen rotation

Mobility center

Provides the same action as pressing CTRL+ALT+DELETE. For more information, see “Restarting

(rebooting) your convertible notebook” on page 25.

Rotate the display orientation. For more information, see “Changing

display orientation” on page 44.

Opens the Windows Mobility Center. For more information about the Windows Mobility Center, see “Using the Windows Mobility Center” in your online User Guide.

www.gateway.com

Button Icon Description

Wireless network

OK (located next to fingerprint reader)

Back (located next to fingerprint reader)

Turn the optional IEEE 802.11 wireless network radio and optional Bluetooth radio on or off. For more information, see “Wireless Ethernet Networking” in your online User Guide. Warning: Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. IEEE 802.11 communication devices are examples of devices that provide wireless communication.

Performs the same action as the ENTER key on the keyboard.

Performs the same action as the Back button in an Internet browser.

CHAPTER 3: Setting Up and Getting Started

Using the fingerprint reader

Your notebook includes a fingerprint reader that provides enhanced security and convenience. The fingerprint reader is located near the bottom of the LCD panel.

Features include:

• Secure logon to Windows and fast user switching

between user accounts

• Password bank feature which records and replays

passwords used in Windows and Web-based applications.

• A safe or folder for storing encrypted files that only a

user with a matching fingerprint can access

• Boot level security that requires a fingerprint

authentication before the system will boot to Windows

• Scrolling so you can use the fingerprint reader in place

of the touchpad while the convertible notebook is in tablet mode.

Running the TouchStrip Tutorial

Before using the fingerprint reader the first time, you should run the TouchStrip Tutorial which teaches you the correct method to use the fingerprint reader.

To run the TouchStrip Tutorial:

1 Click or tap (Start), All Programs, Protector Suite

QL, then click or tap Fingerprint Tutorial.

2 Click or tap Next to proceed through the tutorial.

www.gateway.com

Enrolling your fingerprints

Before you can use the features of the fingerprint reader, you must enroll your fingerprints so your notebook can identify you.

To enroll your fingerprints:

1 Click or tap (Start), All Programs, Protector Suite

QL, then click or tap User Enrollment. The Welcome screen opens.

2 Click or tap Next. The Finish screen opens. 3 Select one of the following options, then click or tap

Next.

• Enrollment to the biometric device—Select this

option to save your fingerprint to memory in the fingerprint reader. Use this option to prevent unauthorized use of your notebook even if the hard drive has been removed.

• Enrollment to the hard disk—Select this option to

save your fingerprint to the hard drive. If you plan to enroll more than 21 fingerprints, you must select this option.

The User Enrollment wizard opens.

CHAPTER 3: Setting Up and Getting Started

4 If you want to run the TouchStrip Tutorial, leave the Run

interactive tutorial check box selected, then click or

tap Next. The TouchStrip Tutorial runs. For more information, see “Running the TouchStrip Tutorial” on

page 34. After you have completed the tutorial, the

Enrollment screen appears.

-OR-

If you do not want to run the Touc hS tr ip Tutorial, click or tap to uncheck the Run interactive tutorial check box, then click or tap Next. The Enrollment screen appears.

5 Click or tap the button above the finger you are

enrolling. A new box appears with three empty circles in it.

www.gateway.com

6 Swipe your finger. A sample will be created and is

indicated by a fingerprint icon in one of the circles.

7 Repeat Step 6 two more times, then click or tap Next.

The Advanced Security screen appears.

8 Type a password in the Backup password box, type the

same password in the Retype password box, then click or tap Next.

9 Click or tap Finish.

CHAPTER 3: Setting Up and Getting Started

Using the Fingerprint Control Center

The Fingerprint Control Center lets the administrator of the convertible notebook control how the fingerprint reader is used. You can:

• Add new fingerprints to the database

• Edit or delete fingerprints from the database

• Modify how fingerprints are used for logging onto the

convertible notebook.

• Modify how the fingerprint reader is used for scrolling.

To use the Fingerprint Control Center:

1 Click or tap (Start), All Programs, Protector Suite

QL, then click or tap Control Center. The Fingerprint Control Center opens.

2 If you are logged into the convertible notebook with

administrator privileges, click or tap Elevate administrative privilages for user so you can make

changes to the settings.

3 Click or tap the yellow arrow in front of an option, then

click or tap the option or setting you want to change.

Using the fingerprint reader features

For more information about the fingerprint reader and how to use its features, click or tap (Start),

Protector Suite QL, then click or tap Help.

All Programs,

www.gateway.com

Using the EZ Pad touchpad

The EZ Pad™ consists of a touchpad and two buttons.

Left button

Right button

When you move your finger on the touchpad, the pointer (arrow) on the screen moves in the same direction.

Tou chpad

CHAPTER 3: Setting Up and Getting Started

You can use the EZ-Pad left and right buttons below the touchpad to select objects.

Tip

You can attach a mouse to the convertible notebook or optional port replicator using a USB port. You do not need to shut down the convertible notebook to connect a USB mouse.

Tip

For instructions on how to adjust the double-click speed, pointer speed, right-hand or left-hand configuration, and other touchpad settings, see “Changing the m ouse, touchpad, or pointing device settings” in your online User Guide.

Tip

You may have received your convertible notebook with the EZ Pad touchpad set to only accept clicking by using the touchpad buttons. You can change this feature to allow tapping on the touchpad to simulate clicking the left button. For more information, see “Changing the mouse, touchpad, or pointing device settings” in your online User Guide.

To... Do this...

Move the pointer on the screen.

Select an object on the screen.

Start a program or open a file or folder.

Move your finger around on the touchpad. If you run out of space and need to move the pointer farther, lift your finger, move it to the middle of the touchpad, then continue moving your finger.

Position the pointer over the object. Quickly press and release the left button once. This action is called clicking.

Position the pointer over the object. Press the left button twice in rapid succession. This action is called double-clicking.

To... Do this...

www.gateway.com

Access a shortcut menu or find more information about an object on the screen.

Move an object on the screen.

Position the pointer over the object. Quickly press and release the right button once. This action is called right-clicking.

Position the pointer over the object. Press the left button and hold it down, then use the touchpad to move (drag) the object to the appropriate part of the screen. Release the button to drop the object where you want it.

Using the fingerprint reader as a touchpad

When the convertible notebook is in tablet mode (see

“Converting from notebook to tablet mode” on page 42), the

LCD screen covers the touchpad. You can use the fingerprint reader to move the mouse pointer just as you would use the touchpad.

CHAPTER 3: Setting Up and Getting Started

Using the display

Your convertible notebook’s screen combines the eye-soothing readability of a liquid-crystal display with the responsiveness of a pen controller. The screen provides a hard, smooth writing surface, minimizes glare, and increases readability.

• Your convertible notebook’s display responds to your

convertible notebook’s digital pen, to a PDA stylus, or the touch of a fingertip.

• Steady your hand on the display surface while writing.

The pressure of your hand or fingers will not affect any open programs.

• Switching from AC to battery power dims the display

slightly to save battery power.

Converting from notebook to tablet mode

You can convert the display from notebook to tablet mode with the convertible notebook turned on or off.

Important

Although you can use the digital pen to write on the screen when the convertible notebook is in notebook mode, for best results and maximum stability, only write on the screen while the convertible notebook is in tablet mode.

www.gateway.com

To convert the display from notebook mode to tablet

mode:

1 Open the LCD panel to the normal viewing position. 2 Rotate the LCD panel until the back of the panel is facing

you. The panel soft-locks into the final position.

Important

You can rotate the screen in either direction.

3 Rotate the LCD panel latch until it points in the opposite

direction.

CHAPTER 3: Setting Up and Getting Started

4 Close the LCD panel onto the keyboard. There is a click

[

when the LCD panel latch locks.

Caution

You can rotate the LCD panel in either direction when converting from notebook mode to tablet mode. However, you can rotate the LCD panel in only one direction when converting back to notebook mode. If the LCD panel does not rotate easily, try rotating the panel in the opposite direction.

Changing display orientation

You can change the display orientation from the default, landscape (horizontal), to portrait (vertical) or secondary landscape (180 degrees from the default) using the Screen Rotation button.

To change display orientation:

• Press the Screen Rotation button to step through

display orientations. For more information, see “Using

the tablet control buttons” on page 32.

-OR-

Press the Mobility Center button . The Windows

Mobility Center window opens. Click or tap Rotate screen.

Tip

For more information about the Windows Mobility Center, see

“Using the Windows Mobility Center” in your online User Guide.

www.gateway.com

Adjusting brightness

To adjust screen brightness:

• Use the increase brightness and decrease brightness

keys on the keyboard. For more information, see

“System key combinations” on page 30.

-OR-

Press the Mobility Center button . The Windows Mobility Center window opens. Slide the Brightness control to the desired screen brightness.

Tip

For more information about the Windows Mobility Center, see

“Using the Windows Mobility Center” in your online User Guide.

Using the ambient light sensor

Your convertible notebook includes an ambient light sensor that automatically adjusts the screen brightness based on the amount of light available in the environment around the notebook. You can turn this feature on or off.

To turn the ambient light sensor on or off:

1 As soon as your convertible notebook starts and you see

a startup screen, press F2. The BIOS Setup utility opens.

2 Open the Advanced menu. 3 Highlight ALS Configuration, then select On or Off by

pressing the spacebar.

4 Open the Exit menu, highlight Exit Saving Changes,

then press E

NTER.

CHAPTER 3: Setting Up and Getting Started

Using the digital pen

Your convertible notebook’s digital pen can write, tap, and input directly on your convertible notebook’s display.

Caution

Do not strike the display too sharply. Although the display is durable, it can break.

The digital pen can do everything a mouse does. Just think “tap” instead of “click”.

With a mouse: With a digital pen:

Point and click Point and tap

Double-click Double-tap

Click-and-drag Tap-and-drag

Right-click Button-tap

(press the digital pen button while tapping or press and hold with the digital pen)

Storing and removing the digital pen

To store the digital pen in your convertible notebook:

1 Locate the pen holder on the bottom of your convertible

notebook. For more information, see “Bottom” on

page 11.

2 Slide the digital pen into the holder until the digital pen

clicks into place.

Pen alarm

Your convertible notebook can sound a reminder tone if the digital pen is not in the pen holder when you turn the convertible notebook off or you place it in either Sleep or Hibernate mode. This feature is shipped from the factory turned off.

www.gateway.com

To remove the digital pen from your convertible

notebook:

1 Push the digital pen into the convertible notebook. The

pen pops out slightly.

2 Pull the pen out of the convertible notebook.

To turn on the pen alarm:

1 As soon as your convertible notebook starts and you see

a startup screen, press F2. The BIOS Setup utility opens.

2 Open the Advanced menu. 3 Highlight Pen Alarm, then select Enabled by pressing

the spacebar.

4 Open the Exit menu, highlight Exit Saving Changes,

then press ENTER.

Tip

If you turn off the alarm, the status indicator on the LCD lid will continue to inform you if the digital pen has not been returned to the pen holder.

CHAPTER 3: Setting Up and Getting Started

Using the touch sensitive screen feature

In addition to the digital pen, you can use your finger or a PDA stylus to interact with the screen. Your convertible notebook was shipped to you with the touch sensitive feature turned on.

Caution

A finger-tap or PDA stylus works on your convertible notebook’s display as well as a the digital pen. Ink pens and other sharp pointed objects can damage the surface if used with too much force. For best results use the digital pen that came with your convertible notebook. You can order extra digital pens from Gateway.

To modify the touch sensitive settings:

1 Click or tap (Start), All Programs, Accessories, then

click or tap Windows Mobility Center. The Windows Mobility Center window opens.

2 Click or tap (Change Tablet PC settings). The

Tablet PC Settings dialog box opens.

3 Click or tap the Other tab.

4 Click or tap Go to Pen and Input Devices. The Pen and

Input Devices dialog box opens.

www.gateway.com

5 Click or tap the Touch tab.

6 Modify the touch actions or touch pointer.

CHAPTER 3: Setting Up and Getting Started

Adjusting the volume

You can use the volume control to adjust the overall volume of your convertible notebook.

To adjust the overall volume level using hardware

controls:

• If you are using external speakers, turn the knob on the

front of the speakers.

-OR-

Use the mute and volume control buttons on the keyboard. For more information, see “System key

combinations” on page 30.

-OR-

Press the Mobility Center button . The Windows Mobility Center window opens. Slide the Volume control to the desired volume level.

Tip

For more information about the Windows Mobility Center, see

“Using the Windows Mobility Center” in your online User Guide.

To adjust the volume from Windows:

1 Click or tap (Volume) on the taskbar. The volume

control slider opens.

2 Click and drag or tap and drag the slider up to increase

volume and down to decrease volume.

3 To mute the volume, click or tap (Mute). To restore

volume, click or tap it again.

www.gateway.com

4 To adjust device volume levels, click or tap Mixer. The

Volume Mixer dialog box opens, where you can click and drag or tap and drag sliders for individual devices.

Tip

Adjust the Windows Sounds slider to change system sounds volume independently of general volume (such as the volume used for music and game sounds).

5 Click or tap X in the top-right corner of the window to

close it.

CHAPTER 3: Setting Up and Getting Started

Turning your wireless radio on or off

Your Gateway convertible notebook may have a factory-installed wireless radio.

War ning

Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. IEEE 802.11 and Bluetooth communication devices are examples of devices that provide wireless communication.

War ning

In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, hospitals, and oxygen or flammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to using or turning on the wireless device.

IEEE 802.11 wireless network radio

Your convertible notebook may have an IEEE 802.11 radio for communicating with other computers on a wireless Ethernet network.

To turn the wireless IEEE 802.11 radio on or off:

• Press FN + F2. The wireless status indicator turns on or

off. For the location of the wireless status indicator, see

“Using the status indicators” on page 26.

-OR-

Press the Wireless button . For more information, see

“Using the tablet control buttons” on page 32.

-OR-

Press the Mobility Center button . The Windows

Mobility Center window opens. Click or tap Turn wireless on or Turn wireless off.

Tip

For more information about the Windows Mobility Center, see

“Using the Windows Mobility Center” in your online User Guide.

Tip

For more information about using your convertible notebook on a wireless network, see “Wireless Ethernet Networking” in your online User Guide

Bluetooth radio

Your convertible notebook may have a Bluetooth radio for communicating with another Bluetooth device, such as a printer, scanner, camera, MP3 player, headphone, keyboard, or mouse.

To turn the Bluetooth radio on or off:

• Press FN + F6.

-OR-

Press the Wireless button . For more information, see

“Using the tablet control buttons” on page 32.

Tip

For more information about using your convertible notebook on a

Bluetooth Personal Area Network, see “Bluetooth Networking” in your online

User Guide

Help

For more information about Bluetooth, click or tap Start, then click or

tap Help and Support. Type the keyword Bluetooth in the Search Help box, then press E

www.gateway.com

NTER.

CHAPTER 3: Setting Up and Getting Started

CHAPTER4

Using Drives and Accessories

• Using the DVD drive

• Using the memory card reader

• Adding and removing a PC Card

• Using a port replicator

• Installing a printer or other peripheral device

• Viewing the display on a projector or

monitor

• Ordering accessories

CHAPTER 4: Using Drives and Accessories

Using the DVD drive

You can use your convertible notebook to enjoy a wide variety of multimedia features.

Identifying drive types

Your Gateway convertible notebook may contain one of the following drive types. Look on the front of the drive for one or more of the following logos:

If your drive has this logo...

ROM/R/RW

This is your drive type...

Combination DVD/CD-RW drive

Multi-format double

layer DVD

RW drive

Use your drive for...

Installing programs, playing audio CDs, playing DVDs, accessing data, and recording music and data to recordable CDs. You cannot use this drive to create DVDs.

Installing programs, playing audio CDs, playing DVDs, accessing data, recording music and data to CD-R or CD-RW discs, and recording video and data to DVD-R, DVD+R, DVD-RW, DVD+RW, or double layer DVD+R or DVD-R discs. Note: To use the double layer capability of the double layer recordable DVD drive, the blank DVDs you purchase must state Double Layer, Dual Layer, or DL. Using other types of blank media will result in less capacity.

Using a CD or DVD

Important

DVD discs and drives contain regional codes that help control DVD title exports and help reduce illegal disc distribution. To be able to play a DVD, the disc’s regional code and your DVD drive’s regional code must match.

The regional code on your DVD drive is determined by your convertible notebook’s delivery address. The regional code for the United States and Canada is 1. The regional code for Mexico is 4. Your DVD drive’s regional code must match the regional code of the disc. The regional code for the disc is on the disc, disc documentation, or packaging.

Important

When you place a single-sided disc in the tray, make sure that the label side is facing up. If the disc has two playable sides, place the disc so the name of the side you want to play is facing up.

www.gateway.com

Manual eject hole

Eject button

Tip

For information about cleaning a CD or DVD, see “Cleaning CDs or DVDs”

on page 93.

To insert a CD or DVD:

1 Press the eject button on the DVD drive. After the tray

opens slightly, pull the disc tray completely open.

2 Place the disc in the tray with the label facing up, then

press down carefully on the disc until it snaps into place.

3 Push the tray in until it is closed.

CHAPTER 4: Using Drives and Accessories

Using the memory card reader

You can use memory cards to transfer pictures from a digital camera to your convertible notebook. You can also use the memory card reader to transfer data between your convertible notebook and a device that uses memory cards, such as a PDA, MP3 player, or cellular telephone.

Memory card types

The memory card reader supports Memory Stick®, Memory Stick Pro®, MultiMediaCard™, Secure Digital™, Mini Secure Digital™, and RS-MultiMediaCard™.

Important

RS-Multimedia Card and Mini Secure Digital cards require the use of an

adapter that is available with the media.

Inserting a memory card

To insert a memory card:

• Insert the memory card into the memory card slot with

the label facing up and the arrow on the label pointing towards the convertible notebook.

Using a memory card

To access a file on a memory card:

1 Click or tap (Start), then click or tap Computer. 2 Double-click or double-tap the drive letter (for example,

the E: drive), then double-click or double-tap the file name.

www.gateway.com

Removing a memory card

Important

Do not use the remove hardware icon in the taskbar to remove the memory card. If you use the remove hardware icon, your convertible notebook may not recognize your memory card reader until you restart your convertible notebook.

To remove a memory card:

1 Push the memory card into the convertible notebook.

The memory card pops out slightly.

2 Pull the memory card out of the convertible notebook.

Adding and removing a PC Card

Your convertible notebook has a PC Card slot (also known as a PCMCIA card slot). This slot accepts one Type II card. You do not need to restart your convertible notebook when changing most cards because your convertible notebook supports hot-swapping. Hot-swapping means that you can insert a PC Card while your convertible notebook is running. If your PC Card does not work after hot-swapping, see the PC Card manufacturer’s documentation for further information.

To insert a PC Card:

• Push the card firmly into the PC Card slot, label-side up,

until the outer edge of the card is flush with the side of your convertible notebook.

CHAPTER 4: Using Drives and Accessories

To remove a PC Card:

1 Turn off your convertible notebook, then go to Step 5.

-OR-

Double-click or double-tap the remove hardware icon in the taskbar. The Safely Remove Hardware dialog box opens.

Important

If the remove hardware icon does not appear on the taskbar, click

or tap the show hidden icons button.

2 Click or tap the PC Card name, then click or tap Stop.

The Stop a Hardware device dialog box opens.

3 Click or tap the PC Card name, then click or tap OK. The

Safe to Remove Hardware dialog box opens.

4 Click or tap OK. 5 Release the eject button by pressing the PC Card eject

button once.

6 Eject the PC Card by pressing the eject button again.

Using a port replicator

Although you can attach devices directly to your convertible notebook, a port replicator lets you make all of those connections at one time. When you travel with your convertible notebook, you merely disconnect from the port replicator instead of unplugging all the devices.

A port replicator also provides additional ports and other expansion features not included with your convertible notebook. For more information about using a port replicator, see the port replicator user guide.

www.gateway.com

Installing a printer or other peripheral device

Your convertible notebook or optional port replicator has one or more of the following ports: IEEE 1394 (also known as Firewire® or i.Link®) and Universal Serial Bus (USB). You use these ports to connect peripheral devices such as printers, scanners, and digital cameras to your convertible notebook.

Important

Before you install a printer, scanner, or other peripheral device, see the device documentation and installation instructions.

IEEE 1394 and USB ports support plug-and-play and hot swapping, which means that your convertible notebook will

usually recognize such a device whenever you plug it into the appropriate port. When you use an IEEE 1394 or USB device for the first time, your convertible notebook will prompt you to install any software the device needs. After doing this, you can disconnect and reconnect the device at any time.

Help

For more information about installing peripheral devices, click or tap

Start, then click or tap Help and Support. Type the keyword installing devices in the Search Help box, then press E

NTER.

Connecting a USB device

Your convertible notebook has USB ports for connecting devices such as a diskette drive, flash drive, printer, scanner, camera, keyboard, or mouse.

Important

USB devices may have special installation instructions. See your USB device’s installation guide.

Important

For more information about using the USB port on your device, see your device’s documentation.

CHAPTER 4: Using Drives and Accessories

To connect your USB device to your convertible

notebook:

1 Connect one end of the USB cable to your device. 2 Connect the other end of the cable to a USB

port on your convertible notebook or optional port replicator.

Tip

For the location of the USB ports on your convertible notebook, see “Right” on page 9. For the location of the USB ports on an optional port replicator, see the port replicator user guide.

Connecting an IEEE 1394 device

Your convertible notebook has a 4-pin IEEE 1394 port (also known as a Firewire® or i.Link® port) for connecting devices such as a video camera.

Important

For more information about using the IEEE 1394 port on your device,

see your device’s documentation.

To connect your IEEE 1394 device to your convertible

notebook:

1 Connect one end of the IEEE 1394 cable to your

IEEE 1394 device.

2 Connect the other end of the cable to the IEEE 1394

port on your convertible notebook or optional port replicator.

Tip

For the location of the IEEE 1394 port on an optional port replicator, see the port replicator user guide.

Tip

For more information about editing video, see “Creating a video DVD” in your online User Guide.

www.gateway.com

Viewing the display on a projector or monitor

You can use your convertible notebook for giving presentations by connecting an external monitor or projector to your monitor (VGA) port. Your convertible notebook supports simultaneous LCD and external display. Simultaneous display lets you control the presentation from your convertible notebook at the same time as you face your audience.

To use a projector or external monitor:

1 Turn off your convertible notebook. 2 Plug the projector or monitor cable into the monitor

port on your convertible notebook or optional port replicator.

Tip

For the location of the monitor port on an optional port replicator,

see the port replicator user guide.

3 Turn on your convertible notebook. 4 Plug the projector’s or monitor’s power cord into an

AC power source and turn it on.

Windows recognizes the new hardware and the New Display Detected dialog box opens.

5 Select the options for the projector or external monitor,

then click or tap OK.

6 Press FN+F4 to switch between viewing the display on

the LCD panel, viewing the display on the projector or monitor, and viewing the display on both the LCD panel and the projector or monitor.

Important

If an external monitor or projector is connected and you close the LCD panel, your convertible notebook may turn off the LCD panel, but will not enter Sleep mode.

CHAPTER 4: Using Drives and Accessories

Adjusting the display properties

If the image on the projector or monitor does not appear correctly, or if you want to use the display as an extension of your convertible notebook desktop, you should adjust the display properties on the projector or external monitor.

To adjust the display properties on a projector or external

monitor:

1 Press the Mobility Center button . The Windows

Mobility Center window opens.

Tip

For more information about the Windows Mobility Center, see

“Using the Windows Mobility Center” in your online User Guide.

2 Click or tap (Change display settings). The Display

Settings dialog box opens.

www.gateway.com

3 Click or tap monitor 2. 4 Adjust properties such as Resolution or Colors if

necessary.

• To use the external monitor or projector as a

“mirror” (duplicate) of the convertible notebook display (both displays have the same content), click or tap to deselect the check box for Extend my Windows desktop onto this monitor.

• To use the external monitor or projector as an

extension of your desktop (increasing the size of your Windows desktop), click or tap to select the check box for Extend my Windows desktop onto this monitor. You can click and drag or tap and drag the “2” monitor icon to position it the same way the physical monitor is arranged on your desk.

5 Click or tap OK.

CHAPTER 4: Using Drives and Accessories

Using the projector or monitor for a presentation

You can configure your convertible notebook so the settings are correct each time you give a presentation.

To use a projector or external monitor for a presentation:

1 Press the Mobility Center button . The Windows

Mobility Center window opens.

Tip

For more information about the Windows Mobility Center, see

“Using the Windows Mobility Center” in your online User Guide.

2 Click or tap (Change presentation settings). The

Presentation Settings dialog box opens.

3 Adjust properties such as Turn off screen saver and

Set the volume to if necessary.

4 Click or tap OK. 5 Click or tap Turn on to turn on the presentation

settings. When you are finished giving the presentation, click or tap Turn off to return to your standard convertible notebook settings.

www.gateway.com

Ordering accessories

To order accessories, visit the Accessory Store at

www.gateway.com

localities.

Automobile/airplane power adapters

With an automobile/airplane power adapter, you can save battery power by plugging your convertible notebook into an automobile cigarette lighter or an airplane in-flight power receptacle.

Batteries

If you run your convertible notebook on battery power for extended periods, you may want to buy an additional battery so you can swap batteries when necessary. See “Changing the

battery” on page 71 for more information about using an

additional battery.

Carrying cases

Gateway has large-capacity carrying cases if you need additional space for accessories or supplies.

Digital pens

Order replacement digital pens from Gateway. The convertible notebook does not respond to other tablet pens, plastic pens, or PDA stylus.

Hard drives

If you want to increase your internal storage space, try replacing your existing hard drive with a larger drive. See

“Replacing the hard drive kit” on page 112 for more

information.

. Accessories may not be available in all

Memory

Large programs, such as multimedia games or graphics programs, use a lot of memory. If your programs are running more slowly than you think they should, try adding more memory. See “Adding or replacing memory modules” on

page 109 for more information.

Port replicators

CHAPTER 4: Using Drives and Accessories

A port replicator also provides additional ports and other expansion features not included with your convertible notebook. See the user guide for the port replicator for more information about using a port replicator with your convertible notebook.

Printers

You can attach almost any type of printer to your convertible notebook. The most common types are inkjet and laser printers, which print in color or black and white.

Inkjet printers and cartridges are relatively inexpensive, but they are slower than laser printers. Using an inkjet color printer, you can print pictures, banners, and greeting cards, as well as documents.

Laser printers and cartridges are more expensive, but they print much faster than inkjet printers. Laser printers are better than inkjet printers when you are printing large documents.

USB flash drive

Use a USB flash drive for storing files or transferring files to another computer.

CHAPTER5

Managing Power

• Monitoring the battery charge

• Recharging the battery

• Changing the battery

• Recalibrating the battery

• Getting the most from your battery

• Changing convertible notebook power

settings

CHAPTER 5: Managing Power

Monitoring the battery charge

Your new Gateway convertible notebook is designed to provide an exceptional balance of performance and portability. Your convertible notebook uses the latest chipset and mobile processor technologies to manage the processor speed and power consumption for a greater battery life experience. This design provides you with maximum performance when plugged into AC power balanced with optimized battery life when on battery power.

Closely monitor the battery charge. When the battery charge gets low, change the battery or connect to AC power immediately to prevent losing any unsaved work. To monitor the battery charge:

• Move the mouse pointer over the power cord icon

or battery icon in the taskbar. A message appears showing the remaining battery time and the current power plan.

• Wait for a Low Battery warning message to appear.

• Look at the battery charge status indicator.

If your battery charge indicator displays what looks like an inaccurate charge, you may need to recalibrate the battery.

Tip

For more information about the battery charge status indicator,

see “Top” on page 6 and “Using the status indicators” on page 26.

Tip

For more information about recalibrating the battery, see

“Recalibrating the battery” on page 72.

Recharging the battery

The battery recharges while it is installed and your convertible notebook is connected to AC power. While the battery recharges, the battery charge indicator turns on.

www.gateway.com

Changing the battery

Replacing the battery

War ning

Danger of explosion if battery is incorrectly replaced.

Replace only with a battery specifically manufactured for your Gateway convertible notebook. Discard used batteries according to local hazardous material regulations.

The battery used in this device may present a fire or chemical burn hazard if mishandled. Do not disassemble, heat above 212°F (100°C), or incinerate. Dispose of used batteries promptly. Keep away from children.

Caution

If your convertible notebook is connected to AC power you can change the battery while the convertible notebook is turned on. If your convertible notebook is not plugged into an AC outlet, you must turn the convertible notebook off while changing the battery.

To replace the battery:

1 Disconnect your convertible notebook from the optional

port replicator.

2 If your convertible notebook is on and is connected to

AC power, go to Step 3.

-OR-

If your convertible notebook is on and is not plugged into an AC outlet, save your work and turn off the convertible notebook.

3 Make sure the LCD panel is in notebook mode, then

close the LCD panel. For more information, see

“Converting from notebook to tablet mode” on page 42.

4 Turn your convertible notebook over so the bottom is

facing up.

5 Slide the battery lock to the unlocked position , then

slide the battery release latch.

CHAPTER 5: Managing Power

6 Slide the battery out of the bay.

7 Slide a recharged battery into the bay until it snaps into

place.

8 Slide the battery lock to the locked position. 9 Turn your convertible notebook over.

10 Open the LCD panel.

Recalibrating the battery

Important

Do not interrupt the battery recalibration process. If recalibration is

interrupted, you must start the process over again.

If your convertible notebook unexpectedly goes into Sleep mode while you are using it but the battery charge is not low, you may need to recalibrate your battery. You should also recalibrate the battery periodically to maintain the accuracy of the battery gauge.

To recalibrate the battery:

1 Connect your notebook to AC power and let the battery

charge completely.

2 Disconnect the AC power and restart your notebook. 3 Completely discharge the battery. 4 After the battery is completely drained, reconnect your

notebook to AC power.

5 Charge the battery completely until the battery status

indicator turns blue.

Important

If, after completing this procedure, the battery charge indicator still does not show an accurate charge, contact Gateway Customer Care at the location shown on the Customer Care label. For more information, see “Gateway contact

information” on page 3.

www.gateway.com

Getting the most from your battery

Maximizing battery performance

To get maximum performance from your convertible notebook battery, we recommend that you initially condition (fully charge and discharge) your new battery a few times during the first several weeks of use, to let it reach its maximum rated capacity.

Over the long term, use the battery at least once a month, even if it was kept in a cool, dry place for storage, but avoid frequent full discharges because this puts additional strain on the battery. Several partial discharges with frequent recharges are better for a lithium-ion battery than one complete discharge, and recharging a partially charged lithium-ion battery does not cause harm because there is no memory.

Conserving battery power

To conserve power while using the battery to power your convertible notebook:

• Turn off wireless networking and Bluetooth.

• Dim the display as low as is comfortable.

• Disconnect all external devices, like IEEE 1394 and USB

devices.

• Remove PC Cards when you do not need them. Many

PC Cards use a small amount of power while inserted, even if they are not being used.

• Select the Power saver power plan to get maximum

power savings.

Tip

For more information about using power plans, see “Changing

convertible notebook power settings” on page 76.

• Close the LCD panel to turn off the display while you

are not using your convertible notebook. The display stays off until you open the panel again.

• Use Hibernate mode for maximum power savings while

your convertible notebook is not in use.

• Use the convertible notebook touchpad instead of an

external mouse.

CHAPTER 5: Managing Power

• Decrease or mute speaker volume.

• Turn off all scheduled tasks.

• Turn off auto-save features in Microsoft Office and

other applications.

• Copy programs from CDs or DVDs to the hard drive so

you do not use battery power by running optical drives.

• Use the DVD drive only when necessary. This drive uses

a large amount of power.

• Recharge the battery often, take an extra battery, and

fully recharge the batteries before traveling. For more information, see “Recharging the battery” on page 70.

Tip

For more information about traveling with your convertible

notebook, see “Traveling with Your Notebook” on page 81.

Using alternate power sources

To extend battery life, use alternate power sources whenever possible.

• If traveling internationally, take electrical adapters. Save

the battery for times when you cannot use a power adapter. If you plan on taking your AC power adapter, also take a single-plug surge protector.

• If you will have access to an EmPower™ in-flight power

receptacle, an automobile power outlet, or an automobile cigarette lighter, use an airplane/ automobile power adapter or power inverter. Save the battery for times when you cannot use a power adapter.

• To find AC power outlets in airports, look for them next

to support pillars, in large areas such as boarding gates, and under banks of telephones.

www.gateway.com

Changing power modes

You can use the following power modes to lengthen the life of your convertible notebook’s battery:

• Sleep - while your convertible notebook is in Sleep

mode, it switches to a low power state where devices, such as the display and drives, turn off.

• Hibernate - (also called save to disk) writes all current

memory (RAM) information to the hard drive, then turns your convertible notebook completely off. The next time you turn on your convertible notebook, it reads the memory information from the hard drive and opens the programs and documents that were open when you activated Hibernate mode.

• Hybrid Sleep - while your convertible notebook is in

Hybrid Sleep mode, it switches to a low power state where devices, such as the display and drives, turn off similar to Sleep mode. The convertible notebook also writes all current memory (RAM) information to the hard drive similar to Hibernate mode. If your convertible notebook experiences a power outage while in Hybrid Sleep mode, the convertible notebook reads the memory information from the hard drive and opens the programs and documents that were open when you activated Hybrid Sleep mode. If the convertible notebook does not experience a power outage while in Hybrid Sleep mode, it restarts using the information in current memory, thus reducing startup time. You must turn on Hybrid Sleep mode to use it. For more information, see “Changing advanced settings” on

page 78.

Using power saving modes

Always save your work before using Sleep mode. In Sleep mode, your convertible notebook reduces or turns off the power to most devices except memory. However, the information in memory is not saved to the hard drive. If power is interrupted, the information is lost.

When in Hibernate mode, your convertible notebook saves all memory information to the hard drive, then turns the power completely off.

CHAPTER 5: Managing Power

If your convertible

...and you want to...

...then

notebook is...

On Enter Sleep or

On Enter Hibernate

In Sleep, Hybrid Sleep, or Hibernate mode

Hybrid Sleep mode

mode

Exit Sleep, Hybrid Sleep, or Hibernate mode

Press FN+F3.

Click or tap (Start), click or tap the arrow next to the lock icon, then click or tap Hibernate.

Press the power button.

Changing convertible notebook power settings

You can change the function of your convertible notebook’s power button, Sleep system key, and power-saving timers by changing power settings on your convertible notebook.

You can customize power settings from the Windows Mobility Center by selecting power plans and adjusting advanced power settings.

Changing the power plan

Power plans (groups of power settings) let you change power saving options such as when the display or hard drive is automatically turned off. You can select one of the defined power plans or create a custom power plan.

Three power plans are pre-defined for you:

• Balanced - This is the default power plan which

balances performance and battery life.

• Power saver - This power plan sacrifices performance

in order to extend battery life. Use this plan if you will be away from AC power outlets for an extended period of time. Your programs may run slower than you are accustomed to under the other two power plans.

www.gateway.com

• High performance - This power plan sacrifices battery

life in order to gain performance. Use this plan if you need additional computing power for your program. Your battery may not last as long as you are accustomed to under the other two power plans.

To change the power plan:

1 Press the Mobility Center button . The Windows

Mobility Center window opens.

2 Click or tap (Change power settings). The Select a

power plan window opens.

3 Click or tap the power plan you want to use.

- OR -

Click or tap Change plan settings, modify the power plan you selected, then click or tap Save changes.

Help

For more information about changing the power plan, click or

tap Start, then click or tap Help and Support. Type the keyword

power plan in the Search Help box, then press E

NTER.

CHAPTER 5: Managing Power

Changing advanced settings

Advanced power settings let you assign different power saving modes to the power button and Sleep system key. You can also select which power saving mode is activated when you close the LCD panel.

To change advanced power management settings:

1 Press the Mobility Center button . The Windows

Mobility Center window opens.

2 Click or tap (Change power settings). The Select a

power plan window opens.

3 Click or tap a setting on the left side of the screen that

you want to change. The top three settings are not tied to a power plan. The bottom three settings modify the currently selected power plan.

Help

For more information about changing the power

management settings, click or tap Start, then click or tap Help and

Support. Type the keyword power management in the Search Help box, then press E

To turn on Hybrid Sleep mode:

NTER.

1 On the Select a power plan window, click or tap Change

plan settings for the plan you are using. The Change

settings for the plan window opens.

2 Click or tap Change advanced power settings. The

Power Options dialog box opens.

3 Click or tap the + in front of Sleep, then click or tap the

+ in front of Allow hybrid sleep.

www.gateway.com

4 Change the values to On for On battery and Plugged

in.

Help

For more information about hybrid sleep, click or tap Start,

then click or tap Help and Support. Type the keyword hybrid in the

Search Help box, then press E

NTER.

CHAPTER 5: Managing Power

CHAPTER6

Traveling with Your Notebook

• Packing your convertible notebook

• Traveling by air

• Dial-up modem

• Radio frequency wireless connections

• Files

• Security

• Power

• Additional tips

CHAPTER 6: Traveling with Your Notebook

Packing your convertible notebook

• Remove all peripheral devices and cables. Remember to

pack those you will need while traveling.

• Pack your convertible notebook securely into a

briefcase or hand-carried luggage, and keep it separate from toiletries, liquids, and food. Do not pack it in checked luggage.

• Keep your convertible notebook stable during travel.

Secure it to prevent it from sliding around in overhead bins and car trunks.

Traveling by air

• Do not check your convertible notebook as luggage.

• Charge the battery in case airport security asks you to

start your convertible notebook.

• Have your convertible notebook hand-inspected or sent

through the X-ray scanner, but never carry it through the metal detector.

• Turn off you convertible notebook for takeoff and

landing.

• Turn off all wireless devices while in the aircraft.

Dial-up modem

• Take a telephone cord to connect the modem to

telephone jacks. If you are traveling internationally, take telephone jack adapters or an acoustic handset coupler.

• Take a telephone line protector.

• Take a telephone line tester to check for unsafe lines,

especially if you are traveling internationally.

• Take remote access information with you so you can

connect to your ISP while outside of your usual calling area. A list of country dialing codes may be especially useful if you are traveling internationally.

www.gateway.com

Radio frequency wireless connections

Important

If your convertible notebook came equipped with an internal embedded wireless device, see “Legal Information” on page 145 for general wireless regulatory guidelines.

• Every country has different restrictions on the use of

wireless devices. If your convertible notebook is equipped with a wireless device, check with the local radio approval authorities prior to your trip for any restrictions on the use of a wireless device in the destination country.

• Wireless communication can interfere with equipment

on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. IEEE 802.11 communication devices are examples of devices which use wireless to communicate.

Tip

For more information about turning your wireless device on or

off, see “Turning your wireless radio on or off” on page 52.

Files

• Copy your working files from your desktop computer

to your convertible notebook before you travel.

• If you need to access your desktop computer files from

your convertible notebook while traveling, set up your desktop computer for remote access. Contact your network administrator for more information about remote access.

• Take extra recordable media for transferring files

between computers and backing up files.

Security

• Get a locking cable for your convertible notebook so you

• Always keep your convertible notebook with you while

• Write down your convertible notebook model number

• Whoever sits next to you or behind you can see your

• Use a startup password to restrict access to your

CHAPTER 6: Traveling with Your Notebook

can attach a cable lock and leave your convertible notebook in your hotel room while you are away.

waiting in airports, train stations, or bus terminals. Be ready to claim your convertible notebook as soon as it passes through the X-ray machine in security checkpoints.

and serial number (located on the bottom of your convertible notebook) in case of theft or loss, and keep the information in a safe place. Also, tape your business card or an address label to your convertible notebook and accessories.

convertible notebook display. Avoid working with confidential files until you can be sure of privacy.

convertible notebook. The startup password is set using the BIOS utility.

Caution

Use a password that you can remember, but that is difficult for someone else to guess. The password feature is very secure, with no easy way to recover a forgotten password. If you forget your password, you must return your convertible notebook to Gateway for service.

To create a startup password:

1 Restart your convertible notebook. As soon as you

see a startup screen, press F2. The BIOS Setup utility opens.

2 Open the Security menu, highlight Set Supervisor

Password, then press E

instructions. You must set the supervisor password in order to set the user (startup) password.

Important

You must enter the Supervisor Password each time you use

the BIOS Setup utility.

NTER and follow the

3 Highlight Set User Password, then press ENTER and

follow the instructions. This is the password you need to enter at startup.

Important

You must enter the User Password each time you turn on your convertible notebook if it was turned off or put in hibernate mode. You do not need to enter the User Password if your convertible notebook was put in Sleep mode.

Power

www.gateway.com

4 Highlight Password on boot, then press ENTER. 5 Highlight Enabled, then press ENTER. 6 Open the Exit menu, highlight Exit Saving

Changes, then press E

NTER.

7 When you start your computer, you are prompted

to enter the user password you set in Step 3.

• Review the information in “Protecting your notebook”

in your online User Guide.

• Take your AC power adapter to recharge the battery. If

you are traveling internationally, take power plug adapters.

• Take a portable surge protector to protect your

convertible notebook from power surges.

• To get the best performance from your convertible

notebook, avoid using the battery whenever possible, monitor the battery charge, and use the most efficient power management settings. For information on conserving battery power, using alternate power sources, and monitoring the battery charge, see

“Managing Power” on page 69.

Additional tips

• If you plan to use several USB peripheral devices, take

a portable USB hub to provide additional USB ports.

• Take a network cable if you need to connect to a

network. Some hotels provide Internet connectivity only through their networks.

• If your convertible notebook has been exposed to cold

temperatures, let it warm to room temperature before turning it on.

• Carry proof of ownership or a merchandise passport

when traveling internationally.

CHAPTER 6: Traveling with Your Notebook

• Consult your insurance company and credit card

company to learn about emergency travel assistance if your convertible notebook is lost or damaged.

• Take your recovery discs in case you need to install an

additional driver or software.

Tip

You can create a Drivers and Applications Recovery disc using

the Gateway Recovery Center.

CHAPTER7

Maintaining Your Notebook

• Caring for your convertible notebook

• Cleaning your convertible notebook

• Maintaining the battery

• Cleaning CDs or DVDs

• Recovering your system

CHAPTER 7: Maintaining Your Notebook

Caring for your convertible notebook

To extend the life of your convertible notebook:

• Be careful not to bump or drop your convertible

notebook, and do not put any objects on top of it. The case, although strong, is not made to support extra weight.

• When transporting your convertible notebook, we

recommend that you put it in a carrying case.

• Keep your convertible notebook away from magnetic

fields. Magnetic fields can erase data on hard drives.

• Never turn off your convertible notebook when the

drive indicator is on because data on the hard drive could be lost or corrupted.

• Avoid subjecting your convertible notebook to extreme

temperature changes. The case (and LCD panel) can become brittle and easy to break in cold temperatures and can melt or warp in high temperatures. Damage due to either extreme is not covered by your warranty. As a general rule, your convertible notebook is safest at temperatures that are comfortable for you.

• Keep all liquids away from your convertible notebook.

When spilled onto convertible notebook components, almost any liquid can result in expensive repairs that are not covered under a standard warranty.

• Avoid dusty or dirty work environments. Dust and dirt

can clog the internal mechanisms and can lead to permanent damage to the convertible notebook.

• Do not block the ventilation fan slots. If these slots are

blocked, your convertible notebook may overheat resulting in unexpected shutdown or permanent damage to the convertible notebook.

• When storing your convertible notebook for an

extended period of time, unplug AC power and remove the battery after discharging it partway.

Display screen

• Use only your convertible notebook’s digital pen, a PDA

stylus, or your finger on the display. Do not write on the surface with an ink pen or pencil.

• Nothing heavier than your writing hand should be

placed on top of the display.

• Protect the display surface from unnecessary contact

by turning the screen so it is in the notebook orientation and closing it when transporting the Gateway convertible notebook. For more information, see

“Converting from notebook to tablet mode” on page 42.

• Never spray or pour liquids directly on the display

surface.

• Avoid prolonged exposure to direct sunlight.

• Use the special cleaning cloth included with your

convertible notebook to wipe away dust and fingerprints. Dampen the cloth with water or a mild window glass cleaner solution but never spray anything directly on the surface. If liquid collects around the edges, wipe it up immediately.

Digital pen

www.gateway.com

• Always store the digital pen in the Gateway convertible

notebook’s pen holder when not in use. For more information, see “Left” on page 7.

• Store extra digital pens horizontally in a box or drawer.

• Digital pens should not be stored vertically on the tip

because constant tip pressure can affect pen-screen interaction.

• The digital pen has electronics in it, so it should not be

exposed to or immersed in liquids.

Replacing the pen point

Normal use can wear down the pen’s point, and also cause it to pick up abrasive particles that may scratch the display. Therefore, the pen ships with extra points and a replacement tool.

CHAPTER 7: Maintaining Your Notebook

To replace the pen point:

1 Use the replacement tool to grab the old point and pull

it out of the pen.

2 Insert a new point and apply slight pressure to set it in

place.

Cleaning your convertible notebook

Keeping your convertible notebook clean and the vents free from dust helps keep your convertible notebook performing at its best. You may want to gather these items and put together a notebook cleaning kit:

• A soft, lint-free cloth

• An aerosol can of air that has a narrow, straw-like

extension

• Cotton swabs

• A DVD drive cleaning kit

Cleaning the exterior

War ning

When you shut down your convertible notebook, the power turns off, but some electrical current still flows through your convertible notebook. To avoid possible injury from electrical shock, unplug the power cord, modem cable, and network cable from the wall outlets and remove the battery.

Always turn off your convertible notebook and other peripherals before cleaning any components. Also, remove the battery before cleaning any components.

Use a damp, lint-free cloth to clean your convertible notebook and other parts of your system. Do not use household abrasive or solvent cleaners because they can damage the finish on components.

www.gateway.com

Your convertible notebook is cooled by air circulated through the vents on the case, so keep the vents free of dust. With your convertible notebook turned off and unplugged, brush the dust away from the vents with a damp cloth. Be careful not to drip any water into the vents. Do not attempt to clean dust from the inside of your convertible notebook with the exception of the memory bay.

Tip

You may want to occasionally open the memory bay door and remove

dust and lint using an aerosol can of air.

Cleaning the keyboard

You should clean the keyboard occasionally by using an aerosol can of air with a narrow, straw-like extension to remove dust and lint trapped under the keys.

If you spill liquid on the keyboard, turn off your convertible notebook and turn the convertible notebook upside down. Let the liquid drain, then let the keyboard dry before trying to use it again. If the keyboard does not work after it dries, you may need to replace it. A replacement keyboard may not be covered by your warranty.

Cleaning the convertible notebook screen

Caution

A convertible notebook LCD screen is made of specially coated glass and

can be scratched or damaged by abrasive or ammonia-based glass cleaners.

Use the special cleaning cloth included with your convertible notebook to wipe away dust and fingerprints. Dampen the cloth with water or a mild window glass cleaner solution but never spray anything directly on the surface. If liquid collects around the edges, wipe it up immediately.

Maintaining the battery

The life span of a convertible notebook battery is about 1.5 to 3 years, under normal conditions. As the battery begins to die, you will have to recharge the battery more frequently because it cannot hold a full charge.

CHAPTER 7: Maintaining Your Notebook

Do not expose the battery to high heat or freezing temperatures. Hot batteries discharge very quickly, and cold ones cannot create as much power. Short battery life is more likely to be caused by heat than by charge/discharge patterns. Keep your lithium-ion battery cool. Avoid a hot car, for example.

Charge often, but do not try to fully discharge the battery frequently. This only adds strain. Several partial discharges (regular use), with frequent recharges, are better for lithium-ion than one total discharge. Recharging a partially charged lithium-ion battery does not cause any harm because it has no memory.

Batteries with fuel gauges (convertible notebooks) should be recalibrated once every 30 charges. If ignored, the fuel gauge becomes increasingly less accurate and in some cases will cut off the device prematurely. For more information about recalibrating the battery, see “Recalibrating the battery” on

page 72.

Using the right charger is important. By now you probably know that each kind of battery has its own technology, its own rate of charge, and so on. Charging lithium batteries correctly is one way to extend their life and to avoid damage.

Clean the gold or silver connector on the battery (the part of the battery that makes contact with the convertible notebook) with alcohol or electronic contact cleaner. Cleaning helps maintain good contact, which improves the transfer of power from the battery to the convertible notebook.

Storing batteries

Do not charge up a battery, then store it away. A stored battery should be used every three to four weeks. Let the battery fully discharge, then recharge to 40% if you plan to store it again. If you store a battery for longer than three to four weeks, the battery could fully discharge because the battery circuitry itself consumes power.

If you have a spare lithium-ion battery, use one exclusively and keep the other cool by placing it in the refrigerator. Make sure that it is wrapped protectively and that nothing will be dropped on it. Do not freeze the battery.

Do not use old batteries. Avoid purchasing spare lithium-ion batteries and storing them for later use. Do not buy old stock, even if it is sold at clearance prices. While it makes sense to have 2 or 3 extra batteries, so that you always have a fresh one charged up and ready to go, if you buy batteries and store them for years, they may not work when you decide to use them.
