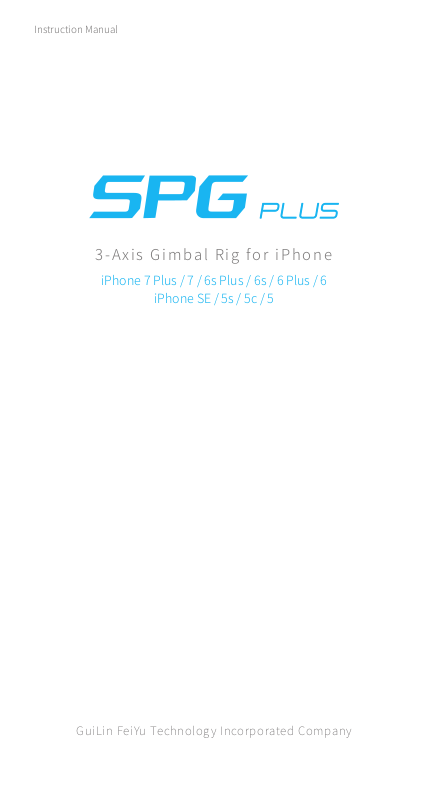

Instruction Manual
3-Axis Gimbal Rig for iPhone
iPhone 7 Plus / 7 / 6s Plus / 6s / 6 Plus / 6
iPhone SE / 5s / 5c / 5
GuiLin FeiYu Technology Incorporated Company
1. Product Overview
1/4 inch
screw hole
Tilting
axis
1/4 inch
screw hole
Panning
Panning
360°
360°
* The showing smartphone
1/4 inch
screw hole
is only for reference
Rolling axis
1/4 inch
screw hole
Panning
axis
RollingRolling
2
Function button
You can using the function button to switch the
working mode, power on or power off the gimbal.
Please refer to “Modes / Functions”.
1
Indicator Status Mode / Status
Blue light flashes once
Blue light flashes twice
Blue light flashes for three limes Standby
Blue light constant on
Blue light keeps flashing
Red light keeps flashing
4
Bluetooth Shutter
Tips: Make sure the volume "+" key of your iPhone can control the shooting.
After connecting with bluetooth , the button can be used as shutter function and the gimbal indicator will blinks a green light
every 10 seconds.
Connecting steps:
(1) Turn on the bluetooth of your iPhone. (2) Connect your iPhone with "FY_SPGPlus_xx".
(3) It can act as a mobile phone camera shutter after a successful connection.
When you change your iPhone, please first shutdown Bluetooth of the previous one, then start Bluetooth pairing for the new one.
10 pieces of pairing info can be stored in this product.
Bluetooth pairing information clear: In boot-up state, long press the Bluetooth Shutter of the gimbal until the red light is
on to clear all the bluetooth pairing info. After clearing, iPhone paired previously need to ignore "FY_SPGPlus_xx" first,
then shutdown the Bluetooth of iPhone and reopen it to pair anew.
Using App: You can perform various settings and operations via specified smartphone app("Feiyu On") when the bluetooth is paired.
Panning mode
Panning and Tilting mode
Lock mode / Initializing
Initialization failure / Malfunction
Low batteryRed light flashes three times
Entering standby / Entering power off
Bluetooth name: FY_SPGPlus_xx
ON:
green light is on.
OFF：Long press Function Button and release it until the
red light changes from quick flashing to constant.
3
Joystick
1/4 inch
screw hole
Indicator
Handle
Joystick
Bluetooth
shutter
Function button
(ON / OFF)
USB port
Tilting
Long press Function Button and release it until the
Joystick Camera lens
Up
Down
Down
Up
Left
Left
Right
Right
1
3
2
4
2. User Guide
!
Attention !
1
1
Install the battery
Remove the handle and insert one
22650 battery into it.
3
Balance Adjustment
In order to achieve in a better performance of the gimbal,
please try to adjust the iPhone installation to the best balance.
(1) Please install the iPhone before powering on the gimbal
(2) Please turn off the power when the gimbal is not in use, then remove the iPhone
2
Install the iPhone
Attach the iPhone by the quick-release adapter, and ensure it is secure.
Tips: Please take off the protective casing of the iPhone
before installation.
How to balance adjustment
If the iPhone tilted to the right, then
loose the knob ring，move the cross
arm to the left, try to adjust to the
best balance then tight it.
Knob ring
T
2
Best Balance
Knob ring
If the iPhone tilted to the left, then loose
the knob ring，move the cross arm to the
right, try to adjust to the best balance then
L
tight it.
T
Cross arm
T = Tight
L = Loose
L
Cross arm
4
Power on / off
Power on： Long press Function Button and release it until the green light is on.
Power off：Long press Function Button and release it until the red light changes from quick flashing to constant.
Attention: Turn the gimbal on after ensuring the iPhone is secure.
If the battery power is too low, the red light will flash 3 times every 5 seconds.
!
Please shut down the gimbal in time, and recharge or replace the battery.
3. Modes / Functions
* Boot default mode: Panning mode
Working Modes
Panning Mode
The phone can move to left or right smoothly along with the handheld moving.
The tilting and rolling directions fixed.
Panning and Tilting Mode
The phone can move to left or right and tilt up and down smoothly along with the handheld moving.
The rolling directions fixed.
Lock Mode
The phone stays in its current orientation.
The panning, tilting and rolling direction are all fixed.
Other Functions
Panorama
Convenient for the iPhone users to shot panorama photo.
As shown, roll the gimbal slowly to the right (or left) 90°, the rolling axis
automatically follow to the right (or left) is rotated by 90°.
Reset
Reset the tilting axis of the gimbal to initial orientation and initial mode.
Standby
In standby mode, keep the gimbal in power-up state, the motor stops working, the indicator light flashes for three
times, and single tap again the function button to wake up the gimbal.
Mode / Function Operation Instructions
Function Button
Single tap
Double tap
Long press until
the red light
flashes quickly
Function Explanation
Panning Mode / Lock Mode
Panning and Tilting Mode
Single tap to switch between panning mode and lock mode
Under panning and tilting mode, single tap to switch to lock mode
Make the lens rotate 180 °Triple tap Rotate 180°in horizontal
Reset the tilting axis of the gimbal to initial orientation and initial modeQuadruple tap Reset
Single tap again to awake the gimbal, or triple tap to initialize the gimbalStandby
4. Charging
Micro-USB
5V USB power adapter
(Equipped by user )
After power off, connect the USB cable to USB port, and connect with 5V USB power adapter (equipped by user)
by USB cable .
Or take out the battery, and use the corresponding charger to charge the battery (equipped by user).
The red indicator light is on during charging, and green light is on after the battery is fully charged.
USB cable
USB Port
5. Gimbal Horizontal Angle Adjustment
The horizontal angle needs to be adjusted whenever the following situations happen to the gimbal
（1） The tilt angle is not leveled with the horizontal surface.
（2） The roll angle is not parallel to the horizontal surface.
（3） Under lock mode, the panning angle drifts.
Adjusting steps:
（1）
In boot-up state, long press the Function Button until the red light flashes quickly to enter standby status, the blue
light will flash 3 times periodically.
Lay the gimbal on a static flat surface and triple tap the Function Button. Initialization is successful when the blue
（2）
light changes from constant on to flashing 3 times periodically.
When the initialization failed, the LED indicator will flash quickly, repeat step (2) to reinitialize.
( Initialize the gimbal )
6. Parameters
Titling Angle
Rolling Angle
Panning Angle
Titling Increments 2°/s ~ 75°/s
Panning Increments 3°/s ~ 150°/s
Usage time 8 Hours
Adaption iPhone 7 Plus/7/6s Plus/6s/6 Plus/6/SE/5c/5s/5
Weight 518g（not including battery and iPhone）
Prohibit any user for any illegal purpose. Users will be responsible for
all behaviors of purchase and use products.
The Company assumes no liability for any risks related to or resulting
from the debug and use of this product (including the direct, indirect
or third-party losses).
For any unknown sources of using, we will not be at any services.
The updating and changes of product firmware and program may
cause changes in function descriptions in this user manual, please
read the instructions carefully before upgrading the firmware and use
the corresponding user manual.
You can get the latest user manual from the official website:
www.feiyu-tech.com
Feiyu Tech reserves the right to amend this manual and the terms
and conditions of use the product at any time.
For more information, please visit our official website
www.feiyu-tech.com
Support Email: service@feiyu-tech.com
