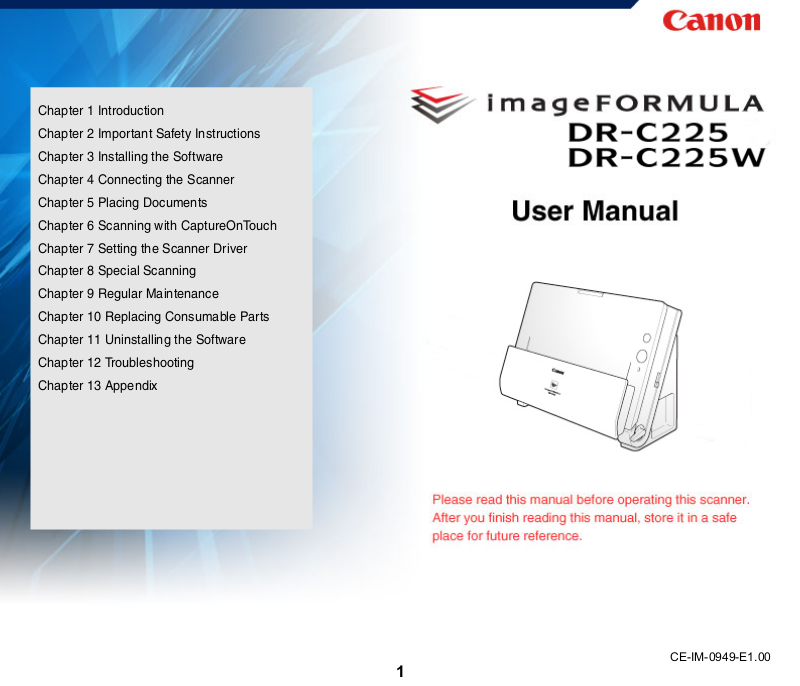

DR-C225
Table of contents
Loading...
Chapter 1 Introduction
Chapter 2 Important Safety Instructions
Chapter 3 Installing the Software
Chapter 4 Connecting the Scanner
Chapter 5 Placing Documents
Chapter 6 Scanning with CaptureOnTouch
Chapter 7 Setting the Scanner Driver
Chapter 8 Special Scanning
Chapter 9 Regular Maintenance
Chapter 10 Replacing Consumable Parts
Chapter 11 Uninstalling the Software
Chapter 12 Troubleshooting
Chapter 13 Appendix
CE-IM-0949-E1.00
1
Chapter 1 Introduction
About This Manual
###HOME > Chapter 1 Introduction###
Thank you for purchasing the Canon imageFORMULA DR-C225/C225W
Document Scanner.
In order to fully understand the features of this scanner and use them
more effectively, please read this manual and the manuals shown below
thoroughly before using the product. After reading, store the manual in a
safe place for future reference.
About This Manual................................................................................2
Features of the Scanner.......................................................................3
Names and Functions of Parts............................................................5
Regulations ........................................................................................... 7
Trademarks............................................................................................ 8
###HOME > Chapter 1 Introduction > About This Manual###
Manuals for the Scanner
Documentation for this scanner consists of the following manuals.
z Setup Guide
This provides complete and comprehensive information about the
scanner.
z User Manual (this manual)
This manual contains complete explanations for operations on the
scanner. This manual is stored on the supplied Setup Disc as an
electric manual.
The User Manual will be registered to the following location in the start
menu after you install the software on the Setup Disc.
2
Register Windows 8.1/8 at the following locations.
After the software is installed from the setup disc, the User Manual is
shown below.
/Applications/DR-C225 User Manual.app
Symbols Used in This Manual
The following symbols are used in this manual to explain procedures,
restrictions, handling precautions, and instructions that should be
observed for safety.
Indicates a warning concerning operations that may lead to death or injury
to persons if not performed correctly. To use the machine safely, always
pay attention to these warnings.
Indicates a caution concerning operations that may lead to injury to
persons, or damage to property if not performed correctly. To use the
machine safely, always pay attention to these cautions.
Indicates operational requirements and restrictions. Be sure to read
these items carefully to operate the machine correctly, and avoid
damage to the machine.
Indicates a clarification of an operation, or contains additional
explanations for a procedure. Reading these notes is highly
recommended.
Features of the Scanner
###HOME > Chapter 1 Introduction > Features of the Scanner###
The main features of the DR-C225/C225W document scanner are
described below.
z Compact Design
The scanner has a compact size of 300 (W) x 339 (H) x 235 (D)
(11.81" (W) x 13.3" (H) x 9.25" (D)) mm when the document feed is
open. A newly designed feed mechanism saves space by eliminating
the need for space to eject paper at the front of the scanner.
z Fast Document Feeding
Documents can be scanned at a speed of up to 25 pages per minute
(when scanning one-sided or two-sided documents of A4 size at 200
dpi).
z Two Eject Paths for Scanning a Variety of Documents
Use the U-turn path to scan paper of standard thickness, or use the
straight path to scan cards and other thick documents.
z High Image Quality
The 600 dpi optical resolution sensor incorporated in the scanner
enables documents to be scanned with high image quality.
z USB 2.0 Interface
The scanner supports Hi-Speed USB 2.0.
3
z Color/Grayscale Support
Documents can be scanned in 24-bit color or 256-level grayscale.
z Supports a Variety of Scanning Modes
The scanner supports the following scanning modes, depending on
the document type:
• Single-sided or double-sided scanning (with Skip Blank Page
function)
• Continuous or single sheet feed
z Card Scan
You can scan business or ID cards.
z Paper Size Detection
The scanner automatically detects the size of a scanned document
and eliminates any unnecessary space around the edges of the
image when storing the image, even when storing a document of
irregular size.
z Auto Color Detection
The scanner detects whether the scanned document is in color,
grayscale, or black and white (binary), and saves the image
accordingly.
z Full Auto Mode
A Full Auto Mode is provided in CaptureOnTouch and the scanner
driver to allow scanning under automatically determined conditions.
Scanning conditions such as the color mode and page size are set
automatically based on the document being scanned.
z Auto Resolution Detection
When enabled in the CaptureOnTouch or scanner driver settings, this
function detects the content of documents and determines the
scanning resolution automatically.
z Folio Scan
You can scan folded documents. The scanner will scan both sides
and combine the scanned images into a single image.
z Deskew
The scanner straightens scanned images when it detects that the
document was placed askew.
z Ultrasonic Double Feed Detection
Ultrasonic waves are used to detect pages that are fed at the same
time as well as the space between pages. Scanning stops if a double
feed is detected.
z Text Enhancement Modes
The scanner is equipped with the Advanced Text Enhancement Mode
(only for Windows), for enhancing the text of documents with dark or
uneven backgrounds, and the Advanced Text Enhancement II mode,
for enhancing the text when both the text and background are light.
These modes may not work, depending on the type of document.
z Color Drop-out
The scanner is equipped with a Color Drop-out function that enables
you to specify a color for the scanner to omit from the scanned image
during black and white or grayscale scanning.
z Skip Blank Page Function
The scanner is equipped with a Skip Blank Page function that
enables you to scan a document without storing images of blank
pages, regardless of whether each page of the document is twosided or one-sided. Both sides are scanned, but saving the image is
skipped for scan images judged to be from a blank page.
z Prescan Function
The scanner is equipped with a Prescan function that allows you to
adjust the contrast and brightness of a prescanned image and then
send the adjusted image to the application software, without needing
to scan the document again.
z Character/Line Emphasis Function
If characters and lines in scanned images are not clearly visible, you
can use this function to adjust their thickness during scanning.
z CaptureOnTouch
The bundled CaptureOnTouch software lets you register specific
scanning procedures suited to particular document types and
applications for easy access just by selecting the scanning job.
z Scanning Shortcut
Using CaptureOnTouch, you can register commonly used
combinations of scan modes and output methods as [Scanning
Shortcut] for quick access. Any [Scanning Shortcut] can be assigned
a start button.
z Auto Start
The scanner is equipped with an auto start function, which enables
scanning to be automatically started when a document placed in the
feeder is detected.
4
z Sleep Mode
The scanner is designed to save energy by entering the sleep mode
when it is not scanning documents.
DR-C225W
z Wi-Fi connectivity
You can operate the scanner and load document from a PC or other
device with a wireless connection.
The Wi-Fi function supports scanning operations and document
loading via wireless connection to a PC or other device.
z Depending on the bundled software you are using, all of the
preceding features may not be available.
z In the software, this scanner is indicated as "DR-C225".
Names and Functions of Parts
###HOME > Chapter 1 Introduction > Names and Functions of Parts###
This section describes the name and function of each part. Make
sure to read this section and familiarize yourself with the parts of the
scanner before using the scanner.
Front View
(1) Front Unit
Open this when removing paper jammed inside the scanner, cleaning
the inside of the scanner, or replacing rollers.
(2) Document Eject Pocket
Scanned documents are output here.
(3) Feed Extension Plates
Pull this out when loading long documents.
(4) Eject Support
Open this when loading long documents.
(5) Feed Support
Pull out this to support loaded documents.
(6) Document Feed Tray
Open this when loading documents for scanning.
(7) Power Button
This turns the scanner ON and OFF.
5
(8) Start Button
This starts scanning the document loaded in the document feed tray
(9) Feed Selection Indicator
This indicates the way documents are currently being fed in
accordance with the position of the feed selection lever.
Lever position Indicator color
Upper (non separation feeding) Orange
Lower (standard feeding) Black
(10) Feed Selection Lever
This changes the way documents are fed.
(11) Connectors
Connectors for connecting an AC adapter and USB cable are
available.
(12) Eject Selection Lever
Use this lever to change the way documents are ejected.
Connectors
Back View
(1) OPEN Button
Press this button to open the front unit.
(2) Wi-Fi function setting location (DR-C225W only)
Set and confirm wireless connection using the Wi-Fi function.
(3) Kensington Slot
Connect an anti-theft key chain or the like.
(4) Cable Grooves
Secure the USB cable and power cord that are connected to the
scanner along the rear of the scanner. Use these when you want to
run the cables on the side opposite the connectors.
(1) Power Connector
Connect the supplied AC adapter to this connector.
(2) USB Connector
Connect the supplied USB cable to this connector.
6
Regulations
###HOME > Chapter 1 Introduction > Regulations###
FCC REGULATIONS (For North America)
Document Scanner, Model M111231/M111241
This device complies with Part 15 of FCC Rules and Industry Canada
licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause
undesired operation of this device.
Le présent appareil est conforme aux la partie 15 des règles de la FCC et
CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil
doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment OFF and ON, the user is encouraged to try to
correct the interference by one or more of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
z Use of shielded cable is required to comply with Class B limits in
Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless
otherwise specified in the manual. If such changes or modifications should
be made, you could be required to stop operation of the equipment.
Canon U.S.A. Inc.
One Canon Park, Melville, NY 11747, U.S.A.
Tel. No. (800)652-2666
International ENERGY STAR® Office Equipment Program
As an ENERGY STAR® Partner, CANON ELECTRONICS INC.
has determined that this machine meets the ENERGY STAR
Program guidelines for energy efficiency.
The International ENERGY STAR
international program that promotes energy saving through the use of
computers and other office equipment. The program backs the
development and dissemination of products with functions that effectively
reduce energy consumption. It is an open system in which business
proprietors can participate voluntarily. The targeted products are office
equipment, such as computers, monitors, printers, fax, machine, copiers,
and scanners. The standards and logos are uniform among participating
nations. This model doesn’t provide "setting options" for power
management.
®
Office Equipment Program is an
®
European Union (and EEA) only.
This symbol indicates that this product is not to be disposed of
with your household waste, according to the WEEE Directive
(2002/96/EC) and your national law. This product should be
handed over to a designated collection point, e.g., on an
authorized one-for-one basis when you buy a new similar
product or to an authorized collection site for recycling waste electrical
and electronic equipment (EEE). Improper handling of this type of waste
could have a possible negative impact on the environment and human
health due to potentially hazardous substances that are generally
associated with EEE. At the same time, your cooperation in the correct
disposal of this product will contribute to the effective usage of natural
resources. For more information about where you can drop off your waste
equipment for recycling, please contact your local city office, waste
authority, approved WEEE scheme or your household waste disposal
service. For more information regarding return and recycling of WEEE
products, please visit www.canon-europe.com/environment
(EEA: Norway, Iceland and Liechtenstein)
.
7
Fur EMVG
Dieses Produkt ist zum Gebrauch im Wohnbereich, Geschafts-und
Gewerbebereich sowie in Kleinbetrieben vorgesehen.
Model Names
The following names may be provided for the safety regulations in each
sales region of the Document Scanner.
DR-C225W: Model M111231
DR-C225: Model M111241
Disclaimers
The information in this document is subject to change without notice.
CANON ELECTRONICS INC. MAKES NO WARRANTY OF ANY KIND
WITH REGARD TO THIS MATERIAL, EITHER EXPRESS OR IMPLIED,
EXPECT AS PROVIDED HEREIN, INCLUDING WITHOUT LIMITATION,
THEREOF, WARRANTIES AS TO MARKETABILITY,
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OF
USE OR NON-INFRINGEMENT. CANON ELECTRONICS INC. SHALL
NOT BE LIABLE FOR ANY DIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR
EXPENSES RESULTING FROM THE USE OF THIS MATERIAL.
CANON ELECTRONICS INC. IS NOT LIABLE FOR THE STORAGE AND
HANDLING OF DOCUMENTS SCANNED WITH THIS PRODUCT, OR
THE STORAGE AND HANDLING OF RESULTING SCANNED IMAGE
DATA.
IF YOU INTEND TO DISCARD THE ORIGINALS OF SCANNED
DOCUMENTS, YOU THE CUSTOMER ARE RESPONSIBLE FOR
INSPECTING THE SCANNED IMAGES AND VERIFYING THAT DATA IS
INTACT.
THE MAXIMUM LIABILITY OF CANON ELECTRONICS INC. UNDER
THIS WARRANTY IS LIMITED TO THE PURCHASE PRICE OF THE
PRODUCT COVERED BY THE WARRANTY.
Trademarks
###HOME > Chapter 1 Introduction > Trademarks###
z Canon and the Canon logo are registered trademarks, of Canon Inc.
in the United States and may also be trademarks or registered
trademarks in other countries.
z imageFORMULA is a trademark of CANON ELECTRONICS INC.
z Microsoft, Windows, Windows Vista, PowerPoint, and SharePoint are
registered trademarks or trademarks of Microsoft Corporation in the
United States and other countries.
z Microsoft product screen shot(s) reprinted with permission from
Microsoft Corporation.
z ENERGY STAR® is a registered trademark of the United States
Environmental Protection Agency.
z OS X is a registered trademark of Apple Inc. in the United States and
other countries.
z Copyright © 1995-2011 Nuance Communications, Inc. All rights
reserved. Nuance, eCopy, OmniPage, and PaperPort are trademarks
and/or registered trademarks of Nuance Communications, Inc. and/or
its affiliates in the United States and/or other countries.
z ISIS is a registered trademark of EMC Corporation in the United
States.
z Google and Google Drive are trademarks of Google Inc.
z Dropbox is a trademark or a registered trademark of Dropbox, Inc.
z SugarSync is a trademark of SugarSync, Inc.
z Wi-Fi is a registered trademark of the Wi-Fi Alliance.
z Other product and company names herein may be the trademarks of
their respective owners. However, the TM and R symbols are not
used in this document.
Copyright
Copyright 2014 by CANON ELECTRONICS INC. All rights reserved.
8
No part of this publication may be reproduced or transmitted in any form or
by any means, electronic or mechanical, including photocopying and
recording, or by any information storage or retrieval system without the
prior written permission of CANON ELECTRONICS INC.
9
Chapter 2 Important Safety
Installation Location
Instructions
###HOME > Chapter 2 Important Safety Instructions###
To ensure the safe operation of this scanner, be sure to read the safety
warnings and precautions described below.
Installation Location........................................................................... 10
AC Adapter.......................................................................................... 11
Moving the Scanner............................................................................ 11
Handling .............................................................................................. 12
Disposal...............................................................................................13
When sending the scanner for repairs .............................................13
###HOME > Chapter 2 Important Safety Instructions > Installation
Location###
The performance of this scanner is affected by the environment in
which it is installed. Make sure that the location where the scanner is
installed meets the following environmental requirements.
z Provide adequate space around the scanner for operation,
maintenance, and ventilation.
z When scanning documents using the straight path, provide adequate
space in front of the scanner for scanned document output.
z Avoid installing the machine in direct sunlight. If this is unavoidable,
use curtains to shade the scanner.
z Avoid locations where a considerable amount of dust accumulates.
z Avoid warm or humid locations, such as in the vicinity of a water
faucet, water heater, or humidifier. Avoid locations where ammonia
gas is emitted. Avoid locations near volatile or flammable materials,
such as alcohol or paint thinner.
z Avoid locations that are subject to vibration.
z Avoid exposing the scanner to rapid changes in temperature. If the
room in which the scanner is installed is cold but rapidly heated,
water droplets (condensation) may form inside the scanner. This may
result in a noticeable degradation in scanning quality. The following
conditions are recommended for optimal scanning quality:
Room temperature: 10°C to 32.5°C (50°F to 90.5°F)
10
Humidity: 25% to 80% RH
z Avoid installing the scanner near equipment that generates a
magnetic field (e.g. speakers, televisions, or radios.)
AC Adapter
###HOME > Chapter 2 Important Safety Instructions > AC Adapter###
z Connect only to a power outlet of the rated voltage and power supply
frequency (120 V, 60 Hz or 220-240 V, 50/60 Hz depending on your
region).
z Do not connect other electrical equipment to the same power outlet to
which the scanner is connected. Also, when using an extension cord,
make sure that the extension cord is rated for the current
requirements of the scanner.
z Never try to take the AC adapter apart or modify it in any way, as this
is dangerous.
z The power cord may become damaged if it is often stepped on or if
heavy objects are placed on it.
z Do not use the power cord while it is coiled.
z Do not pull directly on the power cord. When disconnecting the power
cord, grasp the plug and remove it from the outlet.
z Keep the area around the power cord clear of objects so that the
power cord can be disconnected easily in an emergency.
z Do not use an AC adapter other than the one provided with the
scanner. Do not use the AC adapter provided with the scanner with
other products.
z If you have any questions regarding the power supply, contact your
local authorized Canon dealer or service representative for further
information.
Moving the Scanner
###HOME > Chapter 2 Important Safety Instructions > Moving the
Scanner###
z When moving the scanner, always hold it with both hands to avoid
dropping it.
z Make sure to disconnect the interface cable and AC adapter before
moving the scanner. If the scanner is transported with these items
connected, the plugs and connectors may be damaged.
11
Handling
###HOME > Chapter 2 Important Safety Instructions > Handling###
Note the following precautions whenever using the scanner. Failure
to do so may result in a fire or electric shock.
Never place alcohol, benzene, paint thinner, or other flammable
substances near the scanner.
Do not cut, damage, or modify the power cord. Do not place heavy
objects on the power cord, and do not pull or excessively bend the
power cord.
Never connect the power cord when your hands are wet.
Do not connect the scanner to a multi plug power strip.
Do not knot or coil the power cord as this may result in a fire or
electric shock. When connecting the power cord, make sure that the
power plug is securely and completely inserted into the power outlet.
The supplied power cord set is intended for use with this scanner
only. Do not use it with other electronic equipment. In addition, do not
use power cord sets other than the one supplied with the scanner.
Doing so may result in fire or electric shock.
Do not take the scanner apart or modify it.
Never try to take the AC adapter apart or modify it in any way, as this
is dangerous.
Do not use flammable spray near the scanner.
When cleaning the scanner, push the power button to turn it OFF and
disconnect the power cord from the power supply.
Clean the scanner using a slightly dampened cloth which has been
well wrung out. Never use alcohol, benzene, paint thinner, or any
other flammable substances.
If the scanner makes strange noises, or gives off smoke, heat, or
strange odors, or the scanner does not function or other
abnormalities occur when you use the machine, immediately push
the power button to turn it off, and disconnect the power plug from the
power outlet. Then, contact your local authorized Canon dealer or
service representative to have the unit serviced.
Do not drop the scanner, or subject it to impact or strong shock.
Should the scanner ever become damaged, immediately push the
power button to turn it OFF, and disconnect the power plug from the
power outlet. Then, contact your local authorized Canon dealer or
service representative to have the unit serviced.
Before moving the scanner, be sure to push the power button to turn it
OFF, and disconnect the power plug from the power outlet
Do not install the scanner on a surface that is unstable, tilted, or
subject to excessive vibrations. Doing so may cause the scanner to
fall, resulting in personal injury or damage to the scanner.
Never place small metal objects such as staples, paper clips, or
jewelry on the scanner. These items may fall into the scanner, and
cause a fire or electric shock. Should such objects ever fall inside the
scanner, immediately push the power button to turn it OFF, and
disconnect the power plug from the power outlet. Then, contact your
local authorized Canon dealer or service representative to have the
unit serviced.
Do not install the scanner in a humid or dusty location. Doing so
might cause a fire or electric shock.
Do not place objects on top of the scanner. Such objects may tip or
fall over, resulting in personal injury.
Connect only to a power outlet of the rated voltage and power supply
frequency (120 V, 60 Hz or 220-240 V, 50/60 Hz depending on your
region).
When unplugging the power cord, grasp it firmly by its plug. Do not
pull directly on the power cord, as this may damage or expose the
cord’s internal wiring, resulting in a fire or electric shock.
Leave sufficient space around the power plug so that it can be
unplugged easily. If objects are placed around the power plug, you
will be unable to unplug it in an emergency.
Do not allow water or flammable substances (alcohol, paint thinner,
benzene, etc.) to spill into the scanner, as this may result in a fire or
electric shock.
Push the power button to turn the scanner OFF for safety when not
using the scanner for a long period of time, such as overnight. Also,
push the power switch to turn it OFF, and disconnect the power cord
from the power outlet for safety when the machine will not be used for
an extended period of time, such as during consecutive holidays.
12
Do not wear loose clothing or jewelry that may get caught in the
scanner while you are using it. This may result in personal injury. Be
extra careful of neckties and long hair. If anything becomes caught in
the scanner, immediately disconnect the power cord to stop the
scanner.
Be careful when loading paper into the scanner and when removing
jammed paper. It is possible to cut your hand on the edge of a sheet
of paper.
Disposal
###HOME > Chapter 2 Important Safety Instructions > Disposal###
When disposing of this scanner, be sure to follow all local ordinances and
laws or consult with the retailer who sold you the scanner.
When sending the scanner for repairs
###HOME > Chapter 2 Important Safety Instructions > When sending the
scanner for repairs###
When a request is made for repairs, the scanner needs to be sent to the
specified address. When sending the scanner, use the packing box in
which it came. Firmly secure the scanner with packaging material when
you place it in the packing box.
13
Chapter 3 Installing the Software
System requirements
###HOME > Chapter 3 Installing the Software###
This section describes the software installation procedure using the setup
disk (DVD) that comes with this product.
System requirements.........................................................................14
Setup Disc Contents...........................................................................15
Software Installation...........................................................................17
###HOME > Chapter 3 Installing the Software > System requirements###
The following system requirements are recommended for optimal
use of this scanner.
z Computer
• CPU: Intel Core 2 Duo 1.66 GHz or faster
Intel Core i7 2.3 GHz or faster
• Memory: 1 GB or more
8 GB or more
• Hard disk: 3 GB or more available space required for installation
of all software
• USB interface: Hi-Speed USB 2.0
• Monitor: Resolution of 1024 x 768 (XGA) or better
recommended.
• Optical drive: Drive capable of reading DVDs.
z Operating system
• Microsoft Windows XP Service Pack 3 or later
• Microsoft Windows XP x64 Edition Service Pack 2 or later
• Microsoft Windows Vista Service Pack 2 or later (32-bit and 64bit editions)
• Microsoft Windows 7 Service Pack 1 or later (32-bit and 64-bit
editions)
• Microsoft Windows 8 (32-bit and 64-bit editions)
• Microsoft Windows 8.1 (32-bit and 64-bit editions)
• OS X 10.7.5, OS X 10.8.5, OS X 10.9.1
z Other requirement
• An ISIS-compatible application or a TWAIN-compatible
application that is compatible with the above operating systems.
• .NET Framework 4.0 or later
Use the USB interface provided as standard with your computer.
However, normal operation is not guaranteed with all USB interfaces,
even if present as standard equipment on the computer. For details,
consult your local authorized Canon dealer.
Scanning speeds are lower if your computer's standard USB interface
is USB Full-Speed (equal to USB 1.1.)
14
The USB cable you are using should be the one originally included
with the scanner.
If the CPU, memory, interface card, and other specifications do not
satisfy the installation requirements, the scanning speed may be
greatly reduced and transmission may take a long time.
Even if the computer satisfies the recommended specifications, the
scanning speed may vary, depending on the specified scan settings.
The scanner drivers provided with the scanner do not necessarily
operate on all ISIS or TWAIN-compatible applications. For details,
contact your application software retailer.
Precautions for Use in 64-bit Operating Systems
The scanner driver supplied with this product supports scanning with
32-bit applications only.
Even with 32-bit applications, not all ISIS/TWAIN compliant
applications are guaranteed to operate.
Scanning speed may vary depending on the specifications of your
computer.
Precautions for Using the Wi-Fi Function (DR-C225W only)
CaptureOnTouch Mobile is required to use the scanner with smart
devices (smart phones, tablets, etc.). For details on acquiring and
using this software, visit the Canon support website.
Setup Disc Contents
###HOME > Chapter 3 Installing the Software > Setup Disc Contents###
Install the following software necessary for using the scanner from
the supplied Setup Disc.
z CaptureOnTouch
This is a dedicated scanning utility for this product.
z Scanner Driver
This is the scanner driver for this product.
z Wireless Connection Setup Tool (DR-C225W only)
This is a utility for setting up connections to computers using the
product's Wi-Fi function.
z Network Monitor (DR-C225W only)
This utility supports automatic connections to the scanner on a
network. When connecting a different device to the scanner,
disconnection and reconnection can be performed automatically.
Third-Party Software
The following software applications are also included on the supplied
Setup Disc (DVD-ROM). For details on installing these applications, refer
to the Readme.txt file.
z Presto! BizCard
Business card management software from NewSoft Technology
Corp.
* Presto! BizCard is a registered trademark of NewSoft Technology
Corp.
z OmniPage SE (Windows only)
Optical character recognition (OCR) software from Nuance
Communications Inc. with multiple language support.
®
z PaperPort
File management application from Nuance Communications Inc. that
makes it easy to store, organize, and retrieve digital documents.
• In order to receive support of this product, you need to upgrade
z eCopy PDF Pro Office (Windows only)
Nuance Communications PDF creation/editing software.
(Windows only)
to a Professional version. For details on upgrading, visit the
following URL. http://www.nuance.com/partneroffer/canon
15
z Presto! PageManager (OS X only)
Photo and document management software from NewSoft
Technology Corp. Run the following installer (PageManager/
PM8Installer) from the Setup Disc to install.
z Evernote
Multi-platform document filing software from Evernote Corp.
• Files required for installing this software must be downloaded via
the Internet. For details, refer to "Software Installation" on p.17.
• For more information on this software, visit the following URL:
http://www.evernote.com/about/intl/en/
When scanning with third-party software, user the scanner driver of
this scanner to configure scanning conditions. For details on how to
open the scanner driver, refer to the manuals supplied with each
software application.
Cloud Service Software
For some of the supplied third-party software, a cloud service account is
required to use some or all of their functions.
Software Cloud service used
CaptureOnTouch plug-in for Google Drive Google Drive
Evernote Evernote
CaptureOnTouch plug-in for Evernote Evernote
CaptureOnTouch plug-in for Dropbox Dropbox
CaptureOnTouch plug-in for SugarSync SugarSync
CaptureOnTouch plug-in for Microsoft
OneDrive
You will be asked to agree to terms of service when obtaining an account.
For details, refer to the website of your cloud service provider.
Simple installation of the above software does not require an account.
Microsoft OneDrive
16
Software Installation
###HOME > Chapter 3 Installing the Software > Software Installation###
For Windows 8.1/8/7/Vista
If the [User Account Control] screen appears, click [Yes] or [Allow].
Install the software before connecting the scanner to the computer.
z Log on to Windows as an Administrator.
z Close all other applications before installing the software.
1 Insert the Setup Disc into the disc drive of the computer.
The setup menu automatically starts up when you insert the disc into
the drive. (If the menu does not start up, execute setup.exe from the
disc.)
2 Click [Typical Installation].
About Installation of Third-Party Software
If you select [Custom Installation], you can choose third-party software
applications for installation.
17
z If you choose Evernote, the Web browser will start and display
a webpage for downloading the software during the
installation. Download and install the software following the
instructions on the webpage.
To install Evernote, you need a connection to the Internet.
z If you want to reinstall only specific software that you have
previously uninstalled, select [Custom Installation] and
specify the software.
3 Click [Install].
4 Follow the instructions on the screen to complete installation.
Installation of EMC Cloud Capture Function
EMC Captiva Cloud Runtime provides a component that enables
the use of web-based applications.
The applications need to support this function when enabling this
function. Be sure to install it only when you are using a supported
application.
18
5 Click [Exit] to finish installing the software.
Install the software before connecting the scanner to the computer.
z Close all other applications before installing the software.
1 Insert the Setup Disc into the disc drive of the computer.
z For Windows 8.1/8, depending on the system environment, the
web browser may start in full screen during installation. If so,
wait until the browser processing has finished, and then return
to the desktop and continue the installation process.
z After completing installation of the Wireless Connection Setup
Tool with the DR-C225W, "Do you want to set up the wireless
connection now to use the scanner over your wireless LAN?"
appears. Select [Set up now] to start the Wireless Connection
Setup Tool and enable wireless connection setup in the Station
mode. For wireless connection setup, see the "Wi-Fi
Connection Guide".
2 Click [DR-C225 Installer].
19
About Installation of Third-Party Software
If you open the folder containing the software instead of selecting
[DR-C225 Installer], you can choose third-party software applications for
installation.
If you choose Evernote, the Web browser will start and display a
webpage for downloading the software during the installation.
Download and install the software following the instructions on the
webpage.
To install Evernote, you need a connection to the Internet.
3 Follow the instructions on the screen to complete installation.
4 Log off after completing the installation.
To operate the scanner using a wireless connection, double-click
[Network Monitor Installer.app] in step 2 of the above procedure,
and follow the instructions on the screen to install the software
(Wireless Connection Setup Tool and Network Monitor).
You must restart the computer after installation. After restarting the
computer, follow the instructions in the "Wi-Fi Connection Guide"
(stored on the Setup Disc) to configure wireless settings.
20
Chapter 4 Connecting the Scanner
Connecting the Scanner to the Computer
###HOME > Chapter 4 Connecting the Scanner###
Connect the scanner to the computer and power outlet.
Connecting the Scanner to the Computer........................................ 21
Turning the Power ON ........................................................................22
###HOME > Chapter 4 Connecting the Scanner > Connecting the
Scanner to the Computer###
Connect the scanner to the computer and the power supply.
z Do not connect the scanner to the computer before installing
the software.
z Before connecting the scanner to the computer, verify that the
power of the scanner is OFF. If the power is ON, turn it OFF.
21
You can secure the cables to the back of the scanner. Make sure
there is sufficient slack in the cable when doing so to reduce stress
on the connector.
Turning the Power ON
###HOME > Chapter 4 Connecting the Scanner > Turning the Power
ON###
The power of the scanner can be turned ON and OFF with the power
button on the front of the scanner.
1 Make sure that the scanner and computer are connected properly.
2 Press the power button.
The power button lights blue when the power turns ON.
22
Turning Off the Power
Press and hold the power button until the indicator goes out.
When the scanner is turned on for the first time, the balloon
message shown below appears on the Windows task bar. If you
wait a while, automatic scanner recognition will end and the
scanner will become ready to use.
When the scanner is properly connected to the computer, the
(CaptureOnTouch) icon appears on the taskbar as follows.
If the taskbar icon appears as or the scanner is not properly
connected to the computer. Check the status of the power and USB
cable.
z After turning the scanner off, wait at least 10 seconds before
turning it back on.
z If you will not be using the scanner for an extended period, you
should disconnect the power cord from the AC outlet for
safety.
The scanner’s auto power off setting is enabled by default, and the
scanner will turn off automatically if it is not operated for 4 hours.
For details on how to disable this setting, see "Auto Power Off
Setting" on p.100.
23
Chapter 5 Placing Documents
Documents
###HOME > Chapter 5 Placing Documents###
This section describes how to load a document for scanning.
Documents .......................................................................................... 24
Switching the Feed and Eject Methods ............................................ 26
Placing Documents for Standard Feeding .......................................26
Placing Documents for Non Separation Feeding ............................29
Placing Cards......................................................................................31
Placing Folded Documents................................................................ 32
Setting the Long Document Mode .................................................... 34
###HOME > Chapter 5 Placing Documents > Documents###
The scanner can scan documents ranging in size from business
cards to Legal/A4. The document sizes that this scanner can scan
are shown below.
Plain Paper
Size
Width: 50.8 mm to 216 mm (2" to 8.5")
Length: 53.9 mm to 356 mm (2.12" to 14")*
Paper weight
When U-turn path:
When straight path:
* Setting the scanner to Long Document mode enables documents up to 3,000 mm
(118.1") long to be scanned. For details on Long Document mode, refer to
"Setting the Long Document Mode" on p.34.
52 to 128 g/m
0.06 to 0.15 mm (0.0024" to 0.0059")
40 to 209 g/m
0.05 to 0.25 mm (0.002" to 0.0098")
2
(14 to 34 lb bond)
2
(11 to 58 lb bond)
24
Scanning the following types of documents can cause a paper jam or
malfunction. To scan such a document, make a photocopy of the
document and then scan the photocopy.
A document must meet the following criteria to be scannable:
z When scanning multiple documents of different sizes, place
the documents so that they cover the entire span of the feed
rollers.
z It is recommended that documents exceeding 356 mm (14") in
size are fed one sheet at a time.
z Scanning documents before the ink is dry can cause problems
with the scanner. Always make sure that the ink on a document
is dry before scanning it.
z Scanning documents that are written in pencil or similar
material may make the rollers and scanning glass dirty, which
can lead to smudges on the scanned image and transfer the
dirt to subsequent documents. Always clean the internal parts
of the scanner after scanning such documents.
z When scanning a two-sided document that is printed on thin
paper, the image on the opposite side of each page may show
through. In this case, adjust the scanning intensity in the
application software before scanning the document.
z It is recommended that thin documents are fed one sheet at a
time.
Wrinkled or creased
documents
Curled documents Coated paper
Torn documents
Documents with paper clips
or staples
Business Card
Size: 50.8 mm x 53.9 mm (2" x 2.12") or larger
Paper weight:
Orientation: Vertical feeding only
2
300 g/m
(80 lb bond) 0.35 mm (0.0138") or less
Carbon paper
Extremely thin, translucent
paper
Documents with excessive
paper dust particles.
If a stack of business cards cannot be fed properly, reduce the
number of cards in the stack.
Card (plastic or laminated)
Size: 53.9 mm x 85.5 mm (2.12" x 3.37") (ISO standard)
Card thickness:
Orientation: Horizontal feeding only
Feed path: Straight path only
Embossed cards can be scanned.
0.76 mm (0.03") or less, 1.4 mm (0.055") or less for the
embossment
Use the straight path when scanning cards.
If you place cards to be fed vertically, they may not be ejected
properly, and cards that get jammed may be damaged when you
remove them. Take care of the orientation when placing cards.
Embossed cards may not be able to be scanned correctly, depending
on the type of embossment.
25
Switching the Feed and Eject Methods
Placing Documents for Standard Feeding
###HOME > Chapter 5 Placing Documents > Switching the Feed and
Eject Methods###
Use the two levers on the scanner to switch the feed and eject
methods based on the type of document you are scanning.
The feed and eject methods and lever positions for each document type
are as follows.
Document type
Standard paper and
business cards
Plastic cards, thick
paper, thin paper,
and bound or
fastened paper
Feed method
(lever position)
Standard feeding (lower) U-turn path (upper) or
Non separation feeding
(upper)
Eject method
(lever position)
straight path (lower)
Straight path (lower)
###HOME > Chapter 5 Placing Documents > Placing Documents for
Standard Feeding###
Ordinarily, standard feeding should be used when scanning multiple
documents of a standard size at one time. Standard feeding enables
the multiple documents to be fed while separating each page.
1 Open the document feed tray.
2 Pull out the feed support.
26
3 When scanning long documents, pull out the feed extension plates
and eject support.
4 Set the feed selection lever and the eject selection lever.
Set the feed selection lever to the standard feeding position (lower position).
Set the eject selection lever to the U-turn path position ( ).
When scanning documents that contain both standard paper and plastic cards,
use the straight path.
5 Adjust the document guides to fit the width of the document to be
scanned.
27
6 Place the document.
Insert the document in the feed tray so that the front is facing forward and the
top is facing upward.
After inserting the document in the document feeder, align the document
guides with both edges of the document.
z When placing documents into the feed tray, take care not to
cut your hands on the edges of the paper.
z Make sure that the document does not exceed the loading limit
marks ( ) on the document guides. Up to 30 pages of ordinary
plain paper (80 g/m
2
) can be loaded at the same time.
z Before you place a document, check to make sure it does not
contain paper clips, staples, or other small metal objects.
These items may cause a fire or electrical shock, damage the
document, or cause a paper jam or scanner malfunction.
z Do not wear loose clothing or jewelry that may get caught in
the scanner while you are using it. This may result in personal
injury. Be extra careful of neckties and long hair. If anything
gets caught in the scanner, immediately turn OFF the power
switch, and disconnect the power cord from the power outlet
to stop scanning.
z Always smooth out any folds or curls in your documents
before placing them into the feeder. If the leading edge of a
document is curled, it may cause a paper jam.
z If feeding stops due to a system error or paper jam while the
scanner is scanning, resolve the problem, make sure that the
scanned image of the last page that was successfully fed has
been stored, and then resume scanning the remaining
document pages.
z After you finish scanning, close the document feed tray to
prevent damage to the scanner while it is not being used.
z Although standard feeding can be used in combination with
the straight path when scanning, multi-page documents will be
ejected in reverse order in such cases.
28
z If you select the [Upside-down feeding] check box in the
scanner driver settings, you can insert documents into the
scanner in the opposite orientation ("When you want to scan a
document placed upside-down" on p.78).
Placing Documents for Non Separation Feeding
###HOME > Chapter 5 Placing Documents > Placing Documents for Non
Separation Feeding###
When scanning a thick document one page at a time or scanning a
document that has multiple pages fastened together, set document
feeding to non separation mode. This enables the placed document
to be scanned without the pages being separated, regardless of the
number of pages.
1 Set the feed selection lever and the eject selection lever.
Set the feed selection lever to the non separation position (upper position). The
feed selection indicator will light orange.
Set the eject selection lever to the straight path position ( ).
29
2 Adjust the document guides to fit the width of the document.
3 Place the document in the document feed tray.
z With the straight path, documents are ejected at the front of
the scanner. Do not place anything that will block output near
the document eject area. Also, install the scanner on a smooth
surface to enable documents to be smoothly ejected.
z When scanning multiple page documents that are fastened
together, such as invoices, place the documents so that the
edge that is fastened together is facing down.
30
Loading...
