Page 1

3-858-355-12 (1)



Trinitron Color TV

Operating Instructions

####

KV-E29

1996 by Sony Corporation

MF, MH, MN

Page 2

20 mm

3.8 mm

Page 3

VIDEO 3 INPUT

AUTO PROGR

S VIDEO

(MONO)

AUT O P ROGRAM PR: 0 1

TV SYS: B / G VHF L O W

L–AUDIO–R MENU AUTO PROGR

ENTERVIDEO

123

456

789

Page 4

Page 5

WARNING Table of contents

• Dangerously high voltages are present inside the TV.

• Operate the TV only at 110-240 V AC.

• Do not open the cabinet and the rear cover of the TV. Refer servicing to qualified personnel.

• To prevent fire or shock hazard, do not expose the TV to rain or moisture.

• Do not operate the TV if any liquid or solid object falls into it. Have it checked immediately by qualified personnel only.

• Do not block the ventilation openings.

• Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

• Do not install the TV in hot, humid or excessively dusty places.

• Do not install the TV where it may be exposed to mechanical vibrations.

• Do not keep the TV plugged in if you are not going to use it for several days.

• Do not pull the power cord to disconnect the TV. Pull it out by the plug.

• Use only the supplied screws (as shown on page 2) to fasten the TV to the TV stand or to stabilize the TV against a wall or a pillar. Use of other screws may damage the TV.

Note on the remote commander

• The supplied remote commander is used on several models of the TV. If you do not find instructions for some controls that are on the remote commander, that means your TV does not employ the features of those controls, e.g. TEXT.

Notes

• When you turn on the TV, you may hear the “boon” sound that is caused by the demagnetization of the TV. This does not indicate a malfunction.

• The picture color may become abnormal if you change the direction of your TV. To obtain the normal picture color, press MAIN POWER or POWER on the TV to turn off the TV for five minutes and then turn it on again.

Getting Started

6 Connections 8 Getting to know the remote commander

9 Introducing the menus 10 Changing the menu language 11 Presetting channels

Operations

13 Watching the TV 16 Adjusting the picture and sound 18 Listening to the POWER BASSO sound 19 Listening to the surround sound (HYPER

SURROUND)

20 Selecting a stereo or bilingual program 21 Viewing multiple programs at the same time

(PROGRAM INDEX)

22 Displaying frame-by-frame pictures (STROBE) 22 Using the Picture-in-Picture (PIP) features 24 Viewing Teletext 26 Displaying Teletext on the PIP screen (PIP TEXT) 27 Viewing a video game screen (GAME MODE) 28 Customizing the TV

Additional Information

29 Troubleshooting Back Specifications

cover

All contents are subject to change without notice. Design and specifications are subject to change without notice.

Getting Started

-EN

Page 6

Getting Started

Connections

Connecting a VHF antenna or a combination VHF/UHF antenna — 75-ohm coaxial cable (round)

Attach an optional IEC antenna connector to the 75-ohm coaxial cable. Plug the connector into the (antenna) socket at the rear of the TV.

Rear of TVRear of TV

On a wall

Connecting optional equipment

You can connect optional audio/video equipment to your TV such as a VCR, multi disc player, camcorder, video game or stereo system.

Connecting video equipment using video input jacks

Rear of TV

Getting Started

-EN

to antenna socket

to S Video input

VIDEO IN MON/TV

123

S VIDEO

OUT

VIDEO

(MONO)

L AUDIO

VCR

VIDEO (yellow) AUDIO-L (white) AUDIO-R (red)

to S Video output

to antenna output

to video and audio outputs

: Signal flow

Page 7

Front of TV

VIDEO 3 INPUT

Camcorder

to video and audio outputs

S VIDEO

VIDEO

(MONO)

L–AUDIO–R

to S video output

: Signal flow

When connecting a monaural VCR

Connect the yellow plug to VIDEO and the black plug to AUDIO-L (MONO).

When connecting video game equipment

Connect video game equipment to the VIDEO 3 INPUT jacks at the front of your TV or the VIDEO IN 3 jacks at the rear of your TV.

When connecting a VCR to the (antenna) terminal

Preset the signal output from the VCR to the program position 0.

When connecting video equipment to the VIDEO 3 INPUT jacks or the VIDEO IN 3 jacks

Do not connect video equipment to the VIDEO 3 INPUT jacks at the front and the VIDEO IN 3 jacks at the rear of your TV simultaneously; otherwise the picture will not be displayed properly on the screen.

If both S Video and video signals are input simultaneously

The S Video input signal is selected. To view a video input signal, disconnect the S Video connection.

Note on the video input

When no signal is input, the screen becomes blue.

Connecting audio/video equipment using MON/TV OUT jacks

Rear of TV

to antenna socket

VIDEO IN MON/TV

123

S VIDEO

OUT

VIDEO

(MONO)

AUDIO R

VCR

to antenna output

to video and audio inputs

VIDEO (yellow) AUDIO-L (white) AUDIO-R (red)

Audio system

to audio inputs

: Signal flow

Getting Started

-EN

Page 8

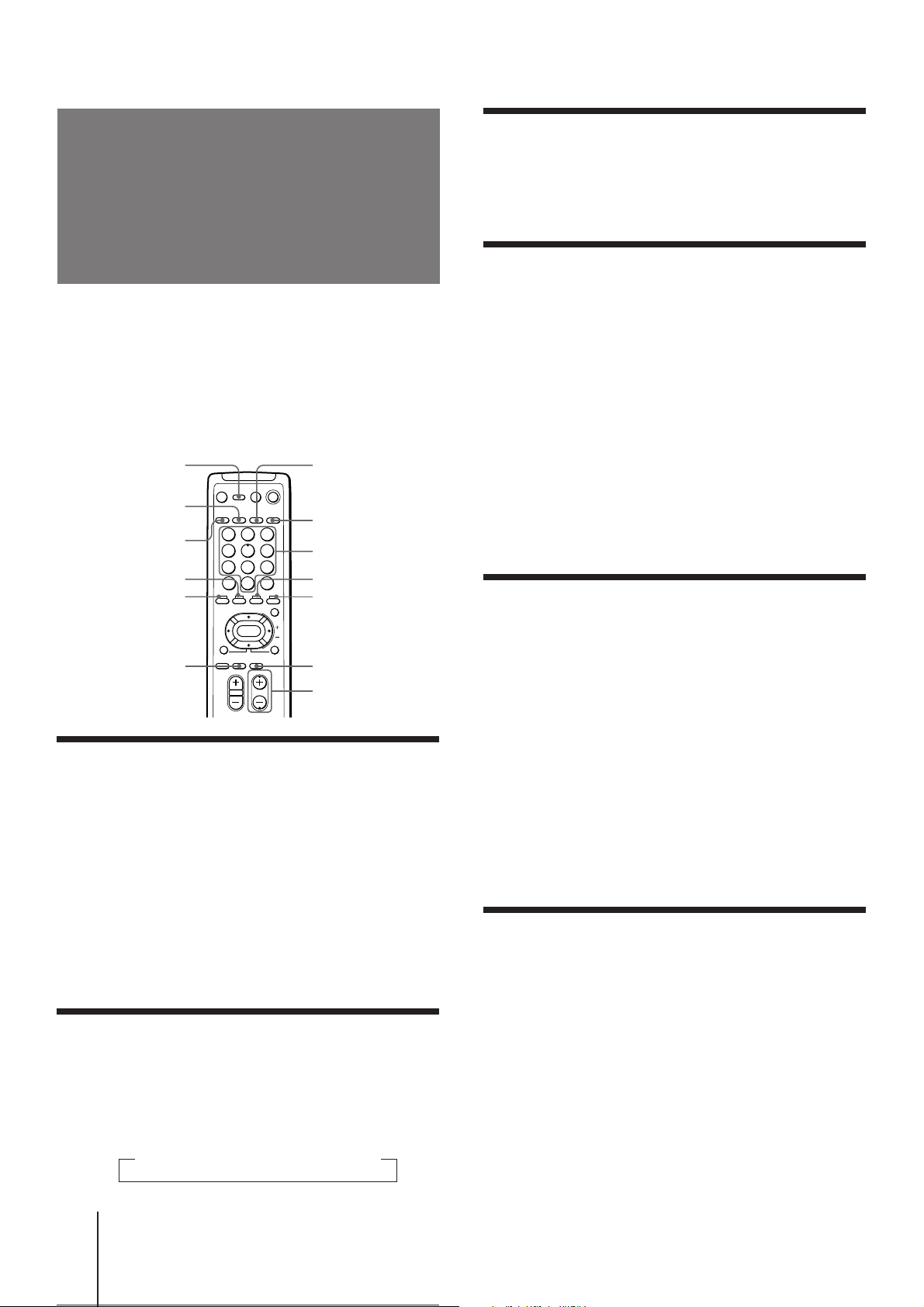

Getting to know the remote commander

Names of buttons on the remote commander are indicated in different colors to represent the available functions.

Label color Button function

White For general TV operations.

Green For Teletext operations.

Yellow For PIP and PROGRAM INDEX operations.

MUTING

TEXT

TV/VIDEO

PIP

TEXT

POWER BASSO

DISPLAY

1 4 7

-/--

WAKE UP

GAME

REVEAL

A/B

VIDEO

ENLARGE

HOLD

2 5 8 0

FREEZE SWAP

PIP PROGR

ENTER

SLEEP

INDEX

TEXT CLR

POWER

PIP operation buttons

TV/VIDEO (page 22)

MUTING

TEXT

DISPLAY

REVEAL

A/B

ENLARGE

FREEZE (page 23)

3 6 9

PIP

SWAP (page 23) PIP (page 22) V/v/ENTER

– for PIP PROGR (page 22)

TV/VIDEO

1 4 7

-/--

FREEZE SWAP

PROGRAM INDEX

PROGR

INDEX

PROGRVOL

operation buttons

PROGR INDEX (page 21) V/b/v/B/ENTER (page 21) PROGR +/– (page 21)

PIP

TEXT

POWER

BASSO

WAKE UP

INDEX

2 5 8 0

ENTER

GAME

VIDEO

HOLD

PIP PROGR

SLEEP

TEXT CLR

PROGRVOL

3 6 9

POWER

PIP

PROGR

INDEX

GAME (page 27)

Teletext operation buttons

TEXT (page 24, 25) ENLARGE (page 25) REVEAL (page 25) HOLD (page 24)

[] – Red (page 24) [] – Green (page 24) [] – Yellow (page 24) [] – Blue (page 24)

INDEX (page 24) TEXT CLR (page 25) PIP TEXT (page 26) V/b/v/B/ ENTER (page 26)

POWER BASSO (page 18)

Notes

• The Teletext operation buttons are used for KV-E29MH11 and KV-E29MN11 only.

• The A/B button is used for KV-E29MH1, KV-E29MH11 and KV-E29MN11 only.

Getting Started

-EN

Page 9

Introducing the

PRESET

SKIP:

PR02 OFF

TV SYS: B /G COL

SYS : AUTO

ENGL ISH AUT O PROGRAM MANUA L P ROGRAM

L ANGUA GE /

TV SYS: B /G

AUT O PROGRAM

VHF LO

PR: 01

menus

You can preset TV channels, adjust the picture and sound qualities, and select some settings using the on-screen menus. You can use the buttons on both the remote commander and the TV to operate the menus.

V I DEO ADJUST P I CTURE COLOR BR I GHT HUE SHARP VM: HIGH

A/V CONTROL

A / V CONTROL DYNAMIC STANDARD SOFT PERSONAL

V I DEO ADJUST AUDIO ADJUST

T I LT CORRECT: 0

100

45 40

0 80

AUDIO ADJUST BASS TREBLE BALANCE

PIP

PIP PROGR I ND E X PIP TEXT STR OBE POS I TION: PIP: OFF

80 80 00

(∗ KV-E29MH11/E29MN11 only)

Getting back to the previous menu (except for AUTO PROGRAM)

Press V or v to move the cursor (z) to the first line (N) of each menu, and press ENTER.

Cancelling the menu screen

Press MENU.

FEATURES

FEATURES GAME MODE

∗

HYPER SURROUND :

OFF

AV OUT :

MONITOR

PRESET

MANUA L PROGRAM PR: 01

TV SYS: B /G AT T : OFF VHF

LOW

Notes (except for AUTO PROGRAM)

• When a menu is selected after pressing ENTER, the color of both the menu and the menu symbol change and the cursor (z) appears beside the first item of the menu.

• When an item on the menu is selected after pressing ENTER, the color of the item changes.

• You can refer to the guide (

) at the bottom of the menus (except for the A/V CONTROL and PRESET menus) for the basic operations of the menu.

• If more than approximately 60 seconds elapse after you press a button, the menu screen disappears automatically.

Getting Started

-EN

Page 10

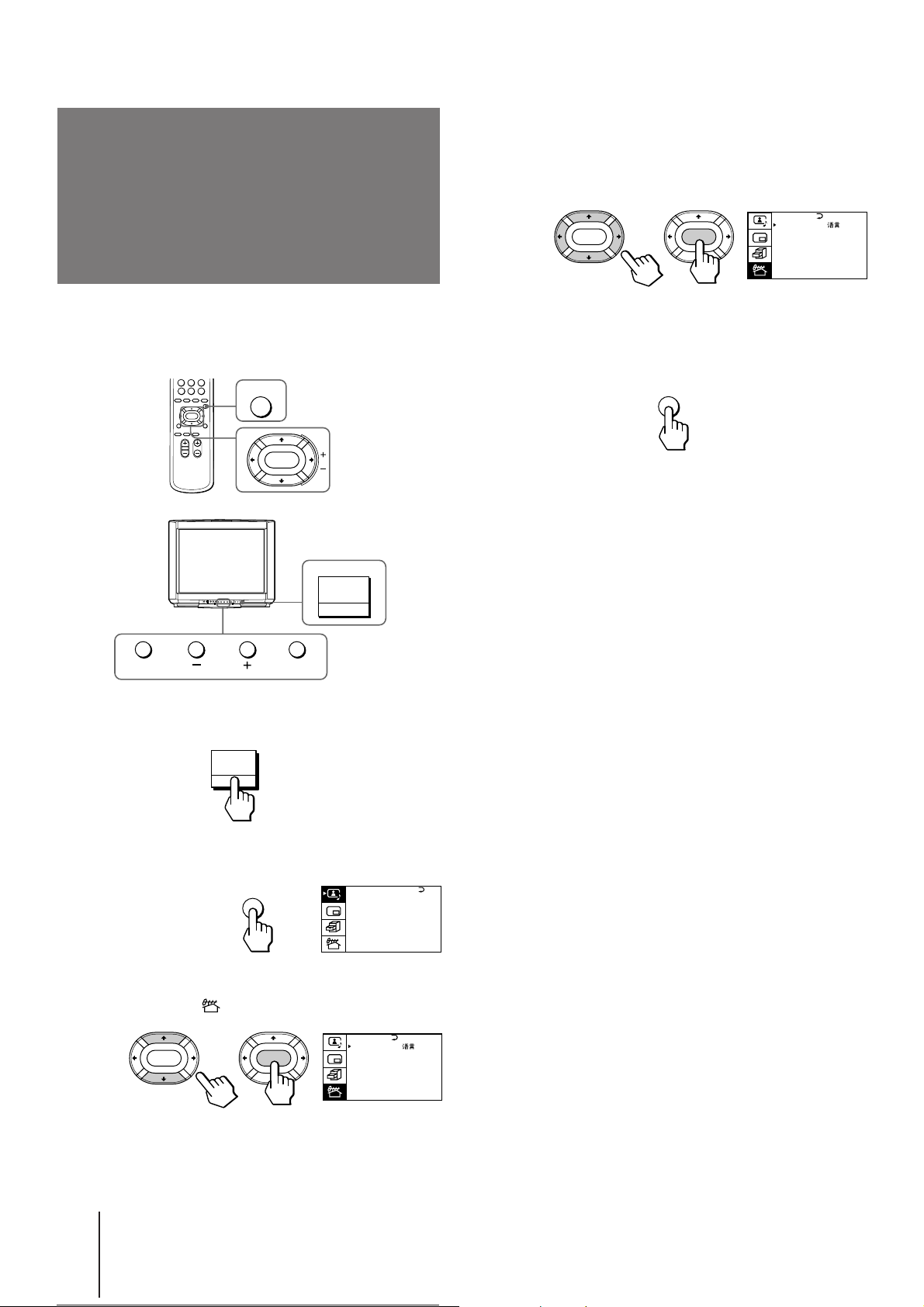

Changing the menu

4 Make sure the cursor (z) appears beside

LANGUAGE/###, and press ENTER.

language

If you prefer Chinese to English, you can change the menu language. You can use buttons on both the remote commander and the TV.

ENTER

MAIN POWER

5 Press V/b/v/B to select ###, and press ENTER.

ENTER ENTER

All of the menus change to Chinese.

PRESET L ANGUAG E /

AUT O P ROGRAM MANUA L PROGRAM TV SYS: B / G COL SYS : AUTO SKIP: PR02 OFF

CH I NE S E

6 Press MENU to return to the normal screen.

ENTER MENU

1 Press MAIN POWER to turn on the TV.

MAIN POWER

2 Press MENU.

A / V CONTROL DYNAMIC STANDARD SOFT PERSONAL

V I DEO ADJ UST AUDIO ADJUST

T I L T CORRECT: 0

3 Press V or v to move the cursor (z) to the

PRESET menu ( ), and press ENTER.

PRESET L ANGUAG E /

ENTER ENTER

ENGL I SH AUT O P ROGRAM MANUA L PROGRAM TV SYS: B / G COL SYS : AUTO SKIP: PR02 OFF

Getting Started

-EN

Page 11

Presetting channels

ENTER

A / V CONTROL DYNAMIC

SOFT

STANDARD PERSONAL

V I DEO ADJ UST AUDIO ADJUST

T I L T CORRECT: 0

PRESET

SKIP: PR02 OFF

TV SYS: B / G COL SYS : AUTO

ENGL I SH AUT O P ROGRAM MANUA L PROGRAM

L ANGUAG E /

ENTER ENTER

You can preset TV channels easily by storing all the receivable channels automatically. You can also preset channels manually or disable program positions (see page 12 ).

Note

• If you want to return to the normal screen while the nine sub screens are being displayed, you can press PROGR INDEX on the remote commander.

To preset channels automatically using the menu

1 Press MENU.

2 Press V or v to move the cursor (z) to the

PRESET menu ( ), and press ENTER.

3 Press V or v to move the cursor (z) to AUTO

PROGRAM, and press ENTER.

Presetting channels automatically

You can preset up to 100 TV channels in numerical sequence from the program position 1. You can preset channels automatically using the button on the TV or the menu.

MAIN POWER

ENTER MENU

AUTO PROGR

1 Press MAIN POWER to turn on the TV.

MAIN POWER

Presetting channels manually

To change the program position for a channel or to receive a channel with a weak signal which you cannot receive by automatic presetting, preset the channel manually.

1 Press MENU.

2 Press V or v to move the cursor (z) to the

PRESET menu ( ), and press ENTER.

2 Press AUTO PROGR.

AUT O P ROGRAM PR: 0 1

TV SYS:B/G VHF LO

The TV starts scanning and presetting channels automatically. When all of the receivable channels are stored, the AUTO PROGRAM menu disappears and the first nine preset TV programs appear on the nine sub screens. The nine sub screens disappear after being displayed for several seconds.

AUTO PROGR

123

3 Select your local TV system.

456

789

(1) Press V or v to move the cursor (z) to TV SYS, and

press ENTER.

(2) Press V/b/v/B until your local TV system appears

on the menu, and press ENTER.

Getting Started

-EN

Page 12

4 Press V or v to move the cursor (z) to

MANUAL PROGRAM, and press ENTER.

MANUA L PROGRAM

ENTER ENTER

PR: 0 1 TV SYS:B/G AT T : OFF

LOW

VHF

5 Select the program position to which you

want to preset a channel.

(1) Make sure the cursor (z) appears beside PR, and

press ENTER.

(2) Press V/b/v/B until the program position you

want appears on the menu, and press ENTER.

Disabling program positions

By disabling unused or unwanted program positions, you can skip those positions when you press PROGR +/–.

1 Press MENU.

2 Press V or v to move the cursor (z) to the

PRESET menu ( ), and press ENTER.

3 Press V or v to move the cursor (z) to SKIP,

and press ENTER.

6 Select the desired channel.

(1) Press V or v to move the cursor (z) to VHF LOW,

and press ENTER.

(2) Press V/b/v/B until the desired channel picture

appears on the TV screen, and press ENTER.

7 Press MENU to return to the normal screen.

If the TV signal is too strong

The picture may be distorted. You can reduce the picture distortion as described below.

1 Display the PRESET menu. 2 Press V or v to move the cursor (z) to MANUAL

PROGRAM, and press ENTER.

3 Press V or v to move the cursor (z) to ATT, and

press ENTER.

4 Press V/b/v/B to select ON, and press ENTER.

If the TV system is not properly selected

The picture color may be poor and/or the sound may be noisy. In this case, select the appropriate TV system.

4 Press V or v until the unused or unwanted

program position appears on the menu, and press ENTER.

5 Press V/b/v/B to select ON, and press ENTER.

6 To disable other program positions, repeat

steps 4 and 5.

7 Press MENU to return to the normal screen.

To cancel the skip setting 1 Display the PRESET menu. 2 Press V or v to move the cursor (z) to SKIP, and

press ENTER.

3 Press V or v until the program position you want to

cancel the skip setting appears, and press ENTER.

4 Press V/b/v/B to select OFF, and press ENTER.

1 Press PROGR +/– or the number buttons to select

the program position.

2 Display the PRESET menu. 3 Press V or v to move the cursor (z) to TV SYS, and

press ENTER.

4 Press V/b/v/B until the appropriate TV system

appears, and press ENTER.

Notes

• The TV system and the ATT (attenuator) settings are memorized for each program position.

• If you do not know your local TV system, consult your nearest Sony dealer or authorized service center.

Getting Started

-EN

Page 13

PROGR

VOL

POWER

VIDEO

HOLD

VIDEO 1 VIDEO 2 VIDEO 3 1

Operations

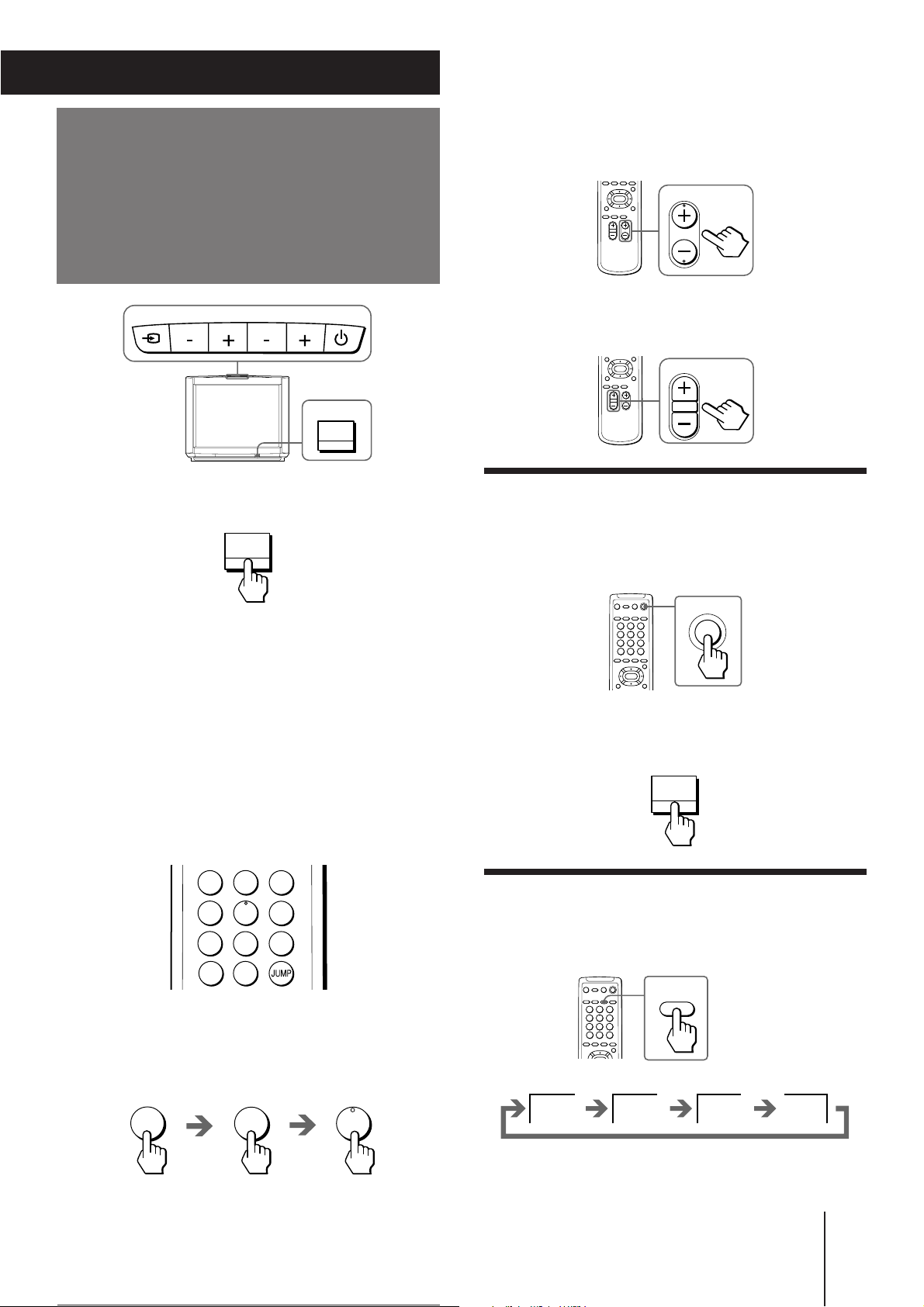

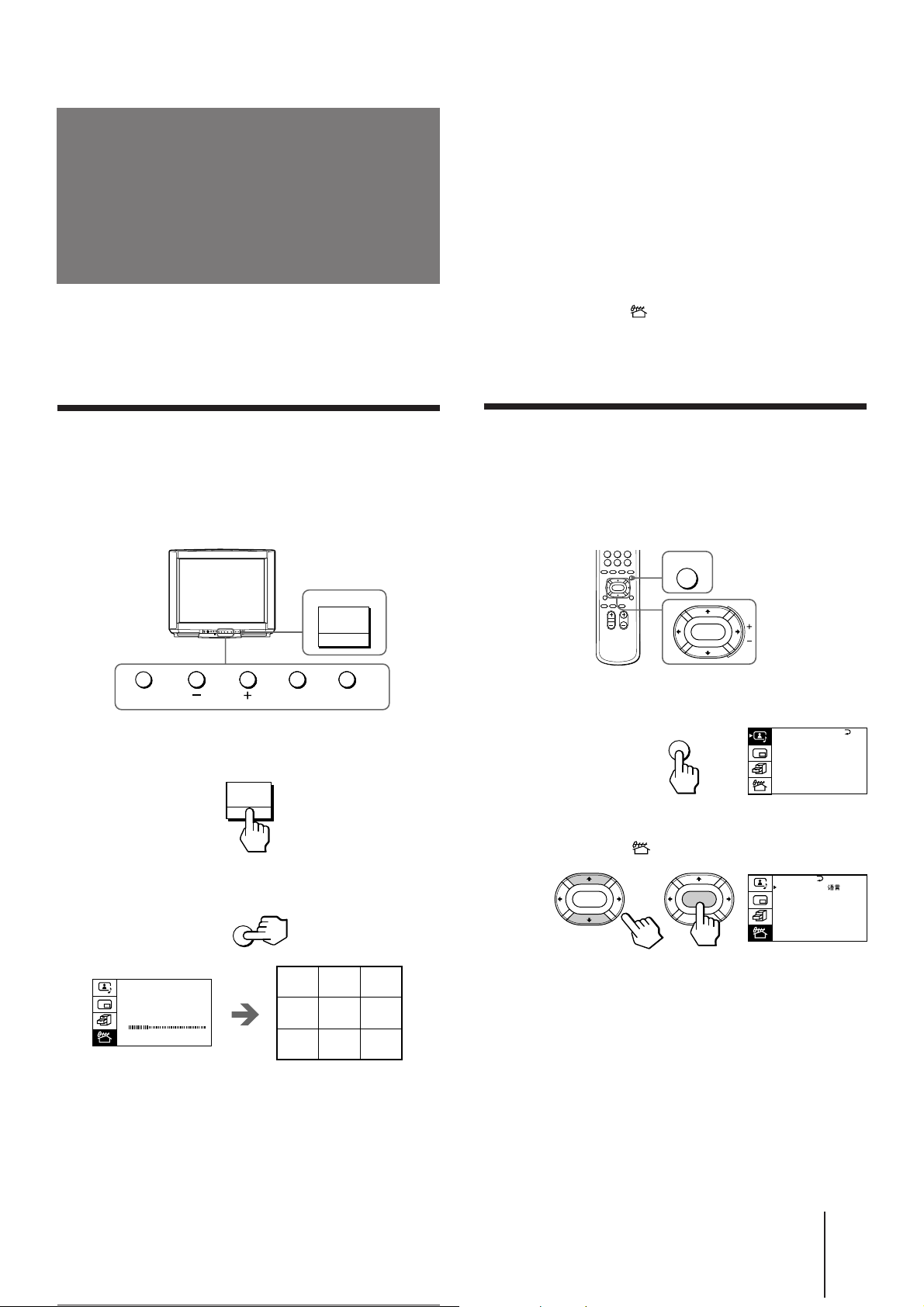

Watching the TV

To scan through program positions

Press PROGR +/– on the remote commander or the TV until the program position you want appears.

TV/VIDEO VOLUME PROGR POWER

MAIN POWER

1 Press MAIN POWER to turn on the TV.

MAIN POWER

When the TV is turned on in the standby mode, the POWER indicator on the TV lights up. To turn on the TV completely, press POWER on the remote commander or the TV. When the TV is turned on completely, the PROGR +/–, VOLUME +/–, and TV/VIDEO indicators on the TV light up.

3 Press VOL +/– on the remote commander or

VOLUME +/– on the TV to adjust the volume.

Turning off the TV

To turn off the TV temporarily

Press POWER on the remote commander or the TV. The STANDBY indicator lights up.

To turn off the TV completely

Press MAIN POWER on the TV.

2 Select the TV program you want to watch.

To select a program position directly

Press the number button.

1 4 7

-/--

To select a two-digit program position, press “÷” before the number buttons. For example: to select program position 25, press “÷,” then “2” and “5.”

-/--

6 9

8 0

MAIN POWER

Watching the video input

Press VIDEO/HOLD on the remote commander or TV/VIDEO on the TV.

Operations

-EN

Page 14

To watch TV

WAKE UP

INDEX

WAKE UP TIMER:10M

WAKE UP TIMER:OFF

WAKE UP TIMER:12H00M

Press TV on the remote commander or TV/VIDEO on the TV.

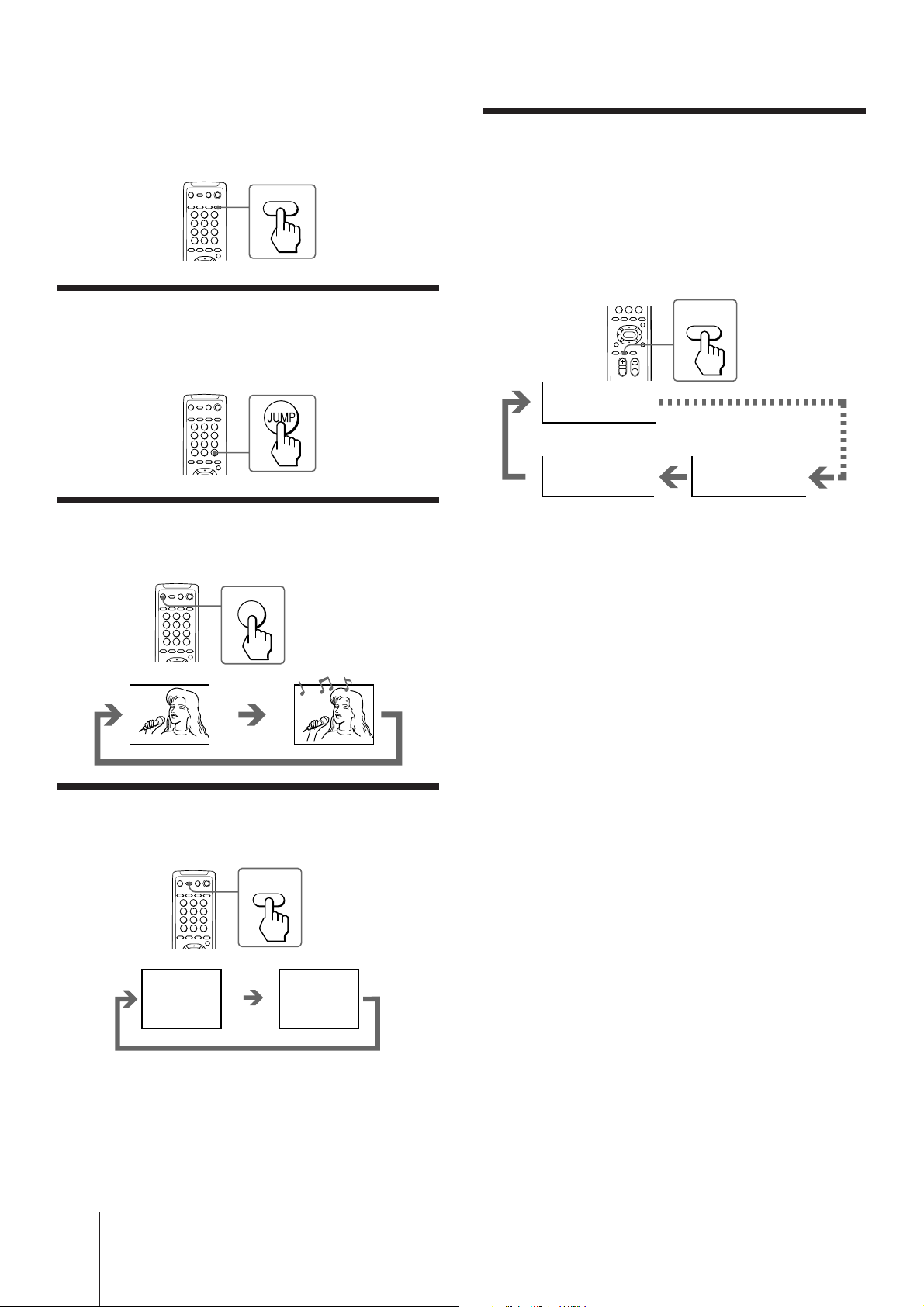

Switching back quickly to the previous channel

Press JUMP.

Setting the Wake Up Timer

You can set the TV to turn on automatically after the period of time you want.

1 Press WAKE UP/INDEX repeatedly to set the

timer.

The on-screen display appears.

After 10 minutes

Muting the sound

Press MUTING.

MUTING

Displaying the on-screen information

Press DISPLAY/REVEAL.

DISPLAY

REVEAL

DYNAMIC POWER BASSO: ON

No Wake Up Timer

After 12 hours

2 If you want a particular TV program or

video mode to be displayed using the Wake Up Timer, select the TV program or video mode.

3 Press POWER on the remote commander or

the TV, or set the Sleep Timer to turn off the TV in the standby mode.

The WAKE UP indicator lights up in amber color.

To cancel the Wake Up Timer, press WAKE UP/ INDEX repeatedly until “WAKE UP TIMER: OFF” appears, or turn off the main power of the TV.

Notes

• The Wake Up Timer starts immediately after the on-screen display disappears.

• The last TV program position or video mode just before the TV turns into the standby mode will appear when the TV is turned on using the Wake Up Timer.

• If no buttons or controls are pressed for more than two hours after the TV is turned on using the Wake Up Timer, the TV automatically turns into the standby mode. If you want to continue watching the TV, press any button or control on the TV or remote commander.

Note

• The on-screen display shows the program position or the video mode, the picture and sound information. The on-screen display for the picture and sound information disappear after being displayed for approximately three seconds.

-EN

Operations

Page 15

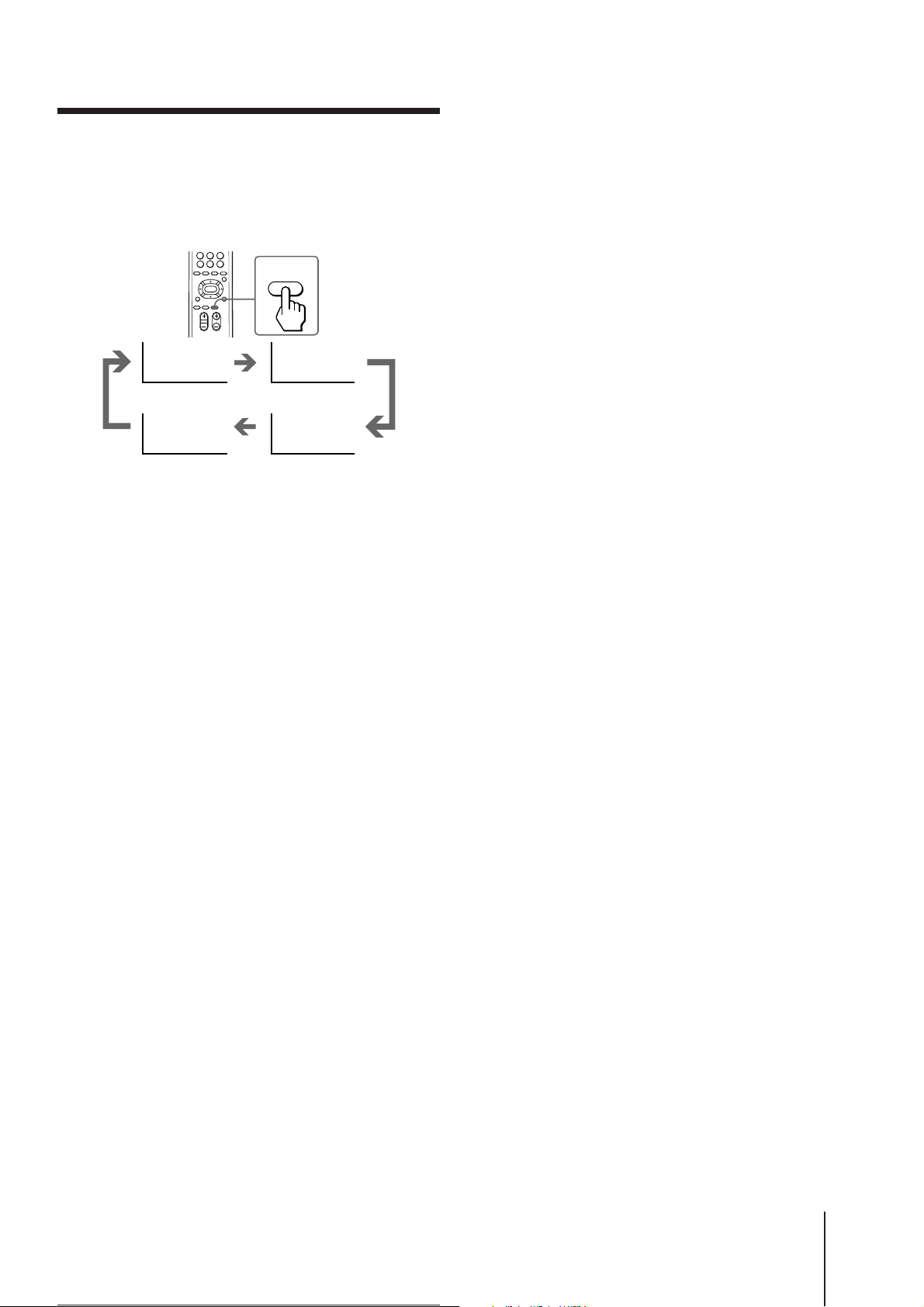

Setting the Sleep Timer

You can set the TV to turn off automatically after the period of time you want.

Press SLEEP.

SLEEP

TEXT CLR

SLEEP TIMER:30M SLEEP TIMER:60M

After 30 minutes After 60 minutes

SLEEP TIMER:OFF SLEEP TIMER:90M

No Sleep Timer

To cancel the Sleep Timer, press SLEEP repeatedly until “SLEEP TIMER: OFF” appears, or turn the TV off.

After 90 minutes

Operations

-EN

Page 16

Adjusting the

A / V CONTROL DYNAMIC

SOFT

STANDARD PERSONAL

V I DEO ADJ UST AUDIO ADJUST

T I L T CORRECT: 0

P I CTURE

100

V I DEO ADJ UST COLOR

BR I GHT HUE SHARP VM: HIGH

45 0

ENTER ENTER

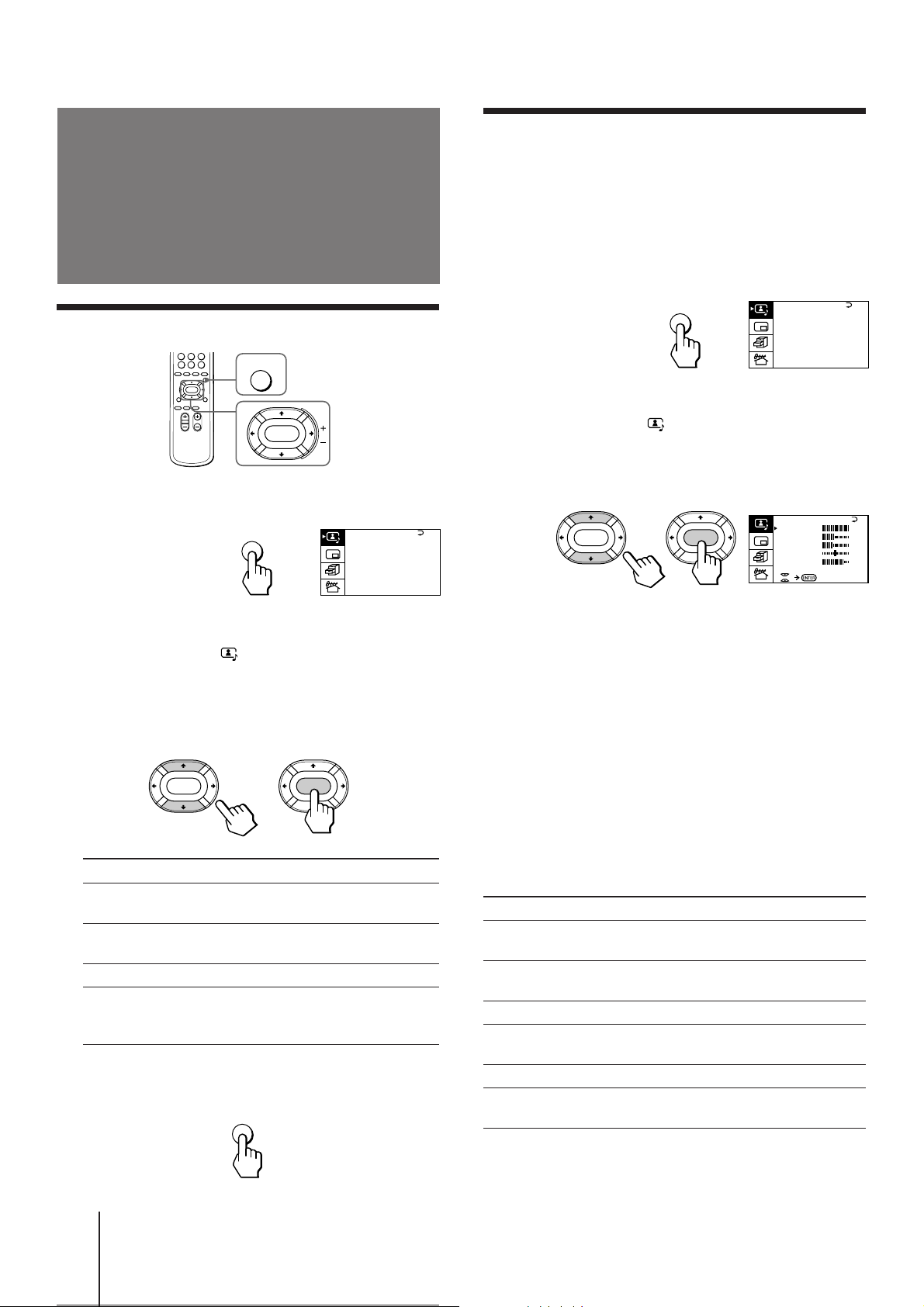

Adjusting the picture settings (VIDEO ADJUST)

picture and sound

Selecting the picture and sound modes

ENTER

1 Press MENU.

2 Make sure the cursor (”) appears in the A/V

CONTROL menu ( ), and press ENTER.

A / V CONTROL DYNAMIC STANDARD SOFT PERSONAL

V I DEO ADJ UST AUDIO ADJUST

T I L T CORRECT: 0

You can adjust the picture settings to suit your taste with the VIDEO ADJUST option. The adjusted settings are stored in the PERSONAL option.

1 Press MENU.

2 Make sure the cursor (”) appears in the A/V

CONTROL menu ( ), and press ENTER.

3 Press V or v to move the cursor (”) to VIDEO

ADJUST, and press ENTER.

4 Press V or v to move the cursor (”) to the

item you want to adjust, and press ENTER.

3 Press V or v to move the cursor (”) to

DYNAMIC, STANDARD, SOFT, or PERSONAL, and press ENTER.

ENTER ENTER

Select To

DYNAMIC Receive high contrast picture with

powerful sound.

STANDARD Receive normal contrast picture with

medium listening sound.

SOFT Receive mild picture with soft sound.

PERSONAL Receive the last picture and sound

settings that are adjusted using VIDEO ADJUST and AUDIO ADJUST.

4 Press MENU to return to the normal screen.

5 Press V/b/v/B to adjust the selected item,

and press ENTER.

For details on each item, see “Description of adjustable items” below.

6 To adjust other items, repeat steps 4 and 5.

7 Press MENU to return to the normal screen.

Description of adjustable items

Item Press v/B

PICTURE Decrease picture

contrast.

COLOR Decrease color

intensity.

BRIGHT Darken the picture.

HUE Make picture tones

become reddish.

SHARP Soften the picture.

VM Decrease emphasis

on picture edges.

Press V/b

Increase picture contrast.

Increase color intensity.

Brighten the picture.

Make picture tones become greenish.

Sharpen the picture.

Increase emphasis on picture edges.

Operations

-EN

Note

• You can adjust HUE for the NTSC system only.

Page 17

If the picture is slightly snowy

You may try to improve the picture by changing the VM setting as described below:

1 Display the VIDEO ADJUST menu. 2 Press V or v to move the cursor (”) to VM, and

press ENTER.

3 Press V/b/v/B to select LOW, and press ENTER.

5 Press V/b/v/B to adjust the selected item,

and press ENTER.

For details on each item, see “Description of adjustable items” below.

6 To adjust other items, repeat steps 4 and 5.

If the picture color is abnormal when receiving programs through the ˘ (antenna) terminal

Change the color system or the TV system from the PRESET menu as described below until the color becomes normal.

1 Display the PRESET menu. 2 Press V or v to move the cursor (”) to

COL SYS or TV SYS, and press ENTER.

3 Press V/b/v/B to change the color system or the

TV system until the color becomes normal, and press ENTER.

Note

• Normally set the color system (COL SYS) to AUTO.

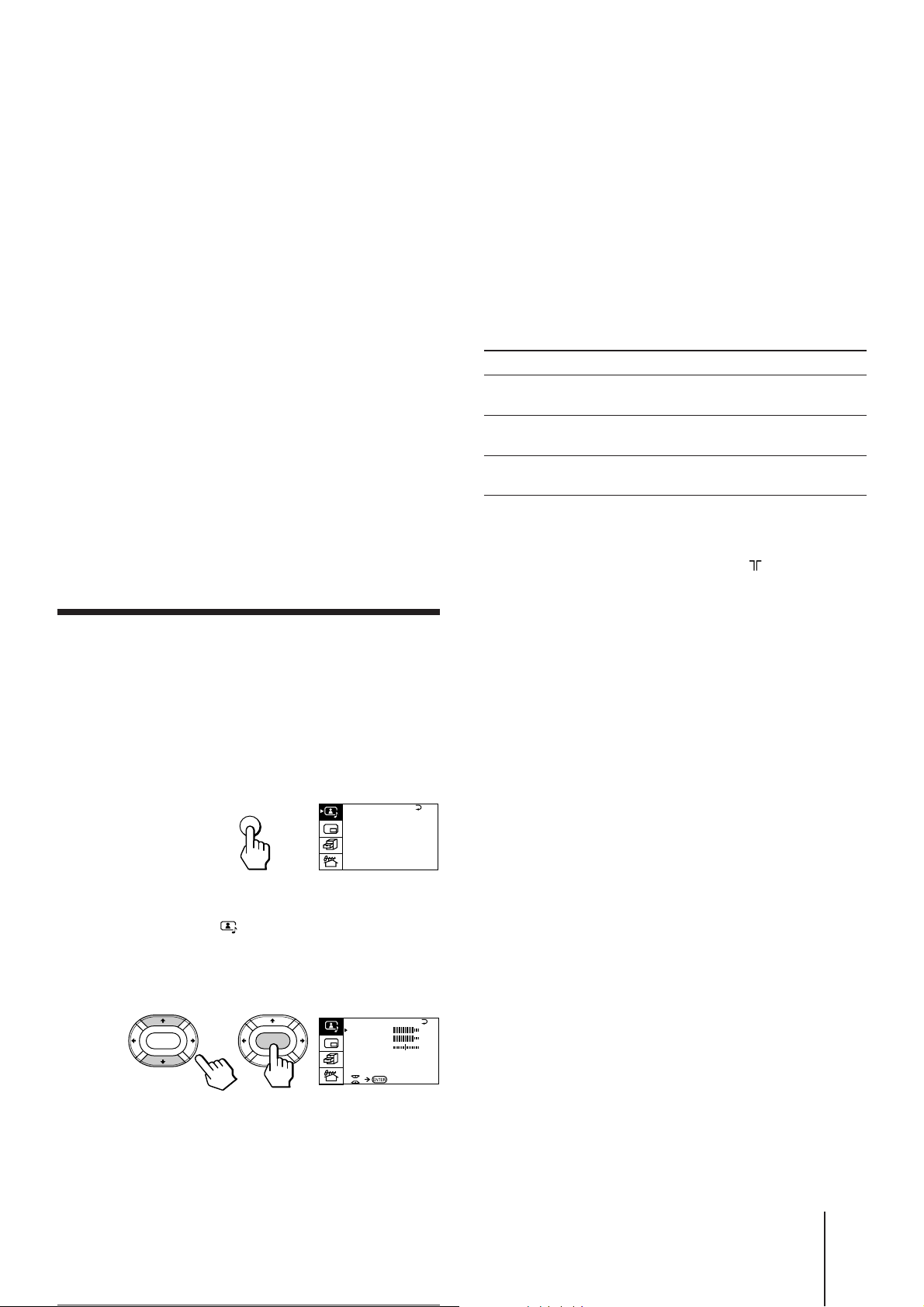

Adjusting the sound settings (AUDIO ADJUST)

You can adjust the sound settings to suit your taste with the AUDIO ADJUST option. The adjusted settings are stored in the PERSONAL option.

7 Press MENU to return to the normal screen.

Description of adjustable items

Item Press v/B

BASS Decrease the bass

sound.

TREBLE Decrease the treble

sound.

BALANCE Increase the left

speaker's volume

If the sound is distorted or noisy when receiving programs through the (antenna) terminal

Change the TV system from the PRESET menu as described below until the sound becomes normal.

1 Display the PRESET menu. 2 Press V or v to move the cursor (”) to TV SYS, and

press ENTER.

3 Press V/b/v/B to change the TV system until the

sound becomes normal, and press ENTER.

Press V/b

Increase the bass sound.

Increase the treble sound.

Increase the right speaker's volume.

1 Press MENU.

A / V CONTROL DYNAMIC STANDARD SOFT PERSONAL

V I DEO ADJ UST AUDIO ADJUST

T I L T CORRECT: 0

2 Make sure the cursor (”) appears in the A/V

CONTROL menu ( ), and press ENTER.

3 Press V or v to move the cursor (”) to

AUDIO ADJUST, and press ENTER.

AUDIO ADJUST BASS

ENTER ENTER

TREBLE BALANCE

4 Press V or v to move the cursor (”) to the

item you want to adjust, and press ENTER.

80 80 00

Operations

-EN

Page 18

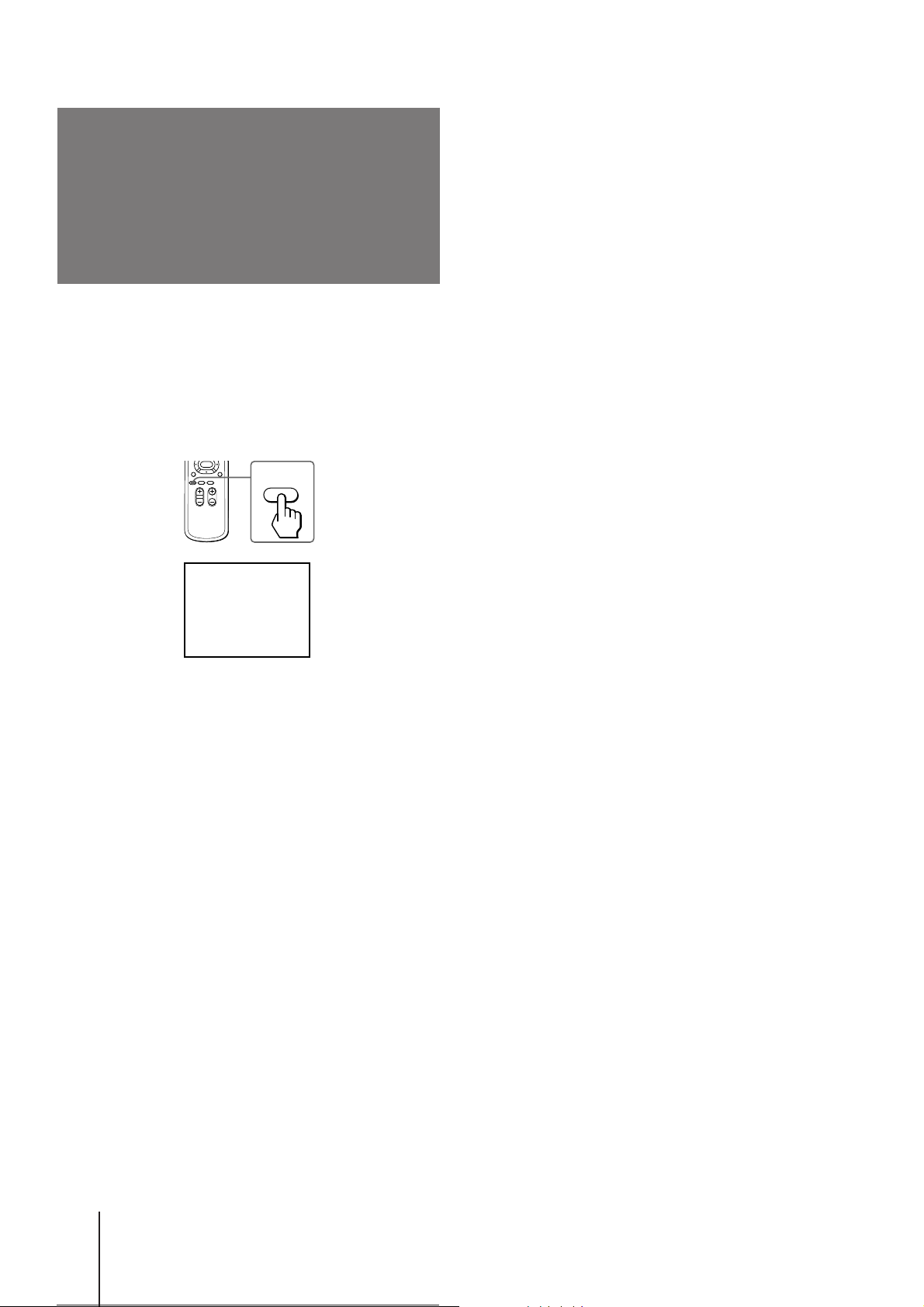

Listening to the POWER BASSO sound

The POWER BASSO sound enables you to enjoy a high quality sound mode with the best combination of all types of sound. It reproduces dynamic and clear sounds and emphasizes low and high audio effects as well.

Press POWER BASSO.

POWER

BASSO

POWER BASSO: ON

The sound mode of the TV program or the video input changes to the POWER BASSO sound.

To restore the previous sound mode

Press POWER BASSO again.

Note

• You can select any of the surround sound modes (HYPER SURROUND) to cancel the POWER BASSO sound.

-EN

Operations

Page 19

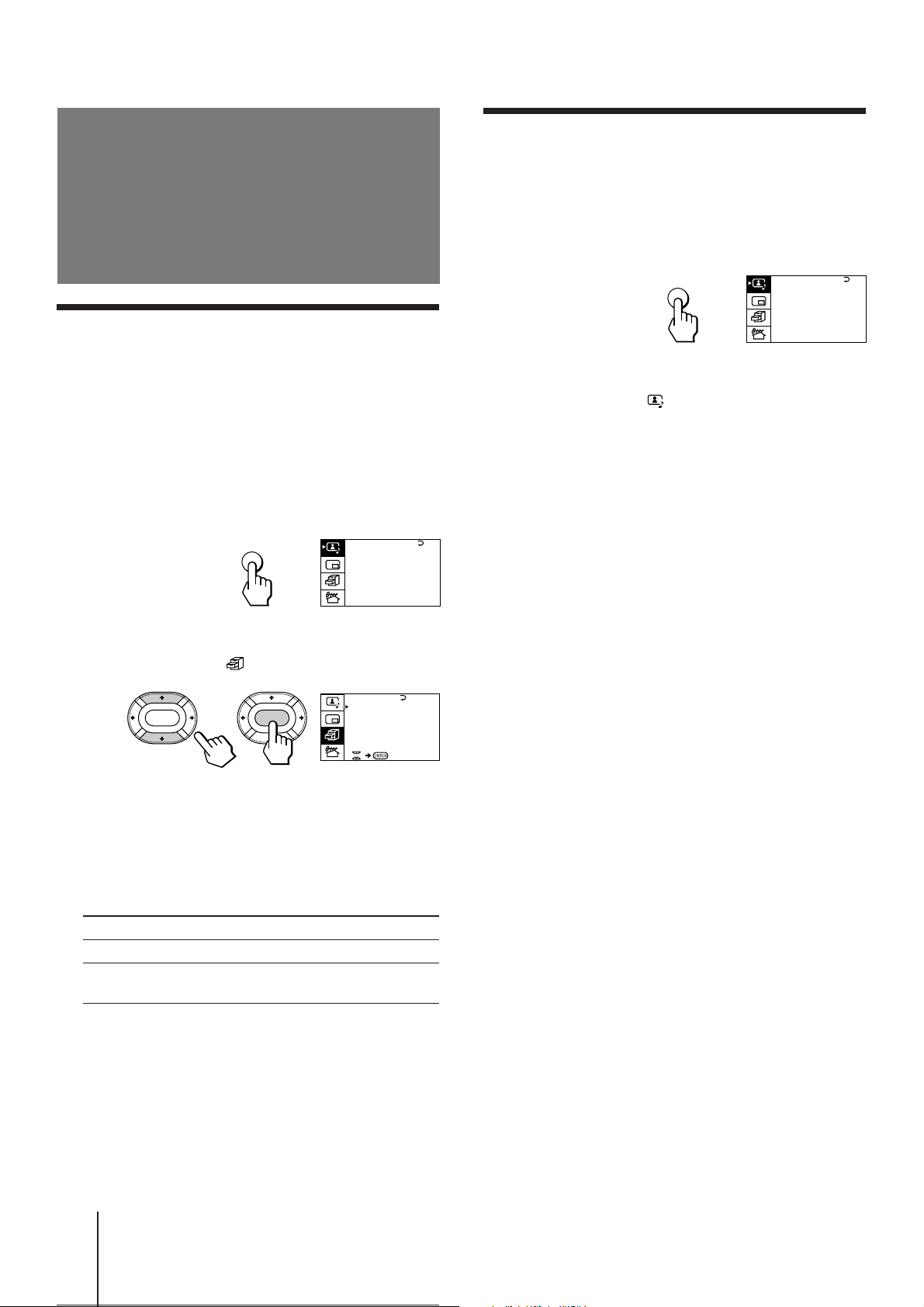

Listening to the surround sound (HYPER SURROUND)

The HYPER SURROUND feature enables you to enjoy a surround sound effect that is like being in a concert hall or movie theater when receiving stereo signals.

ENTER

1 Press MENU.

A / V CONTROL DYNAMIC STANDARD SOFT PERSONAL

V I DEO ADJ UST AUDIO ADJUST

T I L T CORRECT: 0

Description of adjustable items

Select To

MOVIE Listen to a sound that emphasizes the bass

audio effect of movie theater.

MUSIC Listen to a dynamic and clear sound that

emphasizes the low and high audio effect.

NEWS〈BBE〉 Listen to a sound that emphasizes voice. HALL〈SRS〉 Listen to a sound that spreads out over a

large area, giving the feeling of being at a concert hall.

SPACE Listen to a monaural sound that gives a

stereo-like effect.

OFF Turn off the surround sound.

Notes

• The BBE is manufactured by Sony Corporation under license from BBE Sound, Inc. It is covered by U.S. Patent No. 4,638,258 and No. 4,482,866. The word “BBE” and the BBE symbol are the trademarks of BBE Sound, Inc.

• The (r)® SRS (SOUND RETRIEVAL SYSTEM) is manufactured by Sony Corporation under license from SRS Labs, Inc. It is covered by U.S. Patent No. 4,748,669. The word “SRS” and the SRS symbol (r) are registered trademarks of SRS Labs, Inc.

2 Press V or v to move the cursor (z) to the

FEATURES MENU ( ) , and press ENTER.

FE ATURES GAME MODE

ENTER ENTER

HYPER SURROUND:

OFF

AV OUT :

MONITOR

3 Press V or v to move the cursor (z) to

HYPER SURROUND, and press ENTER.

4 Press V/b/v/B to select MOVIE, MUSIC,

NEWS〈BBE〉, HALL〈SRS〉 or SPACE, and press

ENTER.

MOVIE n MUSIC n NEWS〈BBE〉

OFF N SPACE N HALL〈SRS〉 N

For details on each item, see “Description of adjustable items“ below.

5 Press MENU to return to the normal screen.

Operations

-EN

Page 20

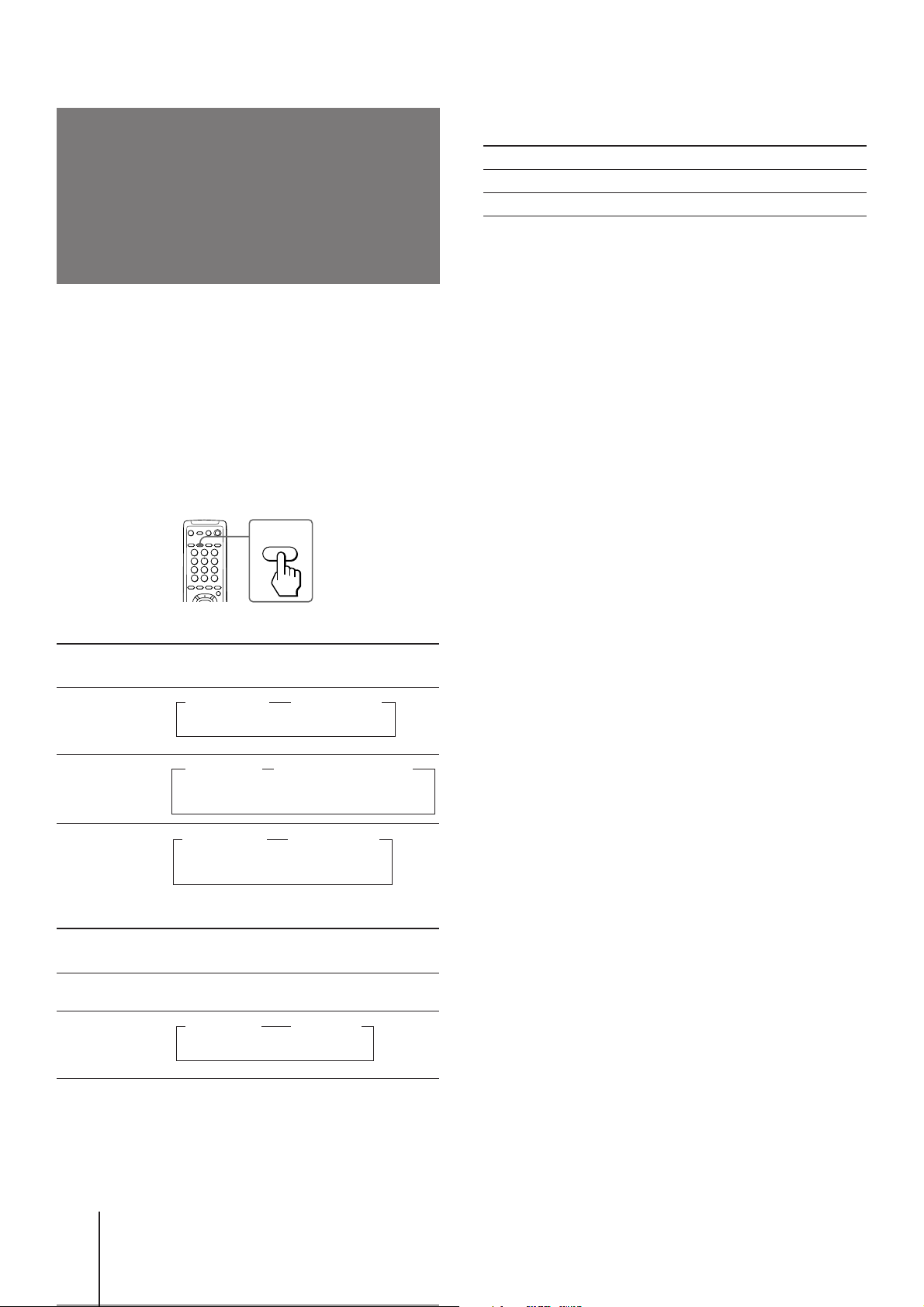

Selecting a stereo or bilingual program

p KV-E29MH1/E29MH11/E29MN11 only

You can enjoy stereo sound or bilingual programs of NICAM and A2 (German) stereo systems.

Press A/B/ENLARGE repeatedly until you receive the sound you want.

The on-screen display changes corresponding to the selected sound and the STANDBY/STEREO/WAKE UP indicator also lights up.

A/B

ENLARGE

Receiving area for NICAM and A2 (German) programs

System Receiving area

NICAM Hong Kong, Singapore, New Zealand, etc.

A2 (German) Australia, Malaysia, Thailand, etc.

Notes

• If the signal is very weak, the sound becomes monaural automatically.

• If the stereo sound is noisy when receiving a NICAM program, select “MONO.” The sound becomes monaural, however, the noise will be reduced.

When receiving a NICAM program

Broadcasting

NICAM stereo n NICAM n MONO

NICAM bilingual n NICAM n NICAM n MONO

NICAM monaural n NICAM n MONO

(Stereo sound) (Regular sound)

(Main sound) (Sub sound)

(Main sound)

On-screen display

(Selected sound)

MAIN SUB (Regular sound)

MAIN (Regular sound)

When receiving an A2 (German) program

Broadcasting

A2 (German) stereo

A2 (German) bilingual

n MAIN n SUB

(Main sound) (Sub sound)

On-screen display

(Selected sound)

STEREO

(Stereo sound)

-EN

Operations

Page 21

Viewing multiple

A / V CONTROL DYNAMIC

SOFT

STANDARD PERSONAL

V I DEO ADJ UST AUDIO ADJUST

T I L T CORRECT: 0

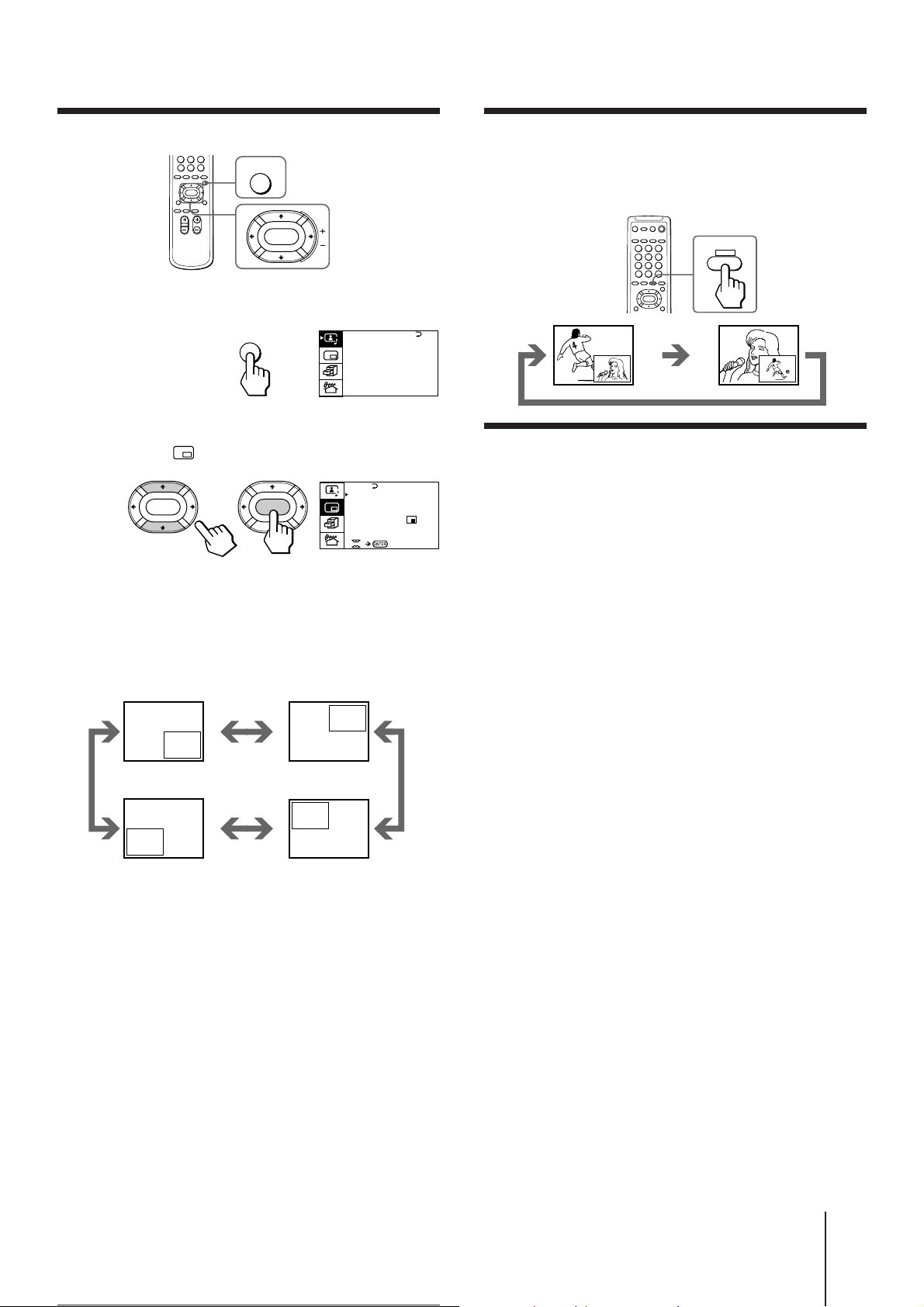

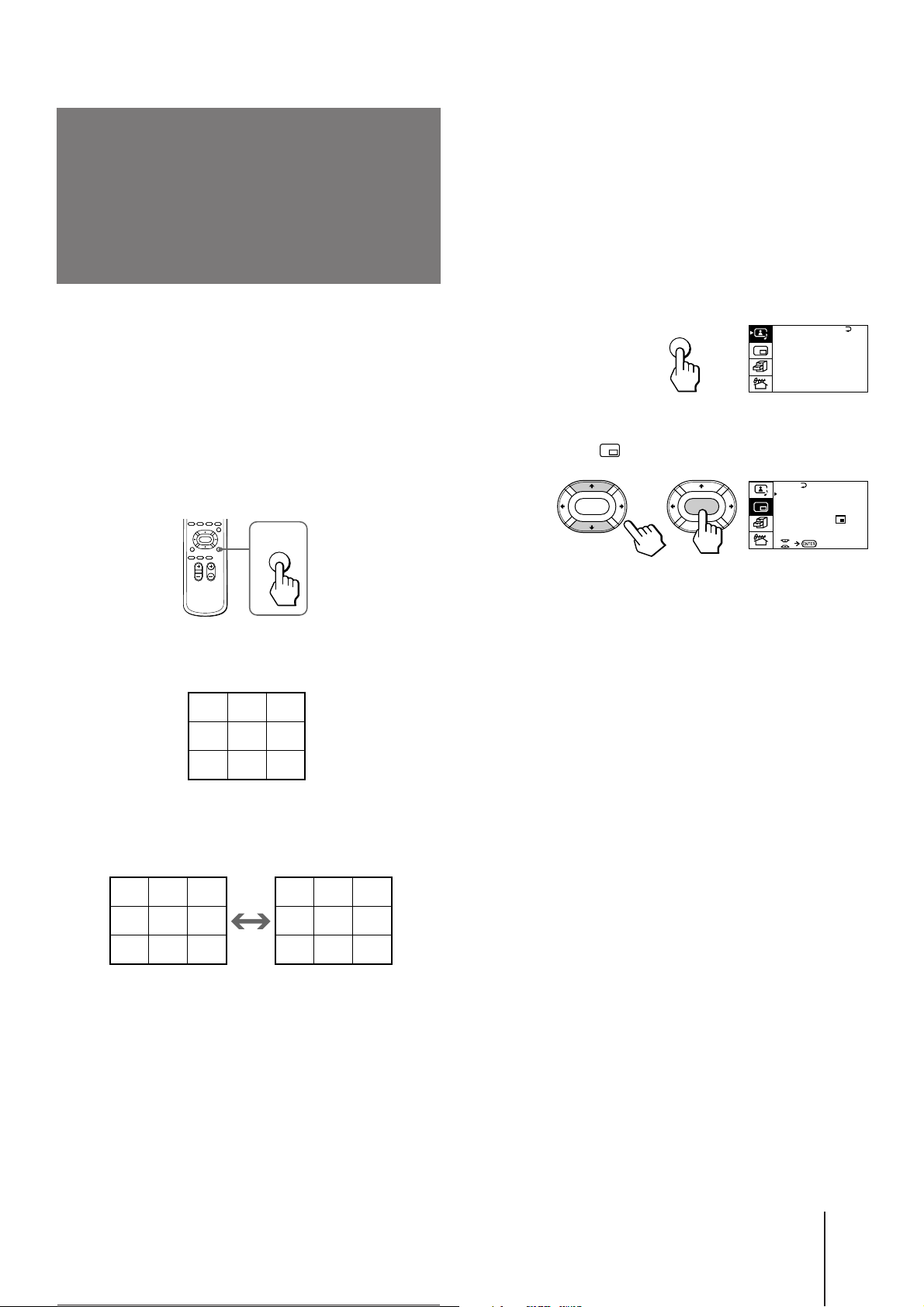

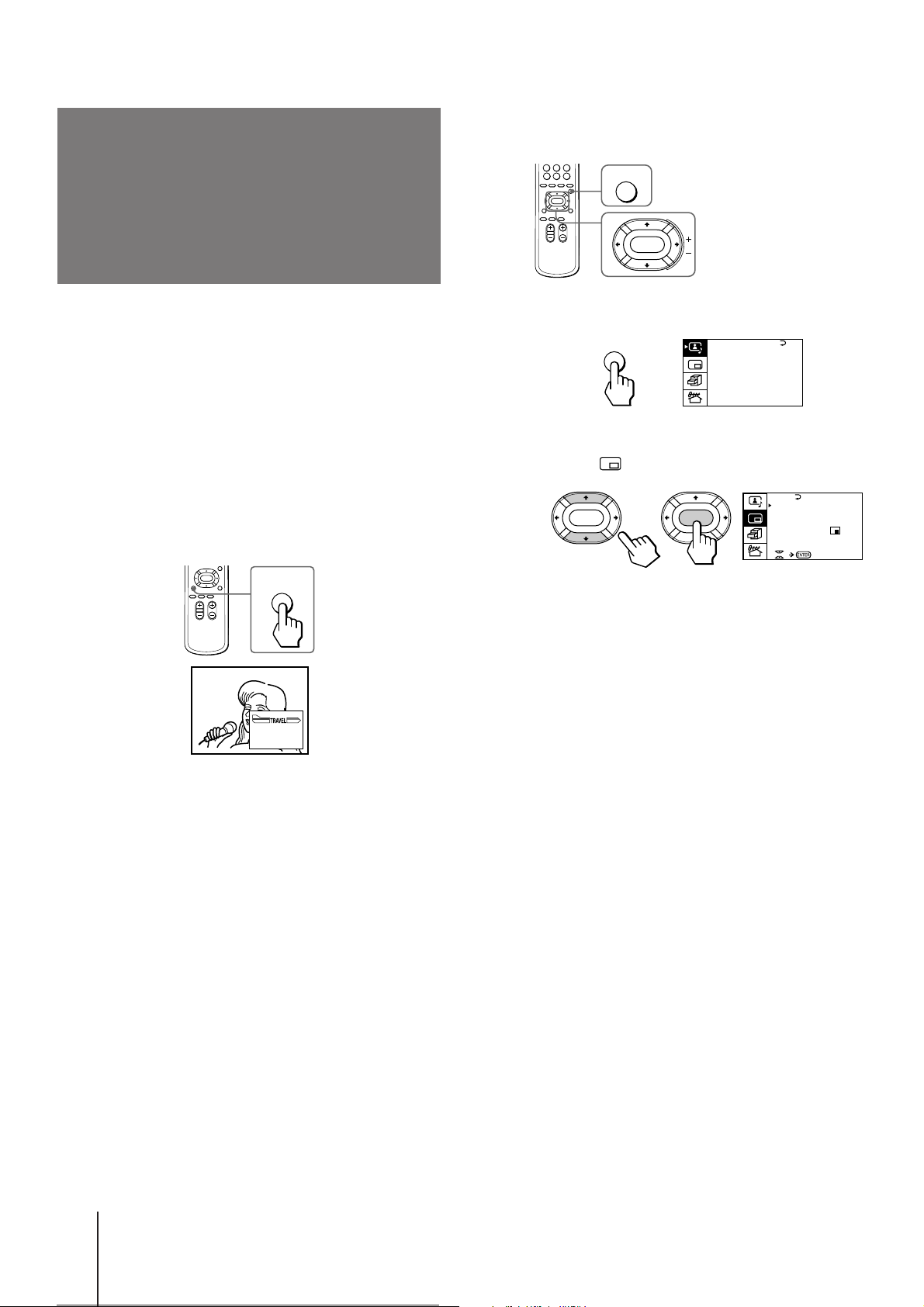

programs at the same time (PROGRAM INDEX)

The PROGRAM INDEX feature allows you to view all the preset TV programs and the video inputs on the nine sub screens within the main screen at the same time.

To restore the normal screen

Press PROGR INDEX again or PIP. You can also select PROGR INDEX or PIP : OFF from the PIP menu, and press ENTER to restore the normal screen.

To view multiple programs on the nine sub screens using the menu

1 Press MENU.

You can view multiple programs on the nine sub screens using the button on the remote commander or the menu.

Press PROGR INDEX.

PROGR

INDEX

The first nine preset programs appear on the nine sub screens.

>>>

123

456

789

To view the next or the previous nine preset programs on the nine sub screens

Press PROGR +/– on the remote commander or the TV.

2 Press V or v to move the cursor (z) to the

PIP menu ( ), and press ENTER.

PIP PROGR I NDE X

ENTER ENTER

PIP TEXT STRO BE POS I T I ON: PIP: OFF

3 Make sure the cursor (z) appears beside

PROGR INDEX, and press ENTER.

Notes

• You can change the position of the nine sub screens using the

PIP menu (as described in “Changing the position of the PIP screen” on page 23).

• You can hear the sound of the main screen when viewing

multiple programs on the nine sub screens.

• You can use the number buttons on the remote commander to

change the program position of the main screen when viewing multiple programs on the nine sub screens.

>>> >>>

10 11 12

V1 V2 V3

123

456

789

To select the program you want to watch directly after viewing multiple programs on the nine sub screens

Press the number buttons, VIDEO/HOLD, or press

V/b/v/B to move the cursor (>>>) that appears on the

first screen to the screen of the program you want to watch, and press ENTER.

Operations

-EN

Page 22

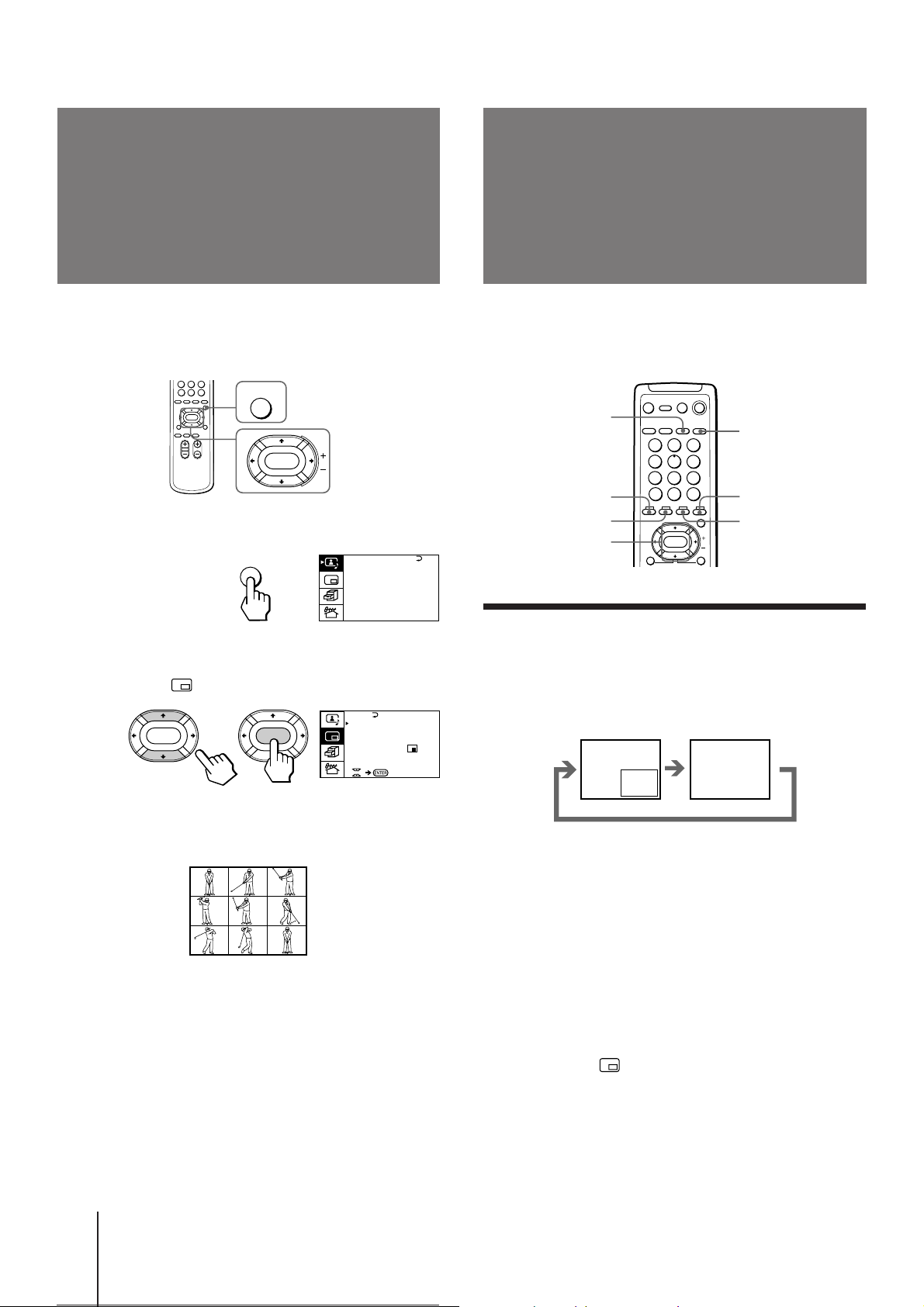

Displaying frame-

Using the Picture-in-

by-frame pictures (STROBE)

You can watch a slow motion movement of the main screen picture which is displayed frame-by-frame on the nine sub screens within the main screen.

ENTER

1 Press MENU.

A / V CONTROL DYNAMIC STANDARD SOFT PERSONAL

V I DEO ADJ UST AUDIO ADJUST

T I L T CORRECT: 0

Picture (PIP) features

With the Picture-in-Picture (PIP) feature, you can display a sub screen within the main picture of different TV programs or video inputs.

VIDEO/HOLD

TV/VIDEO

FREEZE

V/v/ENTER

Displaying the PIP screen

PIP

SWAP

2 Press V or v to move the cursor (z) to the

PIP menu ( ), and press ENTER.

PIP PROGR I NDE X

ENTER ENTER

PIP TEXT STRO BE POS I T I ON: PIP: OFF

3 Press V or v to move the cursor (z) to

STROBE, and press ENTER.

To restore the normal screen

Select STROBE again or PIP : OFF from the PIP menu, and press ENTER. You can also press TV, VIDEO/HOLD, PROGR +/–, or PIP to restore the normal screen.

Notes

• You can change the position of the nine sub screens using the PIP menu (as described in "Changing the position of the PIP screen" on page 23).

• You can hear the normal sound when using the STROBE feature.

Operations

-EN

You can display the PIP screen using the button on the remote commander or the menu.

Press PIP.

Selecting a TV program or video input in the PIP screen

To select a TV program, press V or v, and press ENTER. To select a video input, press TV/VIDEO.

To display the PIP screen using the menu

1 Press MENU. 2 Press V or v to move the cursor (”) to the

PIP menu ( ), and press ENTER.

3 Press V or v to move the cursor (”) to PIP,

and press ENTER.

4 Press V/b/v/B to select ON, and press ENTER. 5 Press MENU to return to the normal screen.

Page 23

Changing the position of the PIP screen

Swapping pictures between the main and PIP screens

Press SWAP.

ENTER

1 Press MENU.

A / V CONTROL DYNAMIC STANDARD SOFT PERSONAL

V I DEO ADJ UST AUDIO ADJUST

T I L T CORRECT: 0

2 Press V or v to move the cursor (”) to the

PIP menu ( ), and press ENTER.

PIP PROGR I NDE X

ENTER ENTER

PIP TEXT STRO BE POS I T I ON: PIP: OFF

3 Press V or v to move the cursor (z) to

POSITION, and press ENTER.

4 Press V/b/v/B to select the position you

want, and press ENTER.

SWAP

Freezing the PIP screen

Press FREEZE.

The PIP screen will freeze.

To restore the normal screen

Press FREEZE again.

Notes

• When you display a video input on the PIP screen at an abnormal speed, the picture may be noisy depending on the VCR.

• If you display different color systems on the main screen and the PIP screen, the size of the PIP screen may be different and the PIP picture may be noisy. This does not indicate a malfunction of the TV.

5 Press MENU to return to the normal screen.

Operations

-EN

Page 24

Viewing Teletext

Checking the contents of a Teletext service (INDEX)

Press WAKE UP/INDEX to display an overview of the Teletext contents and page numbers.

Using FASTEXT

p KV-E29MH11/E29MN11 only

TV stations broadcast an information service called Teletext via a TV channel. Teletext service allows you to receive various information such as weather forecasts or news at any time.

DISPLAY/REVEAL VIDEO/HOLD

A/B/ENLARGE

TEXT

Green

Red

WAKE UP/INDEX

8 0

Number

Yellow

Blue

SLEEP/TEXT CLR

PROGR +/–

This feature allows you to quickly access a Teletext page that uses FASTEXT. When a FASTEXT program is broadcasted, the colored menus appear at the bottom of the screen. The colors of the menus correspond to the red (TV/VIDEO), green (FREEZE), yellow (SWAP), and blue (PIP) color-coded buttons on the remote commander.

To access a FASTEXT menu

Press the color-coded button on the remote commander that corresponds to the colored menu which appears at the bottom of the screen. The menu page appears on the screen after several seconds.

Selecting a Teletext page

Press the number buttons to enter the threedigit page number of the Teletext page you want.

If you make a mistake, re-enter the correct page number.

Displaying Teletext

1 Select a TV channel that carries the Teletext

broadcast you want to watch.

2 Press TEXT to display the Teletext.

A Teletext page (normally the index page) is displayed. If there is no Teletext broadcast, “100” is displayed at the top left corner of the screen.

To turn off Teletext

Press TV.

Superimposing a Teletext page on the TV picture

Press TEXT.

Each time you press TEXT, the screen changes as follows:

n Teletext n Teletext and TV n TV

To access the next or previous page

Press PROGR +/–.

You can also access a Teletext page of any page numbers that appear in the colored column at the bottom of the screen using the corresponding colorcoded button on the remote commander.

Holding a Teletext page (HOLD)

A Teletext page may consist of several subpages. You can stop the page scrolling in order to read the text at your own pace.

Press VIDEO/HOLD.

The HOLD symbol “H” appears at the top left corner of the screen.

To resume normal Teletext operation

Press VIDEO/HOLD again or TEXT.

-EN

Operations

Page 25

Revealing concealed information (REVEAL)

The REVEAL option lets you disclose concealed information, such as an answer to a quiz that you find on some of the Teletext pages.

Press DISPLAY/REVEAL.

To conceal the information

Press DISPLAY/REVEAL again.

Enlarging the Teletext display (ENLARGE)

Press A/B/ENLARGE.

Each time you press A/B/ENLARGE, the Teletext display changes as follows:

n Enlarge upper half n Enlarge lower half

Normal size N

Waiting for a Teletext page while watching a TV program (TEXT CLEAR)

1 Key in the page number of the Teletext that

you want to refer, then press SLEEP/ TEXT CLR.

2 When the page number is displayed on the

screen, press TEXT to turn on the Teletext.

Operations

-EN

Page 26

ENTER

Displaying Teletext

PIP

PIP: OFF

PIP TEXT STRO BE POS I T I ON:

PROGR I NDE X

ENTER ENTER

on the PIP screen (PIP TEXT)

To display a Teletext page on the PIP screen using the menu

p KV-E29MH11/E29MN11 only

The PIP TEXT feature enables you to display a Teletext page on the PIP screen while watching a TV program.

You can display the Teletext on the PIP screen using the button on the remote commander or the menu.

1 Select a TV channel that carries the Teletext

broadcast you want to watch.

2 Press PIP TEXT.

PIP

TEXT

P166 SECTEXT 166 FR1 MAR 03:59:09

Fom Singapore

Day Dep/Arr Flight Alrcraft

1.6 220/0588 SQ28 747

To PARIS

2 2130/1225 PA115 L15 3 2115/1330 SQ26 747

2.5 1000/1715 SQ6 747

To OSAKA

4.6 0930/2015 CX522 L10 747

2.7 2130/0745 SQ24

To ROMA

4 2300/0915 AZ487 747 1 2210/0610 SQ21A 747

To SYDNEY

2 2100/0835 SQ21A 747

To restore the normal screen

Press PIP TEXT again, TV, VIDEO/HOLD, or PROGR +/–. You can also select PIP : OFF from the PIP menu, and press ENTER to restore the normal screen.

1 Press MENU.

A / V CONTROL DYNAMIC STANDARD SOFT PERSONAL

V I DEO ADJ UST AUDIO ADJUST

T I L T CORRECT: 0

2 Press V or v to move the cursor (z) to the

PIP menu ( ) , and press ENTER.

3 Press V or v to move the cursor (z) to PIP

TEXT, and press ENTER.

4 Press V/b/v/B to select the Teletext page you

want to watch.

Notes

• You can also use the color-coded buttons (see page 24) while displaying a Teletext page on the PIP screen.

• To select a Teletext page on the PIP screen, press V/b/v/B once only. If you press V/b/v/B continuously, the Teletext page numbers also change continuously at a fast speed.

• You can change the position of a Teletext page on the PIP screen using the PIP menu (as described in "Changing the position of the PIP screen" on page 23).

Operations

-EN

Page 27

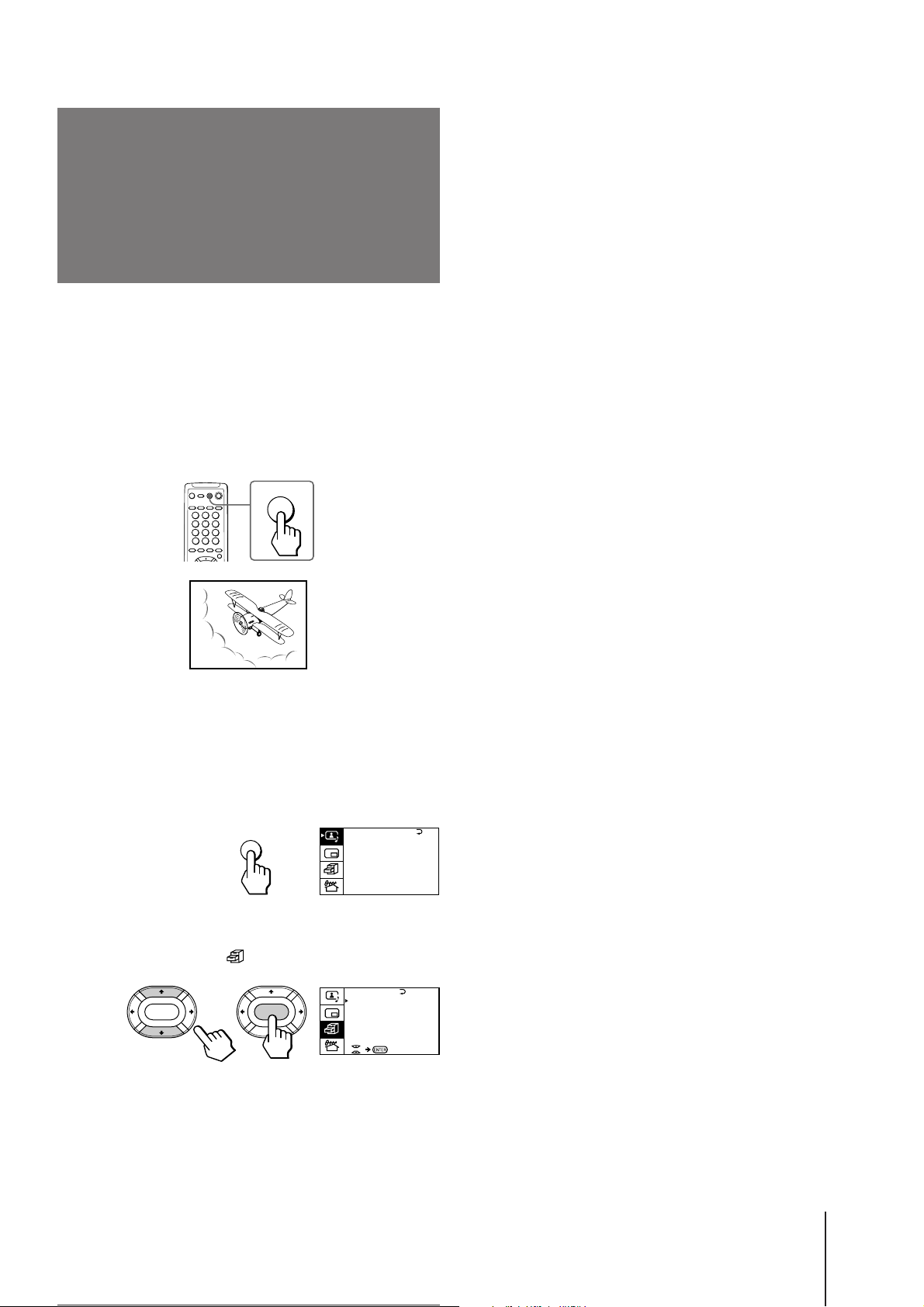

Viewing a video

To restore the normal picture and sound modes

Press TV, VIDEO/HOLD, or PROGR +/–.

game screen (GAME MODE)

The GAME MODE feature enables you to view a video game screen in the optimum mode that gives soft picture and dynamic sound effect.

You can display a video game screen using the button on the remote commander or the menu.

Press GAME.

GAME

Notes

• If you press the GAME button when the TV is in the standby mode, the TV turns on automatically and the picture and sound change to the mode that is suitable for a video game.

• To display a video game screen, connect the video game

equipment to the VIDEO 3 INPUT jacks at the front of the TV or the VIDEO IN 3 jacks at the rear of the TV.

The picture and sound change to the mode that is suitable for a video game.

To view a video game screen using the menu

1 Press MENU.

A / V CONTROL DYNAMIC STANDARD SOFT PERSONAL

V I DEO ADJ UST AUDIO ADJUST

T I L T CORRECT: 0

2 Press V or v to move the cursor (z) to the

FEATURES menu ( ), and press ENTER.

FE ATURES GAME MODE

ENTER ENTER

HYPER SURROUND:

OFF

AV OUT :

MONITOR

3 Make sure the cursor (z) appears beside

GAME MODE, and press ENTER.

Operations

-EN

Page 28

Customizing the TV

A / V CONTROL DYNAMIC

SOFT

STANDARD PERSONAL

V I DEO ADJ UST AUDIO ADJUST

T I L T CORRECT: 0

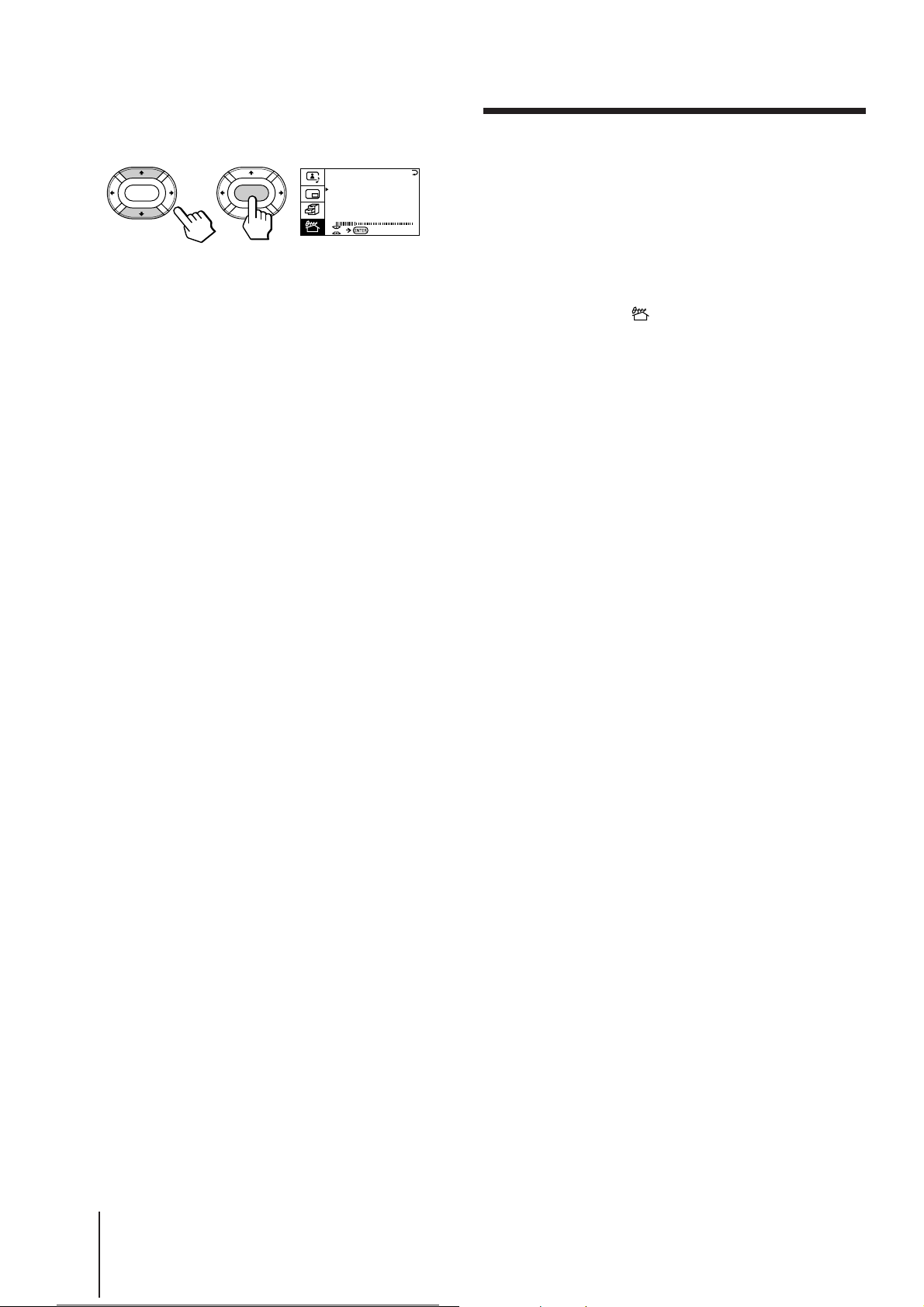

Using the AV OUT (advanced rec-out) terminal

Adjusting the picture tilt

You can adjust the picture tilt if it is not aligned to the TV screen. This may happen due to the direction of the earth’s magnetic fields in relation to the TV position.

1 Press MENU.

You can select the output signal from the MON/TV OUT jacks at the rear of the TV. However, the signals of the PROGRAM INDEX, STROBE, PIP modes, and the Teletext broadcast (for KV-E29MH11/E29MN11 only) cannot be output even though MONITOR is selected.

1 Press MENU.

A / V CONTROL DYNAMIC STANDARD SOFT PERSONAL

V I DEO ADJ UST AUDIO ADJUST

T I L T CORRECT: 0

2 Press V or v to move the cursor (z) to the

FEATURES menu ( ), and press ENTER.

FE ATURES

GAME MODE

ENTER ENTER

HYPER SURROUND:

OFF

AV OUT :

MONITOR

3 Press V or v to move the cursor (z) to AV

OUT, and press ENTER.

2 Make sure the cursor (z) appears in the A/V

CONTROL menu ( ), and press ENTER.

3 Press V or v to move the cursor (z) to TILT

CORRECT, and press ENTER.

4 Press V/b/v/B to select the most suitable

value to adjust the picture tilt, and press ENTER.

TILT CORRECT:

–5 N –4 N –3 N –2 N –1 N 0 n +1 n +2 n +3 n+4 n +5

Press v/B Press V/b

4 Press V/b/v/B to select the output signal,

and press ENTER.

Select To

TV Output the signal of the TV broadcast.

MONITOR Output the signal of the picture you are

watching as a main picture.

Note

• Do not change the channel while recording with a VCR through the MON/TV OUT jacks. If you change the channel, it also changes the channel you are recording.

Operations

-EN

Page 29

Additional Information

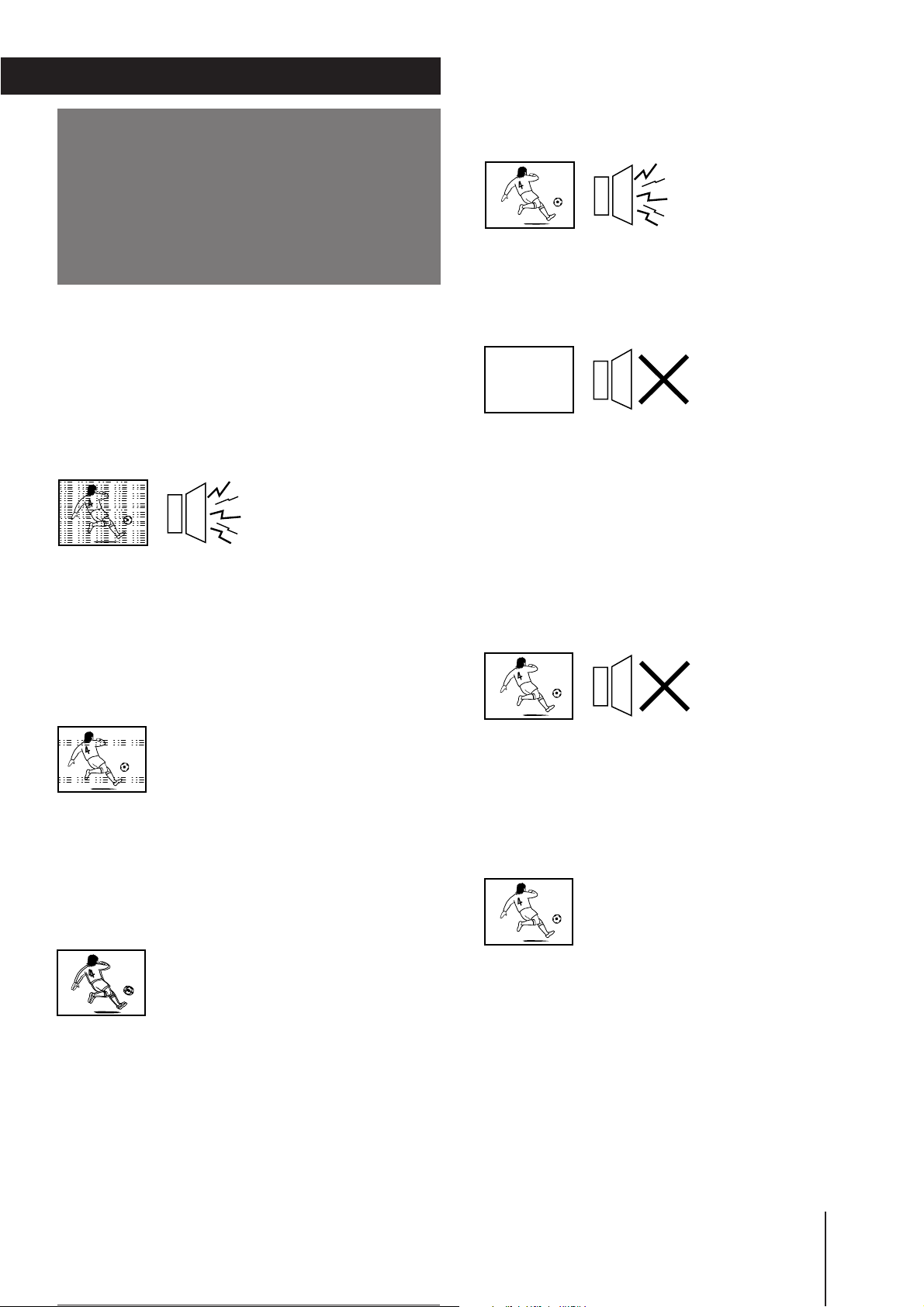

Troubleshooting

Good picture Noisy sound

/ Check the TV system (TV SYS) setting.

If you have any problems, read this manual again and check the countermeasure for each of the symptoms listed below. If the problem persists, contact your nearest Sony dealer or authorized service center.

Snowy picture Noisy sound

/ Check the antenna. / Check the antenna connection on the TV

and on the wall.

/ Check the TV system (TV SYS) setting. / Check the ATT (attenuator) setting.

Dotted lines or stripes

/ This may be caused by local interference

(e.g. cars, neon signs, hair dryers, etc.). Adjust the antenna for minimum interference.

No picture No sound

/ Press POWER. / Press MAIN POWER to turn off the TV for

about five seconds and then turn it on again.

/ Check the power cord connection. / Check the antenna connection. / Check the VCR connections.

Good picture No sound

/ Press VOL +. / Press MUTING. / Press A/B/ENLARGE (KV-E29MH1/

E29MH11/E29MN11).

No color

Double images or “ghosts”

/ This may be caused by reflections from

nearby mountains or buildings. A highly directional antenna may improve the picture.

/ Adjust the COLOR level in the VIDEO

ADJUST menu of the PERSONAL option.

/ Check the color system (COL SYS) setting.

TV cabinet creaks

/ Even if the picture or the sound is normal,

changes in the room temperature sometimes make the TV cabinet expand or contract, making a noise. This does not indicate a malfunction.

Additional Information

Operations

-EN

Page 30

Specifications

KV-E29MF1, KV-E29MF1S, KV-E29MH1, Note KV-E29MH11, KV-E29MN11

Power requirements

Power consumption (W)

Television system

Color system

Stereo system

Teletext language

Channel coverage

B/G

D/K

Antenna

Audio output (speaker)

Number of terminal

Video

Audio

S Video

Headphone

Picture tube

Tube size (cm)

Screen size (cm)

Dimensions (w/h/d, mm)

Mass (kg)

Accessory (optional)

110-240 V AC, 50/60 Hz

Indicated on the rear of TV

B/G, I, D/K, M

PAL, PAL 60, SECAM, NTSC4.43, NTSC3.58

NICAM Stereo B/G, I ; A2 Stereo (German) B/G KV-E29MH1/E29MH11/E29MN11

English, German, Swedish, Italian, French, Spanish KV-E29MH11/E29MN11

VHF : E2 to E12 / UHF : E21 to E69 / CATV : S01 to S03, S1 to S41

UHF : B21 to B68 / CATV : S01 to S03, S1 to S41

VHF : C1 to C12, R1 to R12 / UHF : C13 to C57

R21 to R60 / CATV: Z1 to Z39, S01 to S03, S1 to S41

VHF : A2 to A13 / UHF : A14 to A79/ CATV: A-8 to A-2, A to W+4, W+6 to W+84

75-ohm external terminal

15W + 15W

Input: 4 Output: 1 Phono jacks; 1 Vp-p, 75 ohms

Input: 4 Output: 1 Phono jacks; 500 mVrms

Input: 2 Y: 1 Vp-p, 75 ohms, unbalanced, sync

Output: 1 Minijack

29 in. (Super Trinitron Plus)

72 Measured diagonally

68 Measured diagonally

706 × 577 × 525

48.5

TV stand (SU-E29G)

negative

C: 0.286 Vp-p, 75 ohms

Sony Corporation Tokyo, Japan

Design and specifications are subject to change without notice.
