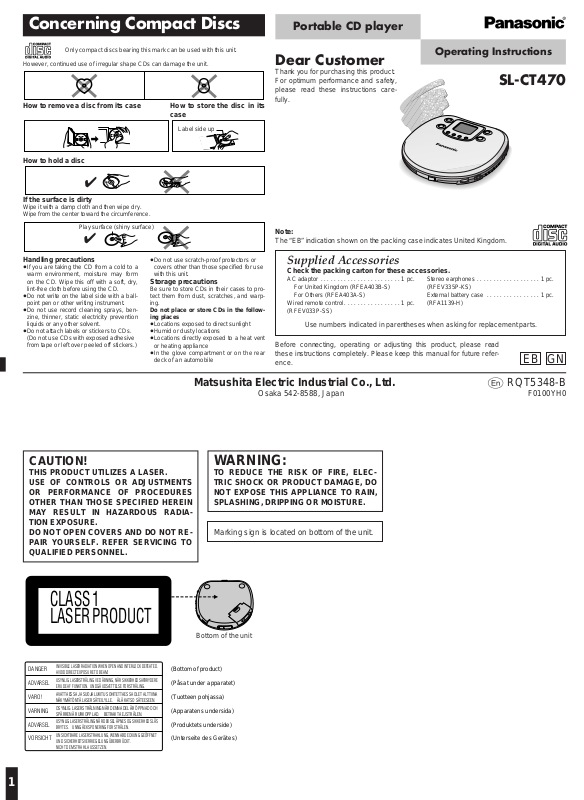

Concerning Compact Discs
Only compact discs bearing this mark can be used with this unit.
However, continued use of irregular shape CDs can damage the unit.
How to remove a disc from its case |
How to store the disc in its |
|
case |
|
Label side up |
How to hold a disc |
|
If the surface is dirty |
|
Wipe it with a damp cloth and then wipe dry. |
|
Wipe from the center toward the circumference. |
|
Play surface (shiny surface) |
|
Portable CD player
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully.
Operating Instructions
SL-CT470
Note:
The “EB” indication shown on the packing case indicates United Kingdom.
Handling precautions
³If you are taking the CD from a cold to a warm environment, moisture may form on the CD. Wipe this off with a soft, dry, lint-free cloth before using the CD.
³Do not write on the label side with a ballpoint pen or other writing instrument.
³Do not use record cleaning sprays, benzine, thinner, static electricity prevention liquids or any other solvent.
³Do not attach labels or stickers to CDs. (Do not use CDs with exposed adhesive from tape or left over peeled off stickers.)
³Do not use scratch-proof protectors or covers other than those specified for use with this unit.
Storage precautions
Be sure to store CDs in their cases to protect them from dust, scratches, and warping.
Do not place or store CDs in the following places
³Locations exposed to direct sunlight ³Humid or dusty locations
³Locations directly exposed to a heat vent or heating appliance
³In the glove compartment or on the rear deck of an automobile
Supplied Accessories
Check the packing carton for these accessories.
AC adaptor . . . . . . . . . . . . . . . . . . . . . . . . |
1 pc. |
Stereo earphones . . . . . . . . . . . . . . . . . . . |
1 pc. |
For United Kingdom (RFEA403B-S) |
|
(RFEV335P-KS) |
|
For Others (RFEA403A-S) |
|
External battery case . . . . . . . . . . . . . . . . |
1 pc. |
Wired remote control . . . . . . . . . . . . . . . . . |
1 pc. |
(RFA1139-H) |
|
(RFEV033P-SS) |
|
|
|
Use numbers indicated in parentheses when asking for replacement parts.
Before connecting, operating or adjusting this product, please read |
|
these instructions completely. Please keep this manual for future refer- |
EB GN |
ence. |
Matsushita Electric Industrial Co., Ltd. |
pRQT5348-B |
Osaka 542-8588, Japan |
F0100YH0 |
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPLIANCE TO RAIN, SPLASHING, DRIPPING OR MOISTURE.
Marking sign is located on bottom of the unit.
CLASS 1
LASER PRODUCT
Bottom of the unit
DANGER |
INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. |
|
AVOID DIRECT EXPOSURE TO BEAM. |
||
|
||
ADVARSEL |
USYNLIG LASERSTRÅLING VED ÅBNING, NÅR SIKKERHEDSAFBRYDERE |
|
ER UDE AF FUNKTION. UNDGÅ UDSÆTTELSE FOR STRÅLING. |
||
|
||
VARO! |
AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA |
|
NÄKYMÄTÖNTÄ LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN. |
||
|
||
VARNING |
OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH |
|
SPÄRREN ÄR URKOPPLAD. BETRAKTA EJ STRÅLEN. |
||
|
||
ADVARSEL |
USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES OG SIKKERHEDSLÅS |
|
BRYTES. UNNGÅ EKSPONERING FOR STRÅLEN. |
||
|
||
VORSICHT |
UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET |
|
|
UND SICHERHEITSVERRIEGELUNG ÜBERBRÜCKT. |
|
|
NICHT DEM STRAHL AUSSETZEN. |
(Bottom of product)
(Påsat under apparatet)
(Tuotteen pohjassa)
(Apparatens undersida)
(Produktets underside)
(Unterseite des Gerätes)
1
Power Supply Preparations
Refer to the specifications (page 6) for information on operating times when using rechargeable batteries or dry-cell batteries.
Using the AC adaptor
Connect the AC adaptor supplied.
DC IN jack (KDC IN 4.5 V)
H o u s e h o l d
mains socket
Back panel of the unit
AC adaptor
Note!
³The configuration of the AC adaptor differs according to the area.
³The unit is in the standby condition when the AC adaptor is connected. The primary circuit is always “live” as long as the AC adaptor is connected to an electrical outlet.
Note!
³Rechargeable batteries have a service life of approximately 300 charge-discharge cycles. If the operating time on one full charge becomes noticeably shorter than it used to be, the battery has reached the end of its service life and should be replaced.
³Recharging may only be performed when the unit is powered off. (It is not possible to recharge the batteries while playing a CD.)
³The AC adaptor and rechargeable batteries may become warm while recharging is in progress. This is not a malfunction.
If the battery lid |
Removing batteries |
comes loose |
Push up on the battery in |
Slide the lid back into |
the direction indicated by |
place horizontally. |
the arrow. Then lift it out. |
Using rechargeable batteries (not included)
Make sure to recharge the batteries before using them. The unit cannot be used to charge rechargeable batteries other than those specially designed for it.
³Optional batteries
For United Kingdom (HHR-4AHE/2B) For others (HHR-4AHT/2B)
Recharging procedure
1 Insert the special rechargeable batteries into the unit.
2
3
1
-+
Using dry-cell batteries (not included)
After disconnecting the AC adaptor, insert two LR03 (UM-4) alkaline batteries.
The procedure for inserting and removing dry-cell batteries is identical to that for rechargeable batteries.
When the battery indicator flashes
Battery indicator
S-XBS A.SHOCK
2 Connect the AC adaptor.
Refer to “Using the AC adaptor” for connection instructions.
Recharging starts and the “H” charging indicator flashes on and off on the unit’s display.
When the rechargeable batteries are fully recharged, the charging indicator disappears.
3 When recharging is complete, unplug the AC adaptor from the household mains socket and the DC IN jack.
Power is cut off a short while later. Recharge the rechargeable batteries or replace the dry-cell batteries with new ones.
Note!
³The length of time the unit will continue to operate between when the battery indicator starts flashing and when the power is cut off differs depending on the type of batteries used.
³The battery indicator may not be displayed if rechargeable batteries other than those designated by Panasonic are used.
Using the car adaptor (not included)
Be sure to obtain the car adaptor (SH-CDC9), available as an optional accessory.
The car adaptor can be used to recharge the unit’s batteries while in the car.
Using the external battery case
The external battery case allows you to extend the maximum playing time of the unit by loading an additional two LR6 (UM-3) (not included) alkaline batteries.
1 Open the cover of the external battery case and insert the batteries.
Insert the end
marked (j) first. -
+
-
+
2 Mount the external battery case on
the unit. |
Screw |
|
Insert the protrusions |
Bottom of |
|
the external battery |
||
the unit |
||
into the three |
||
|
||
indentations in the unit |
|
3 Secure in place with the screw.
Reverse the above procedure to remove the external battery case.
For your reference:
³The unit can be powered by the batteries in the external battery case alone. No batteries need to be loaded in the player.
³The maximum playing time will differ depending on the type of batteries (rechargeable/dry-cell) loaded in the unit.
If the cover of the external battery case comes loose: 2
Insert the protrusions into the holes on either end of the case.
Note! |
1 |
³Though you can use rechargeable batteries in the external battery case, it does not recharge them. (Use dry-cell batteries if possible.)
³If rechargeable batteries and dry-cell batteries are used together, make sure to use fully charged rechargeable batteries and new dry-cell batteries.
³When using four dry-cell batteries, do not mix new and old batteries.
If the unit malfunctions or freezes during use, disconnect the power sources (the AC adaptor or batteries).
Re-connect the power source and continue operation.
HOLD Function
s |
r |
|
|
VOLUME |
HOLD2 |
|
|
HOLD
HOLD
|
|
|
|
|
|
2 |
|
HOLD mode |
|
|
|
|
|
|
This function causes the unit to ignore short, accidental button presses. (The disc lid can still be opened and closed.)
The HOLD function prevents the following:
³Powering on the unit accidentally (which can cause the batteries to run down).
³Play being cut off unexpectedly in the middle of a selection.
To use the HOLD function
Set [HOLD] to the HOLD position.
The unit and wired remote control have HOLD functions, each of which works independently.
“(” indication
When the unit is in HOLD mode, pressing any button causes the indication “(” to appear on the display.
When the unit is powered off
The “(” indication appears only when [1;] is pressed.
Before operating the buttons
Be sure to move [HOLD] to release the unit from the HOLD mode.
