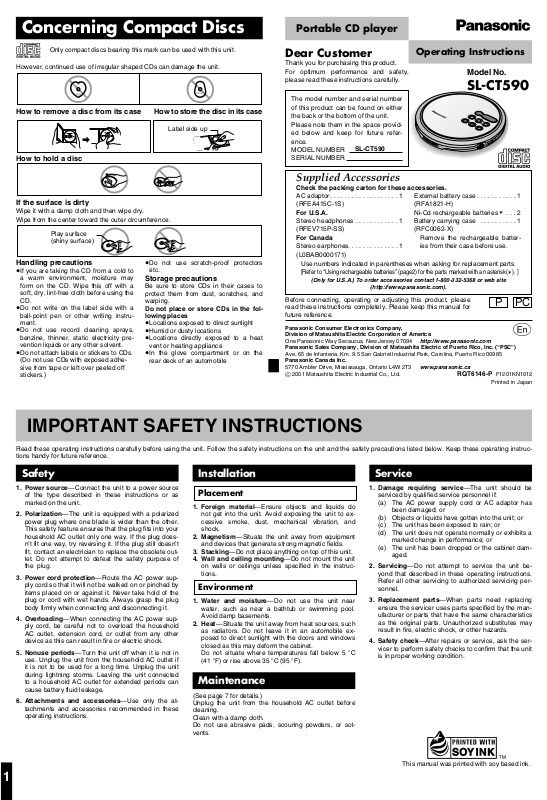

Page 1
Concerning Compact Discs
This manual was printed with soy based ink.
OPEN
VOLUME
M
E
M
O
R
Y
MO
D
E
E
Q
Portable CD player
Only compact discs bearing this mark can be used with this unit.
However, continued use of irregular shaped CDs can damage the unit.
How to store the disc in its caseHow to remove a disc from its case
Label side up
How to hold a disc
If the surface is dirty
Wipe it with a damp cloth and then wipe dry.
Wipe from the center toward the outer circumference.
Play surface
(shiny surface)
Handling precautions
≥If you are taking the CD from a cold to
a warm environment, moisture may
form on the CD. Wipe this off with a
soft, dry, lint-free cloth before using the
CD.
≥Do not write on the label side with a
ball-point pen or other writing instrument.
≥Do not use record cleaning sprays,
benzine, thinner, static electricity prevention liquids or any other solvent.
≥Do not attach labels or stickers to CDs.
(Do not use CDs with exposed adhesive from tape or left over peeled off
stickers.)
≥Do not use scratch-proof protectors
etc.
Storage precautions
Be sure to store CDs in their cases to
protect them from dust, scratches, and
warping.
Do not place or store CDs in the following places
≥Locations exposed to direct sunlight
≥Humid or dusty locations
≥Locations directly exposed to a heat
vent or heating appliance
≥In the glove compartment or on the
rear deck of an automobile
Dear Customer
Thank you for purchasing this product.
For optimum performance and safety,
please read these instructions carefully.
Operating Instructions
Model No.
SL-CT590
The model number and serial number
of this product can be found on either
the back or the bottom of the unit.
Please note them in the space provided below and keep for future reference.
MODEL NUMBER
SERIAL NUMBER
Supplied Accessories
Check the packing carton for these accessories.
AC adaptor. . . . . . . . . . . . . . . . . . . 1
(RFEA415C-1S)
For U.S.A.
Stereo headphones . . . . . . . . . . . . 1
(RFEV715P-SS)
For Canada
Stereo earphones. . . . . . . . . . . . . . 1
(L0BAB0000171)
Use numbers indicated in parentheses when asking for replacement parts.
[Refer to “Using rechargeable batteries” (page2) for the parts marked with an asterisk(
(Only for U.S.A.) To order accessories contact 1-800-332-5368 or web site
Before connecting, operating or adjusting this product, please
read these instructions completely. Please keep this manual for
future reference.
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America
One Panasonic Way Secaucus, New Jersey 07094 http://www.panasonic.com
Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc. (“PSC”)
Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3 www.panasonic.ca
C 2001 Matsushita Electric Industrial Co., Ltd.
SL-CT590
(http://www.panasonic.com).
External battery case . . . . . . . . . . . 1
(RFA1821-H)
Ni-Cd rechargeable batteries
Battery carrying case . . . . . . . . . . 1
(RFC0062-X)
Remove the rechargeable batteries from their case before use.
. . . 2
†
†
P PC
RQT6146-P F1201KN1012
Printed in Japan
). ]
p
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the safety precautions listed below. Keep these operating instructions handy for future reference.
Safety
1. Power source—Connect the unit to a power source
of the type described in these instructions or as
marked on the unit.
2. Polarization—The unit is equipped with a polarized
power plug where one blade is wider than the other.
This safety feature ensures that the plug fits into your
household AC outlet only one way. If the plug doesn’t fit one way, try reversing it. If the plug still doesn’t
fit, contact an electrician to replace the obsolete outlet. Do not attempt to defeat the safety purpose of
the plug.
3. Power cord protection—Route the AC power sup-
ply cord so that it will not be walked on or pinched by
items placed on or against it. Never take hold of the
plug or cord with wet hands. Always grasp the plug
body firmly when connecting and disconnecting it.
4. Overloading—When connecting the AC power sup-
ply cord, be careful not to overload the household
AC outlet, extension cord, or outlet from any other
device as this can result in fire or electric shock.
5. Nonuse periods—Turn the unit off when it is not in
use. Unplug the unit from the household AC outlet if
it is not to be used for a long time. Unplug the unit
during lightning storms. Leaving the unit connected
to a household AC outlet for extended periods can
cause battery fluid leakage.
6. Attachments and accessories—Use only the at-
tachments and accessories recommended in these
operating instructions.
1
Installation
Placement
1. Foreign material—Ensure objects and liquids do
not get into the unit. Avoid exposing the unit to excessive smoke, dust, mechanical vibration, and
shock.
2. Magnetism—Situate the unit away from equipment
and devices that generate strong magnetic fields.
3. Stacking—Do not place anything on top of this unit.
4. Wall and ceiling mounting—Do not mount the unit
on walls or ceilings unless specified in the instructions.
Environment
1. Water and moisture—Do not use the unit near
water, such as near a bathtub or swimming pool.
Avoid damp basements.
2. Heat—Situate the unit away from heat sources, such
as radiators. Do not leave it in an automobile exposed to direct sunlight with the doors and windows
closed as this may deform the cabinet.
2. Do not situate where temperatures fall below 5 oC
(41 oF) or rise above 35 oC (95 oF).
Maintenance
(See page 7 for details.)
Unplug the unit from the household AC outlet before
cleaning.
Clean with a damp cloth.
Do not use abrasive pads, scouring powders, or solvents.
Service
1. Damage requiring service—The unit should be
serviced by qualified service personnel if:
1. (a) The AC power supply cord or AC adaptor has
been damaged; or
1. (b) Objects or liquids have gotten into the unit; or
1. (c) The unit has been exposed to rain; or
1. (d) The unit does not operate normally or exhibits a
marked change in performance; or
1. (e) The unit has been dropped or the cabinet dam-
aged.
2. Servicing—Do not attempt to service the unit be-
yond that described in these operating instructions.
Refer all other servicing to authorized servicing personnel.
3. Replacement parts—When parts need replacing
ensure the servicer uses parts specified by the manufacturer or parts that have the same characteristics
as the original parts. Unauthorized substitutes may
result in fire, electric shock, or other hazards.
4. Safety check—After repairs or service, ask the ser-
vicer to perform safety checks to confirm that the unit
is in proper working condition.
Page 2
Power Supply Preparations
O
P
E
N
O
P
E
N
V
O
L
U
M
E
OPEN
H
O
L
D
MODE
EQ
O
P
E
N
V
O
L
U
M
E
M
E
M
O
R
Y
MOD
E
E
Q
VOL
S-XBSTRAINLIVE
RANDOM
S
OFF
1
M
.
1
+
-
+
2
3
3
2
2
1
-
+
H
O
L
D
M
O
D
E
E
Q
2
1
Refer to the specifications (page 8) for information on operating times when using rechargeable batteries or dry cell batteries.
Using rechargeable batteries
Recharge the batteries before use.
Recharging procedure
1 Slide [OPEN ] to open the lid.
If the battery lid comes loose
Insert the protrusions on the lid into the holes on both
sides of the compartment. Ensure the lid is correctly fitted before closing it. Incorrect fitting can scratch your
CDs.
Removing batteries
Press the end of the battery (-) and lift out.
Using dry cell batteries
(not included)
The external battery case allows you to extend the maximum playing time of the unit by loading an additional
two “LR6, AA, UM-3” alkaline batteries.
1 Open the cover of the external bat-
tery case and insert the batteries.
1
While pressing on the part marked “PUSH”
2 Open the case.
2
2 Open the battery lids and insert the
two rechargeable batteries.
Press to open in step 1.
Battery cover
O
P
E
N
O
P
E
N
OP
EN
OPE
N
3 Connect the AC adaptor.
DC IN jack (K DC IN 4.5 V)
Back panel of
the unit
Household
AC adaptor
Recharging starts and a battery indicator appears
on the display as shown below.
AC outlet
Scrolls
M
U
L
O
OPE
N
O
P
E
N
V
Replacement
Nickel-metal hydride rechargeable batteries(HHF-AZ01)
Using the AC adaptor
Use only the included AC adaptor. Using other adaptors
can cause overheating which can lead to fire.
Connect the AC adaptor supplied.
Refer to step 3 in “Using rechargeable batteries” for
connection instructions.
Conserving power
The AC adaptor consumes 2.1 W when the unit is
turned off with [∫]. To save power when the unit is not
to be used for a long time, unplug the AC adaptor from
the household AC outlet. Reprogram tracks if necessary
before use.
Using the car adaptor (not included)
Be sure to obtain the car adaptor (SH-CDC9), available
as an optional accessory.
CAUTION:
Use only car adaptor, Model: SH-CDC9 manufactured by Matsushita Electric Industrial Co., Ltd.
The car adaptor can be used to recharge the unit’s batteries while in the car.
Battery indicator
The battery charge is shown in five levels on the display.
Full Empty
PUSH
1
Insert the end marked (j) first.
-
+
+
2 Connect the case to the battery
case terminal.
The case’s plug can only be inserted one
way and this prevents it and the AC adaptor
from being connected at the same time. Do
not try to turn the plug after connecting it.
Battery case terminal
H
OLD
For your reference:
The unit can be powered by the batteries in the external
battery case alone. No batteries need to be loaded in
the player.
If the cover of the external battery case
comes loose:
Insert the protrusions on the cover into the holes in the
case.
When the rechargeable batteries are fully recharged, the battery indicator disappears. (It takes
approximately 2 hours to fully recharge the supplied rechargeable batteries.)
4 When recharging is complete, un-
plug the AC adaptor from the
household AC outlet and the DC IN
jack.
Note!
≥Rechargeable batteries have a service life of approxi-
mately 300 charge-discharge cycles. The batteries
have reached the end of their operational life if they
last for a noticeably shorter time after recharging, or if
they cannot be recharged at all.
≥Recharging may only be performed when the unit is
powered off.
≥The AC adaptor and rechargeable batteries may be-
come warm while recharging is in progress. This is not
a malfunction.
≥Leaving the AC adaptor connected can cause the bat-
teries to go flat. After recharging the batteries and disconnecting the AC adaptor from the AC power outlet,
ensure you disconnect the adaptor from the unit’s
[KDC IN 4.5 V ] terminal.
2
When the battery indicator flashes
Power is cut off a short while later. Recharge the
rechargeable batteries or replace the dry cell batteries
with new ones.
Note!
≥When the unit is used with a AC adaptor, the battery
indicator is not displayed.
≥The battery indicator may temporarily show a lower
level or otherwise not operate correctly when searching and skipping, and also if the unit is used in an extremely cold environment.
≥The length of time the unit will continue to operate be-
tween when the battery indicator starts flashing and
when the power is cut off differs depending on the
type of batteries used.
≥The battery indicator may not be displayed if recharge-
able batteries other than those designated by
Panasonic are used.
Note!
≥If rechargeable batteries and dry cell batteries are
used together, make sure to use fully charged
rechargeable batteries and new dry cell batteries.
≥Do not swing the unit around while the battery case is
connected as this can cause damage to the connection and may be a danger to those around you.
If the unit malfunctions or freezes during
use, disconnect the power sources (the
AC adaptor or batteries).
Re-connect the power source and continue operation.
When using batteries
This unit includes a mechanism that extends the
life of the batteries by varying the rotation rate of
the motor. Motor noise may increase when the rate
changes.
If the noise bothers you
Use the AC adaptor to power the unit. The rotation
rate does not change while you are using the AC
adaptor.
Page 3
HOLD function
M
E
O
Q
D
E
O
P
E
N
HOLD
Y
OR
EM
M
E
M
LU
O
V
HOLD
D
L
O
H
HOLD mode Release
Sequential Play
1
OPEN
Label must face
upward. Press
near the center
so the disc clicks
E
M
U
L
O
V
O
P
E
N
O
P
E
N
O
P
E
N
O
P
E
N
firmly into place.
Close the lid.
E
M
U
L
O
V
2
R
This function causes the unit to ignore short, accidental
button presses. (The disc lid can still be opened and
closed.)
The HOLD function prevents the following:
≥The unit is powered on accidentally when not in use,
causing the batteries to run down.
≥A button is accidentally pressed during play, interrupt-
ing the operation.
To use the HOLD function
Set [HOLD] to the HOLD position.
Basic Play
MODE
E
Q
O
P
E
N
L
Plug type:
3.5 mm (1/8 in.) stereo
Y
R
O
M
E
M
E
M
LU
O
V
5
Decrease Increase
“(” indication
When the unit is in HOLD mode, pressing any button
causes the indication “(” to appear on the display.
When the unit is powered off
The “(” indication appears only when [1/;] is
pressed.
Before operating the buttons
Be sure to move [HOLD] to release the unit from
the hold mode.
3
HOLD
4
VOLUME
Track number in play
RANDOM
.
1
S
VOL
S-XBSTRAINLIVE
OFF
Elapsed playing time of each track
VOL
S-XBS
M
Follow steps 1–5.
In step 2:Connect the stereo headphones/stereo earphones to the headphone jack [Ë]. (Plug in firmly.)
In step 5:The volume range is 0-25. Press and hold to change the volume successively. The volume changes
when pressed while the level is displayed. If any other display is shown, it changes to show the current level. The volume returns to 10 when you disconnect the power source.
≥Play stops automatically when all the tracks have been played.
≥If the unit has been connected to the car audio system, set this unit’s volume level to 10, then adjust the vol-
ume level on the system.
Operation
Button Display/reference
Press during play.
To pause play
S-XBS
Press again to restart play.
Press during play.
To stop play
Stop mode
Resume function
Total number of tracks
Play starts from the beginning of
the current track the next time you
Total playing time
S-XBS
press [1/;].
To turn off the
Off mode
unit
Skipping
tracks
Press during stop mode.
Press during play.
(Press [:] twice to skip to the
beginning of the previous track.)
Backward Forward
≥During program play (page 4), these but-
tons are used to skip forward or backward
through the programmed sequence of
tracks.
≥You cannot skip to tracks that have been
No indicator is shown
played in random or random repeat play
(page 4).
Searching
through tracks
Press and hold during play.
≥During program play, 1-track repeat play,
random play and random repeat play (page
4), search operation is limited to the current track only.
Resume function notes
≥Opening the lid while in the stop mode or replacing the disc while in the off mode cancels the function. (It may
remain active if you replace a disc in the off mode.)
≥Play may resume from the beginning of the next track if you stopped play near the end of a track.
≥The resume function works automatically and cannot be turned off.
3
For your reference:
“)” indication
This indication appears for about 30 seconds if [1/;] is
pressed when no disc is loaded in the unit or if the disc is not
properly secured.
“*” indication
This indication appears for about 10 minutes when the lid is
opened. (However, the indication does not appear when the
unit is powered off.)
Auto-off function
If you leave the unit in stop mode for about 10 minutes (30 seconds if disc is not loaded), it turns off to save the batteries.
Removing discs
1 Press [∫] to stop play and disc rotation.
2 Slide [OPEN] to open the lid.
3 Once the disc has stopped, lift the disc out with
your finger in the depression.
Do not stop the disc by hand or try to remove it before it stops
rotating. This can damage CDs.
Depression
E
M
U
L
O
OPEN
OPEN
Note!
Never insert foreign objects into the unit.
Note on CD-R and CD-RW
This unit can play CD-DA format audio CD-R and CD-RW
that have been finalized
may not be able to play some CD-R or CD-RW due to the
condition of the recording.
§
Finalizing is a process that enables CD-R / CD-RW players to play audio CD-R and CD-RW.
§
upon completion of recording. It
V

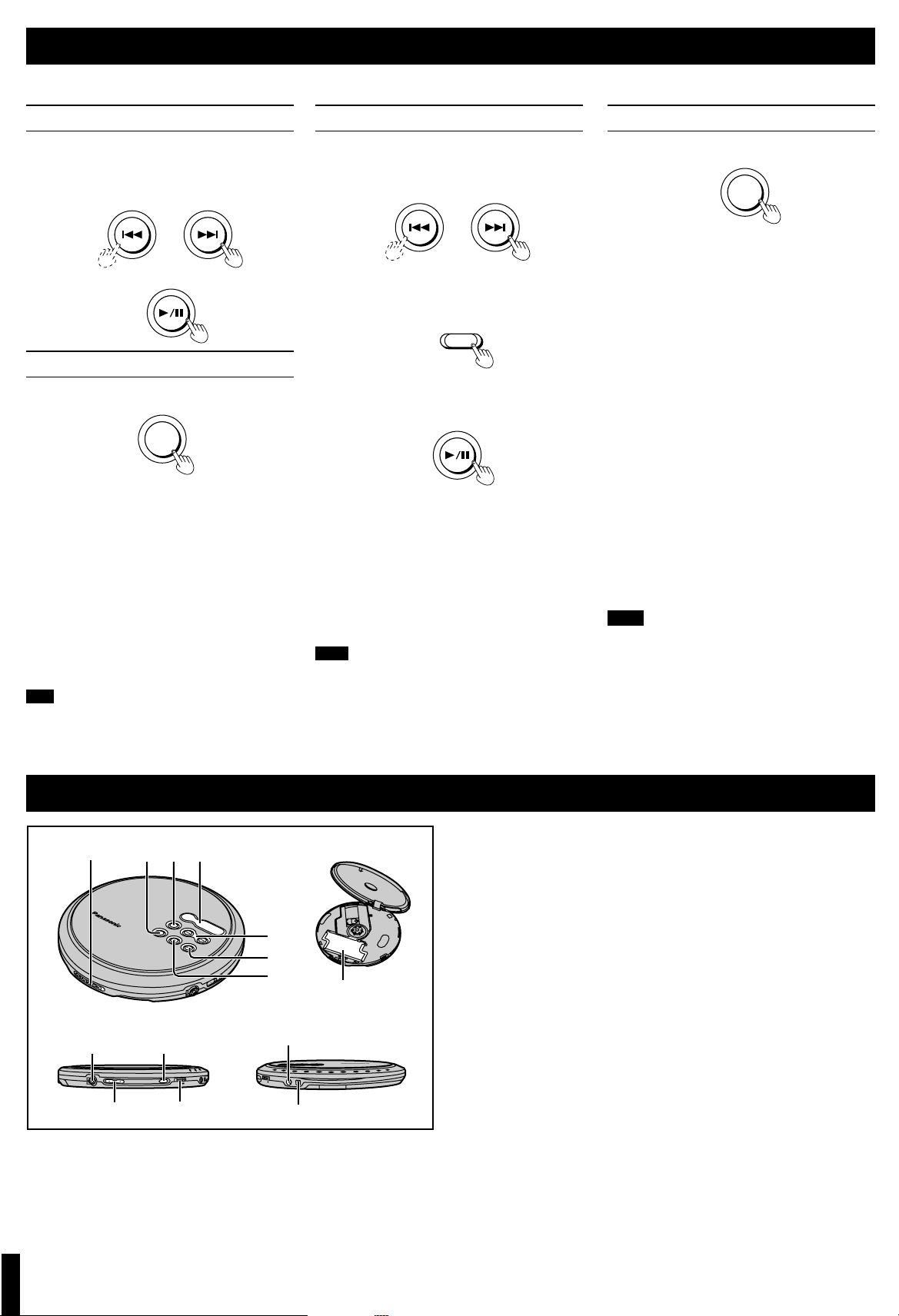

Page 4
Other Play Methods
E
F
O
P
E
N
O
P
E
N
V
O
L
U
M
E
O
P
E
N
O
P
E
N
H
O
P
E
N
VOLUME
M
EM
ORY
MODE
E
Q
C
F
G
E
DB
A
H
O
LD
V
O
L
U
M
E
M
E
M
O
R
Y
IJ
KL
H
O
L
D
MODE
EQ
M
N
B
EQ
C
MODE
E
MEMORY
J
F
The letters such as A in the illustrations refer to the descriptions in the “Location of Controls” section.
Skip play
The disc plays from the selected track through to the
last track, then play stops automatically.
Preparation: Put unit in stop mode.
1 Select the desired track.
2
Changing the sound quality
Press during play or stop mode.
The setting switches in the sequence indicated below
each time [EQ] is pressed.
S-XBS>TRAIN>LIVE>Cancel (no indicator is shown)
^------------------------------------------------}
S-XBS:
Select this setting to boost the low-range response.
TRAIN:
Select this setting to avoid annoying other passengers
with noise from your headphones/earphones while riding on the train, or to reduce fatigue when listening for a
long period of time.
LIVE:
Select this setting for a live concert effect.
Note!
The setting is returns to S-XBS when you disconnect
the power source.
Program play
Up to 24 tracks can be entered in the program.
Preparation: Put unit in stop mode.
1 Select the desired track.
2 Register in sequence.
(The indication “M” and the programmed se-
quence appear on the display.)
3 Repeat steps 1 and 2 to program all
the desired tracks.
4
∫ To program the same track in the se-
quence more than once
After step 2, press [MEMORY] desired number of times.
∫ If “'” is displayed
No more tracks can be programmed.
∫ To confirm the contents of the program
Press [MEMORY] while the disc is playing. (The numbers of the programmed tracks appear on the display in
sequence.)
∫ To delete the entire program
Press [∫].
Note!
The repeat and random play modes are canceled after
steps 1 and 2.
Repeat play/Random play
Press during play or stop mode.
The setting is switched in the sequence indicated below
each time [MODE] is pressed.
1-track repeat (1 `)(----------------]
One track is repeated. |
v|
All-track repeat (`) |
All the tracks on the disc are repeated. |
v |
Random (RANDOM) |
The tracks play once each in random |
order and then play stops. |
v |
Random repeat (RANDOM `) |
The tracks play repeatedly in random |
order. |
v |
Cancel (no indicator is shown)
--------------}
When pressed during program play
The setting is switched in the sequence indicated below
each time [MODE] is pressed.
1-track repeat (1 `M)(------------]
One track is repeated. |
v|
Memory repeat (`M) |
The programmed tracks are repeated. |
v |
Cancel (
M) -------------------------------------------}
Note!
≥You can select the first track to play in random play
and random repeat play by pressing [9] while the
disc is stopped. All the tracks are played.
≥You cannot select random play or random repeat play
during program play.
≥The resume function does not work when random or
random repeat are on.
≥The mode is canceled when you disconnect the power
source.
Location of Controls
Side panel of the unit
4
Back panel of the unit
A Open switch (OPEN)
B EQ button (EQ)
C Mode button (MODE)
D Display
E Skip/search buttons (:, 9)
F Play/pause button (1/;)
G Stop/operation off button (∫)
H Rechargeable battery cover
I Headphone jack (Ë)
J Memory/recall button (MEMORY)
K Headphone volume control buttons (j, i, VOLUME)
L Hold switch (HOLD)
M DC IN jack (KDC IN 4.5 V )
N Battery case terminals (EXT BATT)

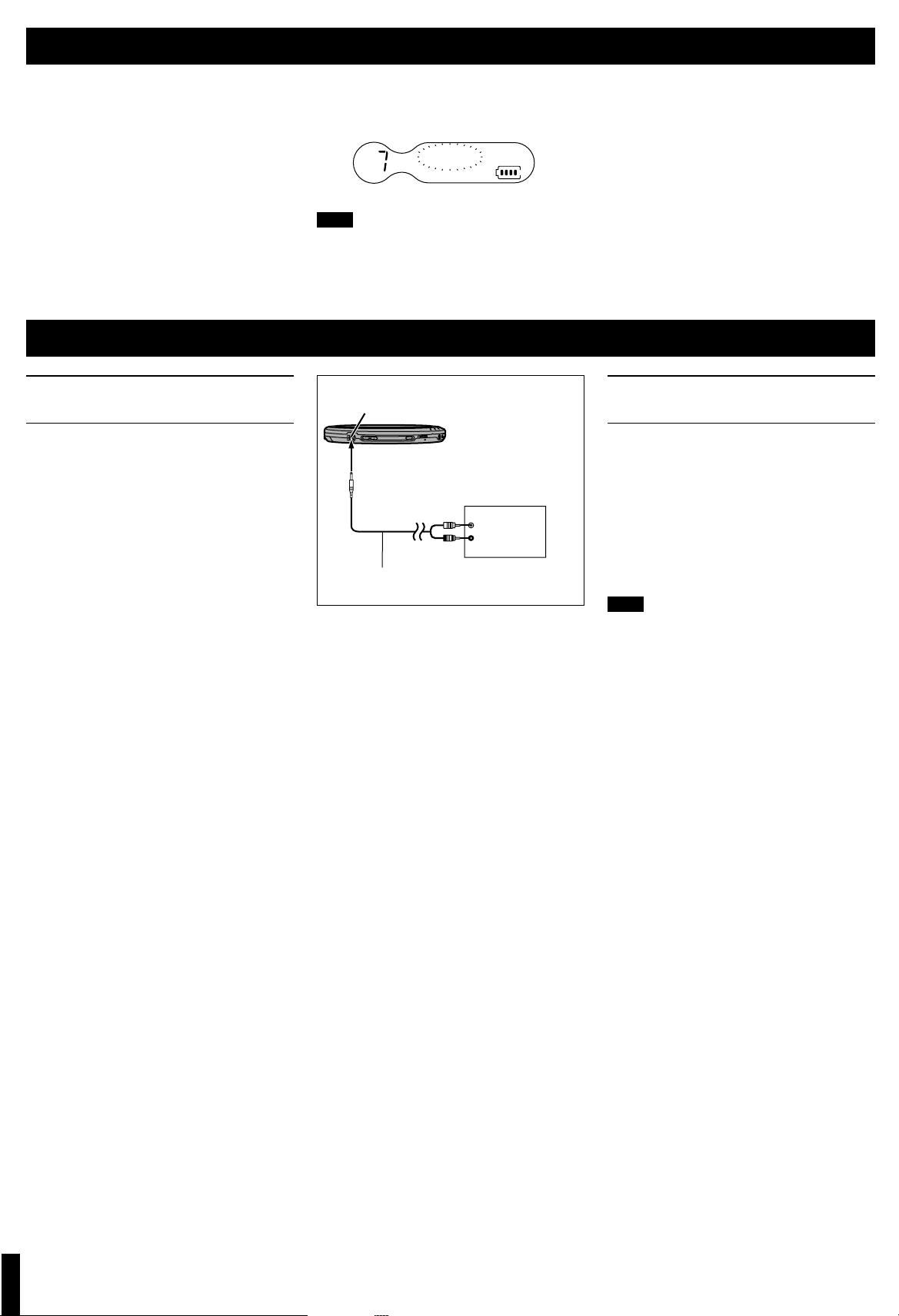

Page 5
L
R
HO
LD
V
O
L
U
M
E
M
E
M
O
R
Y
Anti-Skip System
S-XBS
This system deals with skipping in a variety
of ways:
≥The thinner and lighter construction makes the unit
less susceptible to vibration.
When bumps continue repeatedly
The elapsed playing time disappears and sound is interrupted.
≥An anti-skip mechanism prevents skipping caused
when play speed changes due to swinging of the unit.
≥A recovery system immediately returns the laser pick-
up to its original position if it is knocked off the track by
a strong shock.
≥An anti-skip memory (max.48 seconds) fills in interrup-
tions caused by bumps and vibrations.
The anti-skip system works automatically while the
system is on and cannot be canceled.
Note!
≥The anti-skip memory compresses digital signals.
≥While the system is on, the disc rotates at a higher
rate than usual in collecting extra audio data. This
could result in a slight increase in disc rotation noise.
Using the Unit with Optional Accessories
Using the unit with an audio
system
Use a stereo connection cable (not included) to listen to
CDs through your home audio system.
≥Turn off the unit and the other equipment before con-
nection.
≥Do not connect the cable to the PHONO jacks on the
amplifier.
≥Obtain the optional connecting cable if the other
equipment comes with mini-phone jacks.
≥Adjust the volume on the other equipment.
≥Set this unit’s volume 10.
Headphone jack (Ë)
Side panel of the unit
Other equipment
(White)
To CD or AUX
terminals
(Red)
Stereo connection cable (not included)
Using the unit with a car audio
system
Use only the specified car stereo cassette adaptor
and car adaptor. Using other adaptors can cause
overheating which can lead to fire.
The part numbers are indicated in parenthesses.
Items to be purchased
For connection to the car audio system:
Car stereo cassette adaptor (SH-CDM10A)
Connect the car stereo cassette adaptor to the
unit’s headphone jack. Set this unit’s volume to 10.
For connection to the power supply:
Car adaptor (SH-CDC9)
Note!
≥When you switch off the car, volume and sound quality
may return to the original settings and the resume
function may work even if you change the disc.
≥It may not be possible to use the unit with some types
of car stereos owing to restrictions imposed by the
construction of the car stereo cassette adaptor.
For further details, refer to the instructions of the part
concerned.
5
RQT6146
Page 6
ONLY FOR U.S.A.
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America
One Panasonic Way Secaucus, New Jersey 07094
Panasonic Sales Company, Division of Matsushita
Electric of Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Panasonic Portable Audio Limited Warranty
Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively referred to as “the Warrantor”) will repair or replace this product with new or refurbished parts or equivalent product, free of charge in the U.S.A. or Puerto Rico, in the
event of a defect in materials or workmanship as follows ( all time periods commence
from the date of original purchase ) :
PARTS & LABOR - ONE (1) YEAR
Non-rechargeable batteries are not warranted
Rechargeable batteries - (when applicable) exchange defective item for new one for ten
(10) days.
For assistance in the continental U.S.A. in obtaining repairs please ship the product to:
In Puerto Rico contact the Panasonic Sales Company.
Panasonic Services Company - Customer Servicenter
Suite B 4900 George McVay Drive
McAllen, TX 78503
Tel. (787) 750-4300 Fax. (787) 768-2910
When shipping the unit carefully pack and send it prepaid, adequately insured and
preferably in the original carton. Include a letter detailing the complaint and provide a
day time phone number where you can be reached.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD THE PURCHASER WILL
BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED
WITHOUT SUCH PROOF OF PURCHASE.
Also, the purchaser will be responsible for shipping the unit to the above address.
If you have a problem with this product that is not handled to your satisfaction, then write to the Consumer Affairs Department at the Company address indicated above.
This warranty is extended only to the original purchaser.
This warranty only covers failures due to defects in materials and workmanship which
occur during normal use. The warranty does not cover damage which occurs in shipment, or failures which are caused by products not supplied by the warrantor, or failures
which result from accident, misuse, abuse, neglect, mishandling, faulty installation, misapplication, improper insertion of consumables, set-up adjustments, maladjustment of
consumer controls, improper operation or maintenance, improper antenna, inadequate
signal reception or pickup, alteration, modification, power line surge, improper voltage
supply, lightning damage, commercial use or service by anyone other than a PANA-
SONIC SERVICES COMPANY authorized repair facility, or damage that is attributable
to acts of God.
LIMITS AND EXCLUSIONS
There are no express warranties except as listed above.
THE WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGE TO TAPES OR
DISCS) RESULTING FROM THE USE OF THIS PRODUCTS, OR ARISING OUT OF
ANY BREACH OF THE WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES,
INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE APPLICABLE WARRANTY PERIOD SET
FORTH ABOVE.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or
limitations may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which
vary from state to state.
For Product Information, Operating Assistance, Literature Request, Dealer Locations, and all Customer Service inquiries please contact:
1-800-211-PANA(7262), Monday - Friday 9 am - 9 pm, Saturday - Sunday 9 am - 7 pm, EST.
Web Site: http://www.panasonic.com
You can purchase parts, accessories or locate your nearest
servicenter by visiting our Web Site.
Product Service
1. Damage requiring service—The unit should be serviced by qualified service per-
sonnel if:
1. (a) The AC power supply cord or AC adaptor has been damaged; or
1. (b) Objects or liquids have gotten into the unit; or
1. (c) The unit has been exposed to rain; or
1. (d) The unit does not operate normally or exhibits a marked change in perfor-
mance; or
1. (e) The unit has been dropped or the cabinet damaged.
2. Servicing—Do not attempt to service the unit beyond that described in these op-
erating instructions. Refer all other servicing to authorized servicing personnel.
3. Replacement parts—When parts need replacing ensure the servicer uses parts
specified by the manufacturer or parts that have the same characteristics as the
original parts. Unauthorized substitutes may result in fire, electric shock, or other
hazards.
4. Safety check—After repairs or service, ask the servicer to perform safety checks
to confirm that the unit is in proper working condition.
User memo:
DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS
TELEPHONE NUMBER
Accessory Purchases:
1-800-332-5368 (Customer Orders Only)
Panasonic Services Company 20421 84
pm Monday - Friday; 6 am to 10:30 am Saturday, PST)
(Visa, MasterCard, Discover Card, American Express, Check)
th
Avenue South, Kent, WA 98032 (6 am to 5
Product information
For product information or assistance with product operation:
In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or email consumerproducts @panasonic.com, or web site (http://www.panasonic.com).
For assistance in the continental U.S.A. in obtaining repairs please ship the product
to:
In Puerto Rico contact the Panasonic Sales Company.
When shipping the unit carefully pack and send it prepaid, adequately insured and
preferably in the original carton. Include a letter detailing the complaint and provide a
day time phone number where you can be reached.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD THE PURCHASER
WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE
INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.
Also, the purchaser will be responsible for shipping the unit to the above address.
In Canada, contact Panasonic Canada Inc. Customer Care Centre at 905-624-5505,
web site (www.panasonic.ca), or an authorized Servicentre close to you.
Panasonic Services Company - Customer Servicenter
Suite B 4900 George McVay Drive
McAllen, TX 78503
Tel. (787) 750-4300 Fax. (787) 768-2910
6
Page 7

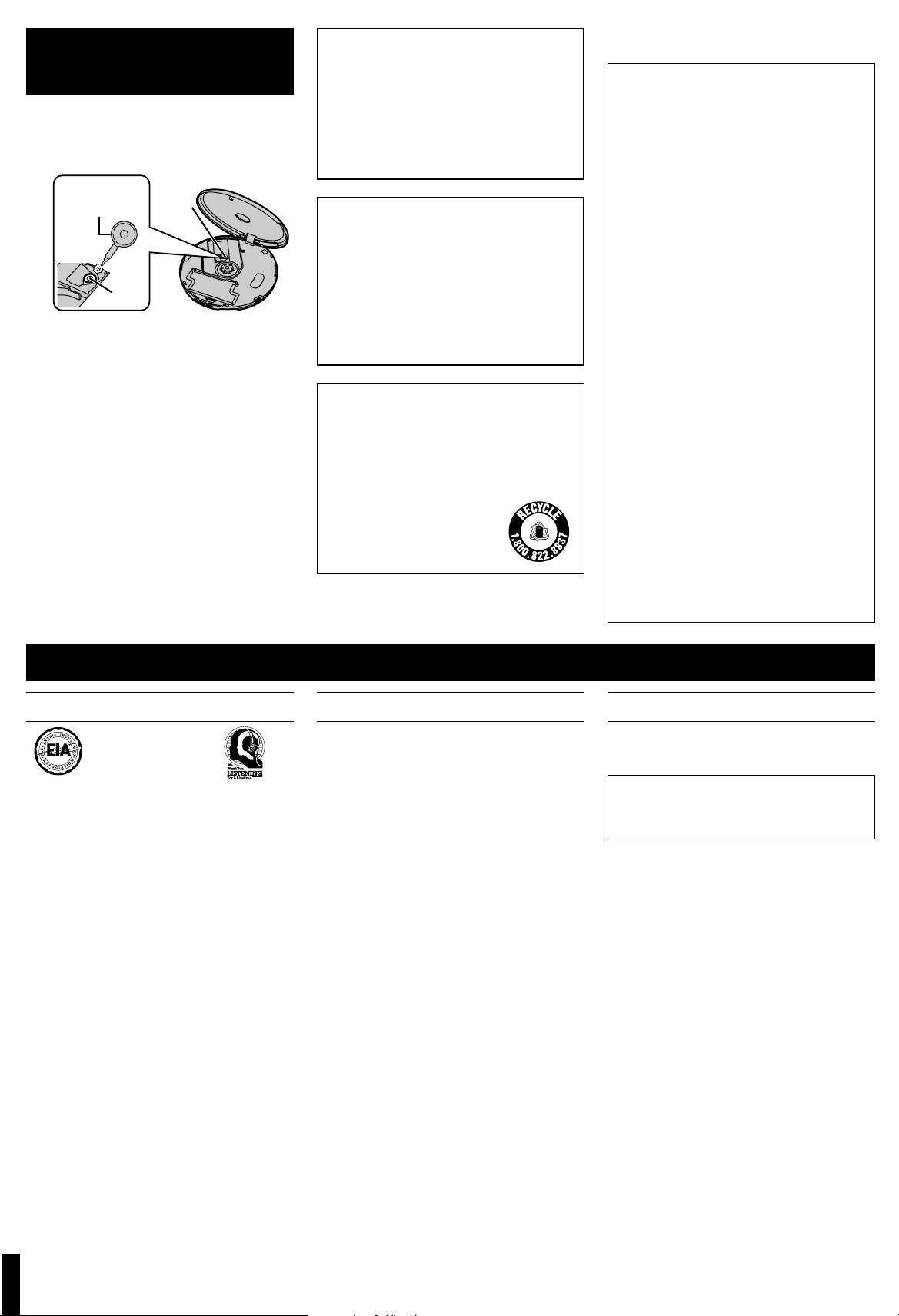

Maintaining the
O
P
E
N
OP
EN
V
O
L
U
M
E
EST. 1924
RBRC
Ni-Cd
TM
Lens
Open the lid and clean the lens as shown in the figure.
Use a cotton swab to gently wipe off any finger-prints.
Recommended product: Lens cleaner kit (SZZP1038C)
Air blower for
camera lens
Lens
Lens
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO
NOT EXPOSE THIS APPARATUS TO
RAIN, MOISTURE, DRIPPING OR
SPLASHING AND THAT NO OBJECTS
FILLED WITH LIQUIDS, SUCH AS VASES,
SHALL BE PLACED ON THE APPARATUS.
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS
OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT
REPAIR YOURSELF. REFER SERVICING
TO QUALIFIED PERSONNEL.
A nickel cadmium battery that is recyclable
powers the product you have purchased. At
the end of its useful life, under various state
and local laws, it is illegal to dispose of this
battery into your municipal waste stream.
Please call 1-800-8-BATTERY for information on how to recycle this battery.
THE FOLLOWING APPLIES ONLY IN THE
U.S.A.:
CAUTION:
This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
≥Reorient or relocate the receiving antenna.
≥Increase the separation between the equip-
ment and receiver.
≥Connect the equipment into an outlet on a
circuit different from that to which the receiver is connected.
≥Consult the dealer or an experienced
radio/TV technician for help.
Any unauthorized changes or modifications
to this equipment would void the user’s authority to operate this device.
Cautions
Listening caution
Do not play your headphones or earphones at a high
volume. Hearing experts advise against continuous extended play.
If you experience a ringing in your ears, reduce volume
or discontinue use.
Do not use while operating a motorized vehicle. It may
create a traffic hazard and is illegal in many areas.
You should use extreme caution or temporarily discontinue use in potentially hazardous situations.
Even if your headphones or earphones are the open-air
type designed to let you hear outside sounds, don’t turn
up the volume so high that you can’t hear what’s around
you.
Sound can be deceiving. Over time your hearing “com-
fort level” adapts to higher volumes of sound. So what
sounds “normal” can actually be loud and harmful to
your hearing.
Guard against this by setting your equipment at a safe
level BEFORE your hearing adapts.
To establish a safe level:
≥Start your volume control at a low setting.
≥Slowly increase the sound until you can hear it com-
fortably and clearly, and without distortion.
Once you have established a comfortable sound level:
Leave it there.
Rechargeable /dry cell batteries
≥If rechargeable battery play time is short after recharg-
ing, the batteries have reached the end of their service
life. Replace them with the recommended replacements.
≥Play time may be shorter than usual after recharging
batteries for the first time or after they have been unused for a long time. Repeatedly recharge and discharge the batteries if this occurs to restore them to
normal.
∫ Care
To prevent battery damage, electrolyte leakage and
short-circuiting, heed the following points.
≥Do not peel off the covering on batteries and do not
use if the covering has been peeled off.
≥Align the poles + and - correctly when inserting the
batteries.
≥Do not mix different types or makes of batteries or old
and new batteries.
≥Remove the batteries if you do not intend to use the
unit for a long time.
≥Do not throw into fire, short-circuit, disassemble, or
subject to excessive heat.
≥Do not allow metal objects to touch the battery termi-
nals as this may cause short-circuiting which is dangerous.
≥When carrying batteries in a pocket or bag, ensure no
metal objects such as necklaces are placed together
with them. Contact with metal may cause short-circuiting which can cause a fire.
For safety, carry the batteries in the battery carrying
case.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
When driving a car
In the interest of traffic safety, do not operate the unit
while driving.
Discontinue use if you experience discomfort with the
headphones, earphones or any other parts that directly contact your skin. Continued use may cause
rashes or other allergic reactions.
7
Page 8
Specifications
Troubleshooting Guide
Audio
No. of channels: 2 (left and right, stereo)
Frequency
response: 20 to 20,000 Hz
(i0.5 dB to j10 dB)
DA converter: 1 bit, MASH
Headphone
output level: RMS max. 8 mWi8 mW/
16 ≠ (adjustable)
Pickup
Light source: Semiconductor laser
Wavelength: 780 nm
General
Operational temperature
range: 0 eC–40 eC
(32 eF–104 eF)
Rechargeable temperature
range: 5 eC–40 eC
(41 eF–104 eF)
Power supply: DC 4.5 V
Power consumption
When using AC adaptor: 2.6 W
When recharging: 4.8 W
Play time:
[When used in hold mode, with EQ
canceled, at 25 eC (77 eF), on a flat,
stable surface).]
Batteries
used
2 alkaline
batteries
2 rechargeable
batteries
2 rechargeable
and 2 alkaline
batteries
≥The play time may be less depending
on the operating conditions.
≥Play time will be considerably reduced
when playing CD-RW.
Recharging time: About 2 hours
Dimensions
(WaHaD): 130.5a16.9a135.5 mm
Mass: 189 g (6.7 oz.)(with batteries)
143 g (5.0 oz.)(without batteries)
Power consumption in standby mode : 2.1 W
Note:
Specifications are subject to change
without notice.
Mass and dimensions are approximate.
Play time
About 50 hours
About 12.5 hours
About 62 hours
1
(5
⁄8za21⁄32za511⁄32z)
Before requesting service, make the below checks. If you are in doubt about some of
the check points, or if the remedies indicated in the chart do not solve the problem:
In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262,
or e-mail [email protected],
or web site (http://www.panasonic.com).
In Canada, contact Panasonic Canada Inc. Customer Care Centre at 905-6245505, web site (www.panasonic.ca), or an authorized Servicentre close to you.
Problem
Cannot close the lid.
Cannot play discs.
Tracks on disc do not play
in order, starting with the
first track.
Cannot hear music—too
noisy.
TV picture is distorted.
Radio reception is noisy.
Cannot recharge the
batteries.
Is the disc properly secured in place?
≥Is the unit in HOLD mode?
≥Is the disc properly secured in place?
≥Is the disc dirty or scratched?
≥Is there condensation on the lens?
(Wait for about an hour and then try again.)
≥Is the random play mode on?
≥Did you stop play in the middle of the disc last
time?
≥Has the headphone/earphone plug been inserted
firmly?
≥Is the plug dirty? (Wipe away dirt on plug.)
≥Separate the unit from mobile phones.
Are you using the unit too near a TV or tuner?
(Keep the unit away from the TV or tuner.)
≥Are you using the included batteries or the
recommended replacements?
≥Ensure two batteries are inserted.
Check this
8
Loading...
