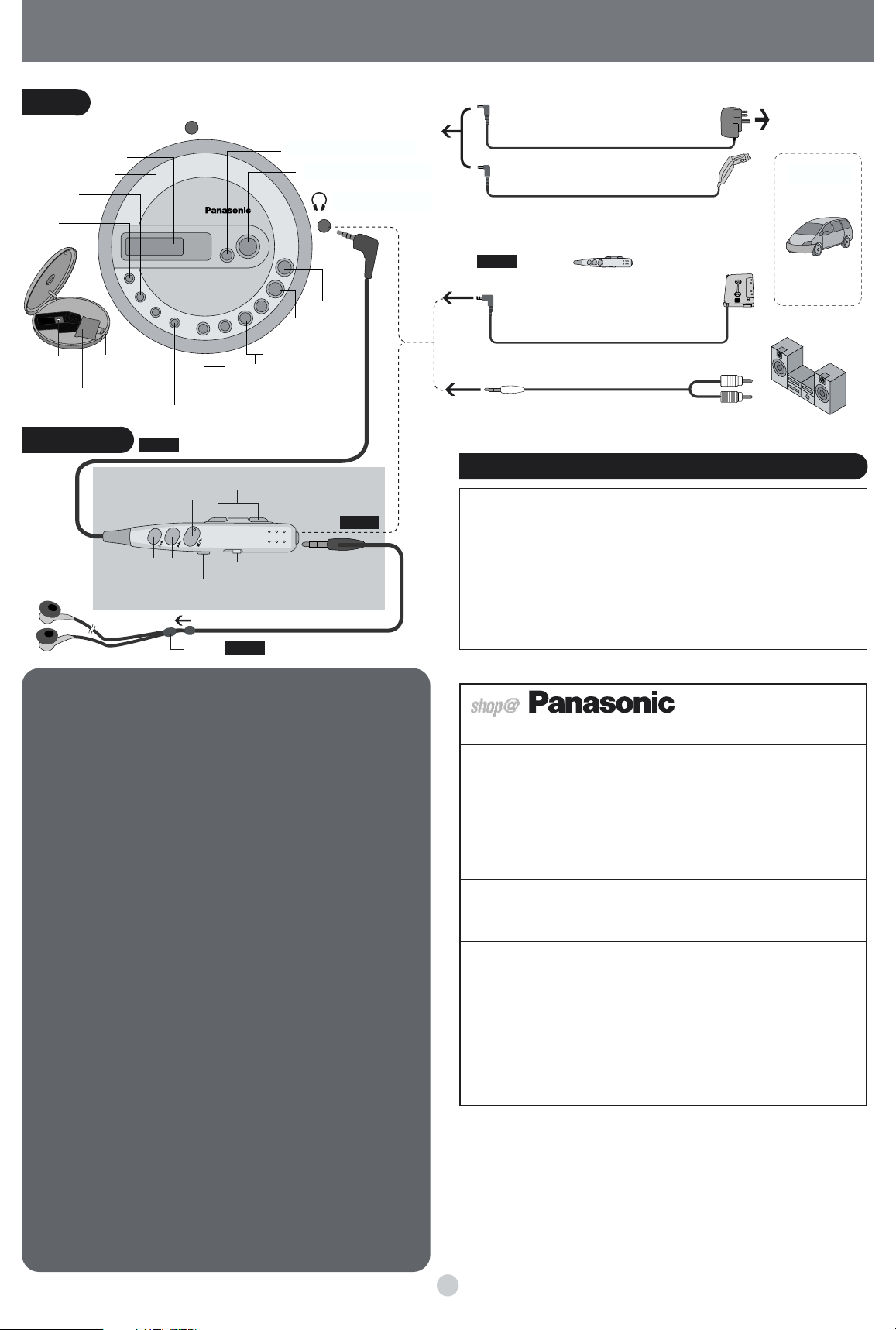

SL-SV550

Portable CD player

Operating Instructions

Dear Customer

Thank you for purchasing this product. Before connecting, operating or adjusting this product, please read these instructions completely. Please save this manual for future reference.

Note:

“EB” on the packaging indicates the United Kingdom.

RQT6667-B

F0203KN0

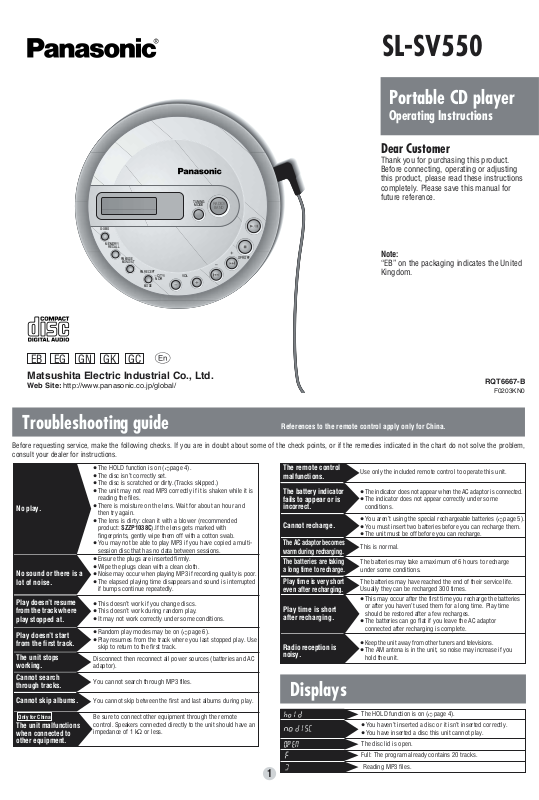

Troubleshooting guide

References to the remote control apply only for China.

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, consult your dealer for instructions.

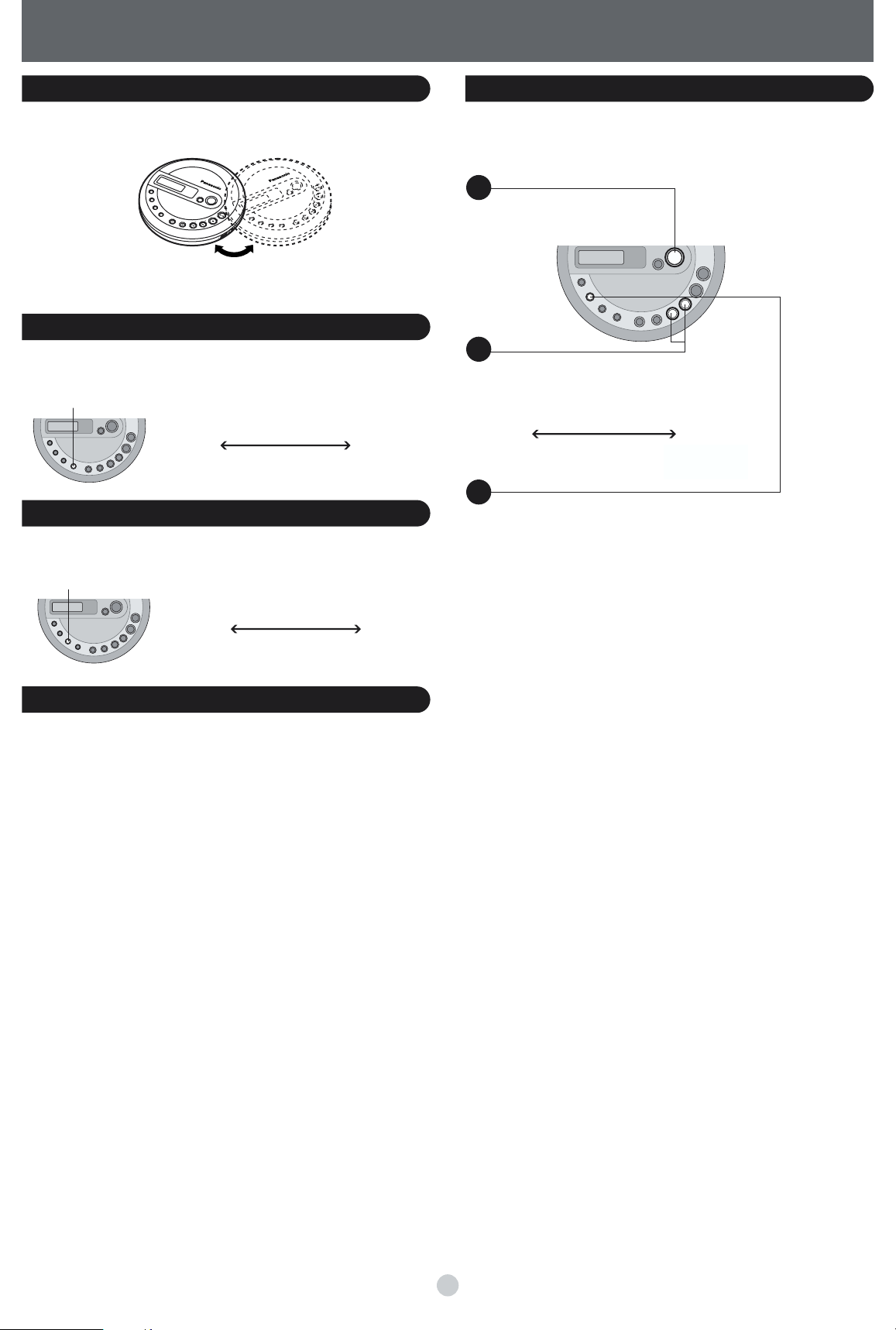

≥The HOLD function is on ( page 4). ≥The disc isn’t correctly set.

≥The disc is scratched or dirty.(Tracks skipped.)

≥The unit may not read MP3 correctly if it is shaken while it is reading the files.

	No play.				≥There is moisture on the lens. Wait for about an hour and
					then try again.
					≥The lens is dirty: clean it with a blower (recommended
					product: SZZP1038C).If the lens gets marked with
					fingerprints, gently wipe them off with a cotton swab.
					≥You may not be able to play MP3 if you have copied a multi-
					session disc that has no data between sessions.
					≥Ensure the plugs are inserted firmly.
	No sound or there is a				≥Wipe the plugs clean with a clean cloth.
					≥Noise may occur when playing MP3 if recording quality is poor.
	lot of noise.				≥The elapsed playing time disappears and sound is interrupted
					if bumps continue repeatedly.
	Play doesn’t resume				≥This doesn’t work if you change discs.
	from the track where				≥This doesn’t work during random play.
	play stopped at.				≥It may not work correctly under some conditions.

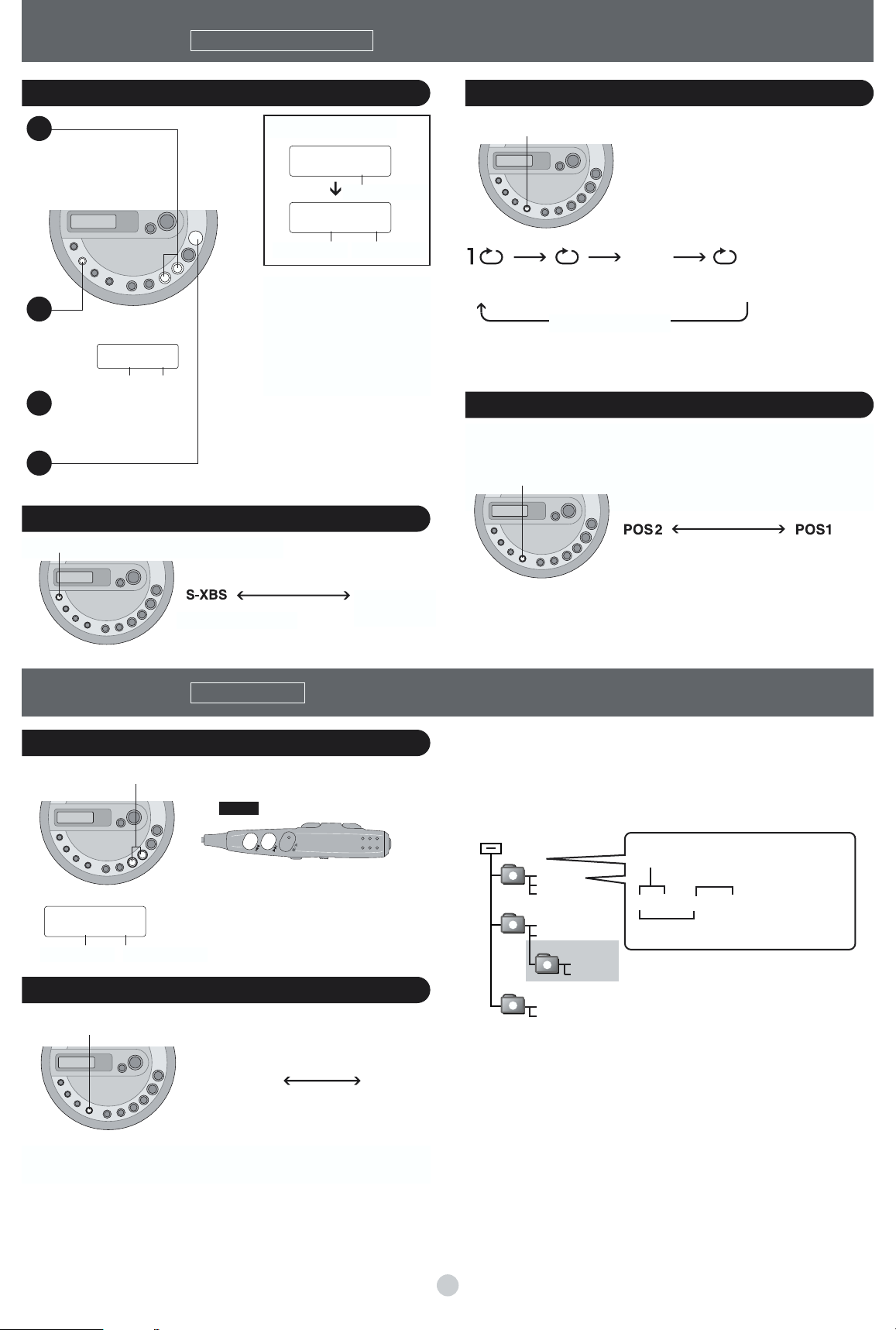

	Play doesn’t start				≥Random play modes may be on ( page 6).
					≥Play resumes from the track where you last stopped play. Use
	from the first track.
					skip to return to the first track.
	The unit stops				Disconnect then reconnect all power sources (batteries and AC
	working.				adaptor).
	Cannot search				You cannot search through MP3 files.
	through tracks.
	Cannot skip albums.				You cannot skip between the first and last albums during play.
		Only for China			Be sure to connect other equipment through the remote
	The unit malfunctions				control. Speakers connected directly to the unit should have an
	when connected to				impedance of 1 k≠ or less.
	other equipment.

The remote control malfunctions.

The battery indicator fails to appear or is incorrect.

Cannot recharge.

The AC adaptor becomes warm during recharging.

The batteries are taking a long time to recharge.

Play time is very short even after recharging.

Play time is short after recharging.

Radio reception is noisy.

Use only the included remote control to operate this unit.

≥The indicator does not appear when the AC adaptor is connected. ≥The indicator does not appear correctly under some

conditions.

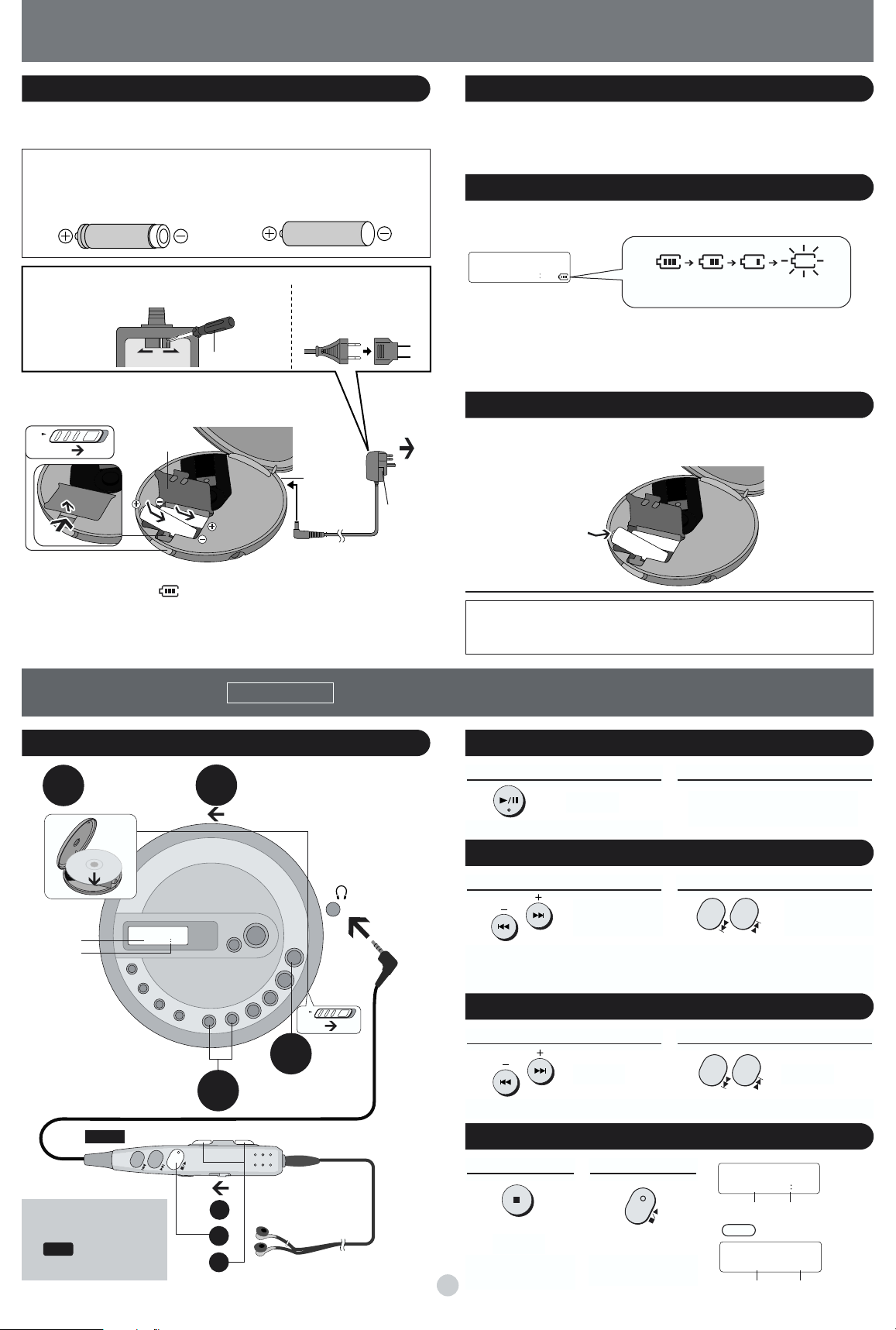

≥You aren’t using the special rechargeable batteries ( page 5). ≥You must insert two batteries before you can recharge them. ≥The unit must be off before you can recharge.

This is normal.

The batteries may take a maximum of 6 hours to recharge under some conditions.

The batteries may have reached the end of their service life. Usually they can be recharged 300 times.

≥This may occur after the first time you recharge the batteries or after you haven’t used them for a long time. Play time should be restored after a few recharges.

≥The batteries can go flat if you leave the AC adaptor connected after recharging is complete.

≥Keep the unit away from other tuners and televisions.

≥The AM antena is in the unit, so noise may increase if you hold the unit.

Displays

(	The HOLD function is on ( page 4).

)≥You haven’t inserted a disc or it isn’t inserted correctly. ≥You have inserted a disc this unit cannot play.

*			The disc lid is open.
'			Full: The program already contains 20 tracks.
1			Reading MP3 files.

Maintenance

If the surfaces are dirty wipe with a soft, dry cloth.

≥Never use alcohol, paint thinner or benzine to clean this unit. ≥Before using chemically treated cloth, read the instructions that came

with the cloth carefully.

For the United Kingdom and Continental Europe:

Notice about the rechargeable battery

The battery is designated recyclable.

Please follow your local recycling regulations.

Norsk

Merknad vedrørende det oppladbare batteriet

Batteriet er resirkulerbart.

Vennligst følg det lokale regelverket for resirkulering.

Suomi

Huomautus ladattavasta paristosta

Paristo määritellään kierrätykseen sopivaksi.

Ole hyvä ja noudata asuinpaikkasi kierrätyssääntöjä.

Specifications

CD SECTION ∫CD-DA

No. of channels:

2 (left and right, stereo) Frequency response:

20 to 20,000 Hz (j10 dB to 0 dB)

DA converter: 1 bit, MASH Headphone output level:

RMS max. 8 mWi8 mW/ 16 ≠ (adjustable)

∫MP3

Supported bit-rates:

32 kbps to 320 kbps

(128 kbps is recommended) Supported sampling frequency:

48 kHz/44.1 kHz/32 kHz Maximum number of items

(sum of albums and tracks): 999

Maximum album levels:

100

∫Pickup

Light source:	Semiconductor laser
Wavelength:	780 nm

(NORSK)

Bølgelengde

780 nm

Laserstyrke

Ingen farlig stråling sendes ut (med sikkerhets-beskyttelse)

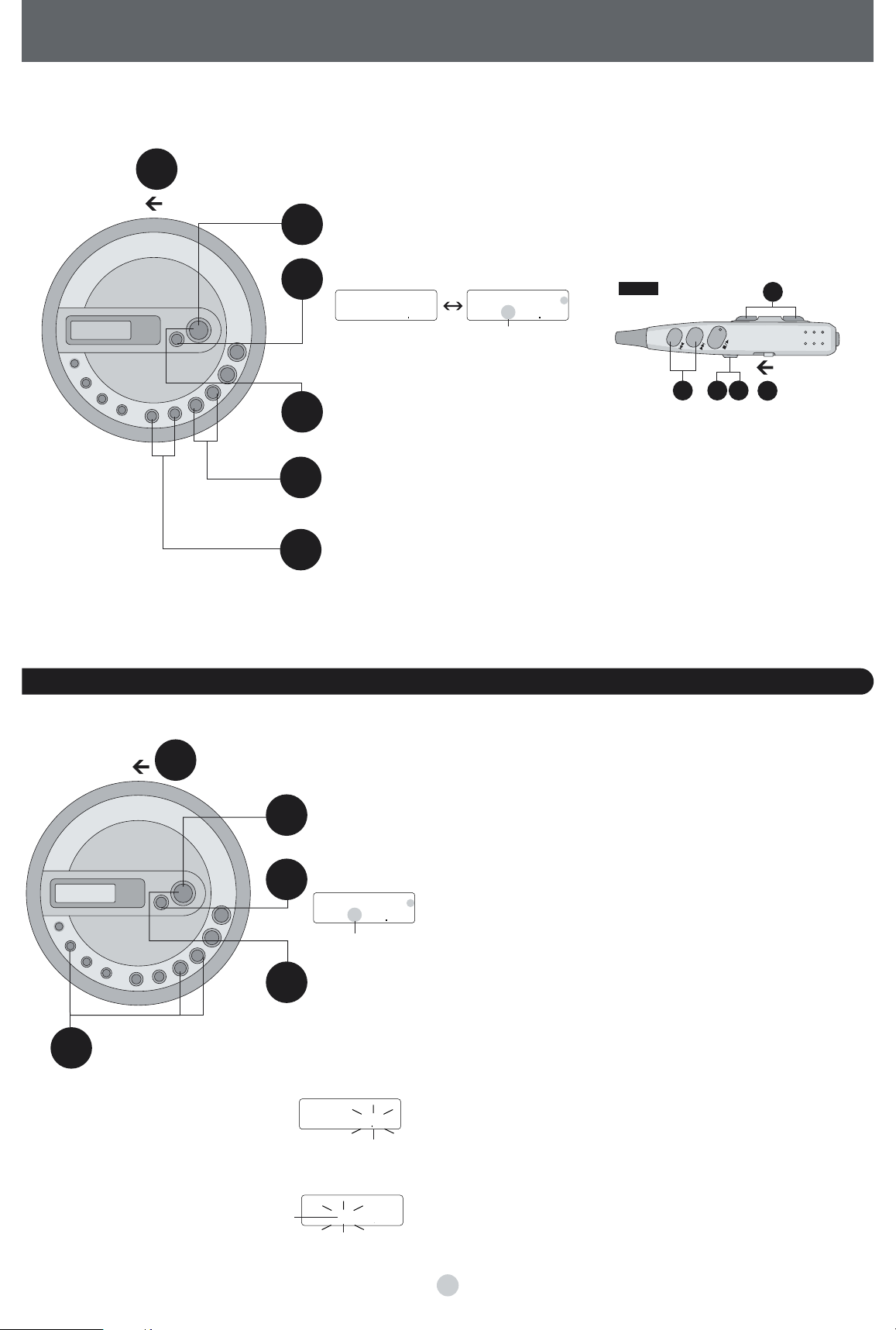

RADIO SECTION ∫Frequency

Radio frequency: Europe:

FM; 87.50–108.00 MHz (0.05 MHz steps)

AM; 522–1629 kHz

(9 kHz steps)

Other area:

FM; 87.50–108.00 MHz (0.05 MHz steps)

AM; 522–1629 kHz

(9 kHz steps) 520–1630 kHz

(10 kHz steps)

Caution

≥Do not expose the unit to direct sunlight or heat, such as from heating appliances, as these can damage the unit.

≥Discontinue use if you experience discomfort with the earphones or any other parts that directly contact your skin. Continued use may cause rashes or other allergic reactions.

∫Batteries

≥Do not peel off the covering on batteries and do not use if the covering has been peeled off.

≥Align the poles + and - correctly when inserting the batteries. ≥Do not mix different types of batteries or old and new batteries.

≥Remove the batteries if you do not intend to use the unit for a long time. ≥Do not throw into fire, short-circuit, disassemble, or subject to excessive

heat.

≥Do not attempt to recharge dry cell batteries.

≥When carrying batteries in a pocket or bag, ensure no metal objects such as necklaces are placed together with them. Contact with metal may cause short-circuiting which can cause a fire.

∫Listening

≥Do not play your headphones or earphones at a high volume. Hearing experts advise against continuous extended play.

≥If you experience a ringing in your ears, reduce volume or discontinue use.

≥Do not use while operating a motorized vehicle. It may create a traffic hazard and is illegal in many areas.

≥You should use extreme caution or temporarily discontinue use in potentially hazardous situations.

≥Even if your headphones or earphones are the open-air type designed to let you hear outside sounds, don’t turn up the volume so high that you can’t hear what’s around you.

∫CDs

≥Do not use irregularly shaped CDs. ≥Do not use non-specification discs.

≥Do not use CDs printed with label printers available on the market. ≥Do not use CDs with labels and stickers that are coming off or with

adhesive exuding from under labels and stickers.

GENERAL

Power supply:

DC input (via included AC adaptor): DC 4.5 V

AC adaptor input:
The United Kingdom:
AC 230 –240 V		50/60 Hz
Continental Europe:
AC 220 –230 V		50/60 Hz
Australia and N.Z.:
	AC 230 –240 V		50 Hz
China :	AC 220 V		50 Hz
Other areas: AC 110 –127 V/
220 –240 V		50/60 Hz
Power consumption:
Using AC adaptor(MP3/CD-DA/RADIO)
	3.2 W/3.2 W/ 2.5W
Recharging:			5 W

Play time:

[Approximate operating time in hours (playing MP3 at the recommended bitrate of 128 kbps, with HOLD on and S-XBS canceled, at 25 eC on a flat, stable surface)]

	Batteries	MP3	CD-DA	RADIO
	used	disc	disc	(FM BAND)
	2 optional	35	23	75
	alkaline batteries
	2 optional	14	10	30
	rechargeable
	batteries

≥The play time may be less depending on the operating conditions.

≥Play time will be considerably reduced when playing CD-RW.

Operational temperature range:

0 eC–40 eC Rechargeable temperature range:

5 eC–40 eC Dimensions (WaHaD):

135a25.8a135 mm Mass: 223 g (with batteries)

177 g (without batteries)

Note:

Specifications are subject to change without notice. Mass and dimensions are approximate.

Recharging time:

4 to 5 hours
