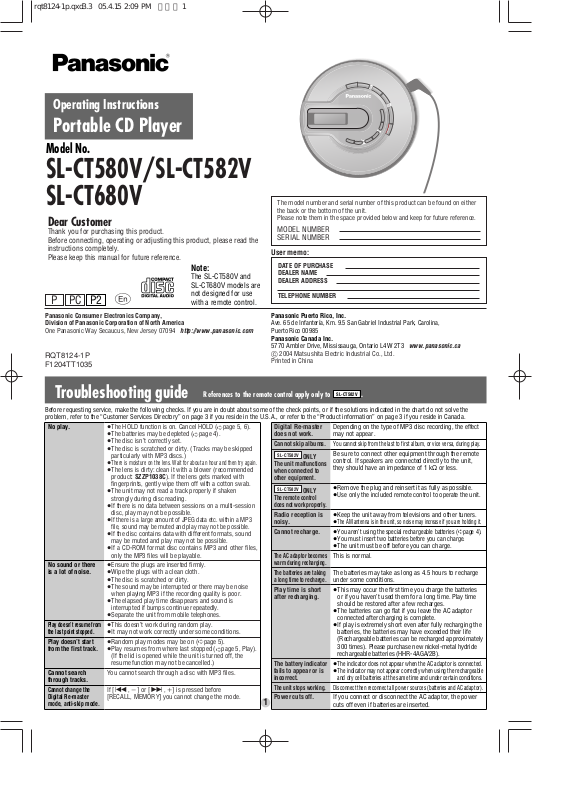

Panasonic SL-CT580V, SL-CT582V, SL-CT680V User Manual

Operating Instructions

Portable CD Player

Model No.

SL-CT580V/SL-CT582V

SL-CT680V

The model number and serial number of this product can be found on either

the back or the bottom of the unit.

Dear Customer

Please note them in the space provided below and keep for future reference.

MODEL NUMBER

Thank you for purchasing this product.

SERIAL NUMBER

Before connecting, operating or adjusting this product, please read the

instructions completely.

User memo:

Please keep this manual for future reference.

Note:

DATE OF PURCHASE

The SL-CT580V and

DEALER NAME

DEALER ADDRESS

SL-CT680V models are

not designed for use

TELEPHONE NUMBER

P

PC

P2

p

with a remote control.

Panasonic Consumer Electronics Company,

Panasonic Puerto Rico, Inc.

Division of Panasonic Corporation of North America

Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina,

One Panasonic Way Secaucus, New Jersey 07094 http://www.panasonic.com

Puerto Rico 00985

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3 www.panasonic.ca

RQT8124-1P

C 2004 Matsushita Electric Industrial Co., Ltd.

Printed in China

F1204TT1035

Troubleshooting guide

References to the remote control apply only to

.

SL-CT582V

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated in the chart do not solve the problem, refer to the “Customer Services Directory” on page 3 if you reside in the U.S.A., or refer to the “Product information” on page 3 if you reside in Canada.

No play.	≥The HOLD function is on. Cancel HOLD ( page 5, 6).		Digital Re-master			Depending on the type of MP3 disc recording, the effect
	≥The batteries may be depleted ( page 4).		does not work.			may not appear.
	≥The disc isn’t correctly set.		Cannot skip albums.			You cannot skip from the last to first album, or vice versa, during play.
	≥The disc is scratched or dirty. (Tracks may be skipped
	particularly with MP3 discs.)			SL-CT582V	ONLY	Be sure to connect other equipment through the remote
	≥There is moisture on the lens. Wait for about an hour and then try again.		The unit malfunctions			control. If speakers are connected directly to the unit,
	≥The lens is dirty: clean it with a blower (recommended		when connected to			they should have an impedance of 1 k≠ or less.
	product: SZZP1038C). If the lens gets marked with		other equipment.
	fingerprints, gently wipe them off with a cotton swab.				ONLY	≥Remove the plug and reinsert it as fully as possible.
				SL-CT582V
	≥The unit may not read a track properly if shaken
	strongly during disc reading.		The remote control			≥Use only the included remote control to operate the unit.
	≥If there is no data between sessions on a multi-session		does not work properly.
	disc, play may not be possible.		Radio reception is			≥Keep the unit away from televisions and other tuners.
	≥If there is a large amount of JPEG data etc. within a MP3		noisy.			≥The AM antenna is in the unit, so noise may increase if you are holding it.
	file, sound may be muted and play may not be possible.		Cannot recharge.			≥You aren’t using the special rechargeable batteries ( page 4).
	≥If the disc contains data with different formats, sound
						≥You must insert two batteries before you can charge.
	may be muted and play may not be possible.
						≥The unit must be off before you can charge.
	≥If a CD-ROM format disc contains MP3 and other files,
	only the MP3 files will be playable.		The AC adaptor becomes			This is normal.
No sound or there	≥Ensure the plugs are inserted firmly.		warm during recharging.
is a lot of noise.	≥Wipe the plugs with a clean cloth.		The batteries are taking			The batteries may take as long as 4.5 hours to recharge
	≥The disc is scratched or dirty.		a long time to recharge.			under some conditions.
	≥The sound may be interrupted or there may be noise		Play time is short			≥This may occur the first time you charge the batteries
	when playing MP3 if the recording quality is poor.
			after recharging.			or if you haven’t used them for a long time. Play time
	≥The elapsed play time disappears and sound is
						should be restored after a few recharges.
	interrupted if bumps continue repeatedly.
						≥The batteries can go flat if you leave the AC adaptor
	≥Separate the unit from mobile telephones.
						connected after charging is complete.
Play doesn’t resume from	≥This doesn’t work during random play.					≥If play is extremely short even after fully recharging the
the last point stopped.	≥It may not work correctly under some conditions.					batteries, the batteries may have exceeded their life
Play doesn’t start	≥Random play modes may be on ( page 5).					(Rechargeable batteries can be recharged approximately
						300 times). Please purchase new nickel-metal hydride
from the first track.	≥Play resumes from where last stopped ( page 5, Play).
						rechargeable batteries (HHR-4AGA/2B).
	(If the lid is opened while the unit is turned off, the
	resume function may not be cancelled.)		The battery indicator			≥The indicator does not appear when the AC adaptor is connected.
Cannot search	You cannot search through a disc with MP3 files.		fails to appear or is			≥The indicator may not appear correctly when using the rechargeable
			incorrect.			and dry cell batteries at the same time and under certain conditions.
through tracks.
Cannot change the	If [:, j] or [9, i] is pressed before		The unit stops working.			Disconnect then reconnect all power sources (batteries and AC adaptor).
Digital Re-master	[RECALL, MEMORY] you cannot change the mode.	1	Power cuts off.			If you connect or disconnect the AC adaptor, the power
mode, anti-skip mode.						cuts off even if batteries are inserted.

Display

(The HOLD function is on. Cancel HOLD ( page 5, 6).

)≥You haven’t inserted a disc or it isn’t inserted correctly. ≥You have inserted a disc this unit cannot play.

*The disc lid is open.

'	The program already contains 20 tracks.
	Reading MP3 files.

Supplied Accessories

Check the packing carton for these accessories.

SL-CT580V

For U.S.A.:

≥1 Pair of stereo headphones:

L0BAD0000172

≥1 External battery case:

RFA2666-H

For Canada.:

≥1 Pair of stereo earphones:

L0BAB0000182

≥1 External battery case:

RFA2666-H

SL-CT582V

≥1 Wired remote control:

N2QCBD000011

≥1 Pair of stereo headphones:

L0BAD0000173

≥1 External battery case:

RFA2666-H

SL-CT680V

≥1 Pair of stereo headphones:

L0BAD0000176

≥1 External battery case:

RFA2666-H

Use numbers indicated when ordering replacements or optional accessories from your Panasonic dealer.

(Product numbers correct as of December 2004. These may be subject to change.)

To order accessories in the U.S.A., refer to “Accessory Purchases” on page 3.

Specifications

CD Section

∫Audio (CD-DA)

Sampling frequency:	44.1 kHz
No. of channels: 2 (left and right, stereo)
Frequency response:
20 Hz to 20,000 Hz (i0.5 dB to j7 dB)
Headphone output level:
RMS max. 8 mWi8 mW/
	16 ≠ (adjustable)

∫Pickup

Light source:	Semiconductor laser
Wavelength:	780 nm

∫MP3

Supported bit rates: (Supports variable bit rates)

32 kbps to 320 kbps

(128 kbps is recommended) Supported sampling frequency:

48 kHz/44.1 kHz/32 kHz Maximum number of items

(total no. of albums and tracks): 999

Maximum album levels:

100

Radio section

∫Frequency

Radio frequency:

FM; 87.90–107.90 MHz (0.2 MHz steps) 87.50–108.00 MHz (0.1 MHz/0.05 MHz steps) AM; 520–1710 kHz (10 kHz steps)

522–1629 kHz (9 kHz steps)

General

Power supply: DC input

(via AC adaptor, not included):

DC 4.5 V Operational temperature range:

0 eC–40 eC (32 eF–104 eF) Rechargeable temperature range:

5 eC–40 eC (41 eF–104 eF)

Play time:

Using on a flat stable surface at 25 eC (77 eF), EQ is off, Hold is on, Anti-skip is on POS 1 (CD-DA), recommended bit rate (MP3:128 kbps), and the Digital Re-master is off (MP3). Play times are in hours and approximate.

	Batteries	MP3	CD-DA	Radio
	used	disc	disc	(FM band)
	2 alkaline batteries	41	23	31
	(LR03)
	2 alkaline batteries	100	52	75
	(LR6)
	4 alkaline batteries	141	75	106
	(2 LR03r2 LR6)
	2 optional
	rechargeable
	batteries	28	15	21
	(HHR-4AGA/2B)
	2 optional
	rechargeable
	(HHR-4AGA/2B)	128	67	96
	and 2 alkaline
	(LR6) batteries

Recharging time: About 3.5 to 4.5 hours ≥The play time may be less depending

on the operating conditions. ≥Play time will be considerably

reduced when playing CD-RW. Dimensions (WaHaD):

136.7 mma20.5 mma136.7 mm

(57/16za13/16za57/16z)

Mass: 194.5 g (6.86 oz.) (with batteries) 172.5 g (6.09 oz.) (without batteries)

Note:

Specifications are subject to change without notice.

Mass and dimensions are approximate.

Caution

IMPORTANT SAFETY INSTRUCTIONS

Discontinue use if you experience discomfort with the earphones or any other parts that directly contact your skin. Continued use may cause rashes or other allergic reactions.

∫Batteries

≥Do not peel off the covering on the batteries and do not use if the covering has been peeled off.

≥Align the poles i and j correctly when inserting the batteries. ≥Do not mix different types of batteries or old and new batteries.

≥Remove the batteries if you do not intend to use the unit for a long time.

≥Do not throw into a fire, short-circuit, disassemble, or subject to excessive heat. ≥Do not attempt to recharge dry cell batteries.

≥When carrying batteries in a pocket or bag, ensure no metal objects such as necklaces are placed together with them. Contact with metal may cause short-circuiting which can cause a fire.

≥Keep out of the reach of small children. Accidental swallowing of batteries can result in stomach and intestinal damage.

∫CDs

≥Do not use irregularly shaped CDs. ≥Do not use non-specification discs.

≥Do not use CDs printed with label printers available on the market.

≥Do not use CDs with labels and stickers that are coming off or with adhesive exuding from under labels and stickers.

∫Listening

EST. 1924

Do not play your headphones or earphones at a high volume. Hearing experts advise against continuous extended play.

If you experience a ringing in your ears, reduce volume or discontinue use.
Do not use while operating a motorized vehicle. It may create a traffic hazard and is illegal in many areas.
You should use extreme caution or temporarily discontinue use in potentially hazardous situations.
Even if your headphones or earphones are the open-air type designed to let you hear outside
sounds, don’t turn up the volume so high that you can’t hear what’s around you.
Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of
sound. So what sounds “normal” can actually be loud and harmful to your hearing.
Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.
To establish a safe level:
≥Start your volume control at a low setting.
≥Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.
Once you have established a comfortable sound level:	2
≥Leave it there.

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference.

1)Read these instructions.

2)Keep these instructions.

3)Heed all warnings.

4)Follow all instructions.

5)Do not use this apparatus near water.

6)Clean only with dry cloth.

7)Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8)Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9)Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A groundingtype plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10)Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11)Only use attachments/accessories specified by the manufacturer.

12)Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury

from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14)Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
